So i have being thinking about a functional blade Design.. So far I have come up with this...
any suggestions you have on how i could improve this...


Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

panik33

New Member
So does that mean when u pull your Ginger down it would lift the catch on the blades and spring them out

If so good idear mate I'd love to see it workin

Good luck


Obsidian1

New Member
So does that mean when u pull your Ginger down it would lift the catch on the blades and spring them out

If so good idear mate I'd love to see it workin

Good luck

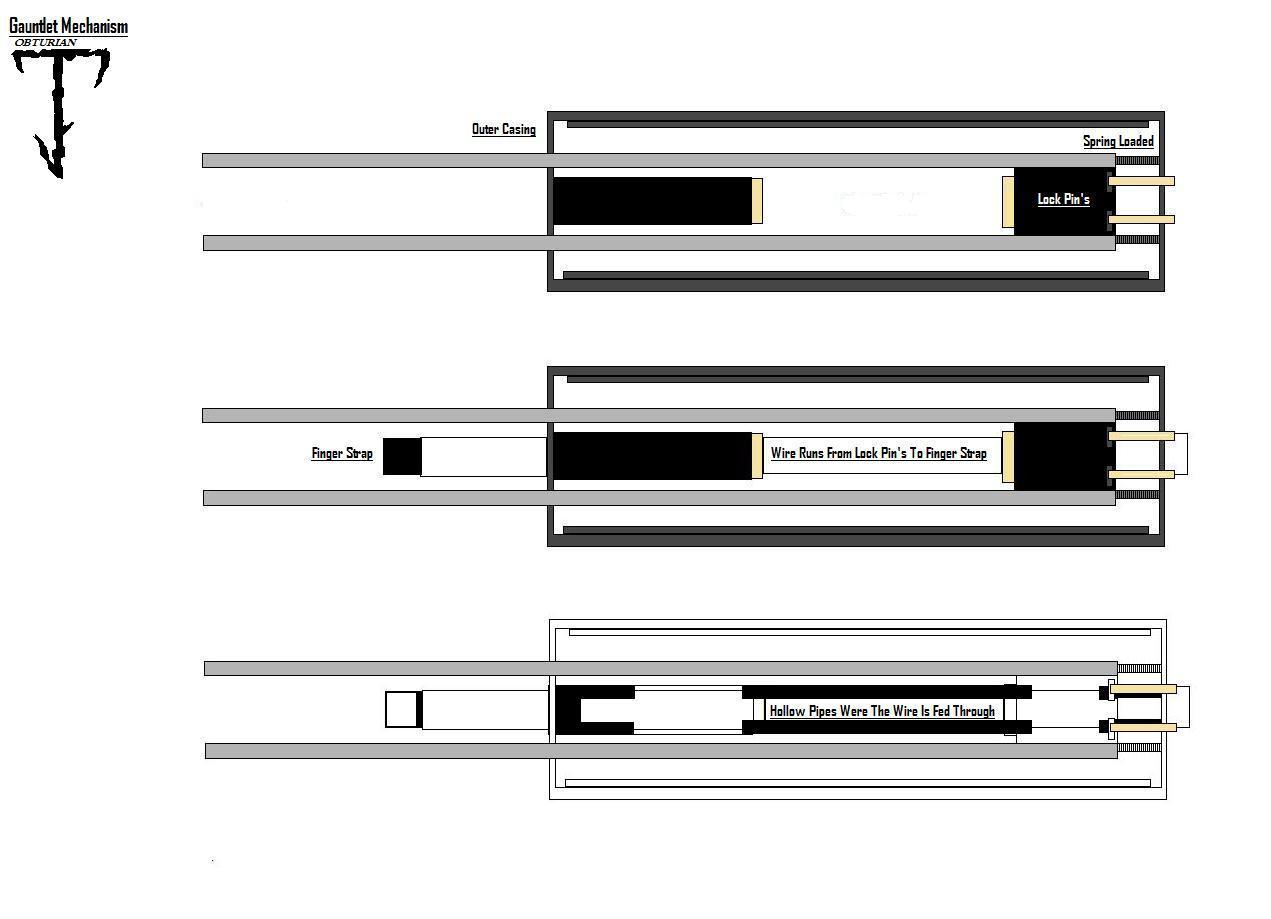

cheer's.. Yes the two lock pins on the far right will be fixed to some wire, the wire will run through some pipe's under the gauntlet, reason bien, the wire's would most probably get caught up if there is no casing to keep them in place. So hopefully when I pull down with my finger the lock pin's will lift, unlocking the blade's and extending them, I am currently working on a 3d diogram to give a better idea of how this will work..


lavr17

New Member
cheer's.. Yes the two lock pins on the far right will be fixed to some wire, the wire will run through some pipe's under the gauntlet, reason bien, the wire's would most probably get caught up if there is no casing to keep them in place. So hopefully when I pull down with my finger the lock pin's will lift, unlocking the blade's and extending them, I am currently working on a 3d diogram to give a better idea of how this will work..
Greetings the friend!!! It would be desirable to see a kind with a side in a cut. And it is final in 3 d a kind in general remarkably. Good luck to you


Obsidian1

New Member

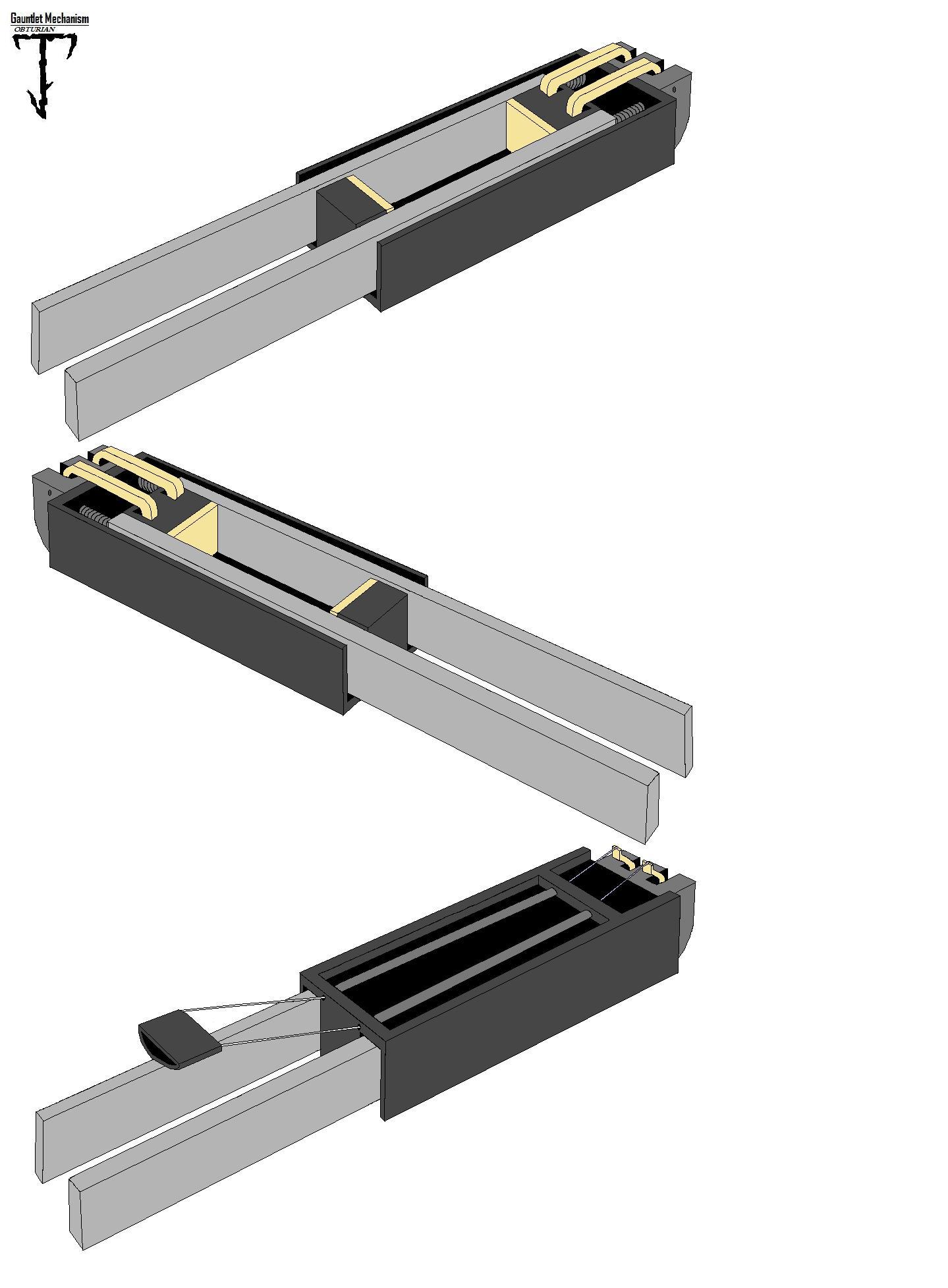

I have bien working on the 3d desing an i have come up with this.....



the only thing that is bugging me is a retracting mechanism, i cant think of anything, any ideas...

Last edited by a moderator:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

lavr17

New Member
[Цитата имя = 'Дата Obsidian =' 14 Апрель 2010, после 05:50 PM '= '199874']
Я Ыеп работает над 3D дизайн я пришел с этой .....

[Вложение = 14940: Перчатка ... sing_No2.jpg]

Единственное, что давало мне покоя является механизм втягивания, я не могу думать ни о чем, какие-либо идеи ...
[/] Цитатой
Посмотреть на Яндекс.Фотках

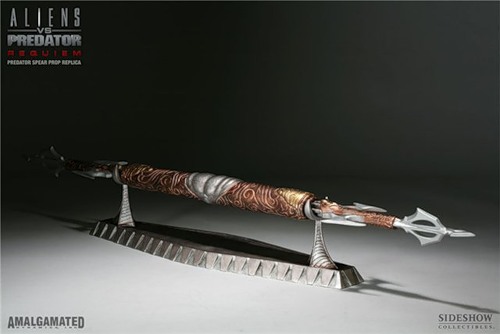

Greetings my friend!!! Concerning a spear there are what thoughts of an idea of thought that was moved apart.


Obsidian1

New Member
[Цитата имя = 'Дата Obsidian =' 14 Апрель 2010, после 05:50 PM '= '199874']
Я Ыеп работает над 3D дизайн я пришел с этой .....

[Вложение = 14940: Перчатка ... sing_No2.jpg]

Единственное, что давало мне покоя является механизм втягивания, я не могу думать ни о чем, какие-либо идеи ...
[/] Цитатой
Посмотреть на Яндекс.Фотках
Greetings my friend!!! Concerning a spear there are what thoughts of an idea of thought that was moved apart.
Hi there lavrov17 do you meen you want an idea of how to make a spear mechanism like my gauntlet one..
