Futuristic 70s Model Caravan

Rushmoore

New Member

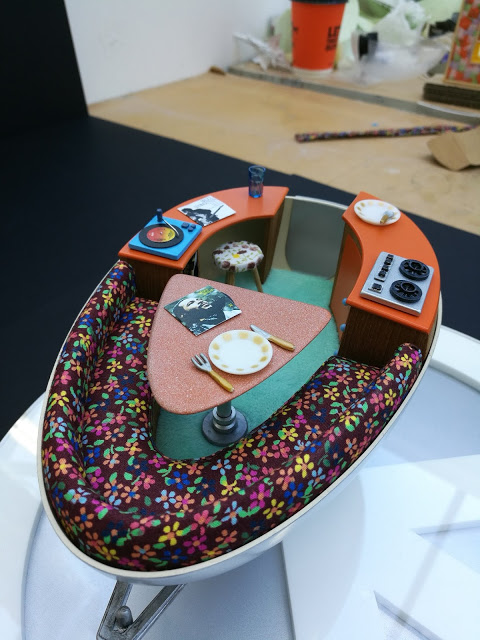

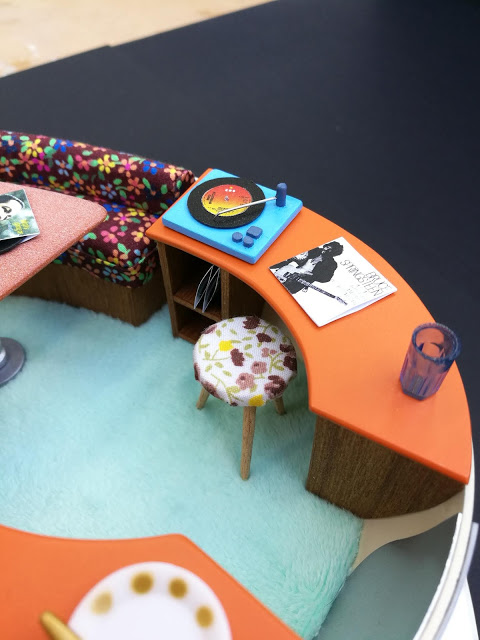

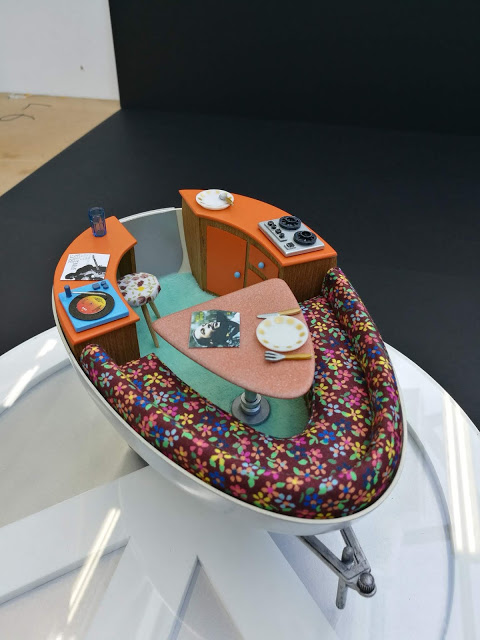

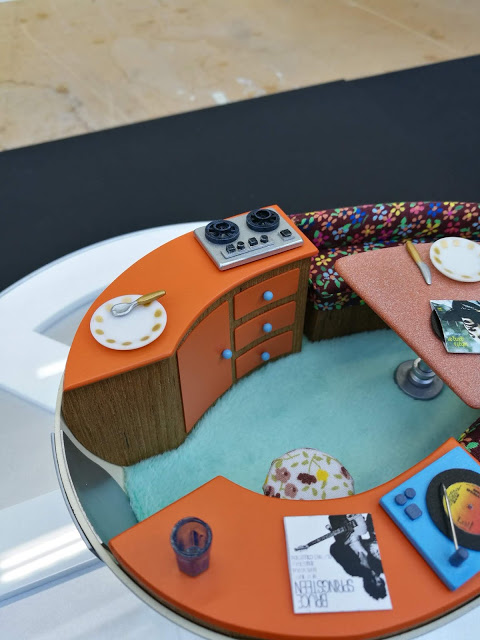

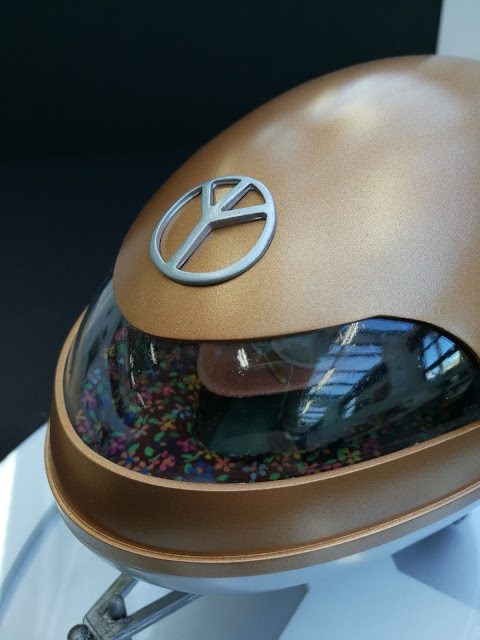

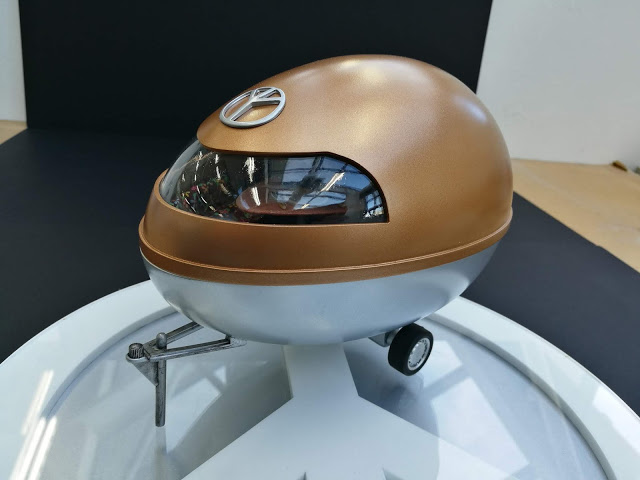

Here are some pictures of the final model:​















So now that you have seen the model, lets get into how I went about making it!


Time to dive into the land of Psychedelia, flower power, earthen colors and pot plants!


pnF0RxVvbgKQA4NqDnKISzjZ4AE3kPxP9H_dCH-tuXJURQlV_gVQlEx-mX0Dfp8iklOU0hc46OtdagO314_XKgEKj15Y7wK4.png



After completing my in-depth research of the era in my design book I drew out my final design for the caravan from different angles. I knew that one of trickiest things about this build would be trying to fit the caravan’s various interior parts into the egg shape. I knew that If I jumped into making the model straight away I would run the risk of wasting a lot of expensive materials and the end result may be compromised. To solve this, I decided I would make a sketch model.

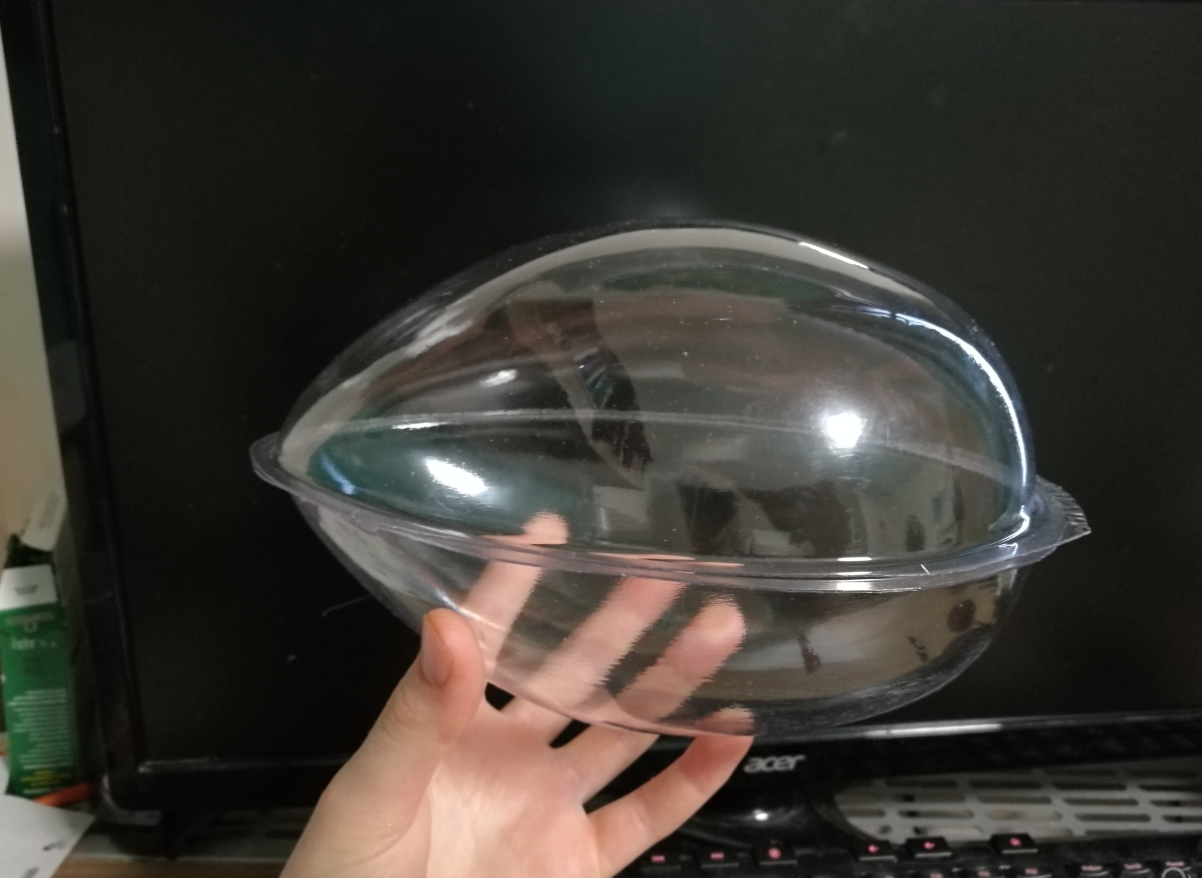

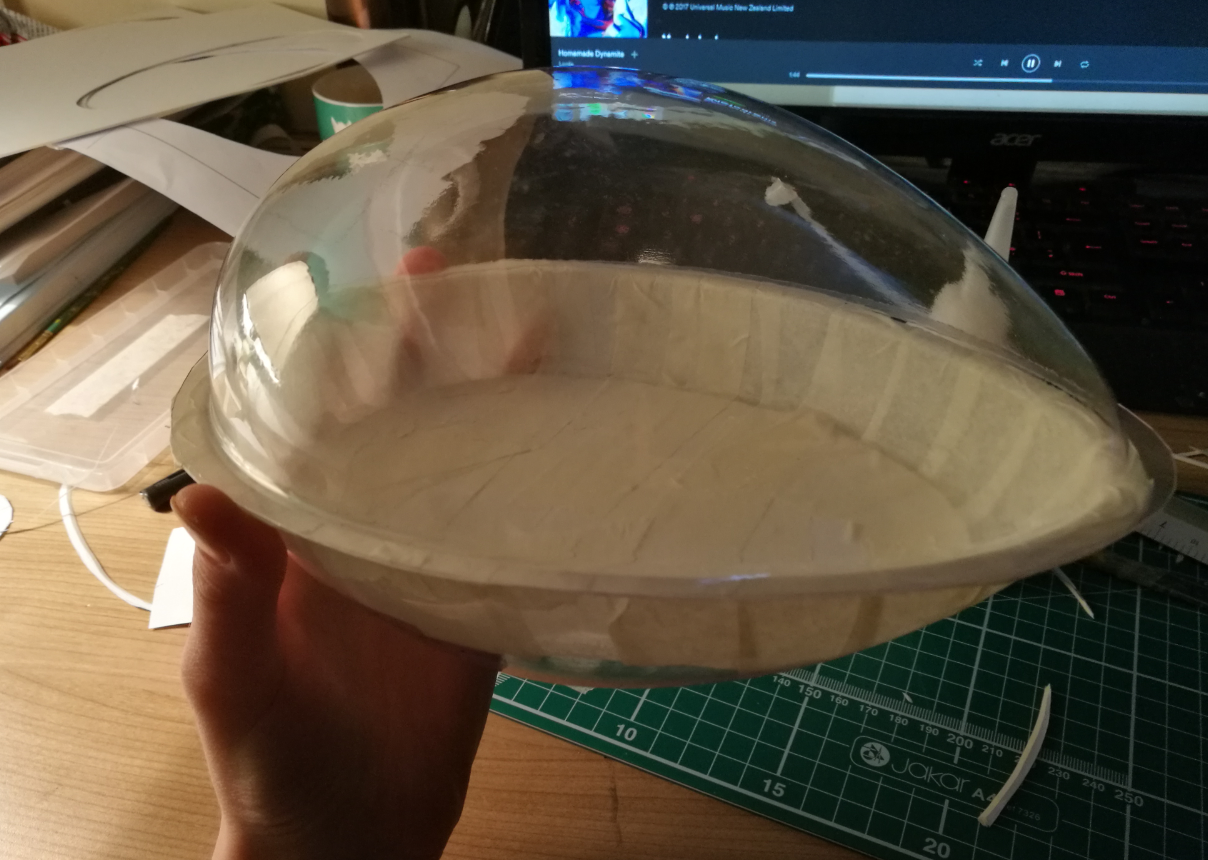

I bought an Easter egg mould which was as close to the measurements of my actual egg as I could find. I then used mountboard to construct all the elements that I wanted to feature in the actual model. I found during this process that the hardest part was matching the sofa/desk/kitchen cabinet edges with the curves of the egg. I later found a solution for this which I will show in later stages of the build. Unfortunately I only have one picture of this sketch model as the phone I took the pictures on broke.


6WwnVXoGXjGzUZe1GD9ot9HW3g1zlPhTS9qAUmgFfTt5eqYuJYpCjjxq0m13NXLH9pNkDzKTxFqhwrieIlXlMGNwLoqzvu5g.png
tZLeXrGf6rlqAACWIyOlokVUwfN_F9y1ozwKWIrRyNhFGR5TkVoVMP8mCWVS-wOha3MMpiutFtsvmCD_L-wxHd-4hhu92dh8.png

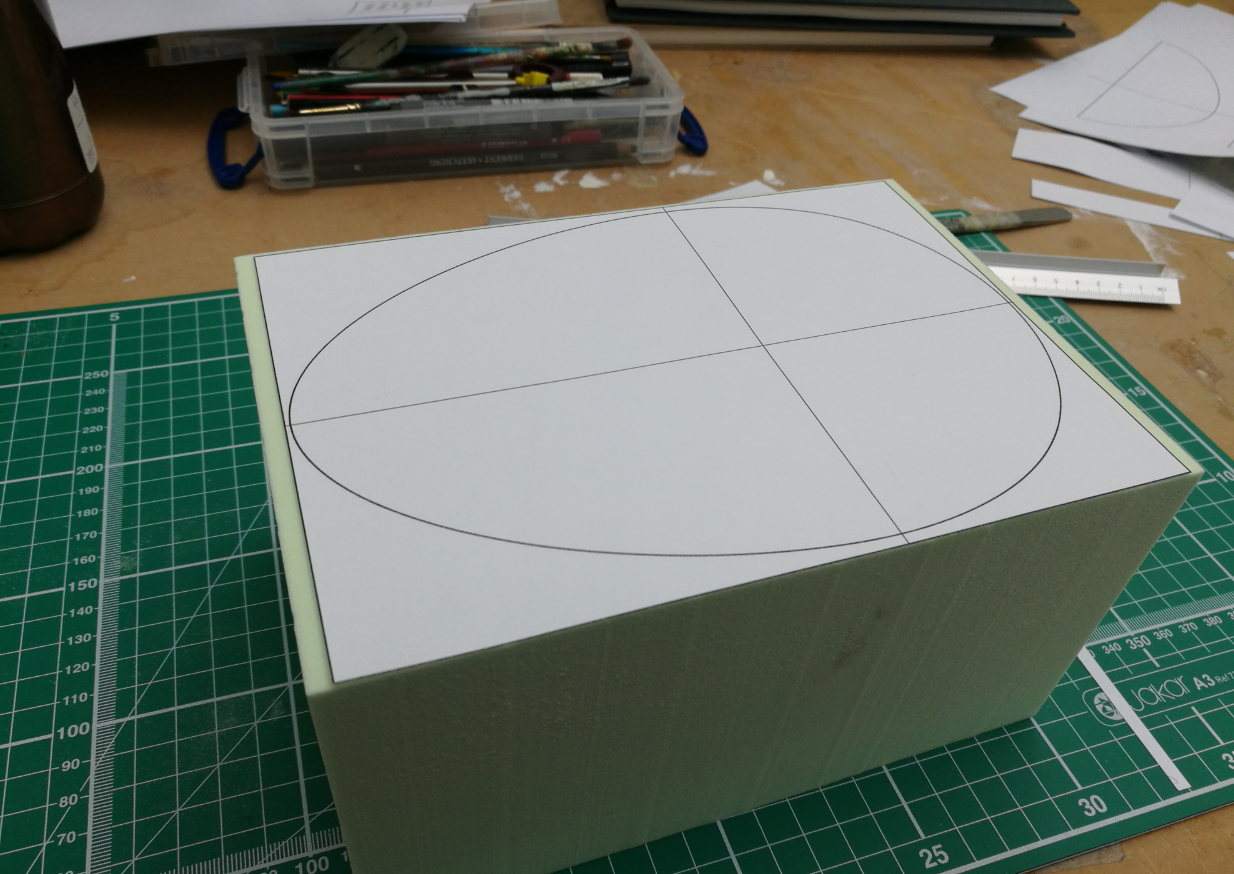

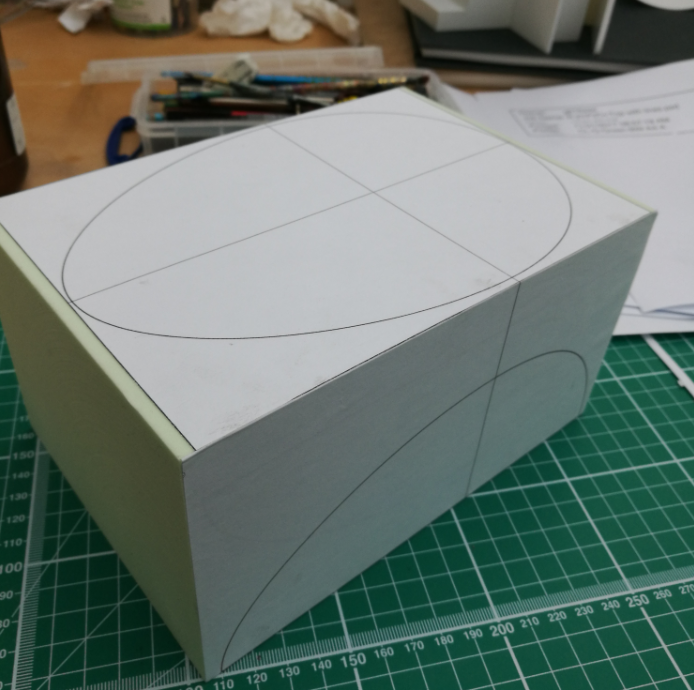

After the sketch model was completed I began making the egg buck for the vacuum forming machine. I drafted my egg shape in photoshop then stuck it onto a block of chemiwood. By sticking the front and side views of the egg onto the block I was able to cut both profiles very easily on the bandsaw.


dWCxVeVRCGcoqfyDW8YqJnPfCEJAGrYw_LYaqz443ZycCONbfHXZdRggnV7TQX74XIpQA-SO09XNrhUVgYf0SK1pUWl_Bqhw.png
qOrFKV1G8mqW5-Jv7S9bNpUX6T64gaBCK7AAyKkEbvncr-WsmUSoU7A1C7So7Cy7r9o0eKS7KeqhR-6fWRmuaAjn69WV7AEw.png

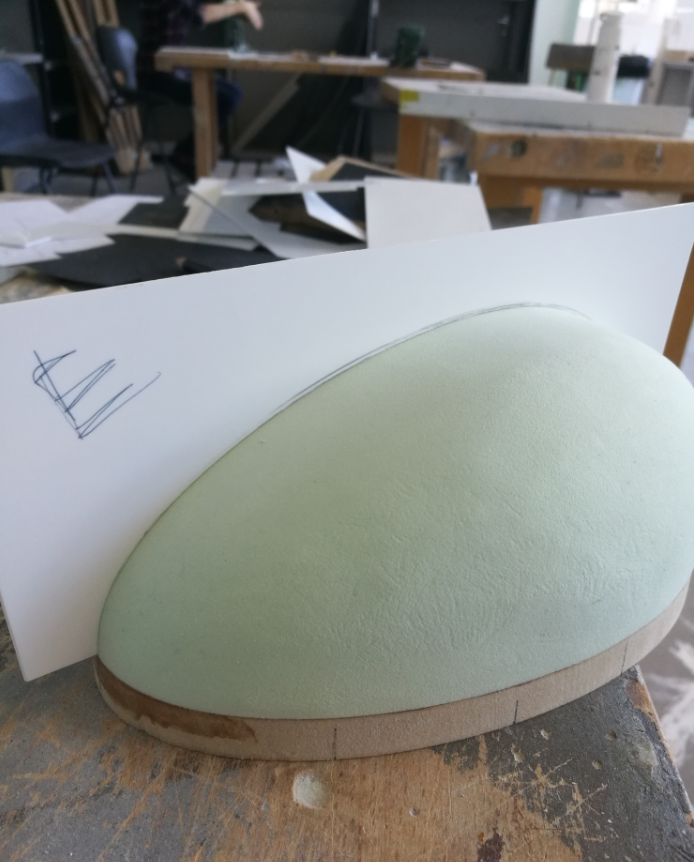

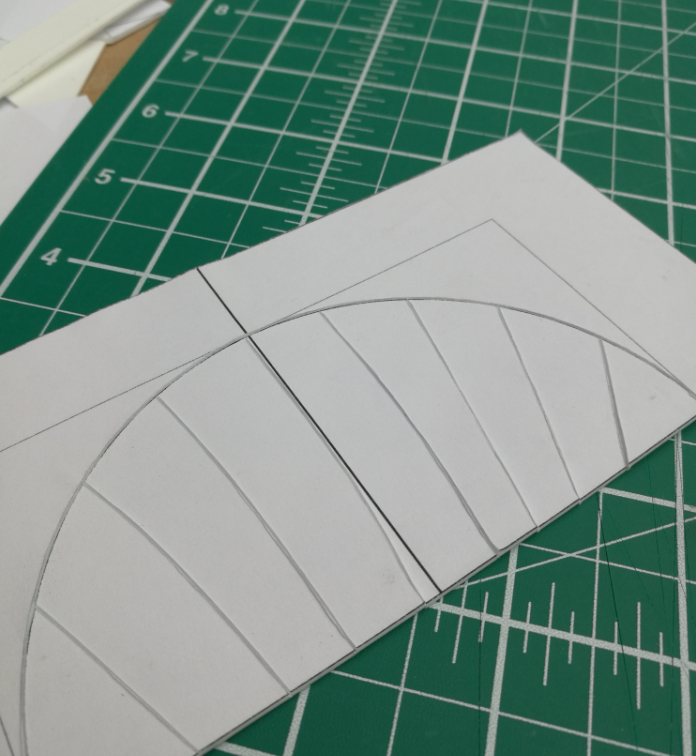

Once the general egg shape was cut it was time to refine the shape using files and sandpaper. I also drafted various egg templates in photoshop which helped me to shape the egg to the exact size I needed.


xzvWFM2UccxXuJJjES9BfykjLJ8dmPqbcnGM080QB7jF4MBIvbSOs1SyTu62I2PgZ5aSaYsnJaQdqcqxQELTA27XqwYm8HFo.png
0MdX0cGaCX2n1h3QYoJ5Jn7dUKagxcsA1jH-ovk5_rNfJ3umdSsXdIzH0-lvhwSYIRJAAUje17pRYvrqLS2vgtooO264tX5A.png

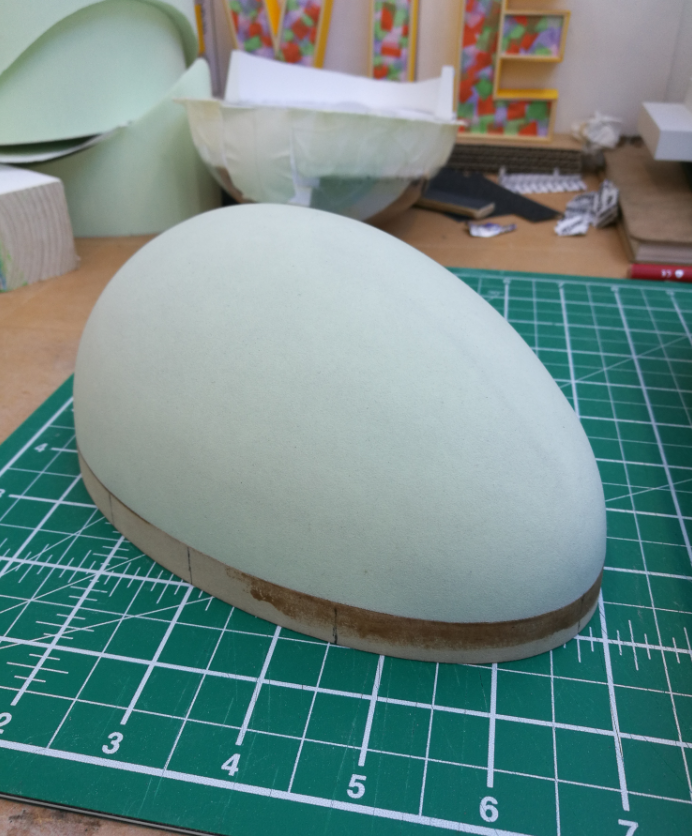

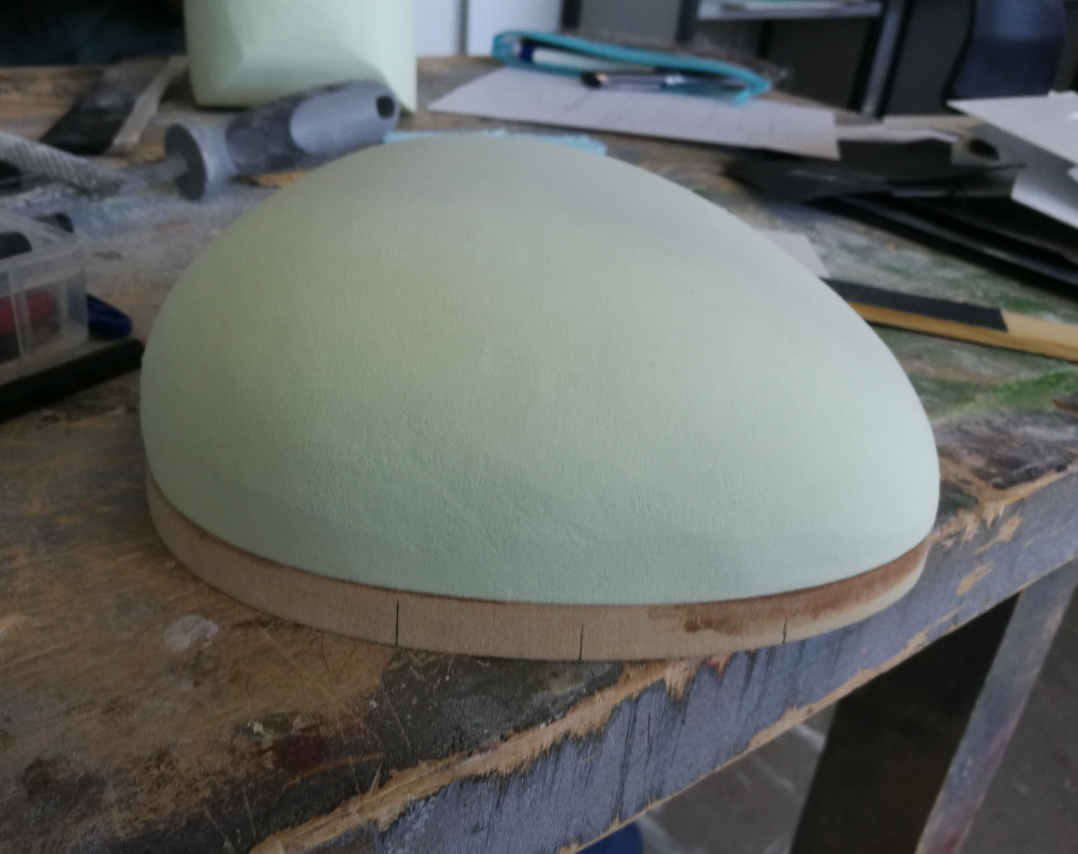

I cut out and glued an mdf base onto the chemiwood egg shape. The mdf served as a guide while sanding and also gave me a solid base from which I could vacuform the egg properly. The mdf also had a slightly angled edge which makes extracting the chemiwood buck from the vacuformed styrene much easier. The next stage was..... sanding, sanding and more..... Sanding!


9oprGM3KZ_c8wWDhbOi0Bjyc7iG6B1SMlzt8DeAlLXcYP52qiVQTygEKoGVXjfsqUvWUMOpZ0BuQDy_FtlBHClVi9rsxmA5Y.png
dHr71GezkkSvNgcF51ImccVvoNUDrSHFjuKaAmfxnkFsC3D44hNUADlI9QxqIyHtQz4DIXmm6tEzeoGm0A0nbpKb7cuDOO4s.png
7voL5odPxXv7Z5IrkzdTNbYrrj2fuN1FlmqeRvNQDUSPO90sqeQzH91eqY1sLnN1RIFOrgHsHmKQYNp37P-Yltz3MNygCUqc.png

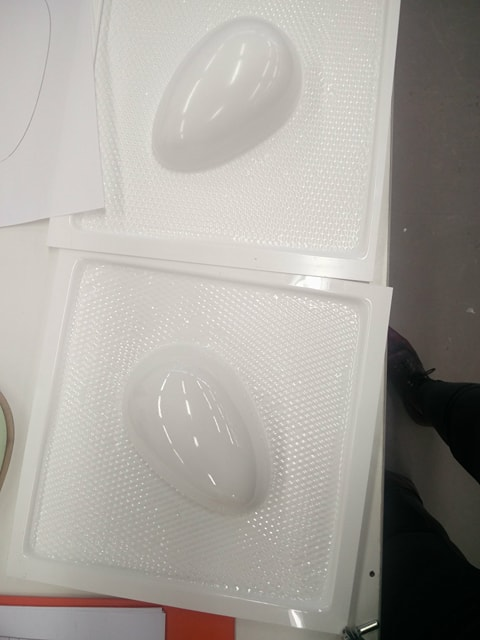

I then vacumformed the egg shape from 2mm styrene. After the induction on the machine I had a bit of trouble getting the styrene to form over my buck. I found that air was escaping from a small gap in the mesh o f the machine which was stopping the suction from working properly. After this had been fixed I was able to get two perfect styrene egg halves.

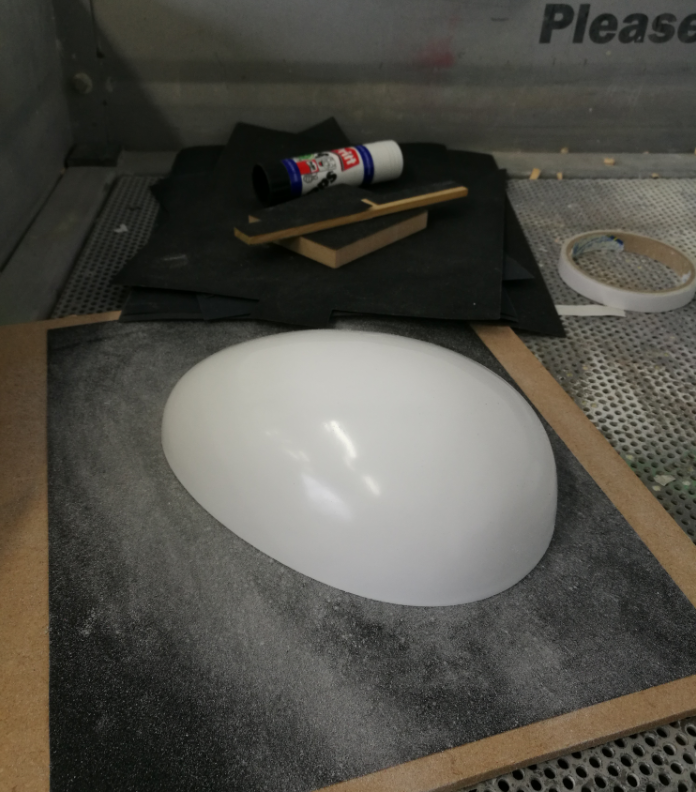

After vacuum forming I cut the excess styrene off the egg shape. The join between the mdf and chemiwood had left a slight impression all the way around the styrene egg. This line was very useful as it indicated where I would need to sand to.

6ypWnEupiIwxBExtt6PwXhnBYA6_XIUKC9X4hAmfFC7zbpiu9sDrTICfKckeYK-S4espj8njoGgu5ecCsQQlMYwMpYVDf5SE.png
-ghEvGCQeQDXJgFdJ8TmqrDSfubHMRuCrrOsanP6_X3kSBpbvsFtJm5HRLh_HE13y0FkagrUJnAnPC6hsomAc7ej1i8ky-gM.png

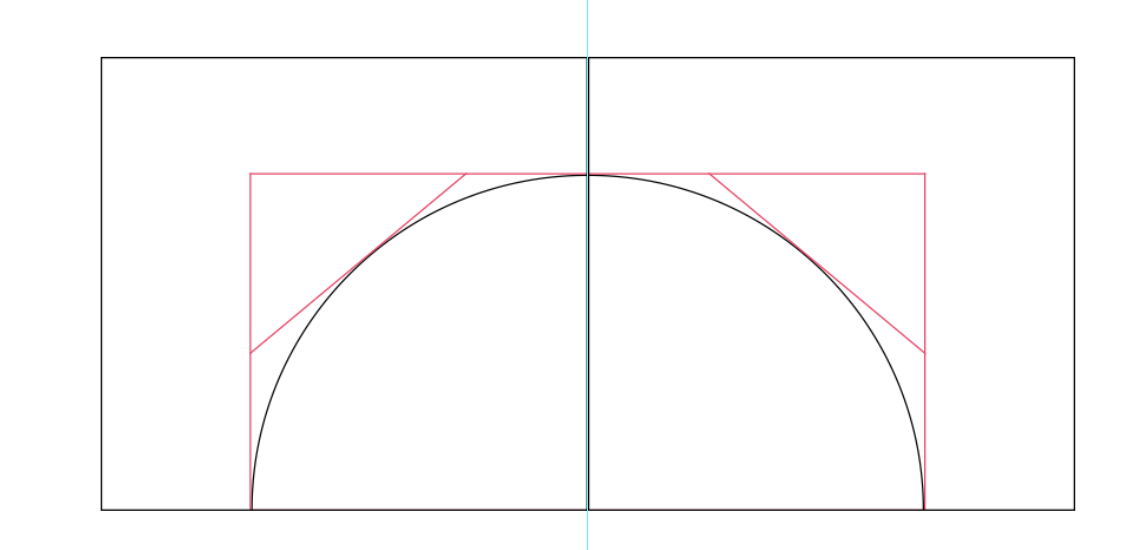

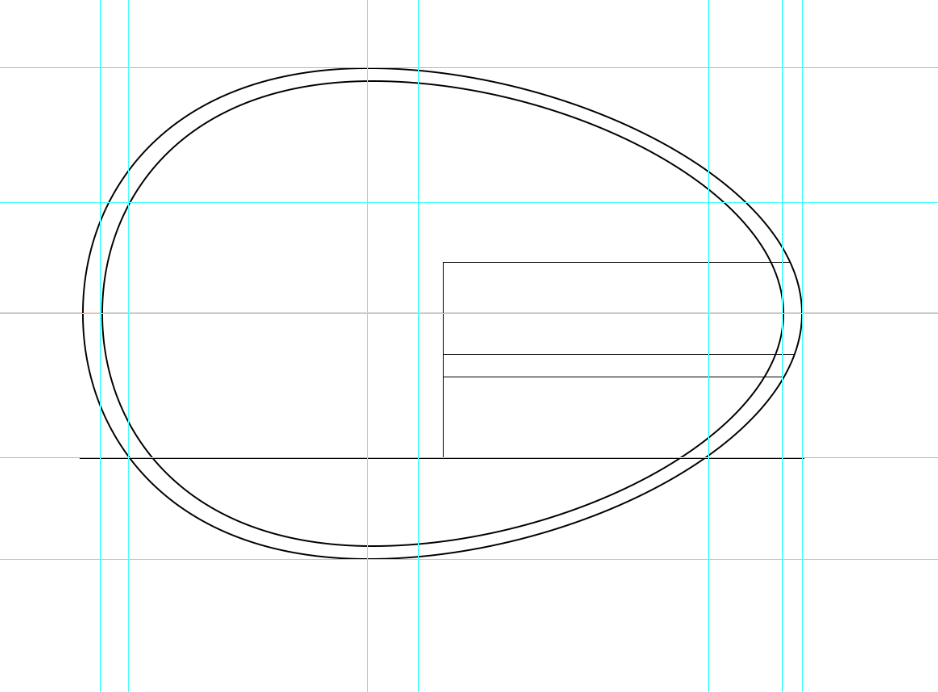

After I sanded the two egg halves so they fit together I then began to make the floor of my caravan. I began by figuring out where I would want the floor to go. The caravan is in 1:18 scale so I wanted to make sure all the dimensions (head height ect.) would work with the scale. I also mapped out the interior parts in side view to check how they would all fit.



l0akJGOXWRLdf9YG7y8RCfZC2RoDvwMQUpFDbTDnTeB53mSB-yTHu8VmLcoLvq5qct3M9zb7utBFXGa1A7a-j-hjxgC_zbkA.png

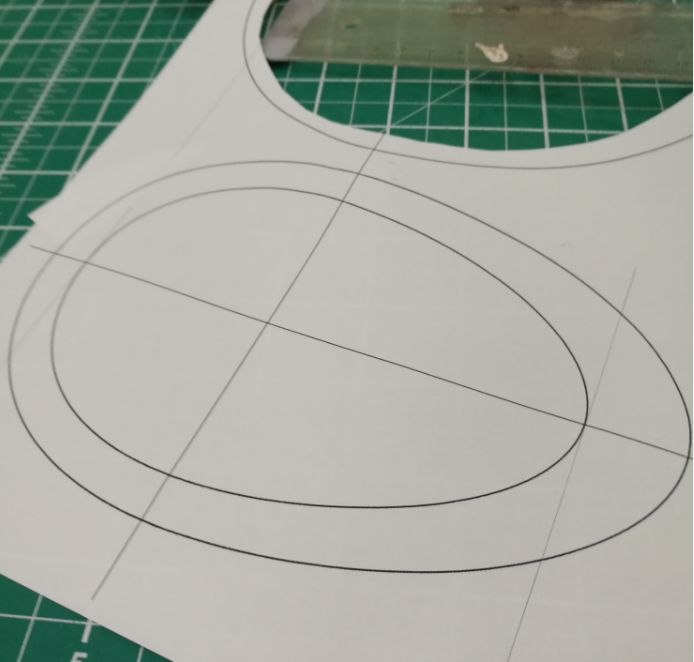

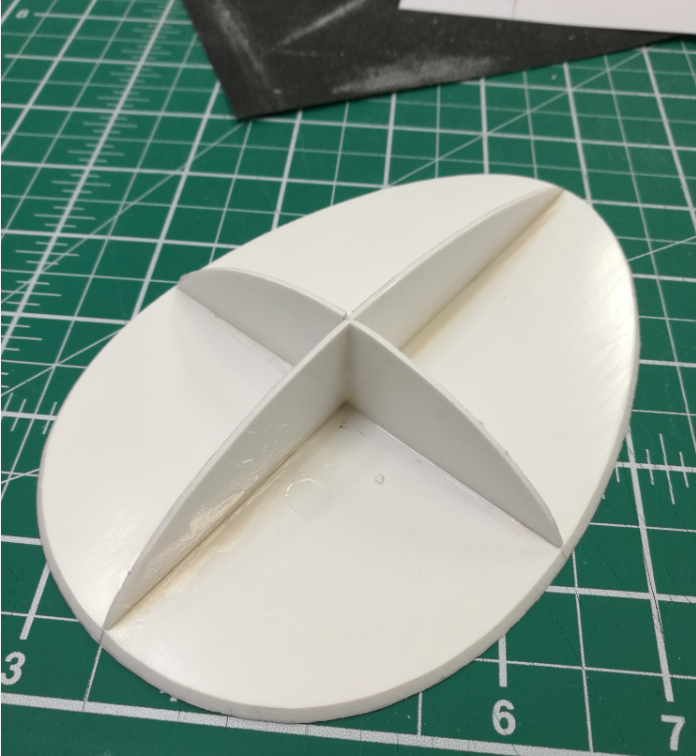

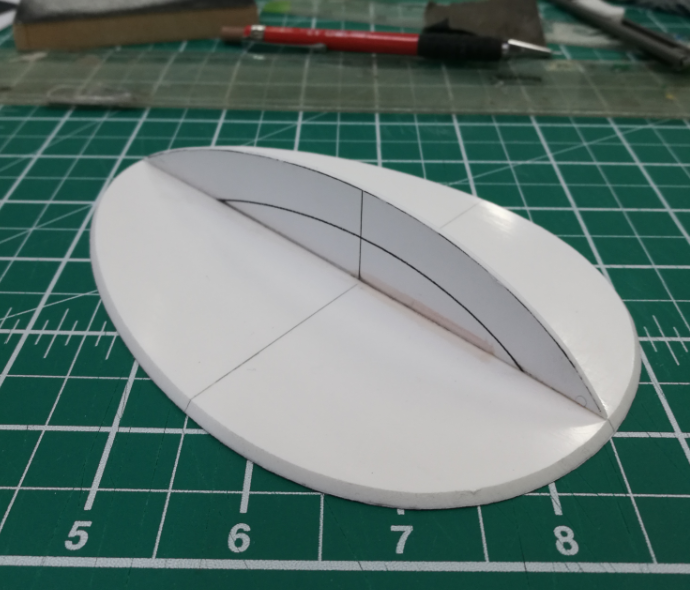

I printed out my floor template and stuck it to some 2mm styrene. I also made two “fins” that I stuck to the underside of the floor which would make it much studier and give me more gluing surface.


04W9-I6hSLMTAFzf0L5ngVc9d79vDbqBdA_DuCBnV4ZGNViBYO_54v5b1jjYTnRvfp7vt9UMm9_KxKX76NK5nSCeFJj7xGqY.png
7nk89wfeHIUkdnJpQaahycGUZFtXkRieeYiRGwvPTx_NFNtq43siDV0YOPa_e9afJkvabaBc6y8bp7mHN1avKoC4bYvOi5g8.png
T6mvStewTOjAXp8TtZ0m8QvconLjGKbL41w_hOyCWQcEnafMd2opyQUmYxCDOK4fFEwi5vRpet4NTt13xMcfXelY-fjU8CrA.png

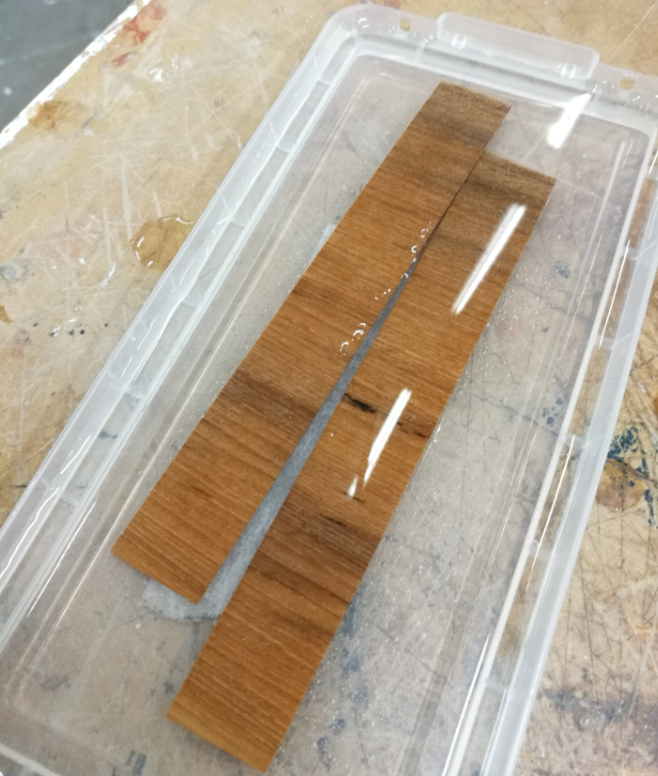

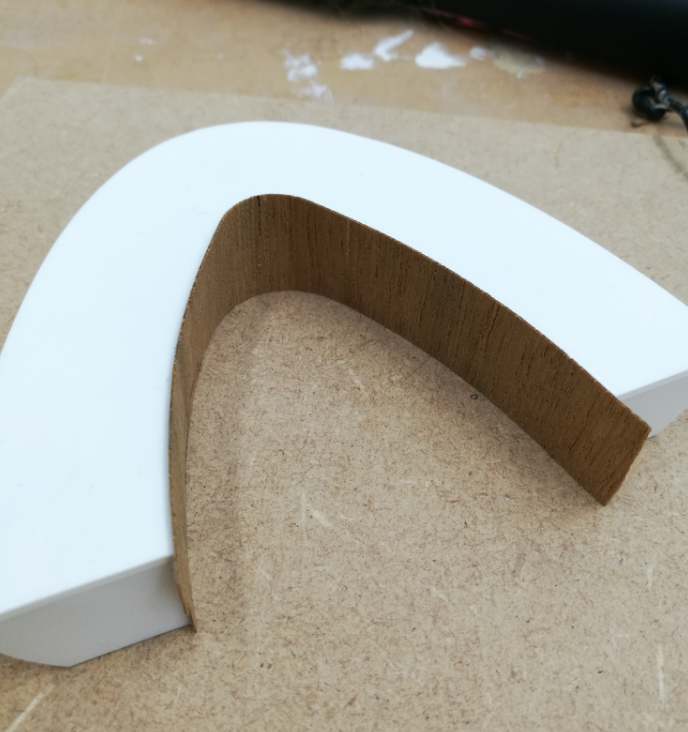

After the floor was glued in I began to make the sofa. I made the skeleton from styrene and used some templates to make the ends of the sofa match the contours of the egg shape. I knew that the top part would be covered with the cushion so I didn’t need to make that fit perfectly. After I’d made the styrene skeleton I covered the whole structure with 0.06mm teak veneer. For the curved section of the sofa I first soaked the veneer in water to make it more pliable. I then formed it around the shape, kept it in place with masking tape and left overnight. In the morning the veneer had dried out and retained the curved shape.



os4y_G9Uirv2YCvfpgd11zvu7S2tcQUFkNoWoyyoMeBWD-VpZpjP8mPRTuUd847-6q3vBqriI6egiaFW2z4LWZBo3UiWdZN4.png
03eJ_Jwb8MRP2UeXzXe8dmFQnDIyfq7soKvQ2pGhdSE0GKskP0d8k58kTBpAV3aprho9J5ae8rj3lPO4uwH5f8ozlQo5uVEI.png

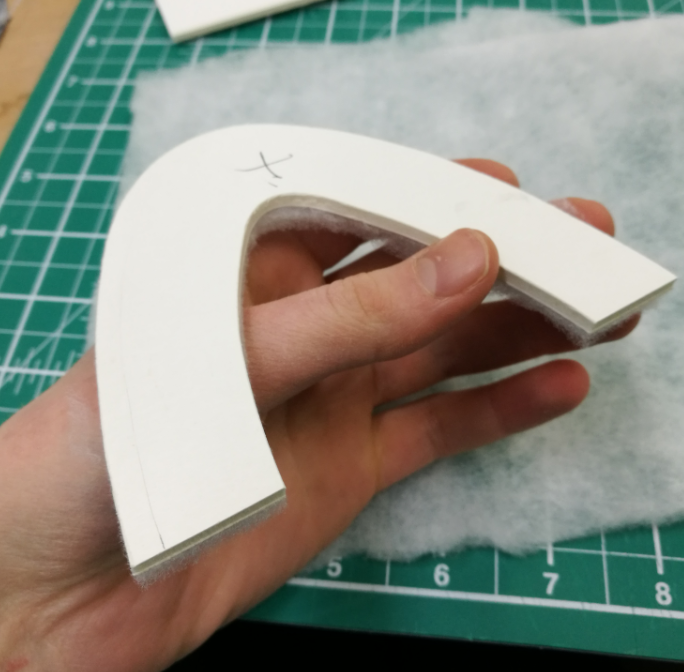

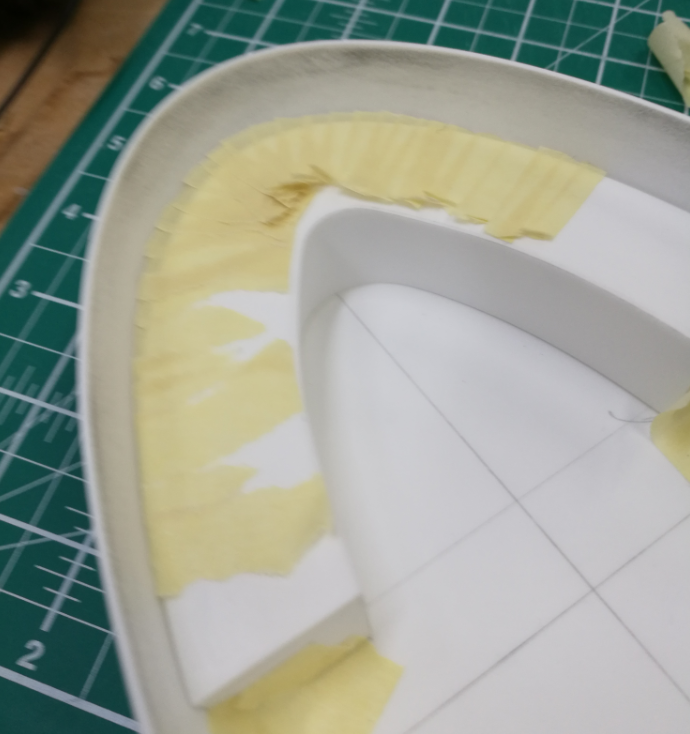

In the first picture I am using masking tape to determine what shape the cushion will need to be. I then cut the cushion shape out of 3mm Kapa-Line foam board and covered this with polyester batting (to add some squishy realism )



gar_i4R7OiQ8NL90Kt_95AAwGr6m-nonhAgk2GpoPkFxE1tTzvk3aDP_Cc3cQ1AUfndAx2QPUYJawnRnpXFkfzDmXVaHHwQM.png
h4j78ZH1LAE0hPVUOfhSZbkVj1ZMH7wRMW2jX2LNPO3HBj36NLbr-nePRTekLirzF-G06bLTx2E0KQk8C8BScB5acB2ci06c.png

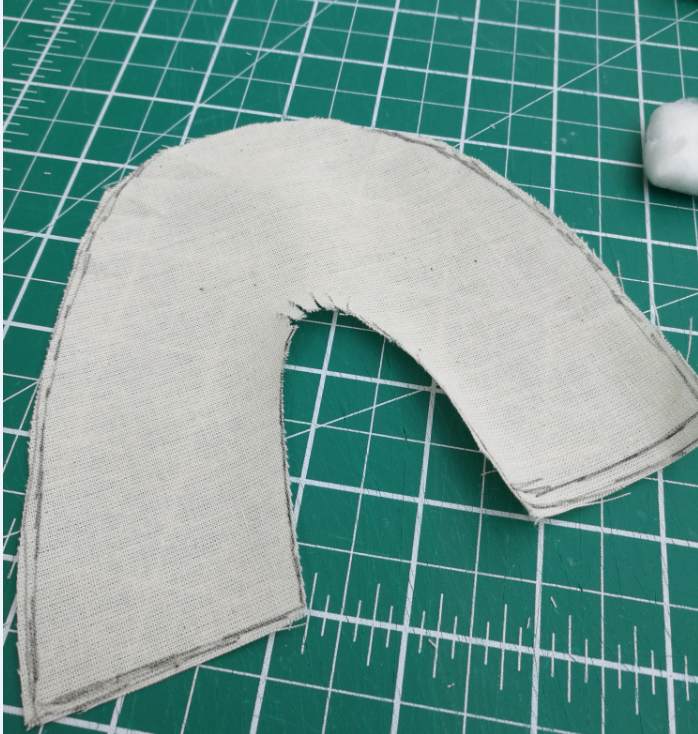

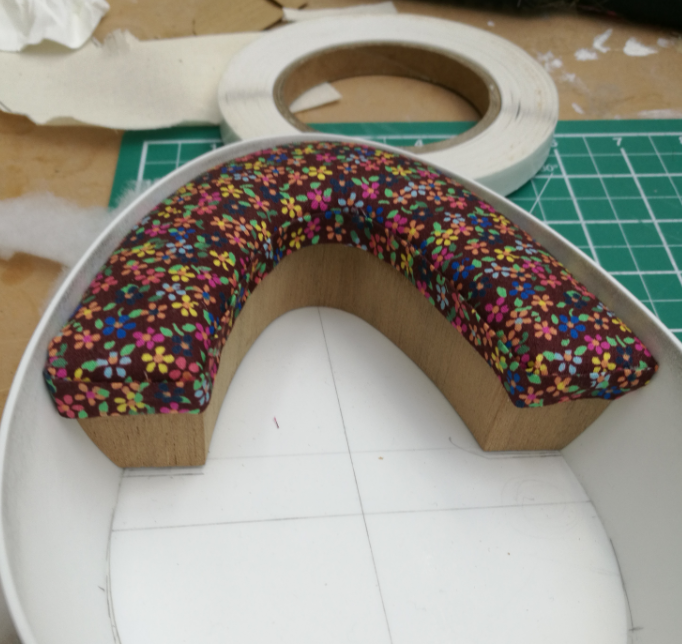

I then used some cheap cotton to make a fabric pattern for the cushion. In the end I had to make two of these cushions as the first one was too thick for the scale I was working in.


o2ZUjYapcyeQGKJGIiNDSnc9YUsO5MUDqEo4buqT80Wbb4UGMFwT_9CXr6tHcEcTQd_Dyuxkz6yvZwUmxbcBfR3zp7w-iwEs.png
c4FLsyF649S_go4OcJ0XT4W2yL3gLMzGQeSZkGWoQOXUNrDucB3i9x_Hzvmc0t_-zOkcTVUqczN0_pe1dtwF4vN2tzfbpIZI.png

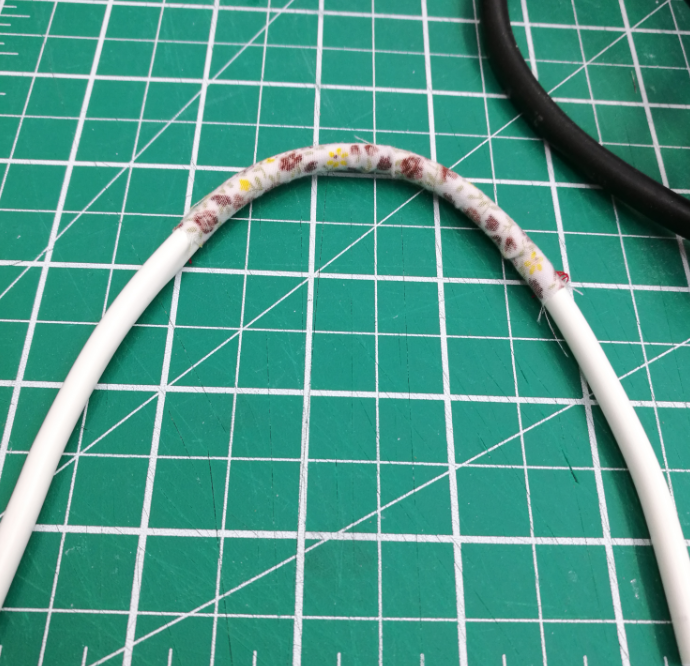

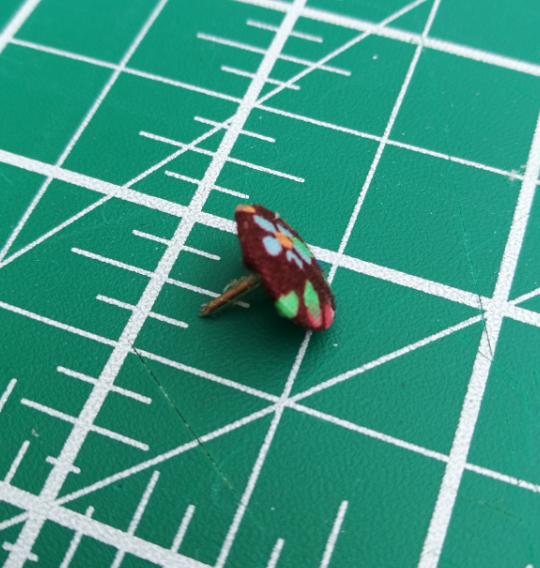

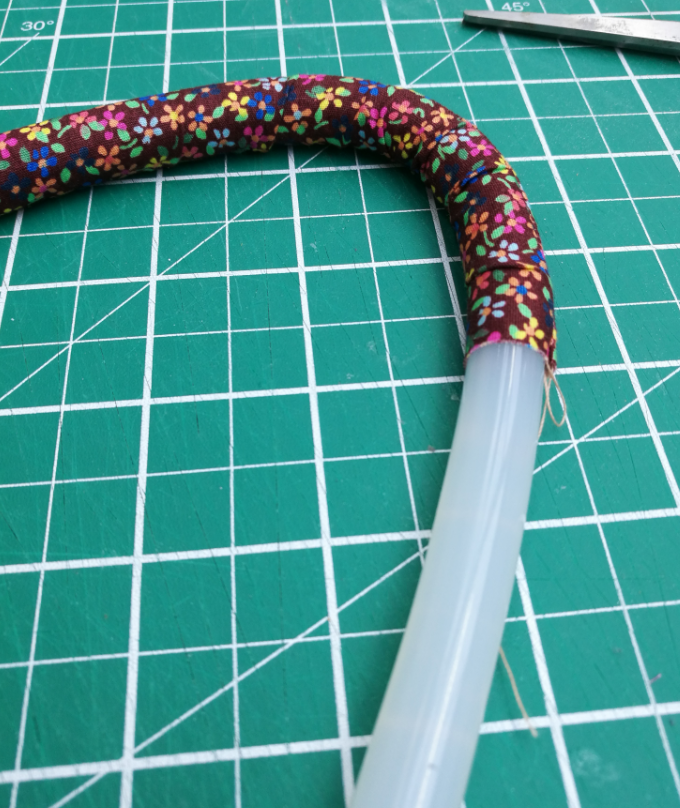

Now I began to make the back cushion. This proved to be a bit trickier than expected and I went through a few failed attempts before I reached a method that worked. The first method I tried was using a heat gun to bend a pvc tube into the shape I wanted. The result wasn’t particularly great however as the tube had buckled and warped in some places. I’ve seen a method of shaping pvc pipes which I would like to try - red hot sand is placed inside the tube (with one end blocked off). This heats the whole tube evenly and apparently makes shaping much easier. For the next method I used a hot glue stick and made a template to heat and shape it around. I then made a fabric tube and threaded it onto the glue stick. I covered some thumb tacks with fabric and stuck them into the ends of the glue stick cushion.




DBW3u3lfdX3t3ZfDhqGe1MUlejLKT6FyPRjPI1Dd5nKiMqh0G9vXZvH41gWUY7gralwAFhliGqsaucZakvWnnGce_VteCMPQ.png
bf6yu2SaJIGxFstZzPYD51A0qgYOYofvaR9LKcvjNhvtlrO-LwDZrPNOJpeDorN3iyeCR6YqOYHMQ_a5LoazvOxmW266ss24.png
o5ng0nNR9uCj8pSrCyq67ZRJ_mYBmLd2ZUueqexVPXikMJy-20-cRzMnIsMUOUJGkof5JqF90_lw1vKd4Li-u4qOLd01Zsbc.png

XTg7cjbNJrg_YVhwfOQ6Oyaz-q_c72iE1eGa7gFu1jCyfcofcZ7tL7-56d7agG5vASEp3wiTm7eGzWAA3MoVV-Y__EMu8YYU.png



I was quite happy with this result and was going to use this for my final model. However in the end I decided it was too large and didn’t fit with the scale of the piece. So.... Onto method 3........

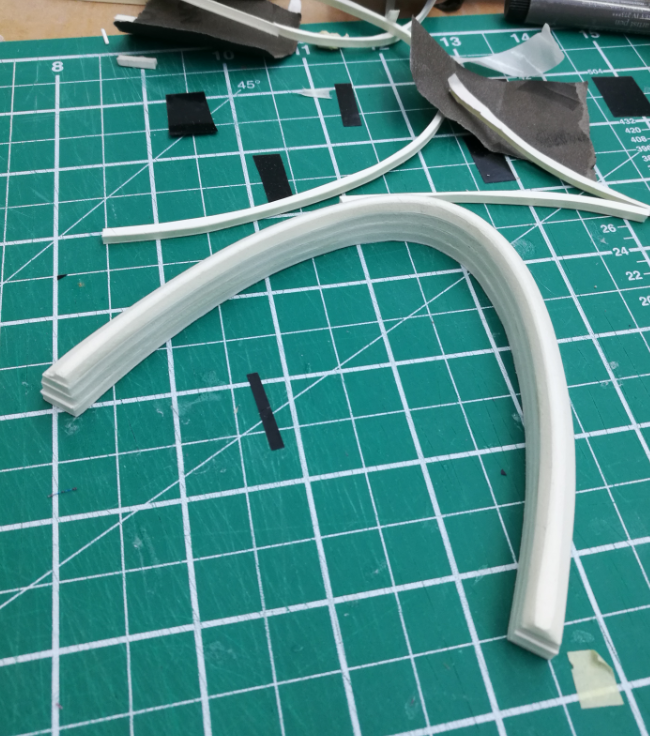

I began by making a template for the back cushion and then cut out 3 layers of Kapa-line foam board to this shape (with each layer getting smaller toward the top). I then sanded this shape down until smooth and sewed another fabric tube.


SP6KhDsF-HcElOhfP5G2OpxXMMlC254GcTp4tUUtTQoBC-oZs2NvQySA0Imp0nx5qfBT8g-lDXSffC1yaZMP1aZ_oHa3MoIo.png
B0AmVqupKGR-n5e52d_Z-euSFaSaJ_pgR2r03AUK5jqmLFBItTbJVN0g_-B5gc9WaXOdplLcbjuuCdrQQ1uVCMG4G-2F6ugQ.png



I was happy with this result so moved onto making the kitchen cabinet and desk.

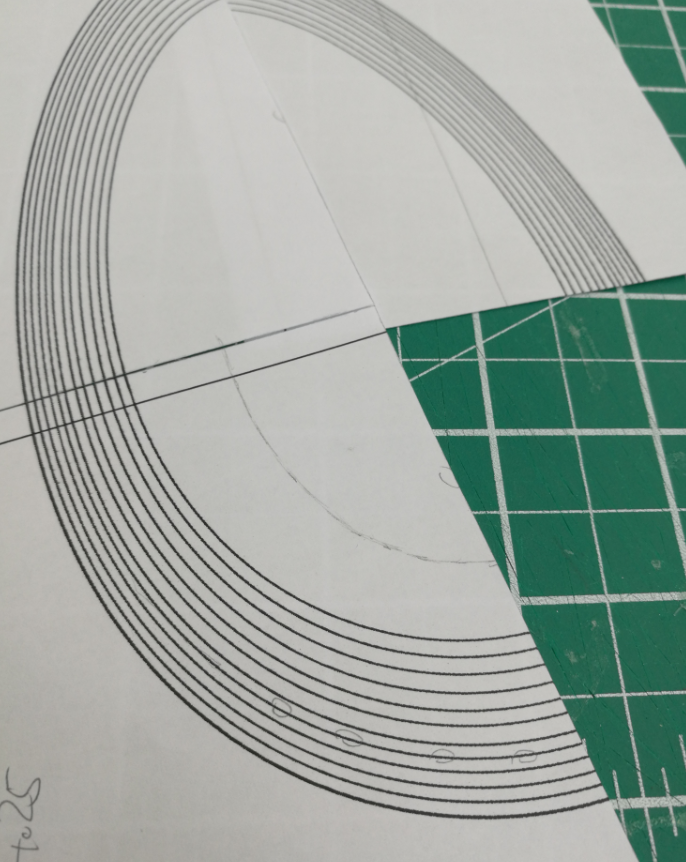

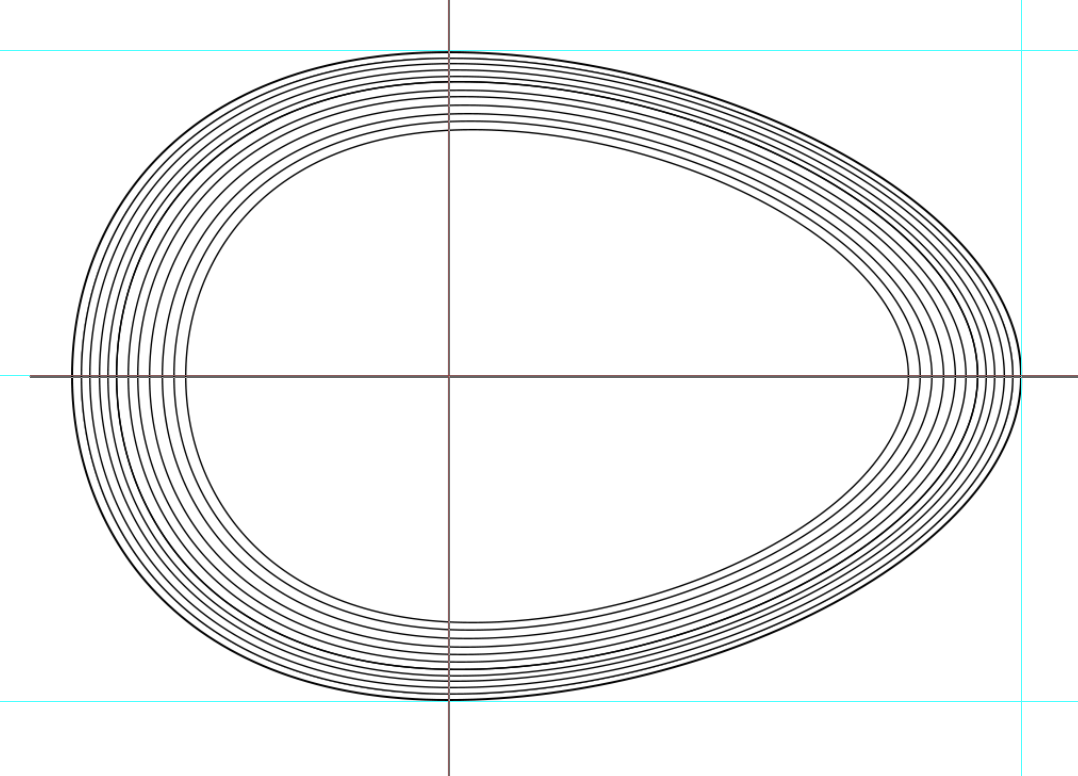

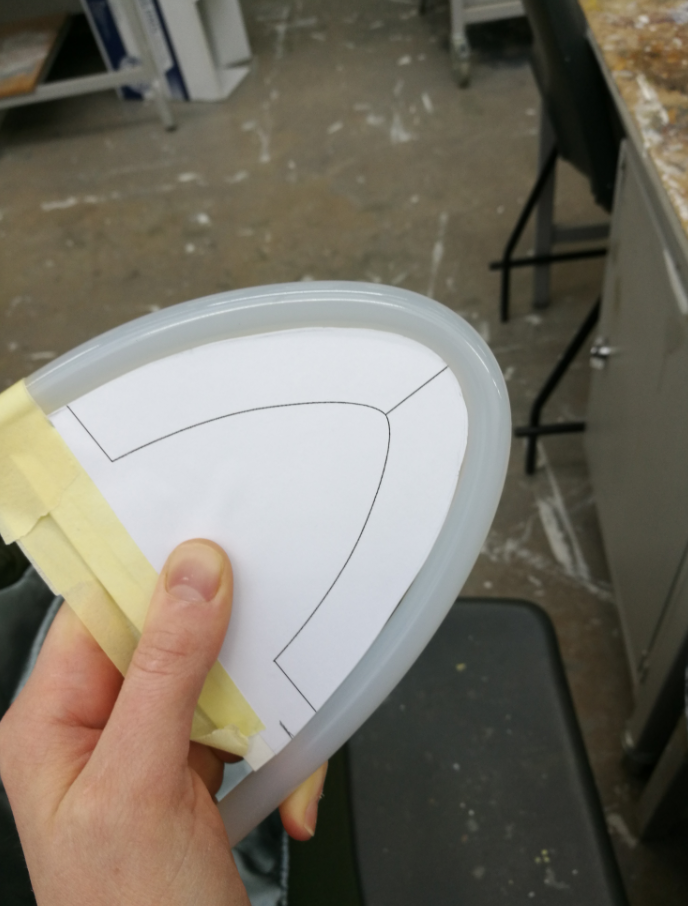

I started by using a template to make the table tops. I used my original egg shape and then made smaller versions of the shape inside the original one. The table tops needed to be flush with the sides, so using this method I could determine the height I wanted the units to be and then calculate the exact shape the top needed to be to follow the contour of the egg.


FujL2qOIcNmhIqQG5gXXAQkA3nvVOutQCyLSzyWwq8RMx6GdAKb3W6xyrKBJNLJZrew-md78pWknbjs0jTvhjJMCwScrIB44.png
5Aty4-wino2oRYkHg6Ua_YNqROAniVJM6_KEtVQJyOm1MnHzgOSKN9d9R_0KOiIHXY4XGx4R7go5rKZuMBZXT-jtx0zaQDQc.png

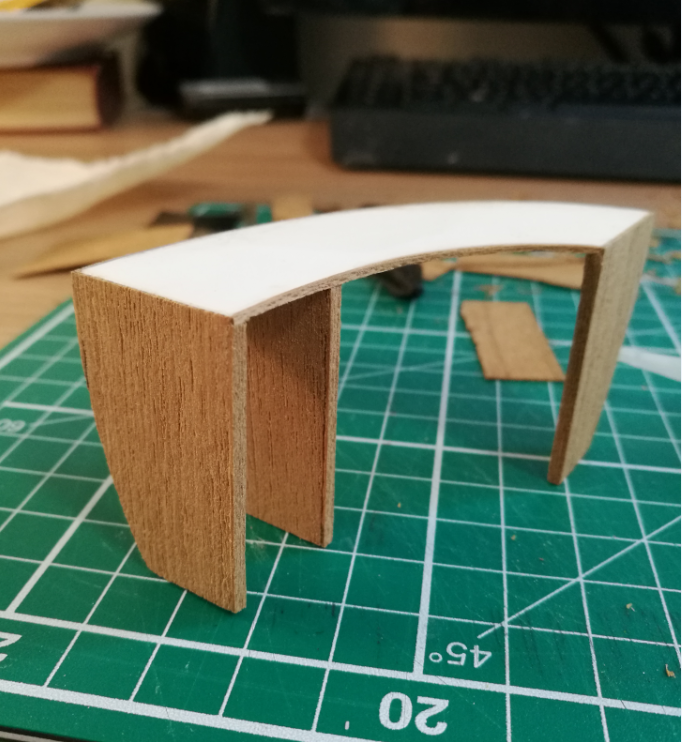

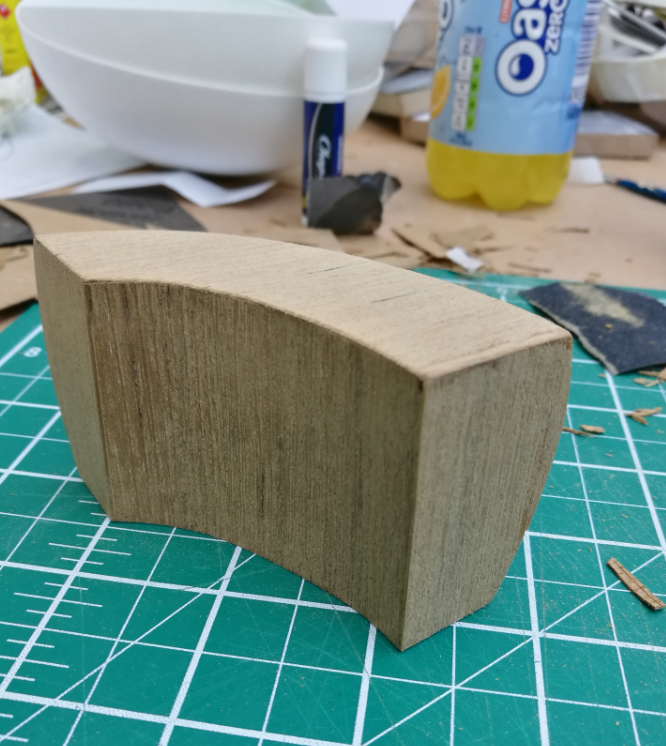

After constructing the table tops I then went onto construct the actual units in styrene. I then covered the styrene with the teak veneer.


KQR3tzMaVtjD4klUfLe3kk2-1RLlG-2cQ7Yz7ZatdgRyxoRxeFifLo4eYRIHTfIwmX1Fasf8AfrnQ-UX1Ym1FzspZzKngJrQ.png
bpLEabubvh3MppJACuvSTvQpwxXphPWSLNMxhIXmf9NpwHU1Z2dX5aeki4FmvzWYpNIt0-gUrQic1QayZf543TCOtCwp8hEw.png

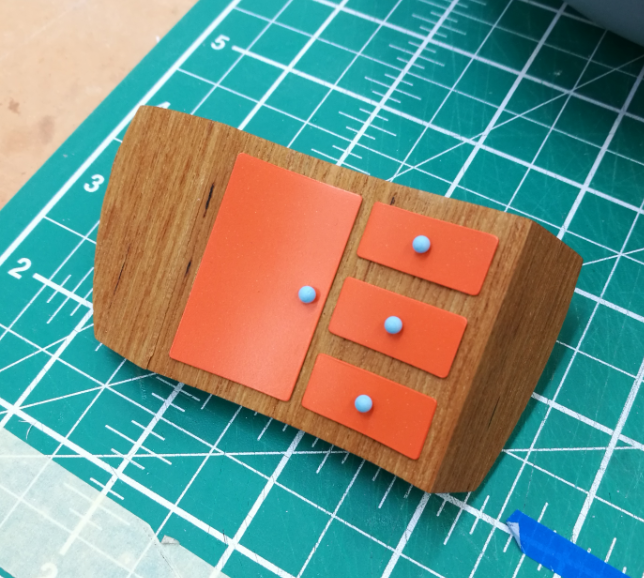

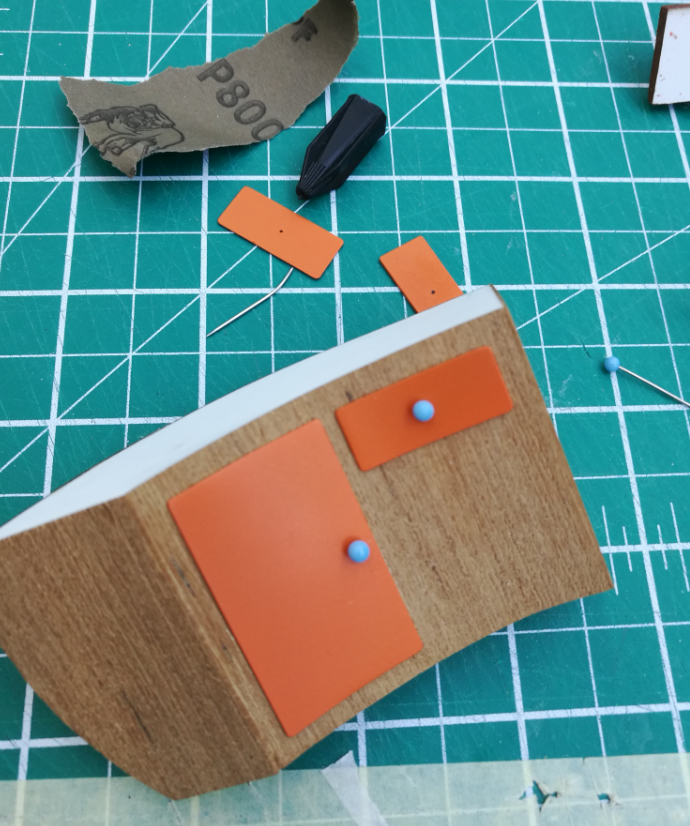

After the units had been constructed I added cupboard details with 0.5mm styrene and sewing pins.​

shx3Xt3WktIInEKyCJhrPoZJ9zujmn1b7caG1Hkx5amvLqInLAUXL6OVCMi7MbVt5VBtfoRrt9bRiGsZXwWyuMcWgkZ2DGvk.png
6zPaURGmoJsUSUTZ2c8M5m-1jO_wHeisGBptbBolajiCHdLiAmPCTsPdd2u9cMiGuqJYK2tPWQ_8mOlEL26ywz-t1zjFoqF4.png

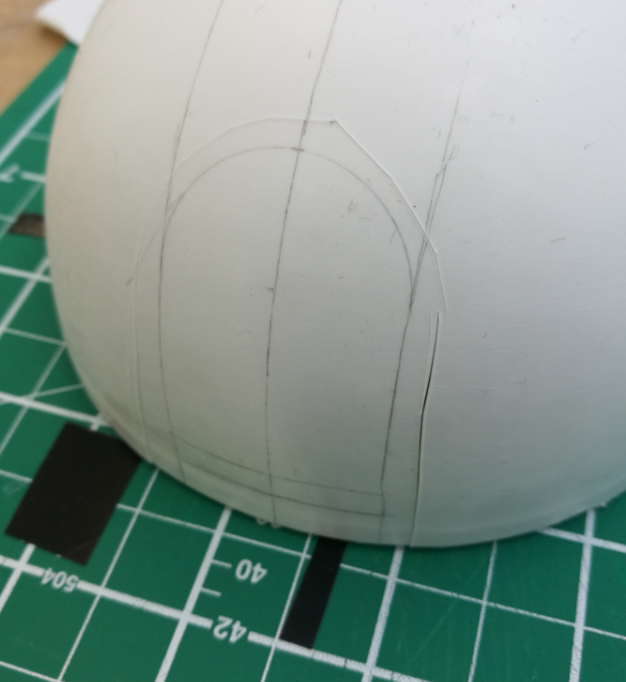

I then moved onto constructing the door for the caravan. I vacumfomred two more eggs, this time using 1mm styrene and then cut out the door shape from both halves.

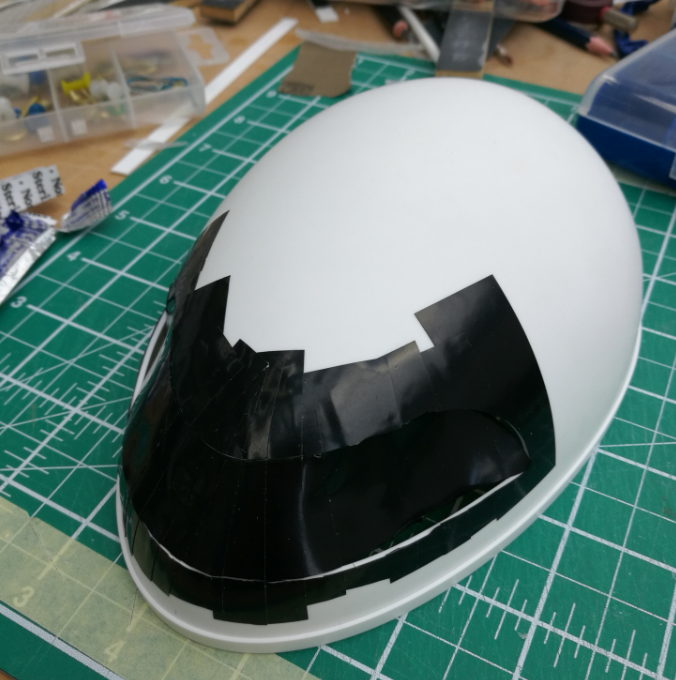

I then cut a hole in the top of the caravan for the window. I covered this hole with vinyl tape and then following the edge of the hole with a scalpel blade I cut away the tape. This gave me the exact shape I would need for the window piece. I Vacumformed a piece of clear PETG and then used the template to cut out my window. I glued a strip of styrene all the way around the top half of my egg so the two halves would snap together.


j9FOayAaqR-KblhWBsDMjTZNjvHcWgzKq95E9JUeAeVq7fcgbQKZG4dovMCKXqw13YLpo60PE7wTz52V7uCkZ_Tb5y82WWos.png
1PhsOegQvEJxKjK6Er8LsvGS3DENLJwom4Io_vHMAK3TZQPdM_dqVe6q0ndmT3tmIaarvb0IBVFOo2KsLatBD1p_9bIHuBVc.png
Iz5IYPSGuiSzJwyLGrMP-_zRN8zBq-o5n5AgdtrJ5V5DSEUi9hmanbzpOBQov6ErAFZn4fnNCUNPcLElrbR2Q8rLjt1yRn8Y.png

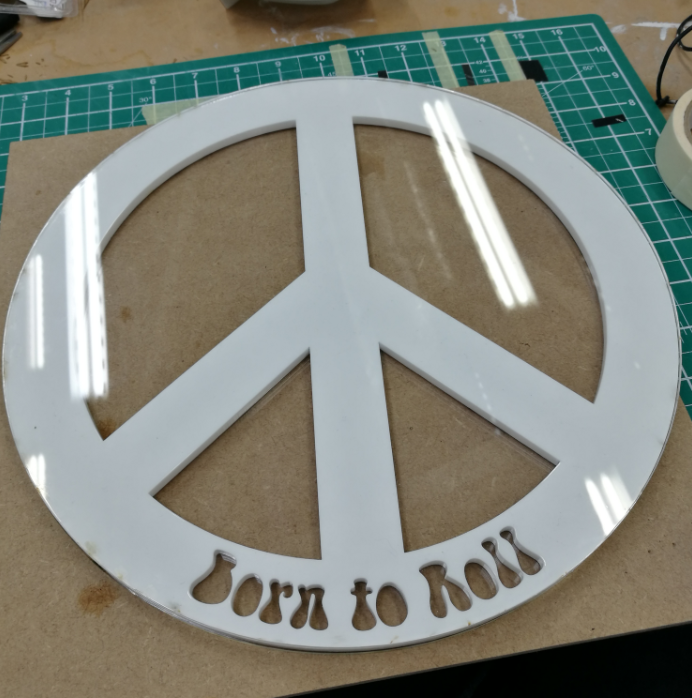

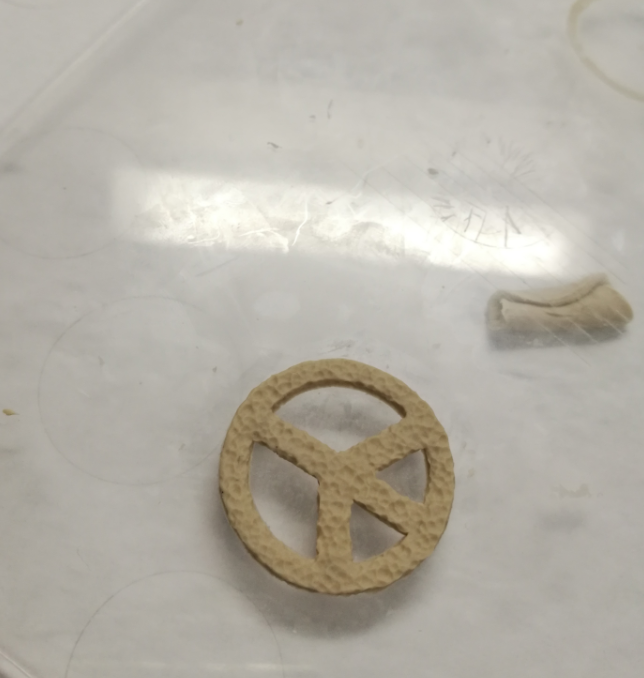

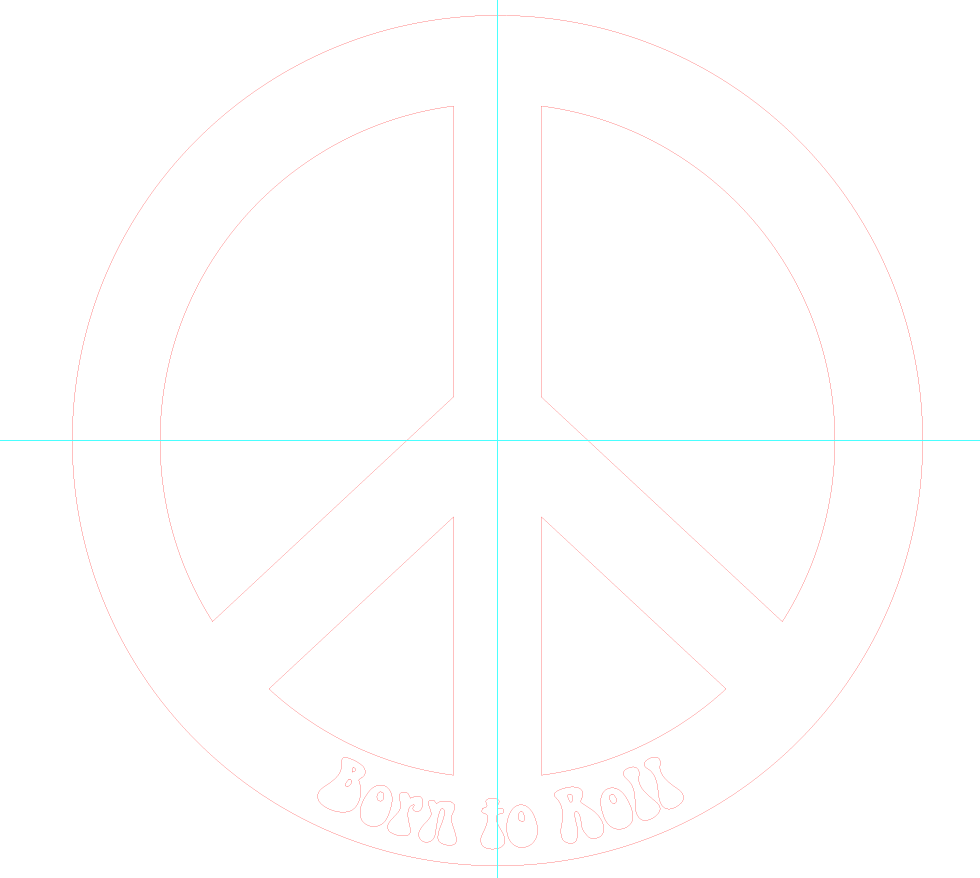

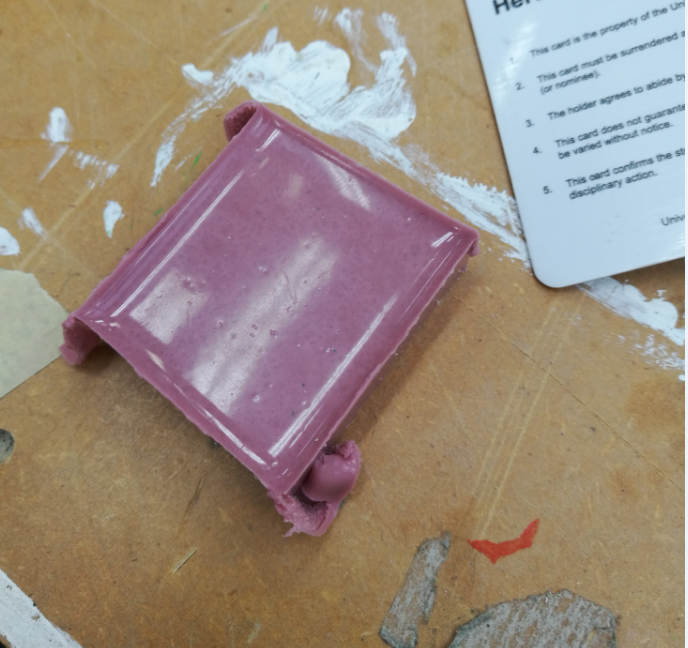

After this was constructed I then went onto sculpting a peace symbol which would be stuck onto the front of the caravan. I moulded this in silicone and then cast in polyurethane resin. Before the resin had hardened fully I took it out of the mould and formed it over the contours of the egg.


AlSvx-A1-SAIoUzolTVS4cmU0BO7CDD0IbabH1RLJMDzLt7ryr_yfFetTEpjG7H0GoH53W4UY4_x0Eb4oJSvIlS21fD-r-ZQ.png
R56k0lIre5UmEntG49893l6YHMJhreQKXN5uoK5mbm8Giey5e54TLpC1XxbjsDKR6k25pS5f7IXyx_6km-jil0FdP1HXo0gM.png







8l3PbZ1tIJooIHGe5YGs82Tqa6v-HAPkwwLbqAmGr0_7_i7grmsbFVCy8pkzHBE9Z7BvFfX6QpX1xHLw4wBw7SeBQxR1_OHU.png


AsnqrqScHVOZs4ug7ciITVEfkGpGUv7am2wVavxV5wVuUJwdraDpMHoMJ2pb1274qkDrP1LWHEHE1_jtn9LL_NfmAOPrhawc.png

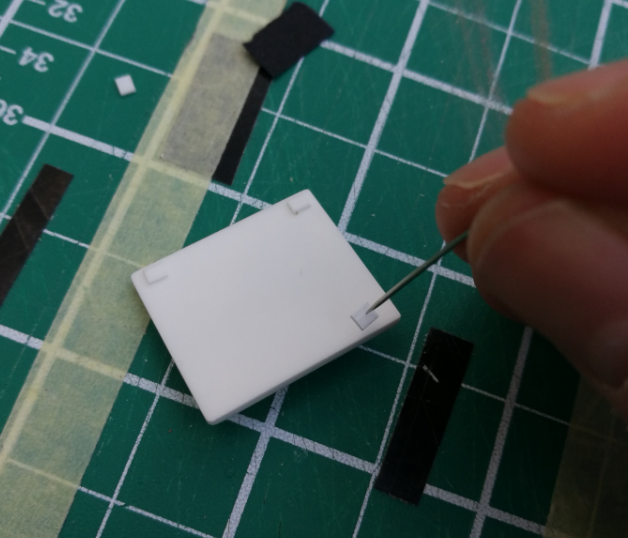

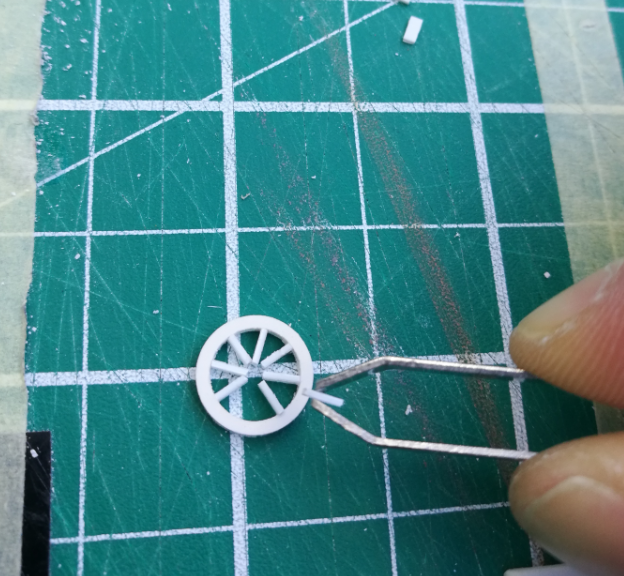

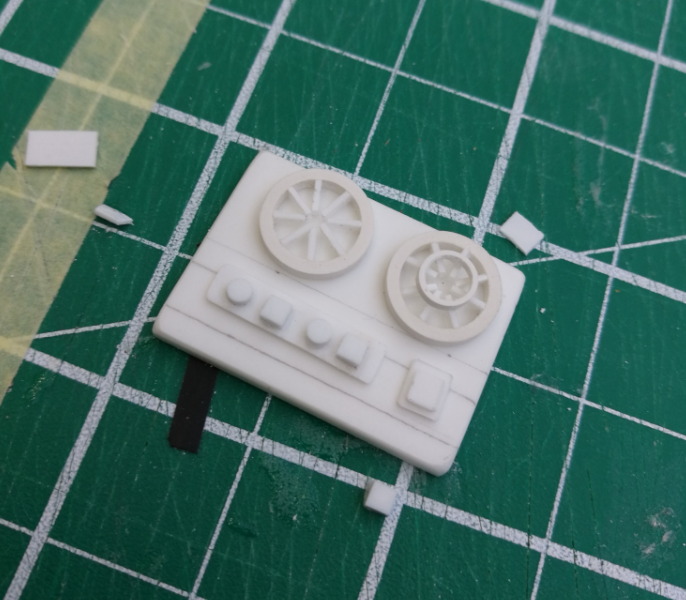

I then began to make the little appliances that would go inside the caravan. To make a hob I used a pvc pipe and various thickness of styrene. I also constructed a record player in a similar fashion.

eYQ1O7UKKSUZ_PbR1udJAi4F0ExSlO_uwVA5vo66ew4x0dEof6TqEq5JMDo-sZYxJZZoFiDO26SQMGCOnFFacthkzal_-zTQ.png
LkyKQ_266uCDjgCEAMZ1kDCoDvL7tRV-EvUd_PN_N3EsryfmE34NPQSKxkyweahBA7xAn1ZOiuKHyRrb_IcmTLzee7Hqj-KA.png
TBVc2xxxbGUlENdOyMgaUi4TZotMWl6woy9BRdX4sABFtlPLtImwT9SMnF_FVrRoJZNM_gg1ILqKDxjYwR0todfcIHy4kwJQ.png

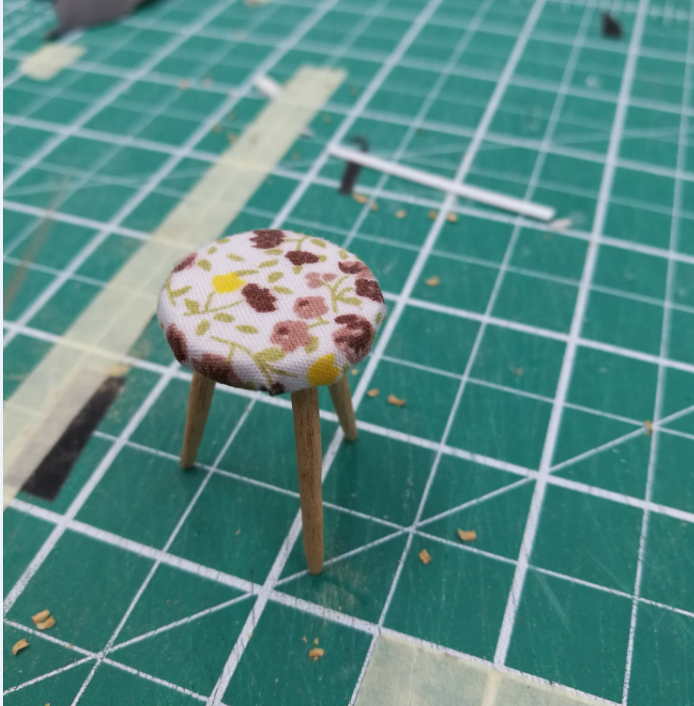

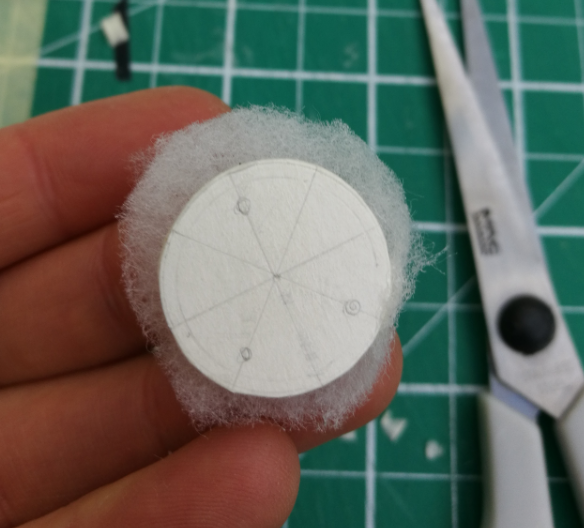

I also made a mini stool using Kapa-line foam board, polyester batting and some wooden dowel.


IGE4bRHFDNMtVf2kdwbsq7T1gZBAMYgDqXBzvLGx00GBjxZAoLh8FRup27iQ5N3PVA0rRohlUREWlptOaYI1YtjDw17GUkA4.png
LbCZdAr_tK714OOWnCTgBeKuD2S67sLdIOvrnr7k99E7DWhI0bAracXDDivG4TI_9nEas3U1yCaGfwMP2zeG2PAGVSAnGfYU.png

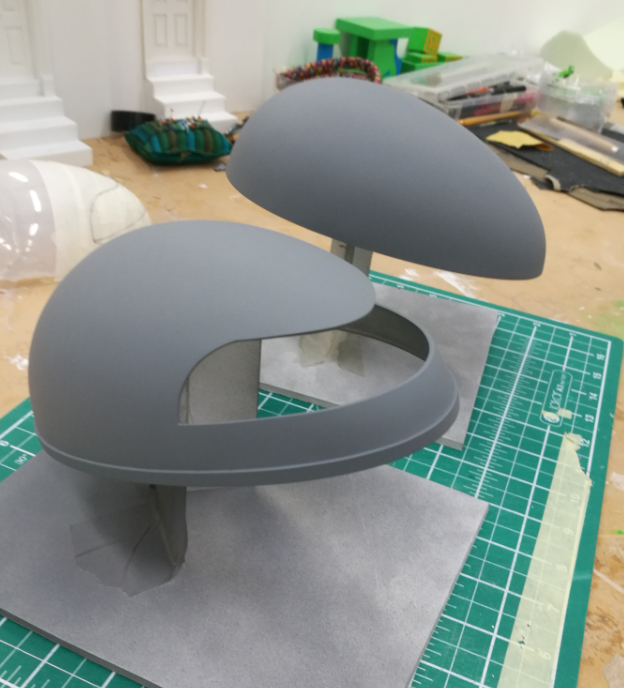

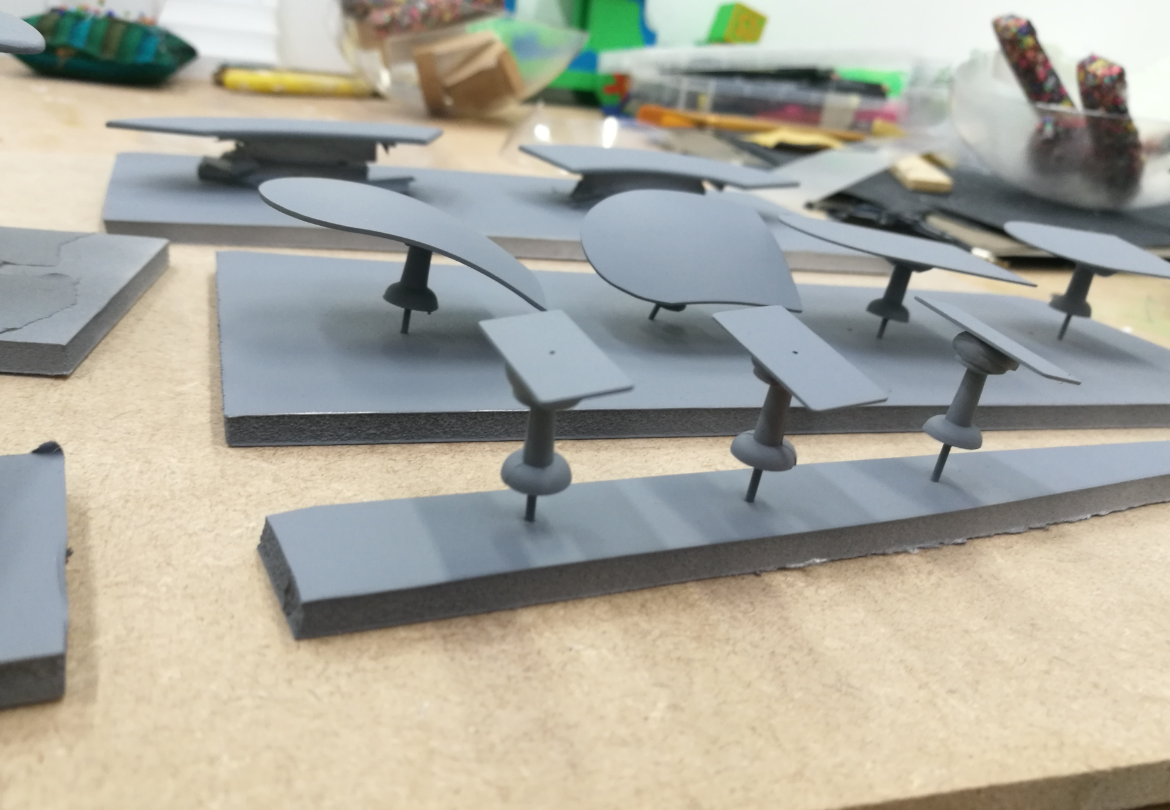

Then it was time to prime all the pieces. I attached the smaller pieces to thumbtacks with bluetack and then stuck them into foam board to hold them in place.


62ith8YRSa9T3Ey99_urtZwbSVJpthd97S3lIy0-aMunaoqScP2o5q68jlYYCAAGrAdvU71JgtoEqfudQgkvhWu0HoFk5oO0.png
Wo0BA-jlquB642xIS4Z4Tlv_fzf5BrQxfmnM5IT1PRHn7iHD4P0SSgpyDfE9BXg6f-Iww1yBv6coRIdUtcwWKAV1zP4b4hyU.png



I then painted all the pieces with various different colors of spray paint (masking areas where appropriate). In hindsight I should have waited until I had attached the wheelbase and tow bar, but I got a little restless and wanted to see the whole thing painted.

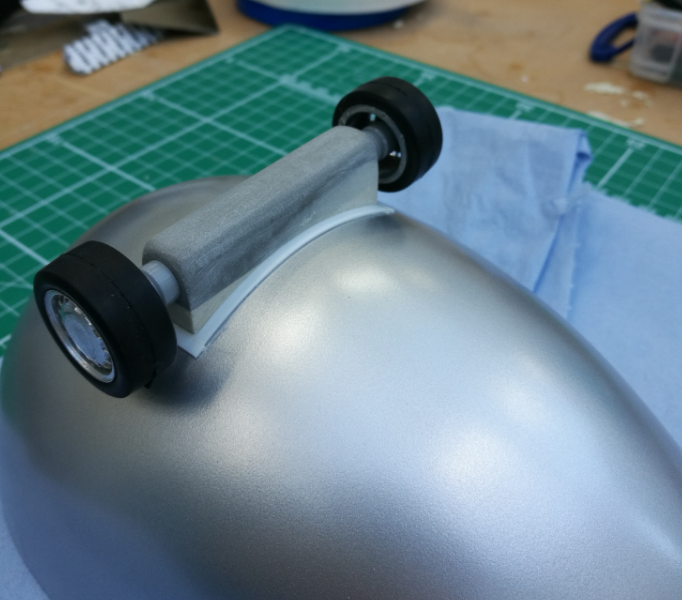

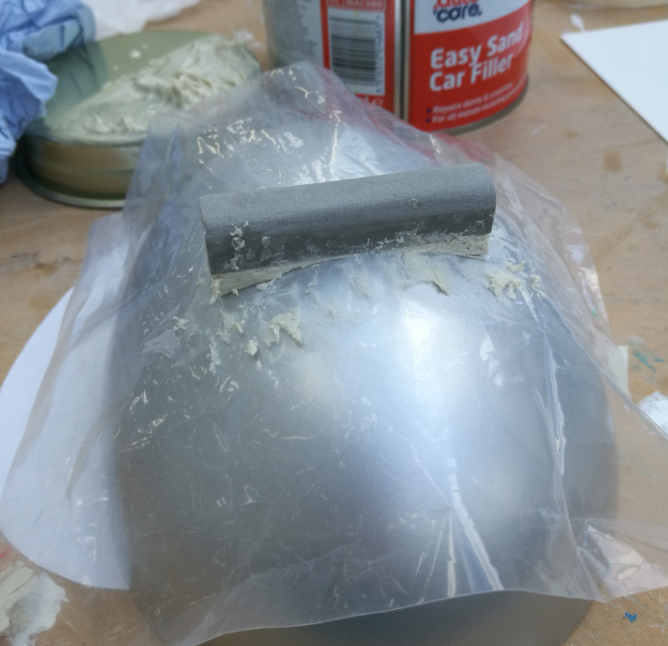

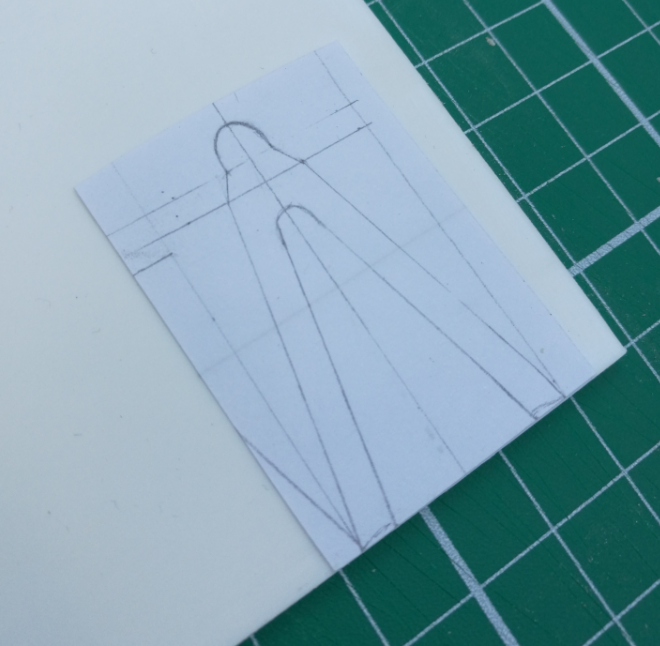

To make the wheelbase I first shaped a piece of chemiwood and then drilled a hole straight through the piece so I could insert the wooden rod I’d be using as an axel. After I’d created this I covered the bottom of the caravan with cling film. I then mixed up some body filler and applied it to the chemiwood shape. I pressed this onto the egg and left to dry. I now had a solid piece which was shaped perfectly to the bottom of the egg. My original intention had been to glue the piece on with epoxy however the filler had melted the cling film and cemented itself to the bottom of the egg. Fortunately this wasn’t such a problem as it just avoided this step. I tried prying the piece off, but it just wouldn't budge so I wasn’t worried about it falling off without any glue. I added a few strips of styrene to clean up the join between the egg and the filler. I threaded the wooden rod through the piece and attached the wheels.


e_SXBIoZpMGwfyfTnPwn-ddogmen1OpL3wxVnAqdVp_D3JjavAqN8-T8RBQGDOGA4cnMDNAYxsvkbRV7ZpExZaklVlYFWpeE.png
0oADMzWoLr0EuXaoOaixqohy7fT31PzcV4VLFDAOMKKerxSxSTRYVz8uC_F5U_VAT_Nzte8sjr_54iK0moKuST8u7g0peFYA.png

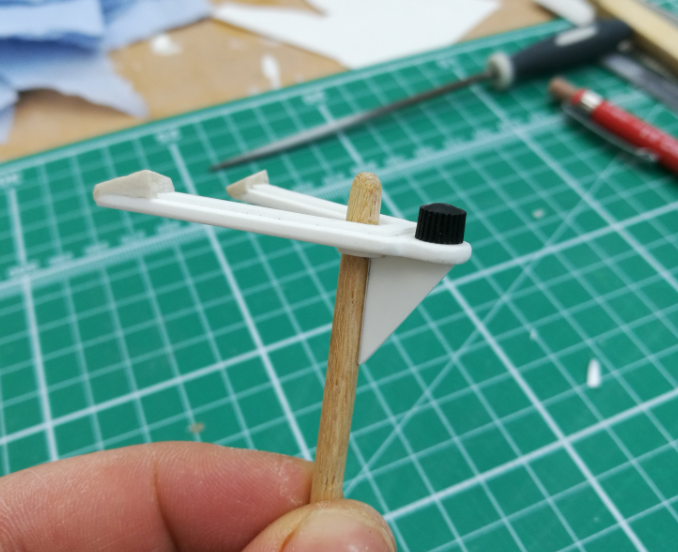

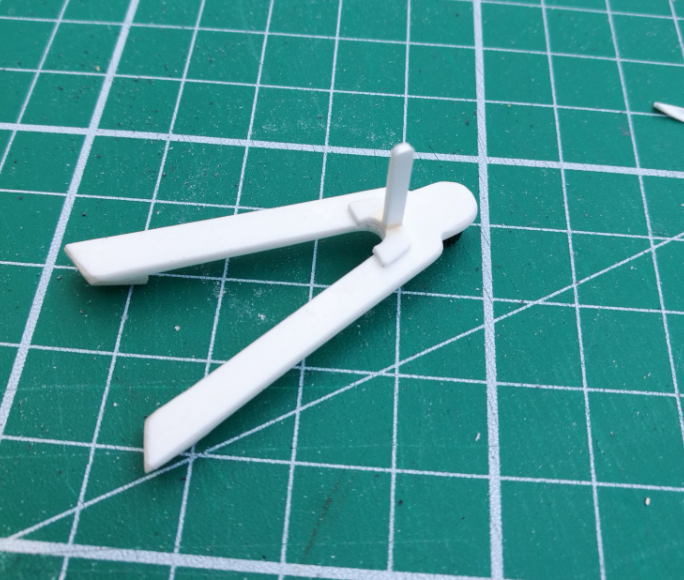

I then made a tow bar from styrene, a wooden dowel and some found pieces of plastic to add extra detail. I also used the same filler method as described above to make the tow bar fit the contour of the egg shape.
r1Vg12V9GnNWJ-uvITKfTrt_qR-7tJmQ-CU2QMwsd54xrwW0bOHDN7Pu8zxkbfmEyDk6ZJrJzeeU5bgPGymYPMmmBC7EaKbg.png
GLjudv24kfkfNSD-Y0YqWxNjQh1Hdh-GMpig1ct0nn23t98ZhGRes12RZETOg6J4di2aR7a89vL7y5DXKvoZN2vvWyqvMl00.png
QHZBVIw3_lc9Tn7Gbs3ceSKLrXq_PsiJSHGZAuvVA_YNiAIODNHRfxS2XsvCrOQY0YgFzr-FCxTOQEUKmjVjXwbJoPn-6usk.png

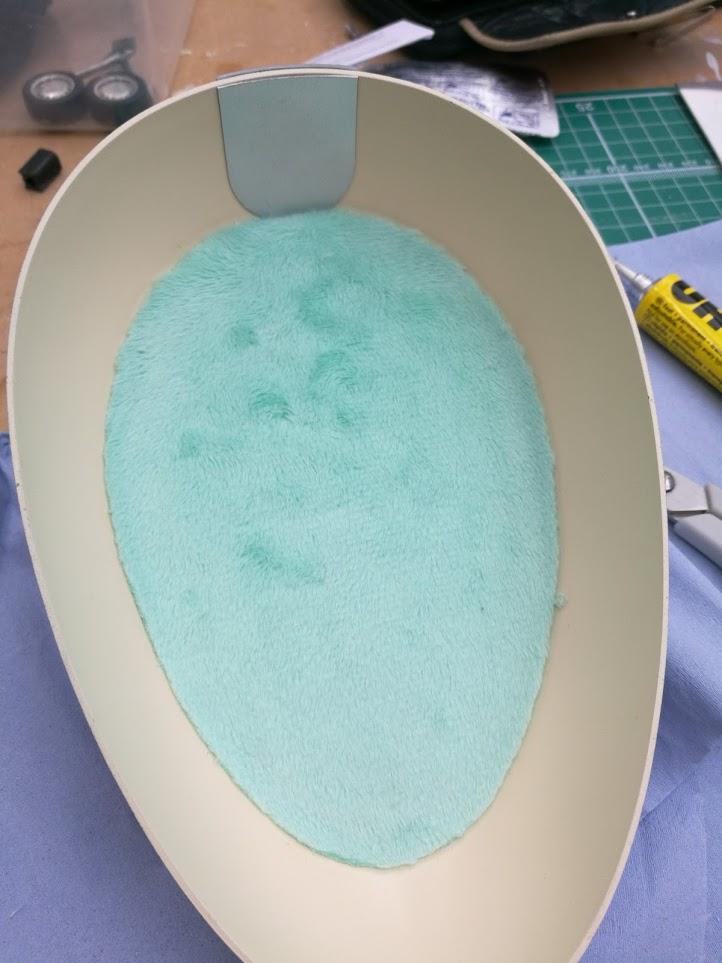

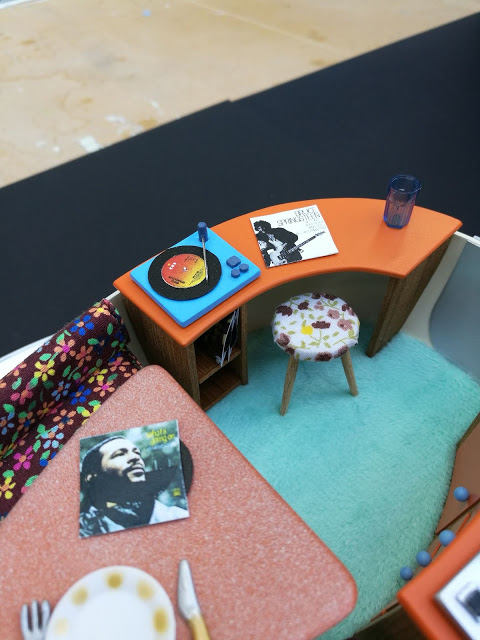

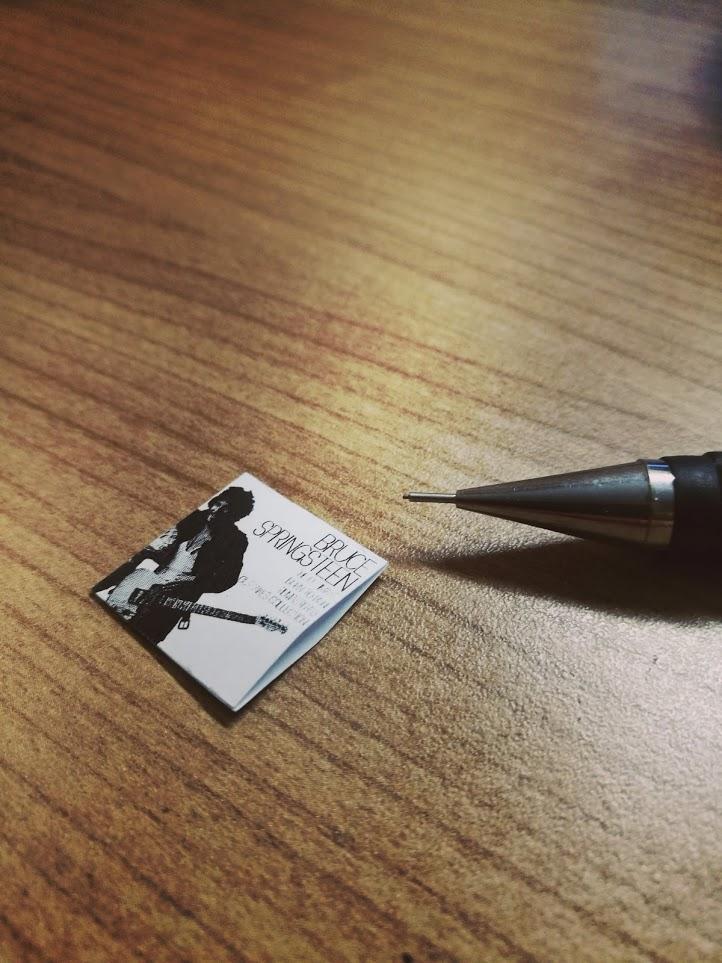

It was then time to start gluing in all the interior parts. I began with the carpet using UHU then stuck in the cabinets and smaller parts with superglue. I then made some little record sleeves using photoshop.


0zLueJAabjGe3aOFSaocvkeiqZyIojZPyCo1saGPwDbX49FCeH3-iBOCeDCloDCo1dq9LkqpWOUtk3Gl7yoomGisdnSHcM88.jpg
m0QcyW02vN2uq3PkoCns1ucTcayEBiGmepMEYViN6t_gGMjZhl6twY3v0vWSgjjlJc9NUKPWQCqUxW4a_oAPejTFAfJDv0xQ.jpg

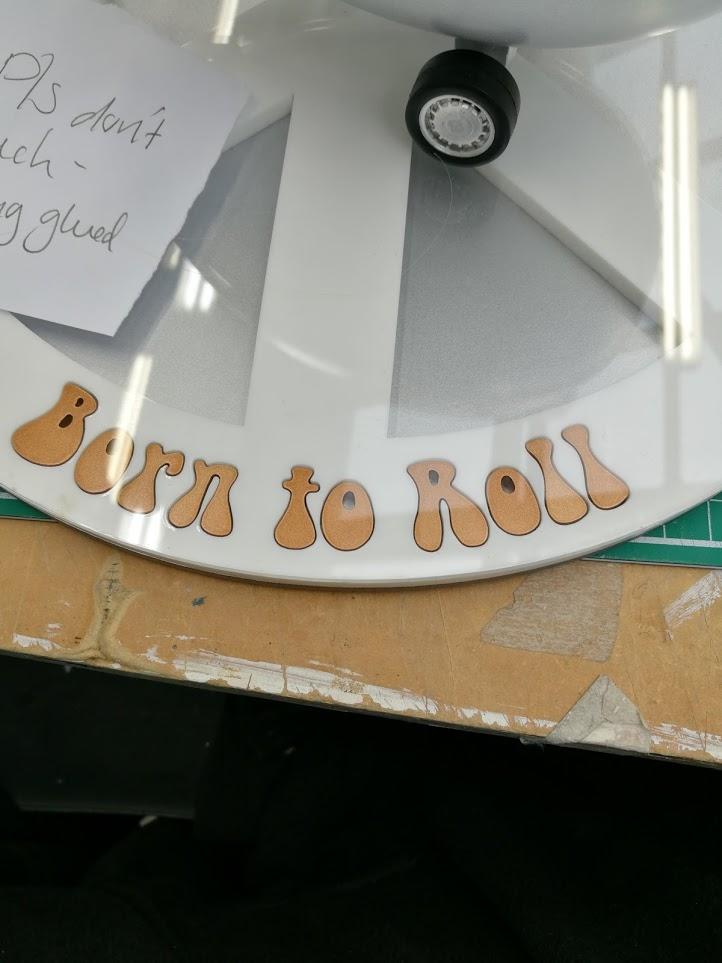

I then painted my stand, continuing the copper/silver color scheme onto the letters and back plate.


Hr_3g861Ae78HFTq2CWtGCpGE3-IsJwVxMrCcFqB0FLXsMTHonLwiKvnhdNGOmFo3WDeRAQZqrIO8OfWa40o85hlf9LlvLiY.jpg



I also bought some plates and cutlery.. If I’d had time I would have made them myself. The ones I bought weren’t the best quality so I couldn’t decide If I wanted to use them. However after talking with Helen I decided that it was better with than without.
I then glued the peace sign on the top of the caravan and then.... It was done!

Check my blog at: https://propsolve.blogspot.com/​
