    I updated my model, I'm considering getting it 3D printed on an OBjet or something.

    Screen Shot 2016-02-06 at 7.43.31 PM.png



    Old post May 25,2015:

    I started up an INT thread last year but only one person expressed any interest for a badge. While that isn't enough to justify the work in making molds I decided just to put the files up here for free!

    I modeled this in Autodesk Fusion on May 25th 2015, happy memorial day!

    So if you want one just download and print it and finish it off yourself. If you don't have a 3D printer I do offer printing as a service and offer discounts to RPF members just fyi.

    You can download the stl from my dropbox here: https://www.dropbox.com/s/dqly2gjspquliq1/demo_man_badge.stl?dl=0


    Hope you enjoy it!

    Last edited: Feb 6, 2016
    Contec likes this.
  2. Daniel Nelms

    Daniel Nelms Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,035
    It'd cost me about $65 to get it printed in high quality so you can see the build lines. Whatyda think should I pull the trigger?

  3. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Did you hollow out the back side of it? Might be able to save some money there.

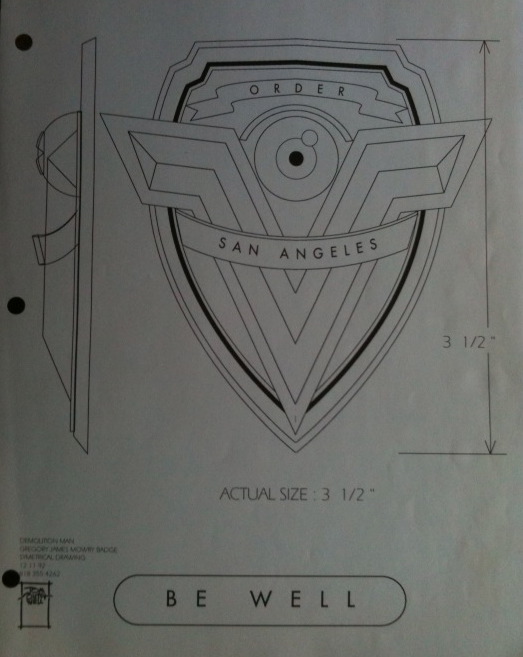

    Attached is some of Tom Southwell's production art for the badges.


    Attached Files:

  4. Daniel Nelms

    Daniel Nelms Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,035
    Yeah it's pretty thin, I see from your picture that I need to add that wide recess around the edge. Then a little dry brush would really bring out the contrast.

  5. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    There are some slight differences between Tom's concept art and the finished badges. I'd refer to the film first :)

  6. Daniel Nelms

    Daniel Nelms Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,035
    Yeah it's a little more compact on the sides of the V.

  7. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    The central 'eyeball' motif is rendered differently as well.

    Daniel Nelms likes this.
  8. xwDREDDwx

    xwDREDDwx New Member

    Trophy Points:
    3

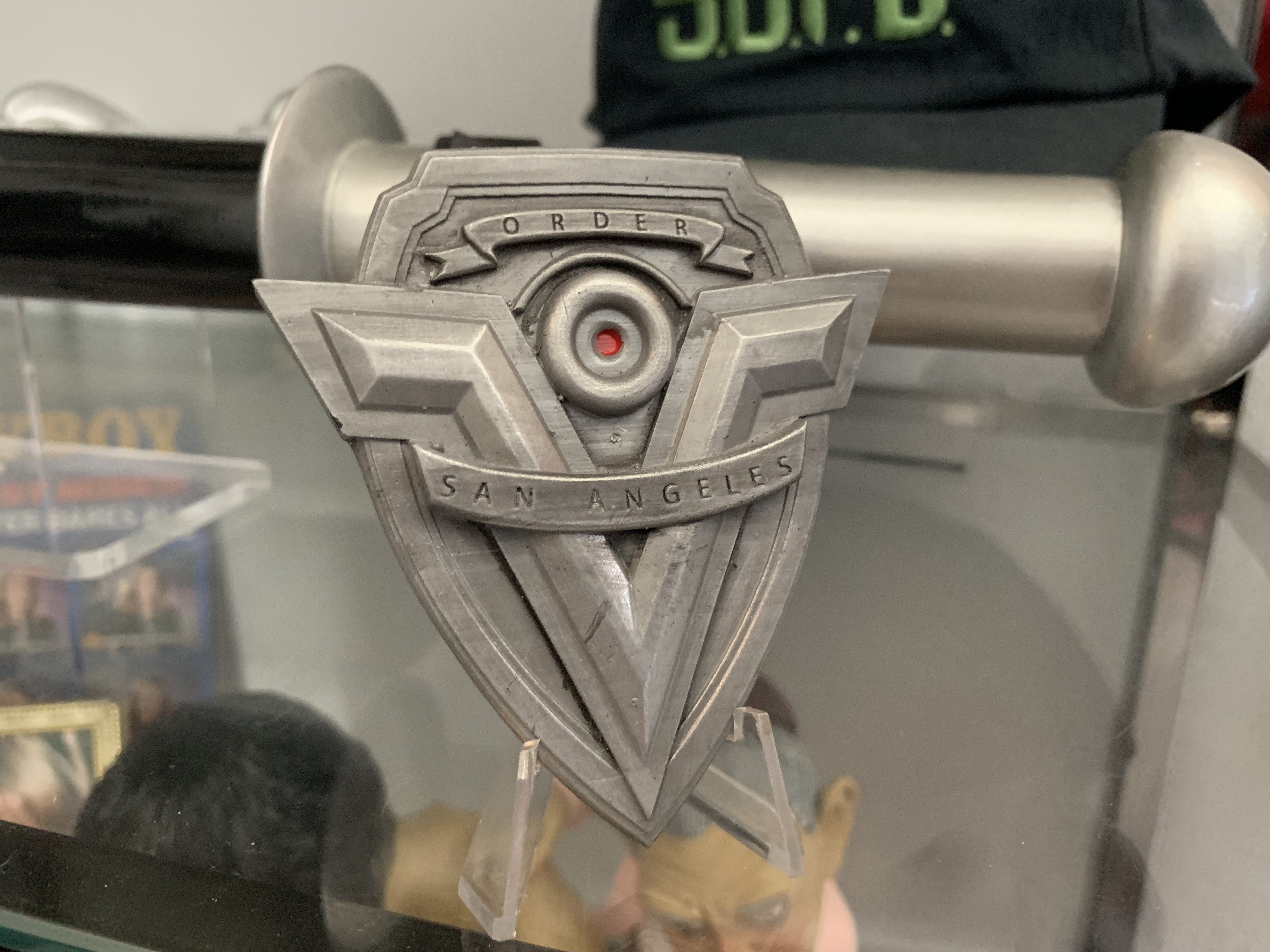

    I have gotten a couple of those Badges from a friend, even made a whole outfit ;) [​IMG]

    - - - Updated - - -

    [​IMG]

    Daniel Nelms and Contec like this.
