First Foam Build: Ends Of The Earth Inspired Spider-Man Armor (PIC Heavy)

Discussion in 'Marvel Costumes and Props' started by Wearenotlinear, May 4, 2015.

Tags:
  1. Wearenotlinear

    Wearenotlinear Well-Known Member

    Trophy Points:
    586
    So I decided to tackle a foam build and, since I'm a total Spider-Man fan, I decided to another Spidey costume: Armored Spider-Man from The Ends Of the Earth comics. It's his Anti-Sinister Six Armor. I've seen elsewhere that it's called Spider Armor MKIII... I'll just call it was it is: Awesome.

    Here's some of my source material:
    11128849_816687358407938_3229378057494785774_n.jpg 11035831_817729188303755_3857627474000188881_n.jpg
    Update: I am mainly using the reference pics in post #18 for the suit building.


    and here's my drawing, with a few changes that I'll be implementing (like adding big old bladed Spider legs like from the Iron Spider armor):
    11146228_817691058307568_6874966257654778598_n.jpg Update: better drawings have been created and posted throughout this thread. Also, spider-legs have been put off for now...



    I've seen a few people start but never get very far in building this, so I thought I'd try my hand at it.





    But a for a few final touches, I just finished the helmet last night

    It's my first foam build and I'm learning as I go, but here's my progress so far:

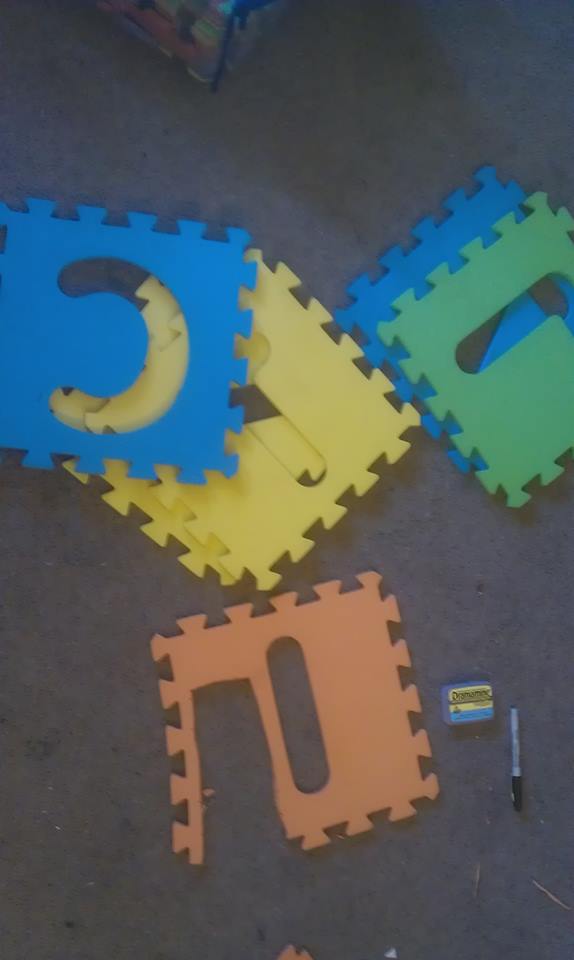

    Started out with some of my daughter's old alphabet mat:

    I made all my patterns from scratch, sortof building paper over a styrofoam mannequin head til I had the desired shape, then cut it away and cut the pieces flat---voila! patterns:
    IMAG0925.jpg IMAG0915.jpg IMAG0926.jpg

    Cut out all the pieces from foam and Slapped those together with some hot glue
    IMAG0927.jpg IMAG0928.jpg

    Then I coated it in layer after layer of a mixture of PVA Glue/Water and Black Puffy Paint. I did this for a few layers, then sanded, then more layers, then sanding, then again and again until my coating went from the translucent gray pictured below to a deep black covering the whole thing.
    IMAG0936.jpg IMAG0937.jpg IMAG0938.jpg IMAG0939.jpg

    Then I hit the whole thing with a few coats of VHT Chrome Plate High Temp Spray Paint (epoxy based)

    Then for the beauty coat to bring it all together: DupliColor Red MetalCast, enamel based (It's for giving metal a red anodized look)

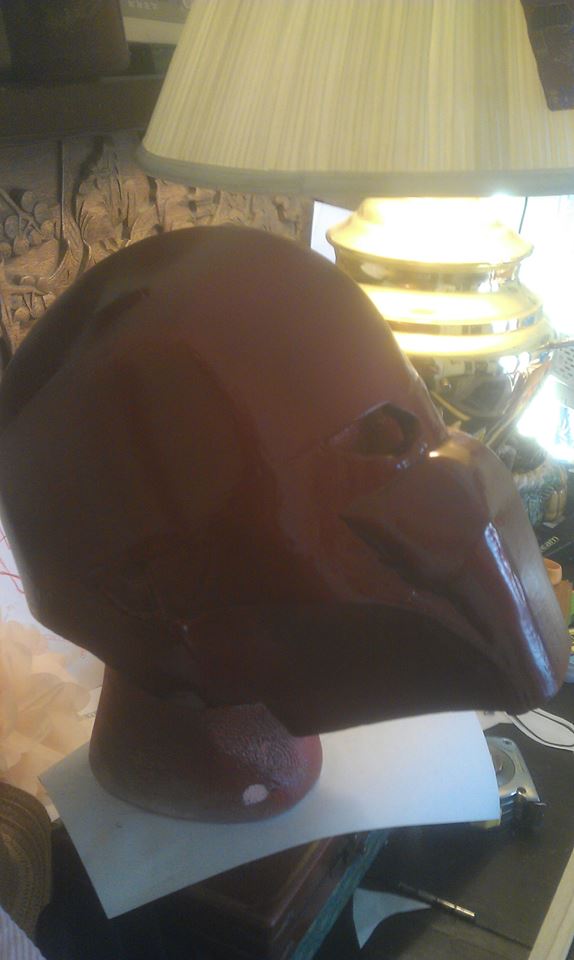

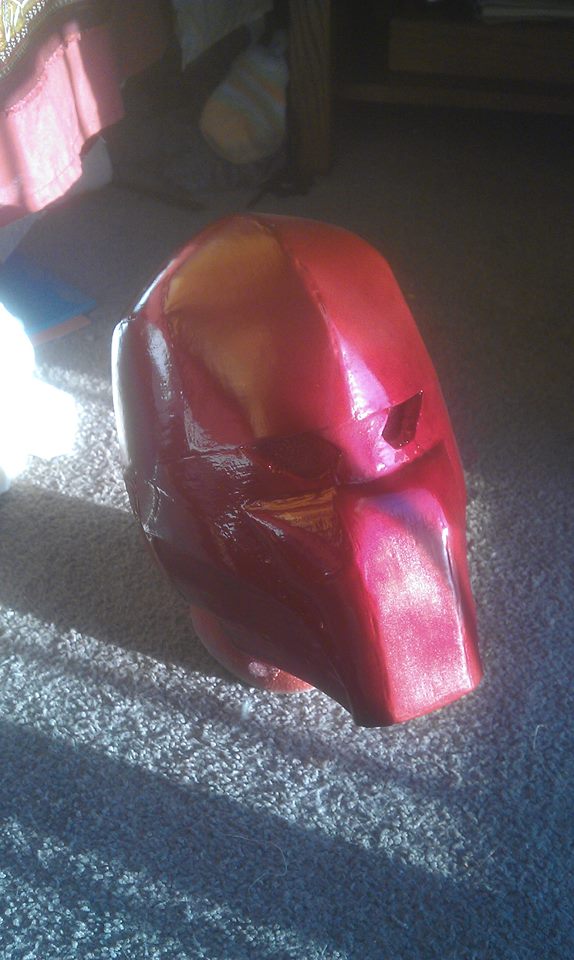

    10996022_829416917134982_3166719418870088954_n.jpg 11140070_829416380468369_7317840735477613531_n.jpg 21817_829417120468295_8875693467824060309_n.jpg

    Then I made the eyes. I used a DVD case for the frames. Drew my design for the eyes on some paper, backed it with packing tape, cut out the stencil and traced it onto the DVD case and cut it away. Then I used some thin plastic from a toy's packaging for the lenses and the same white perforated cross-stitch plastic I used for the eyes on my other Spider-Man Costume... And... VOILA! Ends of The Earth Anti-Sinister Six Armor Helmet:
    11183463_829896433753697_2487503673318798671_n.jpg 11202852_830252220384785_4463717330301391556_n.jpg 11218796_830252503718090_6346543219691970979_n.jpg r4zQEWR.png

    It's not perfect, but I dig it.

    Note also, that I'm appropriately rocking a Kingpin shirt to don the new bucket.

    I'll post more of the armor as I finish it. Next up is the shoulders and chest.
