Fifth Element: Grandfather say it never rain every day, Good News Guaranteed !!!

Discussion in 'General Modeling' started by Vacformedhero, Aug 25, 2015.

  1. Vacformedhero

    Vacformedhero Sr Member

    Trophy Points:
    1,427
    I have decided to post my work on the mr Kim's flying junk restaurant .
    I really love the overall humour of the Fifth Element movie, and many specific scenes are brilliant ,Korben Dallas being smashed over the head by the priest, the shoot out in the opera, the ""negotiations"" with the mangalore, Zorgs "I know this music, let's change the beat",Ruby Rhod !, and finally a beautifully shot little interaction between Mr Kim and Korben Dallas.
    i have always wanted to have this as a model, and decided recently when a question was posted on the rpf to the availability of a kit that I started mine. I had been thinking a while on how I could scratch build it and went ahead with it.
    here was my first posting where I had started the hero side of the junk .


    Attached Files:

    struschie, dcarty and Cameron like this.
  2. Vacformedhero

    Vacformedhero Sr Member

    Trophy Points:
    1,427
    Once I started I brought all the raw materials (scalpel, lollipop sticks and superglue) on holidays with me, I tell you it's very relaxing on holidays in between activities to sit down and concentrate on something , and everyone leaves you alone .
    I finished two sides and the front. I cut lollipop sticks into widths that matched the planking on the junk, there are a few different thicknesses required so initially I used the very with lollipop sticks sold in bulk in art stores.

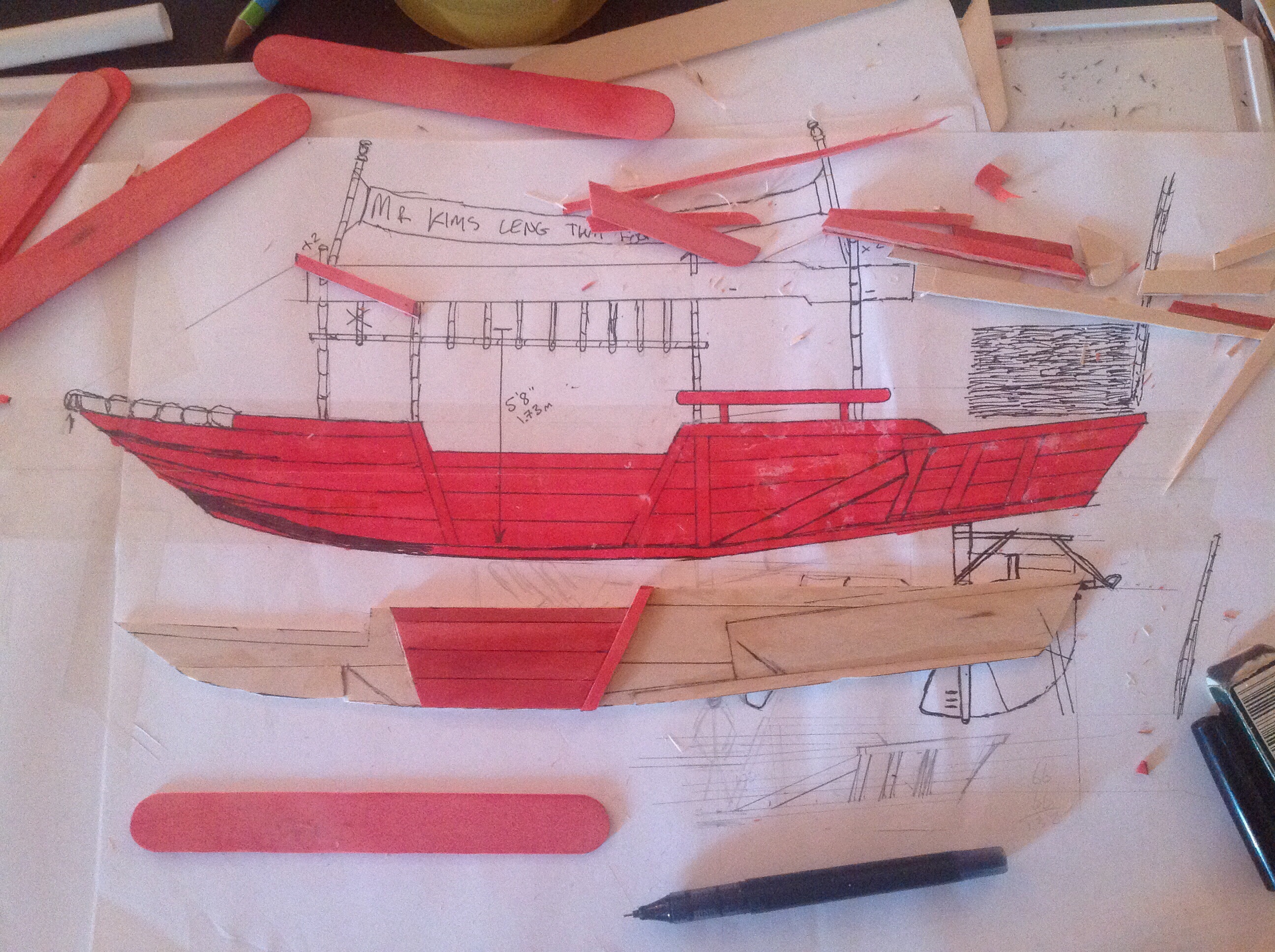

    i had drawn up a drawing , initially too small for my liking, which I changed and now the model will be approx 1:24 scale looking at Kim chan's height 1.73 metres against the set.
    the junk in the movie was only ever a full size set comprising of the junk which was mounted on a gimbal, the engine details were added afterwards I believe.
    once home and I started to think about the finish of the model.
    I reproved a lot of the details where there was narrow planking, I had found that the narrower stirring sticks supplied in coffee shops were the exact width I needed for some of the planks. So I removed a few of the ones I felt I had not done correctly and redid with cleaner sticks.

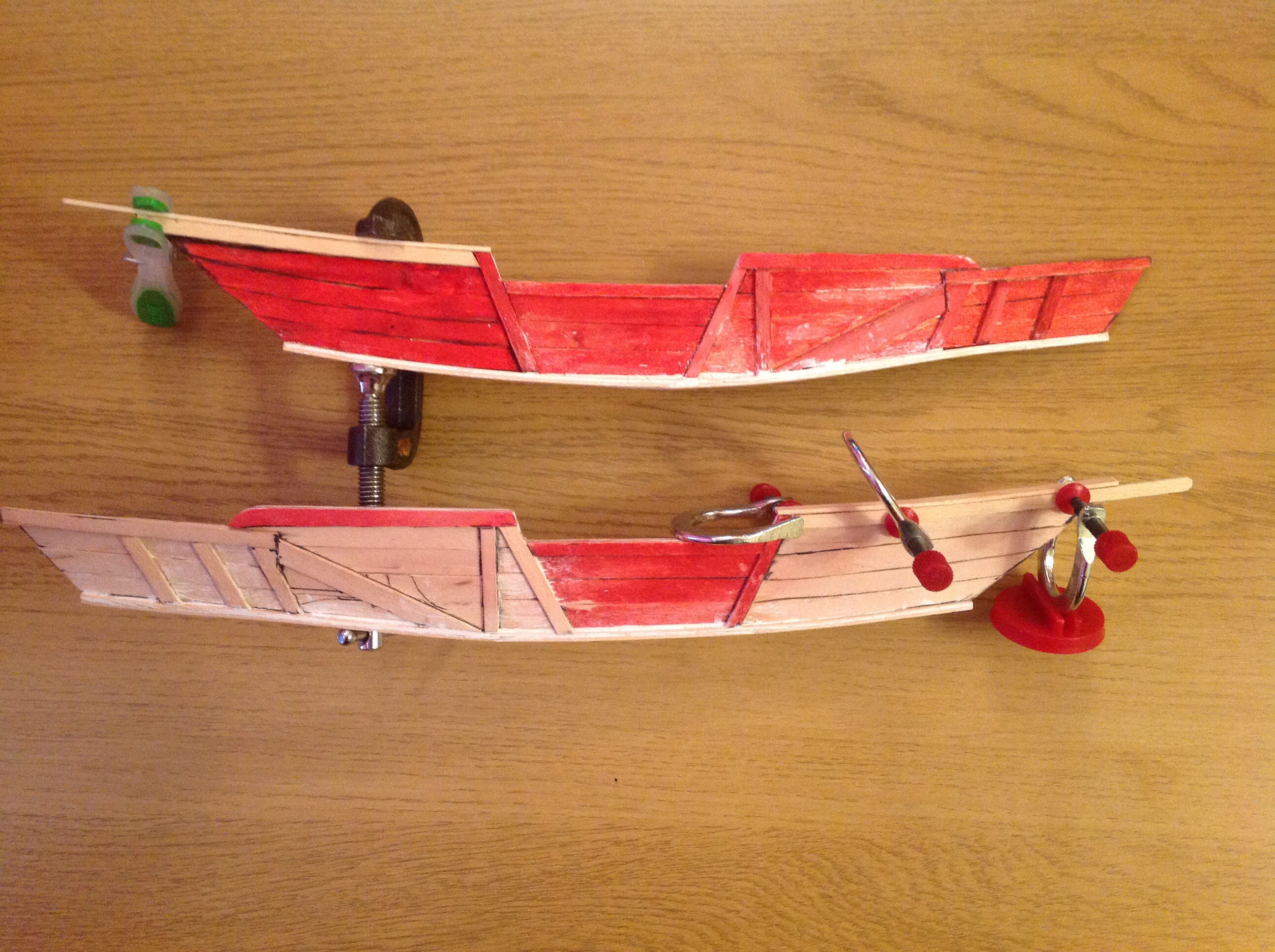

    here she is after second fillers have been applied and newer sticks being held in place by clamps.


    Attached Files:

  3. Vacformedhero

    Vacformedhero Sr Member

    Trophy Points:
    1,427
    I have to admit this method of building is very therapeutic I can see why people enjoy planking large scale ship models.
    Now my thoughts turned to finishing the junk and final assembly.
    originally I thought that the junks narrowing at the front and rear (I know Prow and Stern) were angular , but having looked and gathered multiple screen grabs the side walls of the junk are curved.
    My original reason for using lollipop sticks was to give the correct scale texture to the boat, and the fact of cutting the actual planking would add to the believability however I am now faced with having to deal with this curved side issue.
    to that end I think the only solution is to create silicone moulds of the sides and cast them in resin.
    i can then heat and set them on a curved former to shape the correct side profile.

    I am covering some new skills here having never done any castings before, and also not knowing the limitations on resin being able to take this type of reforming , can any one see any difficulties I might have ?


    Attached Files:

  4. newmagrathea

    newmagrathea Sr Member

    Trophy Points:
    1,780
    This is so fun. I love the Fifth Element. I think the side planks are each one piece throughout. You can bend wood by soaking it hot water and pressing it to a form.

    This video might help. You wouldn't have to boil nearly as long.

    https://www.youtube.com/watch?v=KpWJyHZbk38

    Vacformedhero likes this.
  5. rbeach84

    rbeach84 Sr Member

    Trophy Points:
    1,406
    Junks have plenty of internal transverse bulkheads, too, that give 'em their shape.

    R/ Robert

    Vacformedhero likes this.
  6. Chaank

    Chaank Well-Known Member

    Trophy Points:
    916
    Great idea. Looking forward to seeing your progress.

    Vacformedhero likes this.
  7. Vacformedhero

    Vacformedhero Sr Member

    Trophy Points:
    1,427

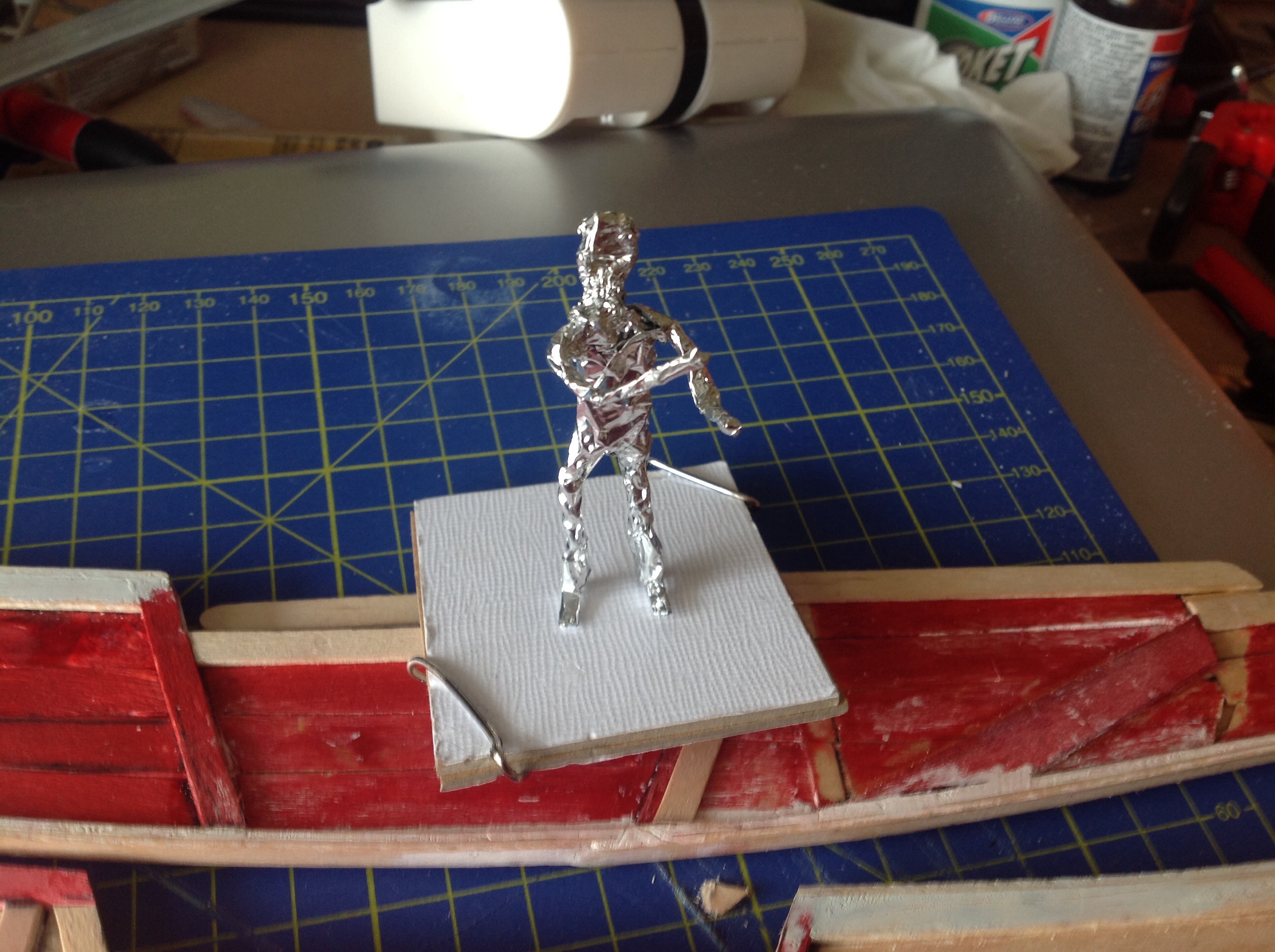

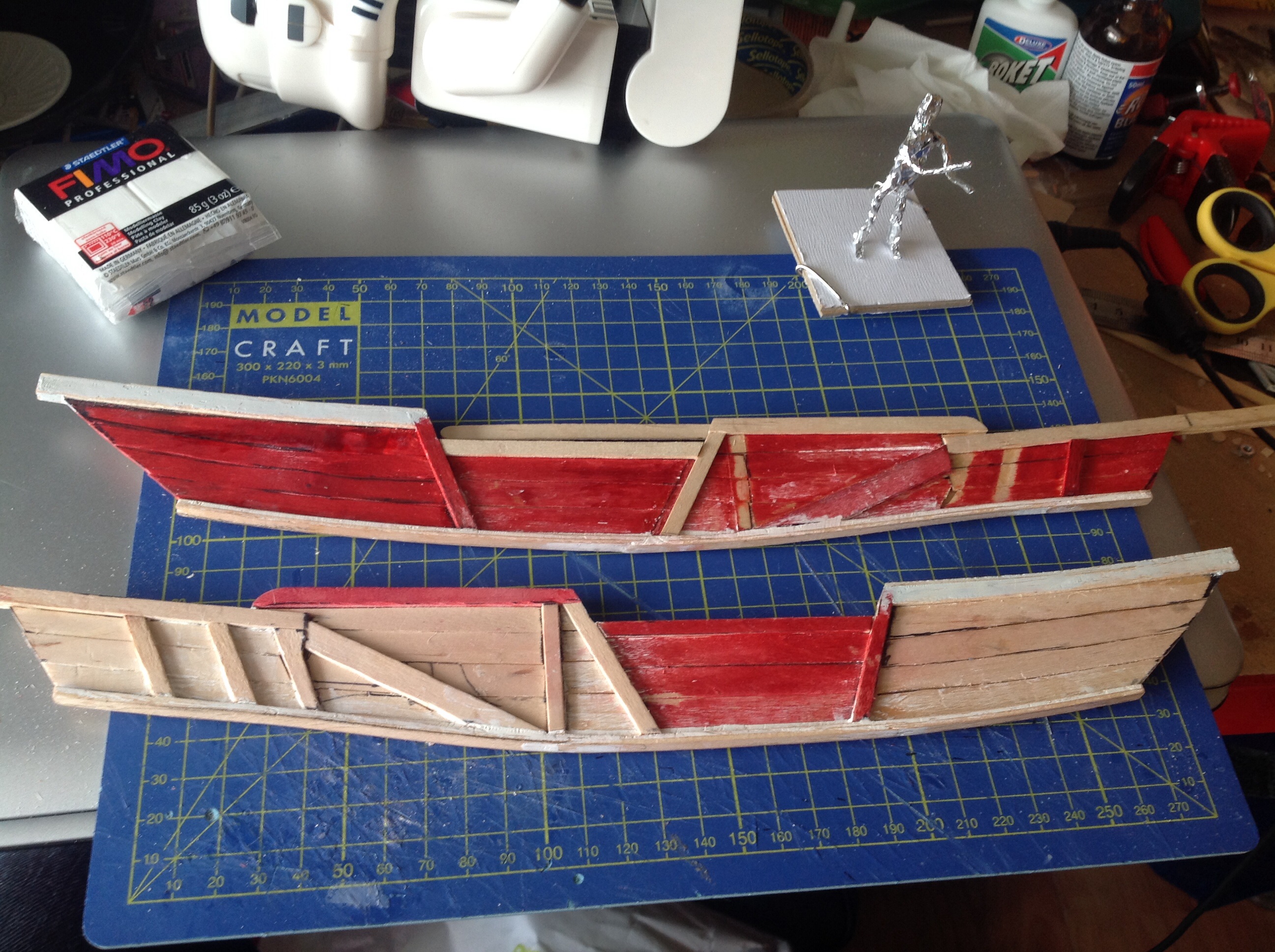

    Not happy with some of the planking so going thorough it again to make sure I am satisfied, also started my first ever sculpt , mini I'll admit using wire from a whisk and aluminium tape
    still looking to mould this so trying to ensure junk is as crisp as possible .
    image.jpg image.jpg

  8. shmartybird

    shmartybird Active Member RPF PREMIUM MEMBER

    Trophy Points:
    461
    Cracking project idea! The junk restaurant is my favorite vehicle from the film.

    Vacformedhero likes this.
  9. ProfKSergeev

    ProfKSergeev Well-Known Member

    Trophy Points:
    835
    Nice work, but if you were planning on molding this with any kind of rubber or latex, it will be impossible due to the wood's porousness. Either redo the junk in plastic with faux wood grain (you could even leave this till the painting stage), or keep it a one-off.

  10. Vacformedhero

    Vacformedhero Sr Member

    Trophy Points:
    1,427
    Would release agent not prevent the pores from allowing silicon in?

  11. rbeach84

    rbeach84 Sr Member

    Trophy Points:
    1,406
    Just seal the wood grain! Use some kind of thin varnish to seal it without losing all the wood grain texture (research the compatibility with silicone, of course.) Make sure and use a mold release and a thin RTV to capture the fine detail.
    Regards, Robert

    Vacformedhero likes this.
