Fallout:New Vegas Recharger Rifle

Discussion in 'Replica Props' started by RATCHET, Jul 19, 2015.

  1. RATCHET

    RATCHET Active Member

    Trophy Points:
    261

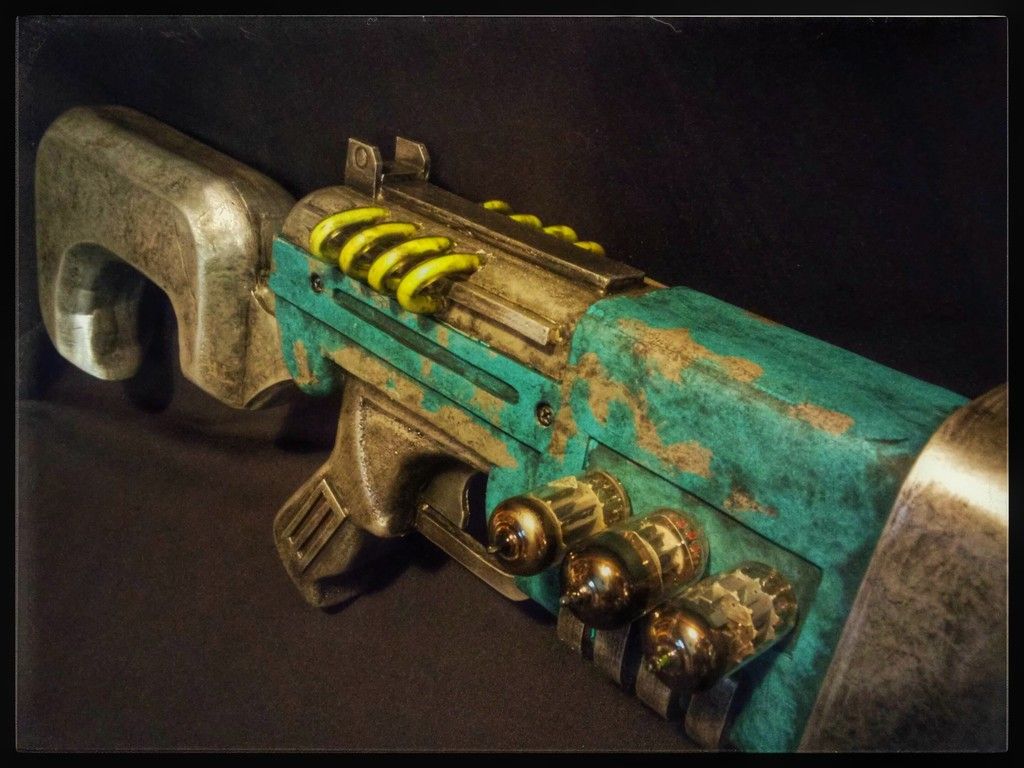

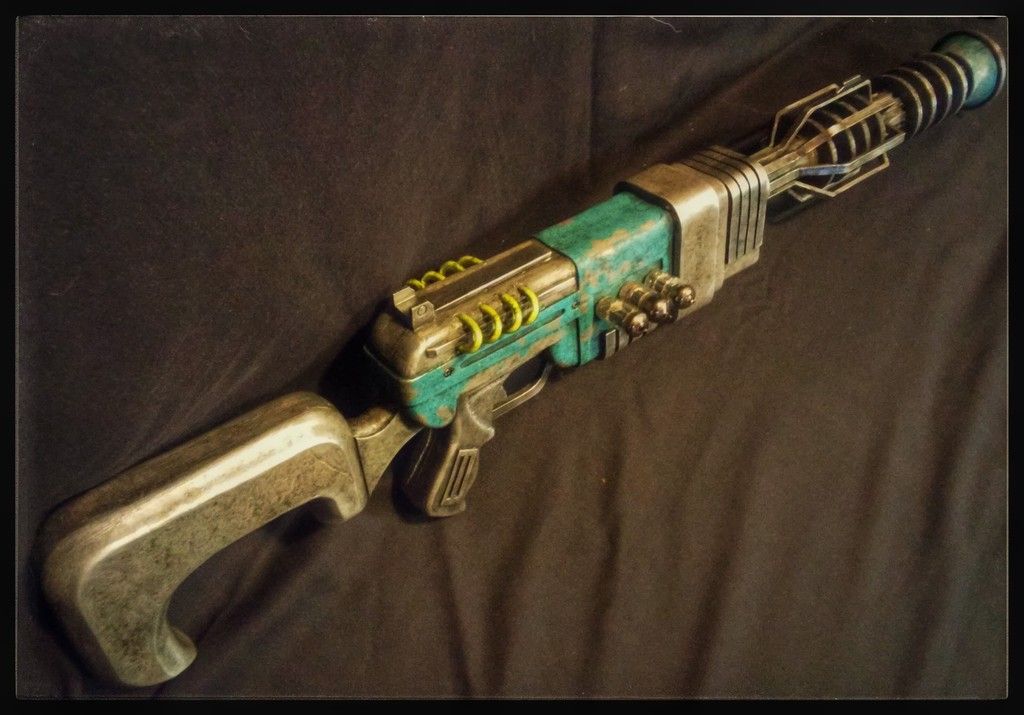

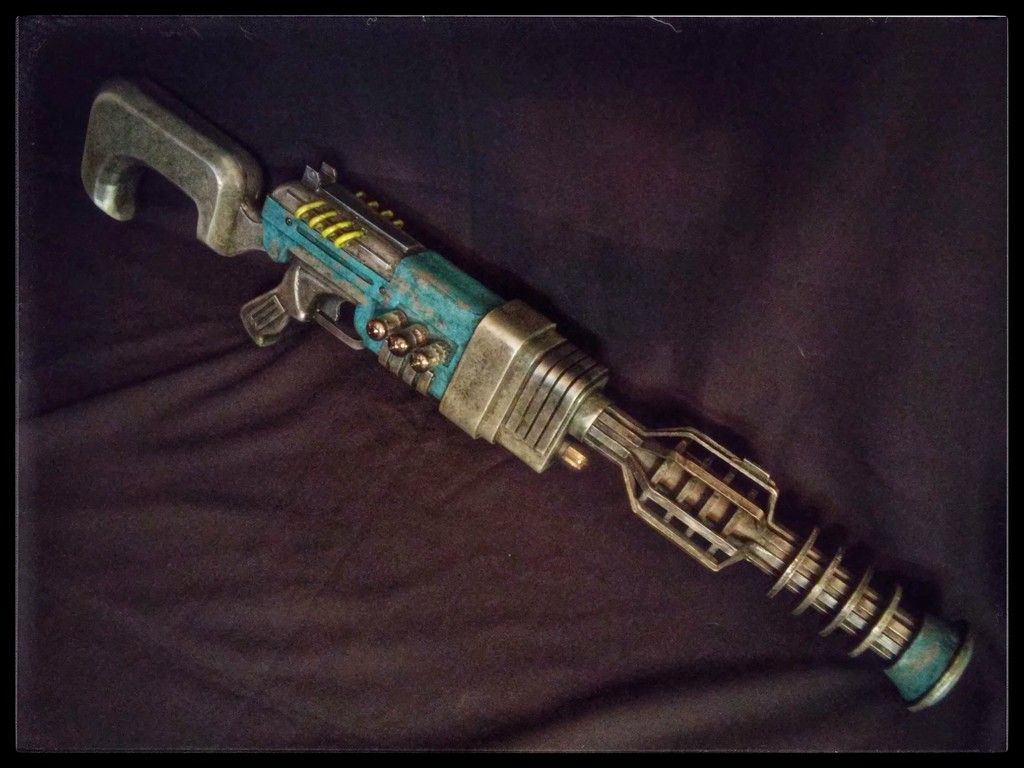

    Just finished up my Recharger rifle from Fallout:New Vegas. I made it using pink panther foam insulation board, different thicknesses of craft foam, foam core poster board, fish tank tubing, Sintra, pic pipe and some vacuum tubes. To seal the foam, I used a 1:1 ratio of acrylic paint and elmers glue-all and brushed on 4 layers of it. It works pretty we'll to fill gaps. For larger gaps, I used DAP light weight spackle and sanded it down using Various grits of sandpaper. The base coat was done with Krylon smoke Gray, then I applied the turquoise paint, used licorice acrylic mixed with Windex for a blackwash and applied silver rub n buff. It took me 13 hours over the course of 4 days to finish this and I'm fairly satisfied with the result seeing how it was made all from scavenged materials as is the way I make the majority of my props. Enough talk, on to some pictures.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]


    Thanks for taking the time to view my work and feel free to Let me know what you think of it.

    sa maker, Megus23, tomvdc and 3 others like this.
  2. GhostMinion

    GhostMinion Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,306
    Looks dope! Love it. :thumbsup

  3. zookone

    zookone Well-Known Member

    Trophy Points:
    566
    Looks Awesome and you busted it out fast. I am sooooo much slower....

  4. RATCHET

    RATCHET Active Member

    Trophy Points:
    261
    Thanks! I go out of town for work a lot so I have very small time frames to build something. I'm no stranger though to taking a craft box with me and building something in hotel rooms.

  5. nick daring

    nick daring Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,455
    I love when simple materials are used for amazing projects!

    I'd love to know what you think your approximate budget ended up at?

  6. RATCHET

    RATCHET Active Member

    Trophy Points:
    261
    Since I scavenged or already had the items I had to Google going prices for the products I used. The Owens corning board is around 11, foam poster board is 5, craft foam is 6, the pvc is 4, acrylic paint and spray paint would be 5, vacuum tubes range but I would say 5, fish tank tubing 3 and the Sintra around 25 so 64 dollars to buy all the materials brand New but since it won't all be used,roughly 25 dollars worth of material.

  7. dregoth

    dregoth New Member

    Trophy Points:
    17
    That thing looks great.

  8. VaultDweller

    VaultDweller New Member

    Trophy Points:
    17
    Nice work! It's amazing how quick you've completed it!

  9. LionTale

    LionTale New Member

    Trophy Points:
    2
    That's awesome!
    What was the length (or measurements if possible) of the rifle? I want to make one with a 3d printer (Gonna need to make it into parts...)

  10. zapwizard

    zapwizard Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,341
    It looks great. The bends around the radiator near the front are my favorite detail.

  11. GunnerBill

    GunnerBill Active Member RPF PREMIUM MEMBER

    Trophy Points:
    311
    Wow perfectly brilliant! !
