Hello All!
A year or two back I did a fallout 3 plasma rifle... This will be an accompanyment to that project (although if I go full armor suit I'm going to integrate the weaponry into the suits forearms)...

This helmet will be based on a piece of concept art by Trufanov on Deviant art... So full credits to him for the original concept!
war_by_trufanov-d32i21e.jpg http://trufanov.deviantart.com/

As of now I have a plaster cast of my head and I will start sculpting over it with automotive clay... Get the base form, cast, detail and break into parts, recast, electronics, paint.. BOO YAA!

I don't have my camera right now but expect pics in the next few days.

In the meantime, feel free to check out the plasma rifle!

http://www.therpf.com/f9/feedback-w...ished-plus-pro-photo-shoot-first-post-137100/

or my website

www.unorthodoxdesign.ca

Cheers! Thanks for being awesome RPFers!

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

OKAY!! First update! YAAAY!

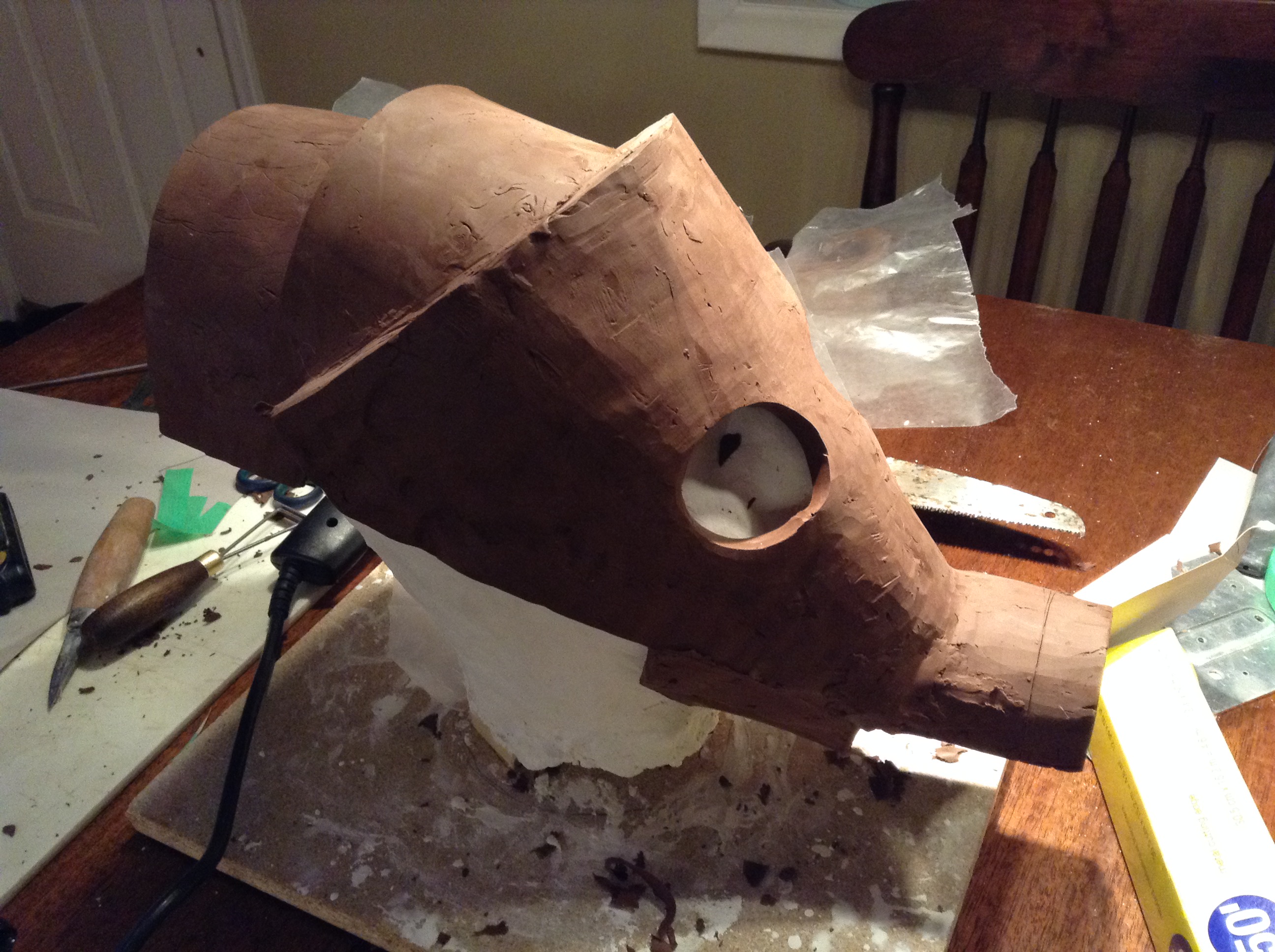

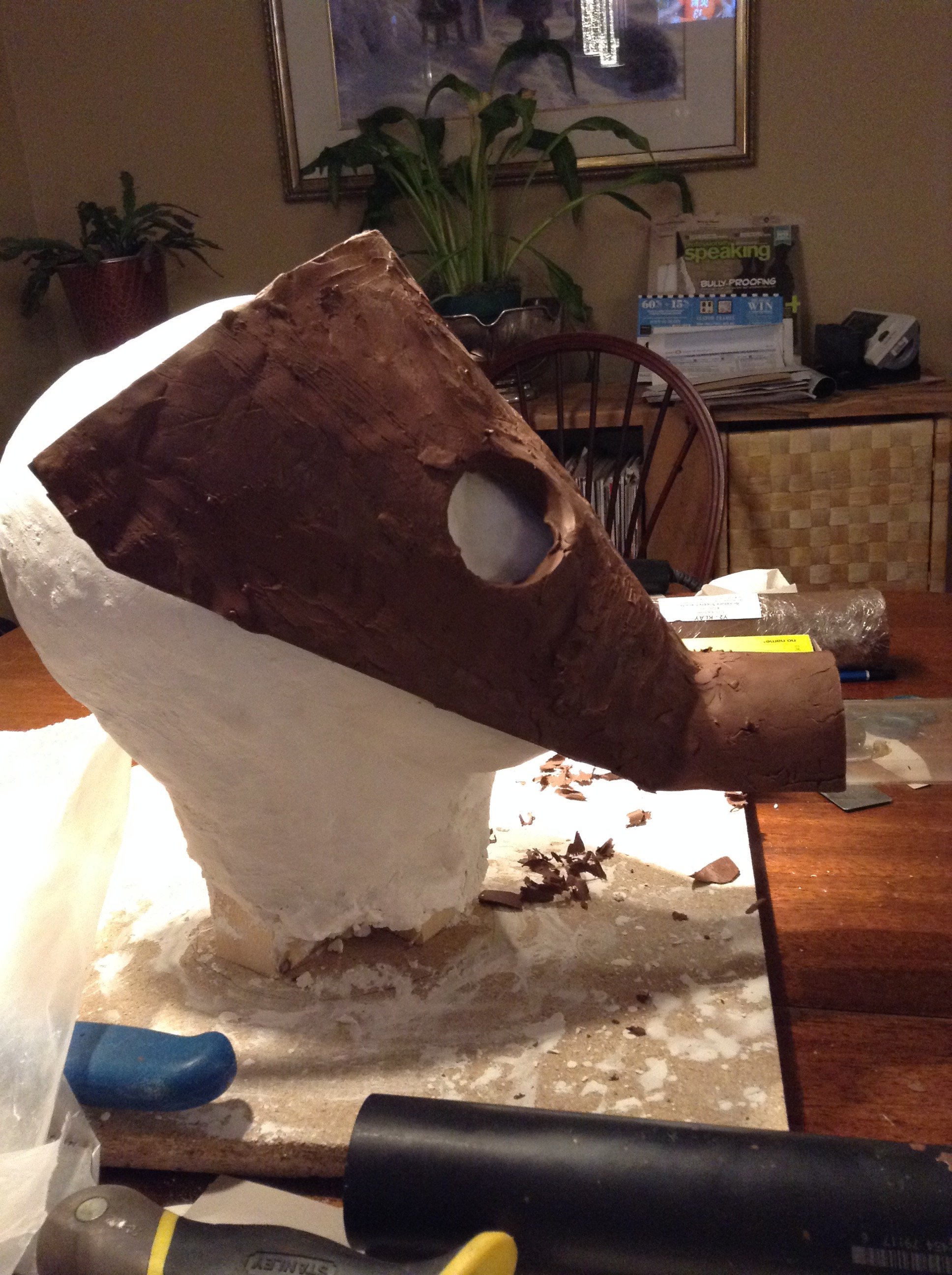

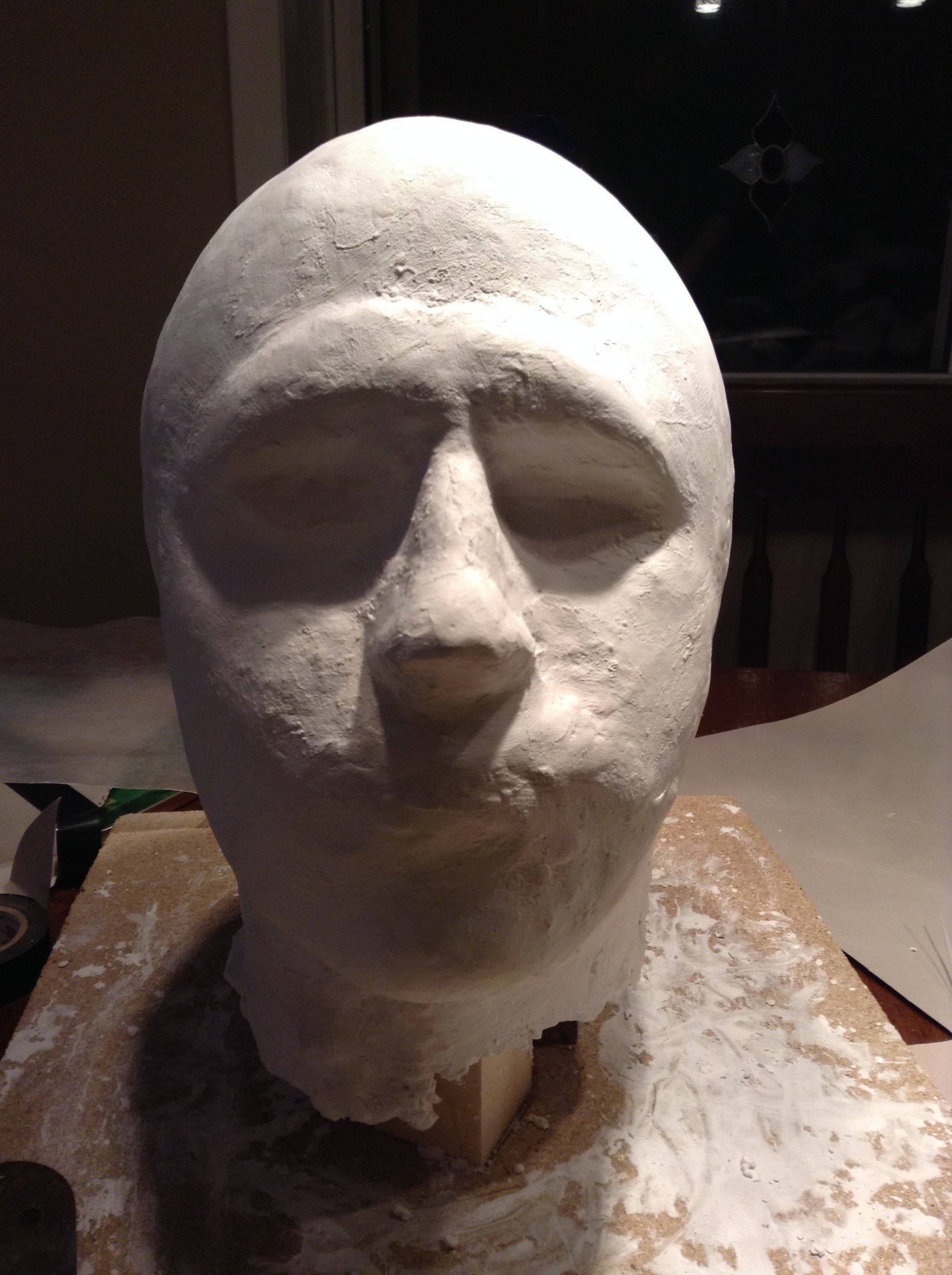

Still very rough.. But the head cast is done and the form is taking shape!

IMG_4816.JPG IMG_4829.JPG IMG_4830.JPG IMG_4834.JPG IMG_4835.JPG IMG_4840.JPG

- - - Updated - - -

Sorry for the crappy iPad pics...I need to stage them more like Volpin!

- - - Updated - - -

Sorry for the crappy iPad pics...I need to stage them more like Volpin!


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

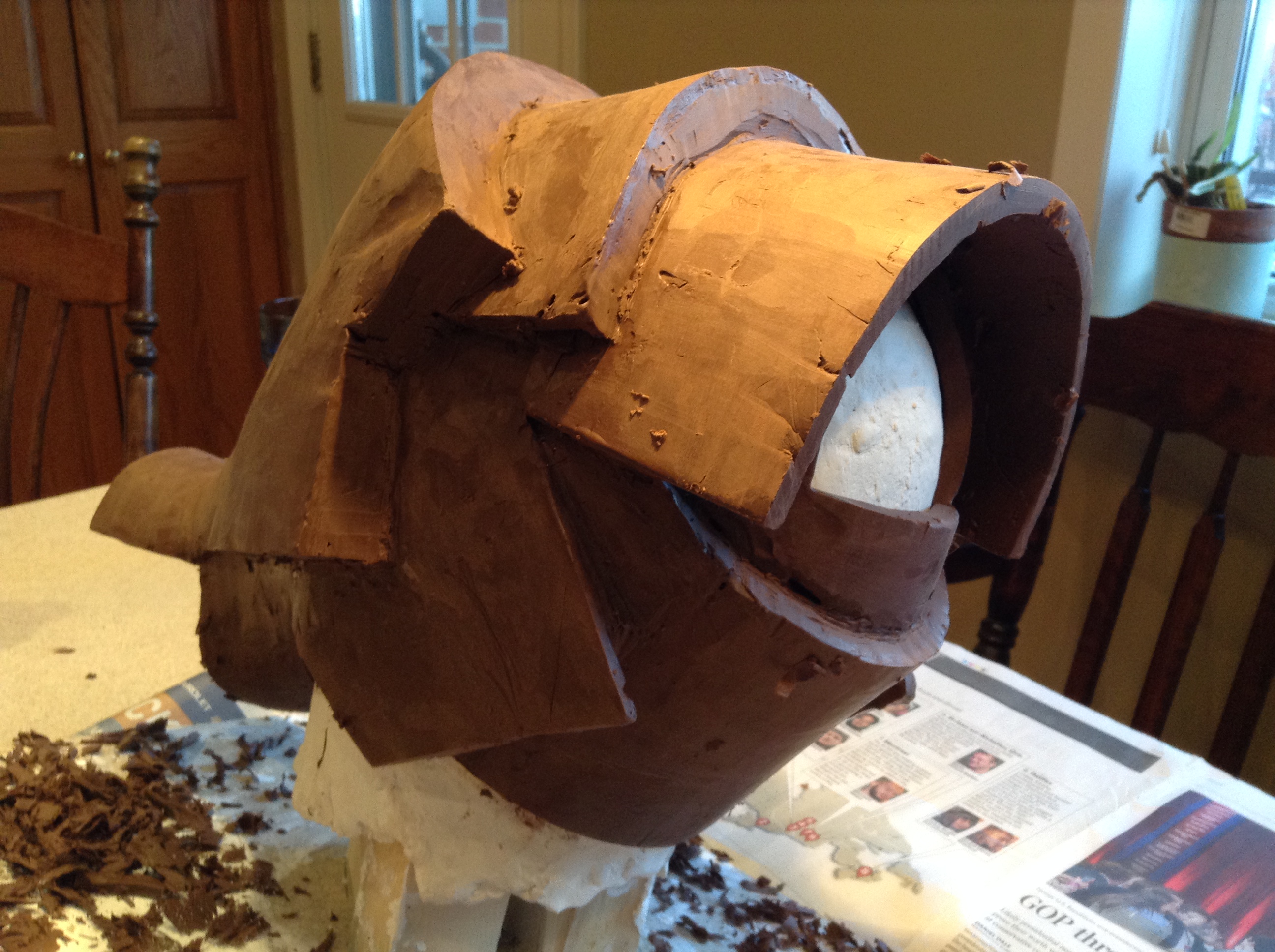

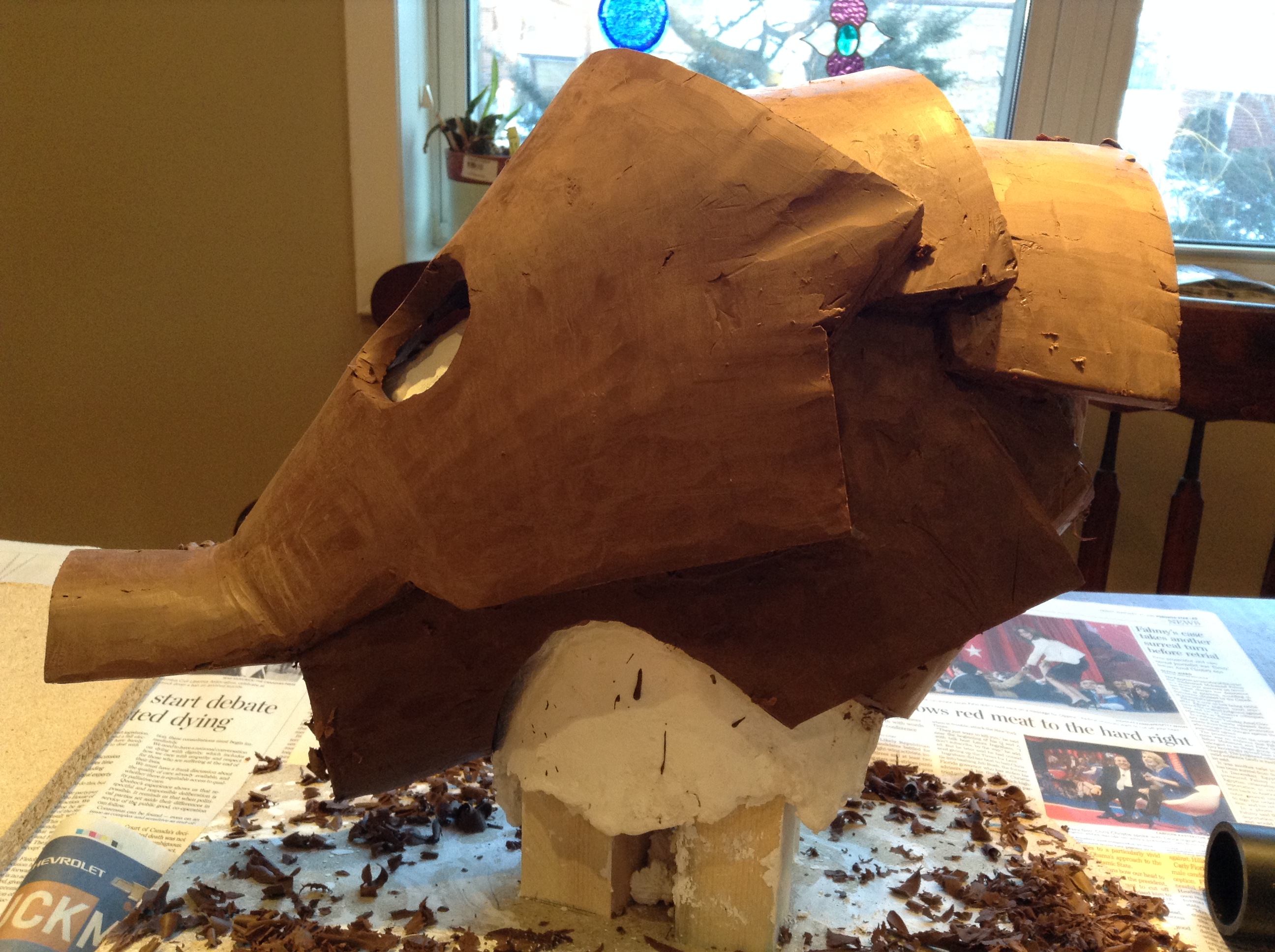

Okay! Update! Most of the armor plates are roughed out... I've done the first pass of form cleaning and definition... Going to fill in the voids to clean it up a bit more than work on improving symmetry. The final step of the first cast will be scribing panel and join lines (easier to do subtractive work in clay vs the cast).

Enjoy!

IMG_4852.JPG IMG_4855.JPG IMG_4857.JPG


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

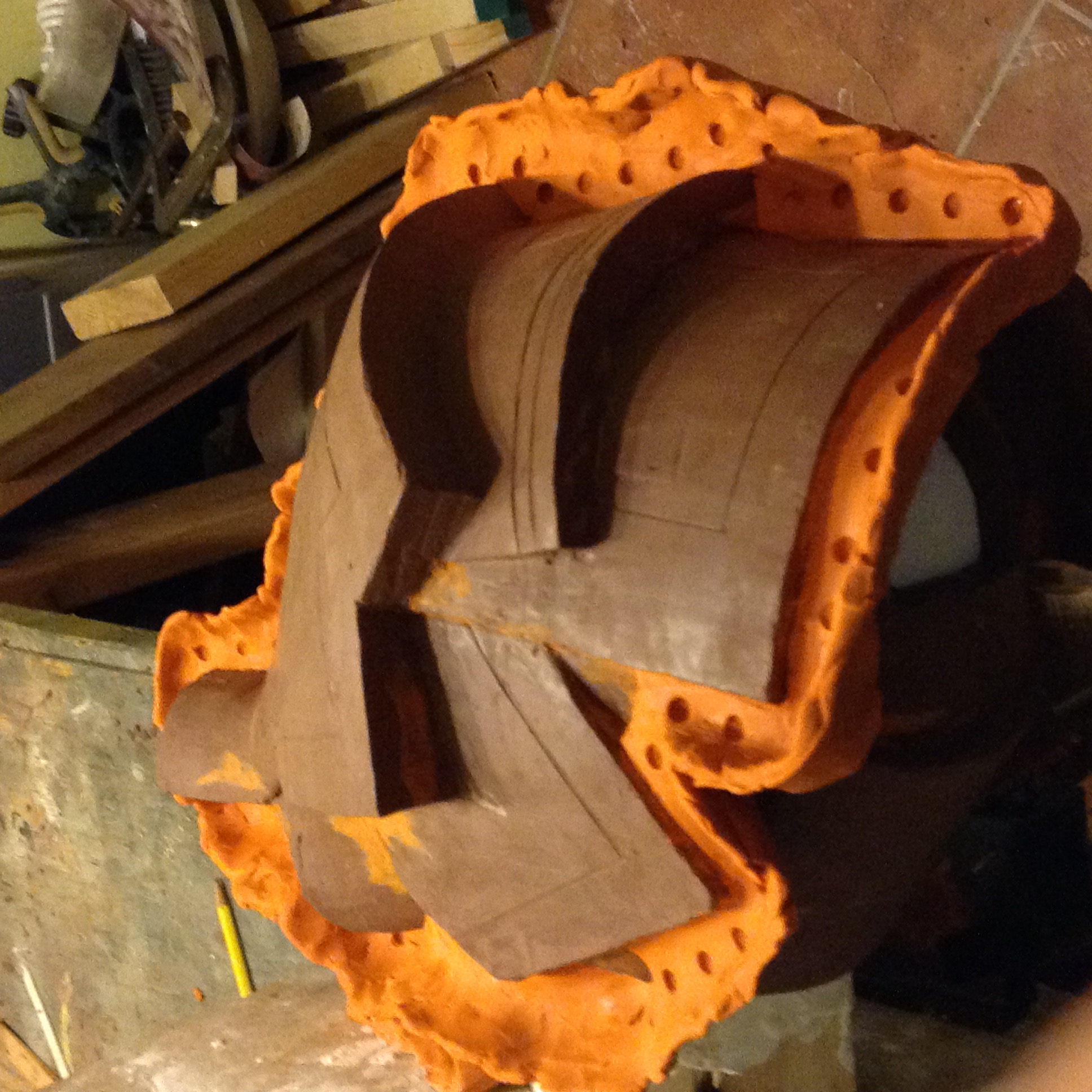

I think this will have to be a 3 piece mold... 2 side halves and a plug part for the recess in the back. Any advice is greatly appreciated!


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

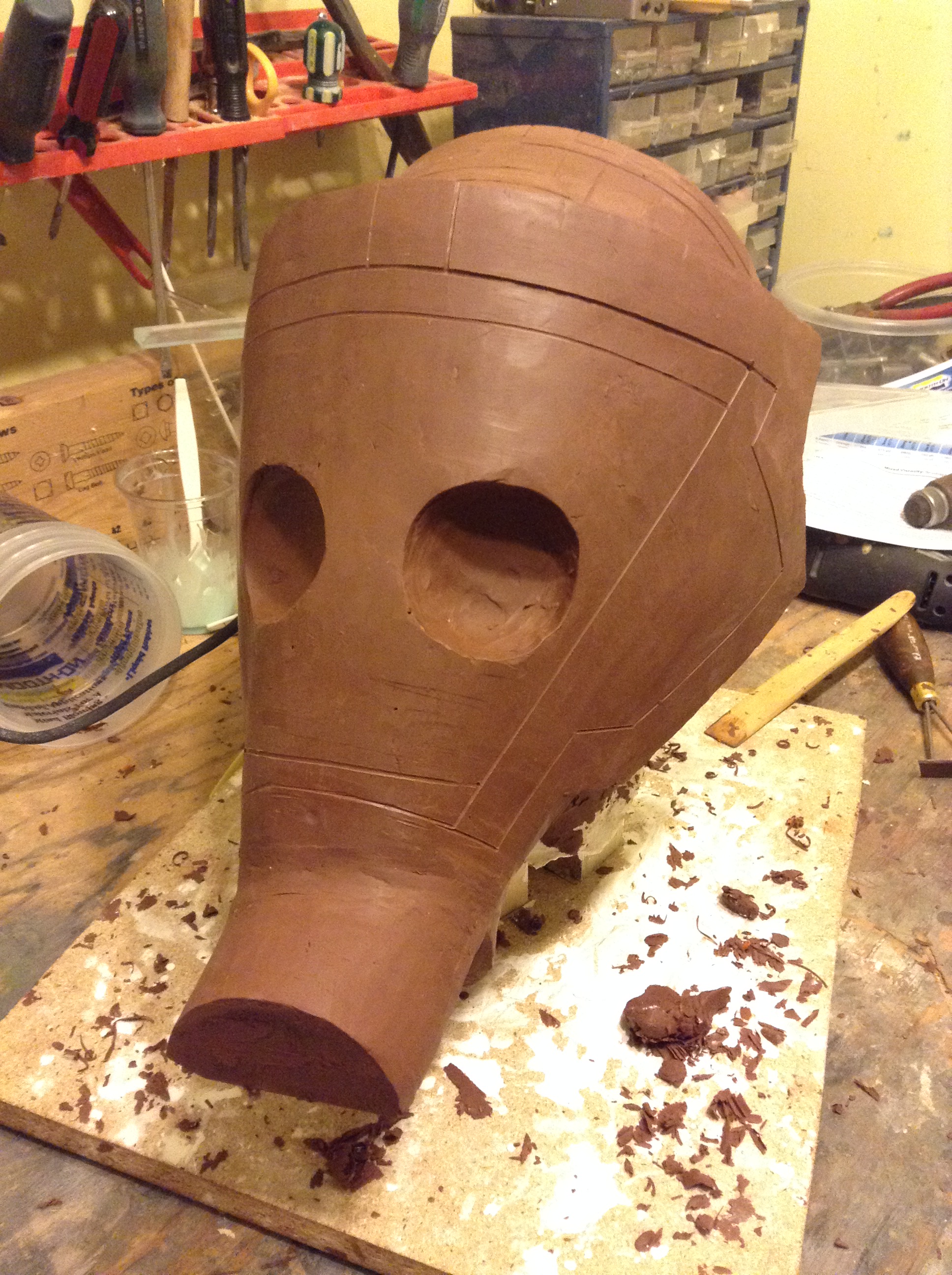

New update! Almost ready for the initial form mold. Panel lines are beginning to be scribed. I'm going to clean them up more once I get the hard cast... I've decided I'm definitely better at thermoforming plastic than Y2-Klay. More practice is needed...
IMG_4871.JPG IMG_4872.JPG


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

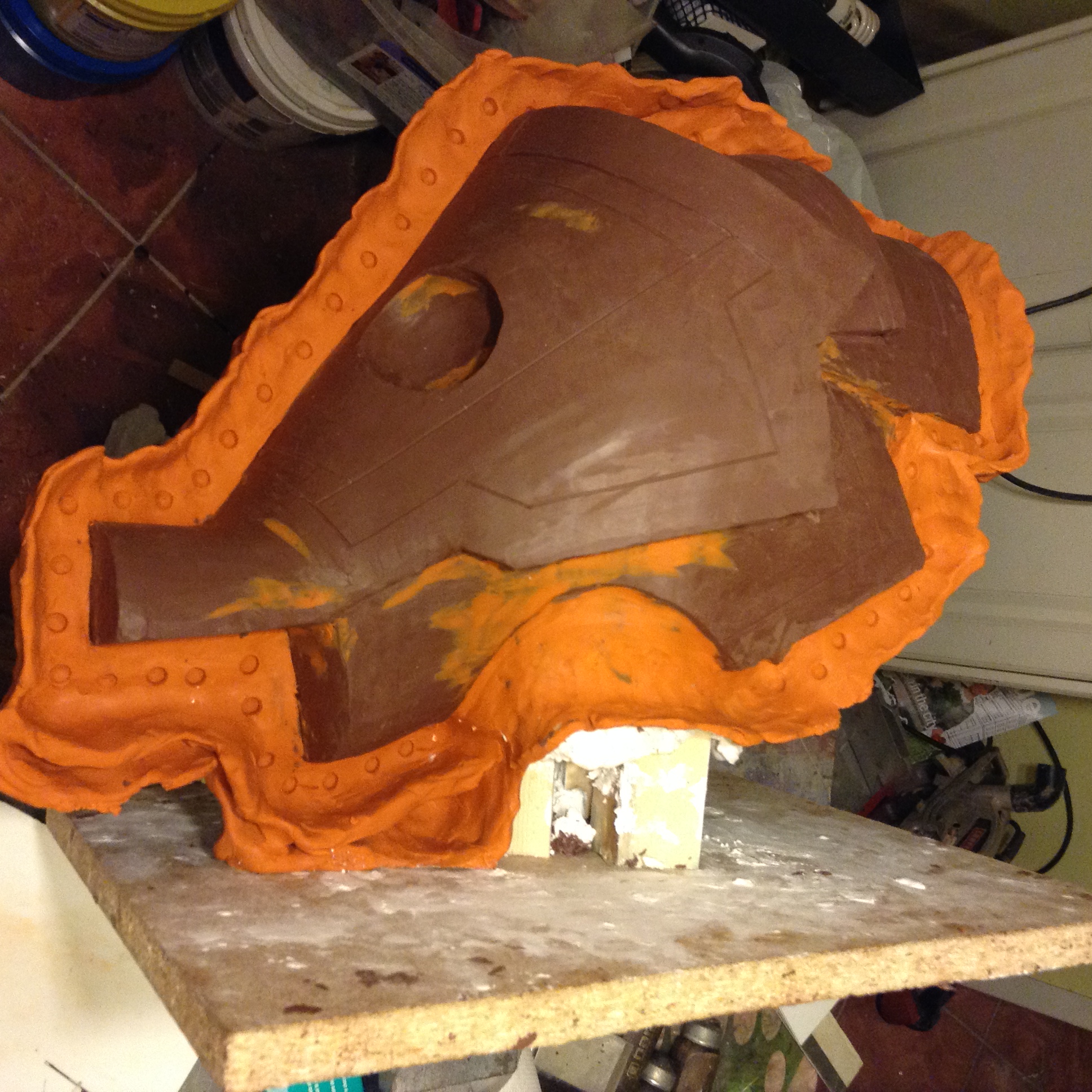

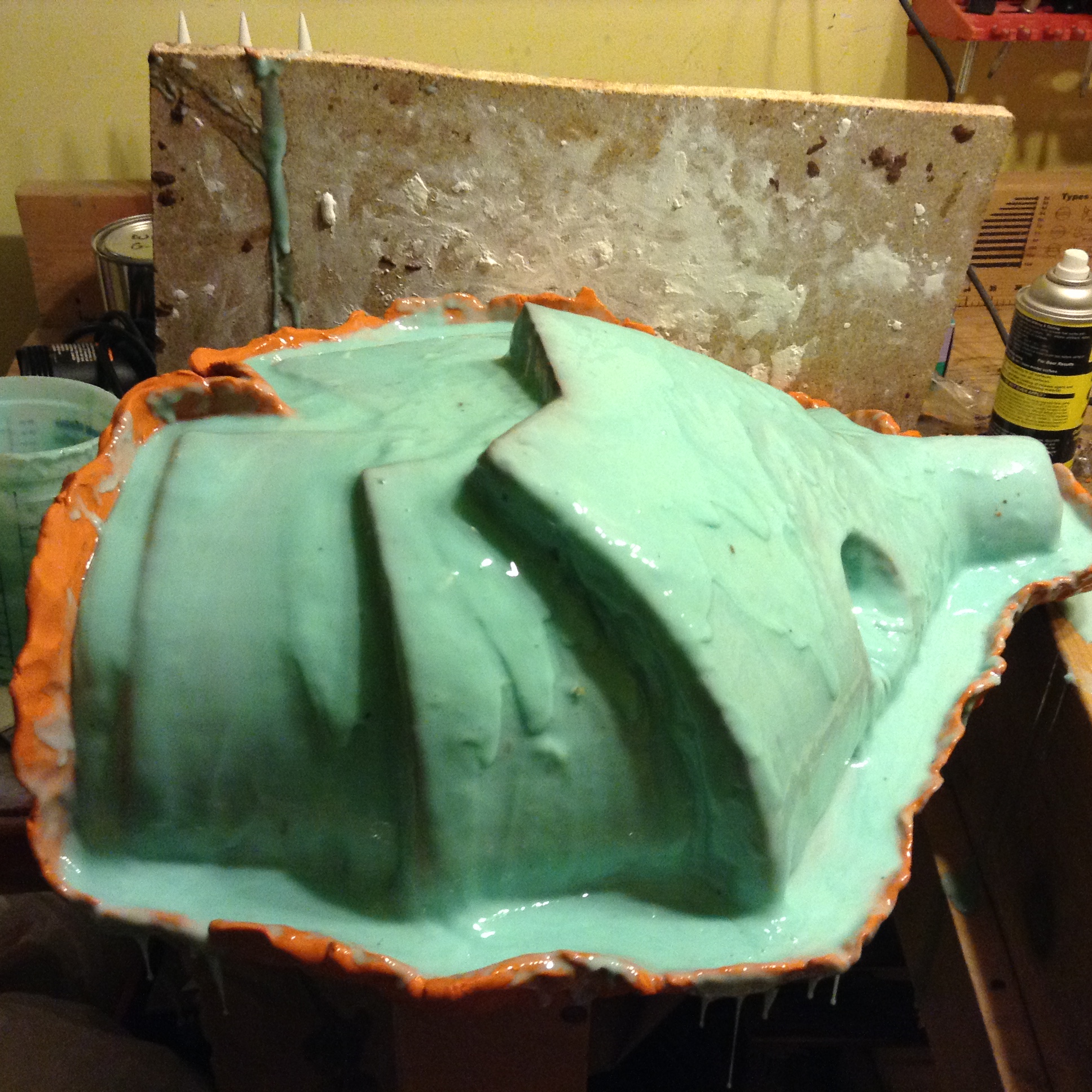

Original line drawing with facial silhouette... The dimensions/angles have changed slightly. I'm now almost done the silicon mold.. Just 1 more layer needs to set then I can make the plaster jacket and get the slush cast form done... EXCITING!


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

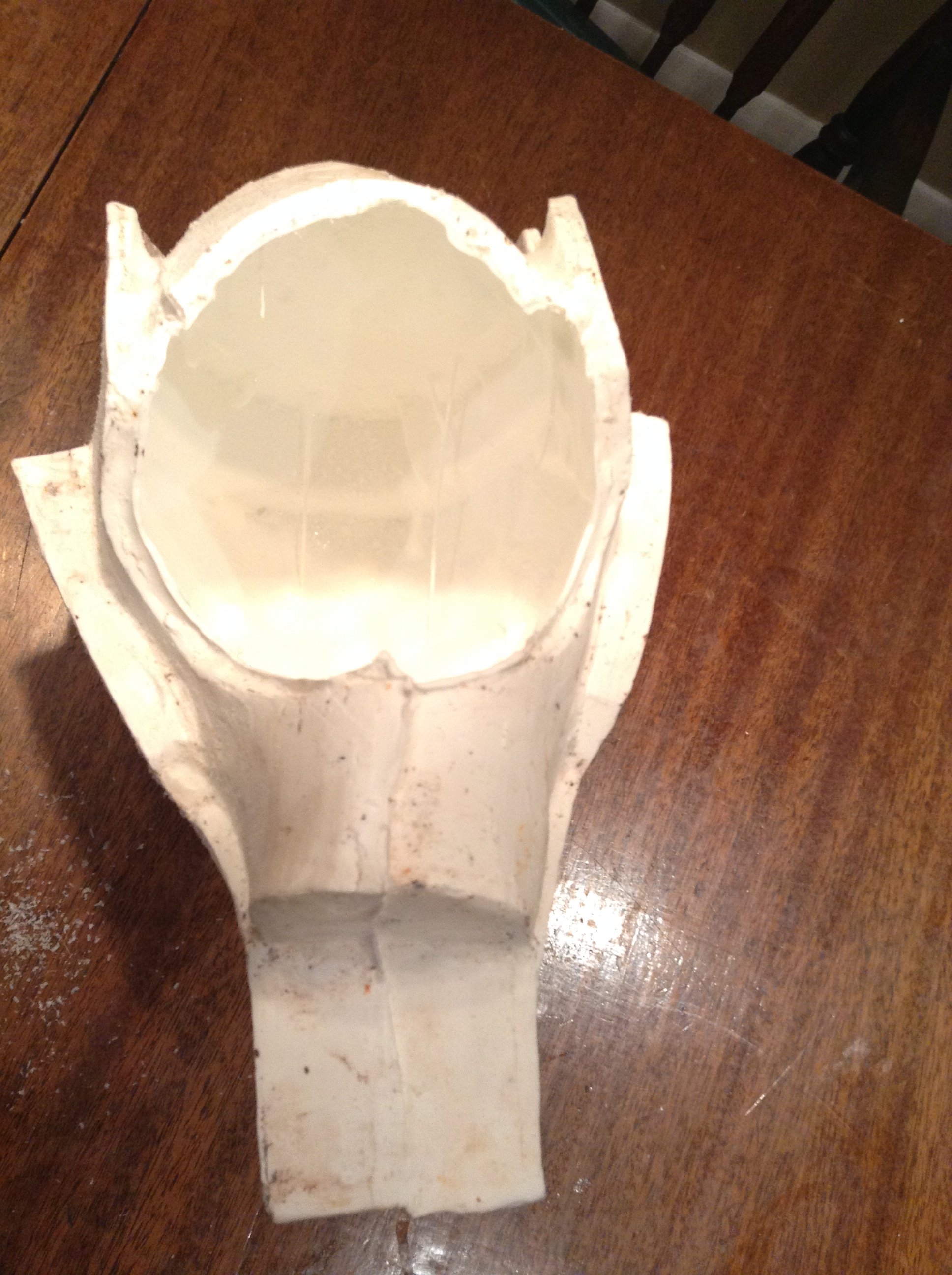

Yay!! My first 3-piece mold worked out pretty well! I'm definitely going with fiberglass for the final master mold jackets.. I think plaster is better suited for smaller pieces...
This means I'll be starting the detailing process soon! Yay finally the fun part!

aaIMG_4908.JPG aaIMG_4903.JPG aaIMG_4915.JPG aaIMG_4916.JPG aaIMG_4918.JPG aaIMG_4925.JPG aaIMG_4928.JPG aaIMG_4929.JPG


DJdrummer

Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

This is really cool. I love that you're making a fallout helmet not actually featured in game. Can't wait to see what you're going to do with the details.


guitarpirate

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

That's a sick looking build. The power armor concept is amazing and I'm glad you dug it up.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

waystone

Jr Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

That's a sick looking build. The power armor concept is amazing and I'm glad you dug it up.
No kidding, some of the ones you can find are down right amazing.
Cant wait to see more of this one take shape.


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

NOTE TO EVERYONE..

--NEVER-- CUT SMOOTHCAST 60 WITH A HIGH SPEED DREMEL WHEEL WITHOUT ---FRESH--- ORGANIC VAPOR CARTRIDGES IN YOUR RESPIRATOR.. IF THEY ARE OLD THE WON'T FULLY HANDLE THE SMOKE AND YOU ONLY HAVE 1 PAIR OF LUNGS. LESSON LEARNED.

- - - Updated - - -

Cut up the cast for cleanup/detailing/fitting my head into it. More pics tonight!

Last edited:

BlackJackMurphy

New Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

Looks great, loving the originality of the concept. I'm sure the end result will be fantastic!


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

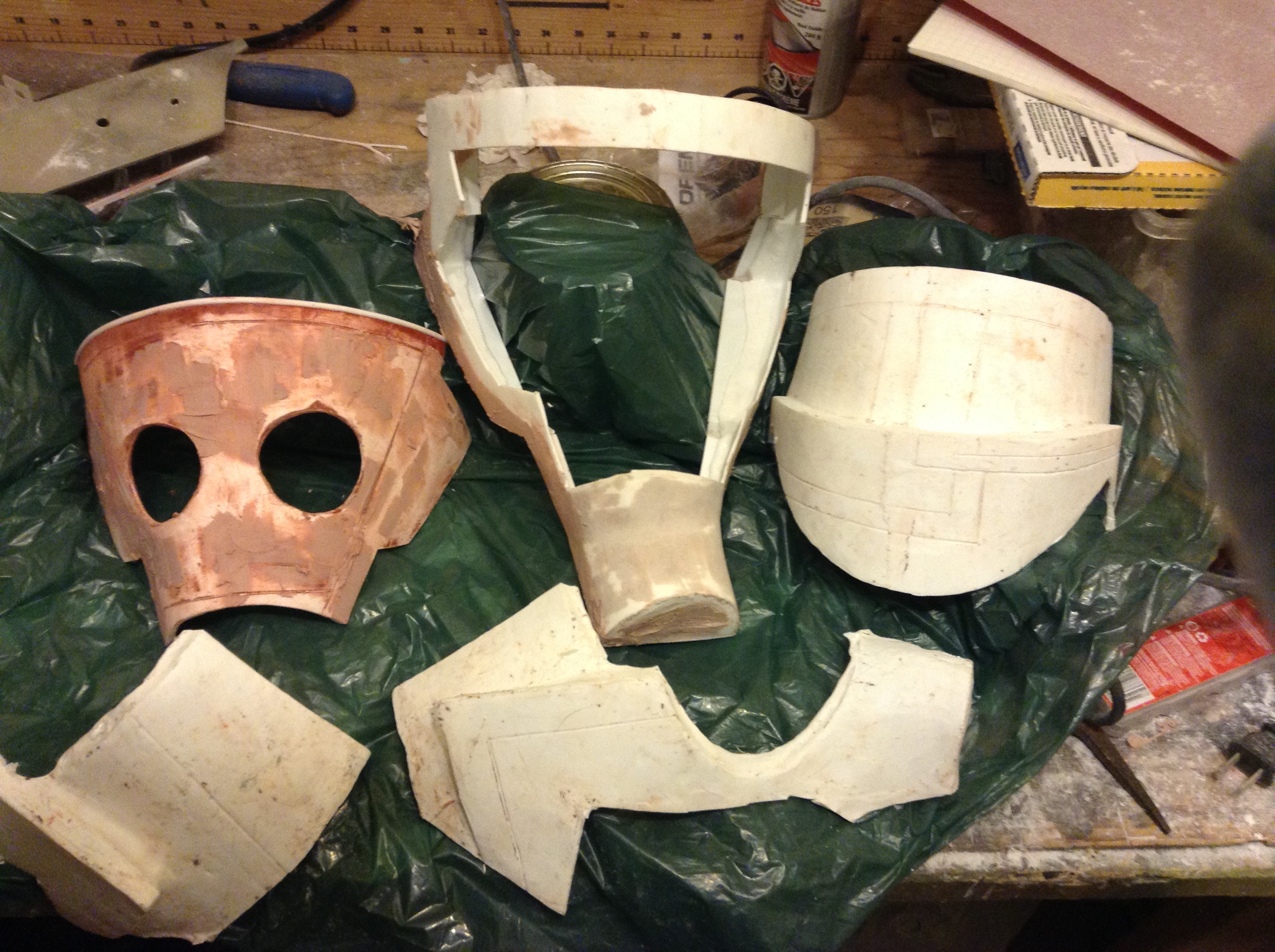

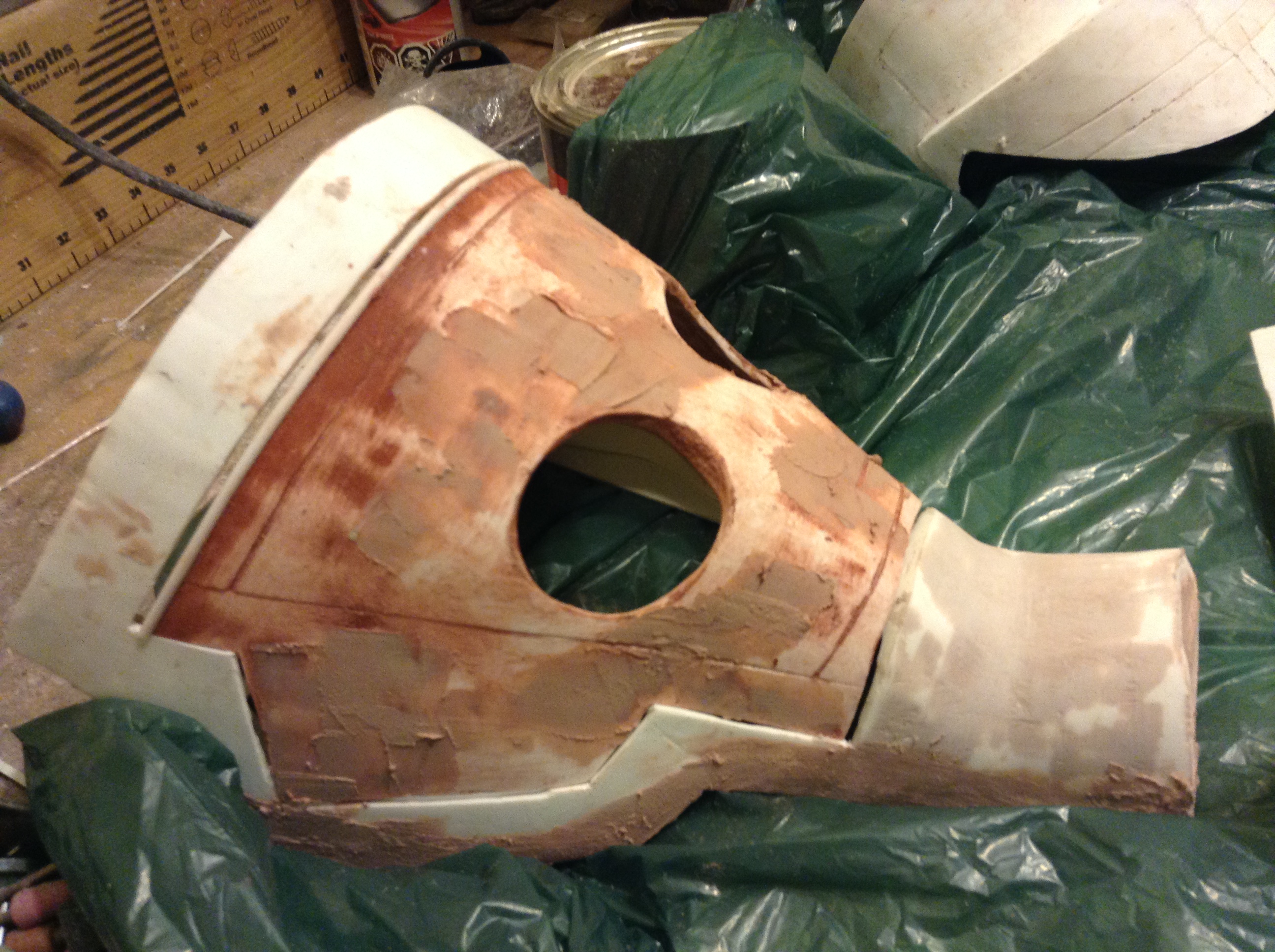

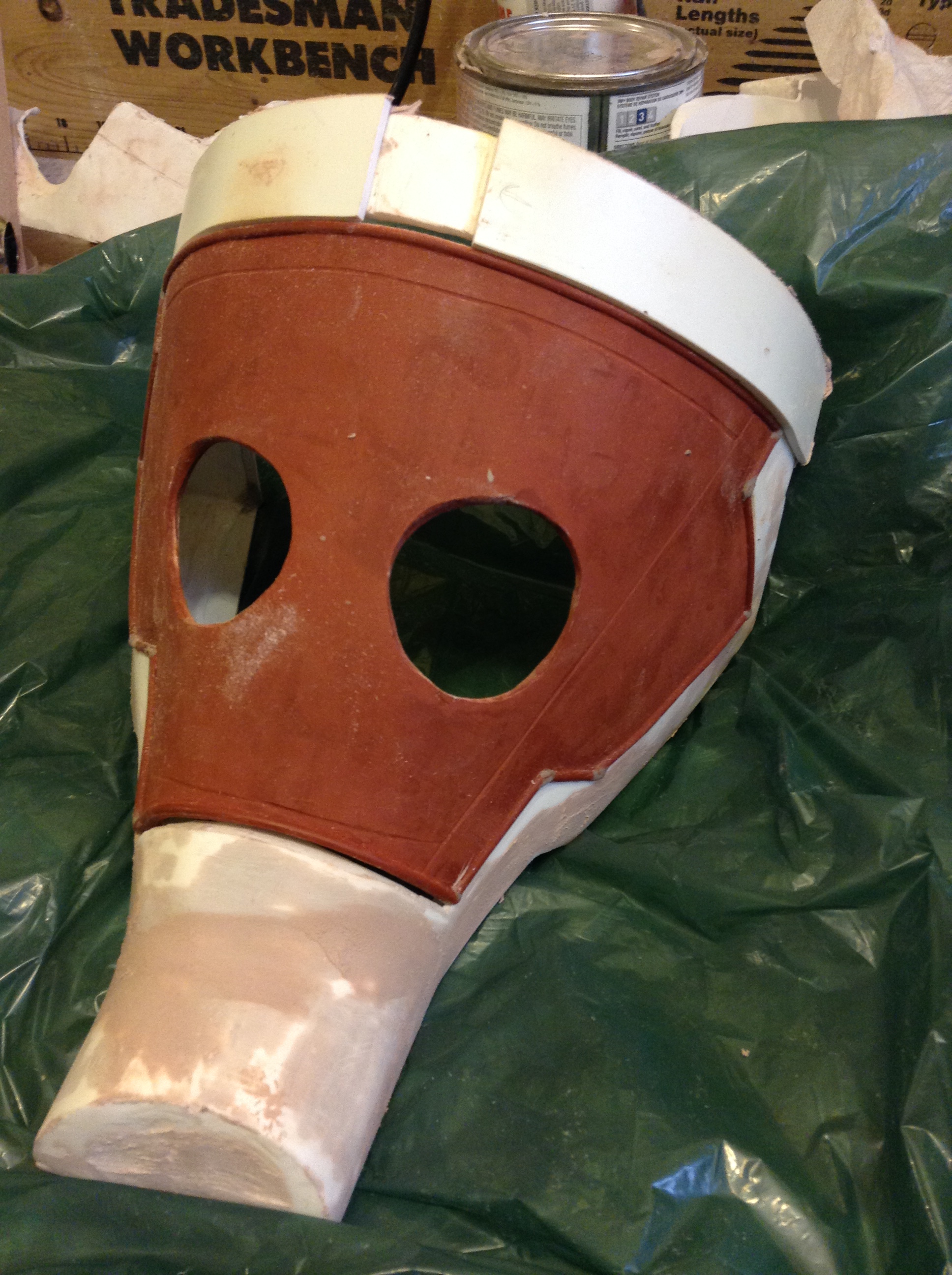

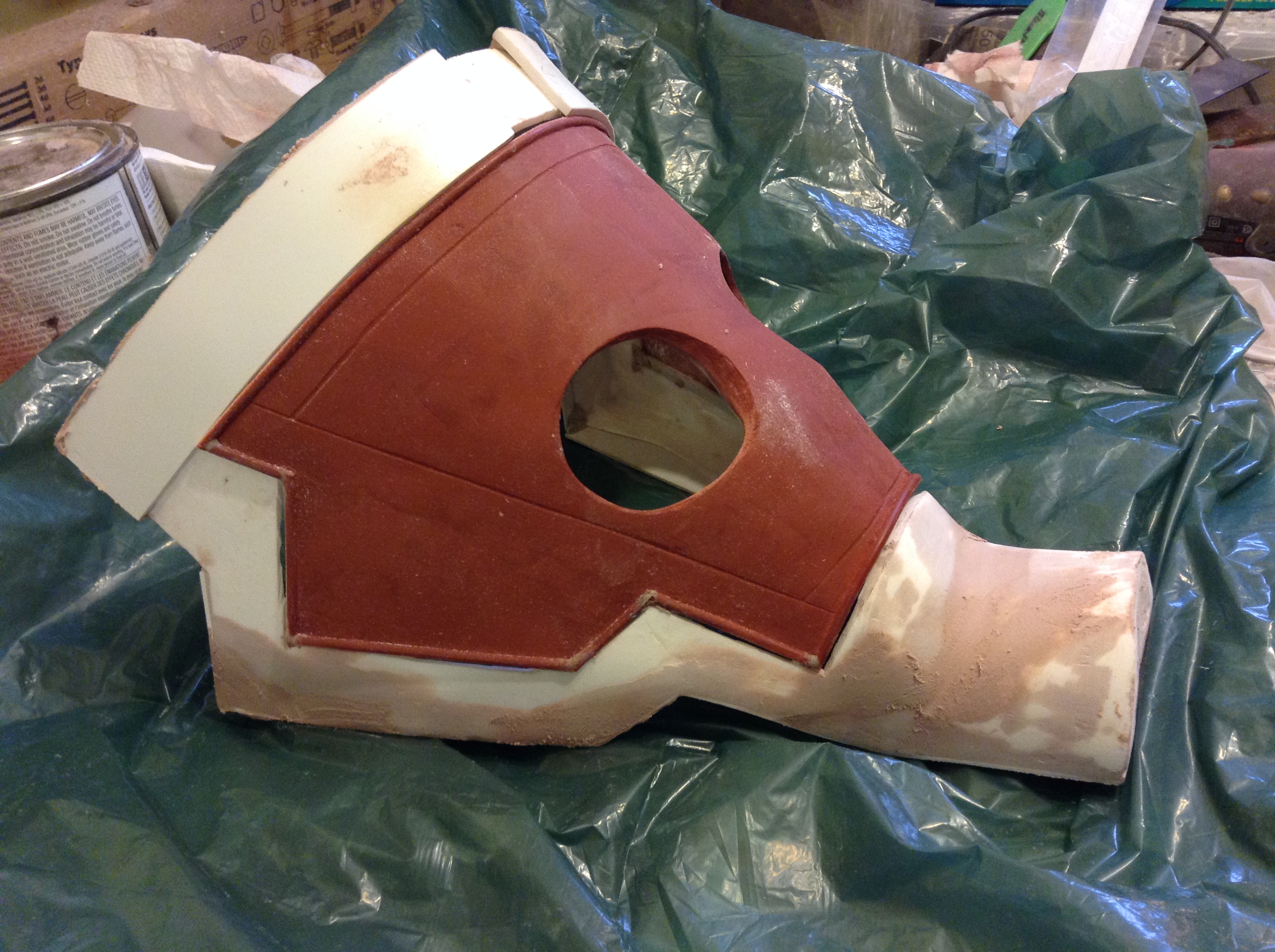

SORRY for the delay in updates! Been working away! I've cut everything up and am now detailing.. I think next time if I had more time i'd do a lot more cleaning and planning of the original form as to where the join lines of the different parts would be. Definitely going to make this work.. Just a lot more cleanup than I would have liked!

aIMG_4936.JPG aIMG_4939.JPG aIMG_4946.JPG aIMG_4958.JPG aIMG_4960.JPG aIMG_4961.JPG aIMG_4968.JPG aIMG_4970.JPG aIMG_4971.JPG

- - - Updated - - -

PIRATE- BTW Love your exoskeleton build! I have a 3d printer and was considering doing it that way.. I think That will be my plan for next time, This was a good skills-building exercise though!


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

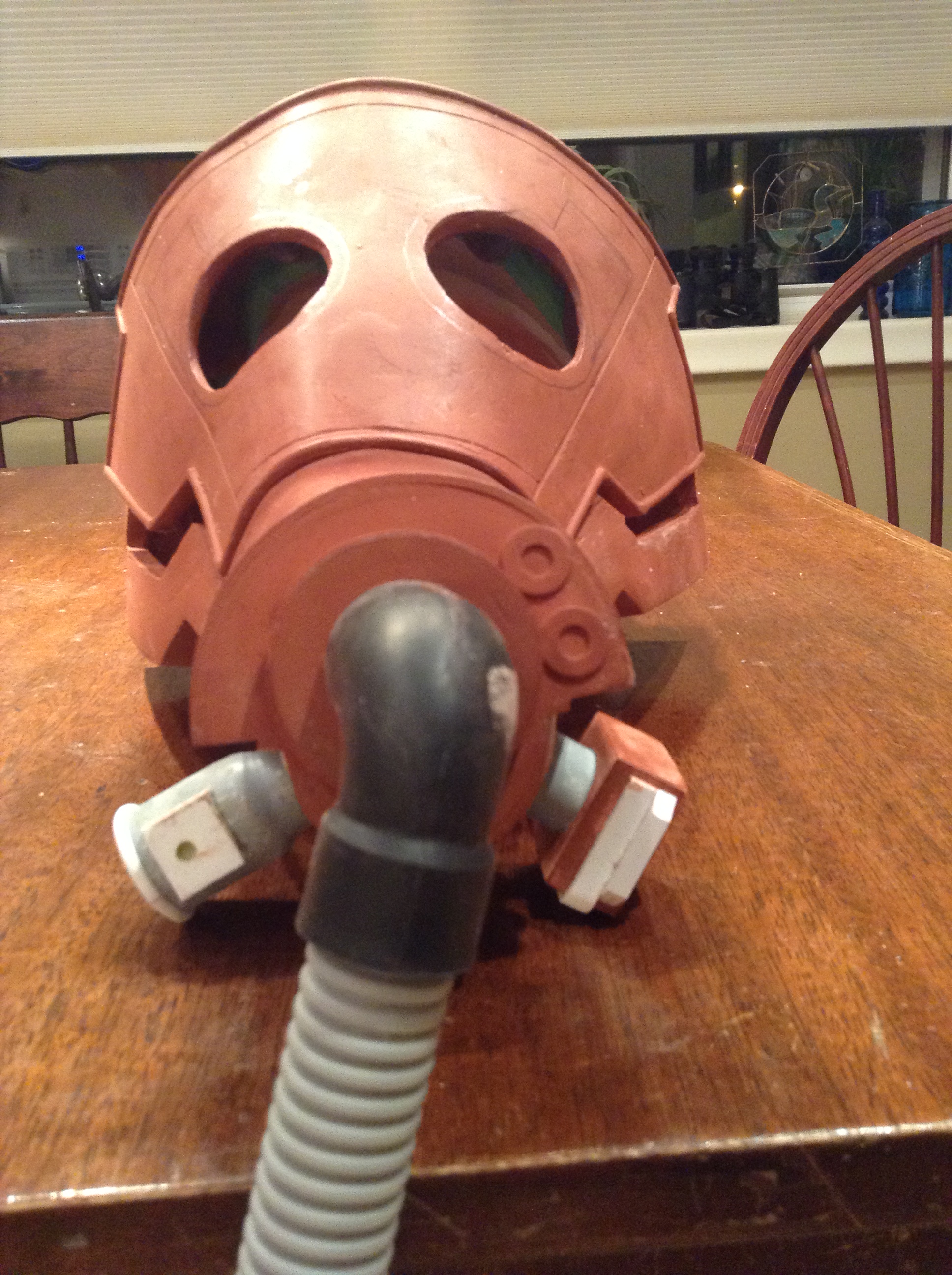

It's amazing how a little bit of filler primer and detail can make some of the flaws recede into the background. This has to be done by friday, and the bottom component is still looking pretty rough. May concentrate on the top and just add the originals of the sides in until I can mold them as well. (I rotocasted this original which resulted in an inconsitent wall thickness). I'm guessing for best results rotocastong is done with a proper automated spinning rig and a sealed mold for best reults with even wall thickness.

aIMG_4987.JPG aIMG_4989.JPG aIMG_4992.JPG aIMG_4994.JPG aIMG_5001.JPG

Rebuilt inmterior wall thickness. This was importalt to allow the thicker rotocast resin I'm using to flow through the hollow of the mold versus a low viscosity pour into a very thin-walled clamshell mold.

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

guitarpirate

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

Looking great, the concept is getting realized :)

Didn't know your deadline was so tight, that's going to limit how much detail you can put in. Good luck!


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

Yeah I literally have until Friday afternoon! I've basically cut out the bottom component around my neck.. No time.. I'm going to finish cleaning and detailing the pieces tonight, most of the add-on components are done. Going to make molds of the 3 main top pieces and use casts for the final version I'm going to bring on friday. The tomorrow.. Clean, paint, electronics, lenses, etc etc... Should be an eventful 48 hours!

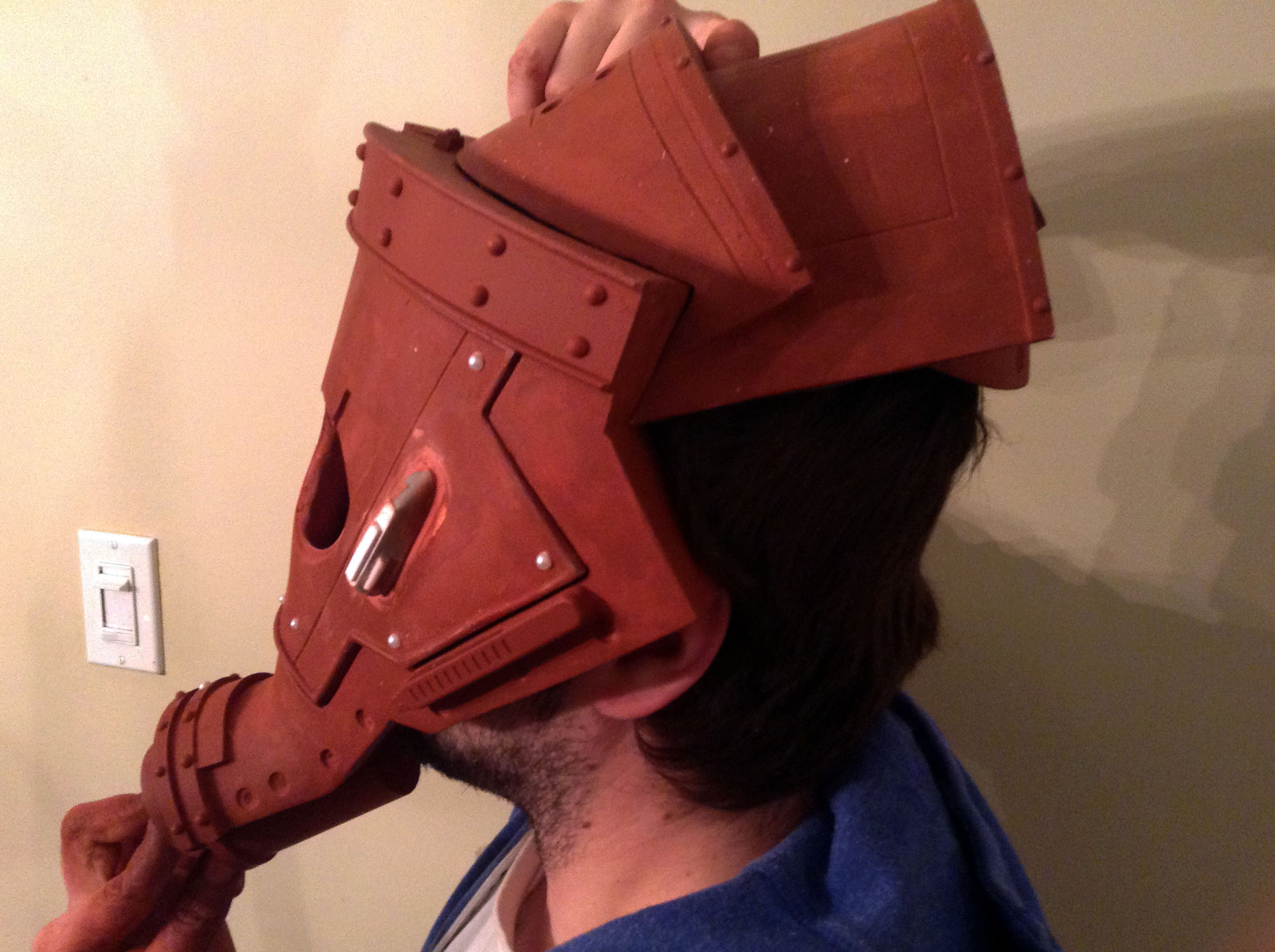

Here's me wearing it... Visibility is actually pretty decent!

AIMG_5005.JPG AIMG_5008.JPG AIMG_5009.JPG

After Comicon I will probably complete the bottom, and then make a more detailed version (especially the eye pieces... I want to either use EL panels or edge-lit acrylic.. Hmmmm....


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

The holes along the bottom edge are recesses to put allen key screws for some of that metal bit detailing.. Going to have quite a few pipes and hoses too!


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

Okay! I'm done all the detail pieces.. I think.. Beyond these pictures I just need a few small detail bits and some paint and LED's and I should be ready for Friday!

aIMG_5015.JPG aIMG_5018.JPG aIMG_5019.JPG aIMG_5029.JPG


unorthodoxdesig

Active Member
Re: FALLOUT 3 POWER ARMOR HELMET (and eventual full armor set perhaps?)

ALRIGHT! Night before due date.. It's about 95% now.. Just need some final screws, elastic joiner for the front and back halves, tubes, and the final eye piece. Blue LED 'headlights' installed in the face mask part.
Enjoy!

aIMG_5064.JPG aIMG_5057.JPG aIMG_5035.JPG aIMG_5036.JPG aIMG_5047.JPG aIMG_5053.JPG aIMG_5055.JPG aIMG_5059.JPG aIMG_5062.JPG aIMG_5042.JPG

- - - Updated - - -

In other news I am using all originals this weekend.. Let's hope nothing breaks!!! (Still have to make production molds)

Also, I got help from my mom sewing the neck guard/under-hood. 'Props' to you mom!
