A Dr. Strange movie coming out...

Start off with a flat sheet of aluminum bigger than you need (because smaller would just be silly).
Screw it to some wood. Next use a hole saw to cut a hole out of the aluminum and wood hammer.jpg

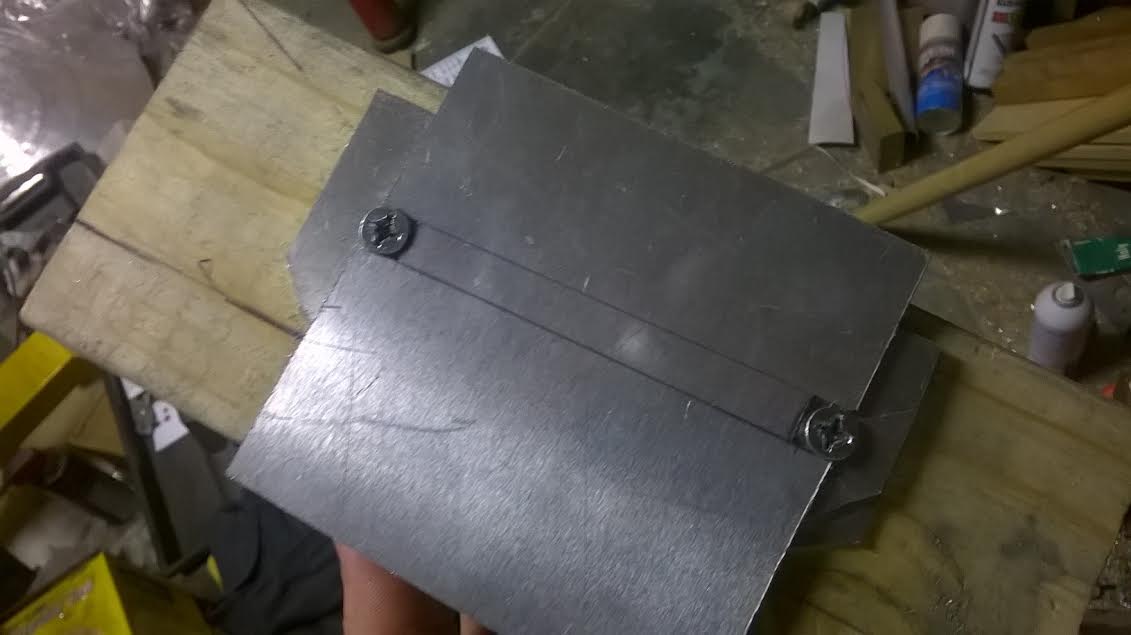

I used a 2 inch hole. Next use the screws to anchor the sheet you are going to pound into shape.redy to hammer.jpg

Next, place the shiny, perfect, happy, untraumatized sheet of aluminum against a trailer ball hitch that is anchored.

and SMASH IT! Beat it with a hammer on the opposite end! Rotate it around! Yell at it! Call it names of people who mistreated you!

Okay, not really

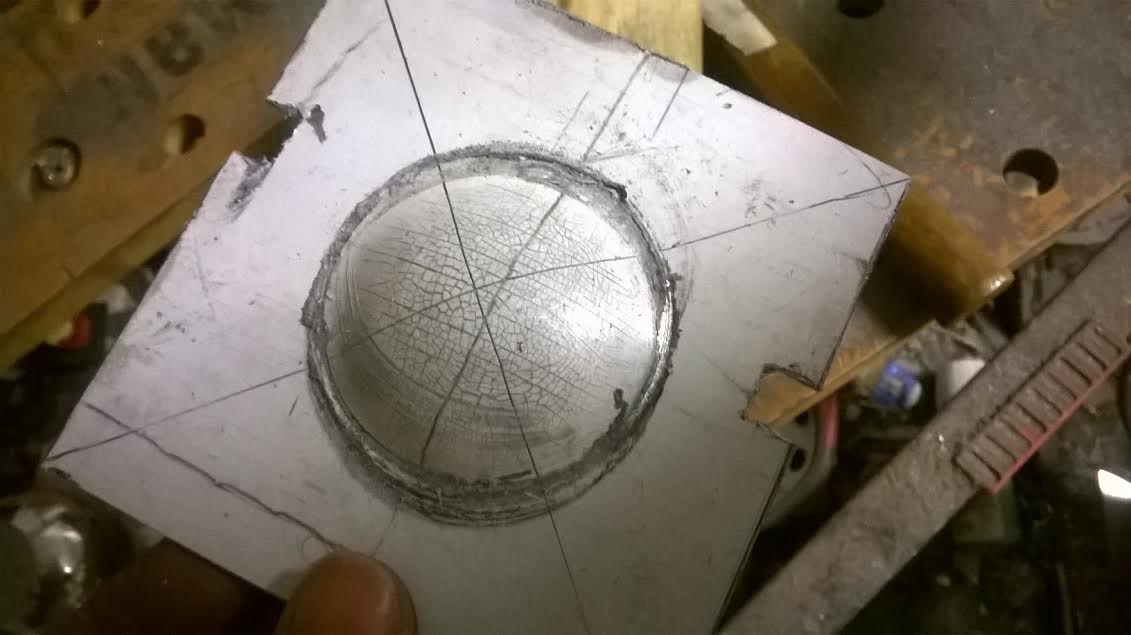

And the other side should be nicely stretchednice n stretched.jpg

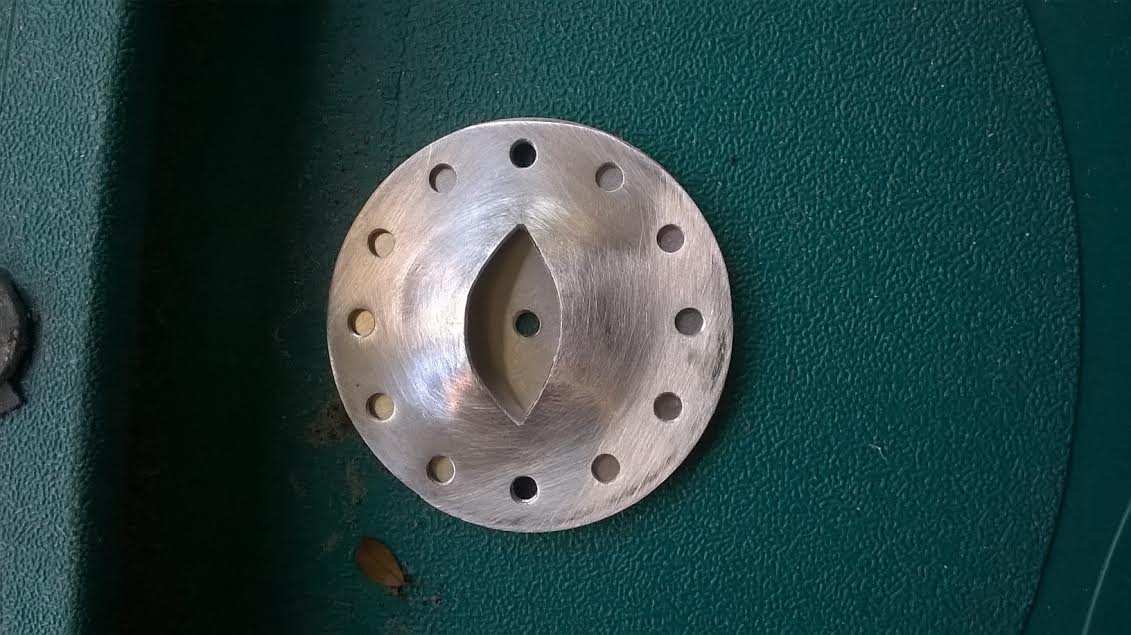

Then cut out eye hole and cut to sizesanded.jpg

Last edited:
As we last left our adventurer...

hole cut out, sanded aluminum.JBBEad.jpg
After making a circular backplate, I used a 1/4 inch bolt for the back, then drilled out the treads to place a circular bead of JB Weld.

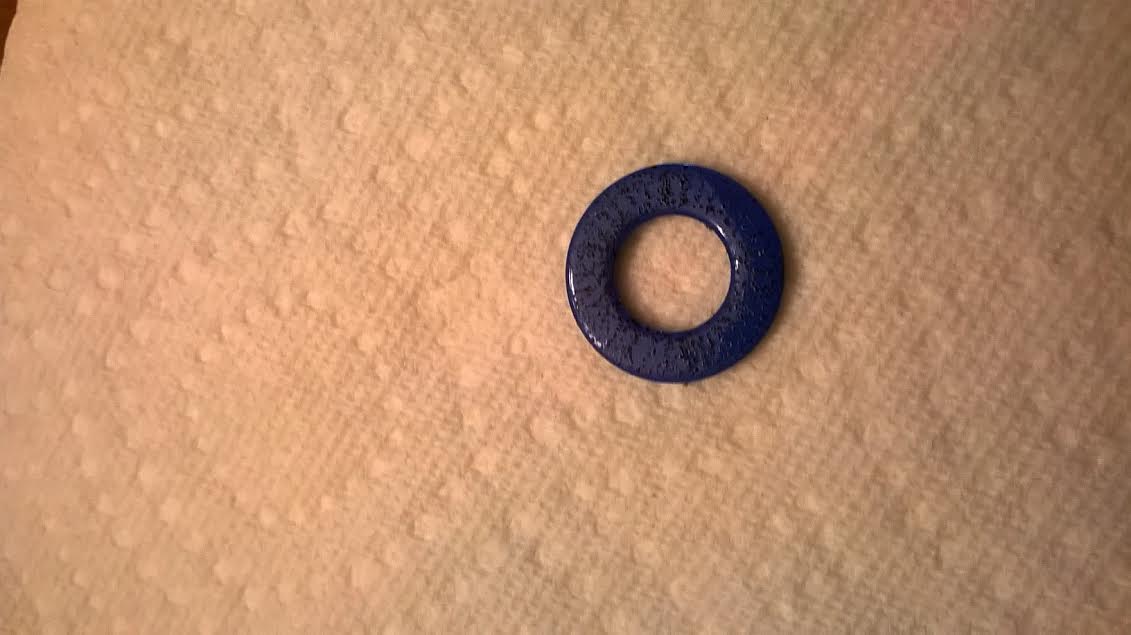

The iris is a 5/16 washer, painted blue then dotted with india inkiris2.jpg

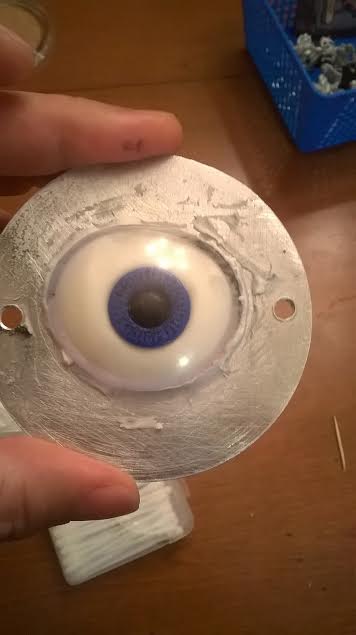

The cold porcelain for the sclera, for the white of the eye.porcelain.jpg

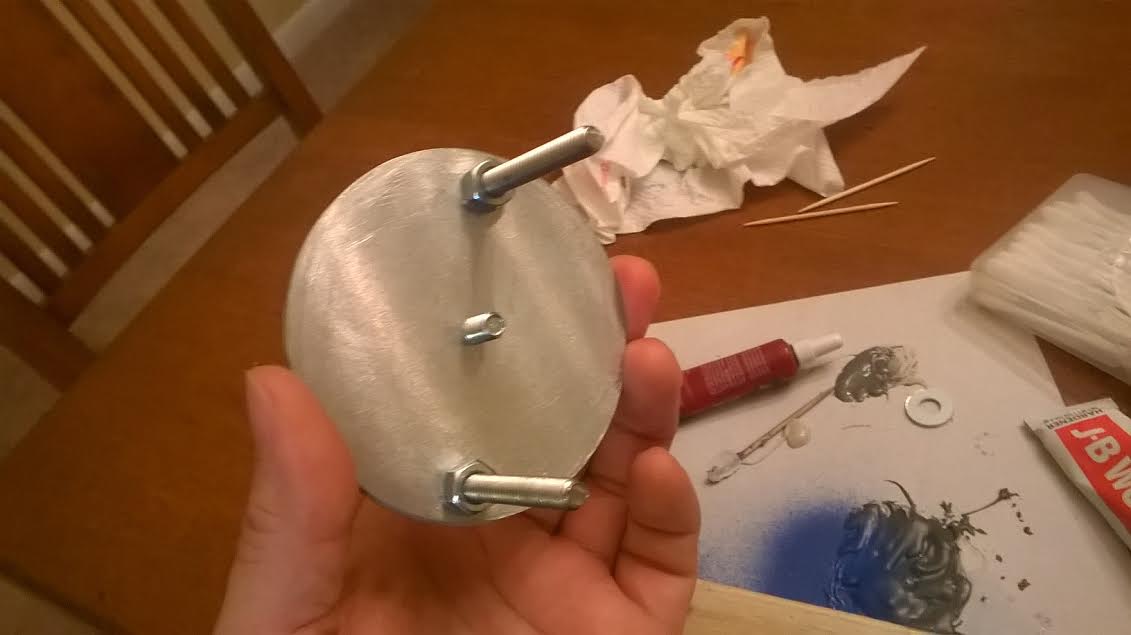

Then samiched the eye between the rounded and flat plates, bolted them together. NOTE : I threaded the aluminum for the 1/4 inch boltsboltedsee.jpg

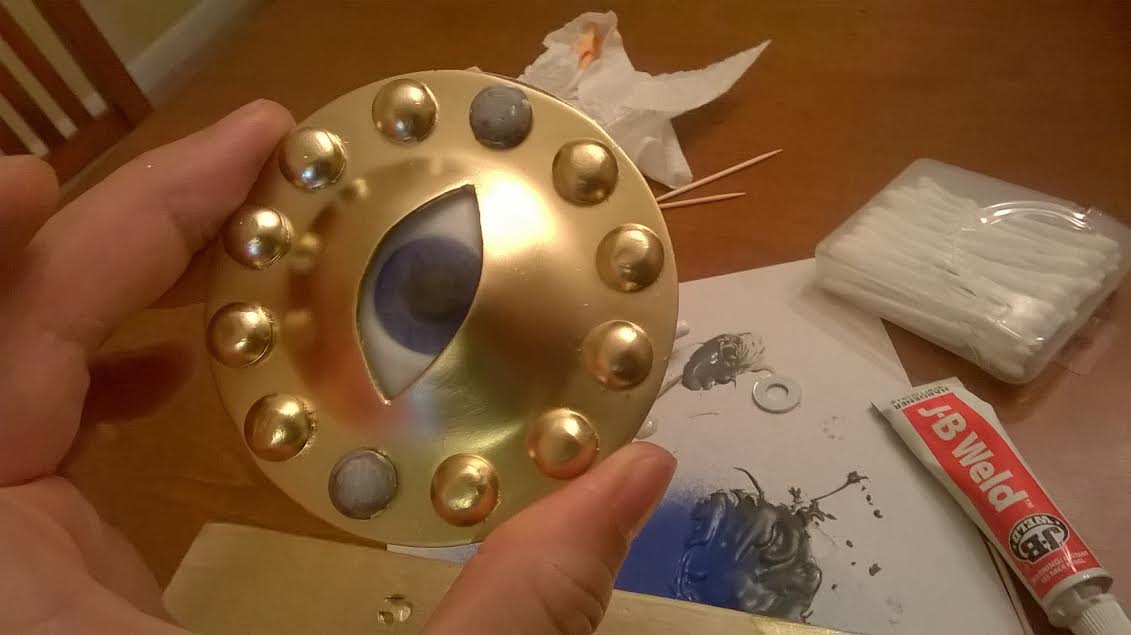

I had done a test run of gold paint before bolting two pieces togetherbolted.jpg

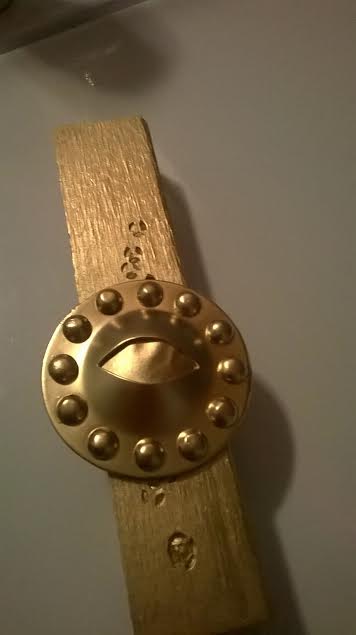

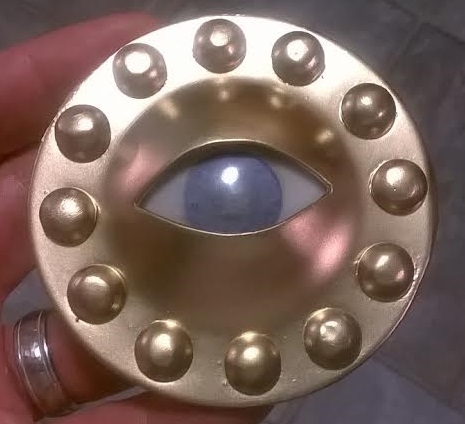

Shave down the bolts, cover the eye, and pain away!boltedshaved.jpgpainted.jpgDunecrop.jpg

Last edited:

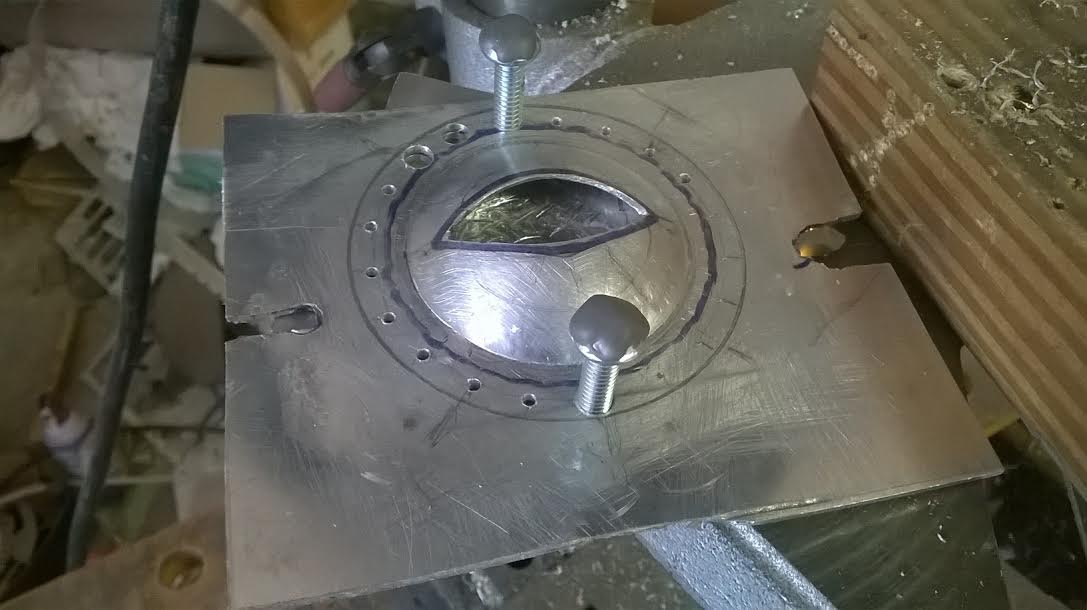

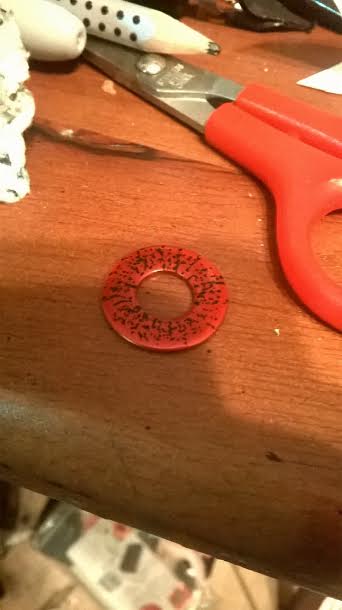

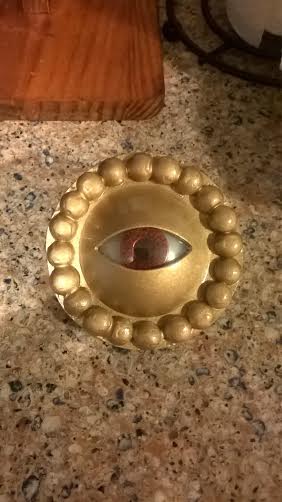

same technique, made a red iris'd onedrilled.jpgdrilling.jpgiris.jpgeye2DUN.jpg
EDIT: Except used a hemisphere doorstopper for white part of eye
