Episode 7 Blaster & Holster Clip

Discussion in 'Star Wars Costumes and Props' started by kenlandrum, May 8, 2015.

  1. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Thought I would give the new blaster a shot. Still need to add charging handle on left side...also searching for more reference so I can adjust accordingly.
    Anyway, here it is!
    blaster-01.jpg blaster-02.jpg
    Bracket-01.jpg Bracket-02.jpg

    Last edited: May 8, 2015
    Dart, Azrael69, mvanwalks421 and 2 others like this.
  2. JJ Griffin

    JJ Griffin Sr Member

    Trophy Points:
    1,135
    Looks pretty good! Well done :)

    kenlandrum likes this.
  3. gmrhodes13

    gmrhodes13 New Member

    Trophy Points:
    17
    Nice work, will be watching this one with interest ;)

  4. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    I'm curious... Does any one know if the left side some sort of "knobs" that slide into the thigh armor bracket??
    After building the bracket it seems like the only obvious solution. I built 2 knobs that fit into the back elongated slots that seem to fit good...

    anyone know about this?

  5. T5H

    T5H Active Member

    Trophy Points:
    361
    I read somewhere that the way the blaster fastens to the thigh wasn"t magnetic at all but mechanical. Like you describe it was refered to some kind of "knobs", maybe located on the folding stock, and that were latching inside the thigh bracket:
    [​IMG] [​IMG]

    I haven't seen any close up pic of the rig on the blaster though.

    Last edited: May 15, 2015
  6. mvanwalks421

    mvanwalks421 Active Member

    Trophy Points:
    487
    Where did you find the 'action' pose image, the one on the left?

  7. T5H

    T5H Active Member

    Trophy Points:
    361
  8. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340

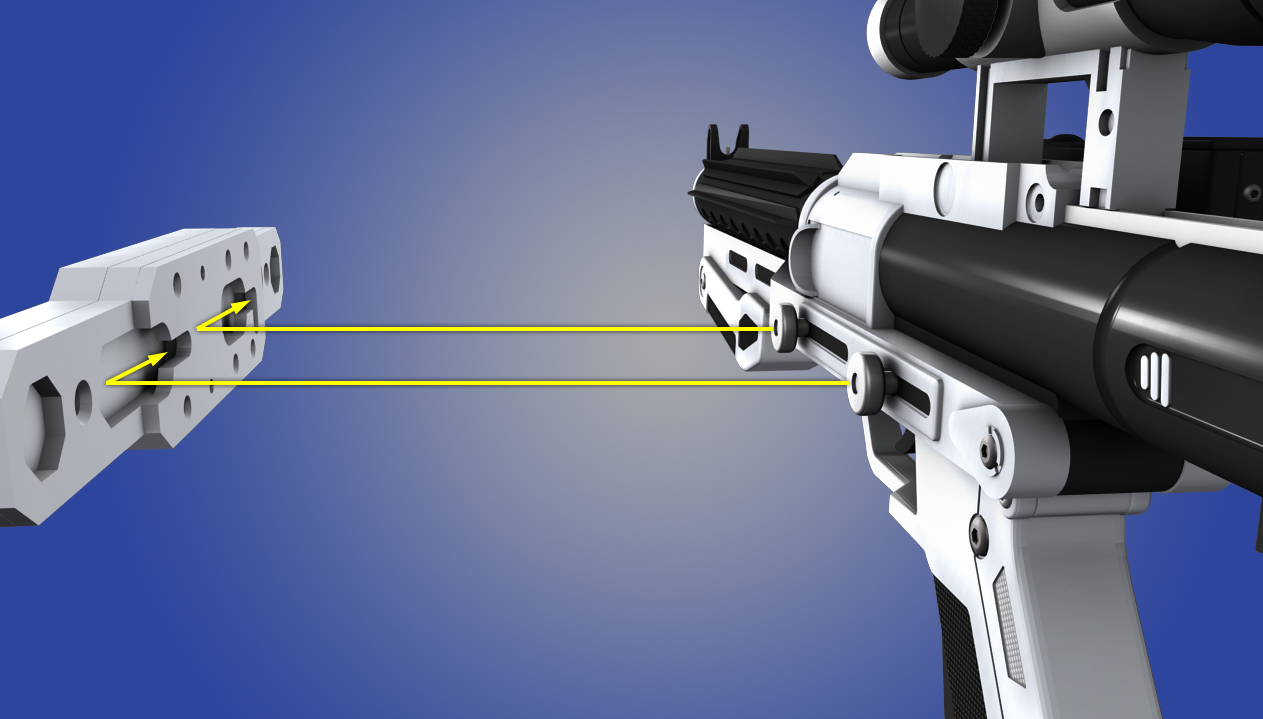

    This is how I envision the mounting knobs. Looks like they would work perfect... just kinda ugly.

    tubachris85x likes this.
  9. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Finished Charging Handle... now to touch up some details as I find new ref.
    Also, would like to decipher the text in the little square on the front sides. Anyone?

  10. OldKen

    OldKen Master Member

    Trophy Points:
    2,850
    In the action pose pic and the left handed pic....NEITHER shows ANY kind of mounting system..

    Maybe some were built to be holstered and some not?

    Or maybe they just didn't want to show how it connects?

    Interesting pictures for sure.

  11. KaanE

    KaanE Sr Member

    Trophy Points:
    1,535
    OldKen, That's because all of those are resin casts made by Anovos just for that troop. Nothing to do with the Hero blasters from the movie other than being casts from them.

    Last edited by a moderator: Nov 8, 2018
  12. OldKen

    OldKen Master Member

    Trophy Points:
    2,850
    Aaah ok.

    Odd that the knobs weren't in the casting even if not functional...

  13. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340

    Any clue on this??

    Maybe it's translated as "Point this direction" ;)

    JJ Griffin likes this.
  14. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    label.jpg label-LEFT.jpg

    I guess for now I'll just use these..

  15. JJ Griffin

    JJ Griffin Sr Member

    Trophy Points:
    1,135
  16. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    "KEN"

    ... just figured I would put that in there until I find a sharper photo.

    JJ Griffin likes this.
  17. OldKen

    OldKen Master Member

    Trophy Points:
    2,850
    HA! Cool!


    mvanwalks421 likes this.
  18. tk2647

    tk2647 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    847

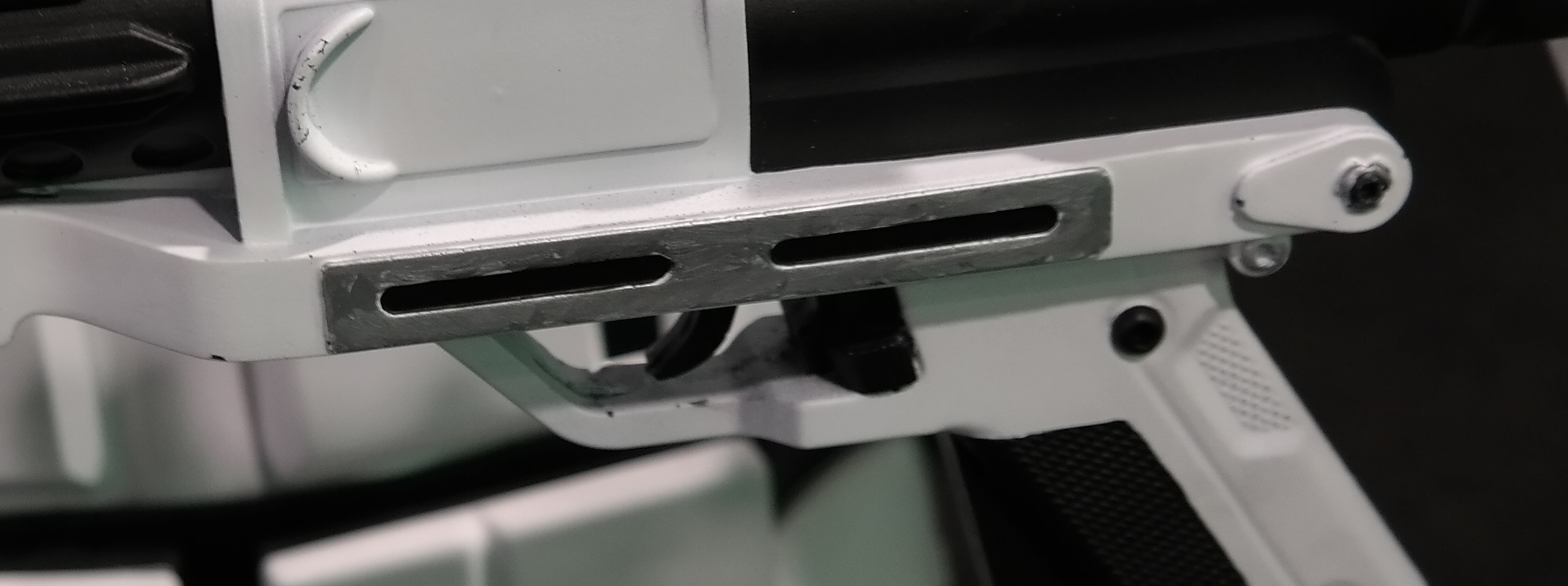

    here´s a pic of the decal, little bit clearer


    and here of the "knob section"

  19. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    JJ Griffin likes this.
  20. T5H

    T5H Active Member

    Trophy Points:
    361
    About the latching system, i heard the rig on the thigh is just the base and there would be adapters to apply on it before being able to lock the blasters, one specific to the new E-11, and one specific to the sidearm. Or one specific to the e-11 and nothing for the sidearm.
    That would explain why it seems to be more material on the stormtrooper display (with orange background) than on the ANOVOS version. The ANOVOS version seems to lack the e-11 adapter.

    Last edited: May 13, 2015
    kenlandrum likes this.
  21. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Great! Now I can take my name off the label... this is as close as I can make out what it looks like.
    Here is a pic of the sidearm attached to the thigh... why wouldn't they just make the bracket "one size fits all"?
    It's only (+ or -) 74mm between knobs... seems like enough room for a sidearm...but then again that would explain the multi-layered mounting system.

    Last edited: May 13, 2015
    mvanwalks421 likes this.
  22. T5H

    T5H Active Member

    Trophy Points:
    361
    I think i have something interesting, still based on this idea of adapters and this picture. Let me know your thoughts:
    [​IMG] [​IMG] [​IMG]

  23. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Very cool...Looks like it would work great!
    Thing is I'm trying to match how it was done for the film regardless of how well (or poorly) it functioned.

  24. T5H

    T5H Active Member

    Trophy Points:
    361
    I agree with you, that's why i prefer avoiding to base my thoughts on the ANOVOS armors as we don't really know how accurate they are.

    Also, this design would not only work, it also seems to me closer to what we can see on the original armors from TFA that were displayed at Celebration 7 (orange background). This "bow" like section is the one thing that is missing on your design, and the knobs can't be on the blaster (even though the only ones we have seen so far are ANOVOS', so we don't know how reliable they are).

    Here are two more pictures of what is see. It is mostly your own design (but the dimensions are off), but once assembled the aspect is similar to what we can see on the original armors:
    [​IMG]
    (The thickest section probably has some details carved on it too).

    [​IMG]

    [​IMG]

    But honestly, i doubt we have enough reference material so far to really nail the design of this latching system...

    Last edited: May 14, 2015
    kenlandrum likes this.
  25. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    --------
    Now I see what you mean... funny.... I know this may sound ridiculous but I just assumed someone did not either use the correct screws or failed to put them in at all and the Blaster knobs are pulling the brackets apart in that area.

    Your idea makes more sense.

  26. T5H

    T5H Active Member

    Trophy Points:
    361
    Could very much be a possibility too!

    I'm so curious about this rig, i wish we had more to look upon...

    Last edited: May 14, 2015
  27. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Starting to prepare for print...
    GripParts.jpg ScopeParts.jpg

    Notlewis likes this.
  28. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Does anyone have any good reference for the business end of this blaster. I can't seem to find any good pics...

    thanks!

  29. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    I found more ref, so I figured I would make the changes before continuing to sep for print.
    blaster.gif <------- Animated GIF Turntable (click)

    Almost there...

    Last edited: May 21, 2015
    mvanwalks421 and Bogleo like this.
  30. TMacken

    TMacken Member

    Trophy Points:
    191
    Any Updates? Following this build with great interest.

  31. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340

    I have been making a few more small adjustments, but I was kinda waiting for a little feedback before I go through the trouble of splitting everything up for print...


    Last edited: May 27, 2015
  32. TMacken

    TMacken Member

    Trophy Points:
    191
    I would be happy to help with test printing parts if you need anyone with a printer test any of the parts.

    kenlandrum likes this.
  33. MarkoPolo69

    MarkoPolo69 New Member

    Trophy Points:
    3

    Here is my crack at it ... Modeled over 3 weeks and printed in PLA with a PVC pipe for a barrel. Its not perfect but Im happy with it for a first prototype.

    JJ Griffin, Bogleo and kenlandrum like this.
  34. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Looks great.

  35. MarkoPolo69

    MarkoPolo69 New Member

    Trophy Points:
    3
    Loving these extra details... i didnt spot them myself until your picks. Will have to add to my model.

    kenlandrum likes this.
  36. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Parts have all been separated, shelled and ready for print!

    JJ Griffin and TMacken like this.
  37. TMacken

    TMacken Member

    Trophy Points:
    191
    Wow, that's a lot of parts, looks awesome.

  38. tk2647

    tk2647 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    847
    wow...looking forward to final result....well done ! (looks like my pics helped ;-) )

    kenlandrum likes this.
  39. TK1961

    TK1961 Active Member

    Trophy Points:
    341
    surprised we haven't see a completed one yet

  40. imdocjoe

    imdocjoe Active Member RPF PREMIUM MEMBER

    Trophy Points:
    471
    Awesome! Following this thread!

  41. TMacken

    TMacken Member

    Trophy Points:
    191
    Making some progress test printing parts.

    [​IMG]

    [​IMG]

  42. widescreen

    widescreen Well-Known Member

    Trophy Points:
    566
    Is the model available anywhere?

    I'd love to have a go at printing this off myself.

    I do have a question though. Why not print off the fully assembled gun?? It should be able to be printed off in 2 halves & then just 2 pieces to fix together.

  43. TMacken

    TMacken Member

    Trophy Points:
    191
    Episode 7 Blaster &amp; Holster Clip

    Ken will have to weigh in on availability. That would be one heck of a long print, as the scope took about 8 hours to print itself. Also there's no way to get a good level of detail in a print that large, due to all the differing angles of all the parts. Plus you would have a major pain in the * masking job on your hands to get it painted. Just my opinion on this though.

  44. widescreen

    widescreen Well-Known Member

    Trophy Points:
    566
    My printer will do 2 colours - so I can do black & white at the same time.

    Just an option - if you think it would be worth a try.

  45. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
    Model is not available... yet.
    TMacken and I a working hard trying to get all parts to print and fit well first.

    I broke this thing down into several parts for a few reasons....
    --Makes it easier to print on most personal printers
    --Makes it easier to mold once it is printed
    --Makes it easier to paint and detail

    So to sum things up, it just all around makes things easier.


    Some one asked about the holes all over the model instead of just simply printing the hardware.
    These areas will get actual hardware inserted into them.
    Below is an example of my mk3 chest detail with the hardware added. It makes finishing a lot easier and looks really clean.

    Also, I am currently looking into the material used for the grips. I have found some stuff that looks pretty close but I can't tell for sure until I have samples in hand... it almost looks like the rubber used for a jar opener.... anyone have any thoughts on this??
    rubberGrip.jpg pa02-5_dragon.jpg



    ...more to come!

    Last edited: Jun 1, 2015
    Bogleo likes this.
  46. TMacken

    TMacken Member

    Trophy Points:
    191
    It looks pretty good to me, will be interesting to see if it's correct.

    I got a few more parts printed tonight.

    [​IMG]

    [​IMG]

    kenlandrum likes this.
  47. kenlandrum

    kenlandrum Sr Member

    Trophy Points:
    1,340
  48. TMacken

    TMacken Member

    Trophy Points:
    191
  49. Al May

    Al May Well-Known Member

    Trophy Points:
    746
    Such a shame as it looks as though you were almost done on this piece, you know what they say though , if at fist you don't succeed.........

  50. TMacken

    TMacken Member

    Trophy Points:
    191
    Yeah, I checked and it was at 95% and looking good, then I came back down 20 minutes later and it looked like that, and was at 99%. I'm going to upgrade my printer in a week, so I'll wait until I get the new setup working before I try and print that again.
