Dwarven Warrior of Erebor (Phase 1 complete) - The Hobbit

Discussion in 'Replica Costumes' started by FrontaLittle, Sep 11, 2015.

Tags:
  1. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Khazad Dum has do be taken back from those rotten orcs. The halls of Durin are ours. Baruk Khazad ! Khazad ai menu !

    There already are a some pretty impressive builds of Moria Battle armor but I want to resemble the physique of an actual dwarf. I'm gonna build a fat suit similar to the ones used in the "Hobbit" movies and measure the entire armor around that suit.

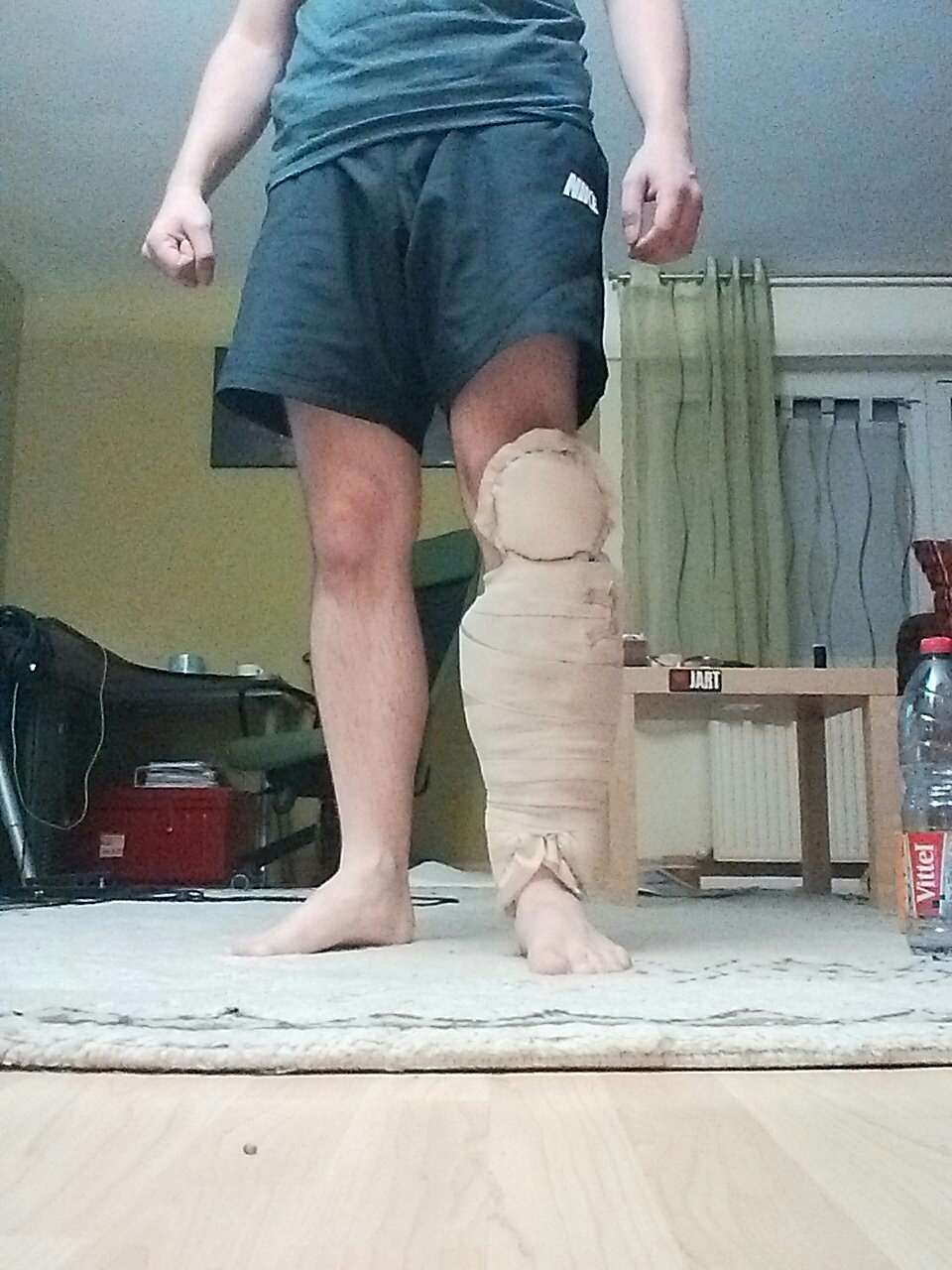

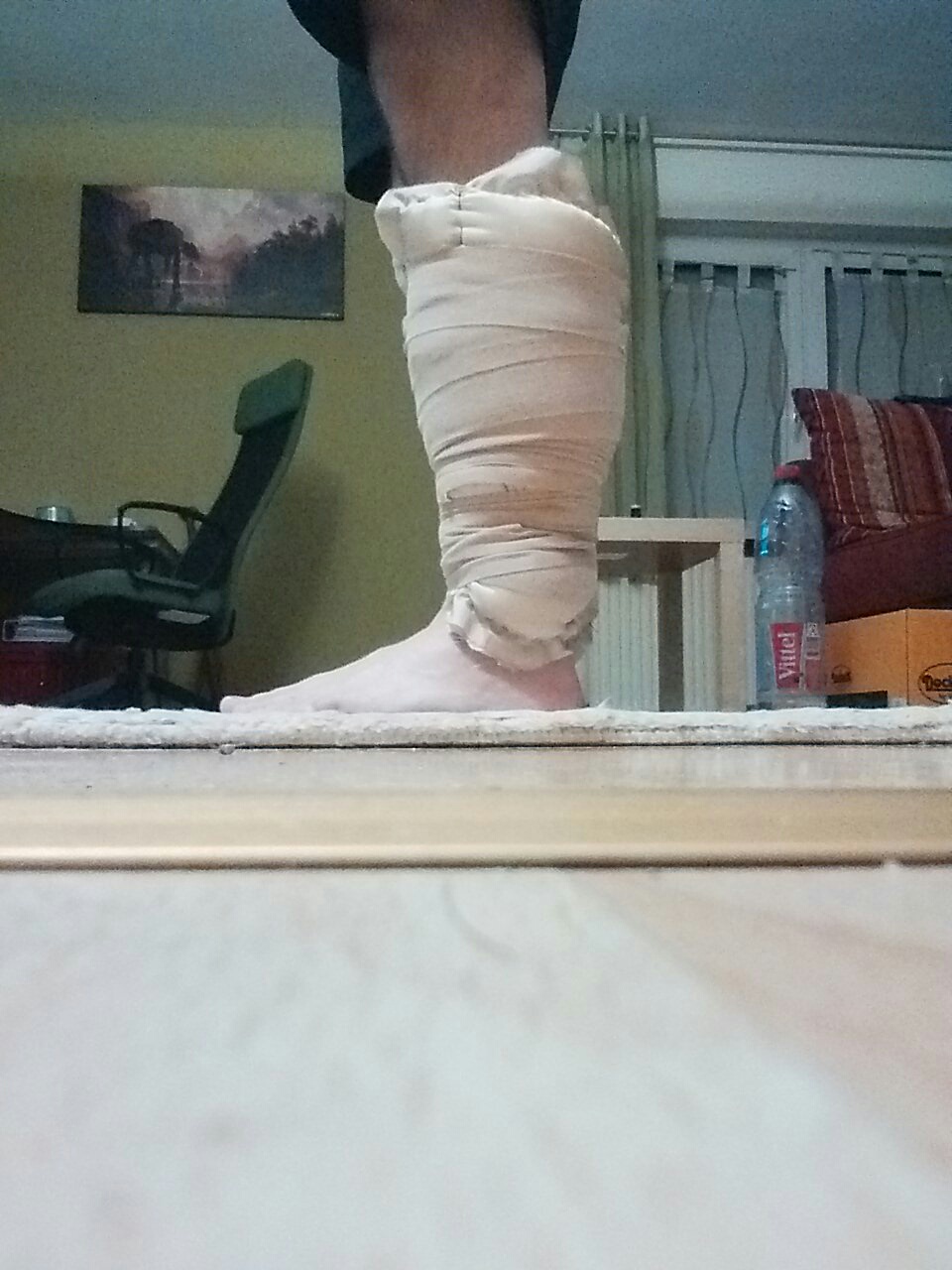

    Started with the calves:
    calves02.jpg calves03.jpg calves06.jpg

    Another detail are the dwarves' boots. Quite large boots according to BTS pics, way to large to buy them, so I have to make them myself.

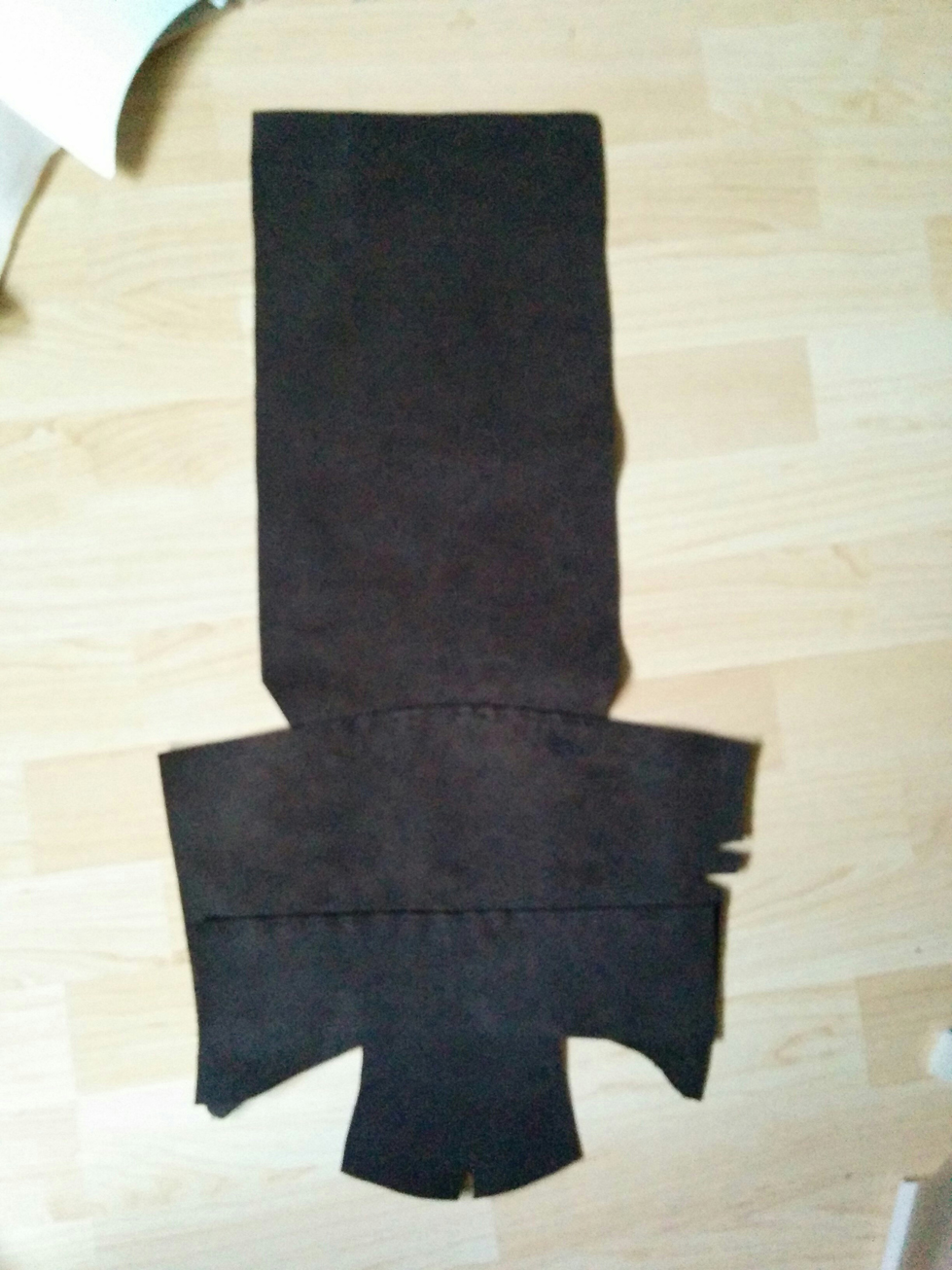

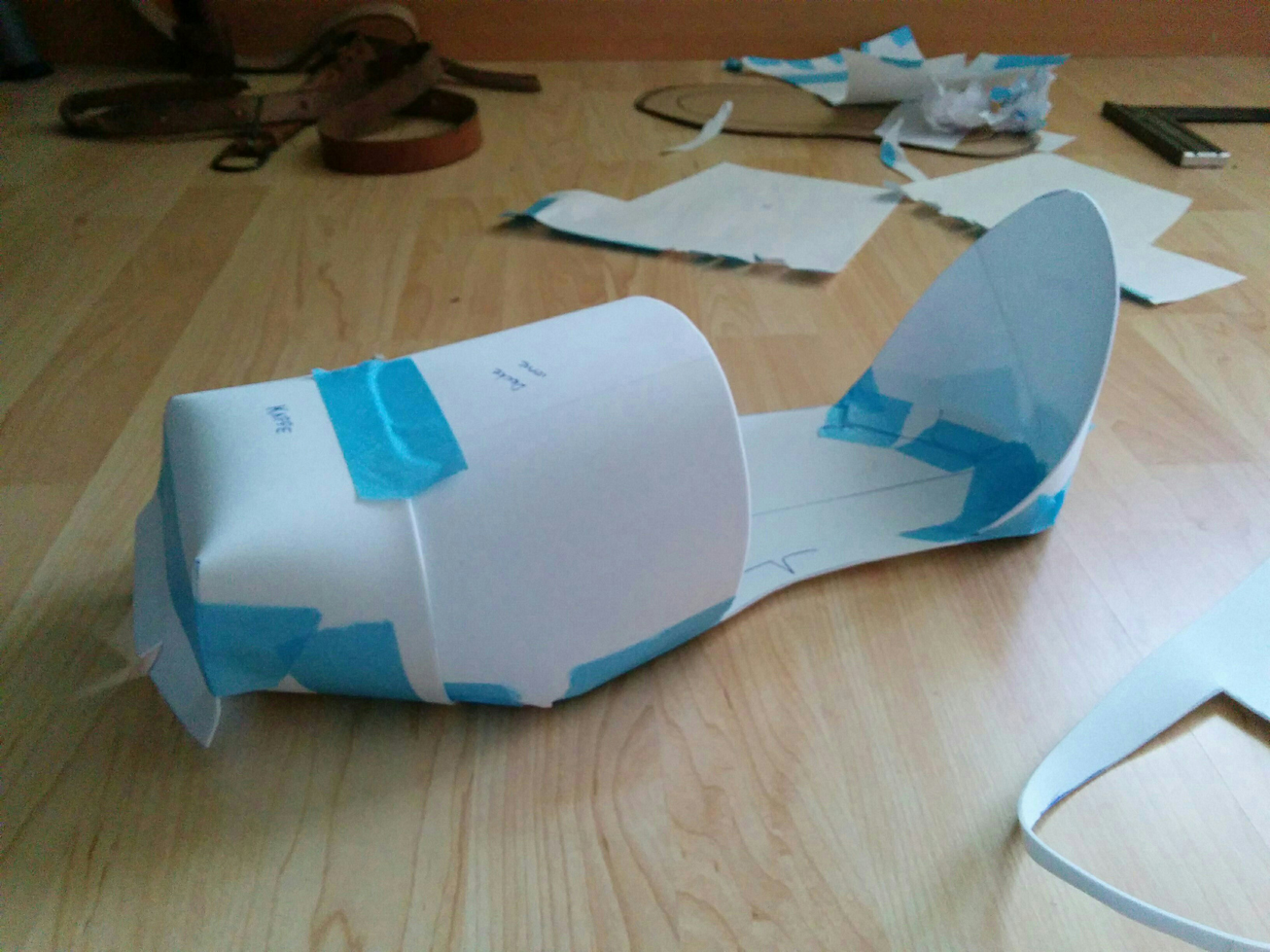

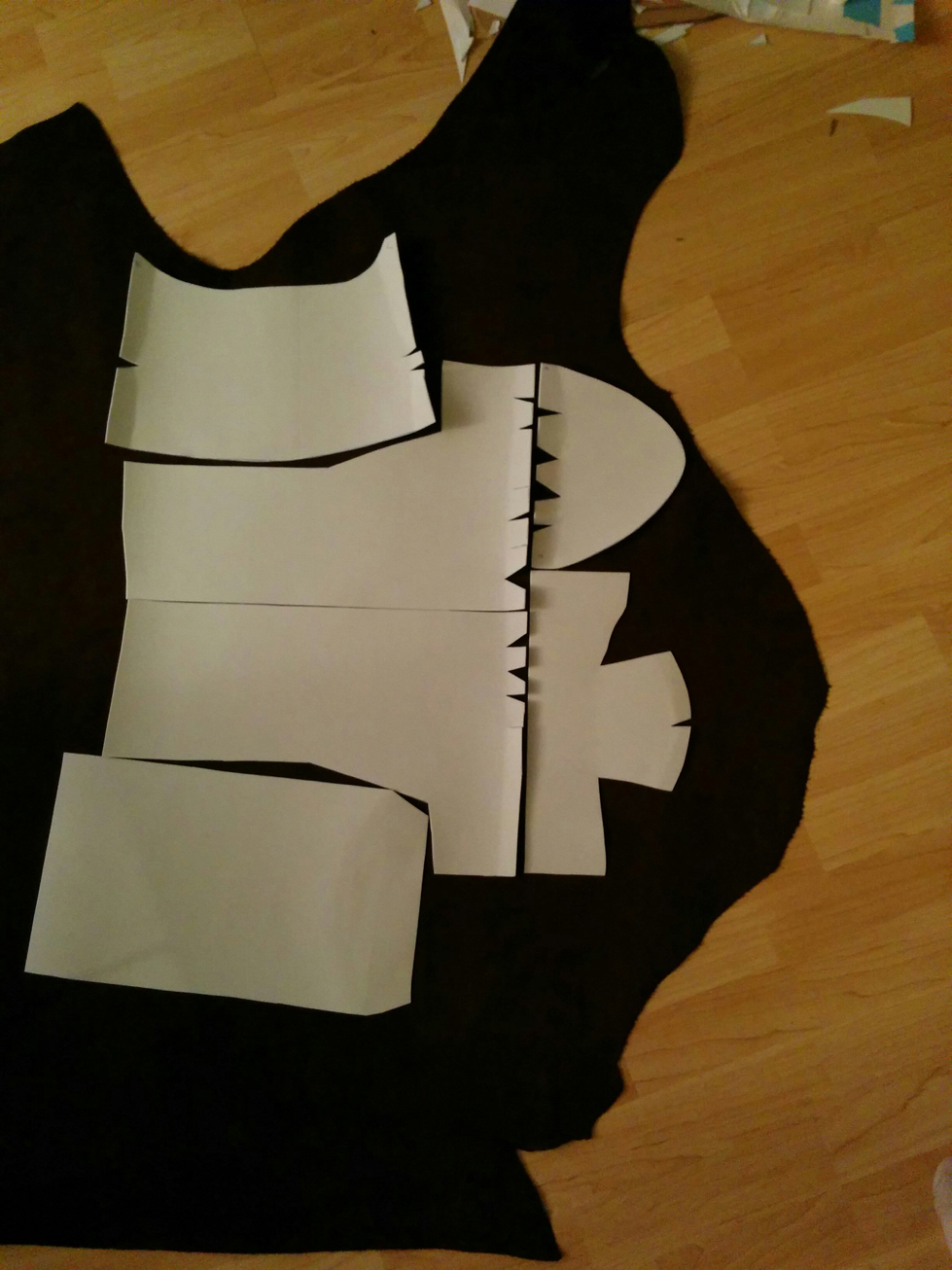

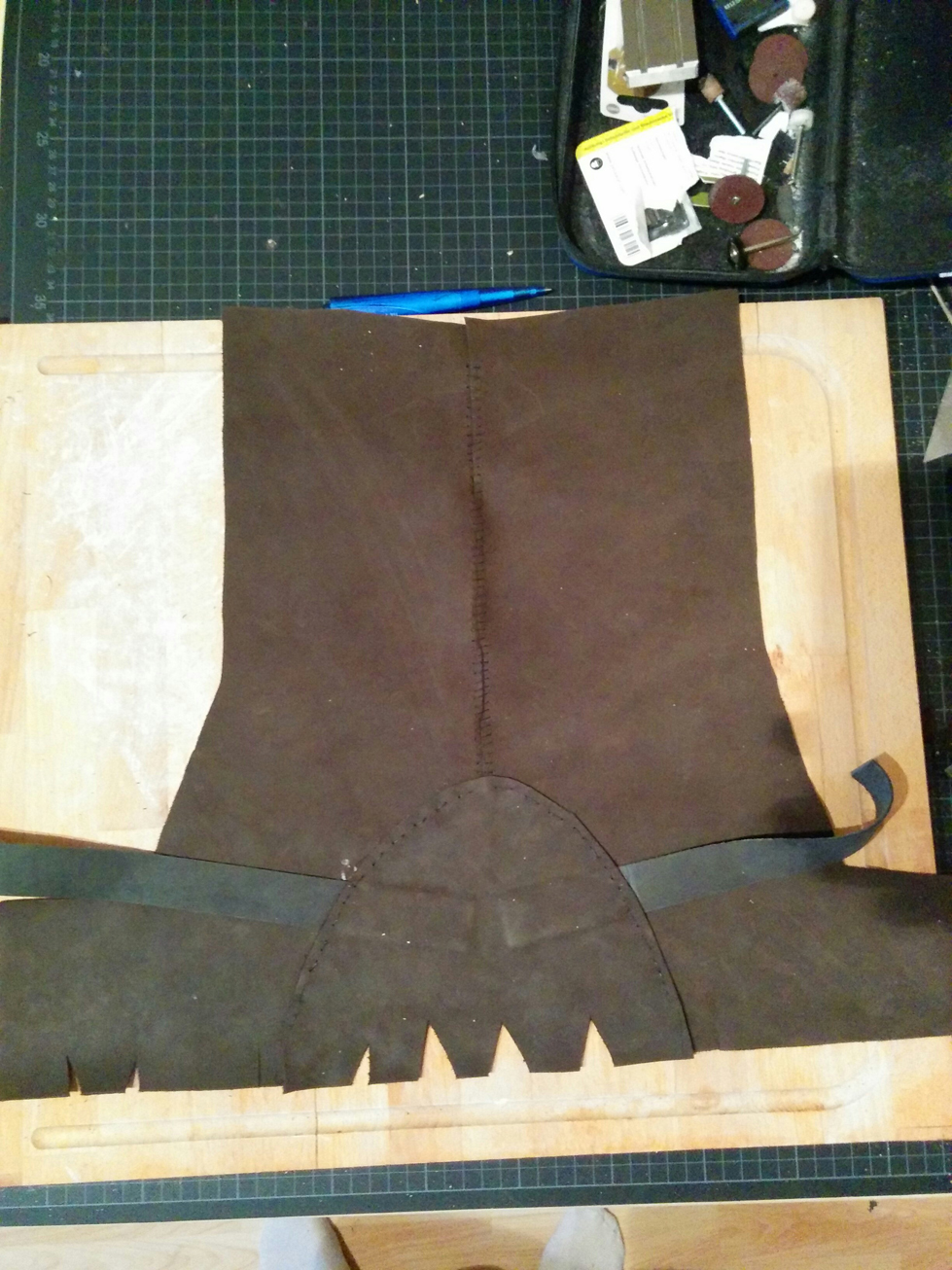

    Here's what I got so far. I'm not done with stiching, the sole is missing and the whole boot needs proper padding inside.
    prototype_01.jpg prototype_03.jpg

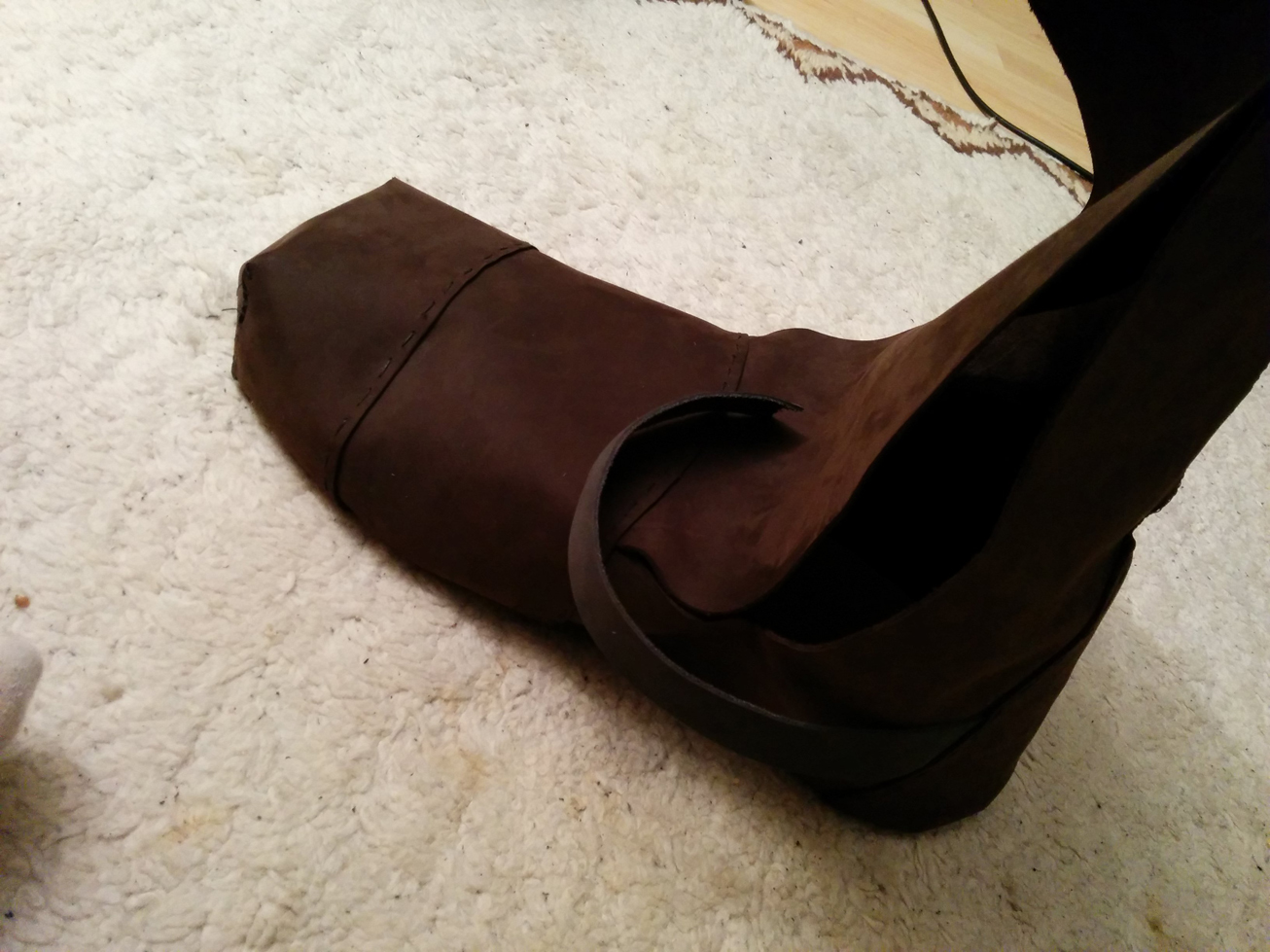

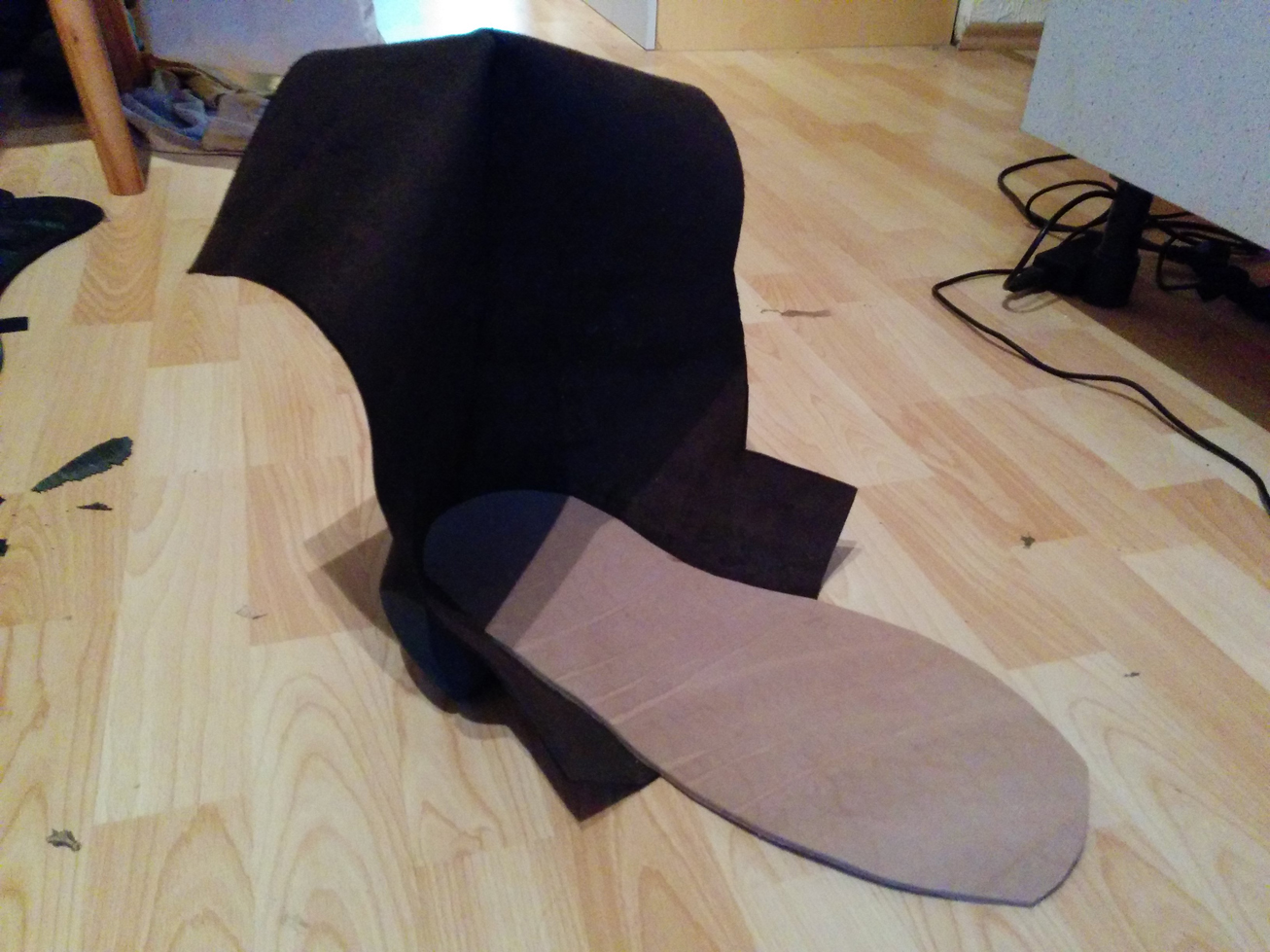

    boot_01.jpg boot_02.jpg boot_03.jpg boot_04.jpg

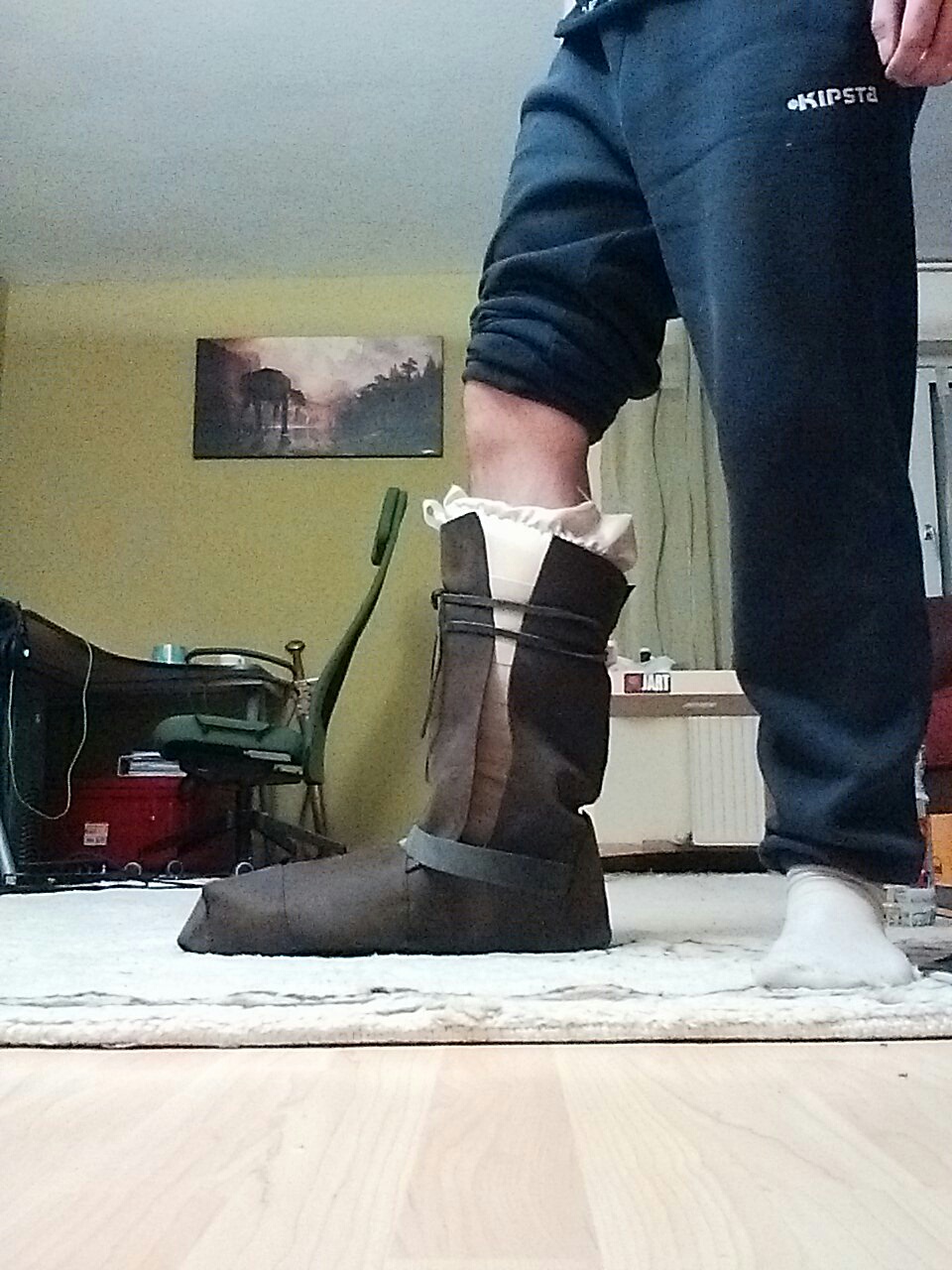

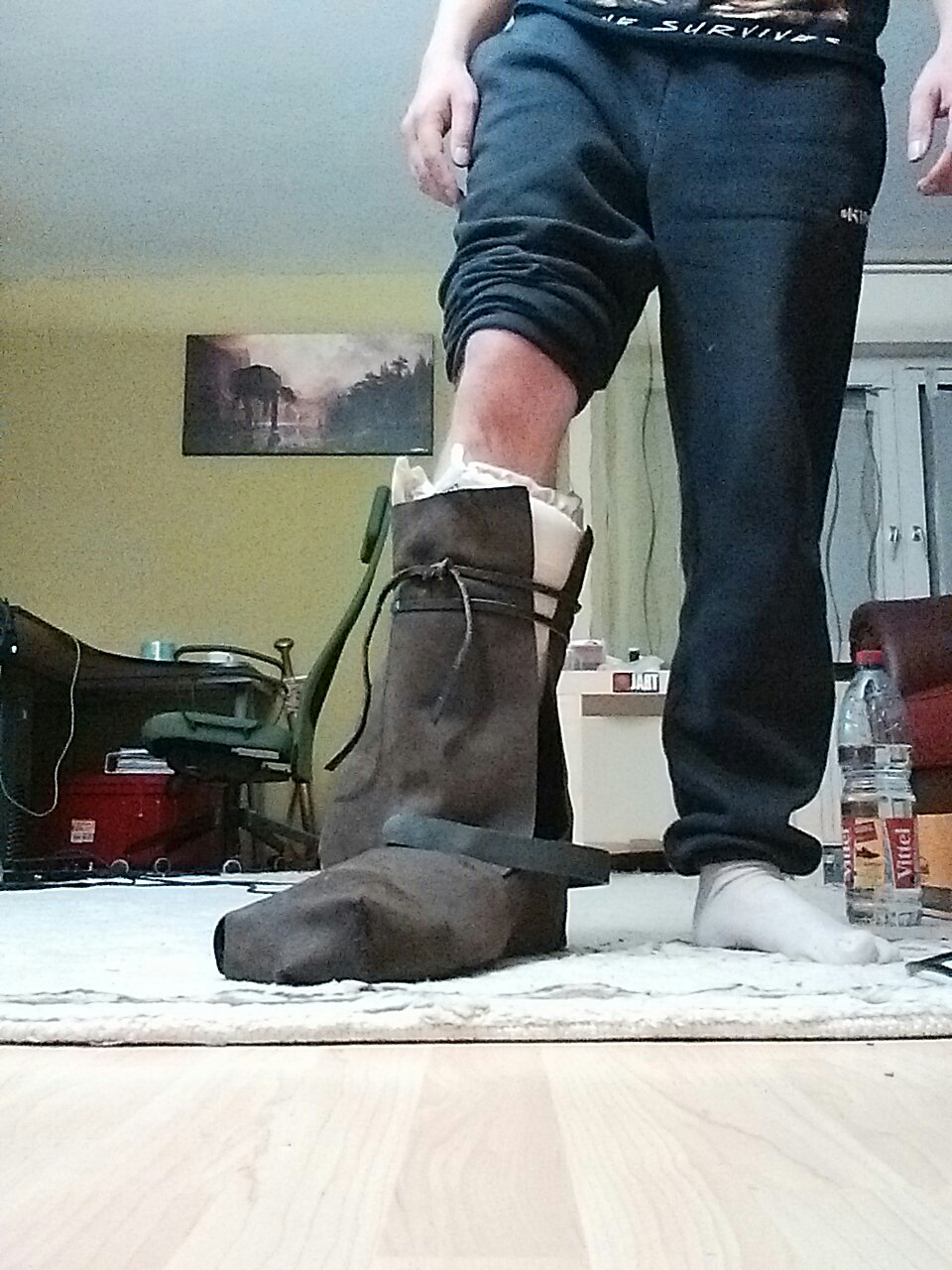

    Scale test with fatsuit calf
    boot_05.jpg boot_06.jpg

    A lot of work ahead but winter is coming. I have plenty of time for this

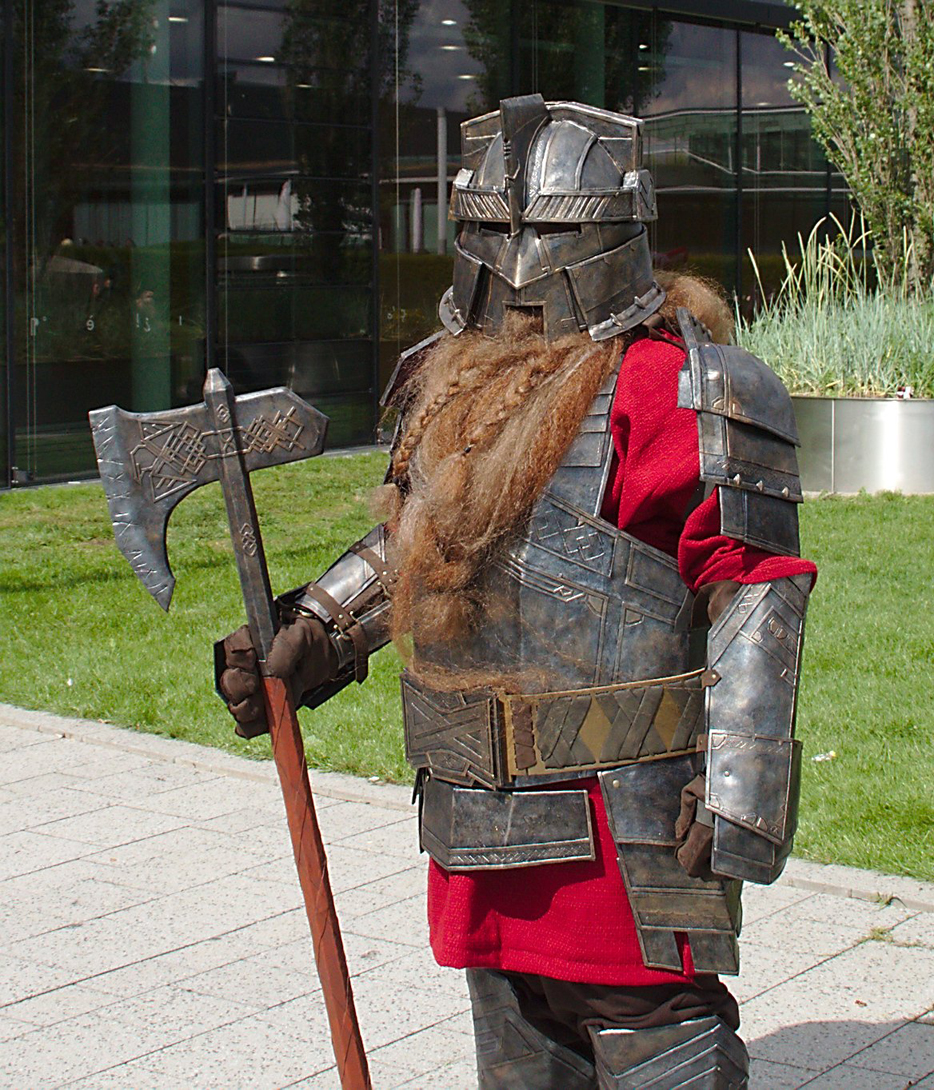

    UPDATE: Phase 1 complete

    Last edited: Jun 29, 2016
    Guri likes this.
  2. BlindSquirrel

    BlindSquirrel Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,147
    Re: Dwarven Warrior of Moria - The Hobbit

    Awesome! I look forward to seeing this develop. Start growing that beard!

  3. Guri

    Guri Sr Member

    Trophy Points:
    2,206
    Re: Dwarven Warrior of Moria - The Hobbit

    I love this idea! Glad you're posting in progress and I look forward to following it.

  4. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

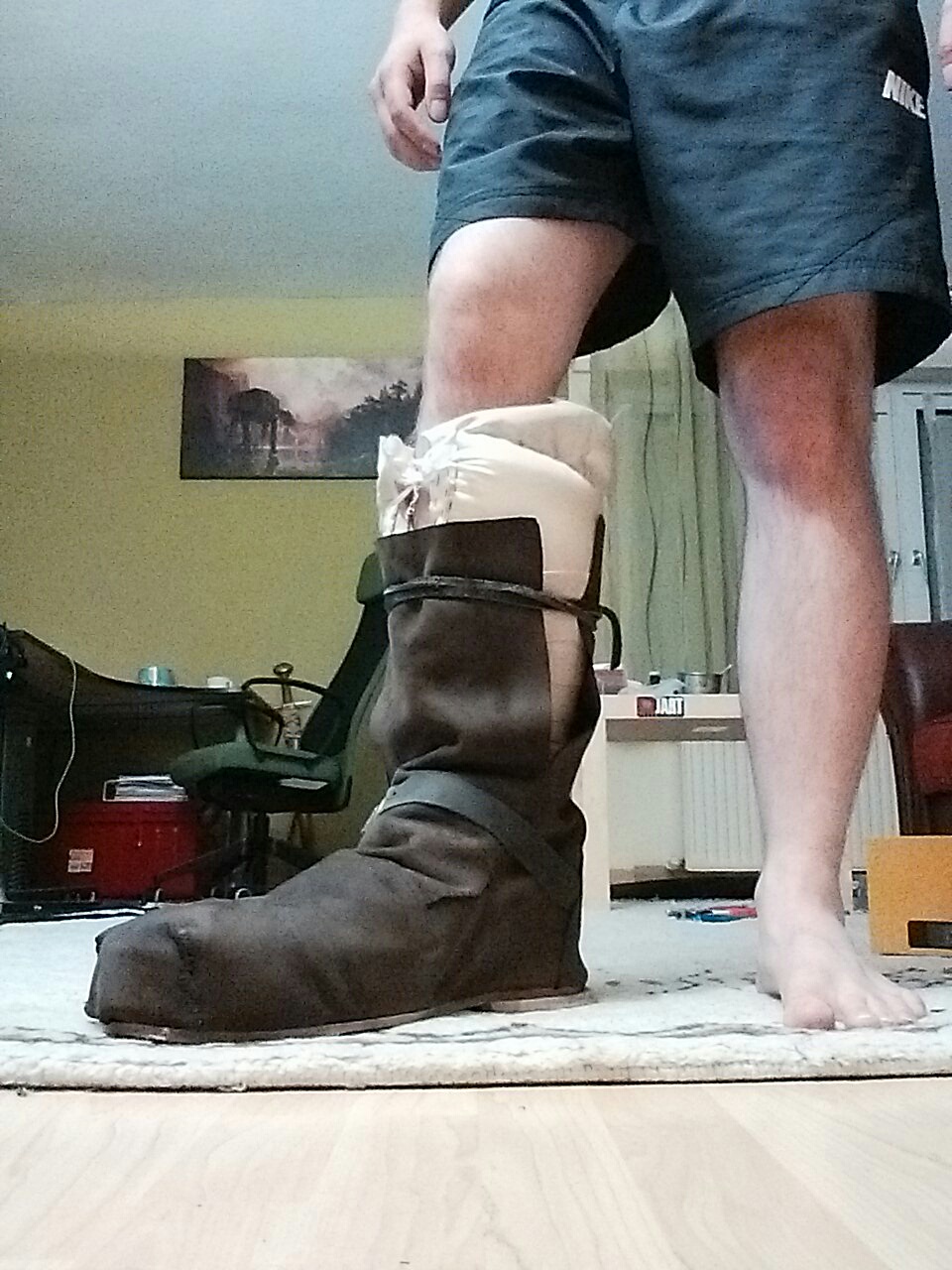

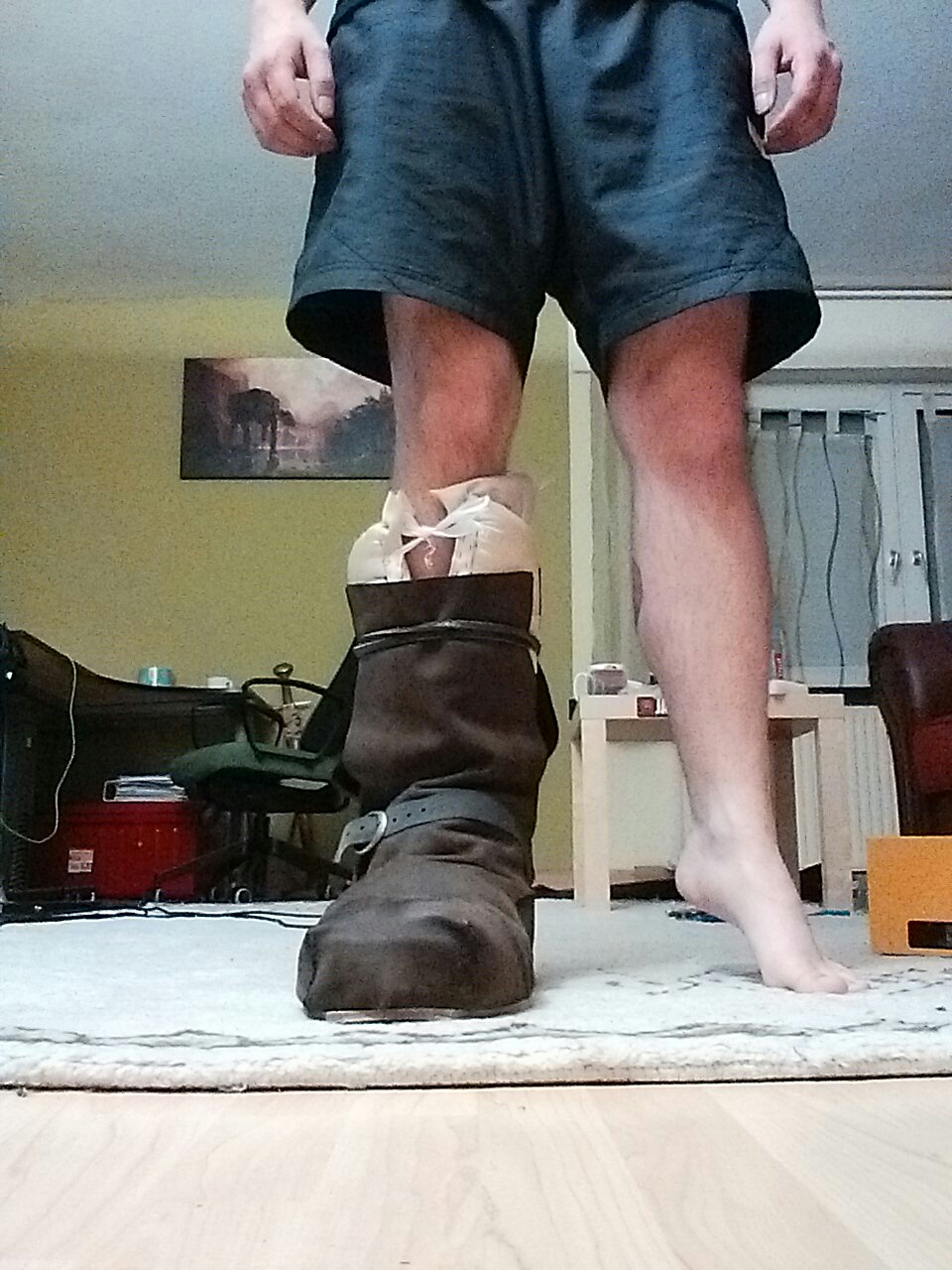

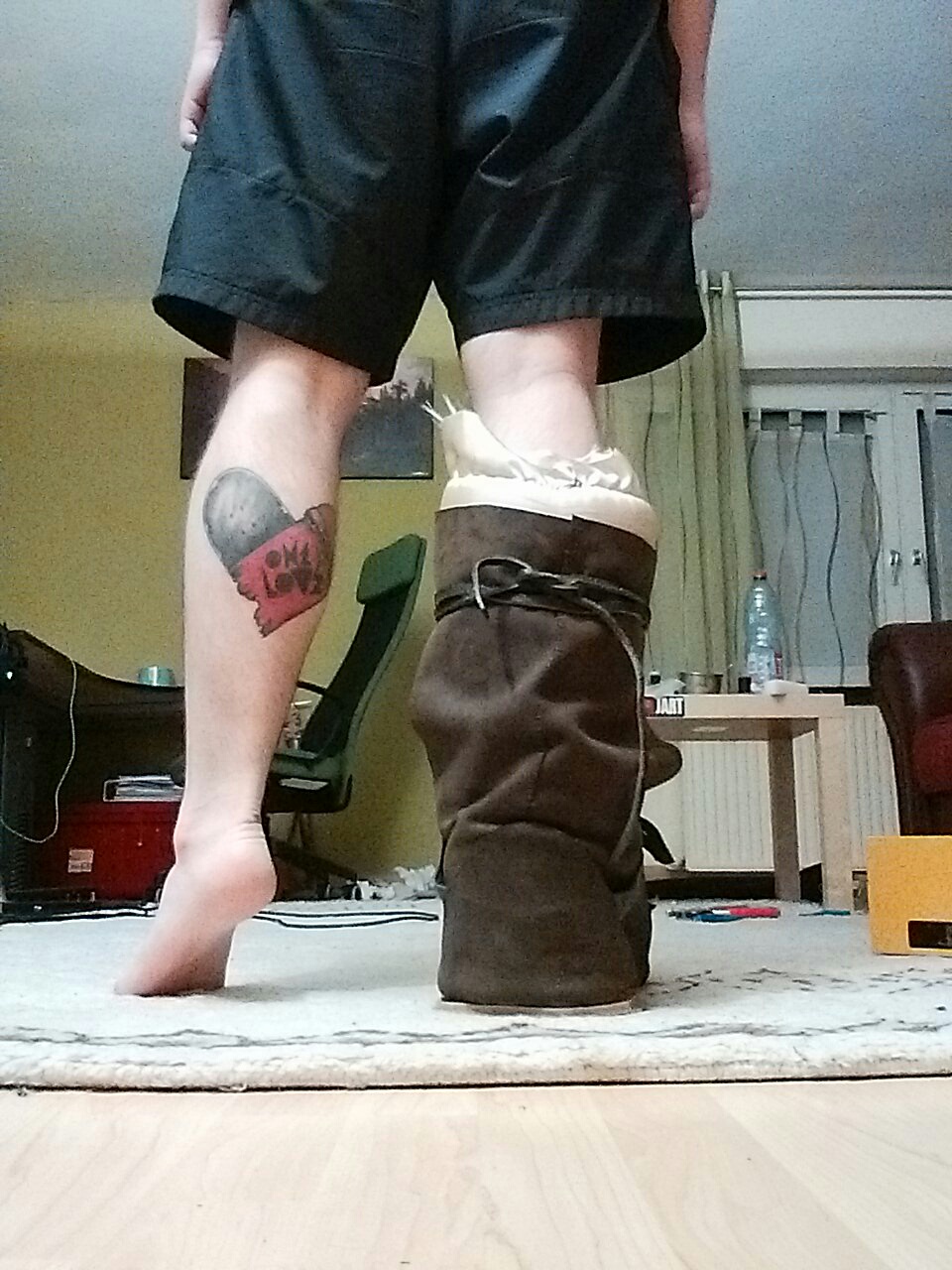

    Done sewing the right boot. Sole and heel added. Still waiting for nails to additionally affix the sole to the boot and give it a little more friction. Heel will be trimmed once the nails are done.
    Padding added but needs some more adjustments so the boot doesn't look too long compared to where the leg starts.
    The side gaps will be held in place by the shin armor eventually, for now I took this leather cord to keep everything in place.

    boot_07.jpg boot_08.jpg boot_09.jpg

    Guri likes this.
  5. NerdyChristina

    NerdyChristina New Member

    Trophy Points:
    3
    Re: Dwarven Warrior of Moria - The Hobbit

    That's awesome that you made your boots! I am in the process of making Thorin and I haven't decided if I want to buy a huge boot or make it. I look forward to watching you make your costume!

  6. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

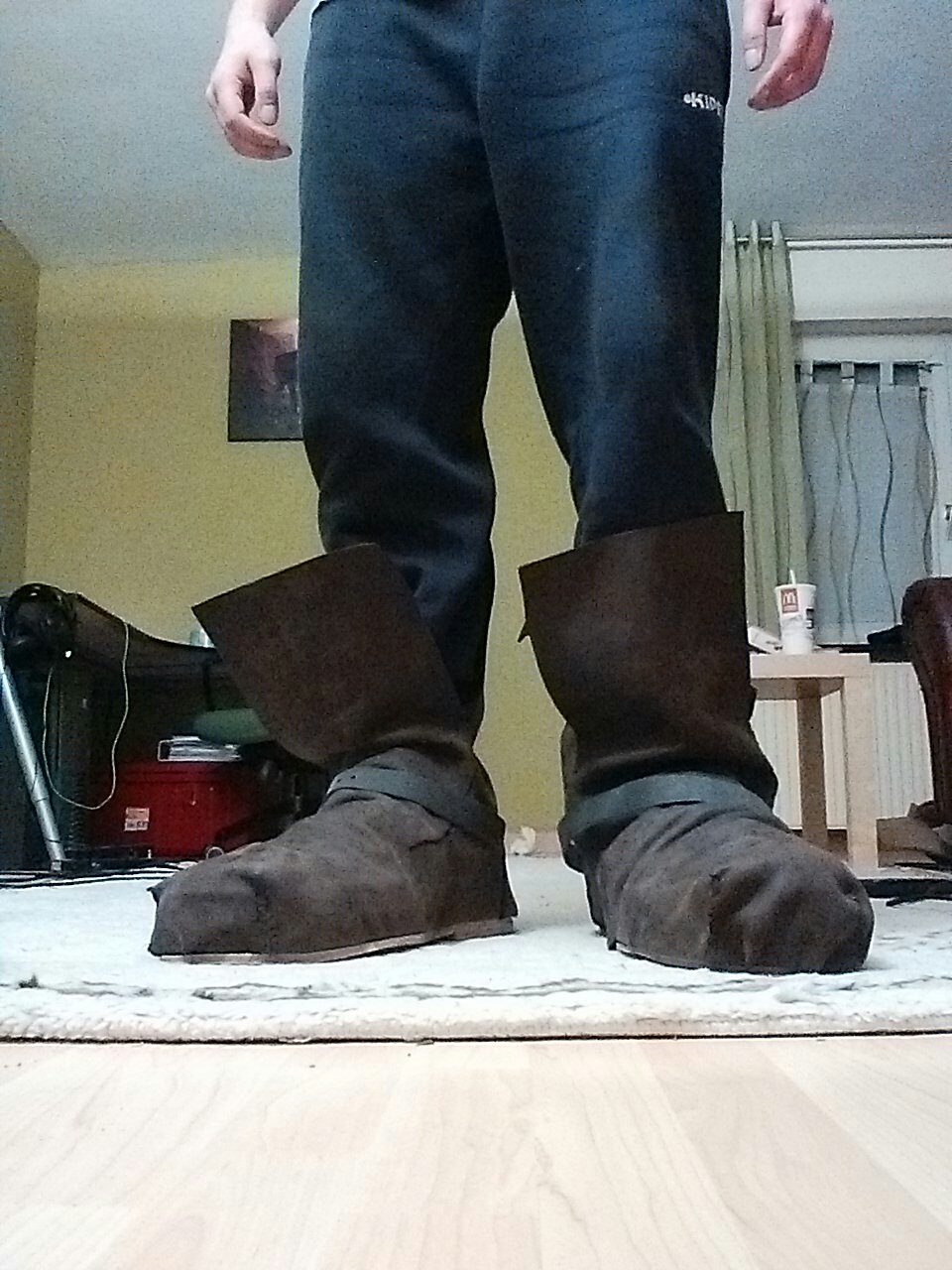

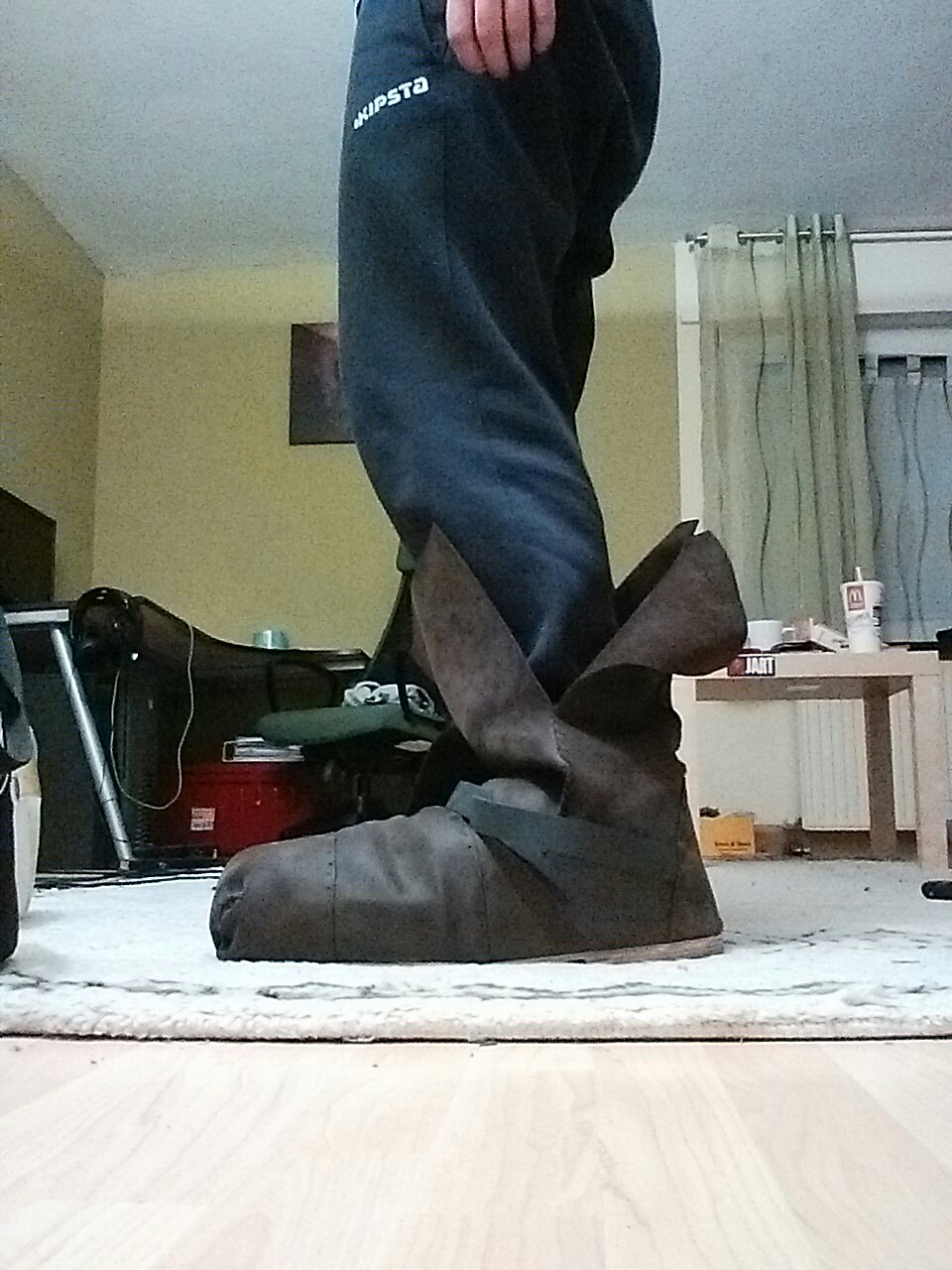

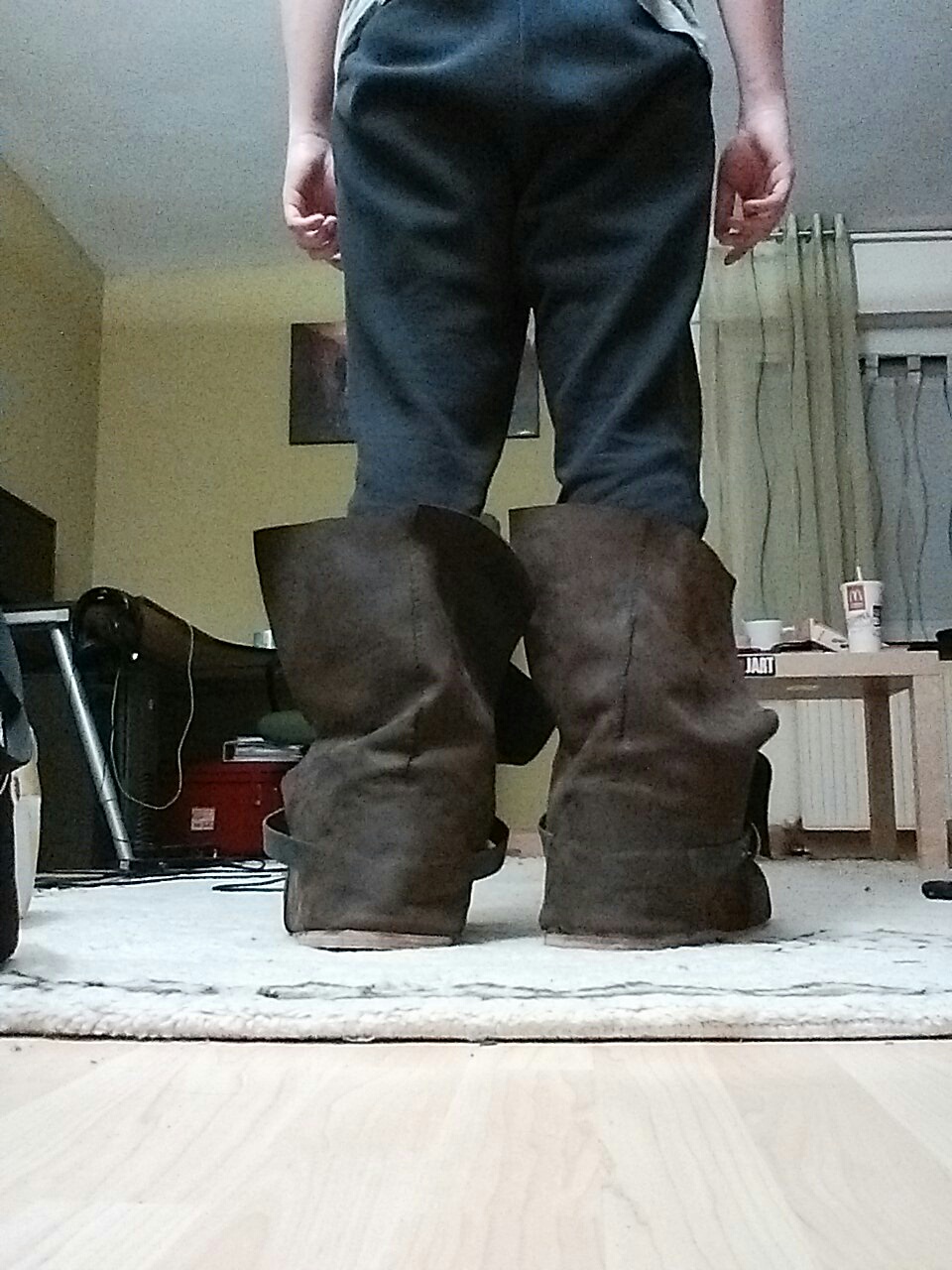

    Almost done with the boots, but I need to work on the padding. Walking feels okay but I could do better. Here's the result without the fatsuit parts:
    boot_10.jpg boot_11.jpg boot_12.jpg

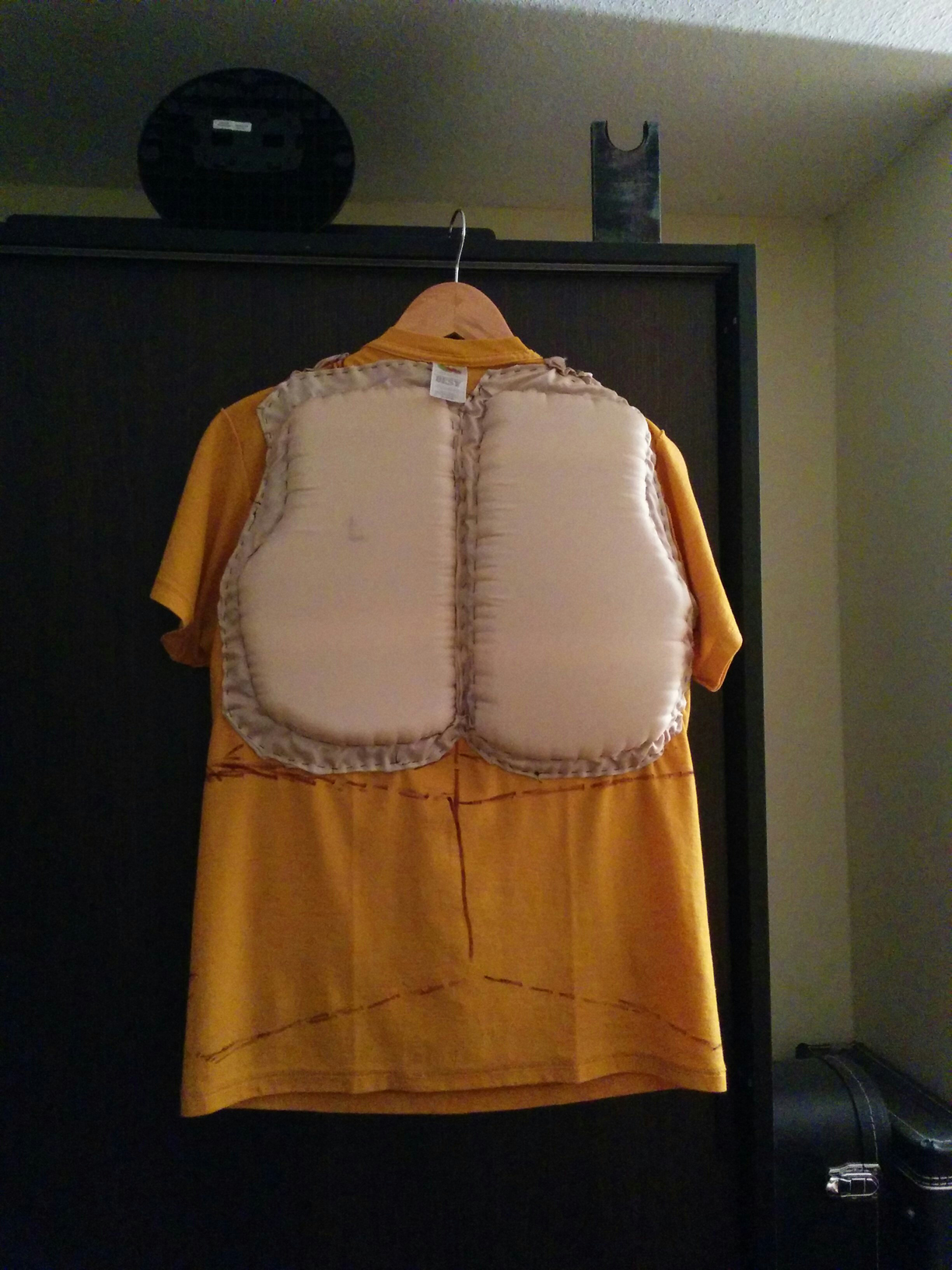

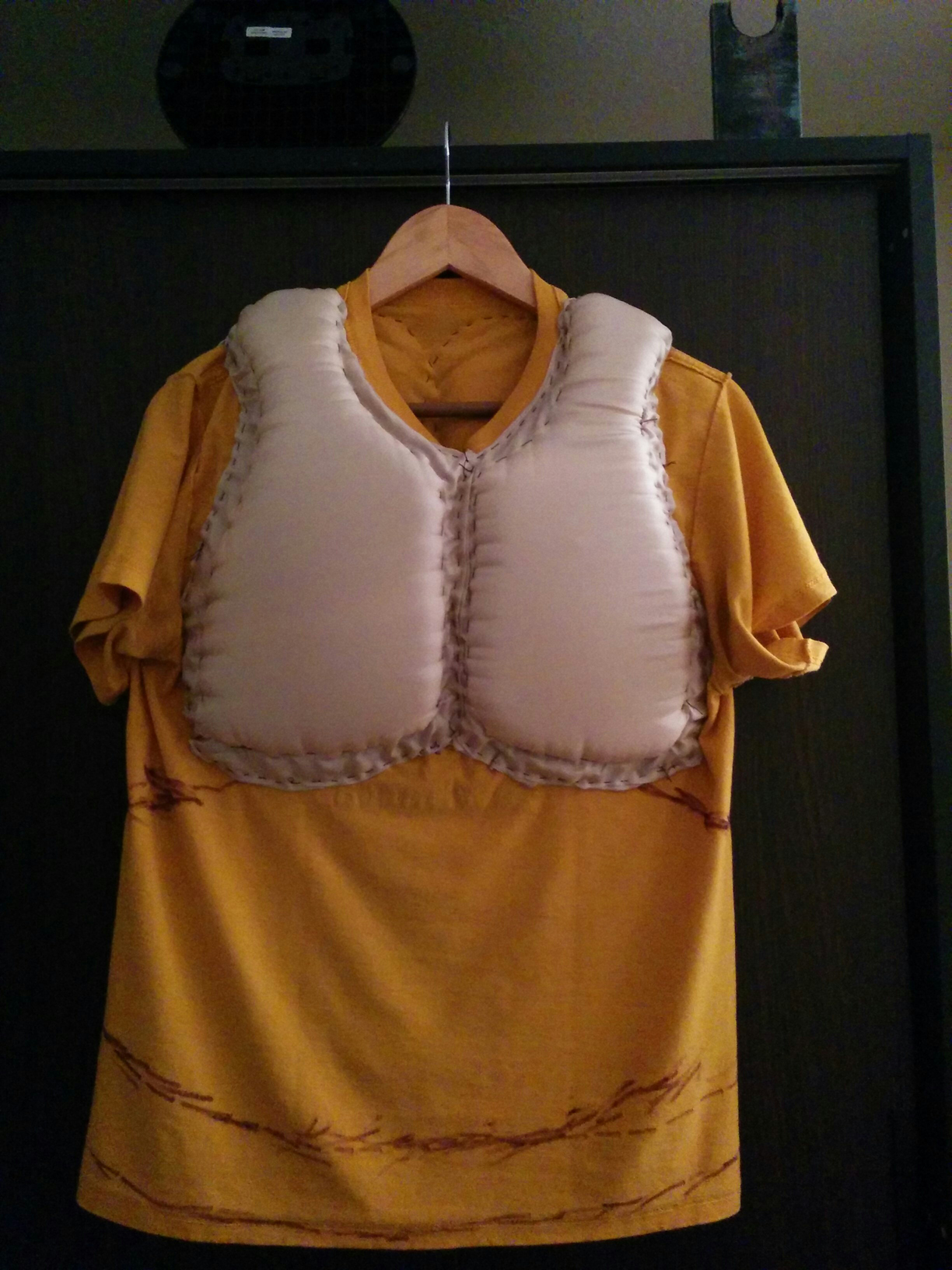

    Also started working on the chest part of the fatsuit
    torso01.jpg torso02.jpg

  7. SmilingOtter

    SmilingOtter Master Member

    Trophy Points:
    2,560
    Re: Dwarven Warrior of Moria - The Hobbit

    Off to a great start!

  8. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

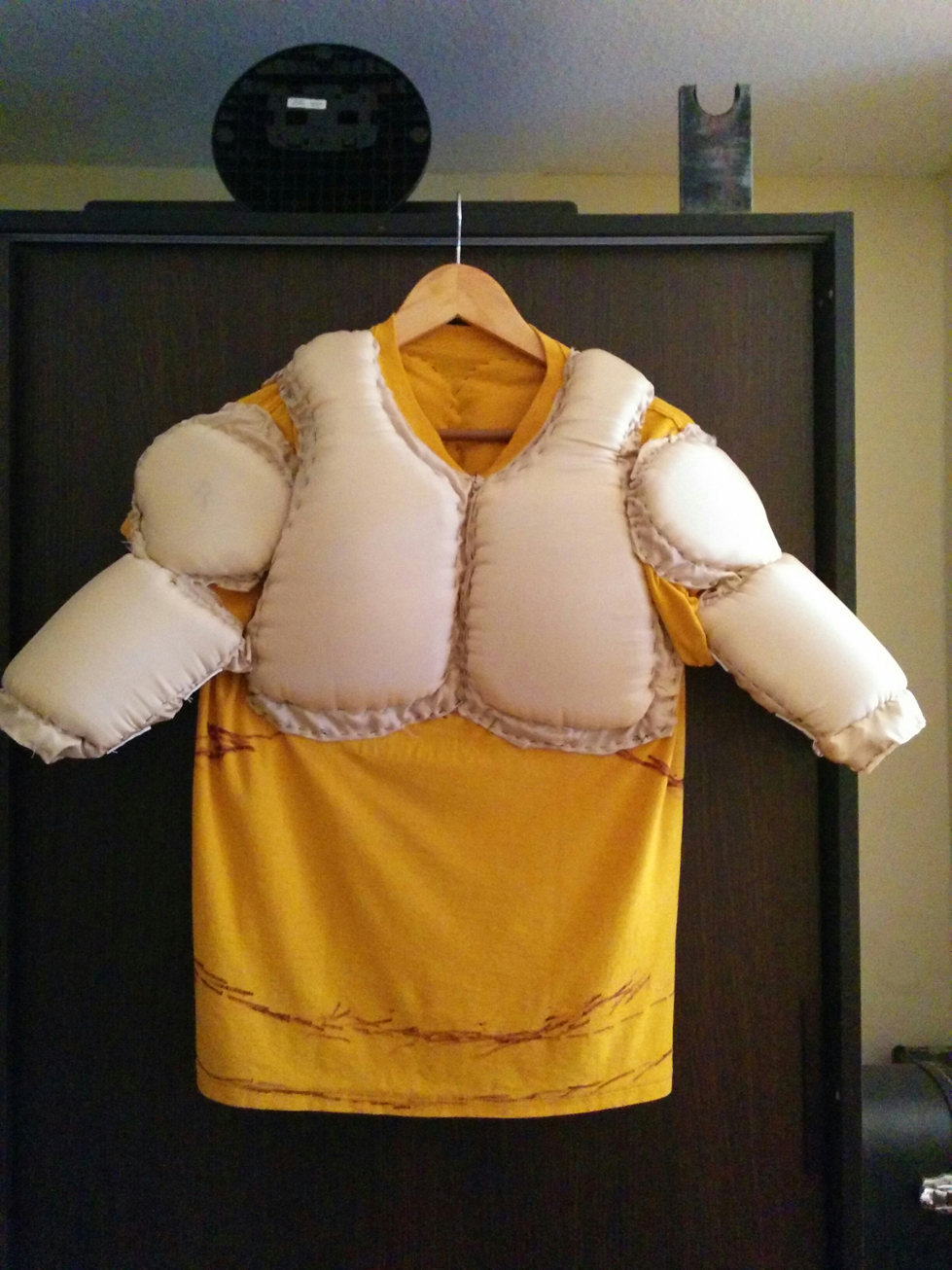

    Fatsuit is almost done, here's the torso and upper arms
    Calves, thighs and belly are done as well, but I ran out of white elastics and without the harness holding everything together I can't take a good pic of the whole thing.

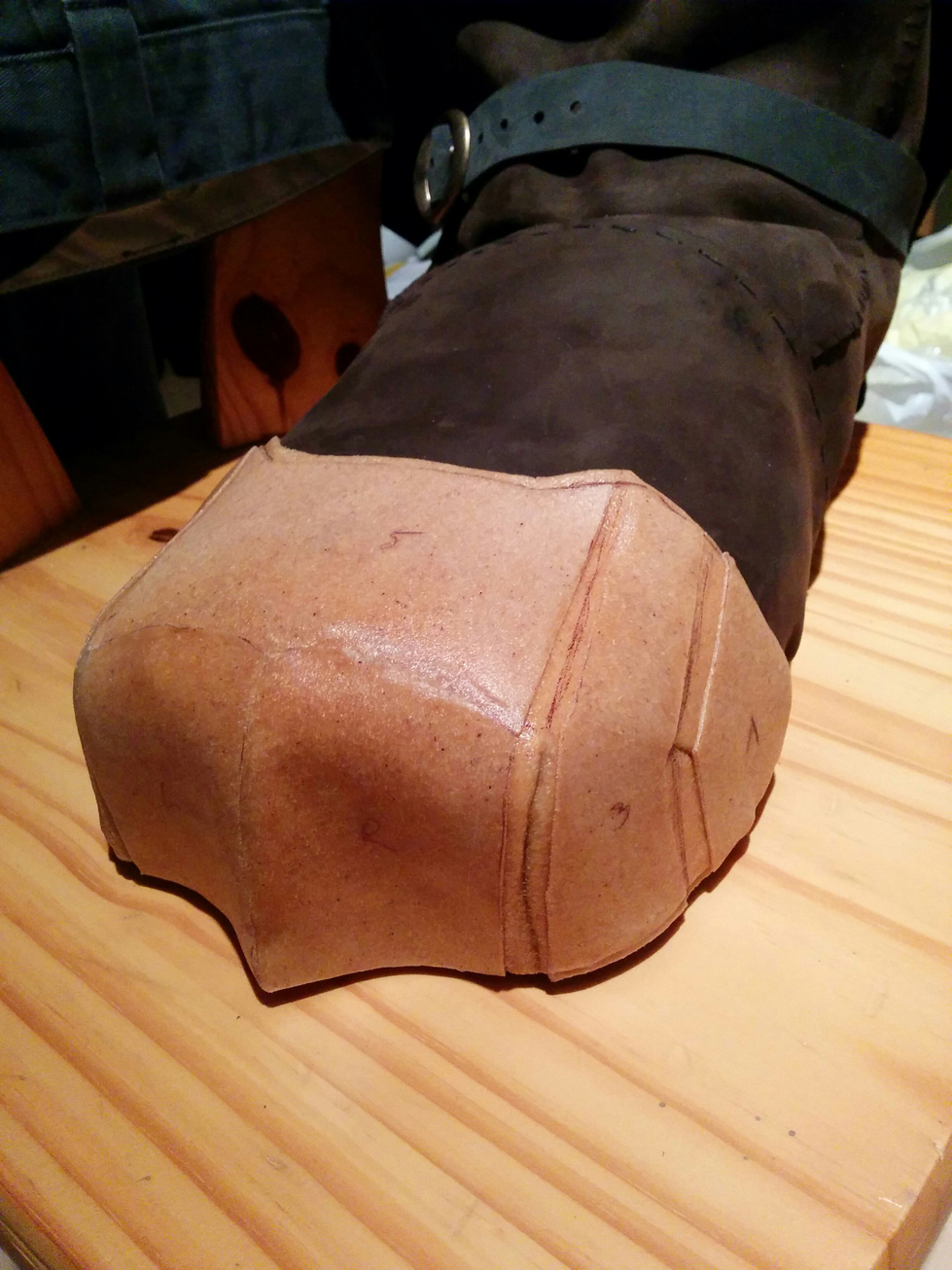

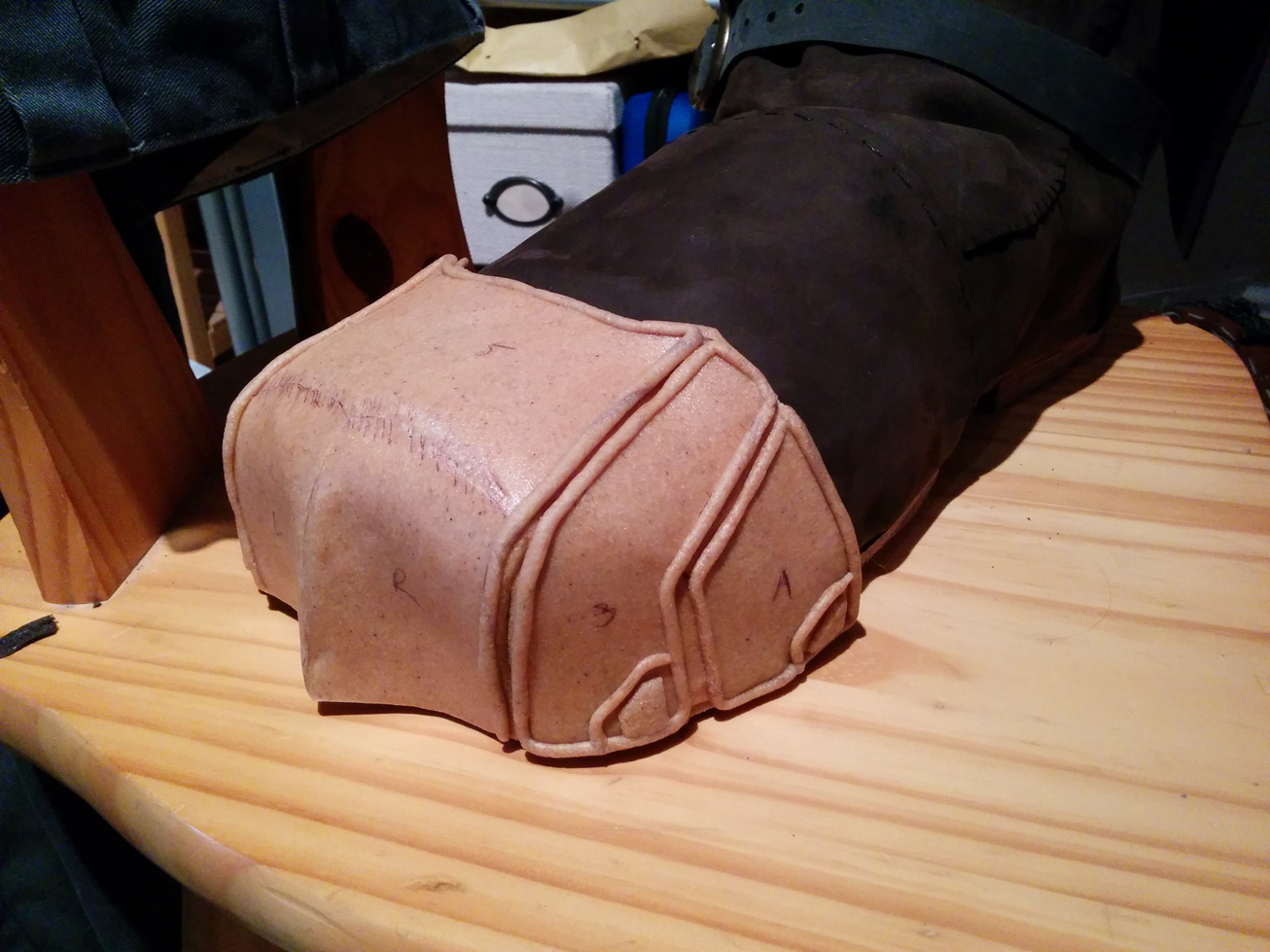

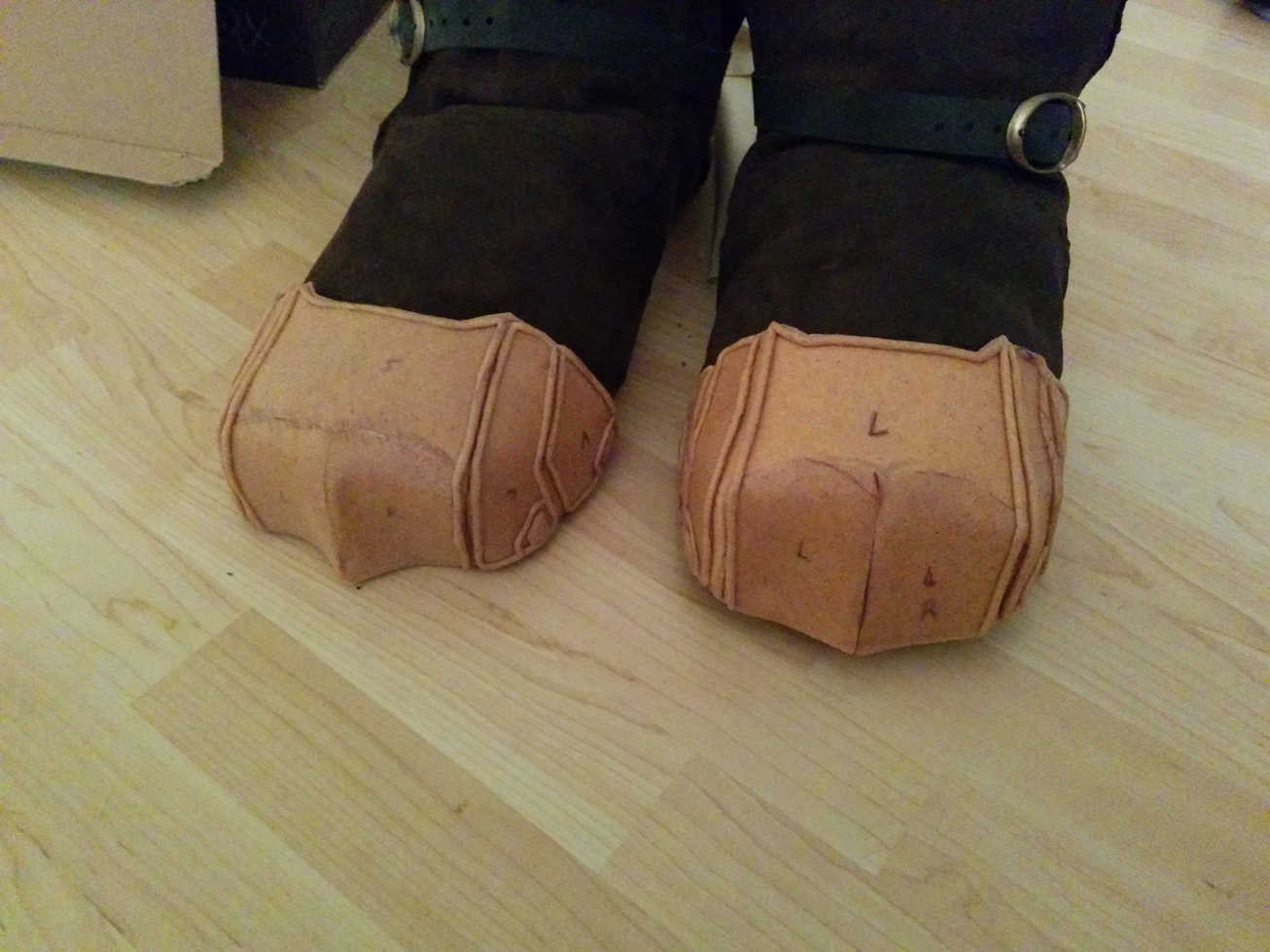

    Also worked on the first armor part, the boot caps
    boot_13.jpg boot_14.jpg boot_15.jpg
    I'm not really satisfied with the ornaments and still have to flatten them down with the dremel tomorrow so they don't look so round. Still don't think that's a good method for the rest of the armor.

    Any ideas on how to get sharper ornaments ?

  9. Guri

    Guri Sr Member

    Trophy Points:
    2,206
    Re: Dwarven Warrior of Moria - The Hobbit

    Is that worbla? What tools are you using? When I was using terraflex (similar stuff) I would heat it and then use plastic sculpture tools to get the details. Takes a long time going over it may times - and sometimes I used a glue gun tip to heat it up too.

    I think if I wanted it sharper I would use some sort of metal too press against it, like a knife or a spackling putty knife - something that would remain cool when it was pretty hot so that the plastic wouldn't stick to it as I was forming it.

    I haven't done this, so test it - just saying that's what I would try if I wanted a sharper edge. :)

    If that's not warbla, then nvm :D

    Zalkegeroth likes this.
  10. Karol

    Karol New Member

    Trophy Points:
    17
    Re: Dwarven Warrior of Moria - The Hobbit

    What's the fat suit filled with? Poly or cotton batting?

  11. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Yep, that's worbla. Will try using some metal tools, also thought about using 2mm ABS for the details.
    Thanks for the help, Guri.
    Karol: the filling is poly foam. I might add some granulate or sand to the belly to give it some weight though. The fatsuits they've used in the movies along with the harness look as if the pieces were quite heavy

    Last edited by a moderator: Nov 8, 2018
    Karol likes this.
  12. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

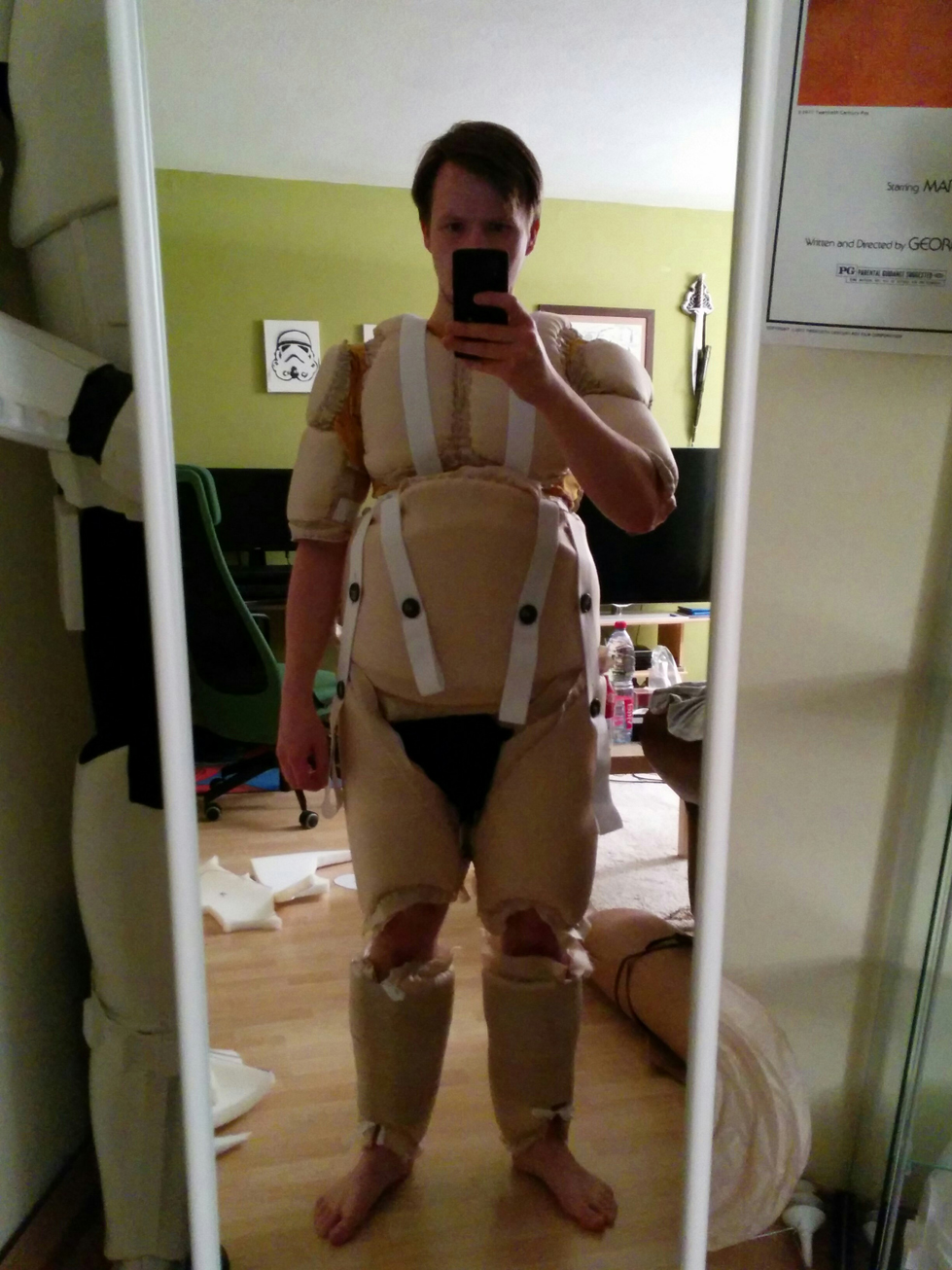

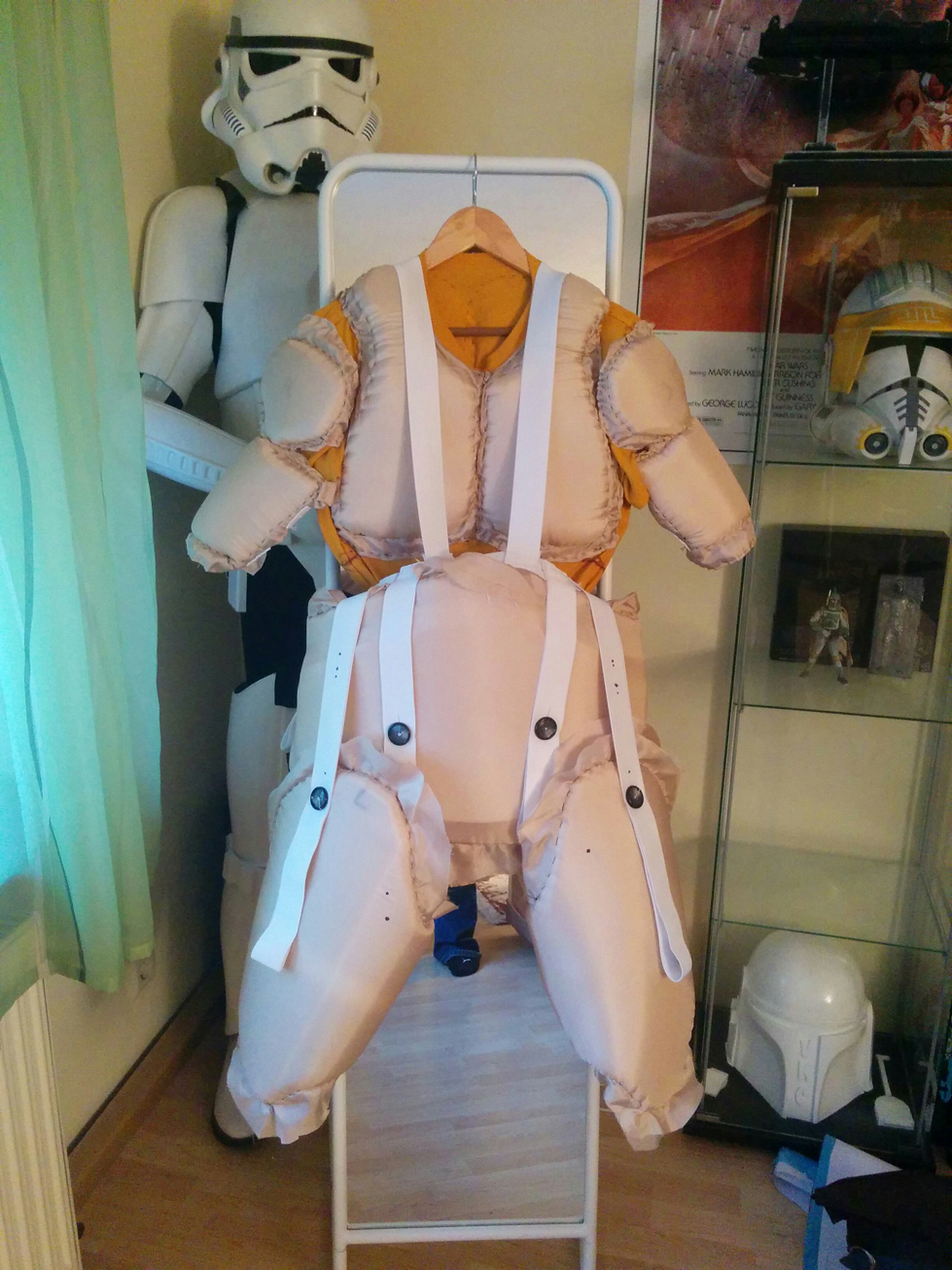

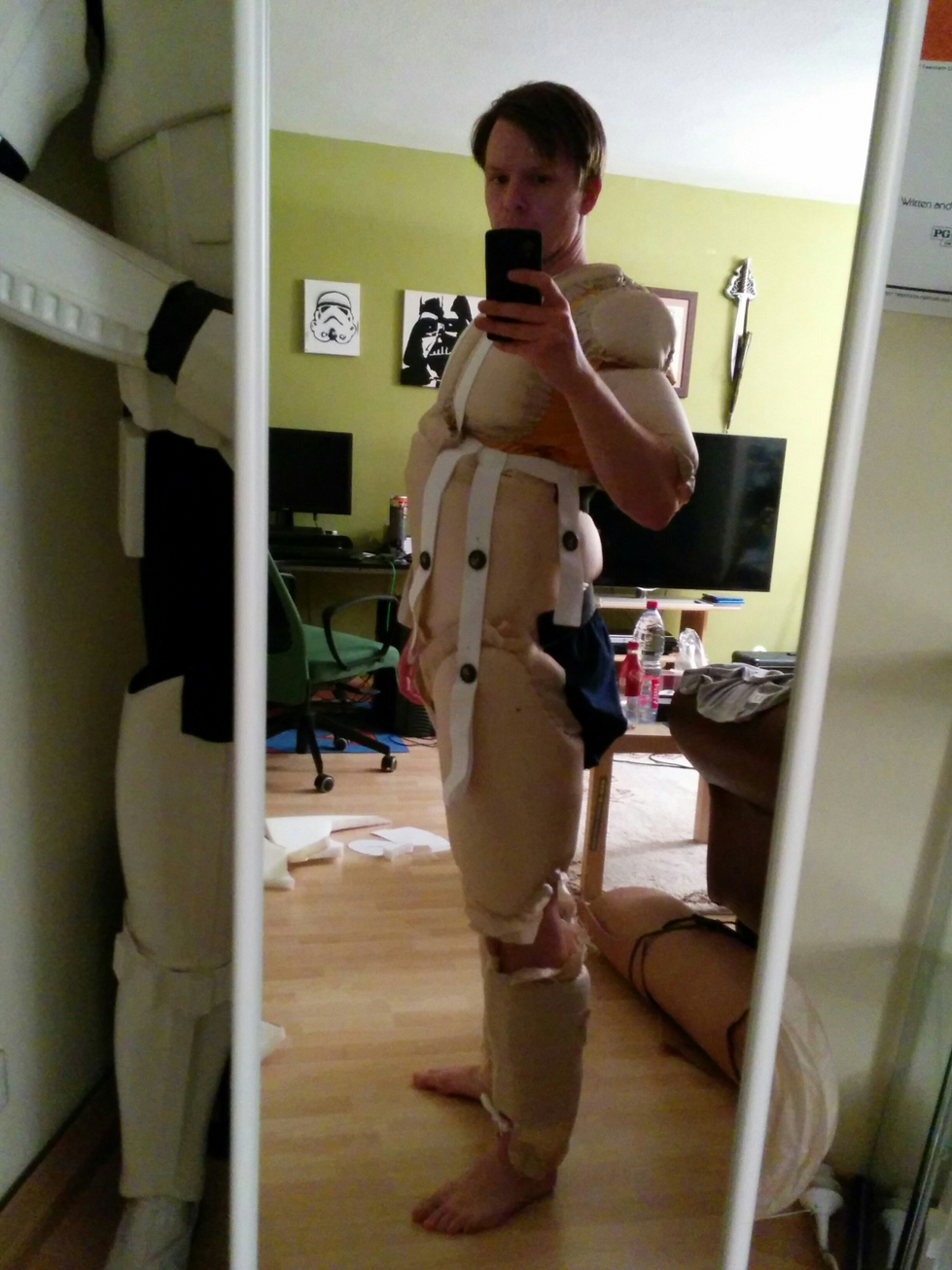

    Fatsuit is at 95%. Still need to do the forearms and close the outer seams but I'll have a friend of mine help me with her sewing machine instead of doing that by hand as well.
    torso04.jpg torso05.jpg torso06.jpg

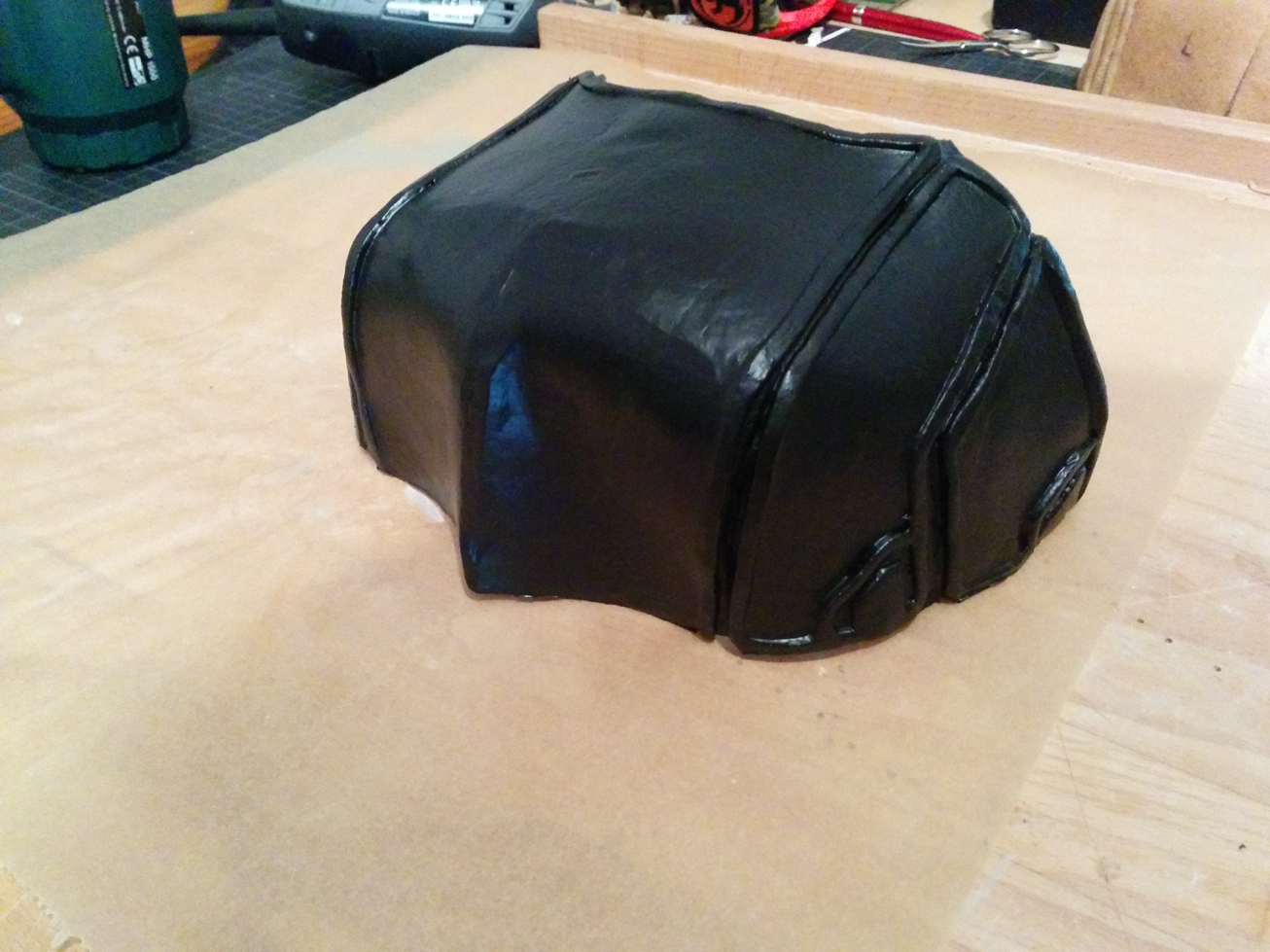

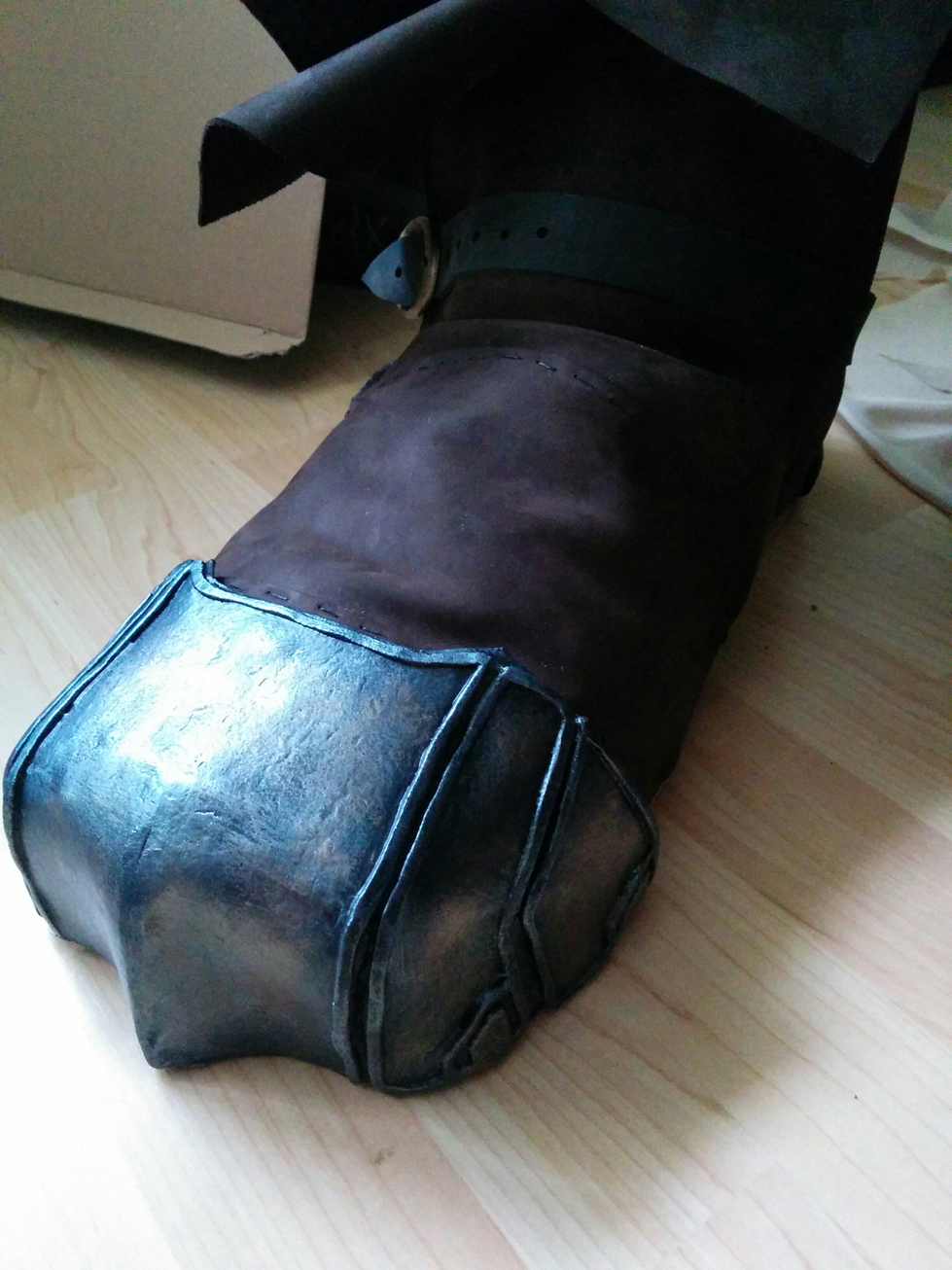

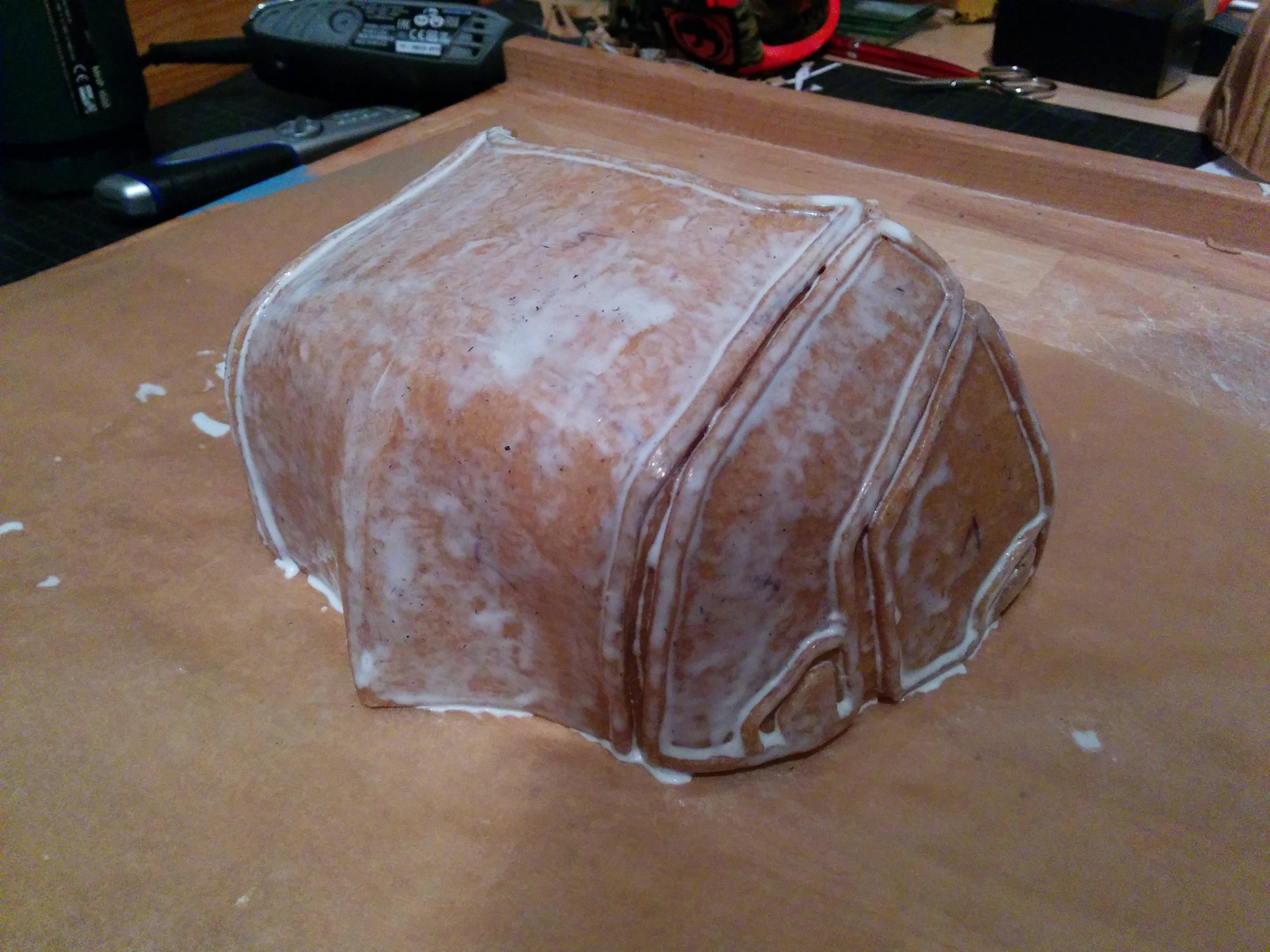

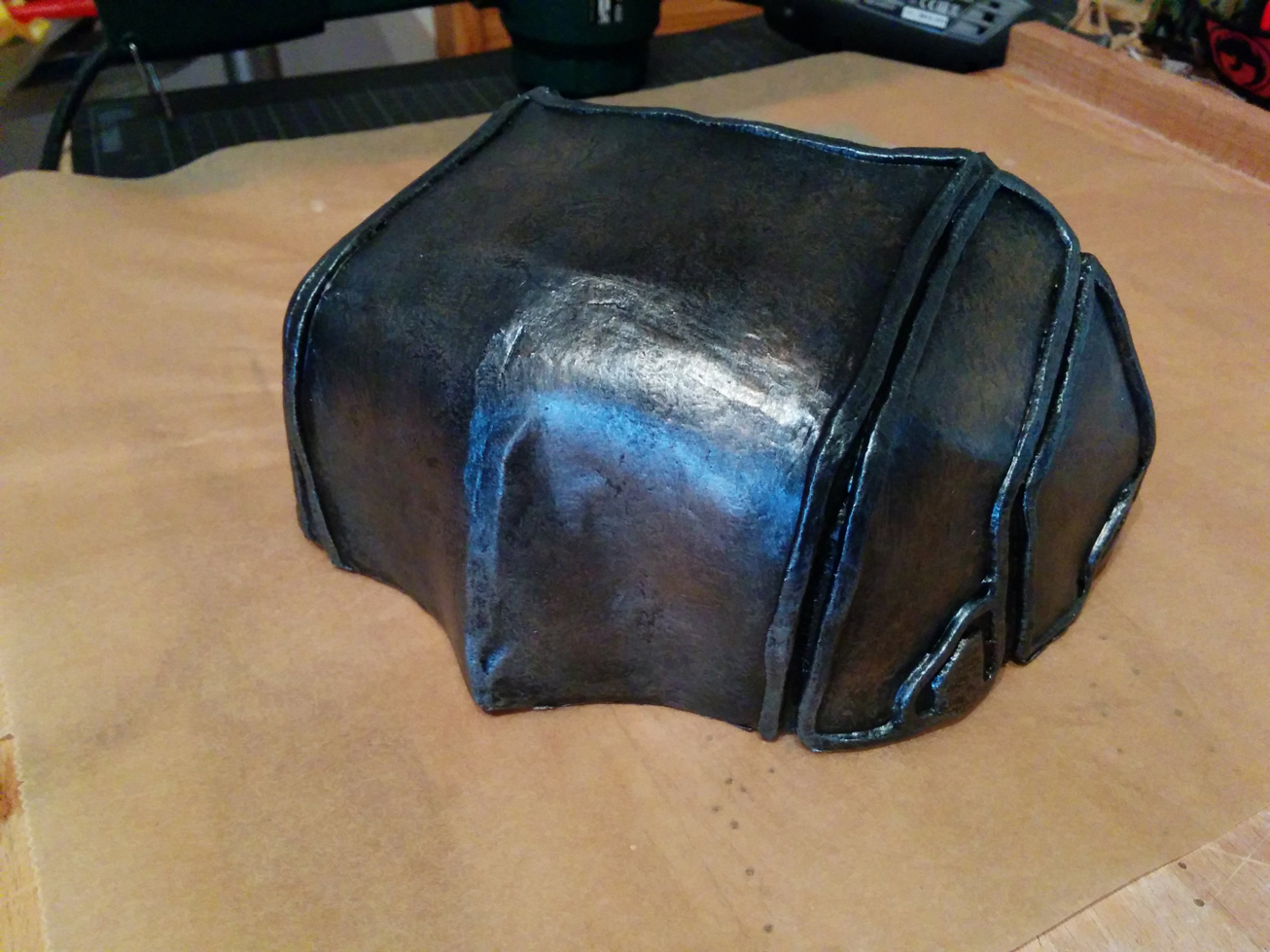

    I finished the first boot cap to check if I could achieve something close to the dwarven steel look. Decided to go with 3 layers of wood glue, black primer (duh) a major layer of drybrushed silver and a minor layer of drybrushed bronze.
    boot_16.jpg boot_17.jpg boot_18.jpg boot_19.jpg

  13. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Back from vacation in wonderful Colorado and down for some anti-orc tools. Picked an axe design from Weta's arsenal but converted it to a two handed version.

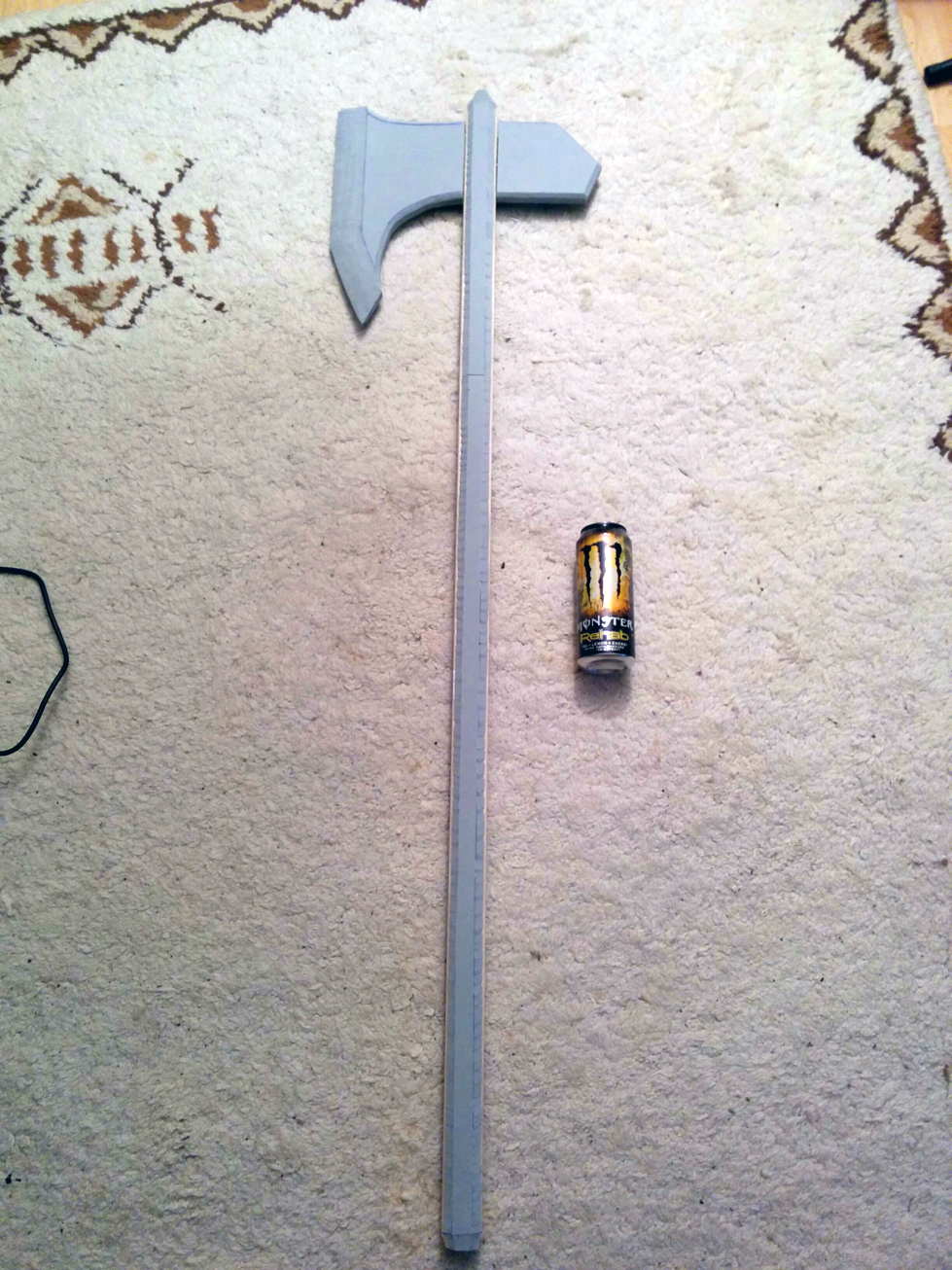

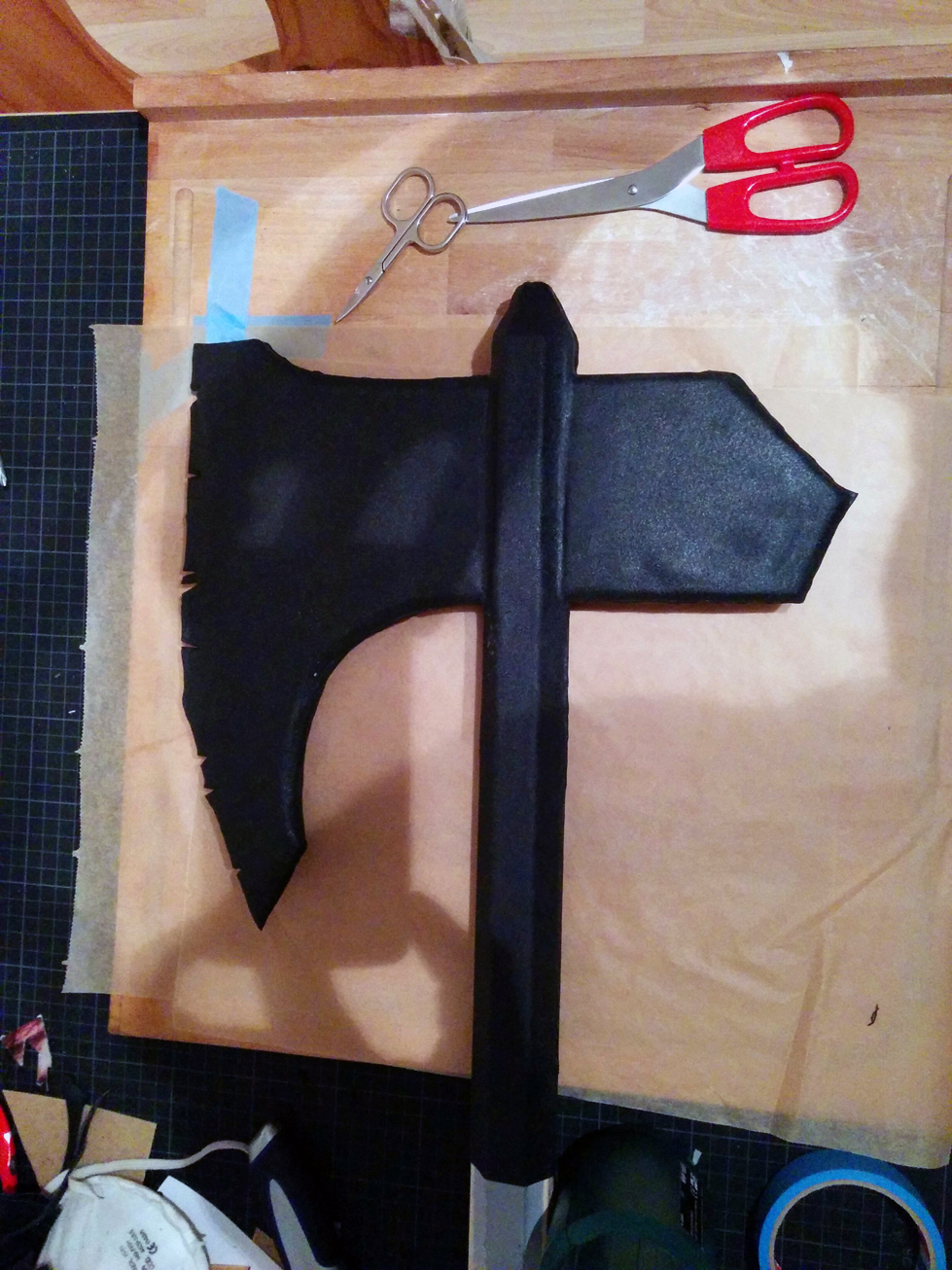

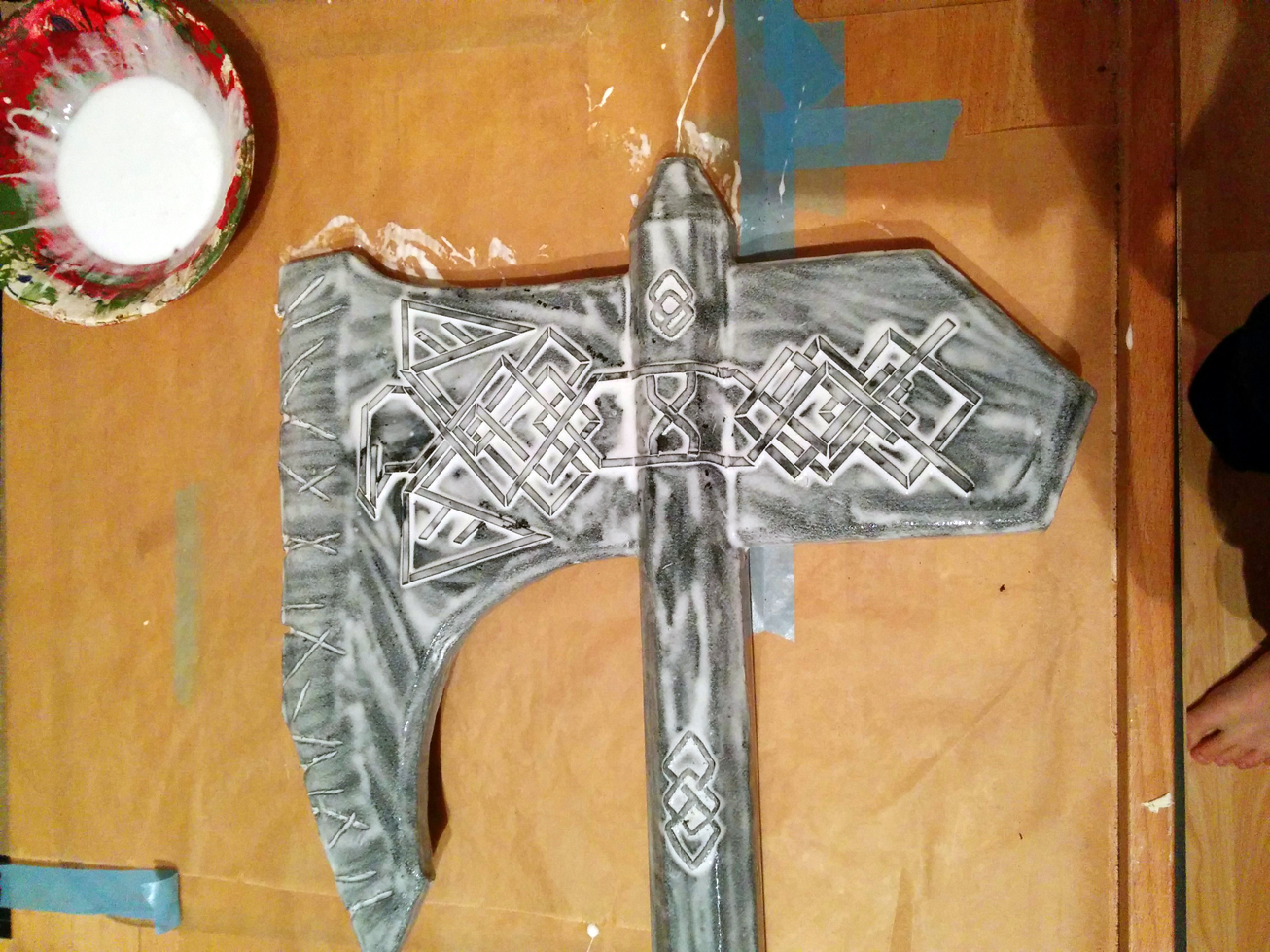

    Started coating the axe (wood core, EVA foam body) with the new black magic worbla.
    axe_01.jpg axe_02.jpg

  14. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

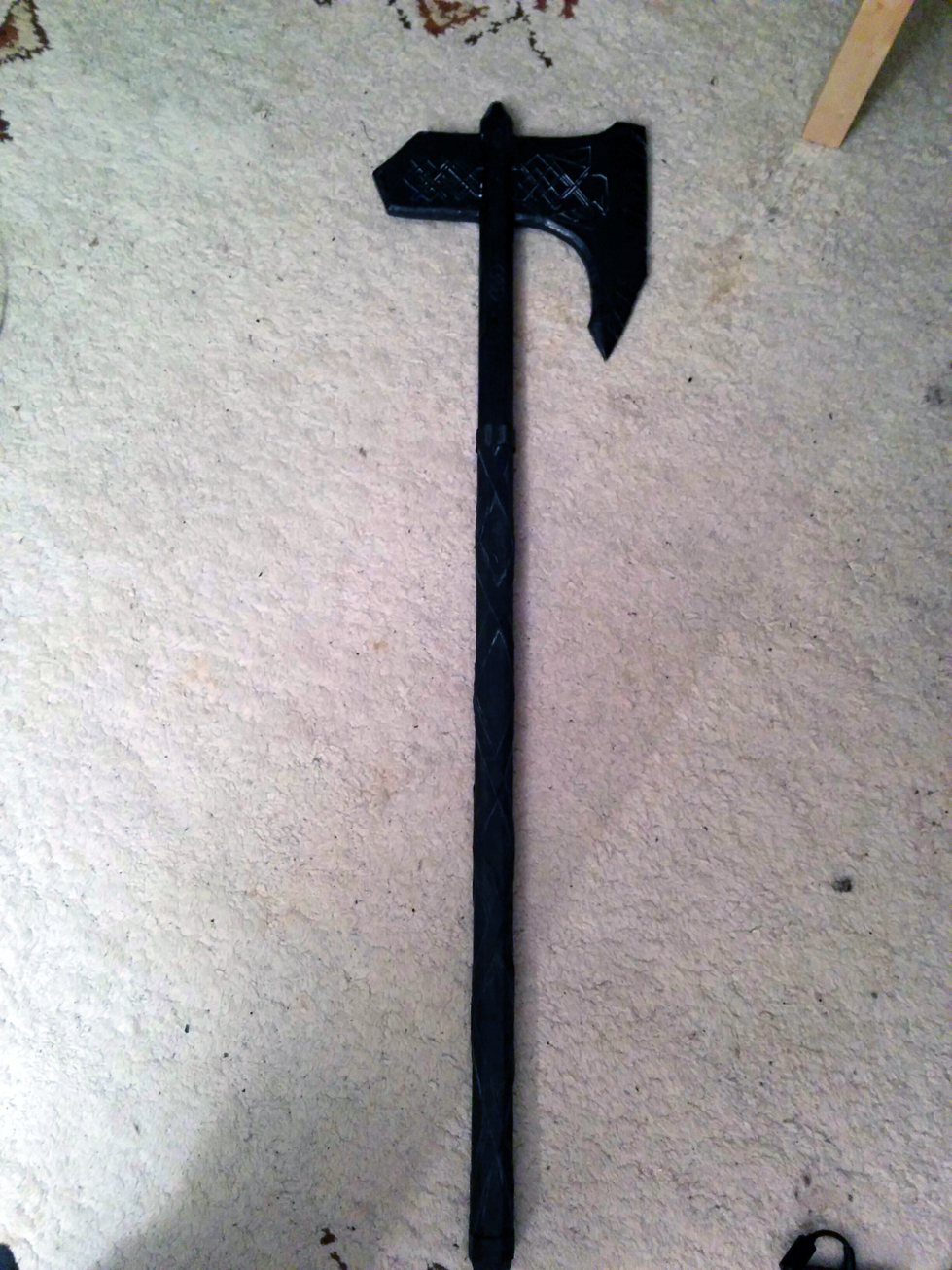

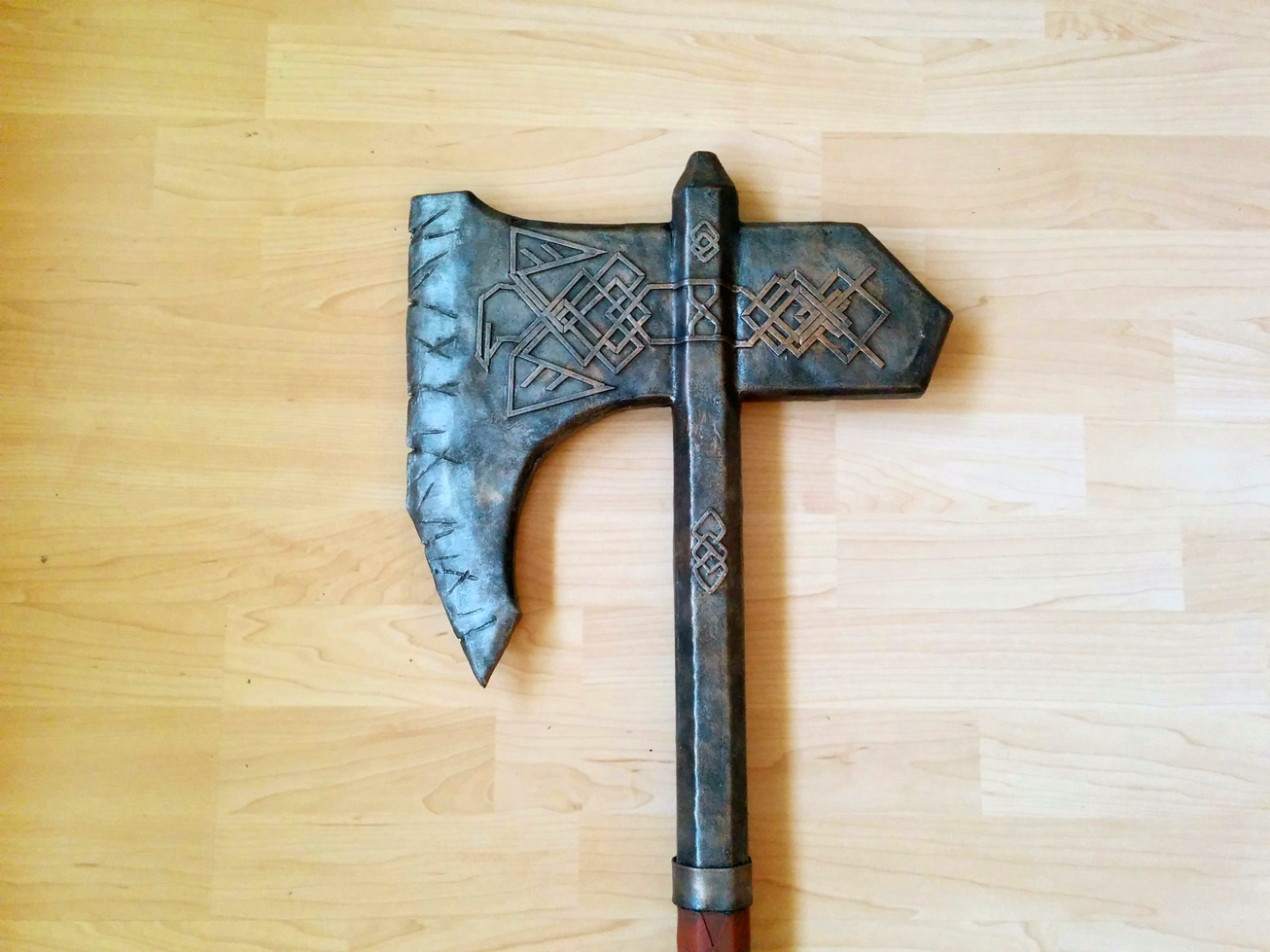

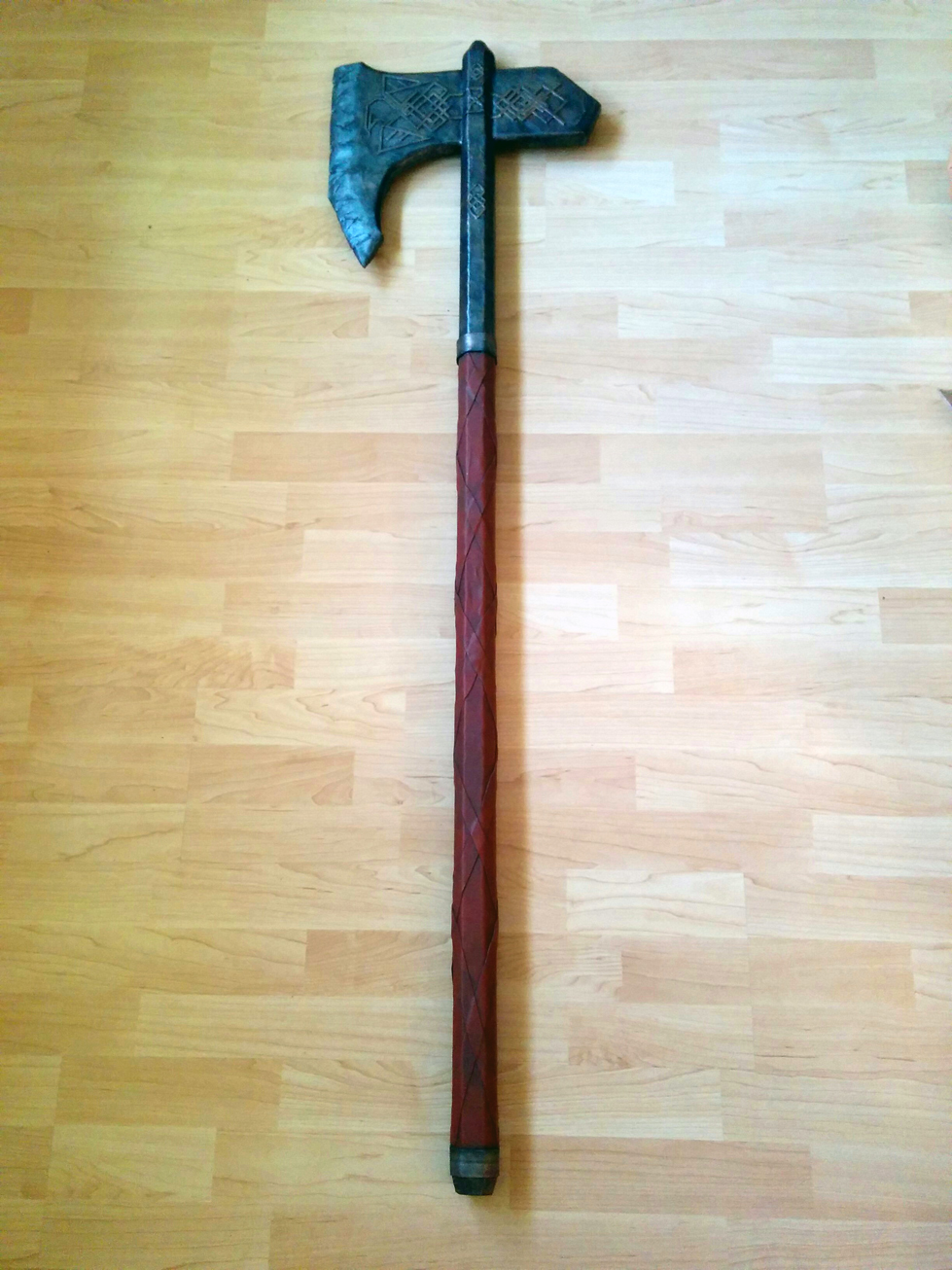

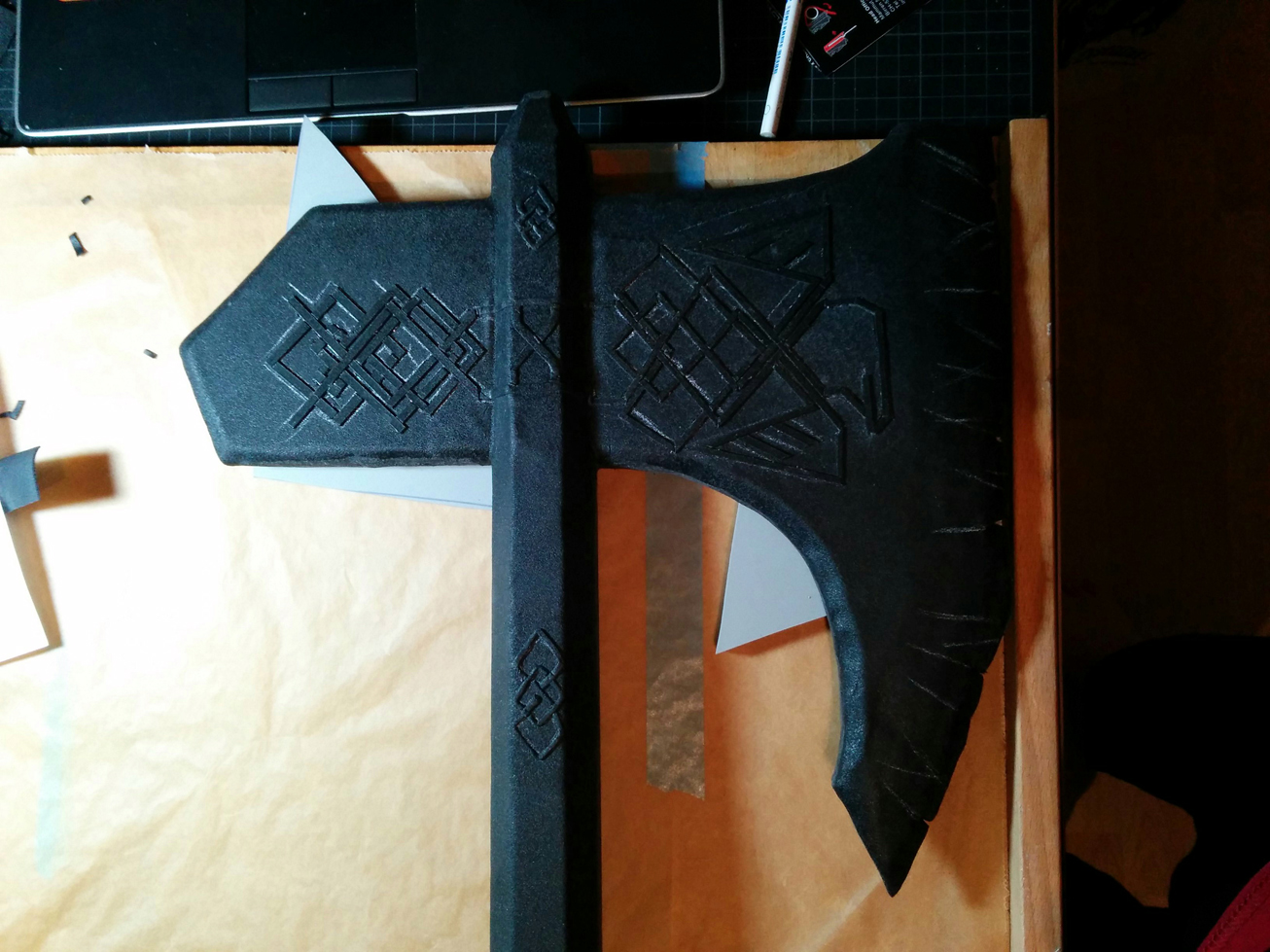

    Axe is finally done, what's a dwarf without his axe anyways ?:

    axe_03.jpg axe_04.jpg axe_05.jpg axe_06.jpg axe_07.jpg

    Zwilliamo, WireFox and Zalkegeroth like this.
  15. Zalkegeroth

    Zalkegeroth New Member

    Trophy Points:
    17
    Re: Dwarven Warrior of Moria - The Hobbit

    Love how the axe turned out!

  16. Yeats

    Yeats Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342
    Re: Dwarven Warrior of Moria - The Hobbit

    My type of paint did you use for the shoe front (link)?

  17. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Yeats likes this.
  18. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

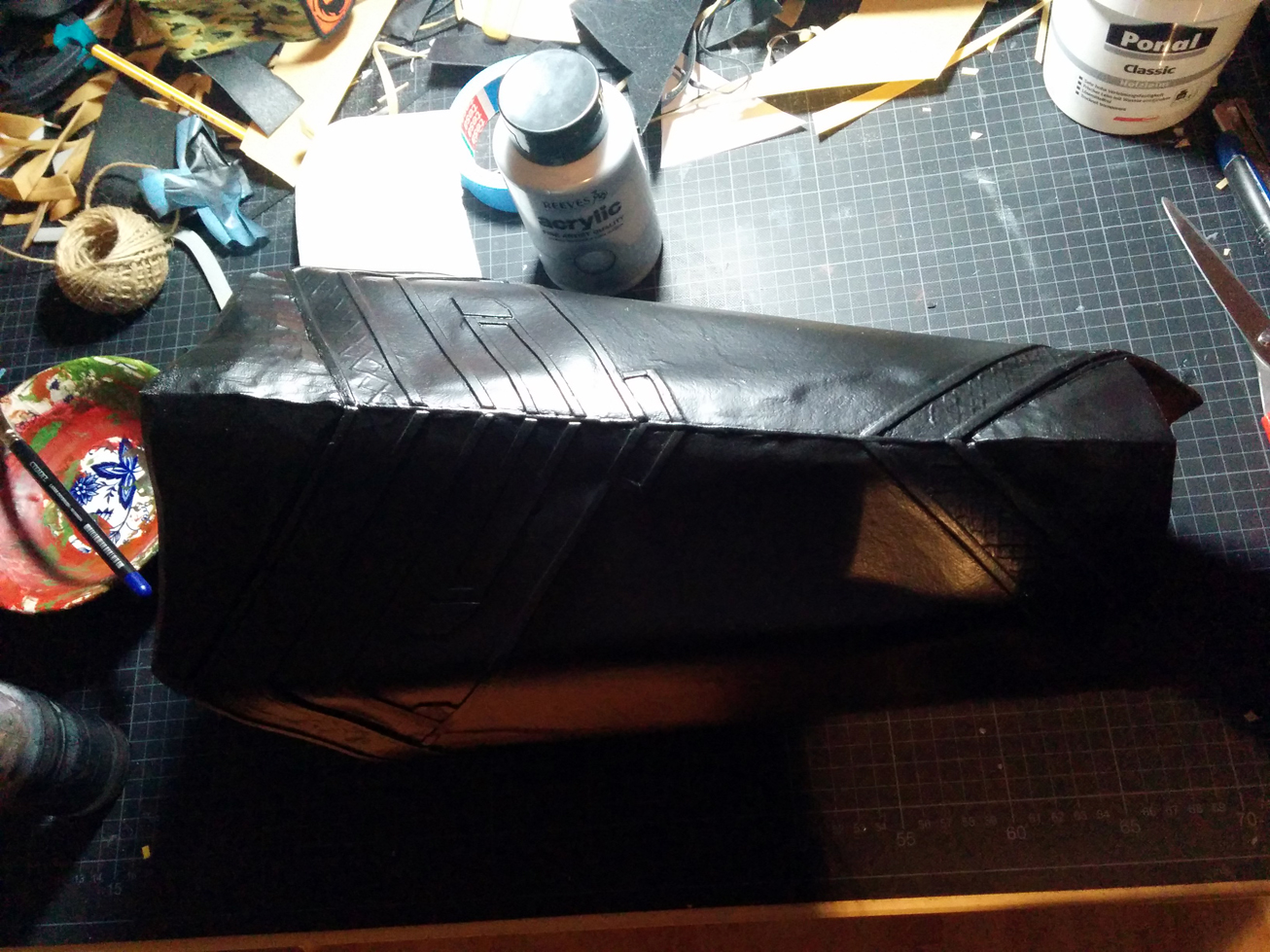

    Done with the first shin armor but forgot to take any progess pics, sorry.
    Here's one with the usual wood glue and primer layers

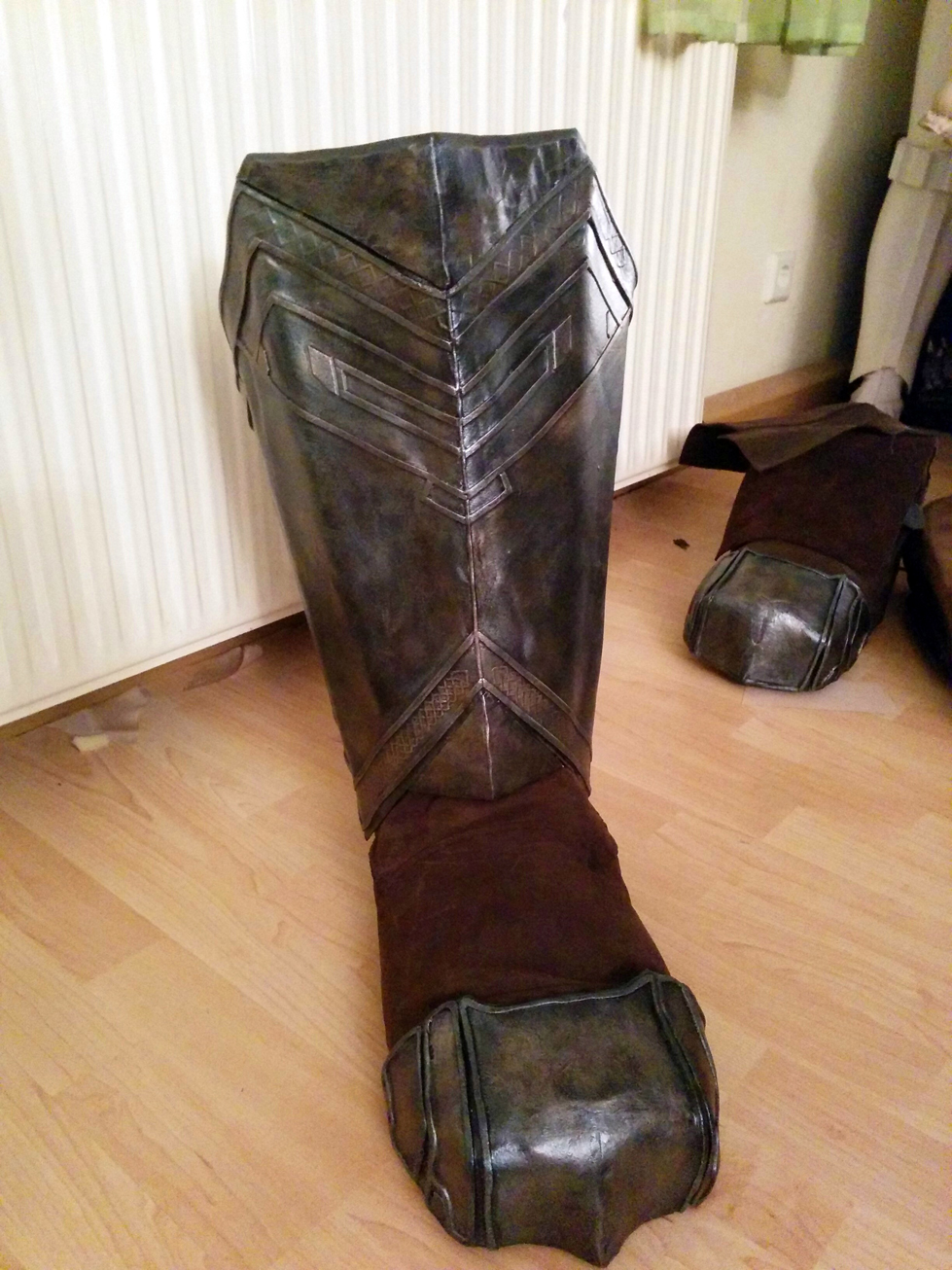

    And the finished shin armor attached to the boot
    Big thanks to Eloquiell who shared his knowledge on how to do the ornaments

    sanctuspiox likes this.
  19. WireFox

    WireFox Active Member

    Trophy Points:
    361
  20. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Update after the holidays:

    Boots are almost done except some bending and weathering of the leather.

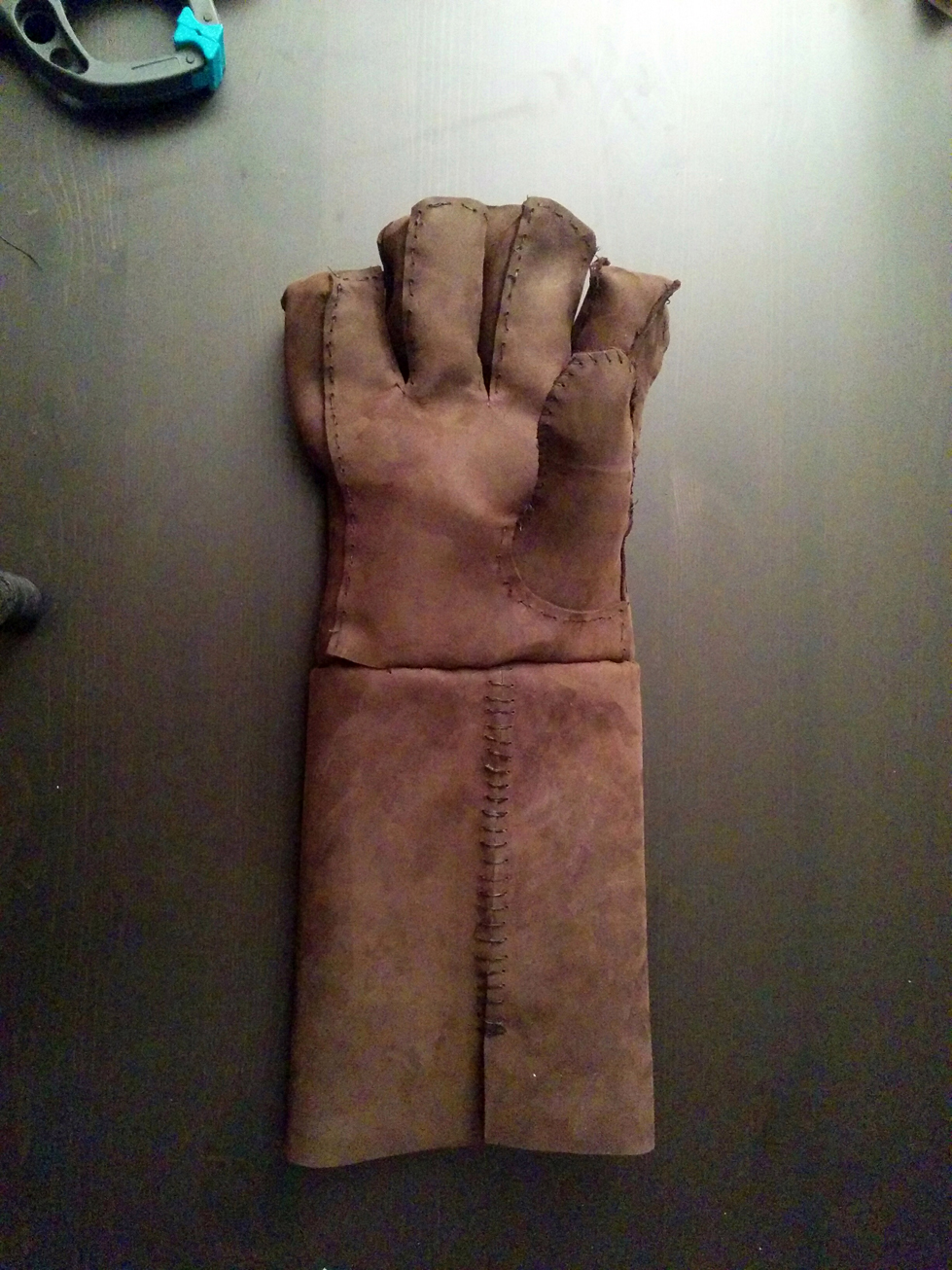

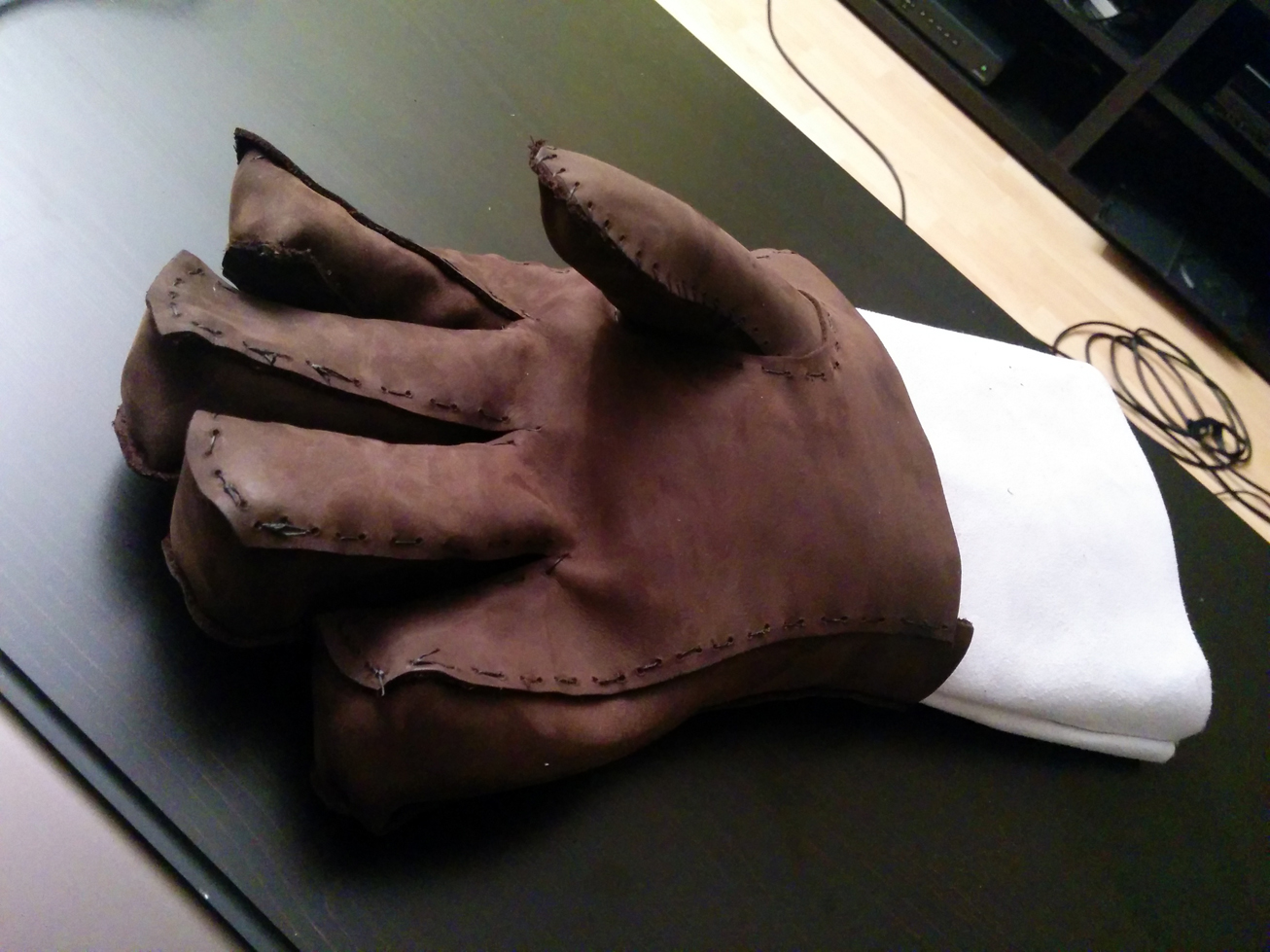

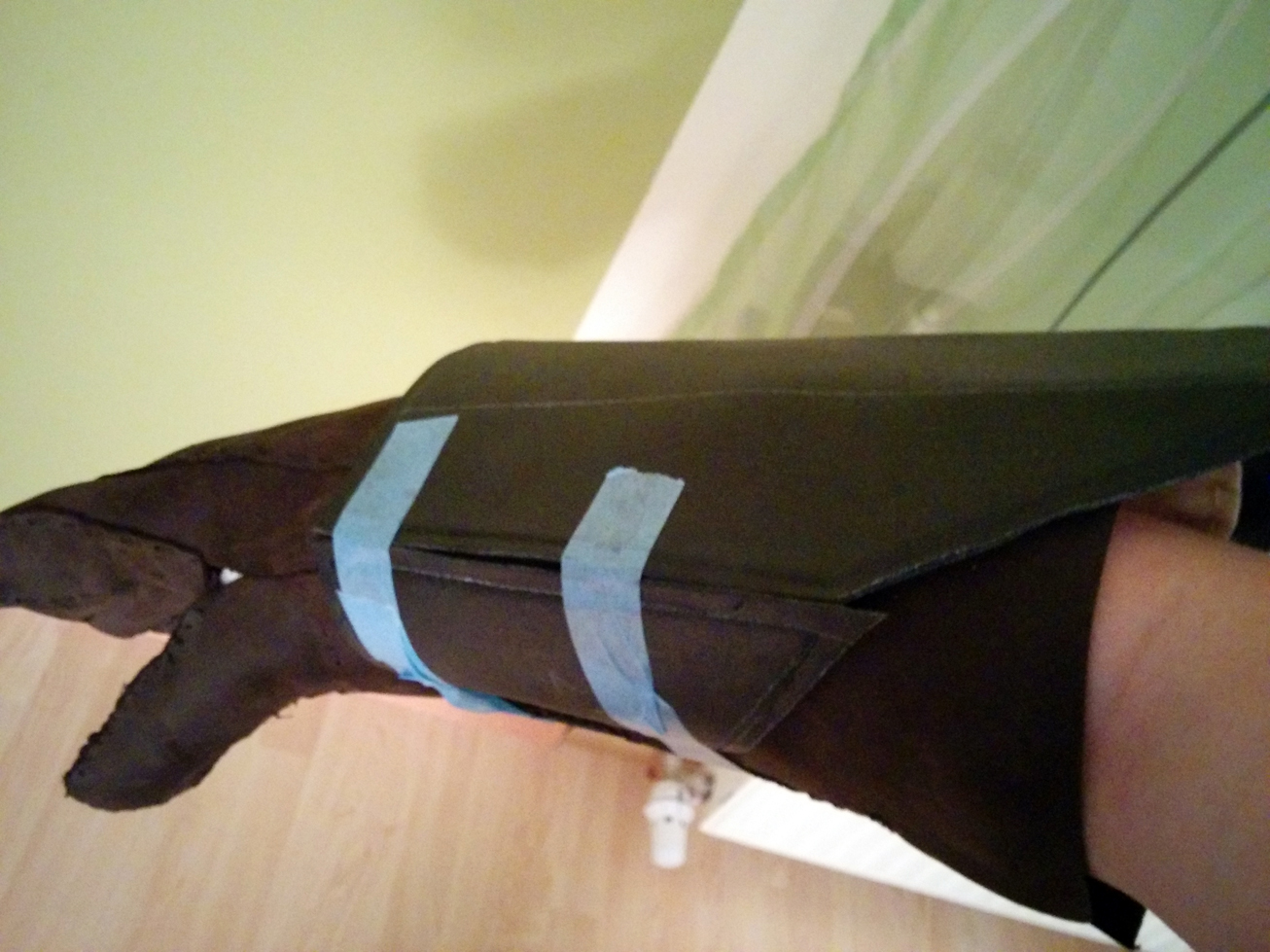

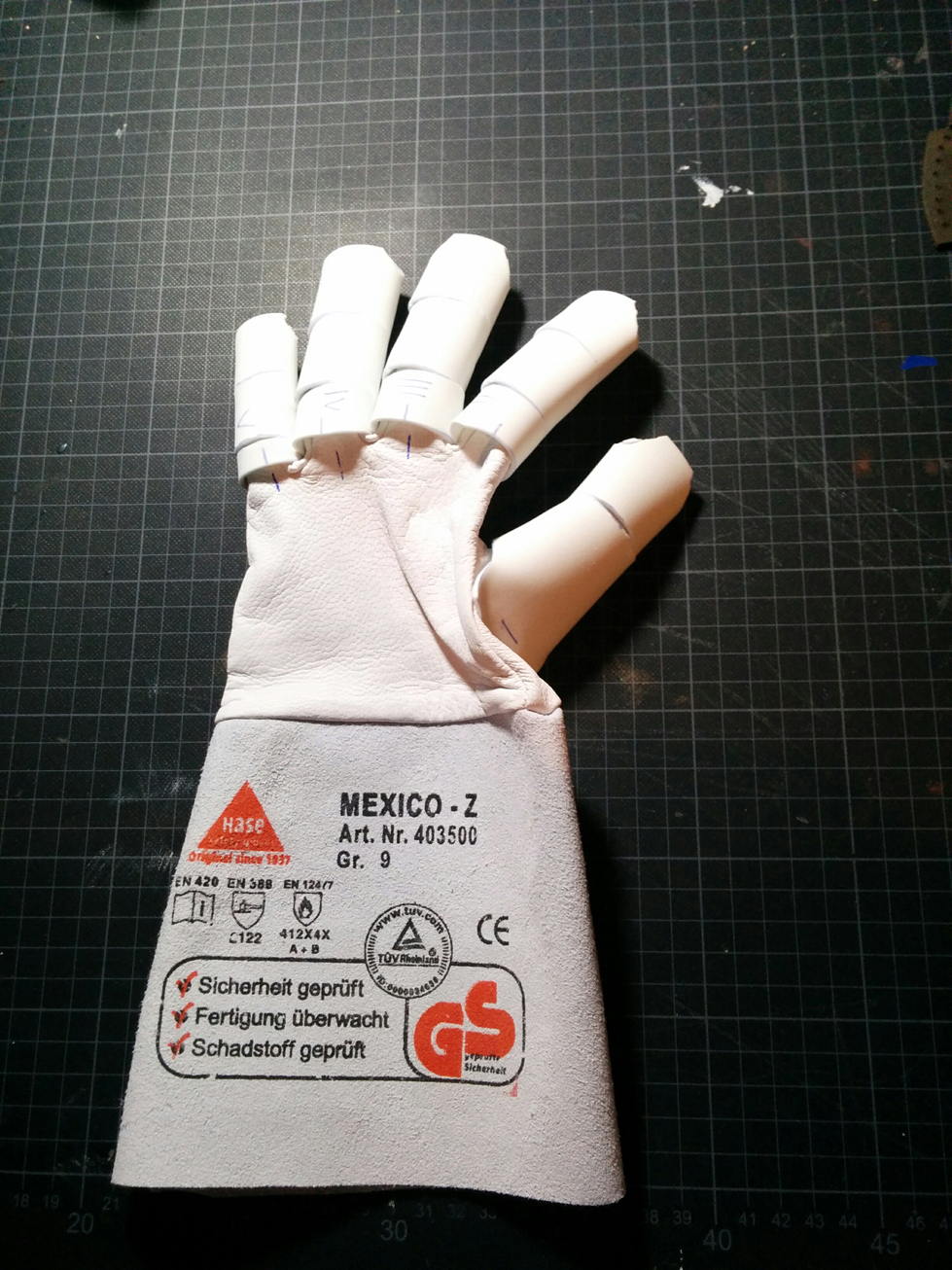

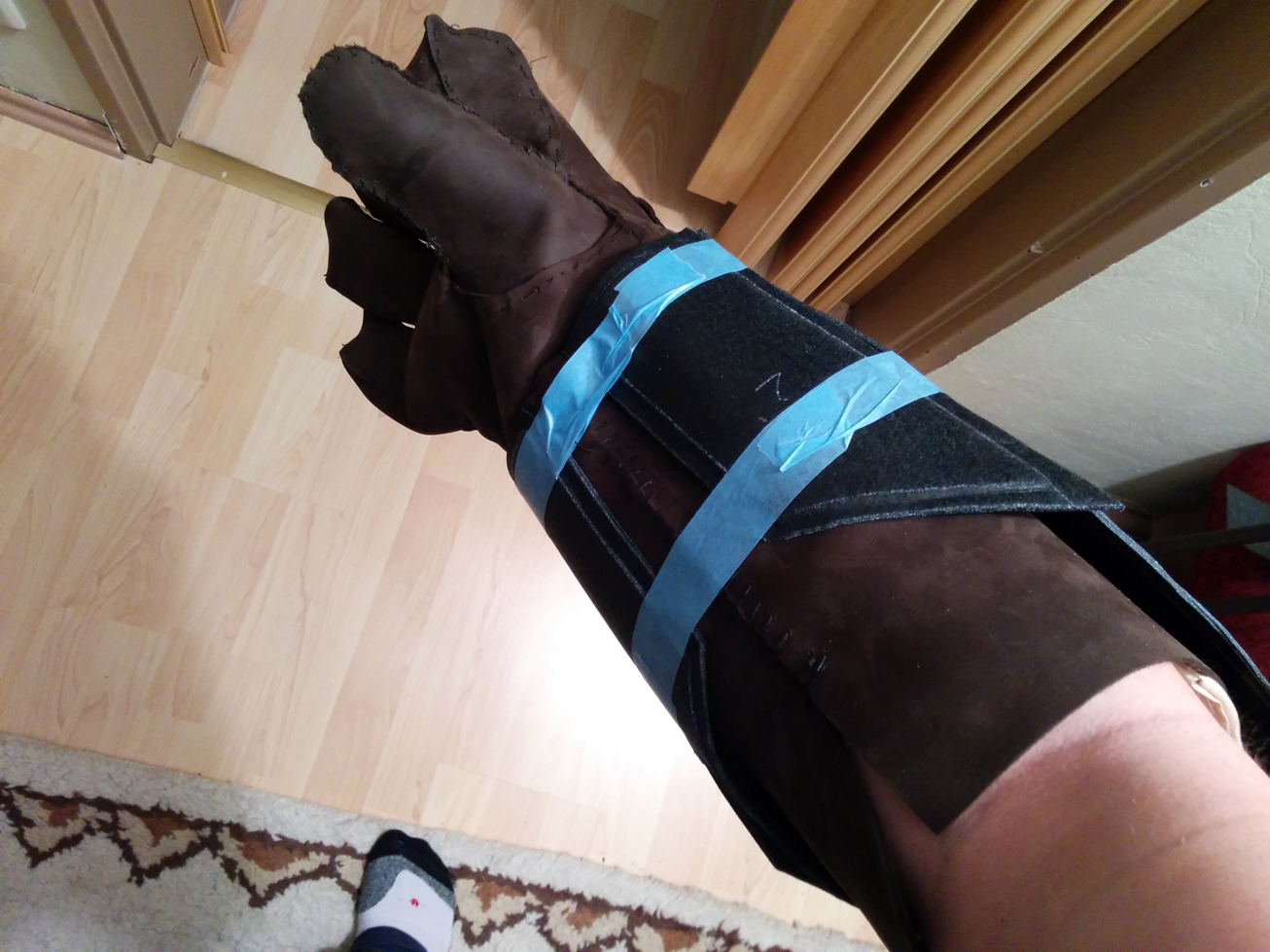

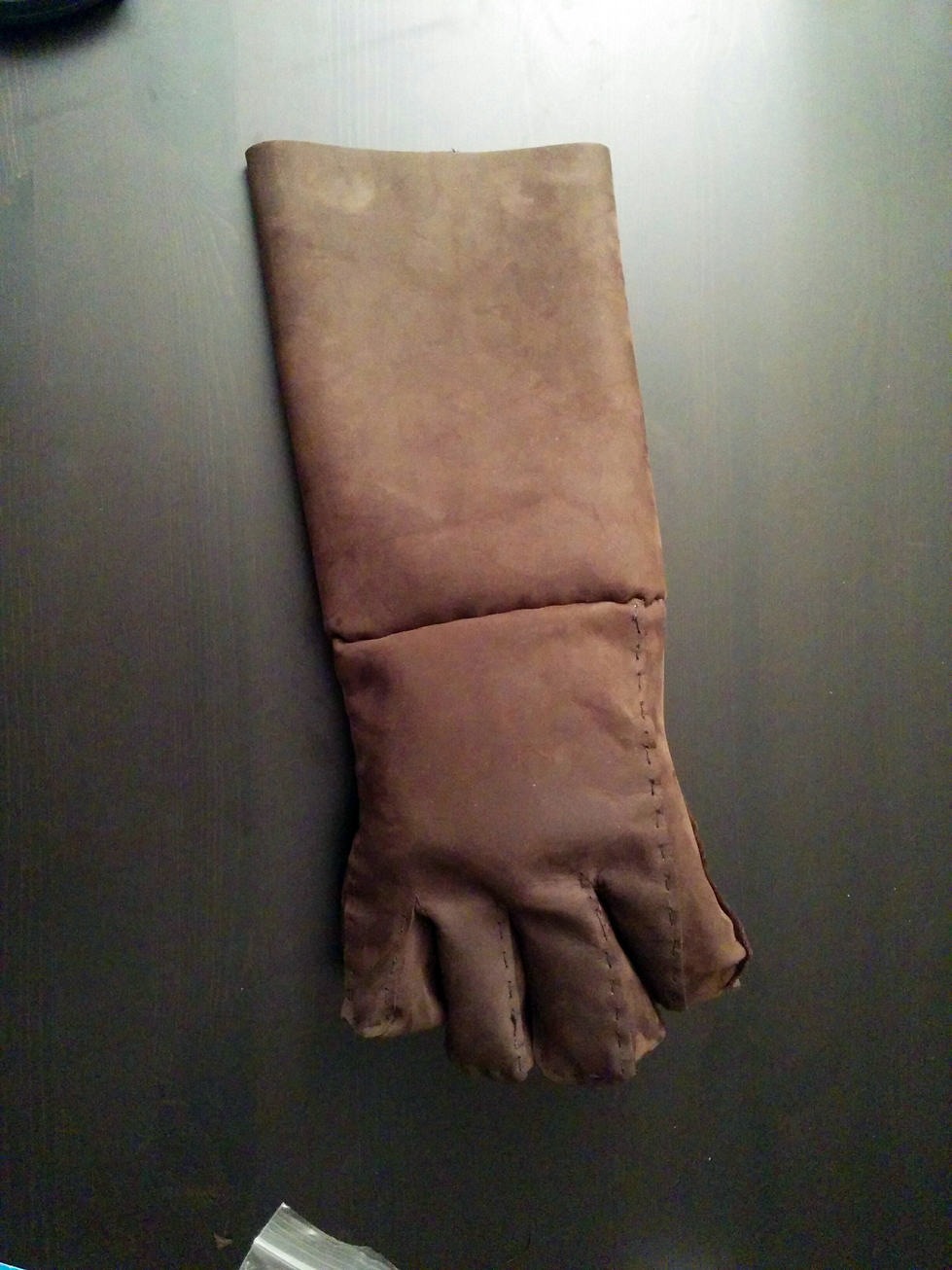

    And the first glove and gauntlet base:
    gloves_01.jpg gloves_02.jpg gloves_03.jpg gloves_04.jpg gloves_05.jpg gloves_06.jpg

    I should start working on the left gauntlet, but sewing leather is not my favourite past time activity :angry

  21. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Right gauntlet ready for orc bashing, handguard(s) still WIP.

    gloves_07.jpg gloves_08.jpg gloves_09.jpg gloves_10.jpg

    Now I need to find out how far we are with Star Trek replicators technology so I can make the left one out of thin air in seconds.

  22. Yrien

    Yrien Well-Known Member

    Trophy Points:
    916
    Re: Dwarven Warrior of Moria - The Hobbit

    Looking great so far! I love all the detail work you're adding; very Dwarven. :)

  23. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Thanks. Though I'm getting worried this is the wrong adjective for "dwarf". All the actors and crew of the Hobbit say "dwarvish", but then there's those gaming terrain makers, "The Dwarven Forge". Anyways, some updates:
    Dwarf pants !
    pants_01.jpg pants_02.jpg

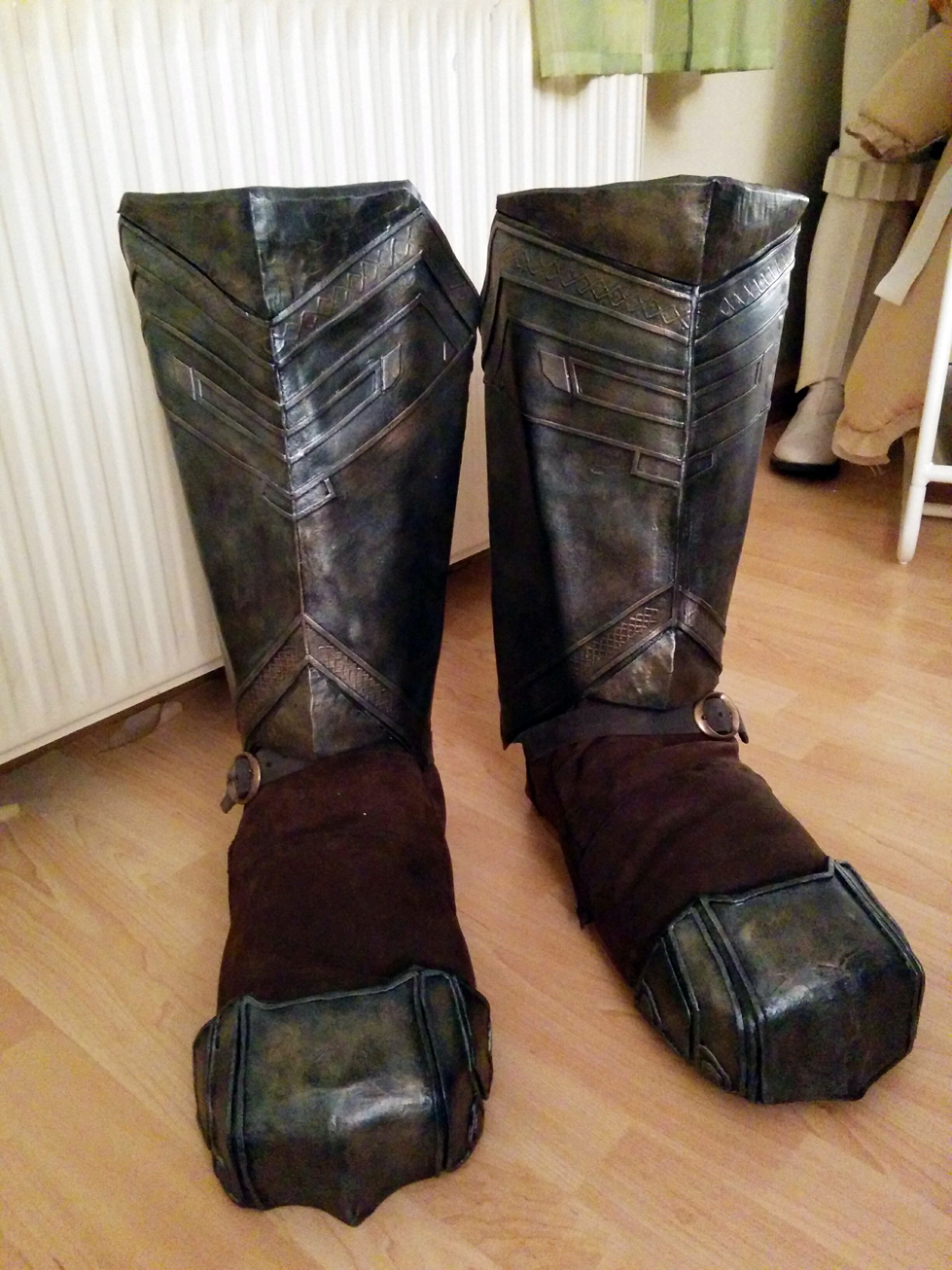

    Boots shaped and weathered

  24. Sabs

    Sabs Member

    Trophy Points:
    112
    Re: Dwarven Warrior of Moria - The Hobbit

    This is great, there isn't enough lotr stuff on here.

  25. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    First glove is done, all armor pieces attached and strapped
    Handguard closeup:

    DevCosplay and Yrien like this.
  26. hbw60

    hbw60 Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342
    Re: Dwarven Warrior of Moria - The Hobbit

    This is seriously amazing work! I love the details on the gloves.

  27. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Here's a pic of both finished gloves with gauntlets and handguards:

    Next piece to do is the armor front plate. I'm still in the process of shaping it and getting the proportions right
    Armor_01.jpg Armor_02.jpg Armor_03.jpg Armor_04.jpg

    Yrien likes this.
  28. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Done shaping the front piece. Still needs some trimming but I want to wait until the back plate is ready before I make any final cuts.
    Armor_05.jpg Armor_06.jpg Armor_07.jpg

    The whole thing is way to long, after trimming the bottom rim, it should have an angle like this

  29. Yrien

    Yrien Well-Known Member

    Trophy Points:
    916
    Re: Dwarven Warrior of Moria - The Hobbit

    That looks great! I can't wait to see it finished - your painting is so good!

  30. FuzzyDrawings

    FuzzyDrawings Active Member

    Trophy Points:
    461
    Re: Dwarven Warrior of Moria - The Hobbit

    The painting is top notch. I'd love some more details on that process.

  31. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    It's really no black magic and fairly simple. The base is black worbla and two coats of wood glue. Black worbla has a smoother surface than the old, brown worbla so two coats usually give you a smooth finish.
    The wood glue is watered down a little and the second layer of glue is applied by hitting your brush on the armor piece to achieve the look of forged metal. You won't see that effect until you start painting it, though. Credits for this idea go to Eloquiell and his build thread here

    Next I apply a coat of black foundation, currently I'm using Reeve's Acrylic Paint in "Mars Black" but I've also used Abadon Black from Citadel (Games Workshop) and black primer spray paint from my local hardware store.
    Next I dry-brush the silver on. You want the silver to cover most of the ridges and grooves, black should only remain in the very deep ridges here and there. The forged metal look I mentioned earlier should be visible now.
    Last step is dry-brushing bronze on the armor piece but try to stay away from any ridges, grooves, etc. The bronze should accompany the silver, not dominate it.
    I hope that description helps. I can't really explain the details or the exact paint distribution, it's more drawing by the eye and some practice I got from painting Warhammer miniatures.

    verdaera and FuzzyDrawings like this.
  32. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    A little update, though you don't see much thanks to the light-swallowing blackness of the worbla.

    Here's the finished armor foam core:
    Armor_09.jpg Armor_10.jpg Armor_11.jpg

    And here's the front armor with the ornaments I did today after I coated the whole thing in worbla and sanded down all the seams.
    You don't see much though due to the black worbla and the sanded areas reflect more light than the ornament edges so it all looks kinda messy.

    While I love black worbla I gotta say it's a pain in the butt once you've reached a certain size with your worbla pieces. The pieces on the torso became almost uncontrolable, warped in every direction but the one I wanted it to go and once you have one area under control and you want to move to the next area, the worbla there is already too cool to work with. Made me angry. Any hints on working with larger worbla pieces ? Are there any tricks you need to know ?

  33. sanctuspiox

    sanctuspiox Member

    Trophy Points:
    191
    Re: Dwarven Warrior of Moria - The Hobbit

    Great work! Following with great anticipation!!

  34. Yrien

    Yrien Well-Known Member

    Trophy Points:
    916
    Re: Dwarven Warrior of Moria - The Hobbit

    I've never worked with black worbla, or with pieces of that size, so I unfortunately don't have any tips. :( But it's looking good so far!

  35. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,015
    Re: Dwarven Warrior of Moria - The Hobbit

    Excellent work! Great thread...

  36. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    Thank you, sir.

    Spent the last two evenings working on the chest details and I'm almost done. Of course my dremel slipped on the center tooth that's right above the hammer so I had to redo that one and it still needs sanding :unsure

    Armor_13.jpg Armor_14.jpg

  37. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Moria - The Hobbit

    All details done. Hammer, the ruined center tooth, the shoulder scales and the hip armor plates or whatever those things are.
    I'm going to apply some wood glue to the areas where I had to sand the worbla with my dremel to smooth them out a bit before I apply a coat on the whole piece.
    The colored lines are just some acrylic paint to shine through the first layer of wood glue so the 3D pen lines become sharper later on.


    On a side note: Changed the title of the threat because it sounded as if this was a warrior from Moria rather than a warrior at Moria.

    Yrien likes this.
  38. Dweexie

    Dweexie New Member

    Trophy Points:
    3
    Re: Dwarven Warrior of Erebor - The Hobbit

    Nice work! I'll keep updated on this tread, that's really awesome so far!

  39. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Erebor - The Hobbit

    Chest plate is done. I tried to track each stage of the painting process.

    Here's the second layer of wood glue, hammered on the armor piece. That's what causes this pattern:

    Black foundation on dried wood glue:

    Drybrushed layer of silver:

    Drybrushed layer of bronze
    Armor_18.jpg Armor_19.jpg

    Next up: Backplate

    Yrien, maton and WireFox like this.
  40. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Erebor - The Hobbit

    Been busy doing real world stuff lately but here's the finished backplate. The front and back are strapped together at the shoulders and I'm going to do the side strapping next.
    Unfortunatly, the whole thing is far from finished. Still gotta do the cod and hip armor scales before I can move on to the shoulders

    Yrien likes this.
  41. Yrien

    Yrien Well-Known Member

    Trophy Points:
    916
    Re: Dwarven Warrior of Erebor - The Hobbit

    That paint job is amazing​!

  42. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Erebor - The Hobbit

    Torso finished (except little boar plates on the shoulders)
    The hip and cod armor has been attached. Next up: Shoulders ! But I'm almost out of worbla and crafting foam

    Armor_22.jpg Armor_23.jpg

    Hip armor closeup

    HighlanderFX likes this.
  43. HighlanderFX

    HighlanderFX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    735
    Re: Dwarven Warrior of Erebor - The Hobbit

    How exactly does one "hammer" wood glue???? The effect is absolutely amazing..

  44. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Erebor - The Hobbit

    I have to admit this might be the wrong term. I adapted it from guitar playing where you "hammer on" a string with your finger. You do the same with the brush when applying the wood glue. Instead of the usual sweep motion to distribute the glue, you dab the glue with your brush but quite hard. It's like beating up your armor piece with a brush.

    HighlanderFX likes this.
  45. TheWulff

    TheWulff New Member

    Trophy Points:
    3
    Re: Dwarven Warrior of Erebor - The Hobbit

    Ah...so like a really rough stippling?

  46. HighlanderFX

    HighlanderFX Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    735
    Re: Dwarven Warrior of Erebor - The Hobbit

    Ok that makes a lot more sense, i was taking the hammering part too literally lol.

  47. Zalkegeroth

    Zalkegeroth New Member

    Trophy Points:
    17
    Re: Dwarven Warrior of Erebor - The Hobbit

    Your build looks amazing, great work, can't wait to see what it looks like when it is finished!

  48. FrontaLittle

    FrontaLittle Active Member

    Trophy Points:
    262
    Re: Dwarven Warrior of Erebor - The Hobbit

    I've been lazy lately, oh man ! And i got a new bike so I rode that all day because Triumph still needs you to break the bike in.
    Anyways, I'm working on the shoulders right now:
    shoulders_01.jpg shoulders_02.jpg shoulders_03.jpg

  49. jollyskeleton

    jollyskeleton Active Member

    Trophy Points:
    341
    Re: Dwarven Warrior of Erebor - The Hobbit

    Sick work mate!!

  50. Zalkegeroth

    Zalkegeroth New Member

    Trophy Points:
    17
    Re: Dwarven Warrior of Erebor - The Hobbit

    So, what are you doing exactly for the small detailed lines on your armor, are you using small strips of Worbla or something else for them?


Share This Page
