    Hey guys,

    This is my first build post, although I've been doing this for a while. I spent a lot of time working out the measurements on the Metebelis III from screen grabs of the Doctor with it.
    Metebilis-Crystal-Planet-of-Spiders-01.png Metebilis-Crystal-Planet-of-Spiders-02.png Screen Shot 2014-04-17 at 7.46.29 PM.png

    I took the photos into photoshop and gauged the scale using my own fingers.

    I got it figured to be 104 mm long and 45mm facet to facet tall. Edge to edge 47.5mm. So I made a few drawing in CAD and printed them out. The first one ended up being too small, so I scaled it up a hair, constantly using the research and photoshop to judge against.
    IMG_2826.jpg IMG_2877.jpg IMG_2876.jpg IMG_2875.jpg IMG_2874.jpg IMG_2829.jpg IMG_2828.jpg IMG_2827.jpg IMG_2880.jpg IMG_2826.jpg IMG_2877.jpg IMG_2876.jpg IMG_2875.jpg IMG_2874.jpg IMG_2829.jpg IMG_2828.jpg IMG_2827.jpg IMG_2880.jpg

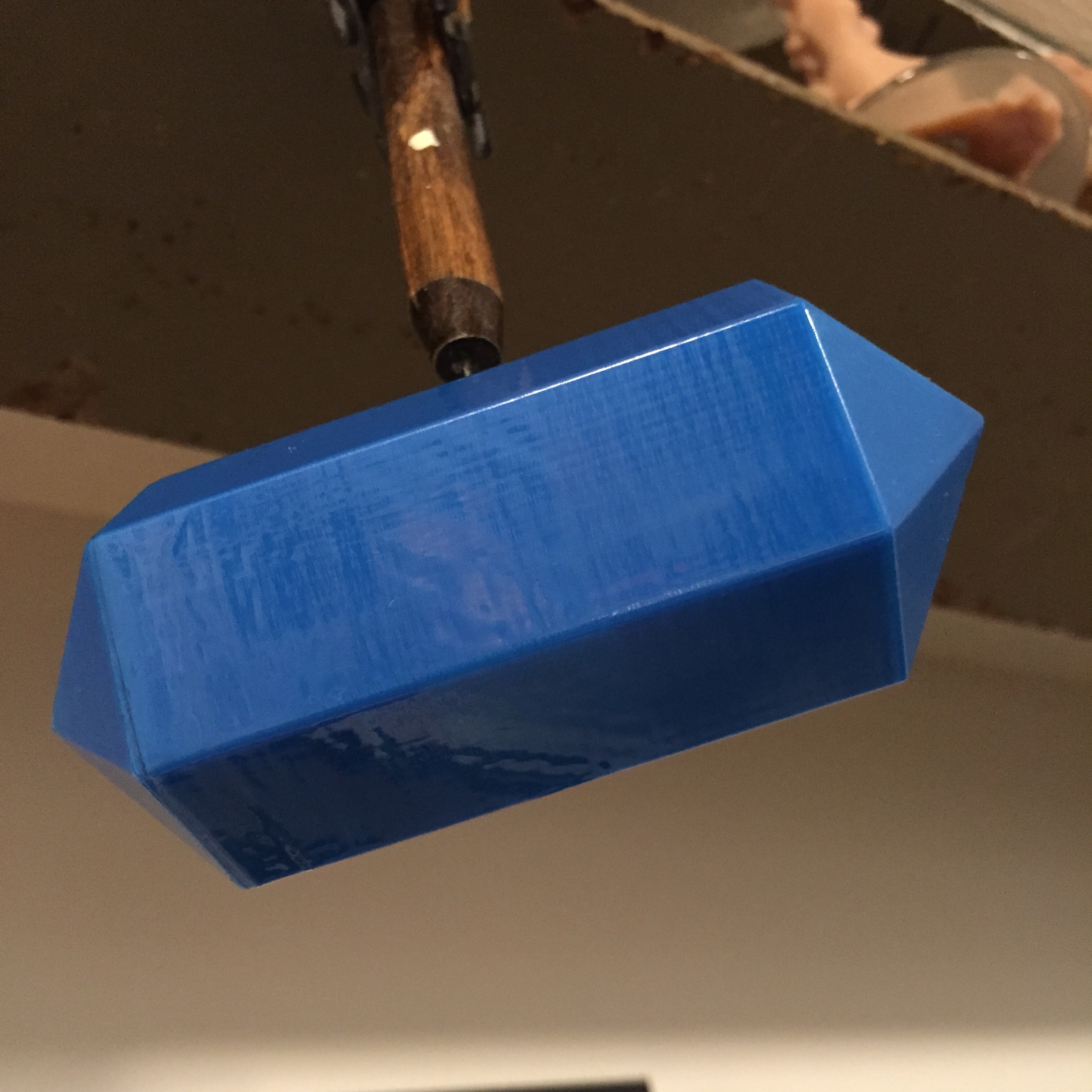

    After getting to a place I thought was spot on, I vapor bathed the piece trying to shine it up. It met with some positive results.

    But I found that, even though it was smooth-ish, there was still a lot of unevenness. So sanding, polishing, more vapor bathing got me to what I thought was pretty good.
    IMG_3083.jpg IMG_3042.jpg IMG_3043.jpg IMG_3140.jpg

    But when it came down to it, it just wasn't shiny or smooth enough for molding. I've had a lot of experience with casting clear resins (I make the Key to Time segments), so I wanted to create a mold that required as little post work as possible.

    A friend put me onto a sprayable bondo called Smooth Sand. Wasn't cheap (but I got to buy new toys!), and I managed to get a pretty even coat, and then sand it down to a mirror finish.
    IMG_3185.jpg IMG_3188.jpg

    I molded it in Smooth On's Mold Max 14NV. I degassed it even though you don't really need to, just to ensure a great mold. Left one facet open for pouring. Figured that would be easier to smooth out rather than trying to inject it and deal with sprues.
    IMG_3202.jpg IMG_3203.jpg IMG_3204.jpg

    SUCH A PRETTY MOLD! So smooth.



    Screen Shot 2014-04-17 at 7.46.29 PM.png






















    Last edited by a moderator: Nov 9, 2018
  2. paulp

    paulp Active Member

    Trophy Points:
    211

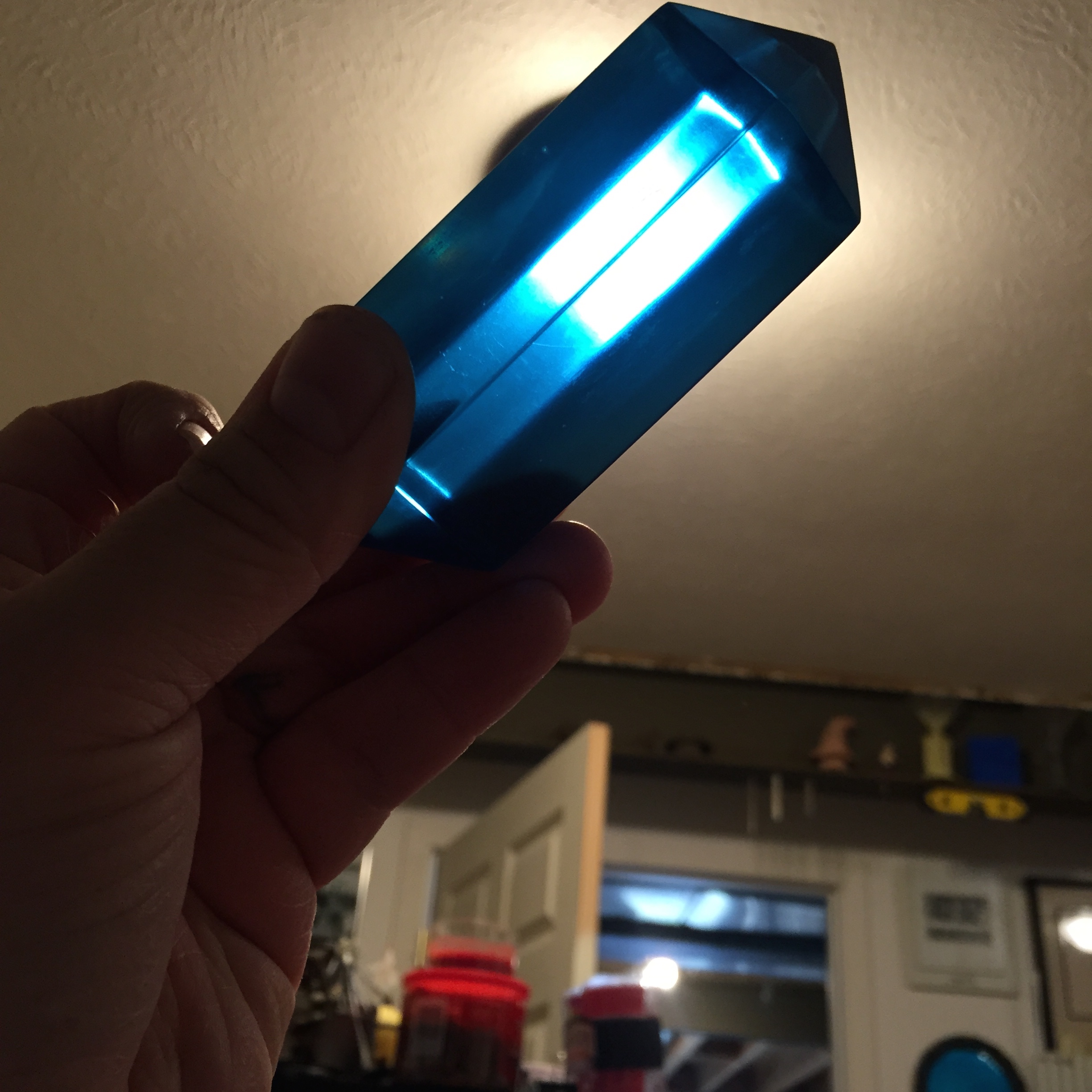

    My first pour was with tined Smooth Cast 65D, but it just kicked too fast to be able to pressure cast it.
    Hate when that happens.

    So I ordered some 67D and it works great.
    IMG_3281.jpg IMG_3282.jpg

    Then it was on to color matching. I found that it takes about 5.5 ounces of resin to cast the piece (I make up 6oz so that I don't pour the dregs.) Even at one drop of tint at 6 oz it was too dark and hard to see through. So I've been cutting the drops in tenths using one drop of tint in a separate bottle with 10 drops of Part B of the 67D. Figuring out the best ratio has been a challenge (especially since I have to wait a hour or so between pours for the resin to cure.)

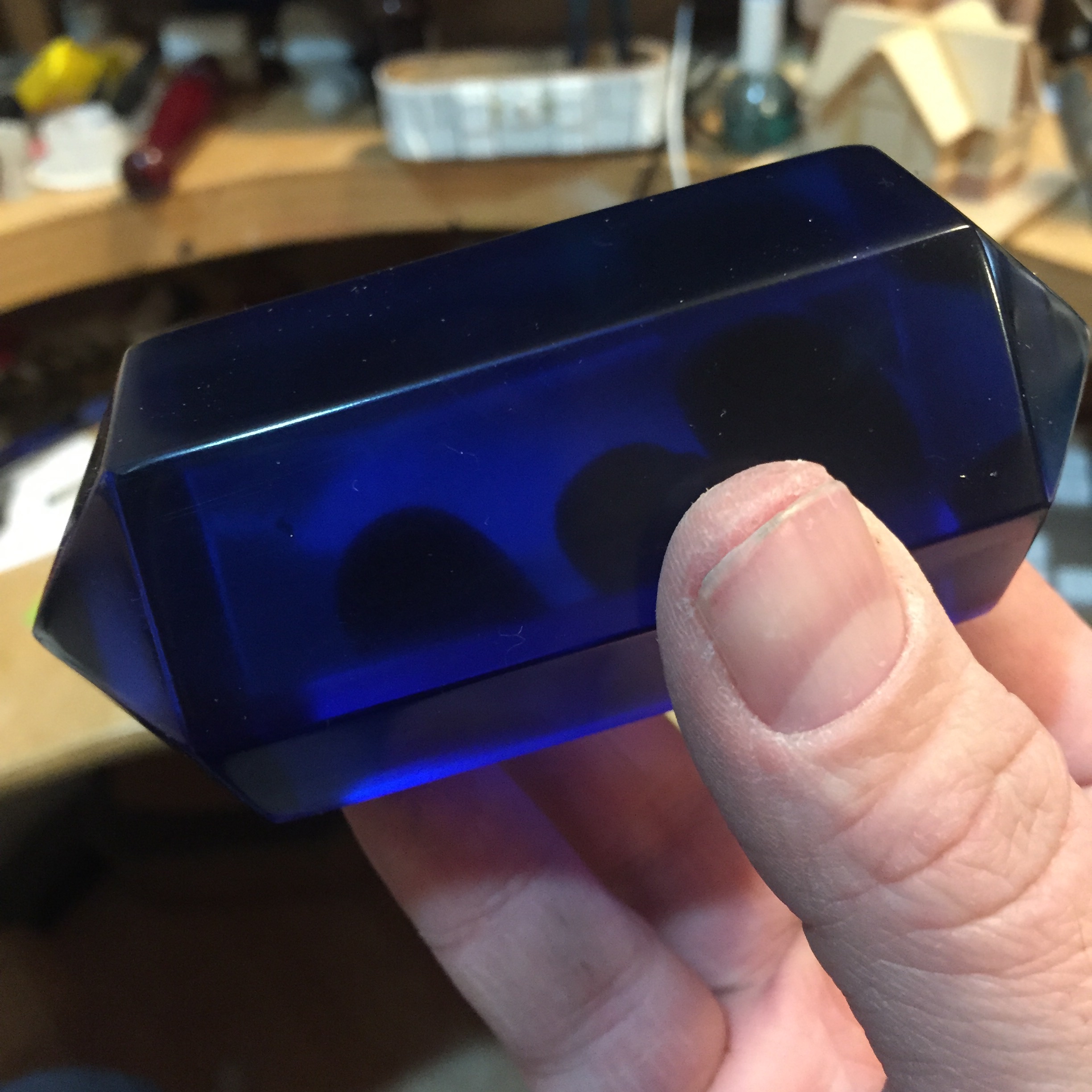

    But I think I finally got it. Here's the final piece. Think it turned out pretty great.
    IMG_3287.jpg IMG_3288.jpg

    Nice and clear! What do you all think? I'm not quite at my 50 posts, but when I get there I will probably post and interest post since the mold is ready to go.

    Harada357, Sean and Contec like this.
  3. Jintosh

    Jintosh Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,416
    Awesome. I think that Blue is perfect.
