Doctor Doom v2.0 WIP

Discussion in 'Marvel Costumes and Props' started by HammyDribbler, Jul 20, 2015.

  1. HammyDribbler

    HammyDribbler Active Member

    Trophy Points:
    312
    I recently went on a course to study some new materials including latex and I am now using those new techniques to improve my Dr Doom costume for my 1 year cosplay anniversary.

    Still got lots to do in the next week but it is taking shape.

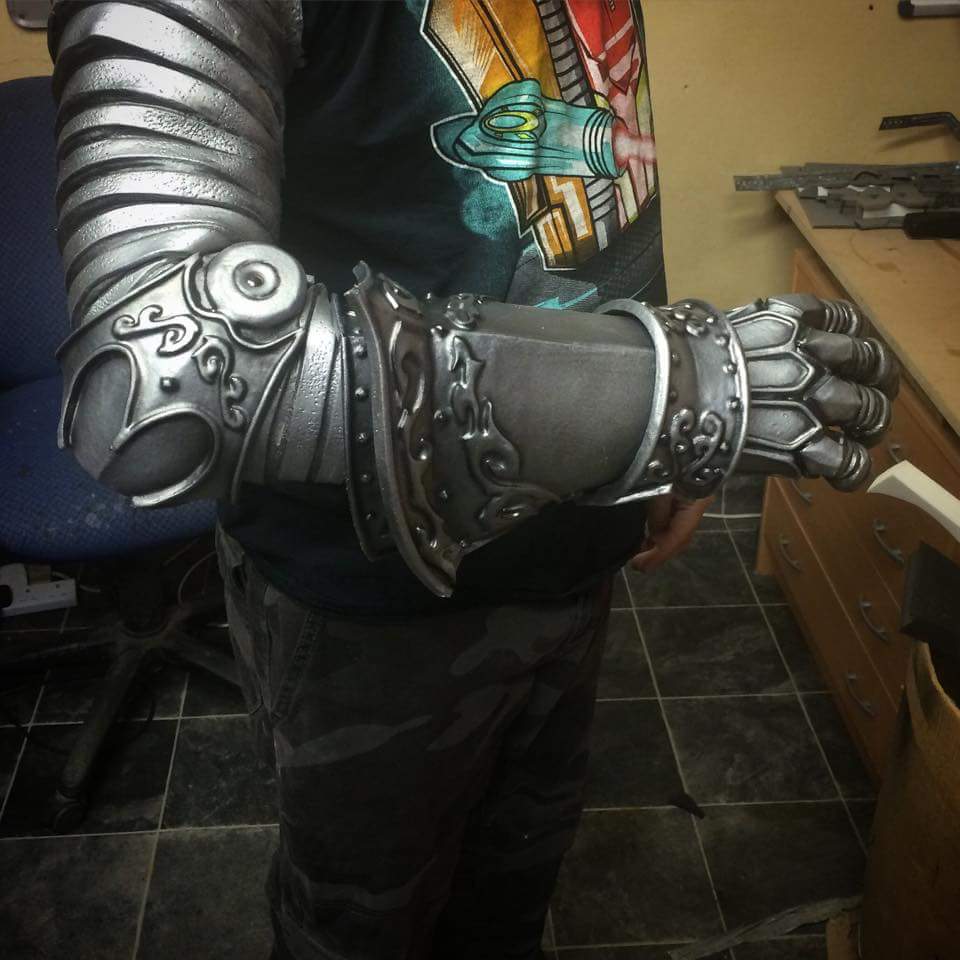

    New arm and undersuit.

    2015-07-13 11.39.52.jpg

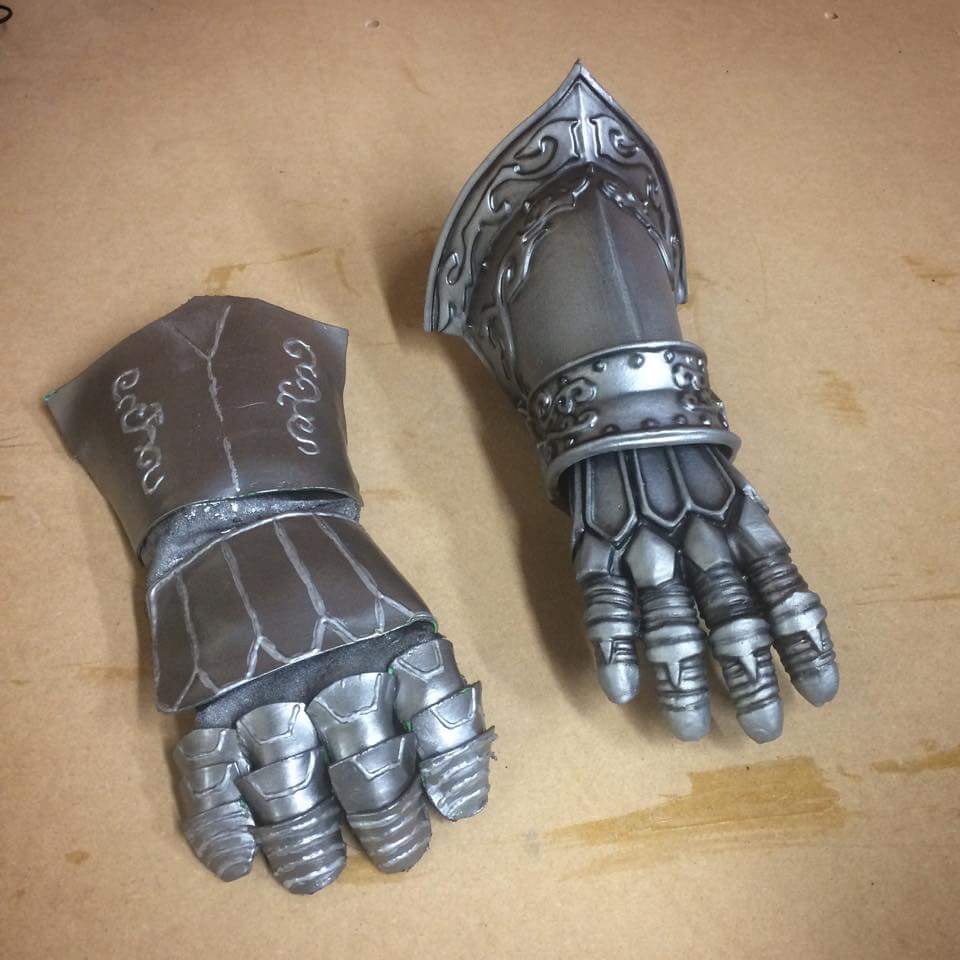

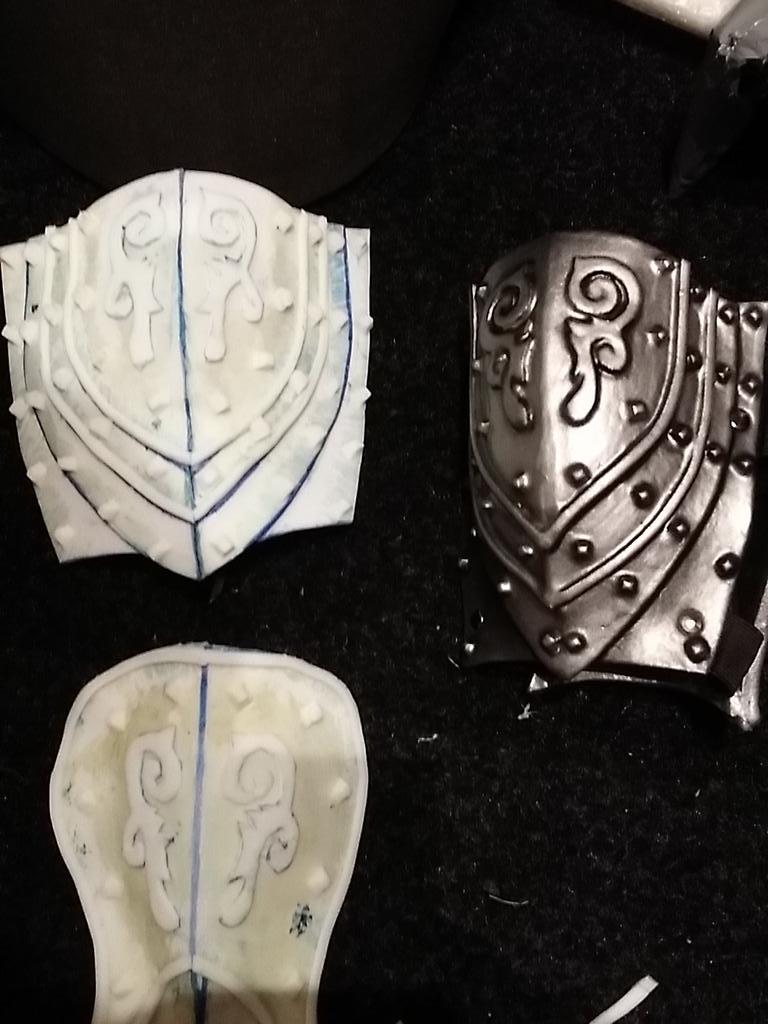

    Old gauntlet vs new

    2015-07-13 11.40.01.jpg

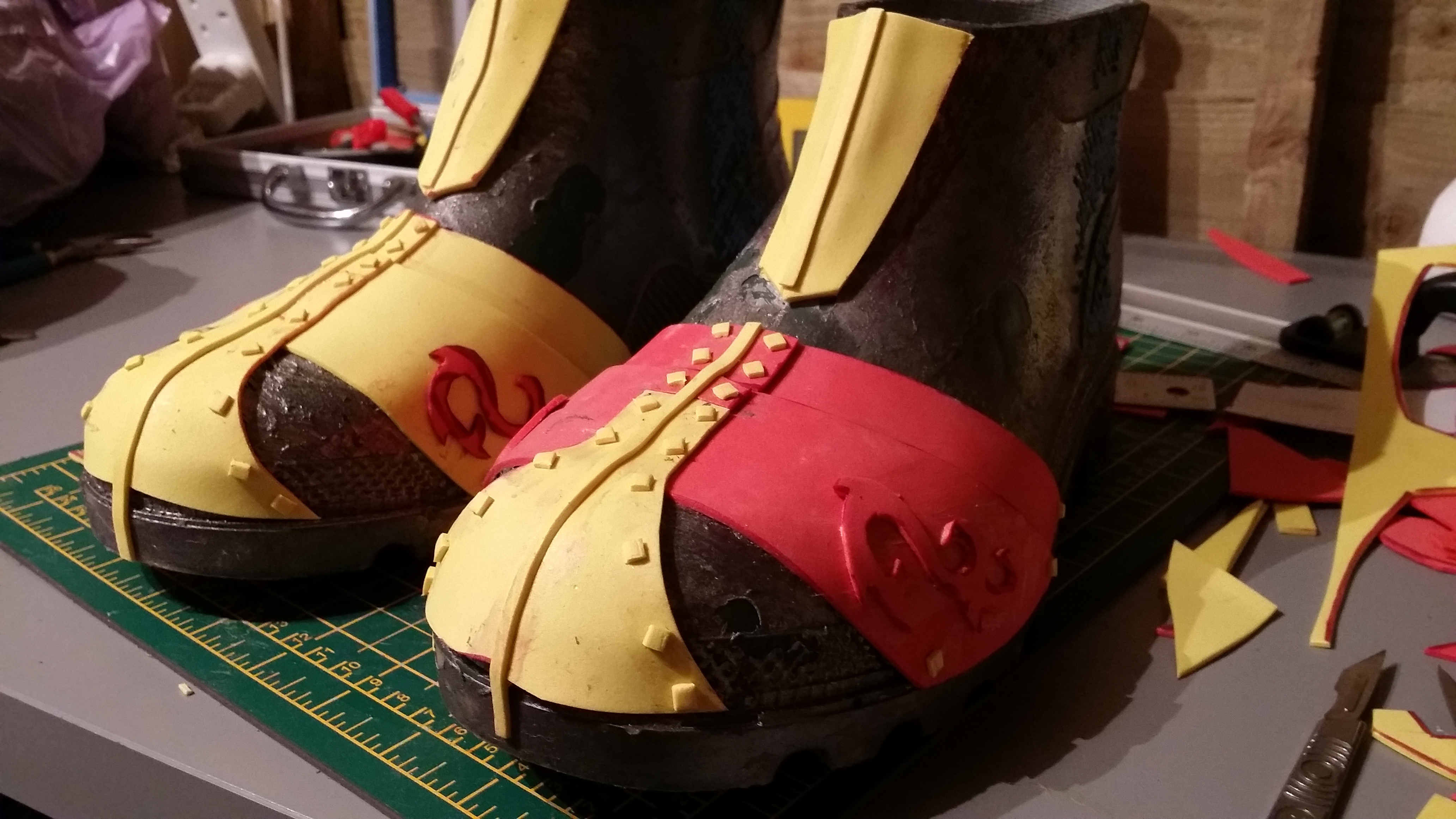

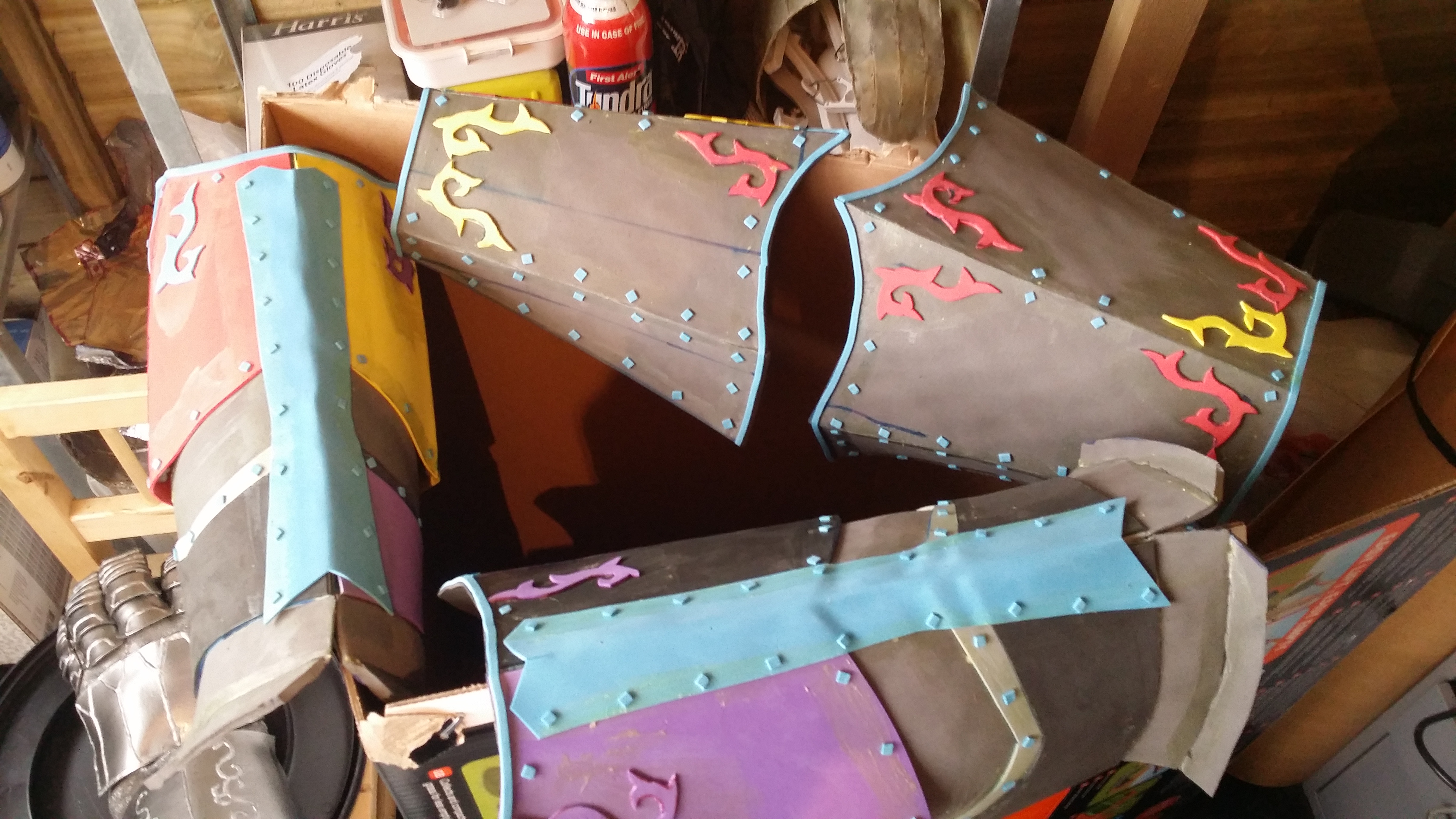

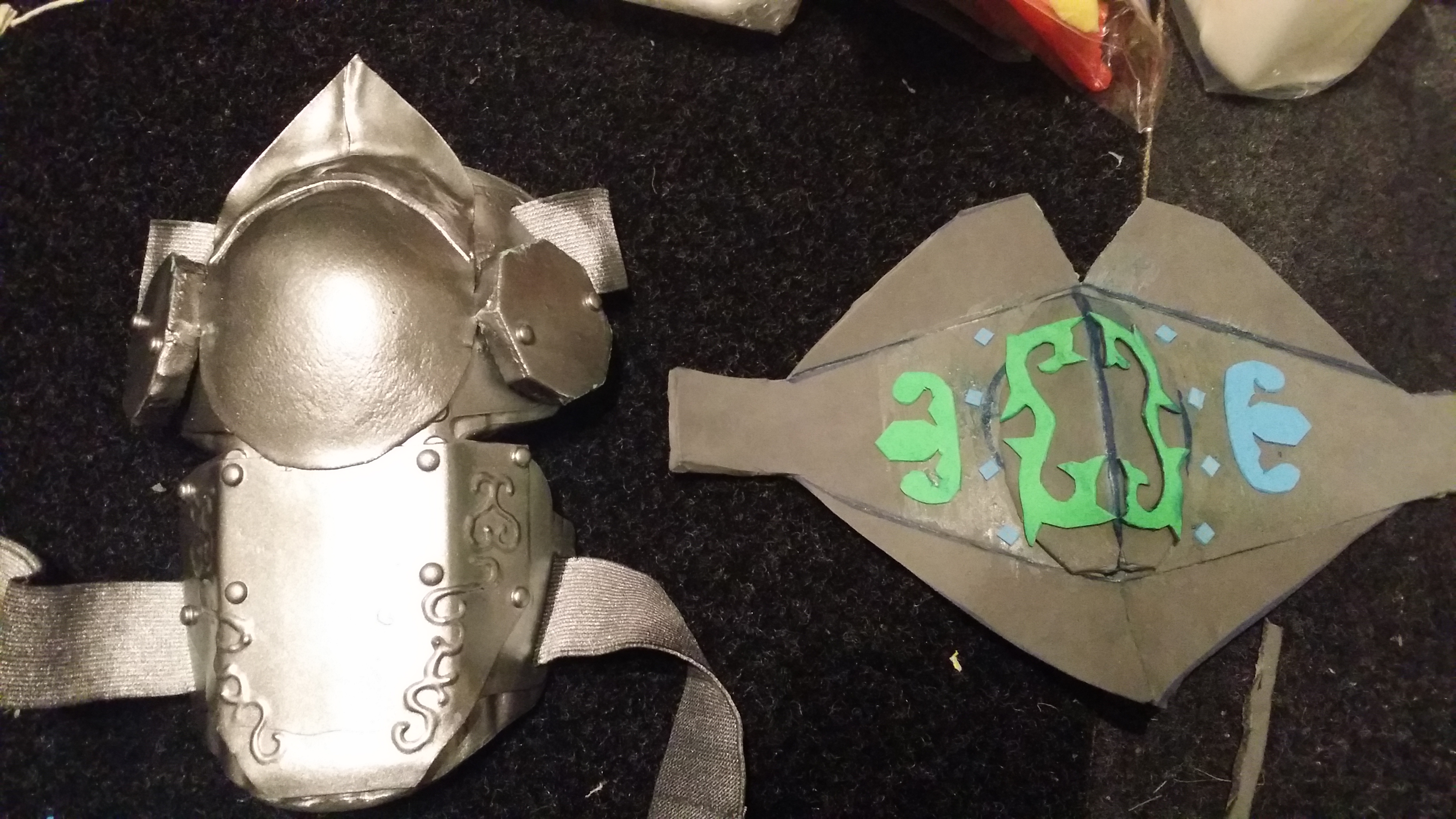

    New boots. legs and knees awaiting latex

    2015-07-19 17.43.52.jpg 2015-07-16 22.18.08.jpg 2015-07-19 22.41.02.jpg

    Still need to do 1 full arm (shoulder, bisep, tricep, elbow, gauntlet), latexing, airbrushing and a few modifications to my suit.

    Busy week ahead as the con is on Sunday >.<

    Ham out!

  2. Override

    Override Active Member

    Trophy Points:
    362
    HOLY CRAP! Subscribed! It looks really well done. did you say that you are using latex on top of the foam?

  3. Mclabop

    Mclabop Active Member

    Trophy Points:
    242
    That is amazing. Nicely done.

  4. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    Welcome back in business,Ham :D
    Looks good already :popcorn

  5. Hazmat

    Hazmat Well-Known Member

    Trophy Points:
    566
    Wow those look nice!

  6. mrush

    mrush New Member

    Trophy Points:
    3
    those new gauntlets look awesome. Definitely like the thinner look.

  7. HammyDribbler

    HammyDribbler Active Member

    Trophy Points:
    312
    I have upgraded to LD45 Plastazote from floor mats / EVA etc. I would advise anyone to update if you can as it is amazing to use compared to EVA. Also research your glue! If you are in the UK like me there is only 1 way to go and that is Alpha Thixofix http://www.thegluepeople.co.uk/index.php?main_page=product_info&cPath=6_7&products_id=17

    Seriously I have tested everything including the UK allowed Barge. This stuff beats them all hands down. Thin coat and wait for it to dry before sticking.

    Also, upgrade to medical scalpels and throw away all your crappy craft knives. You only need 1 stem and the blades are stupid cheap and stupid sharp. Bin them when they go blunt.

    Everything is basically LD45 foam build, then covered in a glue wash (thinned contact adhesive), then 2 layers of black latex (4 for boots), a dunk coat of latex, then 1 layer of latex + powdered silver, then air brushed to get the detailing to pop (as latex can be a * to stop from pooling).

    Then you would normally apply a coat of polish (roofing primer) but this will take 48 hours to dry and the Manchester con is on Sunday so I won't be doing that lol.

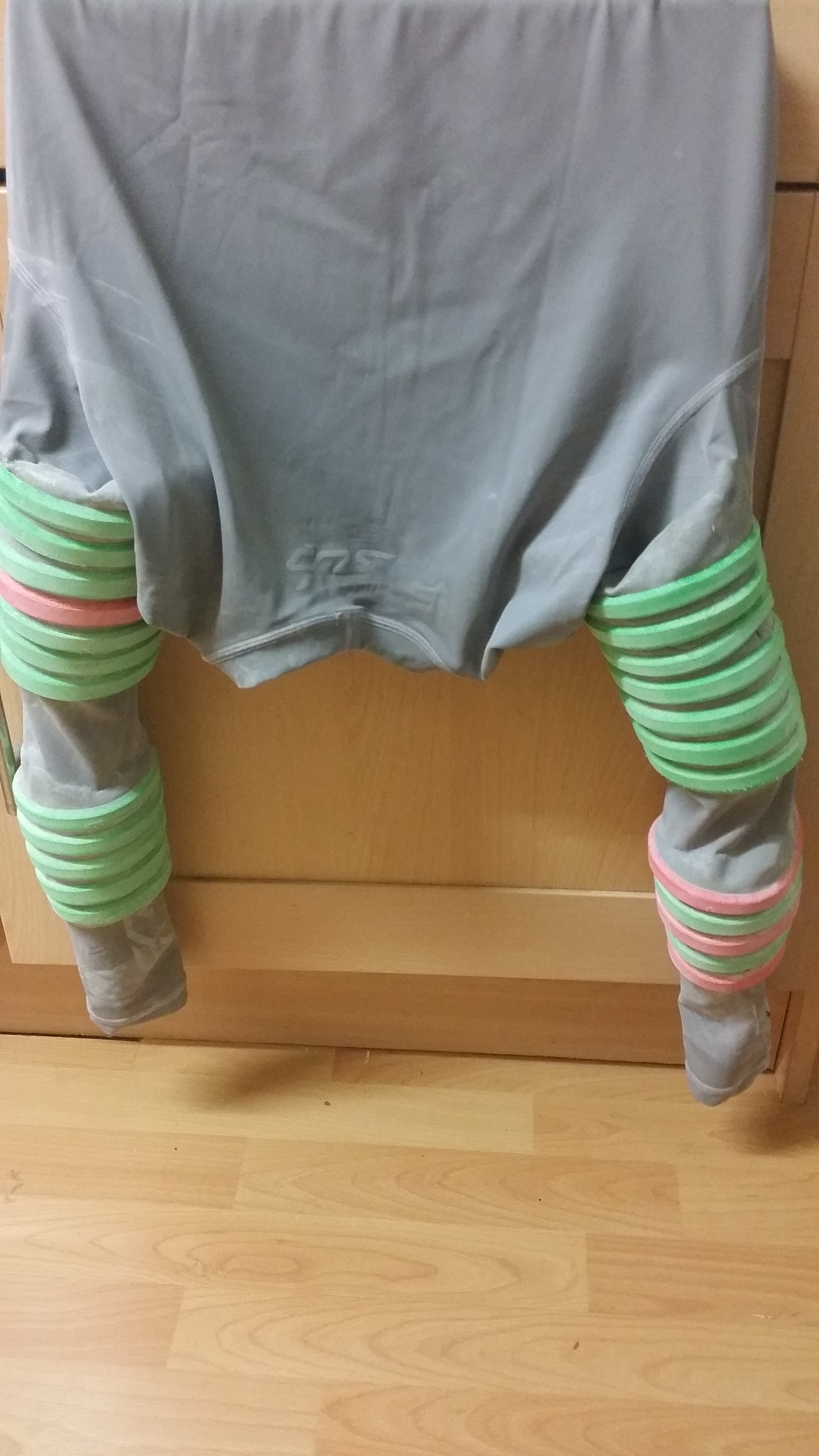

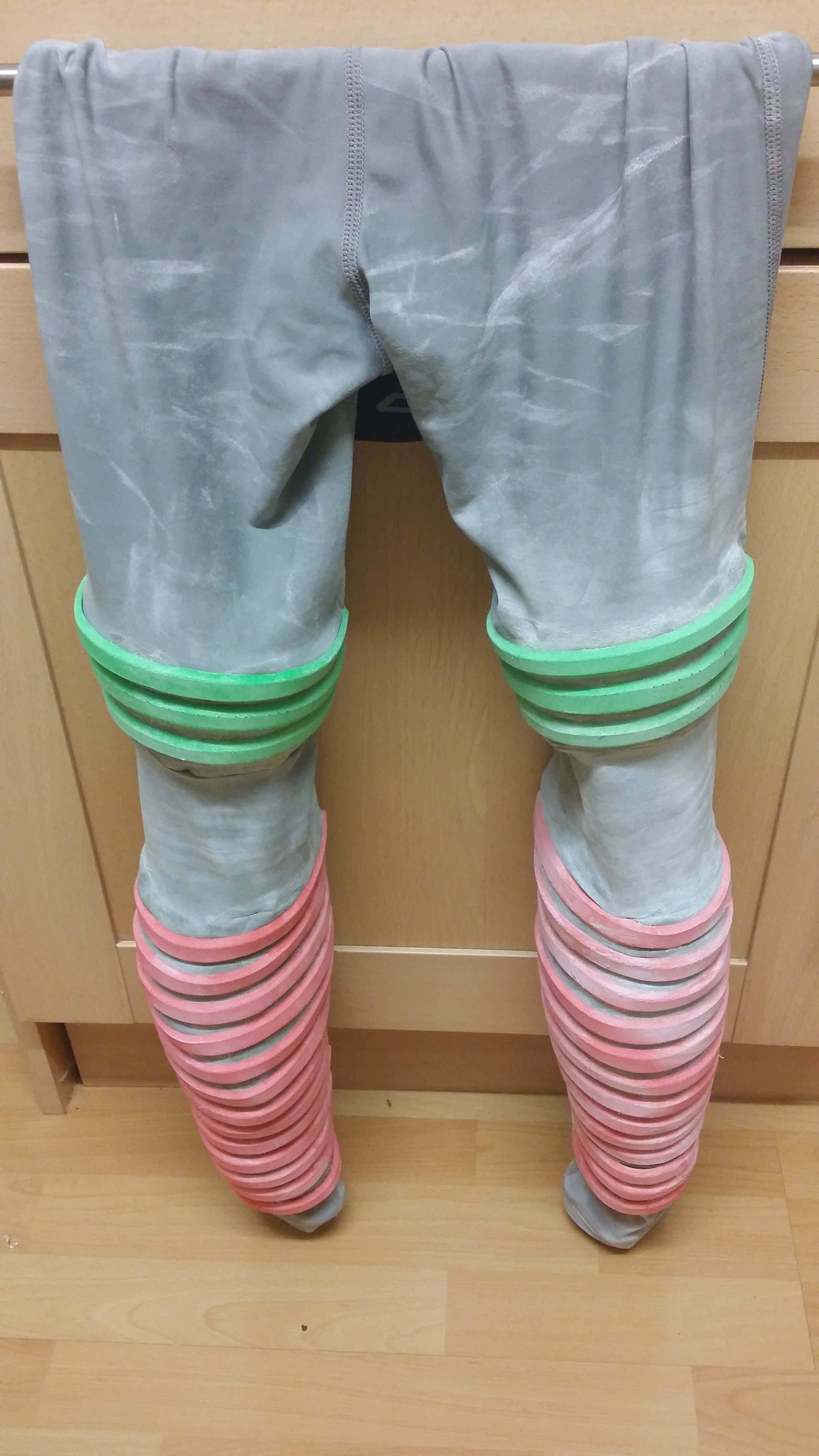

    2015-07-20 21.55.37.jpg 2015-07-20 21.55.51.jpg 2015-07-21 22.07.24.jpg

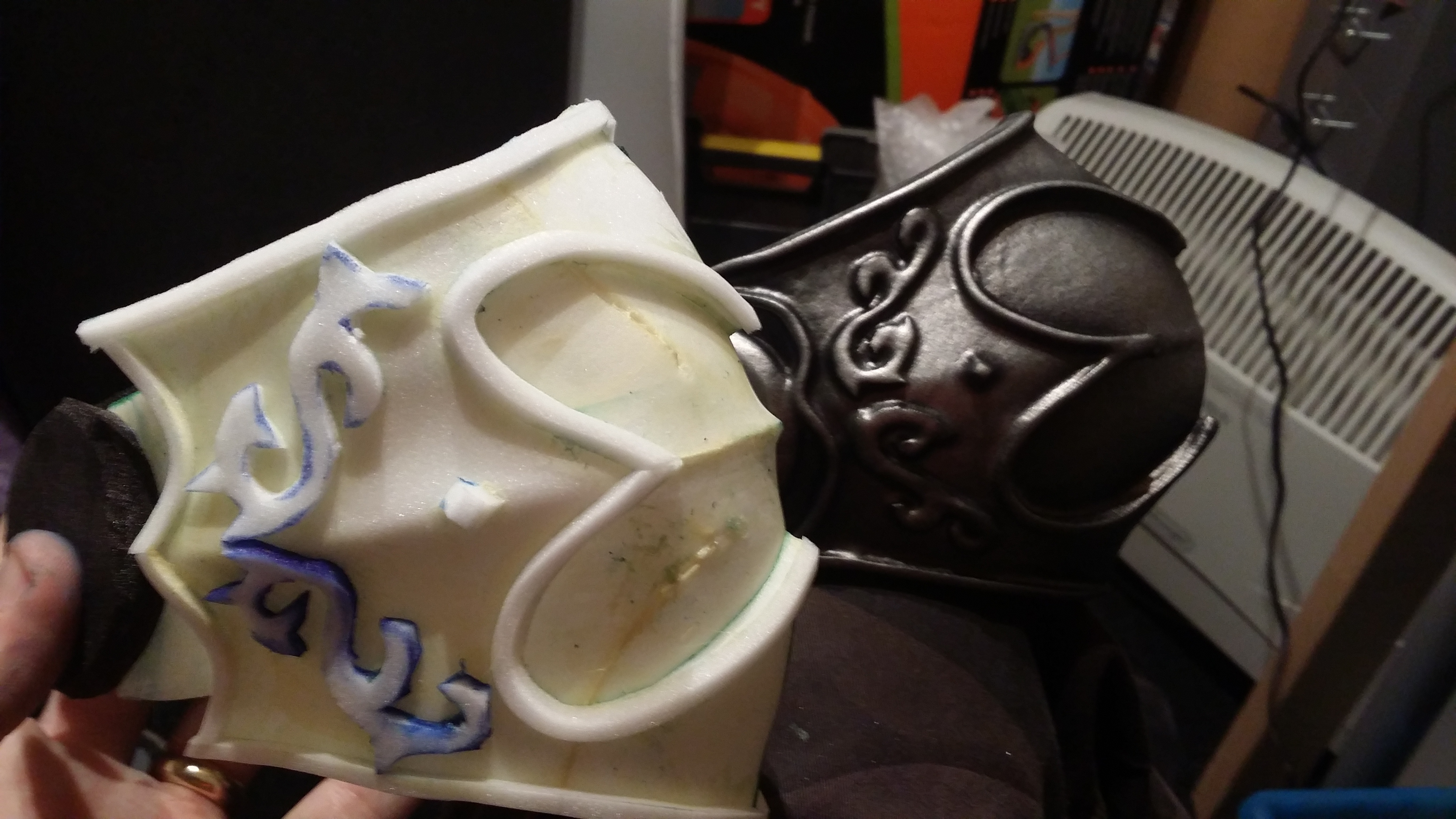

    Last night was all about the bicep and tricep.


    Tonight I will complete the other gauntlet and do the shoulders.
    Tomorrow night I will do the glue and 1st latex coats.
    Saturday I will do all the remaining latex coats, airbrush and fix everything together with rivets, elastic etc.

    I'm listing all this for my own sanity, going to be a mental few days ahead!

    Ham out.

    trackboy186 and George like this.
  8. Psicorp7

    Psicorp7 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    Very nice work! I like your method for sealing the foam. I might have to steal that for my next foam build!

  9. HammyDribbler

    HammyDribbler Active Member

    Trophy Points:
    312

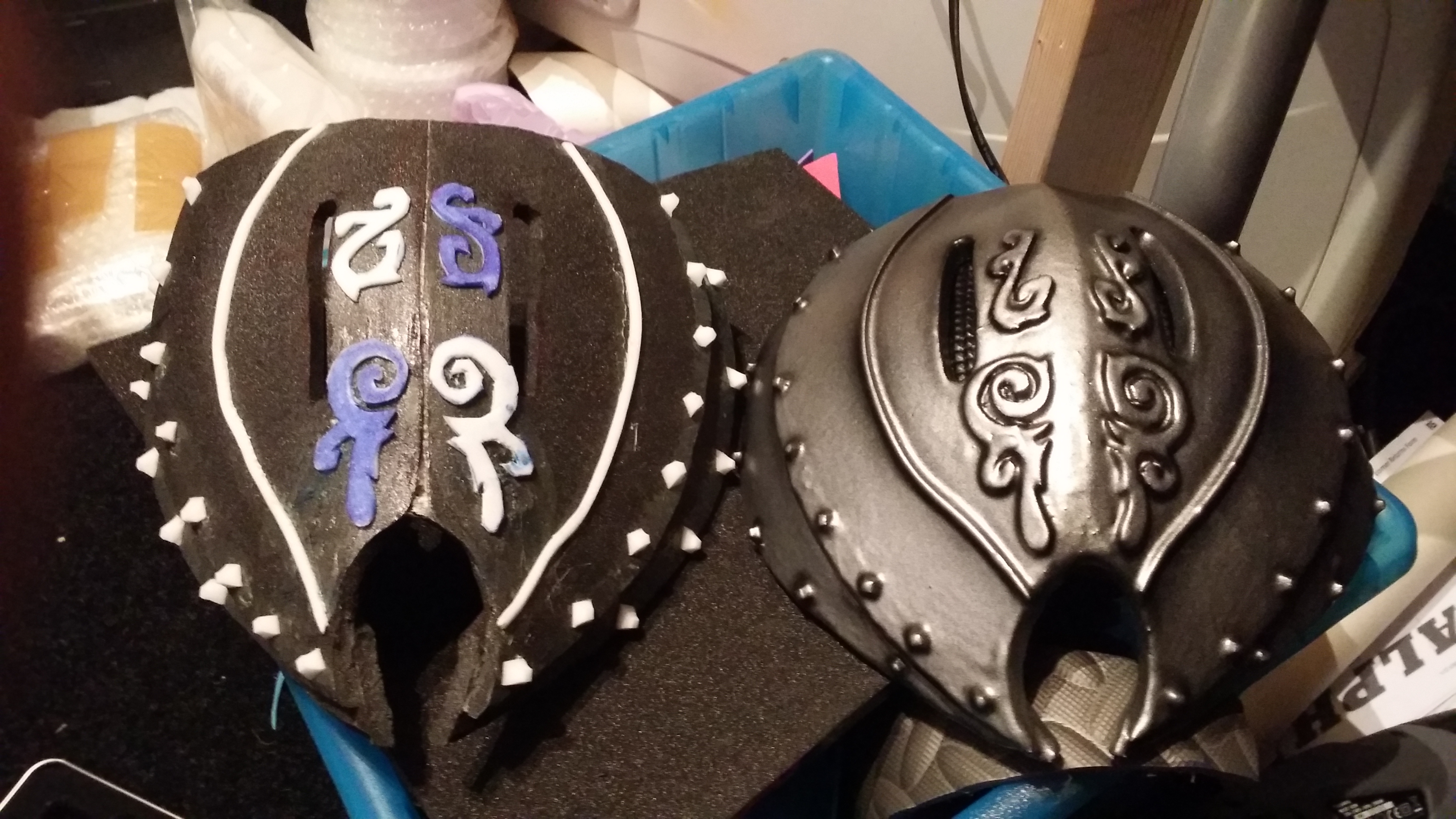

    Last nights progress. Nearly all ready to latex thanks to a 2.15am finish :(

    2015-07-23 21.19.46.jpg doom-glove.jpg

    I am so tired!!!!!!

    George likes this.
  10. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    Awesome work,Ham ! Keep it up:thumbsup

  11. dgdve

    dgdve New Member

    Trophy Points:
    17
    As always, impressive work brother!!!

  12. IronMeg

    IronMeg Active Member

    Trophy Points:
    361
    Subbed! That is amazing! I didn't know you could even latex foam like that. I will definitely have to try.

    I'm curious about the process, has it been detailed on the rpf anywhere? I'm having trouble finding anything.

    Again, excellent work! Can't wait to see it done and have fun at the con Sunday!

  13. HammyDribbler

    HammyDribbler Active Member

    Trophy Points:
    312
    I will try and put something together about the process when I come out the back of the build :)

  14. IronMeg

    IronMeg Active Member

    Trophy Points:
    361

    That's awesome thanks!!!

  15. HammyDribbler

    HammyDribbler Active Member

    Trophy Points:
    312
    So.. I finished at 3.15am on Sunday. Then got up at 6am to strap it. Then left for Manchester Comicon at 8.30am.

    I don't remember much about the day to be honest other than about 1,000,000 people wanting my photo. I guess that means it was all a success.

    2015-07-26 18.00.09.jpg 2015-07-26 18.04.55.jpg 2015-07-26 18.05.13.jpg 2015-07-26 20.37.05.jpg 2015-07-26 20.54.15.jpg 2015-07-27 06.37.20.jpg

    Still got the undersuit to complete and the shoulders to attached.

    Ham out!

    George likes this.
  16. George

    George Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,207
    So cool :D happy that your costume was a success ! (and your son's Nova as well)

  17. IronMeg

    IronMeg Active Member

    Trophy Points:
    361
    Very nice! Finished just in the nic of time! Hope you guys had a blast, and really, the armor looks amazing from the photos.

  18. Ikras

    Ikras Active Member

    Trophy Points:
    487
    Interesting method and some great looking results. Looks like you had a lot of fun out and about in it.

    I've been hearing good things about the LD45 and the thixofix. Where do you get your supplies from? Also UK based and would interested in more details. Always on the lookout to improve.

  19. HammyDribbler

    HammyDribbler Active Member

    Trophy Points:
    312
    Thixofix : http://www.thegluepeople.co.uk/inde...oducts_id=17&zenid=l2esqtcisbmoi6sj1soen9jm51

    Plastazote (LD45) : http://www.thamesvalleysupplies.co.uk/plastazote.php

    Just got back from another con (Woscon) which I found out about 2 days prior. Decided to compete with my family and we won a framed GOTG poster signed by Vin Diesel.

    While on stage I raised both of my arms high in the air and didn't realise that my gauntlets (built up on rubber gloves) has filled with sweat. WATERFALL!!!!!

    Oh and this happened : https://www.reddit.com/r/comiccon/c...ped/?ref=share&ref_source=twitter via @reddit


    https://www.facebook.com/bucketofdoom?fref=ts

  20. HammyDribbler

    HammyDribbler Active Member

    Trophy Points:
    312
    Just got the best shot yet from a friend :)
