DL-18 Jabba's Palace Blaster Scope Discussion

lmakeltraln

Member
been on the hunt input appreciated

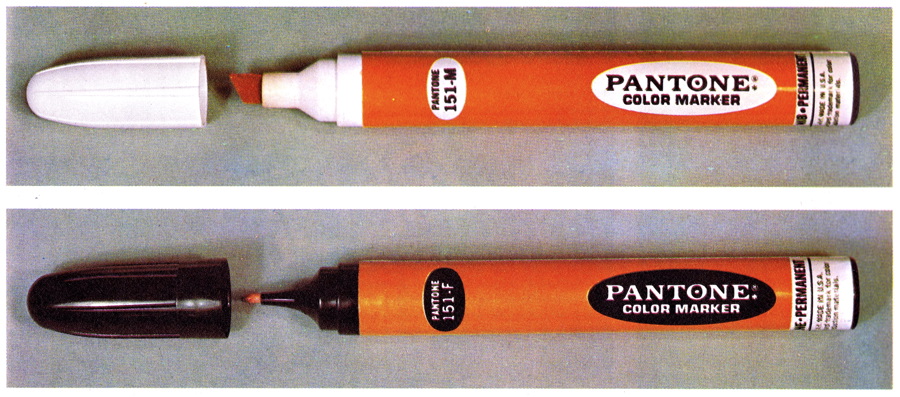

the marker cap is "very" close
perhaps the electrical tester lead as the front merged with the marker with the radio button knob at the end



thd9791

Master Member
RPF PREMIUM MEMBER
Hey those were my probes!

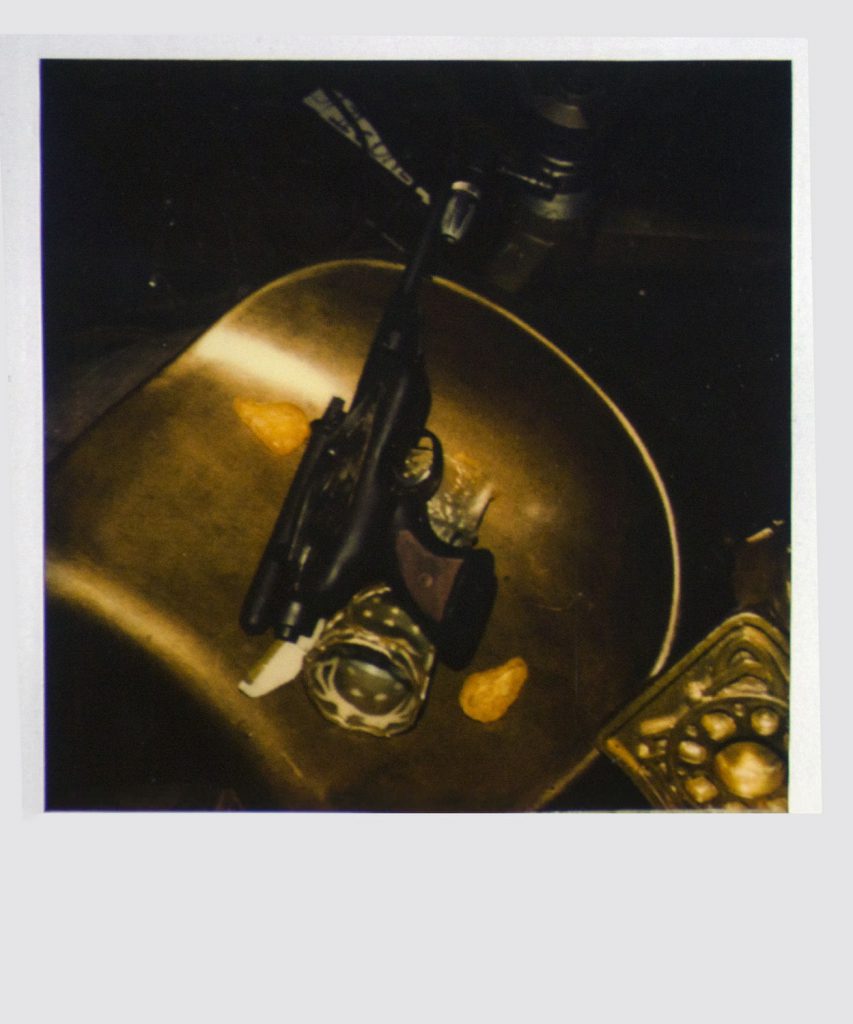

Yea, so the scope tapers back to front, weirdly, it's not a cylinder, let me pull some pictures.
The first one is from Kurtyboy and afaik was posted publicly. The others I have are not.


and I pulled some more detail out of the OPB photos, I didn't realize how polished the front curve of the scope was.




And there were a lot of them on set


Theres even one in a private photo with the Yuma saber, a different take on the deck.


lmakeltraln

Member
Hey those were my probes!

Yea, so the scope tapers back to front, weirdly, it's not a cylinder, let me pull some pictures.
The first one is from Kurtyboy and afaik was posted publicly. The others I have are not.
View attachment 1636383 View attachment 1636384 View attachment 1636385 View attachment 1636386

and I pulled some more detail out of the OPB photos, I didn't realize how polished the front curve of the scope was.

View attachment 1636387 View attachment 1636388


And there were a lot of them on set
View attachment 1636391 View attachment 1636392 View attachment 1636393 View attachment 1636390

Theres even one in a private photo with the Yuma saber, a different take on the deck.
Amazing pictures. I did not mean to discredit you if you posted that same photo. I took that right from an eBay listing


thd9791

Master Member
RPF PREMIUM MEMBER
Lol that’s okay, I thought that was my photo… I bought some from eBay years ago. The rips on the cord look so familiar……

Carry on


bobasfett

Sr Member
RPF PREMIUM MEMBER
I've certainly done my fair share of searching for the 'scope' over the years and have always come up empty. Old oldering iron and tester probe were the two areas I looked at. Definitely appears to be a found object and I would guess black. The shiny portion is where the paint has rubbed off, what I see anyway.


thd9791

Master Member
RPF PREMIUM MEMBER
its hard to tell but there are two dots on the top of the scope. The rods (threaded or smooth) used to glue the scope to the gun run through the whole scope body, and the tops were cut/puttied and sanded flush and painted.


thd9791

Master Member
RPF PREMIUM MEMBER
100% agree, makes the most sense. Then just 'fill' over the screw heads, sand, and paint.
Considering the size of those dots, and the diameter of the rear sight holes, I stuck long screws through the scope body and dremelled the heads off. Looks exactly like this, I’m thinking this is the diameter of the threaded portion of the screw. Puttied, sanded and painted over of course lol


Sluis Van Shipyards

Legendary Member
its hard to tell but there are two dots on the top of the scope. The rods (threaded or smooth) used to glue the scope to the gun run through the whole scope body, and the tops were cut/puttied and sanded flush and painted.

That's funny because years ago when I was working on mine, I did that exact same thing with a scratchbuilt scope. I felt kind of stupid doing it that way, but apparently it was spot on!
