Death Star Turbolaser

Discussion in 'Studio Scale Models' started by TazMan2000, Feb 9, 2019.

  1. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730
    Finally getting time to spend on the Turbolaser from Wasili. This will not be motorized with lights, just a static display. I thought about doing so, but I would have probably spent hundreds of dollars more on it an would have played with it for about an hour, then it would have spent the rest of its life on a shelf.
    Wasili and others have researched this one impeccably and have reproduced the detail accurately in the kit. I also have the Salzo detail kit.

    My kit will be a little different as I am incorporating gun elevation mechanism with a 3D print. Slots cut out in the kit set the position of the external elevation gets with inserting a styrene cut out.

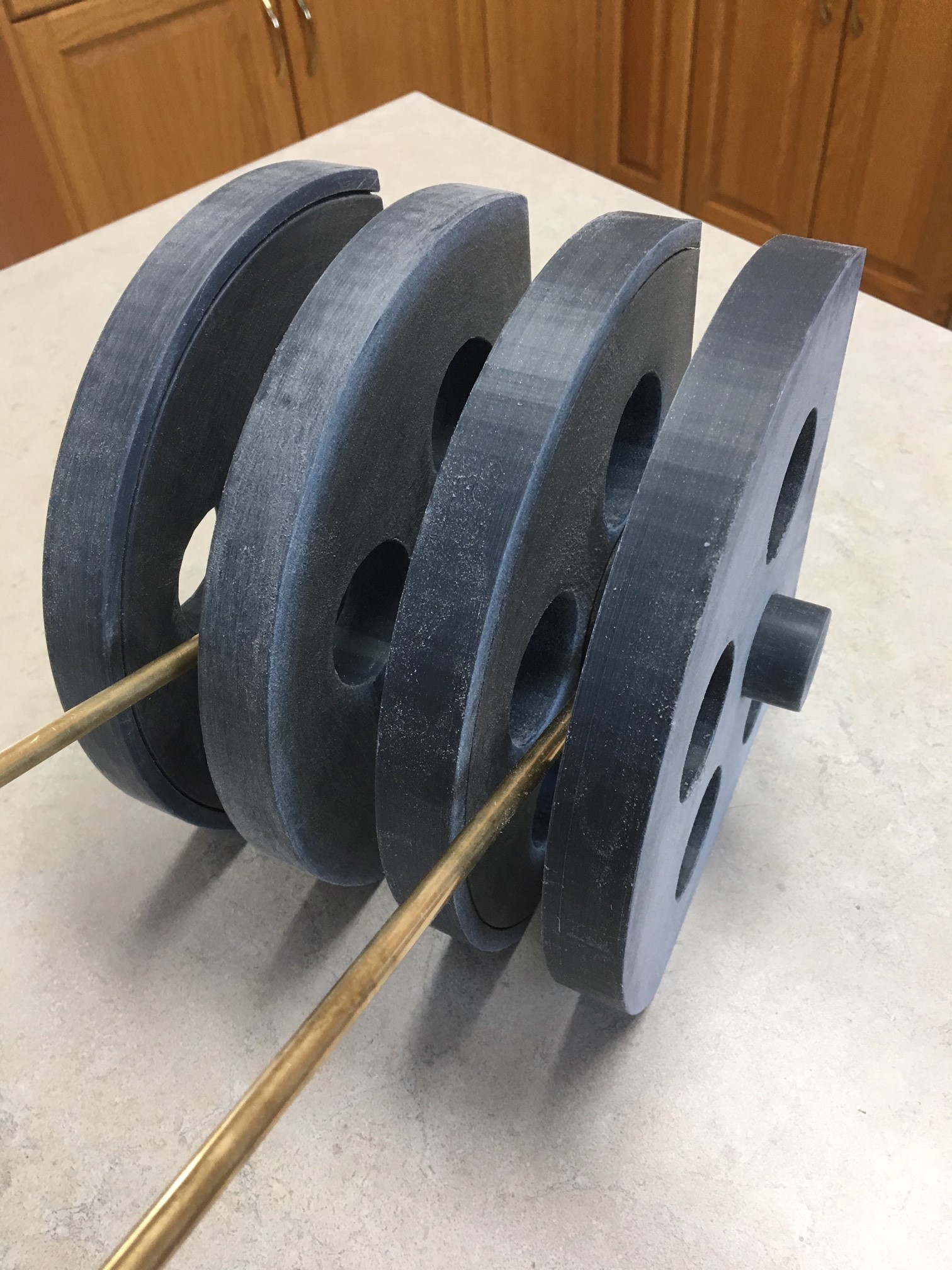

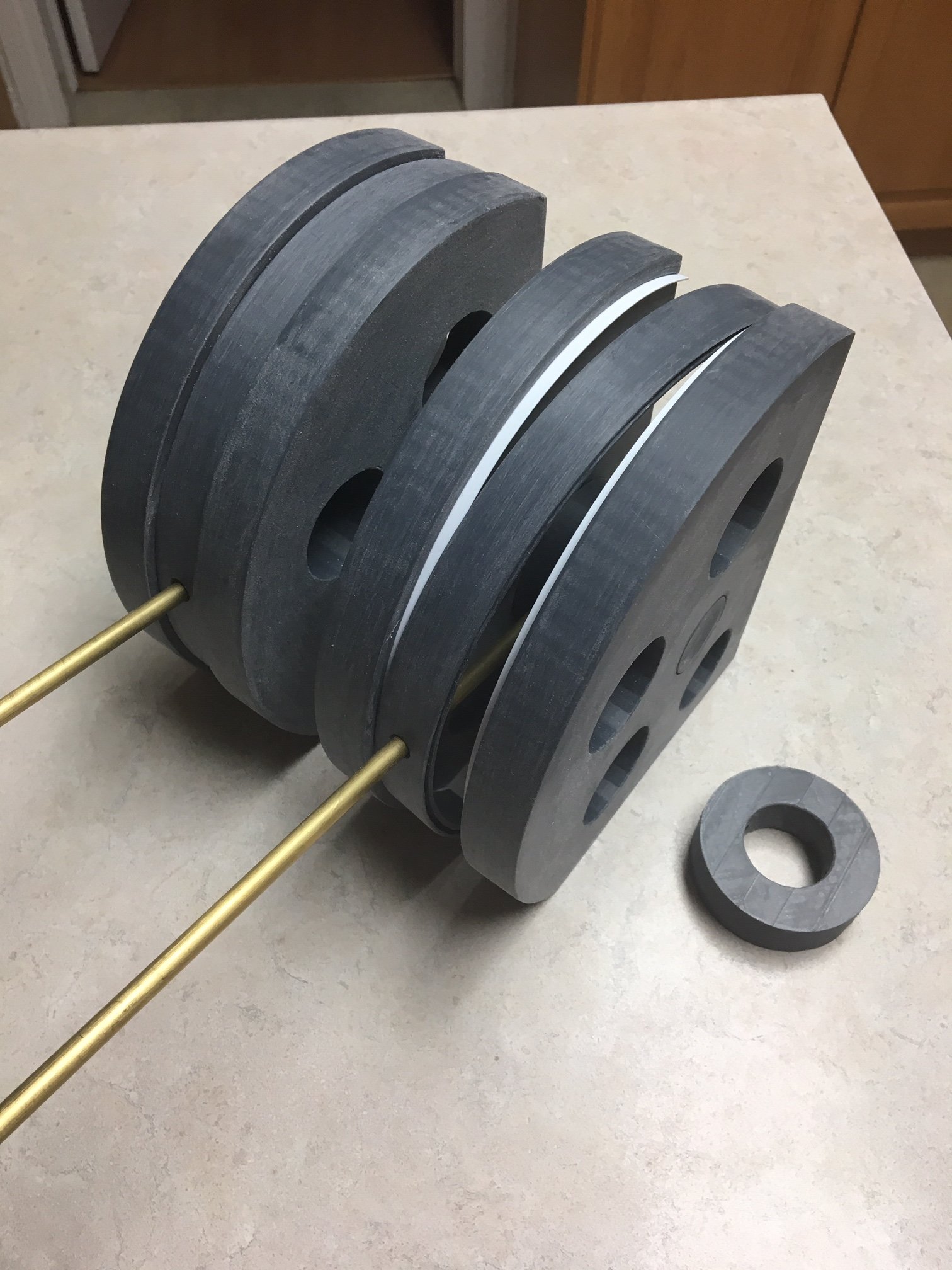

    For the most part, it followed a circular path, but at the ends it flatted out to the superstructure. This also showed everything underneath as in wires and motors, which to me took a bit of the realism away from it. Since, if this was real, there would be thick metal and perhaps a seal that would prevent any debris or bits of destroyed ships from getting into the elevation mechanism. So I decided to design something a little different. I measured the arc and created a simple 3D elevation mechanism in TinkerCAD. The round "hubs" fit the cut out arc precisely. There was one problem though. The axis was lower than on the filming model. But the gun can elevate with its arc of rotation aligned with the gears. A trade-off toward film accuracy. Probably the first of many.



    TazMan2000

    jkno, acesh007, minifig and 1 other person like this.
  2. anamorphicWayne

    anamorphicWayne Well-Known Member

    Trophy Points:
    685
    Whoa! It's coming along nicely Tazman. :D
    Looking forward to more updates.

  3. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730
    Thanks Wayne.

    TazMan2000

  4. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730

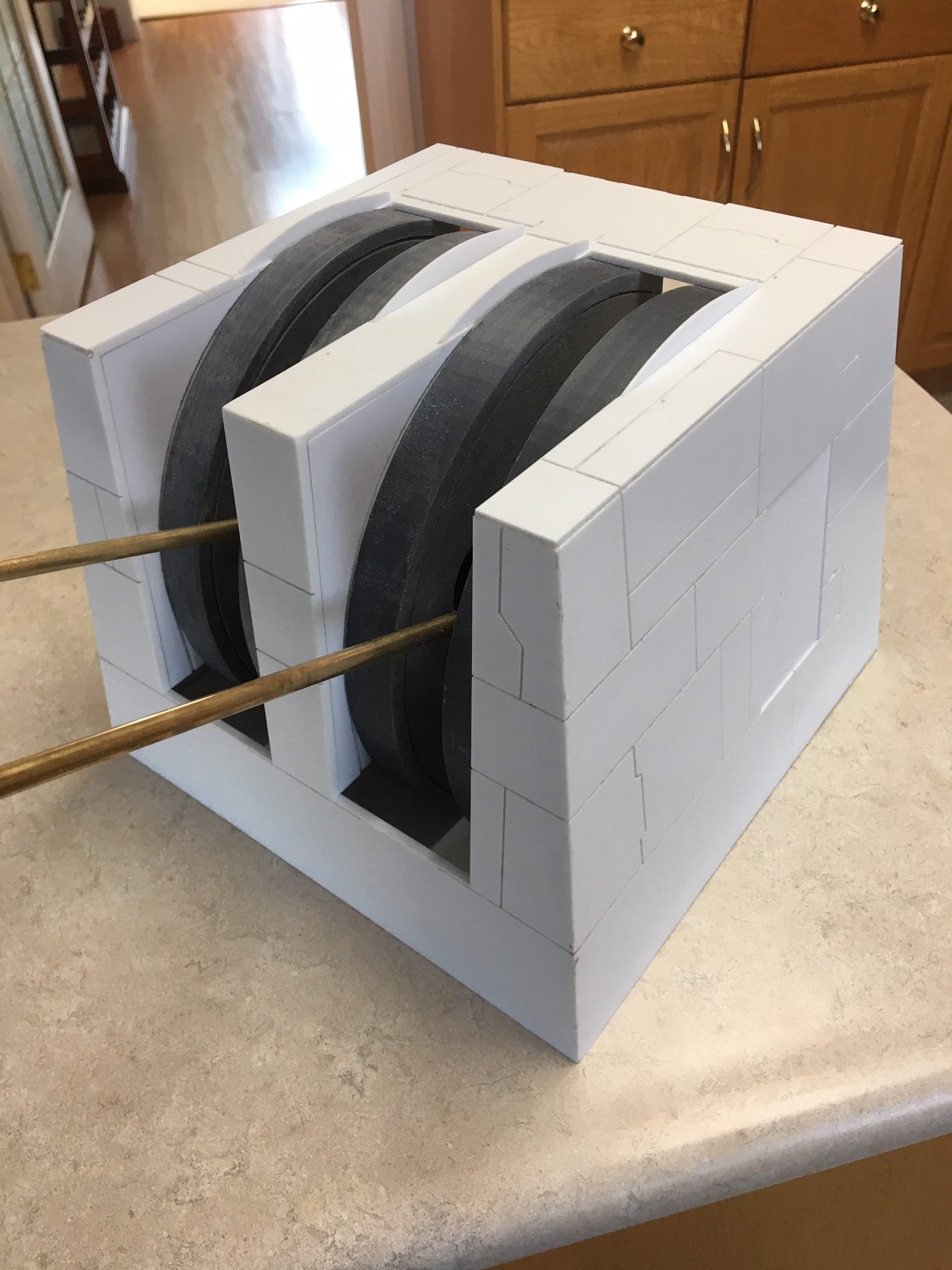

    Internal components finished. Shield is in place and rotates smoothly when installed. Parts loosened to show the rail the shield rides on.The barrel elevation can only go up to about 45 degrees, then the internal components will be visible, but that shouldn't be a problem, since the turbolaser barrels rarely elevated past 30-35 degrees. After I glue the elevation mechanism in, comes the fun part of greeblying.



    TazMan2000

    ffoeg likes this.
  5. anamorphicWayne

    anamorphicWayne Well-Known Member

    Trophy Points:
    685
    Nice Taz!! Very Nice!!
    Does this kit have the internal greeblies?

  6. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730
    Internal greeblies? Huh?

    TazMan2000

  7. anamorphicWayne

    anamorphicWayne Well-Known Member

    Trophy Points:
    685
    You mentioned 'the internal components' so I assume you can call them greeblies as well?

  8. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730
    Oh. I thought you were referring to some kitbashed parts that ILM used internally and was wondering who the heck has ID'ed them and where is the thread. :lol:
    The internal components are just the mechanical ones I printed out, as the Turbolaser kit never came with the elevation mechanism, axle, or anything inside.

    TazMan2000

  9. anamorphicWayne

    anamorphicWayne Well-Known Member

    Trophy Points:
    685
  10. DaddyfromNaboo

    DaddyfromNaboo Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,921
    I am SO watching this! I once thought that a turbo laser tower might be a simple and easy project, but the scratch builds that i have seen done over the years taught me something different ...

  11. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730
    DaddyfromNaboo , I'm not in the league with the other guys who built this before me, but I'm going to try to make a strong effort in making it as accurate, but "realistic"(?) as I can. I hope not to disappoint.

    TazMan2000

  12. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730

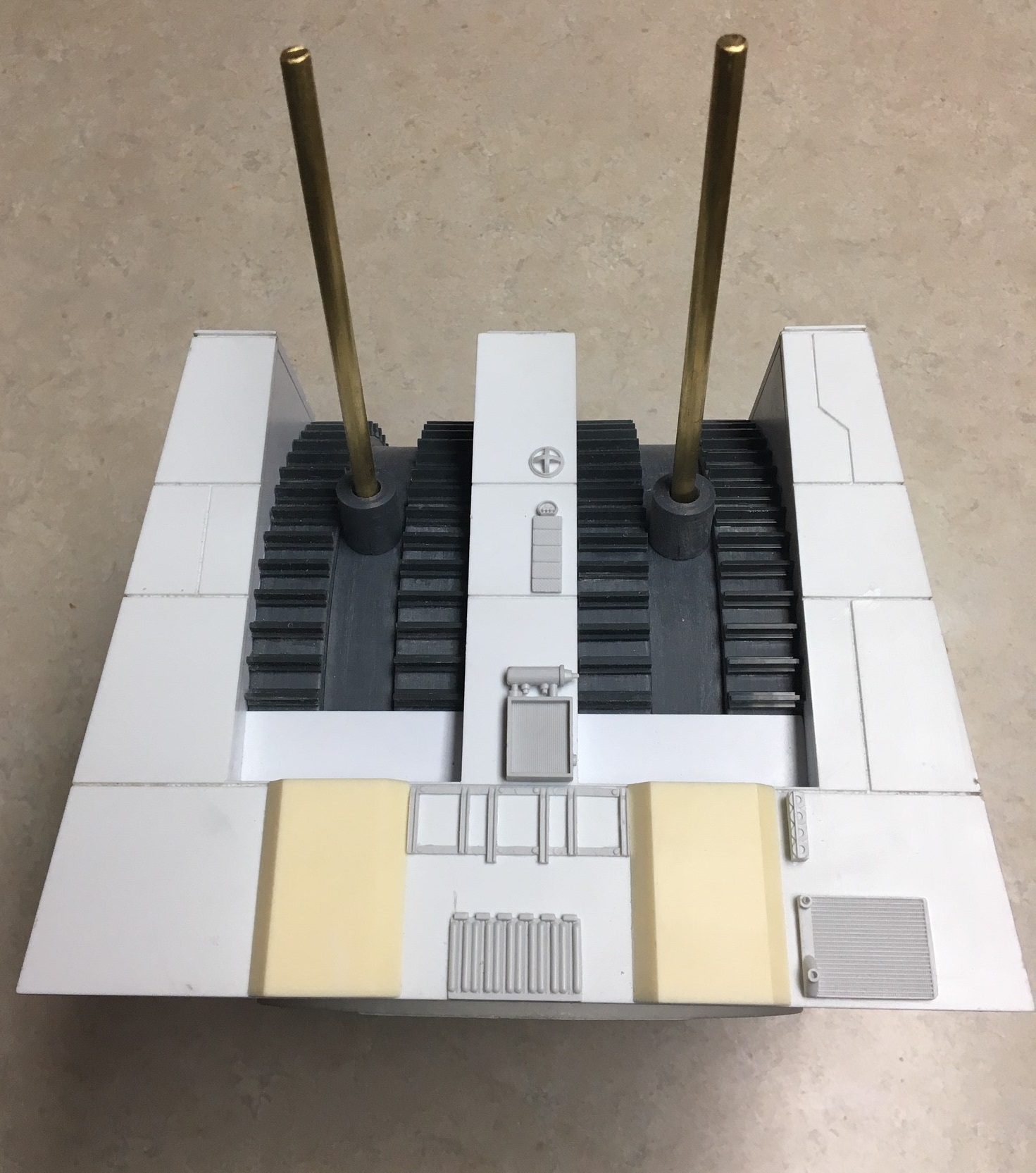

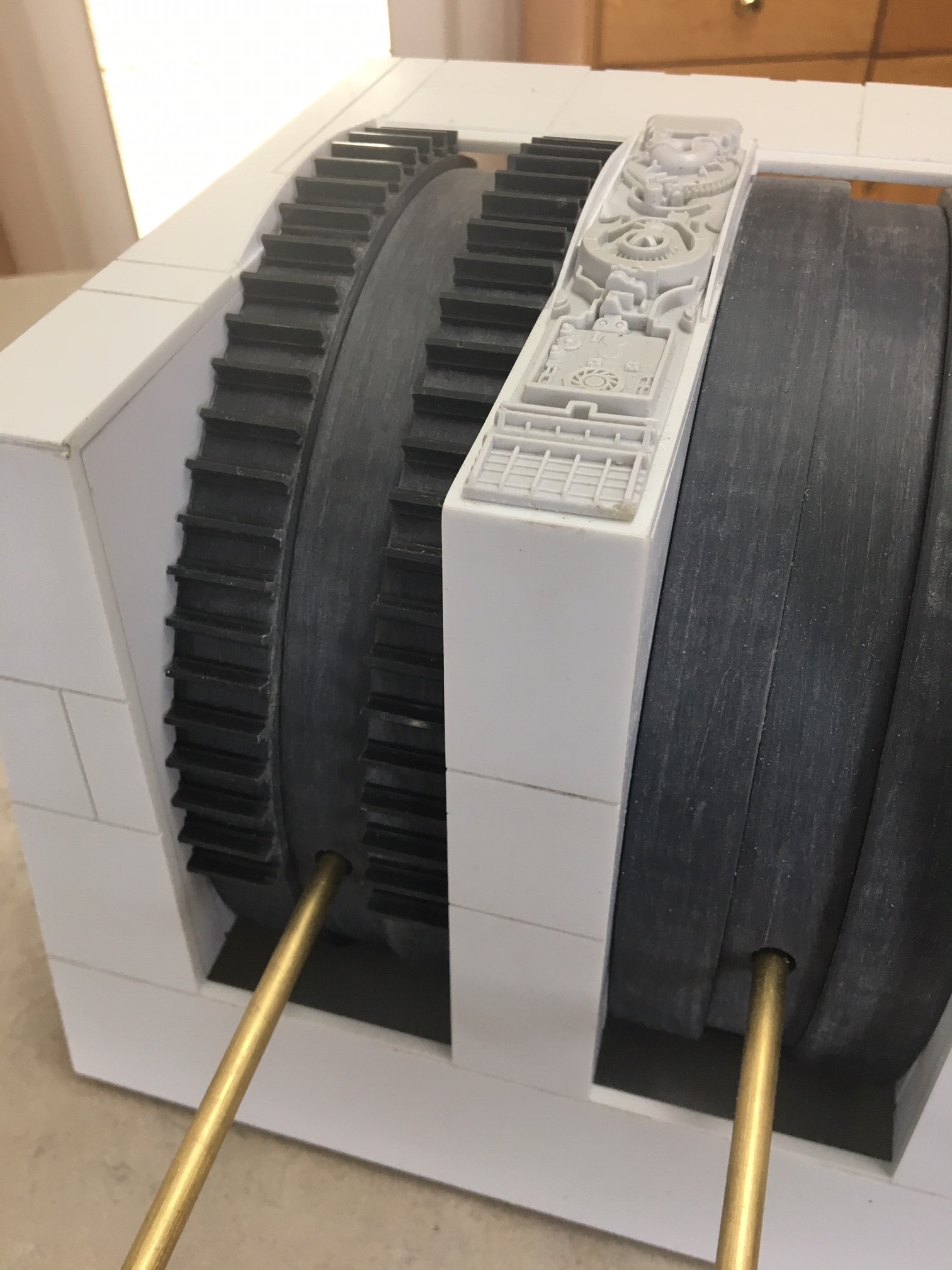

    I had to tweak the 3D printed elevation mechanism to make it fit properly so as not to have too much separation or binding when moving. I also glued a turntable bearing to the top of the lower tower and printed a ring to hide that part. The gears, pictured below didn't take as long as I thought, but I still have to do the other side.
    TazMan2000

  13. anamorphicWayne

    anamorphicWayne Well-Known Member

    Trophy Points:
    685
    Coming along nicely Taz. Say, does the turbo lasers have the same greeblies as the x-wing's top/rear section?

  14. TazMan2000

    TazMan2000 Sr Member

    Trophy Points:
    1,730
    Yes. The model department used that part on both the X-wing and the Turbolaser.

    TazMan2000

  15. anamorphicWayne

    anamorphicWayne Well-Known Member

    Trophy Points:
    685
    Geez, I didn't know that.
