DC-15s side arm blaster for Republic Commandos

Discussion in 'Star Wars Costumes and Props' started by ligonap, Apr 19, 2012.

  1. ligonap

    ligonap Member

    Trophy Points:
    191
    Hello together!

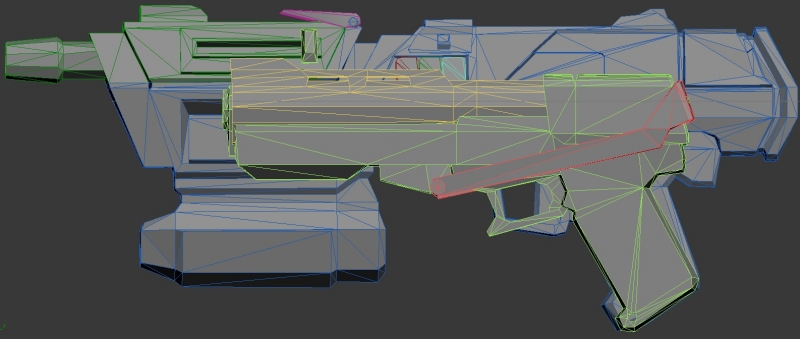

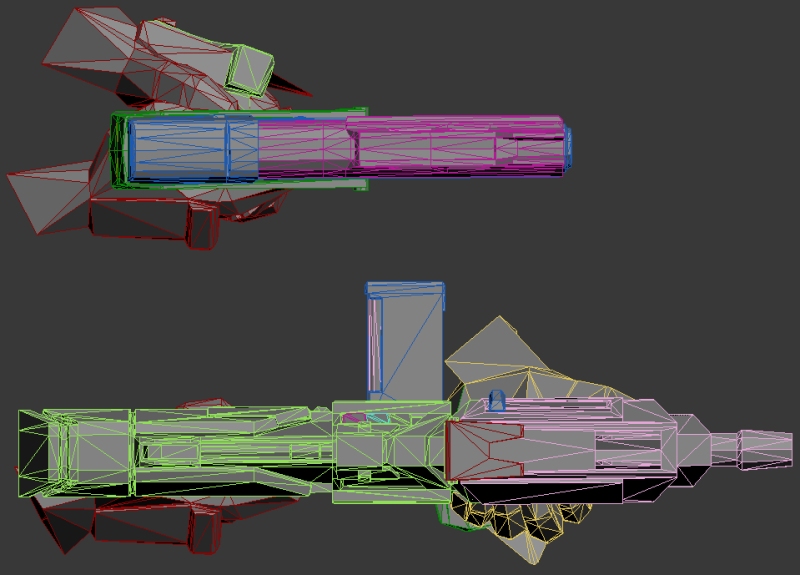

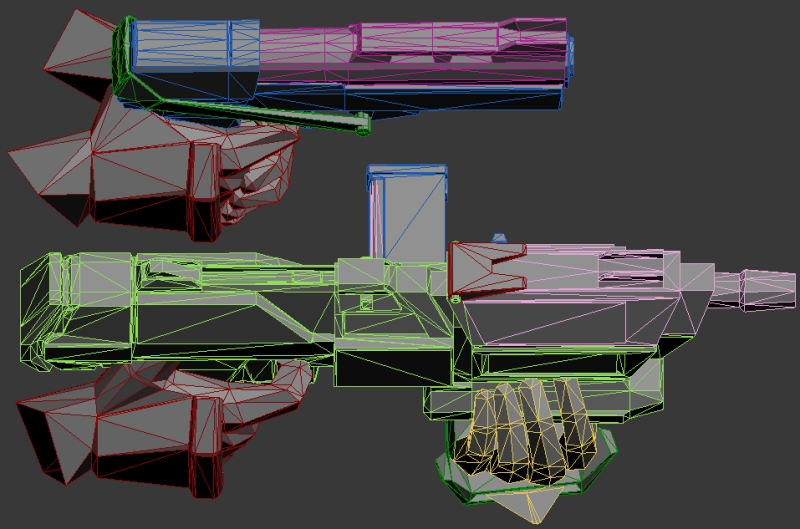

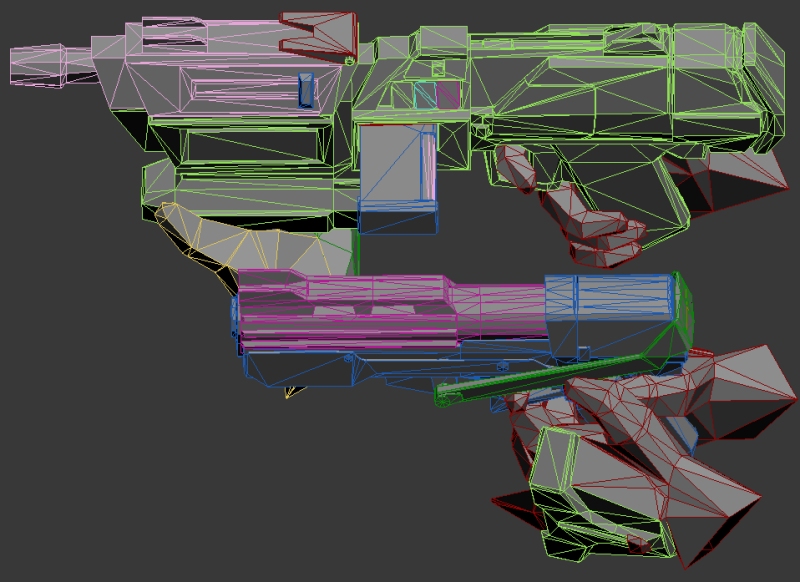

    I didn't want to believe it at first. Here is the orthogonal direct comparison of the DC-17m and DC-15s from the game data (no manipulation, no perspective view):

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

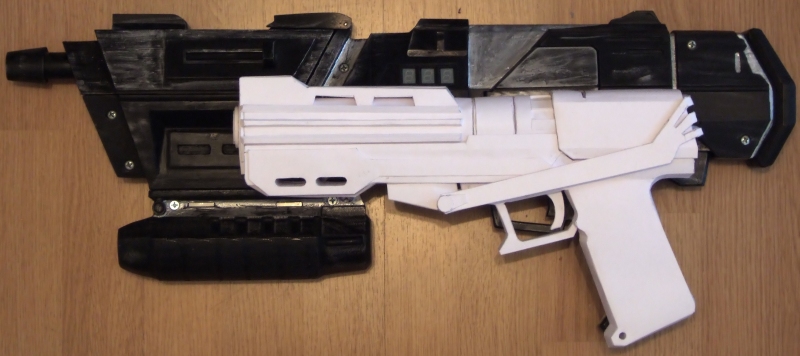

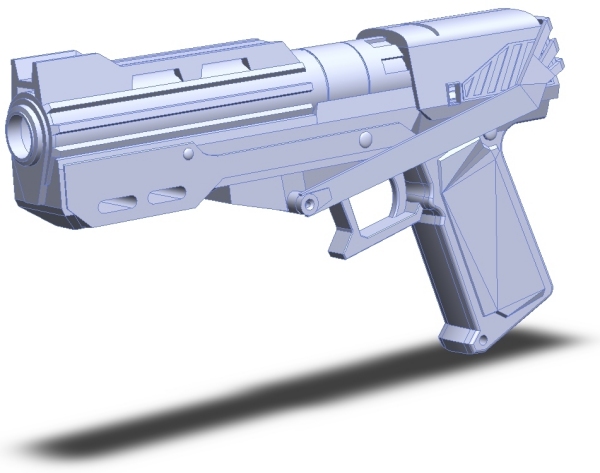

    As a part of my RC building, I also have modeled an almost accurate DC-15s pistol by using SolidWorks.

    [​IMG]


    Dimension: 35.2 x 20.8 x 6.3 cm (13.85 x 8.19 x 2.48 inch) !!

    The DC-15s is unbelievable huge.

    For a test I generated a Pepakura file and assembled the paper model.

    [​IMG]

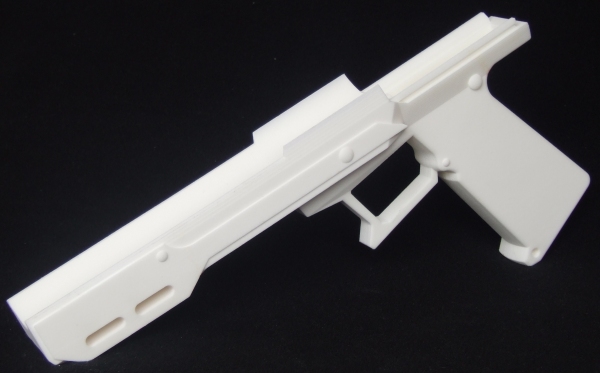

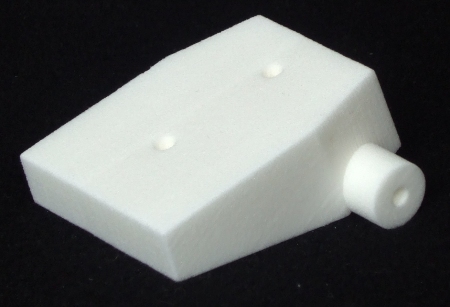

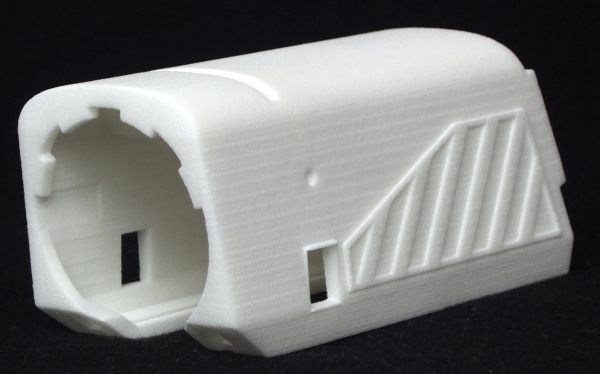

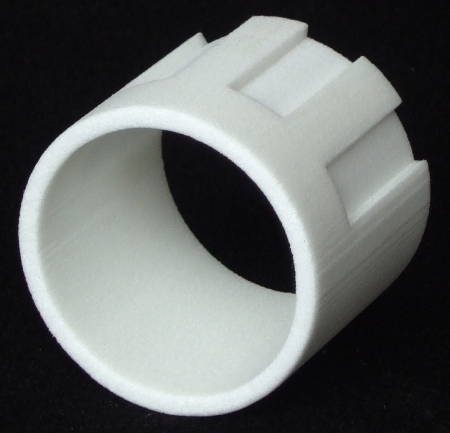

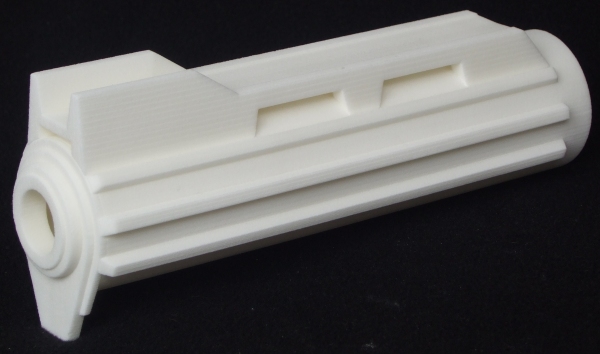

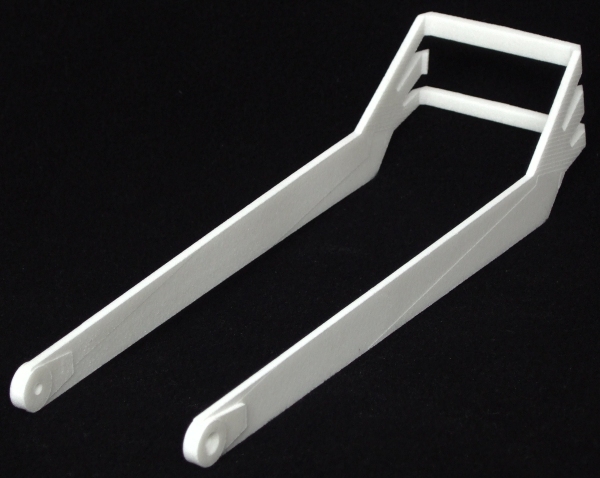

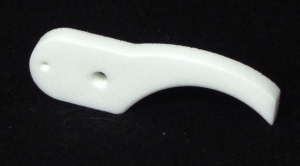

    After the Pepakura test I got the seven 3D-printed main parts (in polyamide) from VisioTech:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

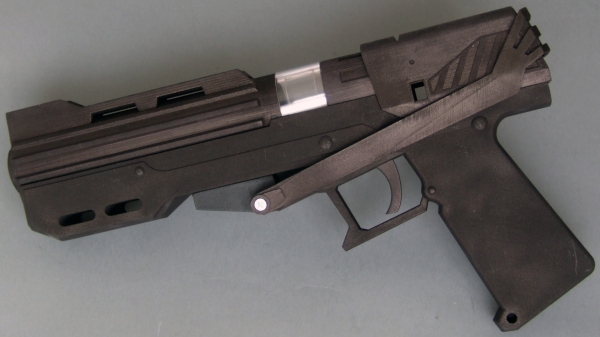

    For the paint job four layers were applied: Primer - Silver Rim - clear coat - Black silk mat

    [​IMG]

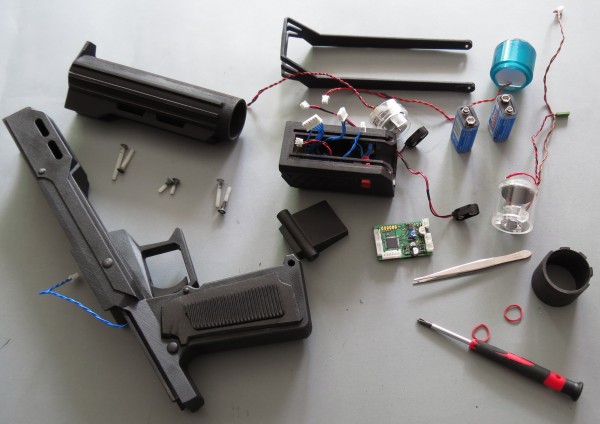

    After the painting job, I have divided the electronic components of the blaster into modules.

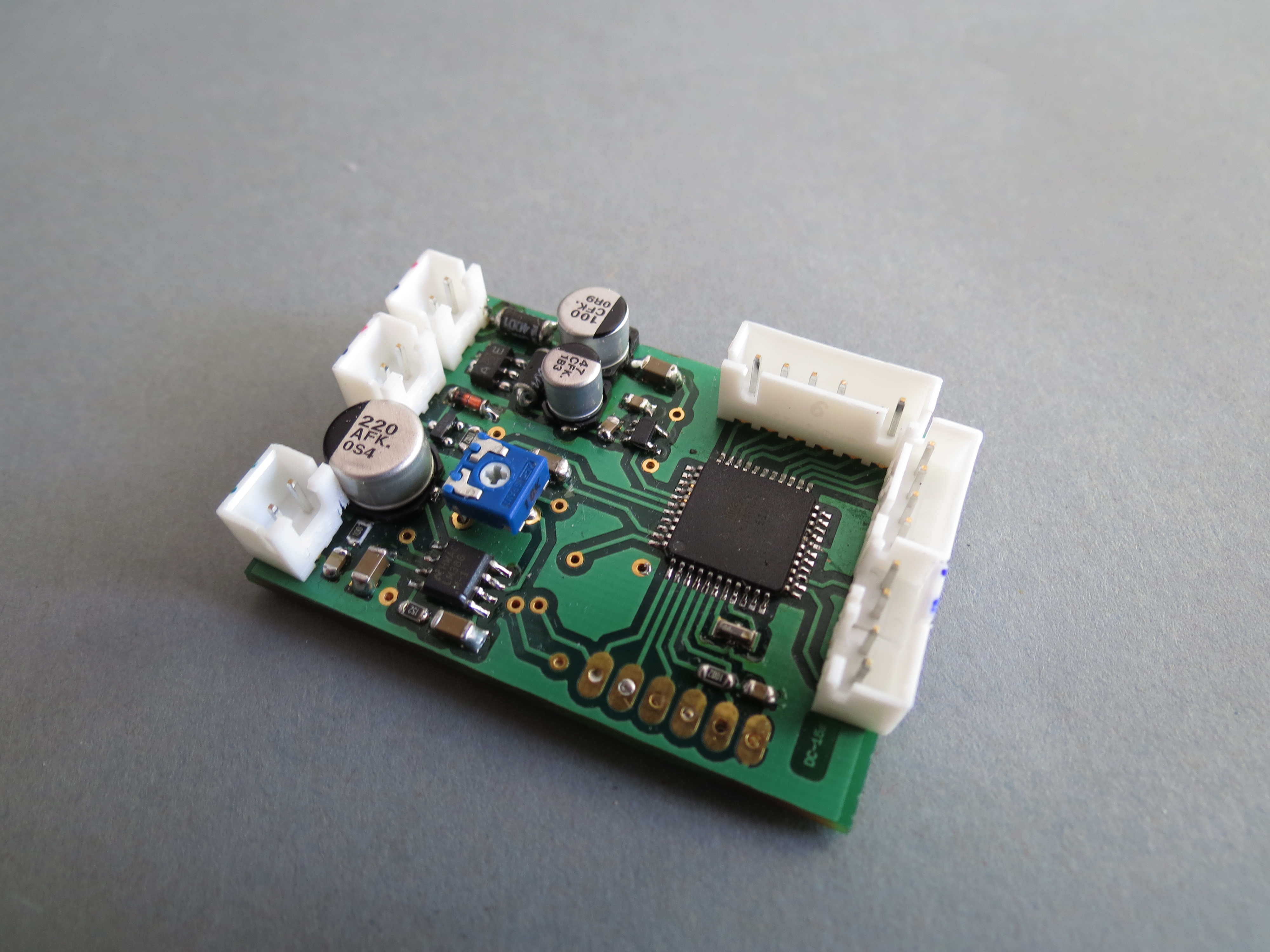

    The board is the heart of the blasters:

    [​IMG]

    The board is powered by 9V and can play 1000 8-bit WAV files from a MicroSD card.

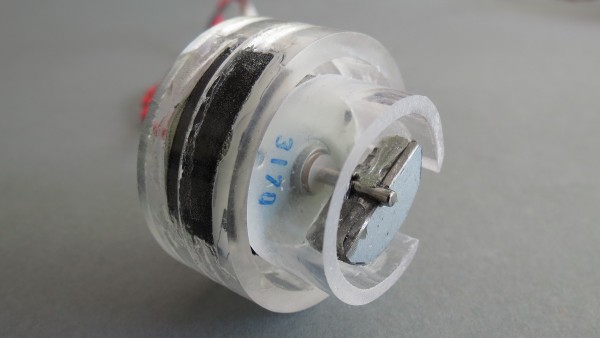

    To get a shooting-feedback, I have installed a vibration module:

    [​IMG]

    The motor is from a PS2 controller.

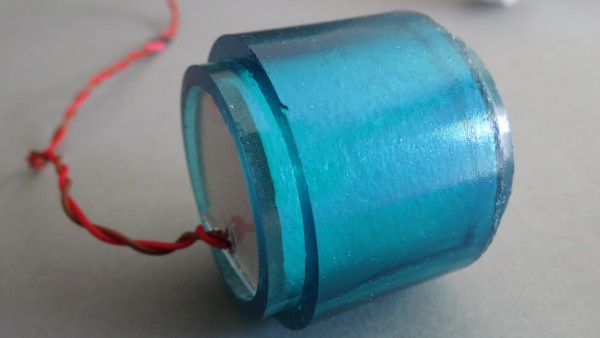

    For the power-on lamp I used a blue 8mm-360°-LED.

    [​IMG]

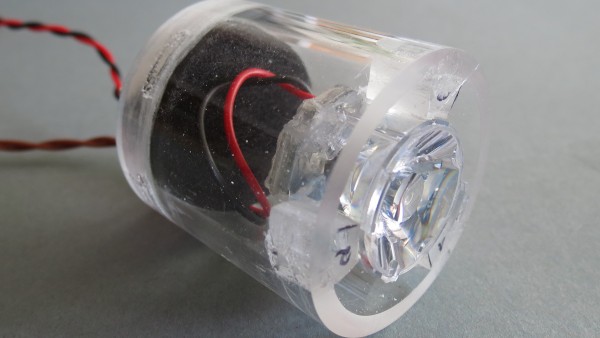

    The blue muzzle LED (Luxeon 3Watt) and the speaker are mounted in a common module:

    [​IMG]


    Before reassembling everything looked like this:

    [​IMG]


    The energy and VU-display consist of eight blue SMD LEDs:

    [​IMG]

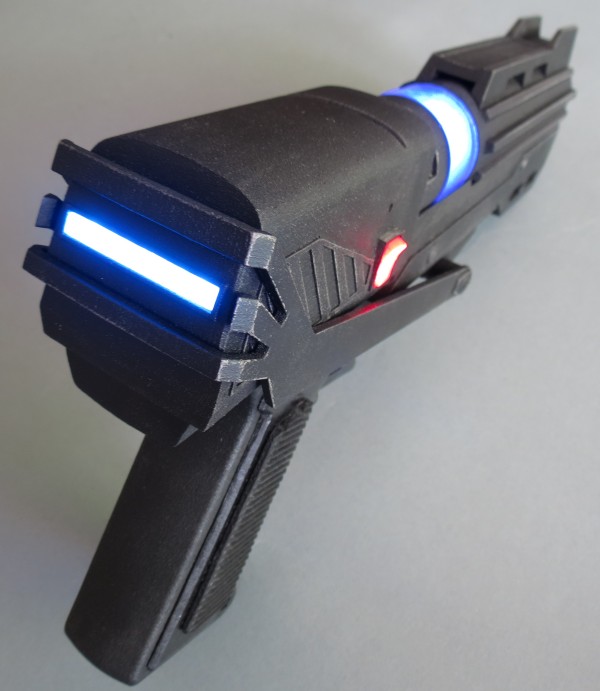

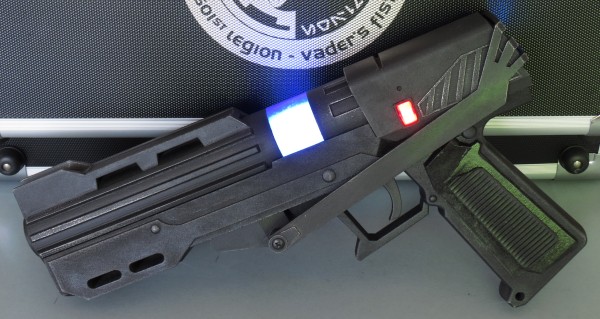

    The blaster now looks like this:

    [​IMG]


    I have uploaded a longer video clip (about 17 minutes) about the assembly and functionality (15:42 min) on my Youtube channel:
    DC-15s side arm blaster - YouTube
