CWs Arrow--Grapple/Jettison Arrow

[NuadaDesigns]

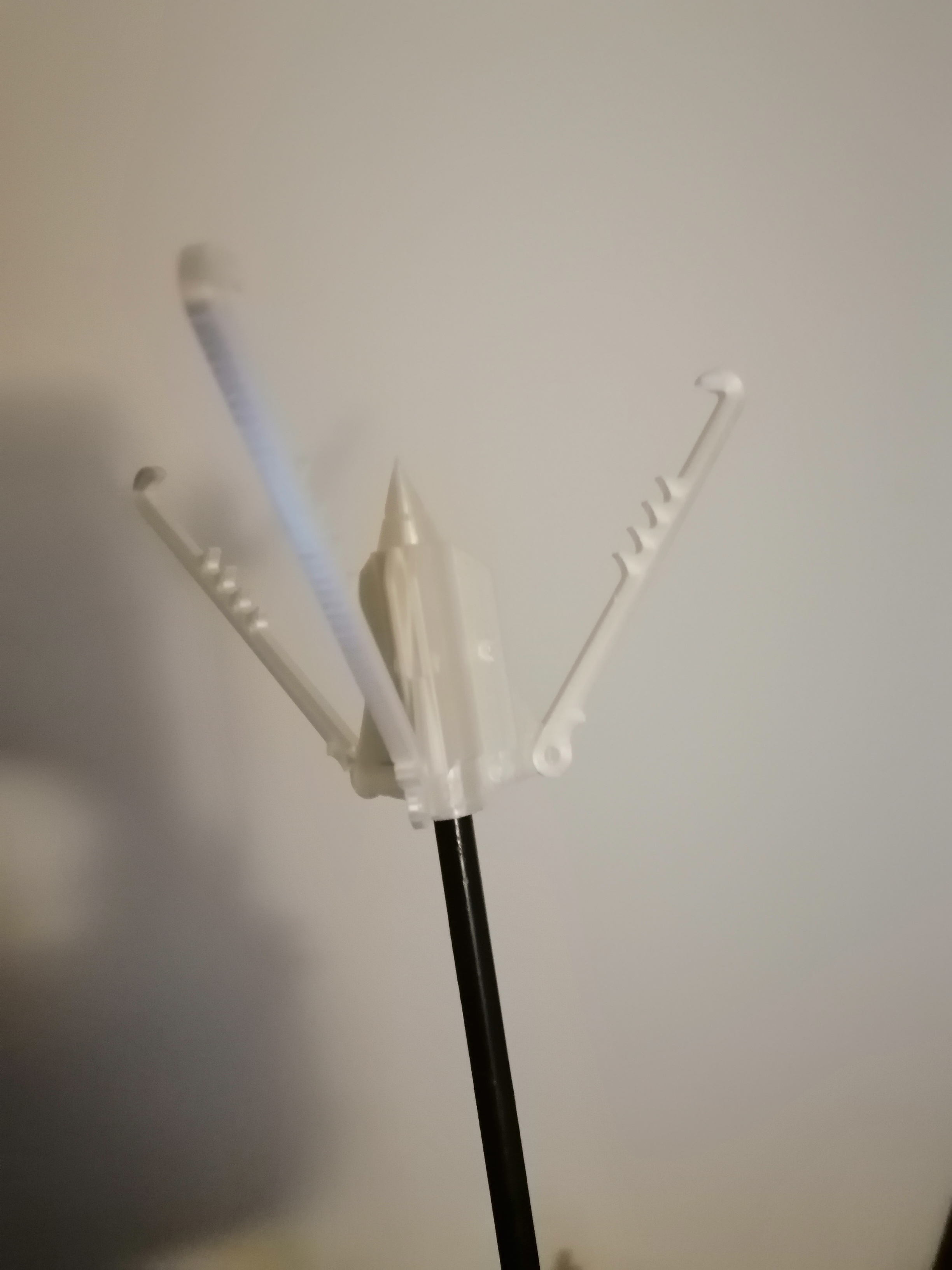

First test prints for the head of the jettison/grapple arrow. A good few changes to make yet.
More tomorrow.



[13doctorwho]

Really cool!! Are the tines fragile? Great work!



[NuadaDesigns]

Really cool!! Are the tines fragile? Great work!

Thanks! Those ones were a bit fragile and weren't to size, they were quick mock ups to test the hinge. Made some changes and printed my second test today.



[NuadaDesigns]

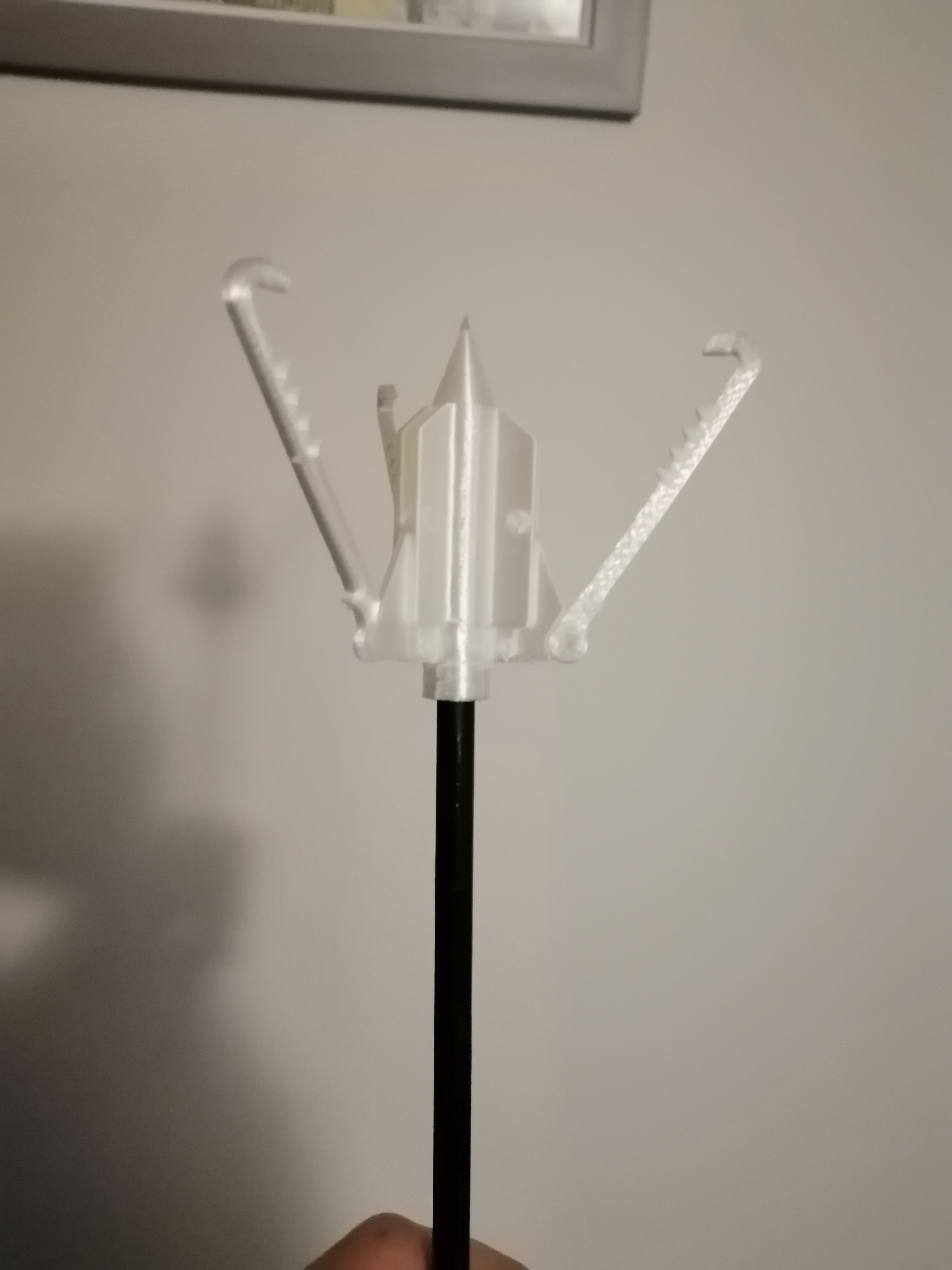

Here's the second test print, with a more accurate scale and a stronger hinge.
Test number 3 is printing now.



[NuadaDesigns]

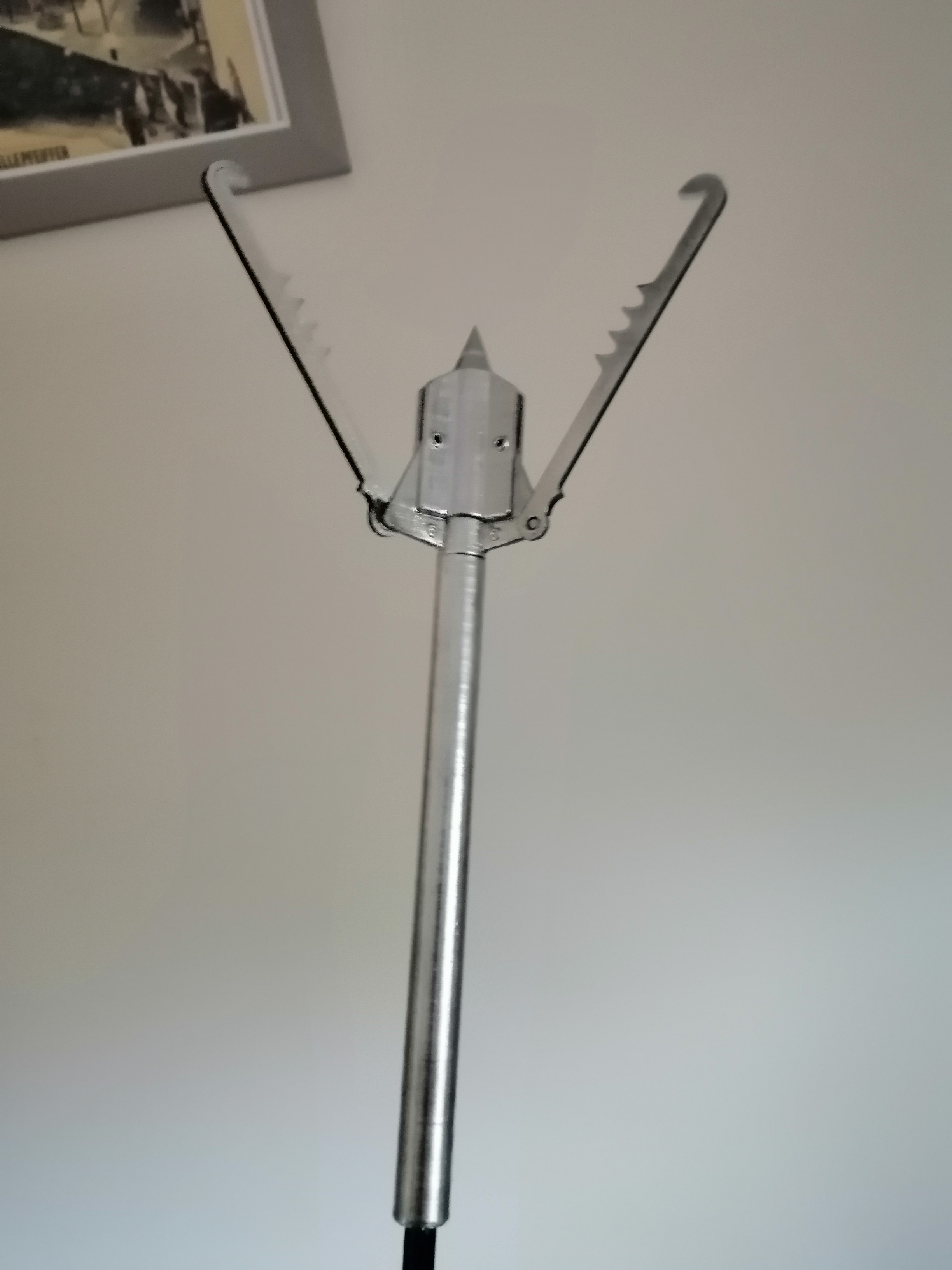

Finished arrowhead, painted with spazstix ultimate mirror chrome.



[13doctorwho]

The paint looks great. Nice to see some Arrow stuff!!



[NuadaDesigns]

The paint looks great. Nice to see some Arrow stuff!!

Thanks! The paint is Spaz Stix ultimate mirror Chrome.



[NuadaDesigns]

Here's a quick render of some of the arrowheads I've modelled.
