    So I recently started reading the Waid/Samnee run on Daredevil and I've fallen in love with it. In particular the design of the cane really stood out to me - something about how Samnee makes the transition between cane, billy clubs and grappling hook (and the squared-off design of the hook especially) seem believable despite the fact that's it's very much a goofy silver age idea really struck a chord. I decided that this is a prop I'd really like to tackle, but I've set three rules for myself:


    1. It must function like a standard white cane. That means it has to be lightweight, able to separate into 4 sections connected by elastic cord, and appear more or less unremarkable to the average person. It also needs to be significantly longer than it appears in the comics. I'm 6 ft tall, so I need my cane to be 52" long (I realize that different people use different length canes, but I followed the "the top should come up to the center of your chest" rule)
    2. It must be able to break into two unconnected clubs. That means no long rope in between - in the comics the cane can separate into halves, so mine has to be able to as well. Since the cane is 52" long each half will be 26". It's a bit long for a billy club, but about in the right range for eskrima sticks so I'm not complaining.
    3. The toughest requirement of all. The head of the cane must be able to transform into a square grappling hook that can disconnect from the rest of the club, yet remain attached by some sort of cable or string. I realize that I'm not going to be swinging from flagpoles anytime soon, but I want it to at least have about a 2 foot line just for the effect

    So with those rules in place, this is where I am so far:
    Daredevil_Cane2.png Daredevil_Cane1.png
    I'm designing the cane to be made out of aluminum, painted white with a few spaces left unpainted for accents. I haven't done the elastic or wrist strap yet (because things like that are hard in Maya), but the basic shape of the sections has been established and I've begun work on some of the mechanical bits (like how to get all 4 sections to stay together, yet break into 2 halves via a twist locking mechanism.) I'll post some more images once I've worked out a few of the kinks, but I'm really looking forward to this one. If nothing else it's an interesting engineering exercise

  2. IAmTheClayman

    IAmTheClayman Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342
    Alright, lots of progress the past few days, everything from minor changes like adjust the cane's diameter from 1" to a more accurate 7/8" to finishing up designing the locking mechanism that allows the cane to break apart into 2 clubs. Pic heavy post ahead

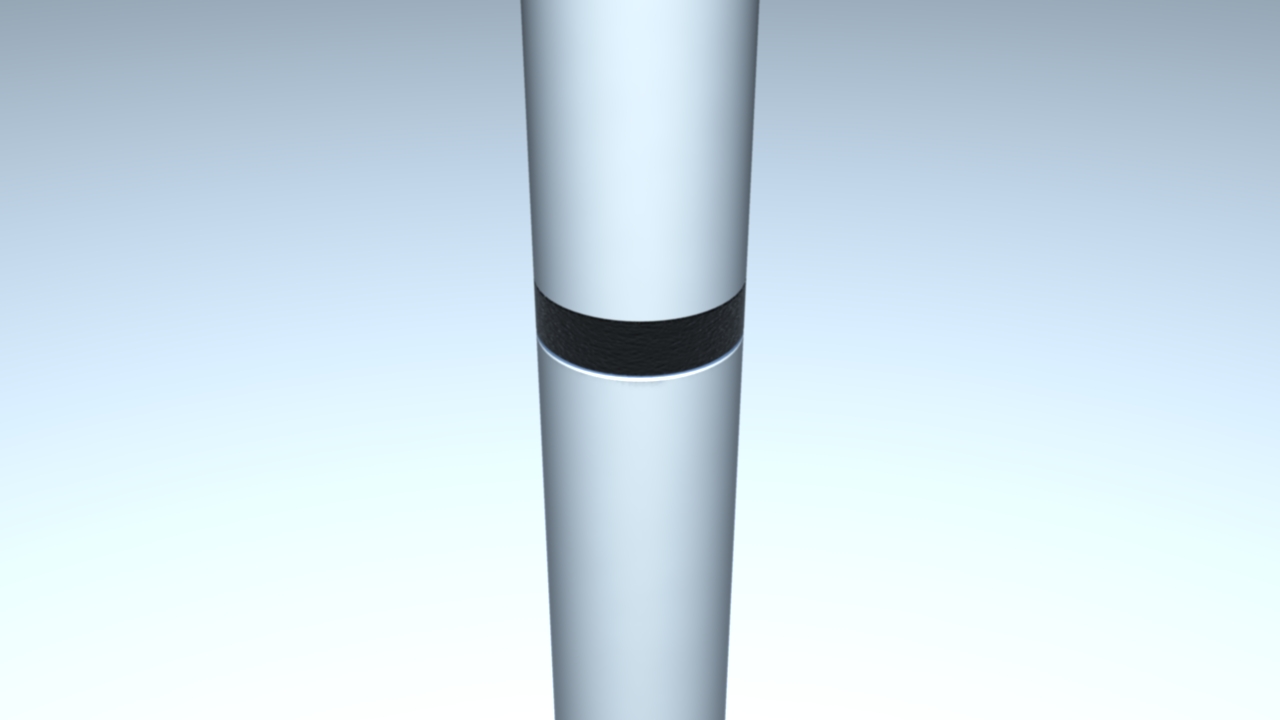

    So this is what the middle section of the cane looks like with the 2 halves together. The dark ring is going to be made of low density foam, something that compresses easily.

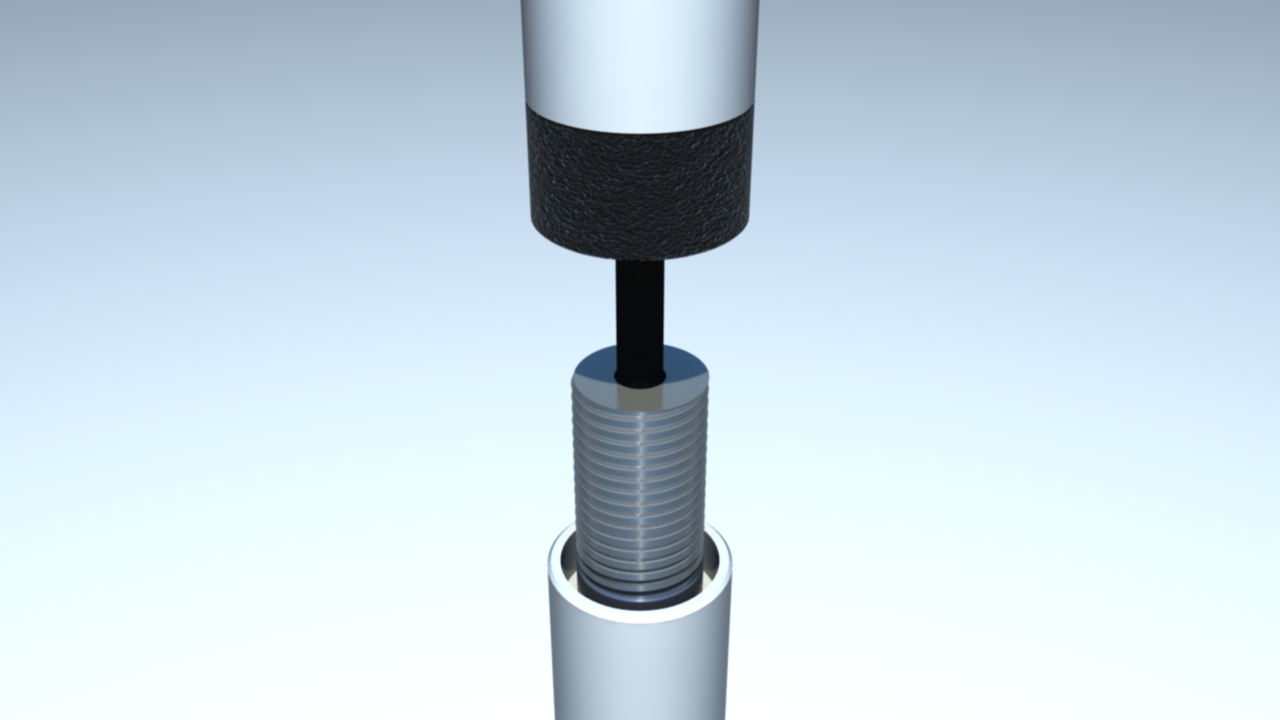

    In "cane mode" this is how the sections stay together. The sections of the cane will thread together, but they are also attached by a short piece of elastic cord. While folding canes aren't normally threaded (basically just a giant pin - tube connection) in order for the sections to stay together in "grappling hook mode" I need a connection a little stronger than a bit of stretchy rope

    DaredevilCaneFemaleLink.jpg DaredevilCaneMaleLink.jpg

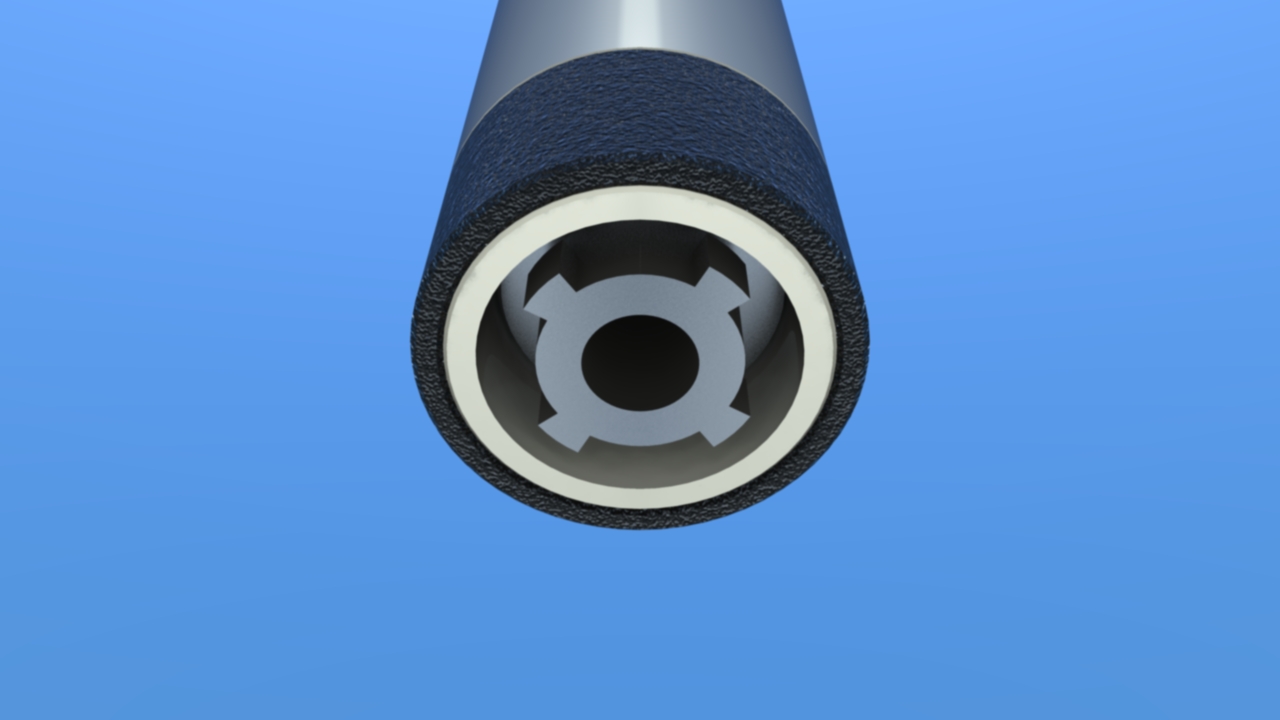

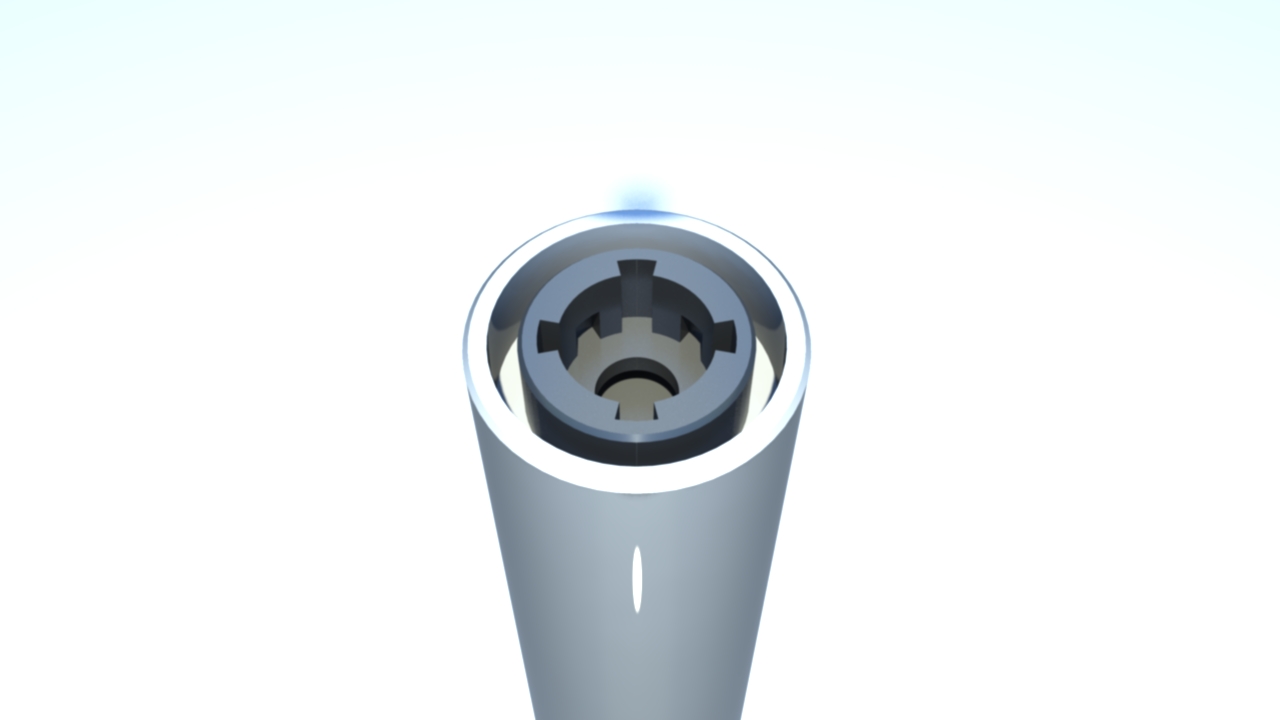

    And finally, the female (left) and male (right) connectors that allow the cane to separate. The female section is made up of the slotted shell, a washer and a compression spring. So when the two billy clubs are joined, the foam ring is compressed, the pieces of tubing and the pin-slot connection slot together, twist and then the spring locks them into place

    Now I'm moving onto the mechanism that will allow the bottom section of the cane to transform into the grappling hook head, which shouldn't be too much of a challenge except for the part where I try to figure out how to fit a self-locking pulley system into a very small space

  3. IAmTheClayman

    IAmTheClayman Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342

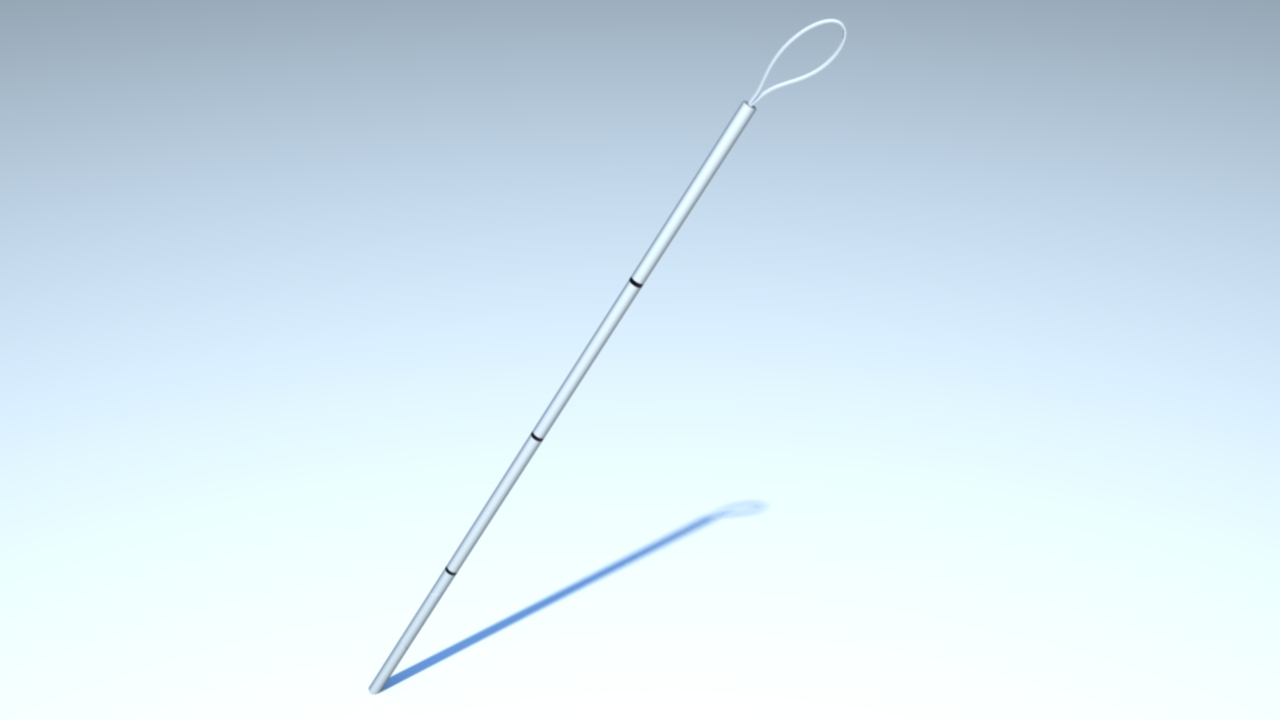

    Took a little more time to work on this tonight. Added the wrist strap and, based on some more review of the panels from the comics, changed the way the grappling hook works. Turns out that the line connects the billy clubs as opposed to being contained entirely within one of the clubs, so that's reflected in these latest renders

    DaredevilCane3.jpg DaredevilCaneGrapplingHook.jpg

  4. ichibans13

    ichibans13 Active Member

    Trophy Points:
    242
    Looks awesome! Looking forward to seeing more!
    My only question is, if it unfolds and snaps into place like the walking canes for the blind and is held together by the internal elastic cord, how can it be separated easily without the cord interfering? Or is that something you're still tackling?

  5. IAmTheClayman

    IAmTheClayman Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342
    Because I'll be using 3 smaller cords as opposed to a single cord which runs the length of the cane. They'll provide less tension force, but since the sections need to screw together for stability anyway it's not too big of a deal

  6. IAmTheClayman

    IAmTheClayman Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342

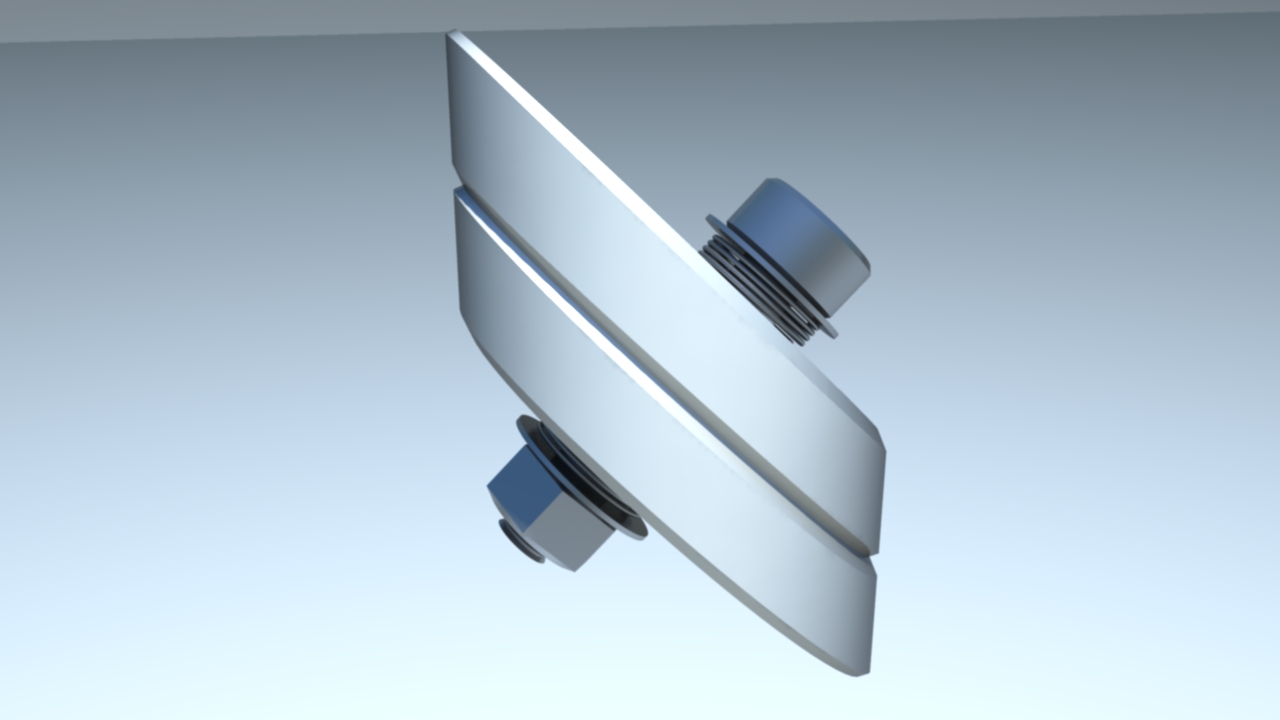

    Test render for the mechanism that allows the grappling hook sections to twist into place. I've gotta thank the guys who replied to my thread on the general modeling forums, particularly Aku as he came up with this solution, which takes inspiration from those old twisting Magic Snake toys. Basically a pivot bolts runs between the faces of each section, with a spring and nut to put pressure on the faces and hold them together. Still need to model the holes the pivot passes through and the pins/slot construction that will restrict rotation to 180 degrees, but I'm happy with how it's looking so far


    And twisted 180:


  7. Hazmat

    Hazmat Well-Known Member

    Trophy Points:
    566
    Really impressive so far, subscribed.

  8. IAmTheClayman

    IAmTheClayman Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342

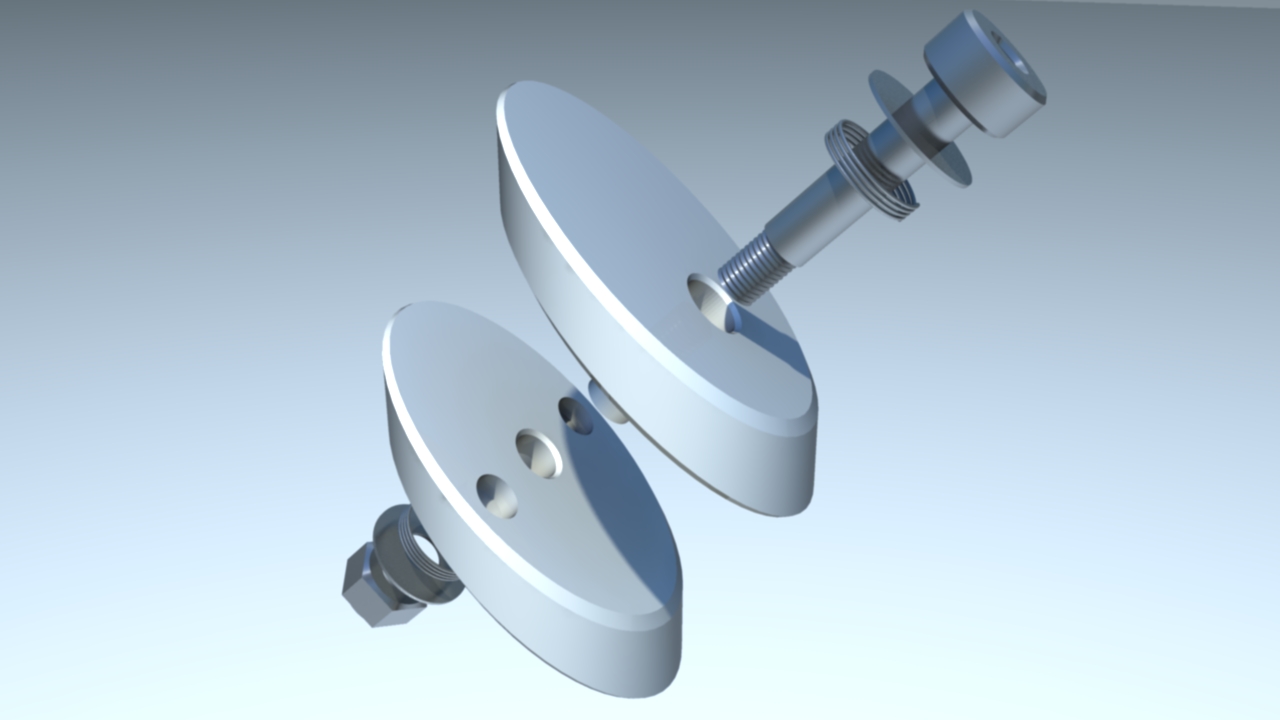

    Haven't had much time to work on this since I'm getting ready to head back to school, but I did finish up the grappling hook's rotation mechanism. No I just need to figure out how to fit 3-5 feet of retractable rope/wire into a .75x10" space
