COG Armor - Gears of War 3 - Foam Build

DRG

Active Member
Been lurking here for awhile and enjoying everyone's else's work, so I figured I'd join in on the fun. I've posted this elsewhere, but figured why not here as well. I've been working on a foam build of the COG armor from Gears of War 3. It was my first attempt at using EVA foam, so I made a few mistakes along the way, but I'm pretty happy with how it turned out and I'm looking forward to using it again.


Instead of focusing on a specific character, I wanted to be an amalgram of some pieces I liked from different armor sets. This sort of fits in the tradition of the game, where they were mixing and matching armor as the war went on. I just decided I'm some COG soldier you was never seen in the game... maybe one of the COG tags found along the way?
I based the chest armor on the standard 'COG Gear/Golden Gear' armor (almost the same as Baird's, but with differences in coloring).


In the beginning I couldn't find the standard anti-fatigue foam where I live, but browsing through the clearance section at Walmart I found a bunch of these on clearance.



They're smaller than the big sheets (about a square foot of usable area on each piece), but I got 6 sets of them for 5 bucks a pack and with 14 sheets per pack it's still a really good deal for EVA foam. But they make the inside of my armor look like this:

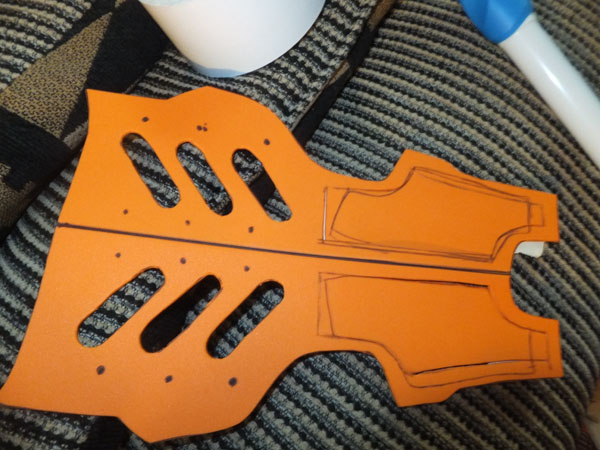

Since I couldn't find a workable 'foam' pep file for what I was doing, I mostly had to design things from scratch but I did use pep files to help build rough paper and posterboard mockups for sizing/scaling purposes.

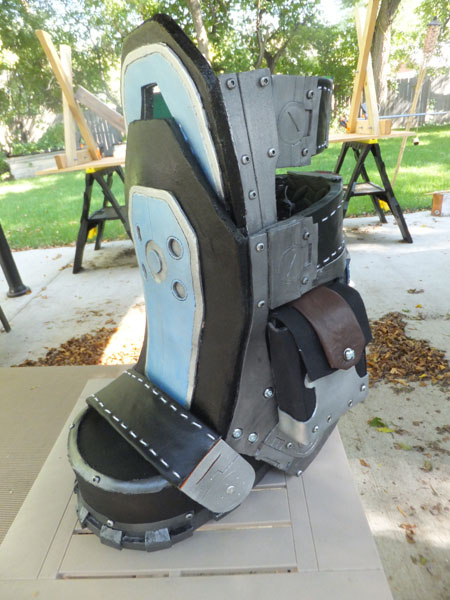

Chest

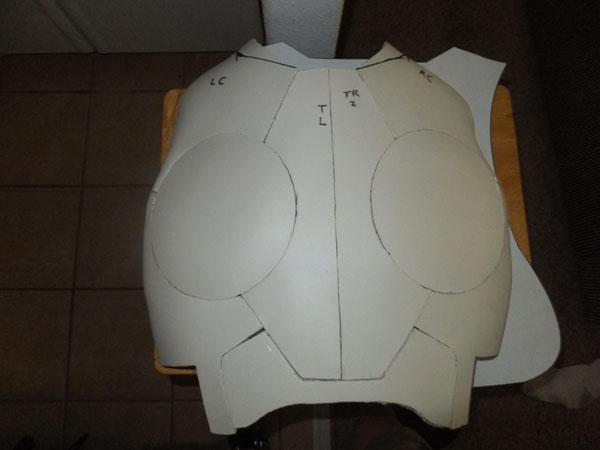

DSCF1006.jpg DSCF1124.jpg DSCF1238.jpg DSCF1523.jpg

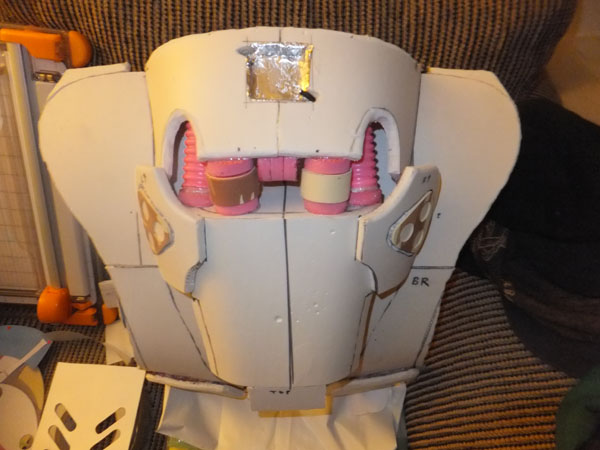

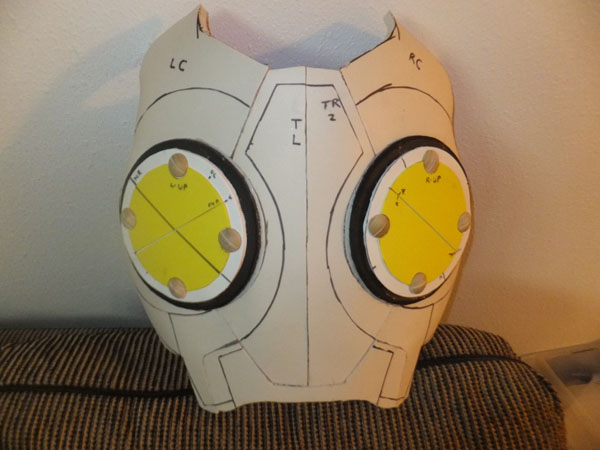

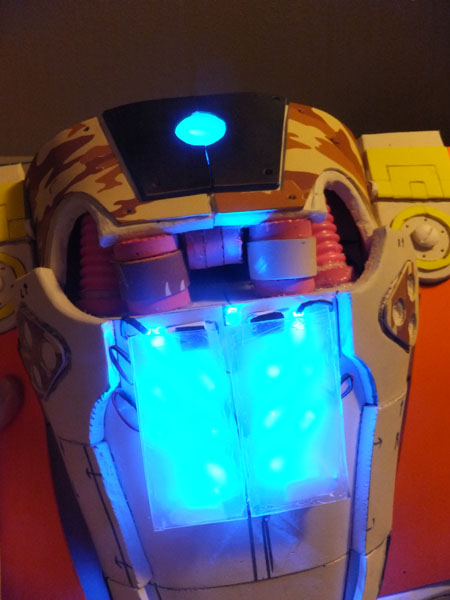

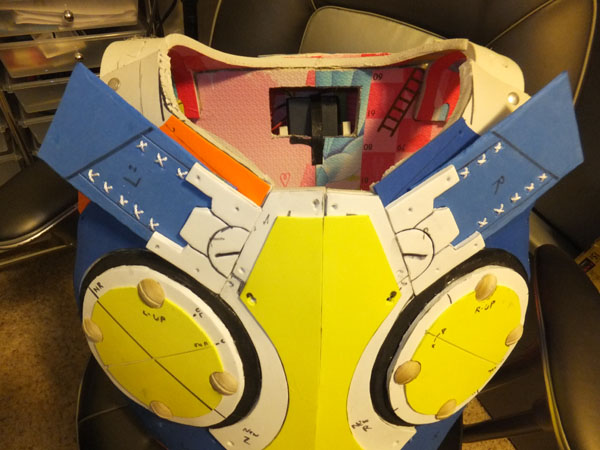

I sort of messed up in leaving enough room for the LEDs in my design. I made it work, but it was tough.
DSCF1533.jpg DSCF1535.jpg DSCF1544.jpg DSCF1557.jpg

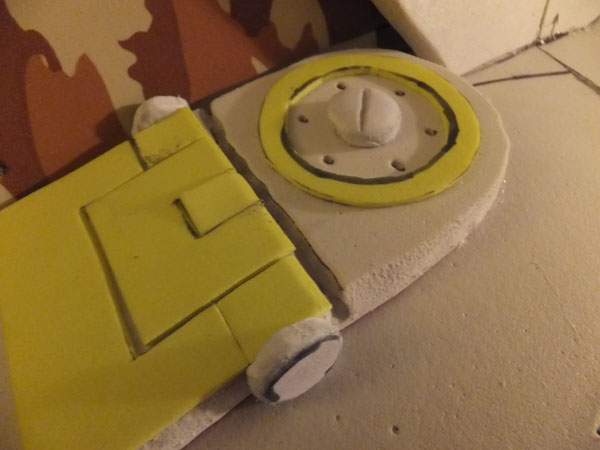

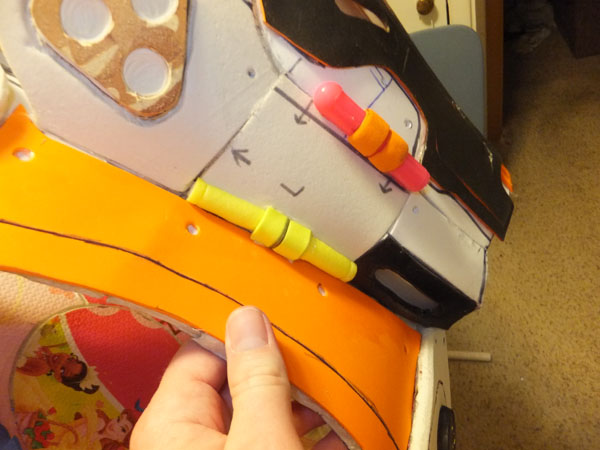

Some party favors and foam darts from the dollar store to recreate some of the hinge details.

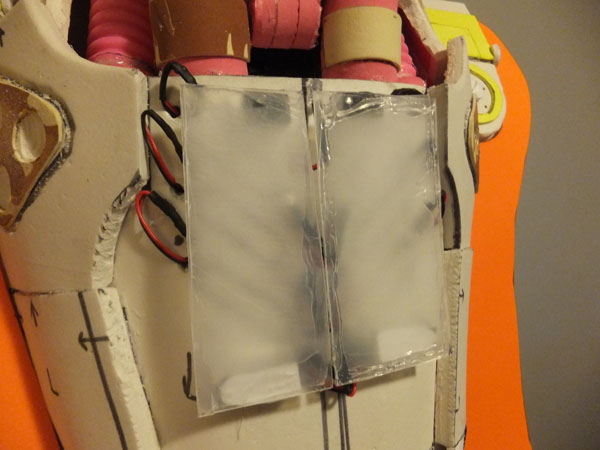

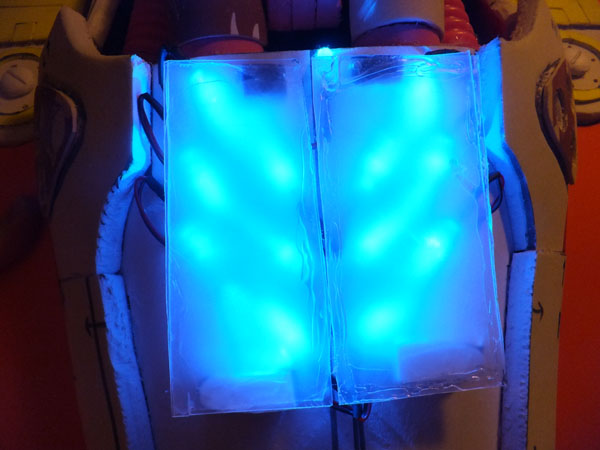

You can see where I stashed the battery holder for the back lighting.

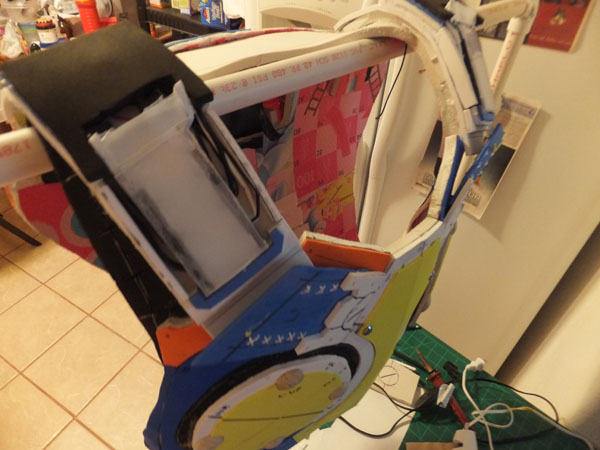

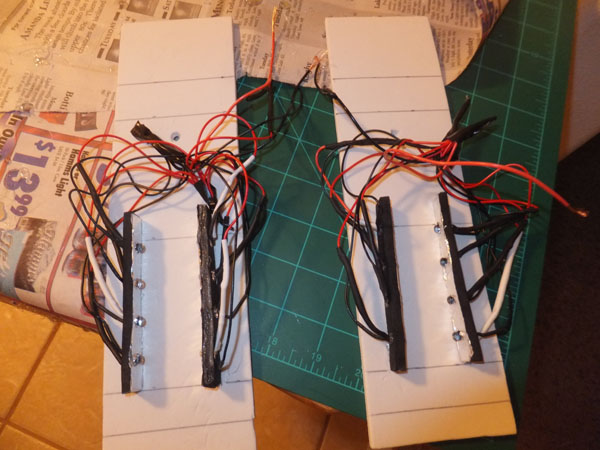

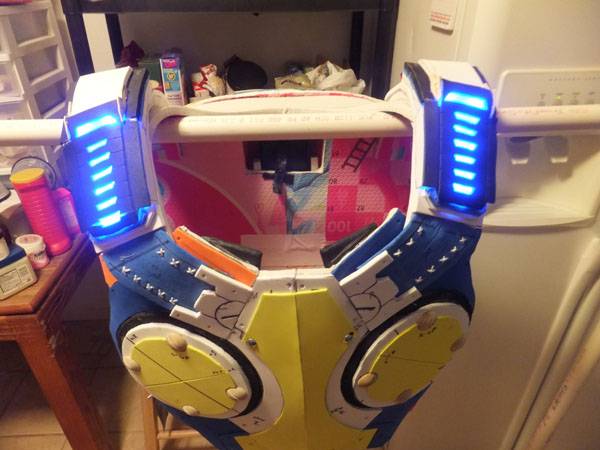

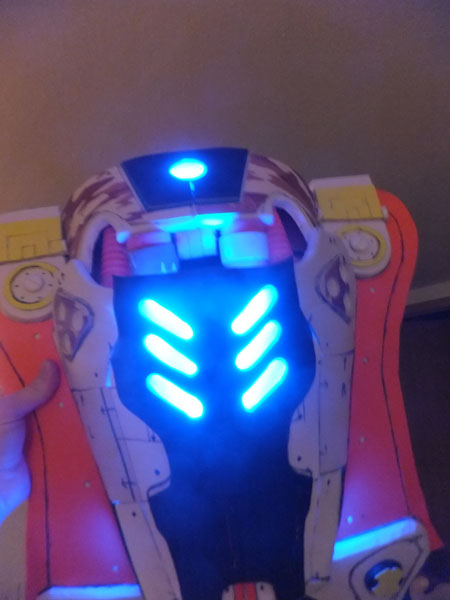

As difficult as the back was to wire, I REALLY had a hard time getting the shoulder lights in place.

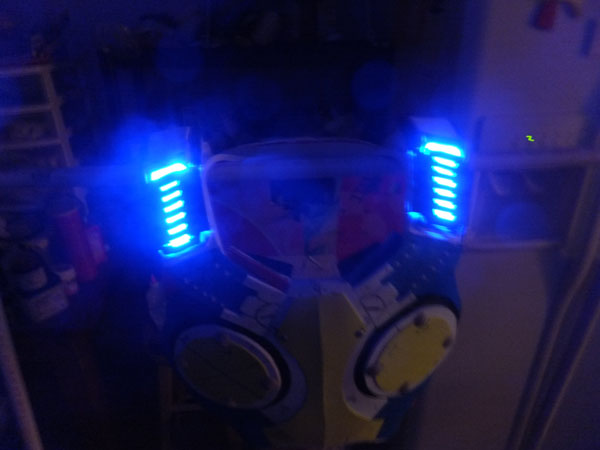

DSCF1662.jpg DSCF1681.jpg

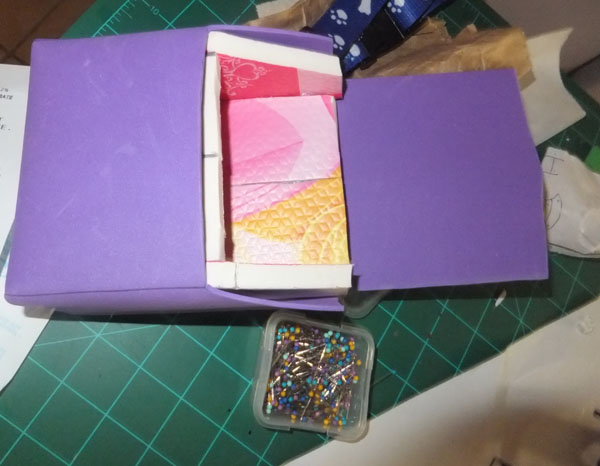

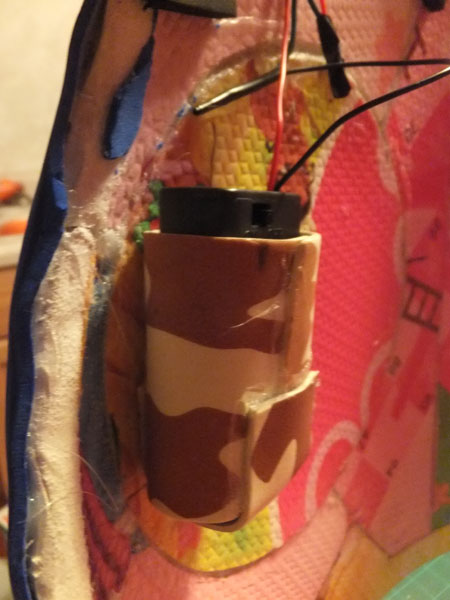

Made some little battery holder pockets inside the suit.


DSCF1698.jpg DSCF1699.jpg


Attachments

  • DSCF1538.jpg
    70.6 KB · Views: 750

DRG

Active Member
Boots

I built my boots around a pair of $10 Wal-Mart EVA clogs. I did the frame-over-shoe thing on a previous Lego costume and it annoyed me having the boots 'float' over my feet.

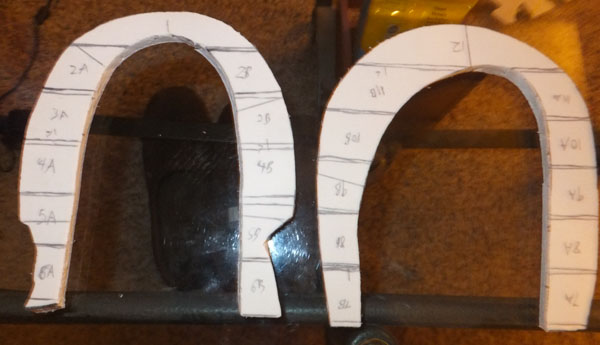

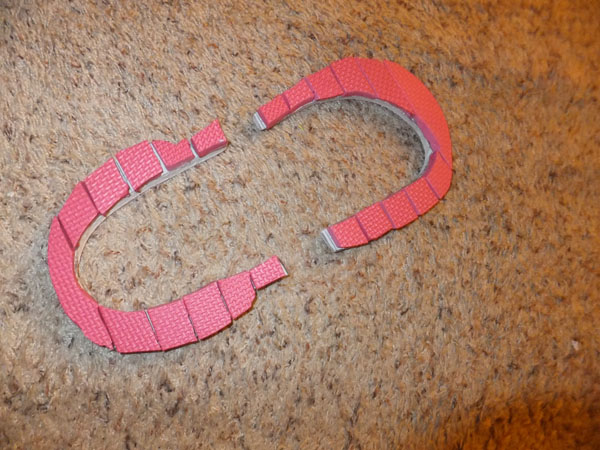

I started by building a 'wraparound' piece.
DSCF1740.JPG DSCF1743.JPG

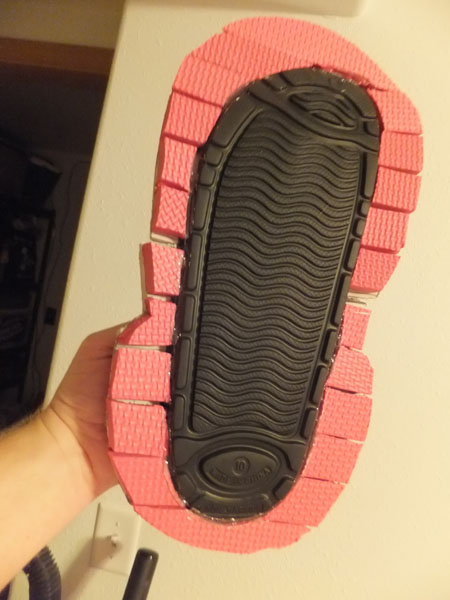

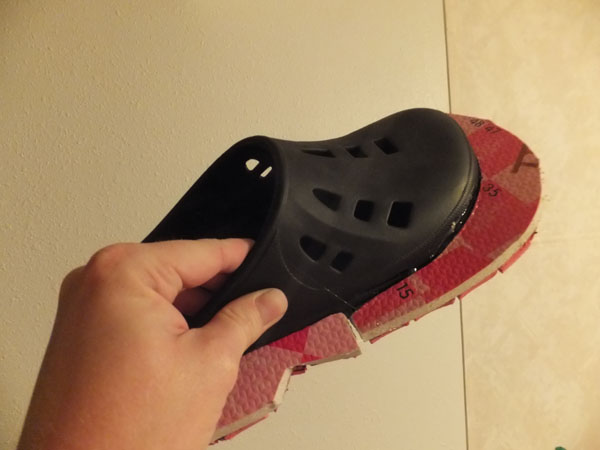

And glued it around the clog.
DSCF1744.JPG DSCF1745.JPG

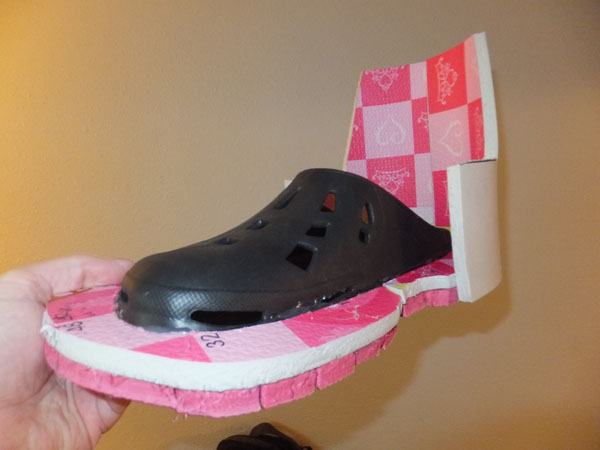

I build the base around this (and also reinforced it inside).
DSCF1751.JPG DSCF1784.JPG

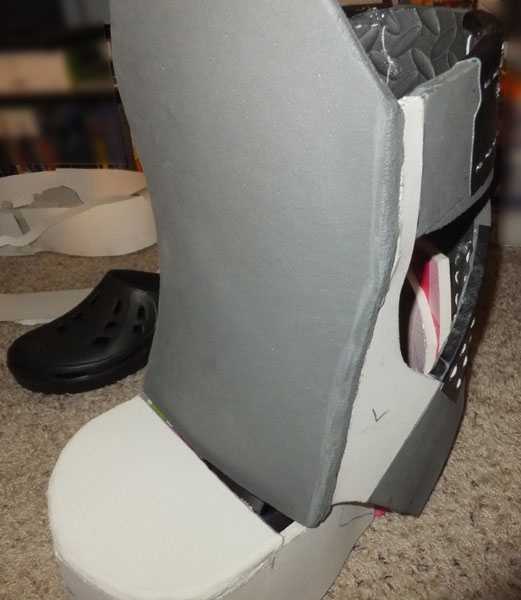

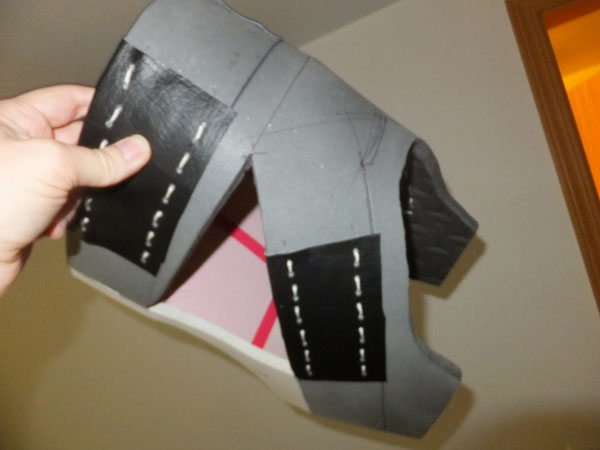

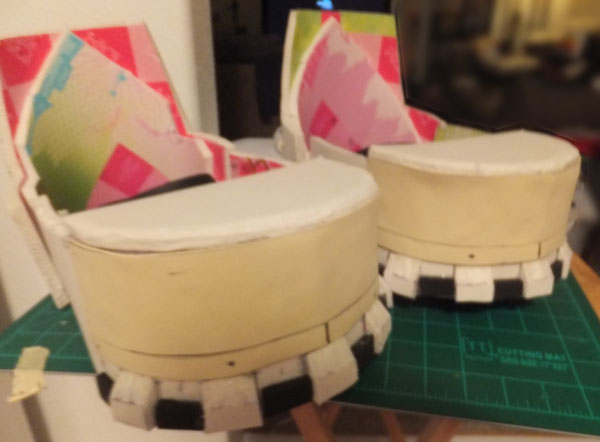

Started the upper boot
DSCF1778.JPG DSCF1783.JPG

For anyone with knowledge of the different COG armor looks, I wanted the Clayton Carmine style boots but in the COG Gear color scheme.

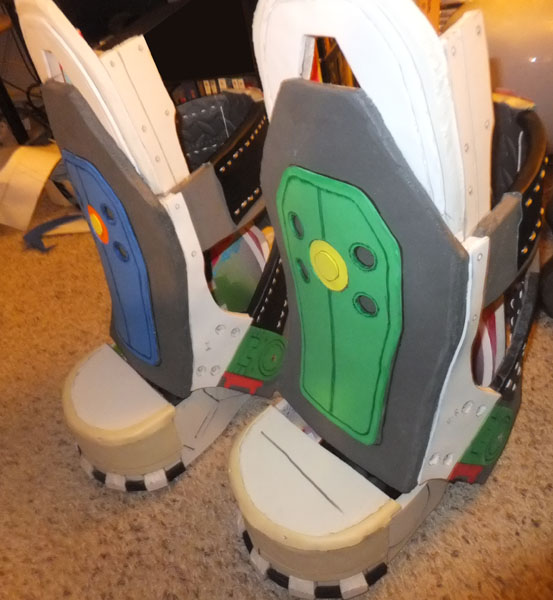

DSCF2111.JPG DSCF2148.JPG

This is close to completion... I added more detail later.


DRG

Active Member
Belt

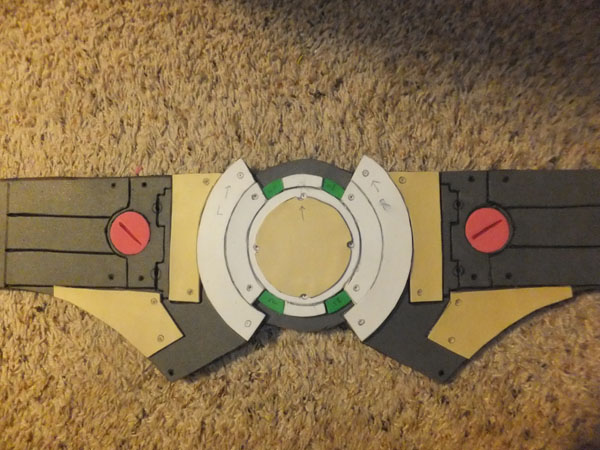

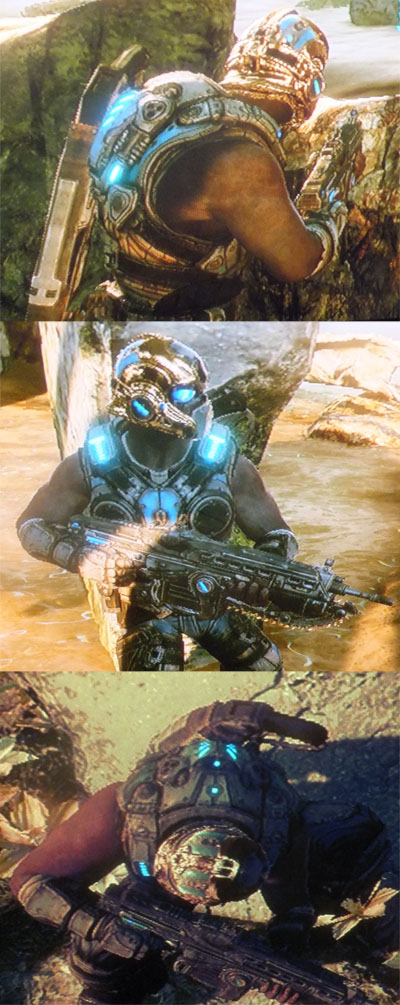

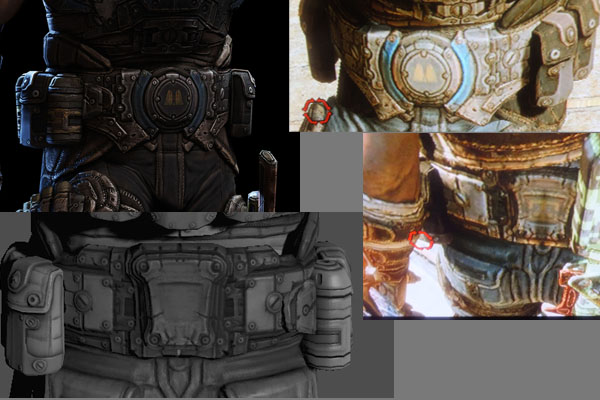

A few reference shots.

I edited this piece a bit, some for practical reasons, others for time. I lost a pouch from each side... my waist just isn't as big as these guys. After a few tests I also decided to drop the hip pad things. Also, my pouches are missing a few adornments.

The front:

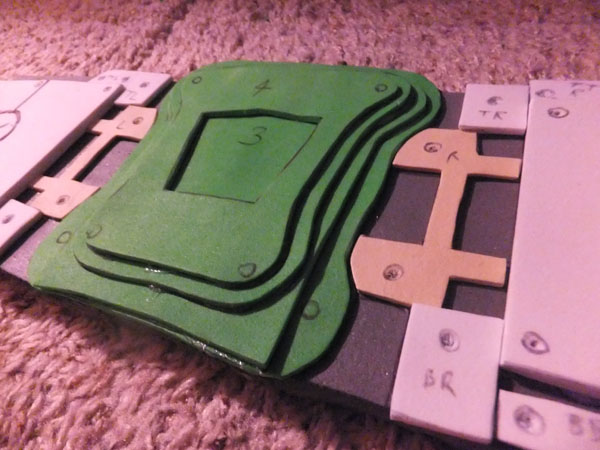

Back plate closeup:

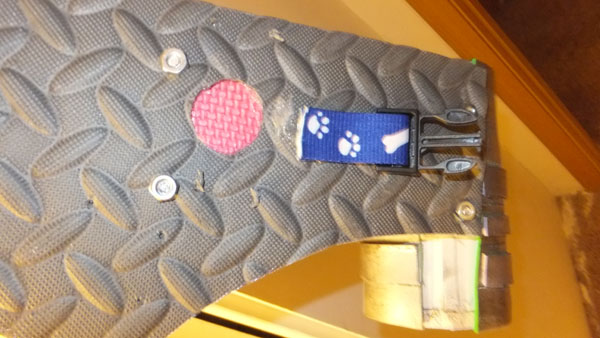

It connects together with a clip from a dollar store dog collar.

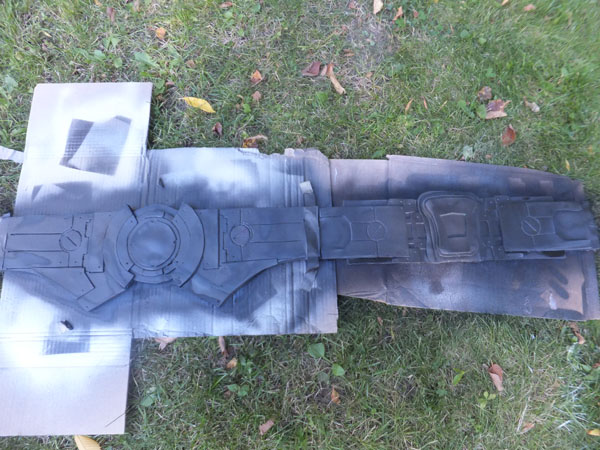

Basic belt plastidipped. I added all the pouches and other attachments later.

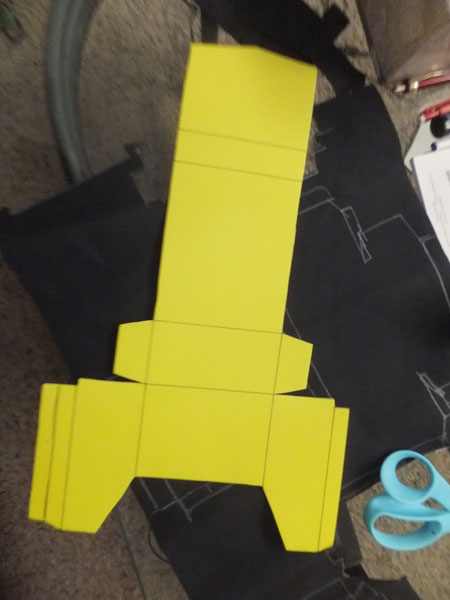

For the pouches, I did them a bit differently than I did the boot bags since I wanted these to be functional. I started with a thinner piece of craft foam (still strong enough to hold items). I wanted a final product that's somewhat 'flexible' with a canvas ammo bag might be, plus if I went with the thick stuff I would have have to make the pouches twice as big to account for the extra internal depth.


I created a 'form' (the white/pink piece) out of thicker foam and build around this with thinner foam for each pouch. This helped in hot gluing the thing together and retaining the shape. Once I had the shape I pulled the form out.

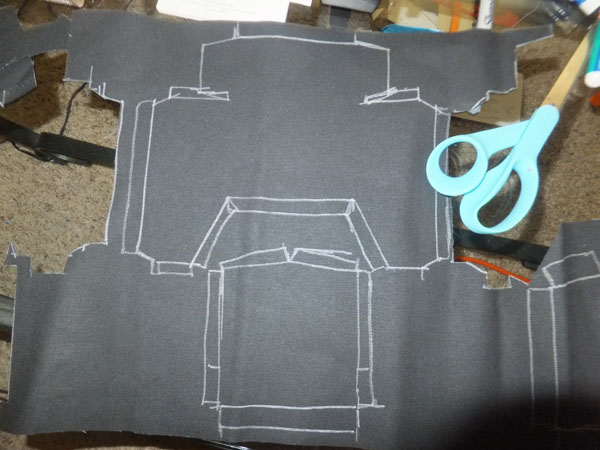

Using duck cloth to cover.

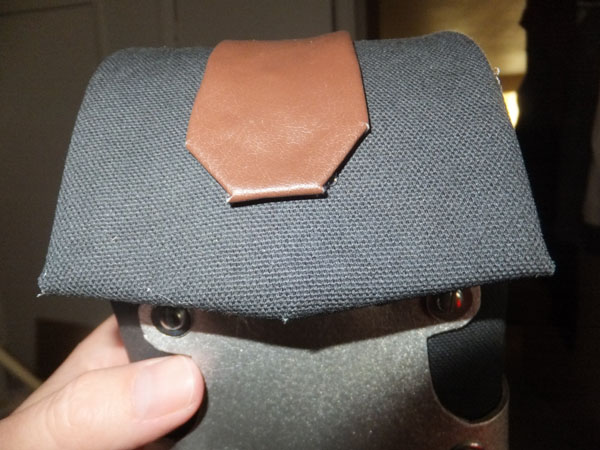

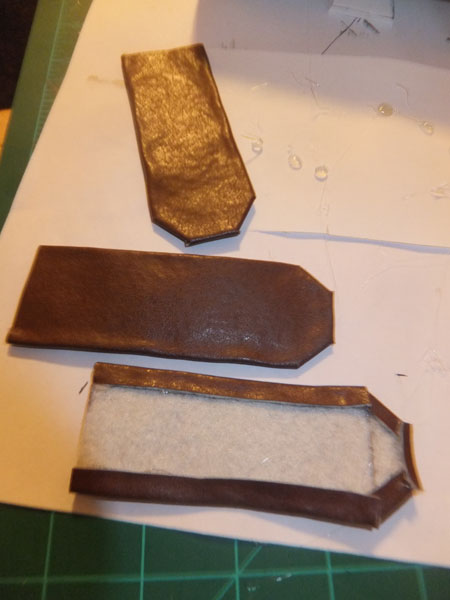

'Leather' straps.

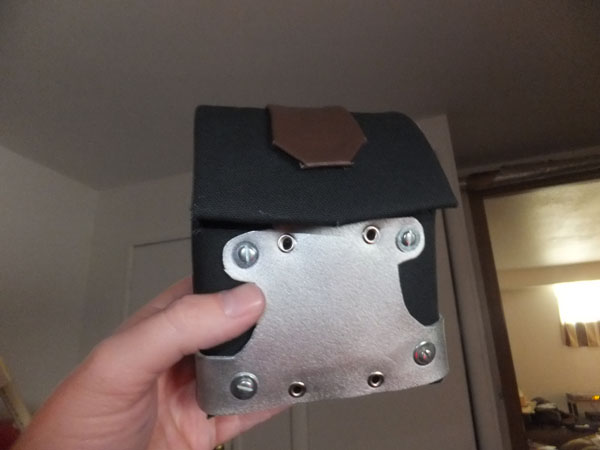

DSCF2227.JPG DSCF2228.JPG DSCF2230.JPG

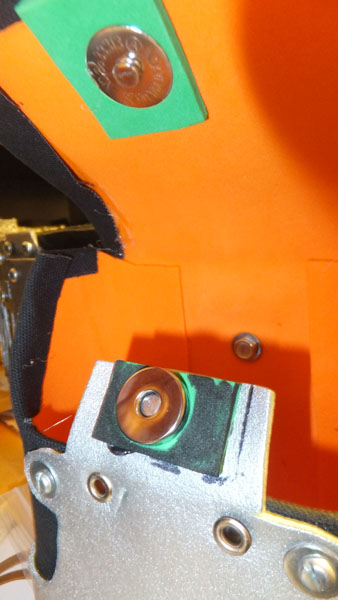

The pouches all seal with some magnetic clasp things that are for purses.

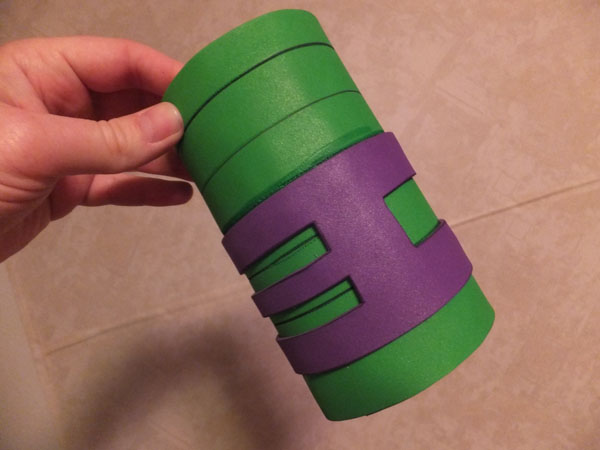

The belt in-game has this canister sort of thing on one side. I think it's the grenade. Since I'm wearing this to a party I wanted to repurpose this as a beer bottle holder/koozy. I added a removable topper so it would look more screen-accurate for pics as well, but it popped off in half the pics. Oh well.

DSCF2231.JPG DSCF2242.JPG

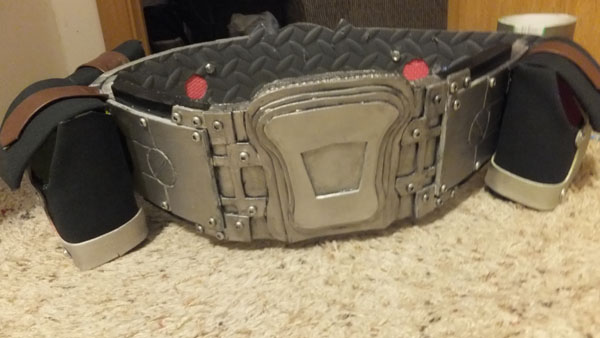

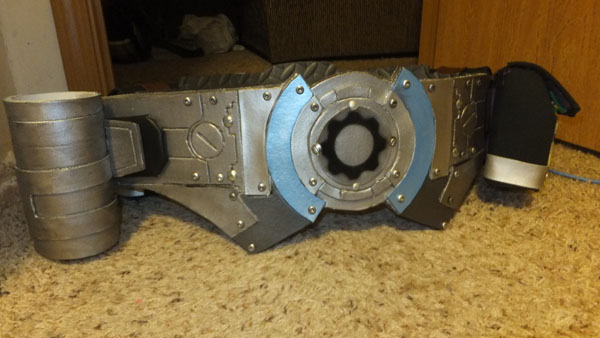

Finished* belt from the front: (* Minus the canister top)


Belt from the back:

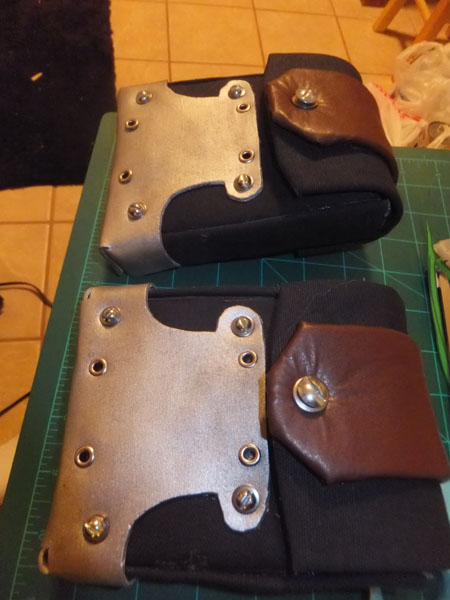

Bracers

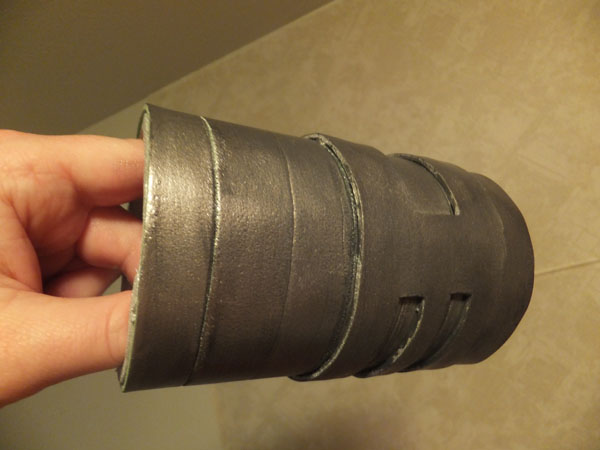

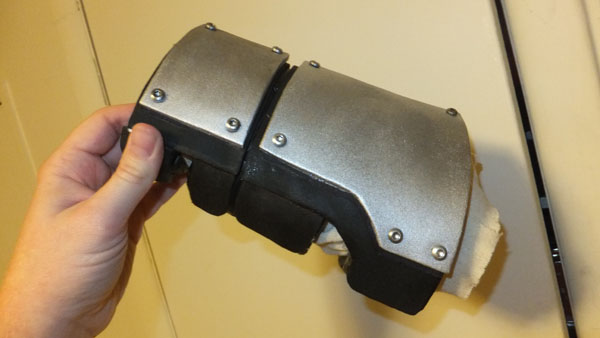

Here's one of the arm bracers. Technically, the bracers I'm referencing don't have rivets in them, but they just looked really strange when I did it without them.



DRG

Active Member
Lancer

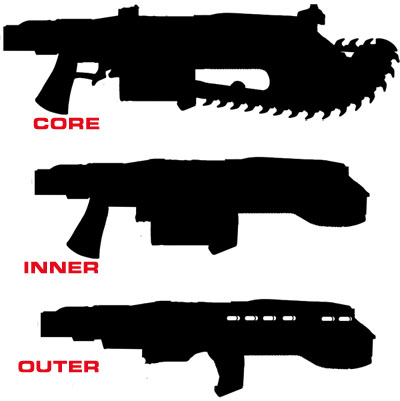

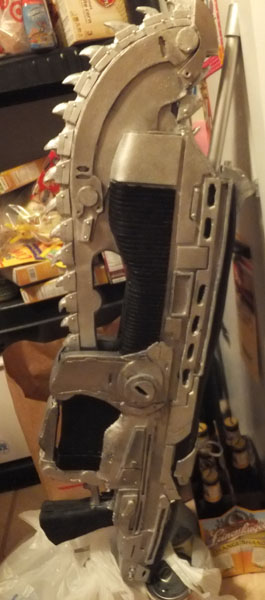

I decided I wanted to build a Lancer from scratch out of foam. I basically started with a side view lineart drawing of the gun. I decided it needed to be 5 layers deep of the standard thickness floor mat foam (which I finally found) since the princess mats are only 11"x11" or so and I wanted the outside pieces to be continuous with no obvious seam. In Photoshop I duplicated this layer 3 times, shown here:


Basically the plan was to sandwich 5 layers together, with a single 'core' layer in the center, an 'inner' layer on either side of that, and the 'outer' layers outside those.

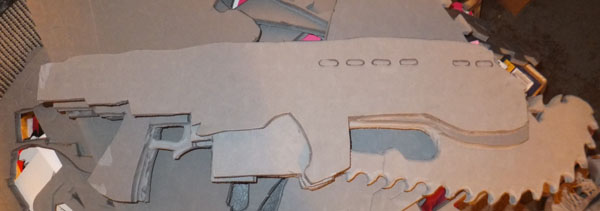

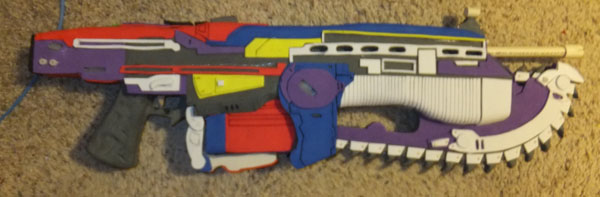

Here is the raw result, not yet glued together.

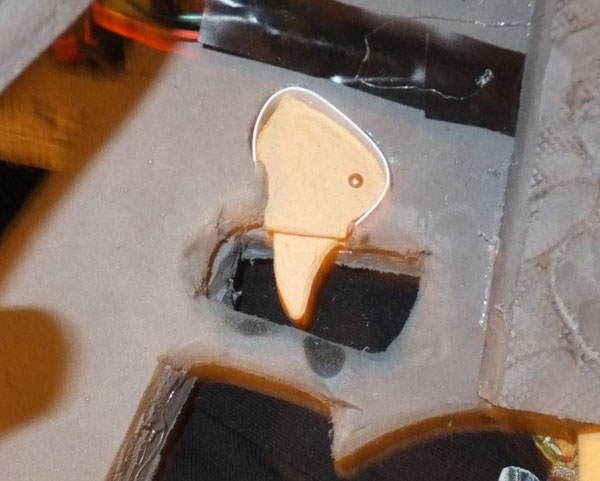

Here is my trigger in place. It doesn't do anything, but it is spring loaded and fun.

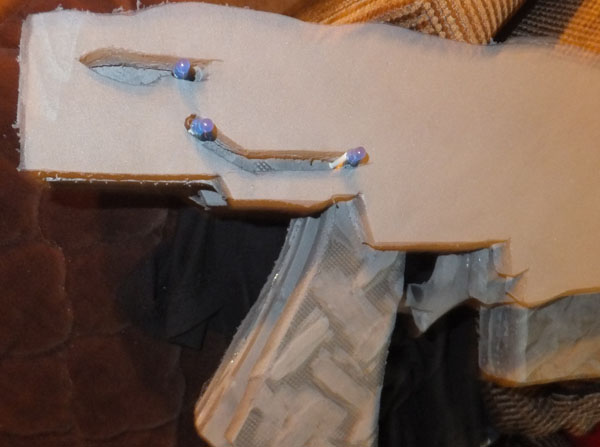

Here are lights in place. Sadly I have no pics of the mess of wire canals inside this thing, probably because it was just a pain to stuff them all in in first place that once I got the thing closed I glued it all shut.

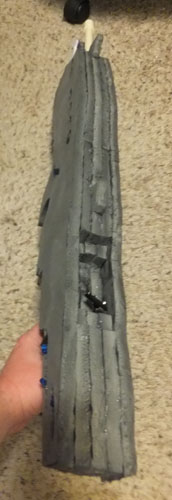

All together, here's the top view to see the layers.

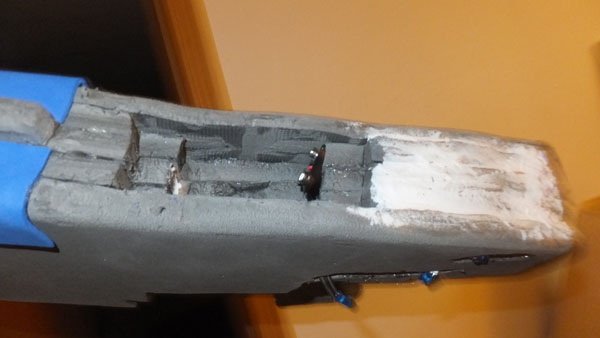

A shot of the battery compartment. Finished shots later. Also, I had to use some foam putty filler to smooth out the top, since somewhere in the pattern cutting-tracing-foam cutting process the pieces were slightly misaligned. This made my cover pieces lumpy so I tore them off and had to smooth the surface down.

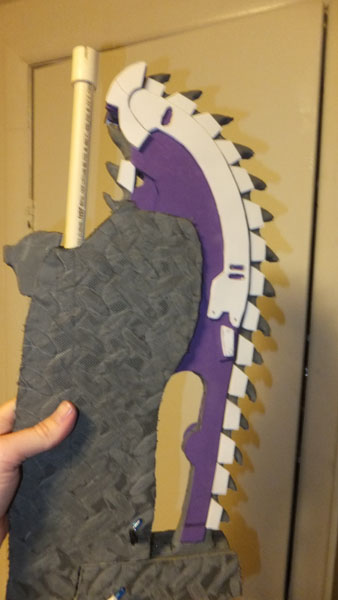

Started detailing the chainsaw part.


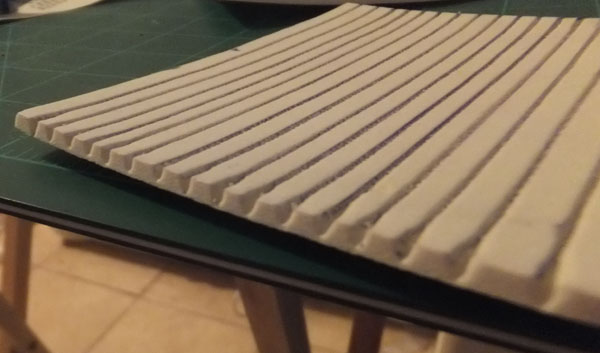

Fine detail of the forend cover.


I added the clip holder bar thing after the fact.

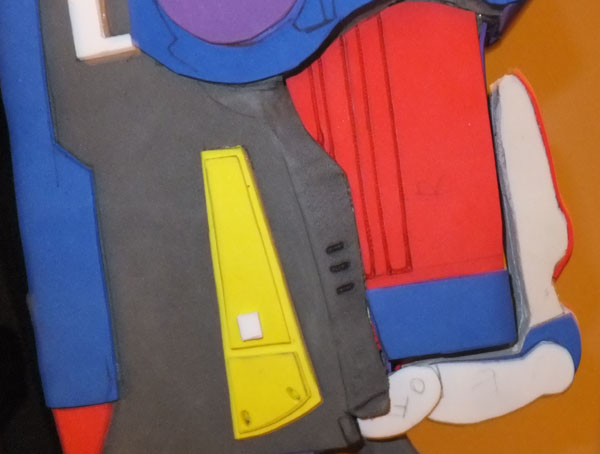

With most of the detail layers applied, various heights of foam plus a few other things here and there. Light covers are off at this point because I was smart this time and plastidipped/spray painted those pieces separately to glue them on later, allowing me to paint them fully without masking issues.


Plastidip time!
DSCF2892.JPG ]

After a basic silver and black paint.

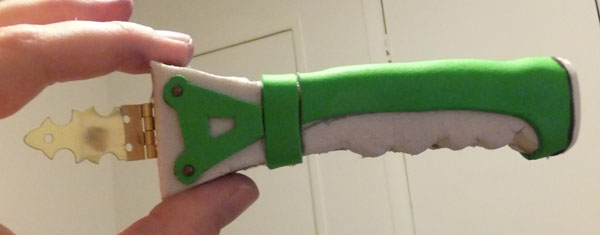

The side handle they use to hold the saw in 'chainsaw position'. I used a cheap little hinge because this was sort of an 'if I have time' add-on for me. It's probably the flimsiest part of the gun when opened, but I figured I'll only extend it out a few times for pics. I put little magnets in place to hold it against the gun when not in use.

DSCF2924.JPG DSCF2948.JPG

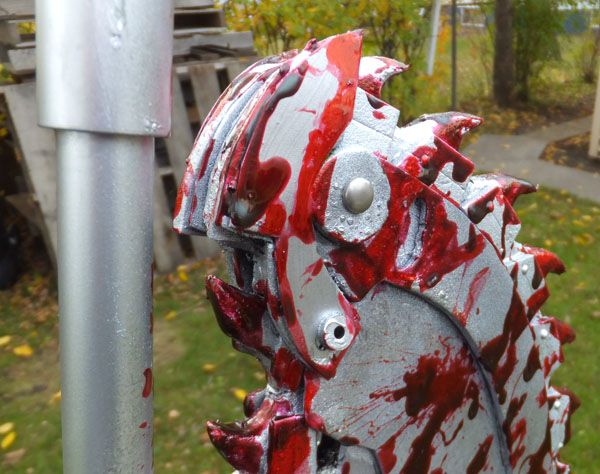

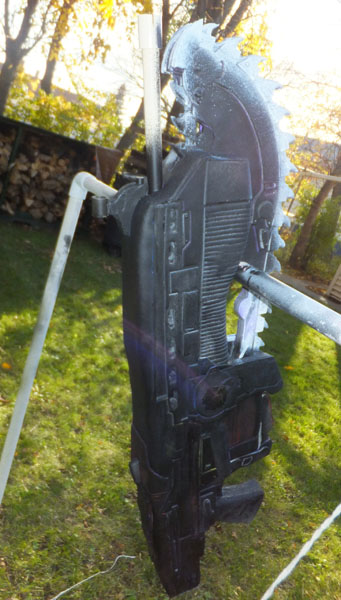

Now I wanted this bloody. I some prefer them 'clean' and I thought this over. But for me, it's a chainsaw and this is for Halloween, right? Plus I figured it would hide a few imperfections in my saw blades.

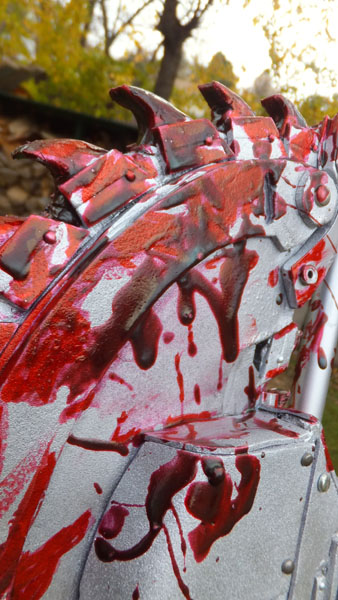

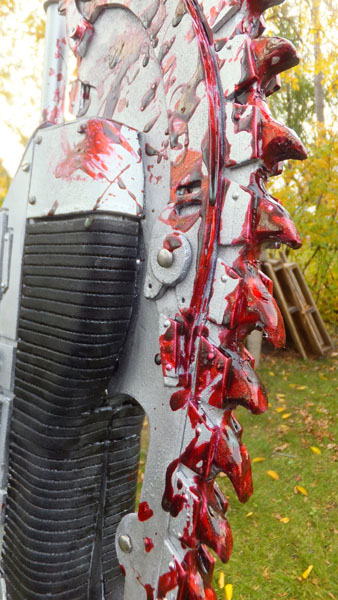

The problem I have with many blood aplications (including the official replica) is that it looks like red paint. I wanted this to have that sort of translucent, shimmery wet gory look. I also wanted it to be permanent and not something that would smear off or be sticky (like corn syrup blood). What I ended up doing was mixing Mod Podge with red food coloring and slathered it on the blades. I also spritzed some store-bought fake blood (the kind that dries nicely) on there to add a bit of a spatter effect. The Mod Podge dried perfectly into a nice shimmery shell, although I had to go over a few spots with a red magic marker because it dried a bit 'pinkish' here and there.

DSCF2937.JPG DSCF2939.JPG DSCF2942.JPG DSCF2946.JPG

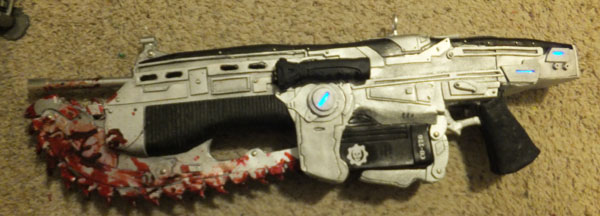

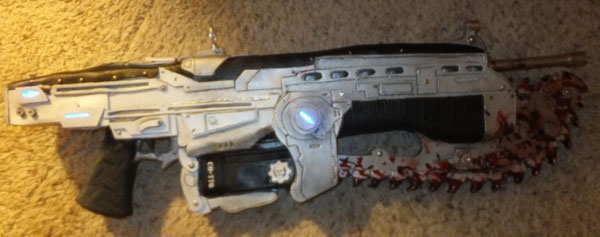

Completed shots, with lights on.

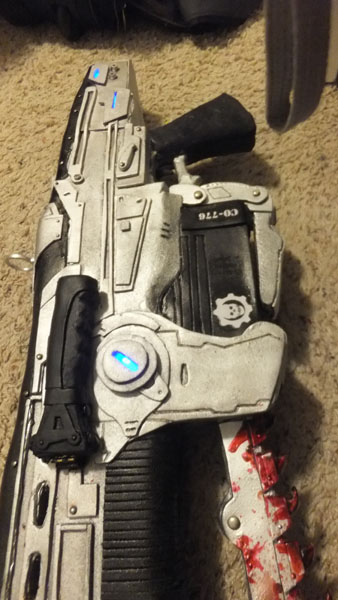

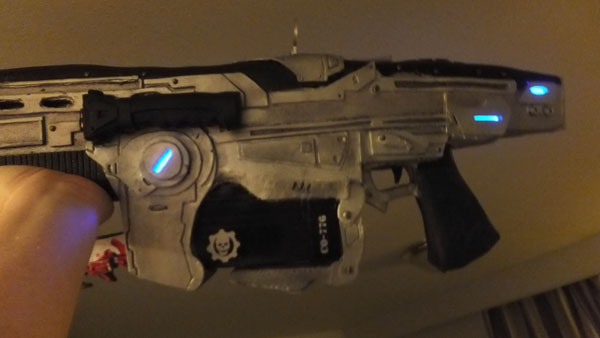

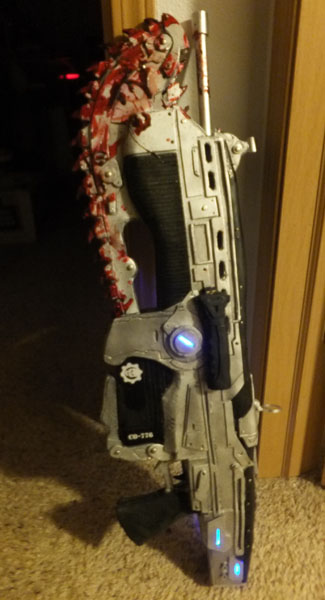

DSCF2970.JPG DSCF2976.JPG DSCF2977.JPG DSCF2978.JPG DSCF2981.JPG

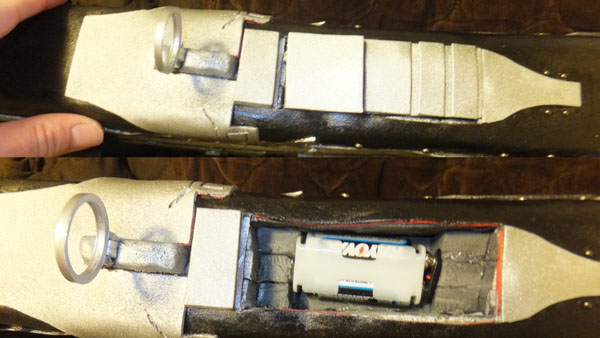

And the finished battery compartment.



DRG

Active Member
Finished pics in costume

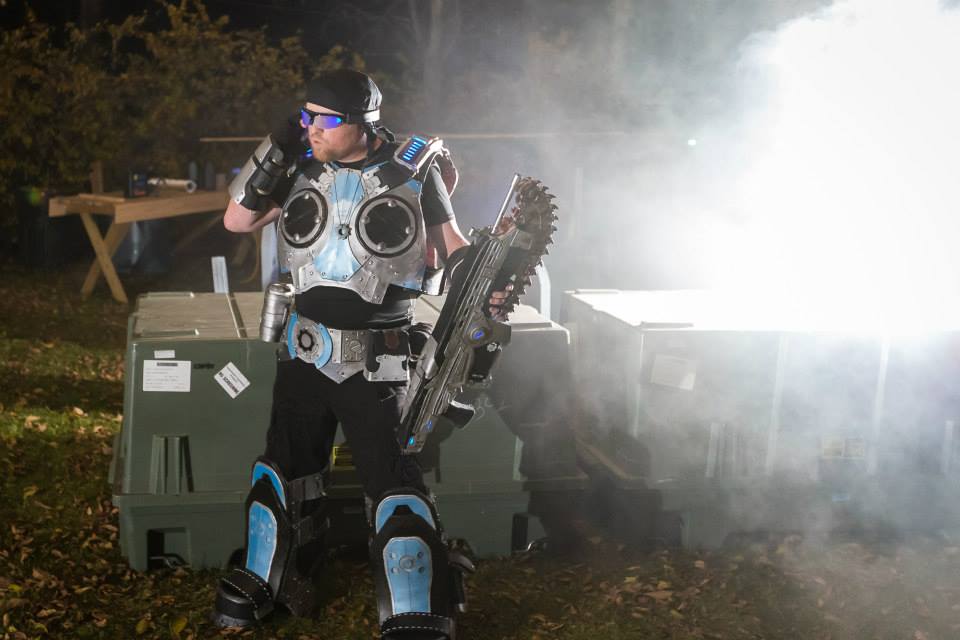

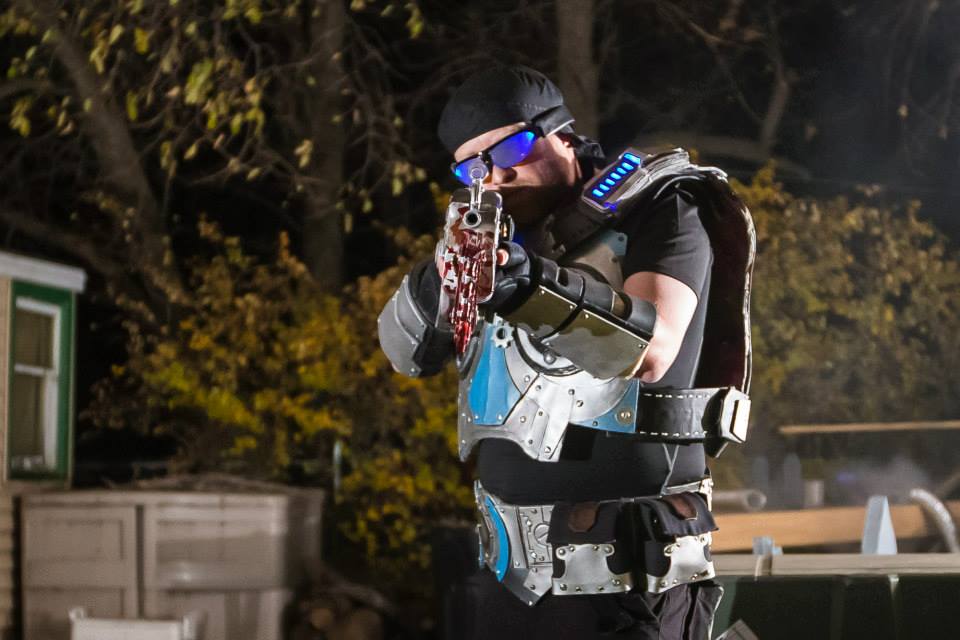

579068_10151684125775754_75518925_n.jpg 996662_10151684125680754_652678552_n.jpg 1381323_10151684125630754_338765121_n.jpg 1385103_10151684125315754_1641028123_n.jpg 564512_10151684125575754_1969240509_n.jpg

The goggles are a pair of GloSpex modded to fit prescription lens inside. I detached the GloSpex power/control box from the GloSpex arms and replaced the arms with a 'leather' strap. The look I was going for was something in between Baird's goggles and Griffin's shades.


DRG

Active Member
Ha, yeah I agree. I was going to cover it up but I just thought it added something to the whole endeavor. :)
