Now that Series 3 has started shipping out, it's time for the Series 4 to roll out. I was originally planning on adding the Darth Maul in this series but i'm probably not going to be able to afford it. So the Maul will come right after these 2.
So most of the development has been documented in this thread: LINK

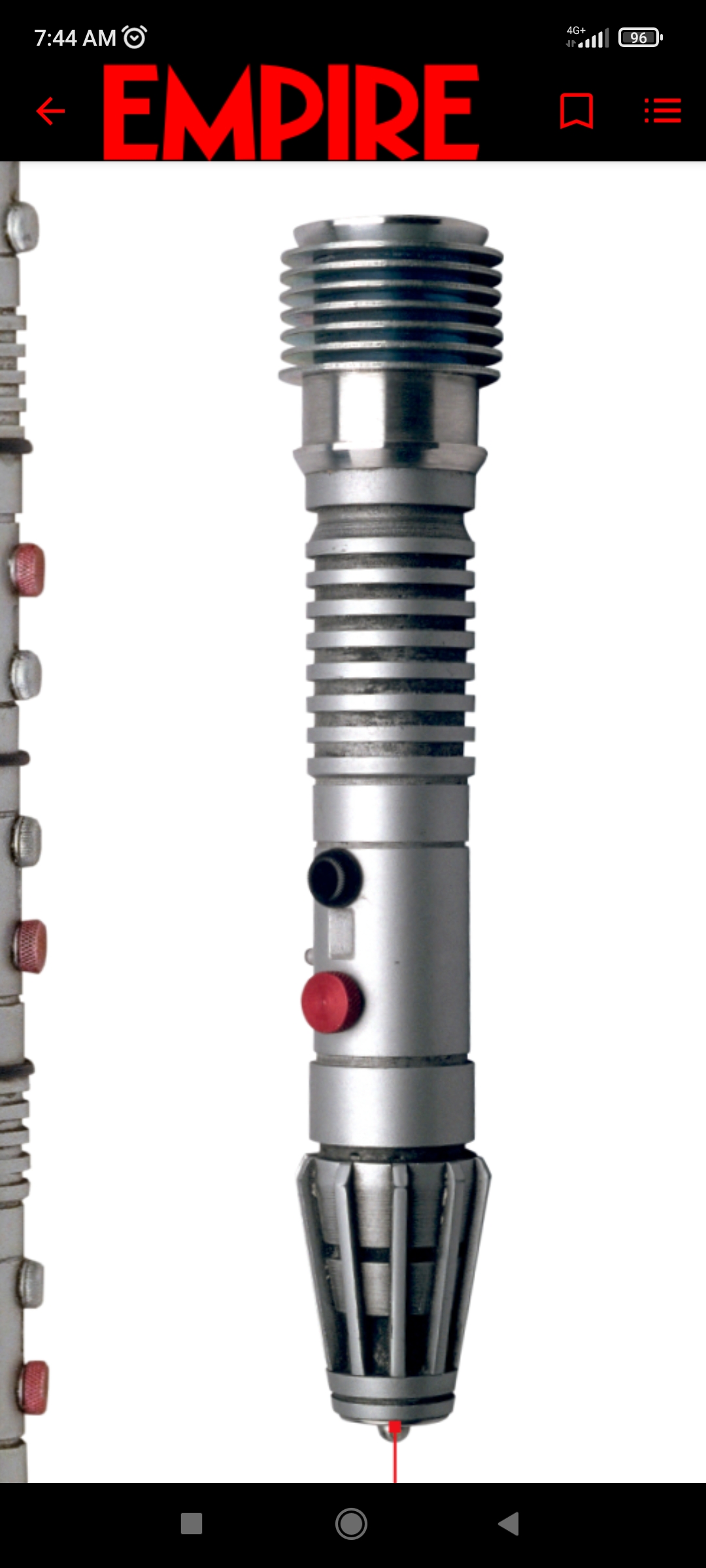

Reference images used:

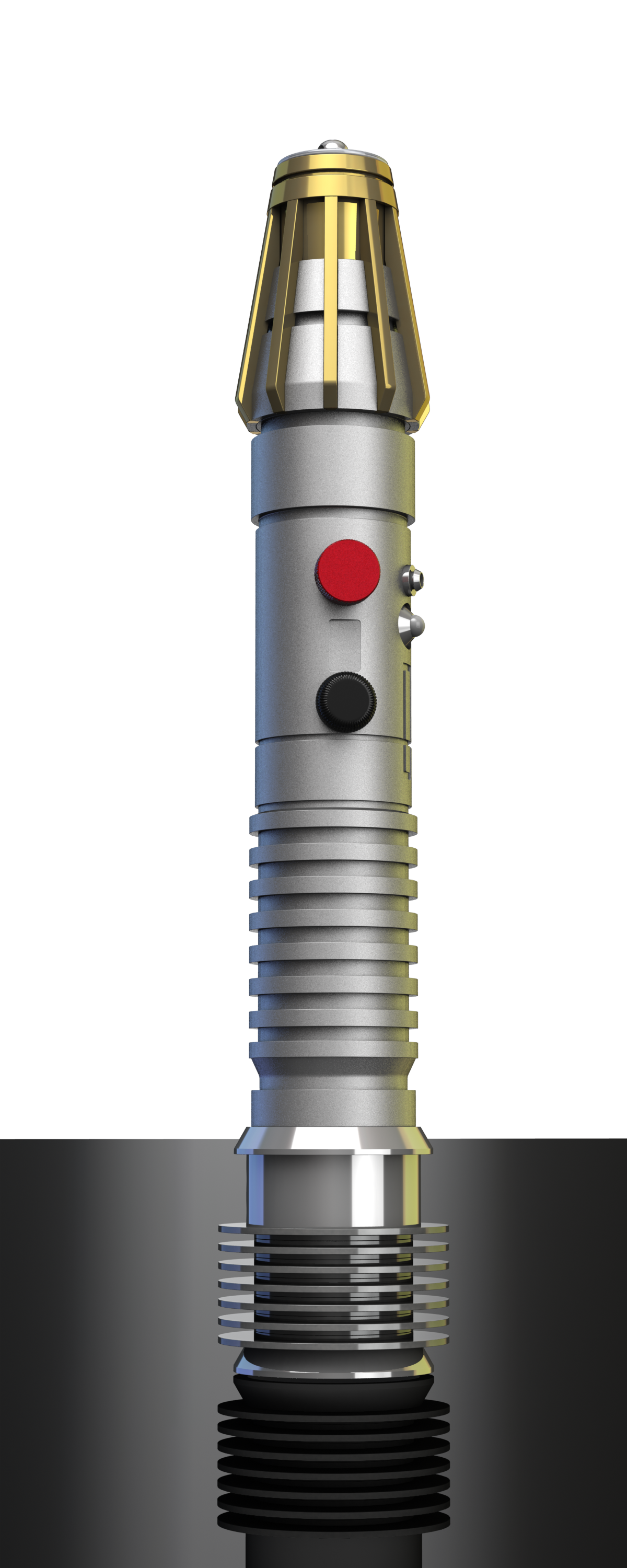

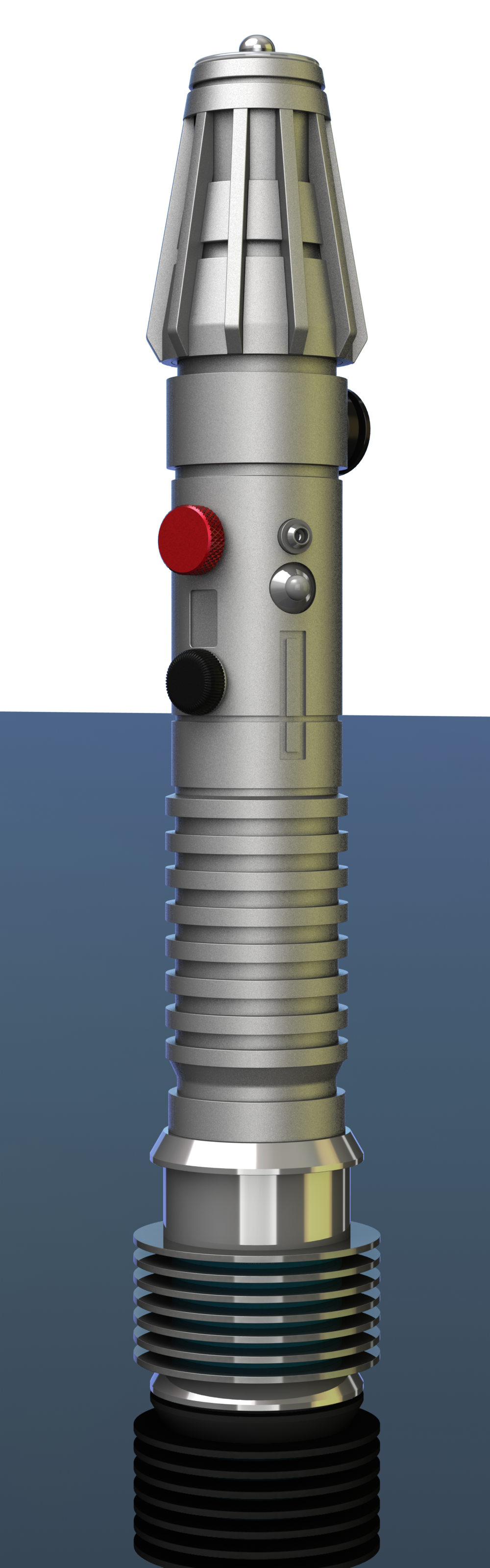

Here are the latest models used for the prototypes. The prototypes have been ordered and will be here early December.
The key features besides the compatibility of sections with the previous clan series are the following:
1. Aluminum and Brass parts. Overall length 276mm

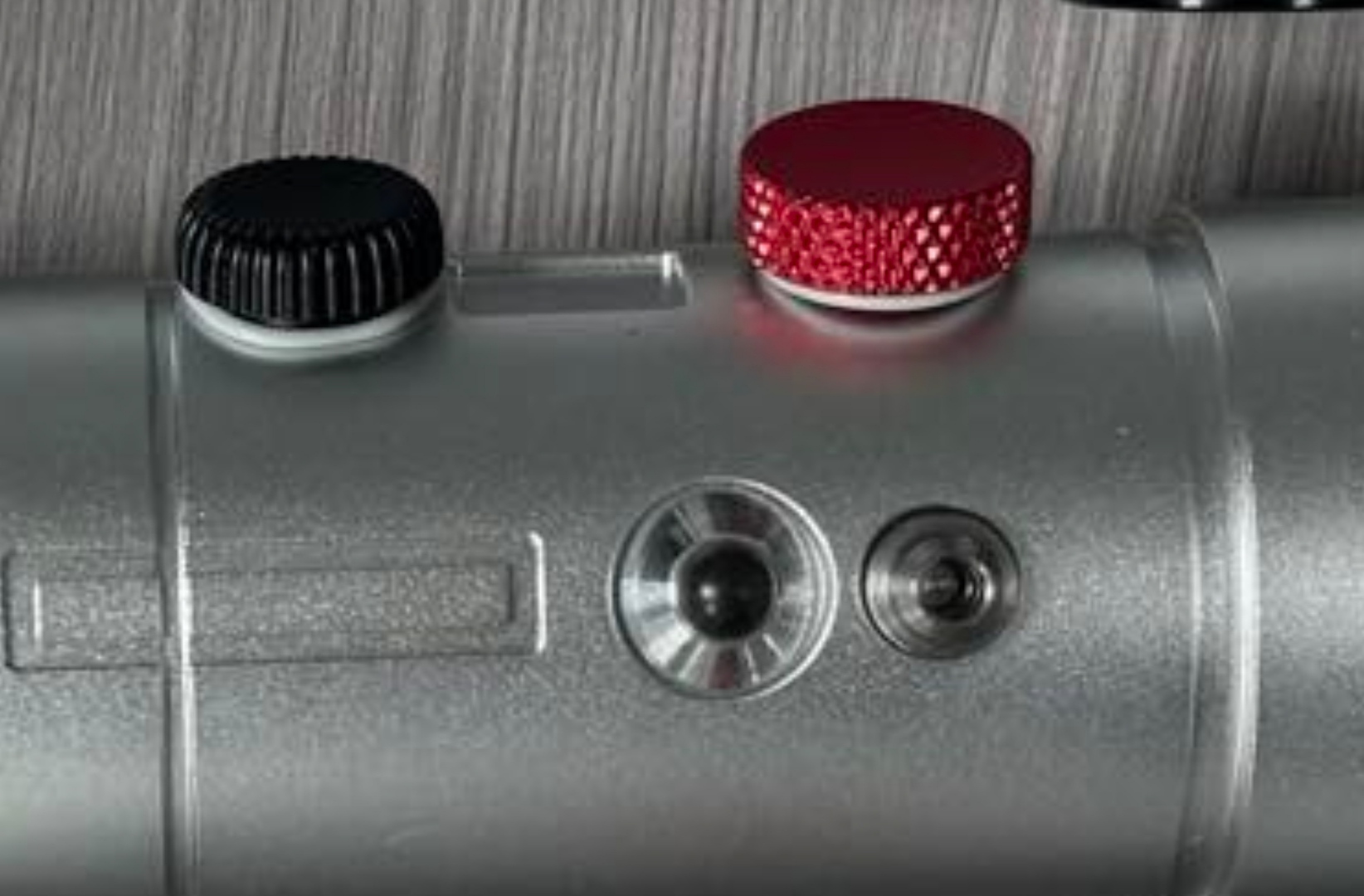

2. 2 button setup. The buttons are the beveled LED and the small valve style greebly.
3. All knobs and beveled LEDs have the same threading meaning you can swap them if you want.
4. Can fit a 28mm speaker
5. Basic chassis design available for download
6. 2Switch + 2pixel PCB available for purchase (for ease of install). This is the same or similar than the one available for the Fisto hilts
7. Box is included. Artwork by Christian Cruz as always.
8. Installation options will be added later. As per my previous projects this will be done by Giovanny from Aldani Customs
9. Weathering option will be available
At the moment I have quoted 50 units in total of each; this can change based on the demand. However 50 minimum will be made to keep the cost low. On the Plo Koon, there will be 2 options, the canon version which has media blasted and polished sections & a fully polished one for DIY weathering or custom finishing.
Final Cost: $275
Schedule

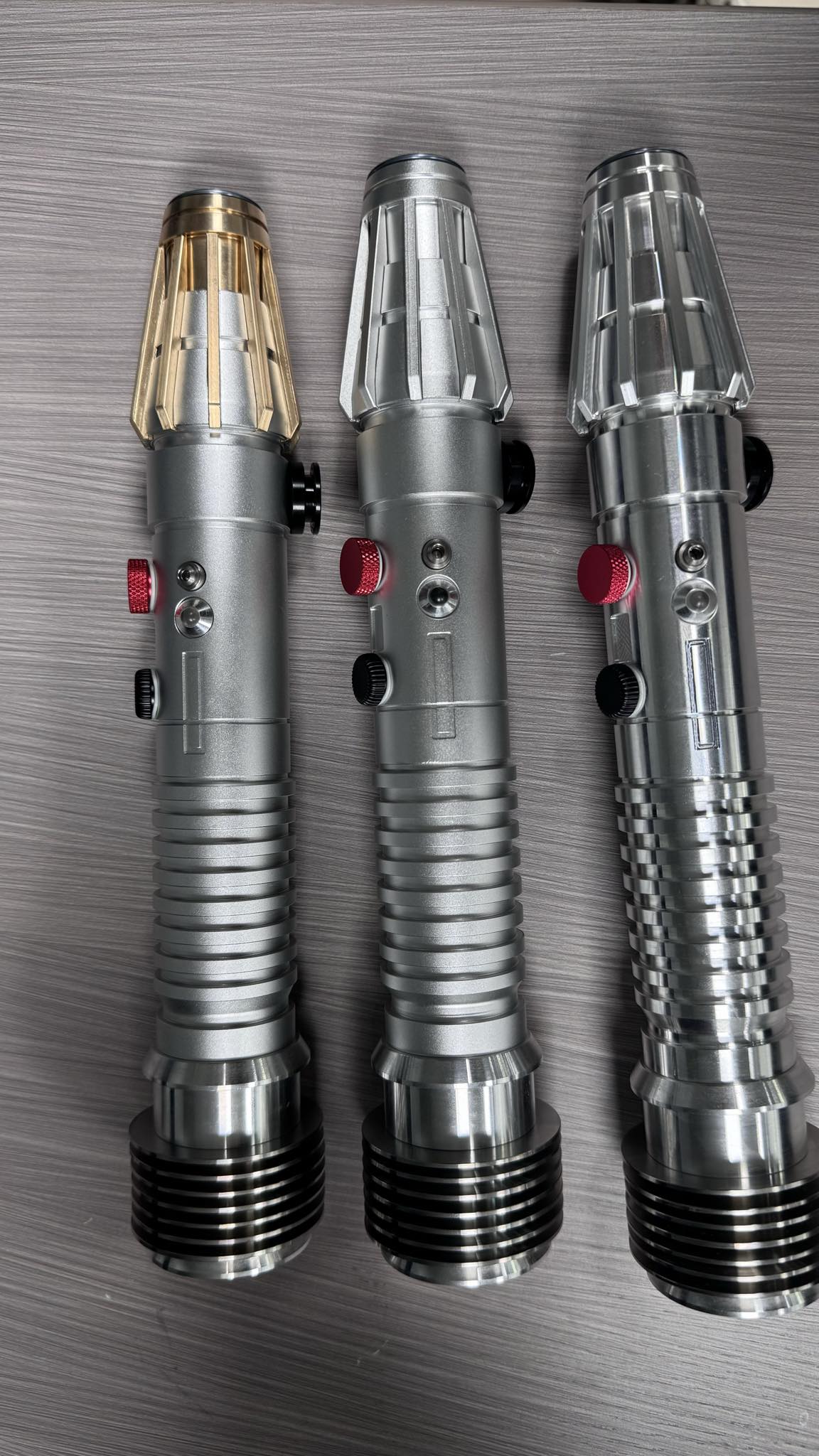

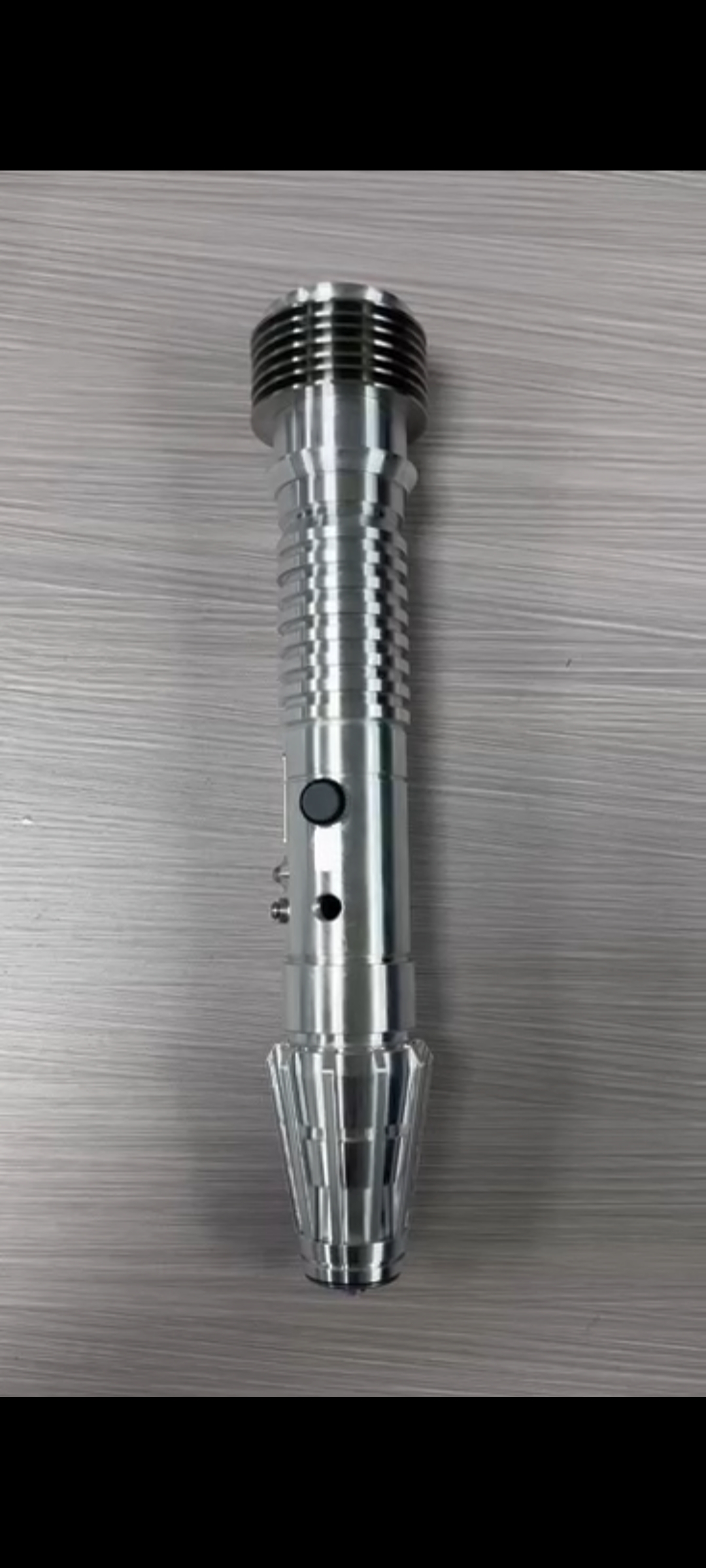

We will begin today with the interest list, then Pre-Orders will start early December and will be open until production is complete. Metal prototypes will be available around the first week of December. Production launches right after with the hope that they arrive before the holidays.
Interest list is now open. Thank you for your support as always.
