Chrometrooper Chrome Trooper build.

Discussion in 'Star Wars Costumes and Props' started by Stony Props, Apr 21, 2015.

  1. Stony Props

    Stony Props Active Member

    Trophy Points:
    261

    I haven't been big on building any Star Wars weapons or costumes in the past do to the overwhelming amount of great builders already working the **** out of that subject matter. However after seeing the new Star Wars trailer 4 days ago I figured I'd put together this chrometrooper character that briefly showed up.

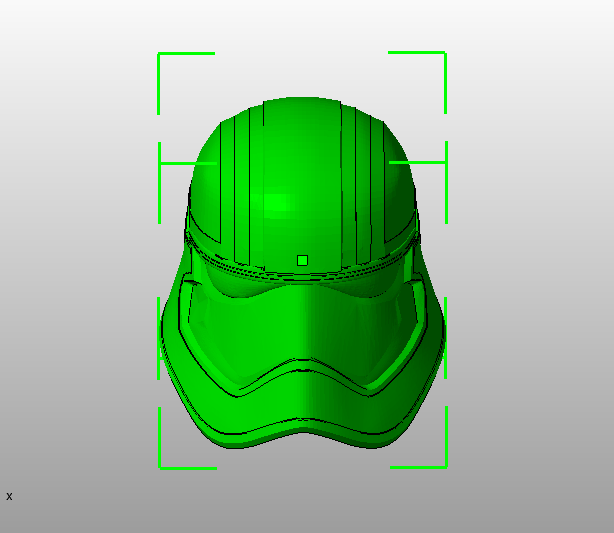

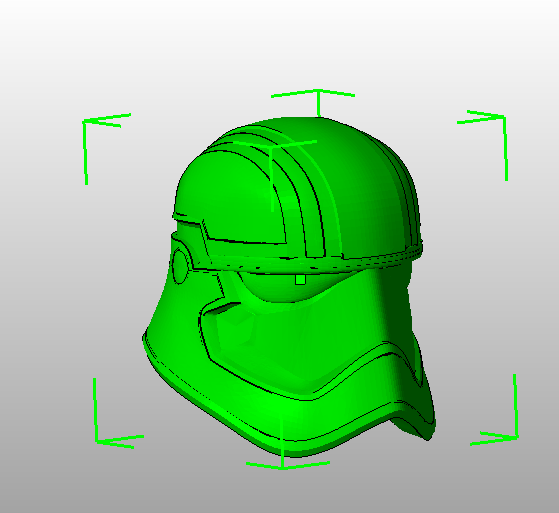

    I commissioned Jacob Morin one of my lead modelers over at Stony Props to see what he could come up with for a model based on the 1second glance we had on video.
    He threw this together for me in record time. The model is now sliced up and on the printer. Sculpting over should begin in the next day or 2.


    3d1.PNG 3d2.PNG

    Some of the components are not being shown on this version of the model, but they are completed and in production.

    Thanks for looking.
    Jim McCrea / Stony Props

    Last edited: May 10, 2015
    Picasso69, dcarty, The Yin and 2 others like this.
  2. JJ Griffin

    JJ Griffin Sr Member

    Trophy Points:
    1,135
    GET HYPE! We're working on the blaster over at JJ Armory Inc (with the tactical stock as an additional accessory) so I'll be following this build super closely :)

    burn likes this.
  3. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    Here's a 24 hours later update.
    I got home from work today at about 5:30 and the 3D printer just finished up.

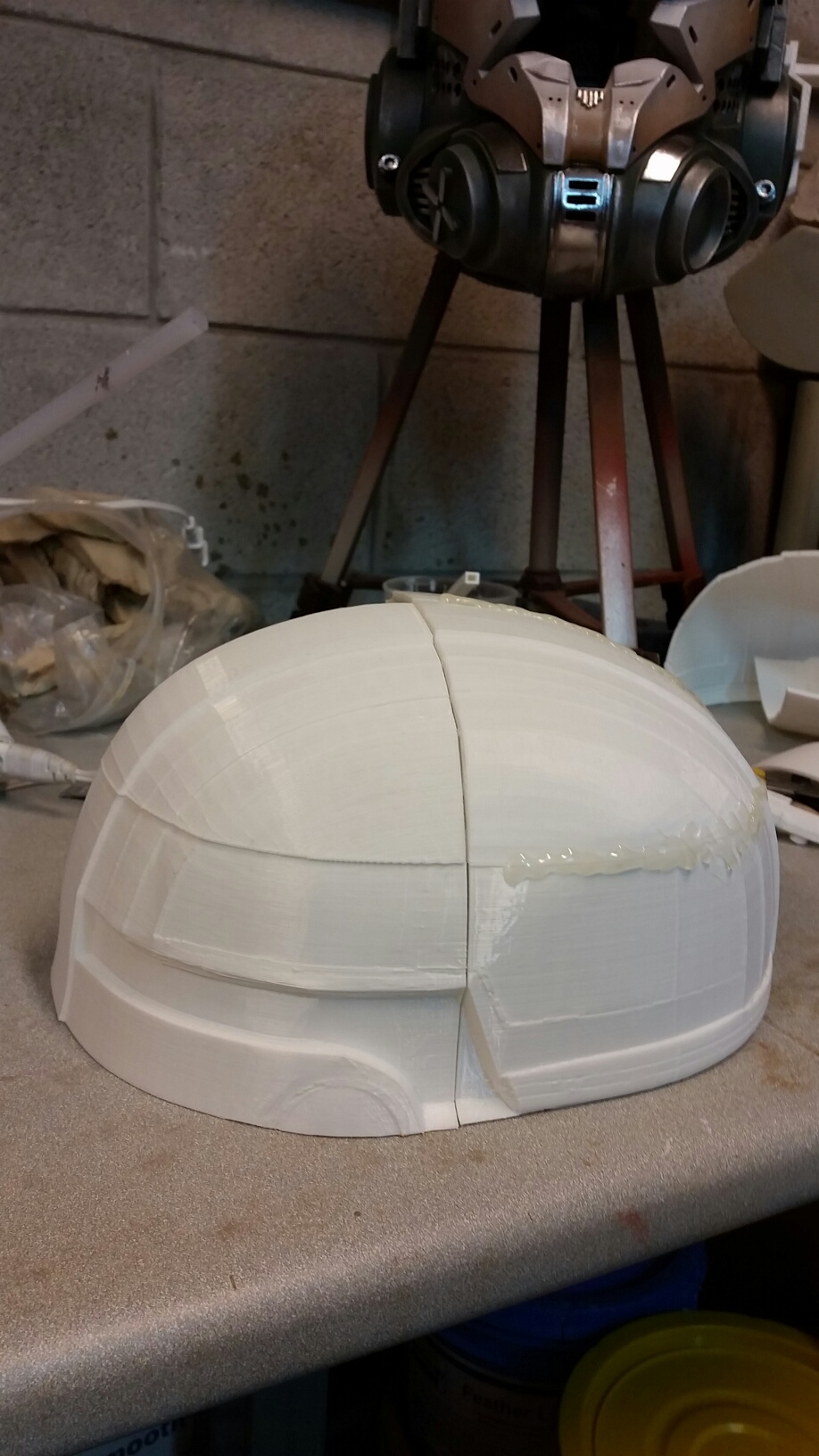

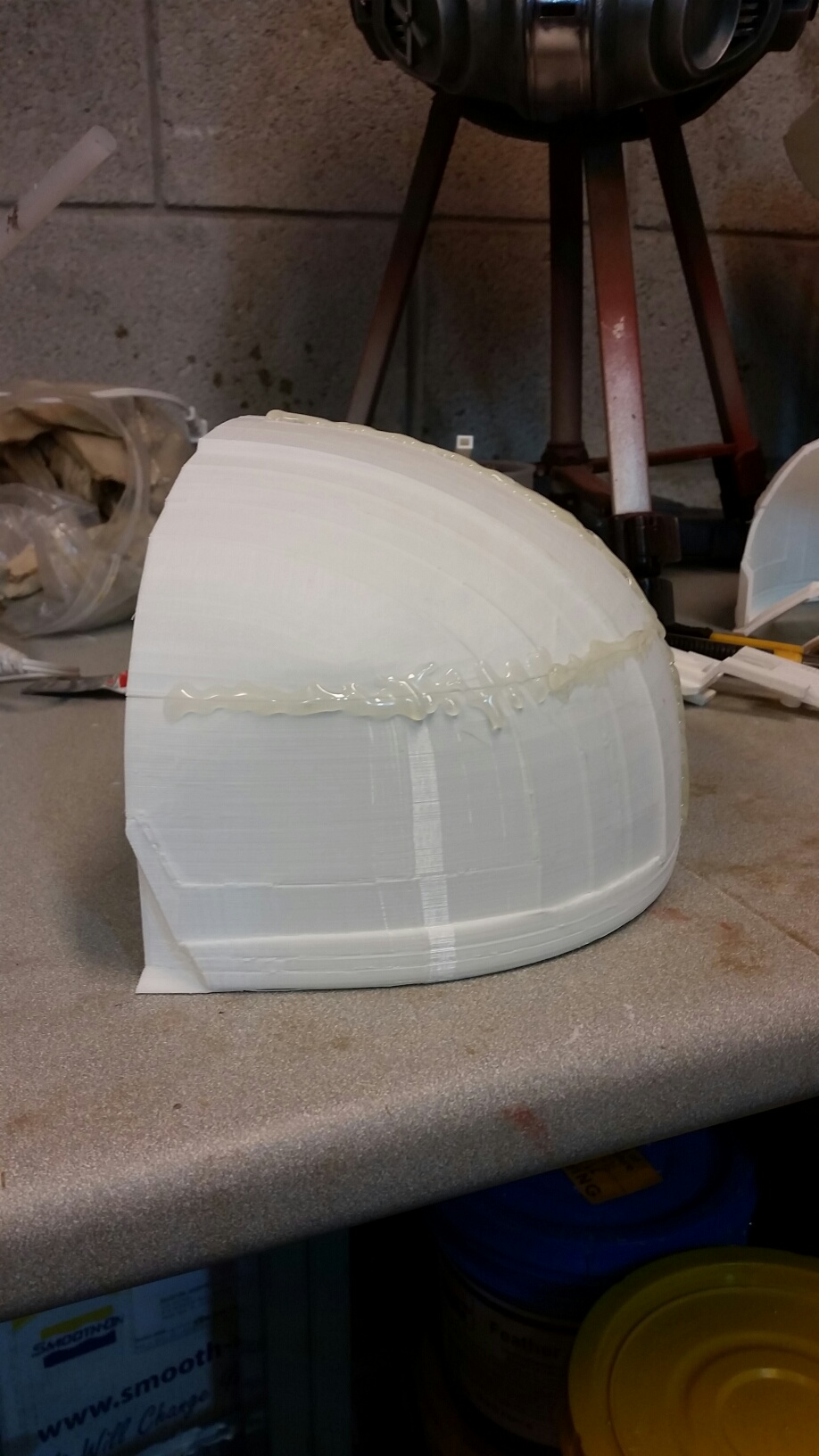

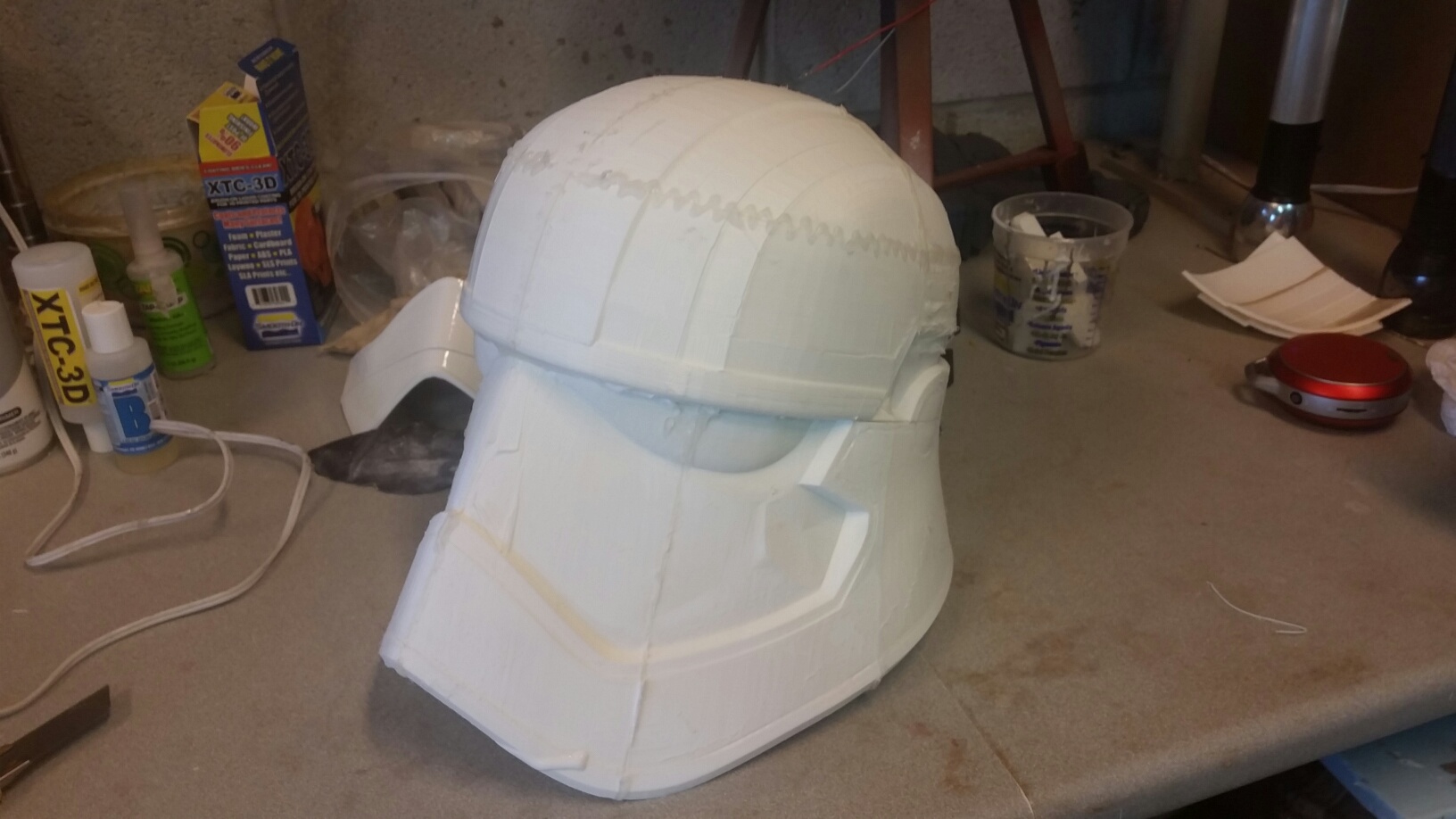

    The next stage was gluing the parts together and lining up the detail correctly (3D parts off a makerbot rep 2 tend to warp slightly & it's critical to re-alien everything correctly).
    Heat guns help straighten things out.


    tr1.jpg tr2.jpg tr3.jpg

    JJ Griffin likes this.
  4. Stony Props

    Stony Props Active Member

    Trophy Points:
    261

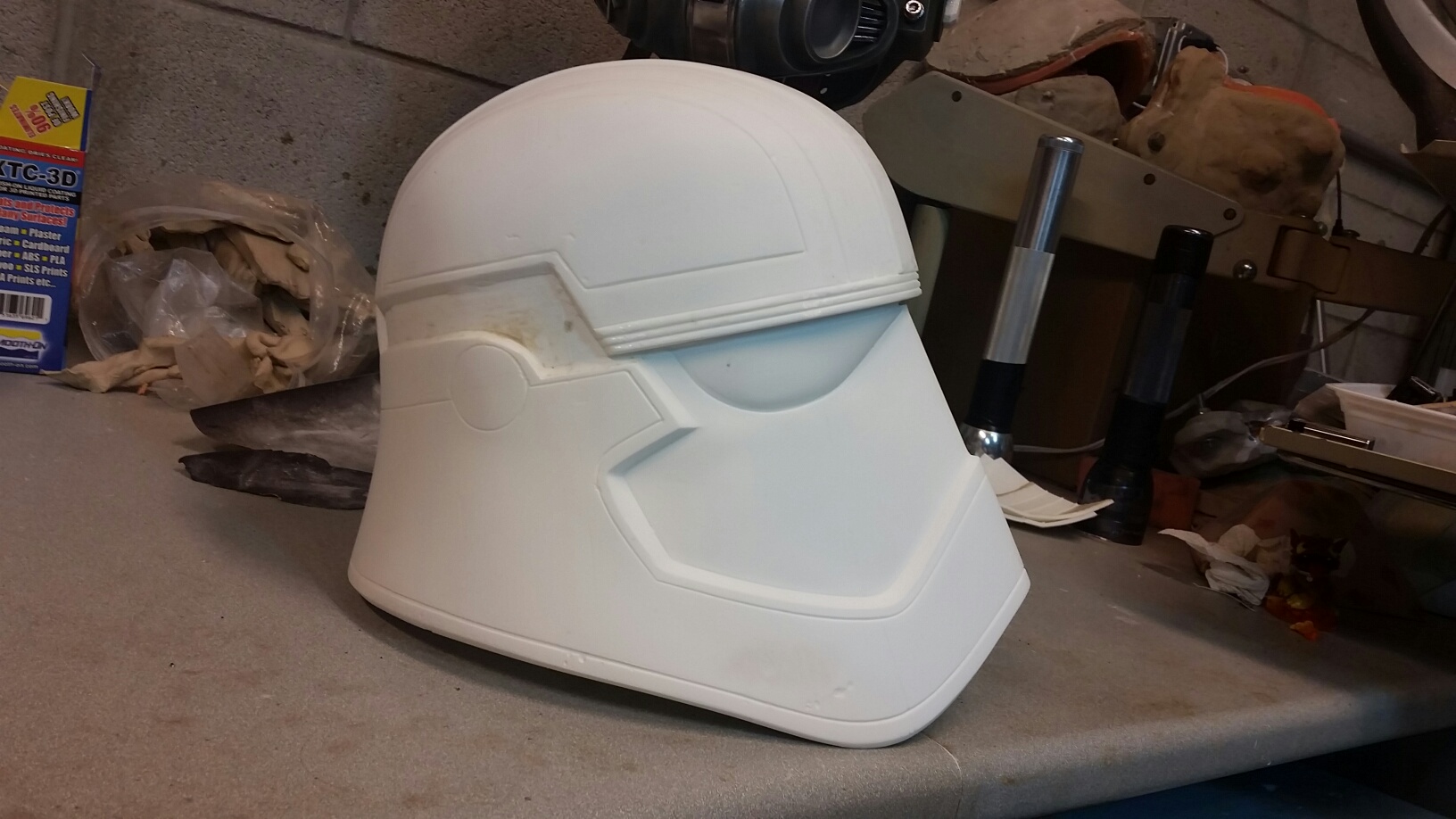

    The next 2 hours or so I was able to start the ruff sanding along with re-detailing in some of the basic lines. I was only able to get started on one side for now. I hear the Star Wars guys can be real sticklers on details so I'll do my best to keep this one to being as accurate as I can based on few released images so far.

    tr4.jpg tr5.jpg

    I don't post much on this site so I don't know many of the builders here & with that being said I don't expect many people to know me.
    I mostly have been building w/in the Halo theme & haven't had much of a reason to branch out, so this builds a bit out of my comfort zone. However, I figured what the hell, it's just another helmet & I should be able to pull this off with all the same build techniques & tricks that I'm used to using. Beside I really like the Star Wars franchise & I was impressed with the images of this character in the new trailer.
    Thanks for looking
    Jim McCrea / Stony Props

    RacerMachX, bh1138 and JJ Griffin like this.
  5. AndyJ

    AndyJ Active Member

    Trophy Points:
    361
    I love it! I want it.

    How long did the 3D prints take?

  6. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    About 24 to 30 hours run time. It's a low-res print so it went fast. I sculpt over the top of most of the print so it makes no sense for me to print them in a higher resolution.

    JJ Griffin likes this.
  7. Stony Props

    Stony Props Active Member

    Trophy Points:
    261

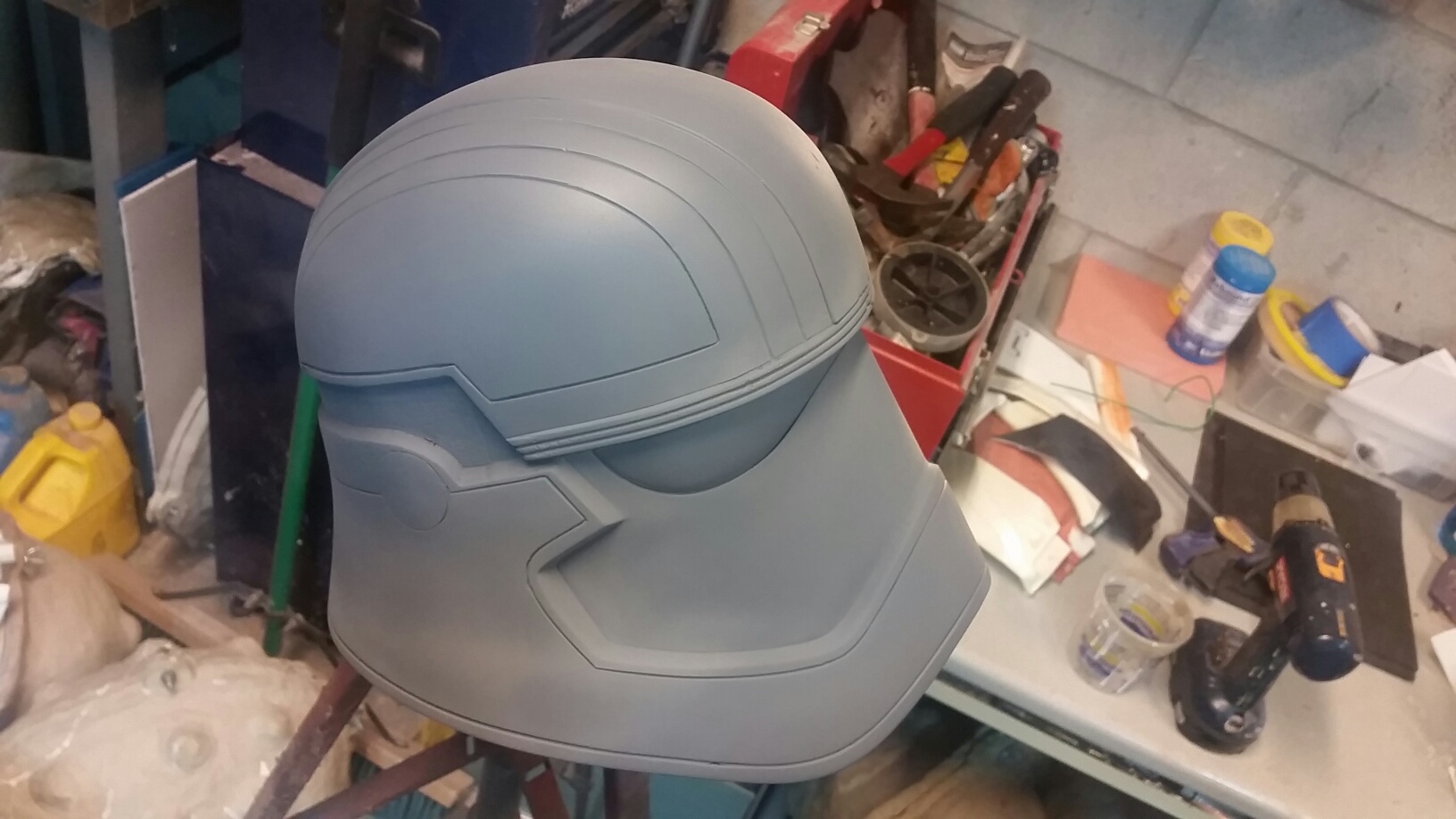

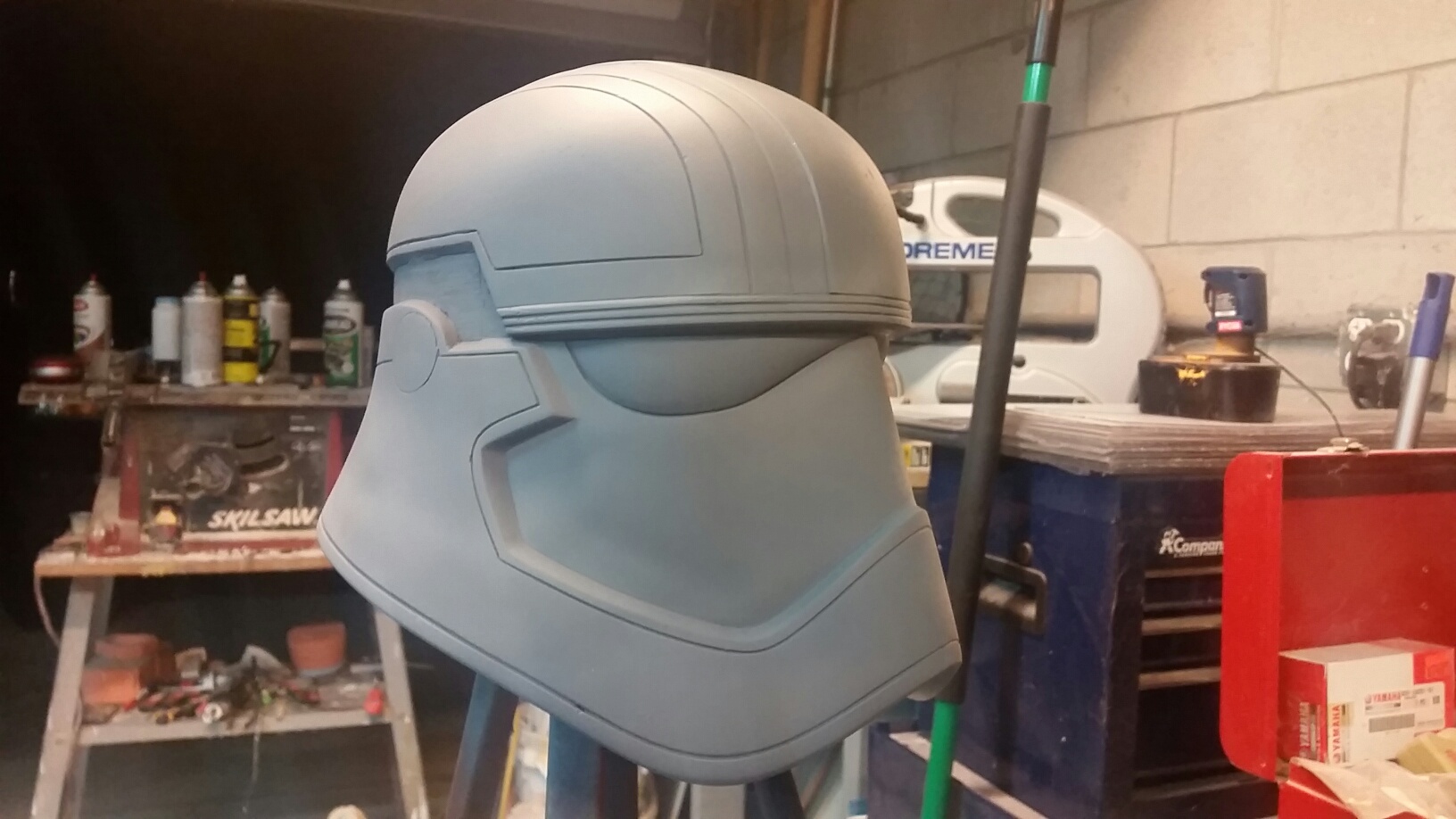

    Day 2 on the helmet. Sanding Sanding Sanding..........& more sanding.
    The foundation is working itself out slowly but surely. I add primmer on areas periodically to help me identify the bad spots so that they can be re-worked little by little one spot at a time.
    The devil will be in the details but without a clean foundation all the finishing in the world wont save the build.

    Any constructive criticisms or suggestions are welcome. I'd like this one to turn out great & with your input I may have a shot at getting it right.

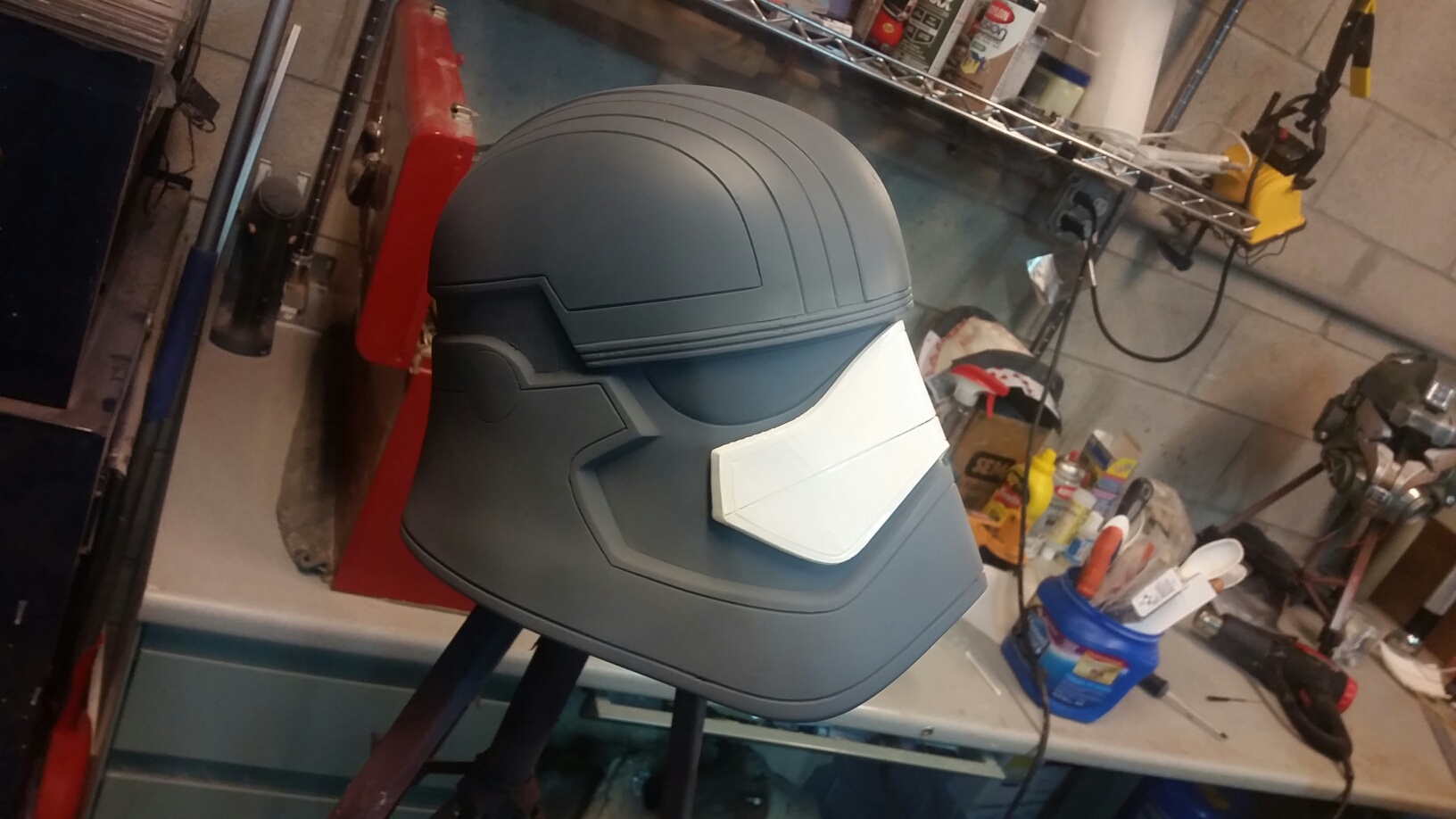

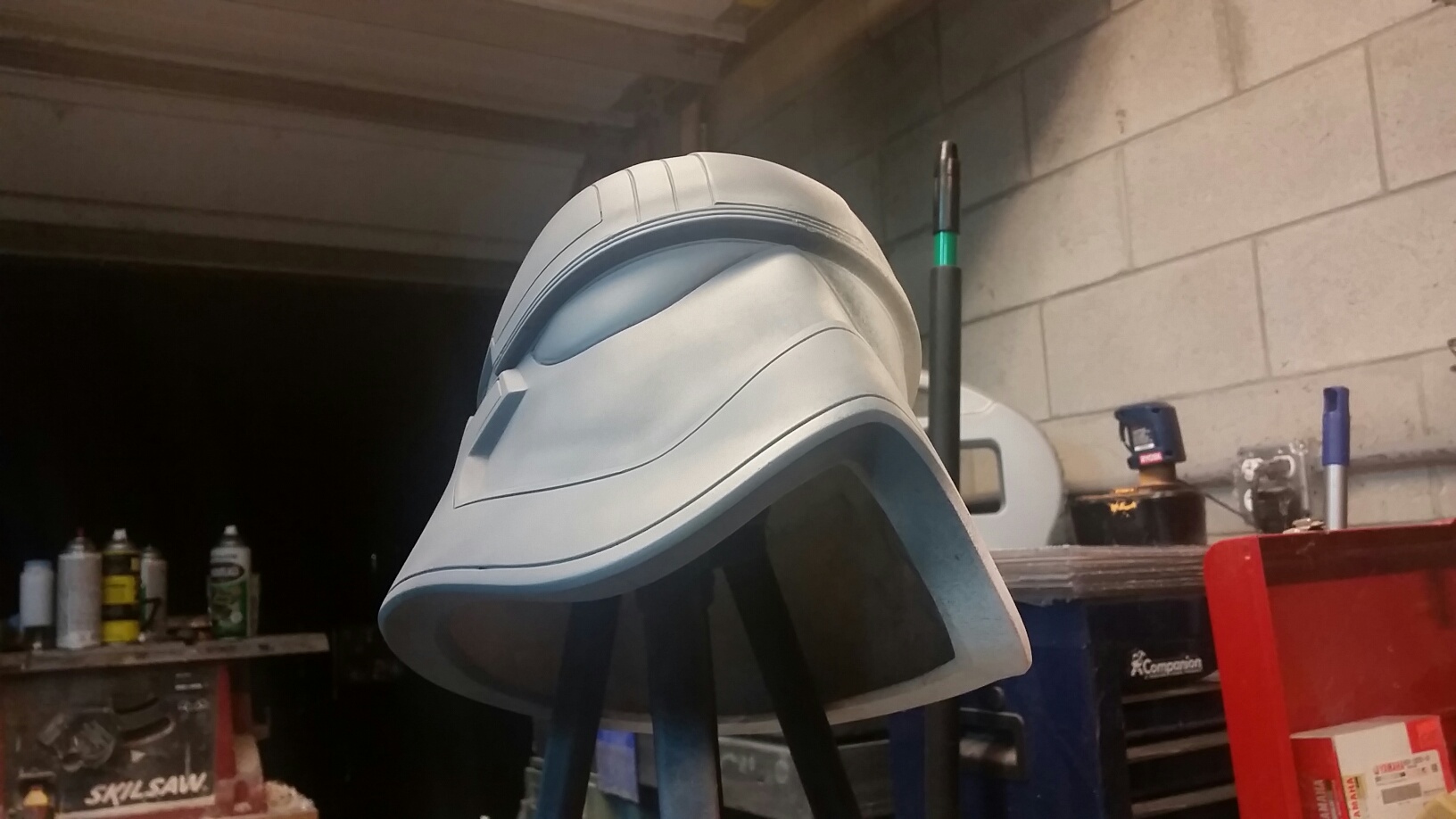

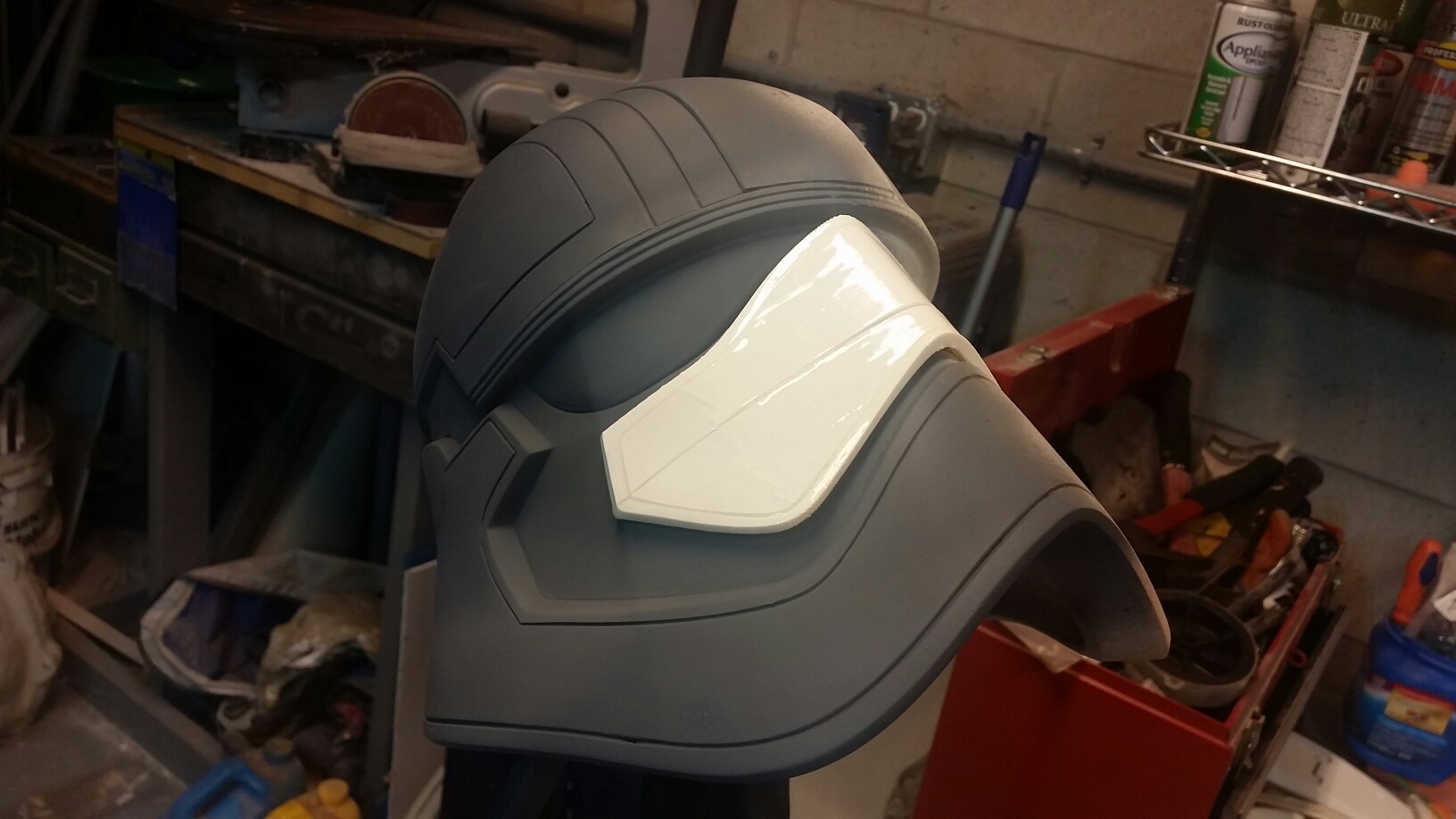

    trd21.jpg trd22.jpg
    trd23.jpg trd24.jpg
    trd25.jpg trd26.jpg

  8. Kerr Avon

    Kerr Avon Master Member

    Trophy Points:
    2,841
    How are you doing the chrome? Alclad, vac metalizing or actual chroming? Paint would be a pain to do as I can't imagine the amount of scratches that will occur.

    JJ Griffin likes this.
  9. AndyJ

    AndyJ Active Member

    Trophy Points:
    361
    A great suggestion that resulted from some other fan-helmets of the EP7 trooper (and as someone who's painted one) is to mold and cast the "duckbill" piece separately. It makes finishing 1000% easier.

    JJ Griffin likes this.
  10. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    My thoughts as well on the duckbill, It's good to hear you suggest that as well it helps me solidify that thought. I'm also thinking the same for the other 2 inserts by the corners of the mouth.

  11. OldKen

    OldKen Master Member

    Trophy Points:
    2,850
    I really thought your first renders were way off...

    I thought your printed parts looked off...

    But WOW!!! I see what you did there!

    After the added sculpting and "duck bill" it really looks great.

    that really captures the feel of what we see in the trailer shot.

    GREAT work thus far! God only knows what the under chin area and rear area actually look like...

    Can we get a front on shot angled like the pics from the trailer?


    Last edited: Apr 23, 2015
  12. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    Chroming has always been challenge for me & helmets. I may try several ways including Alclad & a newer one that came out that is supposed to be better along with the plastic chroming 3 stage spray applications that are popping up.

    JJ Griffin likes this.
  13. JJ Griffin

    JJ Griffin Sr Member

    Trophy Points:
    1,135
    Jim, this is looking incredible. Color me officially excited. Any chance you'd be willing to do a trade for one of our blasters for one of these bad boys? ;)

  14. Stony Props

    Stony Props Active Member

    Trophy Points:
    261

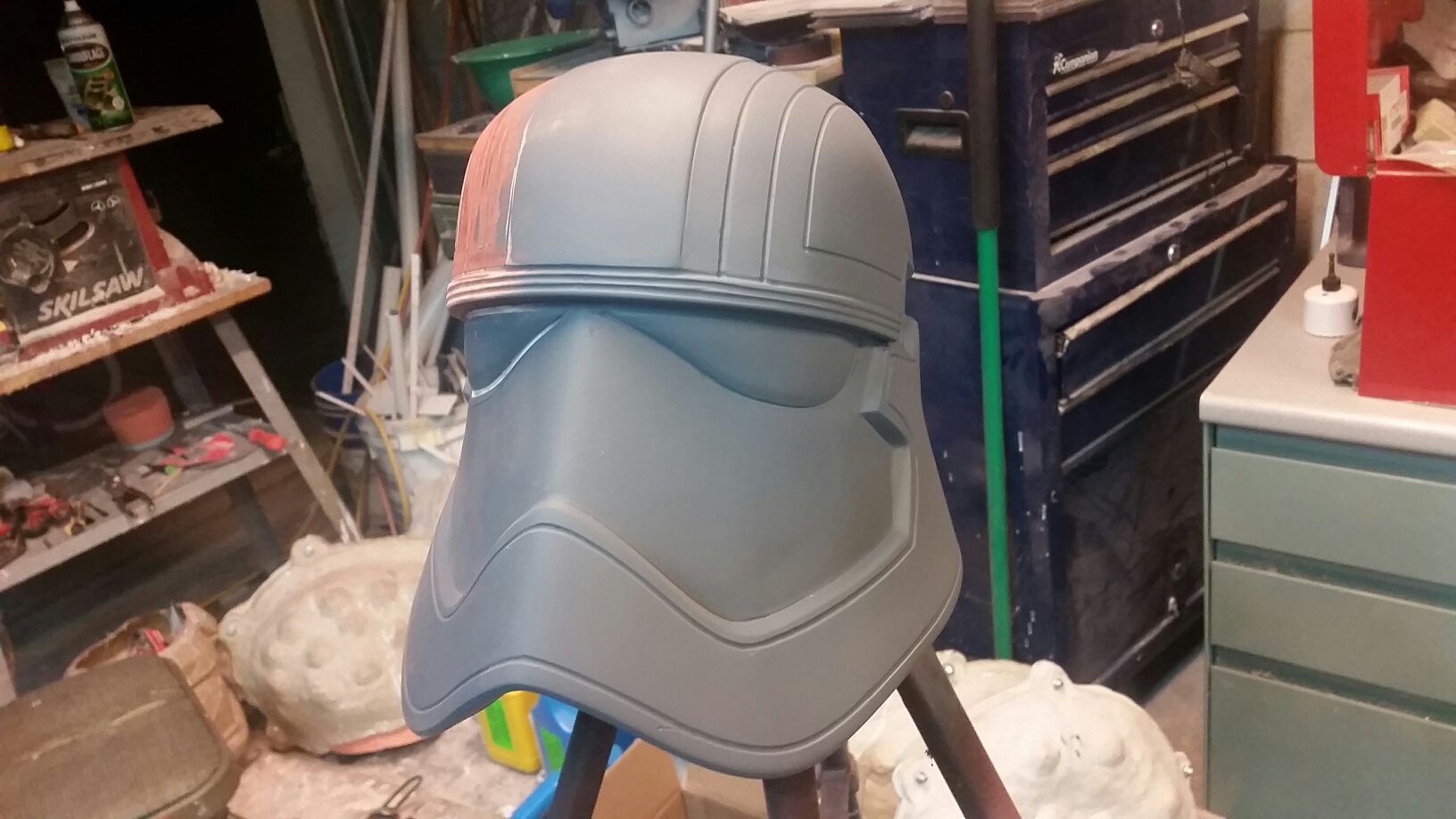

    I started work on the left side now as well.
    std32.jpg std33.jpg

  15. imonafalcon

    imonafalcon Member

    Trophy Points:
    191
    This is incredible!

  16. kev1969

    kev1969 Well-Known Member

    Trophy Points:
    521
    Wow! loving this :), look foward to seeing this completed :thumbsup subscribed.

  17. Rich D.

    Rich D. Member RPF PREMIUM MEMBER

    Trophy Points:
    117
    This looks fantastic so far. A couple of possibly dumb questions... In the attached art, it looks like the lenses are set into a contoured bezel underneath the duck bill, will you be incorporating that? Also what are your thoughts about making the texture pattern around the mouth as part of the master, vs. attached after casting (assuming the goal is to cast this)?


  18. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    I'Il sculpt out the hex details. The visors will be made to be cut out and I'll make vac formed lenses for it. They should be shaped as pictured.

  19. Bogleo

    Bogleo Well-Known Member

    Trophy Points:
    816
    Nice!!:thumbsup

  20. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    I3D printed out the little pieces that go in the corners of the mouth area. I wasn't happy with the shape so I made a quick clay mold of the 3D printed ones. Pulled out 2 quick copies from casting resin & then re-shaped & contoured them to fit. Most of my other efforts have been addressing the little flaws and cleaning up the lines. I have lots of clean-up yet to do but this is moving along quickly. (the site wont let me load more photos, I'll try again later).

  21. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
  22. Broilermaker

    Broilermaker Sr Member

    Trophy Points:
    1,085
    This is really neat, wish I had computer skills, sweet build!

  23. STARLORD13

    STARLORD13 New Member

    Trophy Points:
    17
    COOL looking build. Cant wait to see final product. Call me interested.

  24. sctcarts

    sctcarts Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    866
    Awesome build!

  25. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    Still more sanding........

    It's slowly getting cleaned up & it's time I can start showing closer ups of the detail (at least on the right side of it.).


    trd81.jpg std86.jpg
    trd82.jpg trd83.jpg
    trd85.jpg trdb4.jpg

    Last edited: Apr 29, 2015
    Nopal, SofaKing01, RacerMachX and 2 others like this.
  26. Dao2

    Dao2 Well-Known Member

    Trophy Points:
    566
    wow that looks awesome!

  27. SupaTrooper

    SupaTrooper Member

    Trophy Points:
    191
    Impressive

  28. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    Wow. This looks fantastic.

  29. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    It's almost ready to mold now. I detailed in the hex patters around the duck bill using clay.
    20150503_205829.jpg 20150503_205816.jpg 20150503_205845.jpg
    20150503_205924.jpg 20150503_210032.jpg
    20150503_210022.jpg 20150503_205958.jpg

  30. SupaTrooper

    SupaTrooper Member

    Trophy Points:
    191
    The 4th is with you. And it's a girl trooper huh.

    Last edited: May 4, 2015
  31. AndyJ

    AndyJ Active Member

    Trophy Points:
    361
    Awesome! I'm amazed how smooth you got it.

  32. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    More to come.

  33. mvanwalks421

    mvanwalks421 Active Member

    Trophy Points:
    487
    More to chrome...

    he he

    bh1138 likes this.
  34. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    That chrome looks reeeaaaal good. What process did you go with for that?

  35. SupaTrooper

    SupaTrooper Member

    Trophy Points:
    191
    You kill kill killed it mate.

    JJ Griffin and Kevin Gossett like this.
  36. OldKen

    OldKen Master Member

    Trophy Points:
    2,850
    I think you just won the RPF award for WTF, how did you do that??? Soo little reference.

    You really nailed what my eyes see!!!

    I'm beyond impressed.


    Last edited: May 9, 2015
  37. warrenhouck

    warrenhouck Well-Known Member

    Trophy Points:
    935
    Jaw dropping! This character is gonna rock I just know it. Stunning work!

  38. joshvanrad

    joshvanrad Sr Member

    Trophy Points:
    1,991
  39. Wolfsburg

    Wolfsburg Sr Member

    Trophy Points:
    1,730
    That is very impressive. I'm very curious to see what this character entails. I imagine she's pretty nasty...

  40. Sewbacca

    Sewbacca Well-Known Member

    Trophy Points:
    541
    amazing work, props to you!

  41. Andymac84

    Andymac84 Sr Member

    Trophy Points:
    1,535
    That's brillant. I love the shine on it. Looks very rich.

  42. cavx

    cavx Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,196
    Amazing work.

  43. stevechewbacca

    stevechewbacca Active Member

    Trophy Points:
    361
    I love it ! :D

  44. mattycsi

    mattycsi Sr Member

    Trophy Points:
    1,990
    OK, what did you sculpt that in that you got it so smooth and nice? How did you get such a good a chrome effect? And just what level wizard are you?

  45. Kevin Gossett

    Kevin Gossett Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,980
    Did you read the thread at all? It was 3D printed and smoothed out.

    JJ Griffin and Snow Builder like this.
  46. kev1969

    kev1969 Well-Known Member

    Trophy Points:
    521
    Wow!! you nailed it!! fantastistic job :thumbsup are you going to to a run of these? as a kit? if so pleeeeeeaaaase put me down for one :p

  47. Stony Props

    Stony Props Active Member

    Trophy Points:
    261

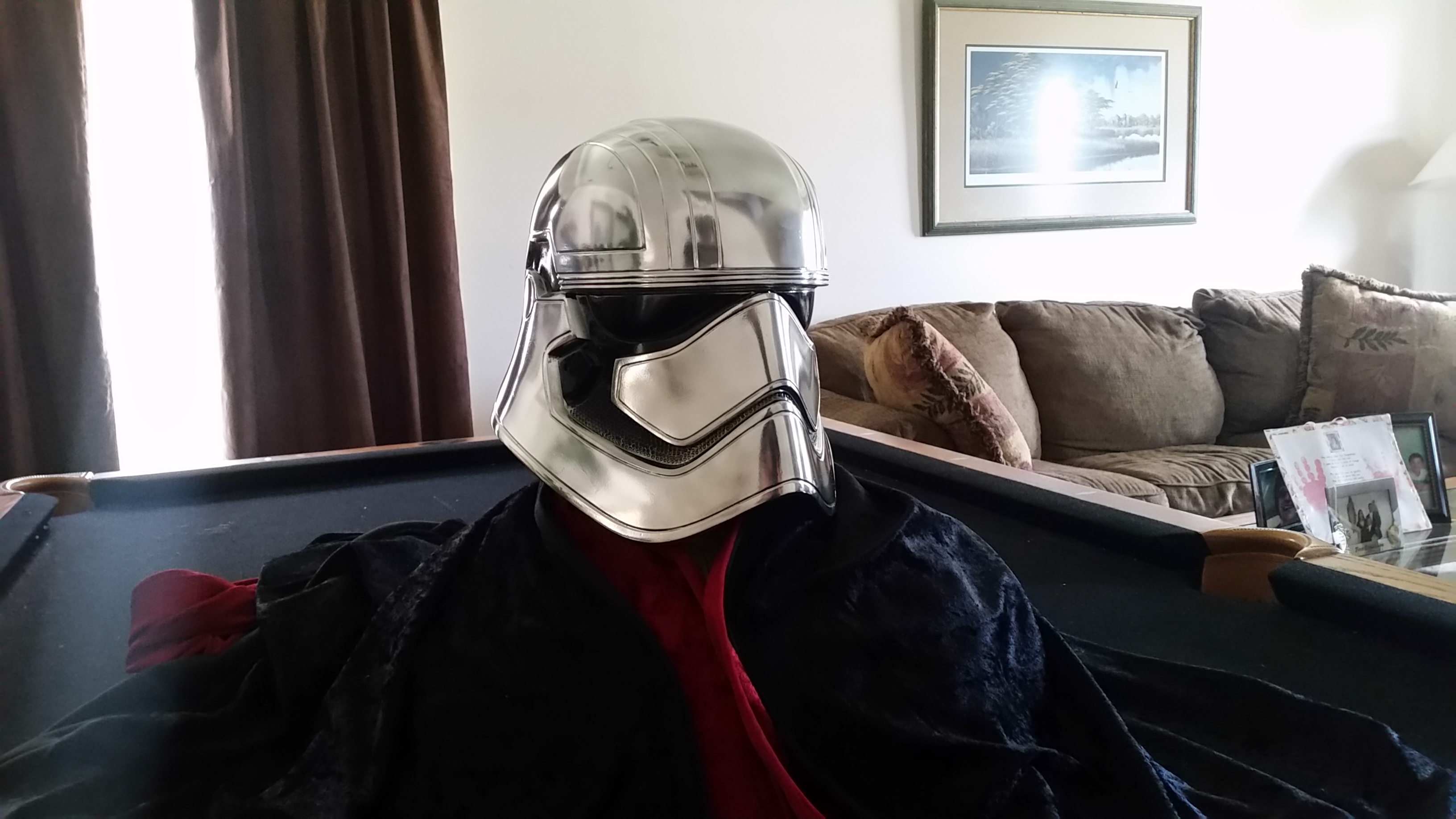

    Here's the final on the helmet. I may post future pics if I try out another chroming product. At this time I'm not sure if I'm moving forward or not with a complete build or not.
    Thanks for looking. I may one extra casting available, you're best off reaching me at reeltrbl117@aol.com
    Jim McCrea

    cptph1 (2).jpg cptph1.jpg
    cptphsm3.jpg cptphsm4.jpg
    cptphsm6.jpg cptphsm7.jpg

    cptphsm8.jpg cptphsm9.jpg
    cptphsm10.jpg cptphsm11.jpg

    Last edited: May 10, 2015
  48. bh1138

    bh1138 Active Member

    Trophy Points:
    361
    That is gorgeous! What did you end up using for the chrome look?

  49. Stony Props

    Stony Props Active Member

    Trophy Points:
    261
    I used Alclad II chrome. It looks decent but doesn't hold up very well to handling. It displays well for paint.

  50. ehollywood

    ehollywood New Member

    Trophy Points:
    17
    wow. That came out good man.
