    As many members know, I have been molding and casting the Compac Super scope used on the Han Solo "Greedo Killer" blaster for quite some time. I was able to get a correct version years ago (with the accurate front lens). I have had a few people ask me how I made these so accurately lately with almost no cleanup and I wanted to share how I do it and the process I go through.

    I have been struggling with casting this thing for years. Trying to mold a perfect cylinder that has to have a perfect flat area on the ends is been a PITA.

    I have actually molded this this about 5 times trying to find the perfect method, and then it hit me. Cast it in parts and assemble it like they did when they made the real ones.

    So, I wanted to share how I make these an why I don't have them available all the time. :)

    First off, all three parts are molded individually. The two scope body parts are done in a dump mold so that the lens ends do not have any seams. The knob assembly is done with a 2 part mold. This is what they look like right out of the molds


    I grind the ends down with a disk sander to make sure they are flat

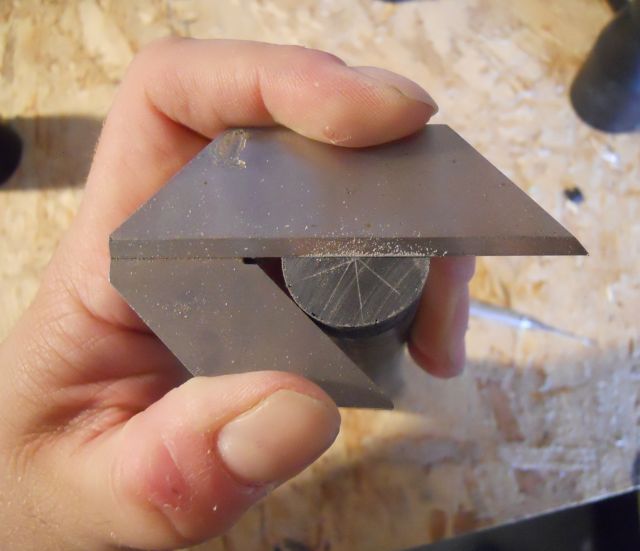

    I use a center square to find the center of each part and score lines using a dental tool

    If you dont have one of these, shame on you!

    You can get one from Micromark:
    http://www.micromark.com/center-square-5-inch-capacity,8433.html


    With scored lines to mark the centers


    Here they both are in a custom made jig used to keep them vertical and to keep the lenses damage free during the process.

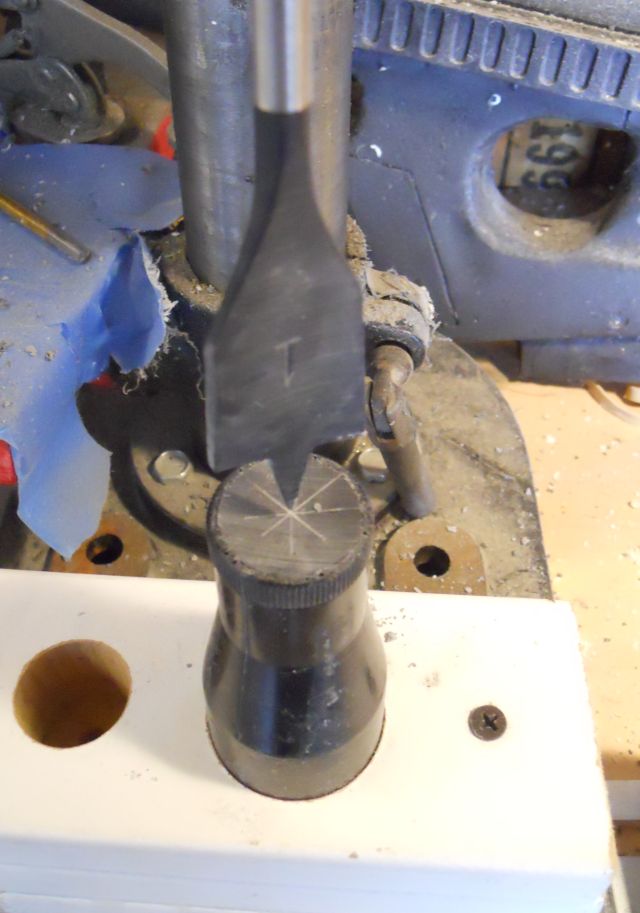

    I used a 1" flat bit to hollow out the bell end so it will accept the main tube. This is why having a perfect center hole is important (You will see more why further down)

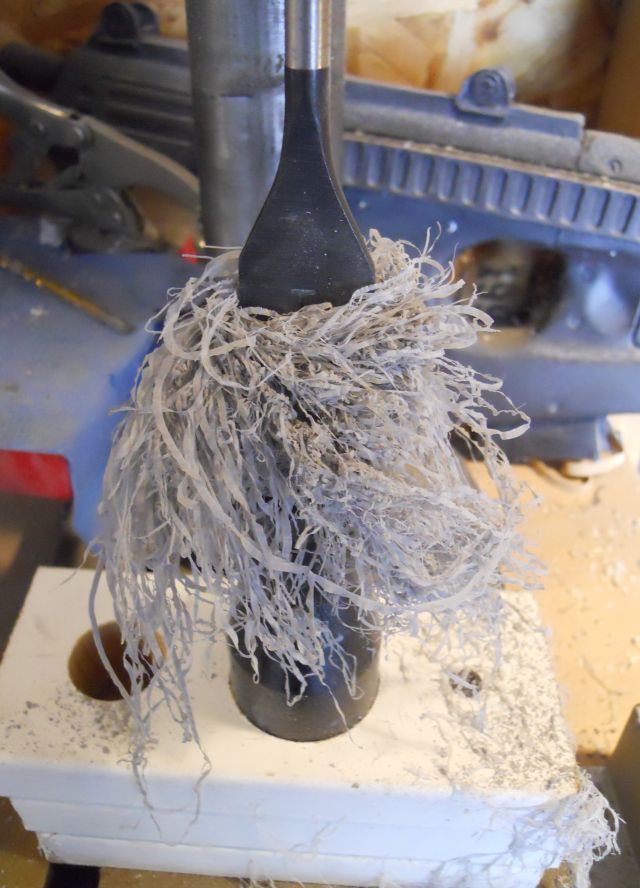

    It gets a little hairy doing this


    When done, this is what the bell end looks like. I also drill a hole in the main tube as well.


    I test fit them, to make sure they are aligned right, then add a double ended screw into the bell end

    If the holes are off center even a little, when trying to screw them together, this will happen :-(


    Then add some super glue inside where they will meet and screw the main body parts together


    I put the scope on a V-block and drill out a small hole for the knob assembly to fit into. You can see the underside of the assembly in the first pic. This makes sure the part is in the exact spot it should be in

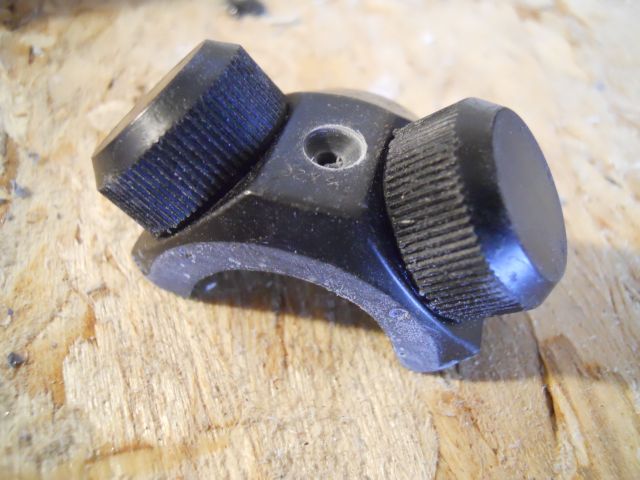

    I sand the flash off the knob assembly and drill out the top screw (and countersink the hole)


    I check the fit of a real brass screw to make sure it will fit


    I drill a smaller pilot hole into the mail body for the screw to fit into


    and then screw the assembly into the mail body.


    And that is basically it. There is no flash or sprues to clean up, and just a little seam work and main body sanding.

    So, That is how its done. I hope that answers any questions and if you are interested in one, I am going to post soon in the JY :)

  2. Prefect42

    Prefect42 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,147
    Brilliant tutorial. Not only for a scope but for anyone wanting to make a mold.

    Cheers!

    Ted.

    adamata likes this.
  3. Striker

    Striker Member

    Trophy Points:
    191
    Are your molds "Open Molds"?

  4. adamata

    adamata Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,341
    Yes, the two main parts are. I will take some pics and post them
