Captain Marvel Pager WORKING SCREEN!!! Pic Heavy!

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


7sinzz

Well-Known Member

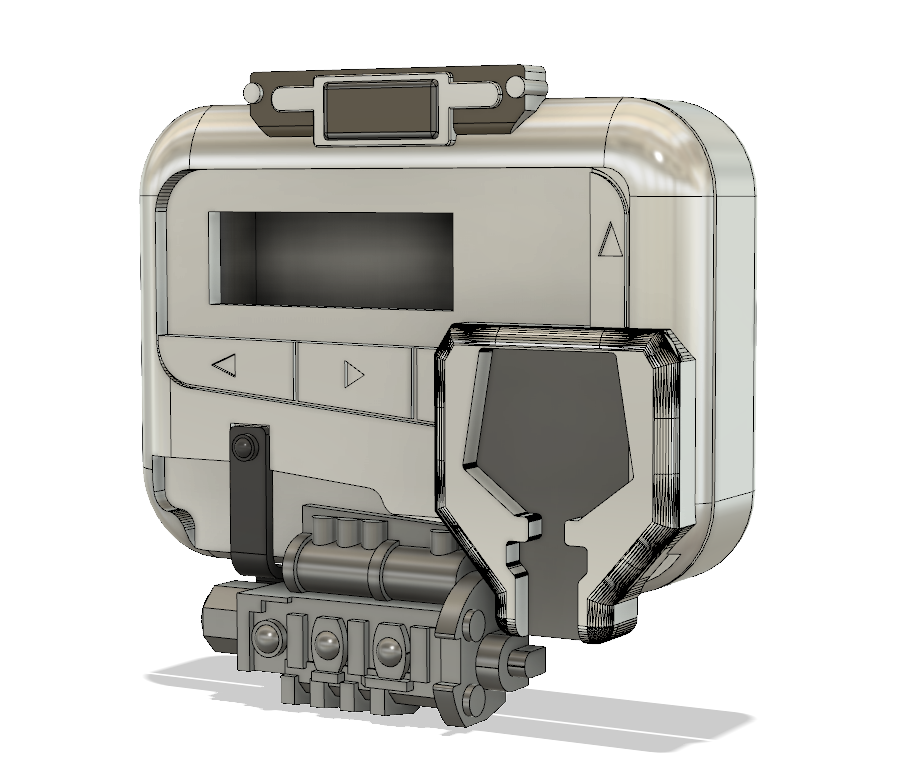

I've been working on this Captain Marvel pager for a few weeks now and initially used the STL from thingiverse. I later decided that it wasn't very accurate, so I used it as a base and created my own STL for the pager. I also had to build it around the dimensions to fit the electronics inside. This isn't completely screen accurate but it's as close as you can get with the available electronic hardware.

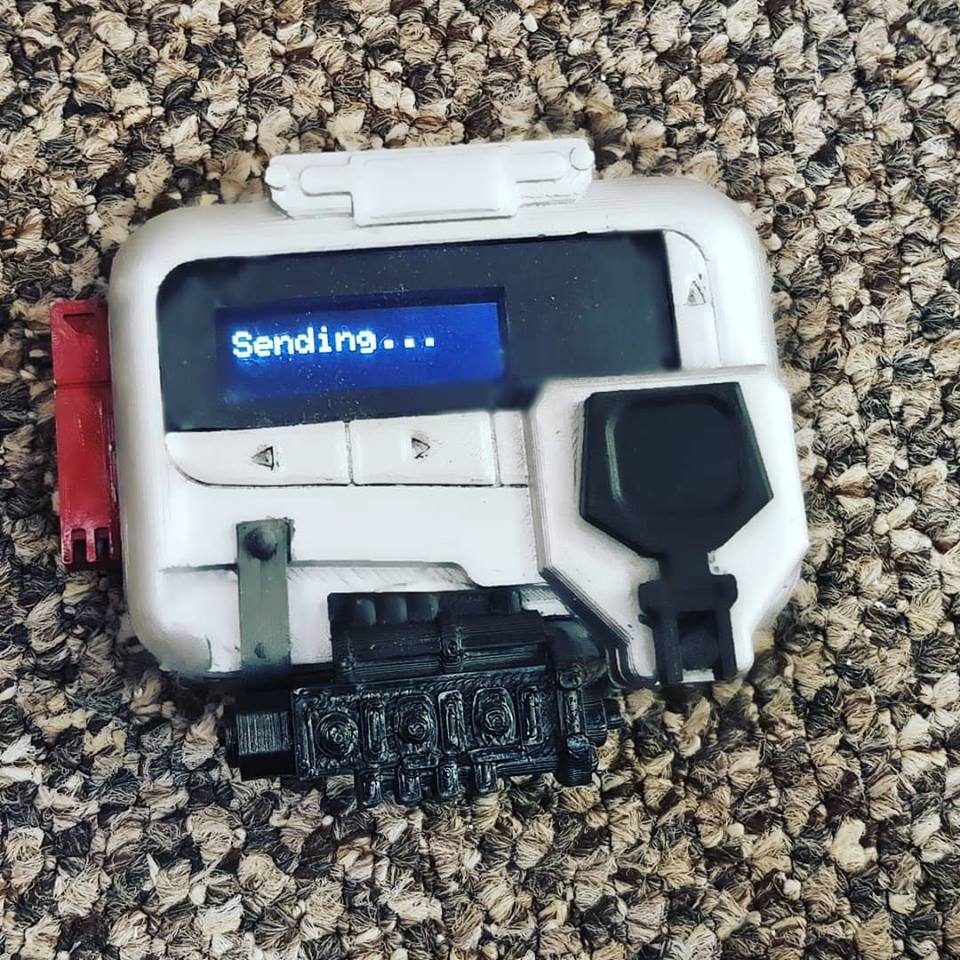

I posted the progress over over on Facebook.com/CandeeCosplay. It features a fully functional screen, USB micro port for charging, USB mini port for programming and a hidden power switch.

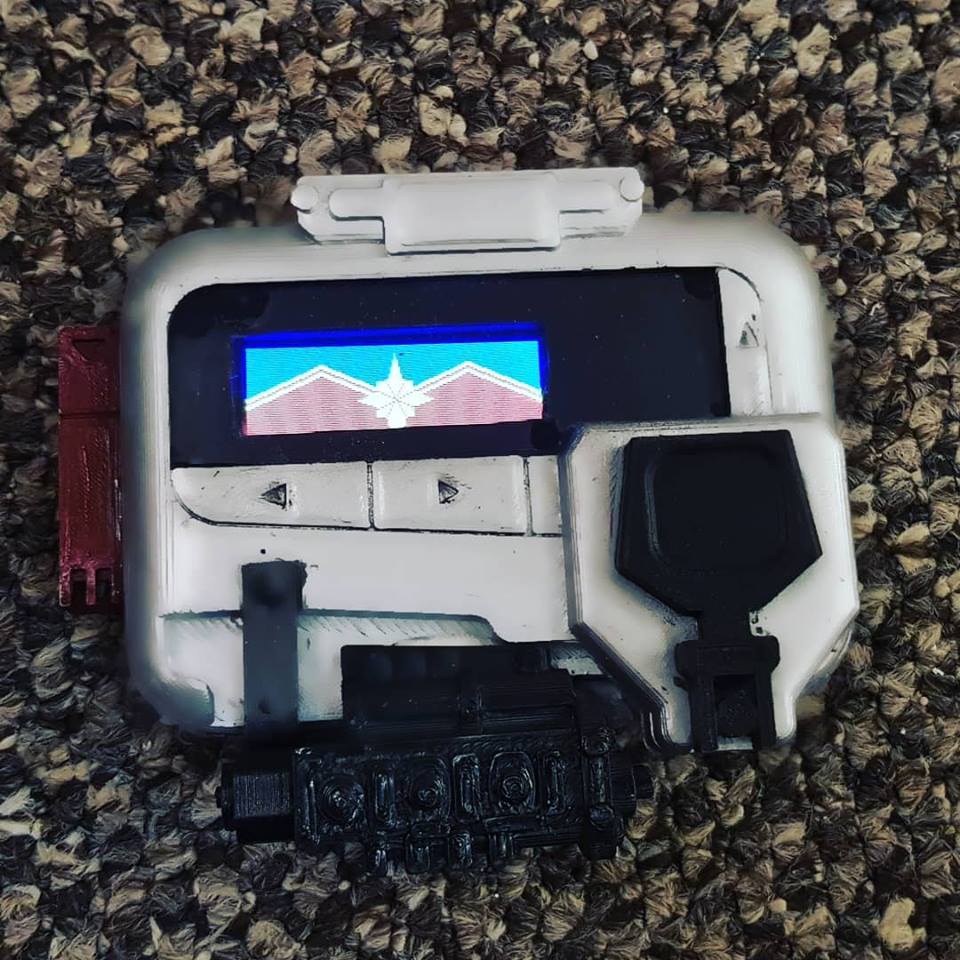

I will also be posting a video here soon, but it works exactly the same as the one in the movie. The programming took forever because I had to draw the logo by hand using XY coordinates in the Arduino software instead of just loading a bmp from an SD card (SD card wouldn't fit).

g7cfNkv343TcqQpvx-XGy-CXLoFKJmJ66WNg3LlC_ctmhx8M-gclnqvTde-1lO3YM3tgd4WQ&_nc_ht=scontent.fbhx3-1.jpg


gdcVrDxxnh_oeAJdhzvEYbd6sjkWen-_DX8kkvrnAnYKV9EhqFHXZbPRHjgC5HZttPmg-BHQ&_nc_ht=scontent.fbhx3-1.jpg


CUveVyMTH9UQYwgyokyXkATO8-gtoxZ6ScEaDyGpVs4hvdNiRhH-9EmSPnoLxINRexHtHr6g&_nc_ht=scontent.fbhx3-1.jpg


DlJh17dSKYapEtbTh6ZEbujkecbX8fPdabcNOipO5QQMJudyYr_UnP0S16-i_6IRYWFhe9cQ&_nc_ht=scontent.fbhx3-1.jpg


CwQ7zLaeZxEx1TFXTv6YU_JxA7hb6YW5FAMupUdZvzgGKimUVdNQdNvxgWqOCvDA52sGSWkA&_nc_ht=scontent.fbhx3-1.png


6UicJFIPmV5VAsAawkFRo3H2DlVlOxtpwwi65d4EGzOVwL4nw1v3sQju4lWSw3b_Wrnqruaw&_nc_ht=scontent.fbhx3-1.png


CLWEVLPCdIvfEeEVCc75lcCHHXindP8tpDWq46fKGaL8jHihjuduKv54B_fZ6IsYi3eK7pZw&_nc_ht=scontent.fbhx3-1.png
