Captain America's helmet -> speed-peping foam file.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


JFcustom

Sr Member
Easy question : look at the templates, they fill six paper sheets. Unless you rearrange them to save space, you'll need the same surface of foam.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

JFcustom

Sr Member
None is dumb who knows himself dumb. d61cc74afc45b24166a544fbde8b665e.jpg


SpiderMang

New Member

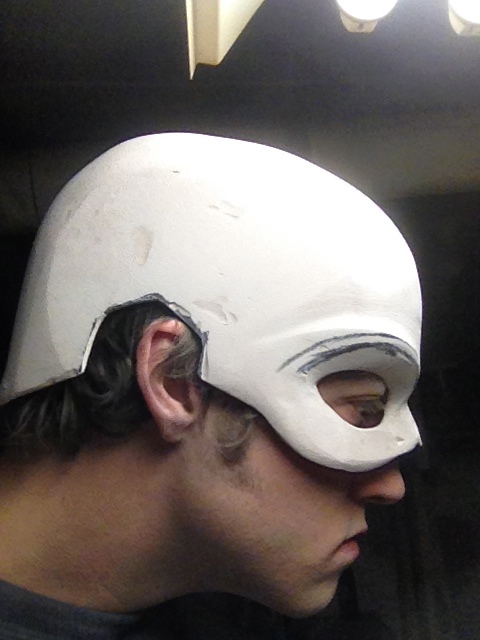

Thanks for the file JF. I built your file out of card stock and made it into a pretty nice helmet. This was the third try after some silly mistakes, but my first project. Had a lot of fun and huffed a lot of bondo.


IMG_4051.jpg IMG_4052.jpg IMG_4050.jpg IMG_3970.jpg IMG_4053.jpg IMG_4014.jpg


Attachments

  • IMG_4054.jpg
    2.4 MB · Views: 716

sebas030

New Member
This helmet will be a project to build for my son ( 7 yo )...he loves Captain America !

Cant wait to do this...I can already imagine the smile on his face :)


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

TheNickFox

Sr Member
RPF PREMIUM MEMBER
Hi. Hope you don't mind me asking but what materials/process did you use after the foam stage to get such a smooth finish? It looks amazing!
If you're referring to JFCustom's first post, it appears to be raw foam, nothing done to it.

If you are talking about Spidermang's post, as he say IN THE POST he didn't use foam, he used cardstock and bondo.

-Nick


SpiderMang

New Member
Hi. Hope you don't mind me asking but what materials/process did you use after the foam stage to get such a smooth finish? It looks amazing!
I used card stock then coated the whole thing with bondo fiberglass resin to get it hard "at this step you can heat it up with a blow dryer and bend it to it make it contour your head better". Then i used more fiberglass bondo and fiberglass mesh squares to line the inside to reinforce it "only do the inside, do not fiberglass mesh the outside". Then slowly coated it with about an 1/8 inch of regular bondo at at a time to the point where i had about 3/8" of bondo on it. then you sand it evenly and carefully for an hour or so depending on how well you put the bondo on. I'll have more pics of the A/Wing painting and leather work up soon.

Let me also add that this took 3 trys. I ended up printing this scaled to 108% to fit better to be used with card stock and bondo layers.

Last edited:

Zlosk

New Member
I built this out of card stock at 100% to check the fit before shifting to foam, and it is too large for me. Passing it around to various friends, I found that it fit people with head circumferences around 23-3/4 (about 60 cm, or basically a hat size of 7-1/2). My head circumference is 22-3/8, and I've bought 1/8 (3 mm) thick foam, so I'll be trying again tonight, with a scale factor of 95% [ (22-3/8 + (2 x 1/8)) / 23-3/4 ].


Eddieriff

New Member
I too have just started foam fabrication, and this was my first attempt. One thing I found is that the helmet was a little tight. I then realized since I have a very average head size that something must be off. It dawned on me that I traced the pattern on the exterior of the 1/2" foam mat, thus subtracting 1" of space inside. I did a lot of grinding to get it to fit, but it's good now. As far as finishing it, I filled all the gaps with paintable caulk, then uses a makeup sponge to apply a light coat of caulk to the entire helmet and primed it while it was curing. It had dried to the touch but not fully cured. I let the primer dry overnight, the started with a pretty thick Layer of spray paint to really cover the grain. The next day I color sanded it with a foam sanding block (180 grit) the started doing 2 thin coats, followed by color sanding, and the repeated. It has a really awesome plastic feel to it, and is pretty durable. Lots of flex with no cracking. One more note I used rust oleum 2x safe for plastic paint. It is not quite finished, but here is a picture of what it looks like so far.


Attachments

  • image.jpg
    126.4 KB · Views: 963

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Wayne Bakken

Active Member
Has anyone scaled this down for child size? and if so how far did you scale it? My 7 year old wants to be cap for Halloween and i figure getting everything figured out ahead is the best way to have it turn out well.


Dezziedc

Jr Member
This is going to be my first attempt at working with foam. I've got the pattern printed out and joined and am ready to start transferring this to the foam etc.

However, I have noticed that there are dashed lines along the edge of the dome piece. Looking at the 3D pep file I note a ridge that runs all the way along both sides of the dome - which makes sense given the dashed lines along both sides. But looking at all the completed helms in this link, none of them have the ridge.

I'm just wondering if I should ignore the dashed lines and join them edge to edge, or attempt to create the ridge using the lines and bending it outwards from the edge of the dome? The pics of the actual costume seem to have a ridge running the length of the helmet but it's hard to tell in some pics whether it is a groove or raised.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

TheFrankTurk

Active Member
I agree with all the kudos here. I have a question.

How do I take the .pdo file and print the unfolded version out on larger sheets -- like 11x14?


Lord Magneto

Well-Known Member
I agree with all the kudos here. I have a question.

How do I take the .pdo file and print the unfolded version out on larger sheets -- like 11x14?

open the file in pepakura designer... you should be able to change the paper size there then rearrange the pieces to fit the paper
