Captain America movie shield. The most difficult DIY shield I´ve never made before.

Discussion in 'Marvel Costumes and Props' started by Mordor Brass, Aug 16, 2015.

  1. Mordor Brass

    Mordor Brass Active Member

    Trophy Points:
    211
    Hi guys. Recently I´ve been working in my own Cap´s shield movie version. This time I would like to make a very decent replica for me and why not, I would like to sell some pieces becouse in my country the Cap´s shield are hard to find. Here the full process from to make the model to molds, casts and paint.
    Sorry the quality pics from my phone.

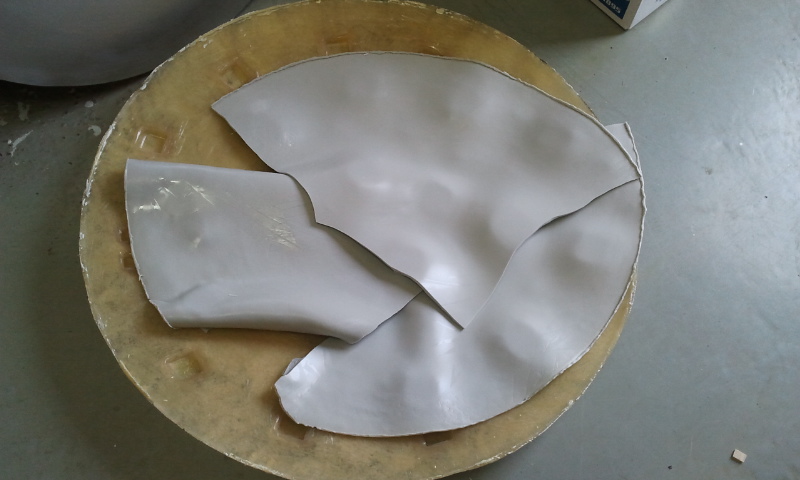

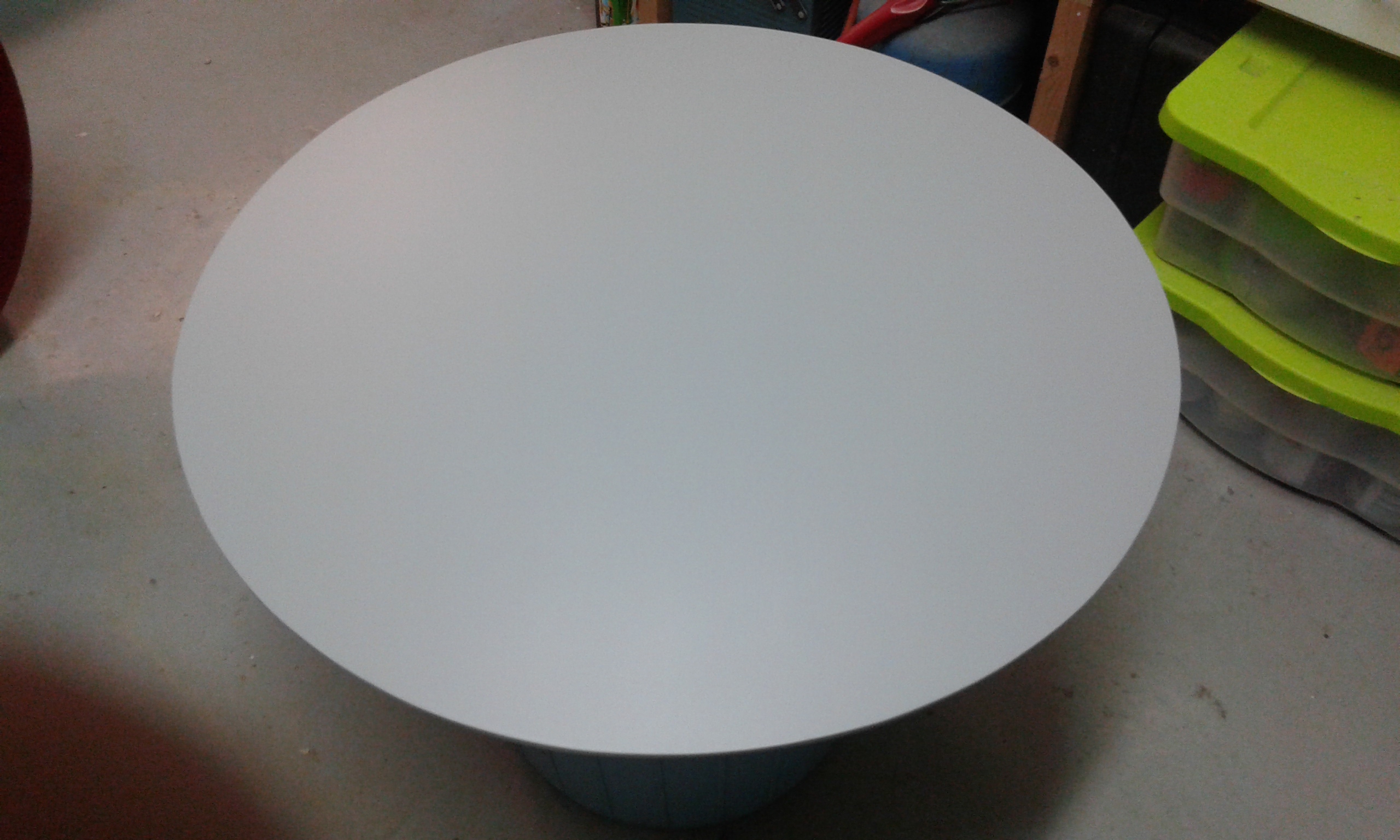

    I started with an old fiberglass cast ( and last piece) from my old mold of Cap´s shield comic version from a satellite dish.

    http://www.therpf.com/showthread.php?t=120774

    2015-03-05 14.24.36.jpg 20150315_213451.jpg

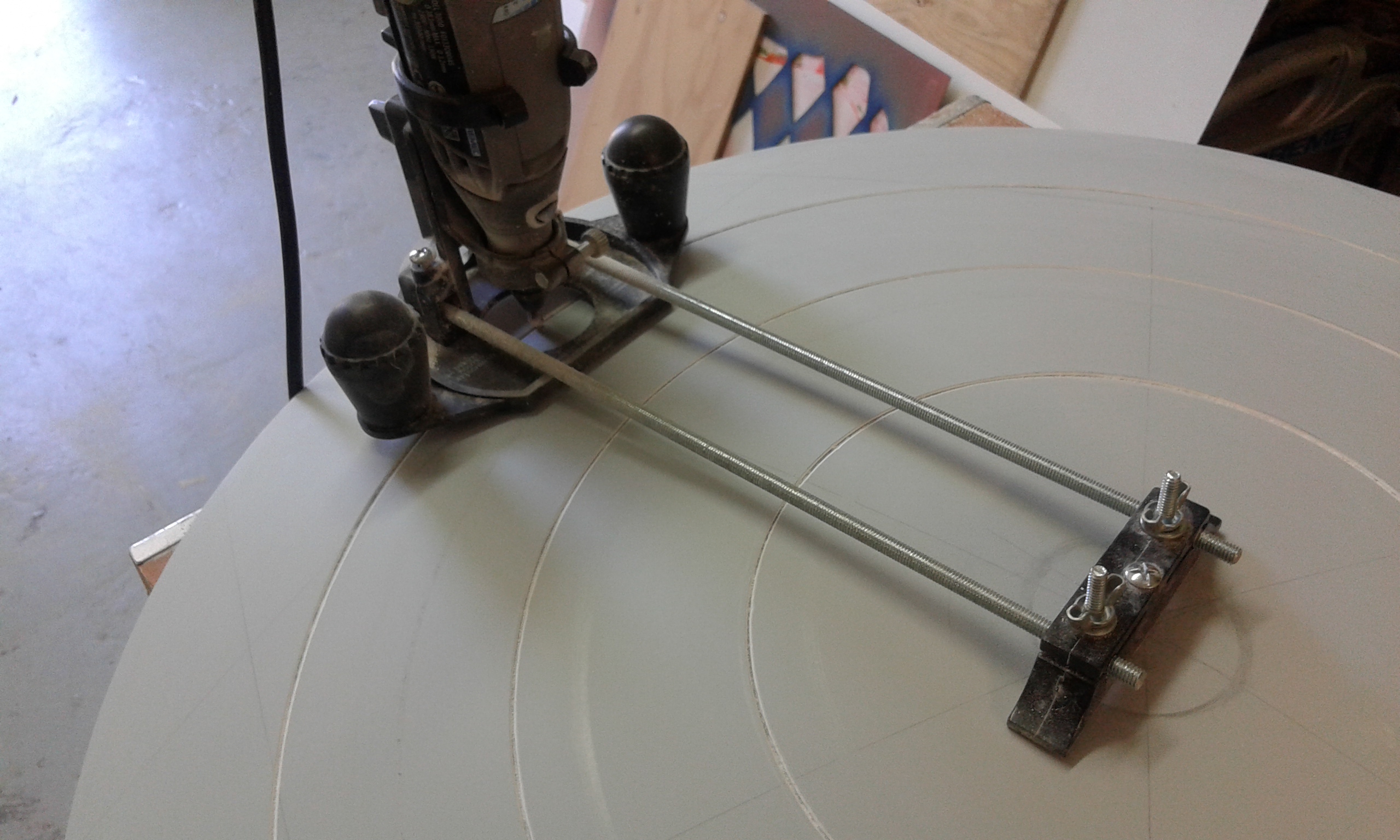

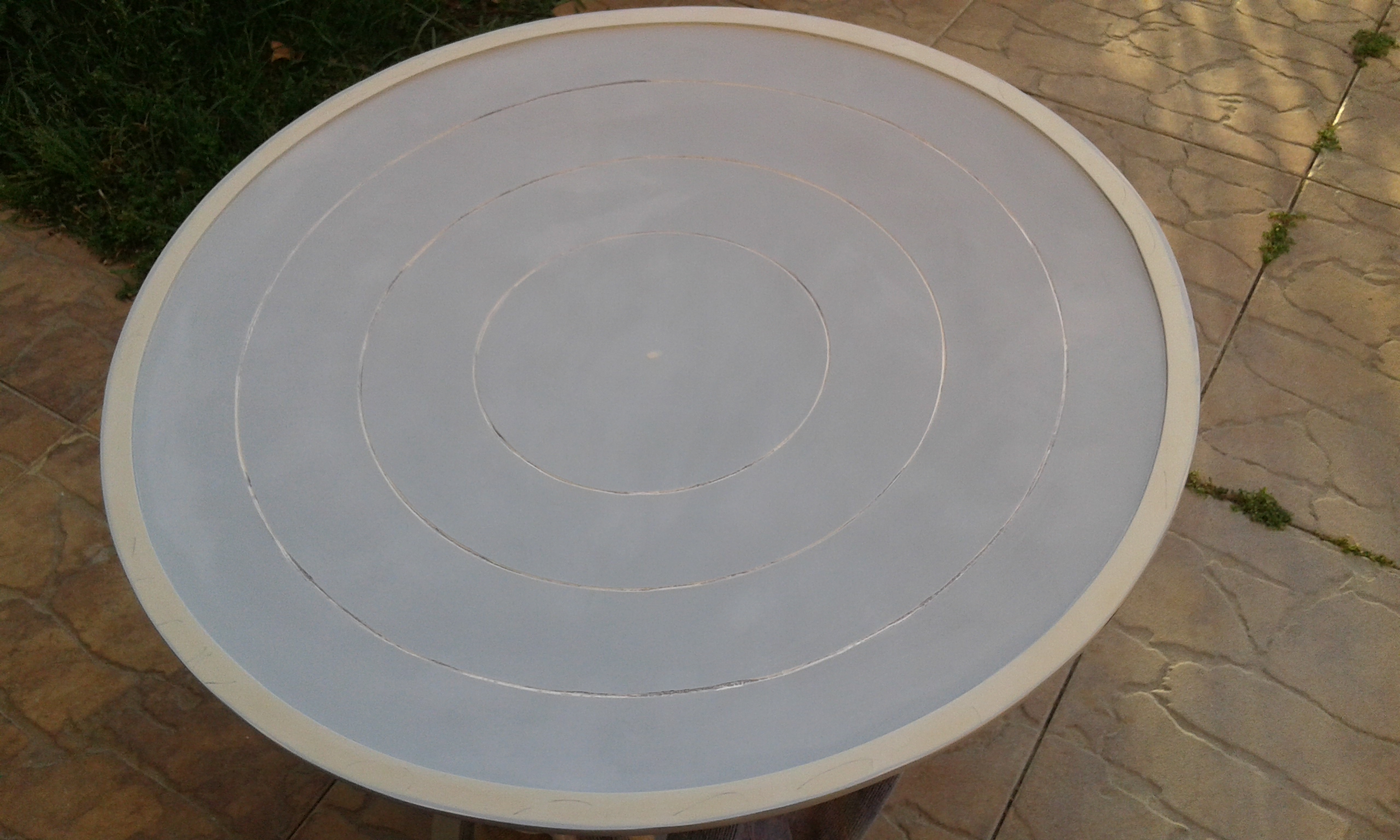

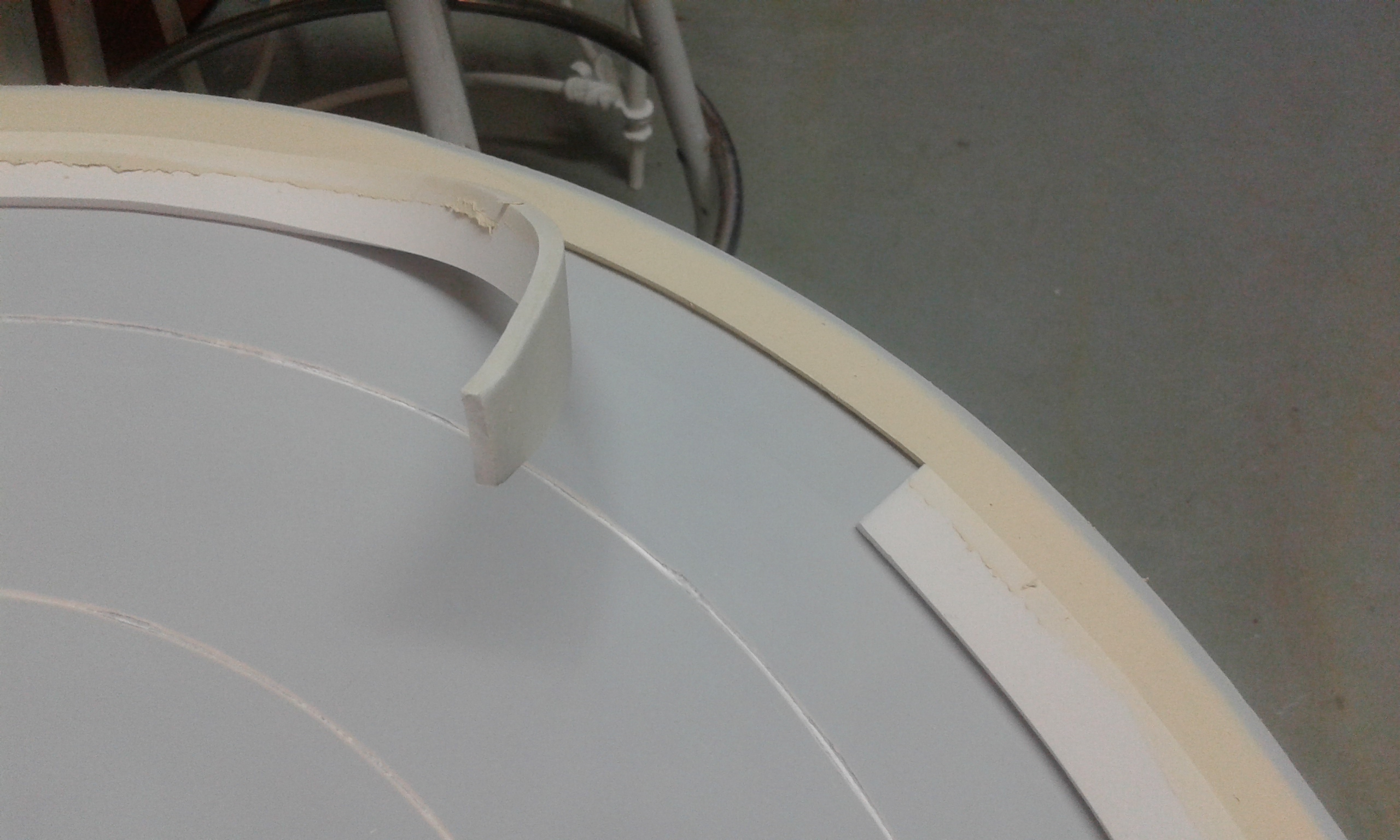

    The circles was milled with a Dremel. Front side and backside. Also I gained the edge with bondo. I used foam tape to make a clean edge. Once bondo was cured, I peel the tape and Tadá, clean edge.

    20150327_154430.jpg 20150417_202659.jpg 20150406_210319.jpg 20150406_210806.jpg

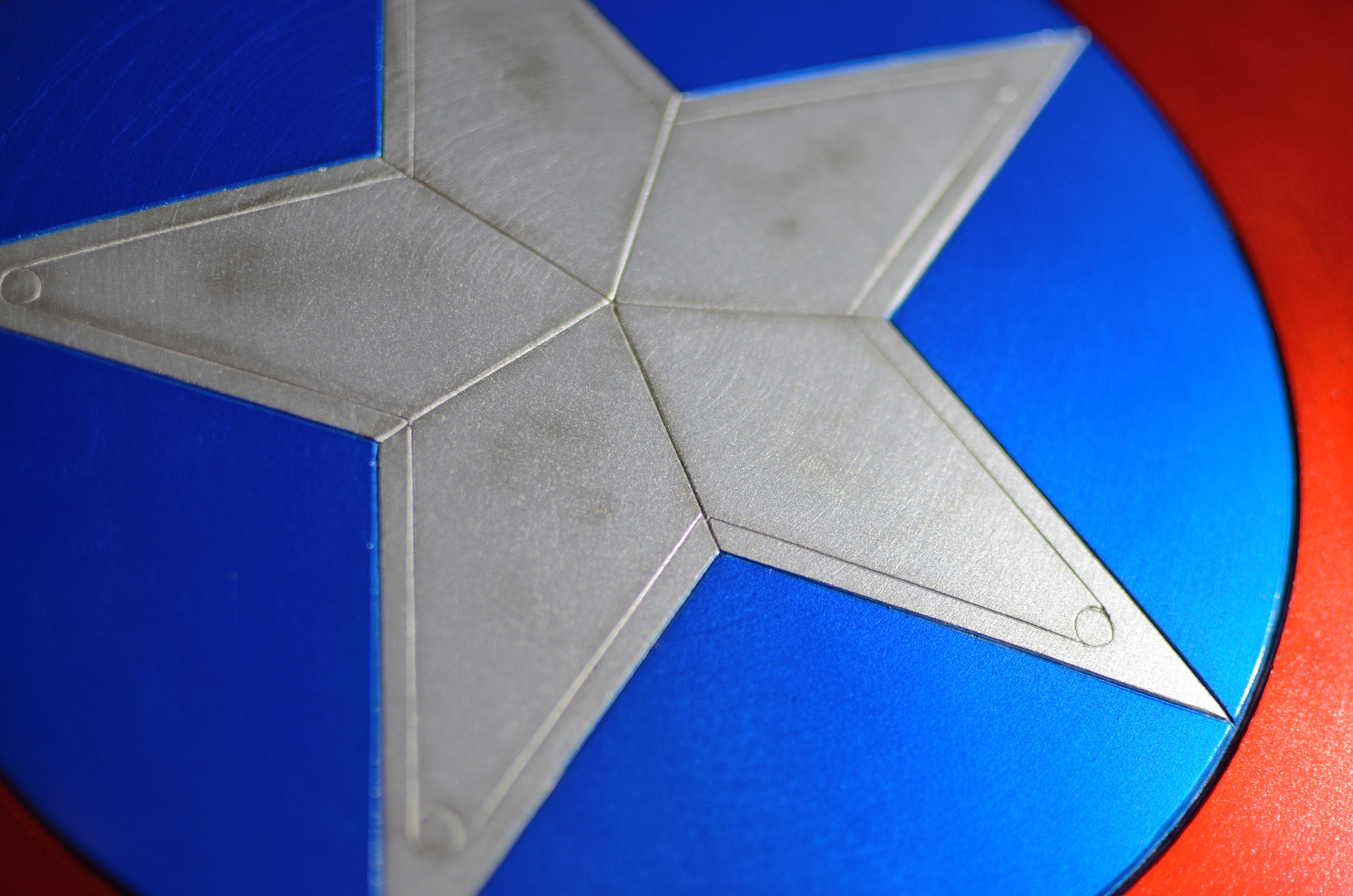

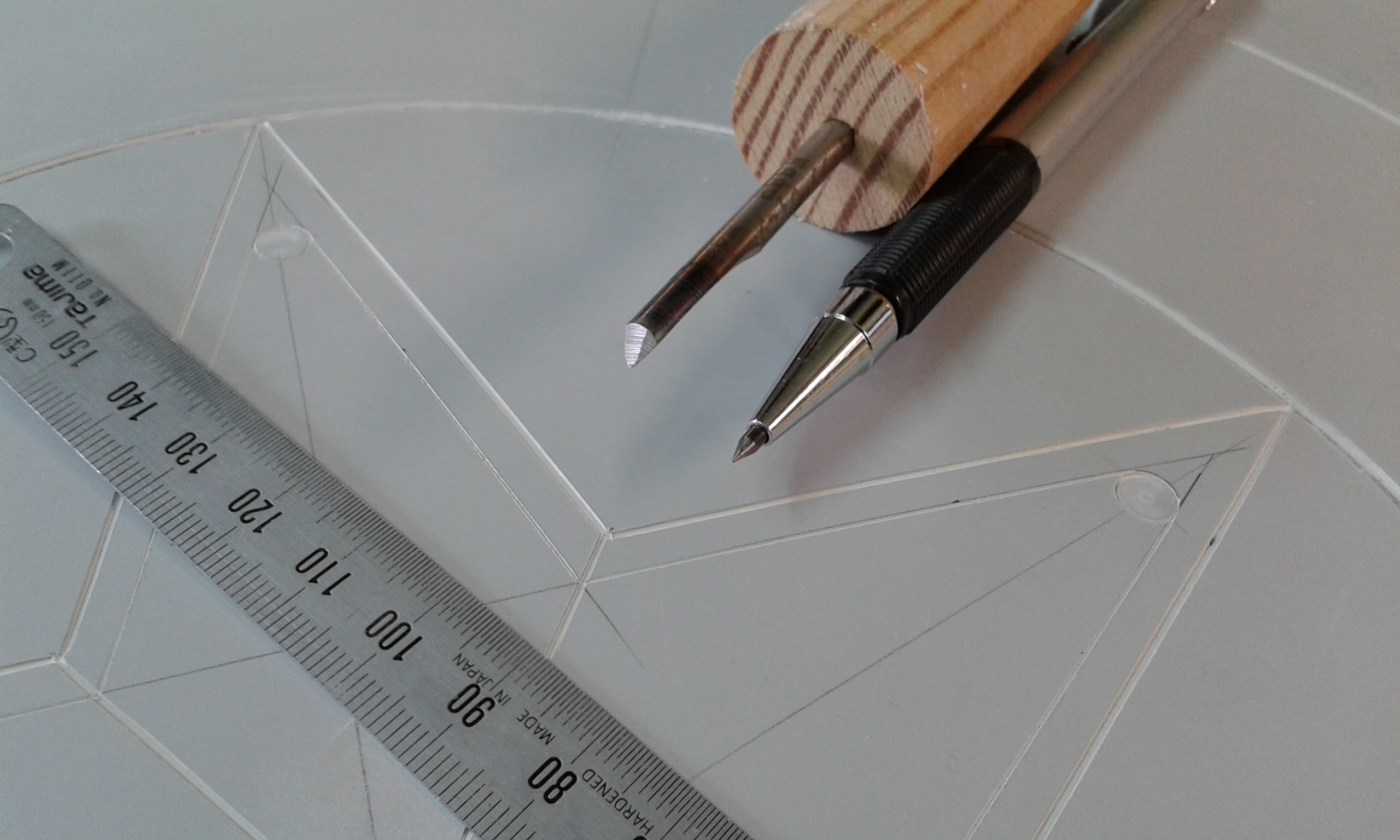

    The star was engraving with a metal marker and hand made chisel.

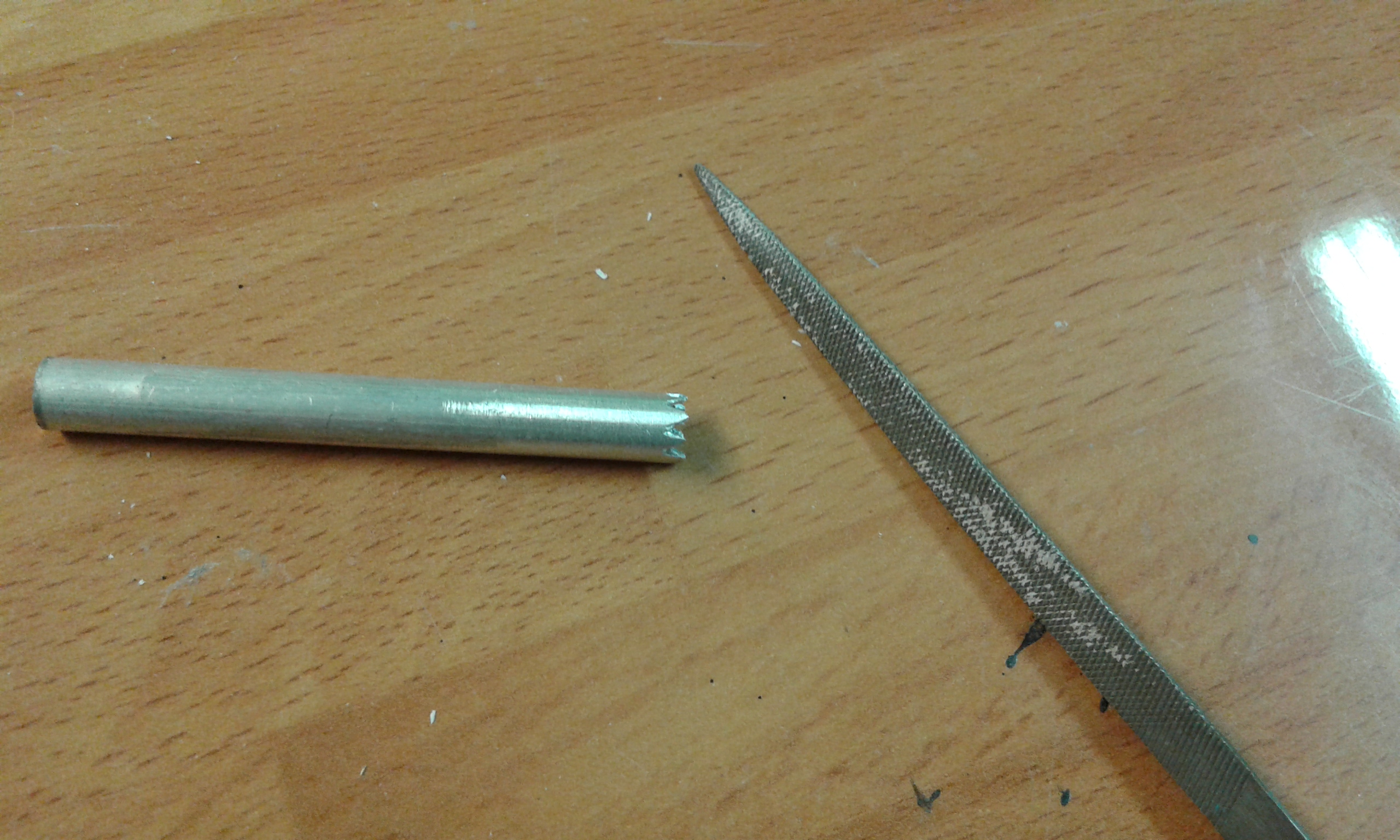

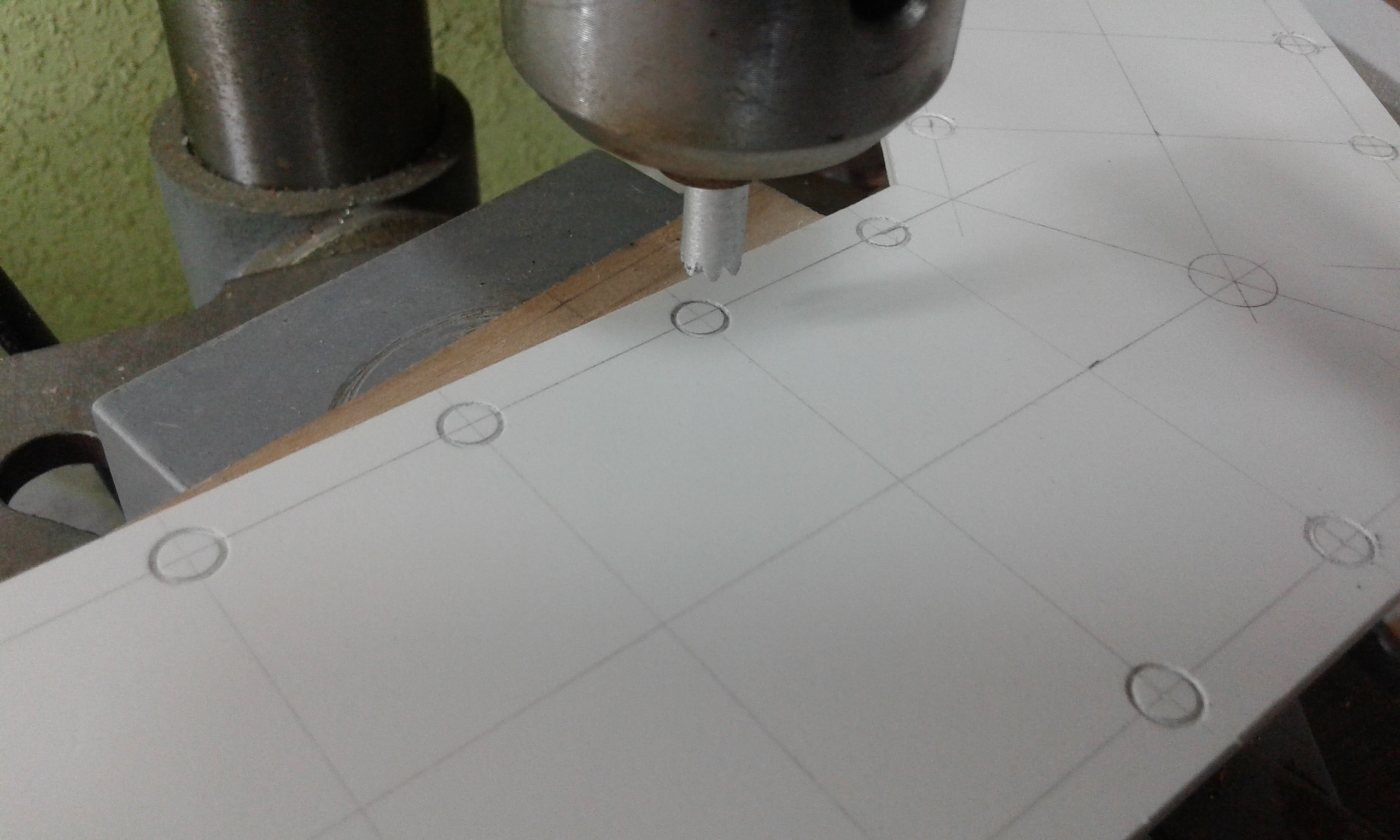

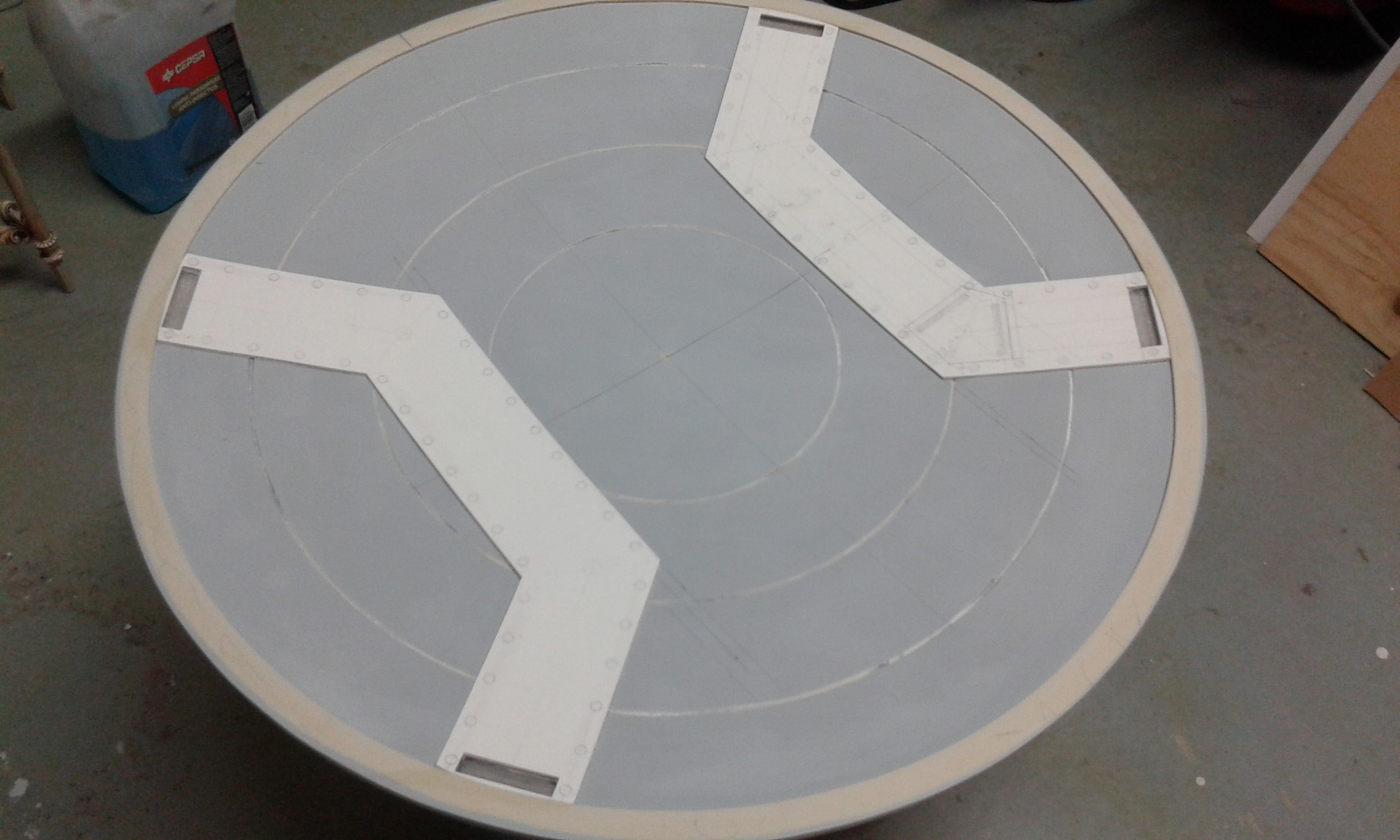

    To make the brackets I used foamed pvc and to simulate de ribets, I made a special drill with aluminum rod with teeths.

    20150419_000330.jpg 20150419_003716.jpg 20150419_004909.jpg

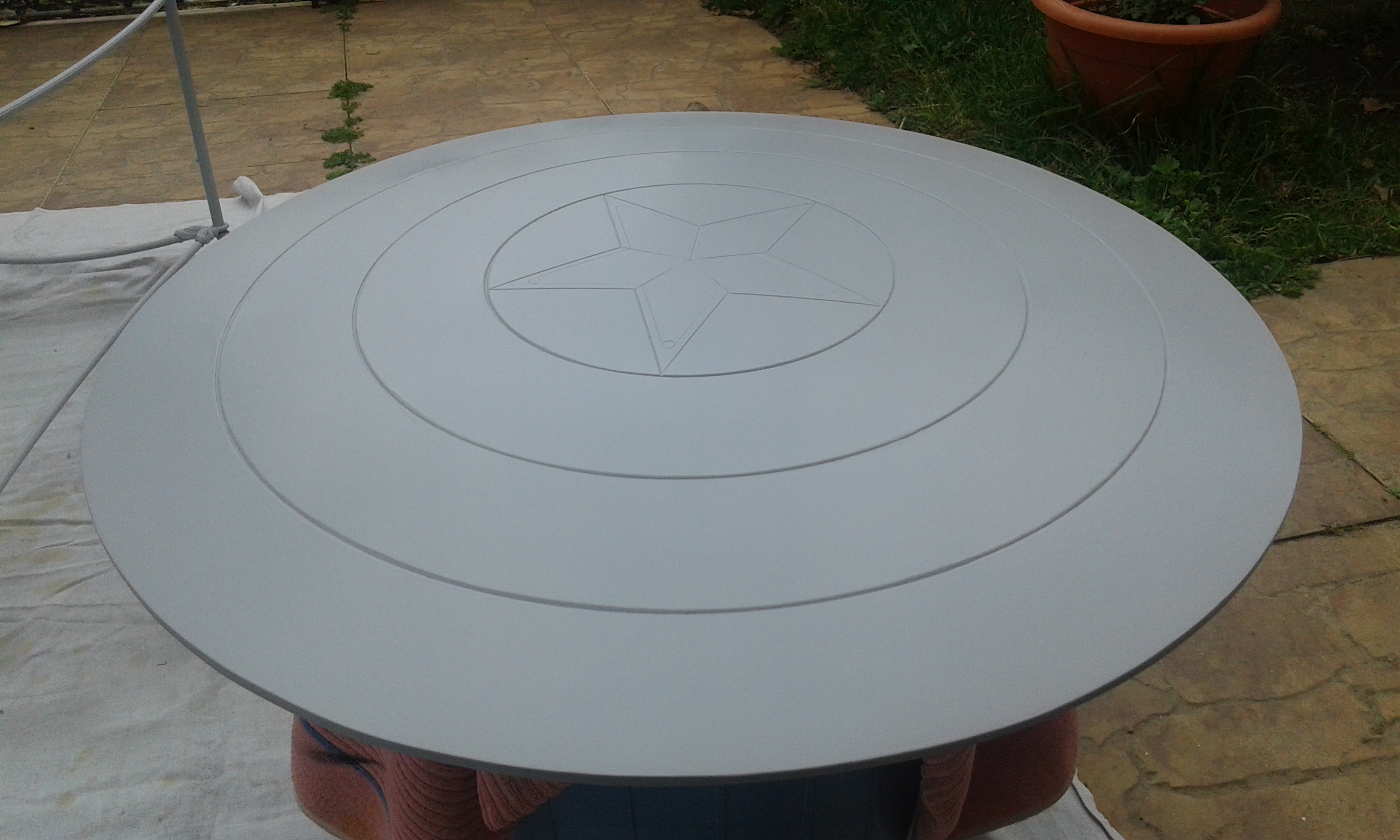

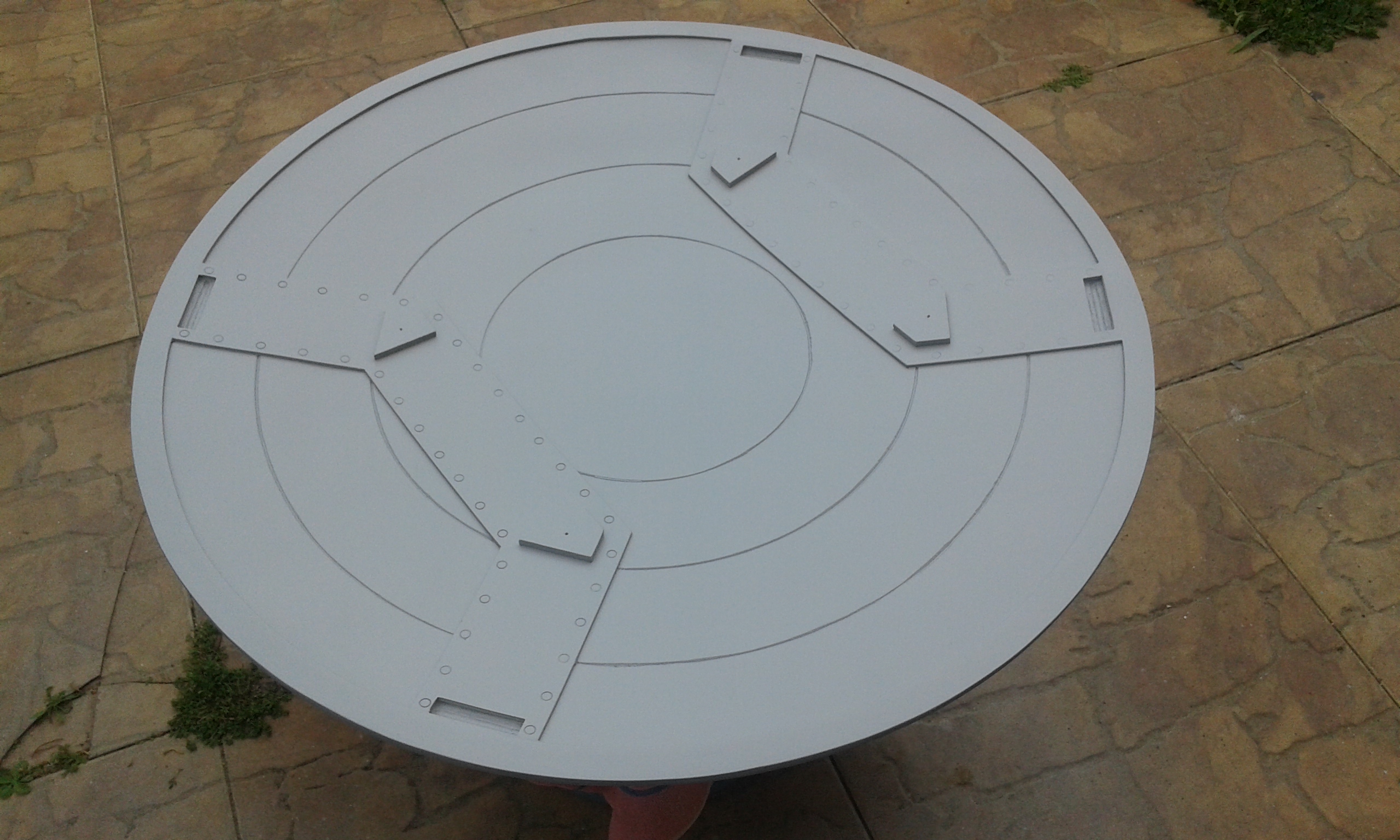

    With primer all looks better. 2K automotive primer used.

    20150424_172653.jpg 20150425_191103.jpg


    Next part, the mould. The big mould. Hehehe.

    You can find us and our works at Facebook:https://www.facebook.com/pages/Mordor-Props-Workshop/259930630823592?ref=tn_tnmn

    Last edited: Aug 16, 2015
  2. Mordor Brass

    Mordor Brass Active Member

    Trophy Points:
    211
    Re: Captain America movie shield. The most difficult DIY shield I´ve never made befor

    Ok. We continues. The shield´s mold was my first big mould. I used the two parts molde with fiberglass jacket and silicon core.

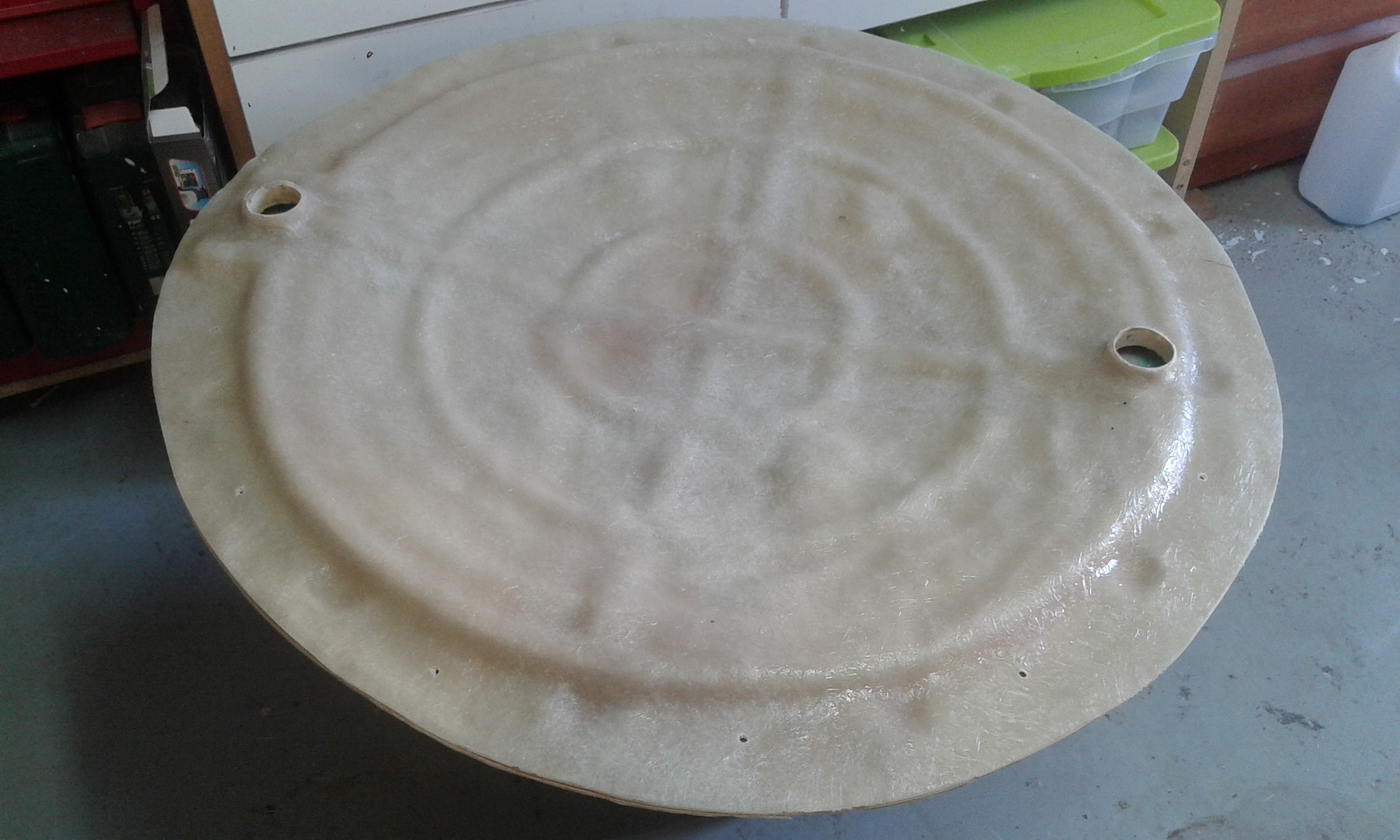

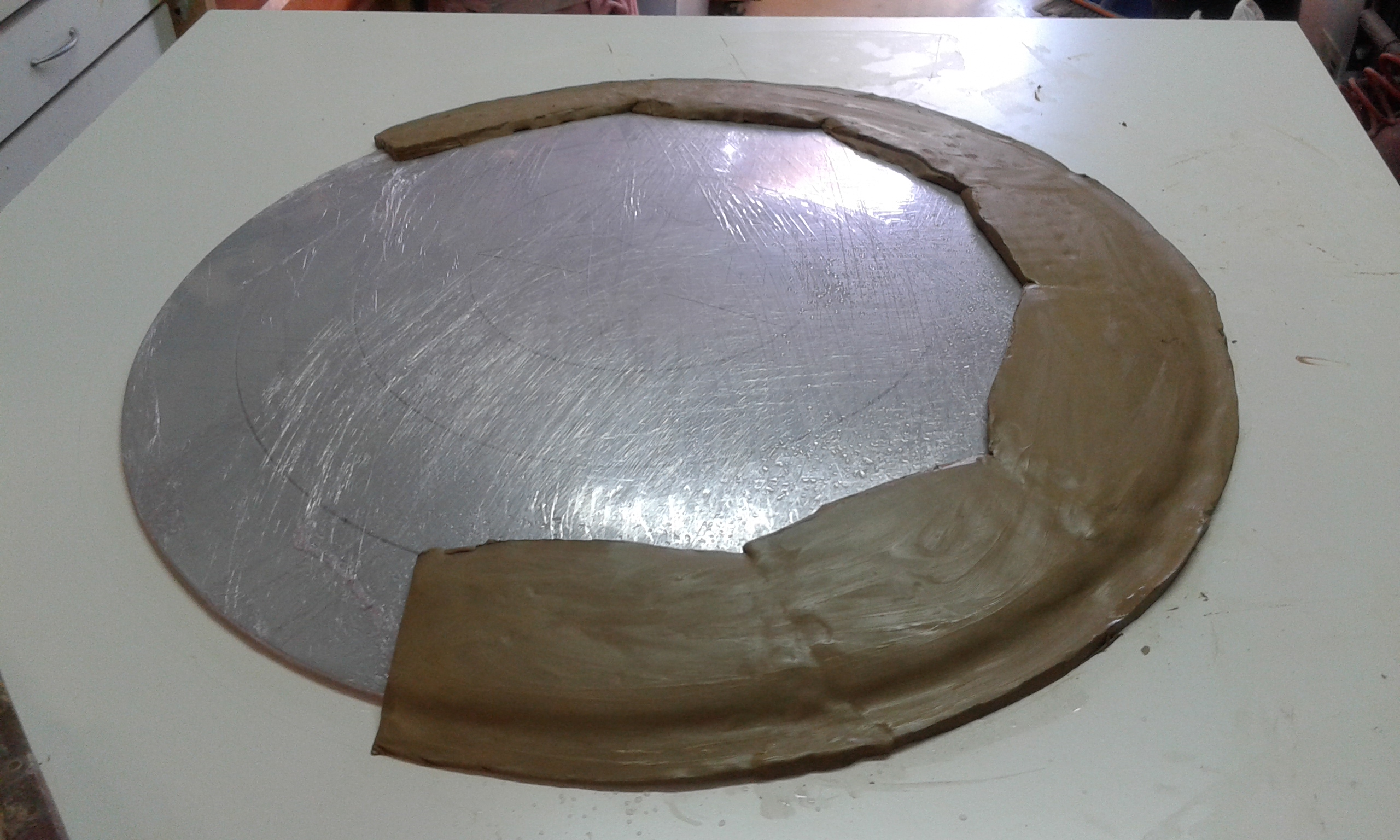

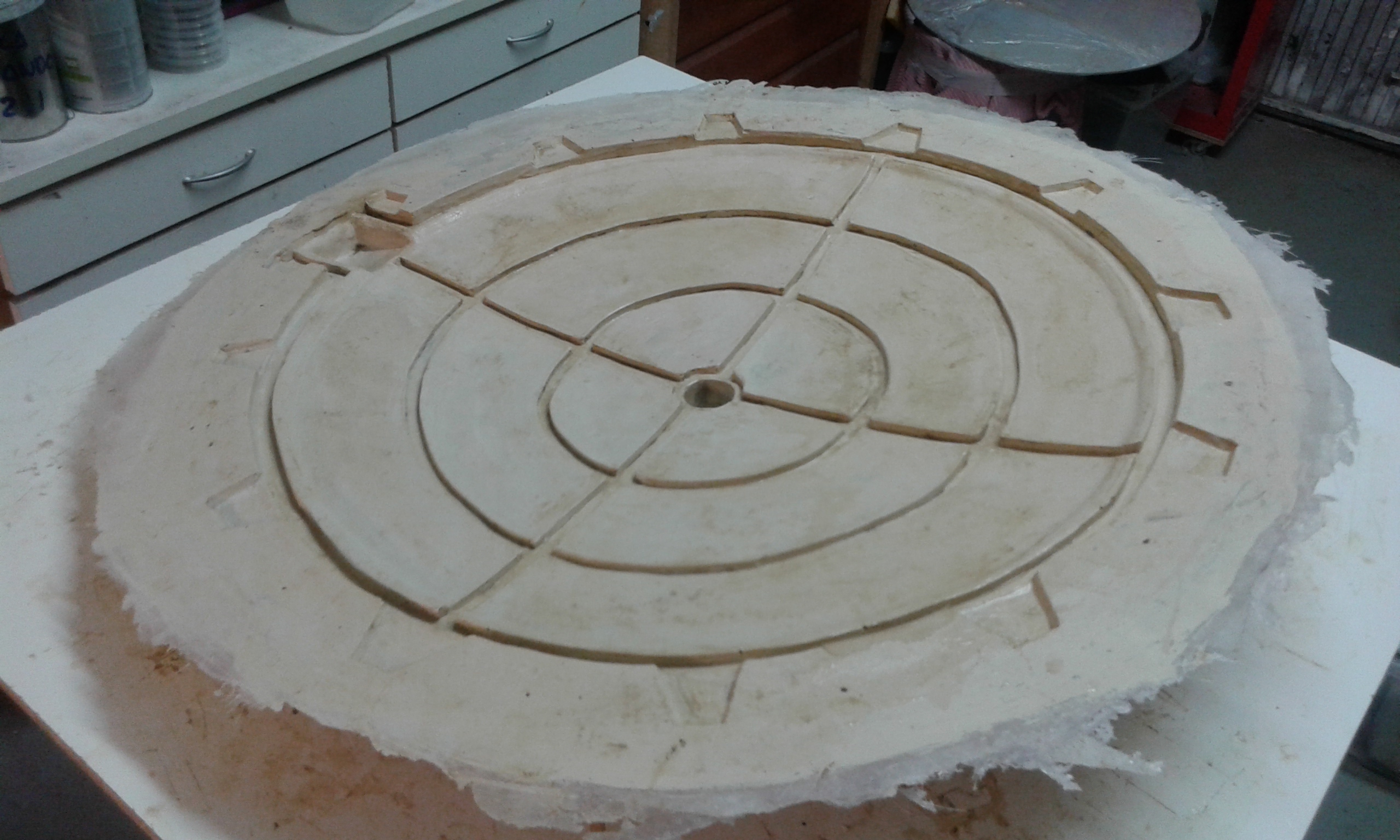

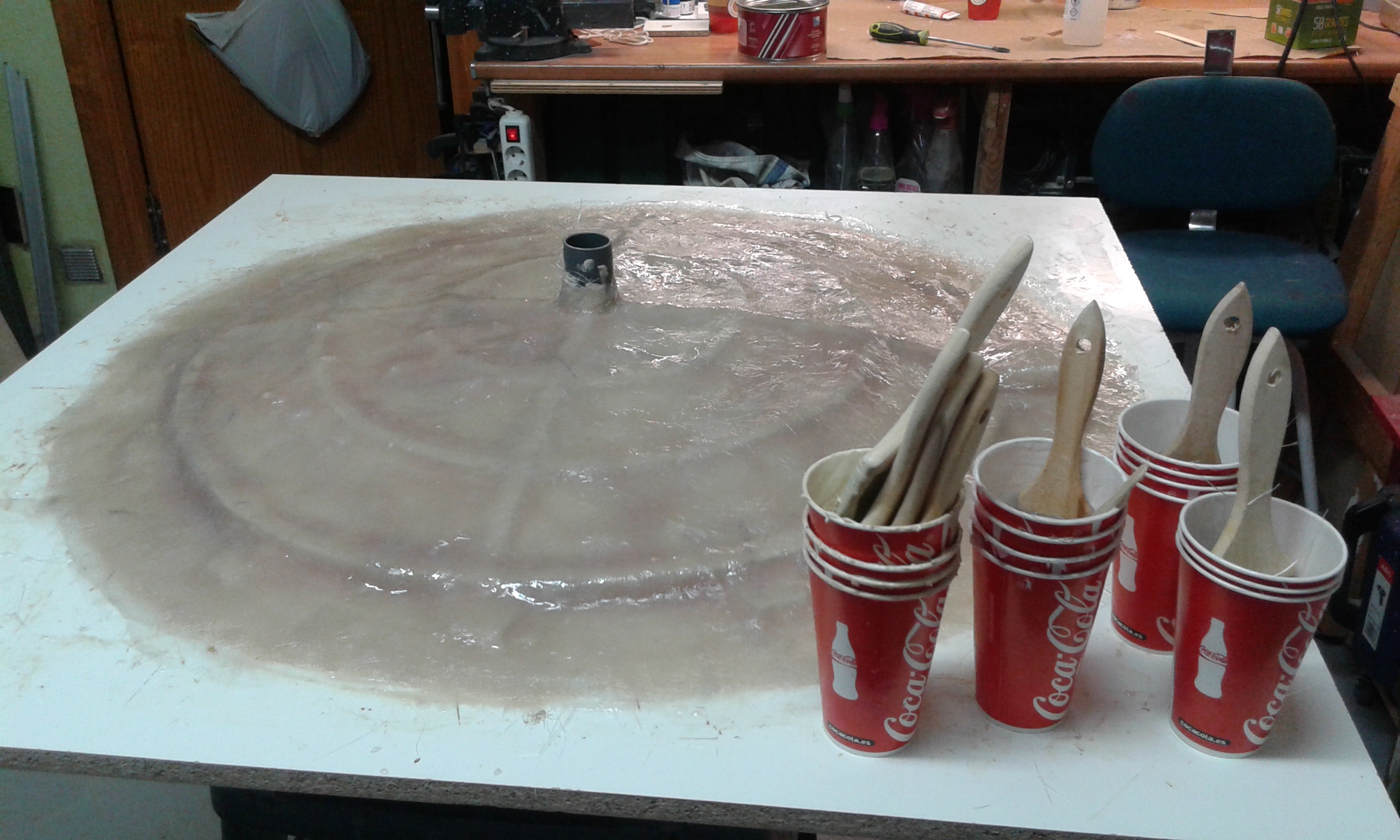

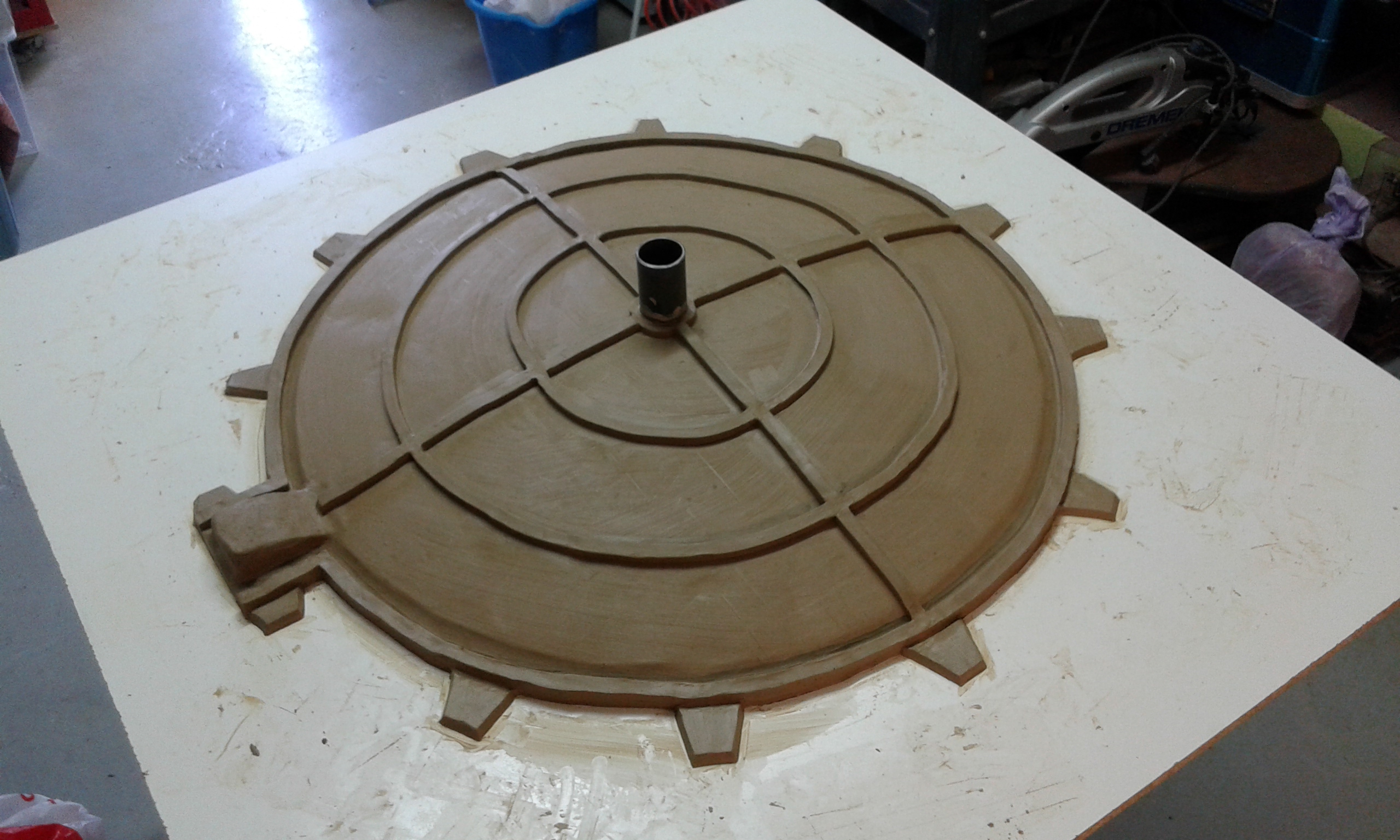

    First, I covered the shield with plastic food to protect it from dirt. Once I covered with water base clay and I sculpted the keys. Once sculpted, I sprayed acrylic clear coat to help the demold from fiberglass jacket. Once clearcoat was dry, I brushed mold release wax. Petrolleum jelly can work too. I covered the clay with polyster resin with fiberglass. The pipe in the center is for pouring silicon late.

    20150713_190003.jpg 20150714_134056.jpg 20150718_171421.jpg

    Once the polyster cured, I removed the jacket and remove the clay.

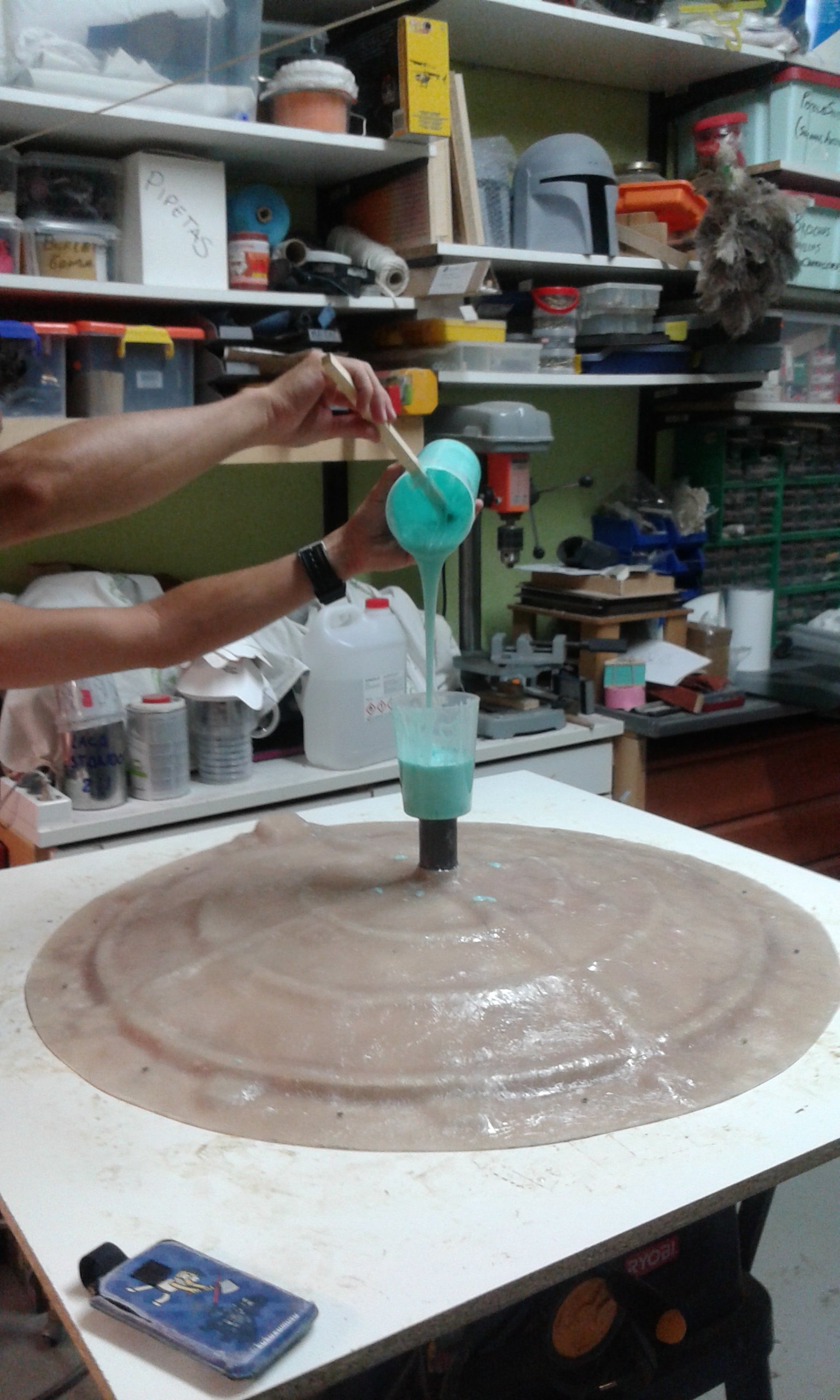

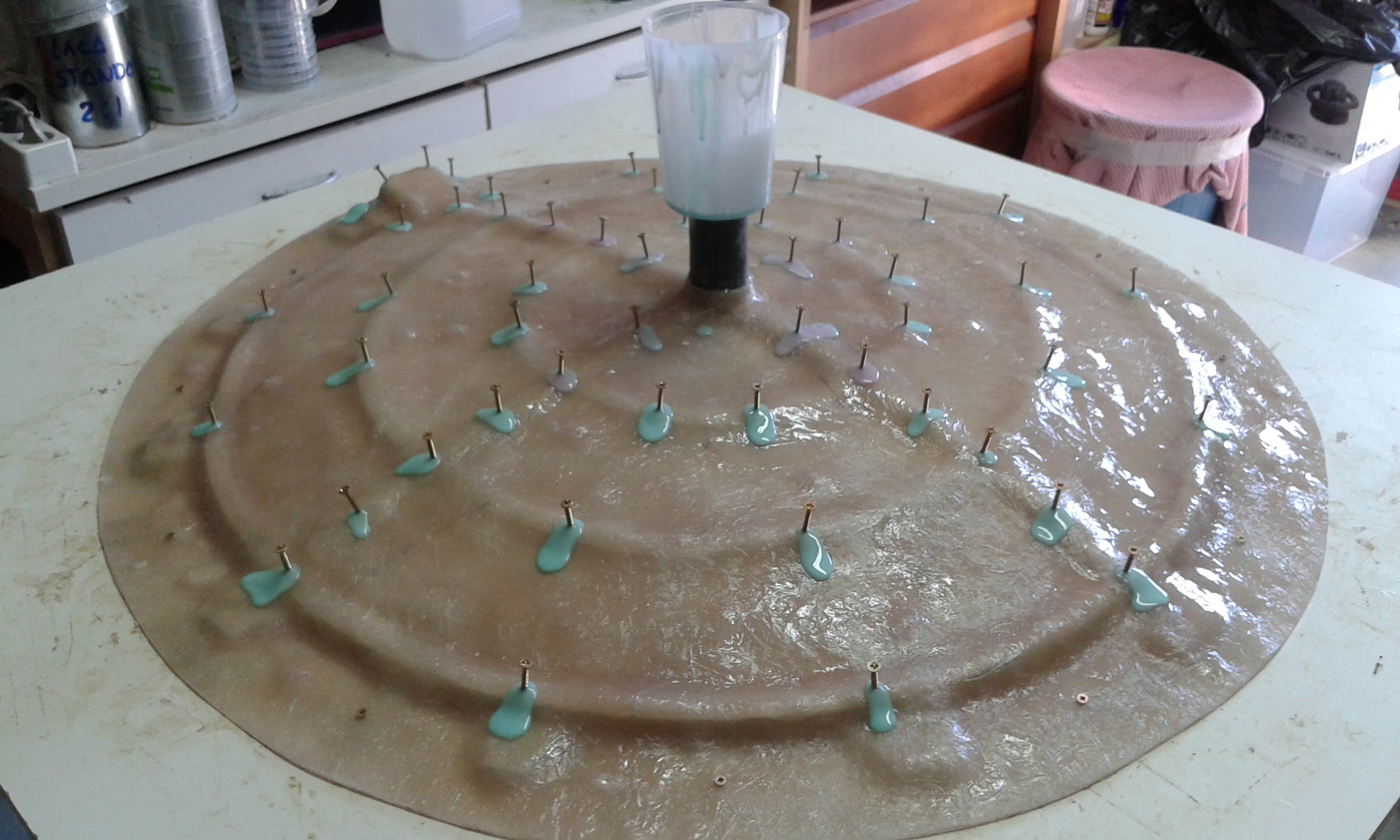

    It´s time to pouring silicon. I drilled some holes in the keys of the jacket mold to let scape the air when you pour the silicone. I relocated the jacket over the shield and I screwed it to the table. I put some hotglue around the jacket to prevent the silicon scape. Once the silicon was poured, I cover the miniholes with screws.

    20150719_183621.jpg 20150719_185058.jpg

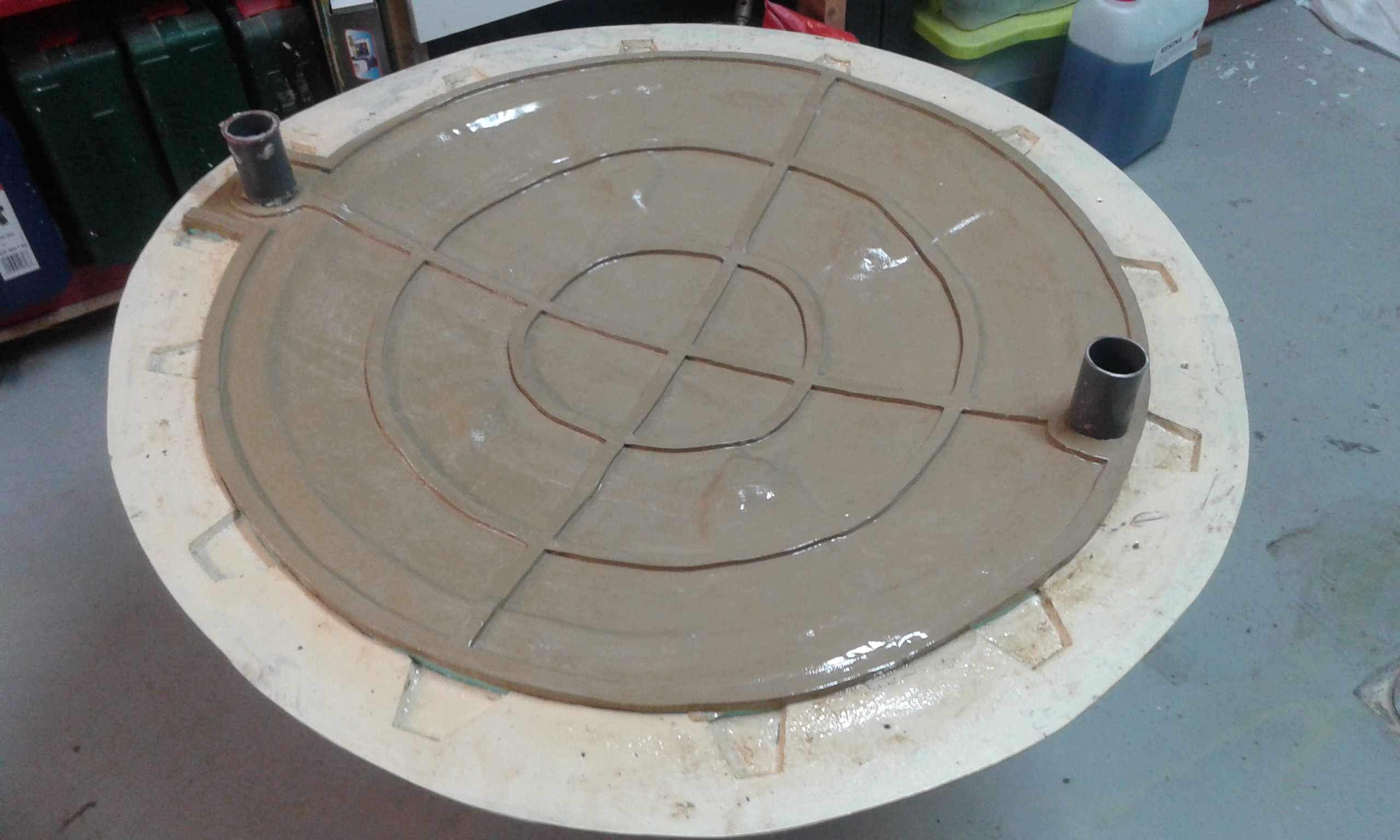

    Once the silicon was cured, repeat the same process with the backside.

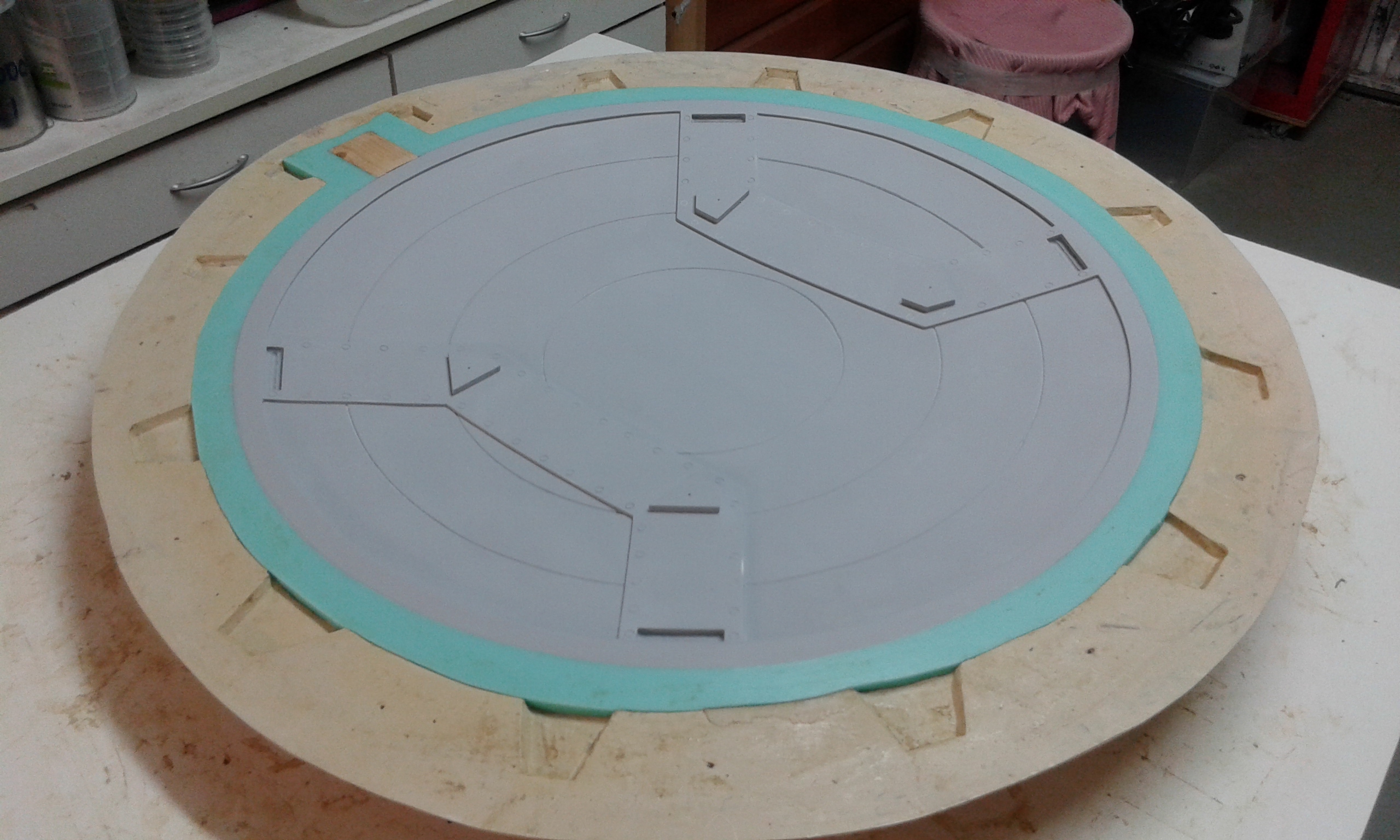

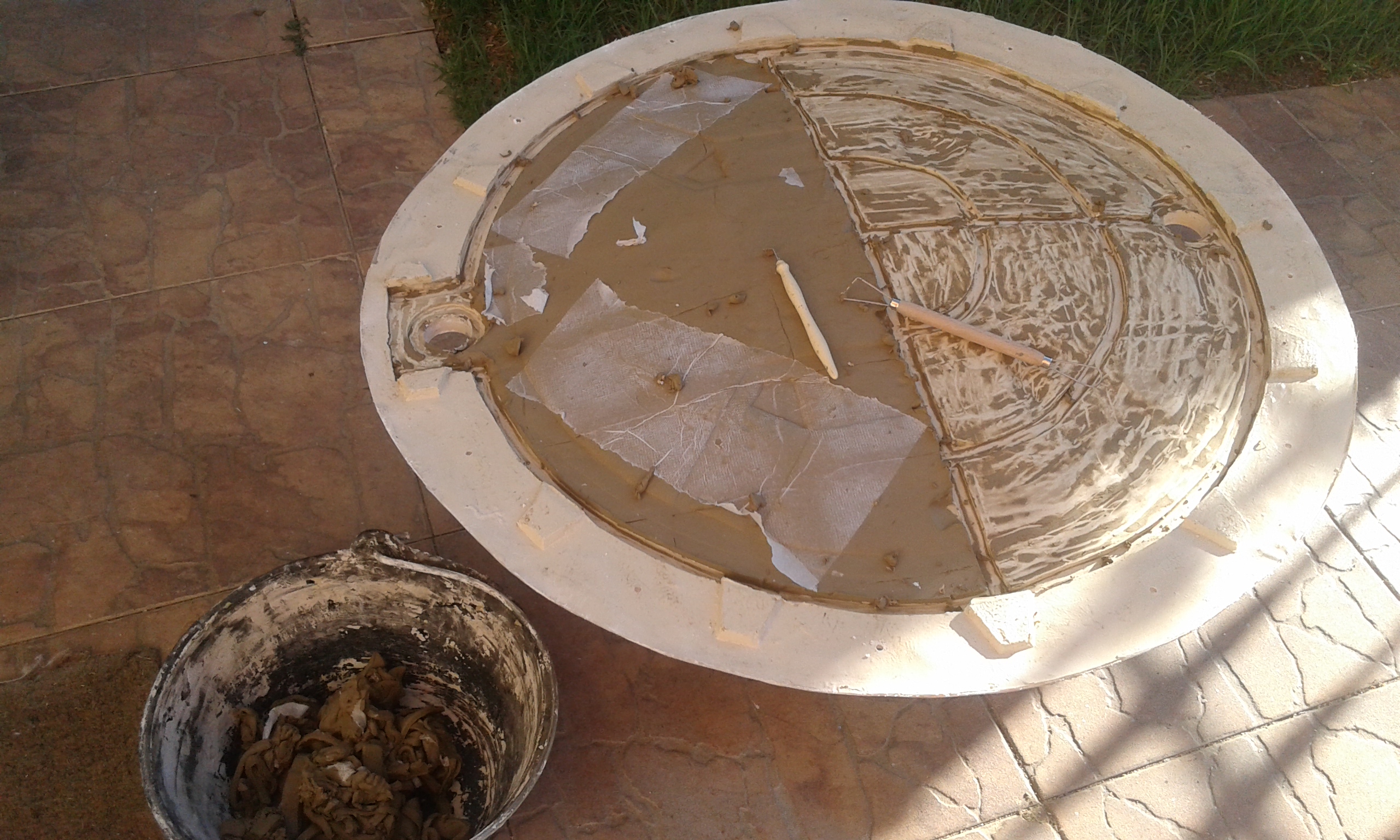

    20150722_171440.jpg 20150723_173457.jpg 20150727_180220.jpg 20150727_194607.jpg


    To attach the two fiberglass jackets I made holes when the parts was together ans used hex screws. Sorry, I forget take pics.

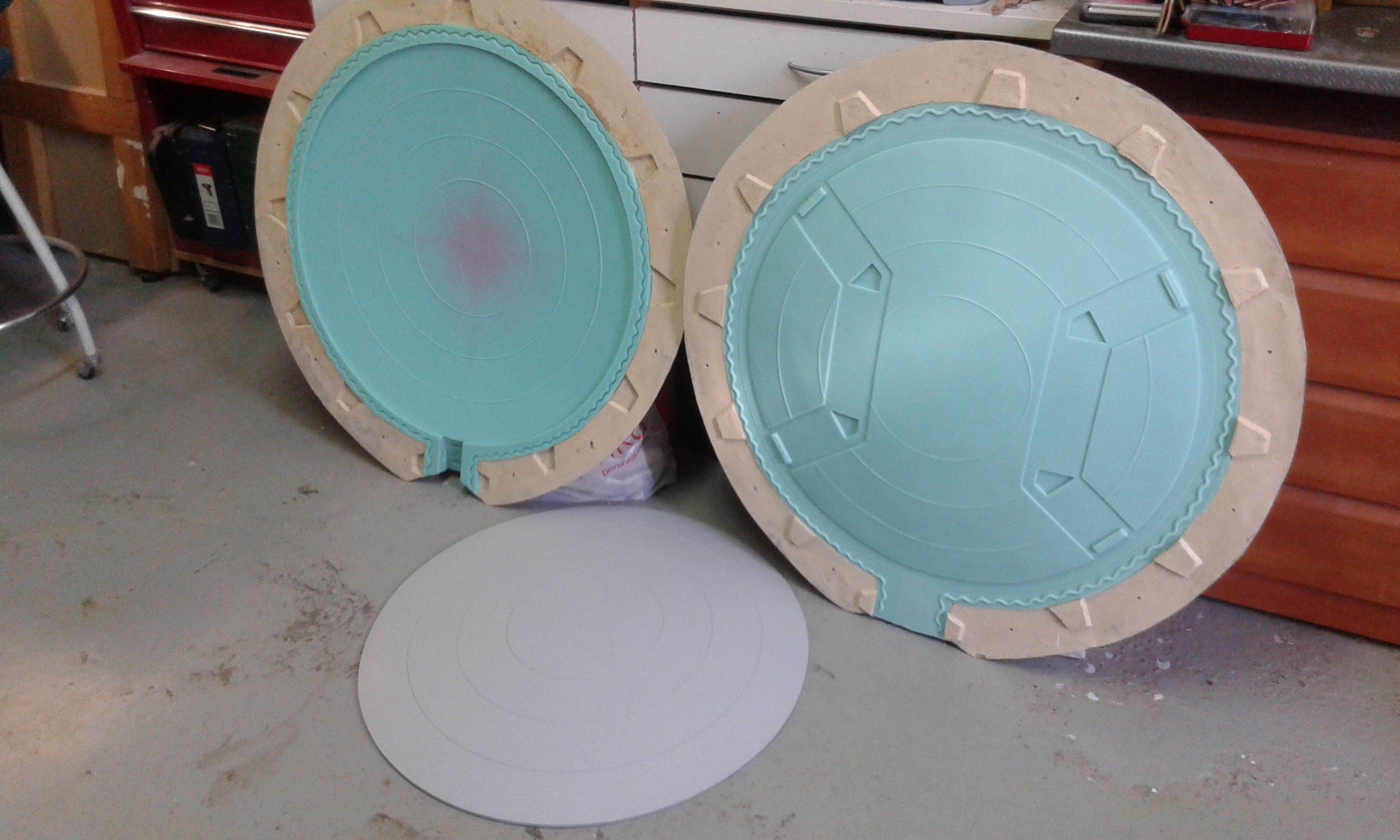

    Here the master and the mold ready for cast some pieces. The bit purple in the center of the front side was becouse I used other B silicon part in the last pour becouse I consumed early the original B compound. Luckly it worked.



    Newt post. The wonderful world of cast and paint. :)


    You can find us and our works at Facebook:https://www.facebook.com/pages/Mordo...92?ref=tn_tnmn

    Last edited: Aug 16, 2015
  3. Mordor Brass

    Mordor Brass Active Member

    Trophy Points:
    211
    Re: Captain America movie shield. The most difficult DIY shield I´ve never made befor

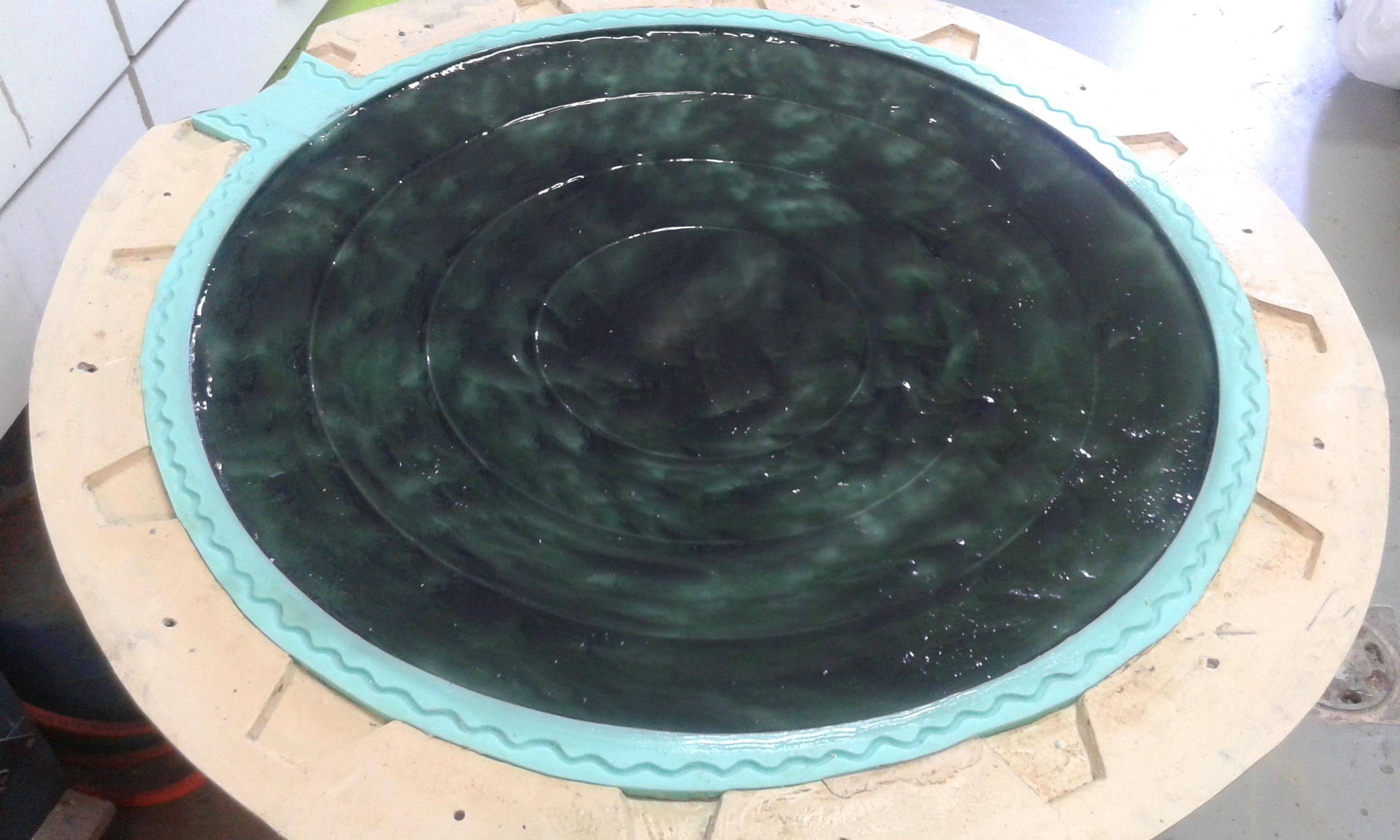

    Really when I arrived to this part, I didn´t know what kind material cast I would use. My first try was my first time with epoxy resin. I used epoxamite from Smooth-On. It´s a awesome resin. I´m in love. The final piece is lightweight and very very strong.

    I laminate the front and back side separately. First coat with thixotropic aditive (Aerosil) and black pigment. Second coat resin+fiberglass.

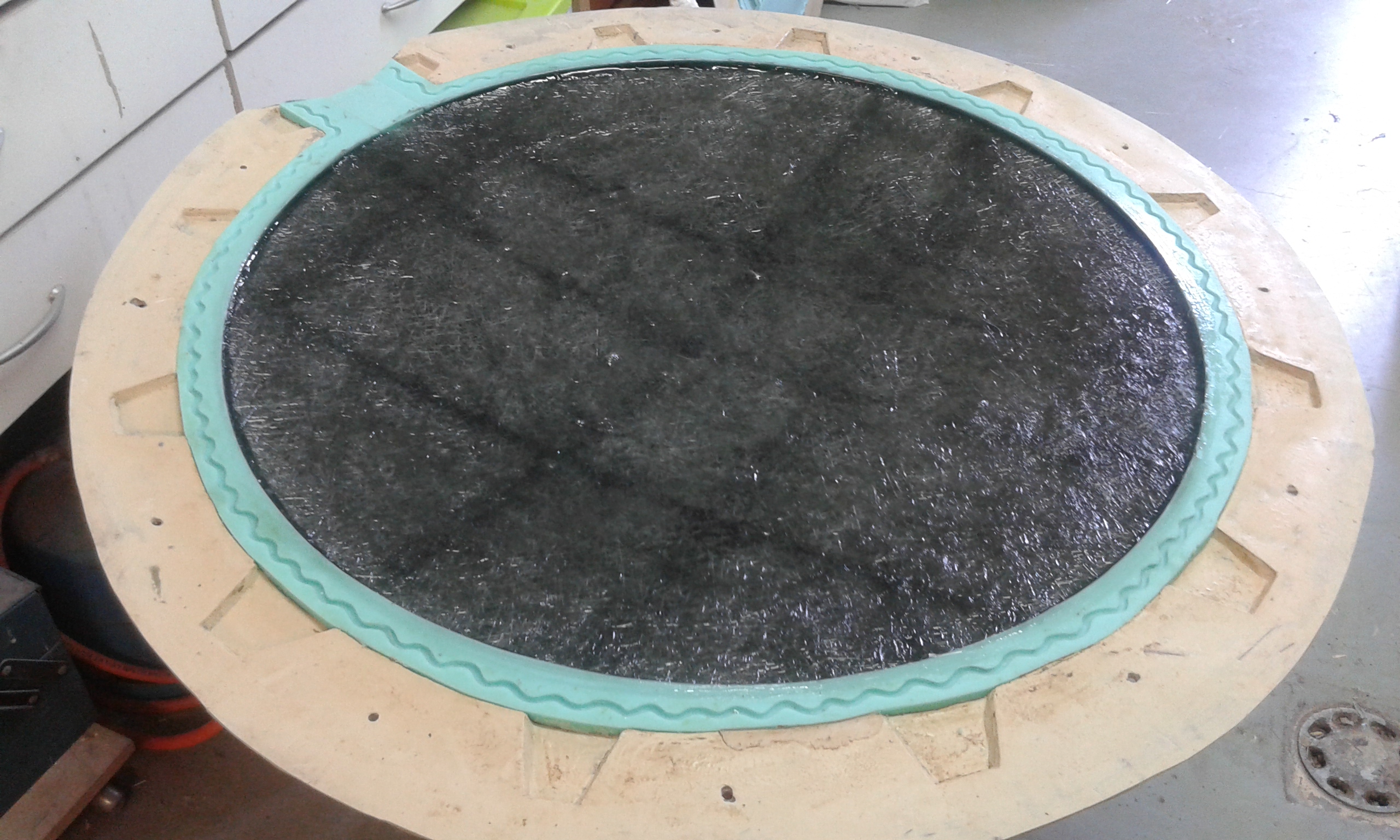

    Once semicured the two sides, I put a resin cord with thixo around the edge with a pastry bag. And yes, a pastry bag is perfect if you put thixoresin inside and you want total control where you put resin. Sorry I haven´t pics of this process.

    20150802_125230.jpg 20150802_132956.jpg

    Here the final cast. Some little bubbles but it´s not a problem. Mr putty tu the rescue. No pics of the front side. Sorry again.


    Now the funniest part.(sarcasm) Painting. Transparents colour is soo dificult to apply.

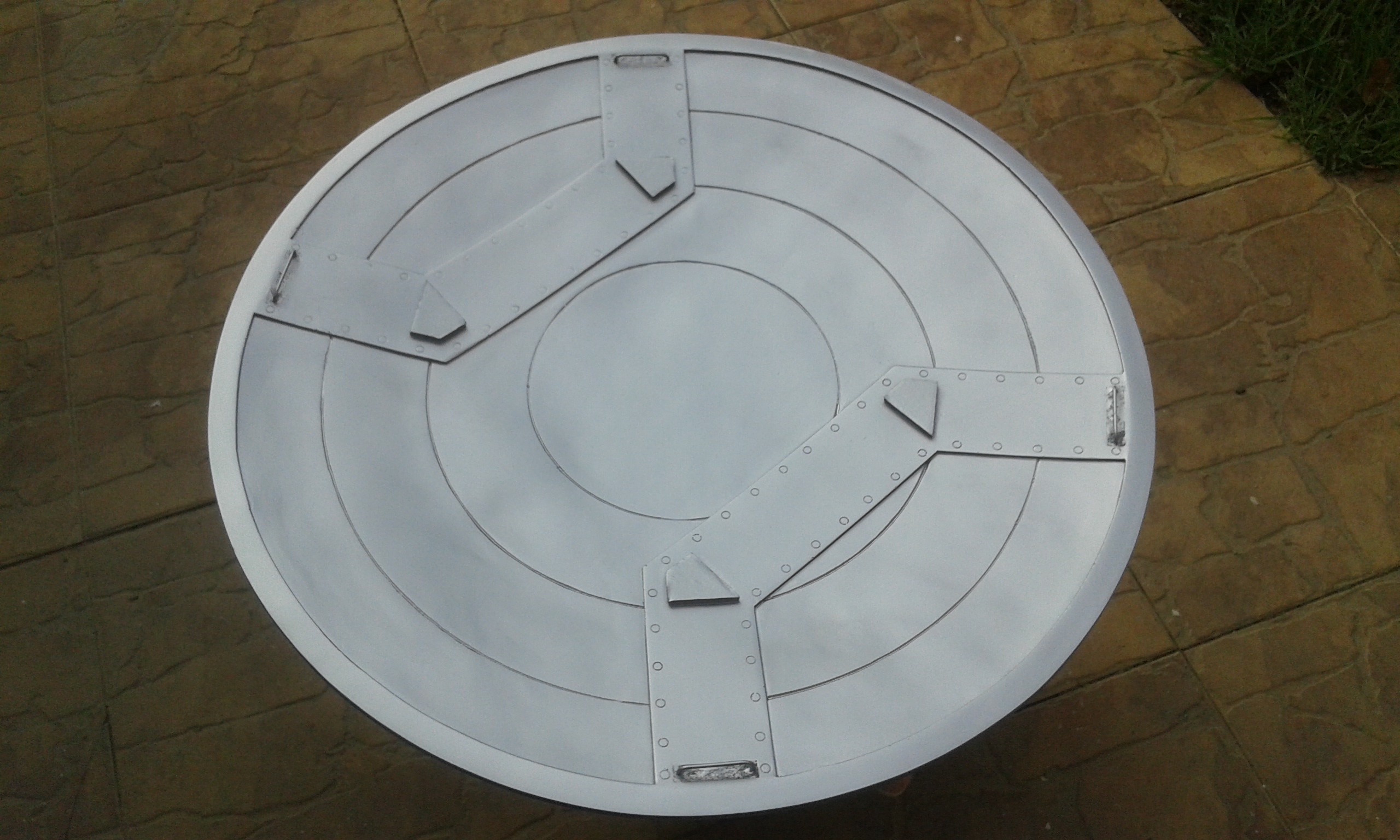

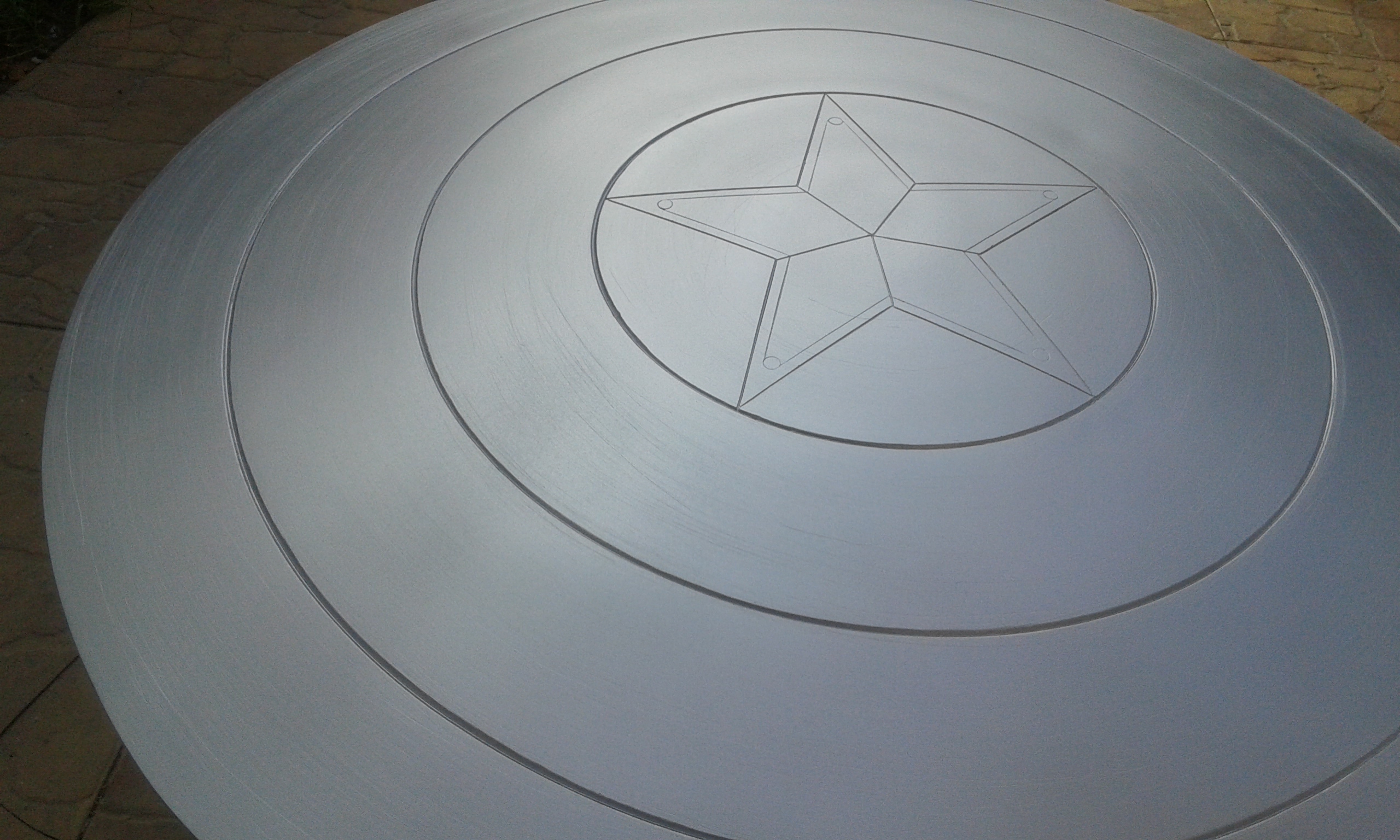

    I used 2K automotive primer and once cured, I sanded the surface of the frontside in one direction with 60 grit sand paper to get the brushed metal effect.
    Silver colour base coat aplied with spray gun.

    20150812_183834.jpg 20150812_185509.jpg

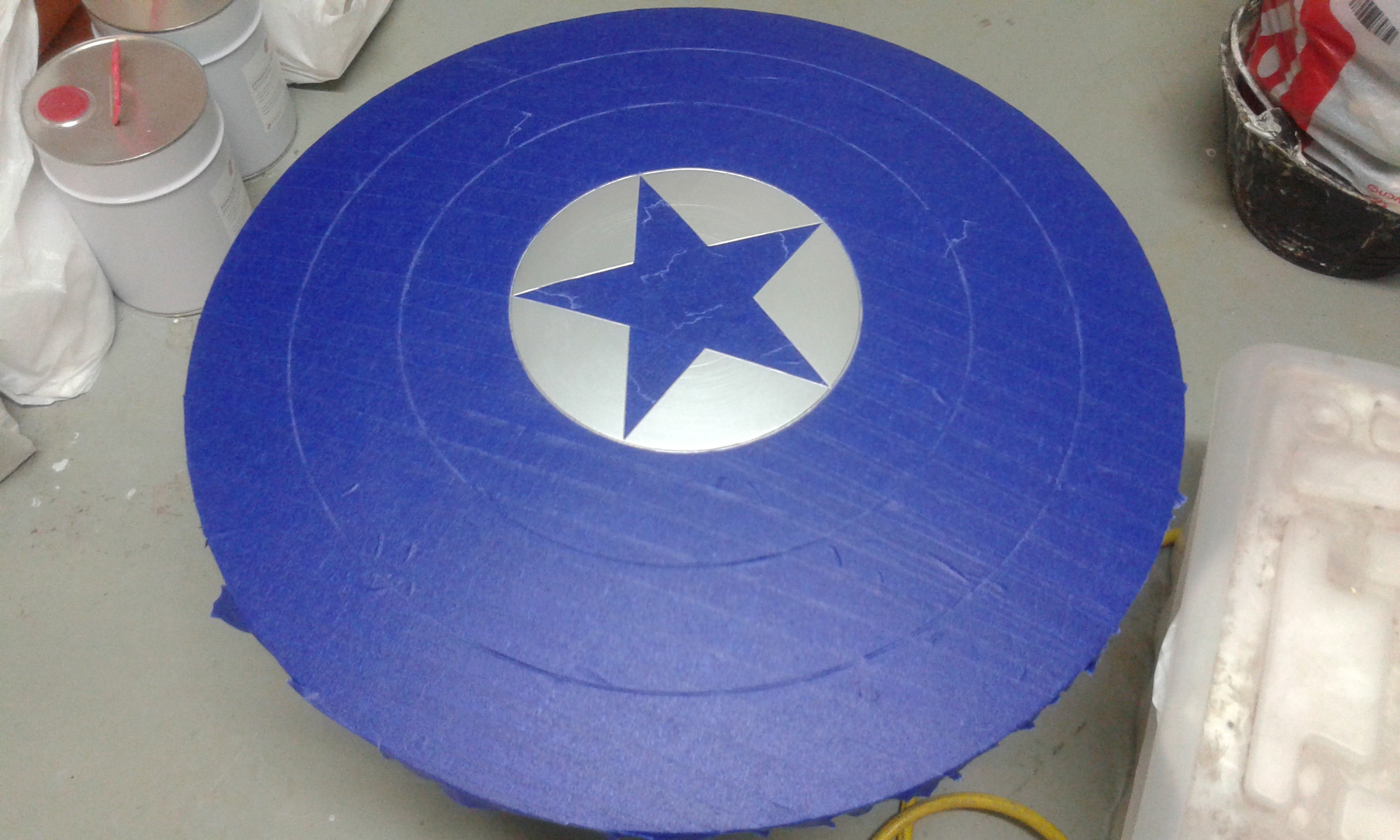

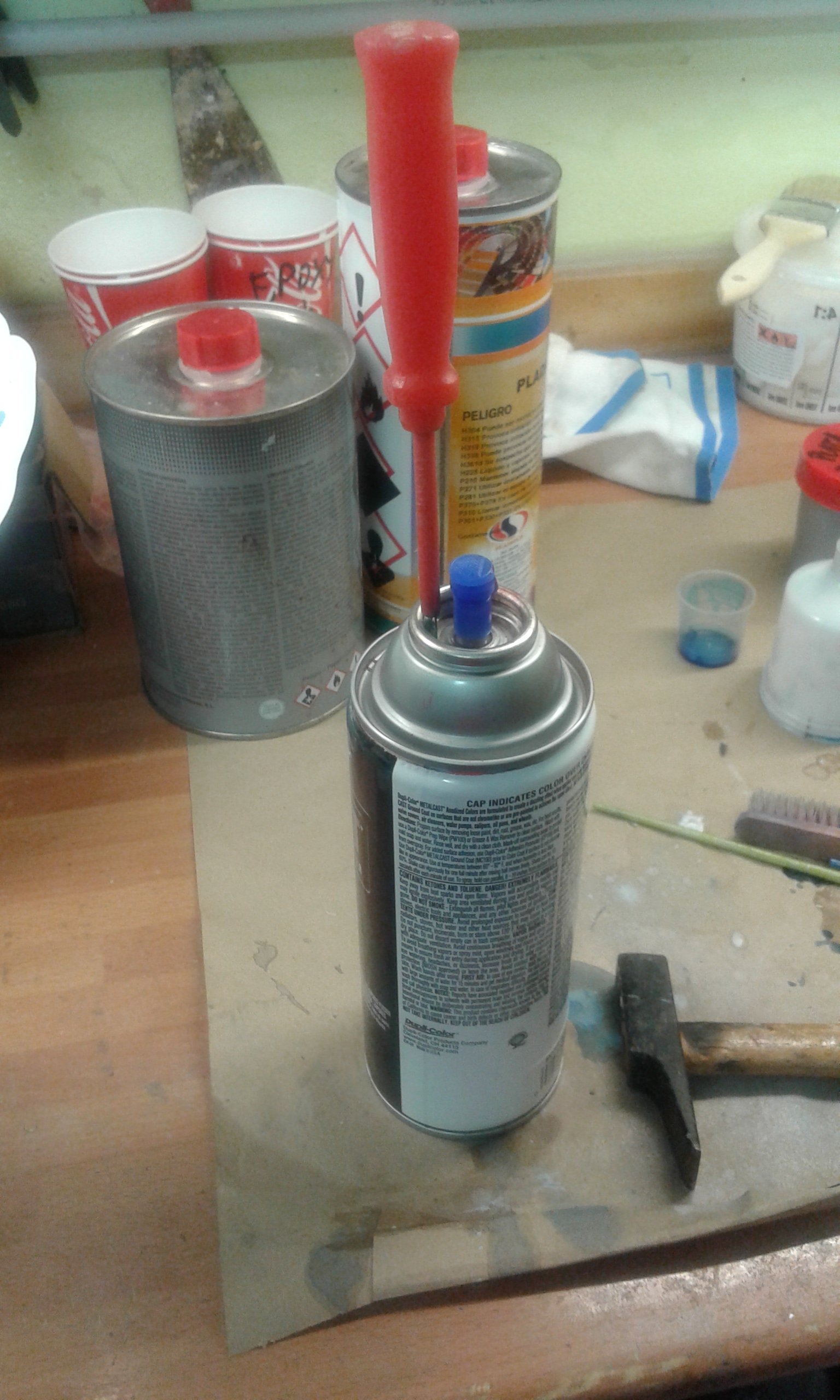

    Masking tape the star and the circles and first coat of Metalcast Blue from Duplicolor spray. I need say I didn´t use the spray can. I emptied the gas inverting the can and once without gas, I made a hole in the can and I extracted the paint for use it with a spraygun. It´s not very recomended but it works better than can´s diffusor.

    20150813_164337.jpg 20150812_193558.jpg 20150812_200525.jpg

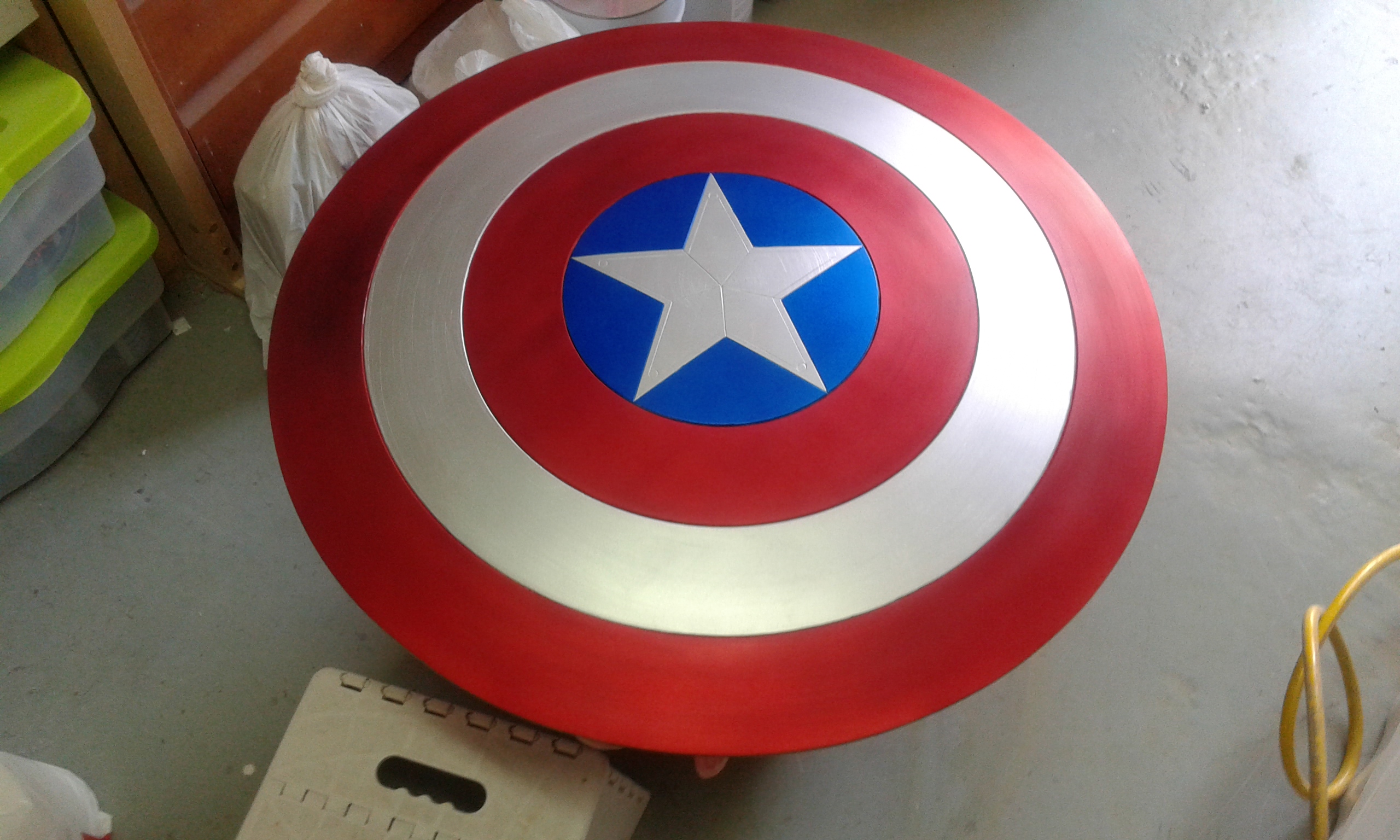

    Some process with the red colour. Metalcast Red from Duplicolor.

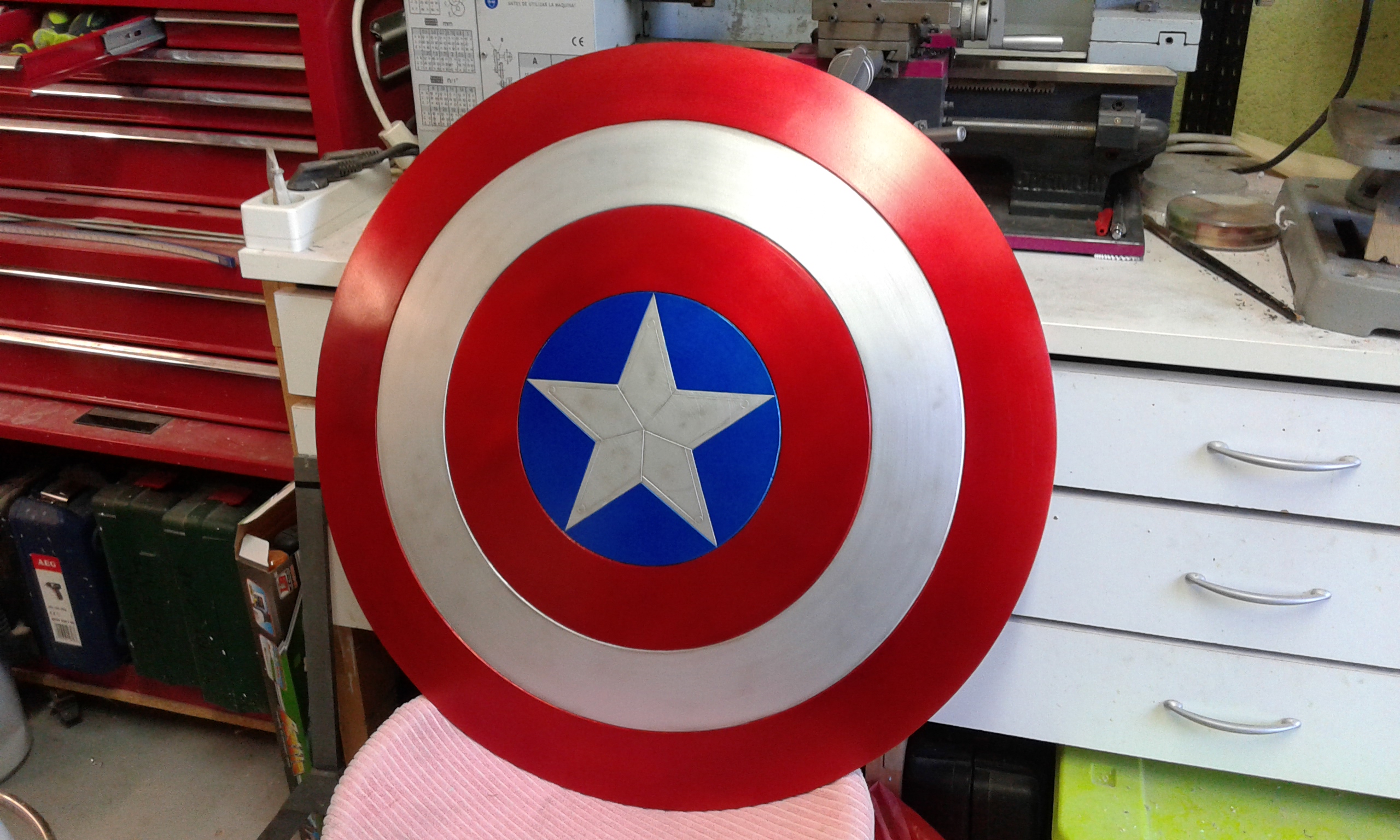

    Once applied the colours, and some light weathering, I clear coated with satin 2K automotive barnish.

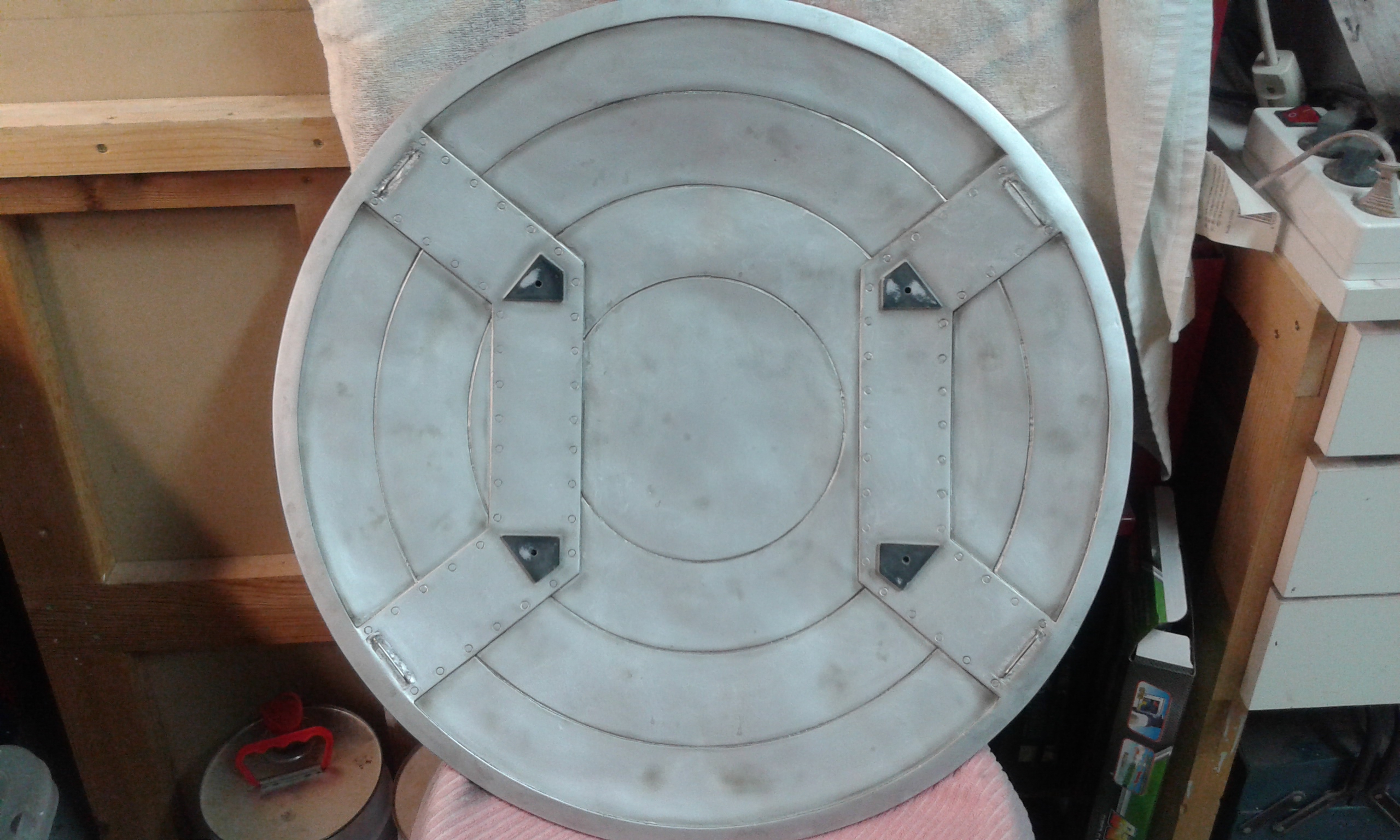

    20150816_140231.jpg 20150813_202203.jpg


    Next post, the straps and the display.


    You can find us and our works at Facebook:https://www.facebook.com/pages/Mordor-Props-Workshop/259930630823592?ref=tn_tnmn


    Attached Files:

    Last edited: Aug 17, 2015
  4. Bogleo

    Bogleo Well-Known Member

    Trophy Points:
    816
    Re: Captain America movie shield. The most difficult DIY shield I´ve never made befor

    Your pictures in the last post aren't working. Also, what is the diameter of the shield?

  5. Mordor Brass

    Mordor Brass Active Member

    Trophy Points:
    211
    Re: Captain America movie shield. The most difficult DIY shield I´ve never made befor

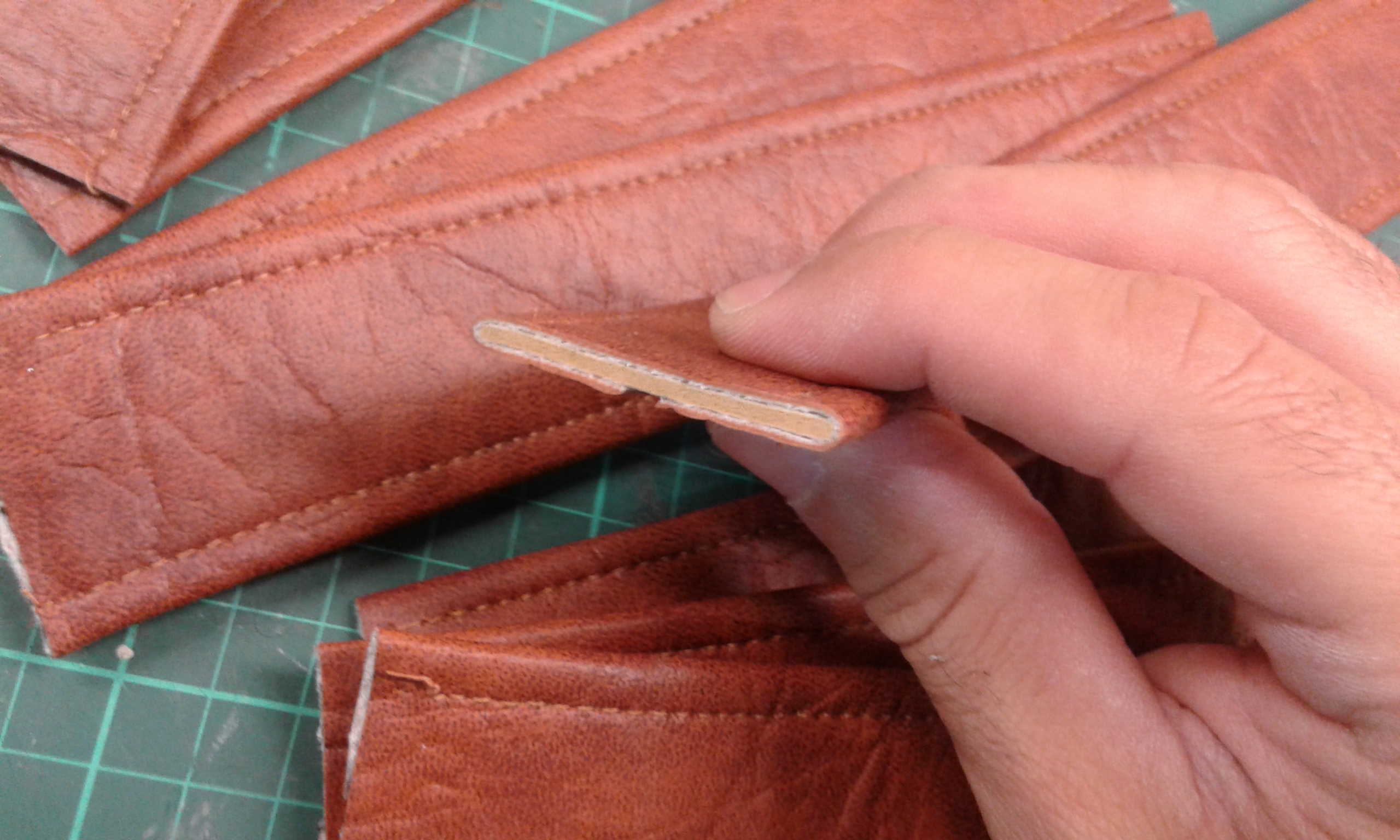

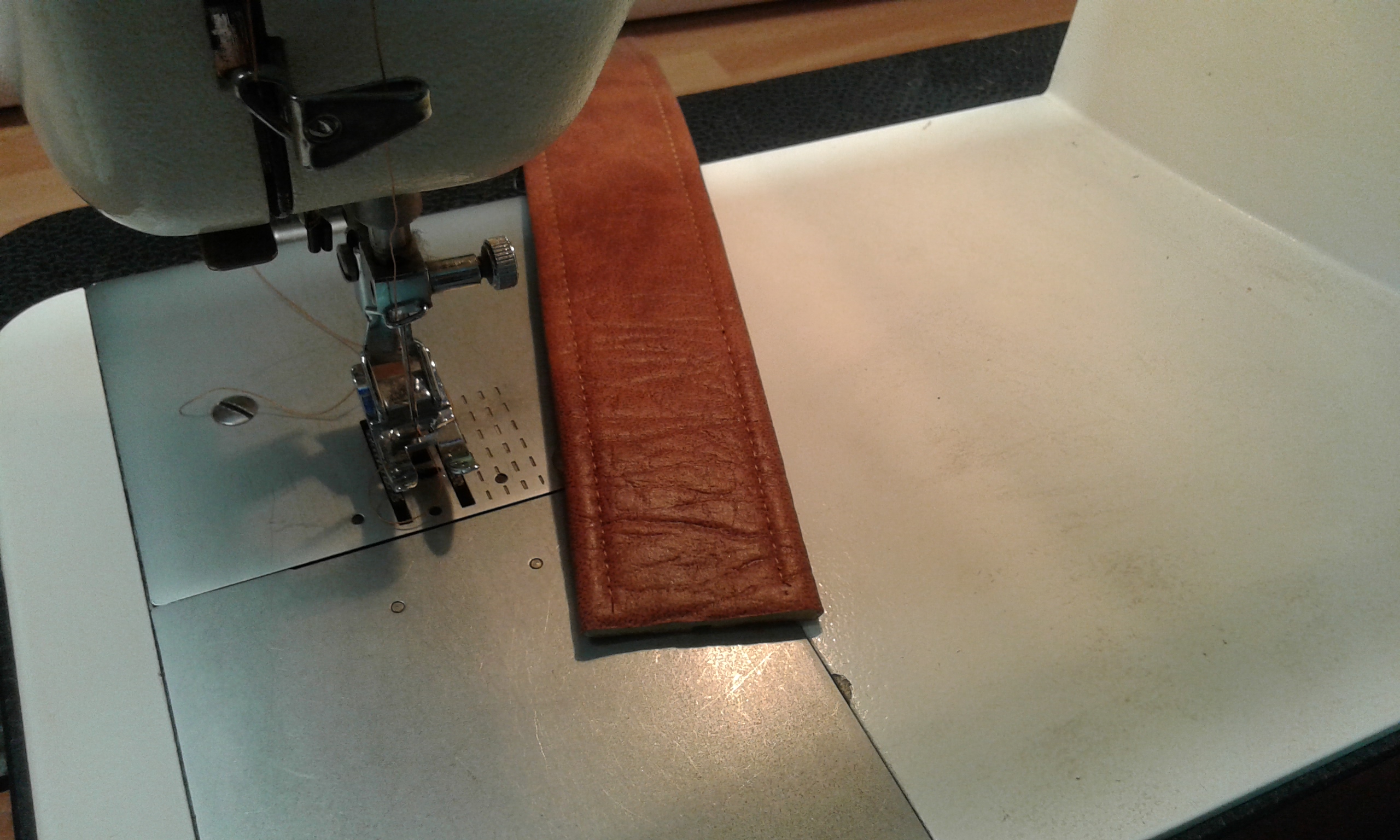

    As my sewing machine can´t sew leather, I used upholstery faux leather with eva foam core.

    20150520_122225.jpg 20150519_140330.jpg 20150520_134139.jpg

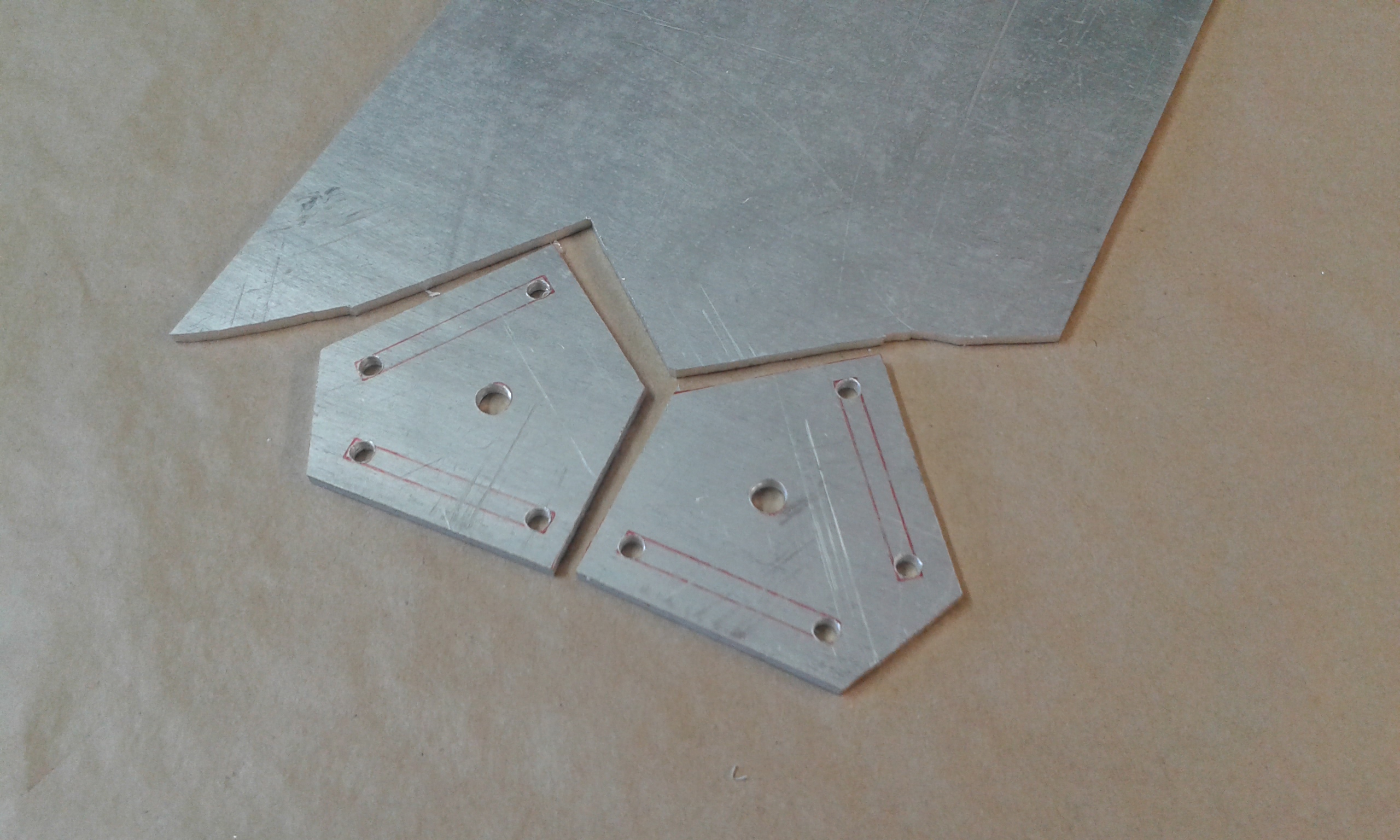

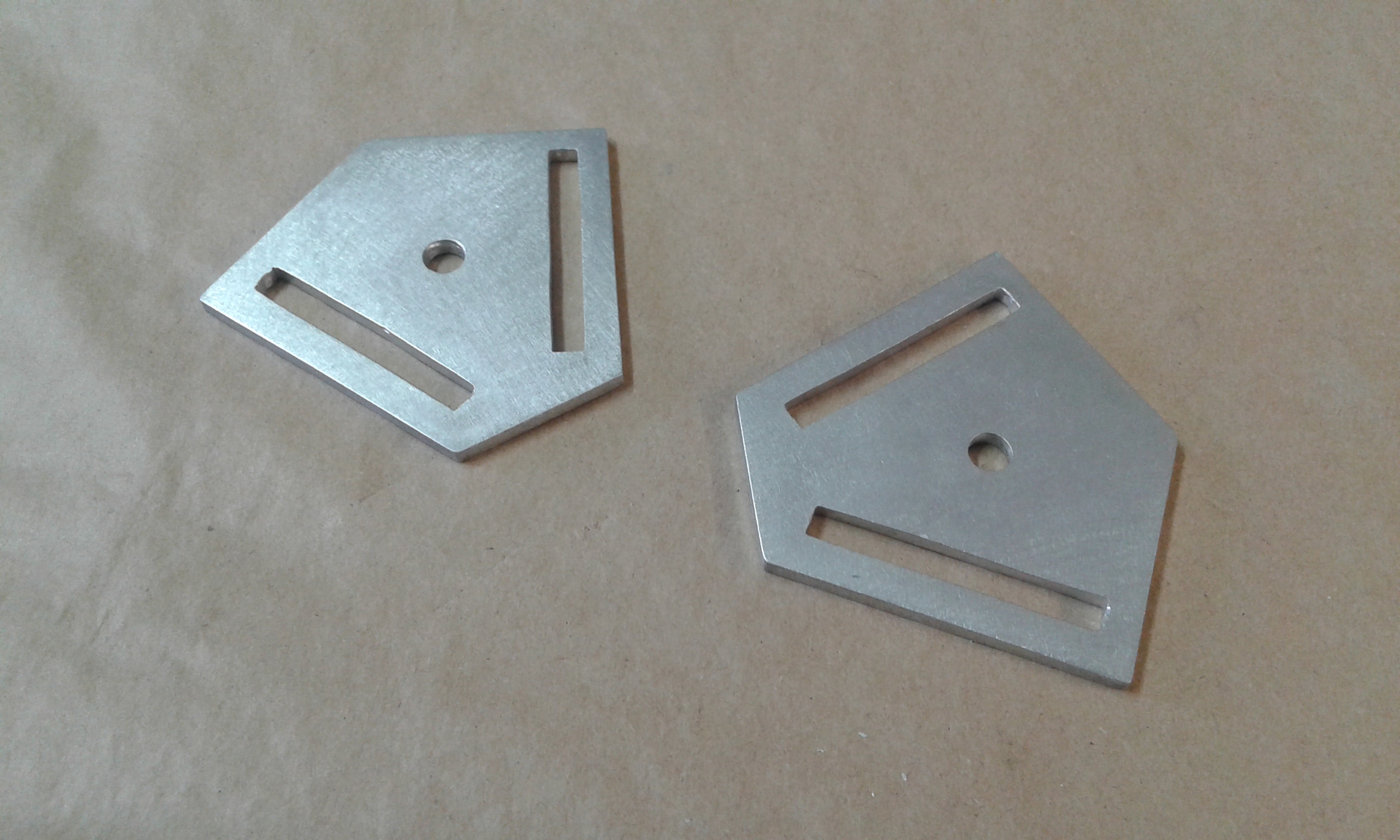

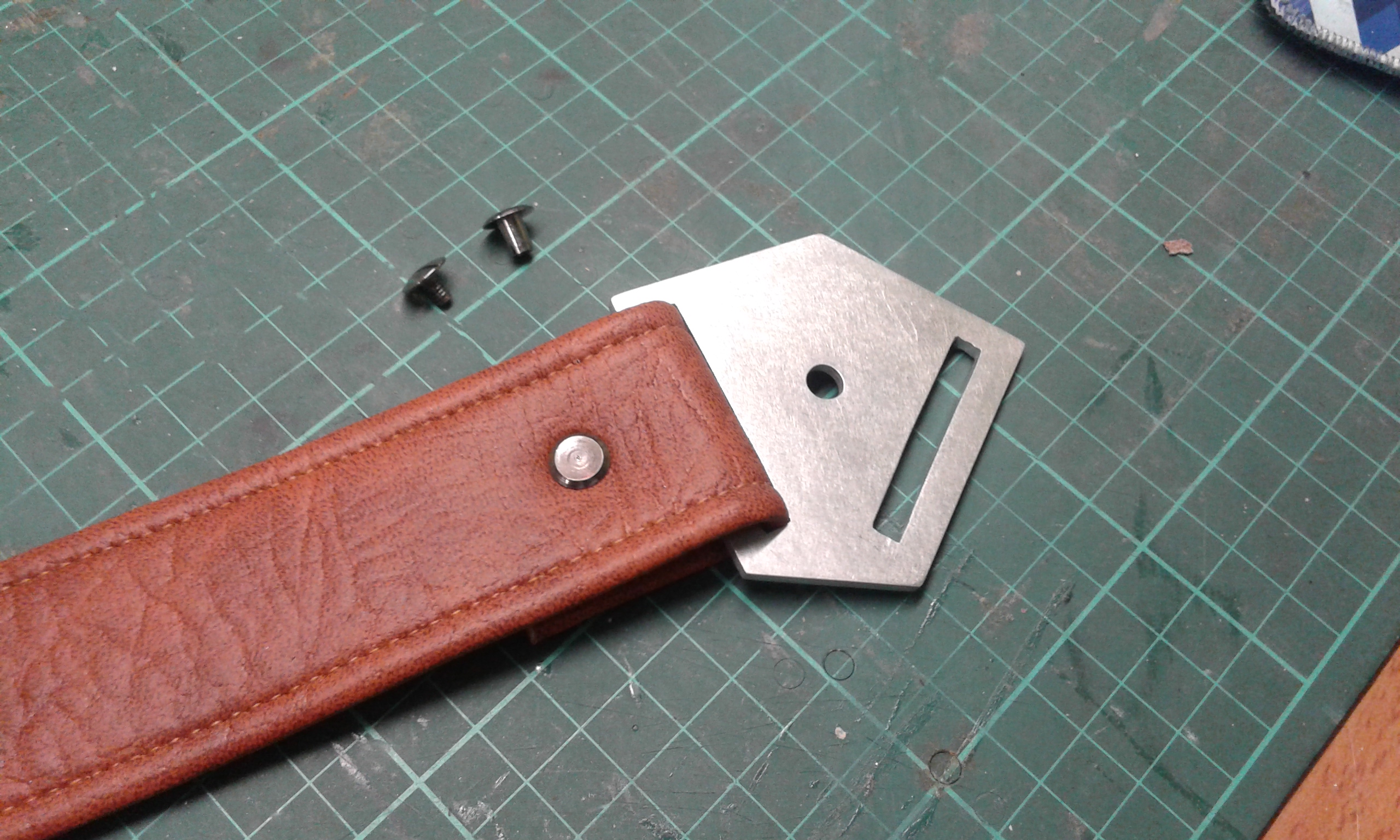

    The aluminum buckle was from 3mm aluminum sheet.

    20150515_132528.jpg 20150515_181614.jpg

    Straps attached with Chicago screws

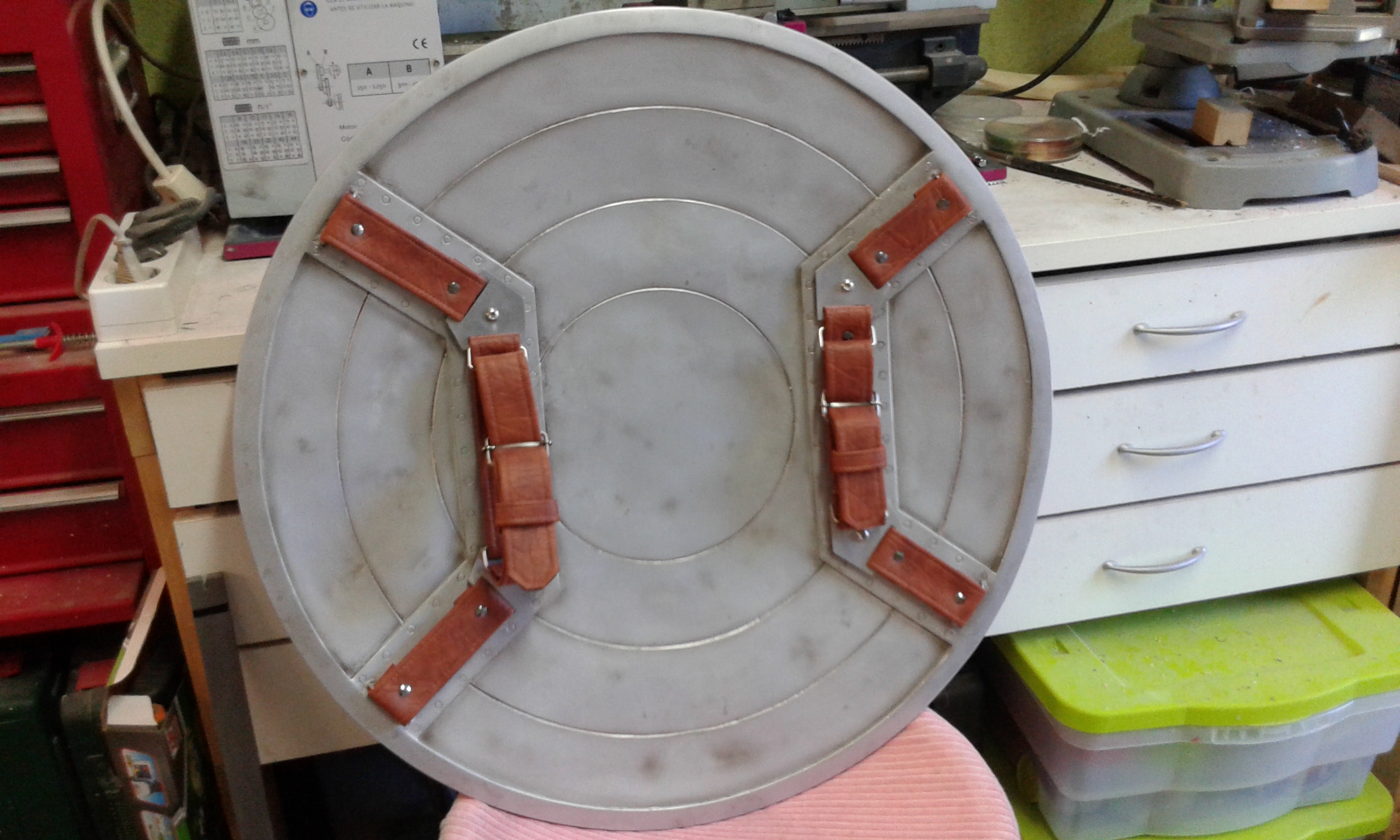

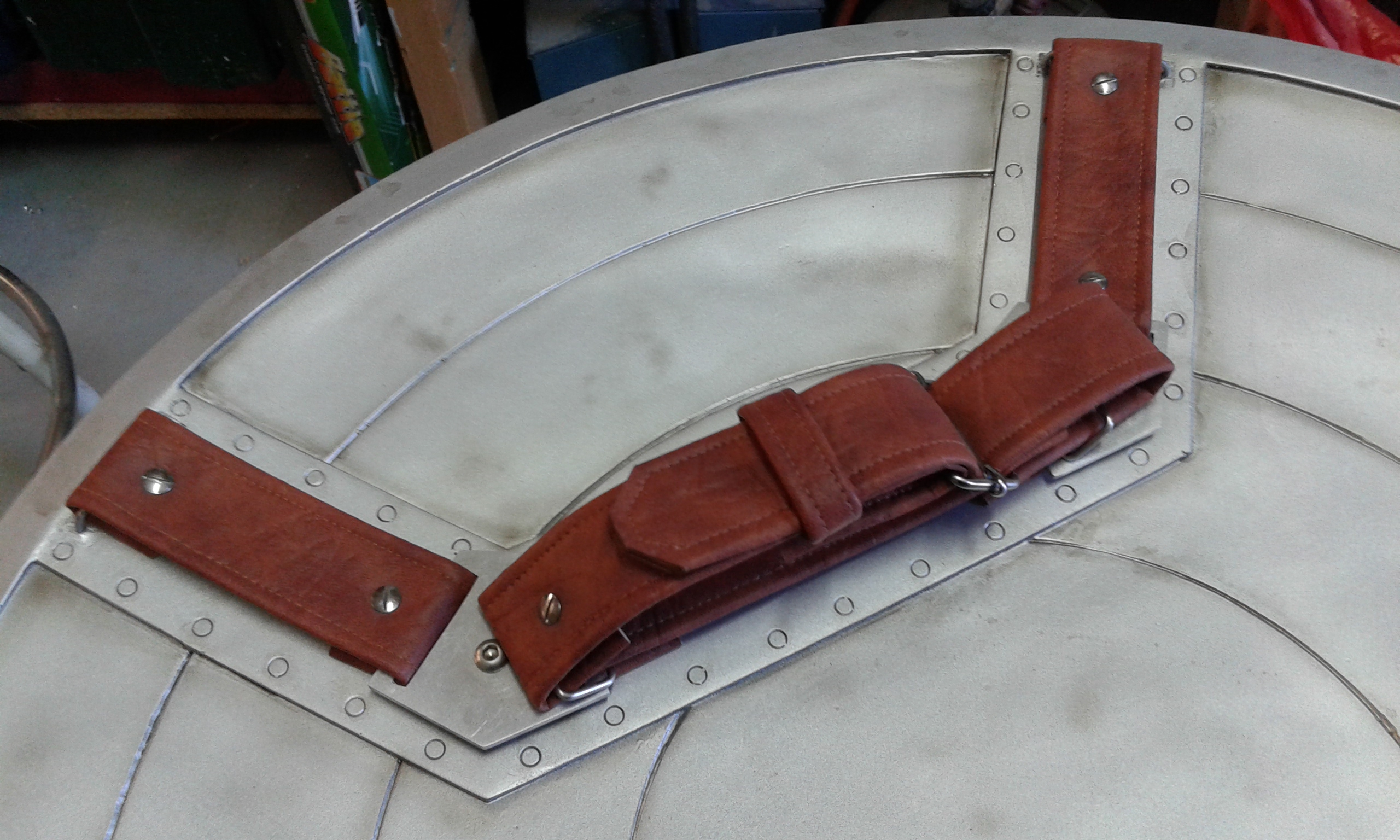

    And the final assembly.

    20150816_140554.jpg 20150816_141236.jpg



    Ops, sorry. The posts don´t let me upload 24 pics. I´m trying fix it. It´s my first time posting a lot of pics.

    The diameter is 68 cm.

    Last edited: Aug 17, 2015
  6. Mordor Brass

    Mordor Brass Active Member

    Trophy Points:
    211
    Re: Captain America movie shield. The most difficult DIY shield I´ve never made befor

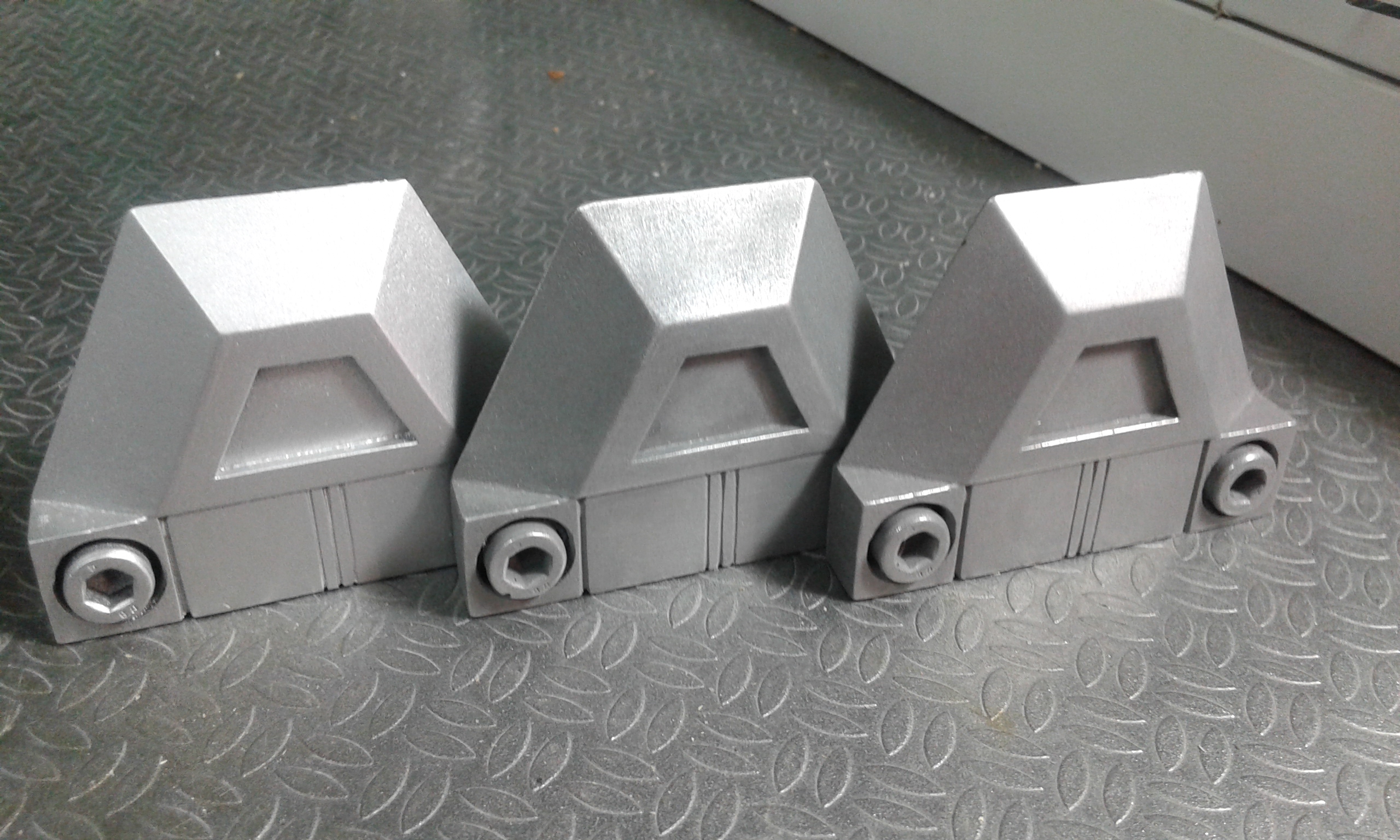

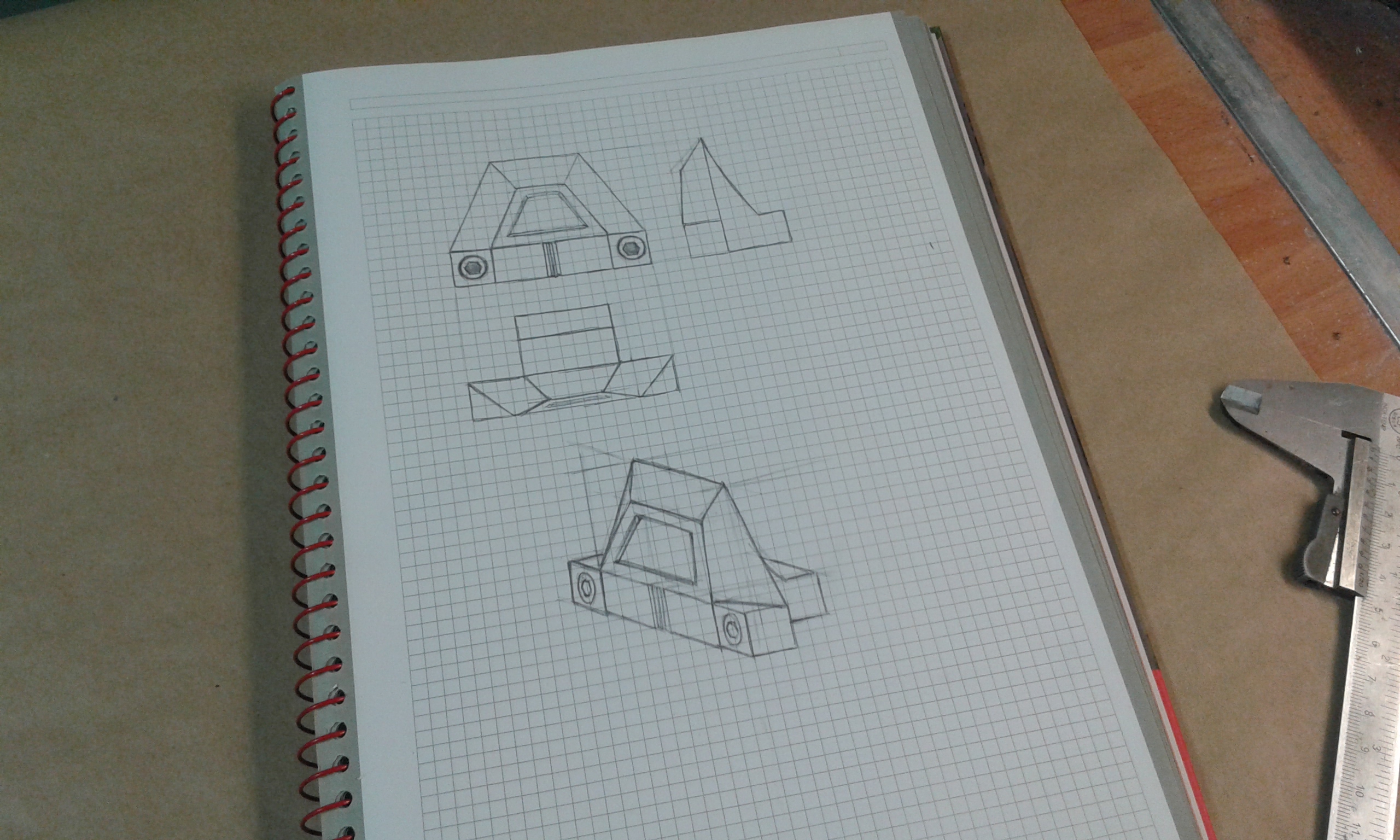

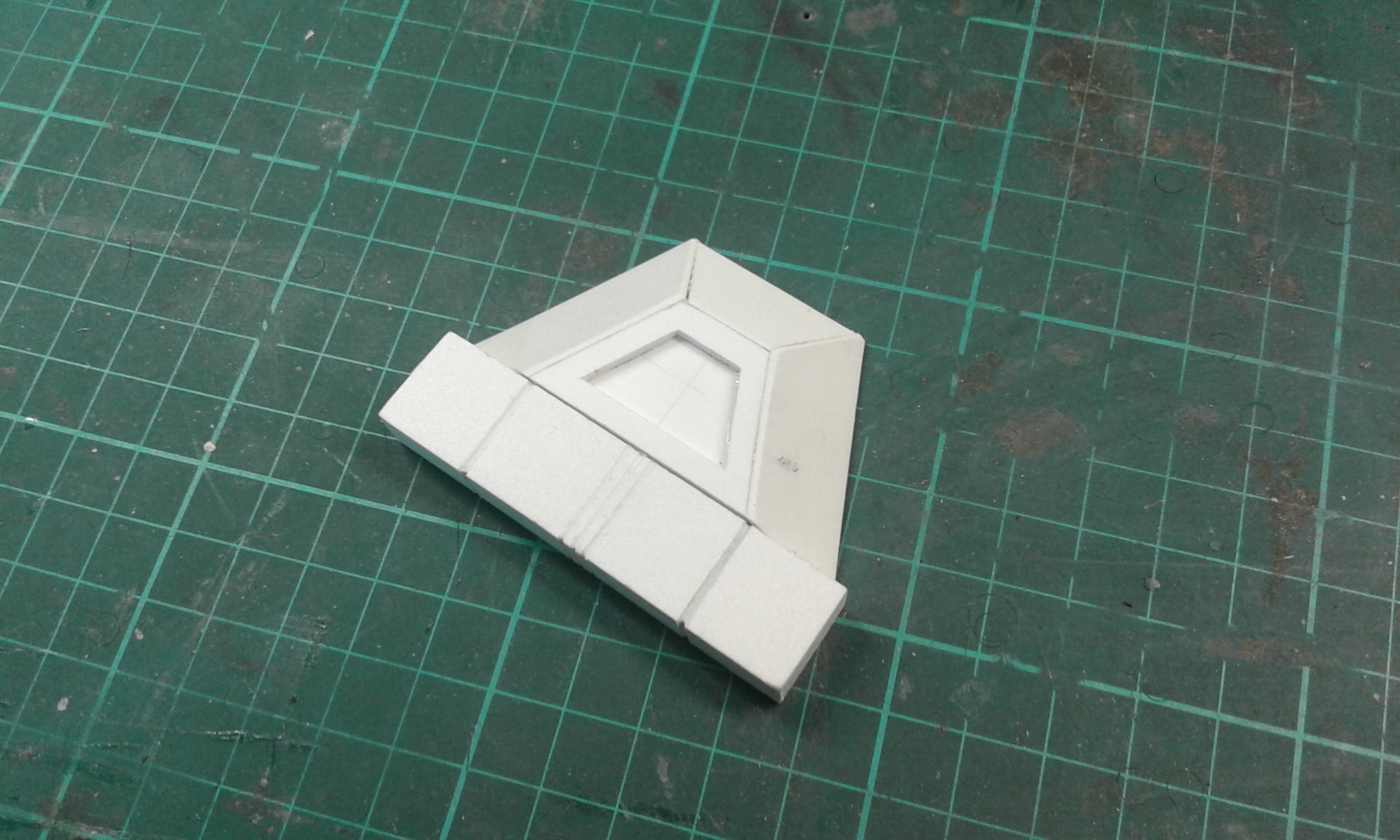

    For the display I thought in a wall display andI designed a piece where the shield could rest. I made the master piece withfoamed pvc, mold it and cast in polyurethane resin with aluminum powder.Coldcast. I mounted the pieces in Y structure.

    20150508_205052.jpg 20150508_222703.jpg 20150519_115638.jpg

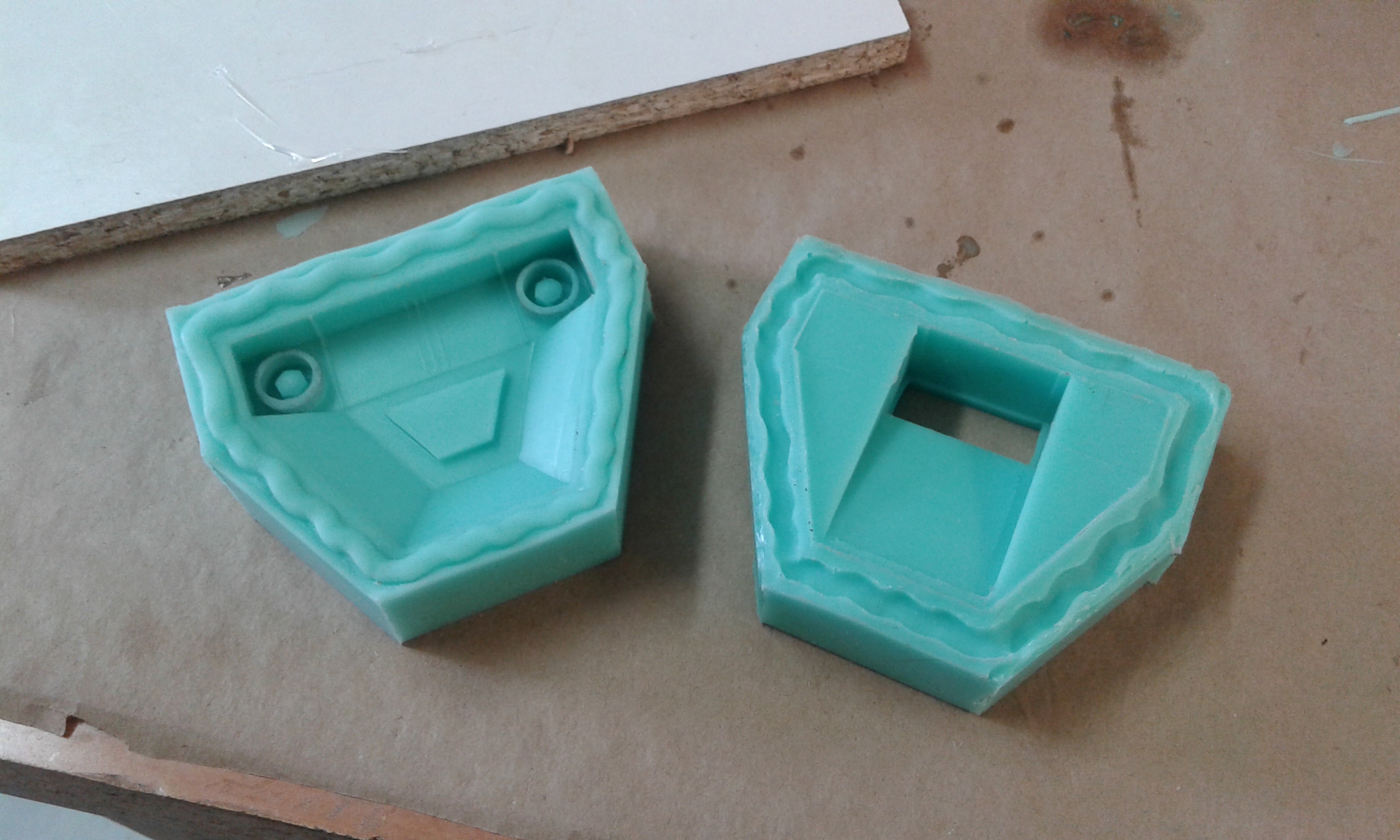

    Left, silver paint. Center, polyurethane withblack tint + aluminum powder. Right, Polyurethane Smooth On 326 + aluminumpowder Finally I´ll use normal resin and I´ll finish it with silver paint with weathering effect.

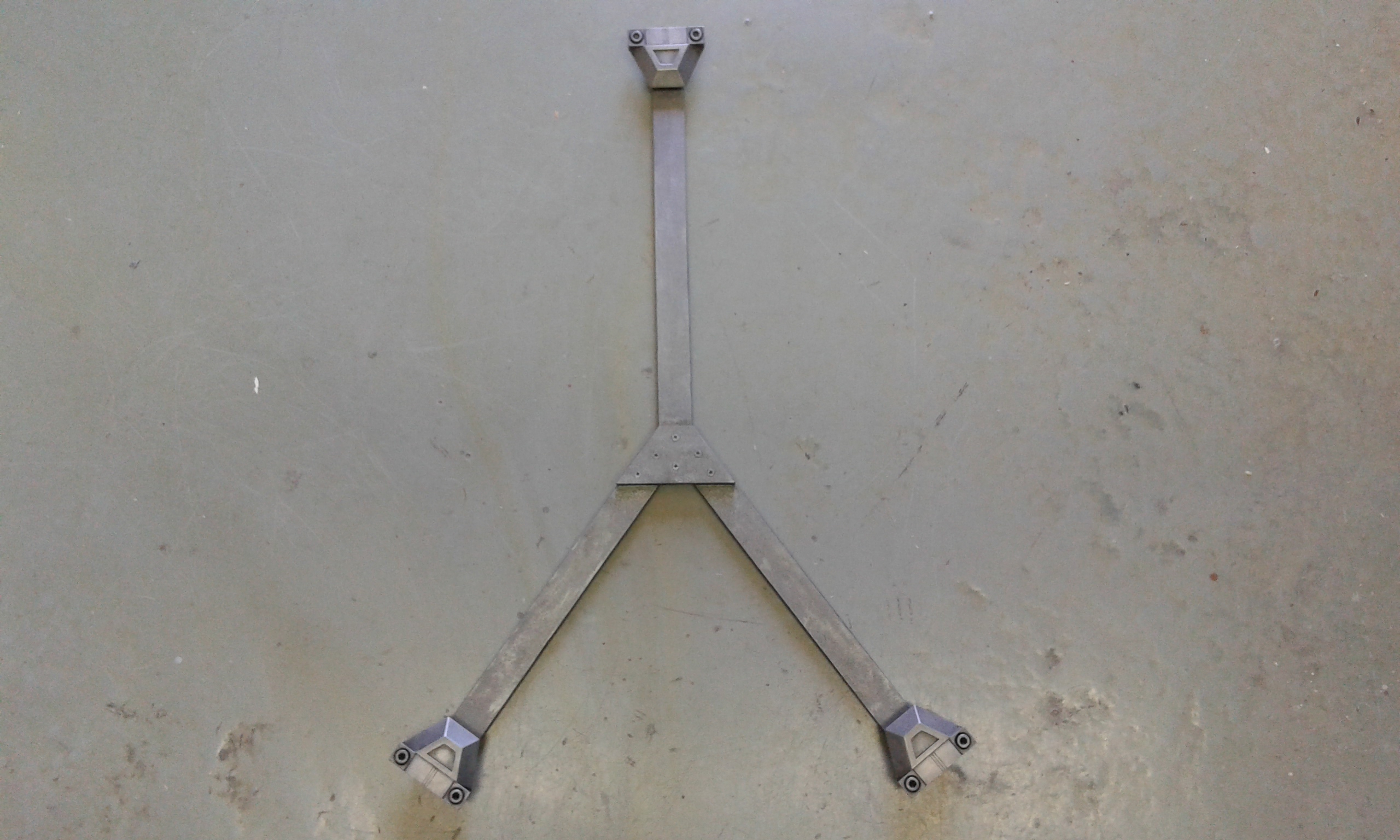

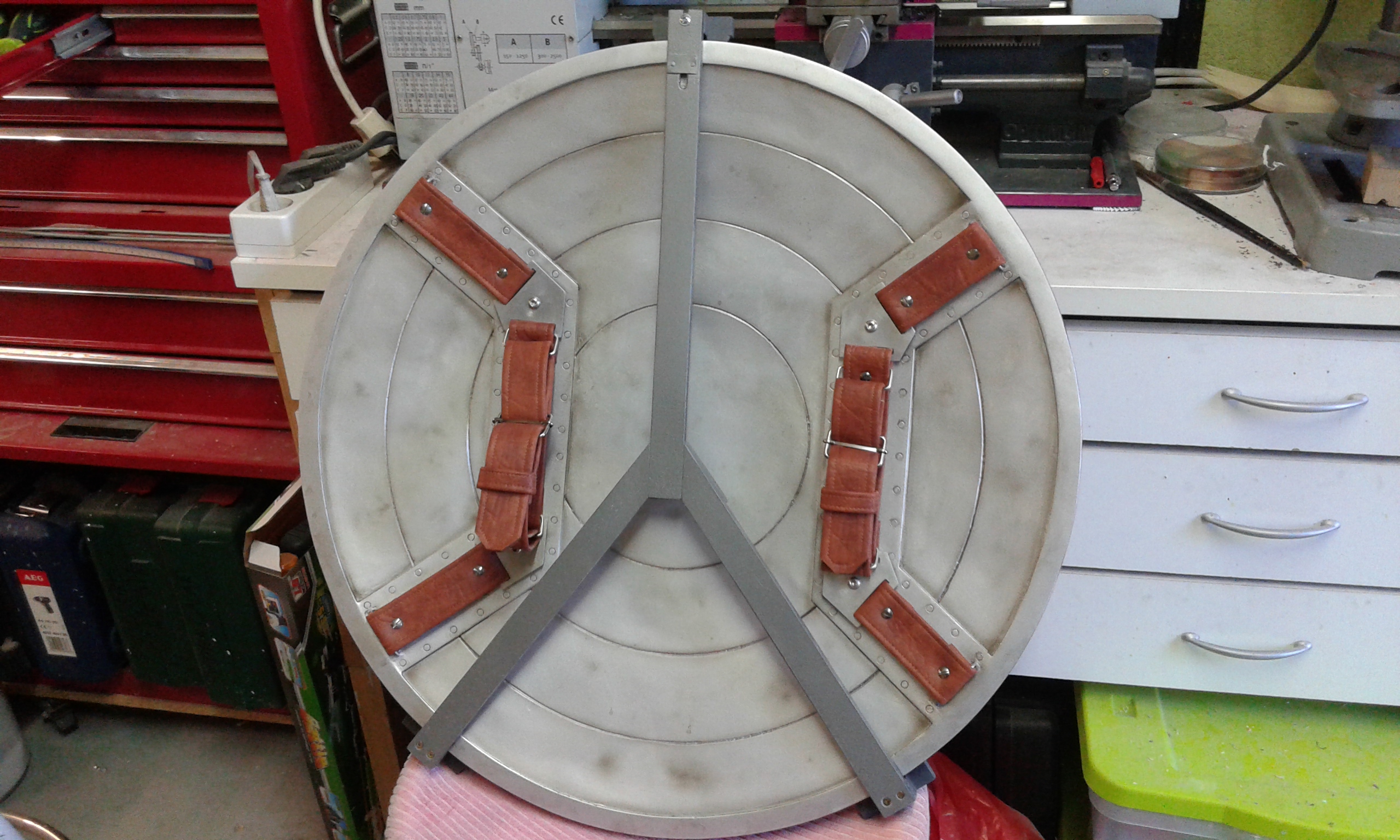

    The Y structure. I know. It´s very simply. But it works hehehe.

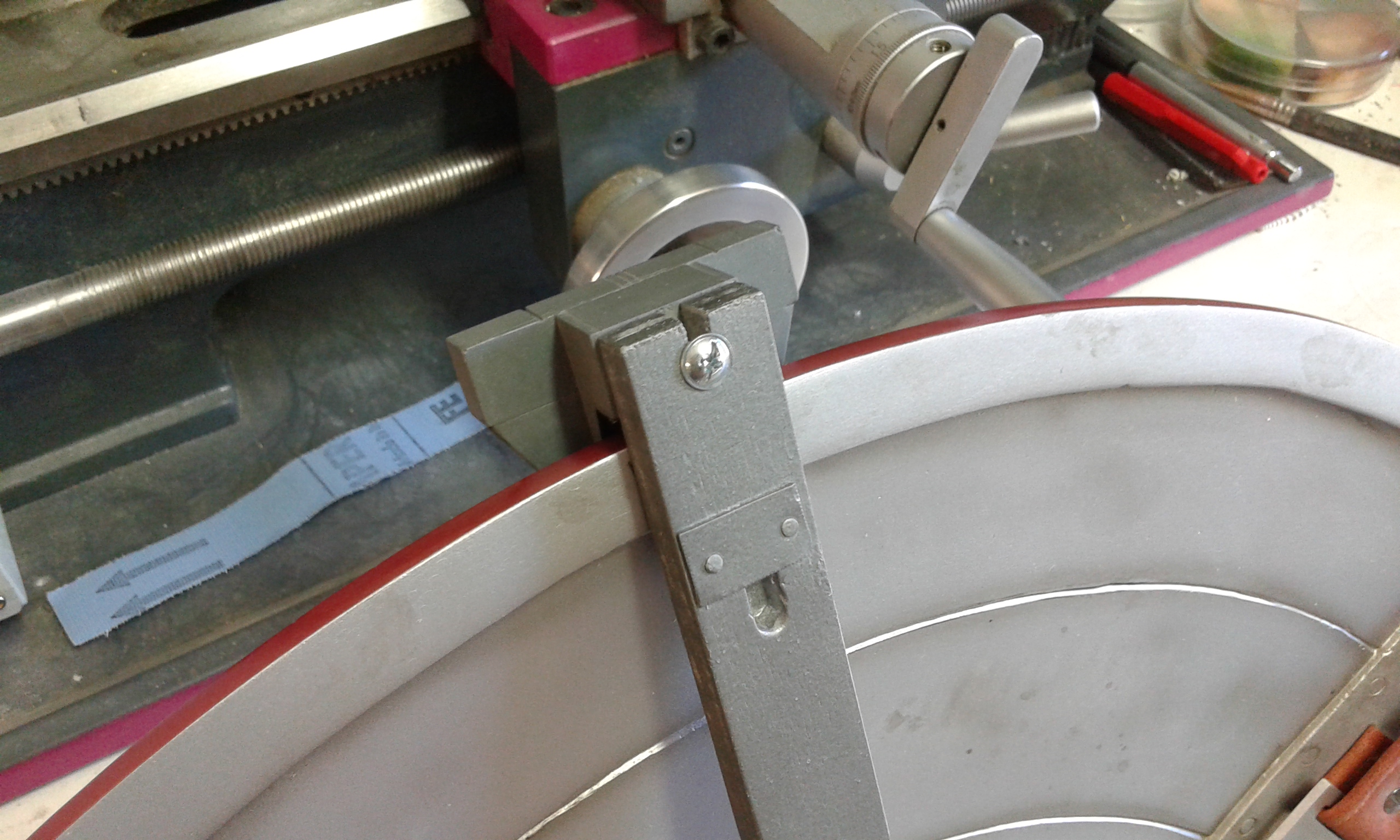

    The upper piece can unscrew to dissassmbly the shield from display.

    20150816_141339.jpg 20150816_140958.jpg 20150816_141013.jpg

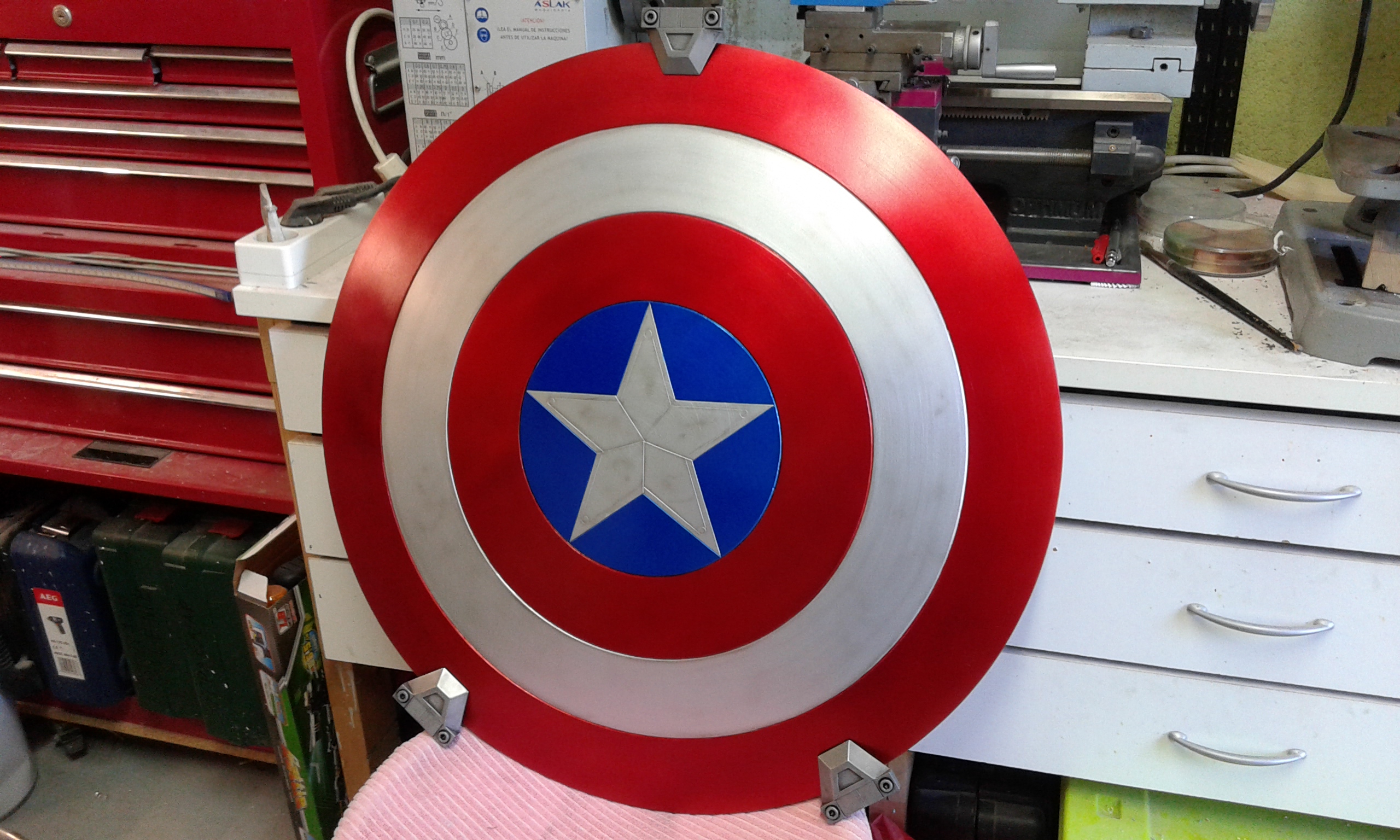

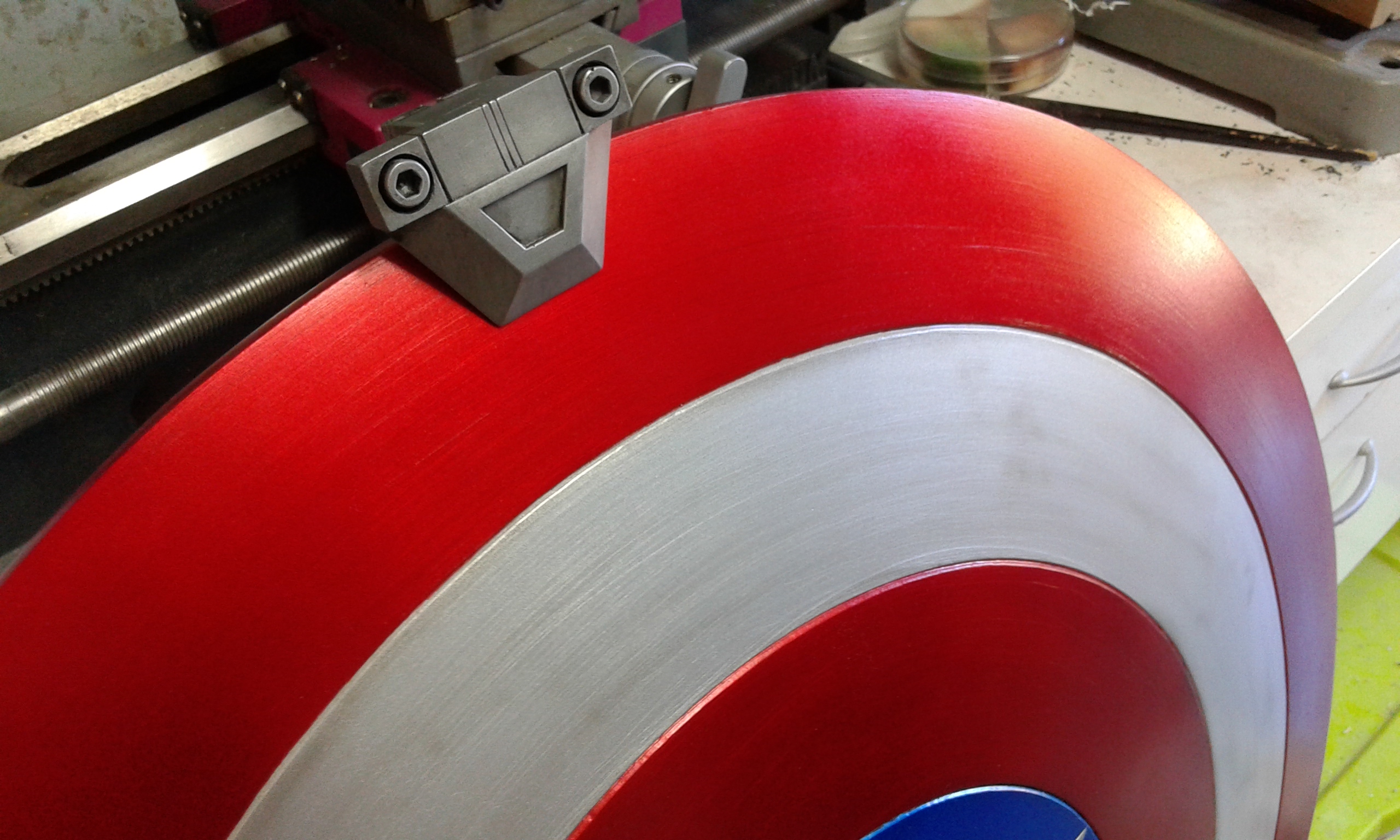

    And the final mounting. This is the 00 piece. The first prototipe I´ve finished. Soon I could calculate costs for a little wave.

    20150816_140121.jpg 20150816_140059.jpg



    I hope you enjoy with the process. Next week an profesional photographer will take better pics. I promise I´ll share.

    Thanks for looking.


    You can find us and our works at Facebook:https://www.facebook.com/pages/Mordor-Props-Workshop/259930630823592










    Last edited by a moderator: Nov 9, 2018
  7. Mordor Brass

    Mordor Brass Active Member

    Trophy Points:
    211
    Re: Captain America movie shield. The most difficult DIY shield I´ve never made befor

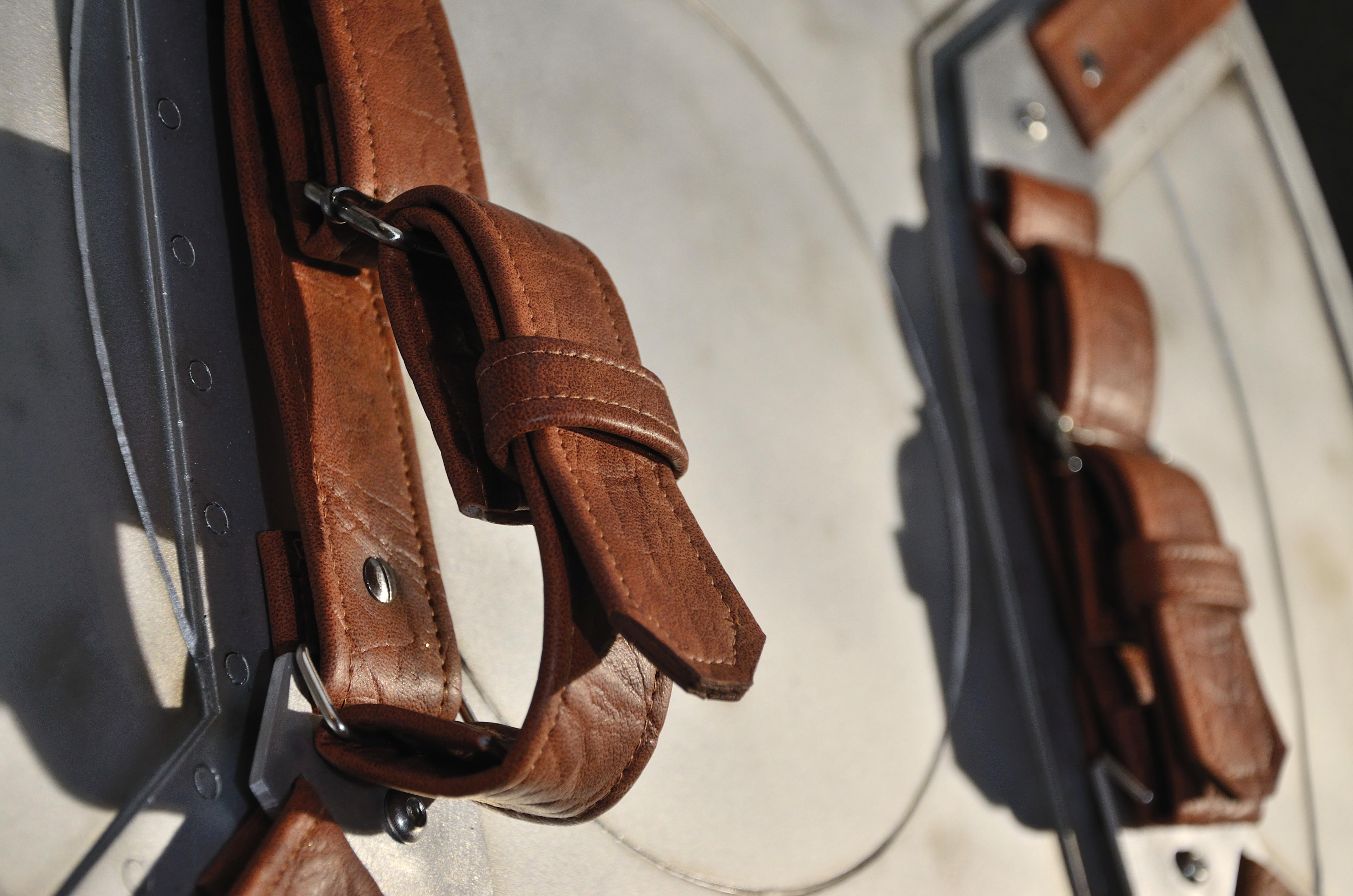

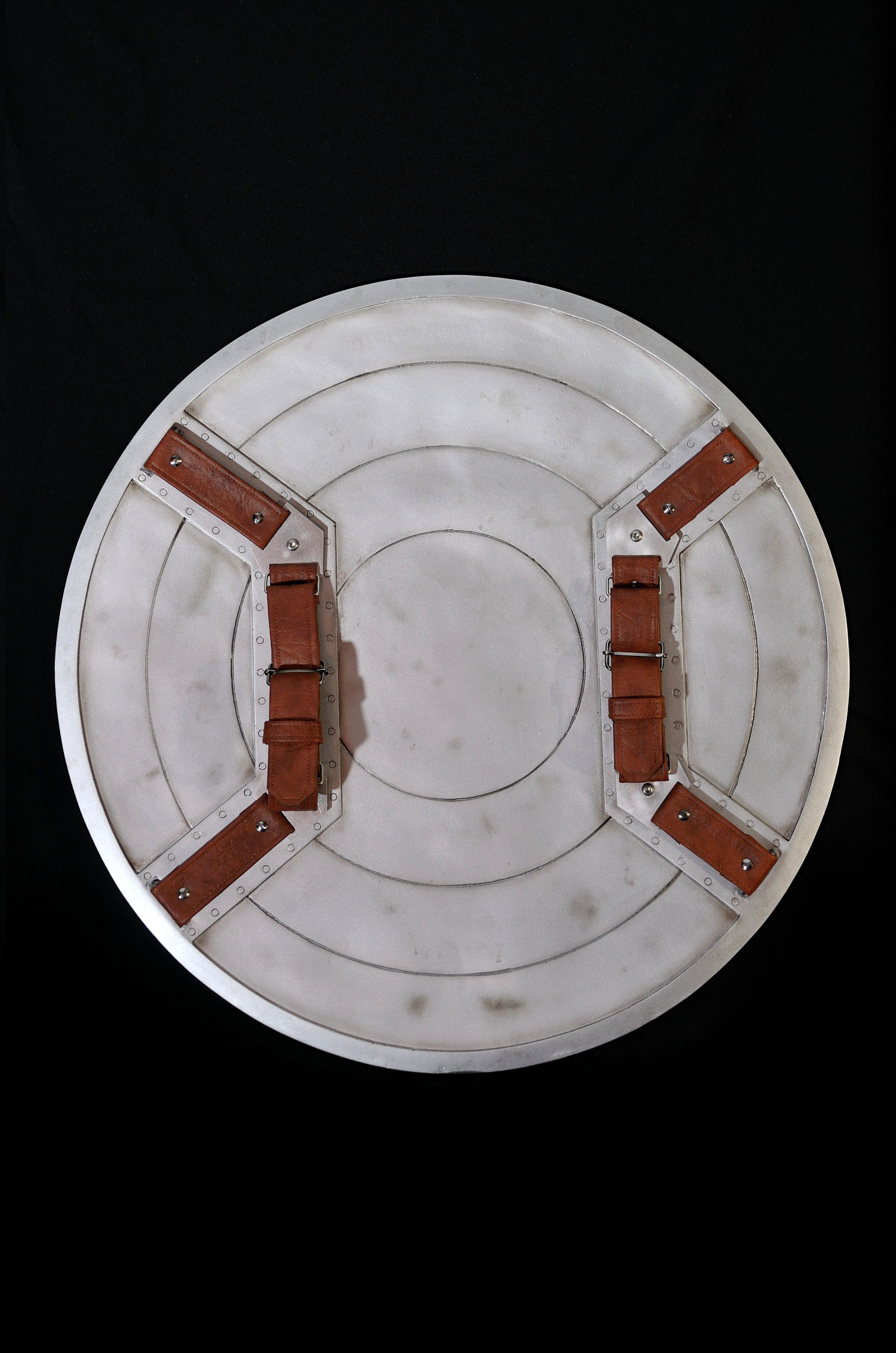

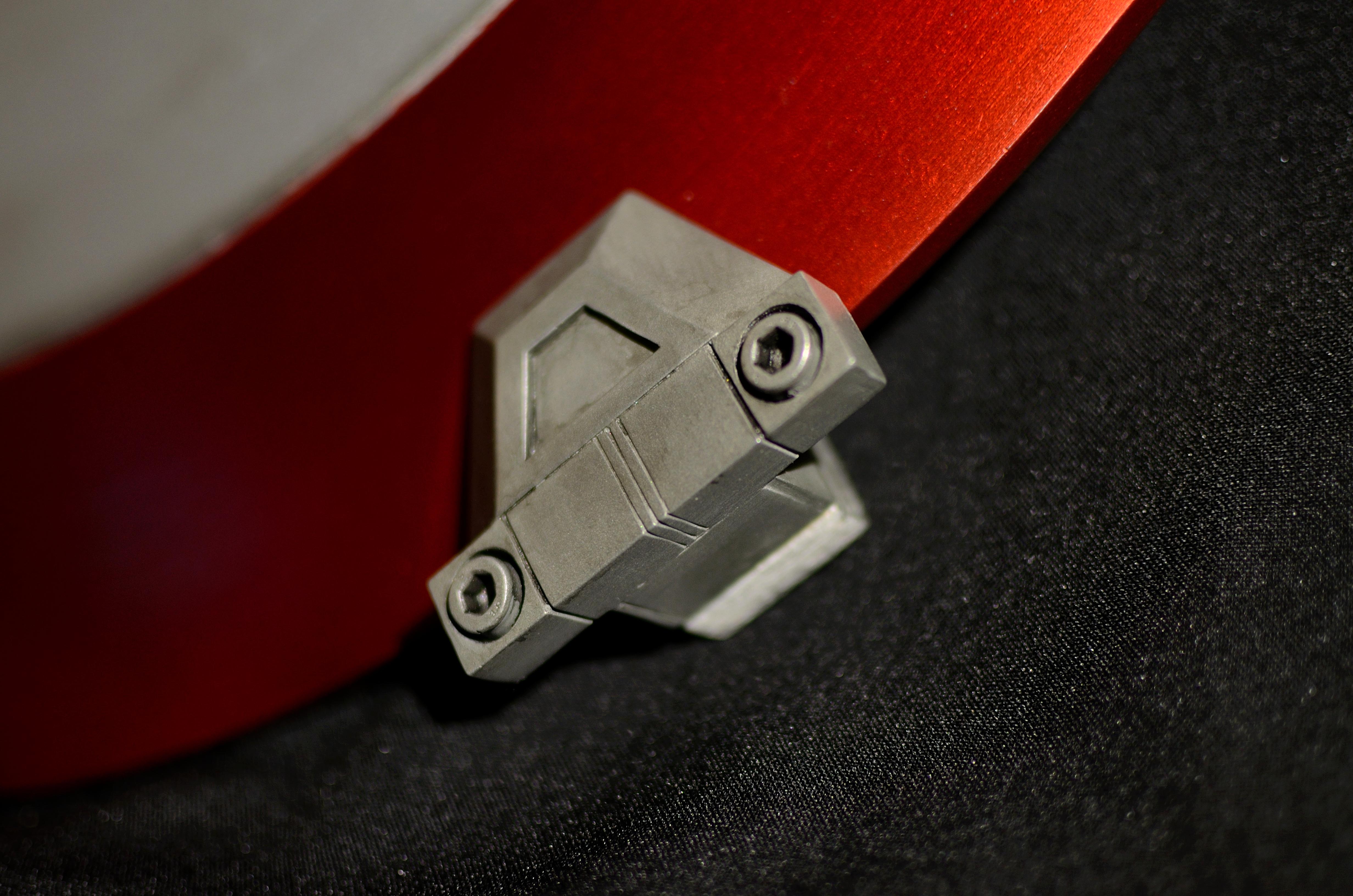

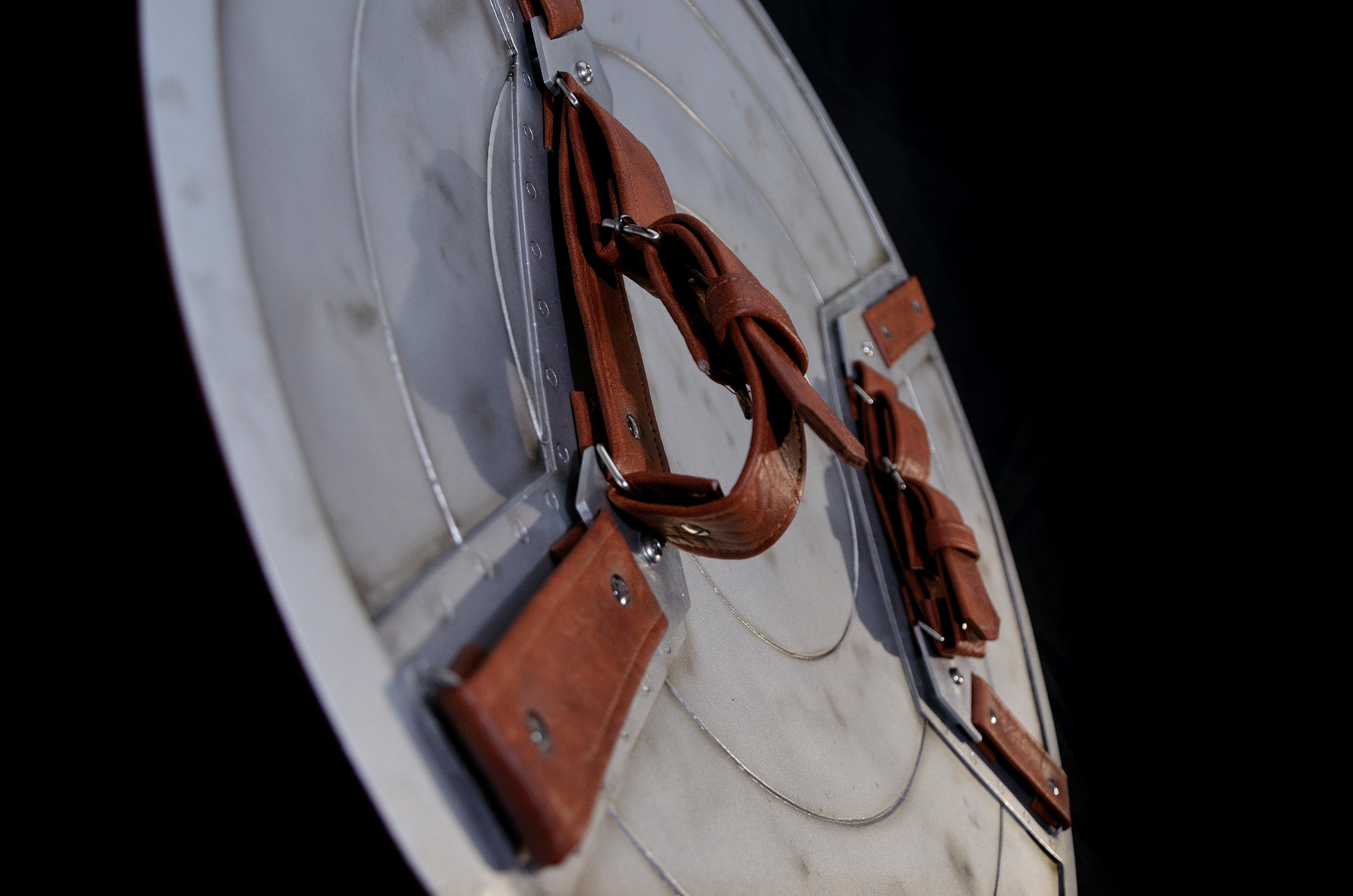

    How I promise, Better pics and a little update. A battle damage version.

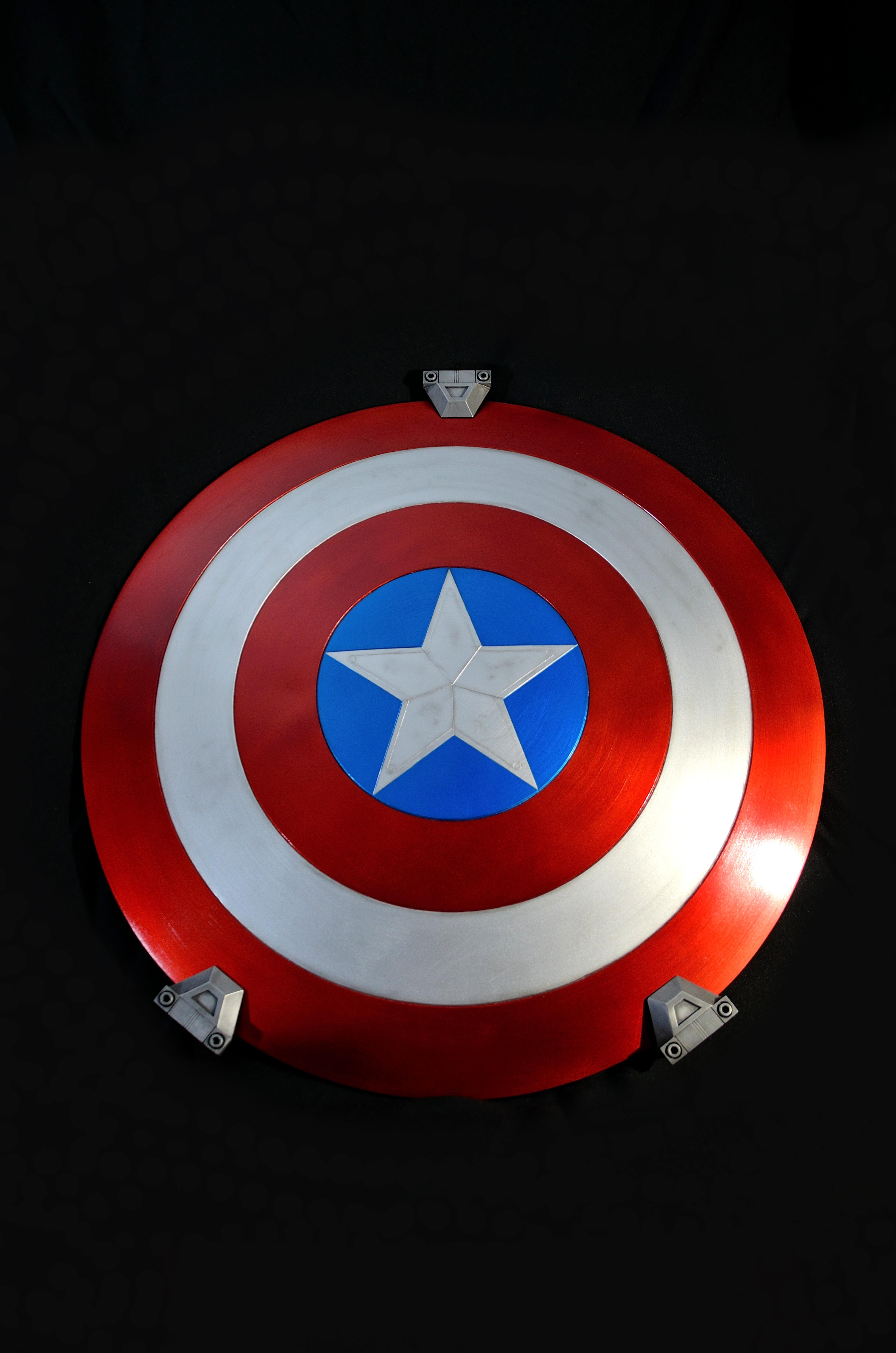

    09.jpg 01.jpg 12.jpg
