C3-PO Display Head Build

Discussion in 'Star Wars Costumes and Props' started by HB1098S, Jan 27, 2019.

  1. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    Well, as a 6 year old kid, C3-PO was one of my favorites and I finally pulled the trigger on picking up a screen accurate kit from Jason P. Street in the UK with all the cool machined brass details. Head & neck ring are in fiberglass and resin, eyes with laser cut clear plastic, black backing parts, brass eye grills & "pupils", brass neck discs, head antenna, and even the rear head plug. Here some pictures Jason sent me before it ships tomorrow!


    As with most of my stuff, this will be finished in the dirty & weathered ANH style. Anyone have any good gold finished paints they like that are available here in the States? Thanks for the help!

    Chad

    mugatu, enrico, Red Hawk and 5 others like this.
  2. rnbuda

    rnbuda Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,365
    That's a stunning kit!

  3. 3DImpact

    3DImpact Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    836
    Oh, that's really nice! Will that surface take gold plating well? Have you considered that rather than paint? Looks like you've got a neck/chest all ready for this as well - is this a full head-to-toe display or a bust?

    Dan

  4. Unfated

    Unfated Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,215
    A stunning C3PO head. Is it wearable?

  5. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    . I guess yes, but I understand Jason offers a wearable larger version. Mine is simply a display piece, so I wanted it screen accurate in size. Daniels must have a very small head!

  6. oblagon

    oblagon Sr Member

    Trophy Points:
    2,011
    Does he have a storefront? Interested in finding out more info on how to buy one.

  7. Unfated

    Unfated Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,215
    That is what I was thinking when I 3D printed mine. I thought it was too small but the measurements were correct.

  8. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    I sent him a message and will PM those interested. Thanks

    Bradberry00, russellsch and oblagon like this.
  9. russellsch

    russellsch Sr Member

    Trophy Points:
    1,891
    Oh man, that is all kinds of yummy! I can't wait to see how you finish this up. I know it's gonna be brilliant!
    Definitely keep me in mind if you find anymore info out from him (y)

  10. baptizer

    baptizer Member

    Trophy Points:
    112
    Your 2-1B build thread was absolutely awesome. Motivated me in buying a kit. I’m really looking forward to watching your progress with this one! Loved all the details you provided, Chad!

    russellsch likes this.
  11. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    Thanks, I really appreciate that! I’m looking into machining the 2 side head greeblies and neck ring in aluminum for 2-1B. We’ll see!

    I’m really excited about 3-PO, he’ll be a lot of fun!

  12. GRINCH

    GRINCH Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    666
    VERY interested in a kit too!

  13. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    Dan - the chest is just a picture I was sent for proportions of the head. I’m just putting together a head w neck ring for display. I will explor the world of vac metalizing as I go. I’m going to weather 3-PO as if on Tatooine so I haven’t decided how I will attack this. I’ll post it all here, need to get the head in hand first LOL!

  14. Spankuh

    Spankuh Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    622
    Also interested in details about this kit. Looks fantastic!

  15. Bradberry00

    Bradberry00 Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    836
    Shoot me a message with the builder info if you have a chance. This head looks great and a C3PO head is on my short list.

  16. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    C3-PO’s Royal Mail escape pod has landed in LA! Should be soon!

    baptizer and Unfated like this.
  17. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    It arrived and it's quite amazing, I'm really looking forward to this build! Here some more pics

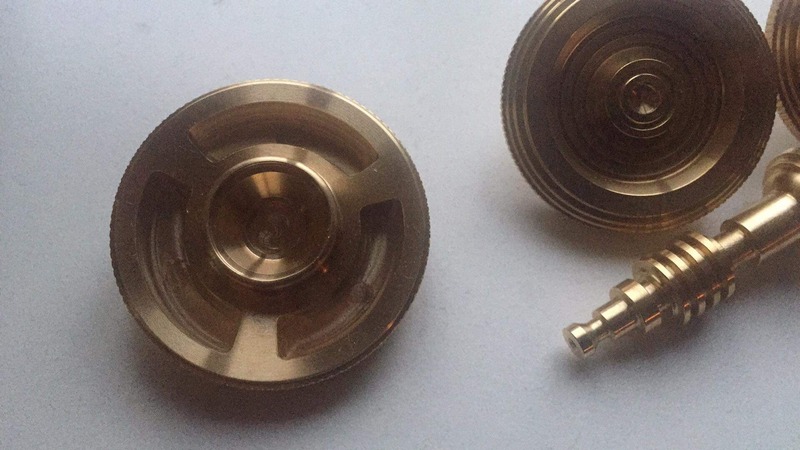

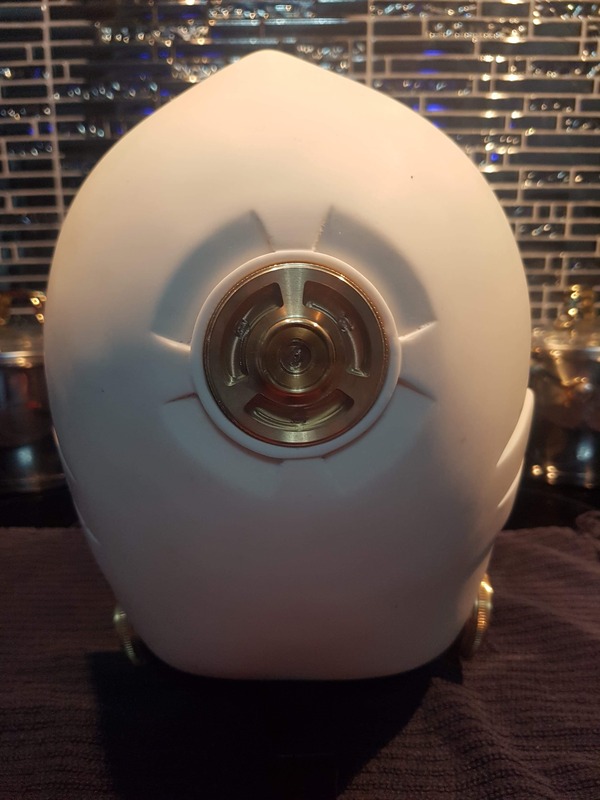

    Rear Head Disc

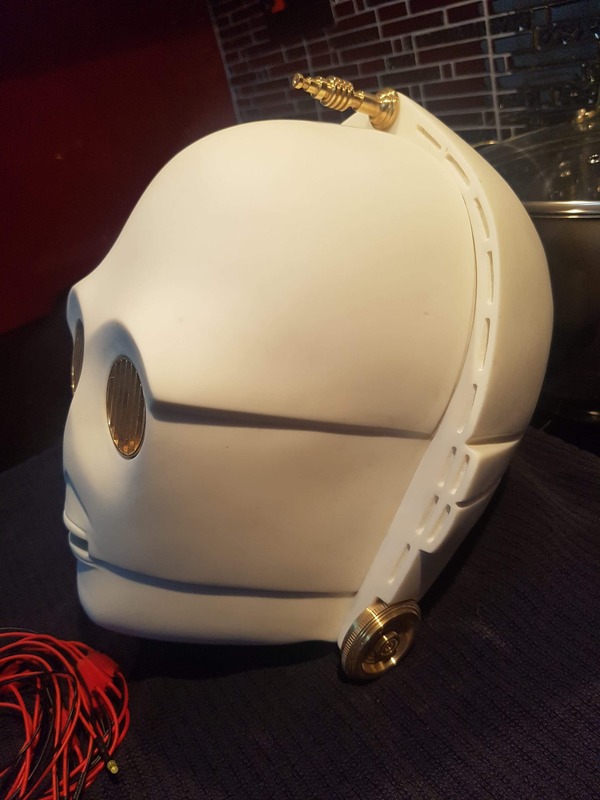

    Out of the box

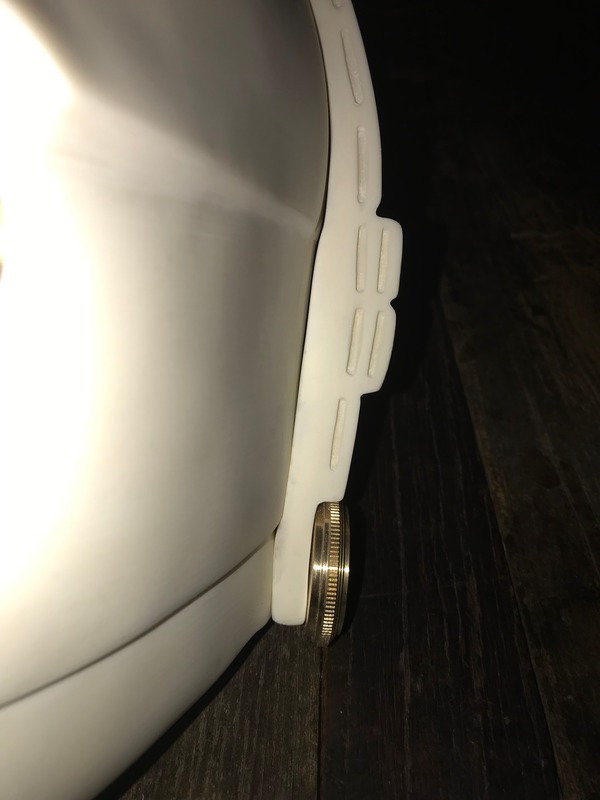

    Nice tight gap on the right


    Needs a little filler on the left

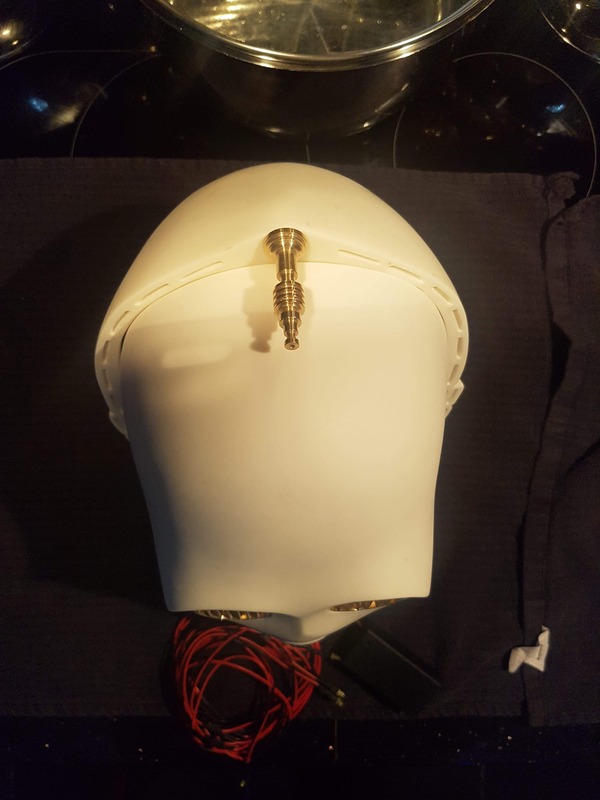

    Head antenna in machined brass is awesome!


    Neck discs too - very well done on attaching them to the cast head - threaded inserts!

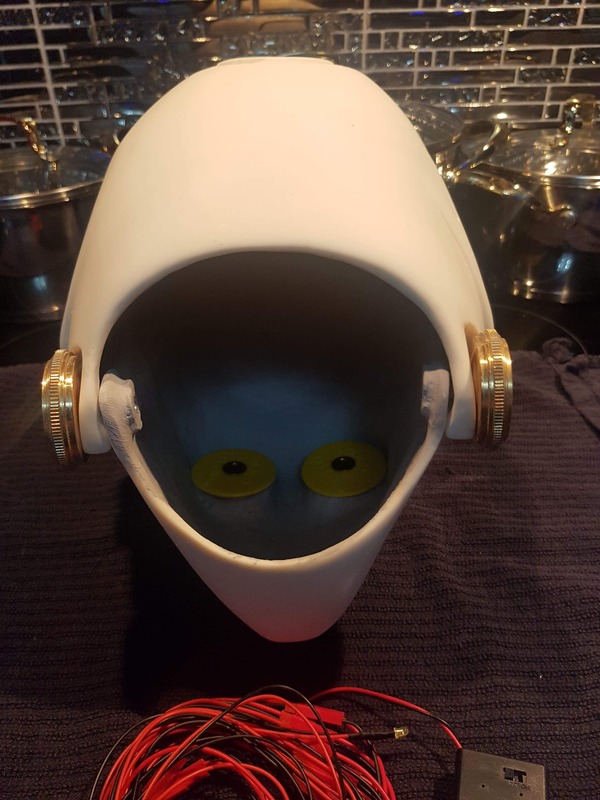

    Inside

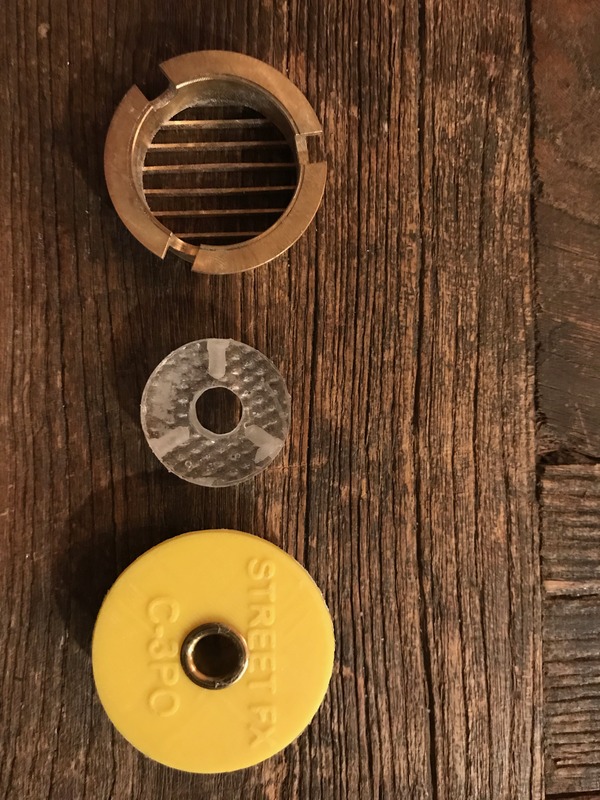

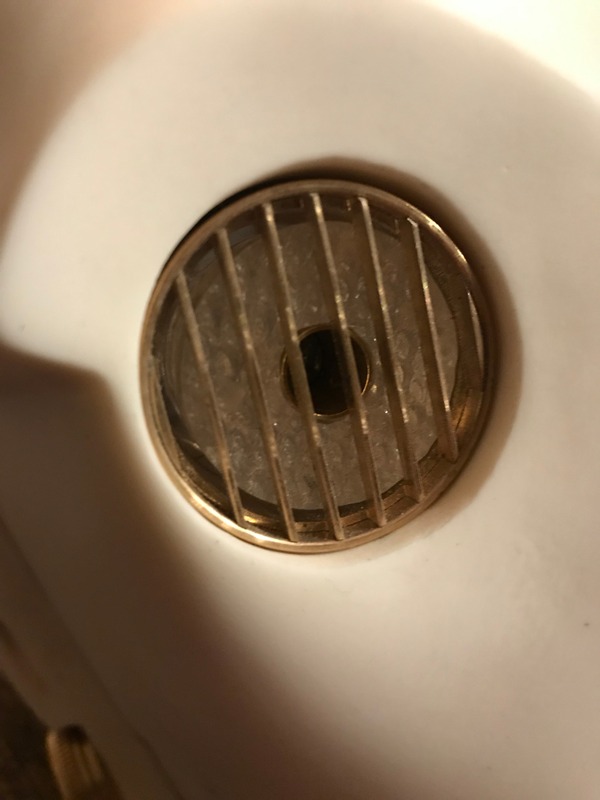

    The eyes are SWEET!


    LEDs mount from the outside edges - note the cut outs in the brass eye grills


  18. 3DImpact

    3DImpact Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    836
    Yes, looks wonderful - thanks for the update! I'll enjoy watching your build progress. I've commissioned one as well and will be looking forward to its arrival...

    Dan

  19. russellsch

    russellsch Sr Member

    Trophy Points:
    1,891
    I've got to wait till bonus :(
    But the parts looks great! & I very much look forward to seeing your build (y)

  20. baptizer

    baptizer Member

    Trophy Points:
    112
    Chad: amazing looking kit! did you come to a decision on how you are going to finish the gold surface?

  21. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    I’m looking into vacuum metalizing first, I have no idea how much it costs. I know myself, this is the only way I’ll be happy. It’s the way the film parts were done....I hate having OCD!

  22. HB1098S

    HB1098S Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,185
    Dan I think Jason mentioned you had him vac metalize your 3-PO?

  23. 3DImpact

    3DImpact Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    836
    Indeed - apparently by the same folks there who did the on-screen 3POs from the OT!

    I'll be watching to see how you weather yours - I just got done with my Zorg CZ-3 and always enjoy the weathering stage of any project. That's where it all comes to life! Plus, I figured it's be good practice to gather up the courage to weather over that beautiful shiny vac metalized 3PO. :)

    Dan

    HB1098S likes this.
  24. Cameron

    Cameron Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    What a beautiful kit!

    HB1098S likes this.
  25. enrico

    enrico Well-Known Member

    Trophy Points:
    686
    What a piece of pure art!
    Absolutely awesome!
    I am in contact with Jason right now... because I'd like to commission this artwork, congrats mate

  26. Red Hawk

    Red Hawk Active Member RPF PREMIUM MEMBER

    Trophy Points:
    262
    This is so cool, Chad. Can’t wait to see it fully gold!

  27. Mulbin

    Mulbin New Member

    Trophy Points:
    2
    I'd love some info on the creator of this kit! I've got a very nice UK made fiberglass/resin head but it doesn't have brass hardware. In fact any leads on brass parts is always useful!

    KramStaar likes this.
  28. KramStaar

    KramStaar Sr Member

    Trophy Points:
    1,960
    Agreed, I'd like some info on him too..
    Lovely build..

  29. Mulbin

    Mulbin New Member

    Trophy Points:
    2
    Regarding paint, you can get hold of alclad in the US which is what Gordon Tarpley used to use. I’ve been experimenting with it and it’s great for a base for a weathered droid. Won’t quite do throne room shine though. I’ve used Gordon’s technique of brushing (not spraying) a mix of varnish and food colouring) to over tint the alclad chrome.


    Attached Files:

  30. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    That hand looks awesome

  31. Mulbin

    Mulbin New Member

    Trophy Points:
    2
    Here's the back of the head I've just completed the initial alclad paintwork on. I will add another mist coat as it's still very slightly speckled but this gives you an idea of the finish it gives, it will be even better with full coverage. If you go too thick with alclad you can buff it off with kitchen towel to the desired tone/shine. You can do an entire suite for about $30 worth of Alclad. After discussing briefly with Gordon Tarpley I now use gloss grey for my base which gives a nice tone to it. You can use gloss white base for polished aluminium, and gloss black for chrome. Grey gives a nice mid tone to the darker reflections that suits protocols well. This will be tinted and protected with a mix of high gloss artists varnish mixed with a few drops of food colouring. 6 drops yellow, 3 drops red, 30ml varnish.



    Attached Files:

    Last edited: Mar 20, 2019 at 11:30 AM
