Bolsey #2 Yoda Lightsaber with Crystal Chamber

Discussion in 'Star Wars Costumes and Props' started by Luke the Belter, Jun 26, 2015.

  1. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Hi there,

    the finished crystal chamber

    Yoda 40.jpg Yoda 42.jpg

    I have this Bolsey #2 flash for three or four month now. Got it from "the Bay" and had to add the grips from @sjanish.

    Yoda saber 01.jpg Yoda saber 02.jpg

    At this point I wanted to build a crystal chamber for this saber. Very small, very challenging, some lights, no sound.

    And so I went to work and cut some pieces of acrylic glass and black plastic first.
    I'll use some metal parts from my spare-and-scratch-box and will see what will fit and what not.

    Yoda 03.jpg

    These are the first parts and a 6.10 carat emerald.
    With the tools I have (small saw, rotary tool, drill) it is quite challenging to make thesse small parts, so that everything will fit in this little saber. It's a lot of fun.

    Put the crystal chamber part together for the first time.

    Yoda 01.jpg Yoda 02.jpg Yoda 04.jpg Yoda 05.jpg

    After that I used one green 3 mm LED for a lighting test. Later on the emerald will be lighted from both sides.

    Yoda 07.jpg Yoda 08.jpg Yoda 06.jpg

    The crystal chamber so far. There is still much to do but I thought it would be enough to post it here.

    I'll keep the pictures coming.

    Yoda saber 01.jpg

    Yoda saber 02.jpg

    Yoda 03.jpg

    Yoda 04.jpg

    Yoda 05.jpg

    Yoda 01.jpg

    Yoda 02.jpg

    Yoda 06.jpg

    Yoda 07.jpg

    Yoda 08.jpg

    Yoda 42.jpg

    Yoda 40.jpg

    Last edited by a moderator: Nov 8, 2018
  2. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    This looks great! Man, I don't know how you are working on such small parts. Very difficult
    work, but I love how it's looking.

  3. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    Thanks.

    That is the part with the most fun
    Ok, just kidding. It's frustrating.
    The trick is to give the parts a rough form at first. Then I lay them together (e.g. the five black plastic discs) and give them the last shape all together.

    Big help is a flexible shaft for the rotary tool for better handling.

    mugatu likes this.
  4. halliwax

    halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    so far so good! i like the black disc's you made, really makes the crystal stand out

    Luke the Belter likes this.
  5. thd9791

    thd9791 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,001
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    I agree with halliwax, It just seems to work

    Luke the Belter likes this.
  6. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    Thanks, guys.
    I really appreciate it.
    Just had to do something while I'm waiting for my V2

    Thought that black would match the outside of the saber but am very happy with the contrast to the crystal.

  7. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    Hadn't enough time to do more than a little work on the chamber.

    This is how far I got.

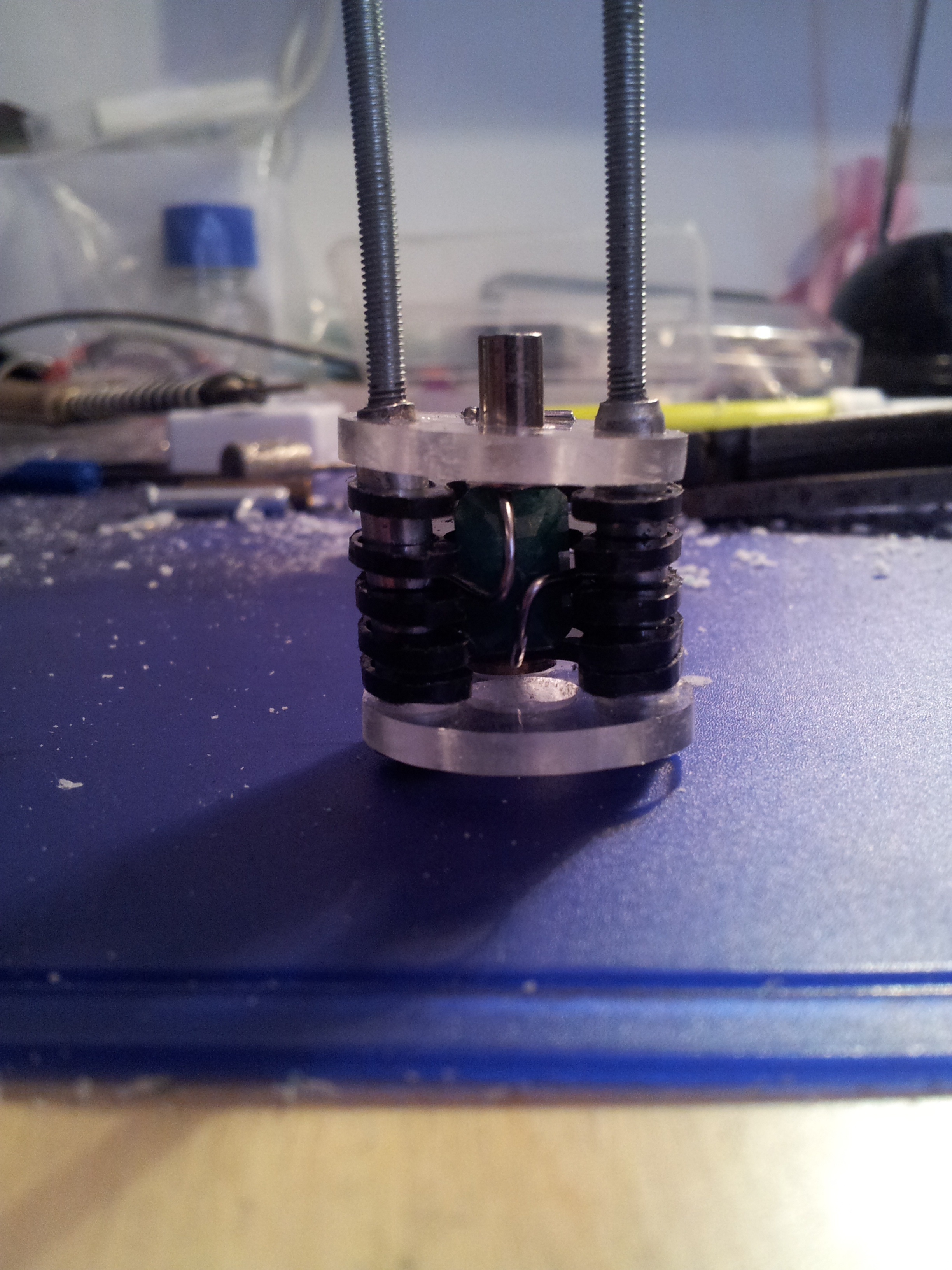

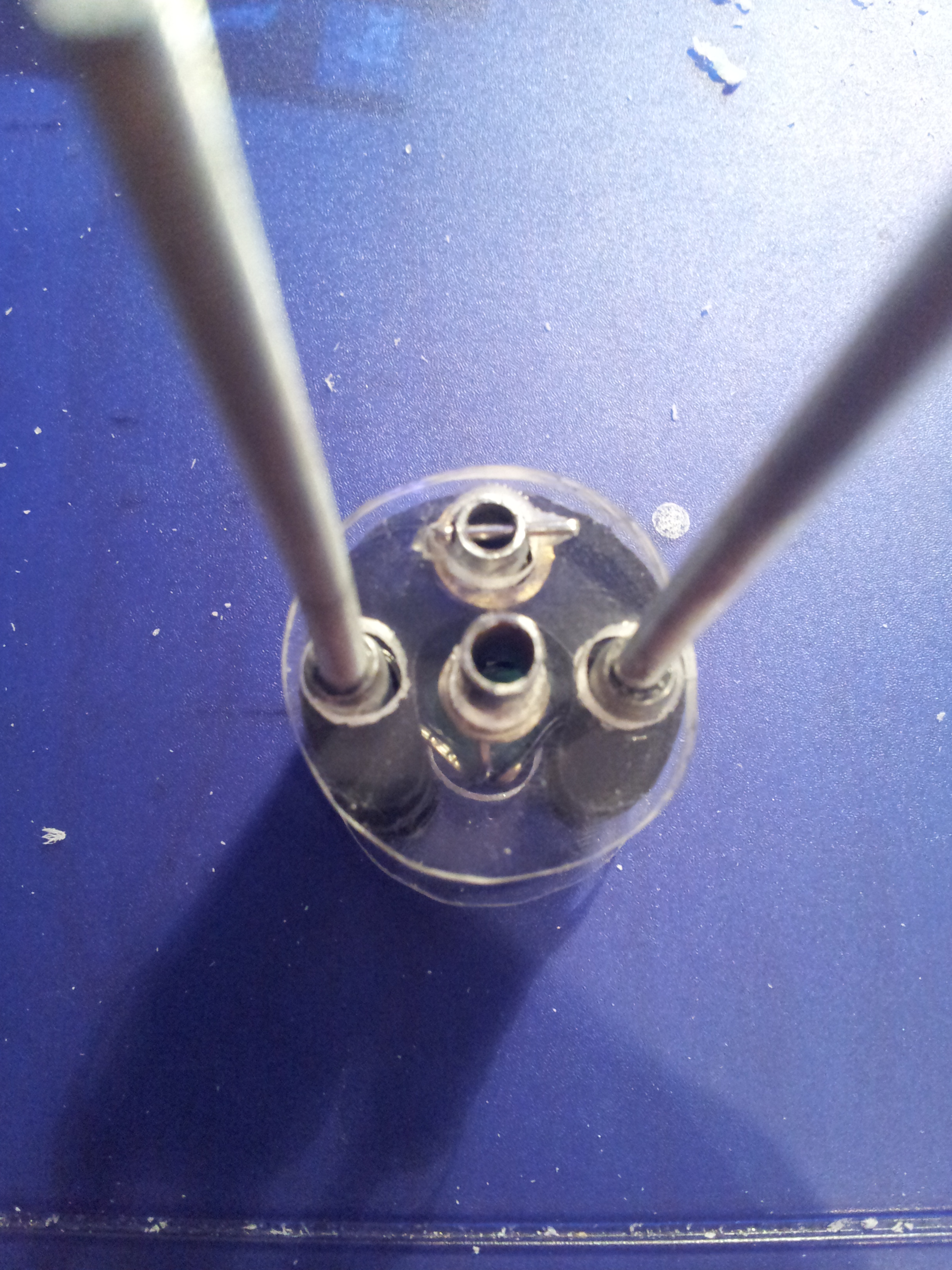

    First I had to secure the the discs so that everything stays in place. You can see in the third picture that everythin is kept in place by the small metalpin which goes through the hollow metal pipe. If I would use nuts on the threaded rods everything would be completely askew. (The hollow pipe will be used for some cales later on.)
    After that I put there another disc with some tooth.

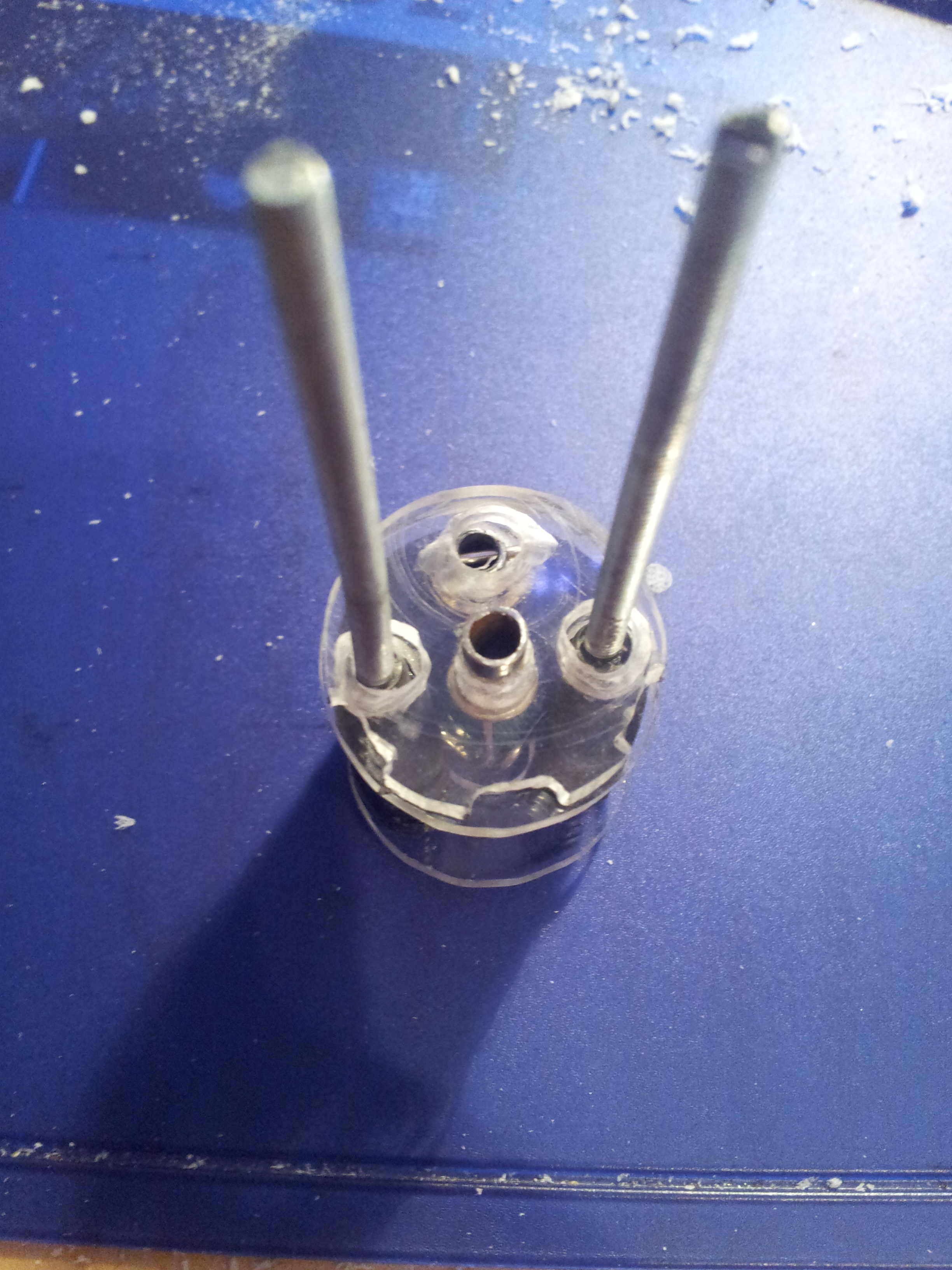

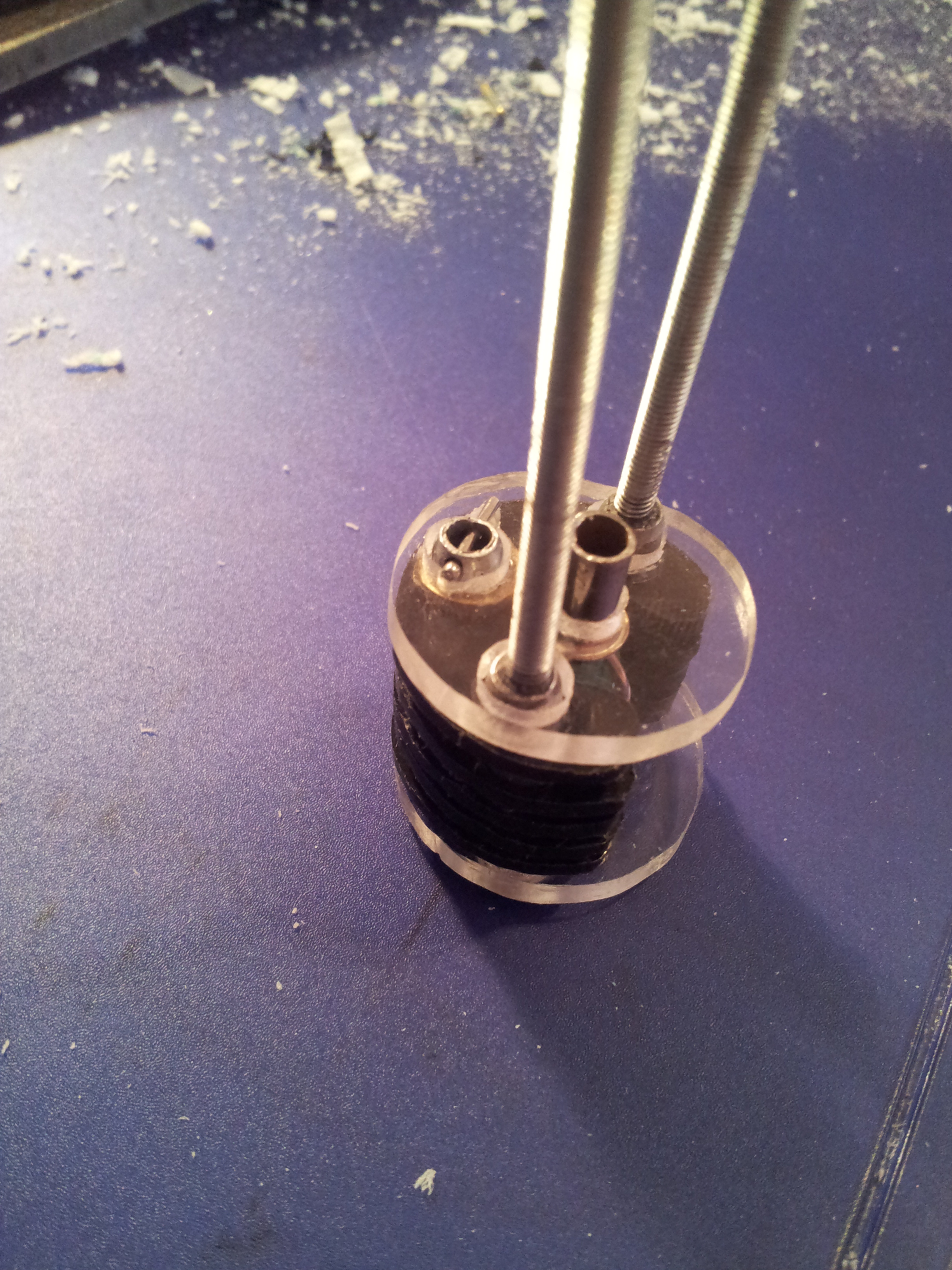

    Yoda 10.jpg Yoda 11.jpg Yoda 09.jpg Yoda 12.jpg

    The tooth will help to hold a PTFE tube and keep it aligned. The tube will be used to hold the electronics.

    Yoda 13.jpg Yoda 14.jpg Yoda 15.jpg

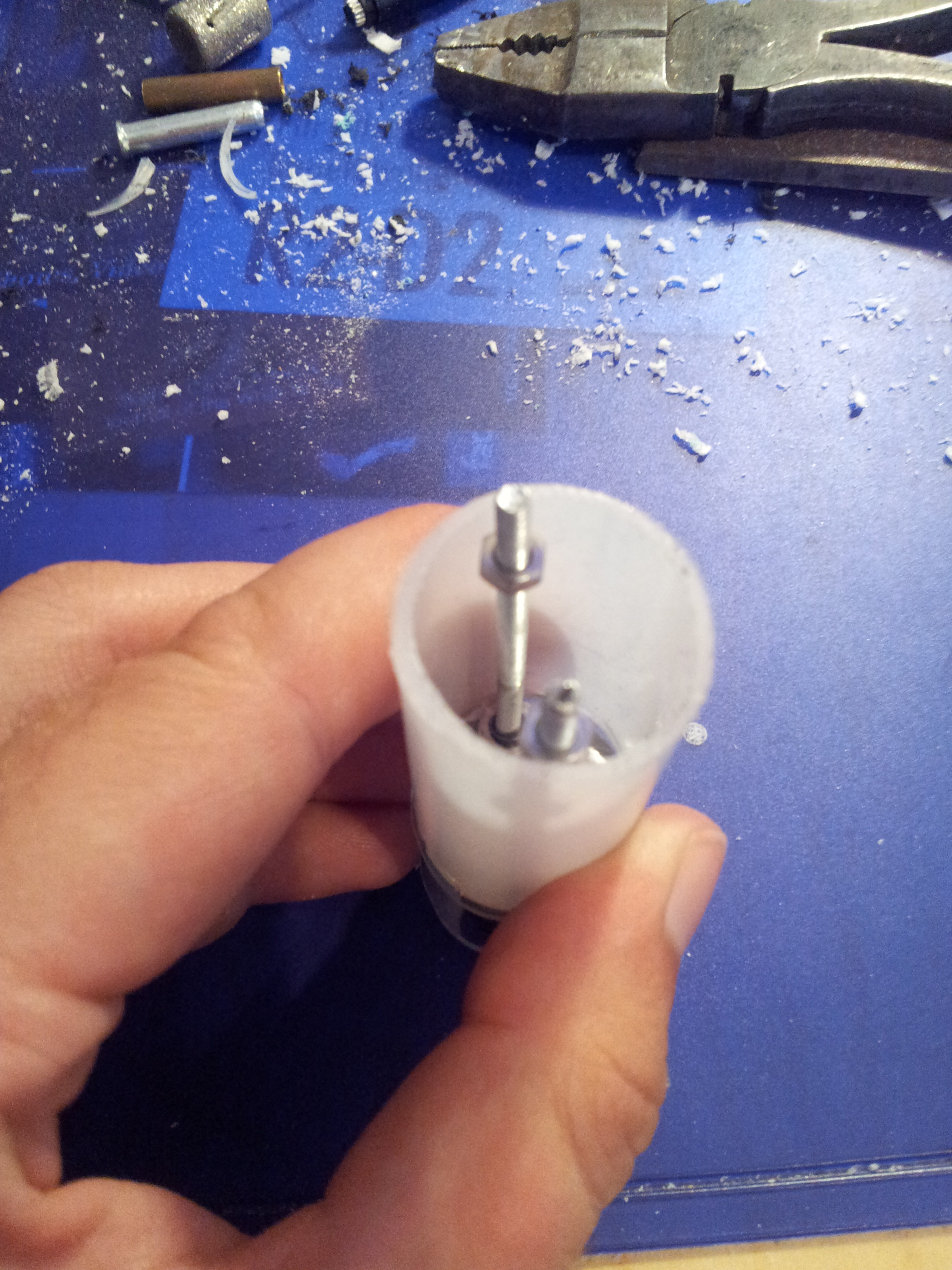

    Another disc which fits inside the tube and rests on the nuts. The disc has a recessed area which has the dimensions of a screwhead.

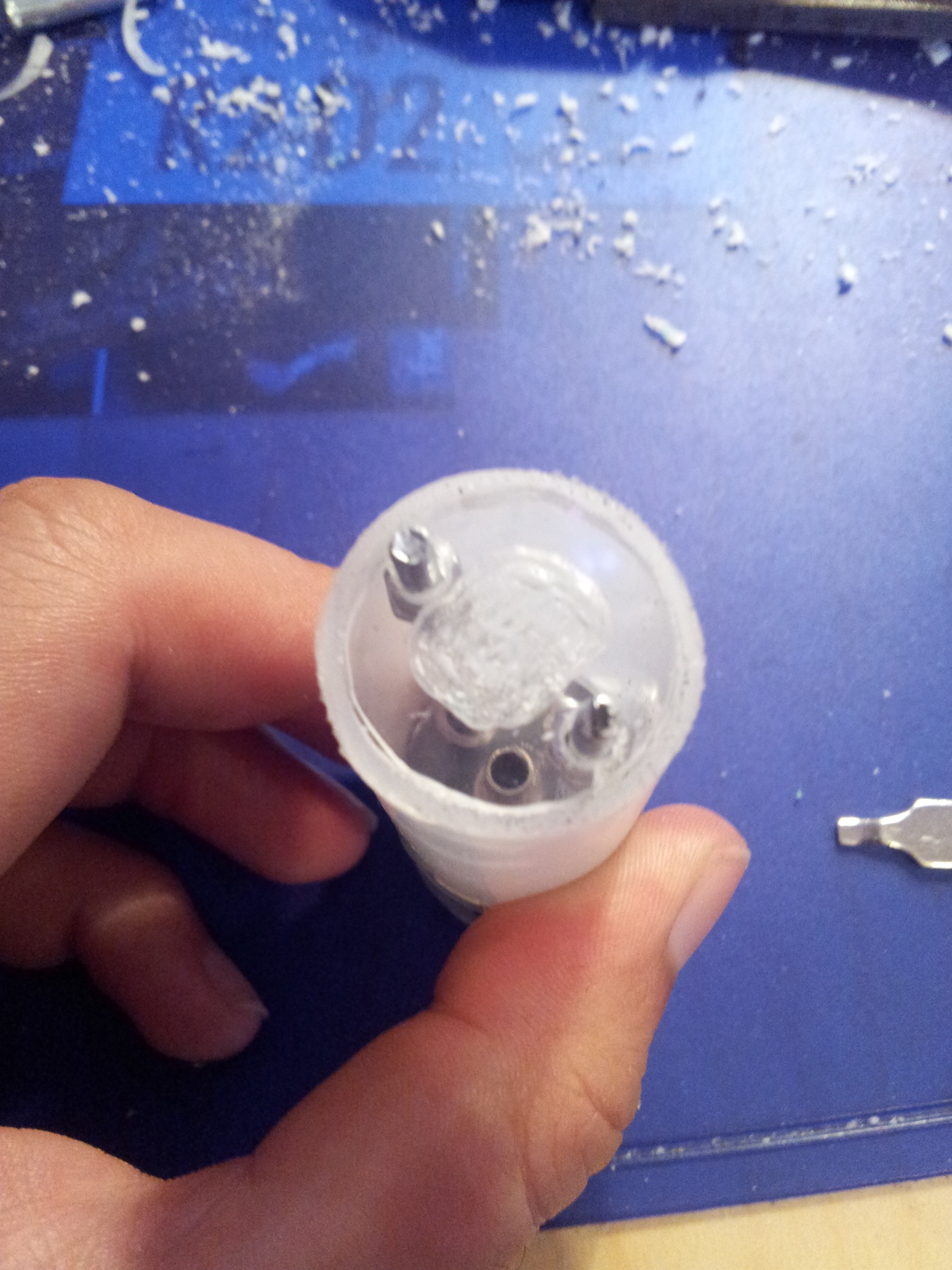

    The screw is kept in place between two acrylic discs.

    Yoda 16.jpg Yoda 17.jpg Yoda 18.jpg

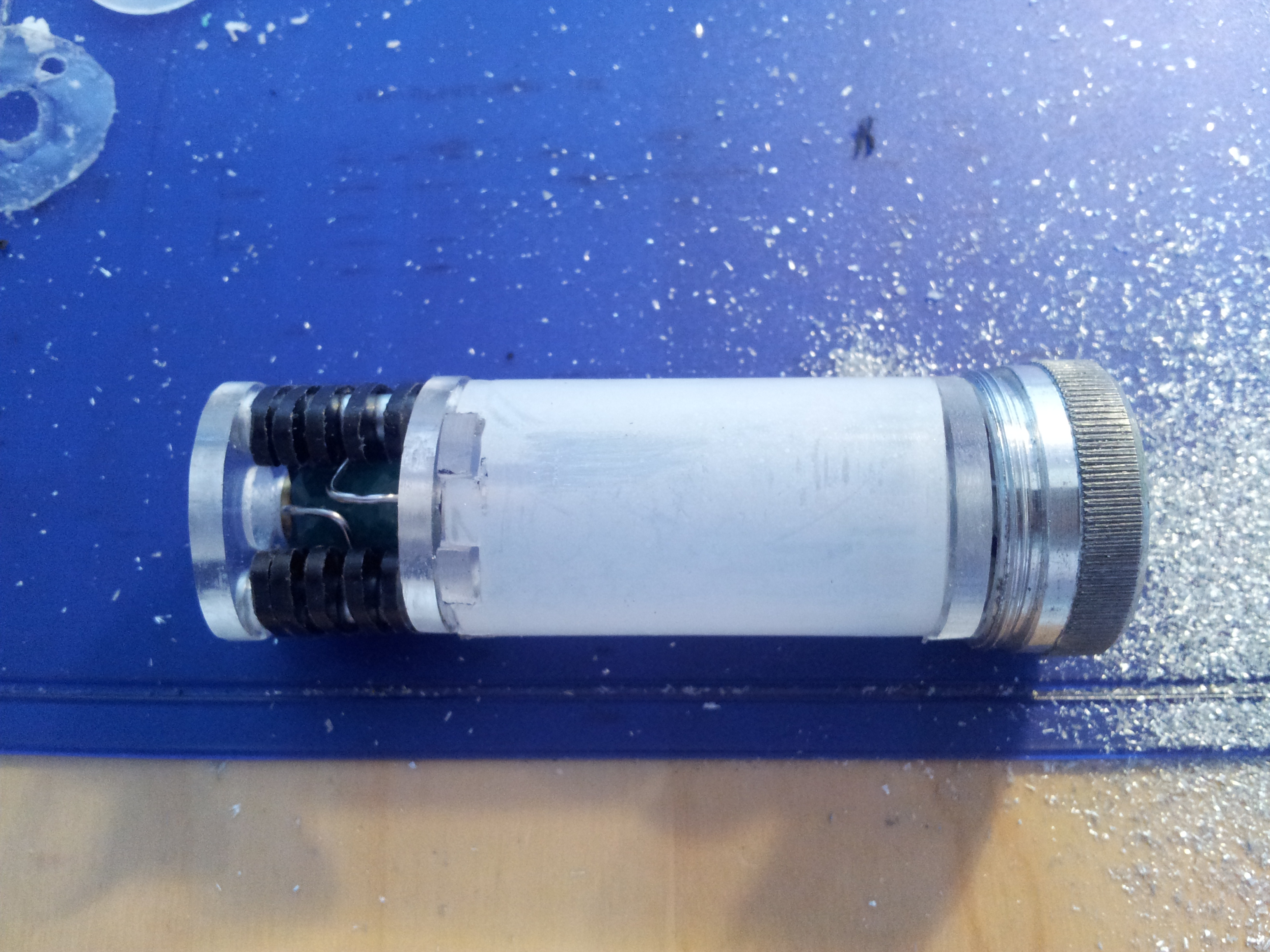

    Now I can screw the crystal chamber into the endcap of the Bolsey.

    Yoda 19.jpg Yoda 20.jpg

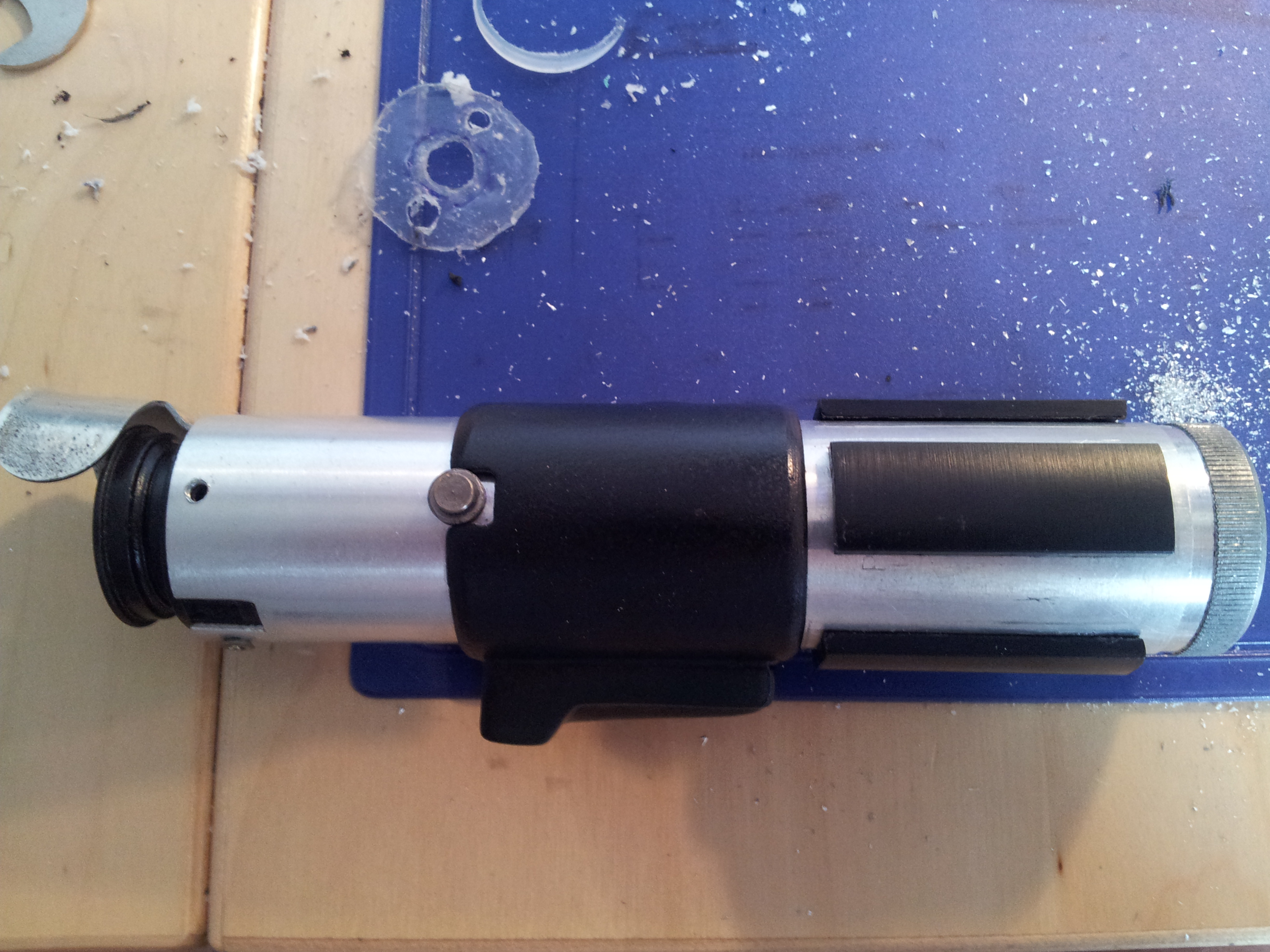

    After that it is possible to draw the crystal chamber out by unscrewing the endcap from the Bolsey.

    Yoda 21.jpg Yoda 22.jpg

    Not as much progress as I wish but now there are only the electronics left and something on the upperside of the chamber which should look starwarsly functional. :cool

    NeoRutty likes this.
  8. chizbot

    chizbot Active Member

    Trophy Points:
    262
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    I like everything about this.

  9. redbutton

    redbutton Active Member RPF PREMIUM MEMBER

    Trophy Points:
    462
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    That;s really cool, Luke The Belter! Nice work I just got some Yoda's grips and a button from sjanish hope to start work soon. BUT man your
    innerds are looking might good!

  10. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    Thank you.
    The grips from sjanish are great and very easy to clean them up with an exacto.
    It is quite amazing that there was such a Yoda saber hype two month ago.

    I work on sabers to have them as collectible but the crystal chambers are just for relaxing and get some time for myself

  11. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    Luke the Belter, did you do any sanding at all on the grips? I am wondering what your experiences were like, if you did need to do any sanding.

  12. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    No, I didn't need to sand the grips.
    I just cut everything what I thought was to much away
    I have a very sharp exacto and the edges where just fine, so I didn't sand.
    I'm not sure how sanding would let them look like. T-tracks aren't as black as before after sanding, too.
    They fit very good on th flash handle and I just a bit of JB-Weld to glue them.

    And just to make things easier, Lukas will do and is much shorter

    mugatu likes this.
  13. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    I think I have all parts together now.

    Yoda 23.jpg Yoda 24.jpg Yoda 25.jpg

    I started with the assembly yesterday.
    The small parts, the superglue fumes and the soldering fumes gave me a really bad headach and I didn't get as far as I wished.
    So I have to show you what I've achieved so far and finish it today or tomorrow. Nothing really new but the LEDs are in place, everything is soldered and the main body is finished.

    Yoda 26.jpg Yoda 27.jpg

    And finally I did some lighting tests with all three LEDs in place.
    It's quite bright.

    Yoda 28.jpg Yoda 29.jpg Yoda 30.jpg

    After that I couldn't go on and had to take a pill.
    Everything to do now is simple assembly and won't make my head ache again :wacko

    Sym-Cha likes this.
  14. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    Re: Bolsey #2 Yoda Lightsaber with Crystal Chamber (WIP)

    It's done!!!

    Yoda 31.jpg Yoda 32.jpg Yoda 33.jpg Yoda 34.jpg

    The push button is placed in the endcap.

    Yoda 35.jpg Yoda 36.jpg Yoda 37.jpg

    I don't like the PTFE tube very much but it is hard to find light metal tubes with the right diameter.

    Yoda 39.jpg Yoda 40.jpg Yoda 41.jpg

    Yoda 42.jpg Yoda 43.jpg

    And inside the saber.

    Yoda 44.jpg Yoda 45.jpg Yoda 46.jpg Yoda 47.jpg

    Yoda 48.jpg

    That's it...

    Just need one of those brass jet screw things for the top of the saber to complete it or is there something else?
    And who can direct me to one of these jet screw things or a person who has some?
