++Update++

Files:
https://www.thingiverse.com/thing:2841038

If you enjoy the model and are feeling generous feel free to buy me a coffee! https://www.paypal.me/diogosergio

++++


Hi guys,

So for these past weeks I've been spending my lunch time working on the Officer K's blaster.
I've started modelling from the pictures/references available online, and most recently from the Tested video which made me do a lot of changes.
Trying to be as accurate as my skills in Fusion 360 allow! :)

It's almost finished, I need to tackled the front of the barrels and figure out the pattern used and also the texture of the main body. (Got a better understanding of it from the pictures of eltee's blaster)

After that I need to separate the model into parts to 3d print, and maybe think of way to incorporate an LED on it.

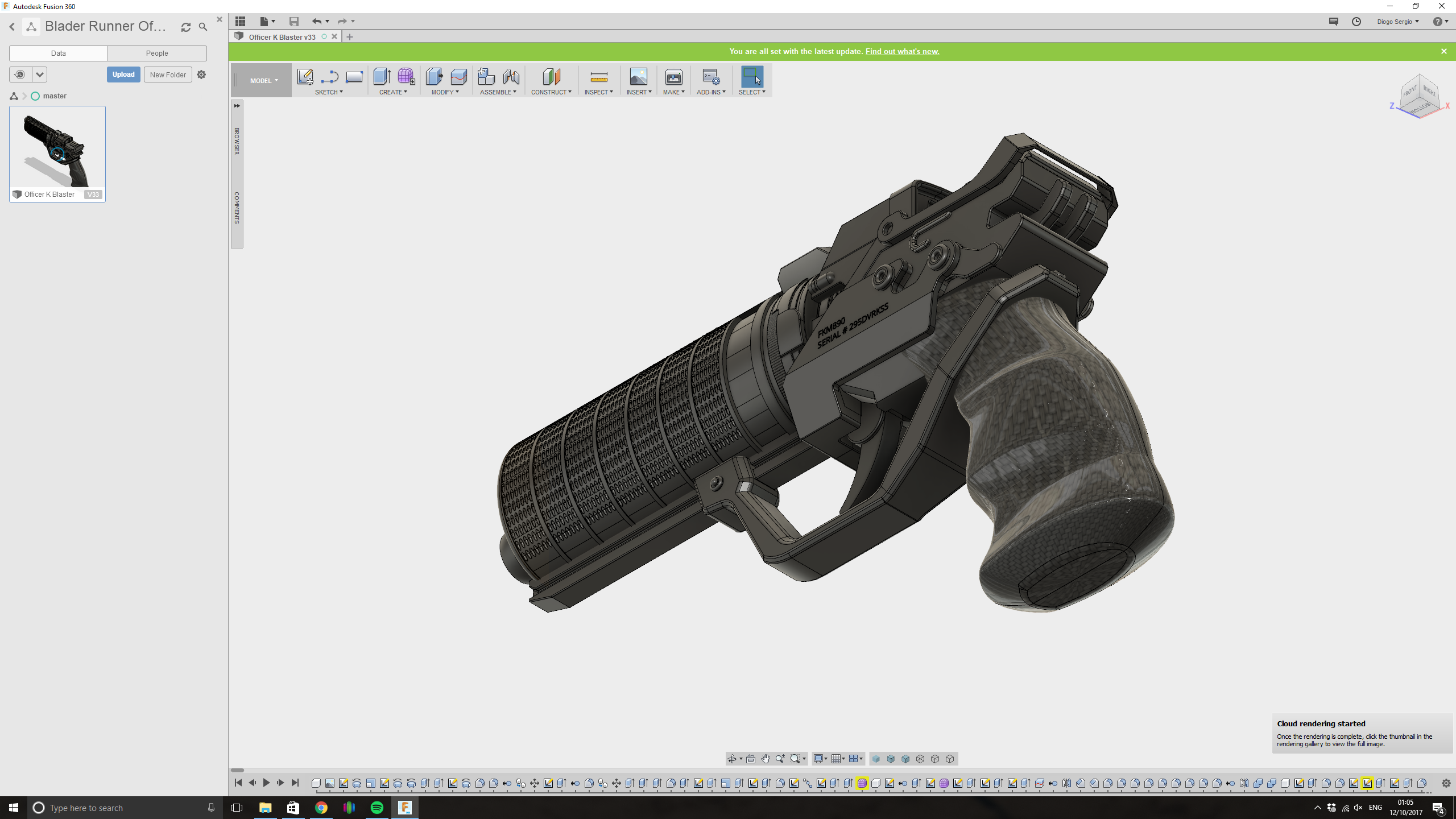

Here are some picture from the Fusion 360.



Cheers!

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Ein

Sr Member
That is some damn fine work... definitely hoping you share the files for that so I can print one for myself. I have to sit down and learn Fusion 360 properly, from the looks of things.

Edit: Was the handle done in another software and then imported? Just wondering about the complexity of those curves in that software.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

diogorsergio

Active Member
RPF PREMIUM MEMBER
That is some damn fine work... definitely hoping you share the files for that so I can print one for myself. I have to sit down and learn Fusion 360 properly, from the looks of things.

Edit: Was the handle done in another software and then imported? Just wondering about the complexity of those curves in that software.

I learned Fusion 360 by modelling the Luke Skywalker - Lightsaber, simple shapes and gets you going with the basics.
About the handle, it was also done in Fusion 360, you've a Sculpt mode for more organic shapes.

You should definitely give it a go. Very robust software and its free for hobbyists.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

diogorsergio

Active Member
RPF PREMIUM MEMBER
Hey guys!

I managed to finish it. Just wanted to know whats the opinion on how I should slice the gun to printable parts.
Huge blocks (the whole gun in 2/3 pieces)? or Separate parts that fit together?

I'll work on this this week and will try to have it ready for the weekend.

Cheers! :D


Scoped Evil

Member
Hey guys!

I managed to finish it. Just wanted to know whats the opinion on how I should slice the gun to printable parts.
Huge blocks (the whole gun in 2/3 pieces)? or Separate parts that fit together?

I'll work on this this week and will try to have it ready for the weekend.

Cheers! :D

Perhaps: Base/Body + Trigger Guard + Grip?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Draxel

Member
RPF PREMIUM MEMBER
Hi guys,

So for these past weeks I've been spending my lunch time working on the Officer K's blaster.
I've started modelling from the pictures/references available online, and most recently from the Tested video which made me do a lot of changes.
Trying to be as accurate as my skills in Fusion 360 allow! :)

It's almost finished, I need to tackled the front of the barrels and figure out the pattern used and also the texture of the main body. (Got a better understanding of it from the pictures of eltee's blaster)

After that I need to separate the model into parts to 3d print, and maybe think of way to incorporate an LED on it.

Here are some picture from the Fusion 360.

View attachment 765361
View attachment 765362
View attachment 765363
View attachment 765364
View attachment 765365


Cheers!

I don’t think your Fusion skills are lacking much! Lol.

Great work!


Sent from my iPhone using Tapatalk


Stefan Jones

Sr Member
RPF PREMIUM MEMBER
I own a CR-10, so I can print large files and prefer not so many. More important for me is, that the parts orientation and size allow clean prints
