Been trying to score Deckard's blaster for a while but it's a pretty big project to commit to. In the meantime, I grabbed the Takagi version which would be a good start on which to model the holster. Here's how I did it:



First, I grabbed all the reference material I could find and properly scaled a picture of the blaster in Inkscape. After a couple versions, I came up with the design that I thought best reflected the original in terms of size and shape. The Safariland holsters on which the blaster holster was based used spring clamps to secure the gun. I wanted a holster that wouldn't put any pressure on the blaster so I opted for a design that uses a strap and snap to keep the blaster in place. I'm debating whether to include the additional belt slot but left if off the final holster for now.

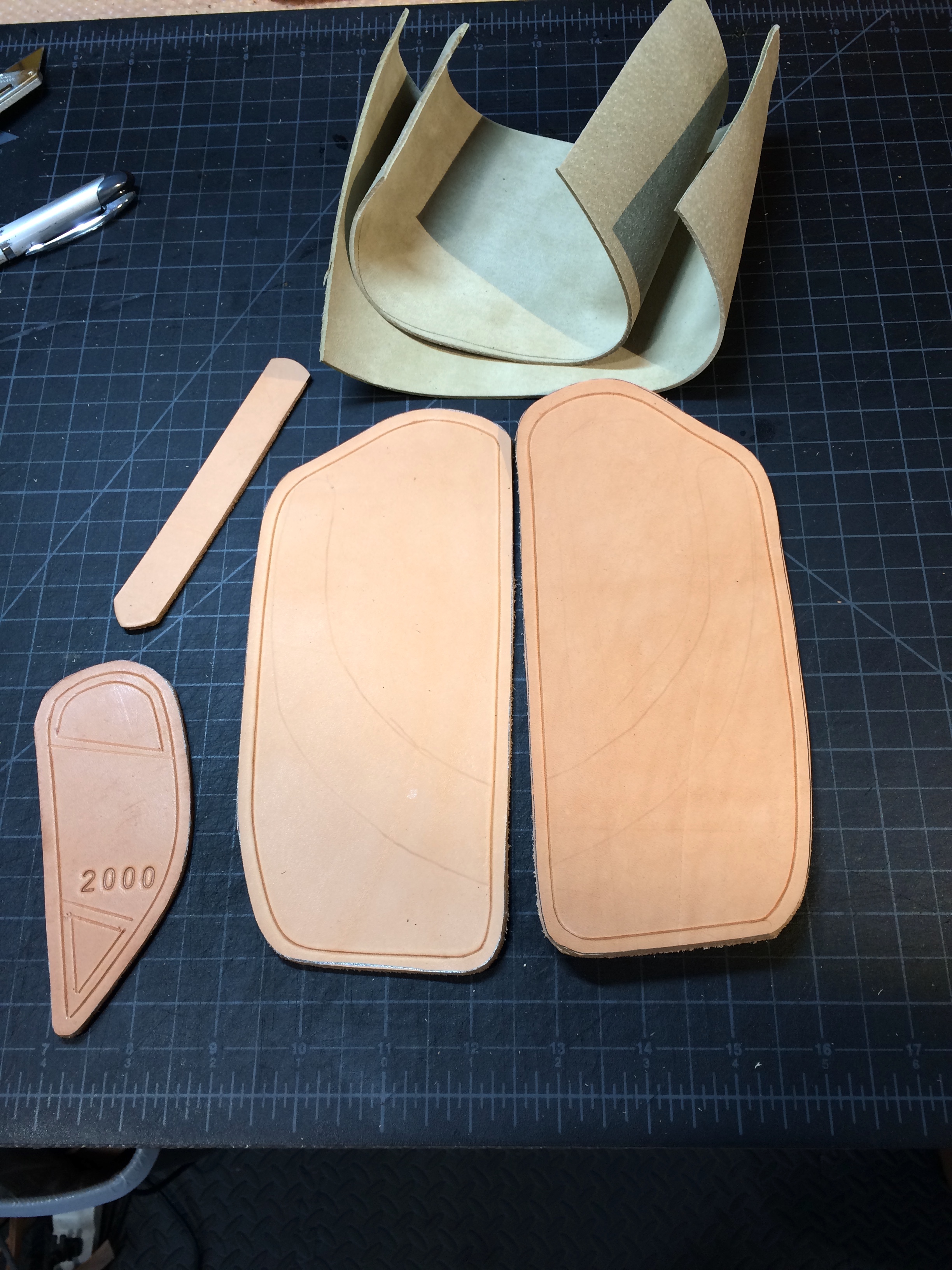

Here I've got all the materials cut out and stitching marks drawn on. I'm using vegetable tanned leather for the shell and a nice light green suede for the interior which is accurate to the original.

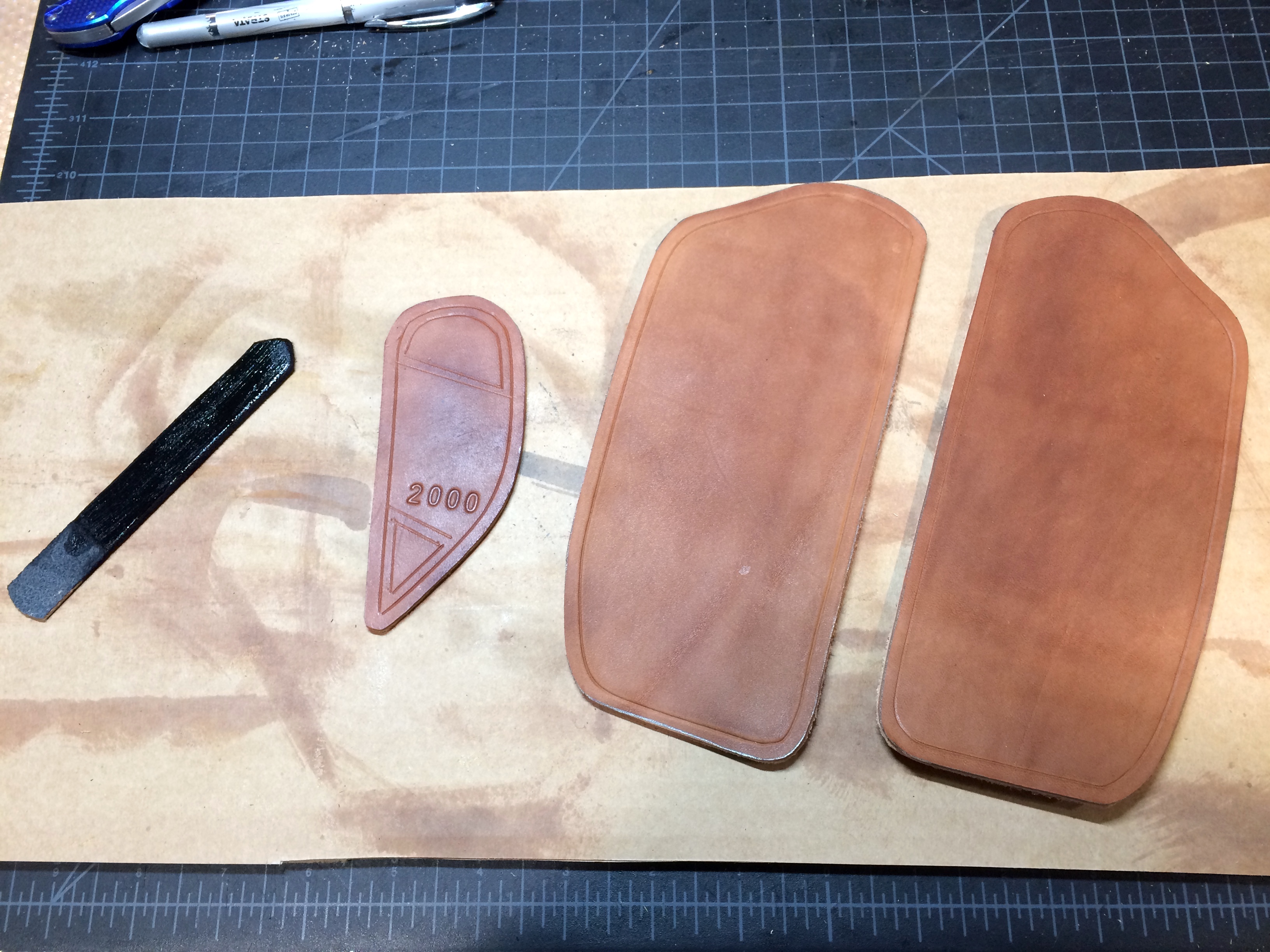

Leather is dyed up and waiting for an oil coat to be applied.




Shoe-makers contact cement to attach the lining to the shell.

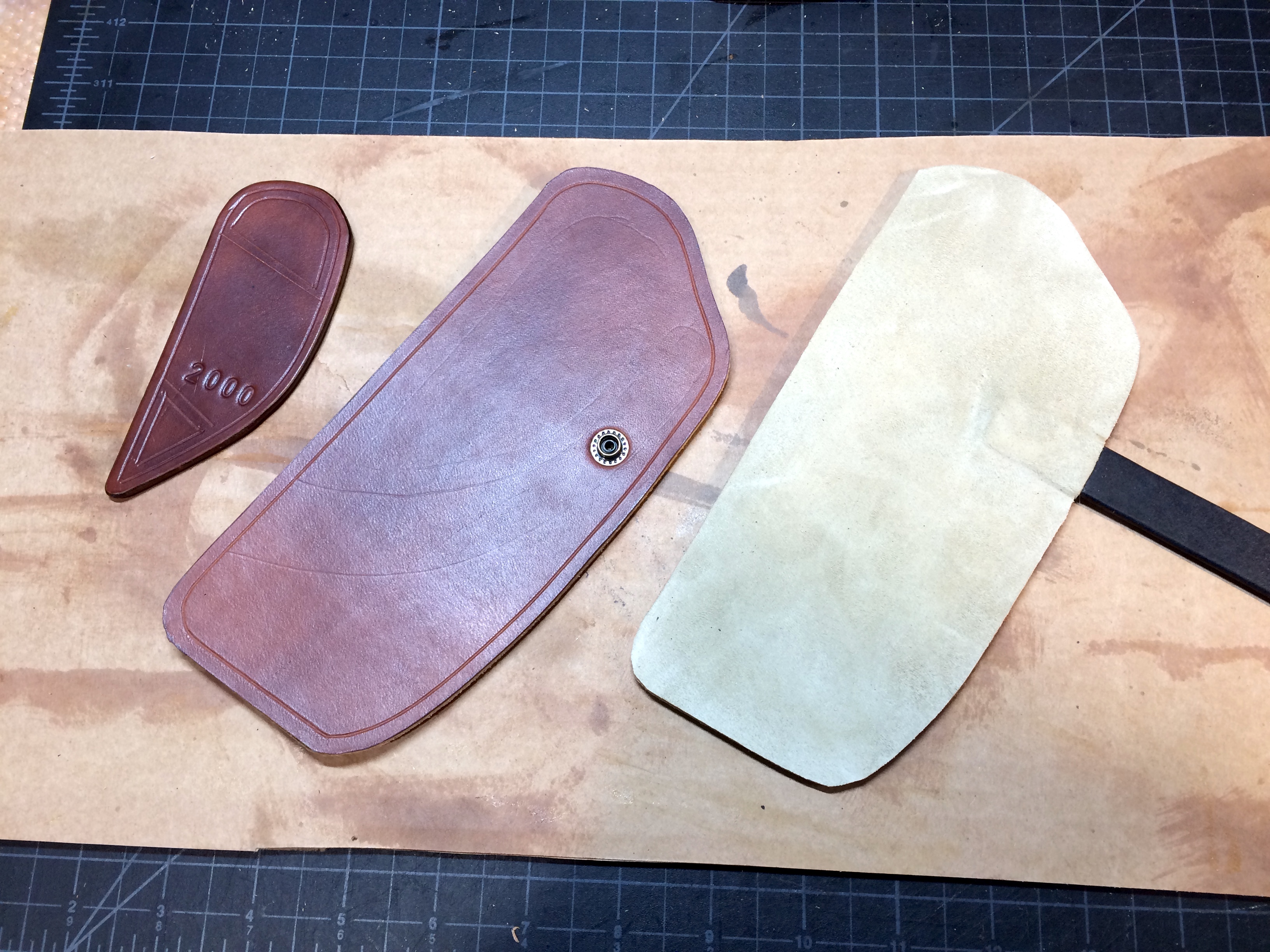

All the parts ready for stitching. Leather has been oiled and finished with a wax-based top coat. The retention strap is glued between the layers and the brass snap was also attached before affixing the lining so the metal won't rub on the gun.


Wailonskydog

Well-Known Member
RPF PREMIUM MEMBER


All the holes punched and ready for stitching.

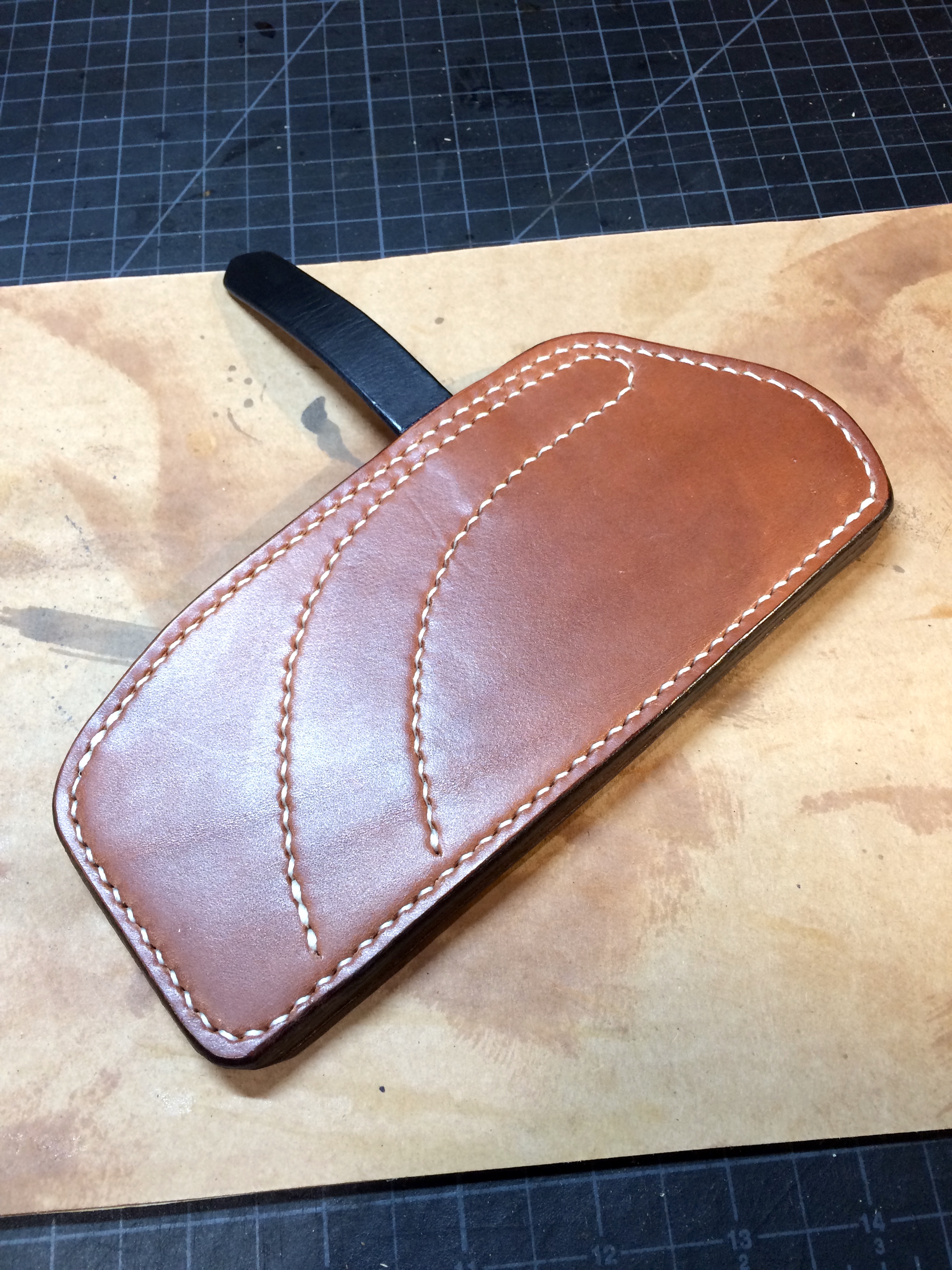

Everything stitched up on each half of the holster. Takes a bit of time to saddle stitch everything but it's not too complicated a stitch up. Mostly just flat surfaces. I also beveled, dyed, and burnished the outside edges so each half is pretty much finished.


Now to attach the two sides I need to glue a welt between them to add some additional width to accommodate the thickness of the gun. I'm using some thicker vegtan leather for the welt.

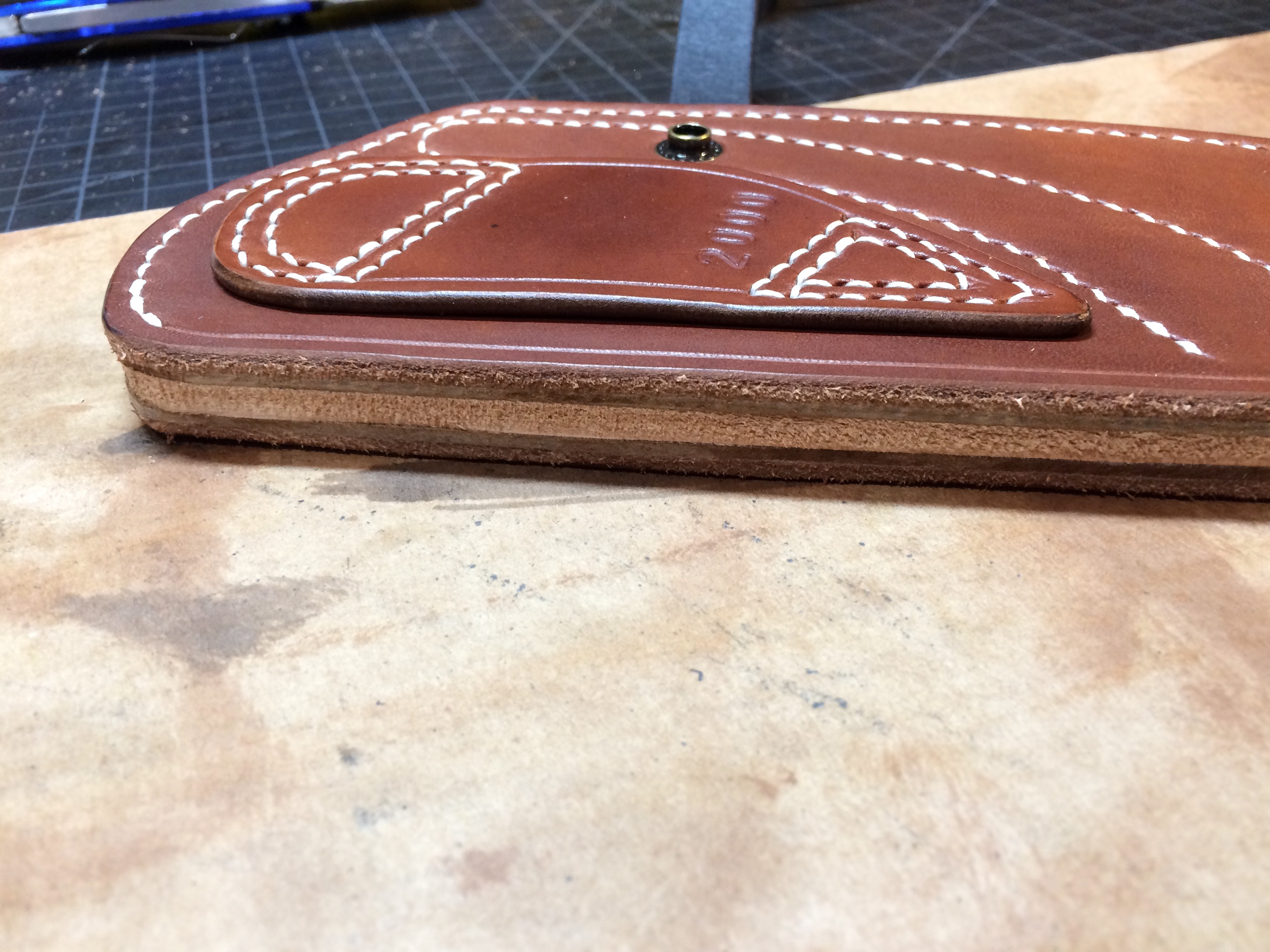

Got the welt glued in, trimmed, sanded down and ready to be dyed and burnished.

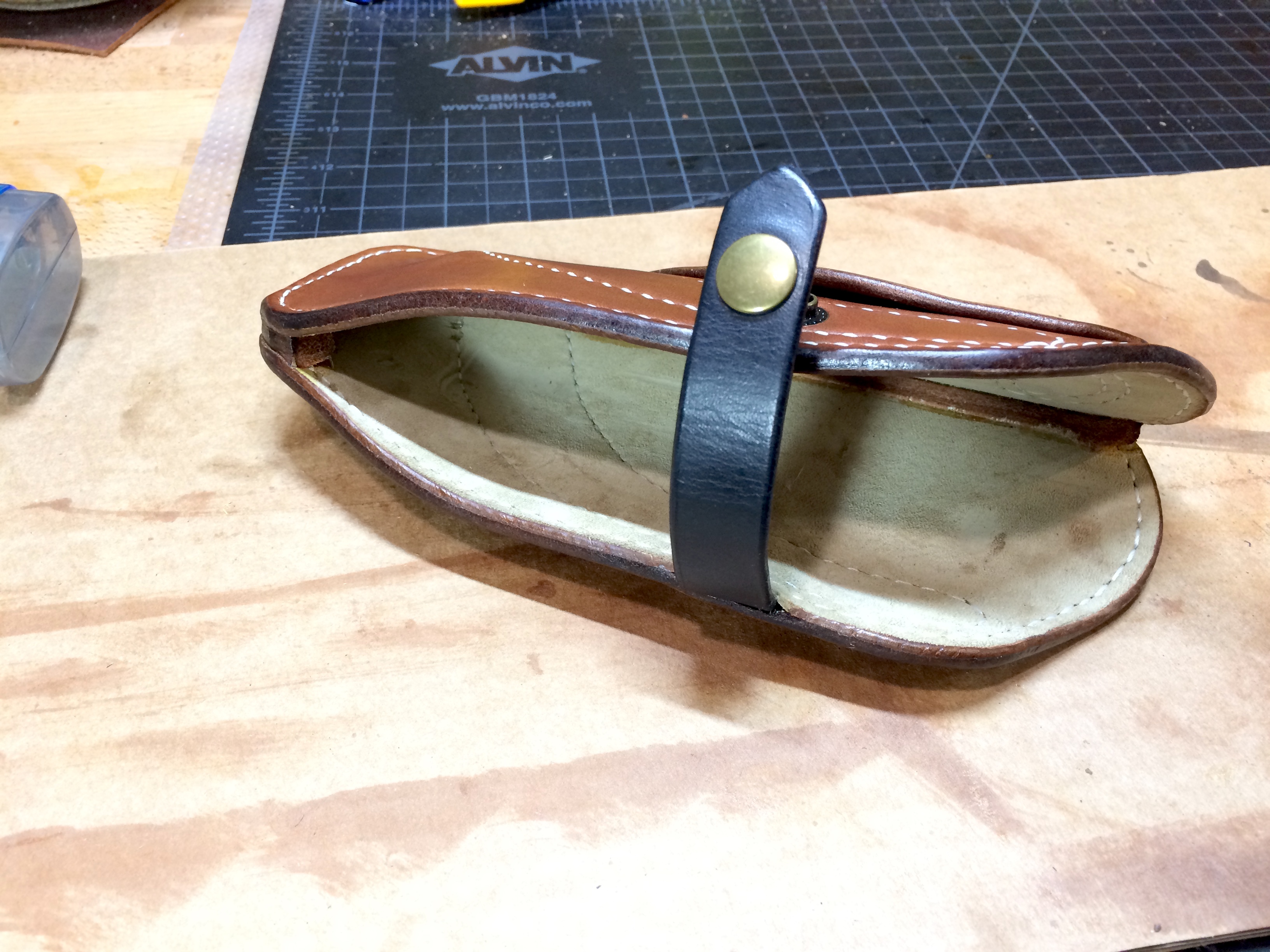

Now I've got one flat looking holster. That's good for stitching the welt together but I'll need to shape it later.


Wailonskydog

Well-Known Member
RPF PREMIUM MEMBER


Another view of the newly burnished edge.

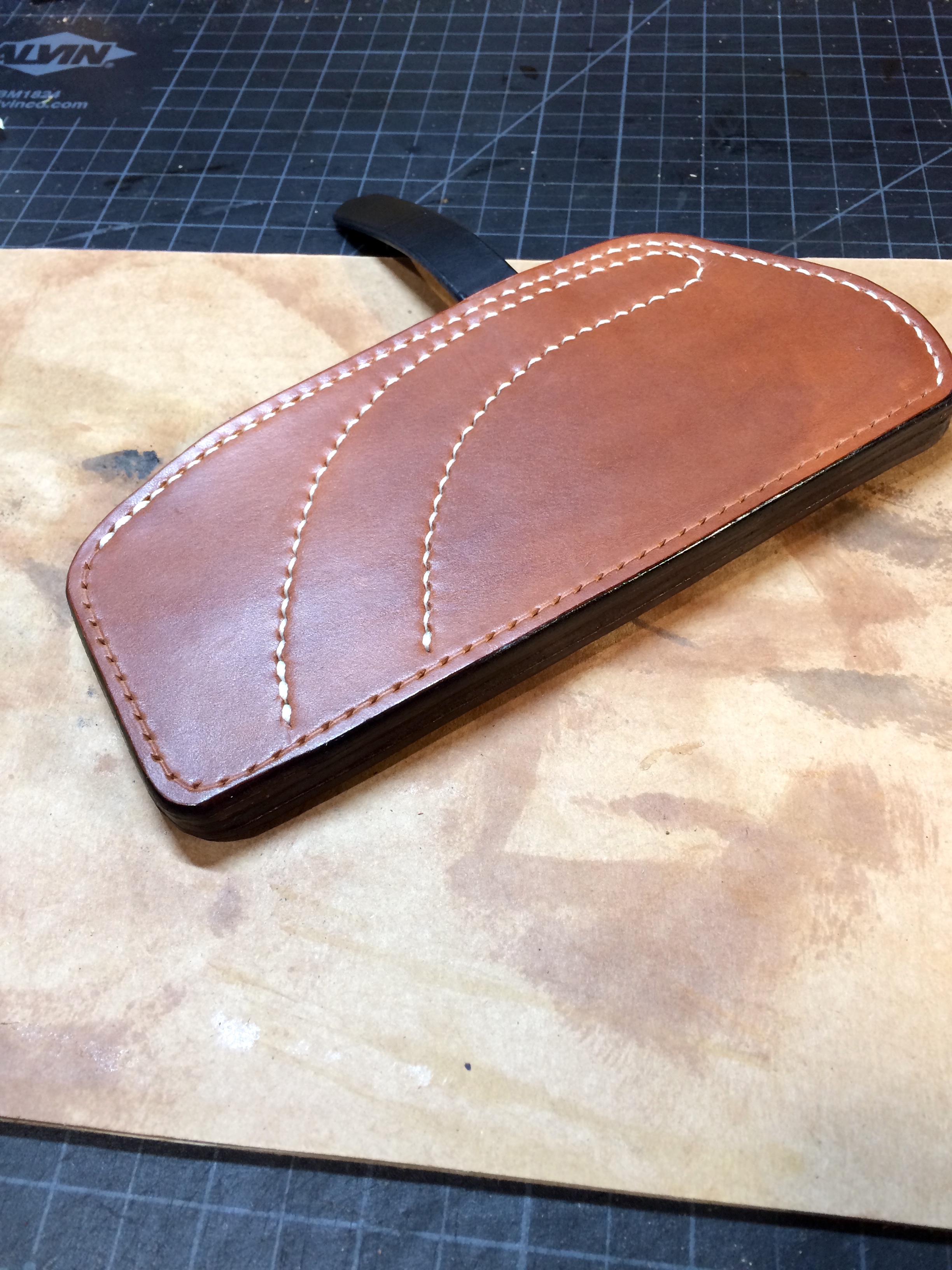

And got the welt all stitched up.




Since the welt made the edge so thick the stitches got a little off line on the backside but that's fine. It's not noticeable and easy to fix next time around and the front is nice and straight.

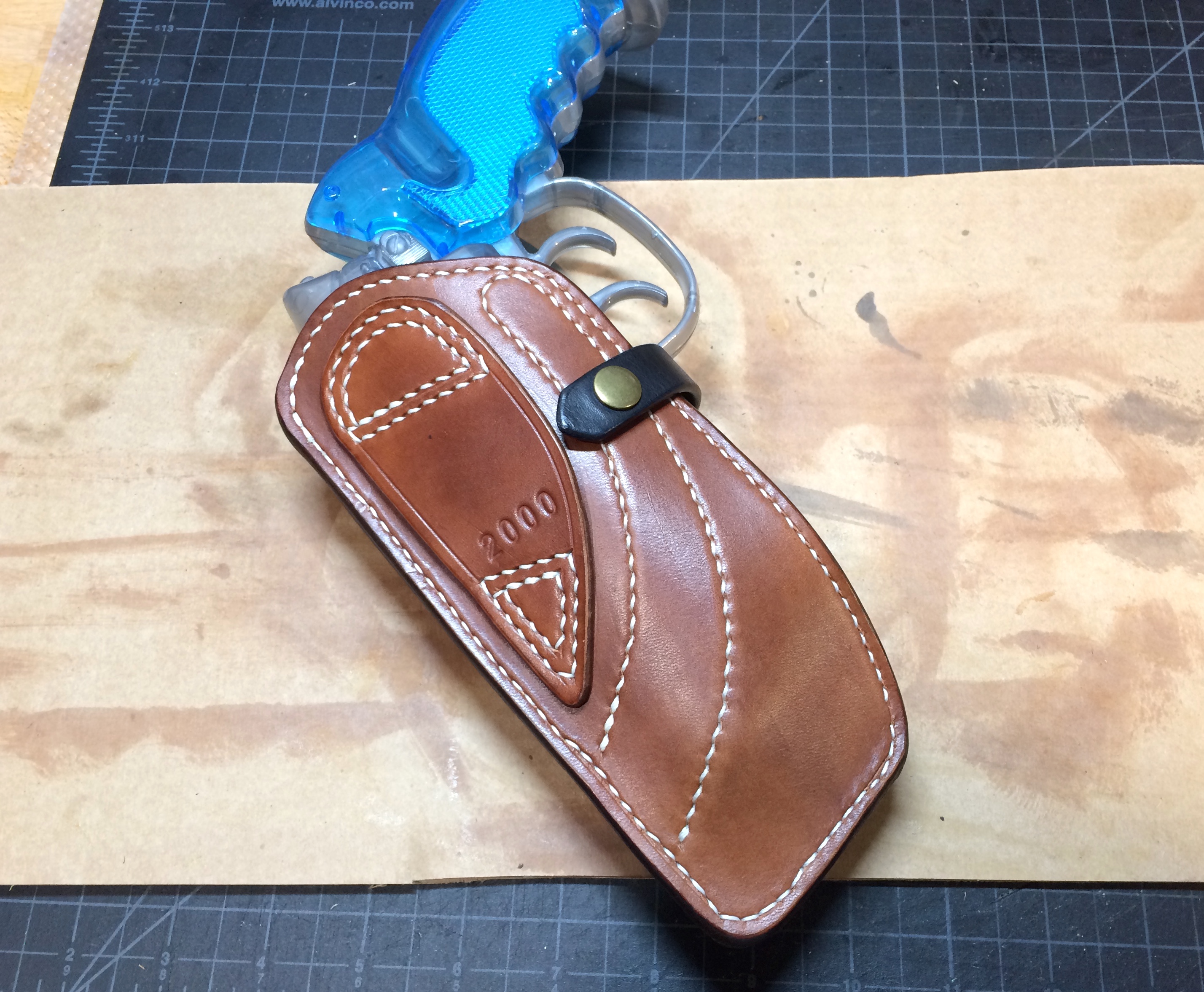

Finally, time to mold the holster to the blaster. Usually, I wouldn't recommend ever submerging a piece of leatherwork in water but since I was confident how this holster would react I dunked it in a pot of room-temperature water and then worked the gun into the holster. Installed the final snap once I knew exactly where it should go and snapped the gun in place to let the holster dry. Once advantage to using the water pistol is I don't need to worry about getting it wet.


Wailonskydog

Well-Known Member
RPF PREMIUM MEMBER
Thanks for the compliments! I've been thinking about making this for probably a year and have had that green suede sitting on my shelf for almost that long. It's no nice to see a project finally come to fruition.

Funky - I'm probably gonna add this to my Etsy store at some point. I'm thinking around $175 or so but have to think about costs a bit more.


airhead

Well-Known Member
Nice craftsmanship on the holster. I think that the strap is a good alternative to the spring steel insert. Well done!
David


Wailonskydog

Well-Known Member
RPF PREMIUM MEMBER
Nice craftsmanship on the holster. I think that the strap is a good alternative to the spring steel insert. Well done!
David
Yeah, not only would it be difficult to source and install the spring but I'd hate pull out my blaster too fast and rip off all the greeblies.


airhead

Well-Known Member
No kidding! I've got a real Safariland and it would sure streamline a blaster the first time around! A big honkin' heater like the blaster would really need some additional support. And probably suspenders to keep your pants up!


Wailonskydog

Well-Known Member
RPF PREMIUM MEMBER
No kidding! I've got a real Safariland and it would sure streamline a blaster the first time around! A big honkin' heater like the blaster would really need some additional support. And probably suspenders to keep your pants up!
Very cool! Got any pictures of your original Safariland you'd share?


airhead

Well-Known Member

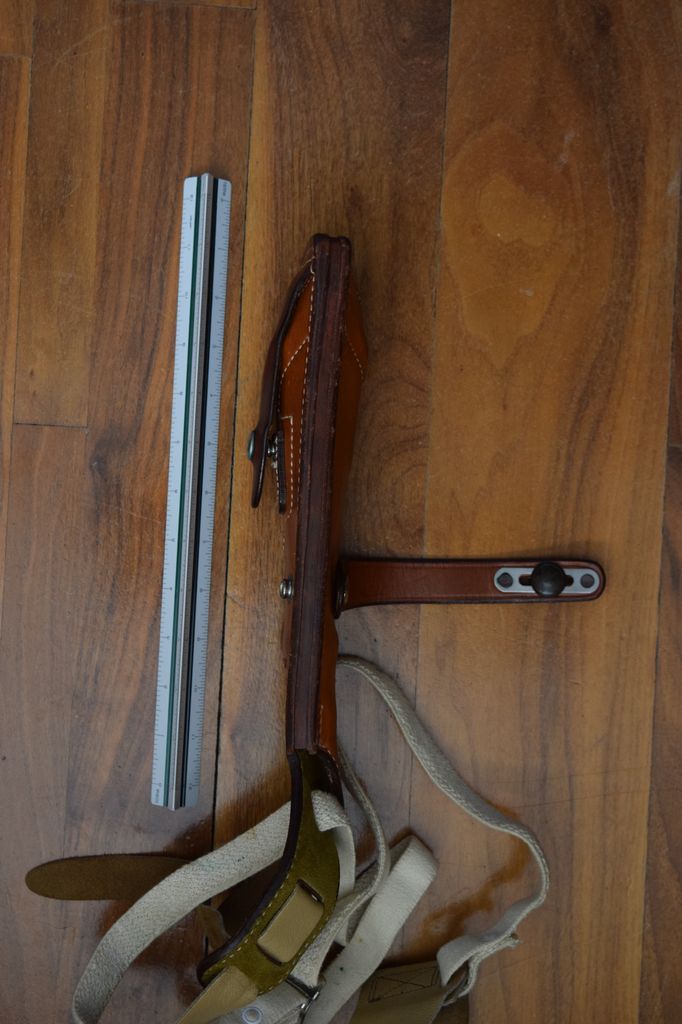

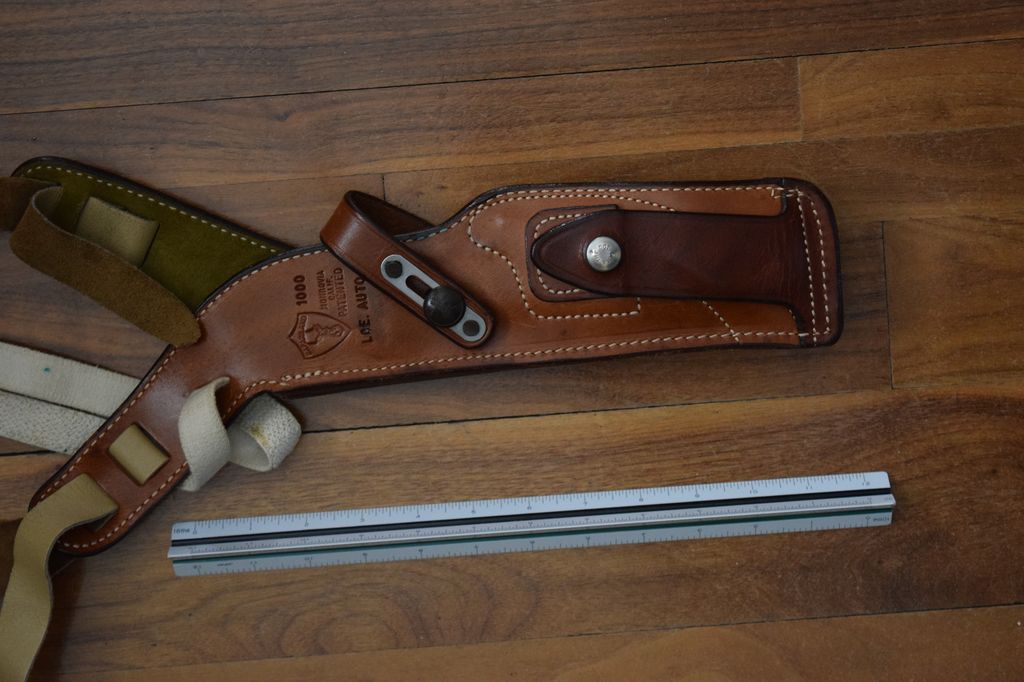

This is an older Safariland Model 1000 large auto shoulder holster Along with the spring metal clamp that holds things in, there is an adjustable strap for security and a snapped belt loop to keep it from flopping around. There's also a metal "guide along the back welt that helps keep the front sight from wearing into the leather (I guess). They are kind of quick pictures, but I think it shows the major parts. Front to back, I measure 3"; center of the keeper strap snap to bottom, I get 6.8"; the back welt is 0.6" thick.
David
