I recently started a new build , The Rolston Reciprocating Repeater from Bioshock Infinite.

I'm just getting started so I only have a couple pics, there is so much more work to do !

repeater progress4.jpg

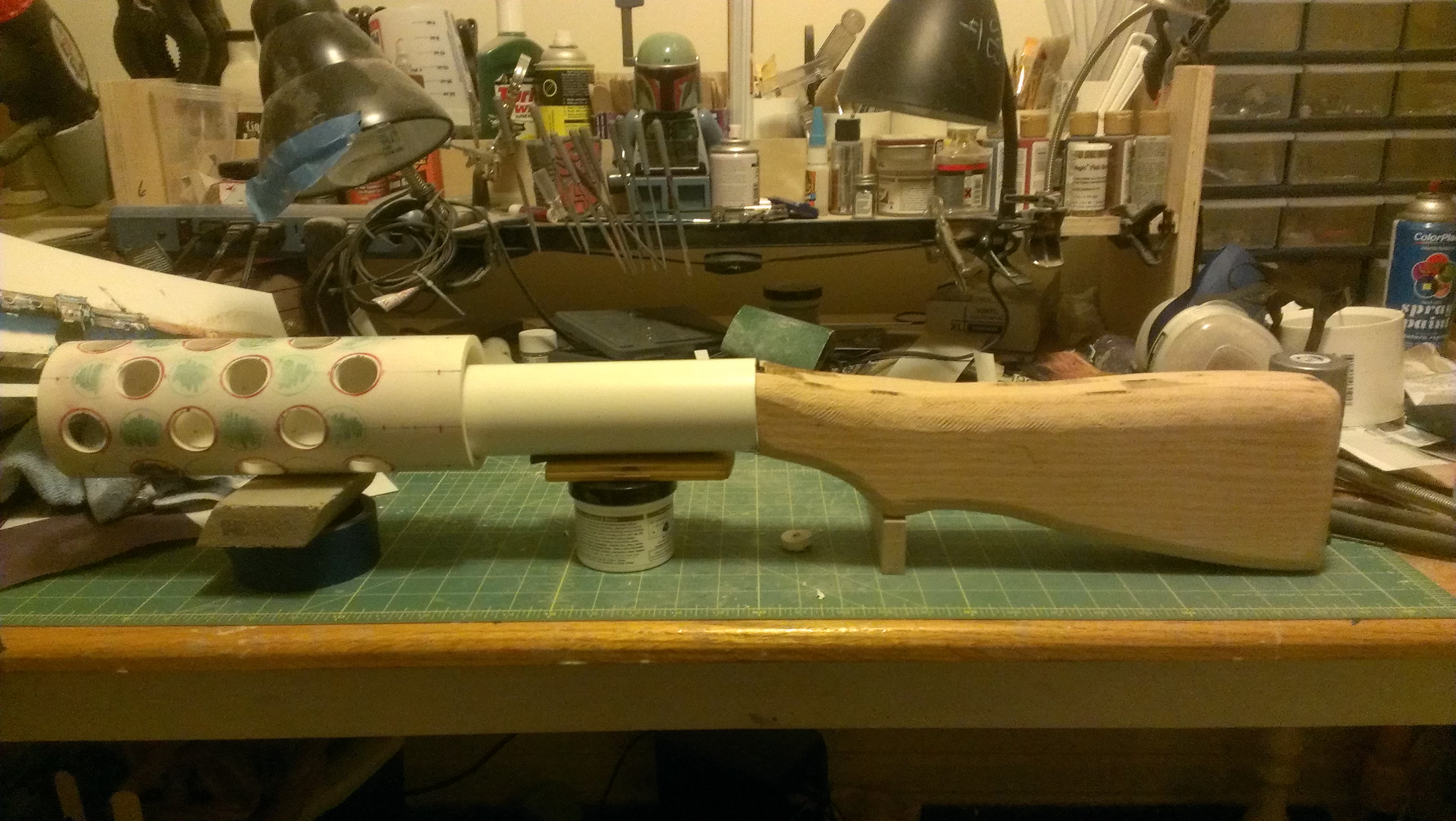

The top pic is mostly a mockup to make sure I have the scaling right, It;s 33 inches long based off of a British submachine gun that the Triple R was loosely based from. The lower pic is from today where I started shaping the stock, which is made from red oak. More to come !

repeater progress5.jpg

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

JMANTAM

Member
Re: Bioshock Infinite Triple R Repeater build WIP

Nice man! I too am building a Bioshock weapon, the pistol from the first game with all the upgrades


deathbywataru

New Member
Re: Bioshock Infinite Triple R Repeater build WIP

SWEET. Another of your gun builds for me to follow! :D LOVE your work. Was this a commission, or just something you love and wanted to make?


Weaselhammer

Sr Member
Re: Bioshock Infinite Triple R Repeater build WIP

SWEET. Another of your gun builds for me to follow! :D LOVE your work. Was this a commission, or just something you love and wanted to make?

I saw someone post a picture of it on Facebook and loved it. When I played through the game I used this gun 90% of the time and wanted to build one for myself so bad that I caved in. Thanks for the kind words !


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Weaselhammer

Sr Member
Re: Bioshock Infinite Triple R Repeater build WIP

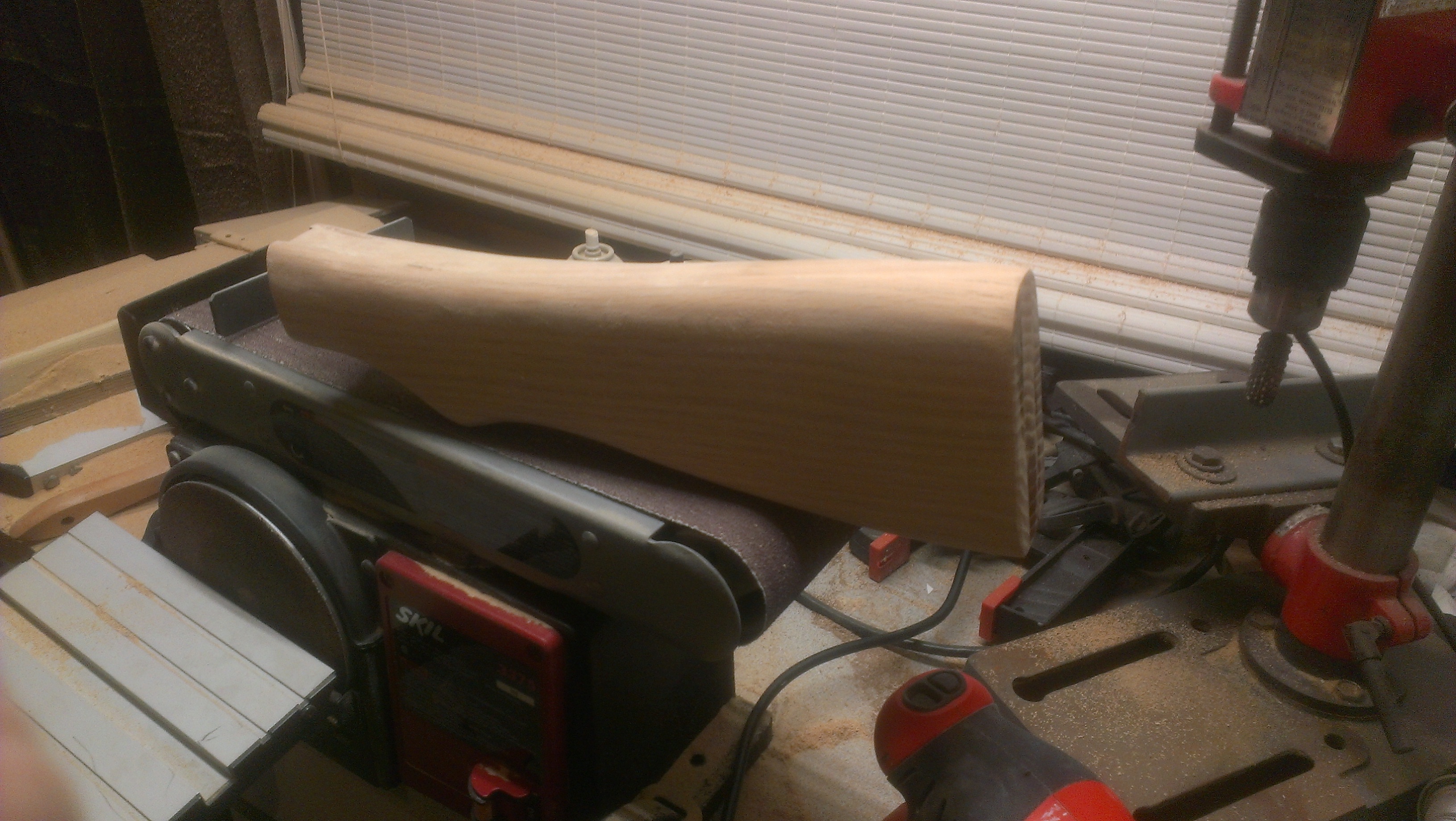

I finished shaping the stock today and sanded with 60 and 100 grit paper. I still have to cut about a half inch off the front and it will be ready for stain.

repeater progress6.jpg


Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

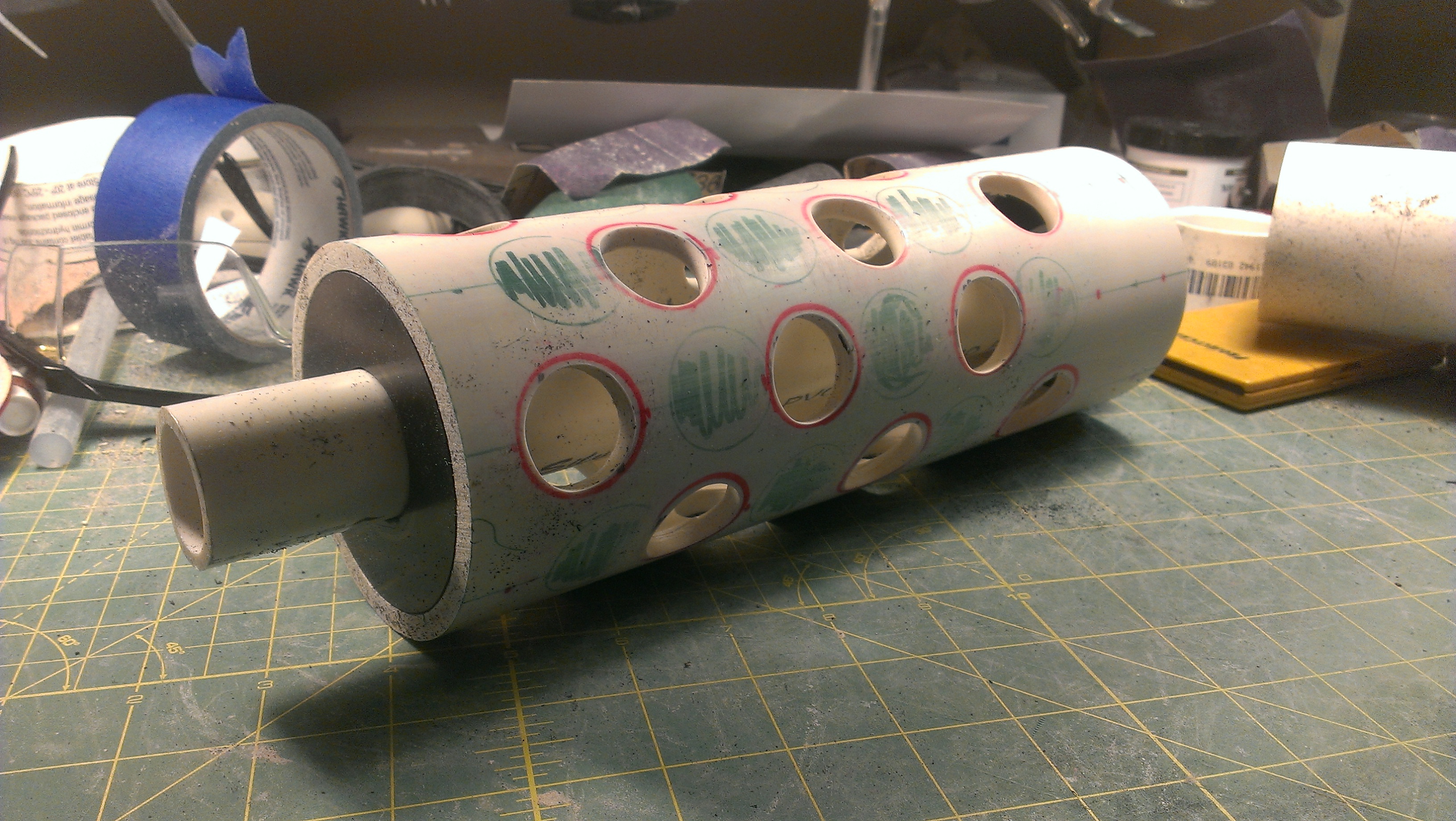

I was pretty lazy today and am watching a Star Wars marathon, but i did get into the shop today and work on the barrel assembly a little. I also found a good 3d model of the machine gun which will help out a lot.

repeater progress7.jpg

(Edit) after the last pic, I added the trim ring around the front of the shroud and mounted a threaded fitting to the rear shroud plate.

repeater progress9.jpg

Last edited:

Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

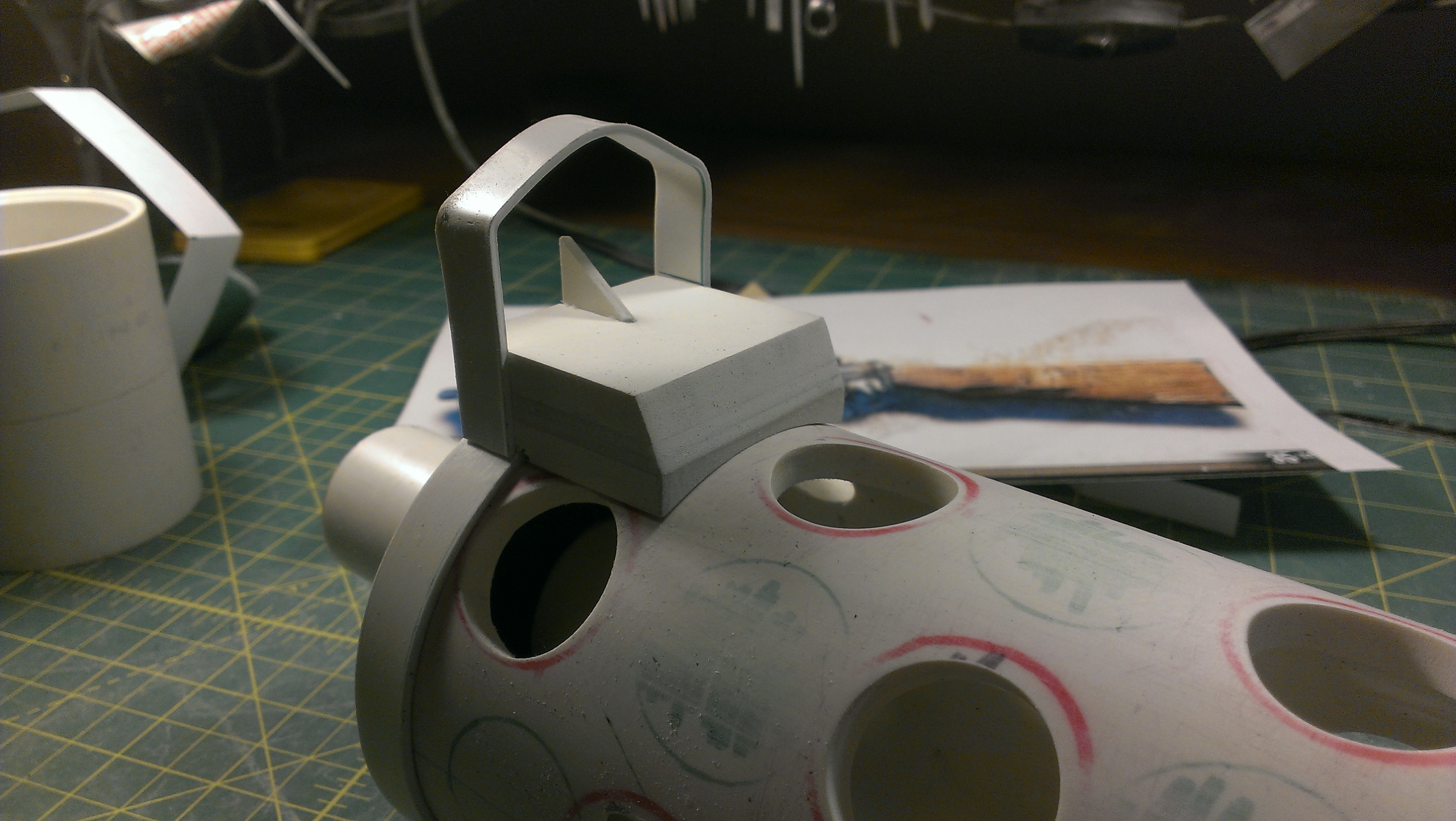

I did a little work on the machine gun tonight, I built the sights which pretty much finished up fabrication of the barrel assembly. Tomorrow after a run to Lowe's for a 90cent part I will get cracking on the middle section again.

repeater progress10.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

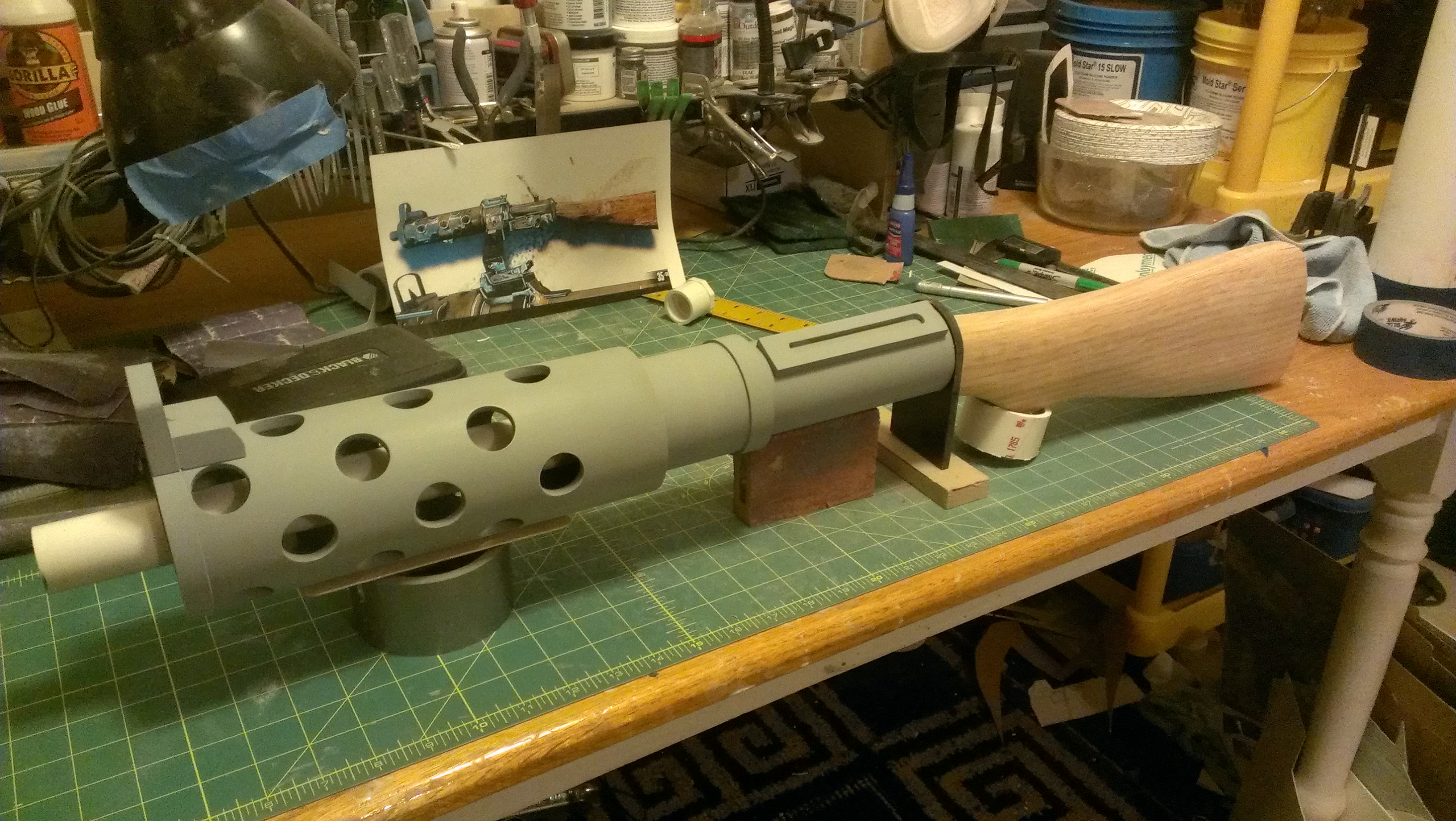

I didn't work on the Repeater very long today, but I did get to add a few details and get some primer on it. I made the bolt slide plate from MDF and brushed it with super glue so I could sand it smooth without the "fuzzies". I also went back at the stock and shaped it down a little more with a wood rasp and belt sander. I think I need to get me some of that chocolate colored primer that is all the rage with the prop builders right now, lol. Here is a mock-up of what I have so far.

repeater progress11.jpg


Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

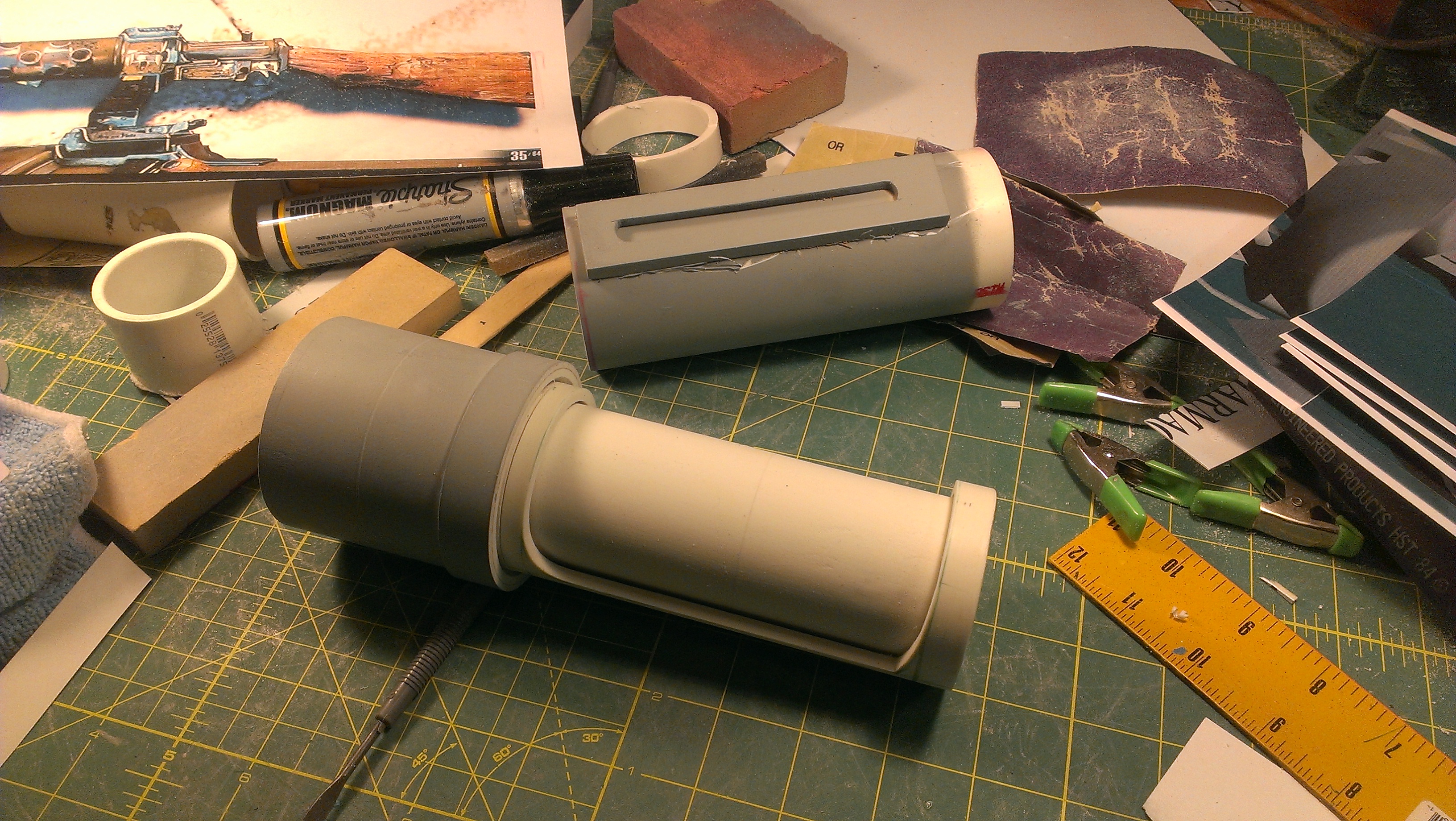

Kinda had a setback today when I realized that my receiver parts for the Repeater wasn't going to work, so I had to start that part over. The one on the top is the old one, and the one on the bottom I made tonight. Tomorrow I will cut out the trigger assembly and hopefully start mocking up the magazine parts.

repeater progress12.jpg


Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

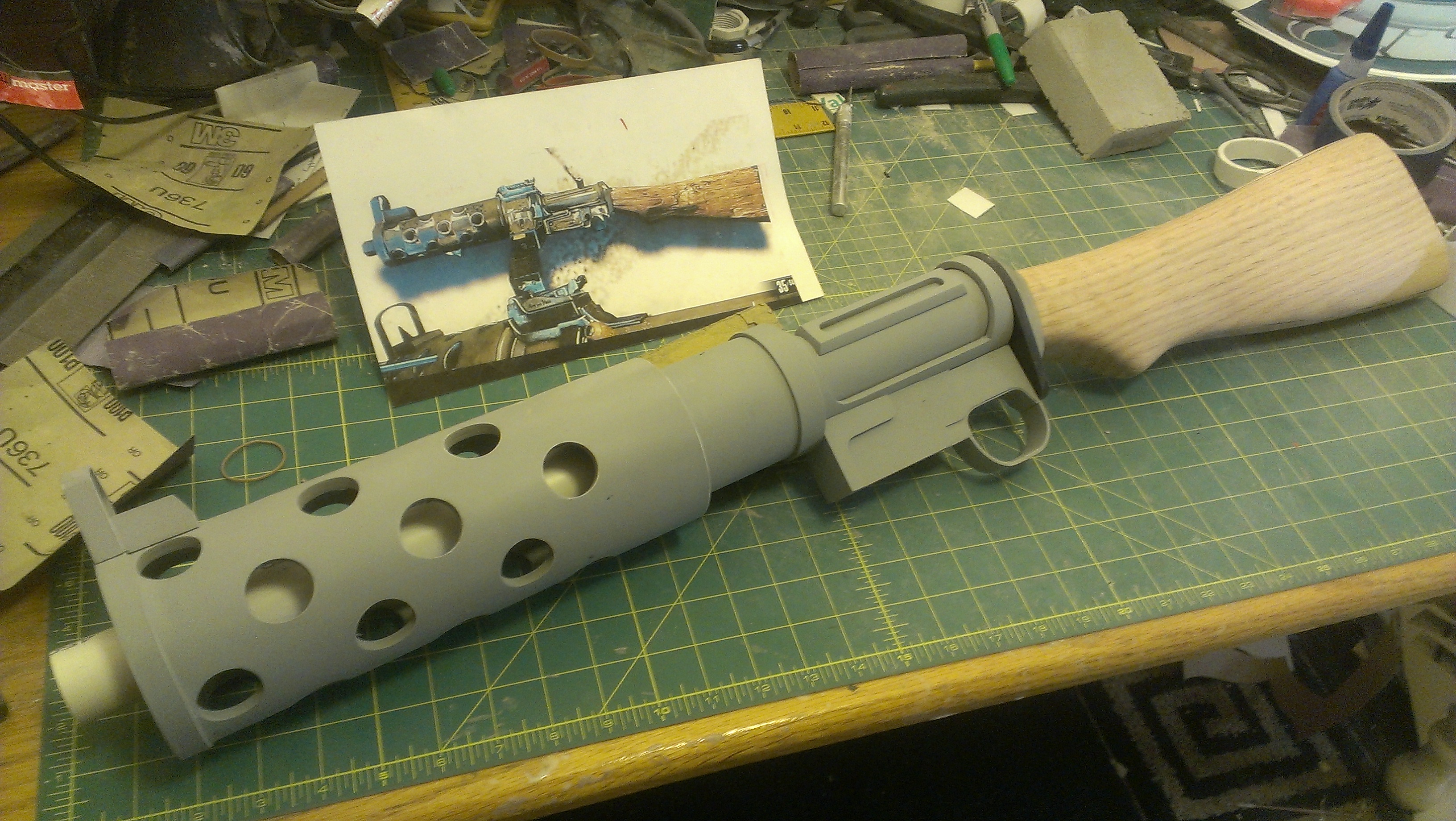

I was pretty productive today, I got everything I have done so far actually mounted so it can be picked up as a whole piece now. I did a lot of work to the receiver and other details, and also sanded the heck out of the stock. I'm getting really pumped about this build! I wish more people here were !

repeater progress13.jpg repeater progress14.jpg repeater progress15.jpg


wobbler

New Member
Re: Bioshock Infinite Machine gun build WIP

Looks fantastic! Will you be going for the normal ingame colours or the goldy one from the preorder?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

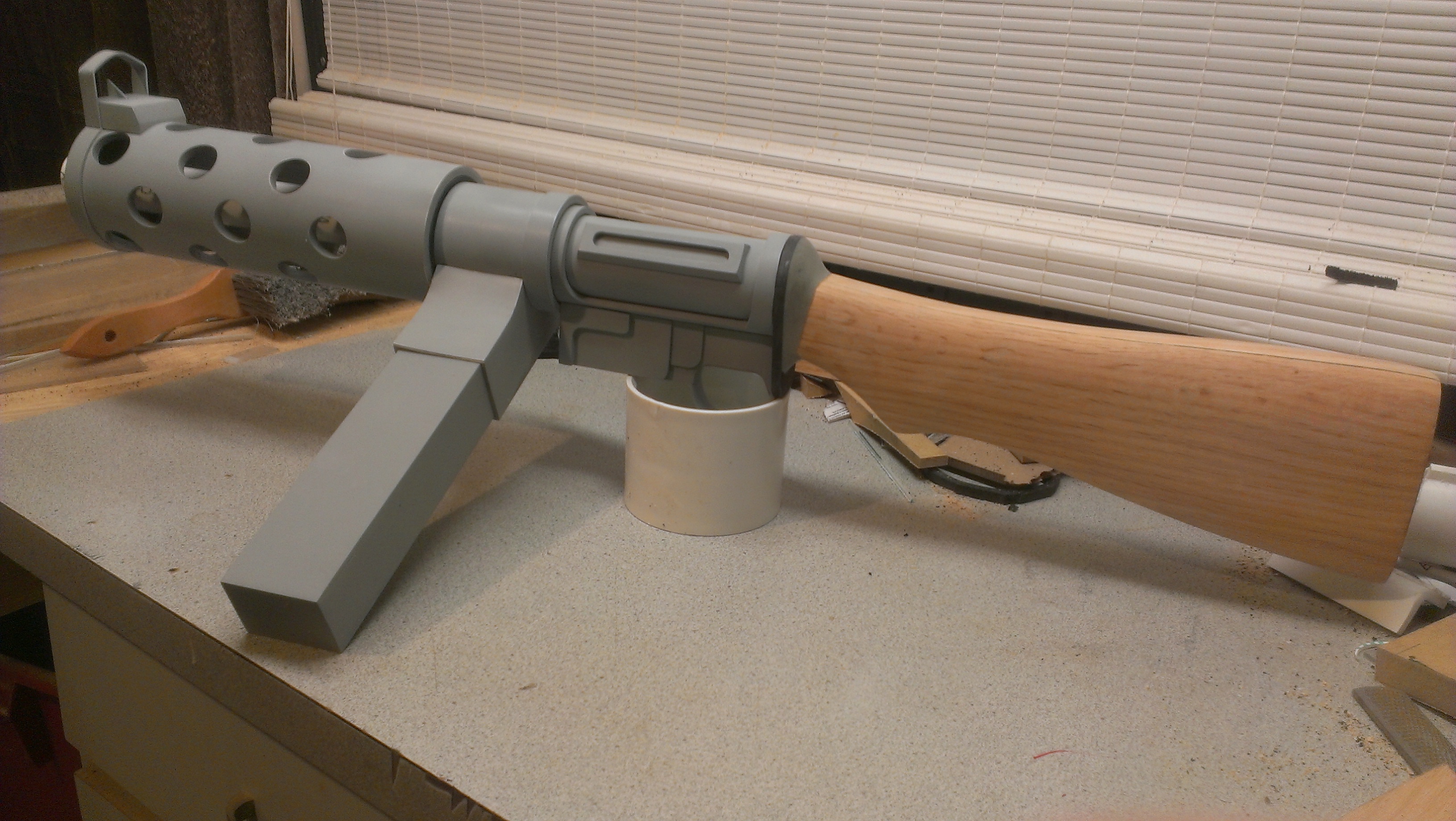

I worked on fabricating the ammo clip and the part on the gun it goes in to, I have no idea what that's called. I couldn't resist walking around the house with this and pretending to shoot everything ! I still need to make the rear sight and some decorative greeblies and such, but it almost looks the part ! The ammo clip is removable and will be secured with magnets.

repeater progress16.jpg repeater progress18.jpg


KennyGordon

New Member
Re: Bioshock Infinite Machine gun build WIP

Wow, this is looking really nice. From my knowledge, a magazine attaches to the chamber of a gun but I don't know if the extension that we see would still be called a chamber...


Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

Wow, this is looking really nice. From my knowledge, a magazine attaches to the chamber of a gun but I don't know if the extension that we see would still be called a chamber...

A few people commented on my Facebook page that it was called a mag well, sounds good to me. Thanks for the compliment !


Weaselhammer

Sr Member
Re: Bioshock Infinite Machine gun build WIP

Today was the last day of my vacation, and I actually finished all the main parts of the machine gun tonight ! I built the rear sight assembly which actually has a moving part, and I made a knob for the bolt (is that right?). The Sights were a pain in the ***** ! The knob is made from red oak like the stock. I used my drill press like a lathe and used my dremel to shape it . All I have left are minor trim pieces, the trigger, and to finish the butt plate that I already cut out.

repeater progress22.jpg


deathbywataru

New Member
Re: Bioshock Infinite Machine gun build WIP ALMOST DONE !

This looks to be an extremely fluid building! I guess after a while of doing gun builds, each one sort of falls into a pattern of which piece always gets built first.

So with that knob...I'm trying to imagine how you did that. Did you basically put a small cube on the end of the drill press, to have something to hold it in place, and then just sanded away at it with the Dremel until you got that rounded knobby shape?
