JSConnolly

Active Member
Absolutely no idea, many years of searching and still nothing to show
If the reveal community knew we wouldn’t have to make are own from scratch, like I’ve had to
I STILL say it is some type of European drain of some kind? Maybe tube or something? Or as you said a "Plug" of some kind?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Bengrim09

Sr Member
RPF PREMIUM MEMBER
I STILL say it is some type of European drain of some kind? Maybe tube or something? Or as you said a "Plug" of some kind?
You say what you like, but we have all been down the same rabbit hole searching for years for plug tops and drain toppers alike (worldwide)
Return of the Jedi was filmed at Elstree studios and the Vader helmet was built there by the prop department, why would they use a European plug when they had U.K. plumbing materials at hand
If you want to search for plug tops, by all means give it a go, but trust the Vader community when we are 99.99999999999% sure it’s not
But please keep us informed on your search results


JSConnolly

Active Member
You say what you like, but we have all been down the same rabbit hole searching for years for plug tops and drain toppers alike (worldwide)
Return of the Jedi was filmed at Elstree studios and the Vader helmet was built there by the prop department, why would they use a European plug when they had U.K. plumbing materials at hand
If you want to search for plug tops, by all means give it a go, but trust the Vader community when we are 99.99999999999% sure it’s not
But please keep us informed on your search results
When I say "European" I mean to include the UK. And I say that because like with other things used for SW Props, some of them were from Germany and other places.
And like I said they just used found "STUFF/Junk" that looked interesting.

But I bow to the wisdom of the RPF Community as to know what something IS or Isn't!

I would SO LOVE to pick the brains of those that built this stuff! LOL :D


JSConnolly

Active Member
When I say "European" I mean to include the UK. And I say that because like with other things used for SW Props, some of them were from Germany and other places.
And like I said they just used found "STUFF/Junk" that looked interesting.

But I bow to the wisdom of the RPF Community as to know what something IS or Isn't!

I would SO LOVE to pick the brains of those that built this stuff! LOL :D
As I'm SURE we ALL would love to do that!


Bengrim09

Sr Member
RPF PREMIUM MEMBER

happy with that


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Bengrim09

Sr Member
RPF PREMIUM MEMBER

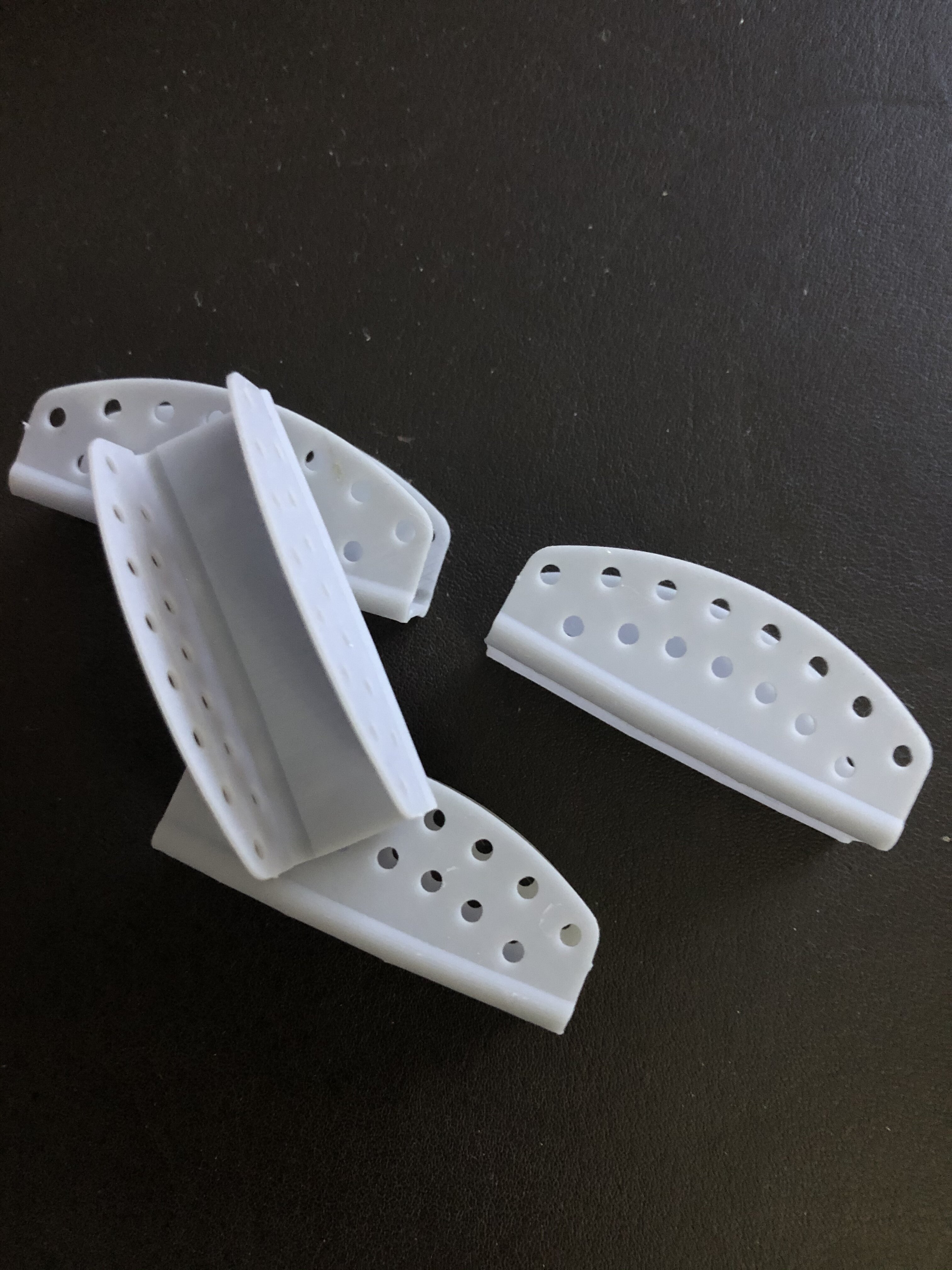

While filling and rubbing more of my helmet crown and waiting for more filler to dry and in between painting some figurines I was able to work on redesigning what I call the nose guard,
with the help of another member I was able to rescale and alter my original design to a much better one,
this is still working progress as there are some little design features we need to work out

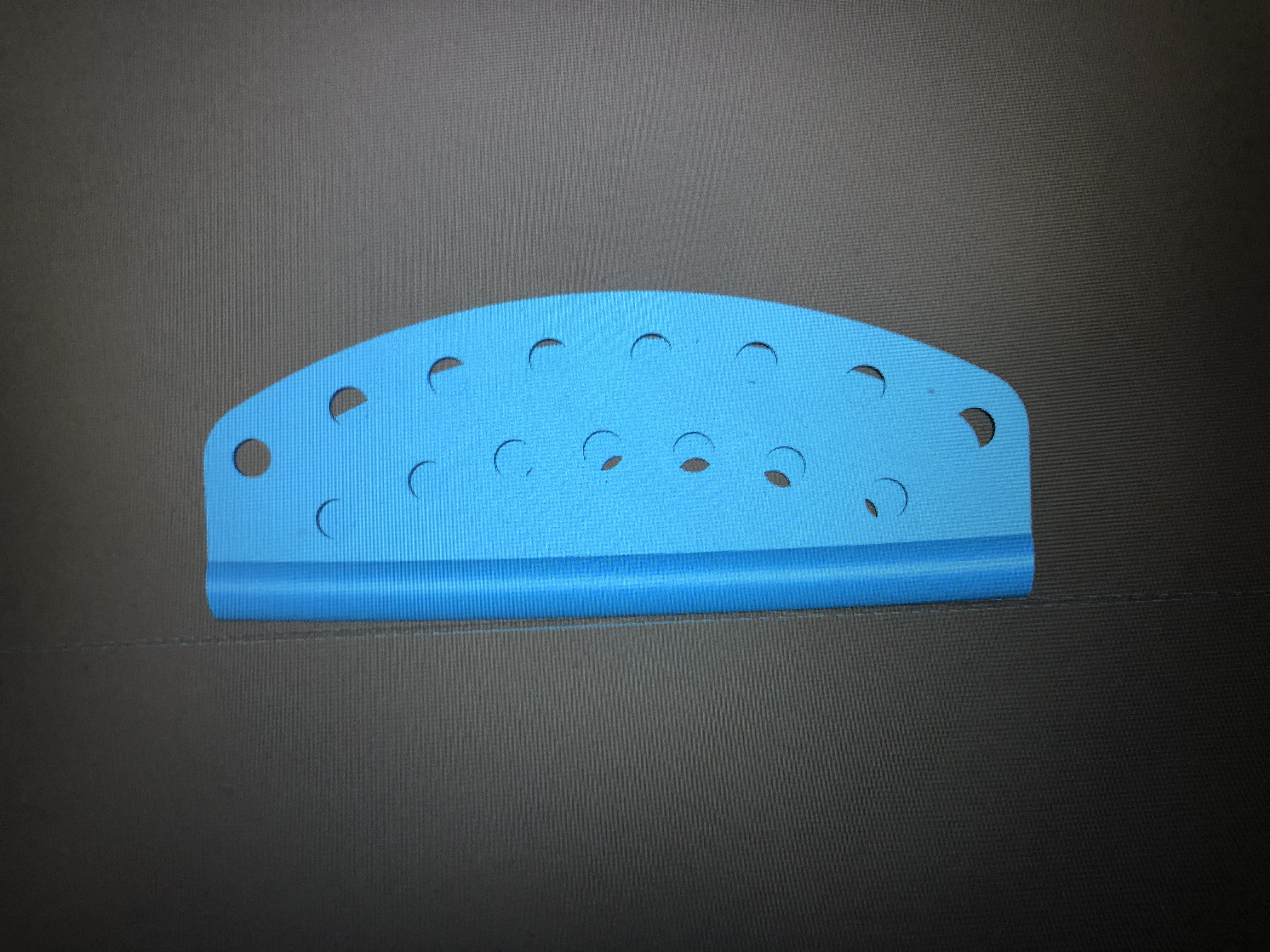

This was designed in fusion 360 and resin printed on an elegoo Mars 2 pro

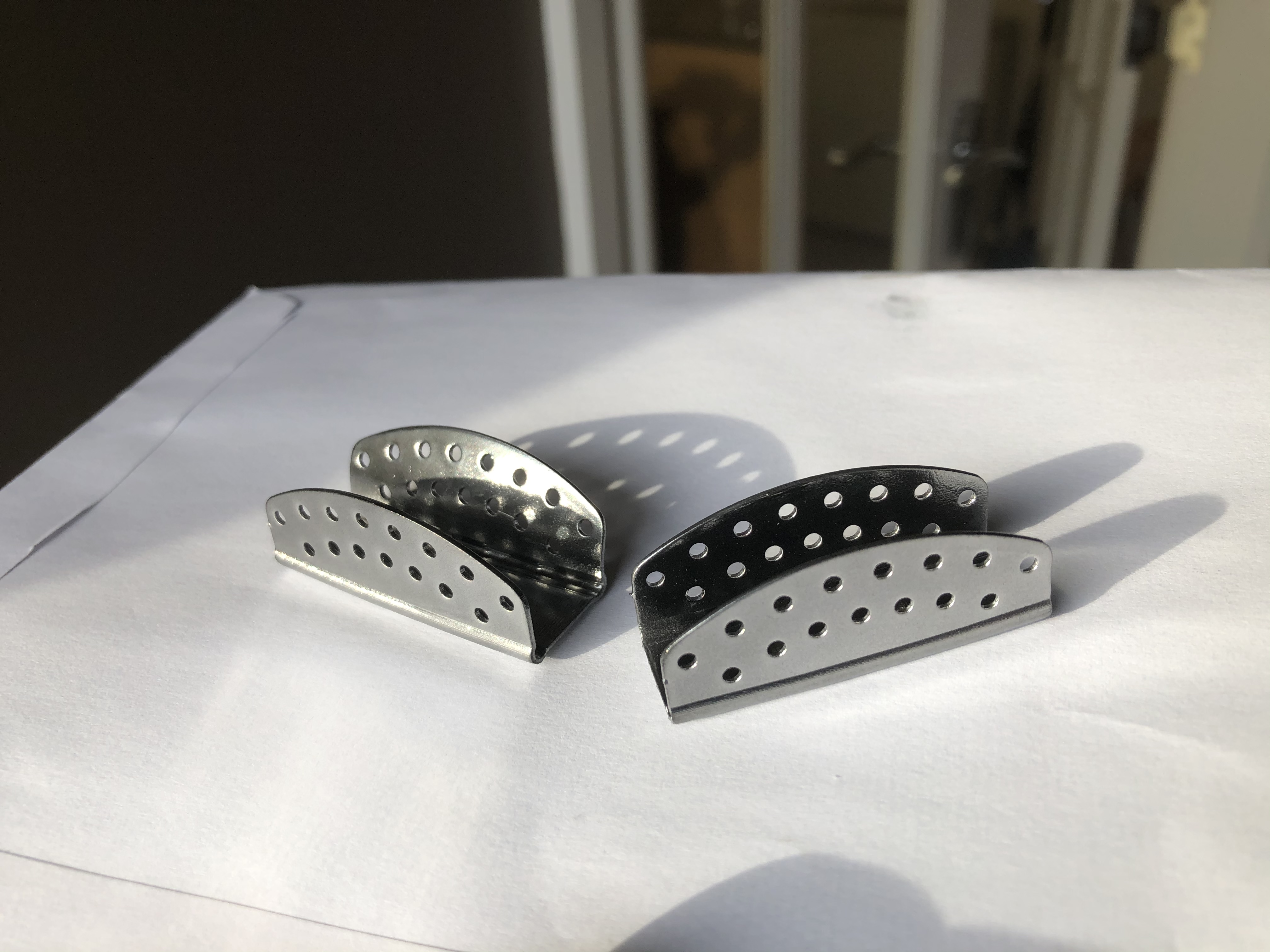

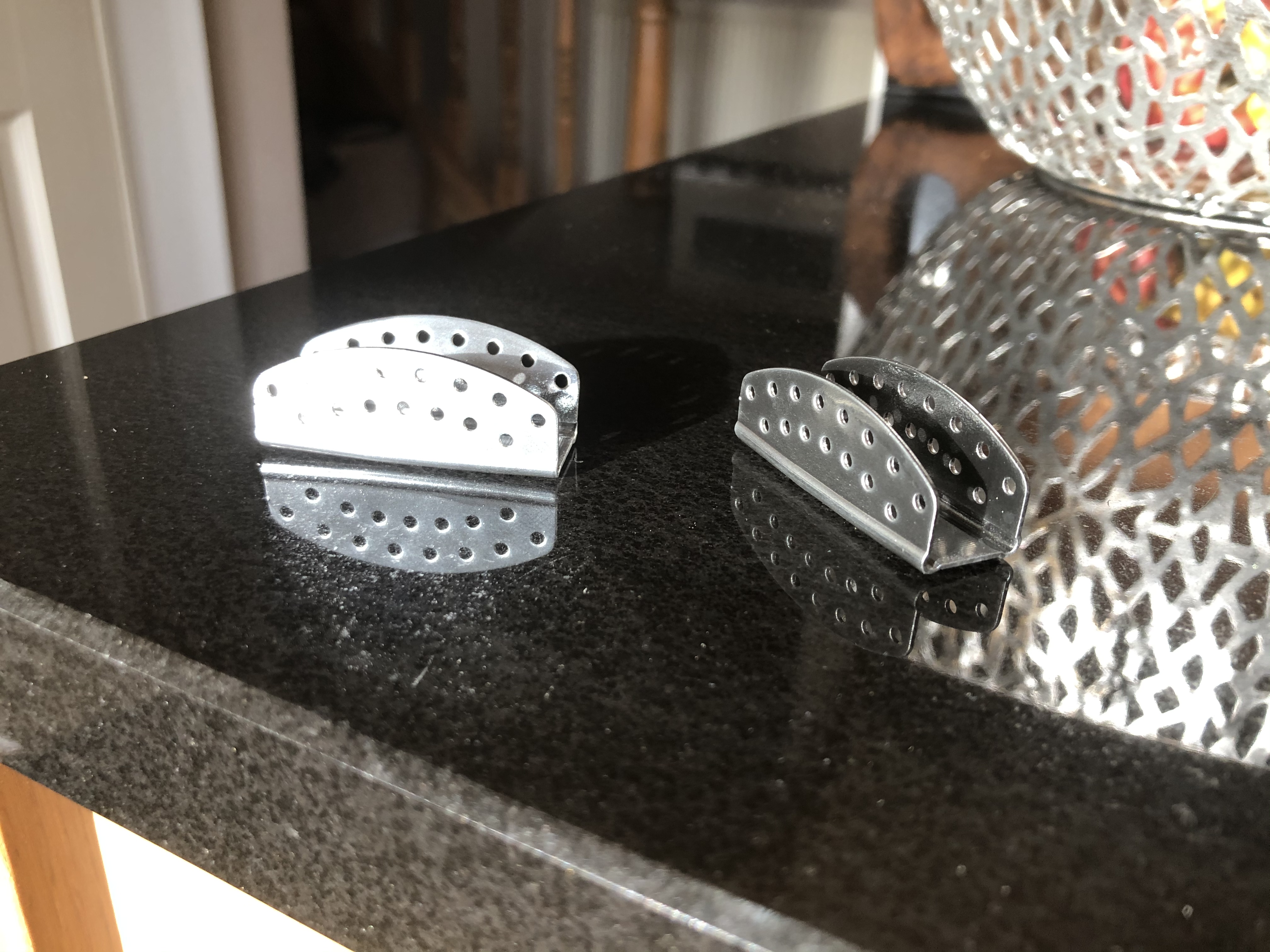

Primed, then gloss black and 2 coats of alclad ll chrome
It was a quick turnaround so the quality is not as good as it could have been

We are also working towards having these in metal and chrome plated


Kroenen77

Master Member
RPF PREMIUM MEMBER
Thanks fella
How are you doing ?
not heard from you in a while
I´m fine thanks.Working on other props now...but I´m happy that the "Vader Reveal fever"is not gone.Haha.
Lost a little bit the interest about this prop last year..But I also cutted out the raw vents for the dynodes at my VP casting..so the project is also not dead.
But this project is so much work...it needs your full attention.


Bengrim09

Sr Member
RPF PREMIUM MEMBER
I´m fine thanks.Working on other props now...but I´m happy that the "Vader Reveal fever"is not gone.Haha.
Lost a little bit the interest about this prop last year..But I also cutted out the raw vents for the dynodes at my VP casting..so the project is also not dead.
But this project is so much work...it needs your full attention.
I know how you feel, I took a little step back while doing other things, 3D printers came into my life, then 3D designing for the printers, then resin printers,
oh boy !!
got busy on other stuff and put the helmet on the back burner,
Now I’m having another go 2021 I’m going to finish it
I think !! :lol:


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Kroenen77

Master Member
RPF PREMIUM MEMBER
I know how you feel, I took a little step back while doing other things, 3D printers came into my life, then 3D designing for the printers, then resin printers,
oh boy !!
got busy on other stuff and put the helmet on the back burner,
Now I’m having another go 2021 I’m going to finish it
I think !! :lol:
Its not important how fast...its only important how good it is at the end.
I also wanna buy a 3D printer...but hoping every new year for a better and faster model.But its still the same stuff. :unsure:


JSConnolly

Active Member
While filling and rubbing more of my helmet crown and waiting for more filler to dry and in between painting some figurines I was able to work on redesigning what I call the nose guard,
with the help of another member I was able to rescale and alter my original design to a much better one,
this is still working progress as there are some little design features we need to work out
This was designed in fusion 360 and resin printed on an elegoo Mars 2 pro
Primed, then gloss black and 2 coats of alclad ll chrome
It was a quick turnaround so the quality is not as good as it could have been View attachment 1440127 View attachment 1440129 View attachment 1440130 View attachment 1440131
We are also working towards having these in metal and chrome plated
Now WHAT Part is THIS on the Reveal???


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Bengrim09

Sr Member
RPF PREMIUM MEMBER

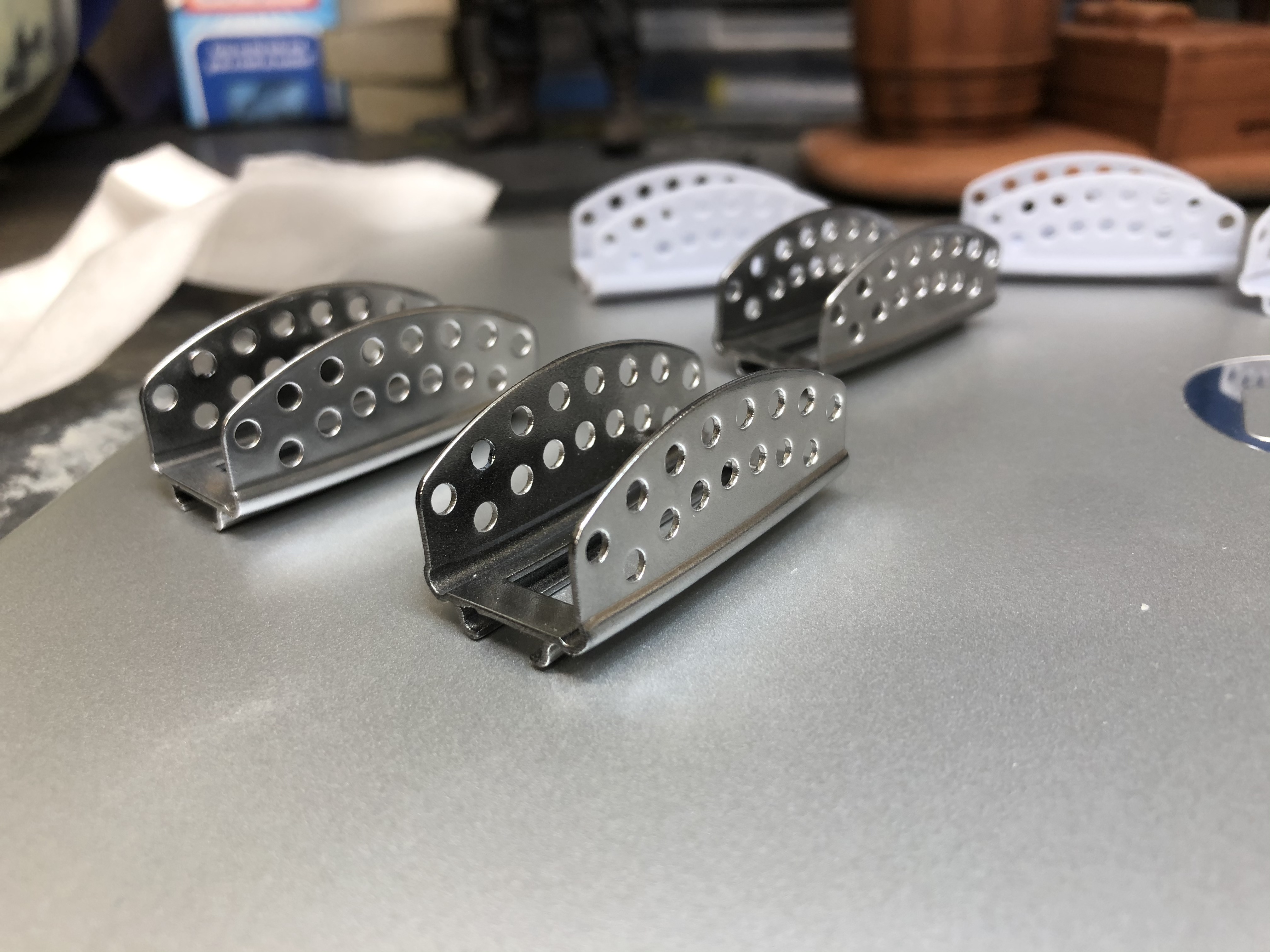

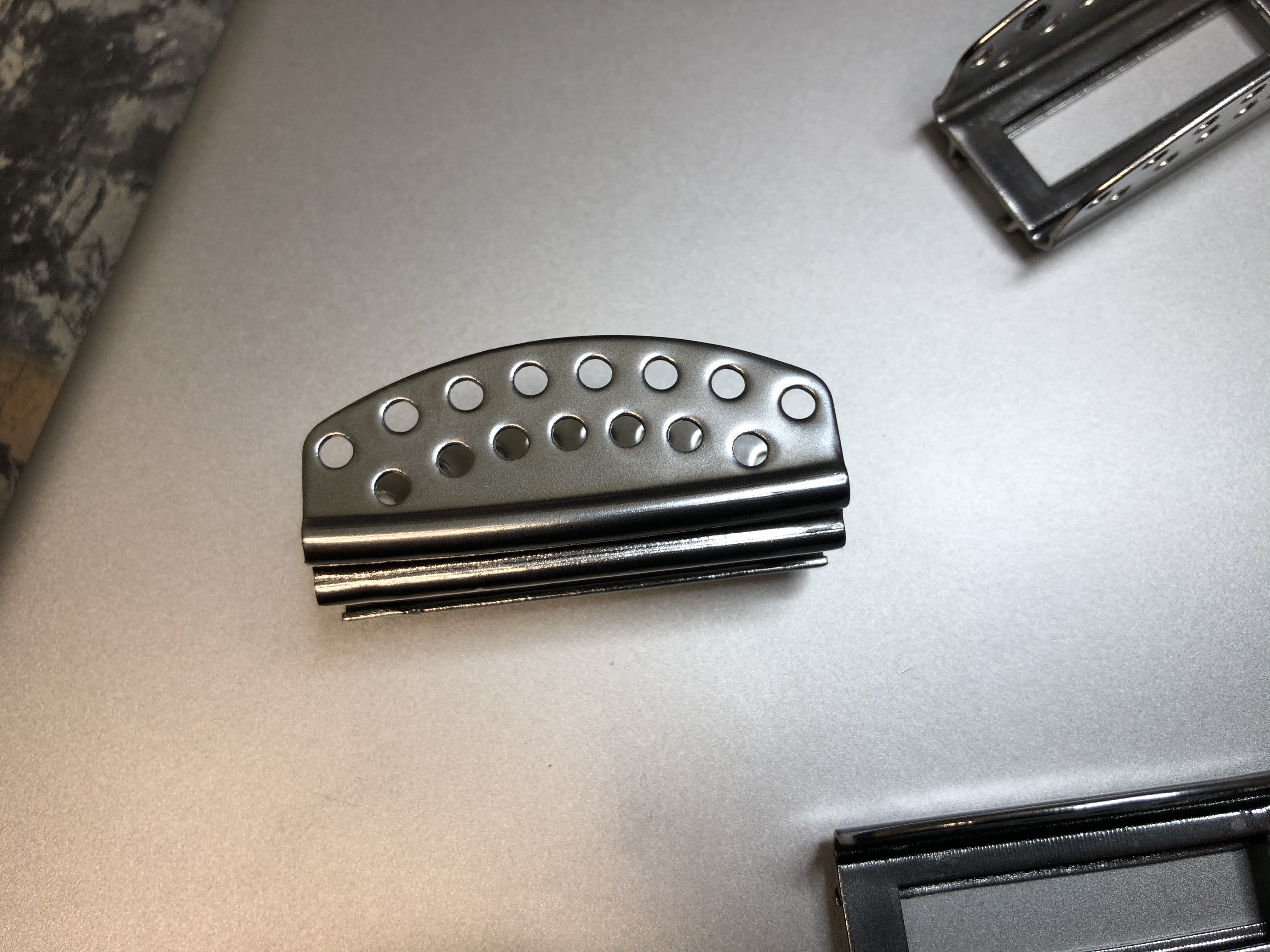

These came off the printer and I rushed to get a couple painted up
Only when I finished with the second coat alclad ll I notice a small detail hadn’t printed (MASIVE SIGH) I only cursed a little

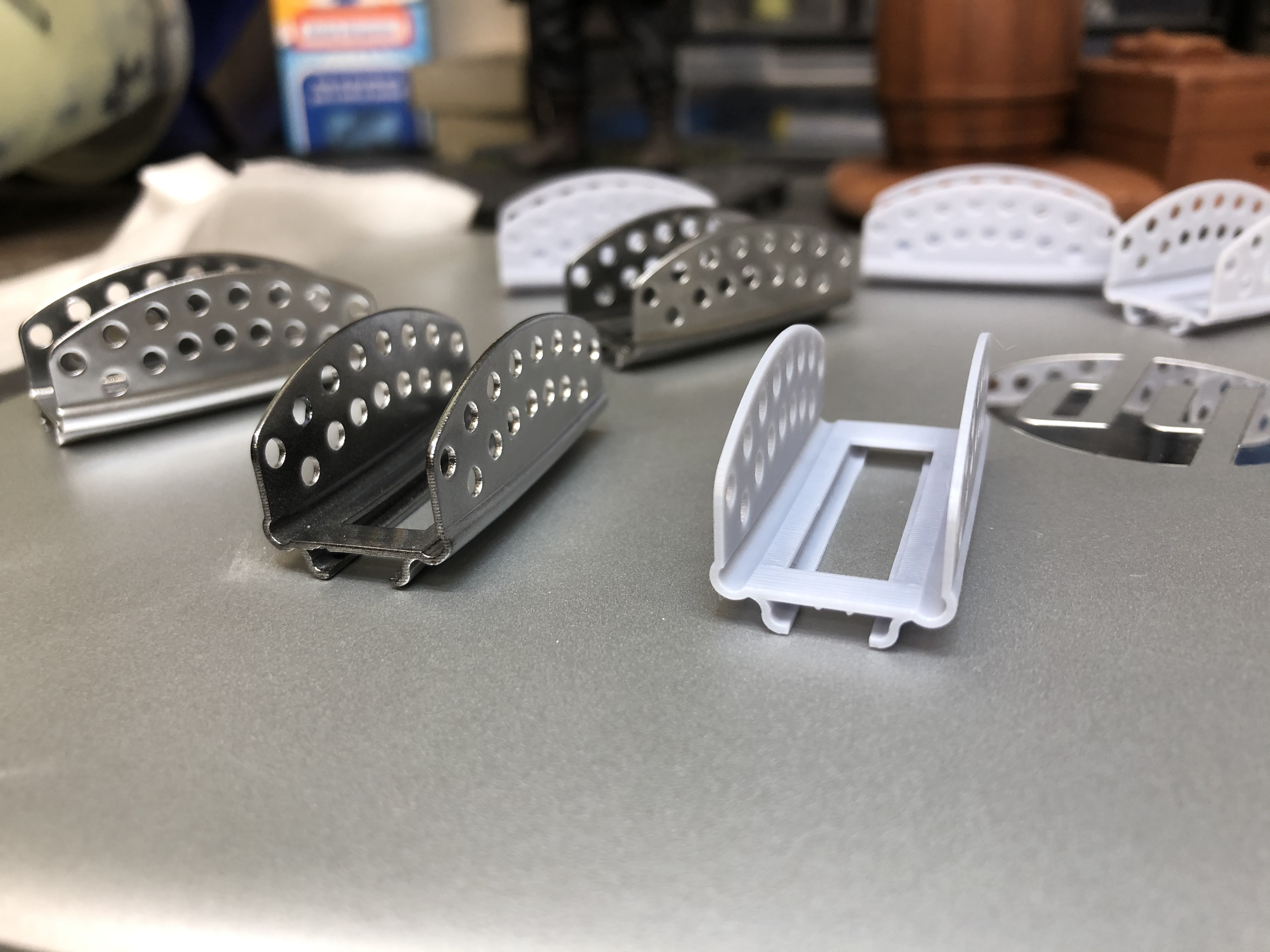

So here’s a little look at what the new version will look like (ISH)
They still might change
