Hey gang,

In the midst of all other stuff I have going on this little project sneaked into the pile. I'm currently building up a Keaton batsuit (my THIRD actually) and I wanted to have a functional buckle. The beautiful all-metal "Henry Wayne" buckle is rare these days (I've owned two, lol) but is pretty heavy. When wearing it, the buckle would kind of "sag" outwards and shift due to the weight. I wanted a more lightweight solution.

So, I turned to my compatriot, the 3d printer, for some help. This actually one of those times when 3d printing the kit will be far superior to casting parts in resin. The parts are intricate and printed pl2000 nylon will hold up a lot better. To make the kit even stronger, I've modeled up the kit to assemble in several layers. The only metal parts in this kit will be a spring for the button and screws to assemble. Depending on how the prototype turns out, I may even print this kit in different materials.

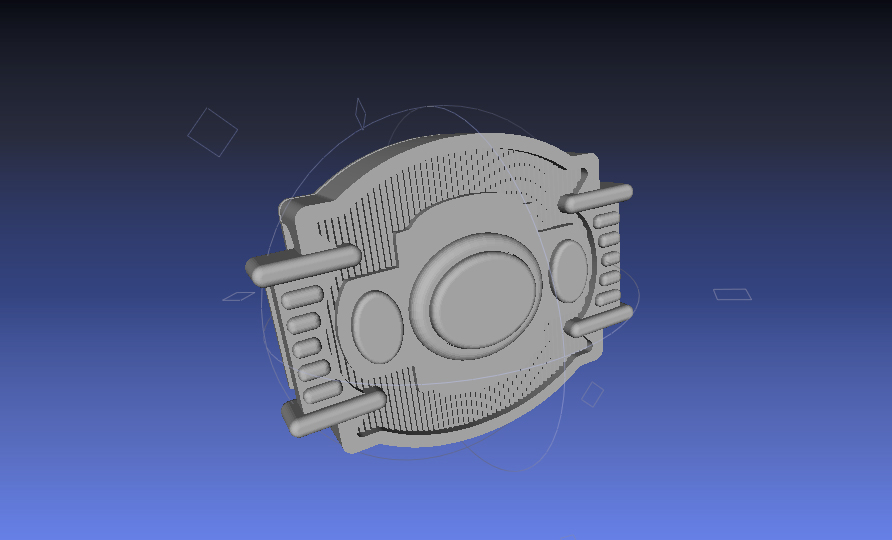

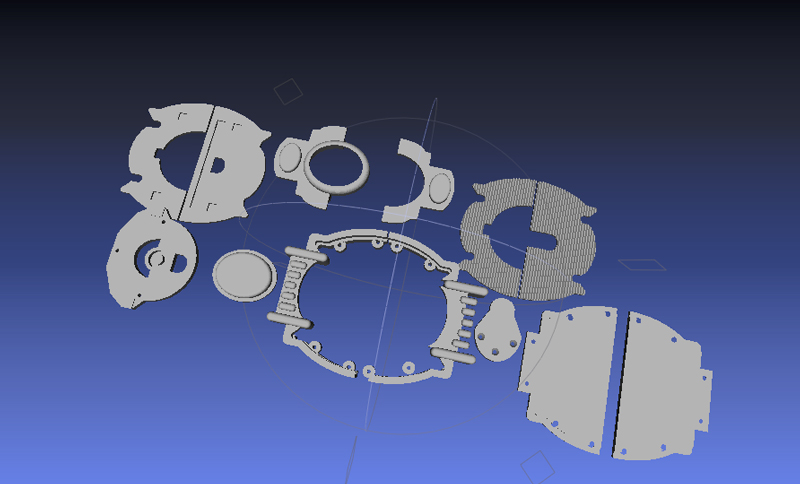

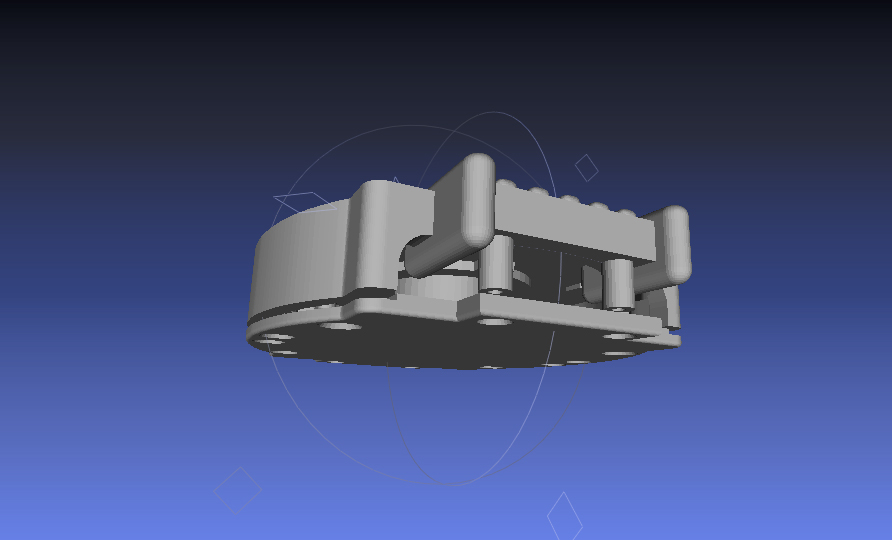

I'm currently waiting for prototype prints so in the meantime, here are some renders of the kit:

bucklerender3.jpg bucklerender2.jpg bucklerender1.jpg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Nightwing Returns

Well-Known Member
I'm down for one!

I actually own a HW one as well.

It looks like you have more attention to detail as the back of your buckle is correct in terms of the original.A+ on that! I cannot tell by the pics you posted how far out your center button sticks. His was too short. It didn't stick out far enough.

Great job, man.

Last edited:

JOATRASH FX

Master Member
RPF PREMIUM MEMBER
I'm down for one!

I actually own a HW one as well.

It looks like you have more attention to detail as the back of your buckle is correct in terms of the original.A+ on that! I cannot tell by the pics you posted how far out your center button sticks. His was too short. It didn't stick out far enough.

Great job, man.

Haha, don't say that until you know what they're gonna cost IF there's a limited run! ;)

But thanks guys.

I think my button sticks out maybe 1.5-2mm further than the HW version. (I don't have one to measure from any longer so I can't be sure.) Making the button stick out more is a very easy fix though so if you want to measure the one you have I can compare the two.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Nightwing Returns

Well-Known Member
Haha, don't say that until you know what they're gonna cost IF there's a limited run! ;)

But thanks guys.

I think my button sticks out maybe 1.5-2mm further than the HW version. (I don't have one to measure from any longer so I can't be sure.) Making the button stick out more is a very easy fix though so if you want to measure the one you have I can compare the two.

I'll do some measuring. I had a static buckle that was cast off a screen used. I could possibly get the measurements from that.


JOATRASH FX

Master Member
RPF PREMIUM MEMBER
I have access to one of those as well.

I got some parts in yesterday but due to a couple mistakes I made with clearances I might need to have a couple things reprinted.

I'll do some measuring. I had a static buckle that was cast off a screen used. I could possibly get the measurements from that.


JOATRASH FX

Master Member
RPF PREMIUM MEMBER
Working on the prototype a little today. I need to do a few tweaks but I THINK it just might work. Here are some photos.

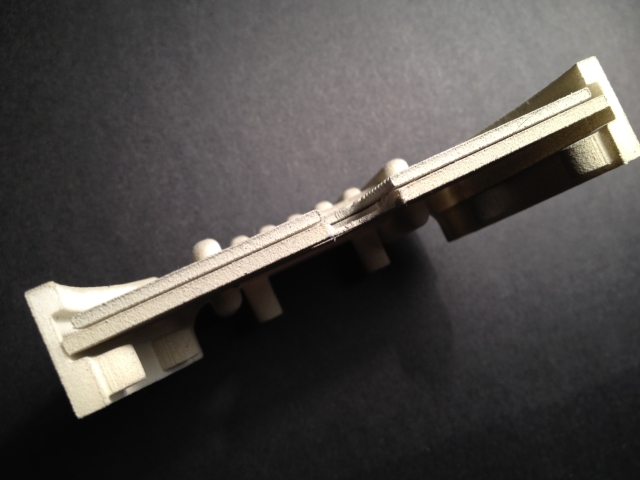

Several layers to be glued together for strength.

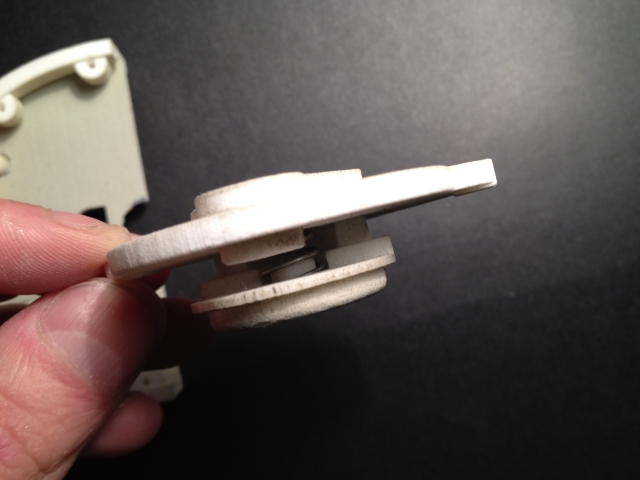

Button mechanism (button, lower latch and guide piece. Screwed together.)

Everything is designed to slot together easily.

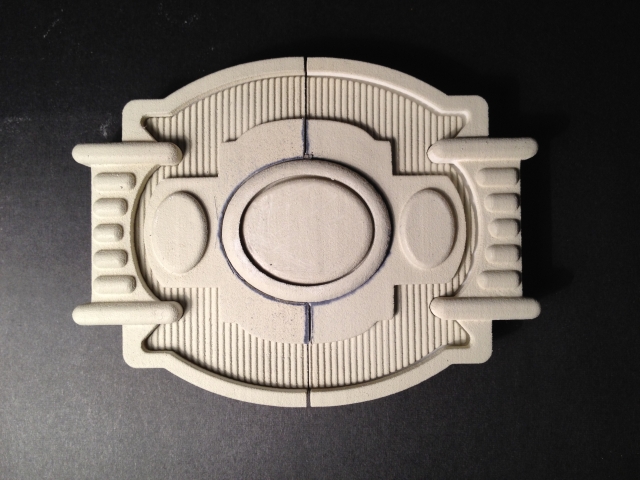

Test fitting the buckle closed.

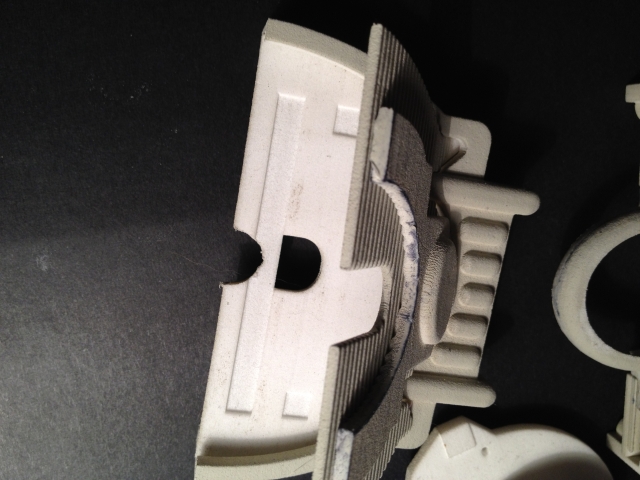

A channel between the two layers will house a thin metal bar. Since all the strain of keeping the buckle closed is in this area I wanted to make sure it had extra strength.

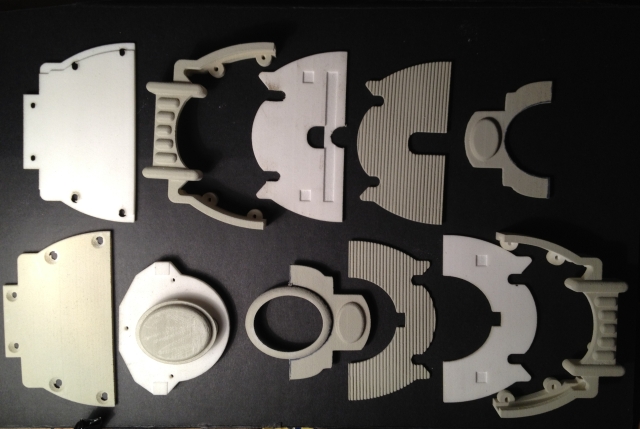

All the parts laid out (except the button assembly, which I didn't want to disassemble again.)

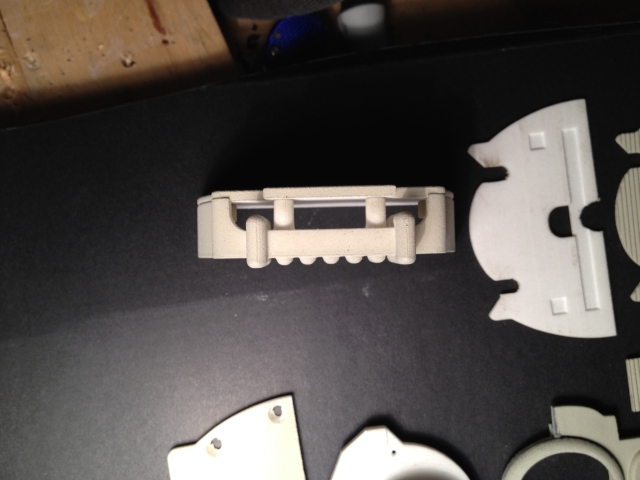

Slot for the belt strap. Note the two pegs that will go THROUGH the strap to hold it in place.


More updates as I have them. This isn't top priority right now as I have to finish my Dredd build but since the parts came in I just couldn't resist playing around with them a bit.


Attachments

  • bb5.jpg
    193.3 KB · Views: 116
Last edited:

nick daring

Master Member
RPF PREMIUM MEMBER
THat's looking really nce. The spot for the metal bar is a great idea.

I've been dying for a functional 89 buckle ever since the Henrywayne buckles fell through. So heartbreaking.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

nick daring

Master Member
RPF PREMIUM MEMBER
If I remember correctly, several years ago HenryWayne had made a good run of functional metal buckles through a factory in China but when they arrived they had been packed with slightly wet paint and the finish was marred. He sent most of them back to be repainted and kept only a handful of acceptable buckles. The ones he sent back were never seen again and Henrywayne got discouraged and fell out of the hobby.

This is all from memory but it went something like that.

Only a dozen or so of Henrywayne's run of all metal buckles exist in the wild now. Rare stuff!


JOATRASH FX

Master Member
RPF PREMIUM MEMBER
If I remember correctly, several years ago HenryWayne had made a good run of functional metal buckles through a factory in China but when they arrived they had been packed with slightly wet paint and the finish was marred. He sent most of them back to be repainted and kept only a handful of acceptable buckles. The ones he sent back were never seen again and Henrywayne got discouraged and fell out of the hobby.

This is all from memory but it went something like that.

Only a dozen or so of Henrywayne's run of all metal buckles exist in the wild now. Rare stuff!

Pretty wild that I've managed to have two of his buckles in my possession, then. I remember him talking about doing a new run a couple years ago but it never happened.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

JOATRASH FX

Master Member
RPF PREMIUM MEMBER
Aaaaand update time!

Here's a video of the buckle prototype in action. Please excuse the half-finished paint job (the paint I used was spoiled). Also, a couple small details are off since first priority was to make it functional. Since the paint isn't done yet, I have not greased the mechanism, so the button sticks a little sometimes but that will go away when it's done. Currently you also need to hold the button when locking, so that's another thing that needs to be added.

(Note: looks like I will do a limited (10-15 or thereabouts) run of these as kits. They will not be inexpensive (or super-easy to build) as each piece needs to be a 3d printed master for it to hold, but when it happens I'll put up an interest thread in the JY.

Next step is to incorporate my tweaks into the master file and make another. Stay tuned!
