AT-ST ESB Parts Map

Ogibendogy

Sr Member
RPF PREMIUM MEMBER

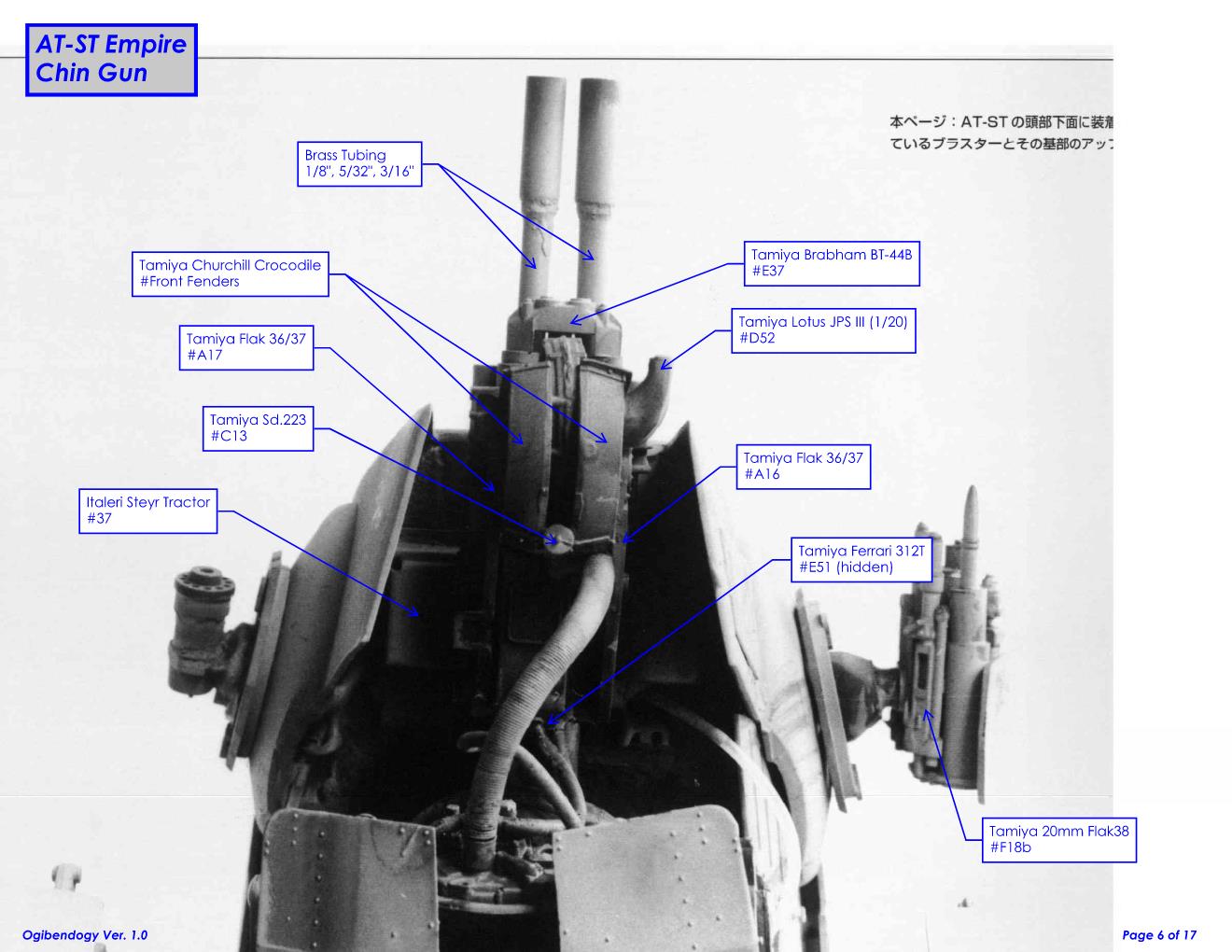

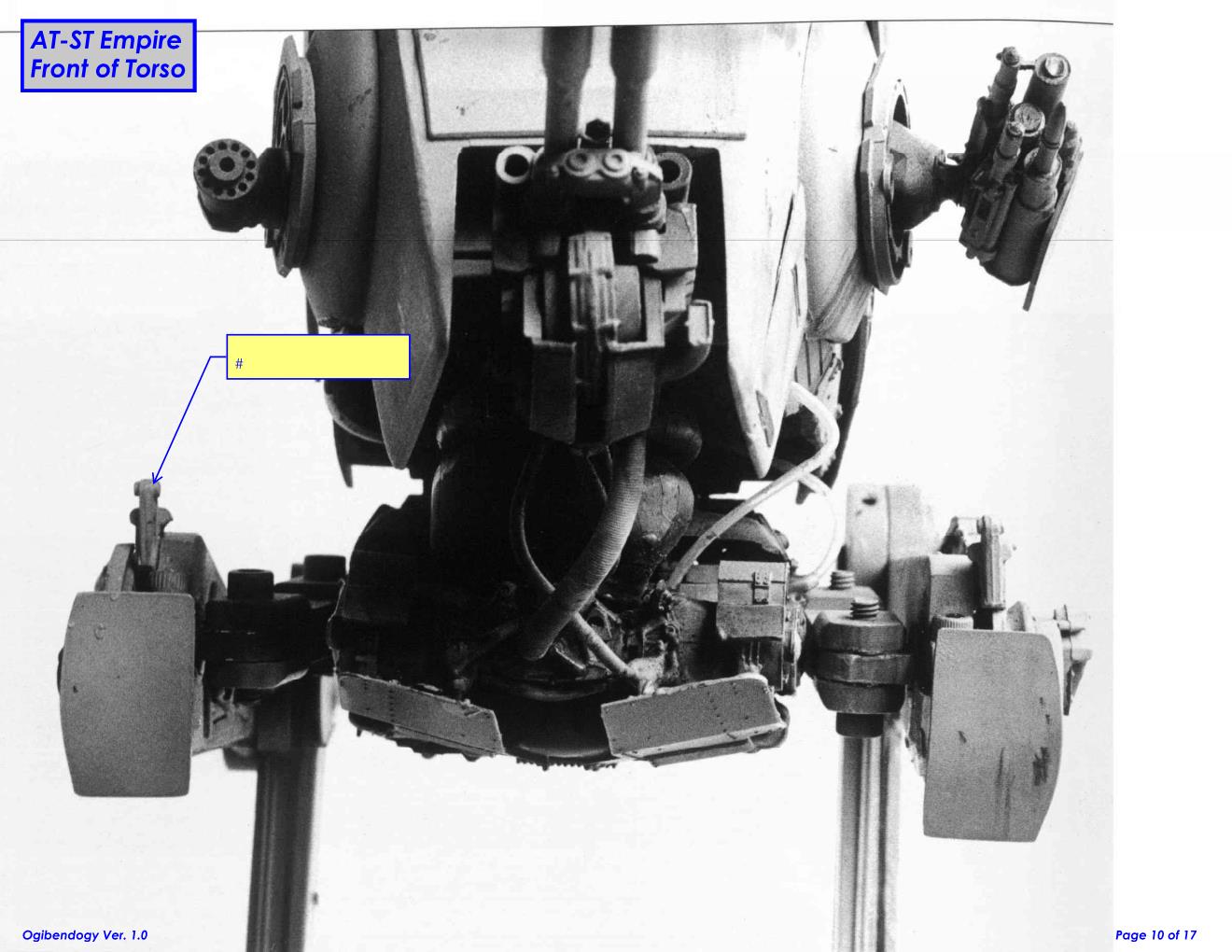

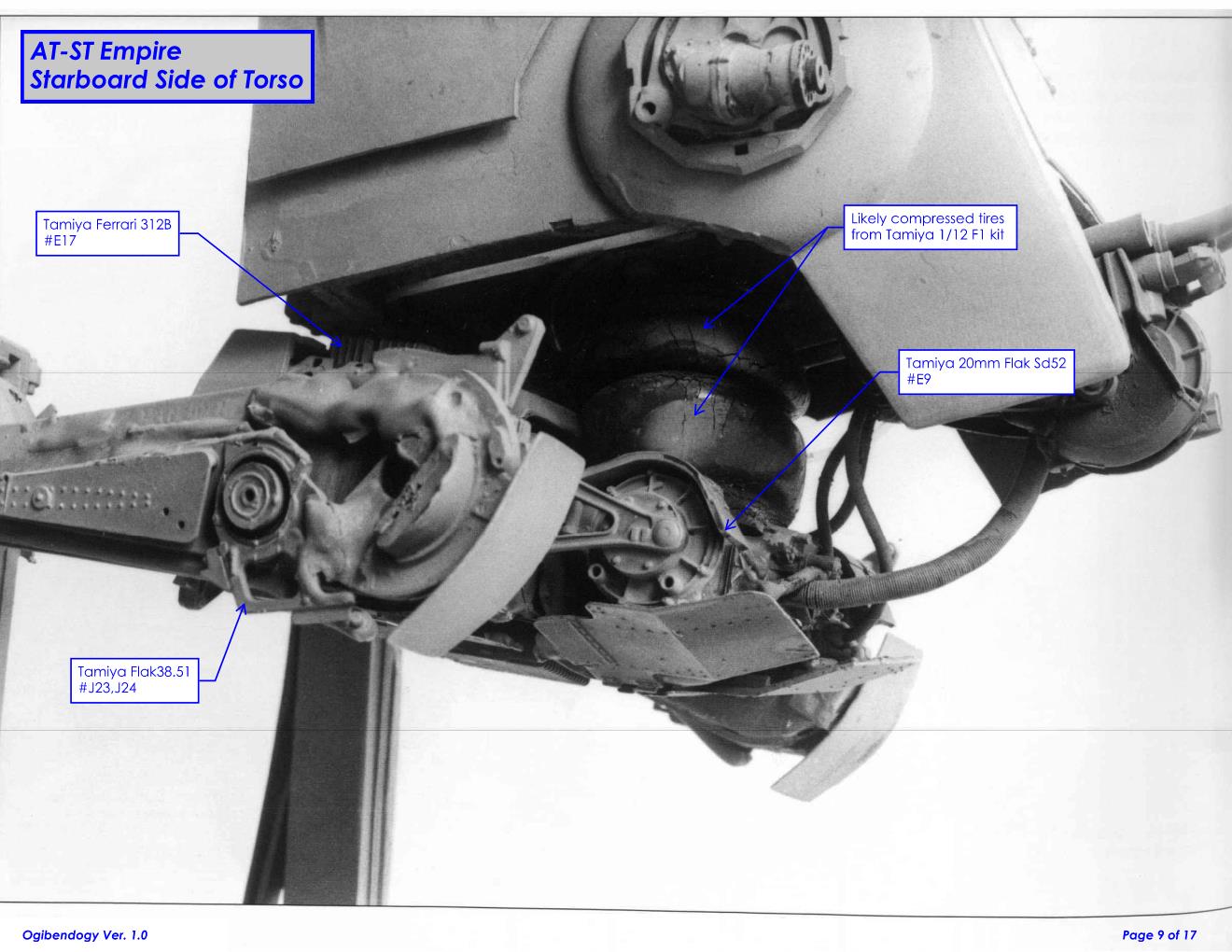

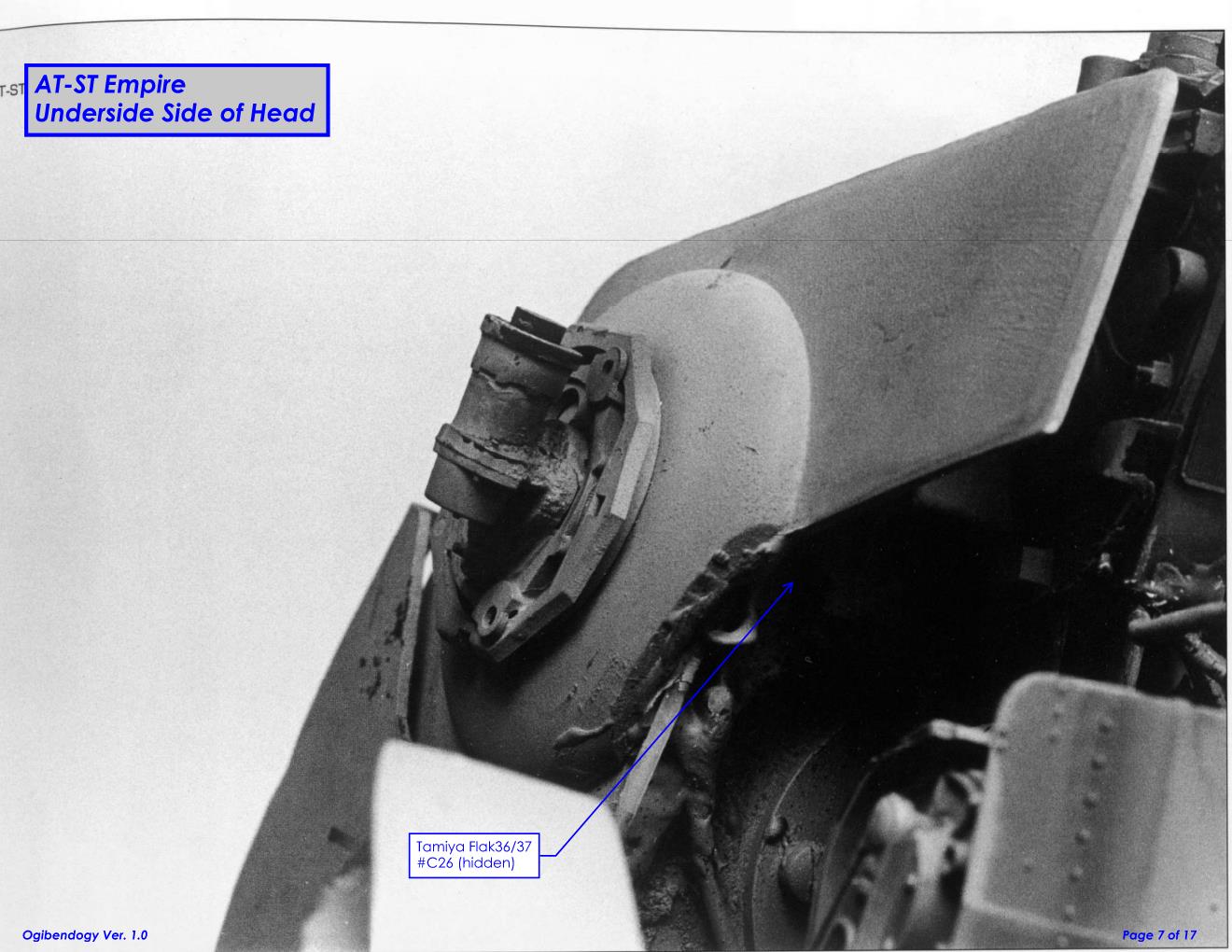

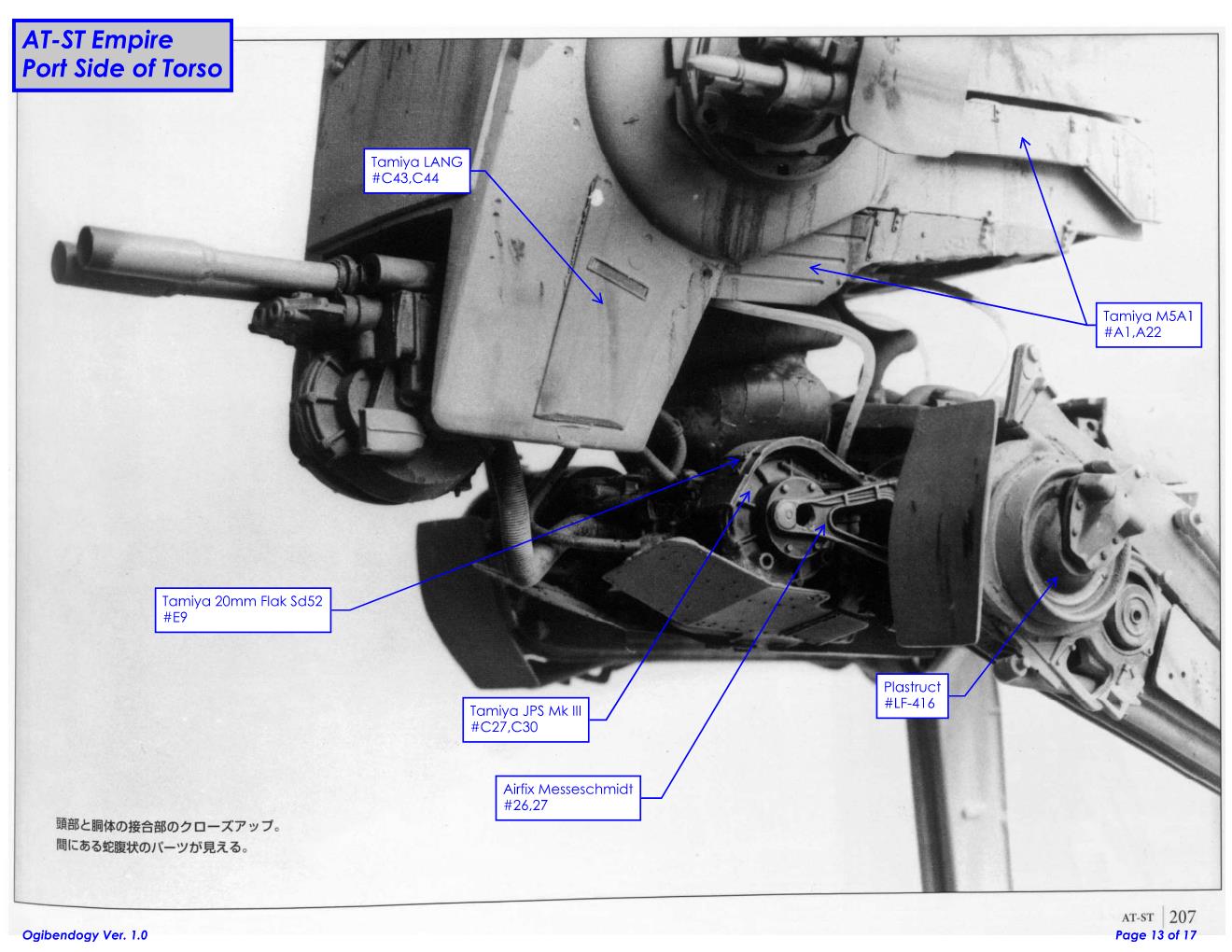

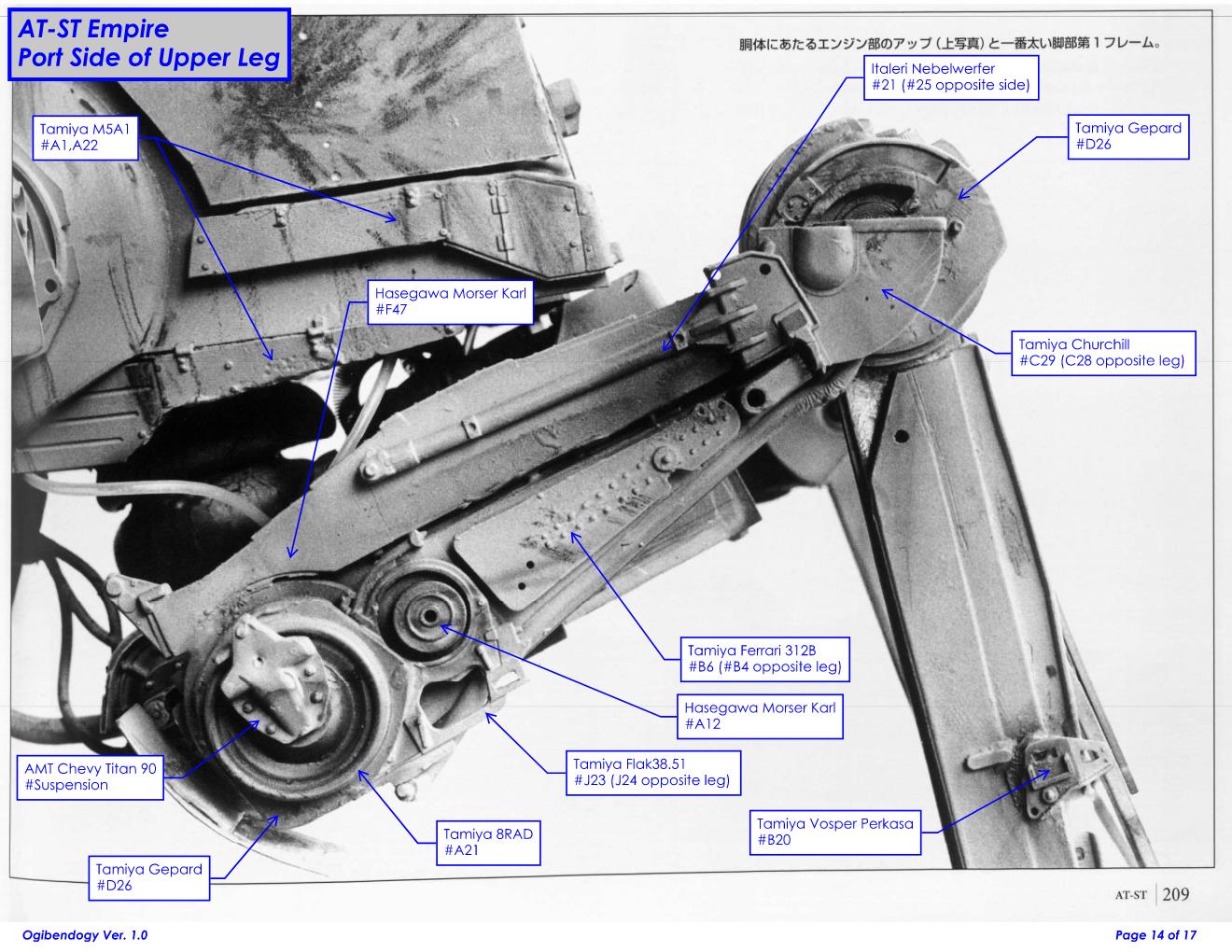

I've been on work leave dealing with family issues and I've been distracting myself in my spare time with part mapping. First up is the Empire AT-ST. I think I'm about 95% there. First image is an example of the mapping but see the PDF for the full mapping. See the second image for a part I need help with and let me know if there are any I missed or messed up. Huge thanks to qcfoundry et al for the armature map that made this much easier to tackle. Enjoy!

Marc

2023-02-04 Update - edits 312T parts behind 8RAD fenders & added parts list


Attachments

  • AT-ST ESB Part List_Published V02.jpg
    AT-ST ESB Part List_Published V02.jpg
    176.6 KB · Views: 521

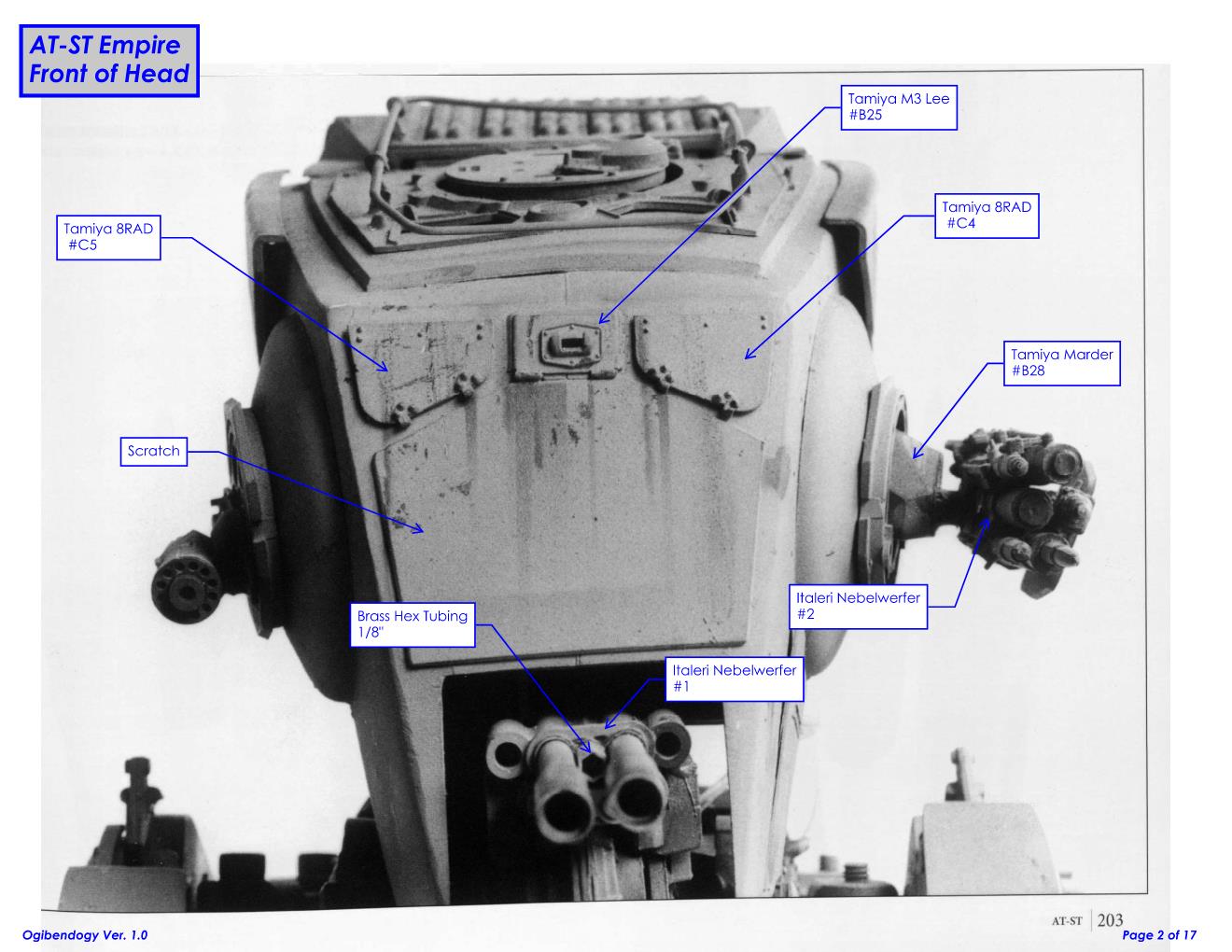

  • AT-ST ESB Part Maps_Published V02 002.jpg
    AT-ST ESB Part Maps_Published V02 002.jpg
    137.3 KB · Views: 494

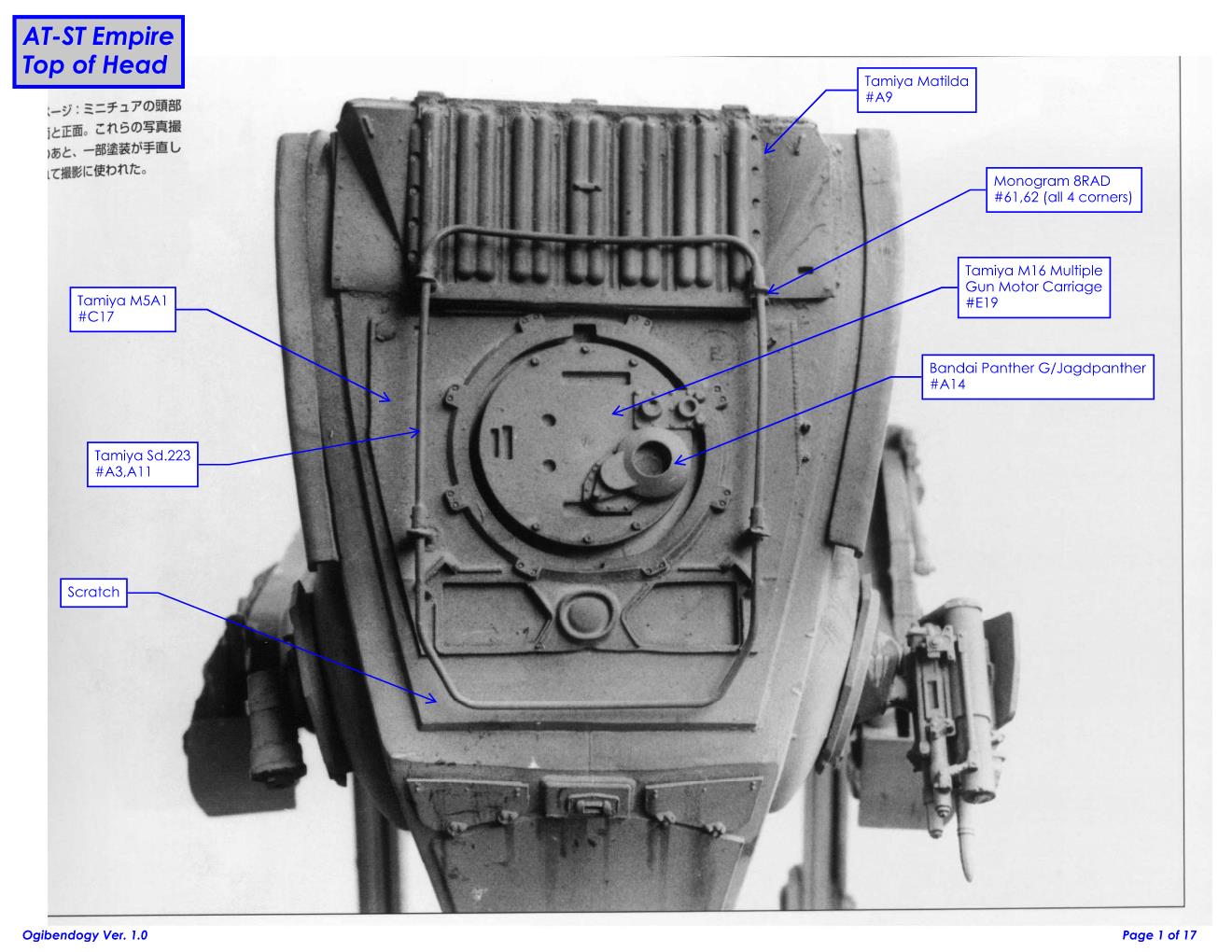

  • AT-ST ESB Part Maps_Published V02 001.jpg
    AT-ST ESB Part Maps_Published V02 001.jpg
    150.1 KB · Views: 395

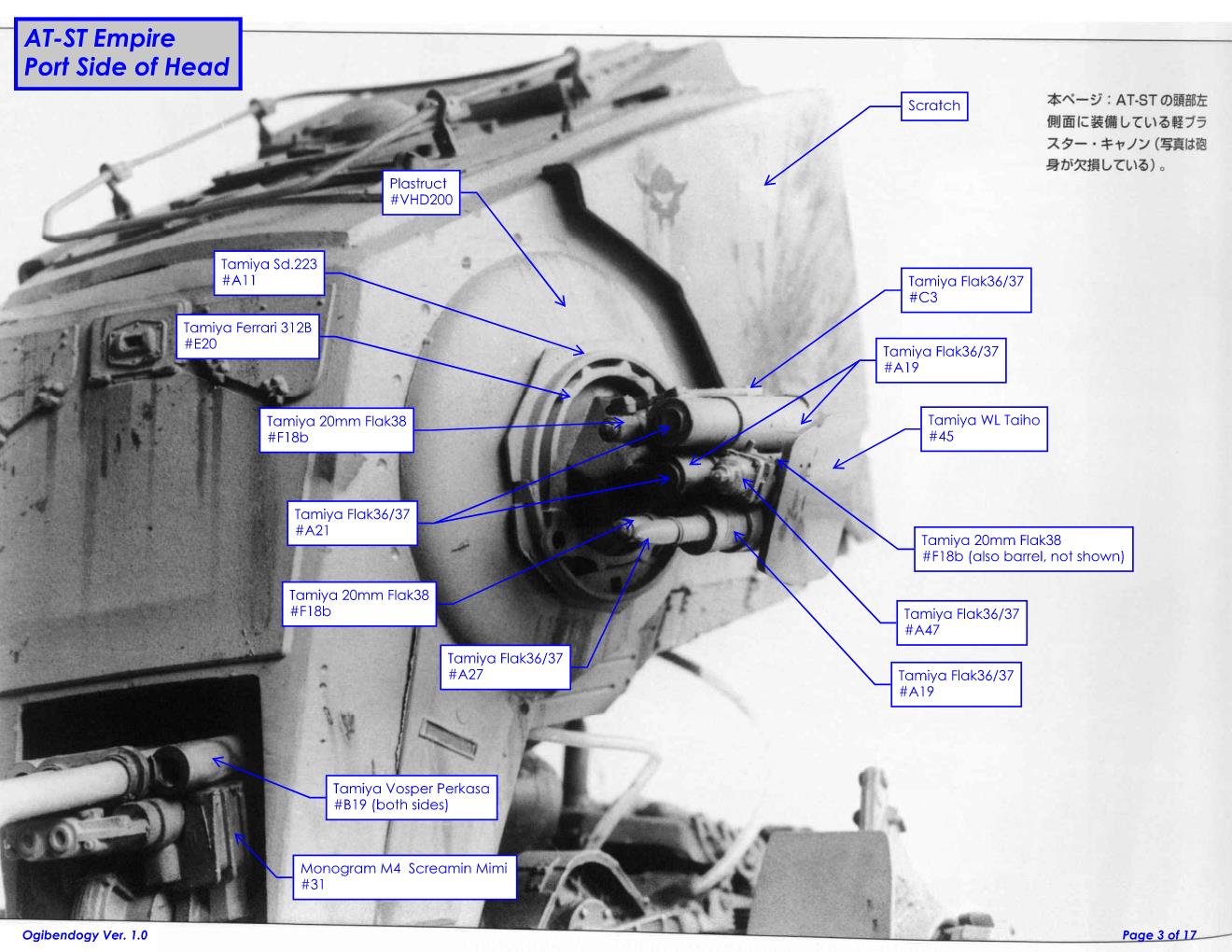

  • AT-ST ESB Part Maps_Published V02 003.jpg
    AT-ST ESB Part Maps_Published V02 003.jpg
    179 KB · Views: 359
  • AT-ST ESB Part Maps_Published V02 004.jpg
    AT-ST ESB Part Maps_Published V02 004.jpg
    172.7 KB · Views: 355
  • AT-ST ESB Part Maps_Published V02 009.jpg
    AT-ST ESB Part Maps_Published V02 009.jpg
    144 KB · Views: 322
  • AT-ST ESB Part Maps_Published V02 008.jpg
    AT-ST ESB Part Maps_Published V02 008.jpg
    161.8 KB · Views: 324
  • AT-ST ESB Part Maps_Published V02 007.jpg
    AT-ST ESB Part Maps_Published V02 007.jpg
    149.8 KB · Views: 311
  • AT-ST ESB Part Maps_Published V02 006.jpg
    AT-ST ESB Part Maps_Published V02 006.jpg
    129.5 KB · Views: 334

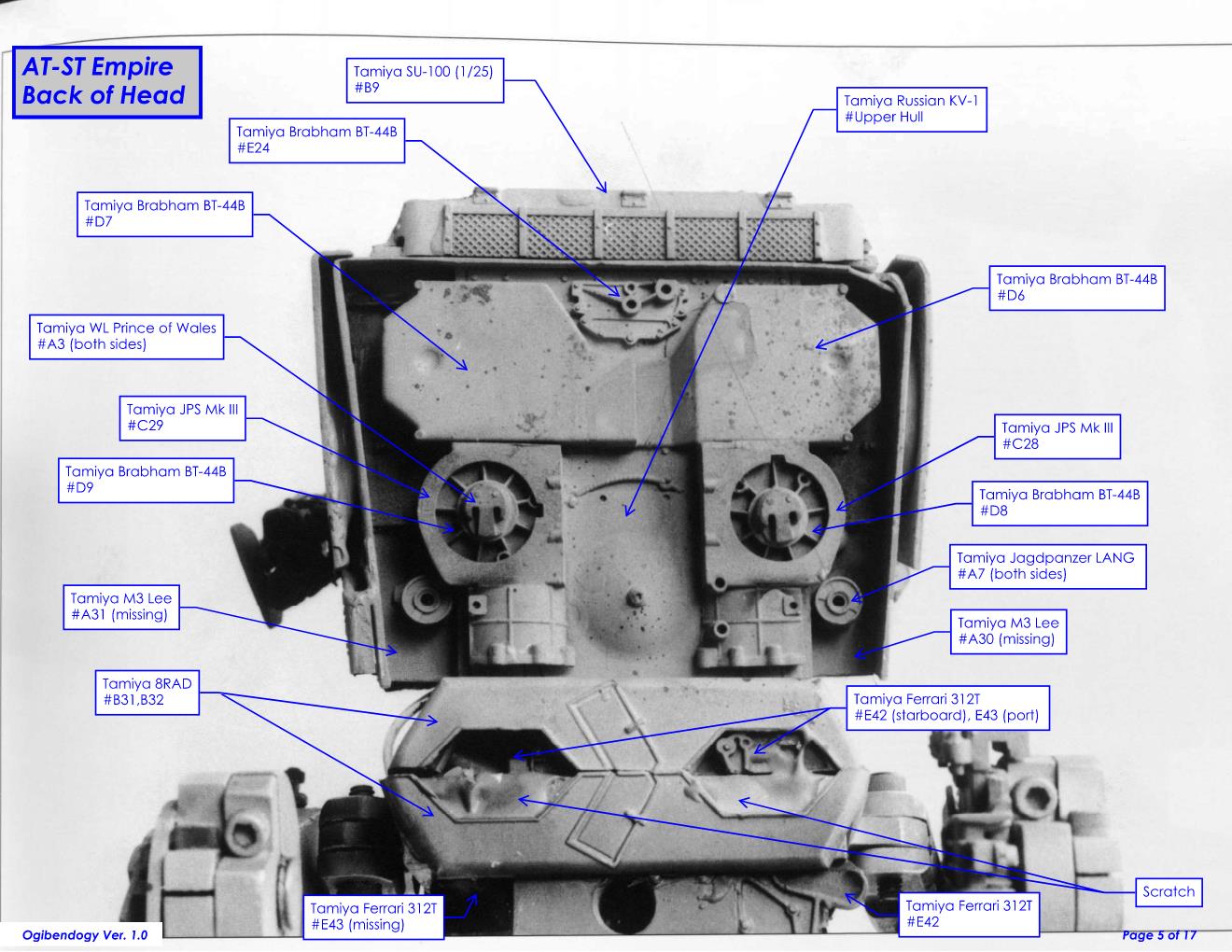

  • AT-ST ESB Part Maps_Published V02 005.jpg
    AT-ST ESB Part Maps_Published V02 005.jpg
    185.4 KB · Views: 342

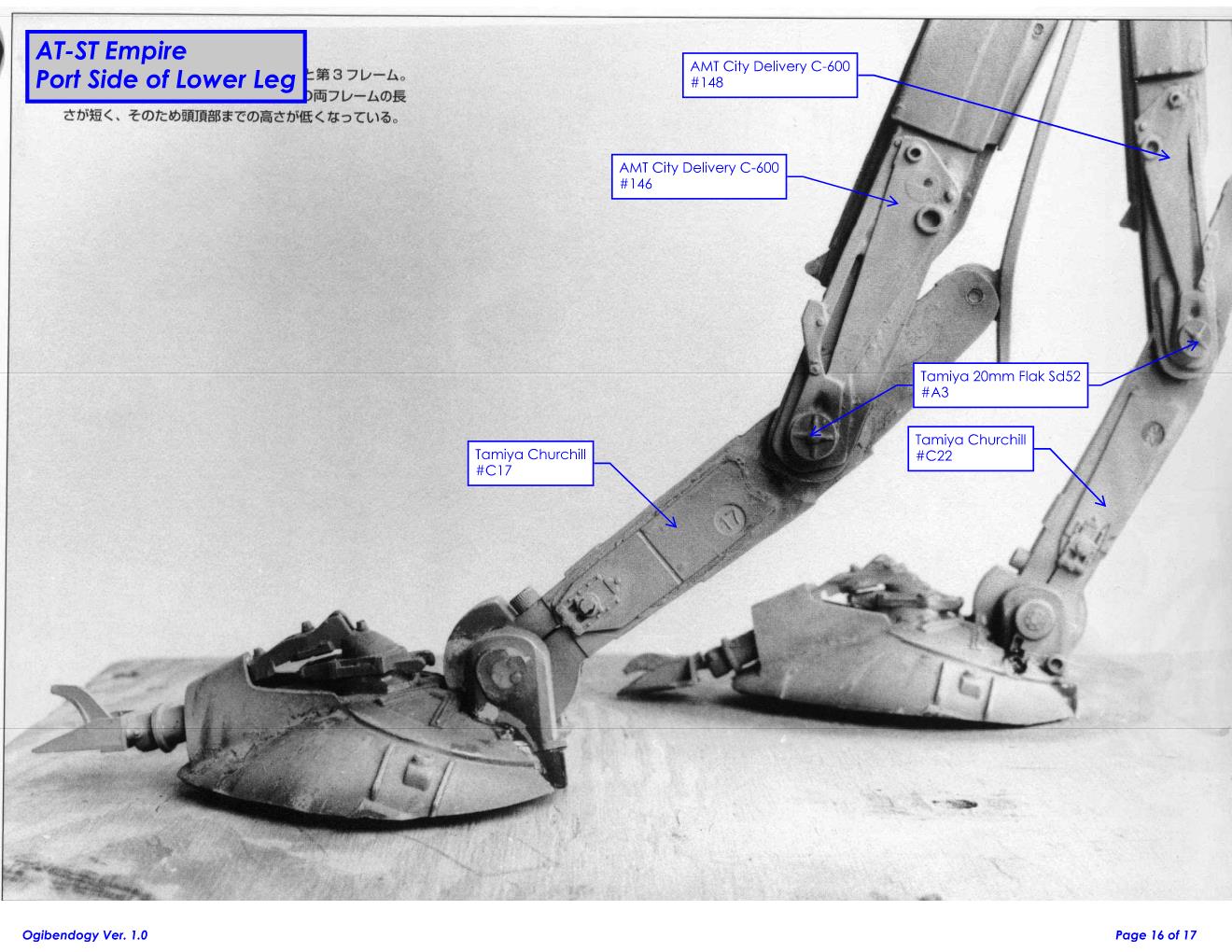

  • AT-ST ESB Part Maps_Published V02 016.jpg
    AT-ST ESB Part Maps_Published V02 016.jpg
    179.8 KB · Views: 329

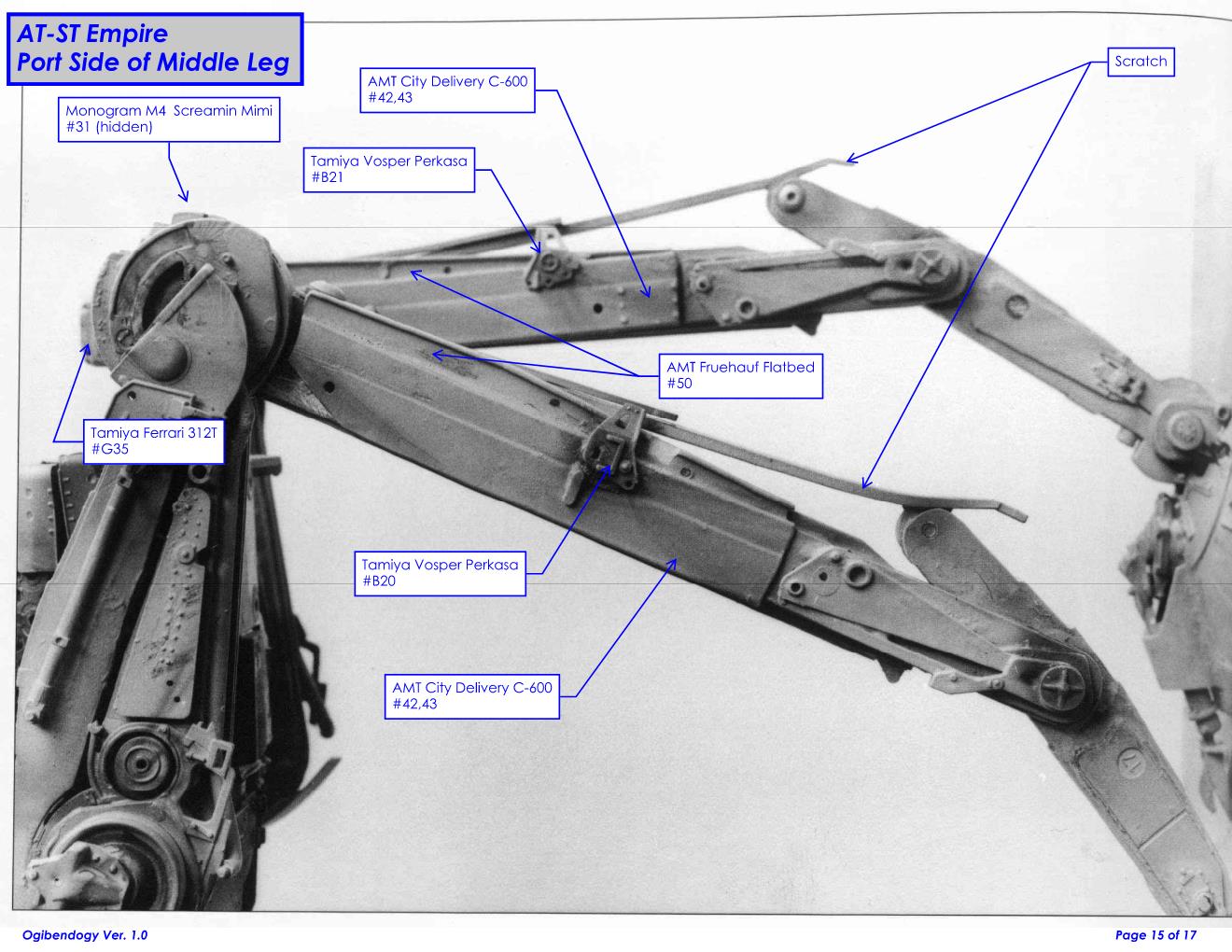

  • AT-ST ESB Part Maps_Published V02 015.jpg
    AT-ST ESB Part Maps_Published V02 015.jpg
    177.9 KB · Views: 305
  • AT-ST ESB Part Maps_Published V02 014.jpg
    AT-ST ESB Part Maps_Published V02 014.jpg
    204.4 KB · Views: 341
  • AT-ST ESB Part Maps_Published V02 013.jpg
    AT-ST ESB Part Maps_Published V02 013.jpg
    151.7 KB · Views: 313
  • AT-ST ESB Part Maps_Published V02 012.jpg
    AT-ST ESB Part Maps_Published V02 012.jpg
    182.4 KB · Views: 277

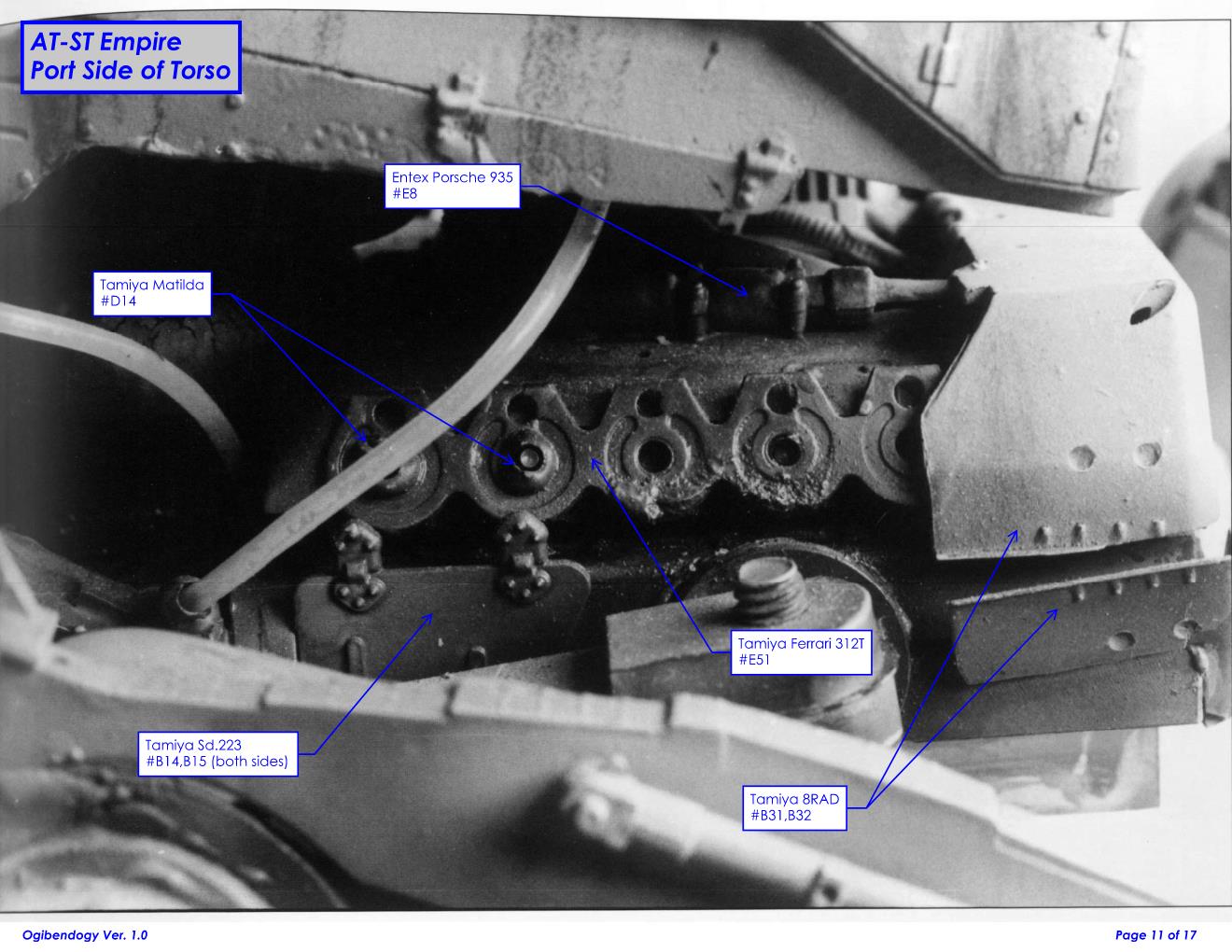

  • AT-ST ESB Part Maps_Published V02 011.jpg
    AT-ST ESB Part Maps_Published V02 011.jpg
    160.2 KB · Views: 287
  • AT-ST ESB Part Maps_Published V02 010.jpg
    AT-ST ESB Part Maps_Published V02 010.jpg
    128.3 KB · Views: 314

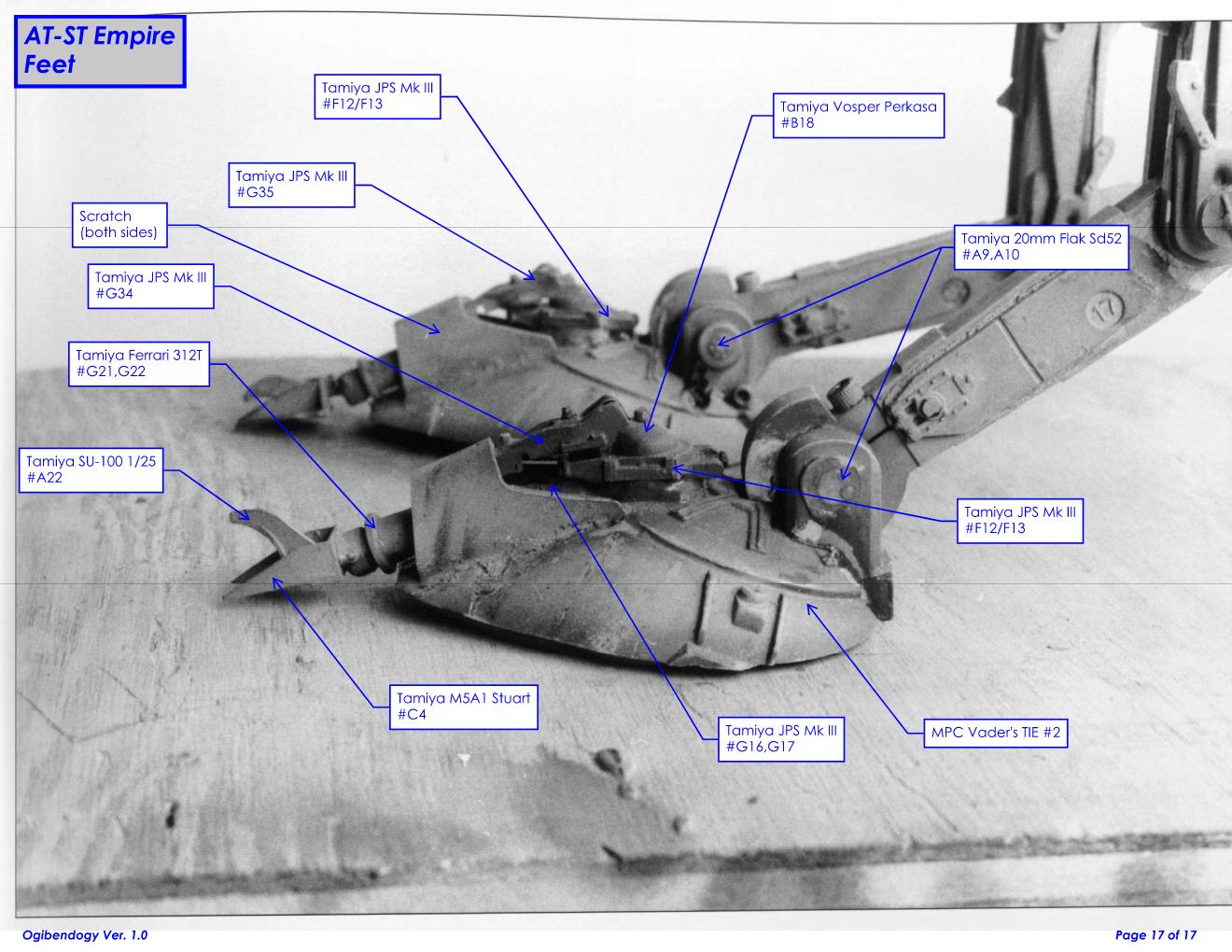

  • AT-ST ESB Part Maps_Published V02 017.jpg
    AT-ST ESB Part Maps_Published V02 017.jpg
    176.3 KB · Views: 471
Last edited:

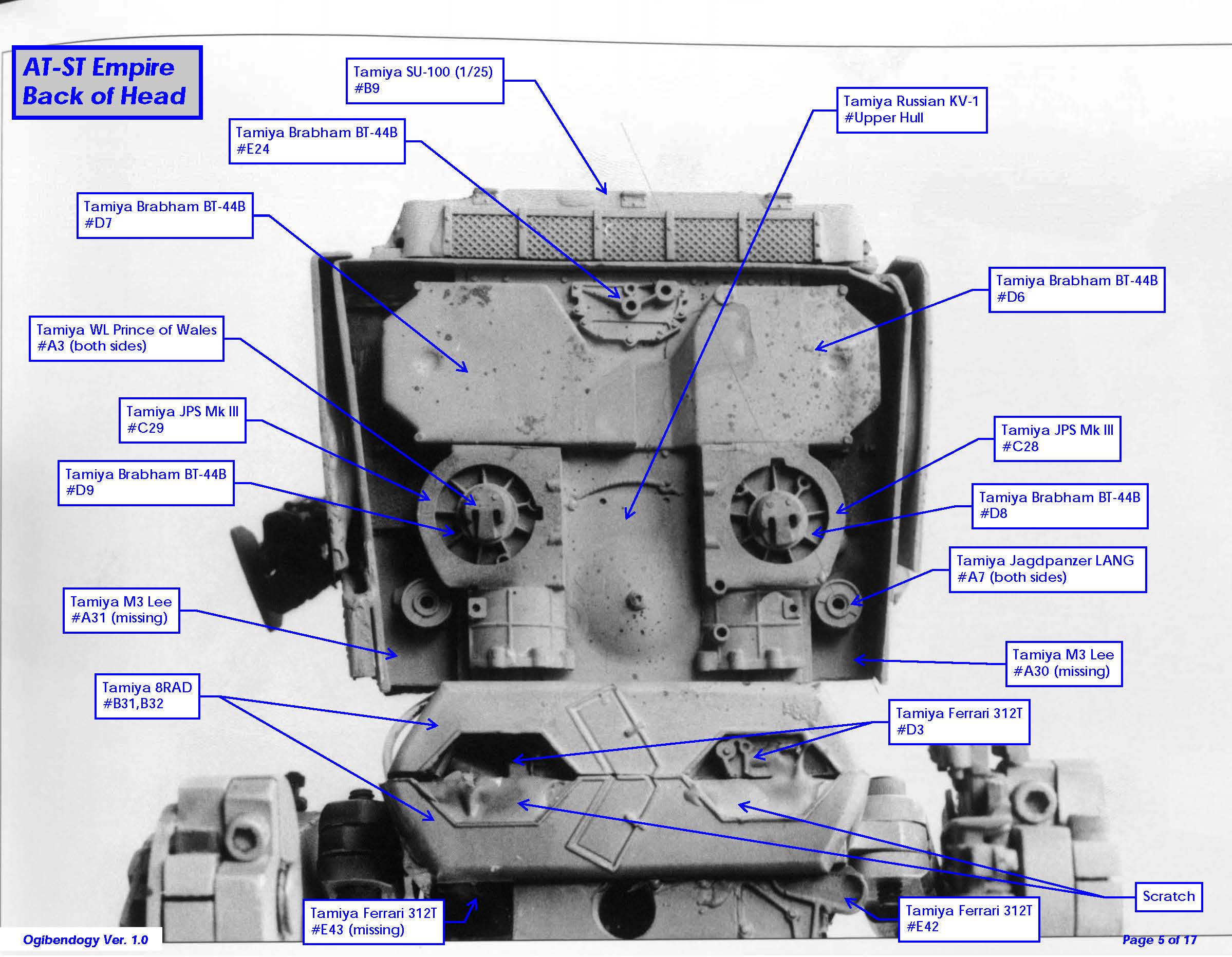

Hey Marc, are u sure that the part behind the 8RAD kit on the back hips is as u have listed, the Ferrari 312T #D3...don't see the same details on there




AT-ST ESB Parts Map_Ogi Ver 01_Page_05.jpg

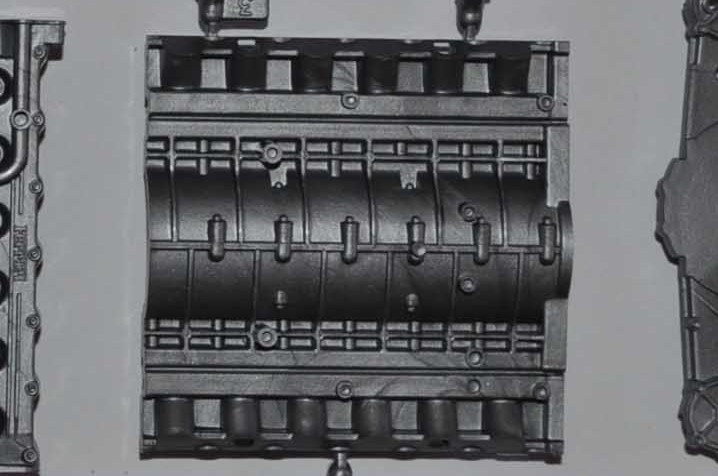

This is #D3

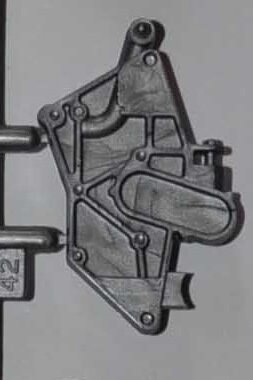

Yeah I think Wilkster is right...it looks like E42 has been cut to fit under the hip block and then the top bit used behind the 8RAD parts...or maybe it just goes up inside at the back of the 8RAD parts. Same on the other side with E43
FERRARI 312T E42.jpg

Maybe part E42 ?

Yeah I think Wilkster is right...it looks like E42 has been cut to fit under the hip block and then the top bit used behind the 8RAD parts...or maybe it just goes up inside at the back of the 8RAD parts. Same on the other side with E43
View attachment 1666308

Thanks, guys! Looks right to me. I updated the map and added a parts list to the first post.

Thank you so much for this.

I've been wanting to build a full-sized AT-ST to sit out front of a charity group I work with for years and this is the best resource I've found for good close-up photos and references. Thank you with all my heart ^_^
