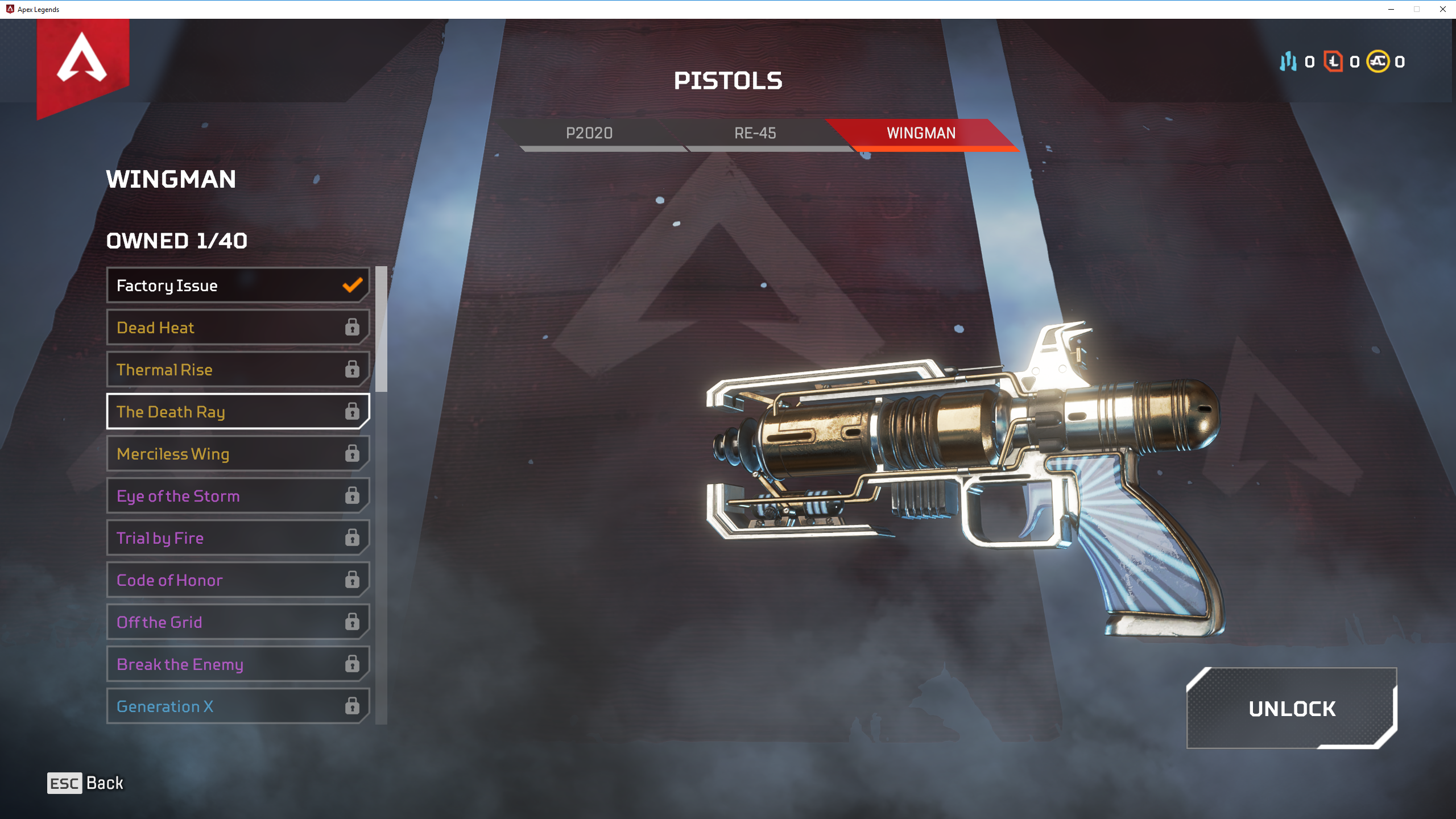

Apex Legends came out and I was looking for a new gun to make, something more achievable that my Quake3 - Machine Gun project. Looking around I found this skin of the popular Wingman pistol which is quite cool and ray-gun looking. Really like the way it looks.

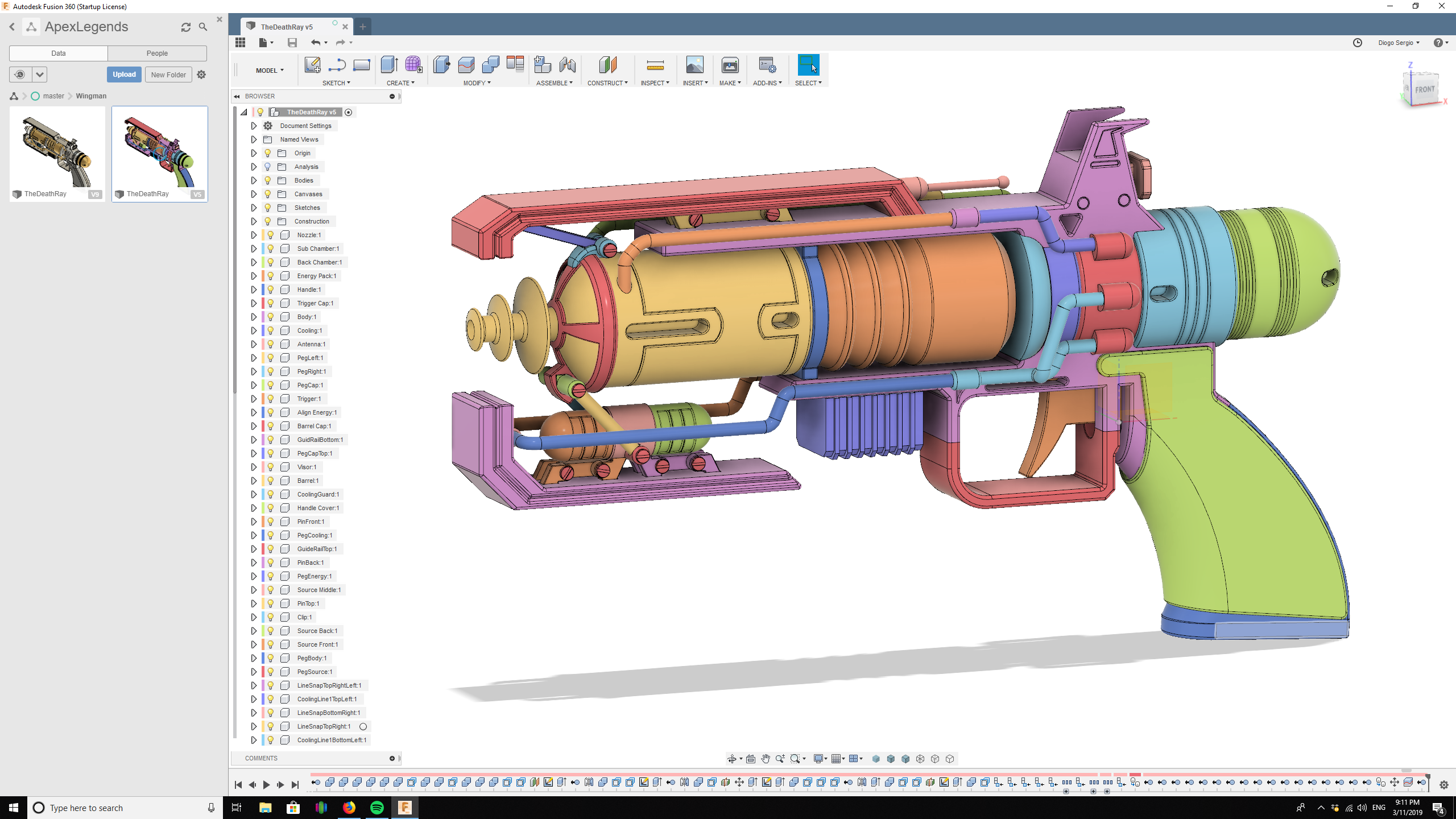

Still modeling the pistol but its getting there! What a pain it will be to print :D Let's see how it goes!







Attachments

Last edited:

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

stimpo

New Member
That looks fantastic! Im playing this game too and came in here to see if anyone was making any of the cool looking weapons.
Hope to see the finished pistol.


Carson Ames

New Member
I would pay a good amount of money for a replica of the merciless wing version the wingman...

Looks awesome by the way!


diogorsergio

Active Member
RPF PREMIUM MEMBER
Thanks!

The Merciless Wing has a bit more textured detail that's why I moved away to the The Death Ray :) Let's see how this one will print and I might spend some time to model the different parts for the Merciless Wing.


Emu

New Member
That would be amazing if you finished the merciless wing saying it’s the skin I use. Another one you could maybe take a stab at but could be a challenge is the last spartan for the r-301.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

diogorsergio

Active Member
RPF PREMIUM MEMBER

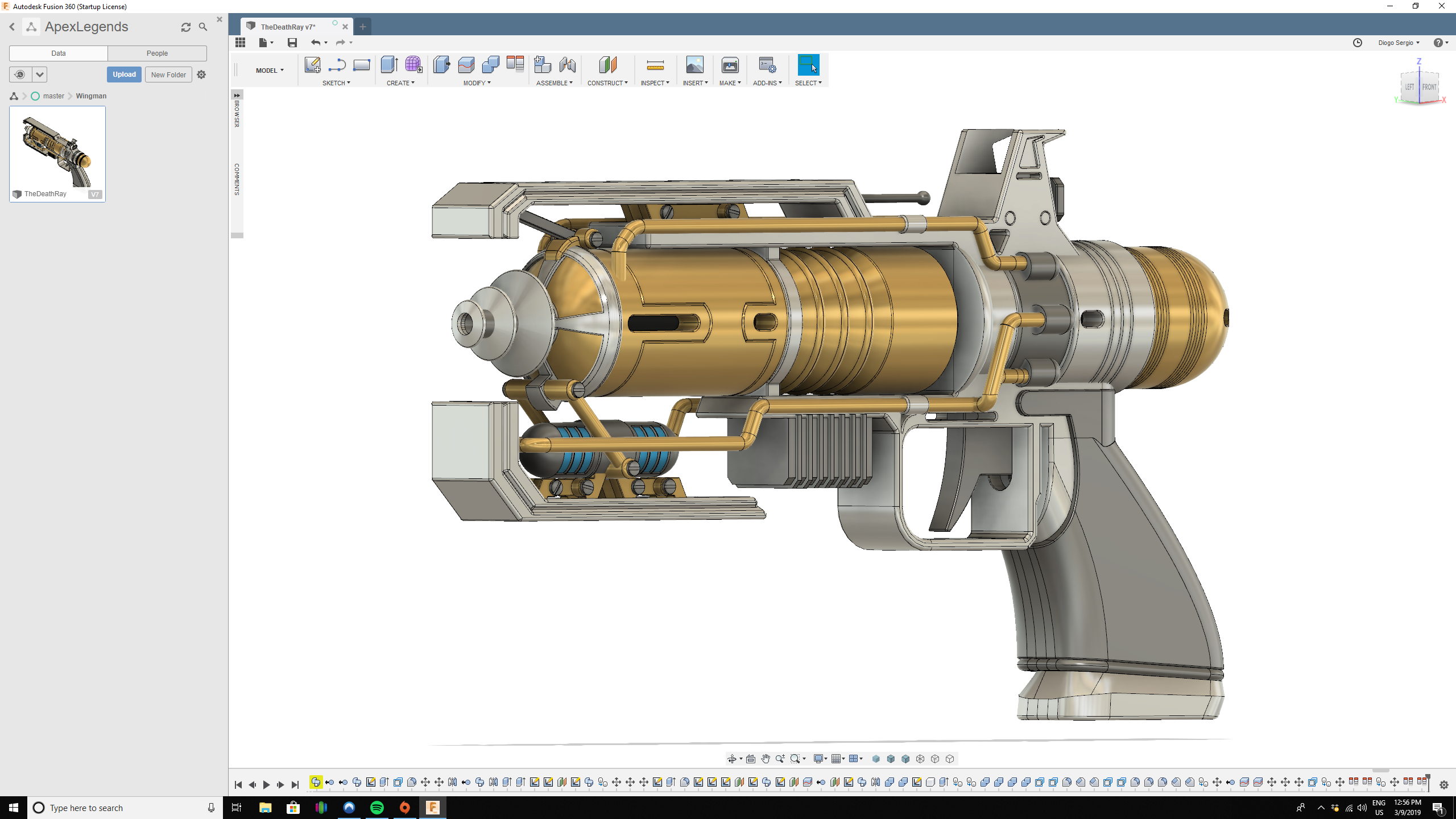

The model is finish! But currently not really happy with the handle, so I might redo that. Thoughts?





Last edited:

diogorsergio

Active Member
RPF PREMIUM MEMBER
Finally separated the parts to print and re-did the handle. Much happier now and its more accurate too.
Now on to printing!




diogorsergio

Active Member
RPF PREMIUM MEMBER

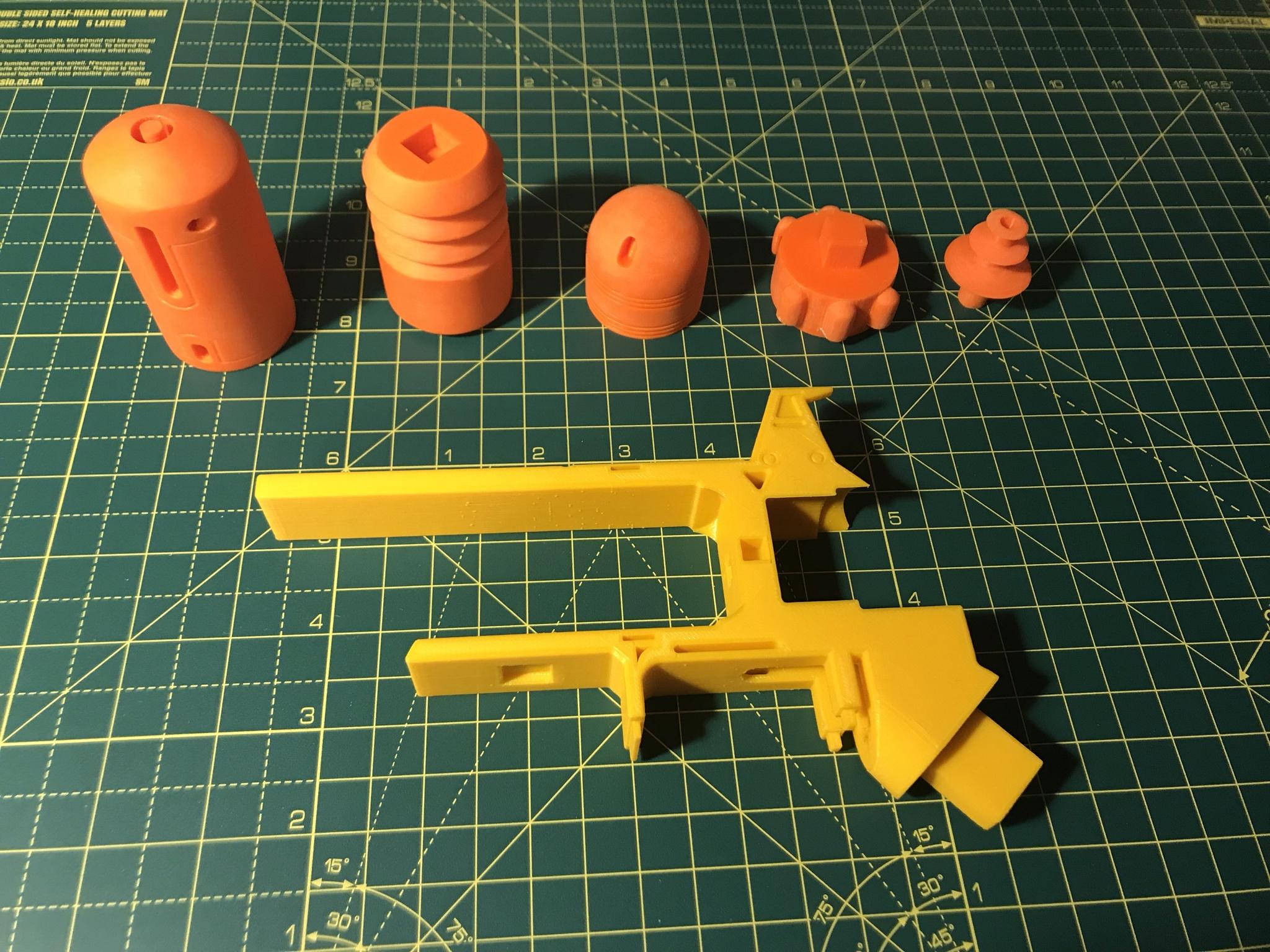

Printed some parts! Tried printing in ABS.. the orange parts and all went well.. ABS is super nice to sand.. but when I tried to print the main body part.. it kept warping even with a makeshift enclosure! :/ Had to revert back to PLA .. the yellow part. Let's see how it goes.

Putting together an IKEA LACK enclosure for the printer, in the hopes that will improve the ABS capabilities.





SantaKlaus

New Member
Hey a fellow Prusa i3 owner, also loving the progress on the wingman it looks great. There are some great two part epoxies out in the wild that will reduce the difficulty of sanding PLA and paint really well. Made my life about 1000x better when I started using them on the prints I wanted to paint and make look like production parts. Also if you ever consider selling your STLs definitely put me on the list, looks gorgeous.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

diogorsergio

Active Member
RPF PREMIUM MEMBER
SantaKlaus can you link to that epoxy you mention? how does that process go?

In the mean time printed some more parts! Its getting there!




SantaKlaus

New Member
Yeah definitely, the link is below, you can pick it up on amazon for dat free shipping. This being the RPF I'm sure others might recommend a different epoxy but this is just what I use. Its a little more expensive than other two part epoxies but I've had good luck with it. Dry times tend to be longer than advertised though unless you use a hair dryer or heat gun. I used this stuff to finish a open-able 3D printed pokeball, I just printed the shells in their appropriate colors, sanded any crazy rough areas and then layered it on. I didn't end up needed more than 2 thin coats before it was smooth and the print lines pretty much gone (.1mm layer height).

Also new parts look great, what layer height are you using for these?

XTC-3D®, High Performance 3D Print Coating


diogorsergio

Active Member
RPF PREMIUM MEMBER
Hmm, that looks interesting! I might give it ago. Just wondering on how that coat will affect the tolerances I have for the pieces. How thick do you think a coat adds to the part?

I'm currently printing at .2mm layer height. ABS sands super easy, I can get a smooth finish fairly quickly. Sandpaper 320 grit and then 600 to smooth. PLA is a bit more difficult.


diogorsergio

Active Member
RPF PREMIUM MEMBER
Printed everything! :) Now just need to to sand, paint and glue it together :D For the picture I used bluetack to keep pieces in place.



Last edited:

SantaKlaus

New Member
I am not actually positive how much it adds in terms of thickness, you can apply it both as a thinner or in a thicker layer so its kinda up to you. It never seems like that much and any area that i have a little extra I just quickly sand down. . I personally have never really used it on areas that are being joined together like a peg or hole for conjoining pieces cause you don't ever see them. I've only used it on external areas that need to be smooth before they get painted like the grip or barrel of the Wingman in your last pic.

Nice, they really good and almost look like .1mm prints from the pictures. I agree PLA is more of a hassle to post process than ABS, the ABS fumes are just what kills it for me.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

xl97

Master Member
Turned out great!

The printer filament colors make it look/feel like a NERF gun.. LOL


* jealous of your Fusion360 skills! (havent been able to grasp it yet outside if boxes with extruded walls!) LOL


Enohado

New Member
Would you let others have a crack at your wingman? Id love to have this version of the weapon! Though I think I personally would print the majority of the parts on my anycubic.
