Another Dredd 3d Helmet. Pic heavy

Discussion in 'Replica Costumes' started by JustStone, Jun 6, 2015.

  1. JustStone

    JustStone New Member

    Trophy Points:
    17
    I've seen some work with pepakura and craft foam patterns for the Dredd Helmet and thought I'd share an idea to convert to EVA foam.
    Started with a pattern by DungBettle and Blaxmyth. pattern.jpg

    Printed out and taped, resized, printed out and taped again to get a suitable fit. IMG-20150606-00568.jpg
    Then started cutting to use as a pattern. IMG-20150606-00566.jpg
    Transferred to card stock. IMG-20150606-00567.jpg

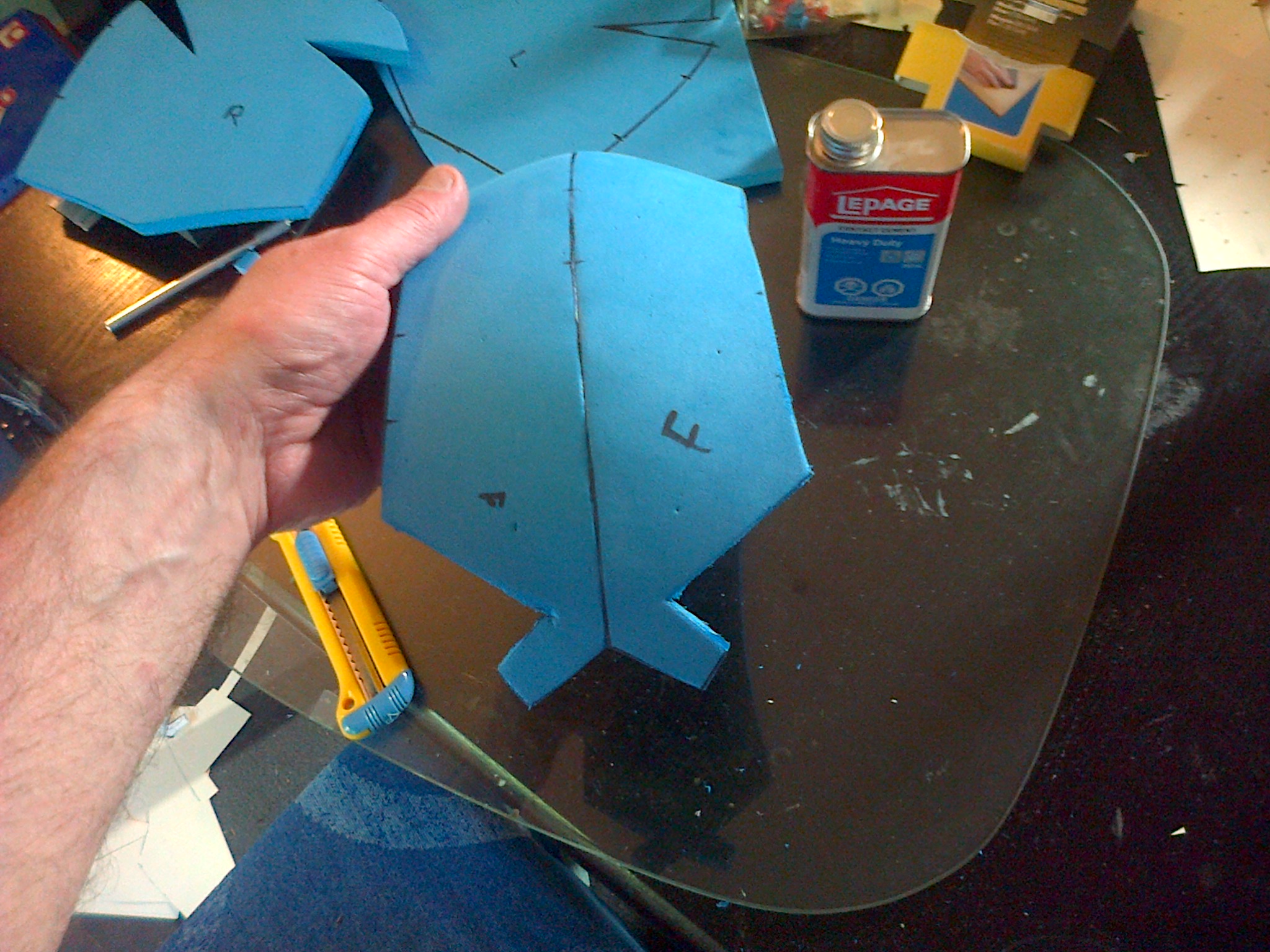

    Used the card stock as patterns to transfer to EVA foam. IMG-20150606-00569.jpg
    Now have the basics to cut out, heat form and start on an EVA Dredd helmet. IMG-20150606-00570.jpg

    The idea for this method came from Evil Ted's youtube tutorial on helmet building, but as I did not have a head bust, modifying premade pep pattern seemed a good way to go.
    You may notice the top badge mount part is not showing. That will be added later using craft foam.

    Evil Ted's excellent tutorial can be viewed here. https://youtu.be/ODSNPYdvJRo

    Last edited: Jun 11, 2015
    p00k1333 likes this.
  2. JustStone

    JustStone New Member

    Trophy Points:
    17
    Top pieces cut out and glued together.

    As barge cement is almost impossible to find in Canada, I'm trying Lepage Heavy Duty Contact cement. Apply, let set for about 10 minutes, carefully place pieces together and it holds amazingly well. Available at the local Walmart.

    contact cement.jpg

  3. Uridium

    Uridium Well-Known Member

    Trophy Points:
    935
    Used the same pep myself like, everyone else (/salute DungBettle and Blaxmyth). Will watch your progress on the foam build with intrest.

  4. JustStone

    JustStone New Member

    Trophy Points:
    17
    Got a little ahead of myself. I forgot to properly heat form the pieces before assembly. Doh!
    After gluing do NOT apply heat to stretch and form the foam or the seams can open up and are nearly impossible to close again.

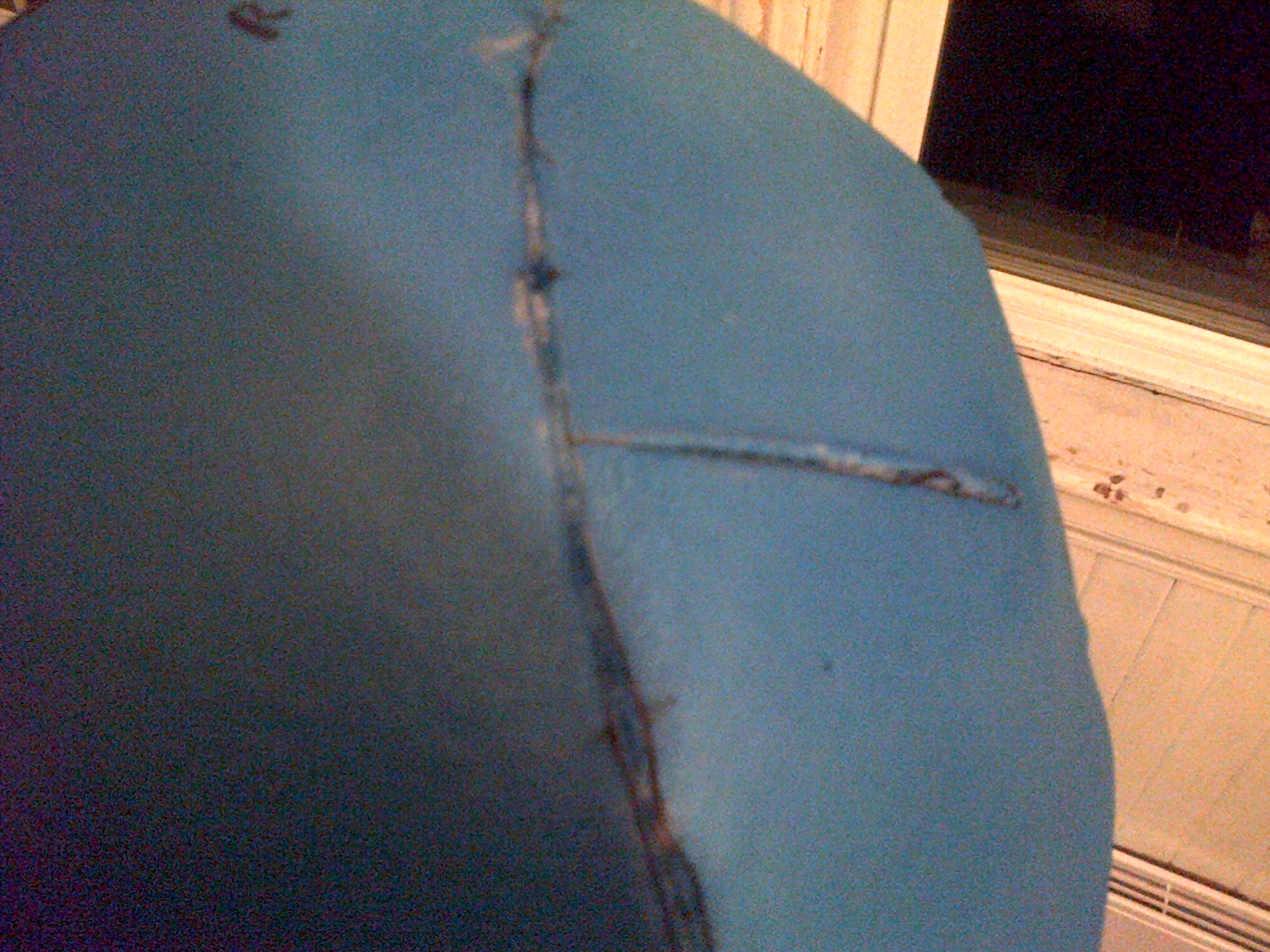

    IMG-20150608-00576.jpg IMG-20150608-00577.jpg

    So lesson learned. Started over and made sure to heat form the pieces first.
    IMG-20150608-00575.jpg IMG-20150608-00574.jpg

  5. RogueTrooper

    RogueTrooper Well-Known Member

    Trophy Points:
    935
    Looks interesting, why are you using foam??

    skiffy likes this.
  6. JustStone

    JustStone New Member

    Trophy Points:
    17
    I had some EVA foam mat laying around, saw Evil Ted's youtube tutorial so Thought I'd give it a try. :)

  7. JustStone

    JustStone New Member

    Trophy Points:
    17
    Little update today. Taking it slow mainly due to only having a couple hours in the evening to work on it.
    Main Helmet body assembled.

    Template cut for the badge mount piece.

    Cut out of craft foam and folded.

    And just set in place to test fit.

    Working out the raised trim. Starting to look a little more "Dredd" .

    Last edited: Jun 11, 2015
    Blaxmyth and p00k1333 like this.
  8. RogueTrooper

    RogueTrooper Well-Known Member

    Trophy Points:
    935
    Looking good;) .......never used foam to build before, so will follow your build. I like how it already has a good solid thickness to it.

  9. JustStone

    JustStone New Member

    Trophy Points:
    17

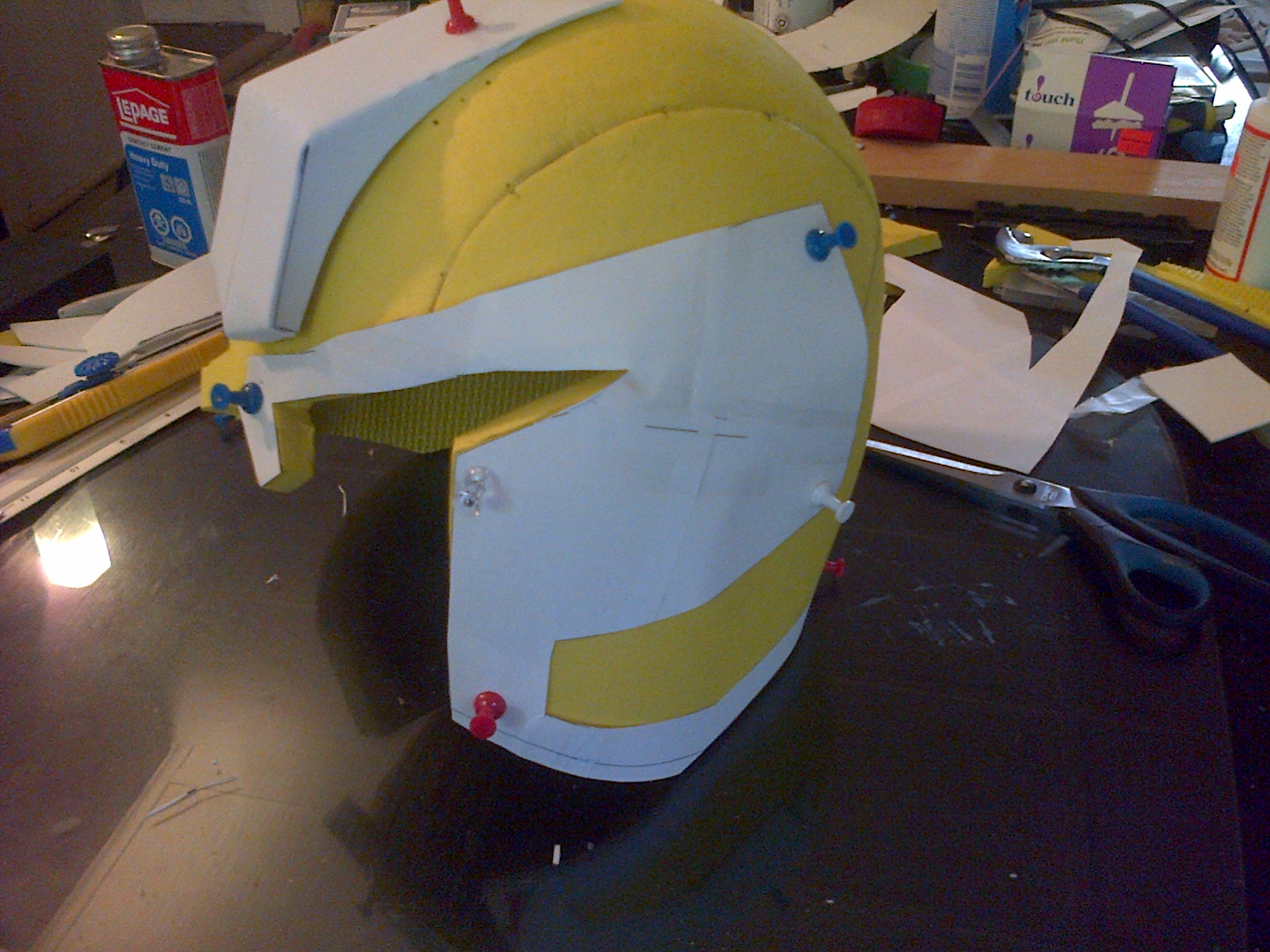

    Worked out some templates for the raised areas.
    IMG-20150613-00583.jpg IMG-20150613-00588.jpg IMG-20150613-00589.jpg

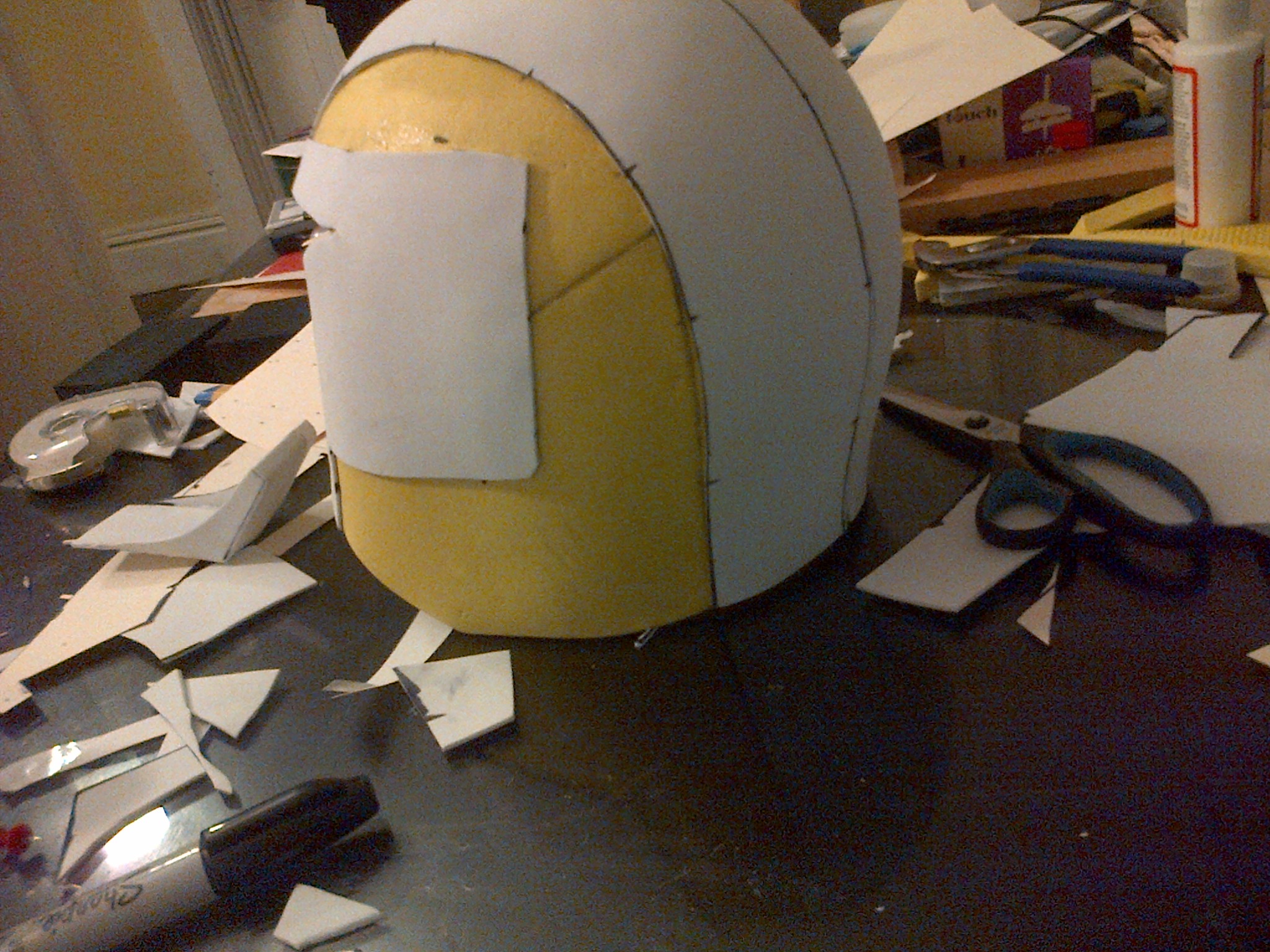

    Cut out of thin craft foam and started applying.

    IMG-20150613-00584.jpg IMG-20150613-00585.jpg IMG-20150613-00587.jpg

  10. JustStone

    JustStone New Member

    Trophy Points:
    17
    Since I was making the raised parts in multiple pieces there will be some seams.
    So, to minimize the appearance of these seams I took another trick from Evil Ted.
    Using Kwik Seal to smooth out the seams.
    IMG-20150613-00590.jpg IMG-20150613-00591.jpg

    His work, and amazing results can be seen here.
    https://youtu.be/QPDjeT8cOi8

    p00k1333 likes this.
  11. Gideono

    Gideono New Member

    Trophy Points:
    3
    Awesome build so far, I plan on making one for my dad for his birthday as a little side gift/joke since he's a diehard dredd fan. I look forward to seeing the lid painted up and shiny, good luck.

  12. JustStone

    JustStone New Member

    Trophy Points:
    17
    Thank you. Go for it and I'm sure your dad will love it!

    Just a little update today as it was too nice of a day to stay inside.
    Sealed up the seams and applied 2 coats of Modge Podge to seal everything up.
    Ready for some Plasti-dip.

    Now I've referenced Evil Ted's videos a couple of time and he does amazing work.
    I know mine will not be near the level of his, however as long as it's not a total mess I'll be pleased.
    He has had years in the business and this is my first try working with most of these techniques.
    This helmet is not meant for any cosplay show or event. It is basically just a test to see if I can make something that looks ok. I hope you will all like it when it is actually finished. :D

    Gideono likes this.
  13. JustStone

    JustStone New Member

    Trophy Points:
    17
    Here it is after a few coats of Plasti-Dip.
    IMG-20150614-00594.jpg IMG-20150614-00595.jpg

    Just some final painting and detailing, but essentially done. :)

    Oh, the stand for painting is just an ice cream container top with a paper tower tube hot glued to it.
    Use hot glue to tack the helmet to it and it's ready to paint.

    Dtrasler and Gideono like this.
  14. JustStone

    JustStone New Member

    Trophy Points:
    17

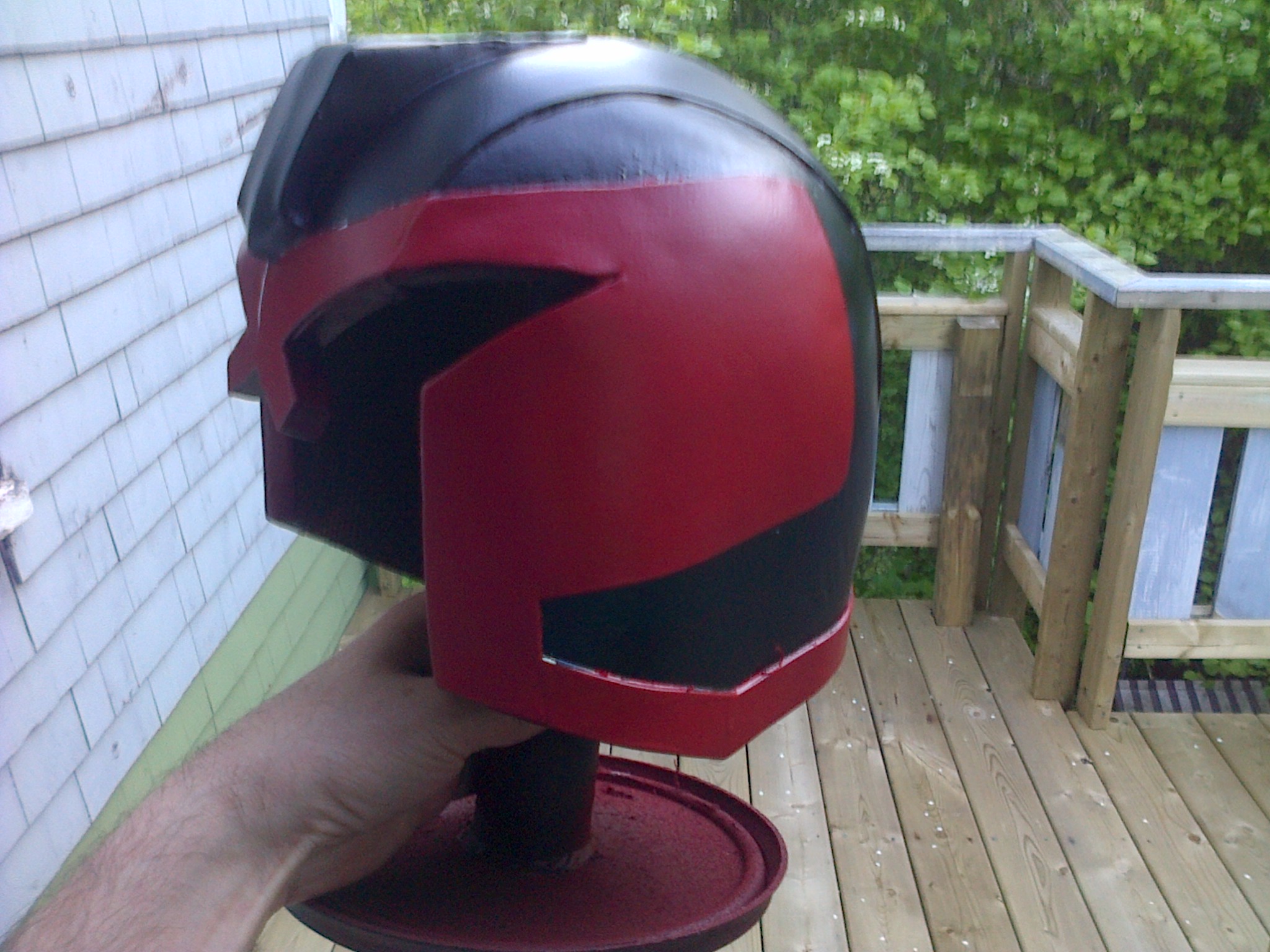

    Got a little painting done.
    IMG-20150618-00598.jpg IMG-20150618-00599.jpg

    Now I just have to figure out how to mount the face shield and not ruin what I have done so far. :p

    Gideono likes this.
  15. Uridium

    Uridium Well-Known Member

    Trophy Points:
    935
    I cut out my visor from an insert for a welding face-guard, then use heavy duty Velcro to fix it to the inside of my helmet.
    This way I can re-position or replace it easily if i ever need to.

    EDIT: oh wait, this is a foam helmet. Be careful that the visor isnt trying to flex back against its curve. I would assume that it may warp a soft foam helmet.

    Last edited: Jun 23, 2015
    JustStone likes this.
