Another Accurate Obi Wan Saber with Lights and Sound

Discussion in 'Star Wars Costumes and Props' started by scottjua, Apr 3, 2015.

  1. scottjua

    scottjua Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,565
    I just finished this for Paul off of my Facebook Page:


    He contacted me after seeing the others I had done and wanted one, since he cosplay’s as a very convincing Obi Wan/Old Ben.


    This is a Romans all replica saber, that came to me in raw machined steel form. This was all weathered by me, aside from the clamp which was a weathered version. I added the al tape to the clamp for further weathering, as well as one of Roy’s cast plastic bubble strips.


    It has a Crystal Focus 7 and color Extender in it for full RGB color changing saber lights. Also Watchmaker Lam and I worked on getting the chassis parts all together for these builds and they really help make it work great with Roman’s parts.


    This was before Roman released his new FX version solid emitter/balance pipe, so for this one I machined from scratch an LED heat sink and wind vane adapter that threads into the neck of the grenade wind vane.


    Since the real BP and Roman’s replicas are the same, they have a slightly larger than 1” ID for the blades to fit into, so I also had to machine very thin metal collars for the blades to take up the space and fit snugly.


    I really tried to beat up the booster and grenade and get the BP to look as close to my real one as I could without sticking in a jet engine. I used a torch also to discolor the steel in parts as well as chemical cold blue.

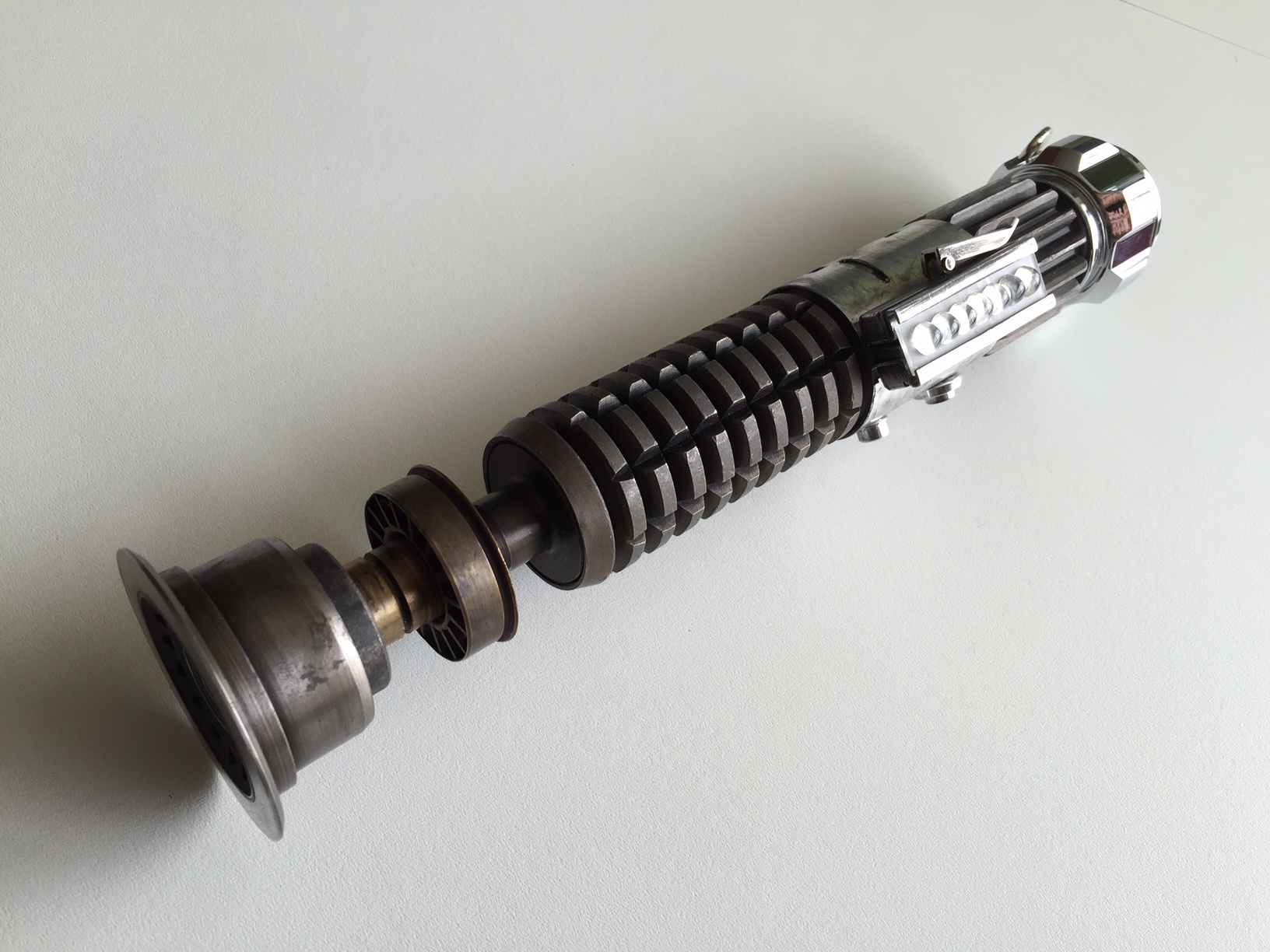

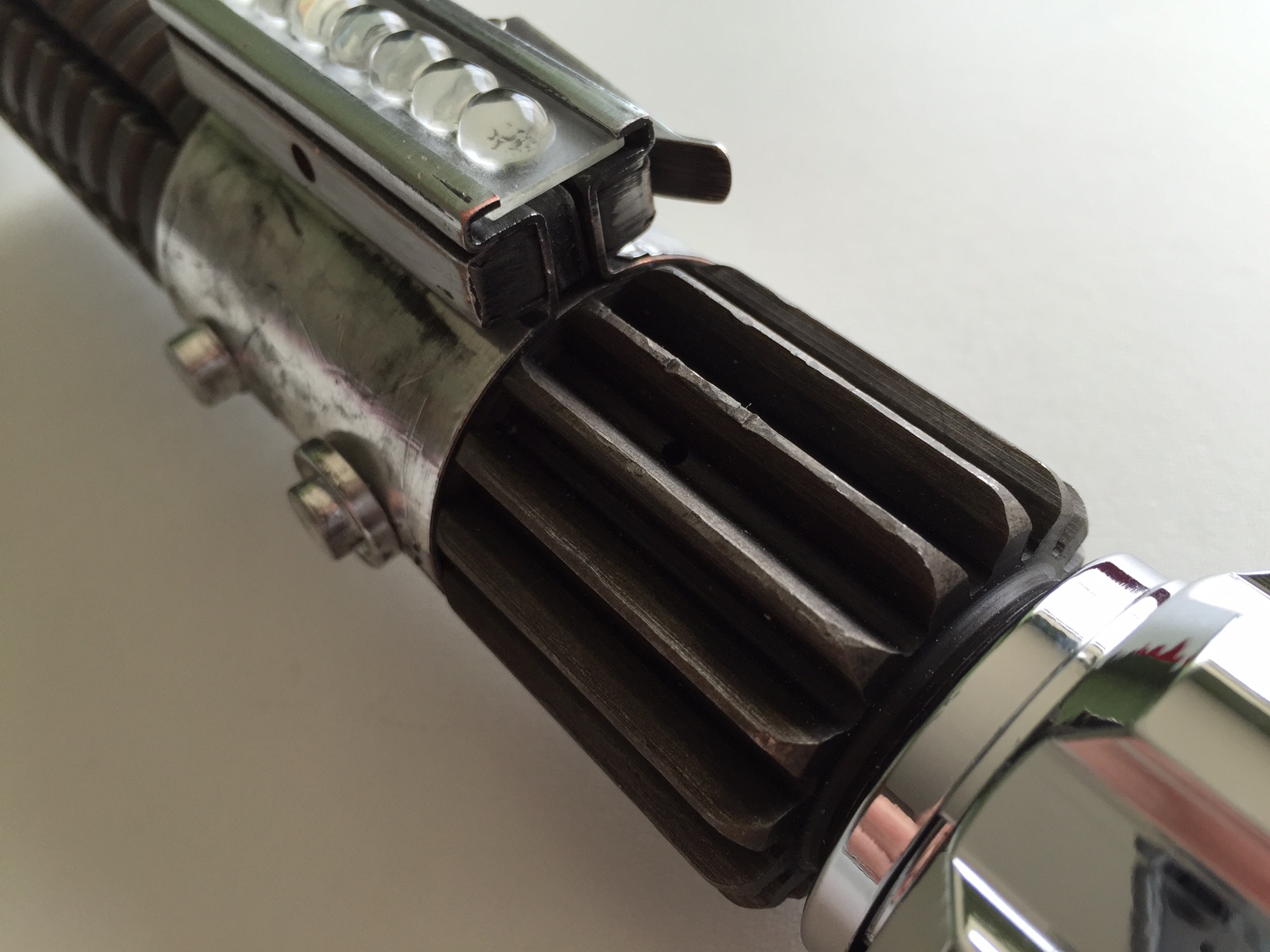

    Anyway, here are the pics, and video at the bottom:




























    Last edited by a moderator: Nov 8, 2018
    angel62sir, Trilogy, halliwax and 4 others like this.
  2. Sym-Cha

    Sym-Cha Master Member

    Trophy Points:
    3,305
    Absolutely stunning ... :)

    Chaim

  3. mugatu

    mugatu Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,782
    FANTASTIC! You've done an incredible job, man!

    Sym-Cha likes this.
  4. Romans Empire

    Romans Empire Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,565
    Another masterpiece!!! Amazing doesn't do this justice... :thumbsup

  5. Andymac84

    Andymac84 Sr Member

    Trophy Points:
    1,535
    Incredible job. Love the weathering..

    Sym-Cha likes this.
  6. scottjua

    scottjua Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,565
    It's mostly super blue and old hammer. Instead of brass black though I used AL black on the brass, and it works great as well.

    I think I should have taken the beating on the grenade and booster further though. My real booster is much more dinged, and my real grenade as well. The next one I'll give them more of a beat down.

    Heimidal likes this.
  7. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,970
    oh my god another one, i must have..... awesome job scott!

    Sym-Cha likes this.
  8. Trilogy

    Trilogy Sr Member

    Trophy Points:
    1,046
    It's a thing of beauty. :thumbsup

    Sym-Cha likes this.
  9. subaru

    subaru Member

    Trophy Points:
    191
    Before we had Monet, Van gogh, Picasso and Dali. Now we have Scottjua!

    Sym-Cha likes this.
  10. James Kenobi 1138

    James Kenobi 1138 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    The brass stem looks really good, it's a great dark, almost black color that looks like the screen saber.

    Another home run, awesome job.

    scottjua and Sym-Cha like this.
  11. scottjua

    scottjua Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,565
    Thanks James!!!
