Hello all
so i was always intrigued by Jocasta, the android created by ultron, and the storylines of this character



so i am making jocastas head as it was during the events of invincible Ironman, #18,#19 #20.
this is when tony stark works for sunset bain at baintronics, and unknowingly works on the AI of jocasta, from her salvaged head
which leads on from the terminus factor events



so im making an animatronic head, with movable eyes
to start, i found a pretty good animatronic base head on thingiverse, but was a bit to small i thought, so ive scaled it up to make
it more the size of a human head, but still 3d printable on my ender 3
the problem then was the servo mounts were off for the eye movements, so i resized them for the servos i am using

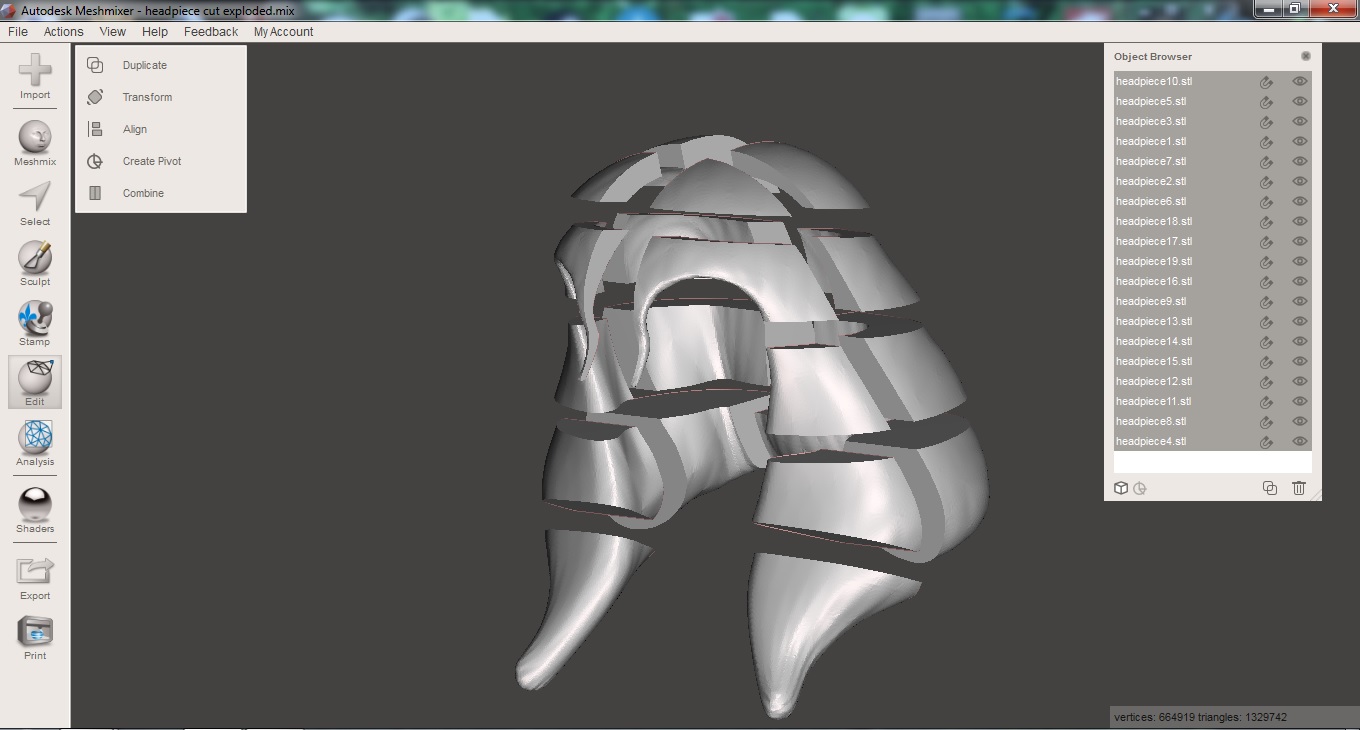

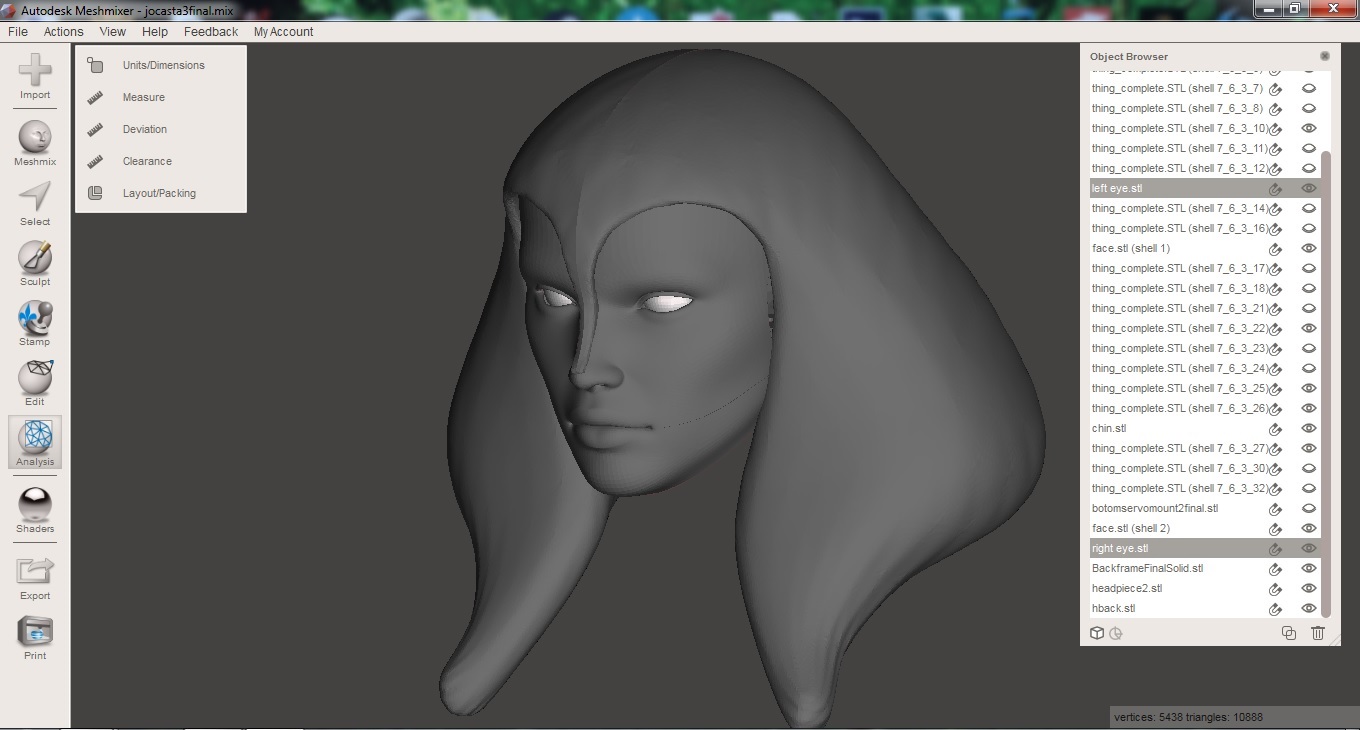

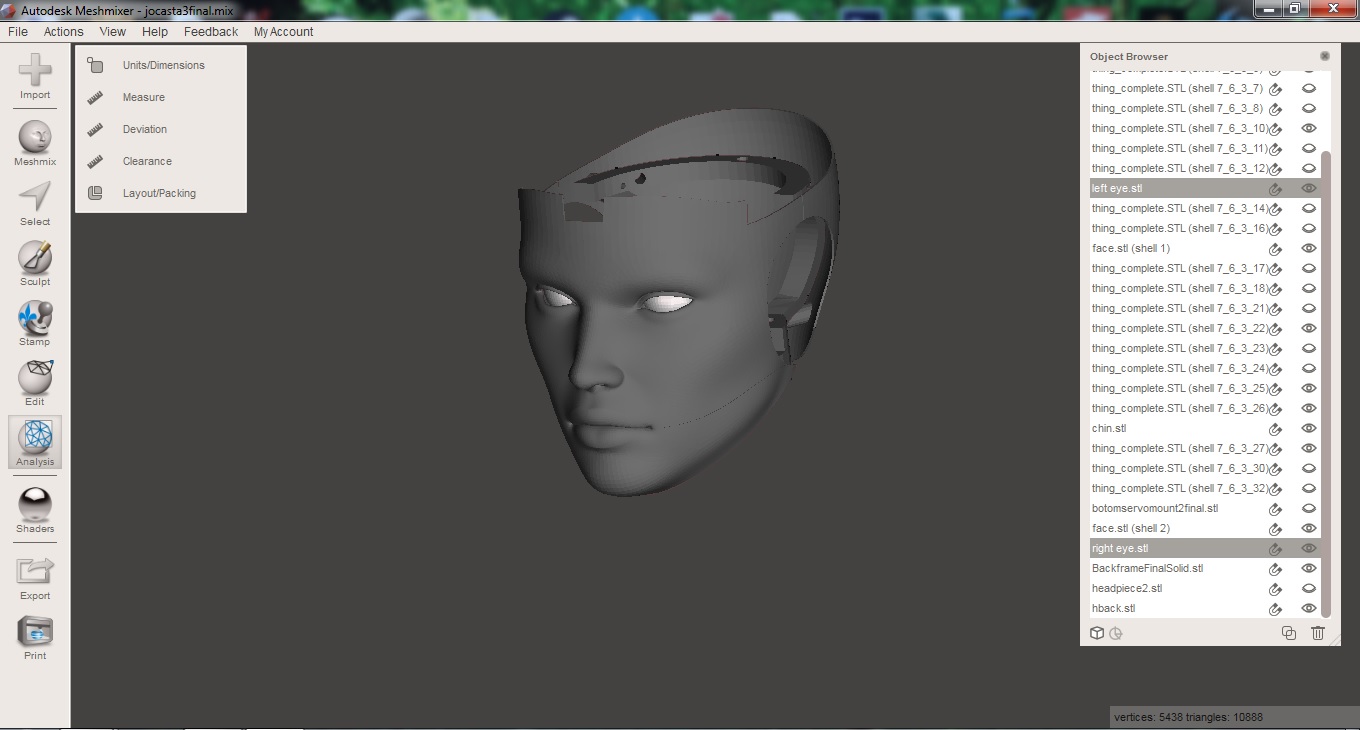

i also found a while back a low poly model of jocasta, not great, but the headpiece was pretty good, so i scaled it up a lot,
and applied a few smooth modifiers and changed it more to my liking,


Last edited:
Update

loads of work has been done,

im pretty much done with how Jocasta is going to look,

initially i was going for a simple stand just to hold the head,

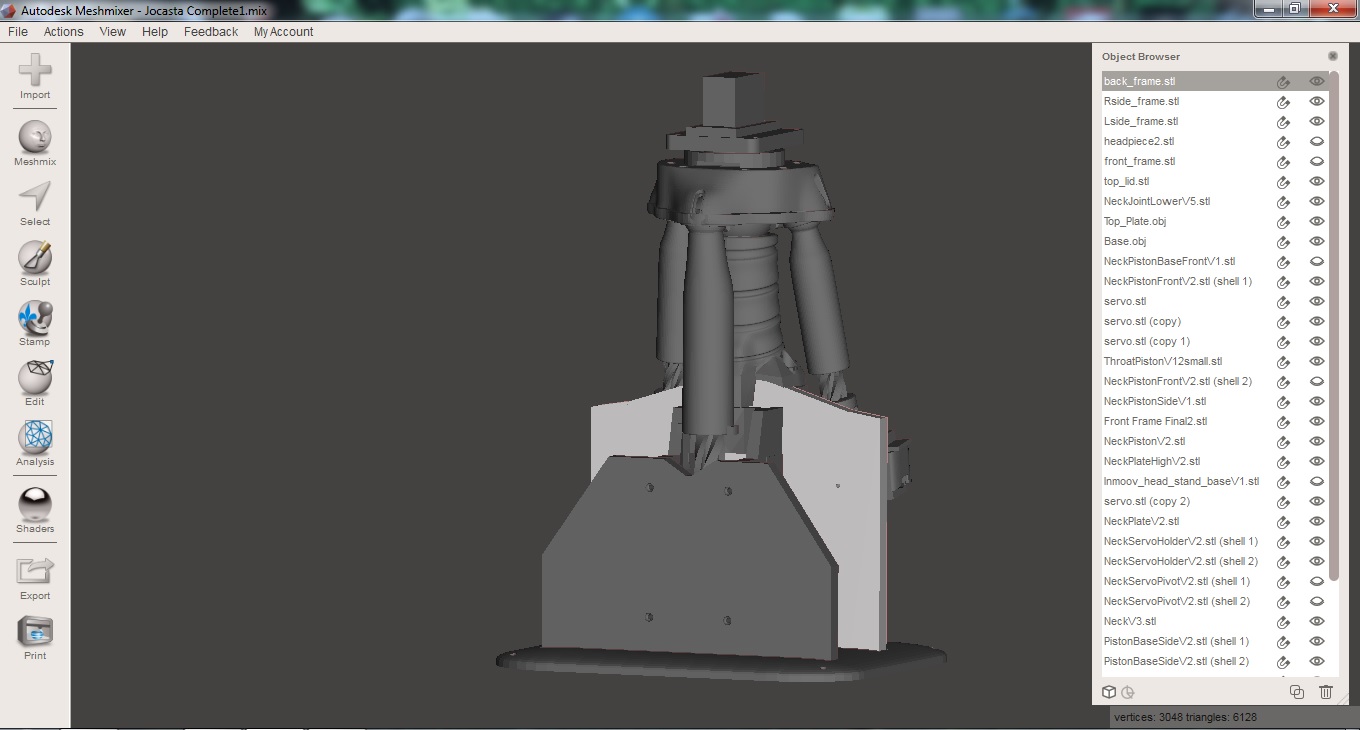

instead im using a custom Inmoov servo controlled stand found on the thingiverse, which ive spent time modifying,
i also needed something to support the head rotate servo, so im using the bottom half of a ball bearing supported pan/tilt base
to do the head rotate











there will be total 6 servo control functions
1 for eyes up/down
1 for eyes left/right
1 for head rotate left/right
1 for head up/down
2 for head tilt side/side


i did get a few more parts off the printer,
then there has been an annoying issue, my tf card decided to stop working, so im sorting that out

im also waiting on my Arduino, servos and other parts to arrive
there will also be Leds in the eyes and some audio function to come

thanks for looking

Last edited:
This is an actually cool animatronic. Do you plan on making this open source? Because this also has applications for being a Deadpool severed head animatronic as a cool thing to make.

Update:

jocastas eyes are done,





i have also found another tf card so my printer is back up and running,


This is an actually cool animatronic. Do you plan on making this open source? Because this also has applications for being a Deadpool severed head animatronic as a cool thing to make.

hi, thanks for checking out my project,

unfortunately not,

but i can point you in the direction of what i used for development/research,





& the inmoov project


hope this helps,

good luck with your deadpool project,

Update

head is loosely together, still some adjustments to be made



heres my components so far

Arduino Uno
Servo Six
x2 hxt900 servos
x4 MG996R servos
Jumper leads
Breadboard for prototyping
5mm red leds


i still need to sort out the power system
and some other components

ive got a new tf card, so i can print again
also acquired more filament
3kg of grey



started printing Jocastas face
around 10hr print time

have done some more printing,

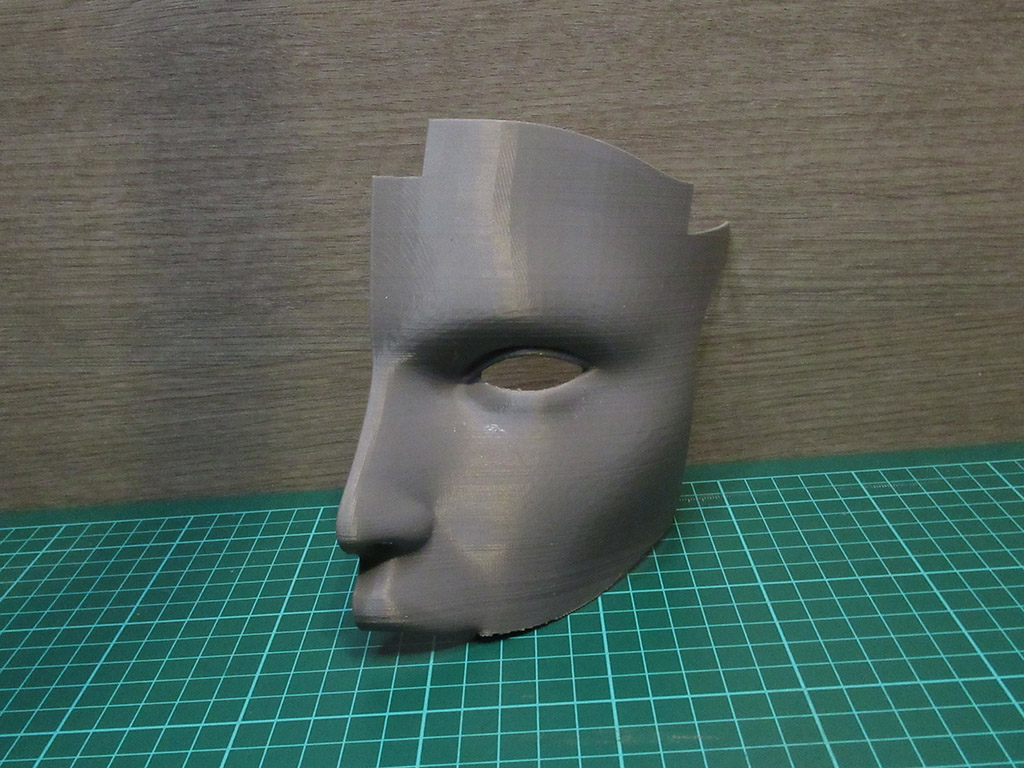

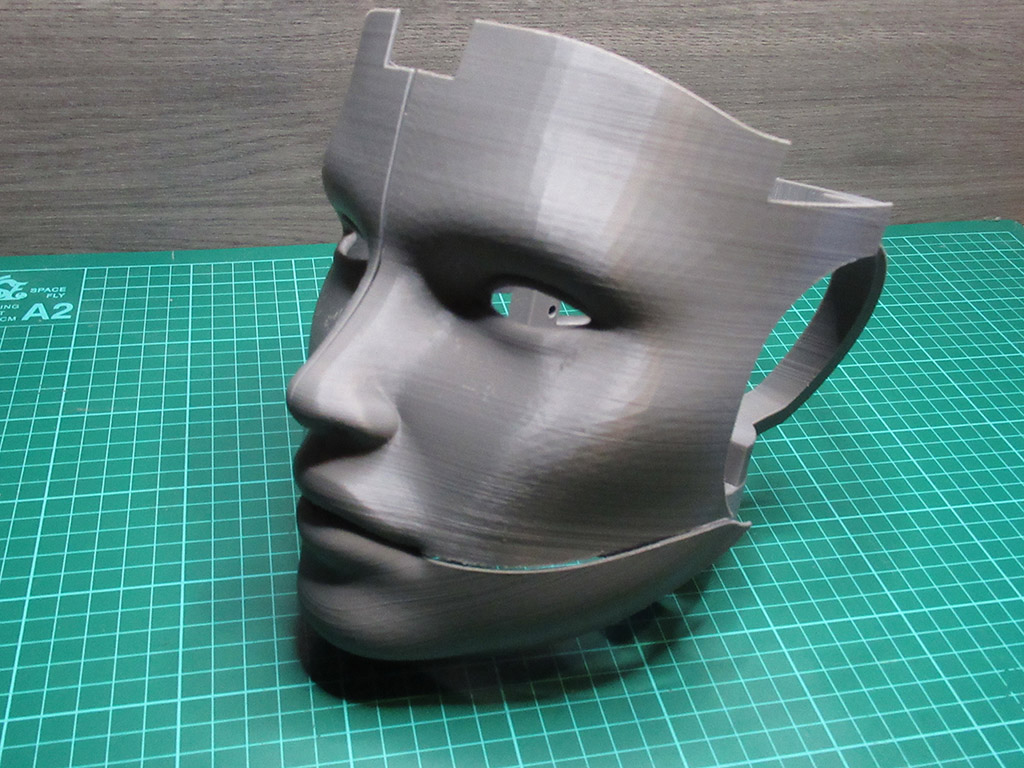

jocasta now has a face,



print time around 10hr each

i had to raise the forehead significantly so modifications can be made,
im prob gonna leave this section for a while, until i have everything printed,

thanks for looking

Update

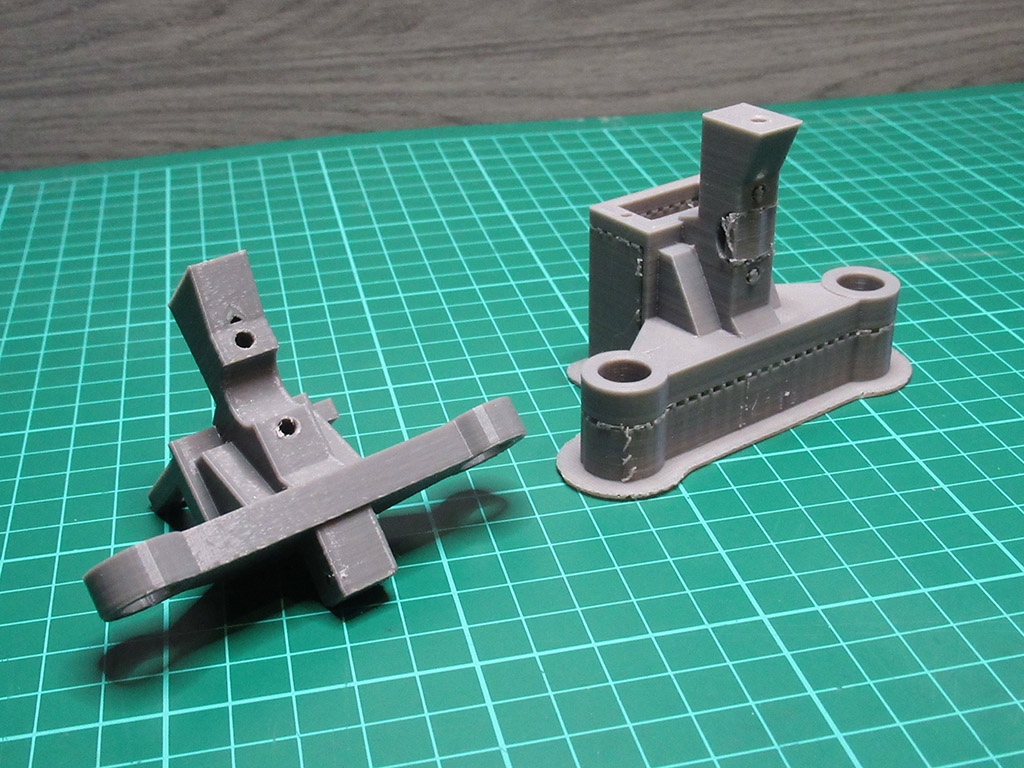

so the main eye support bracket needed more modification, the servo tray on the back was too low, and has been printed again,







while more parts are being printed, i decided to make a start fitting the face.
lots of filing and sanding and trial fitment
almost fitting good, still needs the gaps closed in more before they can be joined together






I'll have more to show soon, as more parts are coming off the printer,

thanks for looking

Update

more progress being made,

the back of jocastas head printed, but not fitted yet




made a start on the stand,
getting the base printed has been the most troublesome thing by far
first attempt the memory card failed,:(
second attempt resulted in a blockage,:(
third time was the charm,(y)


more pieces printed


at the moment im filing, sanding and trial fitting, while waiting for more parts to come off the printer,



thanks for looking,

so there was no Jocasta building during the xmas holidays, she just sat on the bench, but now im back on it,
ive been working on the stand structure

here ive been cleaning up and beveling the screw holes and getting the various pieces fitting

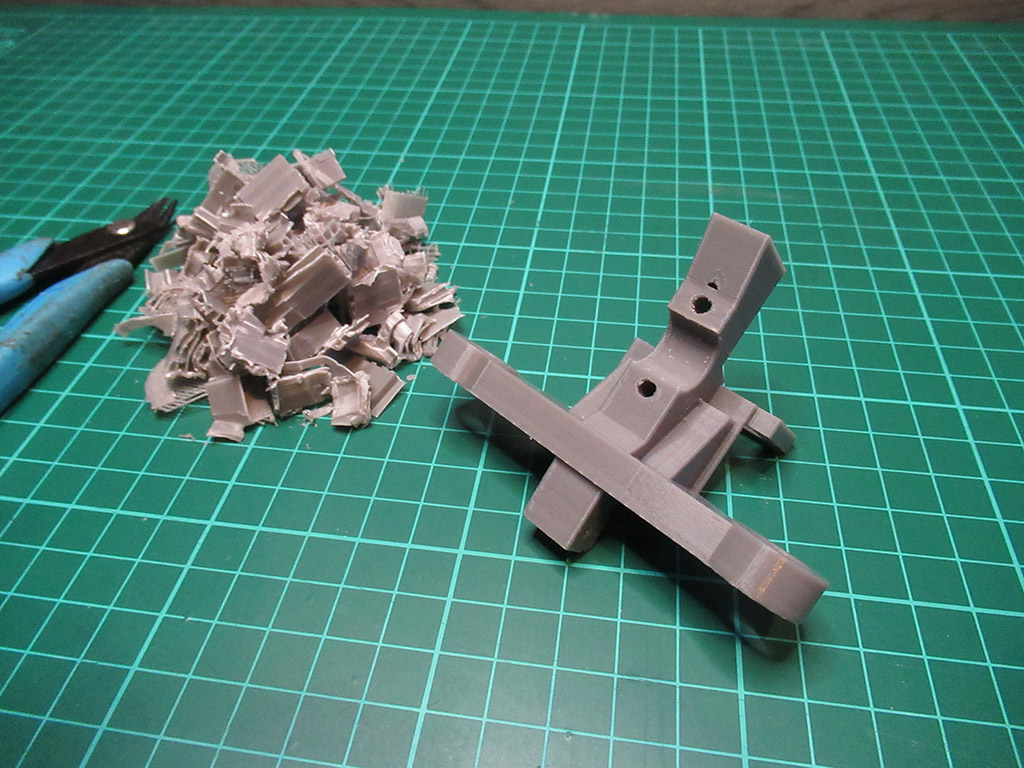

this is the Inmoov quarter scale servo holster, it will control the head up/down movement


servo converter is on top, so i can use a standard sized servo


front srcews now flush fitted


spent some time getting the servo tray moving nice


printed part of the spine support


spine support fitting good


more to come

thanks for looking,
and a Happy new year to everyone

Update,

i have the flu, :( but still working away

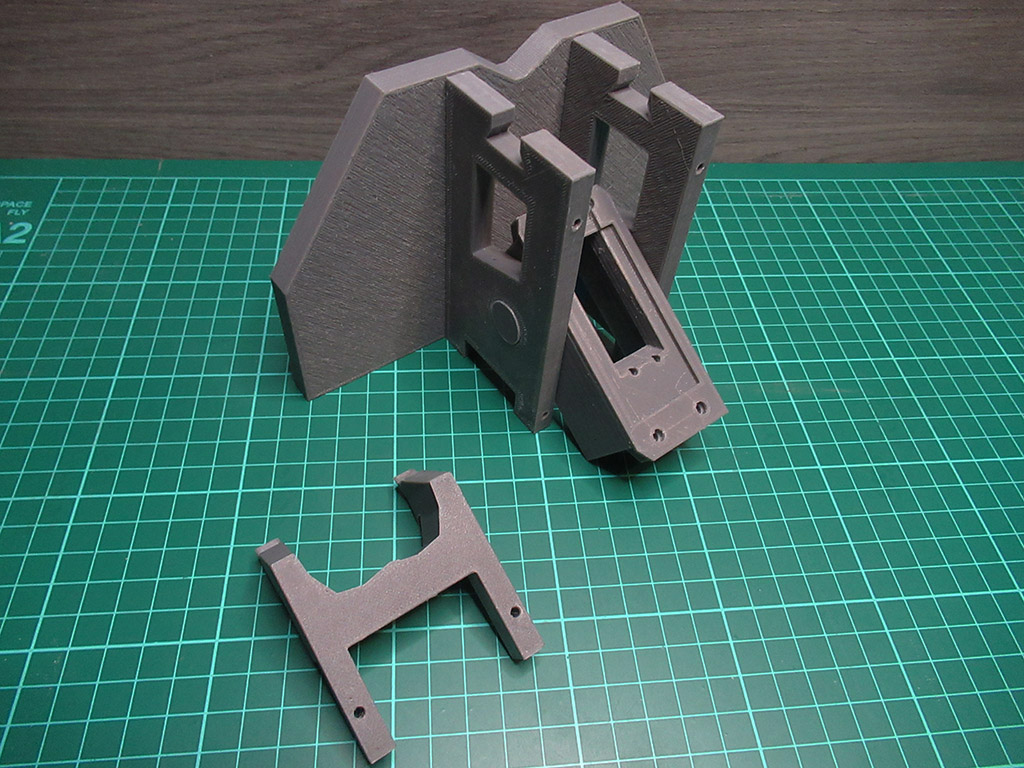

here ive been bevelling the back panel, and filing the two upper spine support holes


i also had to modify and reprint the servo holster, as the pins were not same on either side and it really bothered me,
not a big problem to fix, and i could of left it, but i like symmetry, :)


screws are flush fitted, and more filing/sanding to fit


then getting the base panel fitted


more beveling for the screws


printed the other spine support piece


more filing to fit

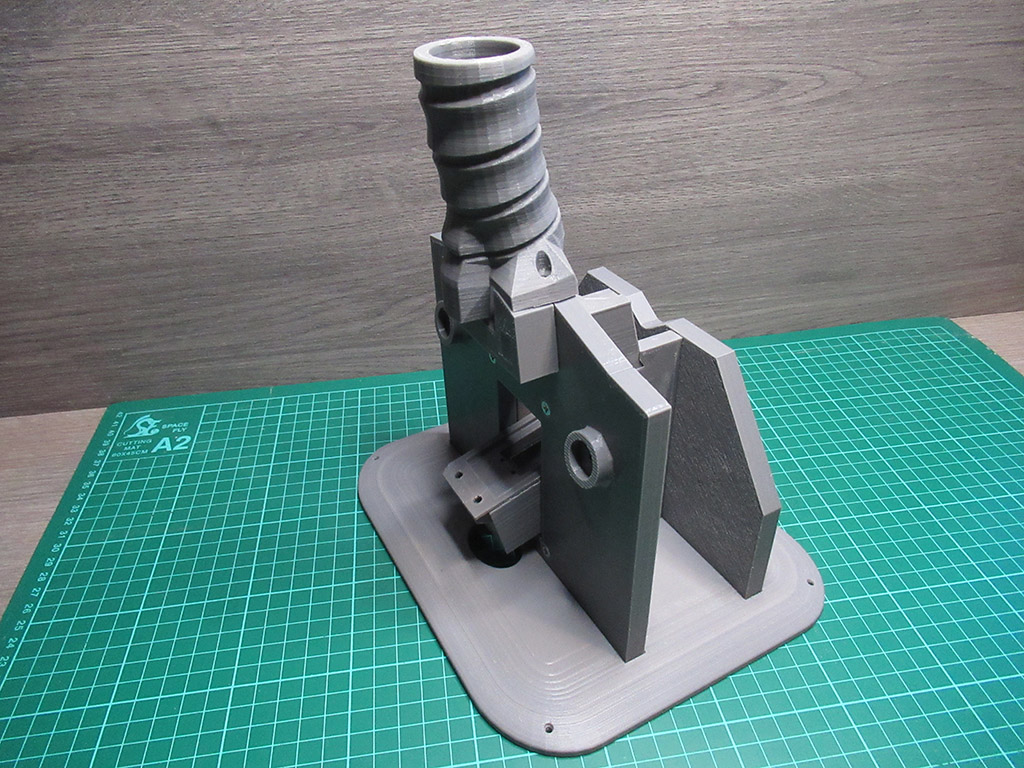

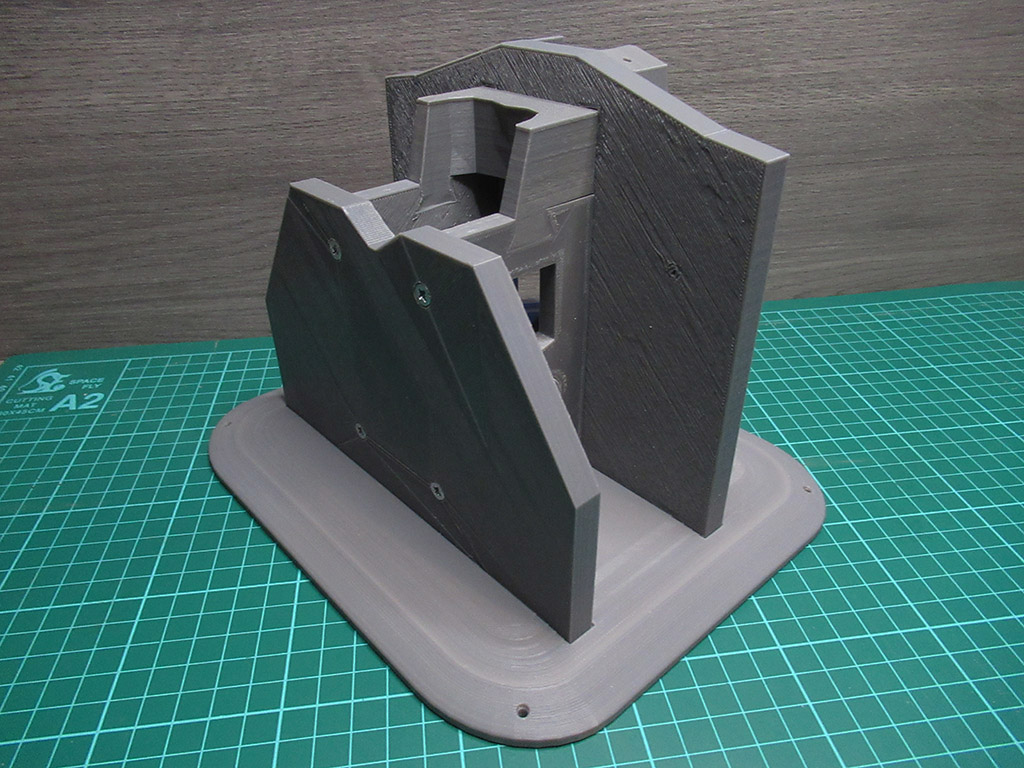

this is how it looks, and theres more parts coming off the printer


this is what jocasta looks like at the moment


thanks for looking


Attachments

  • IMG_7982.jpg
    232.8 KB · Views: 13
Last edited:

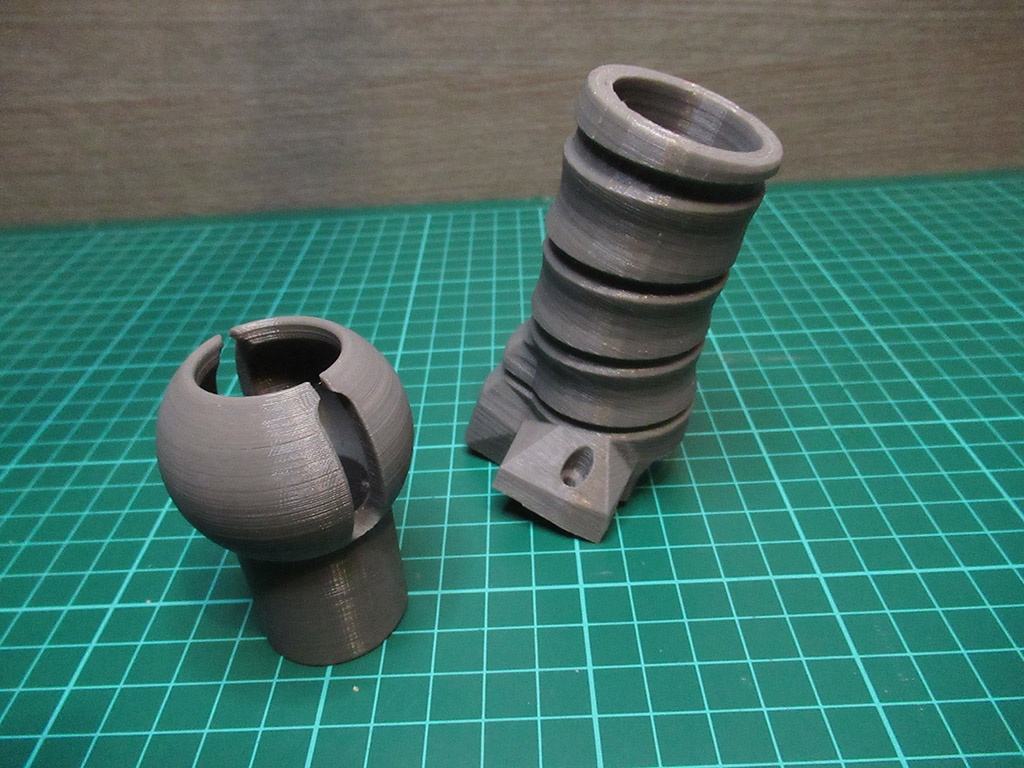

Update


more parts

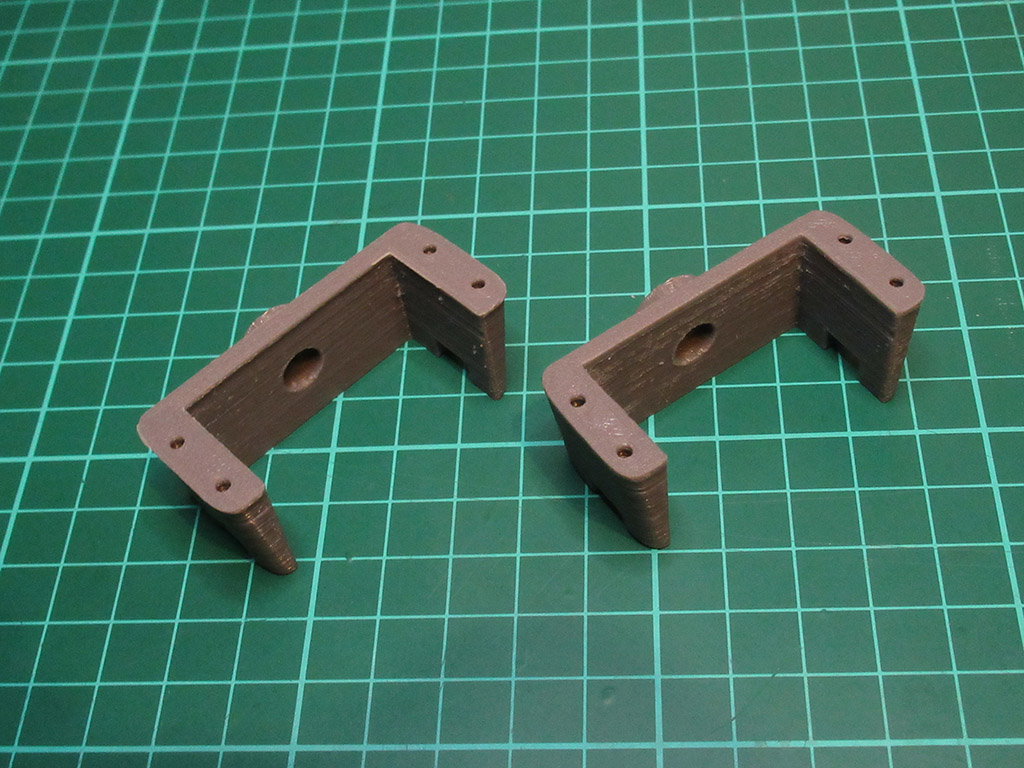

these are the rear servo mounts for the neck tilt


this is the main spine


the part on the left glues into the top of the spine for the head rotate, i wont be gluing this just yet

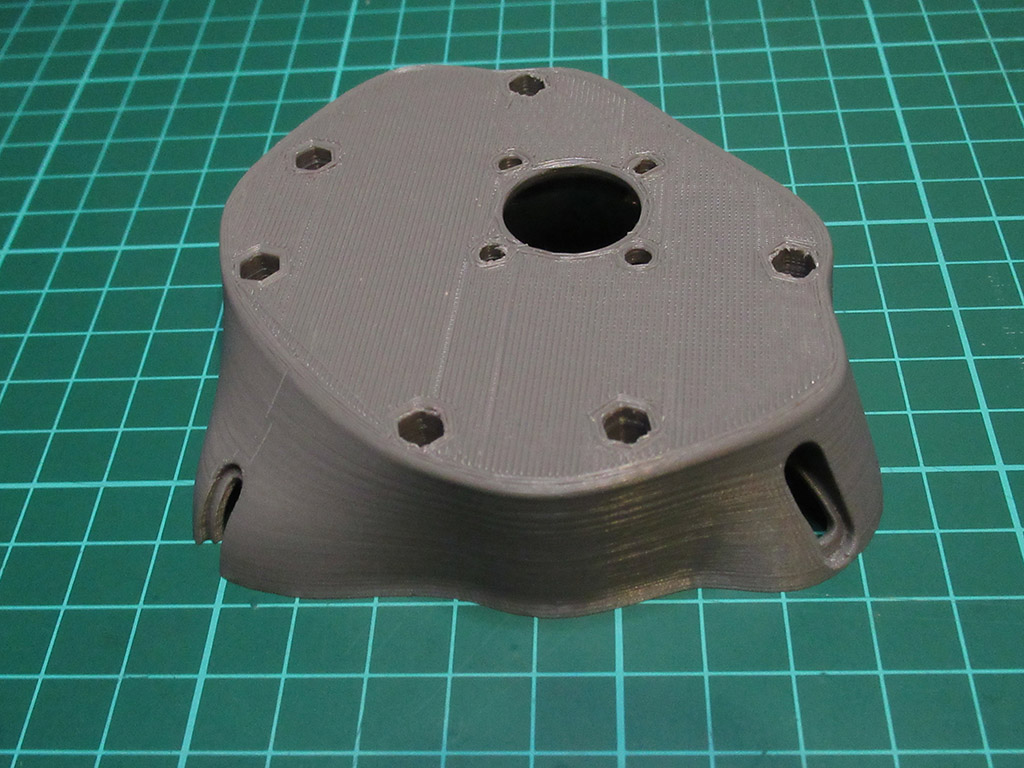

the bottom of the head mount and what the top of the pistons connect to




this is the spine upside down, just testing to make sure the parts fit together ok


and here ive been sanding to make the spine fit, it fits ok but still needs some more work


thanks for looking
