Anh Star Destroyer Devestator Parts Map

[GerdzerlKinerfd]

Does anyone still have the image maps from before they were deleted or nah?



[bwayne64]

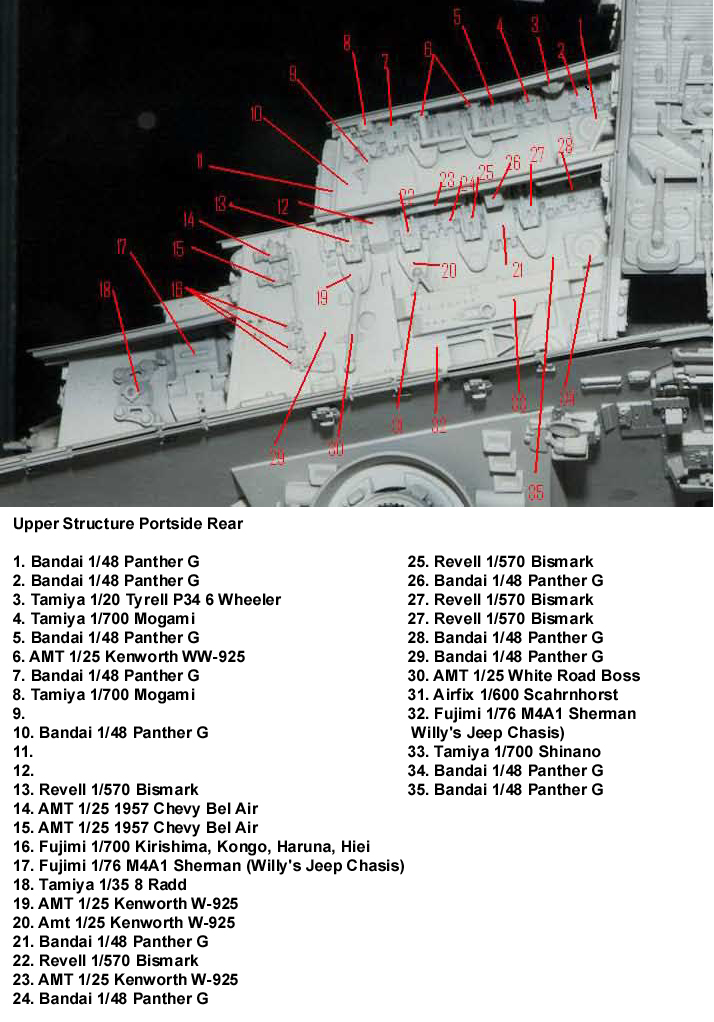

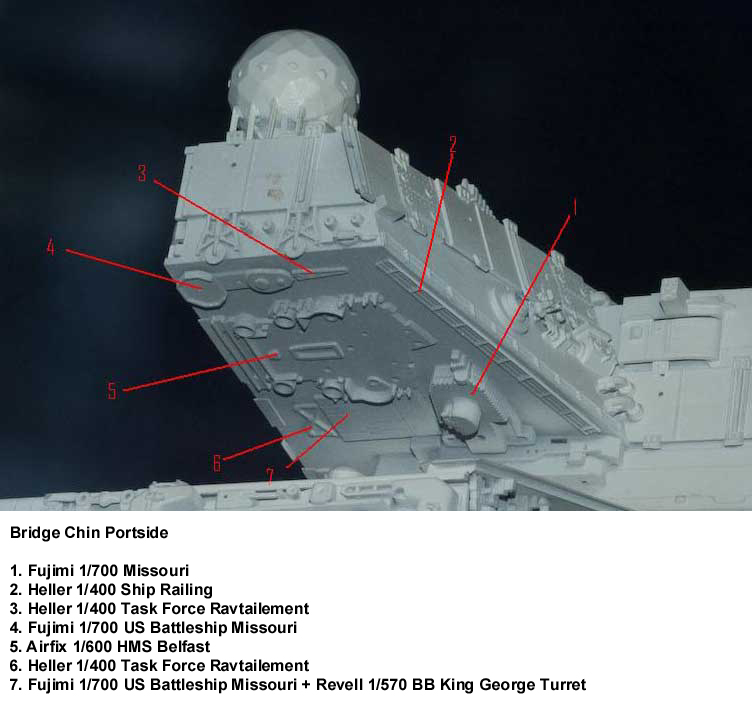

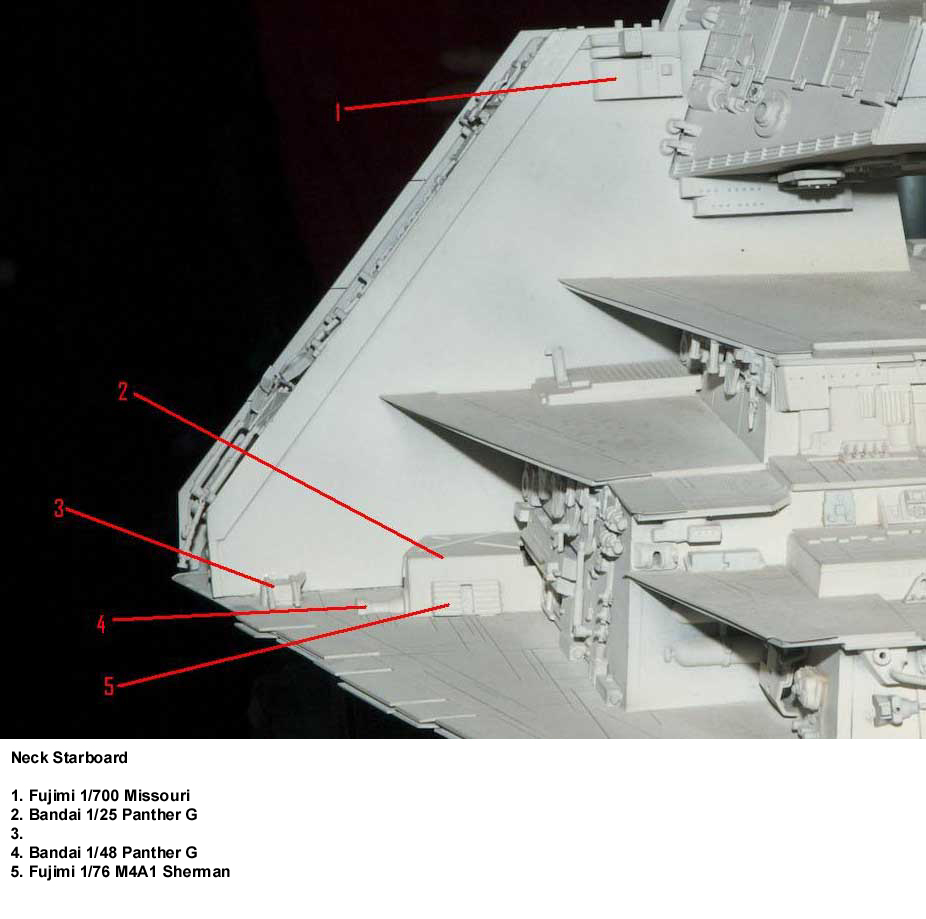

Decided to reformat the maps. For those who like the Pics and IDs together. If Jase is around and objects, I will remove them, ; ) If I got anything wrong, let me know. My eyes were crossed by the time I finished, ; )

View attachment 1902041



[bwayne64]

Don't know where I found this one. If it belongs to anyone, let me know. It's beautimus, ; )



[stonky]

I think that was mine, the original post is still buried somewhere within this thread. Enjoy!



[bwayne64]

I think that was mine, the original post is still buried somewhere within this thread. Enjoy!

Oh kool. It's really sharp. I like the color coded ones. Much easier to read, ; )

P.S. Yep just went back though the thread. It was on page 8. If it was a snake it would have bit me, lol.



[stonky]

Great, I hope it helps!



[bwayne64]

Great, I hope it helps!

Oh yeah, we need the whole bugger mapped like that.



[ganesha7]

This is such a great idea!
By the way, are you sure the Aurora Iowa kit on the Bridge Back&Top map is on a 1:500 scale?
I'd say it's rather 1:600...



[ganesha7]

Oh yeah, we need the whole bugger mapped like that.

For sure... especially the underside is still full of mysteries to me.



[bwayne64]

This is such a great idea!
By the way, are you sure the Aurora Iowa kit on the Bridge Back&Top map is on a 1:500 scale?
I'd say it's rather 1:600...

I just cut and pasted the list from the first page. I did correct a couple of scales, on the Revell King George. I'll look at that one. I have the Aurora kit, if I can find it,
; )

P.S. Yep it's 1/600 scale. I'll change the map, when I get back on the computer. Thanks for the heads up.
