Anakin Skywalker light saber

Discussion in 'Star Wars Costumes and Props' started by thesyfyguy, Jun 14, 2015.

Tags:
  1. thesyfyguy

    thesyfyguy Active Member

    Trophy Points:
    341
    Help, looking for specs on his first light saber. Trying to build one from scratch with extra special effects for cos play this fall. :)

  2. d_jedi1

    d_jedi1 Sr Member

    Trophy Points:
    1,536
    Just to be clear, you DO mean THIS saber, right?
    [​IMG]

  3. thesyfyguy

    thesyfyguy Active Member

    Trophy Points:
    341
    That would be the one. I know it's about 11" long but that is about it. Any help would be grateful.

  4. cayman shen

    cayman shen Master Member

    Trophy Points:
    3,080
    The Dark Side had a geocities site with a nice blueprint way back in like 2003. I can't find the Anakin AOTC online anymore but maybe that info will help you in your search, or someone here has it saved.

  5. Luke the Belter

    Luke the Belter Well-Known Member

    Trophy Points:
    685
    I think it shouldn't be that different from an MPP Darth Vader saber. It is machined, the color, and the slots are a little bit different, the grips smaller. But I think the intention was to create a saber that looks nearly similar to the Vader saber.

    The only bluprint I can find is this one:

    blueprint aotc anakin lightsaber.JPG

    No measurements though, I'm sorry.
    Maybe you could say it is 11" long and measure/calculate the other parts regarding to this blueprint.

  6. Mean Obiwan

    Mean Obiwan Well-Known Member

    Trophy Points:
    635
    I think it was supposed to be really similar to the Vader saber, only lighter, and probably some things were changed a little sleaker for the sake of being a little prettier in the movie.
    Just like his ROTS saber has major differences than the ANH saber even though it's supposed to be the same.

    thd9791 likes this.
  7. teecrooz

    teecrooz Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,990
    If I remember correctly, the design was based off of the picture of the Icons Vader from the Visual Dictionary. You can even see how the reflections and shadows in the chrome contributed to the slot in the side of the Anakin lightsaber.


    Attached Files:

    thd9791 likes this.
  8. Darth Lars

    Darth Lars Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,661
    A decade or so ago, someone here got access to get over the Anakin AOTC lightsaber with calipers at an exhibition... I'm sorry I don't remember who it was.

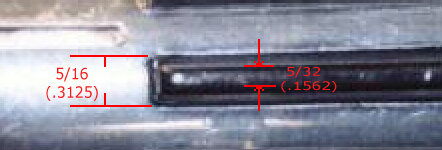

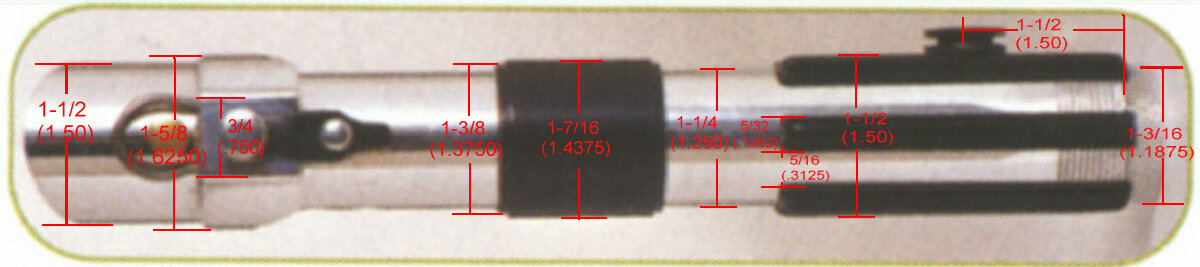

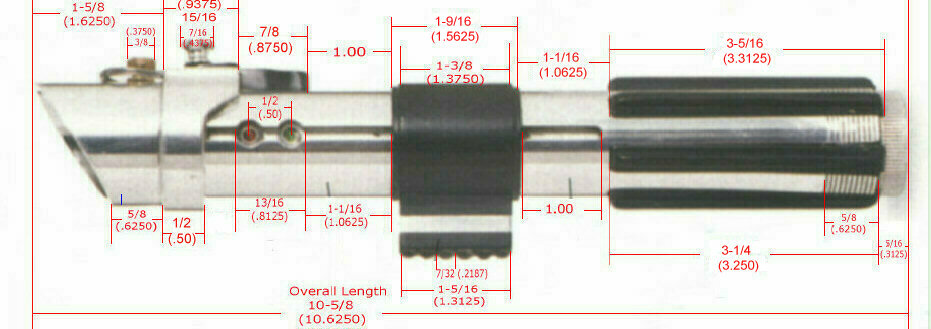

    These pictures with measurements were posted then and have been reposted a few times throughout the years:

    Anakin_specs04.jpg Revised_Anakin_specs02.jpg Revised_Anakin_specs03.jpg Revised_Ani_specs.jpg

    I once built a hybrid of the Anakin AOTC and the Anakin ROTS/Skywalker saber. I got aluminium tubes in dimensions where the inner diameter of the larger tube fit the outer diameter of a smaller tube. I did it all by hand and with a Dremel. The tubes did not fit perfectly so I sometimes put the larger tube part in the oven and the smaller in the freezer and hammered them together with force. :)
    I made the black plastic part on the emitter shroud from black Sculpey.

    You can find various lightsaber parts such as black T-track, LEDs, LED holders, blade parts, thumbscrews etc over at TheCustomSaberShop.com.

    Last edited: Jun 16, 2015
    DizzyStrmtroopr likes this.
  9. Sym-Cha

    Sym-Cha Master Member

    Trophy Points:
    3,305
  10. JoeG

    JoeG Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,566
    Just FYI, while they may have copied the look of Vader's ANH saber based off the Icons replica in the Visual Dictionary, they definitely didn't use the dimensions. If you try to make an AOTC Anakin saber off an MPP or Heiland, it will be way too big.

  11. thesyfyguy

    thesyfyguy Active Member

    Trophy Points:
    341
    Thank you your a "light saber" LOL. I will use that for my design. How ever this one will be a stunt saber not one that is machined. I plan on making a clay mold and cast it out of liquid plastic. I want to add a strip of metal to the inside of it so I can use an electromagnetic to bring it to my hand. Also I wish to incorporate a mini vacuum motor that I can inflate and deflate the blade. Instead of * a long glass tube to the end of it. going for the realism look when it is turned on. Sound effects included. Just needed the measurement so I can sculpt it out of clay before casting it.

  12. Halliwax

    Halliwax Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,210
    thats a very nice saber! i never noticed how close it was to the MPP

  13. thd9791

    thd9791 Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,001
    I was very happy that THIS saber and the Obi TPM really showed prior stages of evolution of OT sabers. This fleeting feeling quickly went downhill seeing the Ep.3 sabers :lol

    cayman shen likes this.
  14. thesyfyguy

    thesyfyguy Active Member

    Trophy Points:
    341
    Thank you Darth lar and the rest of you for your help. Here is an update on my project. Thanks to all of your help I was able to make a 3d print of the light saber I was looking for. Now getting ready to paint the outside and finish up on the circuitry for the inside. IMG_0809.JPG IMG_0811.JPG IMG_0808.JPG Here is just a few photos of the progress. now working on stack-able SMT Boards that will run the lights sound and fan motor. also working on a way to use and electromagnet to drawl the saber to my hand.

  15. thesyfyguy

    thesyfyguy Active Member

    Trophy Points:
    341
    Yes this would be the one, thank you just got mine back from the 3D printer.

  16. Jedifather

    Jedifather Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,160
    Actually, those are my measurements that I came up with from scaling many pictures. Not 100% but pretty good considering I'd never seen the actual saber.

    Here's a resin casting of what my measurements look like:

    [​IMG]


    [​IMG]


    And here's the scratch built master I used to make the mold, compared to an MR Anakin(bottom) :

    [​IMG]


    [​IMG]









    StevenBills likes this.
  17. thesyfyguy

    thesyfyguy Active Member

    Trophy Points:
    341
    That is a real nice resin casting. Is it just a static model? Or did you add the bells and whistles to it too?
