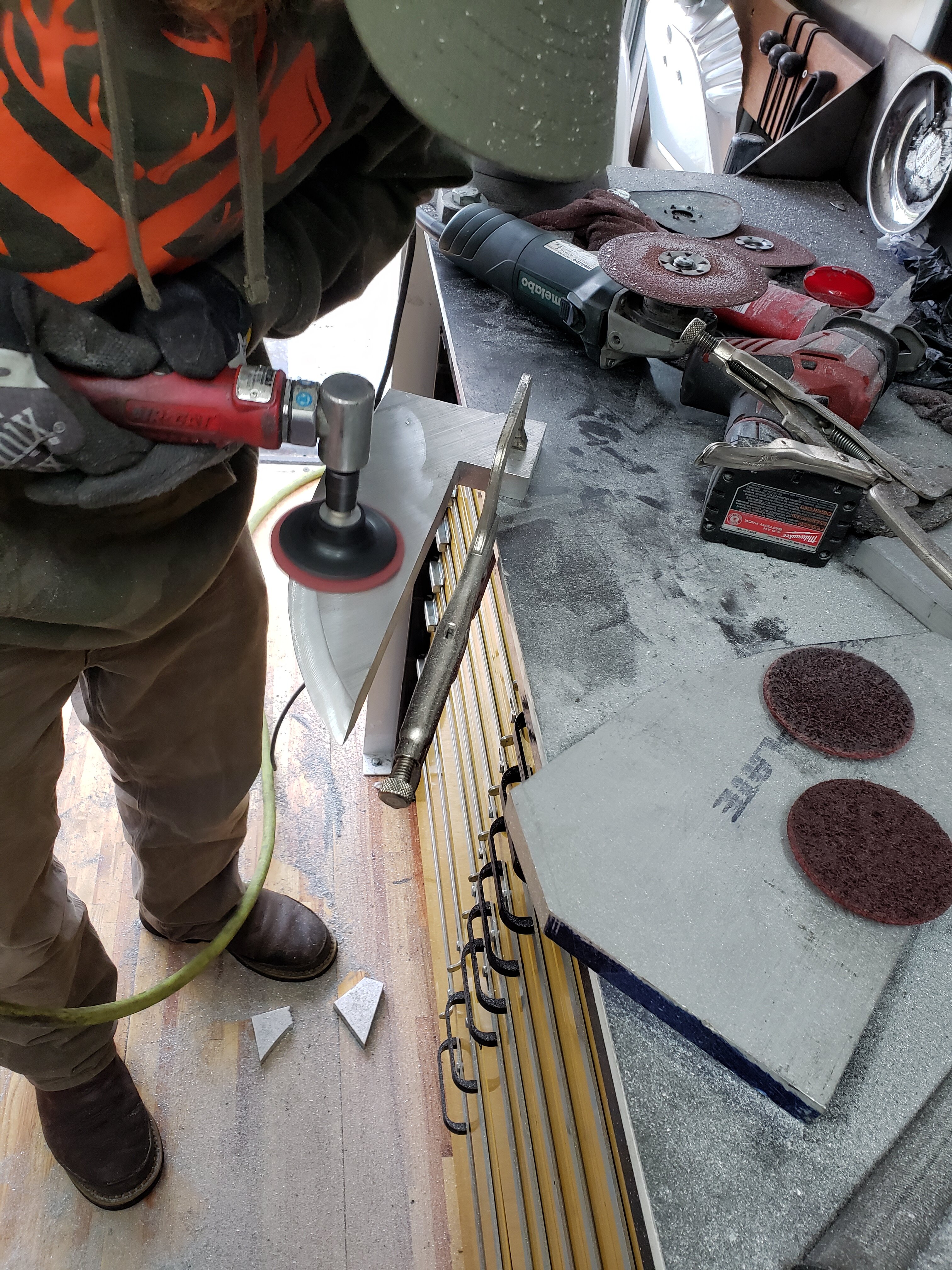

Vibro axe builders here's my prototype aluminum blade. I cut this by hand so there are inaccuracies and imperfections. I'm working on perfecting this blade or making it as accurate as possible. I have the two side plates to cut and attach. I'll be water cutting a new blade very soon. I'll keep everyone updated on the progress of this project and my vibro axe build.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Ryan Clinton

Well-Known Member
RPF PREMIUM MEMBER
It's not too bad. The new one I'm cutting might be a little heavier. The screen used prop was a little bigger so I'll be cutting a new one ( screen accurate one) this week.


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Ryan Clinton

Well-Known Member
RPF PREMIUM MEMBER

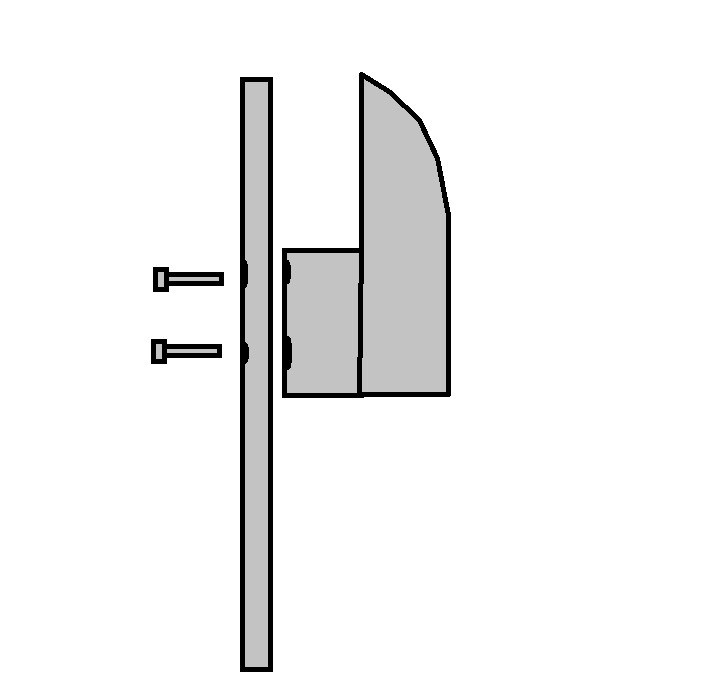

Ok update. I'm jet cutting the blade and side pieces tomorrow. I'll put the edge on it, assemble it, and buff it out to be painted. I'll post up pictures of the finished product on this thread. I'll set up a short run thread as soon as its done.


Ryan Clinton

Well-Known Member
RPF PREMIUM MEMBER
New update, sorry its taking a while I got back the blade from being machine cut. The company was only supposed to cut the outside shape however they took liberties and made it more inaccurate than my first prototype. So I'll probably be hand cutting these. To be precise itll just take a little more time to cut than my first blade.


Trooper_trent

Master Member
RPF PREMIUM MEMBER
Interesting. I wonder why they deviated from your instructions.
Thanks for the update! Can't wait to see more!


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Ryan Clinton

Well-Known Member
RPF PREMIUM MEMBER
Dont know. Even if they were just trying to help out the files I sent are detailed from every angle, shape, etc. I dont know how they could have shaped it the way they did.


Ryan Clinton

Well-Known Member
RPF PREMIUM MEMBER
I mounted my faucet snap nipple yesterday to the pole. I made a plug in the end of the pole about 2 inches in. Then filled it with resin.


Ryan Clinton

Well-Known Member
RPF PREMIUM MEMBER
I then set the faucet adapter on a piece of duct tape to seal the bottom and filled it with resin. After it cured I ran a screw through the faucet adapter and into the pole.
