Aliens APC - 1/12 (3D Print)

Discussion in 'General Modeling' started by Roboto, May 9, 2015.

Tags:
  1. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    Hey All,

    First - credit to Wasili for his 1/12 APC model build - total inspiration. I spent hours and hours looking at his thread.

    Second - credit to Bold Machines: The Innovation Workshop at Stratasys where I work. http://www.boldmachines.com

    We've worked on this project during evenings/weekends and have over 300 hours of design and research time in so far

    This is a 1/12 scale Aliens APC build - based on blueprints and the Halcyon model kit (both purchased on eBay). Built the CAD model in Solidworks - now 3D printing the components on a Connex 3/Objet 500, Objet Alaris 30, Mojo and MakerBot z18/Replicator 2 printers.

    APC_2.png APC_1.png


    Now going after each part of the Aliens APC for the build. Tires first.

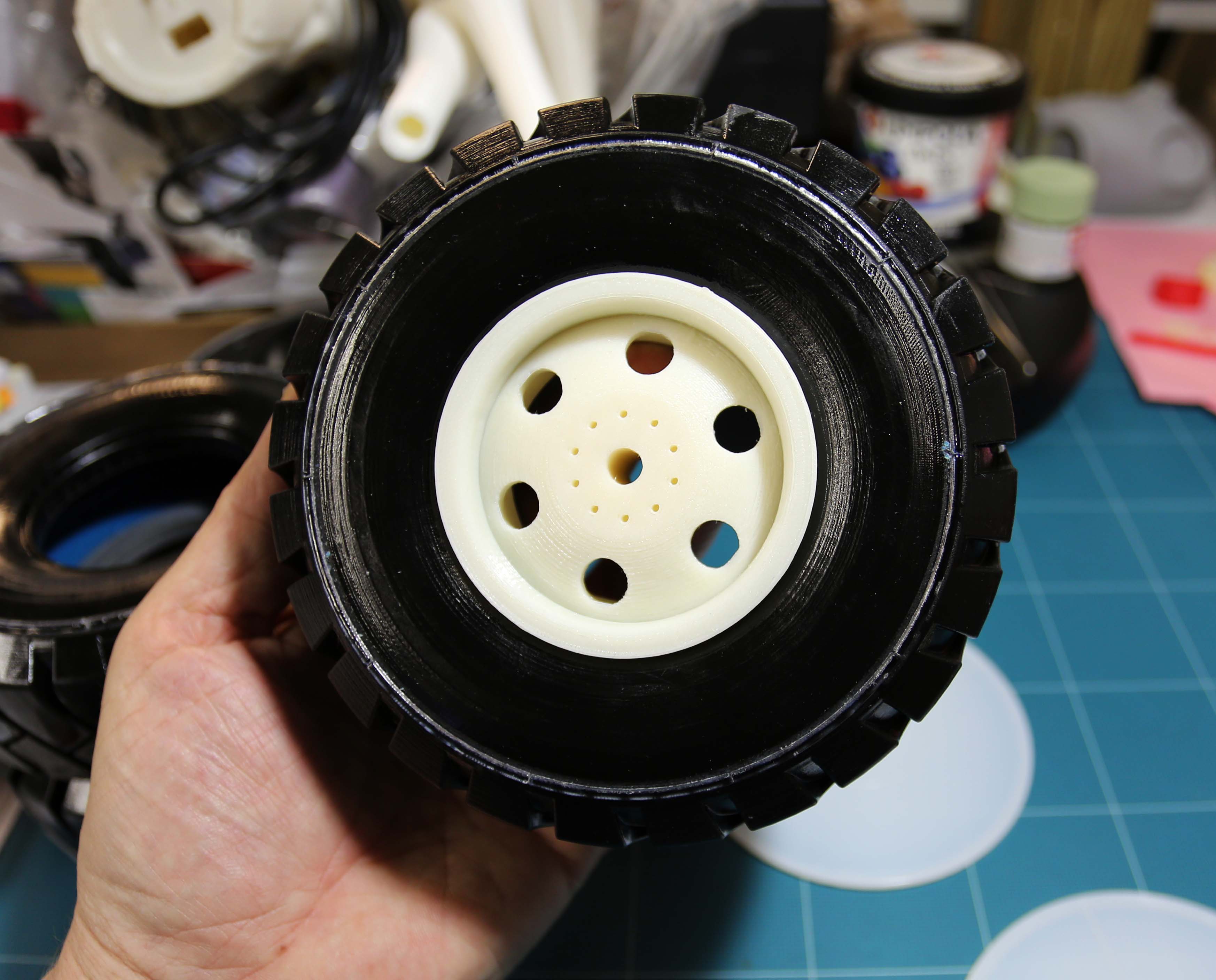

    The tires are printed in Tango Black + which is a flexible material. Shore A value of 45 which is almost gummy bear squishy. We inserted a snap ring to hold the hubcap plate.

    APC Tire.jpg APC Tire Tread.jpg APC Tire Set.jpg APC Wheel Hub.jpg

    Last edited: May 9, 2015
    Wes R, TheNylonGag and Randy13 like this.
  2. IEDBOUNTYHUNTER

    IEDBOUNTYHUNTER Sr Member

    Trophy Points:
    1,355
    Looking great Rob. Good to see you posting again.

  3. Duncanator

    Duncanator Sr Member

    Trophy Points:
    1,085
    More! More!
    I love this vehicle!

  4. Chaank

    Chaank Well-Known Member

    Trophy Points:
    916
    1/12! :eek

  5. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Love it already! Eager to see the rest coming to life:cool

  6. moonlightdrive2

    moonlightdrive2 Well-Known Member

    Trophy Points:
    566
    Very nice !

  7. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118

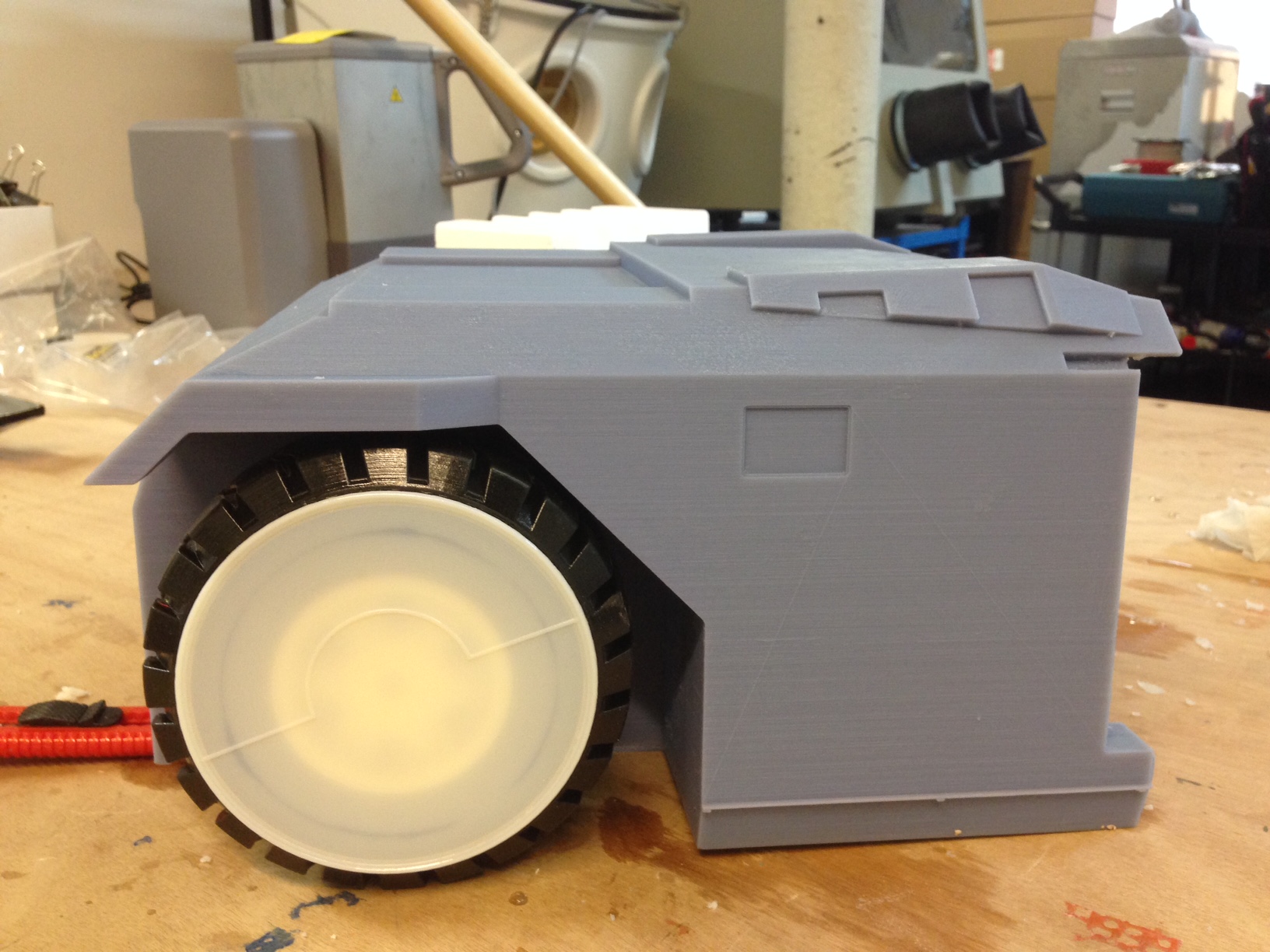

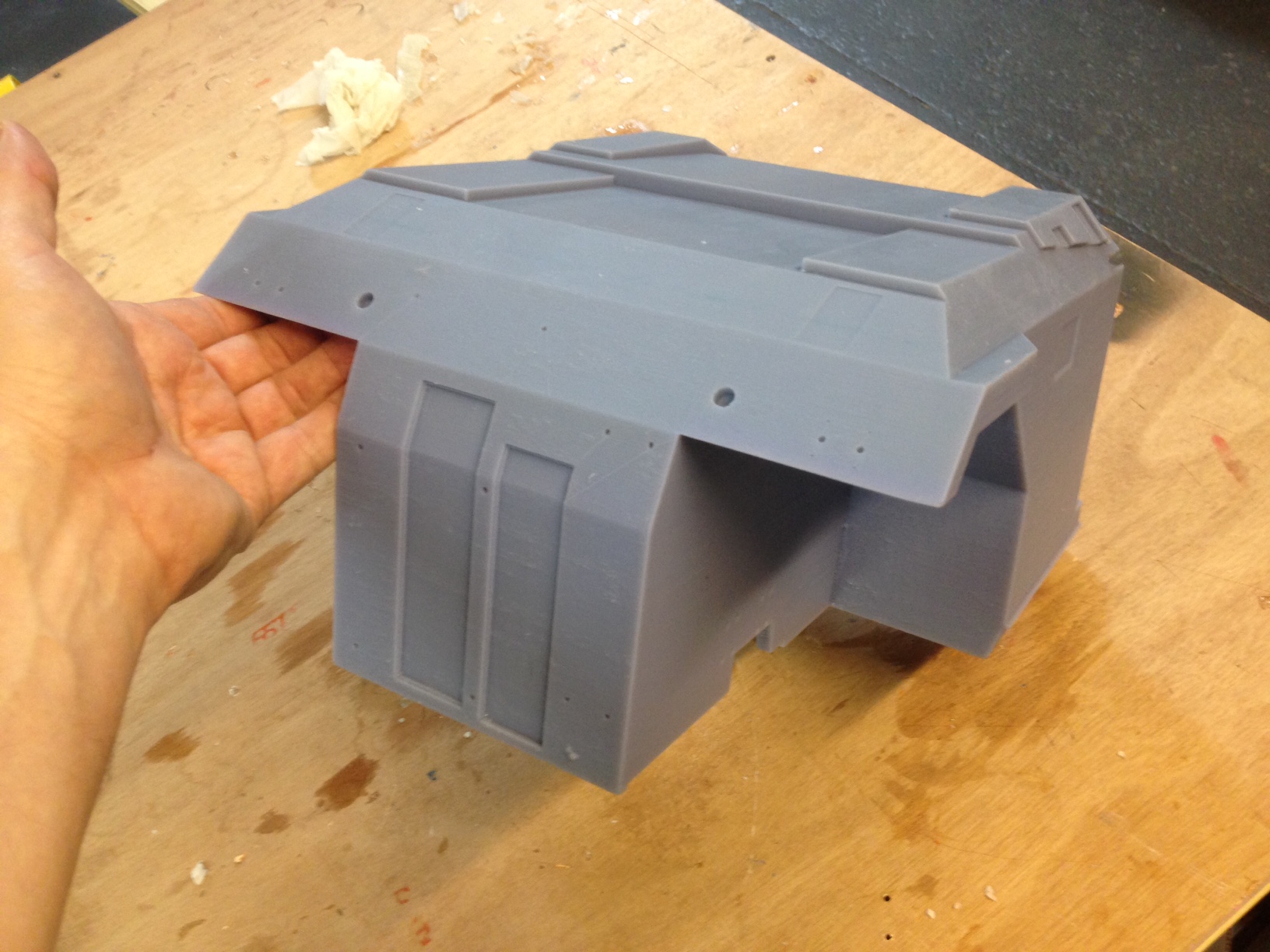

    Update: Back half of main body printed. Very big. Very Heavy. I think we will need to rework our suspension....... :p

    IMG_3879.JPG IMG_3880.JPG

  8. IEDBOUNTYHUNTER

    IEDBOUNTYHUNTER Sr Member

    Trophy Points:
    1,355
    Sweet, looking great.

  9. Duncanator

    Duncanator Sr Member

    Trophy Points:
    1,085
    Why is it so heavy? You didn't print it solid, did you?

  10. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    @ Duncanator: Not solid. Has about 4mm walls. The material is PolyJet so it's solid plastic + the thing is just huge....

    Might drop it down a scale or two at some point.

  11. wasili

    wasili Sr Member

    Trophy Points:
    1,241
    :thumbsup

  12. RKS

    RKS Active Member

    Trophy Points:
    341
    If you made those wheels available to upgrade the Halcyon kit, you'd be doing a lot of us commoners a big favour.

  13. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    Solidscape wax prints for casting. Super detailed - but also very fragile. Will cast in white bronze or brass.


  14. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    1/12 Scale Aliens APC (3D Print)

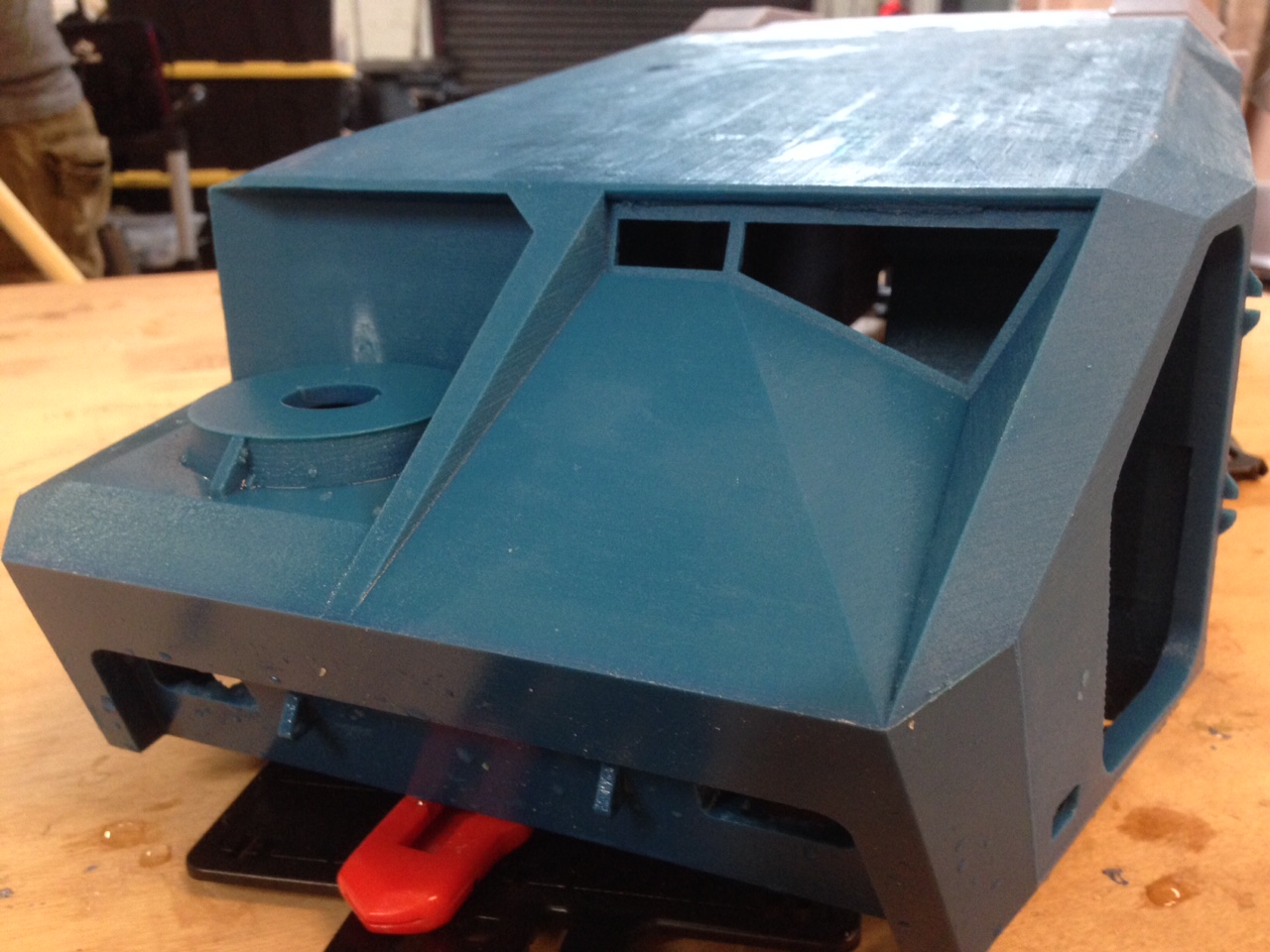

    Main body prints complete. We used leftover resin - that's why the different colors. Fit is good - will be some cleanup above the door and some spots around the front - but overall looks good.

    [​IMG] IMG_3884.JPG IMG_3883.JPG


    Attached Files:

    SofaKing01 likes this.
  15. IEDBOUNTYHUNTER

    IEDBOUNTYHUNTER Sr Member

    Trophy Points:
    1,355
    Rob. Looks great. Let me know



    Al

  16. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    Aliens APC 1/12 (3D Print)

    Photo etch parts back today.


  17. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118

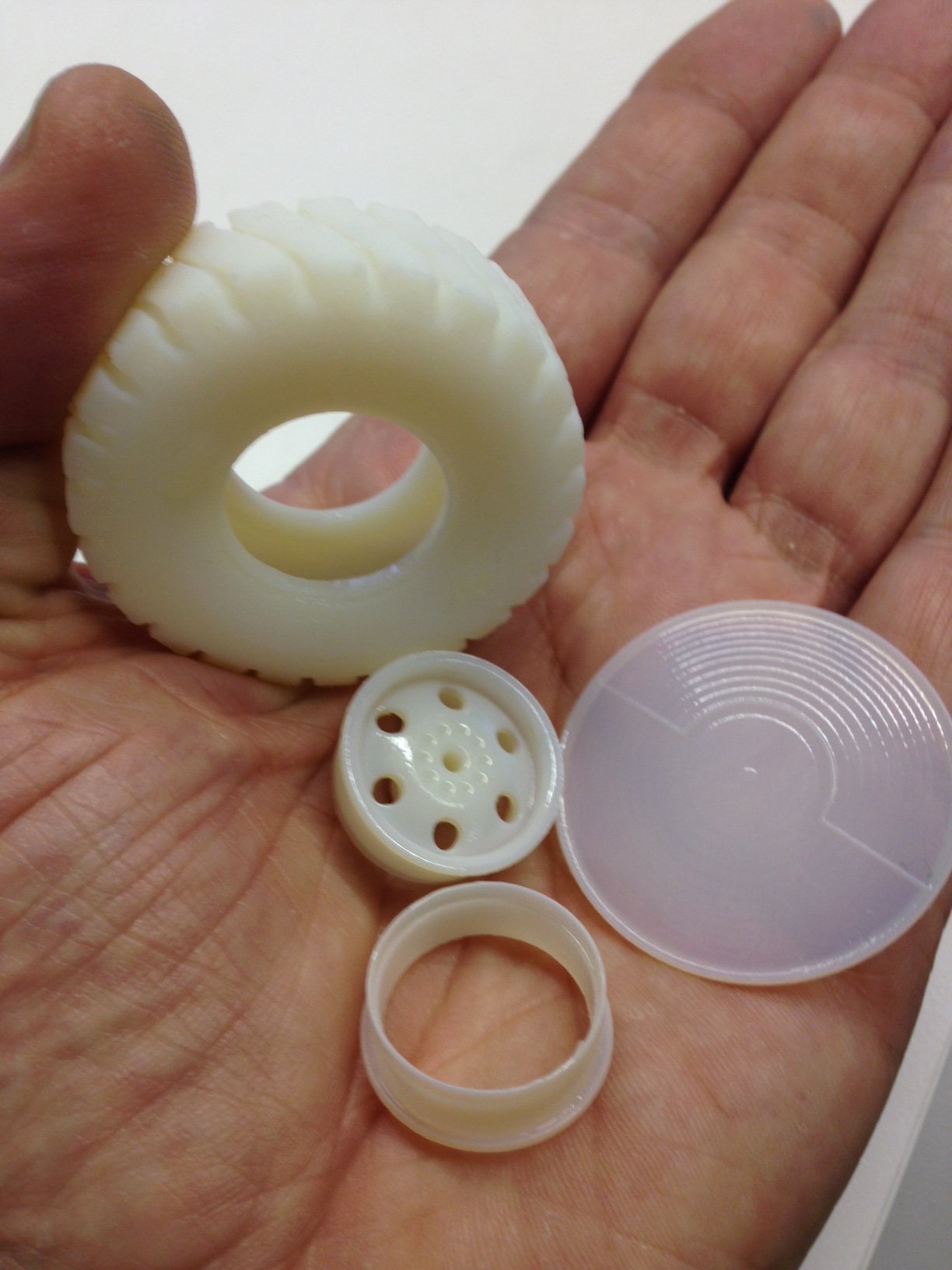

    1/35 Scale 3D Prints on the Objet Alaris 30 - in Vero White. These are polyjet - so rigid material. Could also cast them in Smooth On Task 13 material or attempt to print in the flexible Tango + material.


    @ RKS PM me if you want to discuss further.

    IMG_3895.JPG IMG_3896.JPG

    SofaKing01 likes this.
  18. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    ALIENS 1/12 APC Build (3D Print)

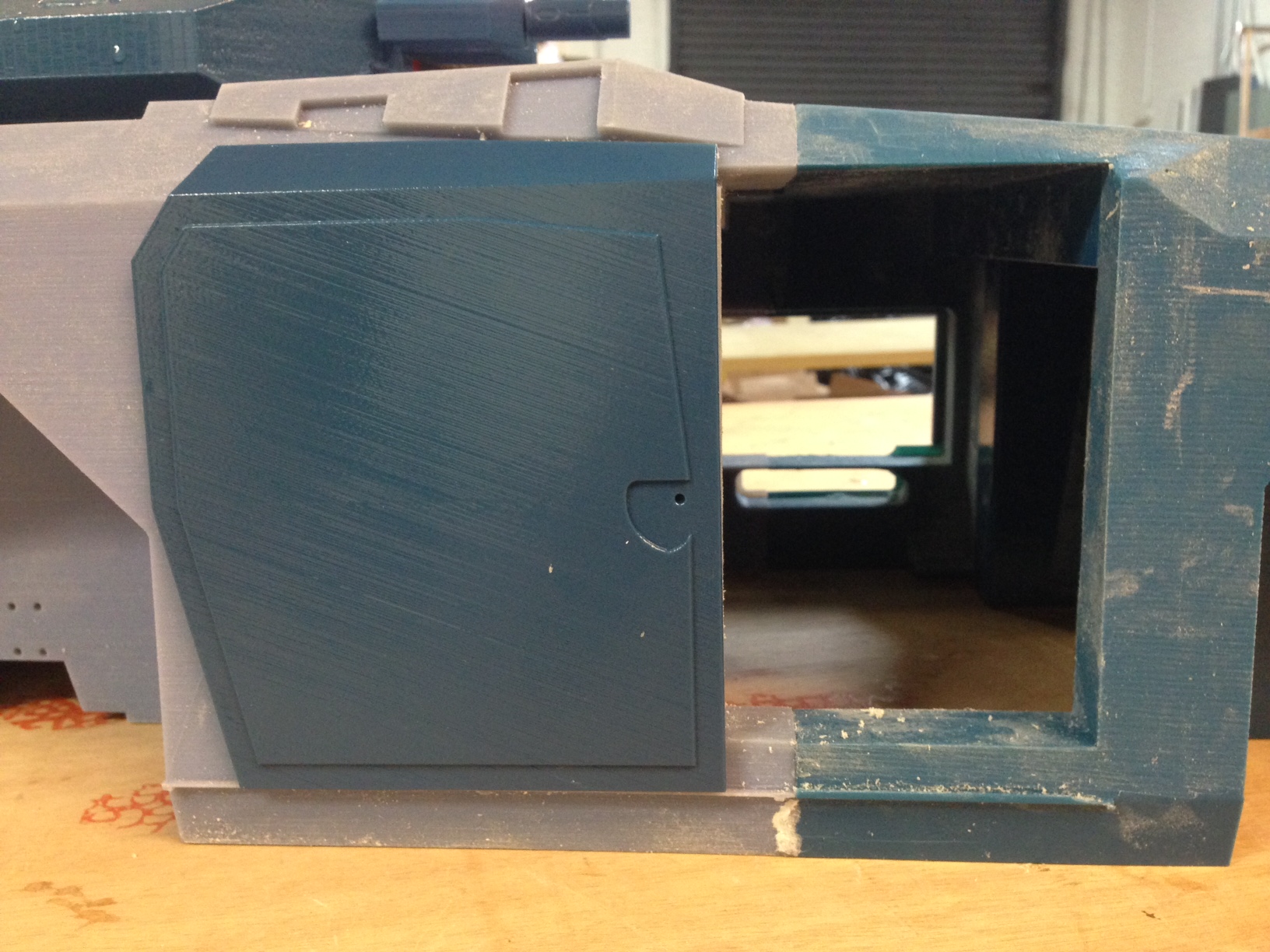

    Today's bounty.... Top Gun and rails. Rails will need to cast though to support weight. Front gun barrel and side door. IMG_3904.JPG IMG_3905.JPG IMG_3906.JPG IMG_3907.JPG

  19. RogueTrooper

    RogueTrooper Well-Known Member

    Trophy Points:
    935
    Very nice work;)...always wanted to build this.

  20. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    ALIENS 1/12 APC Build (3D Print)

    Ran some parts on the Objet Alaris 30 last night.

    Front Door, Back grill base and vents. Front Gun. Couple of weird fit issues - but so far looking good.

    IMG_3920.JPG IMG_3916.JPG IMG_3917.JPG IMG_3919.JPG

    Last edited: May 21, 2015
    Randy13 likes this.
  21. IEDBOUNTYHUNTER

    IEDBOUNTYHUNTER Sr Member

    Trophy Points:
    1,355
    Looking good. Cant wait to see some primer on those

  22. TheNylonGag

    TheNylonGag Well-Known Member Gone but not forgotten.

    Trophy Points:
    935
    Fantastic mate

    Gag

  23. Roboto

    Roboto Member RPF PREMIUM MEMBER

    Trophy Points:
    118
    ALIENS 1/12 APC Build (3D Print)

    Test fit for the photoetch parts. Looks good. Might have to mod some parts a bit - or just lightly scrape them down.
    IEDBOUNTYHUNTER gotta bondo the seam today and then hit it with primer maybe tomorrow. I have a new respect for your level of studio scale work - this is nuts ! :0

    I saw a thread on paint color - if anyone knows? Umbrol maybe?



    Last edited by a moderator: Nov 8, 2018
  24. IEDBOUNTYHUNTER

    IEDBOUNTYHUNTER Sr Member

    Trophy Points:
    1,355
    Lol. Thanks. Can be a pain sometimes. But its all fun. Take a look at the betty. That engine is a killer

  25. emperor

    emperor New Member

    Trophy Points:
    2
    Are the 3d files or the printed kit for sale?

    How long does it take to print it?

  26. IEDBOUNTYHUNTER

    IEDBOUNTYHUNTER Sr Member

    Trophy Points:
    1,355
    I have this at my shop. Im getting it ready to mold. You will have to ask Roboto on price and availability.

  27. emperor

    emperor New Member

    Trophy Points:
    2
    keep me updated please.

  28. ixtore

    ixtore Active Member

    Trophy Points:
    361
    This is an exciting build. One of my favorite miniatures. Very neat work - and the size makes it even better!
    Will await news on the kit!!!

  29. gyoung2993

    gyoung2993 Sr Member

    Trophy Points:
    2,030
    I love what you are doing with this Aliens APC , I wish my HCG Aliens APC would have been that size , its 20 inches long , don't know the scale of mine , but this is crazy , awesome work you guys are doing....If you ever decide later next year to do a dropship , please let me know !!! Will be watching this and thanks for sharing sir !!!

  30. ixtore

    ixtore Active Member

    Trophy Points:
    361
    A dropship in the same scale. :)

  31. Spacejunk

    Spacejunk Active Member

    Trophy Points:
    341
    Any news?

  32. memyselfi

    memyselfi New Member

    Trophy Points:
    3
    Any news on castings of this

  33. Robiwon

    Robiwon Master Member Gone but not forgotten.

    Trophy Points:
    2,595
    Your probably not going to hear anything else on this. Roboto has not been here in almost a year and the one "casting" it has been banned.
