In the film ALIEN, the Nostromo crew wore a watch composed of 2 Casio F-100 black resin watches attached to a orange flexible band. Through the years I've seen threads from different websites from other people who have made this prop and I've always wanted one for my ALIEN collection but the price of vintage Casio F-100 watches is very expensive.



I did purchase a broken one years ago for a good price but I decided I would recreate it as a 3d file and print it on my resin printer.



With a digital caliper I measured and modeled in Autodesk Fusion 360 the watch and created 2 different types of bands. The flat band I plan on making in silicone some time in the future but for now I'm using the bent one for my display. The watch has a front and a back and when put together there is enough space to put a Casio module from an inexpensive F-91W watch.

Alternate_band copy-sm.png


I printed the watches and bands on my Elegoo Saturn resin printer. The original watches were made of black resin so I thought it was appropriate to use resin for my version. The 2 images are from the slicer (Lychee Slicer) I used to convert the STL into a file that would work on the resin printer.



Here is the original next to 3d printed versions and the watch module removed from a F-91W. I used Siraya Tech Fast grey resin and at this point I haven't sanded the shells in prep for painting.

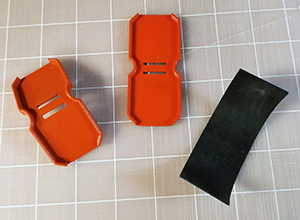

After a bit of sanding and a couple of coats of grey filler primer I painted the shells with black gloss lacquer and a clear gloss coat. For the bands, I used Vallejo Clear Orange with a semi-gloss coat. I put slits in the band models so that I could place a thin strip of rubber through the lugs and hold the 2 watches together. The rubber came from a bike tire repair kit I had in my garage.

bands and rubber-sm.jpg


I created graphics in Adobe Illustrator for the bezel area and the watch stand. After they were cut out and glued on the front of the shells I placed thin clear plastic over the bezel graphics that I cut from packaging I received with a tool bought recently. It gives the illusion of glass.



I put it all together and saw that the modern Casio F-91W watch modules also includes the date on a separate row while the original only had the time and AM or PM on a single row. So, the LCD text was getting cut off.

watch with modules2-sm.jpg
watch with modules3-sm.jpg


I decided to create LCD graphics based on the original F-100 in Illustrator which I can place behind the bezel. The watch stand is from one of the Casio F-91W watches. I added the Weyland-Yutani and Casio logos to the stand.

watch with paper3-sm.jpg
watch with paper4-sm.jpg


Now I have it placed next some of the other ALIEN items I have recreated or purchased.



In the process of working on this project I learned the correct settings for printing with my resin printer. There are a bunch of failed versions and prototypes sitting in a plastic bin on my work bench. They are reminders of how far I've come since I started this project. With this knowledge, I'm going to print a bunch of other prop models I've made in Fusion 360 in the last 2 years. When I finish, I hope to post again on the RPF.


Attachments

  • bands and rubber-sm.jpg
    bands and rubber-sm.jpg
    78.3 KB · Views: 41
  • watch_graphics-sm.jpg
    1.5 MB · Views: 40

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

WickNJ

New Member
In the film ALIEN, the Nostromo crew wore a watch composed of 2 Casio F-100 black resin watches attached to a orange flexible band. Through the years I've seen threads from different websites from other people who have made this prop and I've always wanted one for my ALIEN collection but the price of vintage Casio F-100 watches is very expensive.

View attachment 1383445 View attachment 1383528 View attachment 1383530

I did purchase a broken one years ago for a good price but I decided I would recreate it as a 3d file and print it on my resin printer.

View attachment 1383446

With a digital caliper I measured and modeled in Autodesk Fusion 360 the watch and created 2 different types of bands. The flat band I plan on making in silicone some time in the future but for now I'm using the bent one for my display. The watch has a front and a back and when put together there is enough space to put a Casio module from an inexpensive F-91W watch.

View attachment 1383451 View attachment 1383452

I printed the watches and bands on my Elegoo Saturn resin printer. The original watches were made of black resin so I thought it was appropriate to use resin for my version. The 2 images are from the slicer (Lychee Slicer) I used to convert the STL into a file that would work on the resin printer.

View attachment 1383453 View attachment 1383454

Here is the original next to 3d printed versions and the watch module removed from a F-91W. I used Siraya Tech Fast grey resin and at this point I haven't sanded the shells in prep for painting.

View attachment 1383457

After a bit of sanding and a couple of coats of grey filler primer I painted the shells with black gloss lacquer and a clear gloss coat. For the bands, I used Vallejo Clear Orange with a semi-gloss coat. I put slits in the band models so that I could place a thin strip of rubber through the lugs and hold the 2 watches together. The rubber came from a bike tire repair kit I had in my garage.

View attachment 1383544 View attachment 1383459

I created graphics in Adobe Illustrator for the bezel area and the watch stand. After they were cut out and glued on the front of the shells I placed thin clear plastic over the bezel graphics that I cut from packaging I received with a tool bought recently. It gives the illusion of glass.

View attachment 1383472

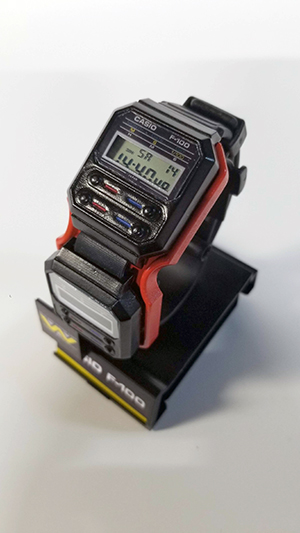

I put it all together and saw that the modern Casio F-91W watch modules also includes the date on a separate row while the original only had the time and AM or PM on a single row. So, the LCD text was getting cut off.

View attachment 1383483 View attachment 1383484

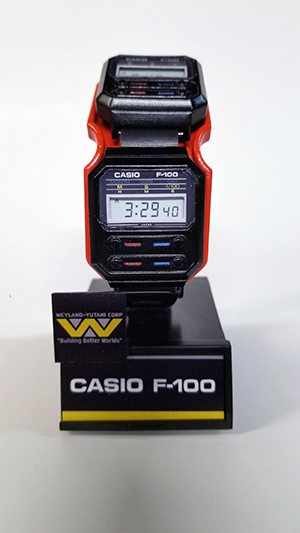

I decided to create LCD graphics based on the original F-100 in Illustrator which I can place behind the bezel. The watch stand is from one of the Casio F-91W watches. I added the Weyland-Yutani and Casio logos to the stand.
