Hi there !
After playing that game years ago, I begun seeking informations about that mythical revolver.
And so when I aquired enough 3d design skills, I naturally went for it ! :)

Here are some steps in the making of my replica of the Alien: Isolation .357 Revolver !

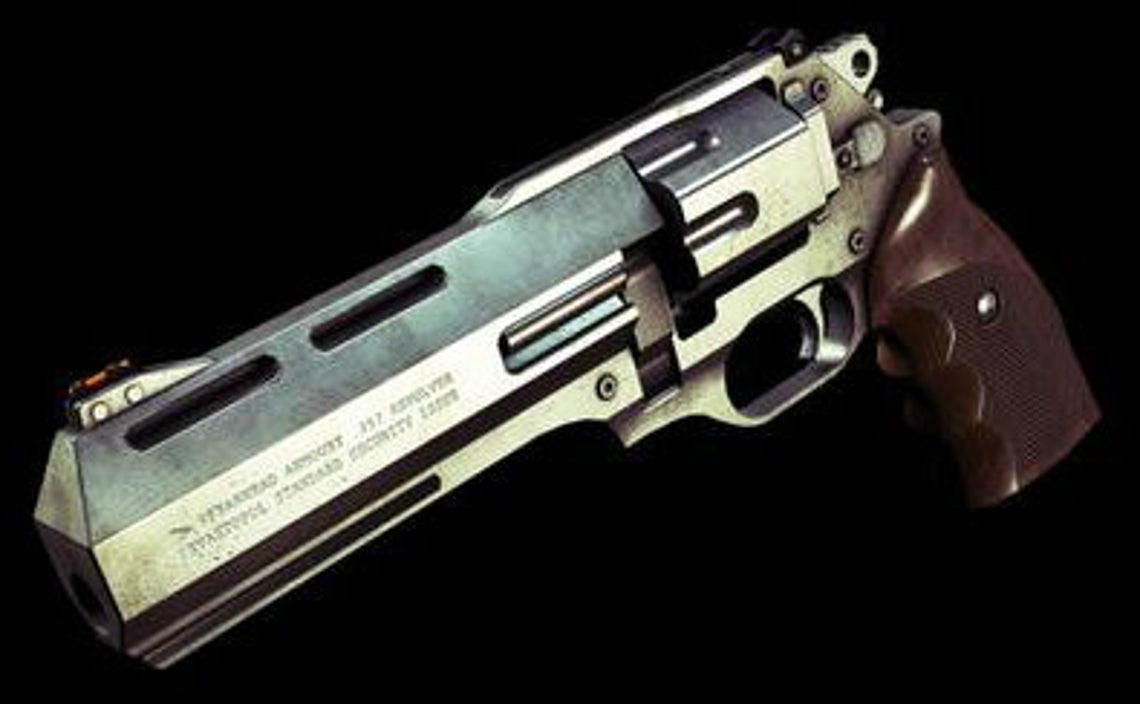

Those were my main references :


At this point I had already started to work on a Chiappa Rhino replica* (which this one is inspired from), so I had the general shape and size in mind.

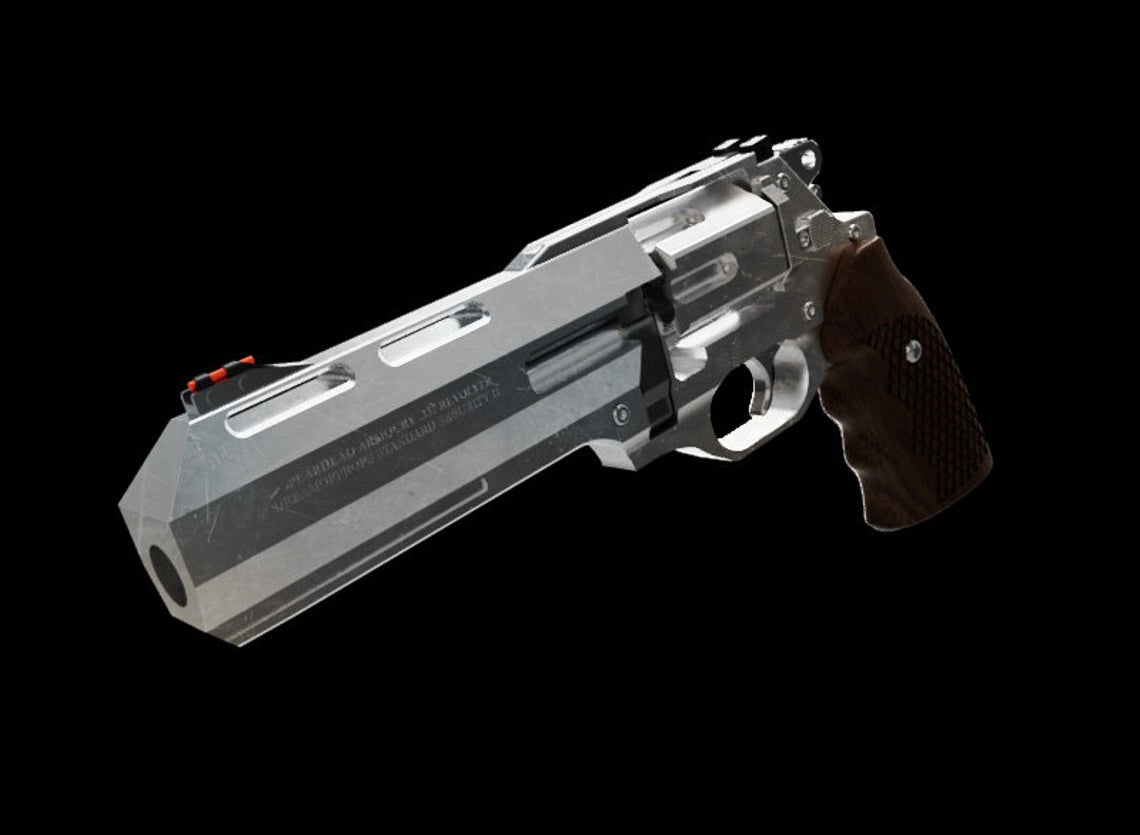

This was my first CAD render (I corrected the seBastopol to seVastopol later, thanks to an advised customer !)

A comparison Render :

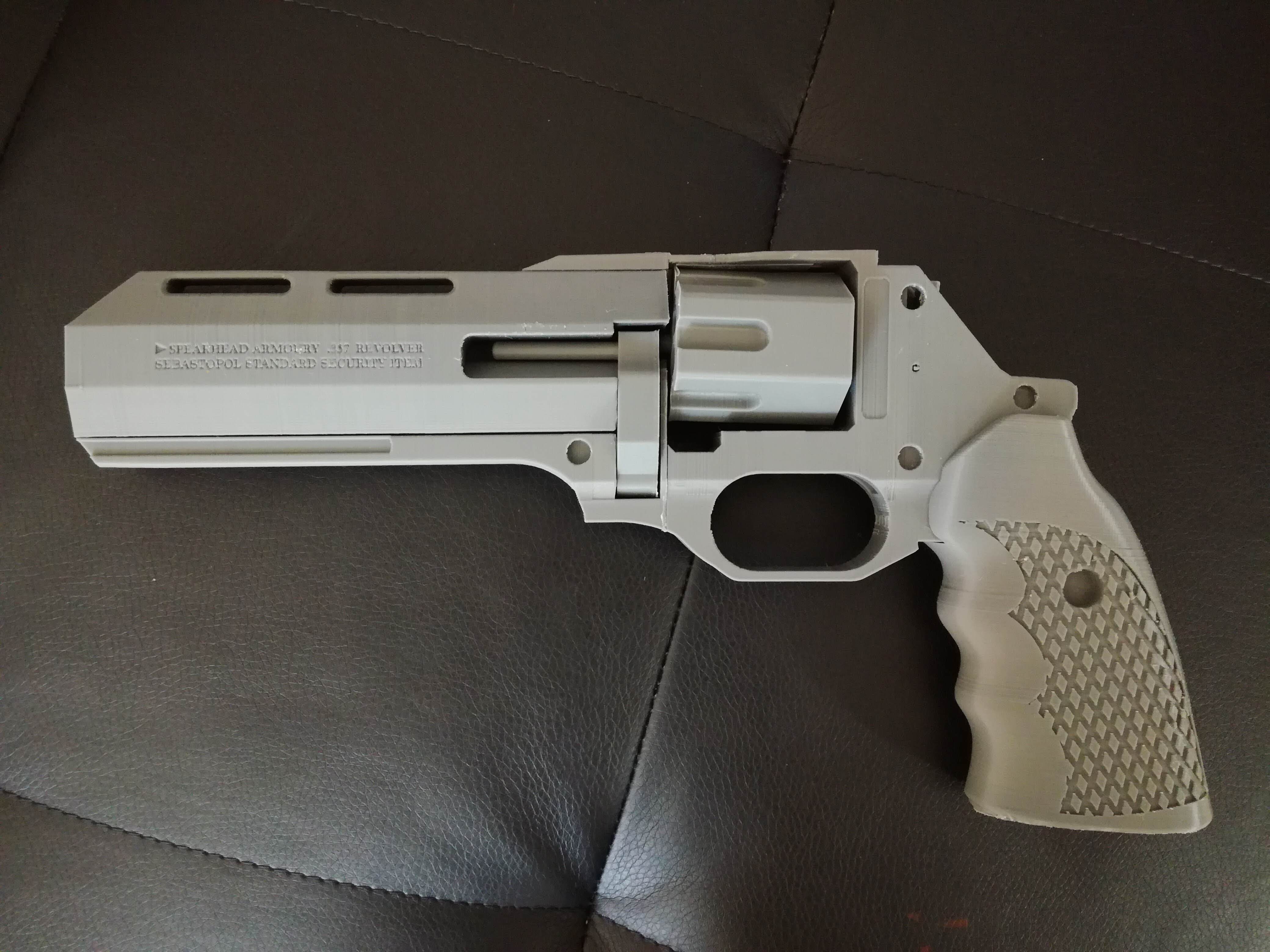

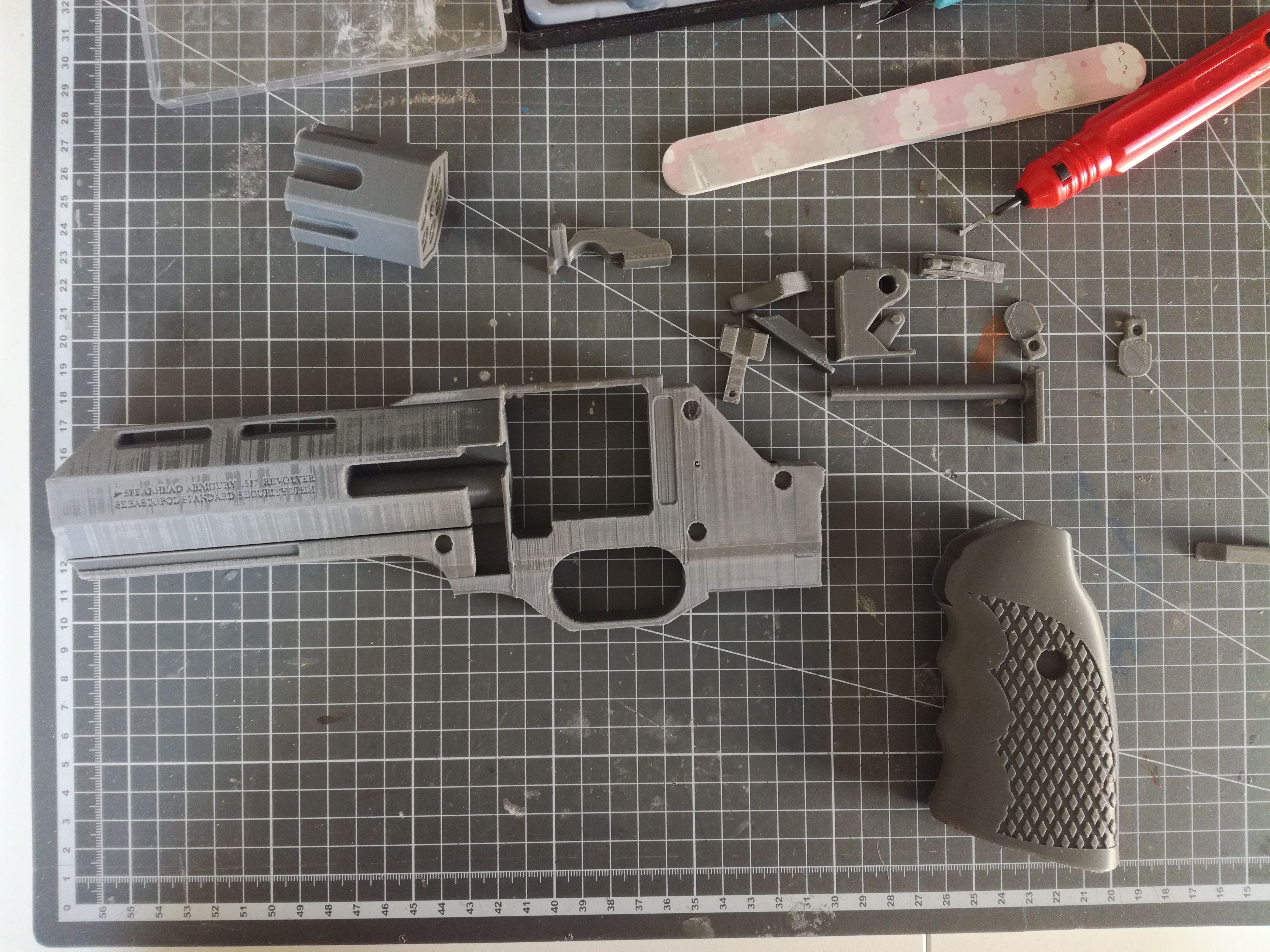

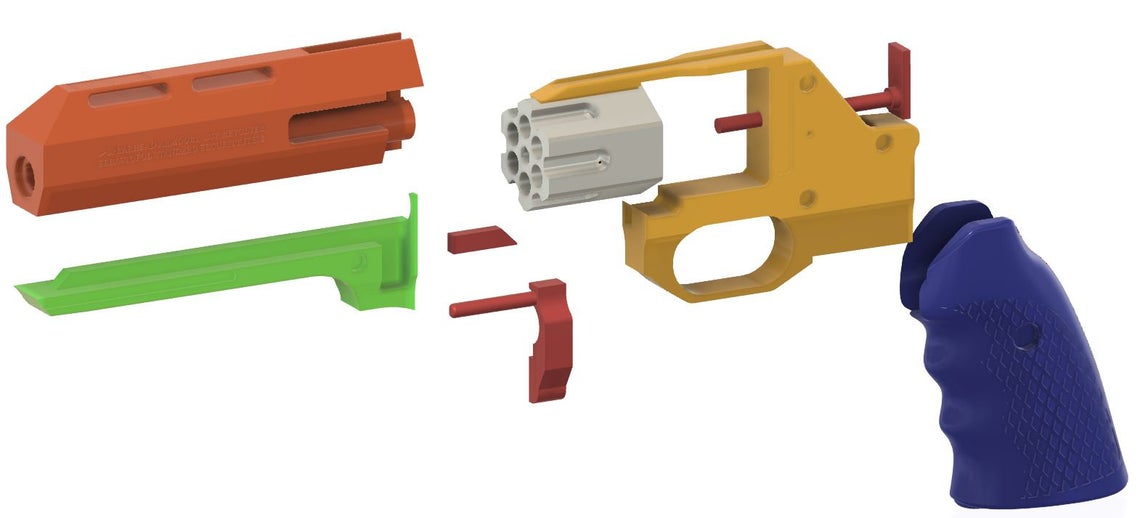

Then problem solving and Printing time :


Then sanding /painting / weathering :



...et voilà !



This was the story of my Spearhead Armoury .357 Revolver from Alien: Isolation ! :)



* You can find the STLs Files there > @ my Etsy shop <


Attachments

  • IMG_20201108_095341.jpg
    583.5 KB · Views: 60

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Buissonland

New Member
Hi knightedbylight,
Yes, you surely are ! :)
Don't be scared, it as been corrected since I printed my prototype. Have Fun, and show us !
