RoccatiDaniele

New Member

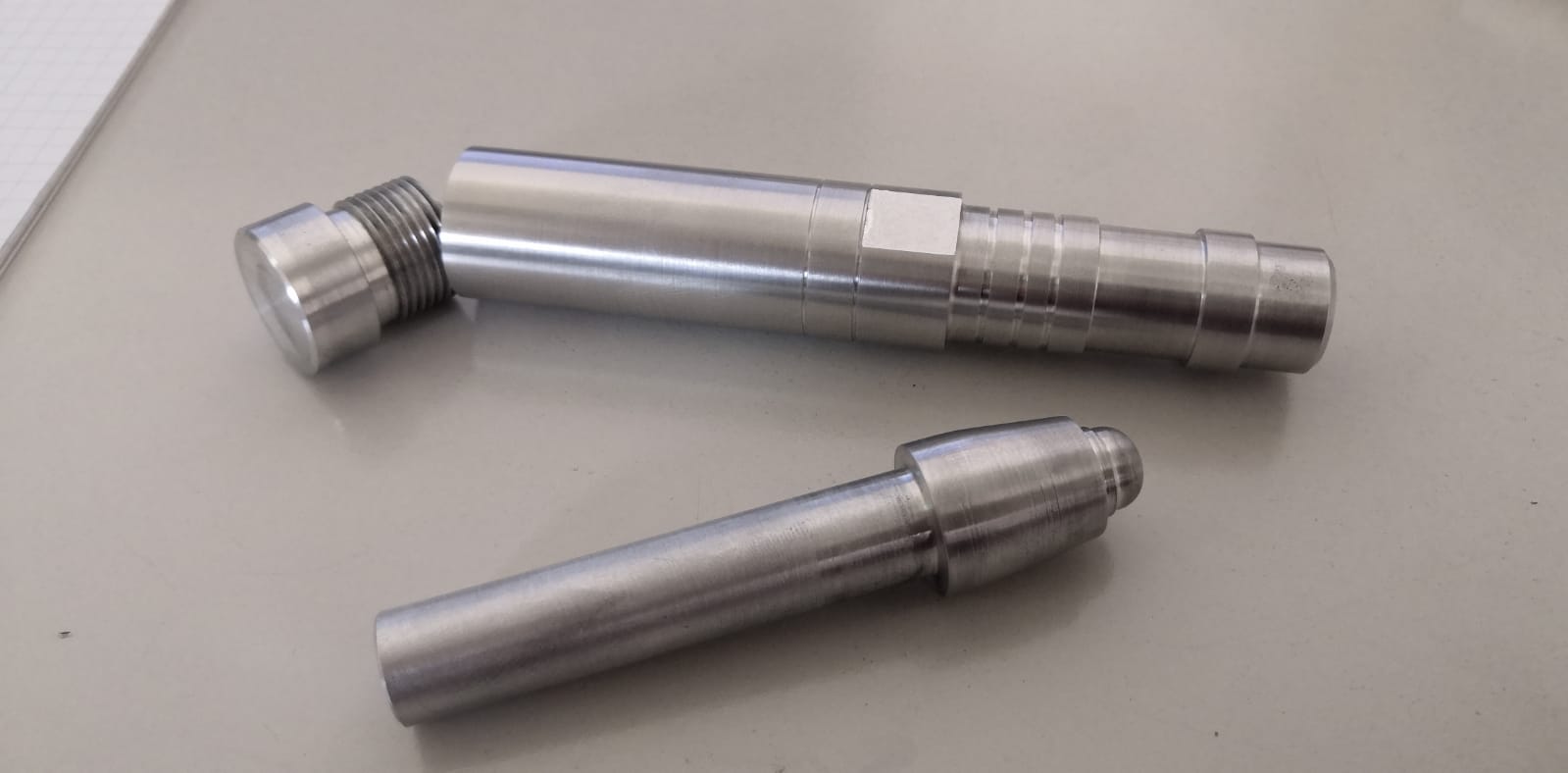

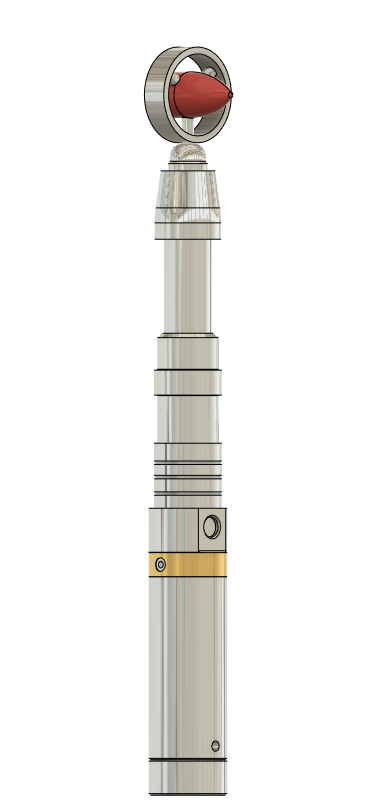

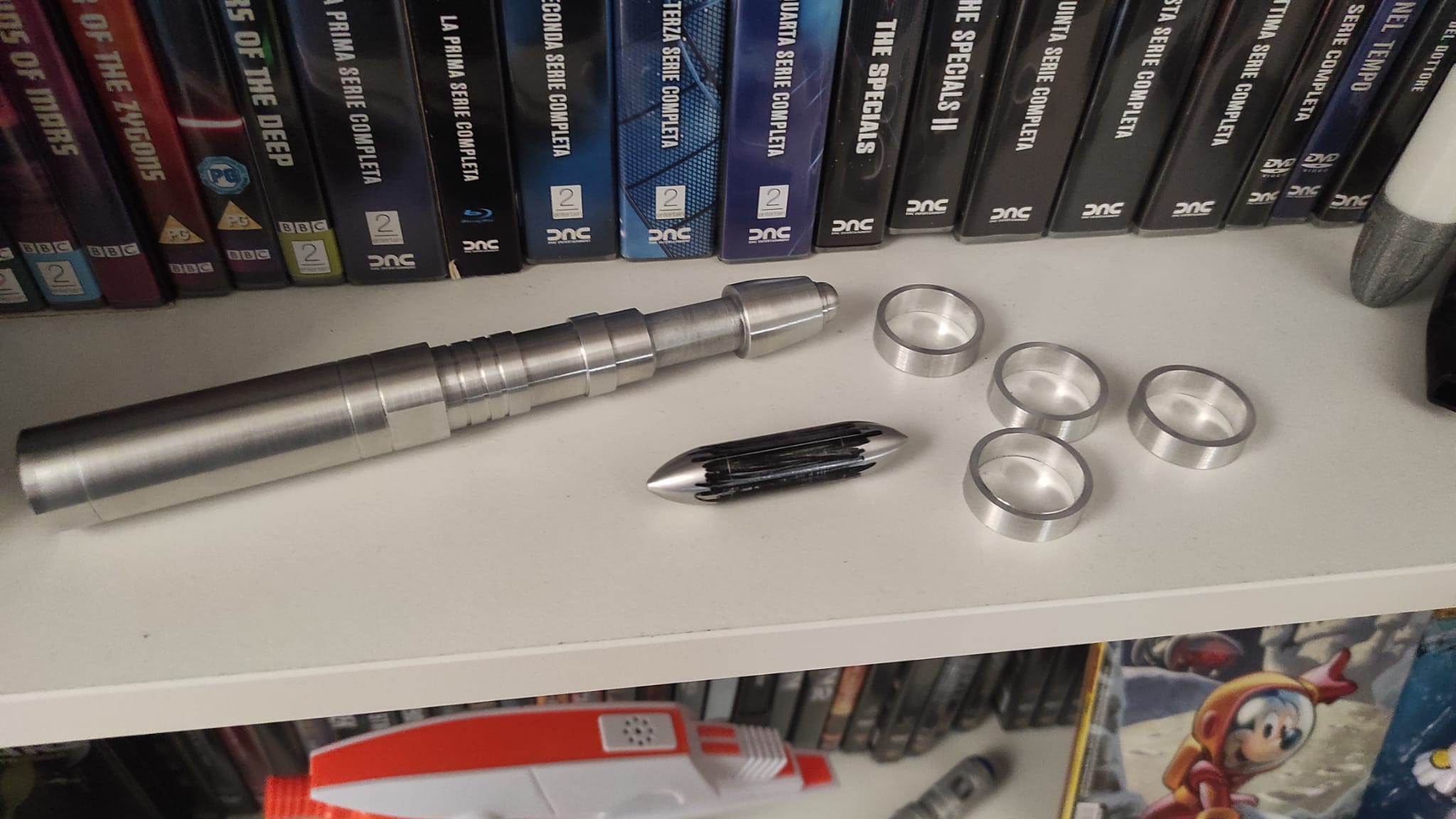

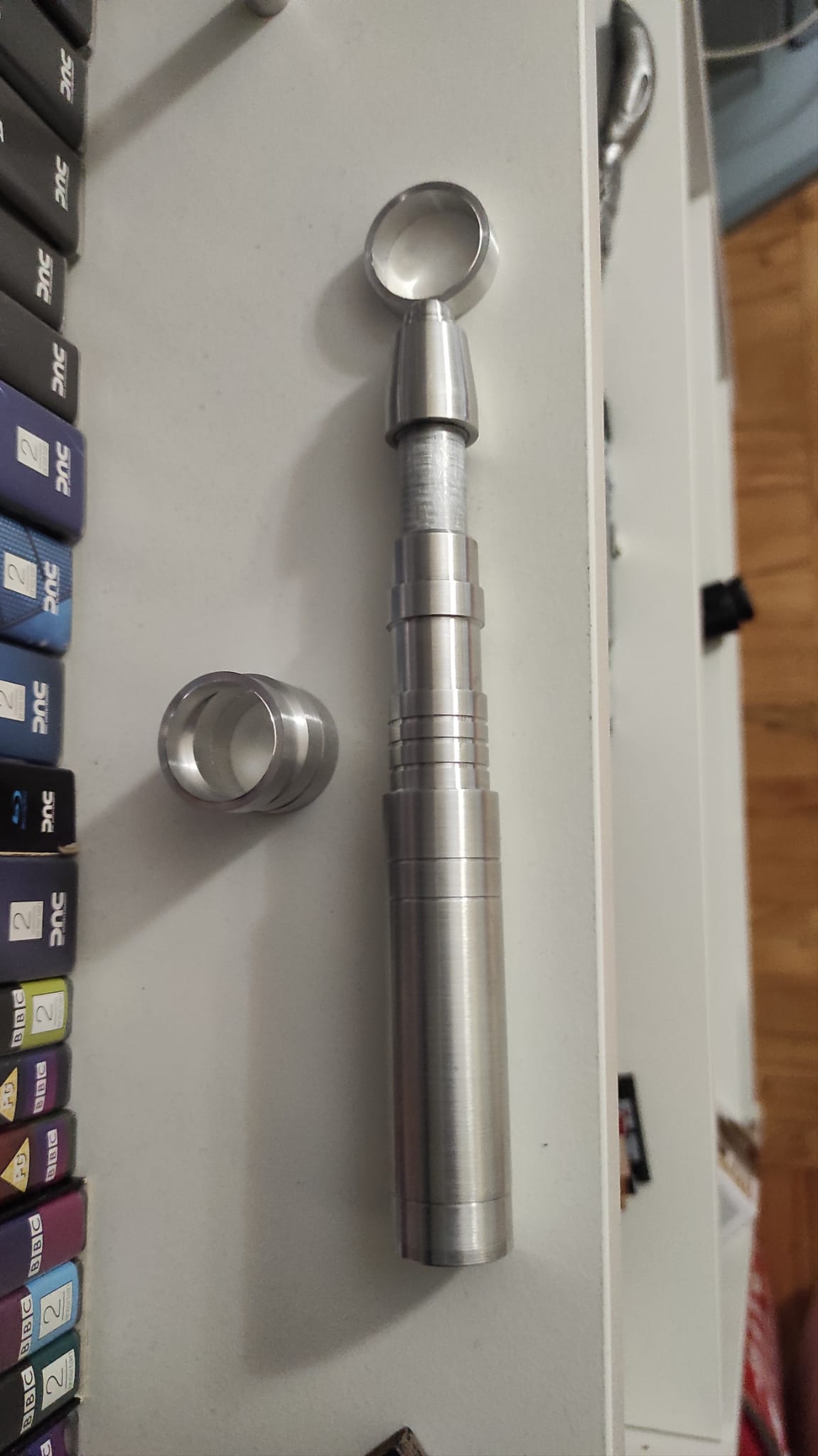

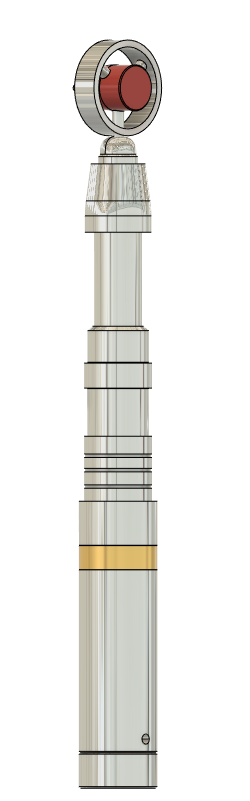

Hi everyone! After seeing one of the originals sonic screwdrivers from the 1996 movie at the Prop Store auction I decided to make a replica. Here you can see some photos of the 3D model made in Fusion 360 and then the turned aluminium version. Now I'm going to cut in half the "bullet" tip and then add all the holes required. I have already bought some really thin sheet of brass to make the adhesive ring in the main section. About the mechanism, I'm going to make two different versions, one simpler that lock up and down the sonic (there will be also a spring inside) and one another that will have a functioning button like the CO 11th Doctor Sonic Screwdriver.
v2_3.PNG v22.PNG WhatsApp Image 2020-09-08 at 15.18.55.jpeg WhatsApp Image 2020-09-08 at 15.22.25 (1).jpeg WhatsApp Image 2020-09-08 at 15.22.25.jpeg


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

13doctorwho

Sr Member
RPF PREMIUM MEMBER
Looks great. I like the way you did the spring action. I have one from a run on here and it has a twist lock kind of mechanism. I think yours is more like what we see on screen. Excellent work.


RoccatiDaniele

New Member
Beautiful work!
Thank you so much!

Looks great. I like the way you did the spring action. I have one from a run on here and it has a twist lock kind of mechanism. I think yours is more like what we see on screen. Excellent work.
Thank you! I've tried my best to make it as screen accurate as possible, I saw replicas made from others but I didn't like the twist-lock mechanism as it rotates the bullet.
At the moment I've rotated the bullet by 180 degrees as in the video wasn't right and I'm probably going to make an even more accurate version. I'm going to try to make a mechanism that will work with a button.


RoccatiDaniele

New Member
Hi everyone, I'm using this thread even if that replica that I'm showing you today isn't really the one in the title.

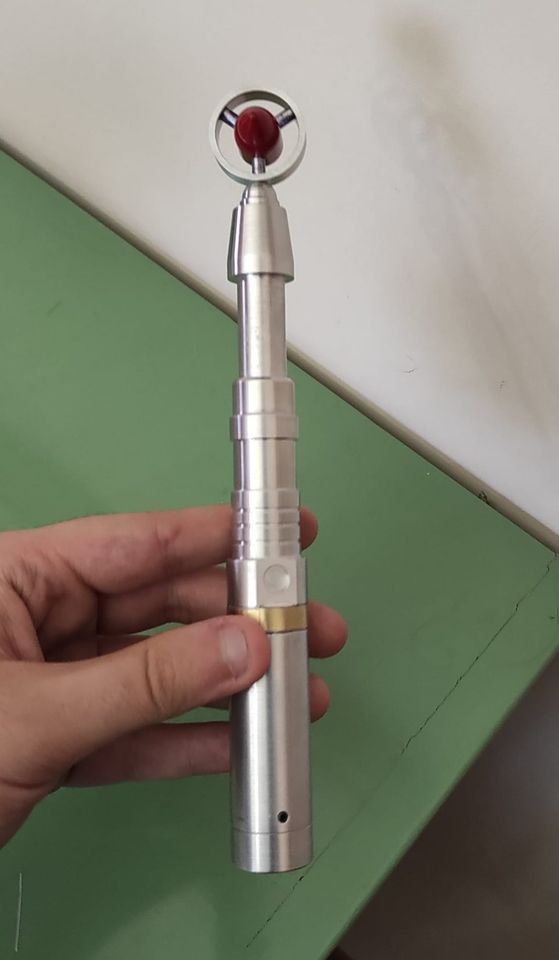

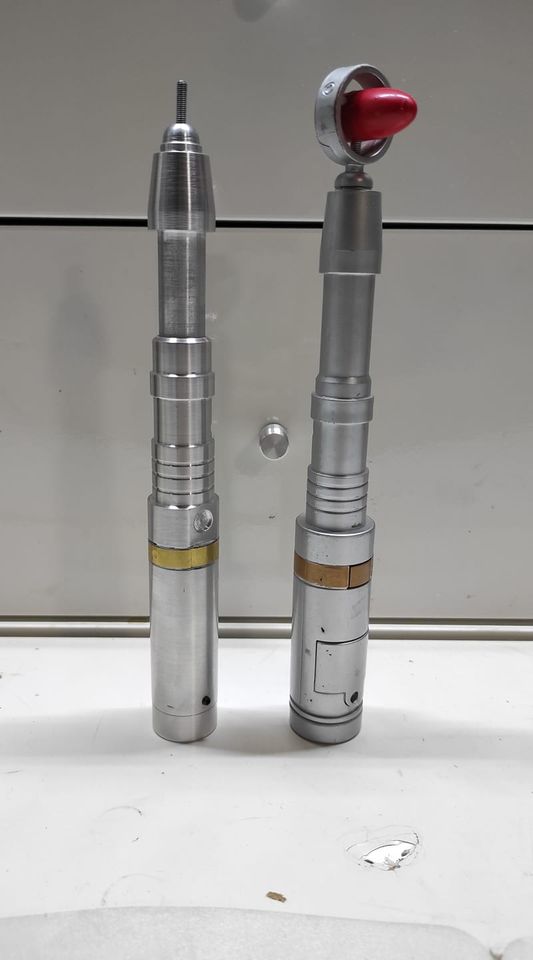

Recently I've made a replica of the 2013 version of the 8th Doctor's Sonic Screwdriver, originally made by 800-Trekker and for long in display at the Doctor Who Experience Cardiff. This replica is made out of aluminium and brass with the tip painted with gloss red painting. The mechanism isn't perfect as I used the same that I used in the 1996 version. Hope you all like it.
foto_5_con_logo.jpg foto_11_con_logo.jpg
