3D printed Buckles (W.I,P)

[HanSulu]

I'm a Mechanical Engineering graduate student on a journey to make a screen accurate Han Solo belt buckle.


I built a set of buckles for Celebration with no input so the results were not to my liking.


My method is simple; I used a pattern and then drafted the design using Solidworks. Version 1.0 was 3D printed and coated with XTC 3D. Version 2.0 will be printed first to check the fit and then sent for metal fabrication with the buckles finished with a brushed aluminum texture.



Here are my progress shots of the ESB buckles. I would love your input.

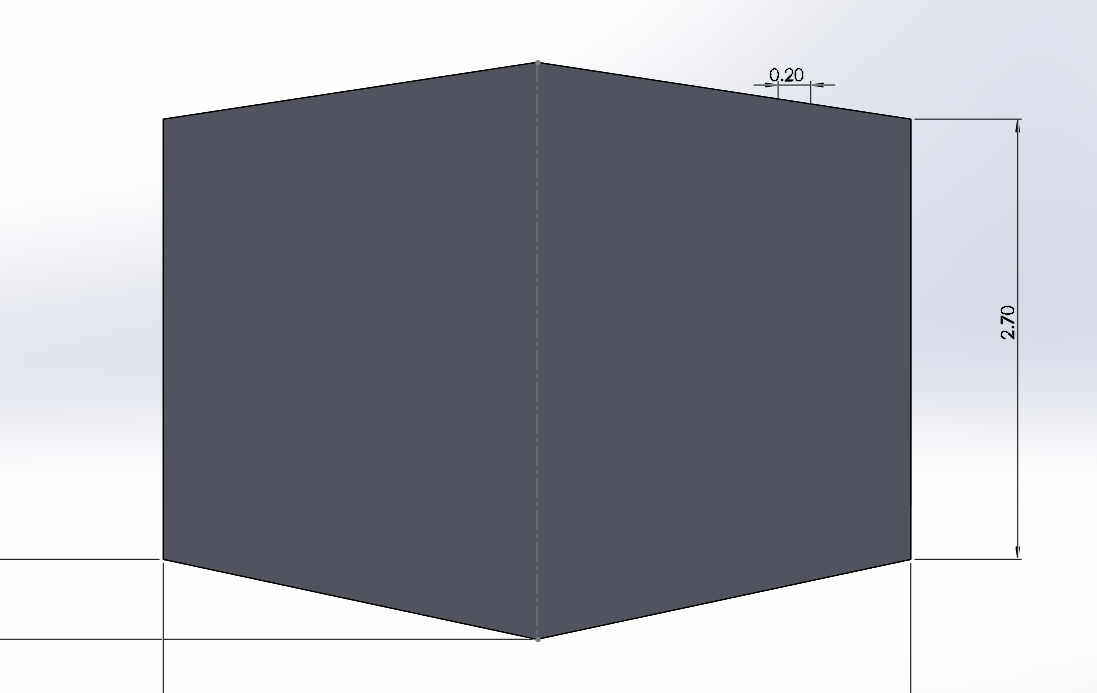

Front

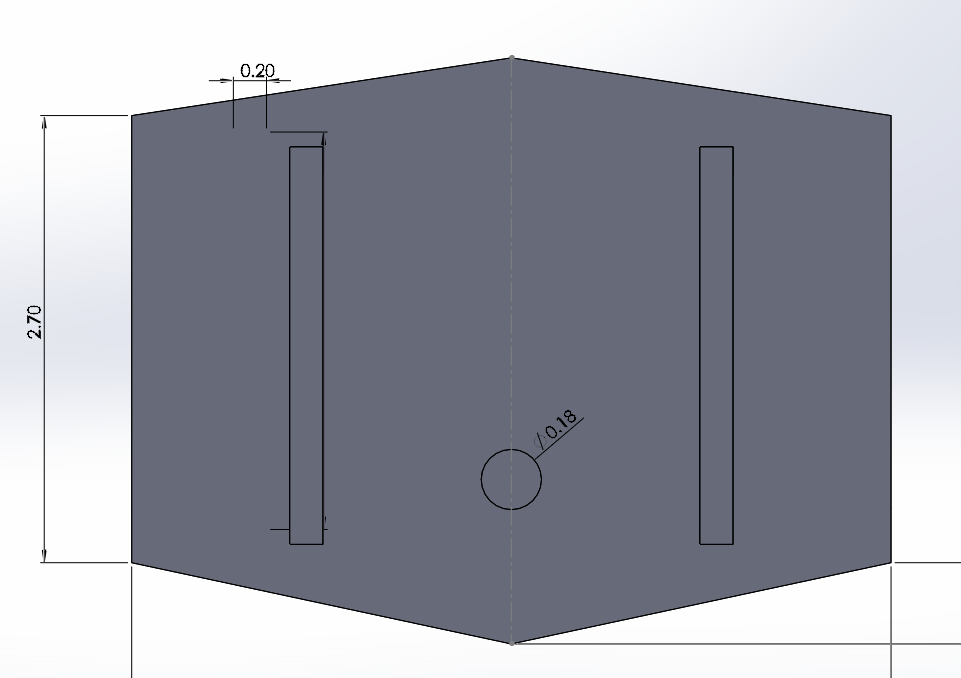

Back of Front

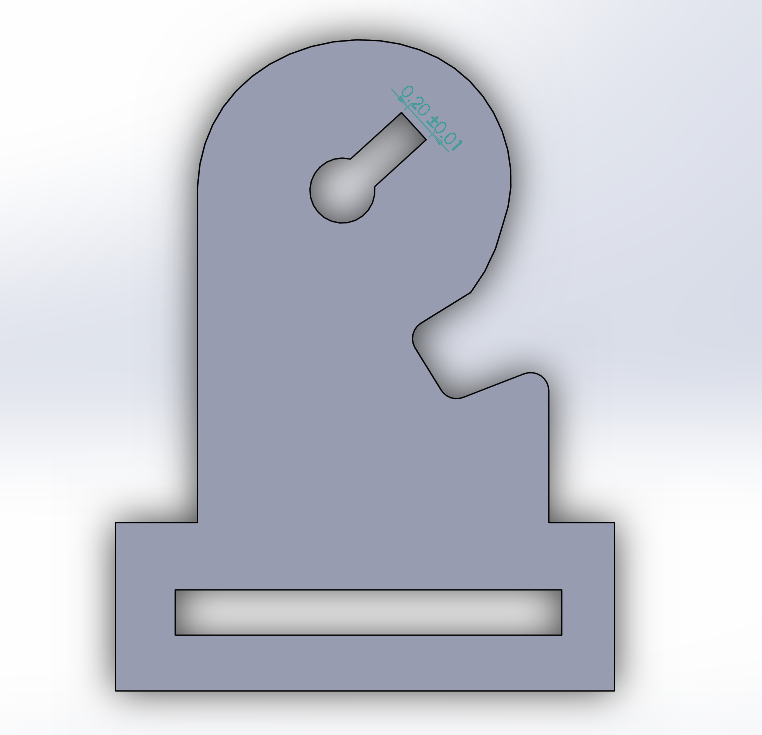

Buckle

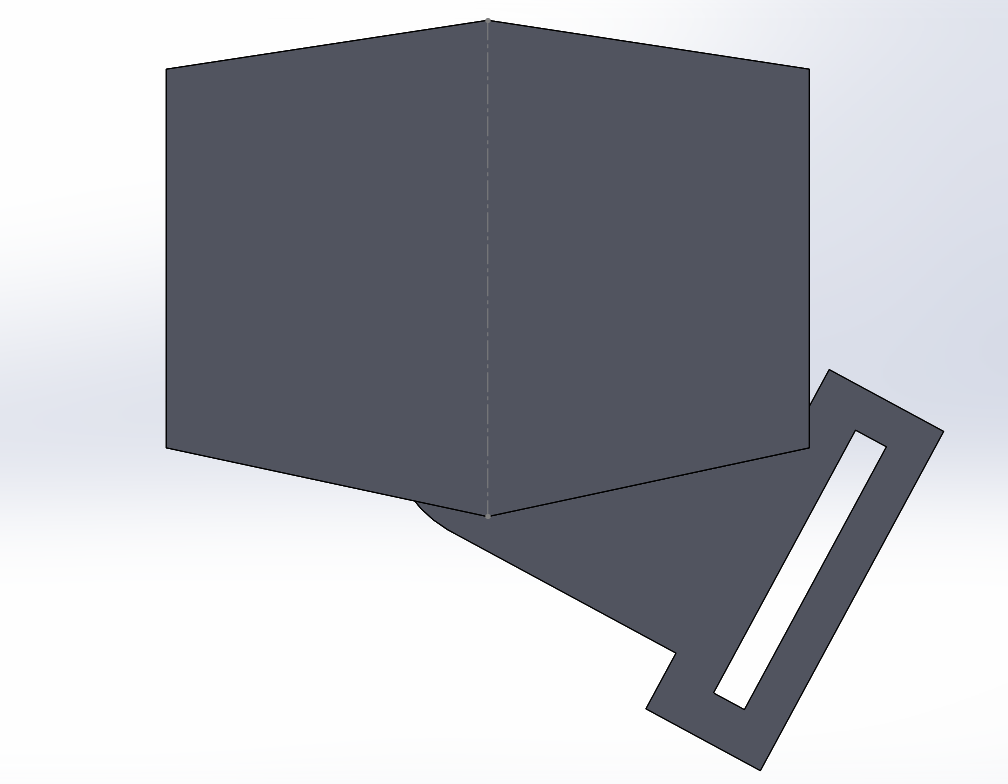

Assembly Front

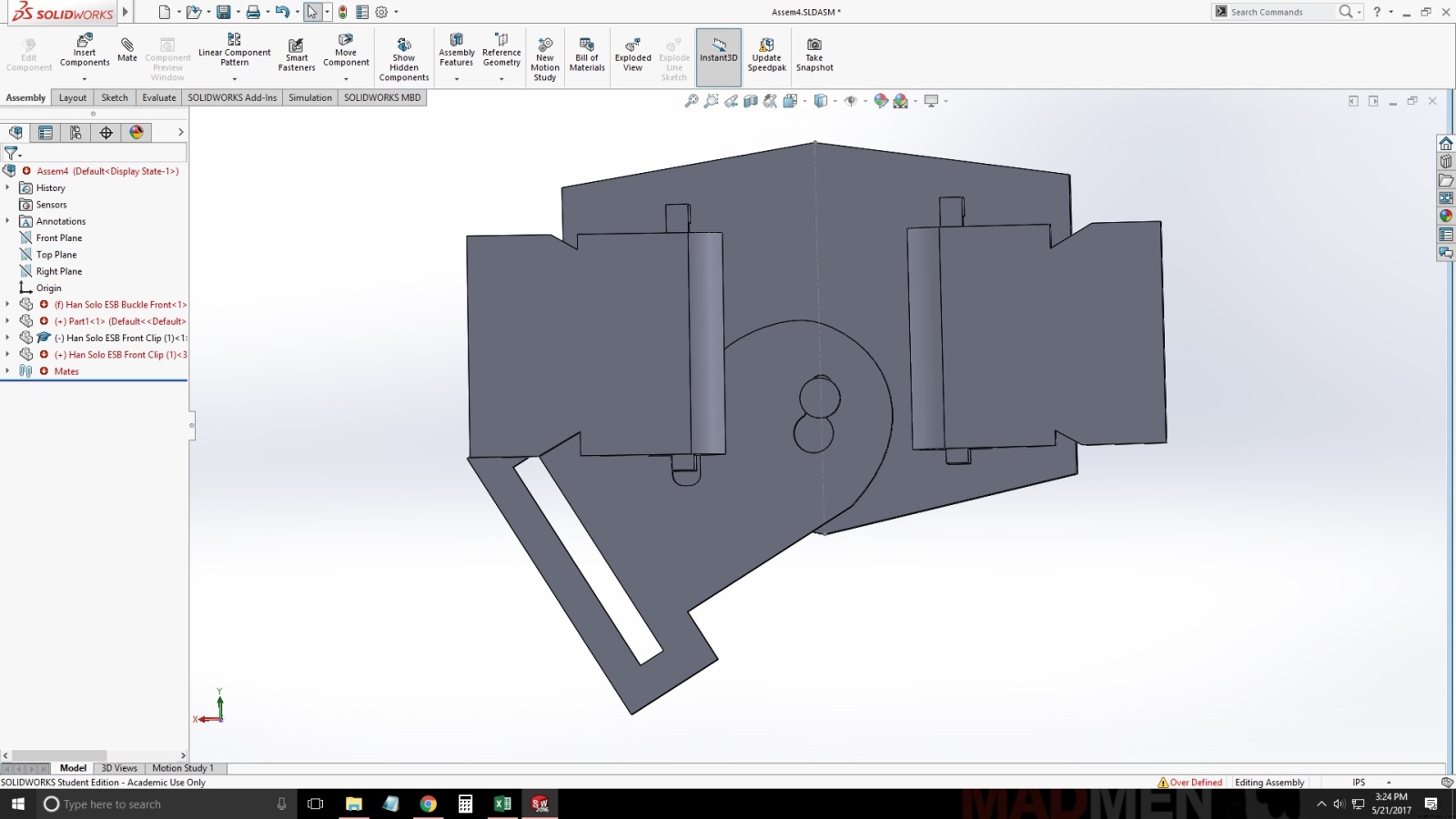

Assembly Back



[JimmyTime]

Nice work so far, good to see someone doing it in Solidworks Will you be sharing any source files or?



[HanSulu]

Sure will! just want to make sure everything is good then when it's finished I'll share the files.



[JimmyTime]

Thanks very much if you wind up having some success this might be something cool to get machined by front panel Express or similar


Sent from my iPhone using Tapatalk



[HanSulu]

Thanks very much if you wind up having some success this might be something cool to get machined by front panel Express or similar


Sent from my iPhone using Tapatalk

What's front panel Express?



[JimmyTime]

https://www.frontpanelexpress.com/

Mostly used for flat stuff, but they do some CNC as well I think



[HanSulu]

https://www.frontpanelexpress.com/

Mostly used for flat stuff, but they do some CNC as well I think

I tried to tinker with the program but it sucks that I can't upload the STL file straight and get a quote =/



[HanSulu]

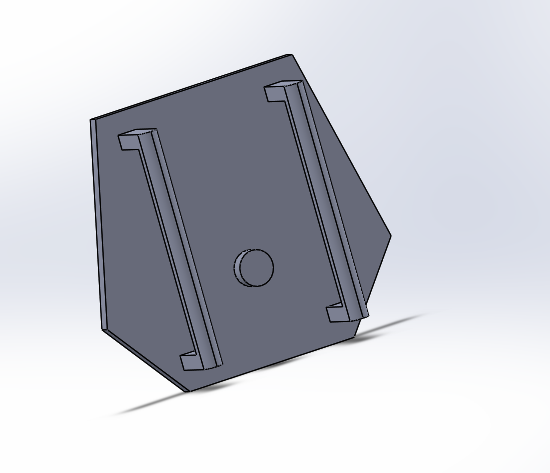

Got the back portion designed!



[JimmyTime]

Nice progress - cheering you on from (currently) sunny and hot NJ


Sent from my iPhone using Tapatalk



[HanSulu]

So I've been trying to do a one size fits all build where I can interchange between ANH and ESB using a V bracket system in the back buckle. Design updates to come.



[HanSulu]

Great news! I got a person who will be machining these belts for me. I'm buying them in bulk



[KheTara]

Great news! I got a person who will be machining these belts for me. I'm buying them in bulk

Awesome. Look forward to the for sale post!



[HanSulu]

Awesome. Look forward to the for sale post!

I'll post up the first one when it's done and will accept pre-orders



[HanSulu]

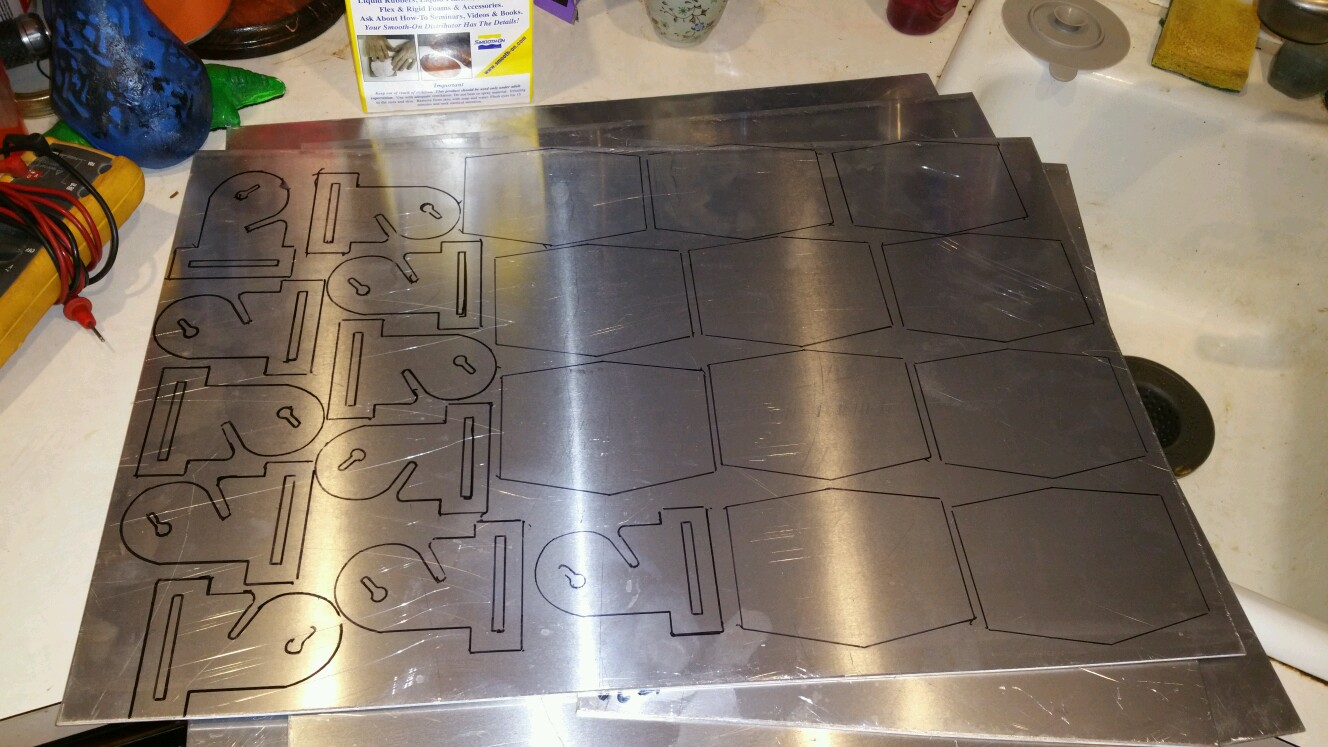

Buckles laid out and ready for the CNC machine!



[Jedar]

Buckles laid out and ready for the CNC machine!

View attachment 743841

HanSulu, Was there any progress on the buckles? I'm working on the Han Solo Holster, need the belt hardware.
