2001 Space Station WIP

Discussion in 'General Modeling' started by joberg, Apr 10, 2014.

  1. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Yes, this is insane I know, but even if that project drives me to drink, so be it:facepalm
    Not studio scale because no good detailed pics/measurement exist (beside screen grabs from the HDVD and the front pic of the real model on www.planet3earth.co.uk hosted by Stargazer)...heck, not even Doug Trumbull could help us! I would like to thank our DaveG for his 3-D rendering btw; very helpful.
    Lots of greeblies/wiggets on that model (more so than the spaceship in Galactica); will still be 7 feet in circumference by 57 inches wide (probably like the original model).
    Fully lit (240 windows+ a landing bay). Thank God, I don't have to do the other outer rim since it's under construction;)

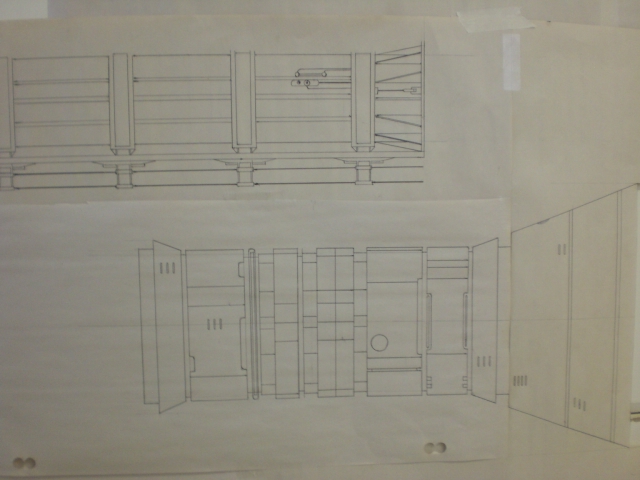

    So off I go by showing some of the blueprint I did to make sure I'm not improvising.

    Nick K, Andrew C. and EddieL like this.
  2. Lee S

    Lee S Sr Member

    Trophy Points:
    1,910
    I want to know more!

    And also want to make one half size!

    L

  3. Apollo

    Apollo Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,035
    Looking forward to this!

  4. joberg

    joberg Master Member

    Trophy Points:
    2,900

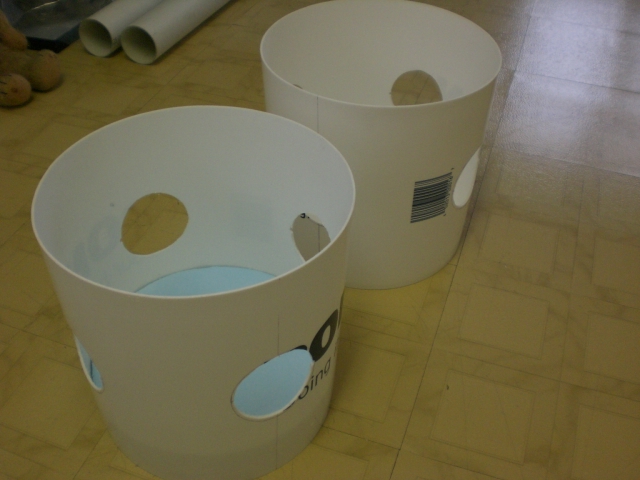

    Well, since my budget is $400, I'll have to find trick to minimize the spending. So since the price of plastic piping is out of this world ('cause I have to buy 6 feet of pipe with a 12 inches circumference) I bought 4 pales (at Rona) that I cut up to create 2 pieces for the landing bays and 2 pieces for the main modules.

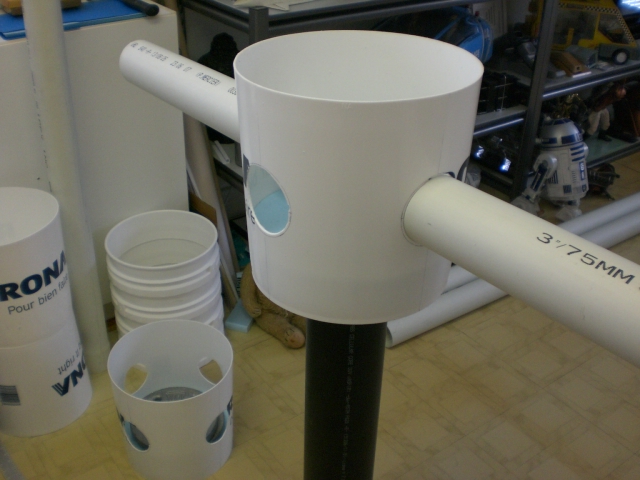

    When done, I cut 8 holes to fit the spokes and secured the main tunnel between the 2 modules.
    041.JPG 043.JPG

    EddieL likes this.
  5. Gattaca

    Gattaca Active Member

    Trophy Points:
    361
    Fiver and Lee S like this.
  6. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Thanks guys for the interest and TFS Gattaca...

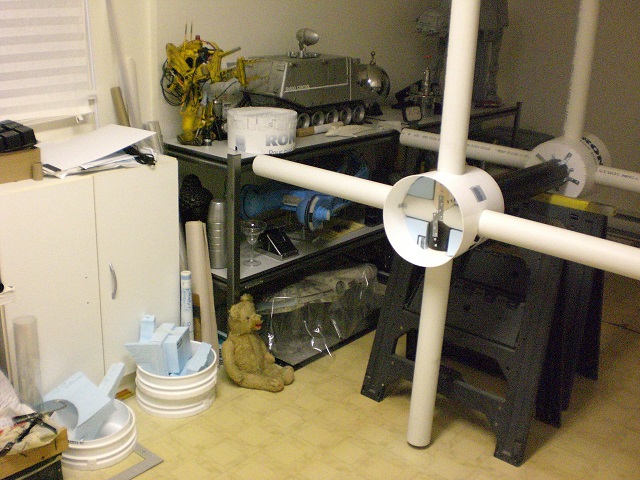

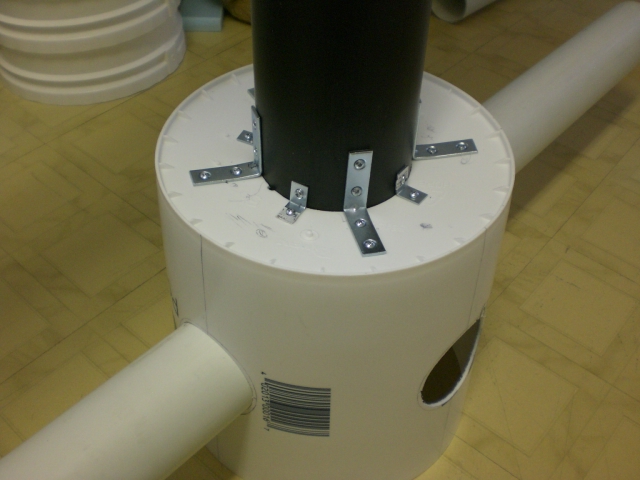

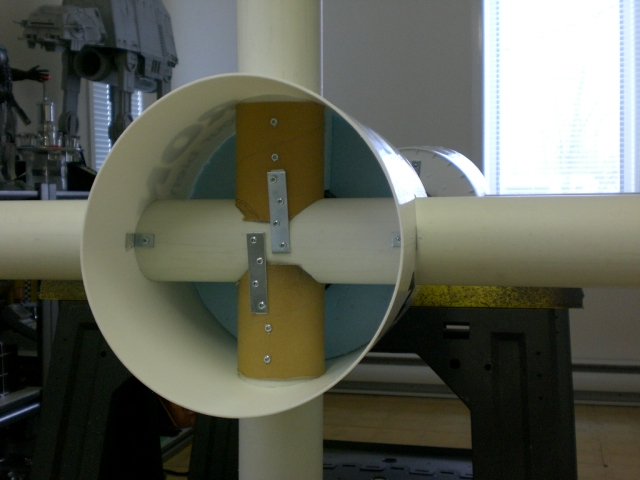

    Well, the saga continues: bracing the main tube connecting the 2 modules, then securing the spokes (thank you blue foam) and then the 2 modules joint together with the spokes.
    049.JPG 050.JPG 051.JPG 021.JPG

  7. Apollo

    Apollo Legendary Member RPF PREMIUM MEMBER

    Trophy Points:
    5,035
    Have you figured out where you will display it?

  8. MonsieurTox

    MonsieurTox Master Member

    Trophy Points:
    2,575
    Wow that will be big ! I love that model, to bad it had a very sad end...

    Cant wait to see more, good luck !

  9. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Merci Monsieur Tox...and Apollo; I was thinking of mounting the station on an L shaped stand (the "foot" of the L will be under the model, while the "straight" of the L will hold the rod placed into the model) I'll have the wiring going into one of the spoke (window lights on the finished side) and through that rod. It will turn also;)

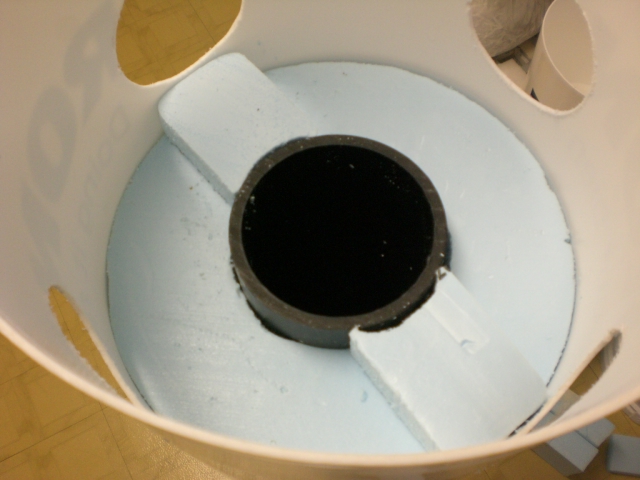

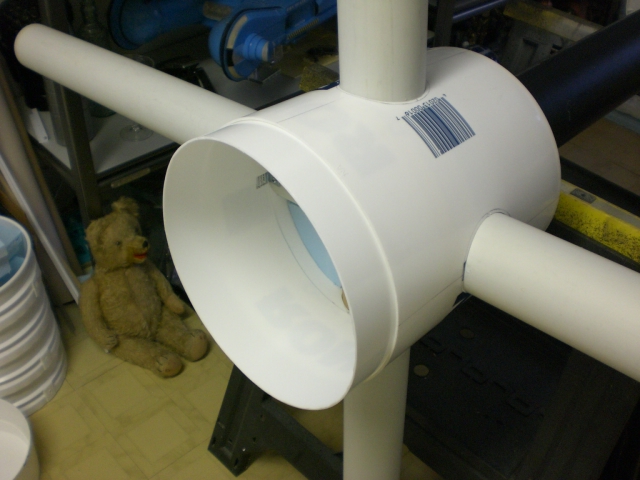

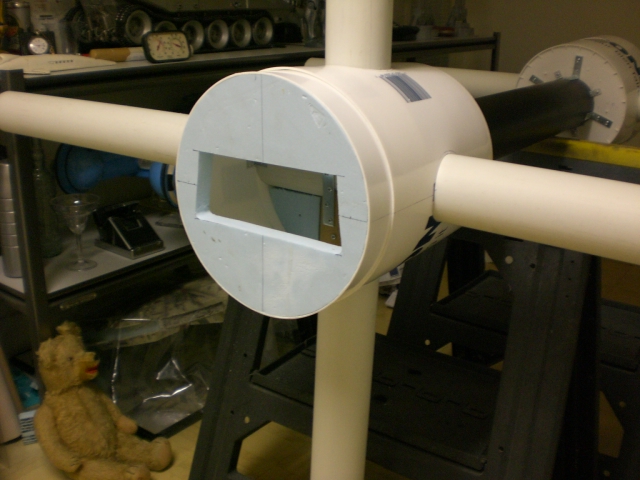

    Here's more work: the add-on is now in the module. This add-on will be plugged by blue foam as support for the Sintra.
    053.JPG 054.JPG

    Nick K, Andrew C. and EddieL like this.
  10. Knightjar

    Knightjar Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,147
    Mildly interesting until you added the rectangular port. Then it was "Ooooh yes!". Like seeing an old friend. Going to be a spectacular project. Good luck!

  11. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Thanks Knighjar...this station is just crazy with repetitive pieces and that's why a team of model makers worked on it...not one person.
    Next is to clad that blue foam with Sintra and then cut out the angled entrance of the landing bay. After that it's greeblie time! I hope to post the hole thing in a few days...stay tuned;)

  12. crackerjazz

    crackerjazz Sr Member

    Trophy Points:
    1,525
    You're really serious, joberg! : ) Excellent start! What's it like working with Sintra - I remember that thread about the Iron Man figure, with all those curved shapes and wondered -- that's a miracle material. I would have used it on a project but it's quite expensive here. Can you really bend it into complex shapes by boiling?

  13. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Crackerjazz, you're in TO and I'm in Ottawa, so the price is the same I'm afraid:cry Since I'm working on a trapeze shape (pails are stackable, hence the trapeze form: bigger base, and smaller top), I have to bend Sintra by hand (2mm) or hairdryer for the other more round stuff. But yes, you can put in a pot of boiling water also and shape it that way...or my fav: into acetone: dip it real quick and let it dry and it'll take the form you want.

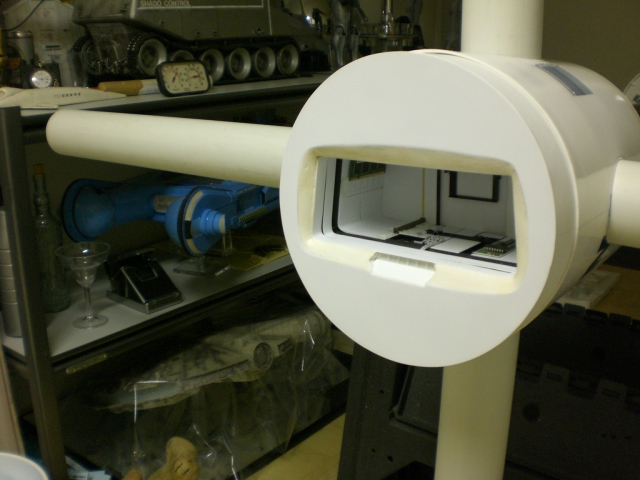

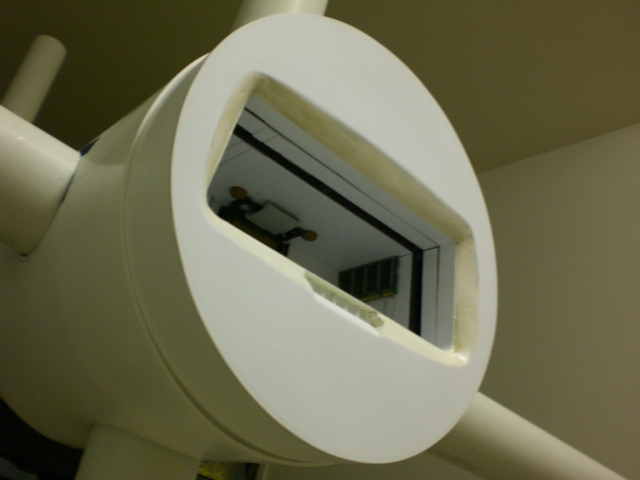

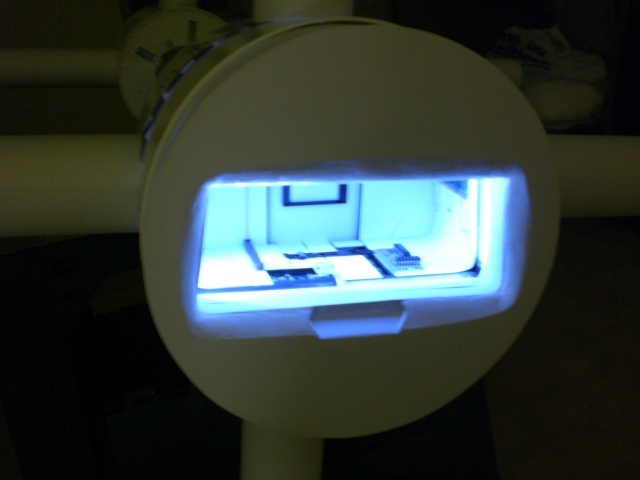

    I'm concentrating now on the inside of the landing bay and I discovered LED strips at Home Depot that will serve as lighting around said bay...this is going to be fun;)

    045.JPG 046.JPG 048.JPG

    Last edited: Apr 18, 2014
    Nick K, PrincessJ, Andrew C. and 2 others like this.
  14. joberg

    joberg Master Member

    Trophy Points:
    2,900

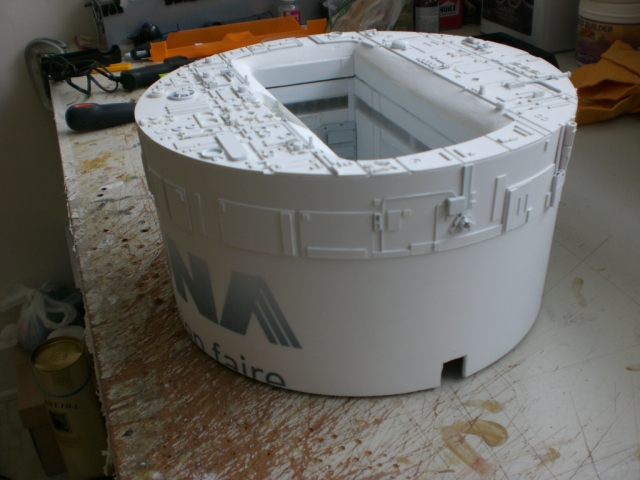

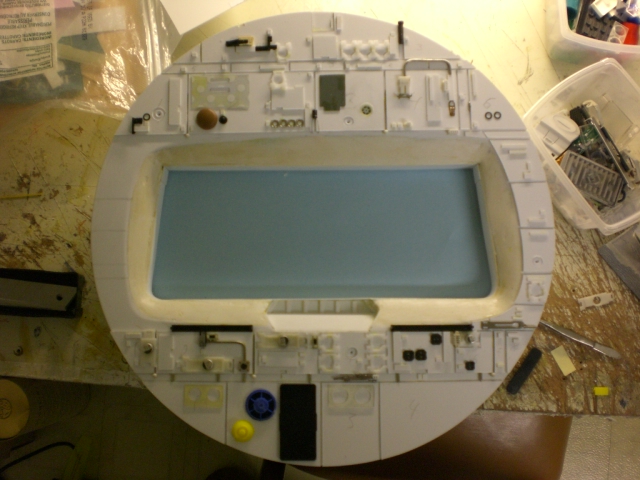

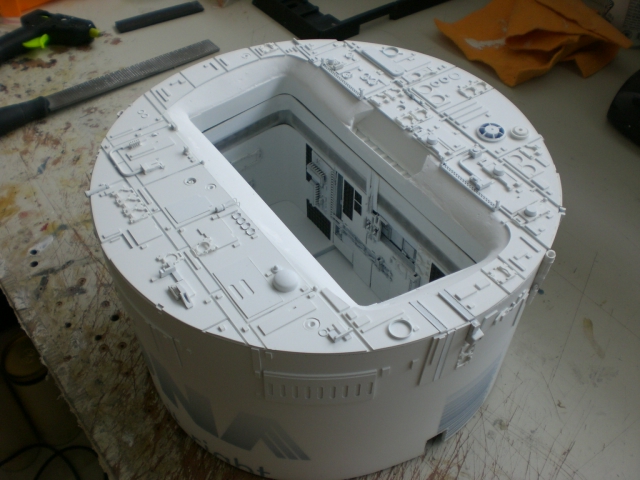

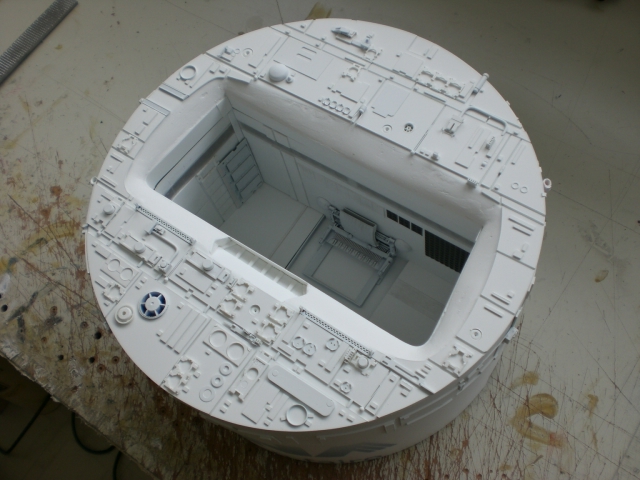

    Here's the face with the greeblies added on
    014.JPG 015.JPG 016.JPG 017.JPG

    Nick K, Andrew C., Dart and 7 others like this.
  15. ColHero

    ColHero Member

    Trophy Points:
    112
    Beautiful detail!

  16. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    NICE! Looking forward to seeing this beauty finished. She already looks the part :)

    BTW... I noticed you had the MF all wrapped up. If you're thinking of getting rid of her I'll take her off your hands. ;)

  17. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Thanks guys for the comments: it always helps in the process...Sofa, just to protect the MF from dust;)

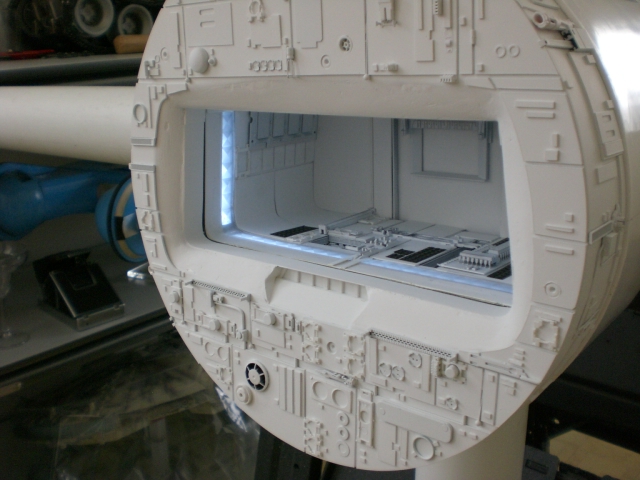

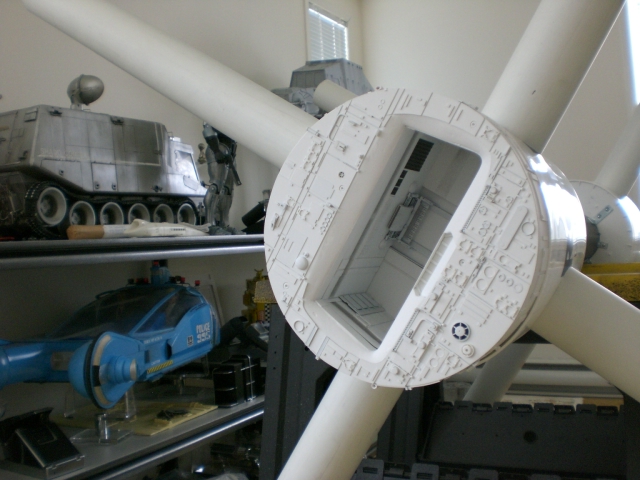

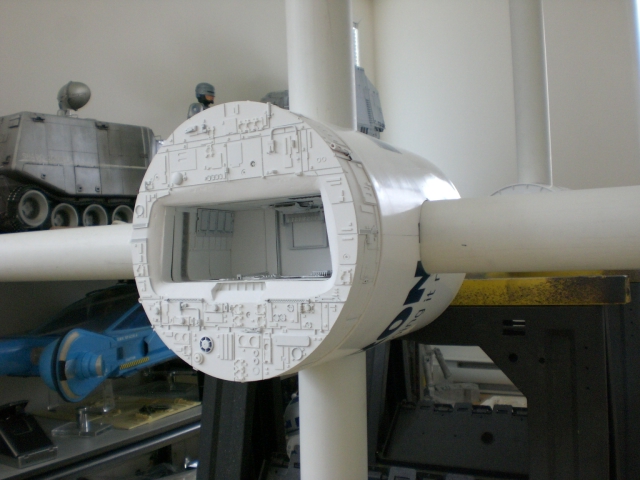

    Here's the part with the landing bay in situ

    018.JPG 019.JPG 020.JPG 022.JPG
    Let there be light!!

    Last edited: Apr 21, 2014
    Nick K, Andrew C., Getoninja and 2 others like this.
  18. metal wood

    metal wood Well-Known Member

    Trophy Points:
    866
    man that looks great! amazing greeblie work very slick!

    - - - Updated - - -

    man that looks great! amazing greeblie work very slick!

  19. Pro Mod

    Pro Mod Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    667
    Looking great so far.
    Only 10,000 more greeblies to add!

  20. joberg

    joberg Master Member

    Trophy Points:
    2,900

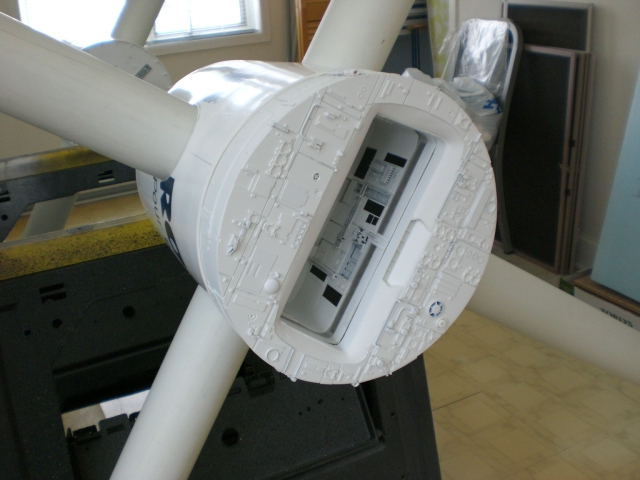

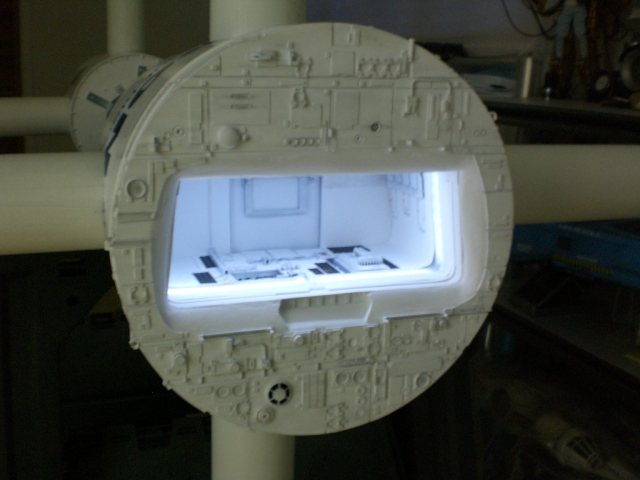

    020.JPG Thanks guys, comments/critiques are welcome...I'm starting the second plug for the other module: more greeblies to come (this model will be re-named: "Death by a 100,000 greeblies":D

  21. Albertese

    Albertese Well-Known Member

    Trophy Points:
    935
    Any more detail about these?

    --Alex

  22. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Yep, those strips are used to lit kitchen cupboards, or any recessed space that needs instant lighting. They're already in a transparent box with a "Try Me" button at the store.

  23. joberg

    joberg Master Member

    Trophy Points:
    2,900
    073.JPG Well, this is the second landing bay being prepared...this one will have a partial back since a big metal rod will go through it.

    Andrew C. likes this.
  24. joberg

    joberg Master Member

    Trophy Points:
    2,900
    005.JPG Well the second plug is ready to be painted...the landing bay will be done in a jiffy: an old printer will provide the necessary parts tonight...stay tuned:)

  25. joberg

    joberg Master Member

    Trophy Points:
    2,900
    007.JPG Sorry for the lousy pic and, as you can see, no interior yet (stupid rainy day)...will try to post later with the landing bay and a compare between the two main plugs.

    Nick K, Andrew C., MWB and 2 others like this.
  26. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    But what a great way to go! :) She's looking awesome so far!

  27. GlazyUK

    GlazyUK Active Member

    Trophy Points:
    341
    Stunning ! Pure and simple !

  28. joberg

    joberg Master Member

    Trophy Points:
    2,900
    011.JPG 012.JPG 013.JPG 014.JPG
    Landing bay painted and secured into the plug. Plug is washed with a grey, back is missing, since this end will be fitted with a rod (electrical and support for the model's footing).

    Andrew C., Getoninja, Dugzor and 4 others like this.
  29. joberg

    joberg Master Member

    Trophy Points:
    2,900
    016.JPG Comparo between the two plugs...now the cladding of the modules will begin...:)

    033.JPG 034.JPG 035.JPG

    Here's one done, I just got to put the middle greeblies for the tensing cables. 015.JPG

    Last edited: May 11, 2014
    Andrew C., Getoninja and EddieL like this.
  30. joberg

    joberg Master Member

    Trophy Points:
    2,900
    044.JPG I'm cutting the struts for the spokes 128 of them + 128 cable tensors...2 spokes are done, another 6 to go. Yep, I'm a *:D

    Andrew C., Getoninja and EddieL like this.
  31. joberg

    joberg Master Member

    Trophy Points:
    2,900
    036.JPG I had forgotten to post a pic of the main landing bay attached to the module and a partial strut construction...

    Now, I just finished the cable tension unit...only 7 to go 001.JPG 002.JPG

  32. MonsieurTox

    MonsieurTox Master Member

    Trophy Points:
    2,575
    Most impressive ! Nice use of the Rylsan ;)

  33. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Merci Mr. Tox...but what is Rylsan?

  34. GlazyUK

    GlazyUK Active Member

    Trophy Points:
    341
    It's looking superb !!!

  35. MonsieurTox

    MonsieurTox Master Member

    Trophy Points:
    2,575
    Rilsan sorry :)

    That's that :

    [​IMG]

  36. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Oh yes, plastic ties as they call them here:)

  37. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Well, after 4 weeks of absence, I built the base for the entire space station. It's now free standing. The base will be, later, painted in black.

    001.JPG 002.JPG

    Nick K, Andrew C., Getoninja and 4 others like this.
  38. MonsieurTox

    MonsieurTox Master Member

    Trophy Points:
    2,575
    That's looking very strong !

  39. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Very strong indeed Monsieur Tox. Galvanized rod (50" long) to hold the station (already 22 pounds).

    Just a quick add-on: the cones for the modules are being built as we speak...lots of work, as usual...slowly getting there;)
    001.JPG 002.JPG

    Well, that cone is built, painted (I'll wait before weathering it; I have a few details to affix: the ladders on the side of the bridge struts unit and the air units on the spokes)...but enough talkin', here are the pics.
    003.JPG 004.JPG 005.JPG

    Last edited: Jul 22, 2014
    Nick K, Andrew C., Getoninja and 4 others like this.
  40. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Well, the "ladders" are on and the "air units" (64 of them) are on the spokes. The only thing to do is to build the conical ends of the spokes (those parts plugged in the outer rim) and I'll consider the first half of the station done ( the plug containing the landing bay, the module, the cone, 4 spokes and all the greeblies).

    001.JPG 002.JPG

    Nick K, Andrew C., Getoninja and 2 others like this.
  41. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    Spectacular!

  42. Mike J.

    Mike J. Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,355
    Nice surface detailing.

  43. Cadeus

    Cadeus Sr Member

    Trophy Points:
    1,355
    This is a wonderful project. :) (so jealous! ;) )

  44. Durrett

    Durrett Active Member

    Trophy Points:
    341
    Nice greebling, this is going to be awesome!

  45. publiusr

    publiusr Active Member

    Trophy Points:
    341
    my..god...

  46. EddieL

    EddieL Active Member

    Trophy Points:
    341
    ...it's full of greebles. :lol

    Amazing work!

    Cheers
    Eddie

    Getoninja and struschie like this.
  47. joberg

    joberg Master Member

    Trophy Points:
    2,900
    :DThanks guys! For sure, greeblies and surface detailing is an understatement! On with the work:)

  48. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Well, here's half the beast and the size (I'm 6'2 btw);)


  49. Cadeus

    Cadeus Sr Member

    Trophy Points:
    1,355
    That is too cool! May I ask what you are using to reference this build? Are the greeblies random or did you ID the parts from the original?

  50. dexter1138

    dexter1138 Well-Known Member

    Trophy Points:
    521
    You used your dirty whites to prop up your ship! LOL

    Great work so far, can't wait to see this one finished.
