1:72 FM Falcon - modified to match the 32" studio model

Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.


Marko@Rockvoice

Well-Known Member
... the Falcon... THE Falcon!
I always loved the 32" studio model, but felt that the Fine Molds kit was missing something. So I tried to find out... way too much wrong... FAR FAR away from the 32" model... anyways...
After a lot of research and hours of cutting and sawing and re-attaching...
I was able to bring the Fine Molds kit a lot closer to the 32" studio model - besides the size...

Still, it is not 100% since a lot of parts are scaled incorrectly,... however...










here some detail shots, note the markings all over the place and the hidden names






Some chipping + the little 2 commas all over the hull



Just to give you an idea of what I did to the kit - here a comparison photo with the kit OOTB





Thanks for watching![/quote]


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Hunk a Junk

Sr Member
Marko, can you outline some of the changes you've made? I see the jawbox has been narrowed and the mandibles toed-in, but it also looks like you moved the cockpit access tube and lowered the 3-sided docking port sections, right? I'm just finishing my Fine Molds and made some similar modifications, but your paint job is blowing mine away. So I hate you. :D


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

rbeach84

Sr Member
Great job on the improving the accuracy! You can really tell the difference when compared to the 'starting point'... I just hope I can do 1/4 the job on the Hasbro that you've done with this one...

Regards,
Robert


Marko@Rockvoice

Well-Known Member
Marko, can you outline some of the changes you've made? I see the jawbox has been narrowed and the mandibles toed-in, but it also looks like you moved the cockpit access tube and lowered the 3-sided docking port sections, right? I'm just finishing my Fine Molds and made some similar modifications, but your paint job is blowing mine away. So I hate you. :D

Yes, exactly - good eyes!
The jawbox has been shortened, narrowed and flattened. If I were more consequent, I would have scratched a new one. This one is still not 100% but all the upper details would have looked ridiculous, since they are all scaled too big.
The whole dish shape was altered to get a different curvature.
To increase the height in the middle, I installed some spacers
... and I narrowed the edges by 1,5 mm

The escape pod rings were expanded to increase the diameter
And yes - position and angle of the cockpit tube had to be altered; it did not line up with the rest. As you can see, it is slightly off

Where can we see your progress on the FM Falcon?


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Marko@Rockvoice

Well-Known Member
Great job Marko ! Modifications are great as well as your paint job ! :)
Thank you Julien!
Can't wait for your 32" falcon!

Awesome mods!
Thanks! Maybe you are familiar with the radar dish I used... :)

Great job on the improving the accuracy! You can really tell the difference when compared to the 'starting point'... I just hope I can do 1/4 the job on the Hasbro that you've done with this one...
Gladly, the Hasbro Falcon is quite correct, compared to the Fine Molds counterpart. It needs some detailling and a good paintjob and thats pretty much it with the Hasbro "toy".

uh oh... no pics! :(
Still no pics? Tried to refresh your browser?


Hunk a Junk

Sr Member
Where can we see your progress on the FM Falcon?

I'll post some pictures later tonight. On my version I tried to make a hybrid of the 32", the 5-footer and the new CG Force Awakens version. It has a detailing touches from all three. My biggest change was to increase the hull curvature using internal braces to be similar to the "fat Falcon" look of the 5-footer. I think that helps make it look like "The Falcon."


Jaitea

Master Member
I'll post some pictures later tonight. On my version I tried to make a hybrid of the 32", the 5-footer and the new CG Force Awakens version. It has a detailing touches from all three. My biggest change was to increase the hull curvature using internal braces to be similar to the "fat Falcon" look of the 5-footer. I think that helps make it look like "The Falcon."
.......Ahhhhhh,.....stop teasing!!.....can't wait to see some photos!!!:D

J


Don't want to see this ad? Sign up for anRPF Premium Membershiptoday. Support the community. Stop the ads.

Hunk a Junk

Sr Member

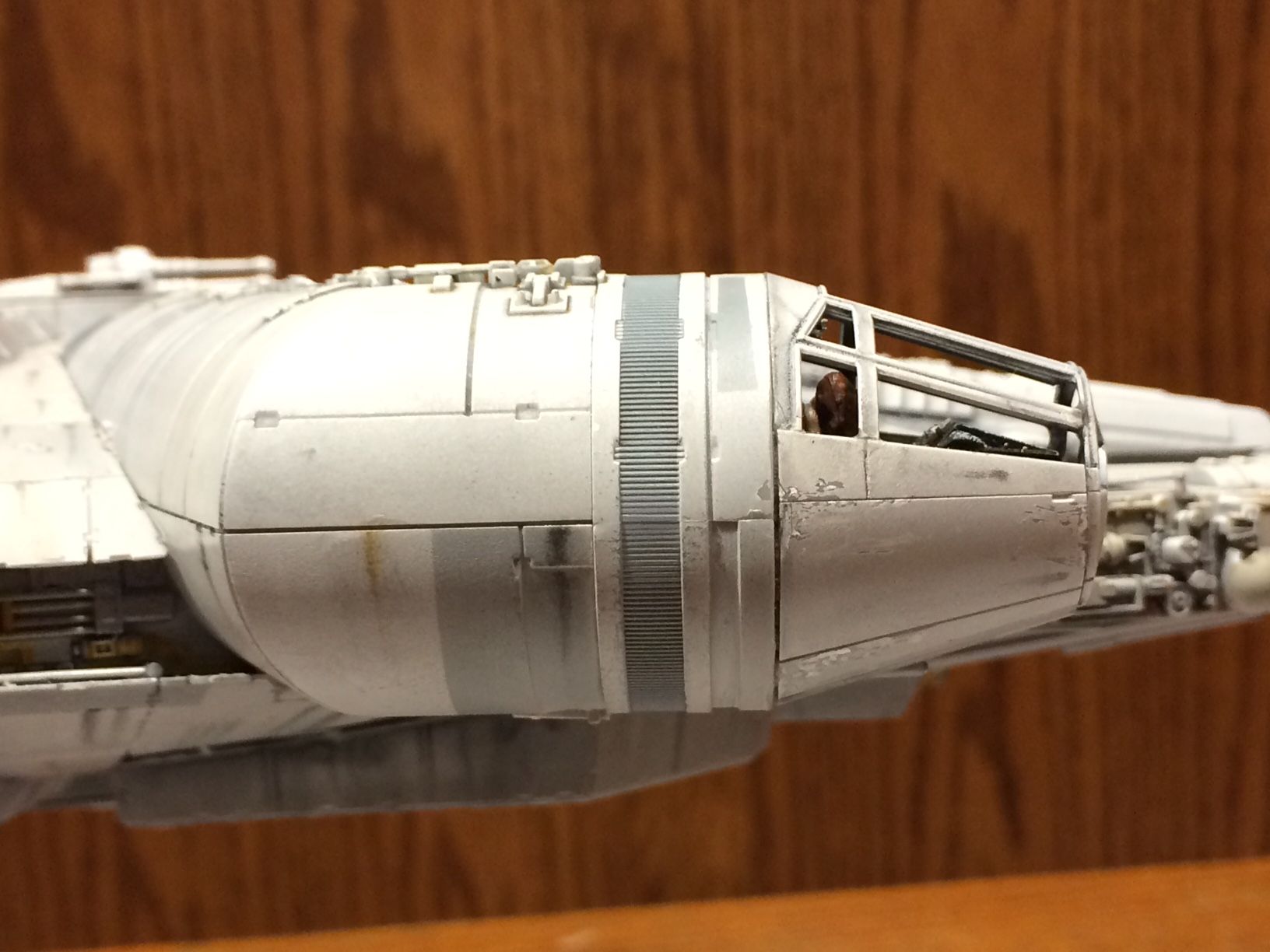

A few more. Here you can see more of the hull curve and some of the hybrid details. I also shorted the cockpit tube and the cockpit cone. The bow headlight pieces are modified from the MPC Falcon to match the 5-footer. HunkajunkFM4.jpg HunkajunkFM5.jpg HunkajunkFM6.jpg HunkajunkFM7.jpg


Hunk a Junk

Sr Member
And more. The model is lit with TESB headlights, cockpit lights and blue/teal engine lights to mimic the look from the Force Awakens trailer (though it's hard to see in the photos). Obviously, I'm still working on the dish. Thinking about scratching the new rectangular one. HunkajunkFM7.jpg HunkajunkFM8.jpg HunkajunkFM9.jpg HunkajunkFM10.jpg


Jaitea

Master Member

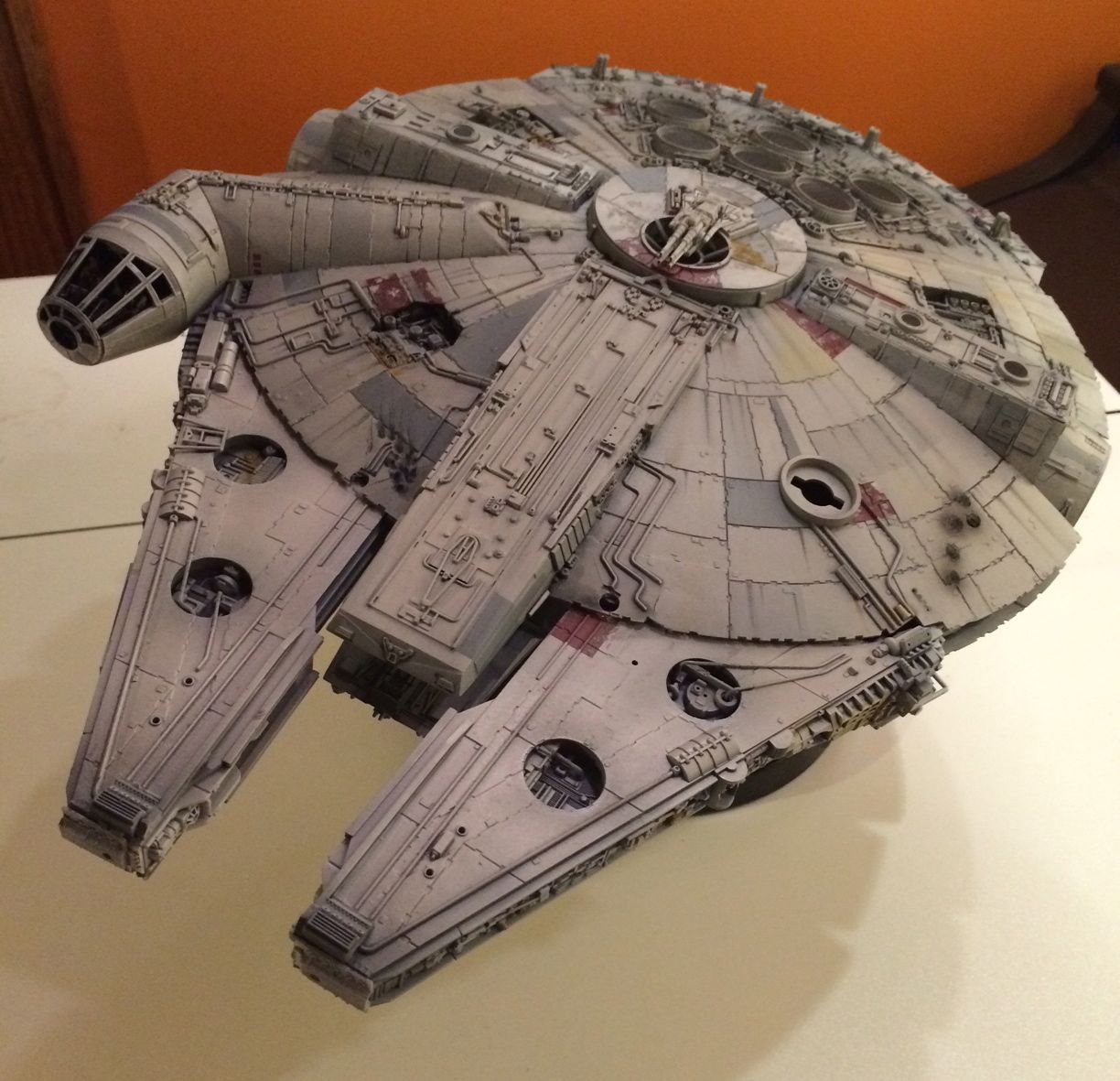

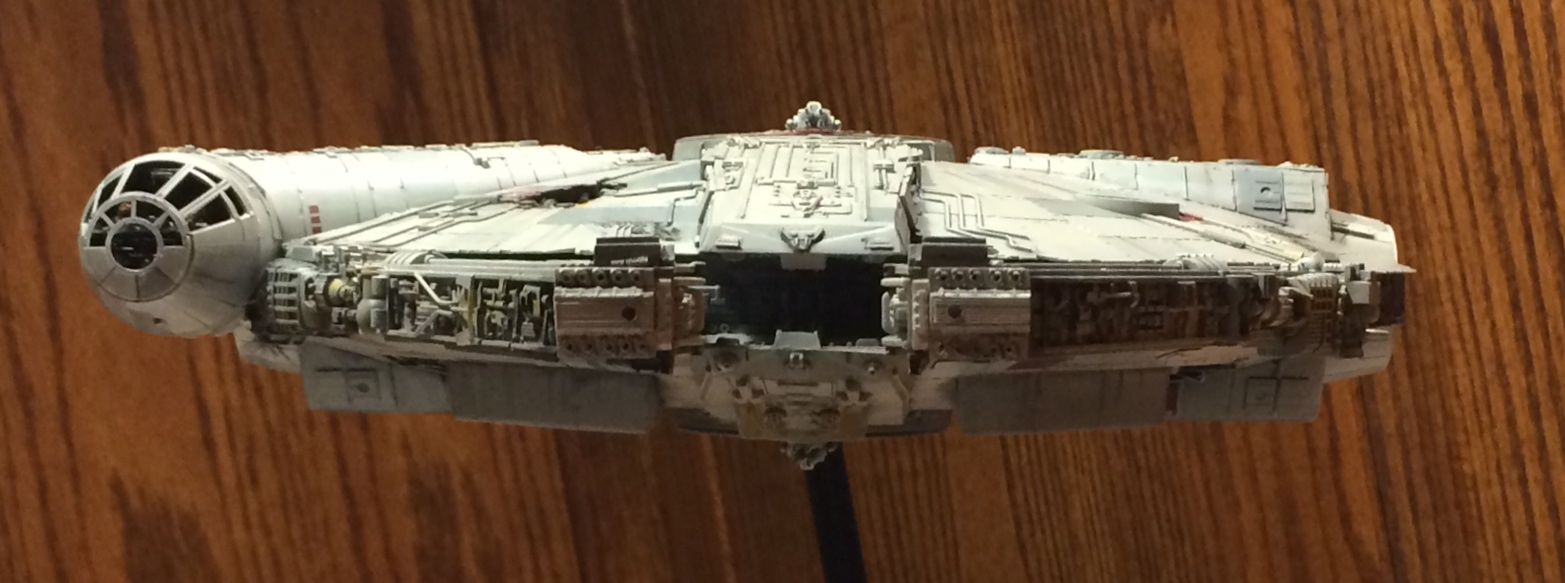

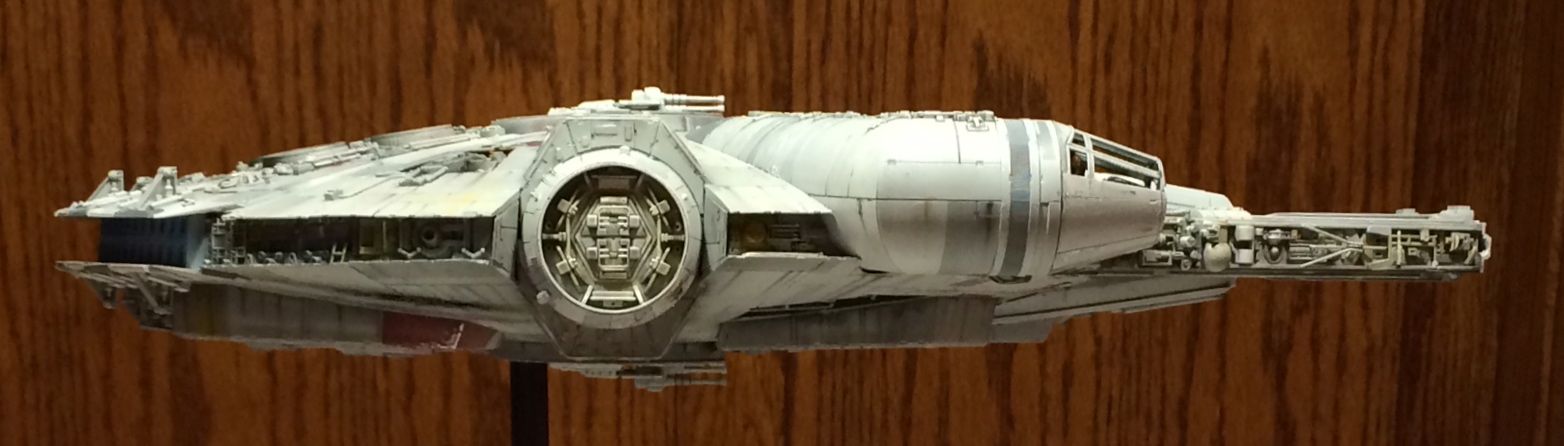

Okay, here's mine. It's a work in progress. Still adding details and painting. My main goal was the hull curvature. I like me a FAT Falcon. View attachment 434929 View attachment 434930 View attachment 434931

HaJ,.....That is exciting to look at,.....it IS a hybrid and has moved away from the shape of the 32".........but that is a good thing,......it has the shape and curves of THE Falcon

I love it,....did you photo any WIP,.......do you not have a thread for your build?

J
