1/12 X-wing Build

Discussion in 'Studio Scale Models' started by bartrman, Aug 10, 2015.

  1. bartrman

    bartrman New Member

    Trophy Points:
    18

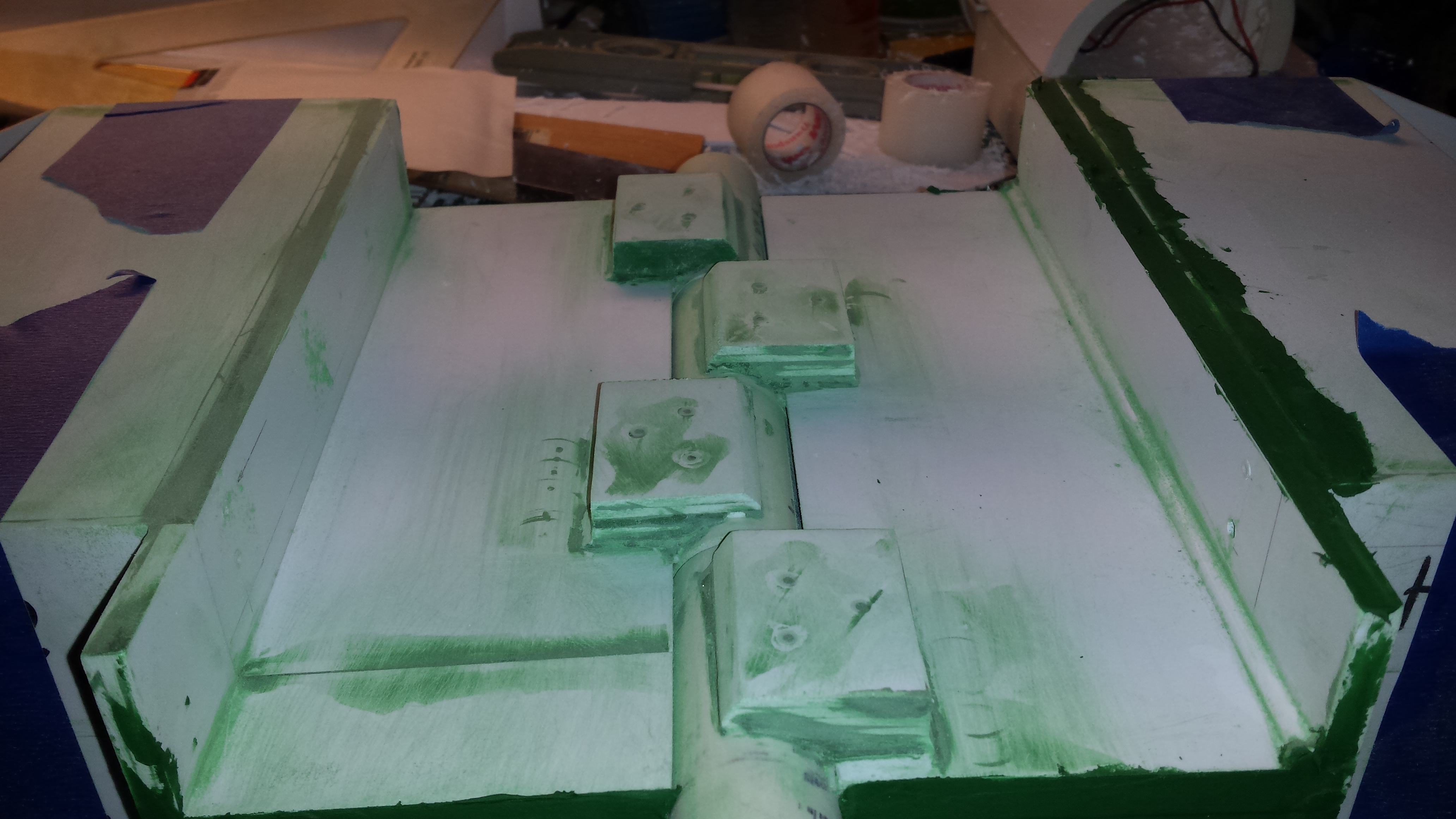

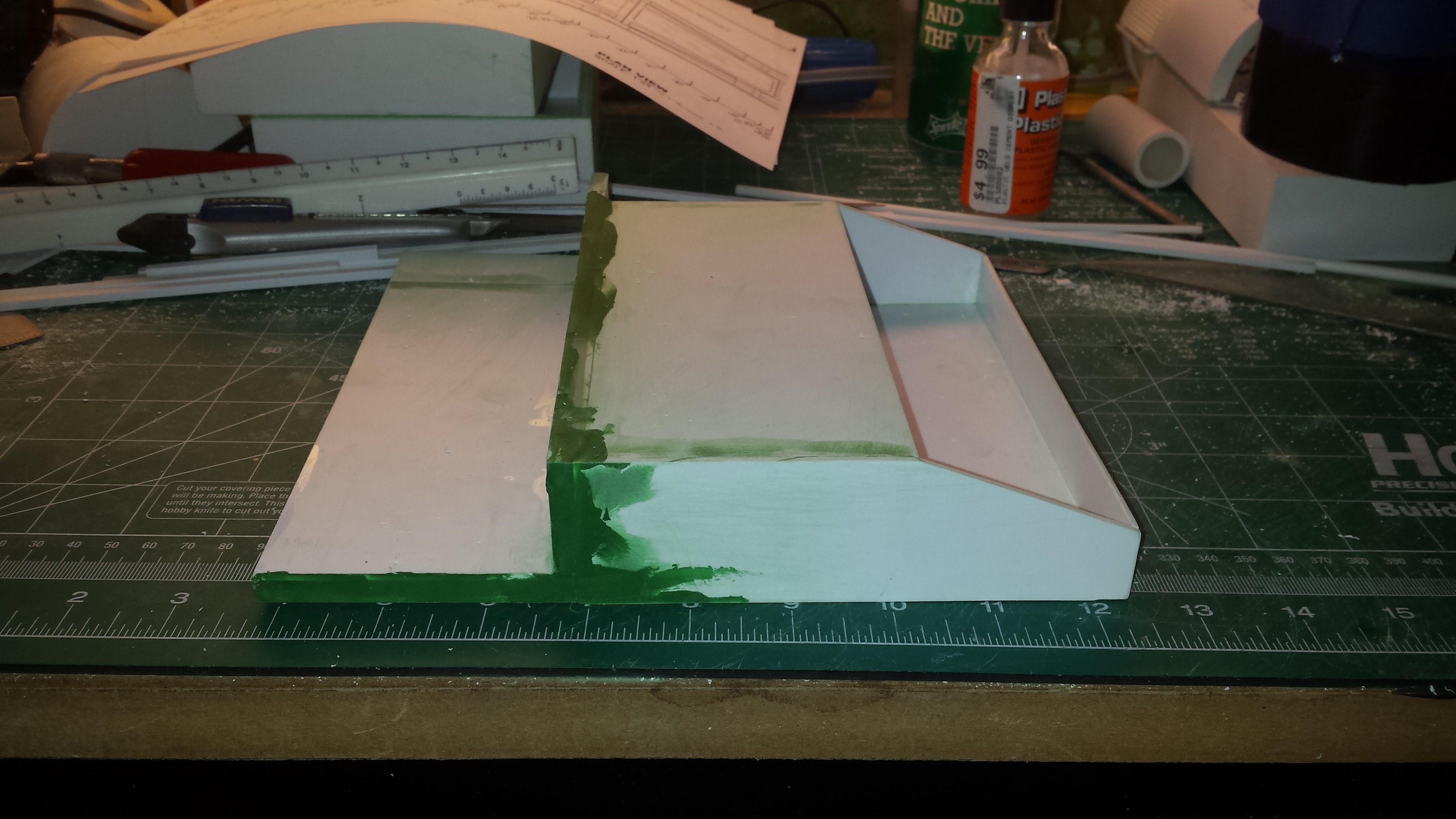

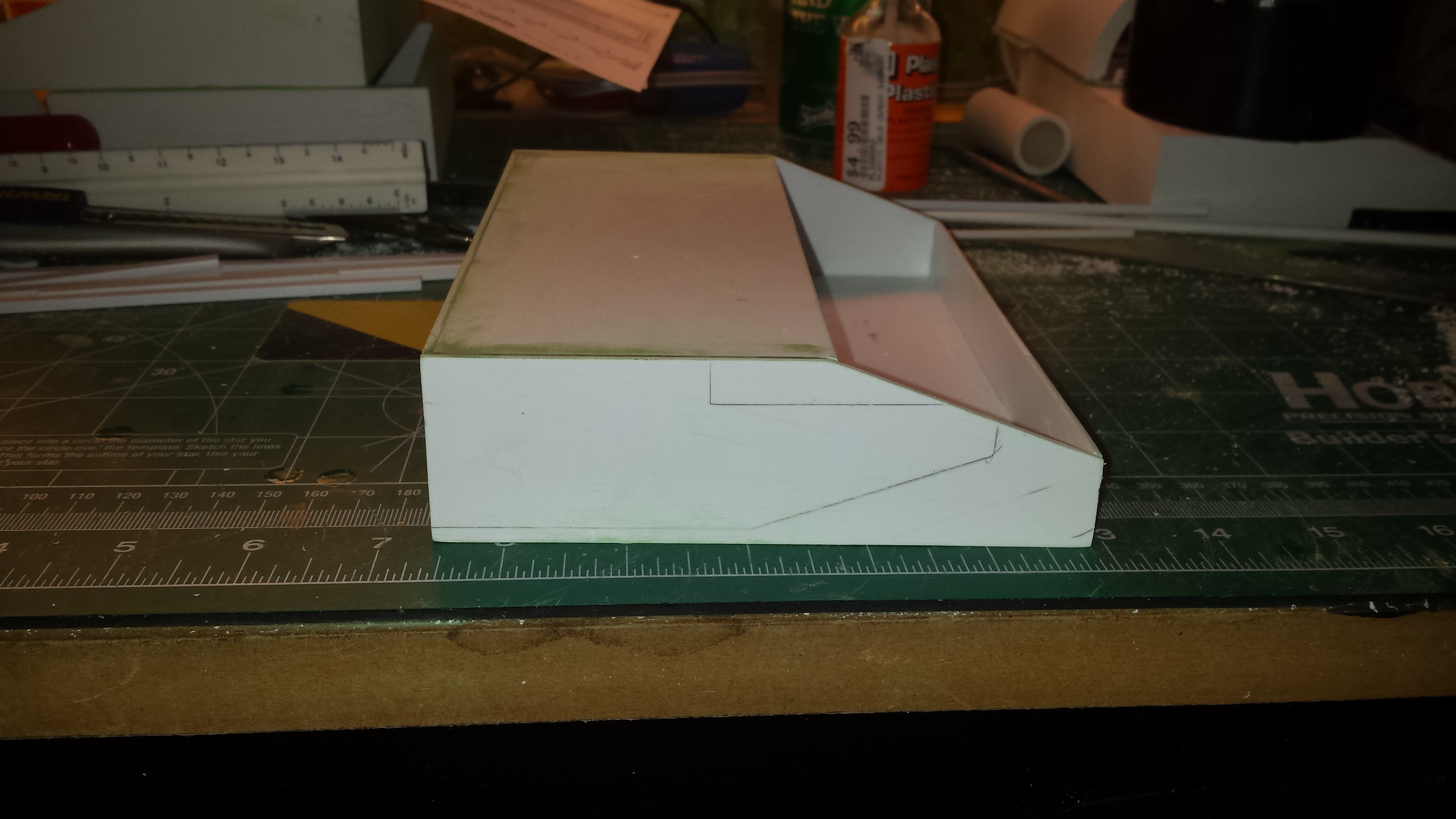

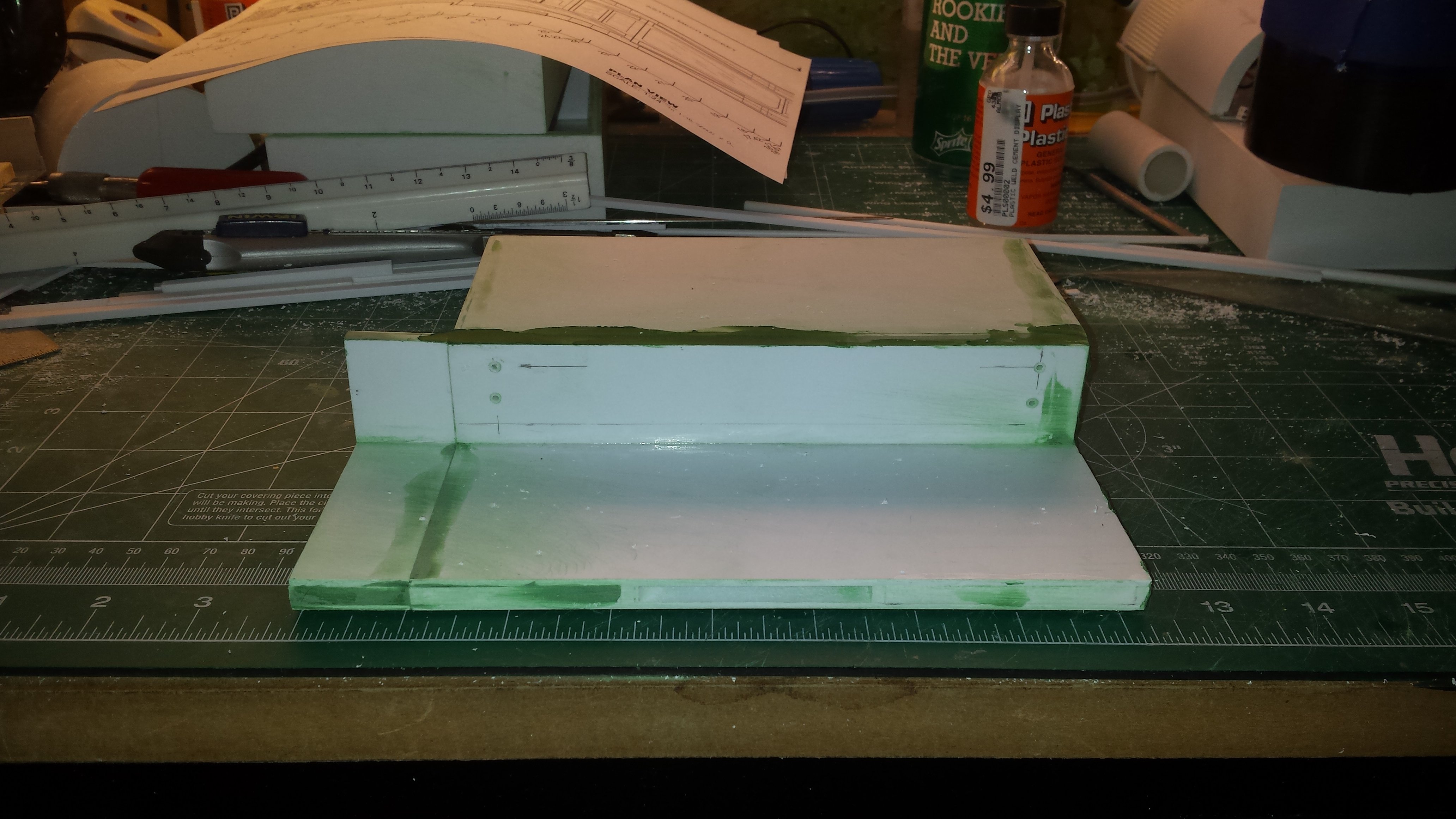

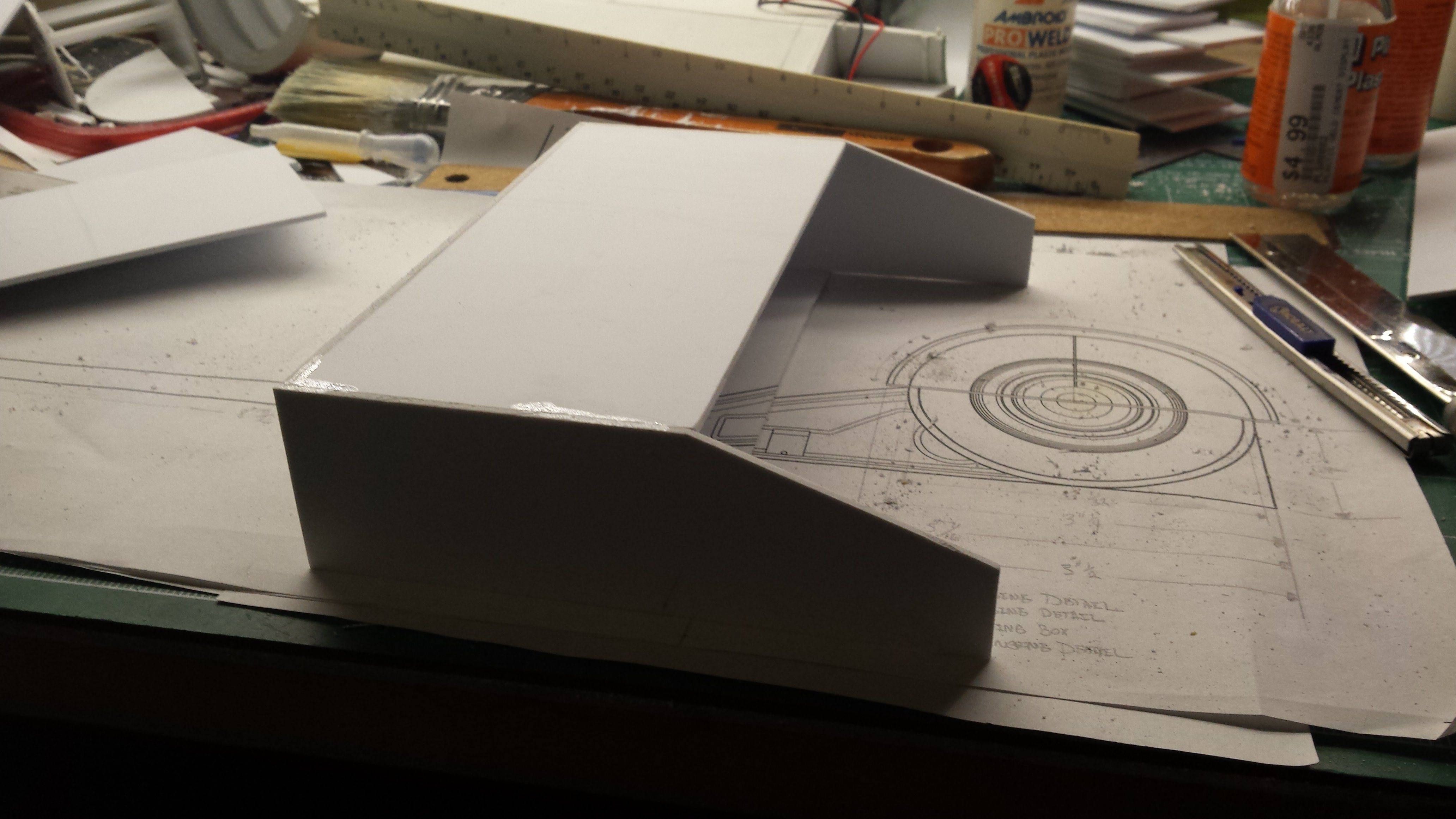

    Hi everyone. I have been around a while looking at everyone's awesome work. The x-wing has always been my favorite ship, every since I was a kid. I have enjoyed many build here on RPF. I have always wanted to build my own. Now what size do I make it. Well as big as I can afford. Then there's the kit build VR's scratch build. Well the scale I chose to build there's not many pre built parts for. So I have decided to give it a try. Here are a couple pf pics of the wing build.


    [​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

    A few more
    [​IMG][​IMG][​IMG][​IMG][​IMG][​IMG][​IMG]

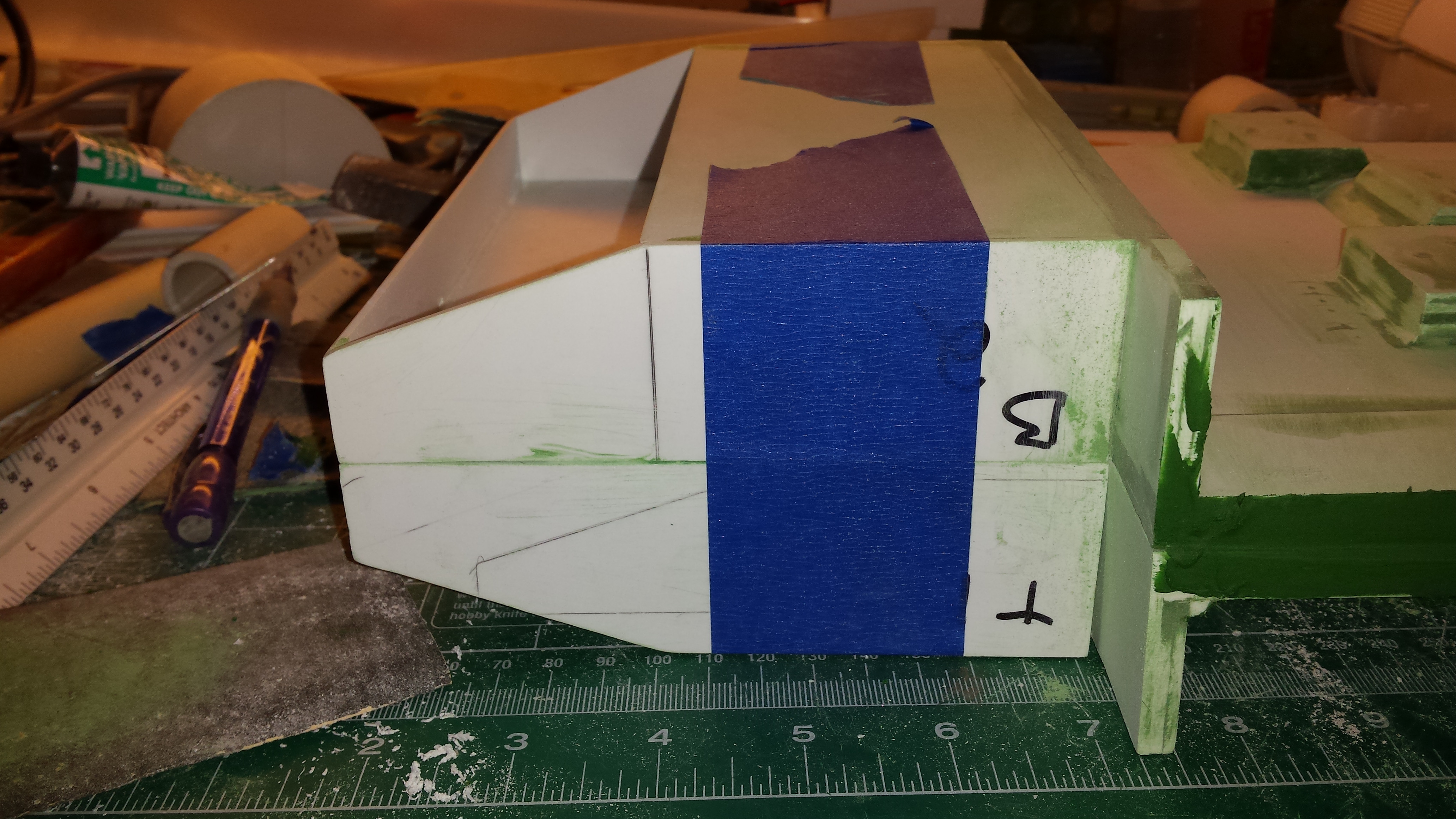

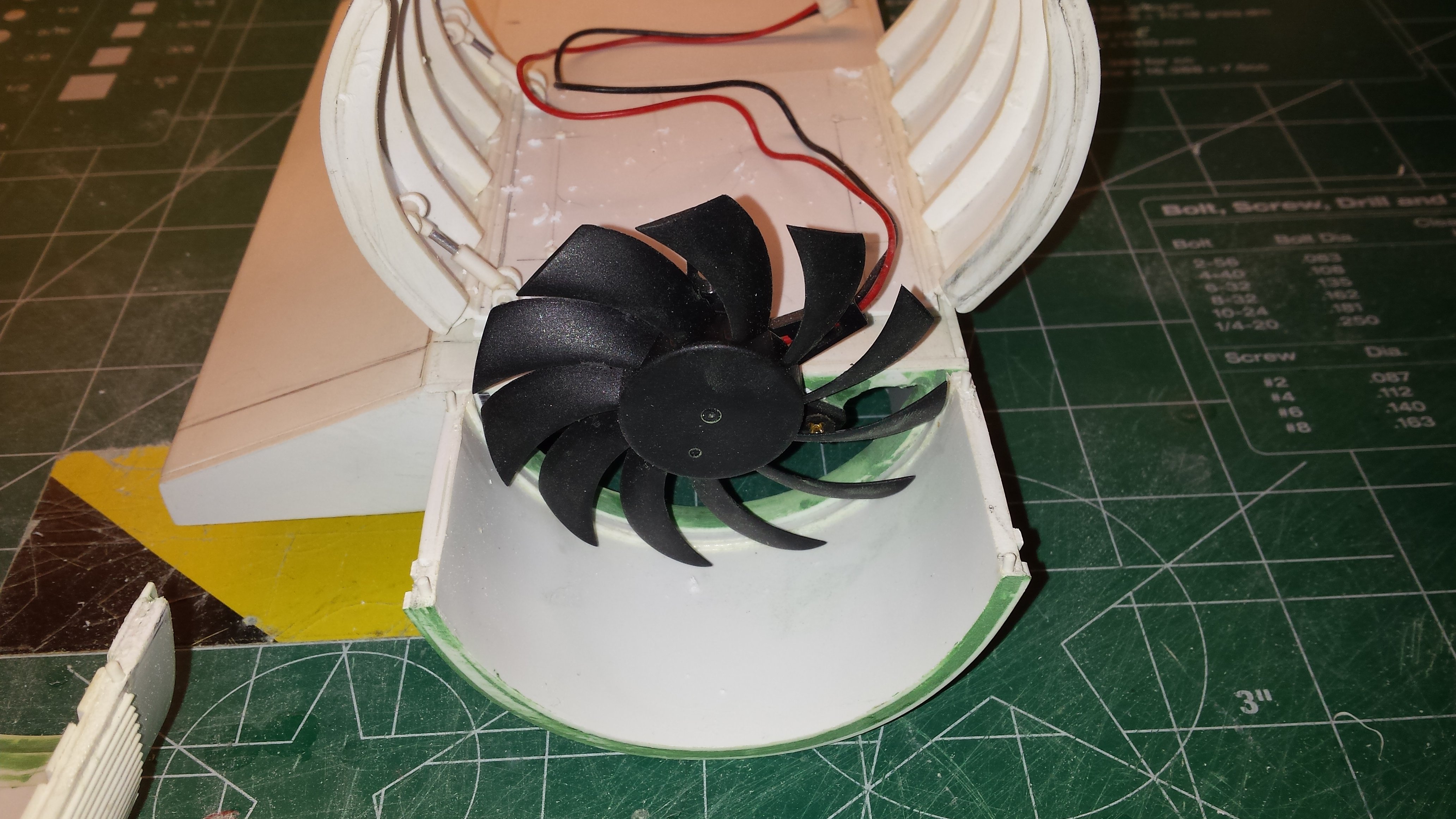

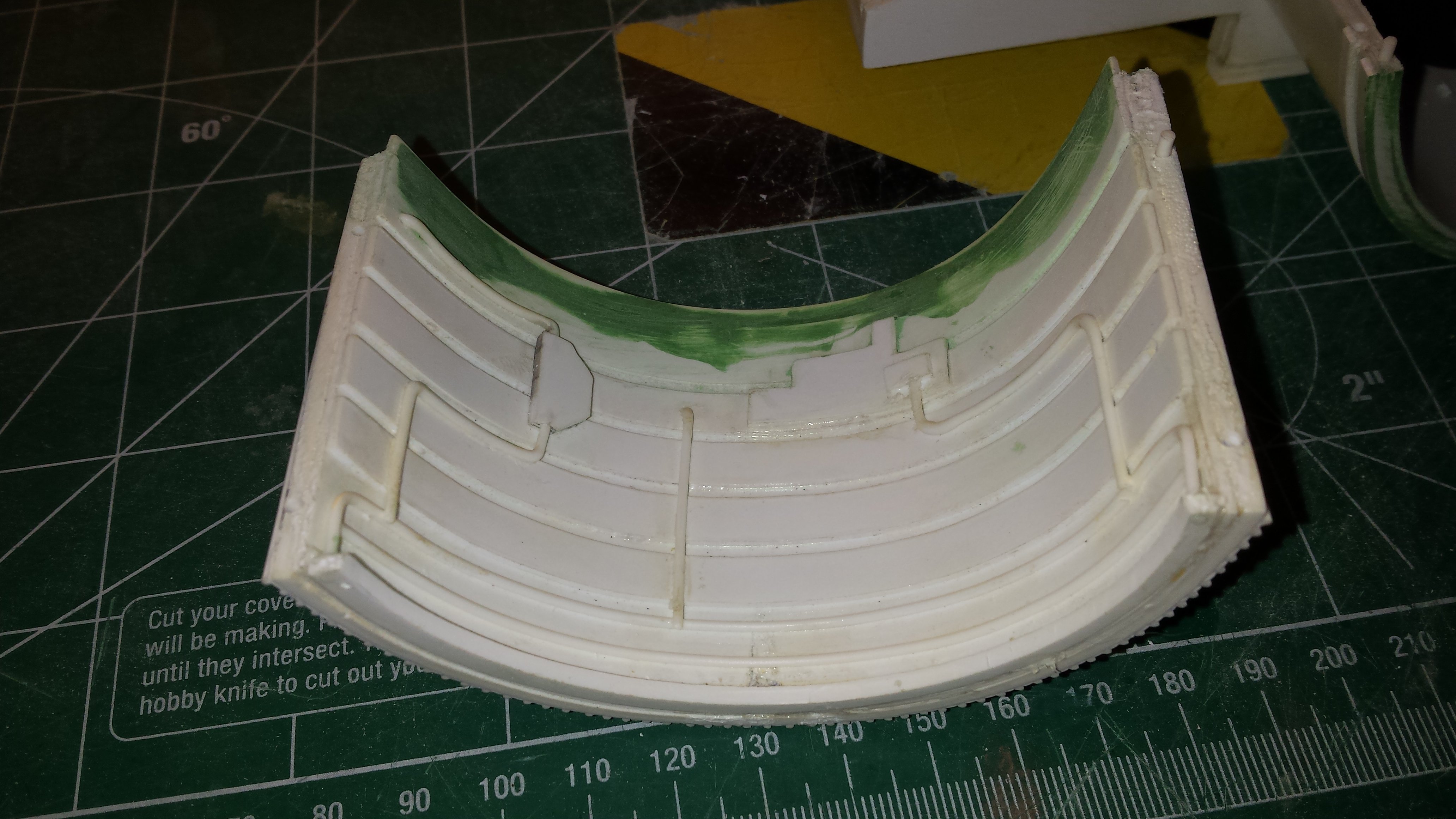

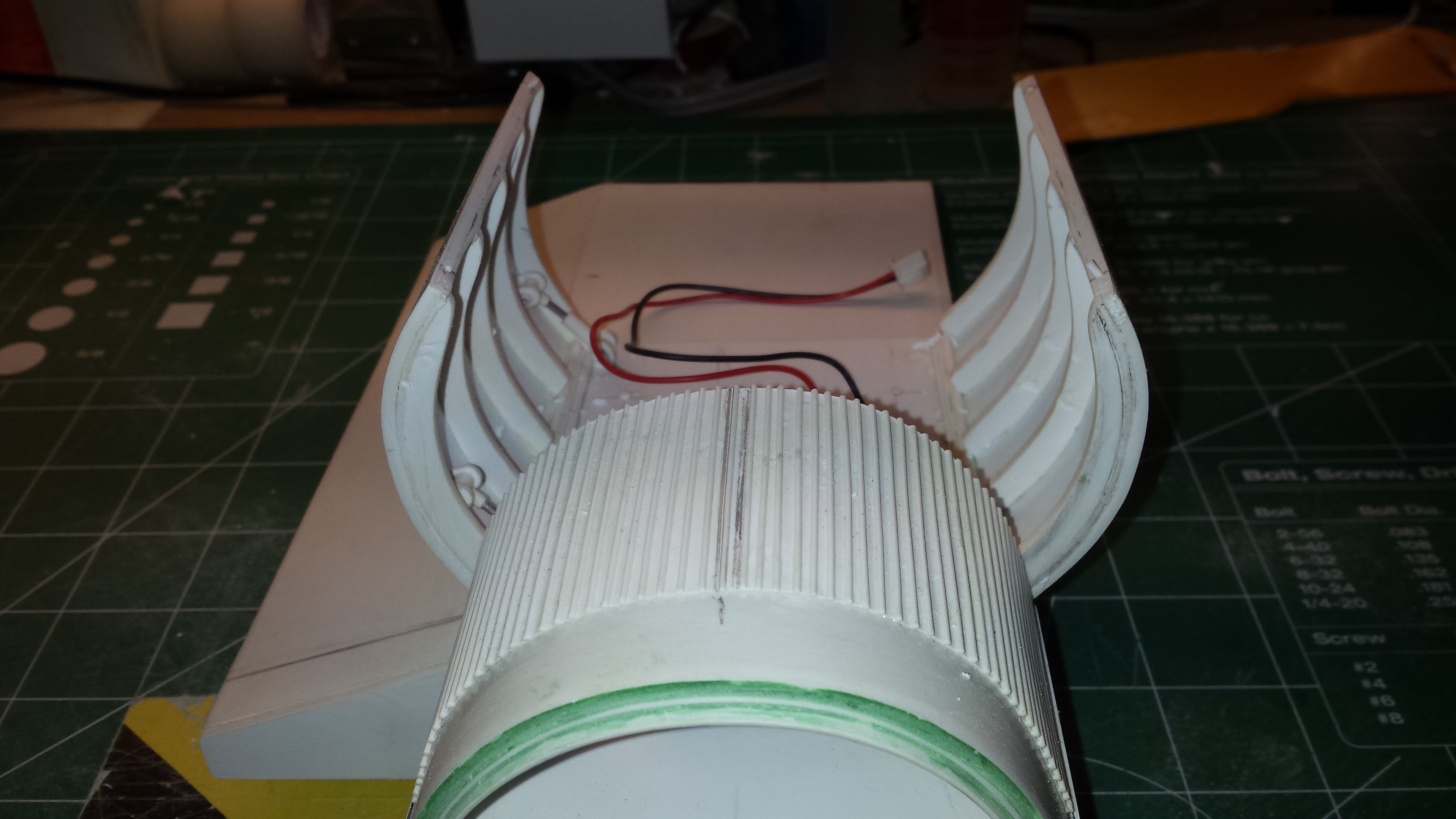

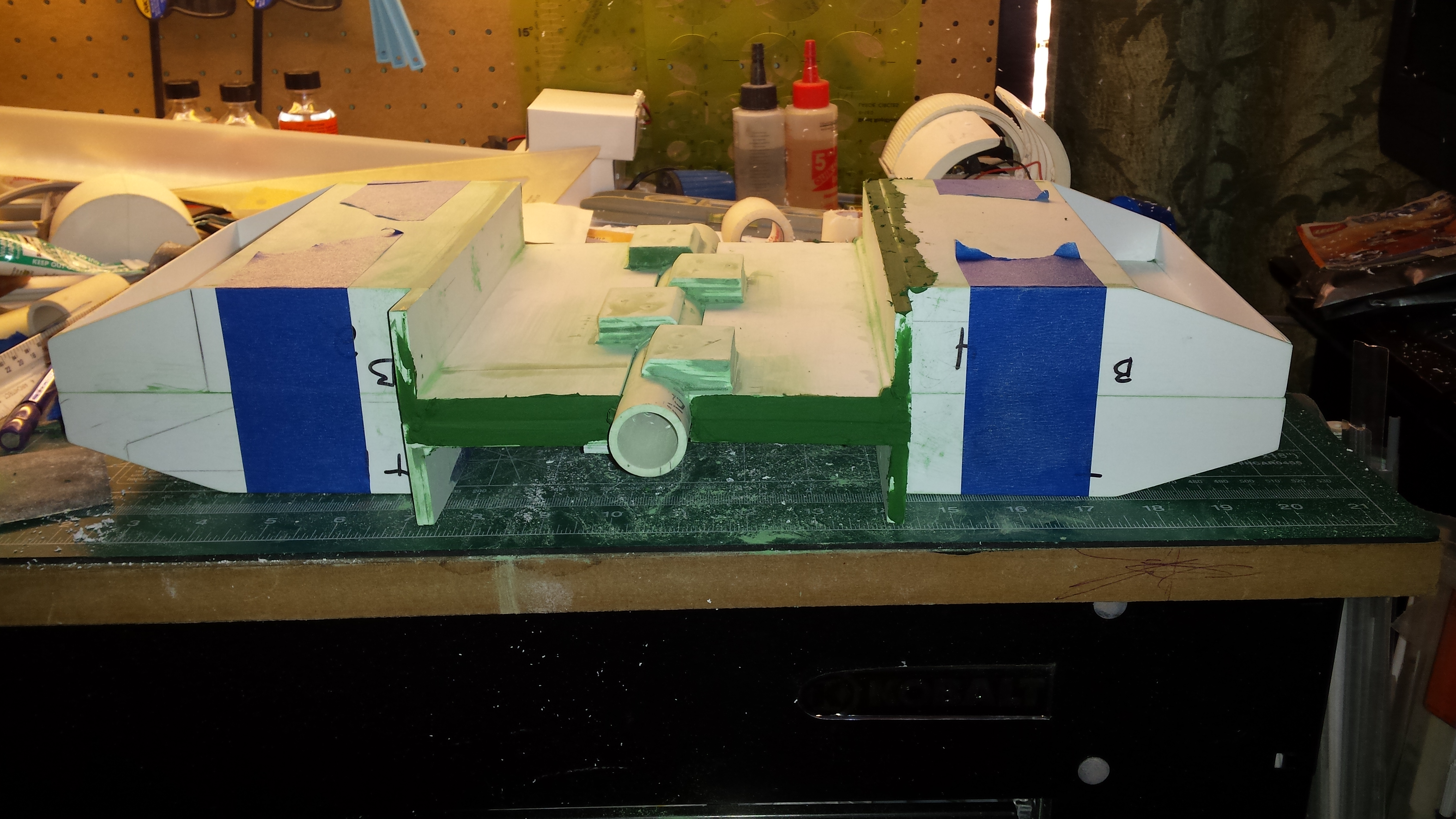

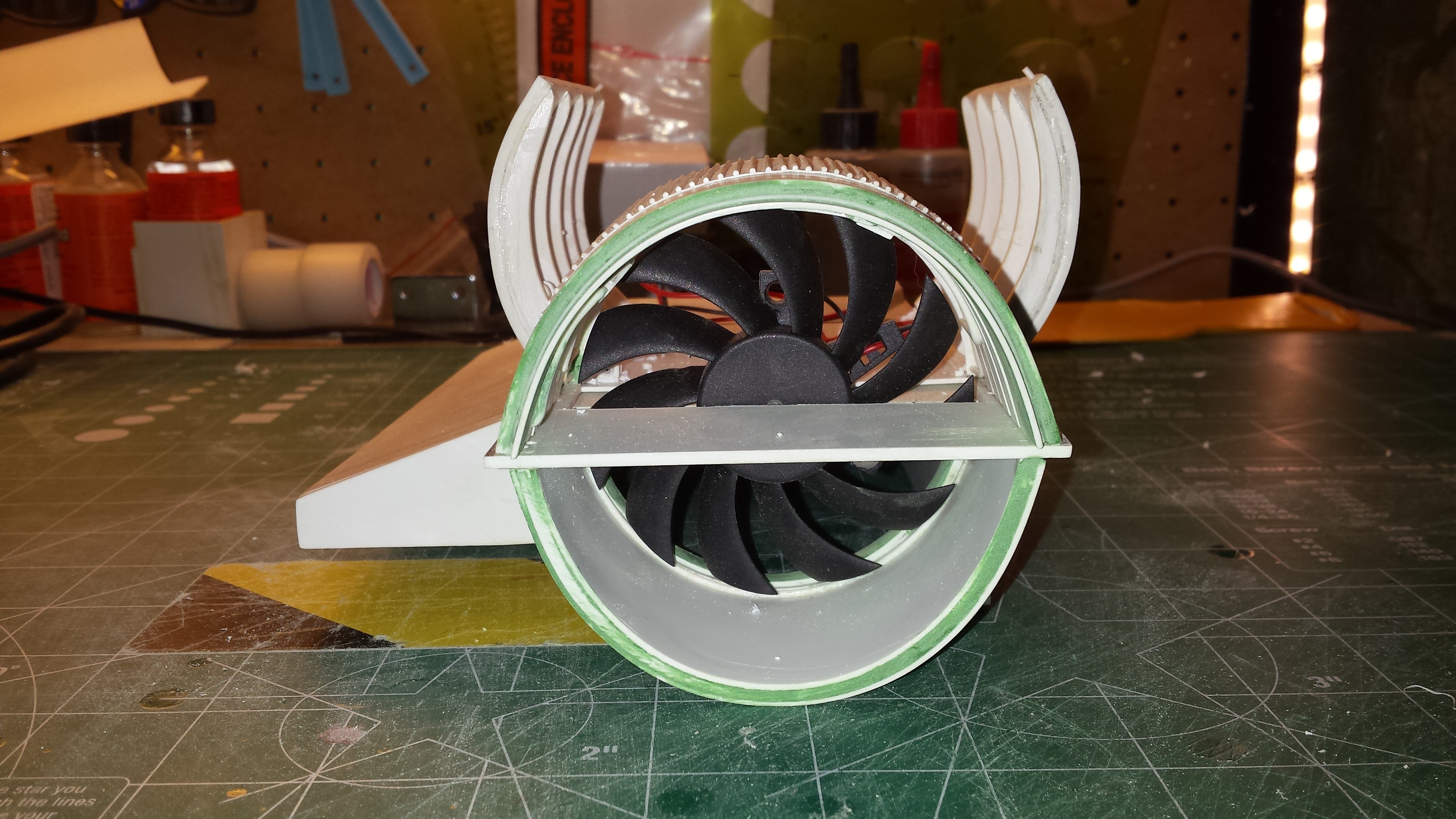

    Here are a few Pics of one of the engines. I have added a fan to simulate the intake. The bay will be the landing gear.
    [​IMG][​IMG][​IMG][​IMG]

    Here is a short video of fan in motion


    More to come, I have tried to rotate pictures and it doesn't work right. sorry. It loads the pictures upside down.


    Attached Files:

    Last edited by a moderator: Nov 8, 2018
    peza, Nick K, EddieL and 4 others like this.
  2. robn1

    robn1 Master Member

    Trophy Points:
    3,355
    Go big or go home, this is gonna be awesome! Are you building this to represent the original or the larger ROTJ version?

    asalaw likes this.
  3. bartrman

    bartrman New Member

    Trophy Points:
    18
    Going to try for the original. It my not be exact but close to it I hope. Thanks for looking.

    32buds likes this.
  4. SofaKing01

    SofaKing01 Master Member

    Trophy Points:
    3,660
    I'm loving all the large scale builds people are doing. This one is no exception. Looking forward to more! :)

  5. horus

    horus Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    621
    Well this is just Fantastic work !, Subscribed

  6. PHArchivist

    PHArchivist Master Member

    Trophy Points:
    4,710
    This will be fun to watch

  7. Watson

    Watson Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,831
    Love it so far :)

  8. jockdeboer

    jockdeboer Well-Known Member RPF PREMIUM MEMBER

    Trophy Points:
    666
    Nice work. The bigger the better! One of these days someone will take on a 1 to 1...

  9. bartrman

    bartrman New Member

    Trophy Points:
    18

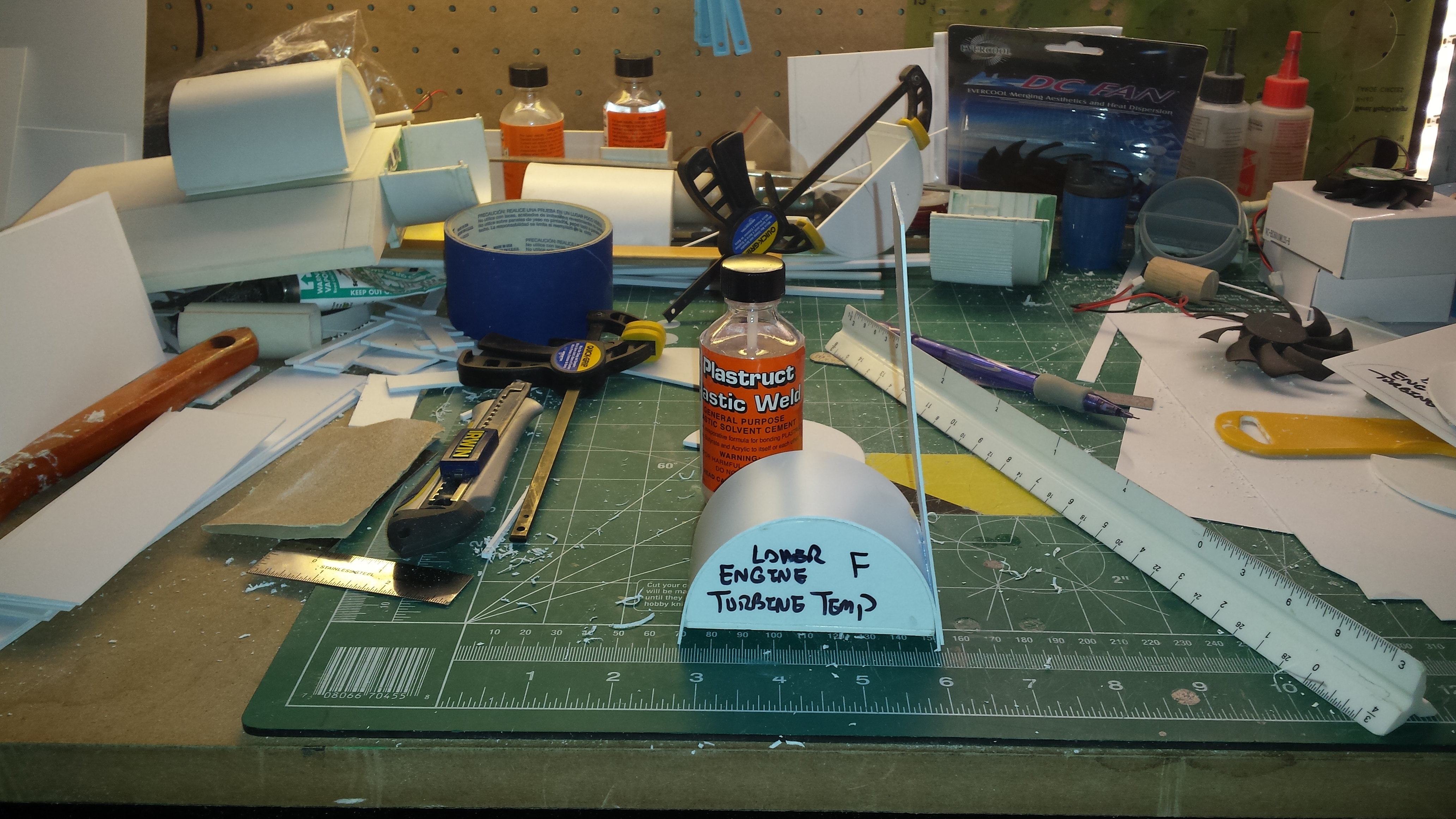

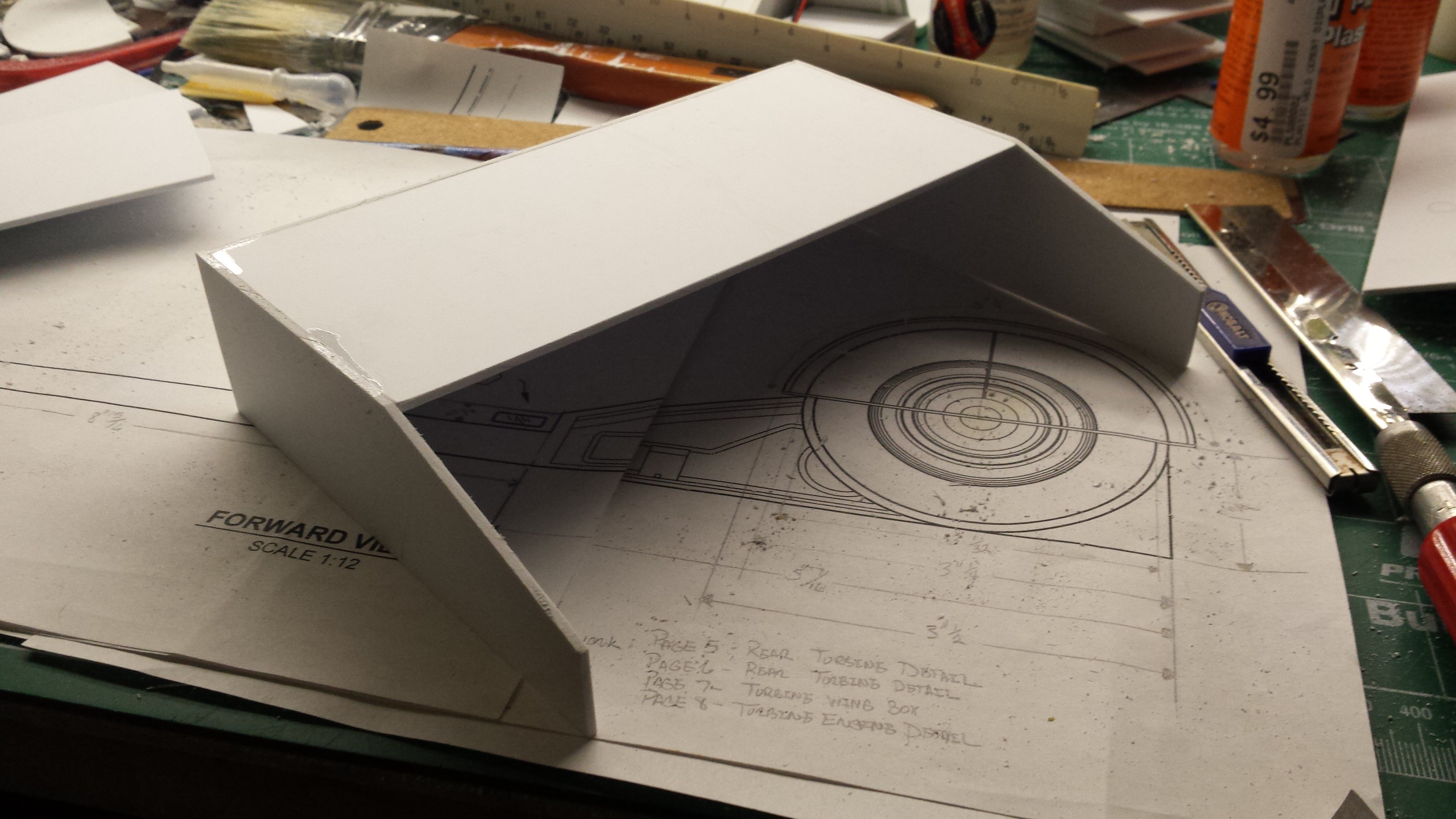

    Started to work on the Intake engine frame's. Used a template and then wrapped 0.04 styrene x 3 over the template adding glue as I wrap. My be crude but effective. Repeat this step for the other three.

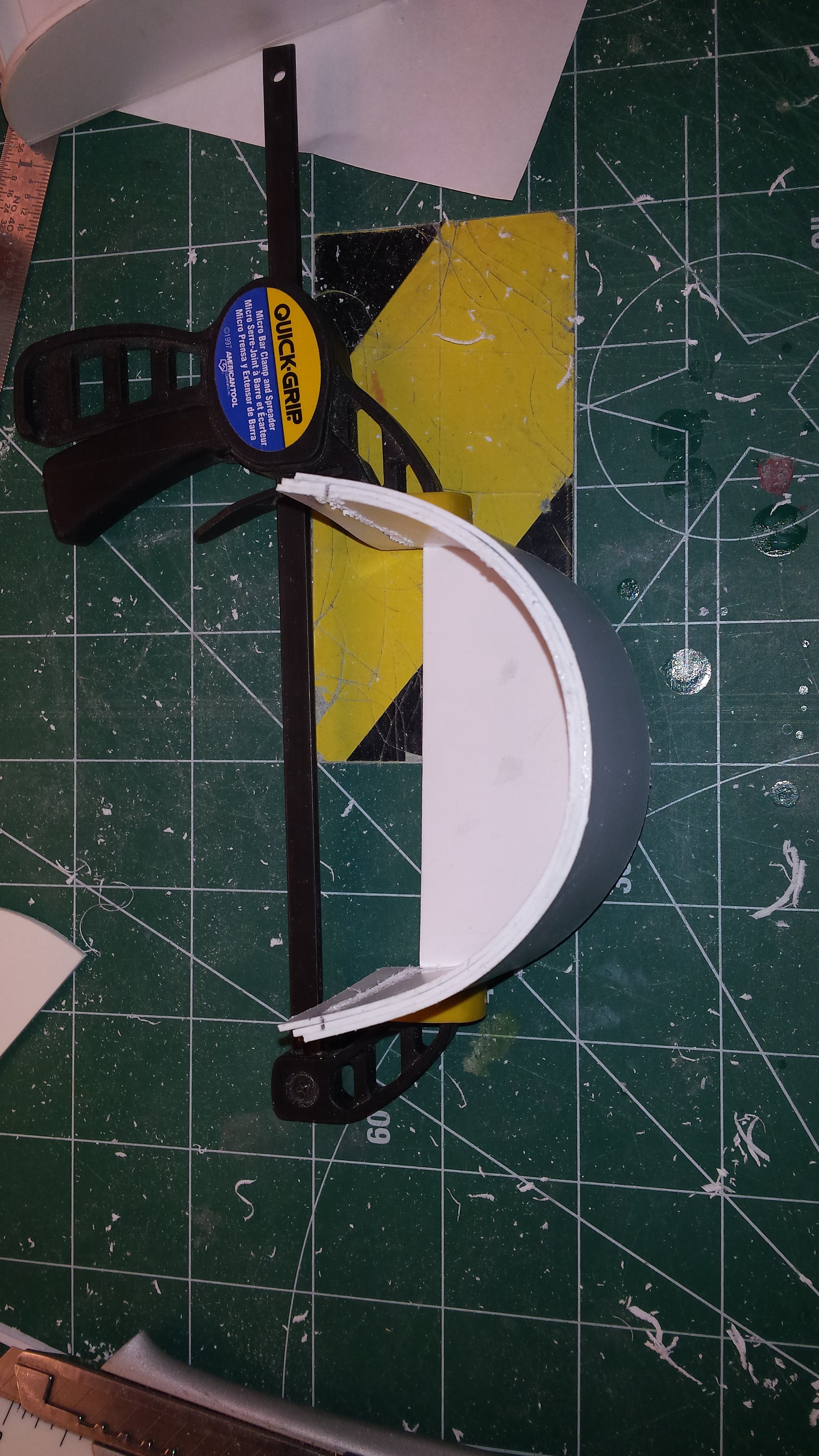

    Using the circle cutter tool to cut my half circle's to add to the back of bottom engine intake.
    This is what a finished one looks like. Then I have to cut off the extra on the sides.

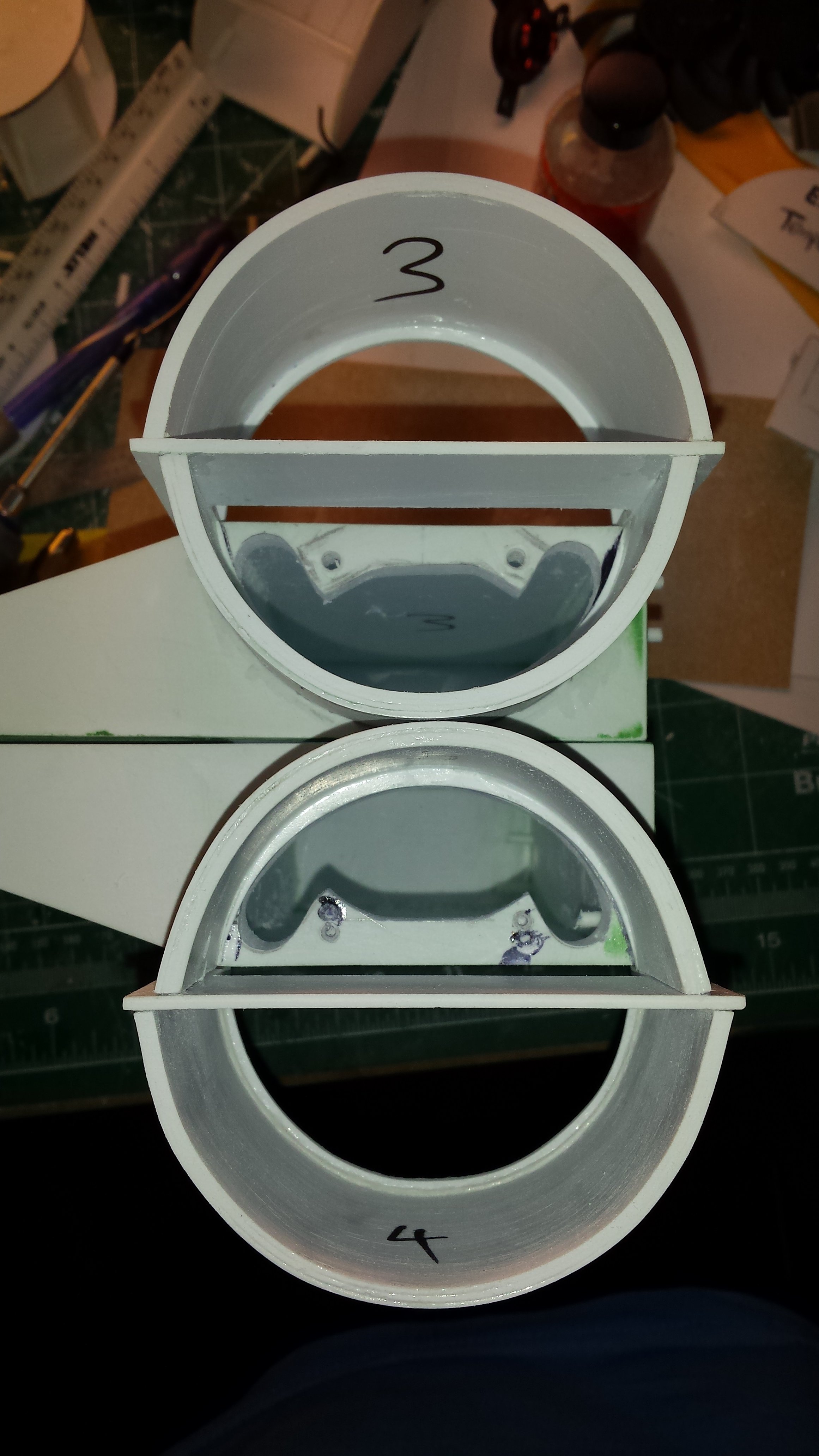

    This is a sample picture of two bottom halves complete. I am using styrene pins to temporarily place piece's on model. Will glue and fine tune later.
    This is just another sample picture where I am testing the X-Wing's as far a placement and mobility. I have bought a Adreno which I plan to use to control the wings with servo's. More to come.

    Last edited: Aug 20, 2015
    peza, Nick K, EddieL and 2 others like this.
  10. bartrman

    bartrman New Member

    Trophy Points:
    18
    Thanks Watson for the offer. I wish I had the ability to do that. I am using some PDF drawing's another member posted a while back. Great drawings. The drawings were done so someone could build a 1:1 X-wing.

    asalaw likes this.
  11. binarysunset

    binarysunset Active Member

    Trophy Points:
    261
    I'm taking on the Colonial Viper first, but when I'm done the X-wing will be next

    Your build looks terrific btw !!

    Last edited: Aug 20, 2015
    asalaw likes this.
  12. bartrman

    bartrman New Member

    Trophy Points:
    18
    Little more update. Starting to build some more tonight, so I thought I would post my progress. Hope everyone likes.

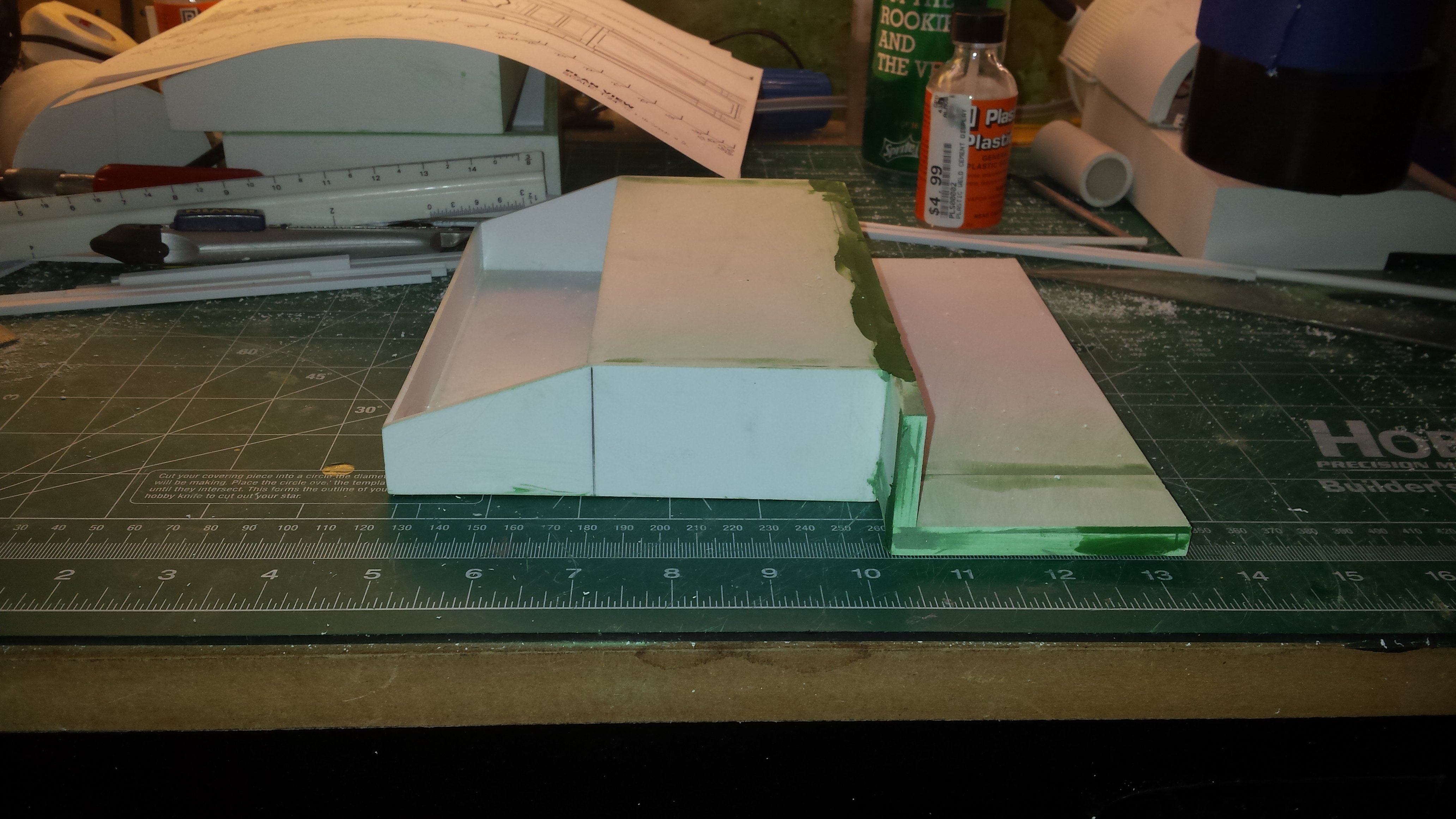

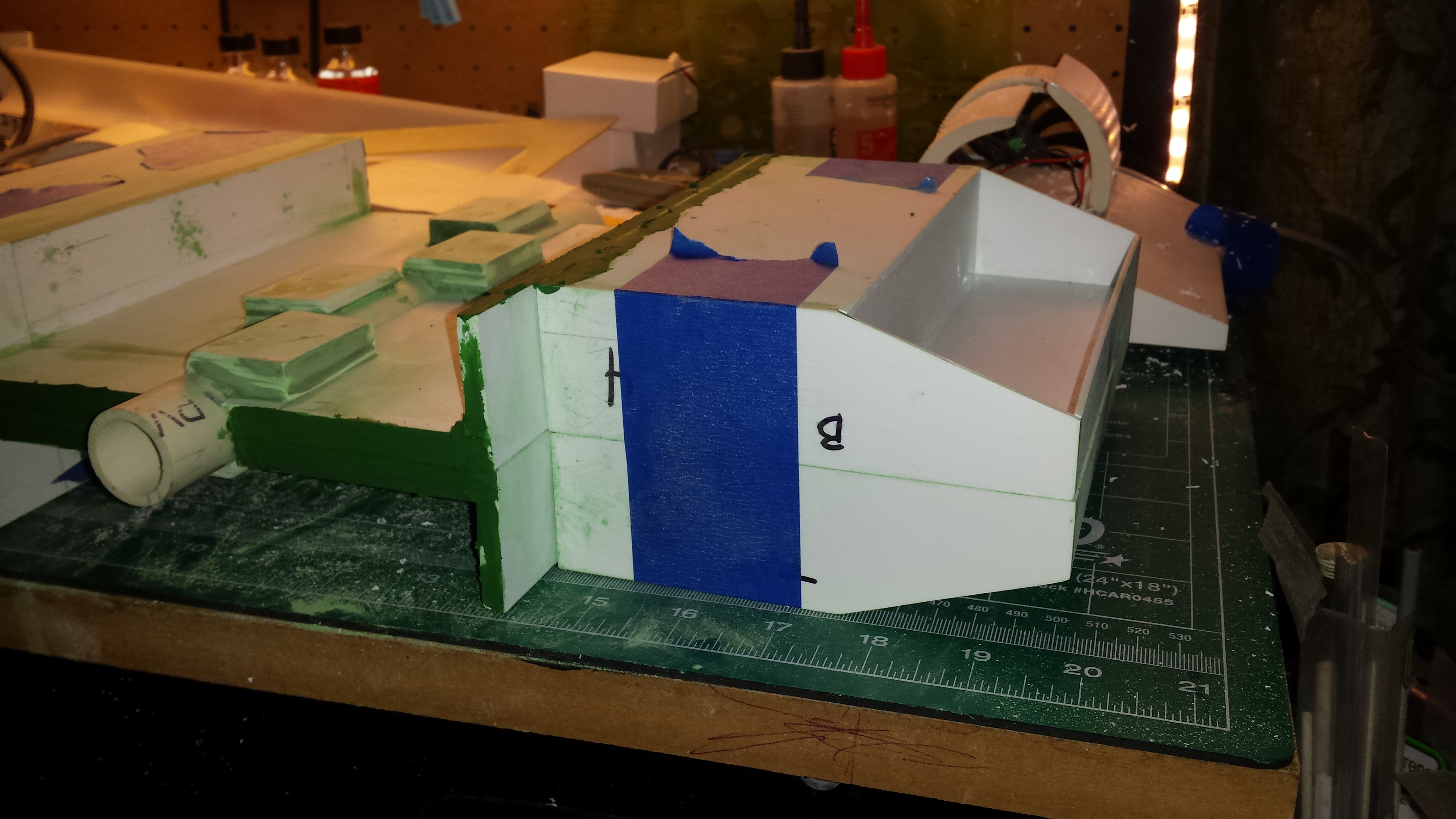

    Finished building lower engine housing. Test fitting to wings. Haven't added any detail yet or cut whole for fan placement.

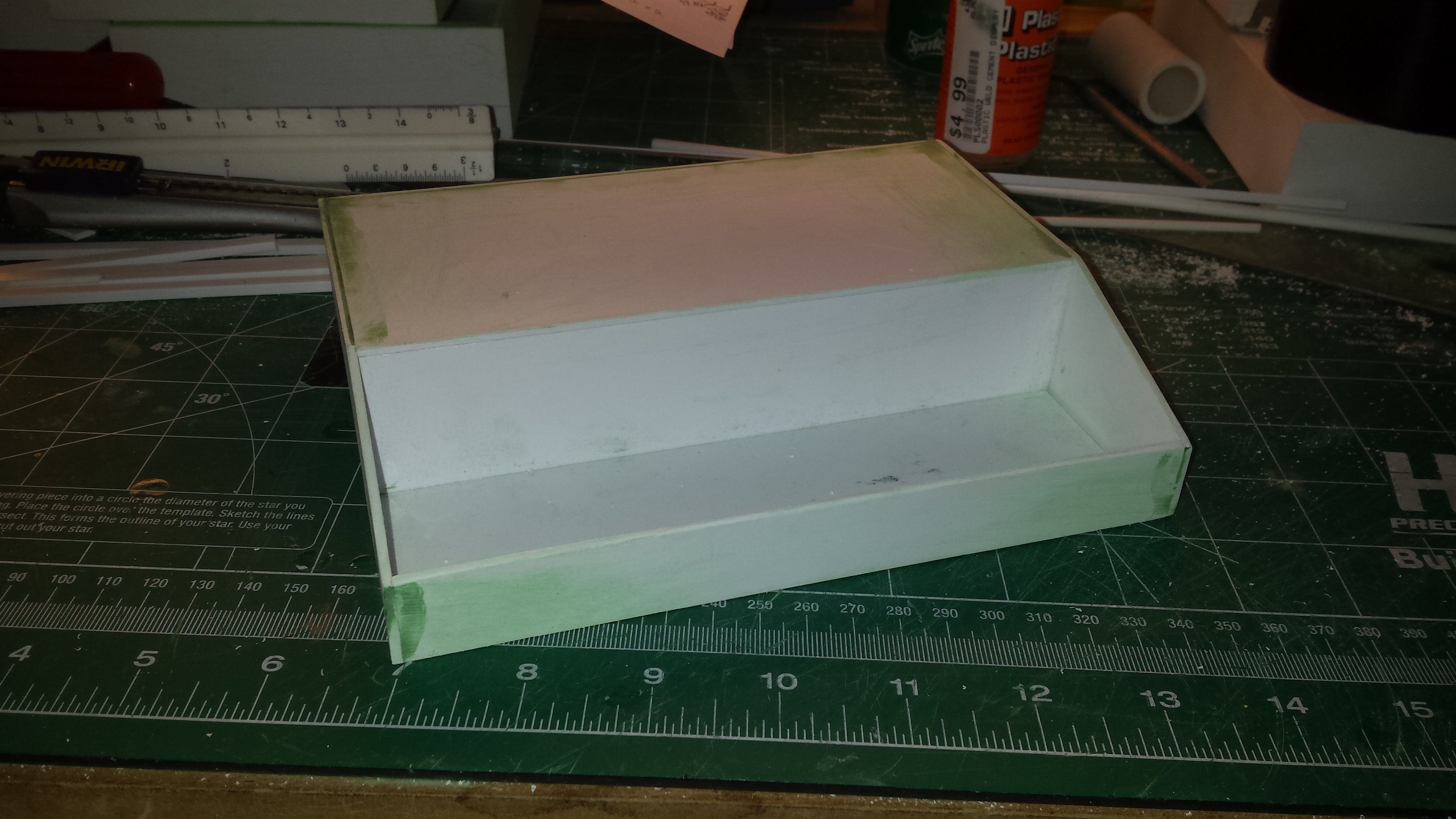

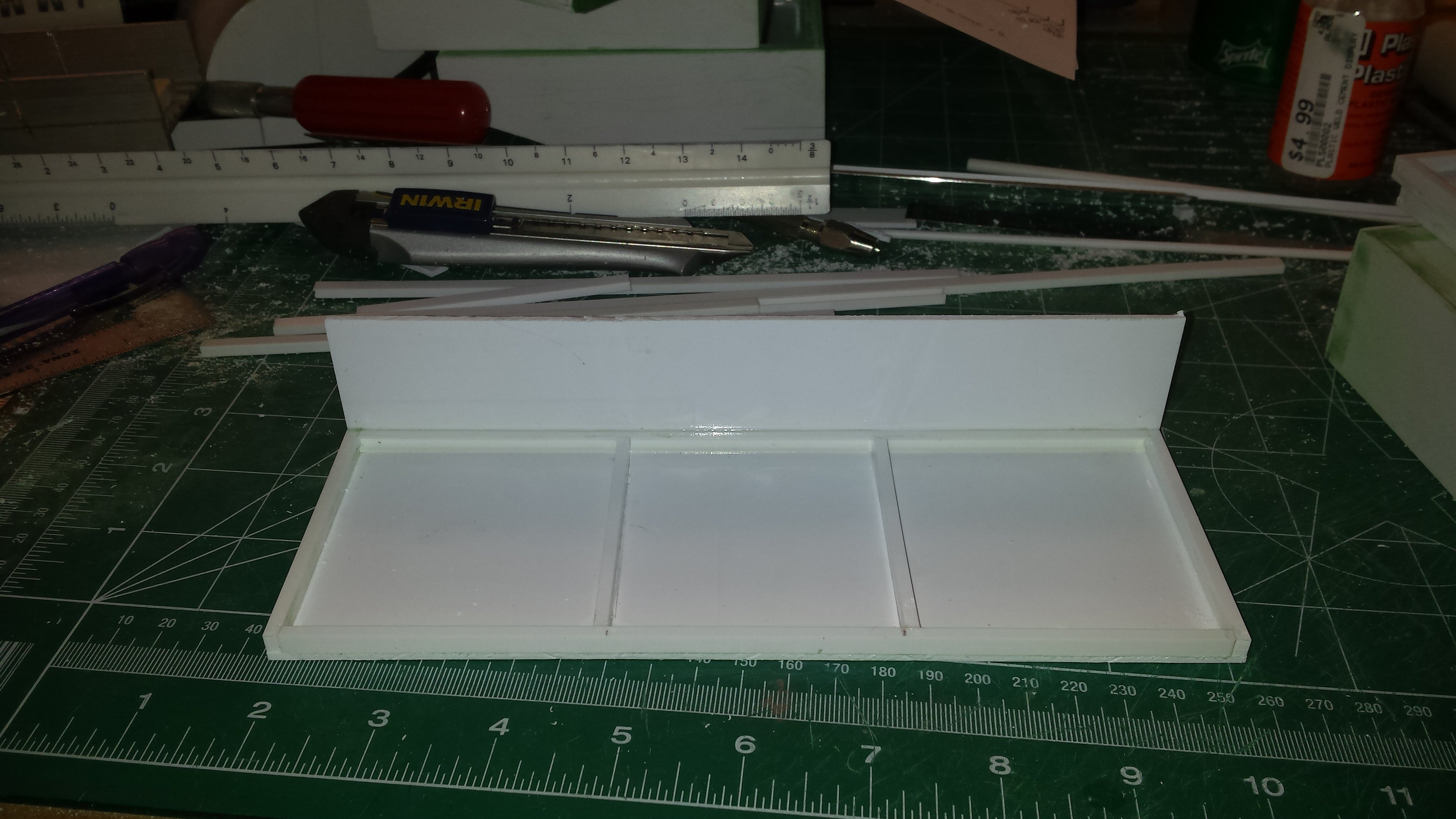

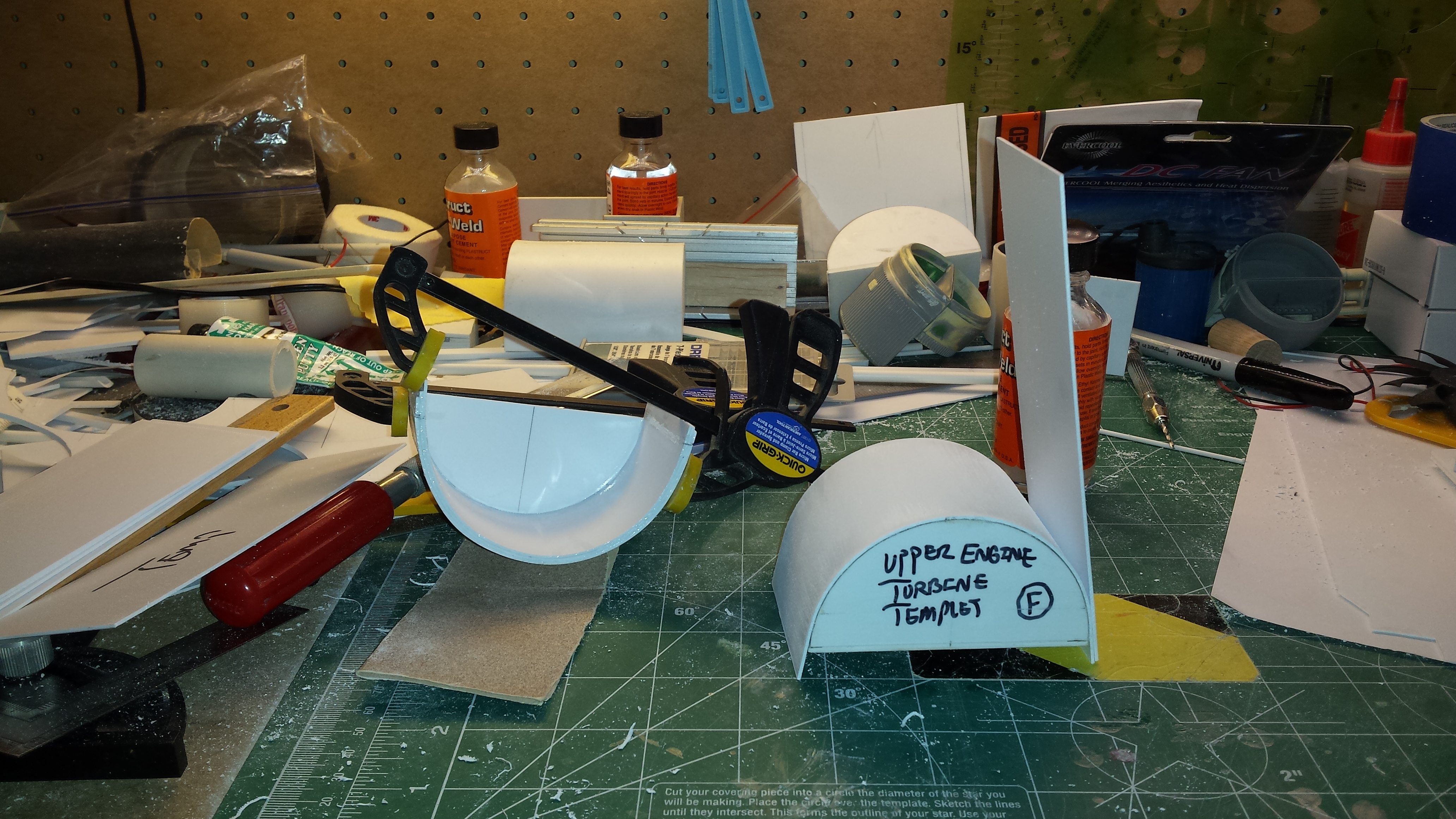

    Starting build on upper engine housing. Again using 0.04 styrene sheets x 3 for proper thickness.

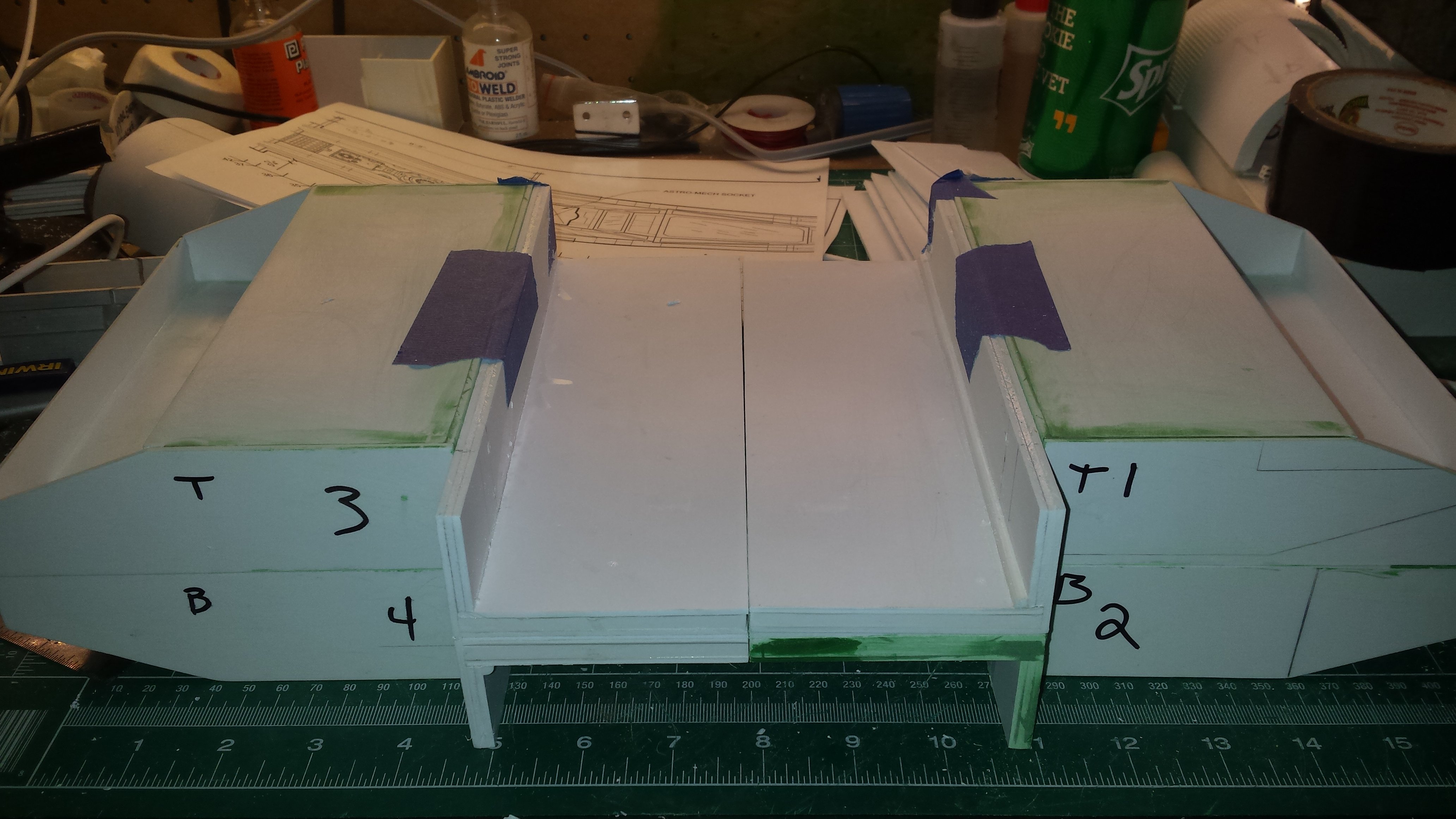

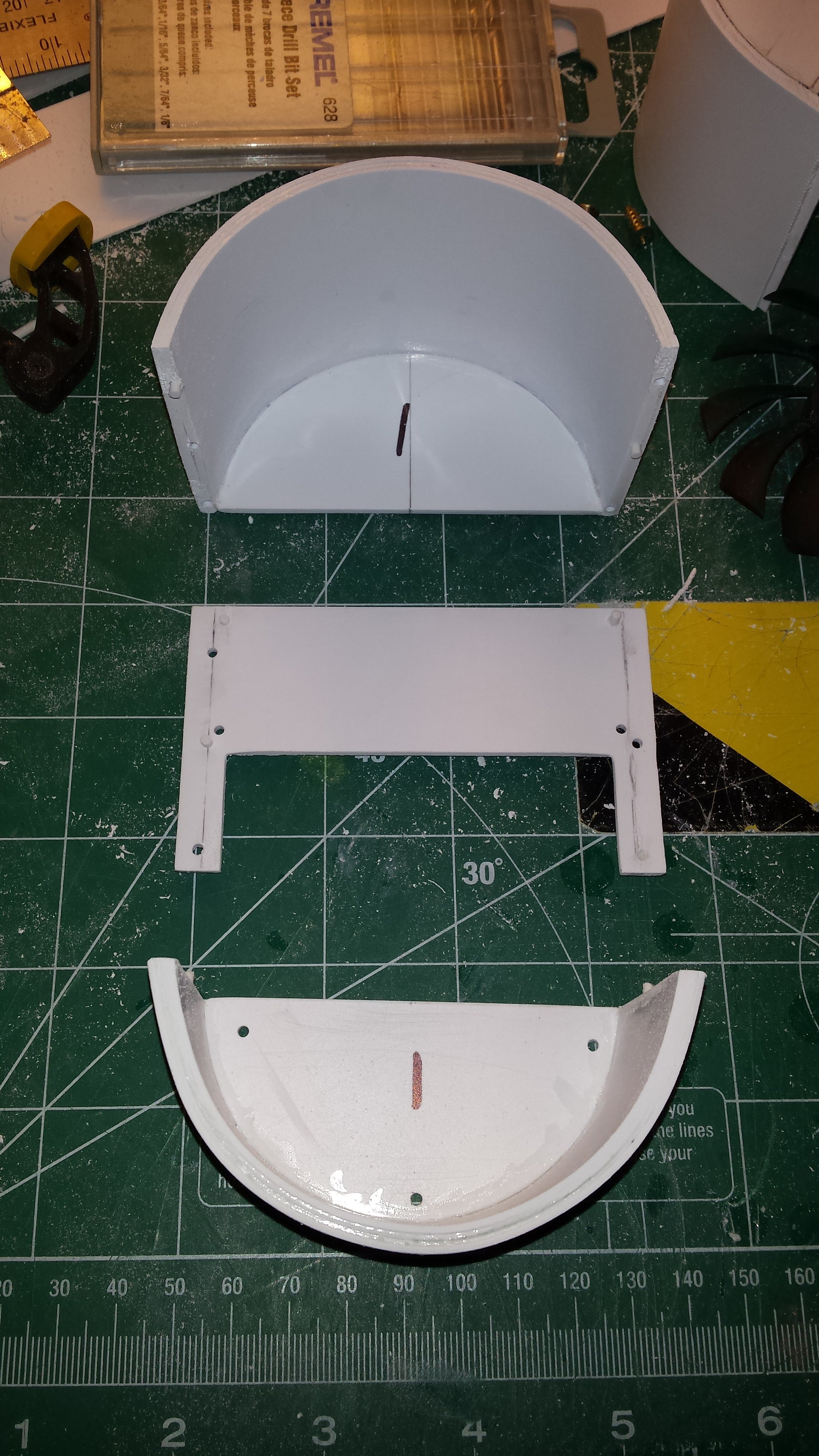

    Completed parts for upper and lower engine housing and middle support. Again using styrene pins for placement. Will glue together later after all placement issues are resolved.
    20150820_232107.jpg 20150820_232136.jpg

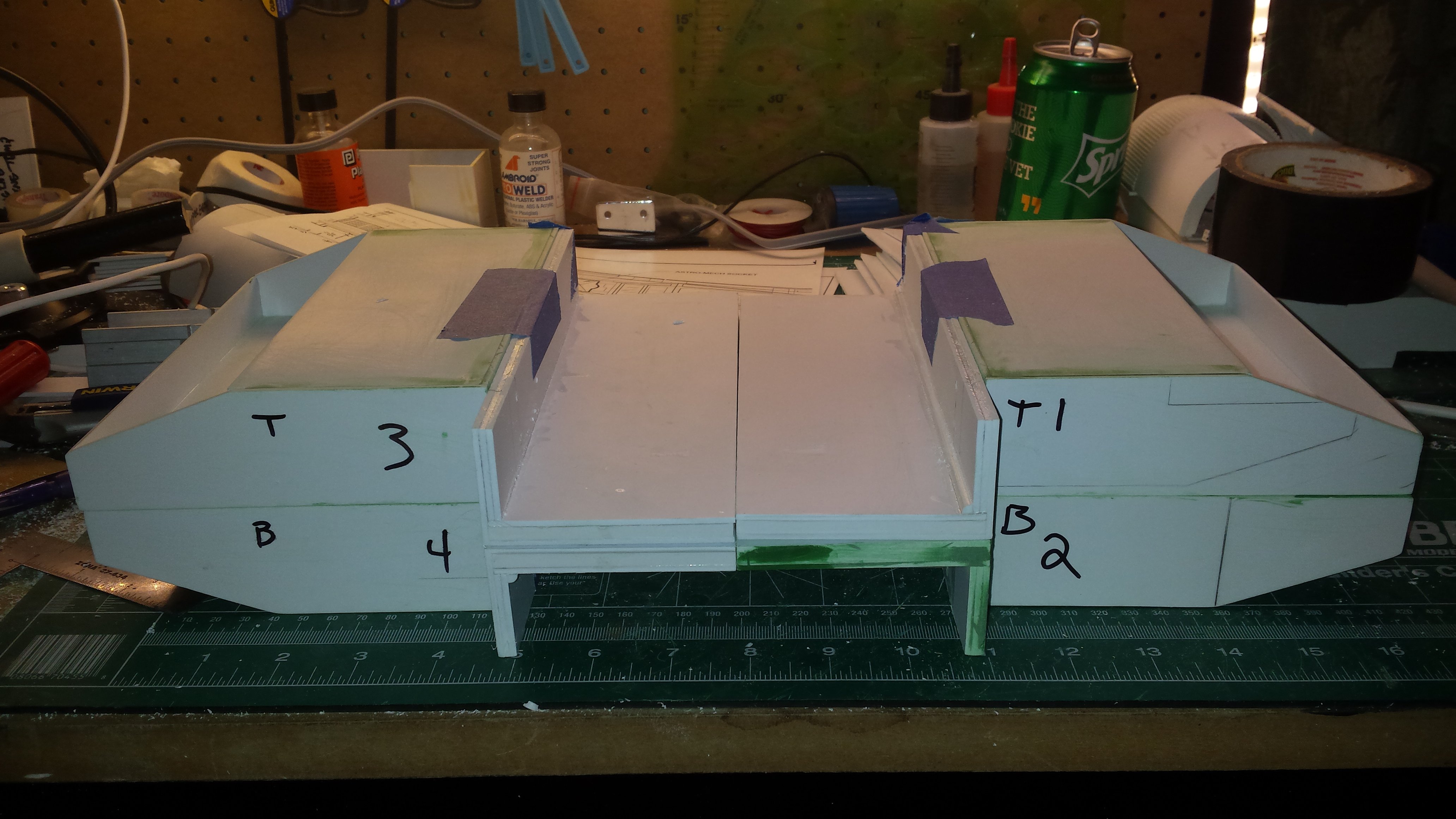

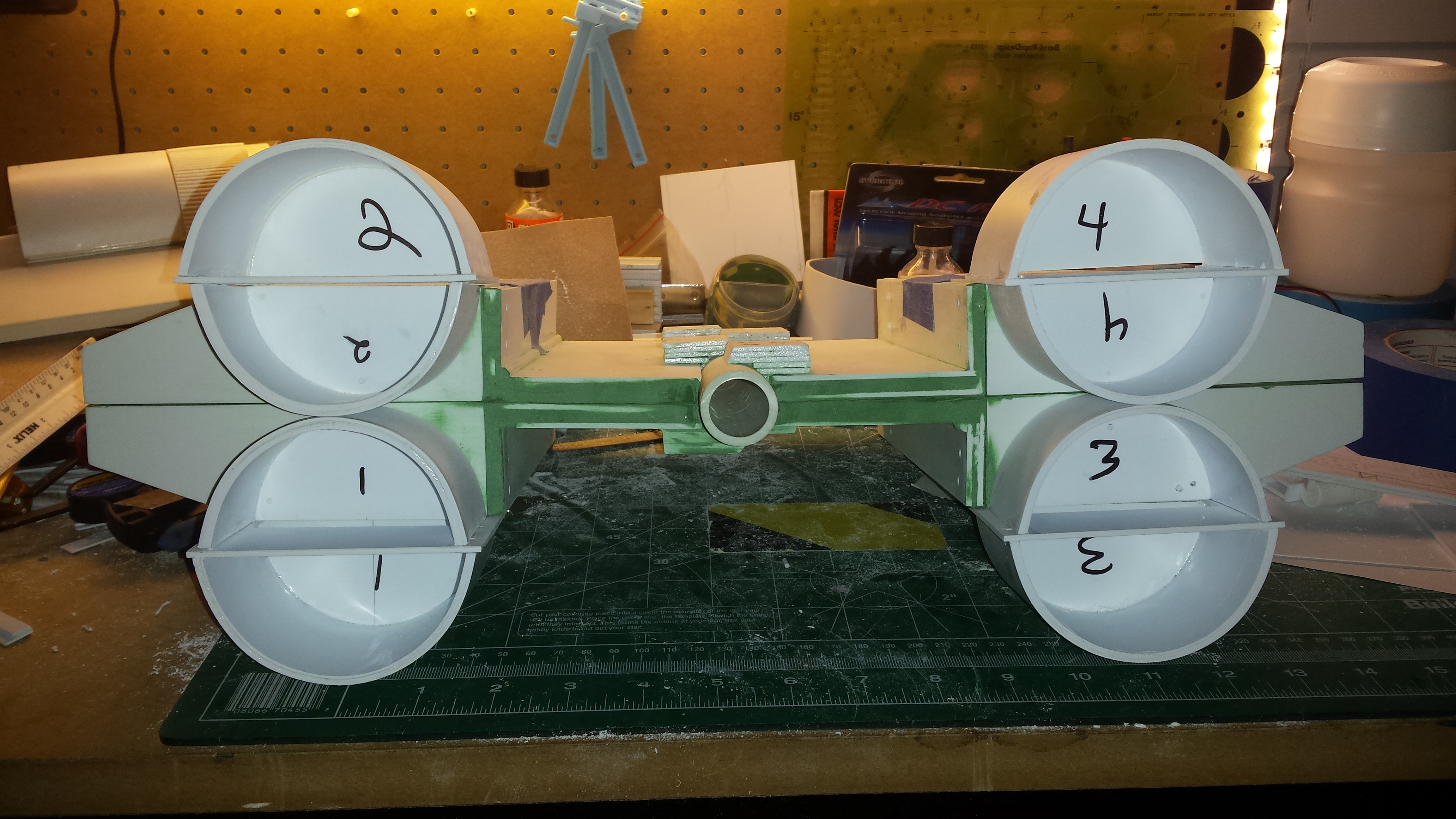

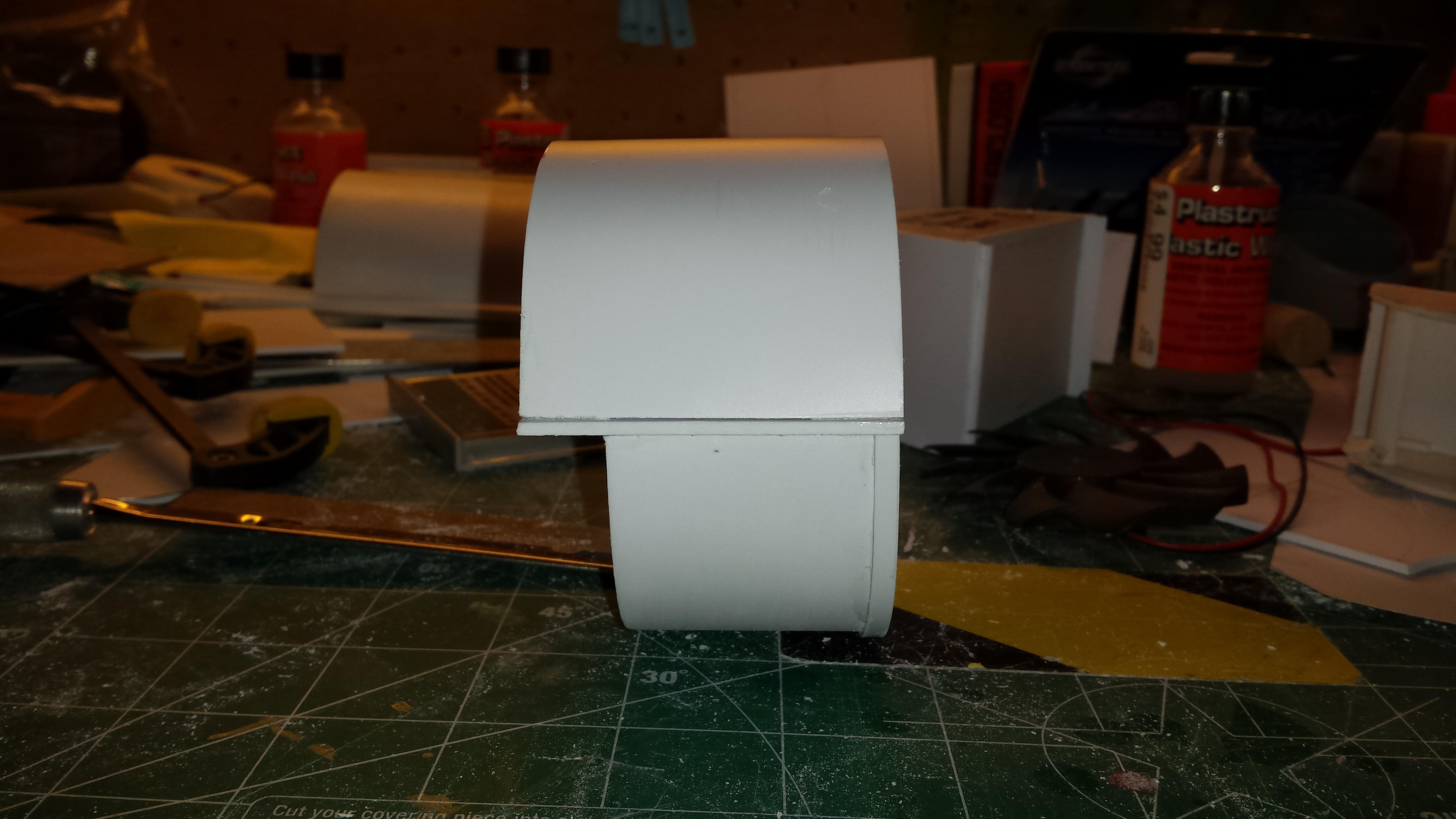

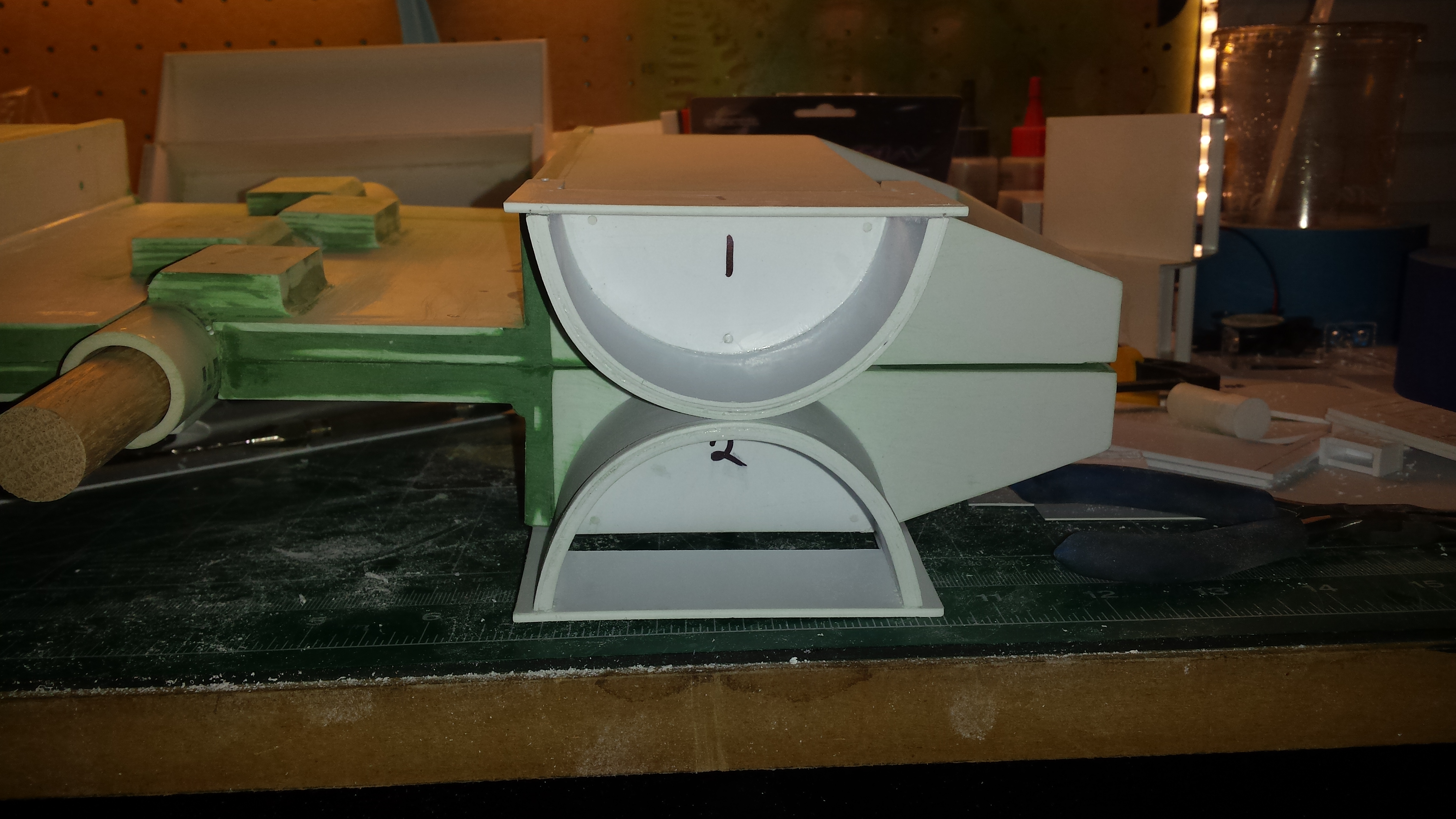

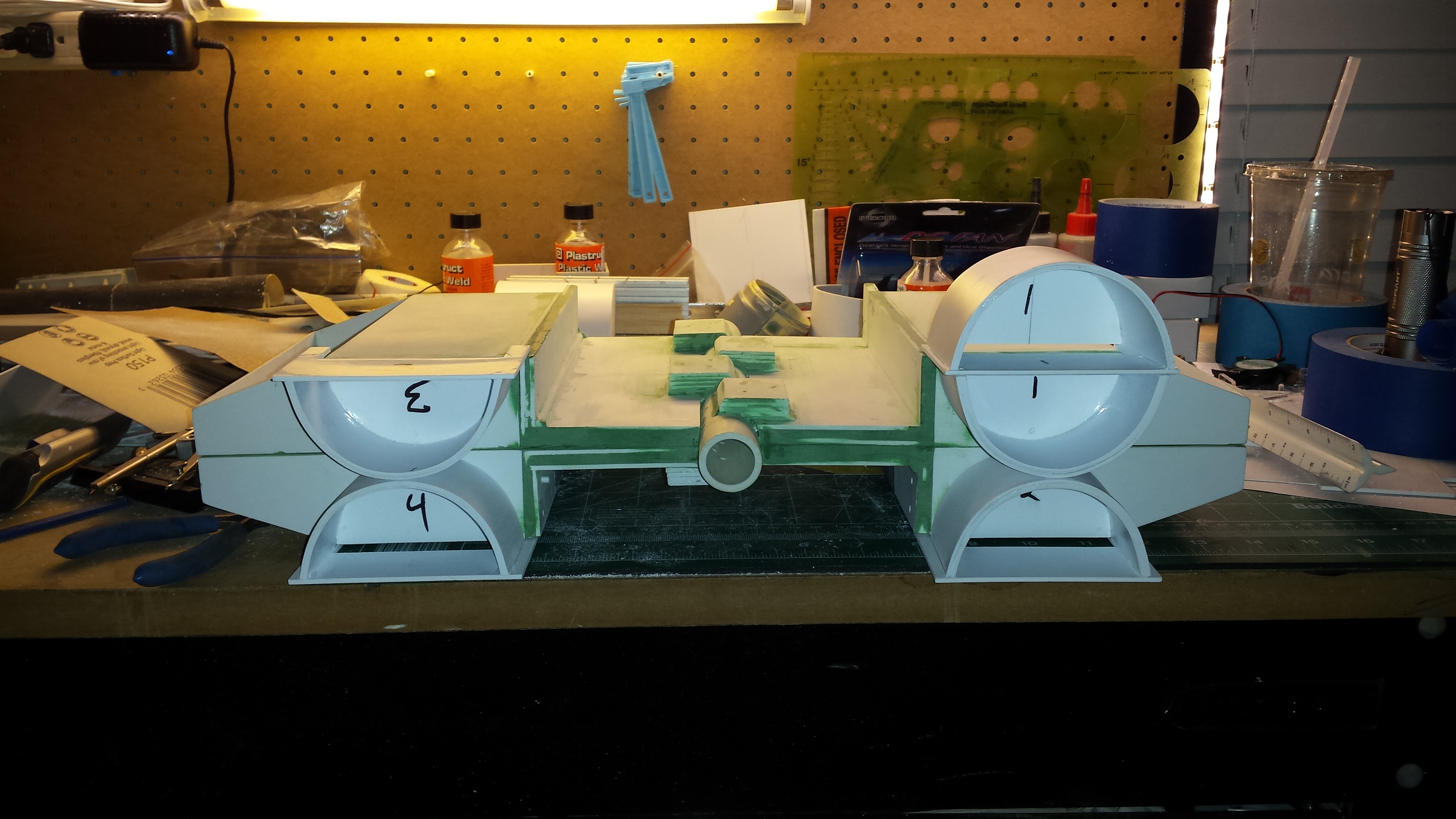

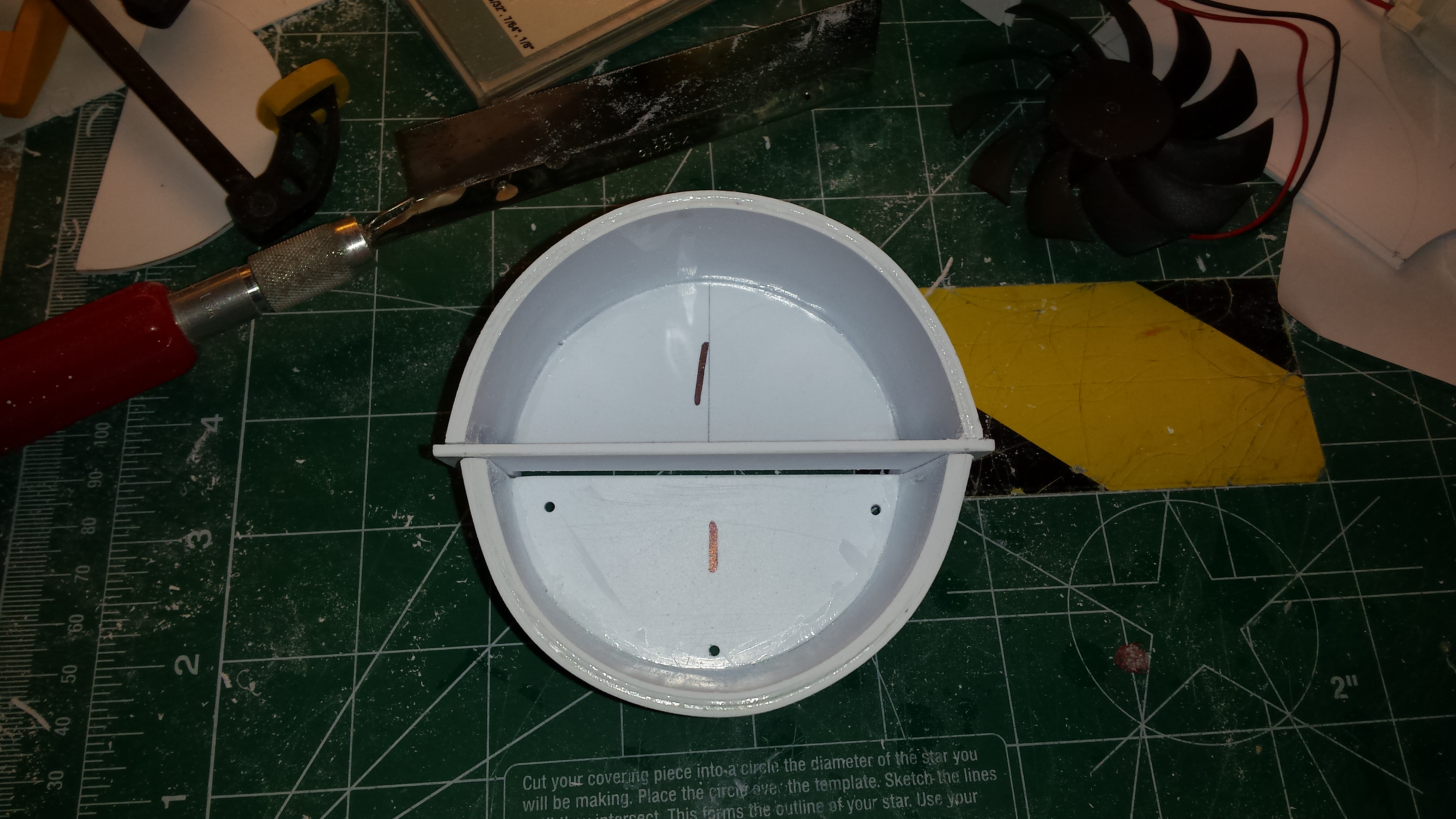

    Engine housing one test fitted together looks good so far.

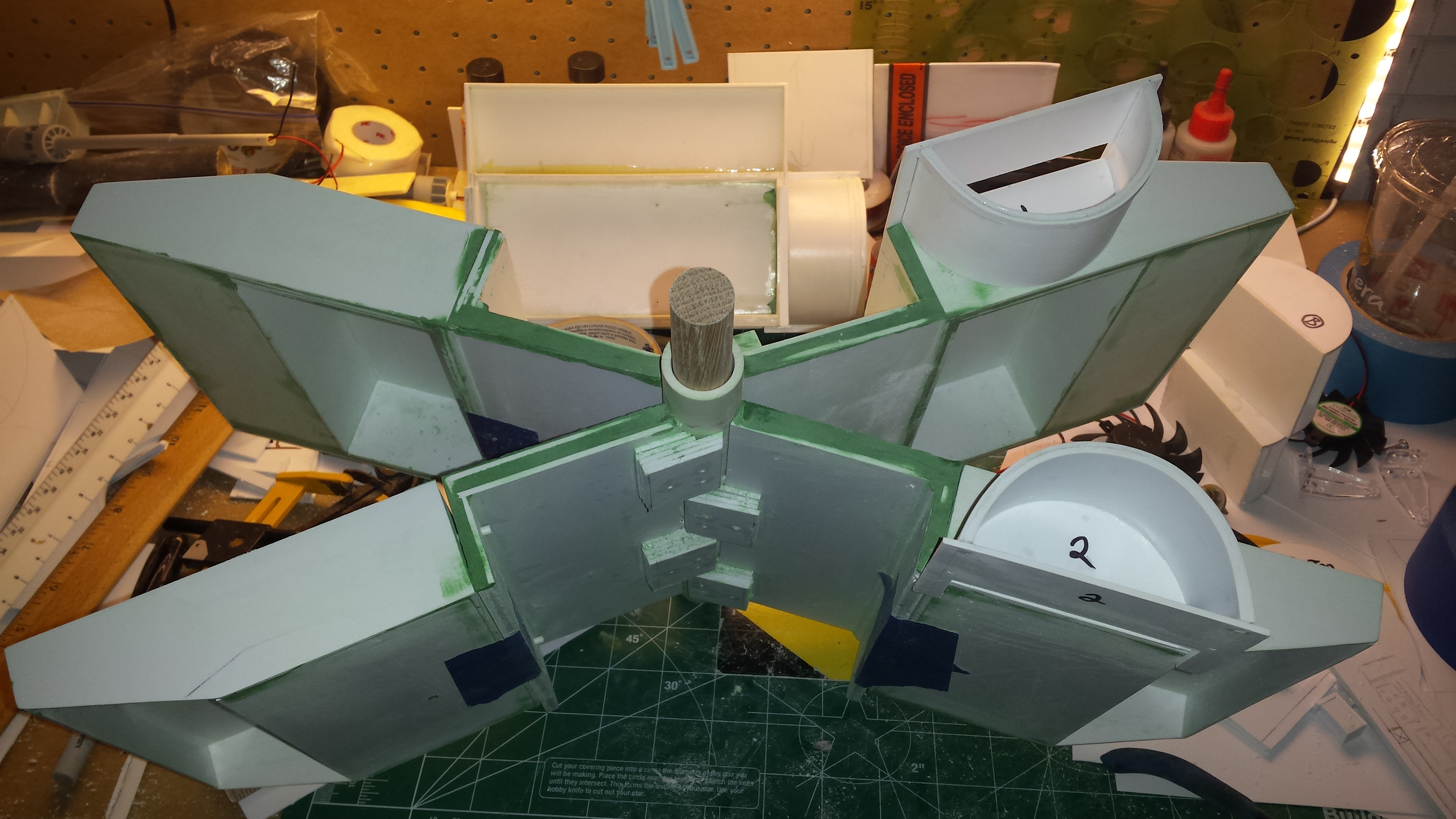

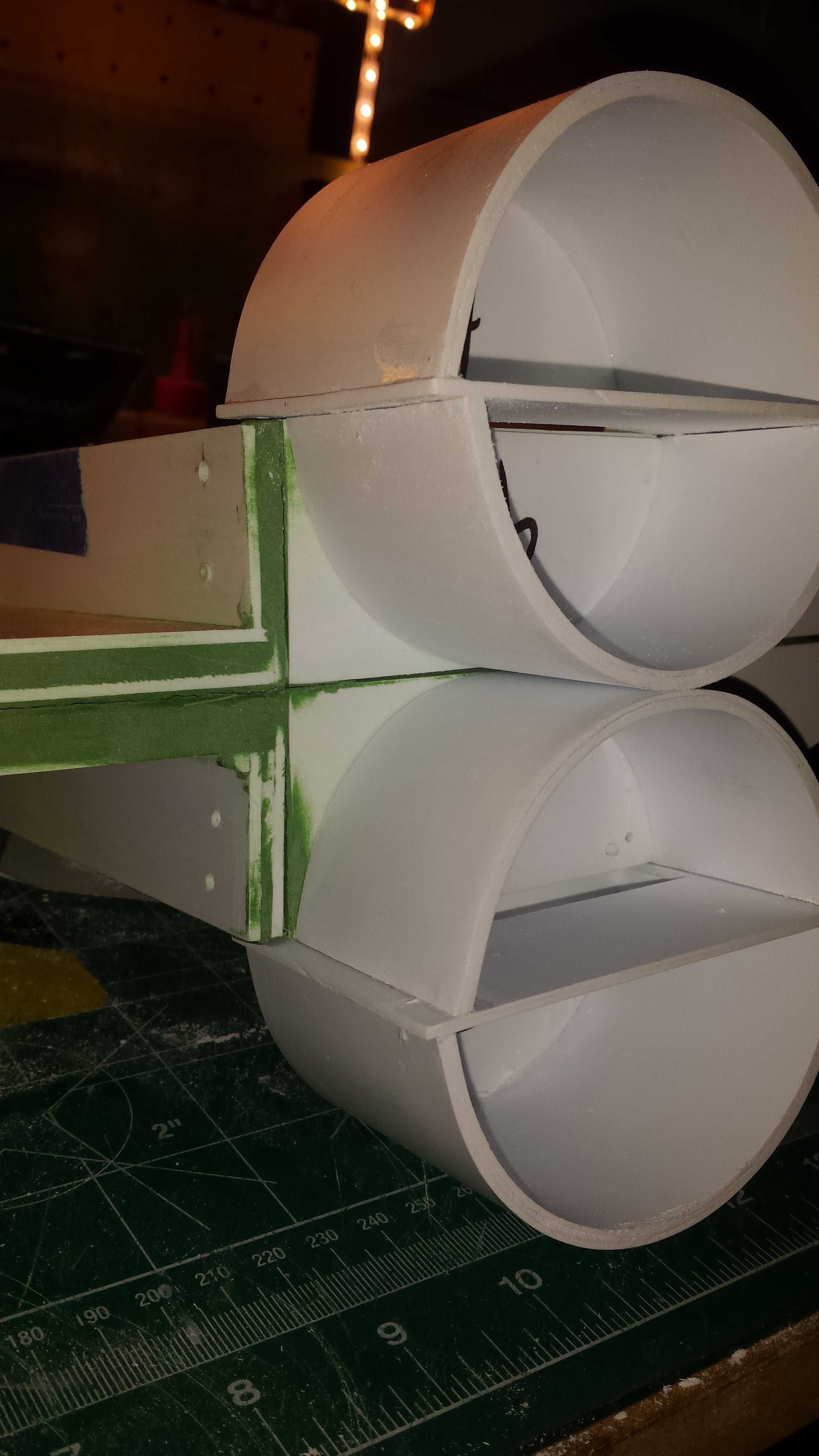

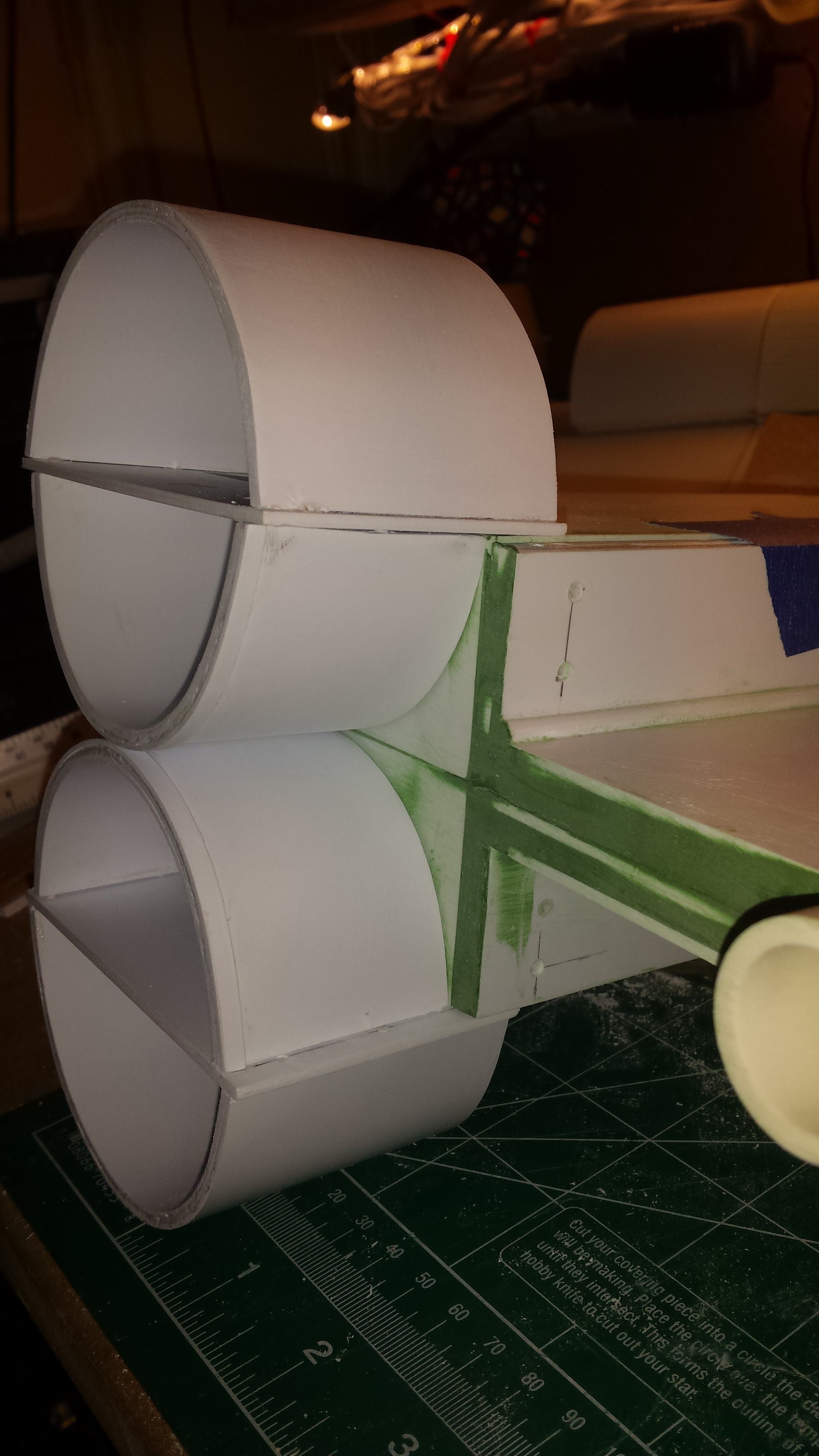

    Engine one test fitted to wings for proper placement.
    Well that's about all I was able to complete this week. Hope to have more updates soon.

    Last edited: Aug 26, 2015
    Nick K, EddieL, knnyjay and 1 other person like this.
  13. bartrman

    bartrman New Member

    Trophy Points:
    18

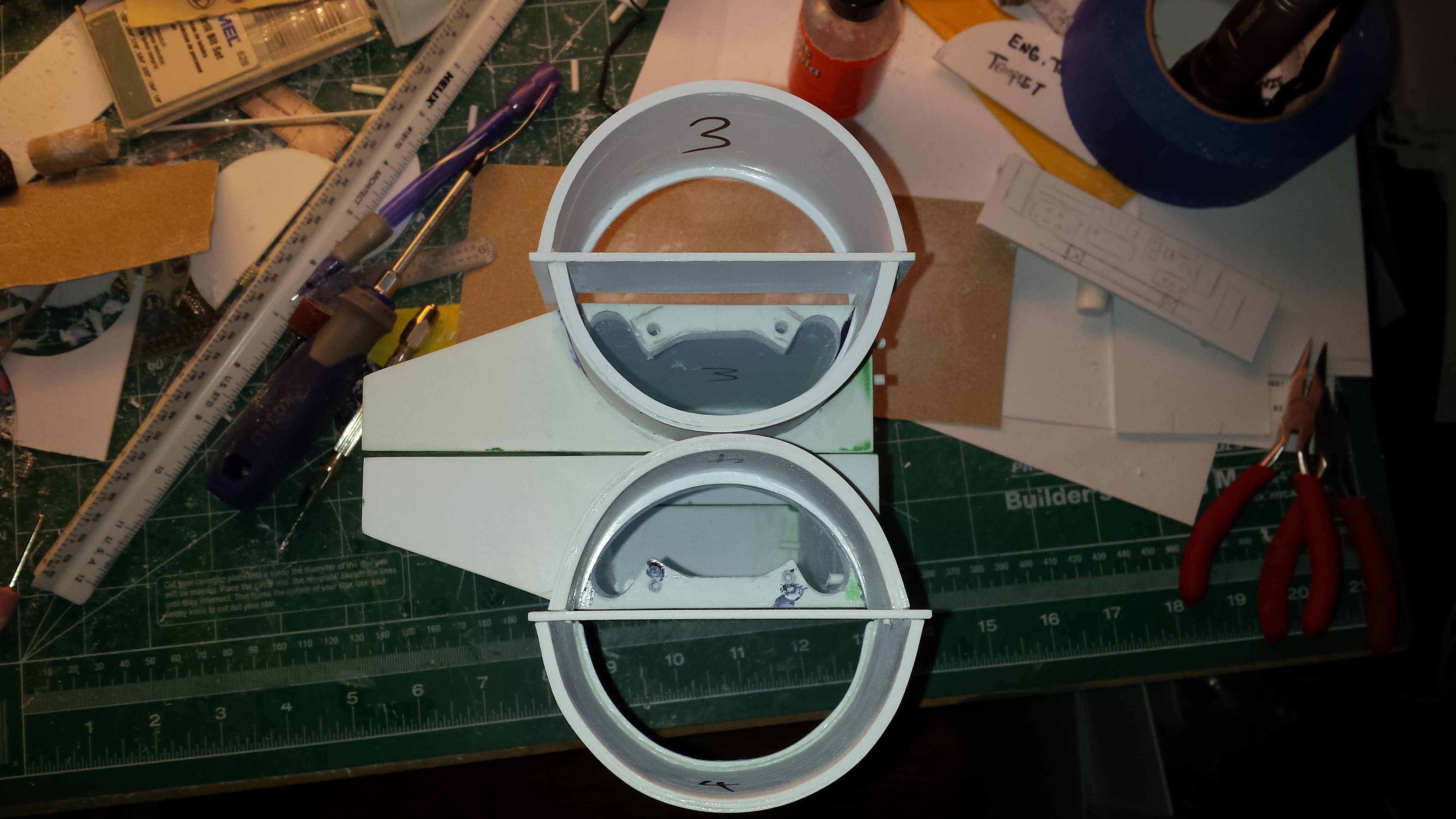

    Just a quick update. Started working on finishing the engine intake frames. All 4 complete.
    Will start working on detail and fan placement next. Stay tuned.

    Last edited: Sep 28, 2015
    Pinousse and asalaw like this.
  14. Stormy320

    Stormy320 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,980
    Great project!

  15. bartrman

    bartrman New Member

    Trophy Points:
    18
    Sorry it's been a little while from last post. Have a few updates.

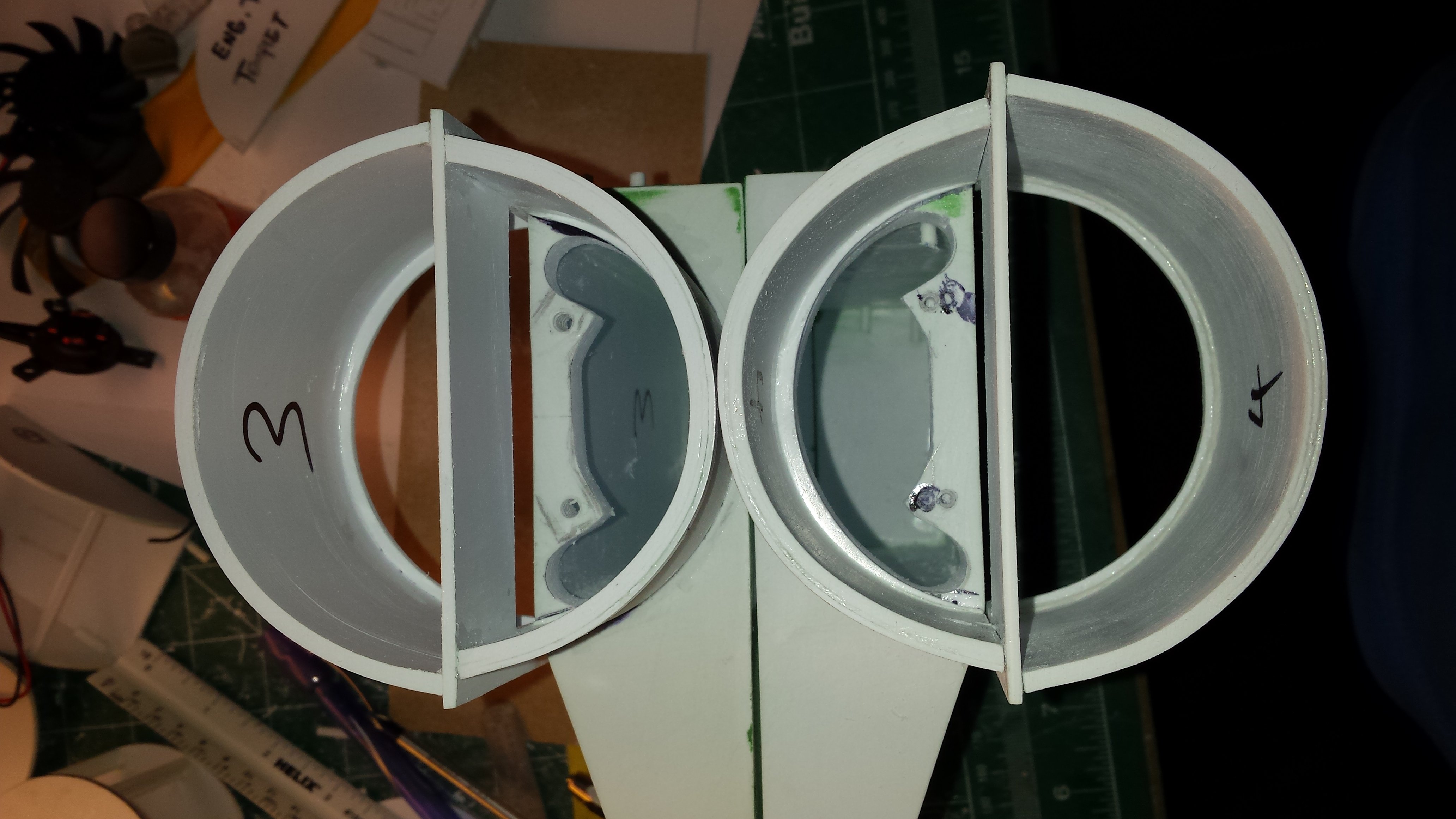

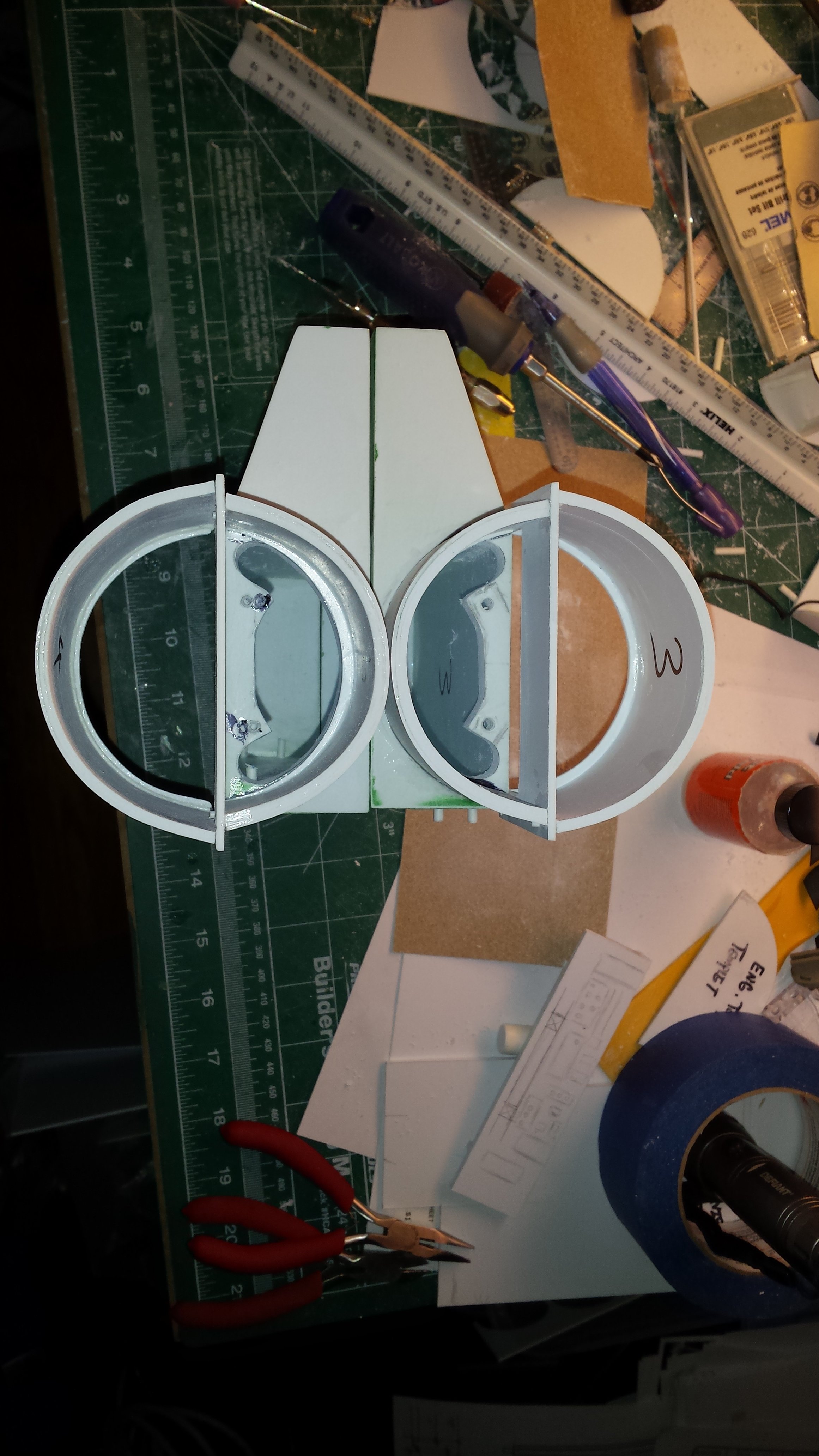

    Finished all four intakes. Cut holes for fans.

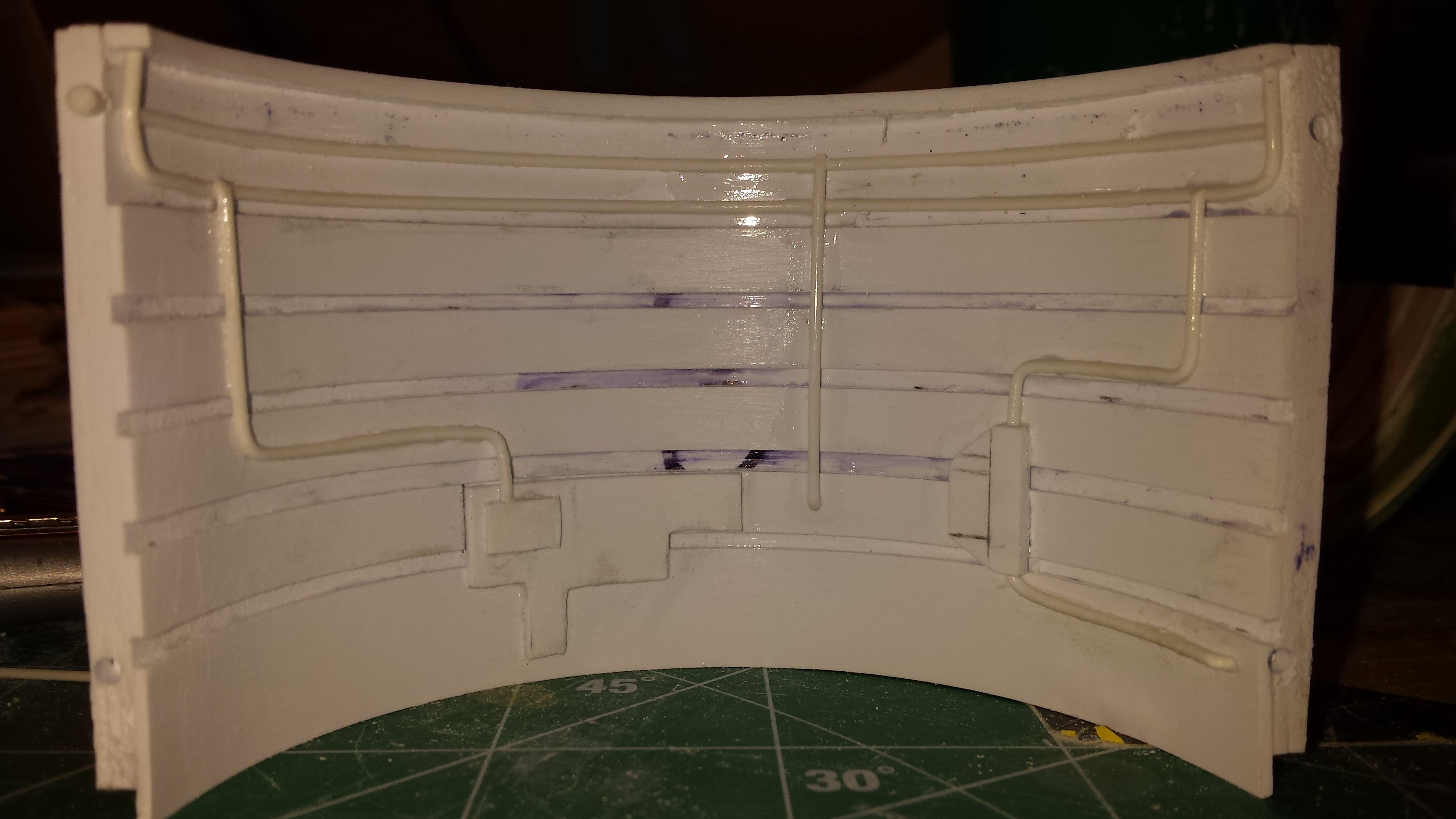

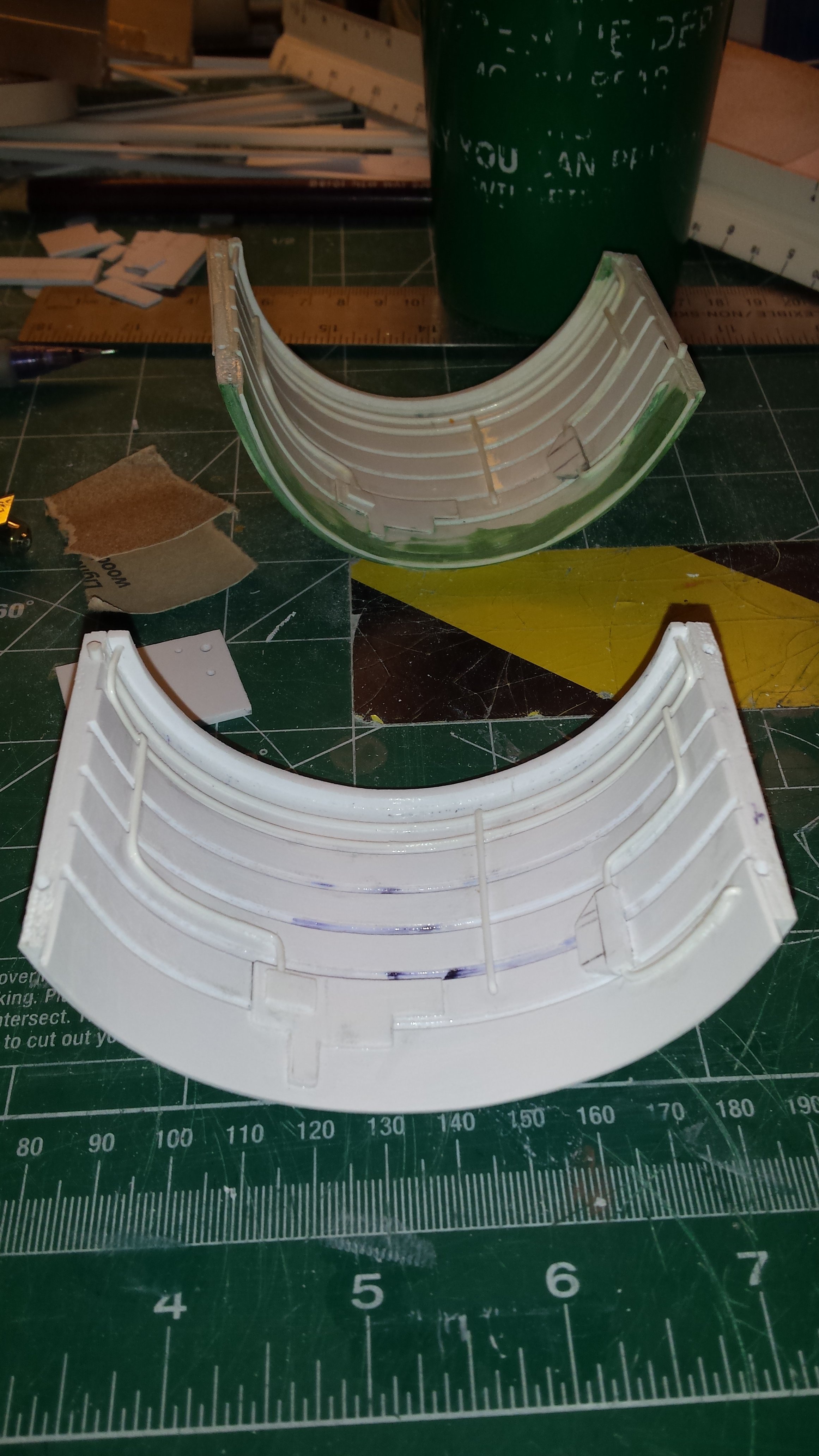

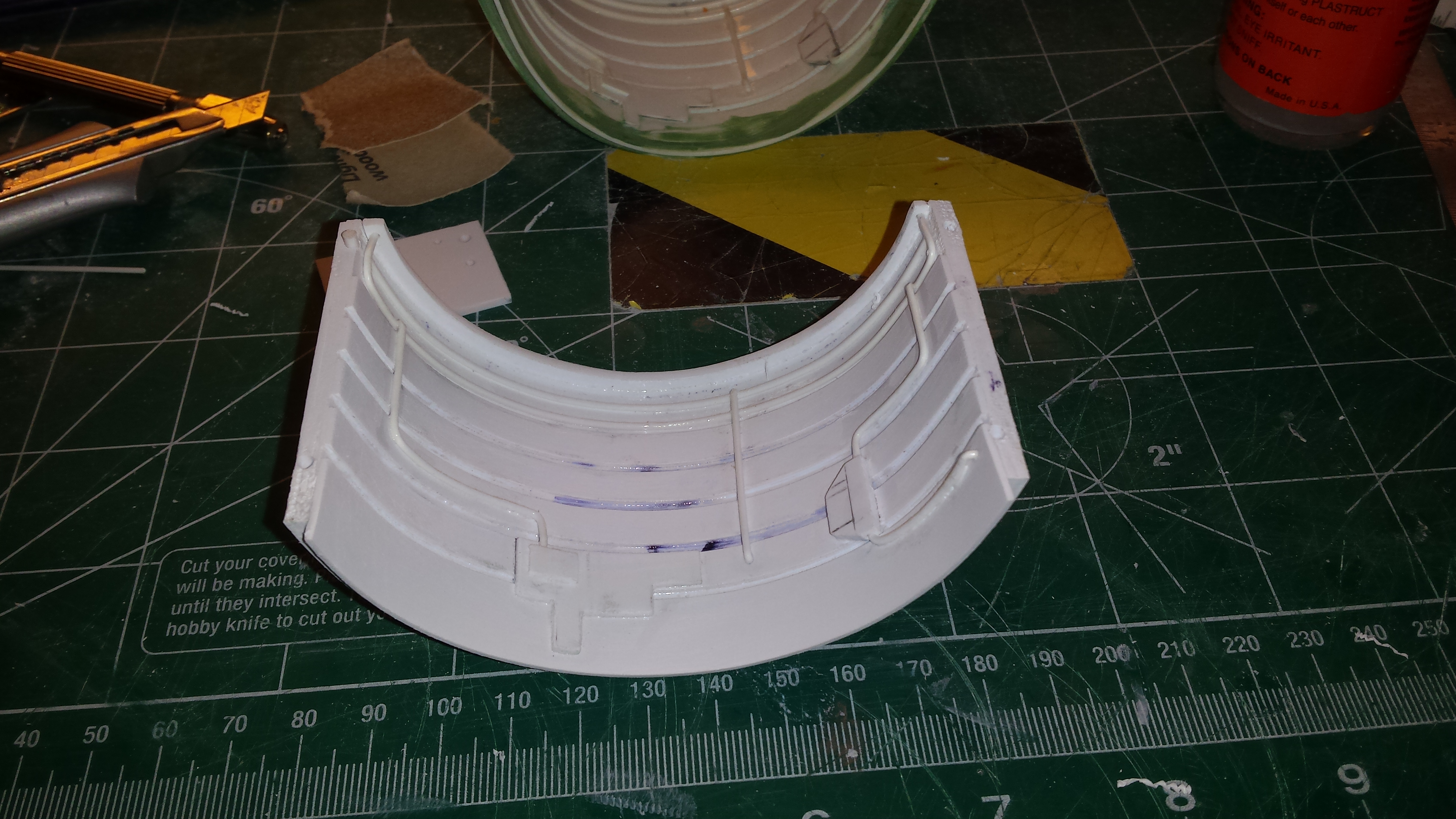

    Started work on detail in upper portion of intake.
    20150908_124756.jpg 20150908_124709.jpg 20150908_124700.jpg 20150908_124647.jpg

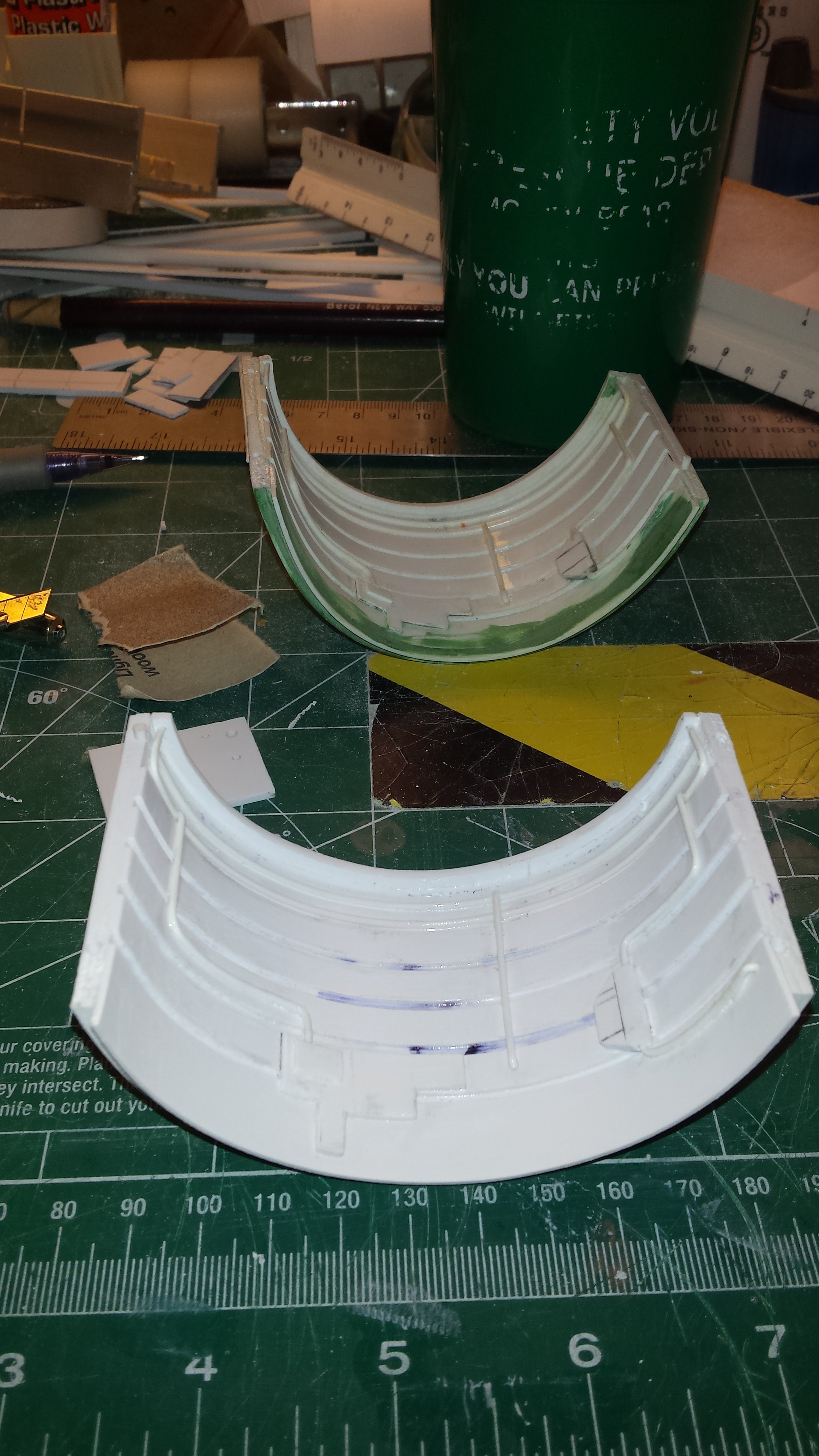

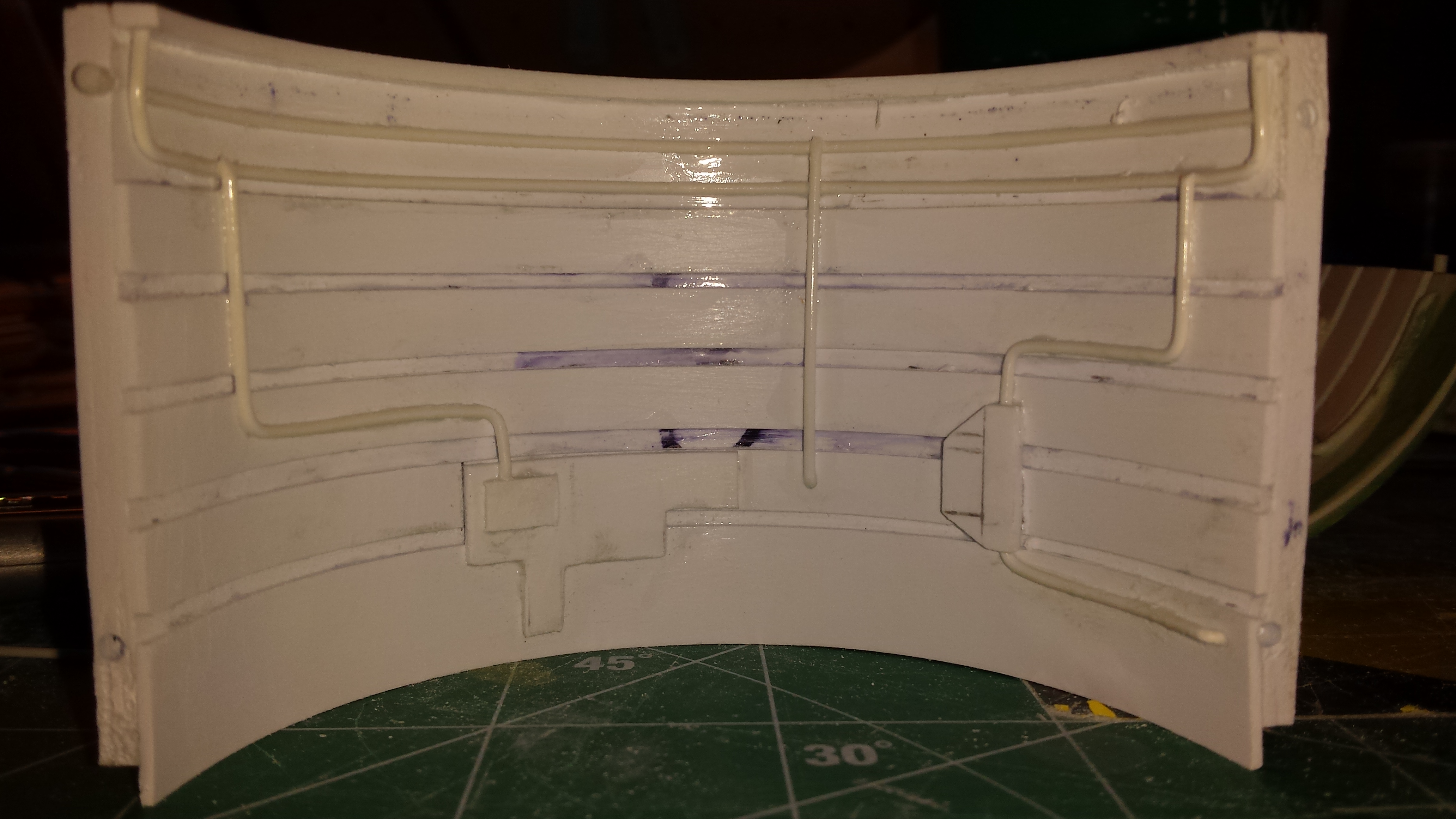

    Just some other views of the upper intake's

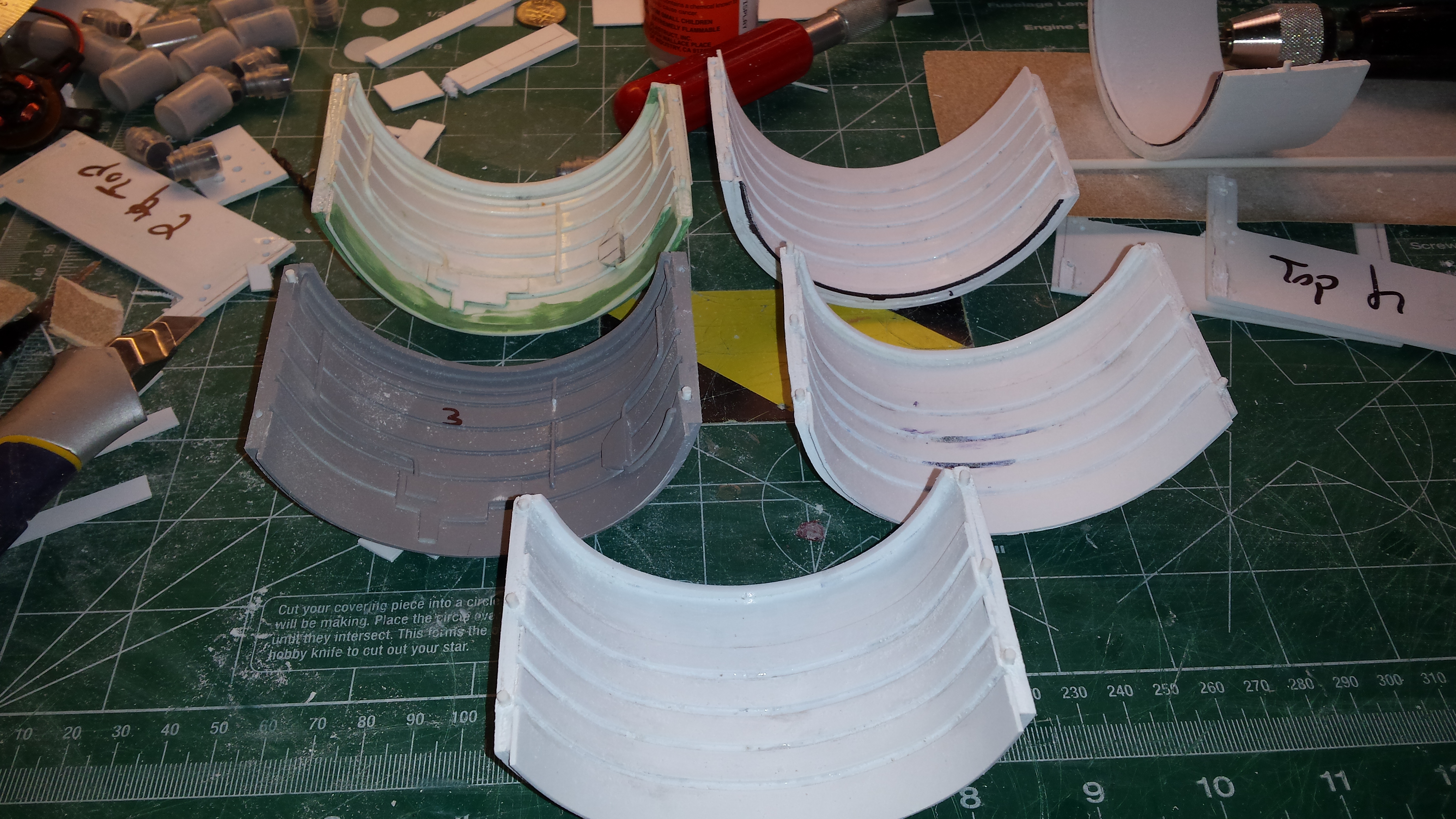

    All 4 upper intakws almost complete.


    Attached Files:

  16. Nick K

    Nick K Well-Known Member

    Trophy Points:
    685
    Looking forward to the build. keep up the excellent work.

  17. bwize

    bwize Well-Known Member

    Trophy Points:
    815
    Holy smokes! That's gonna be awesome. Your attention to detail is amazing. Can't wait to see this progress.

  18. bartrman

    bartrman New Member

    Trophy Points:
    18
    Wanted to say thanks for everyone's support. Here are a few more updates. I work on it when I can. Hope you enjoy.

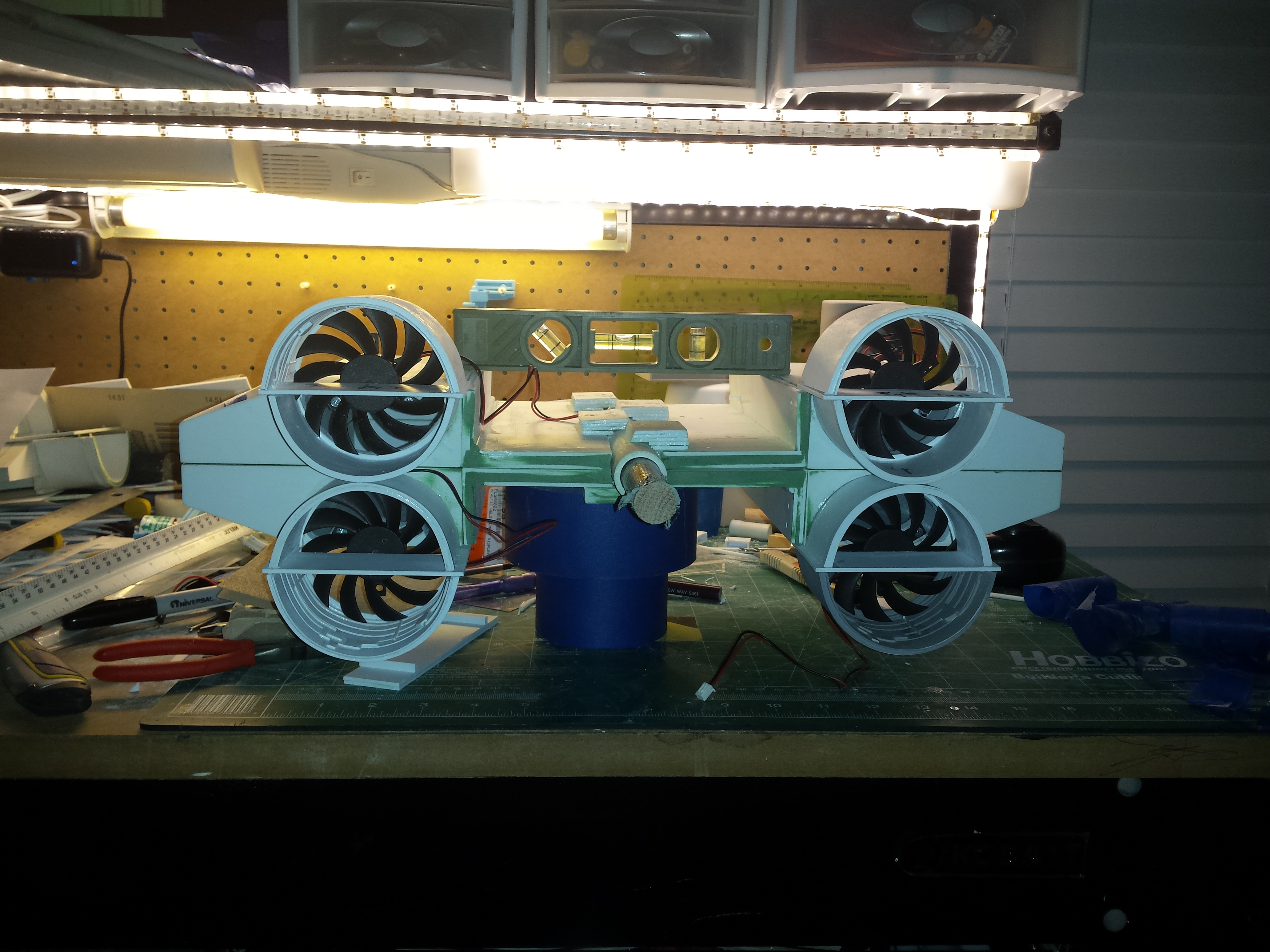

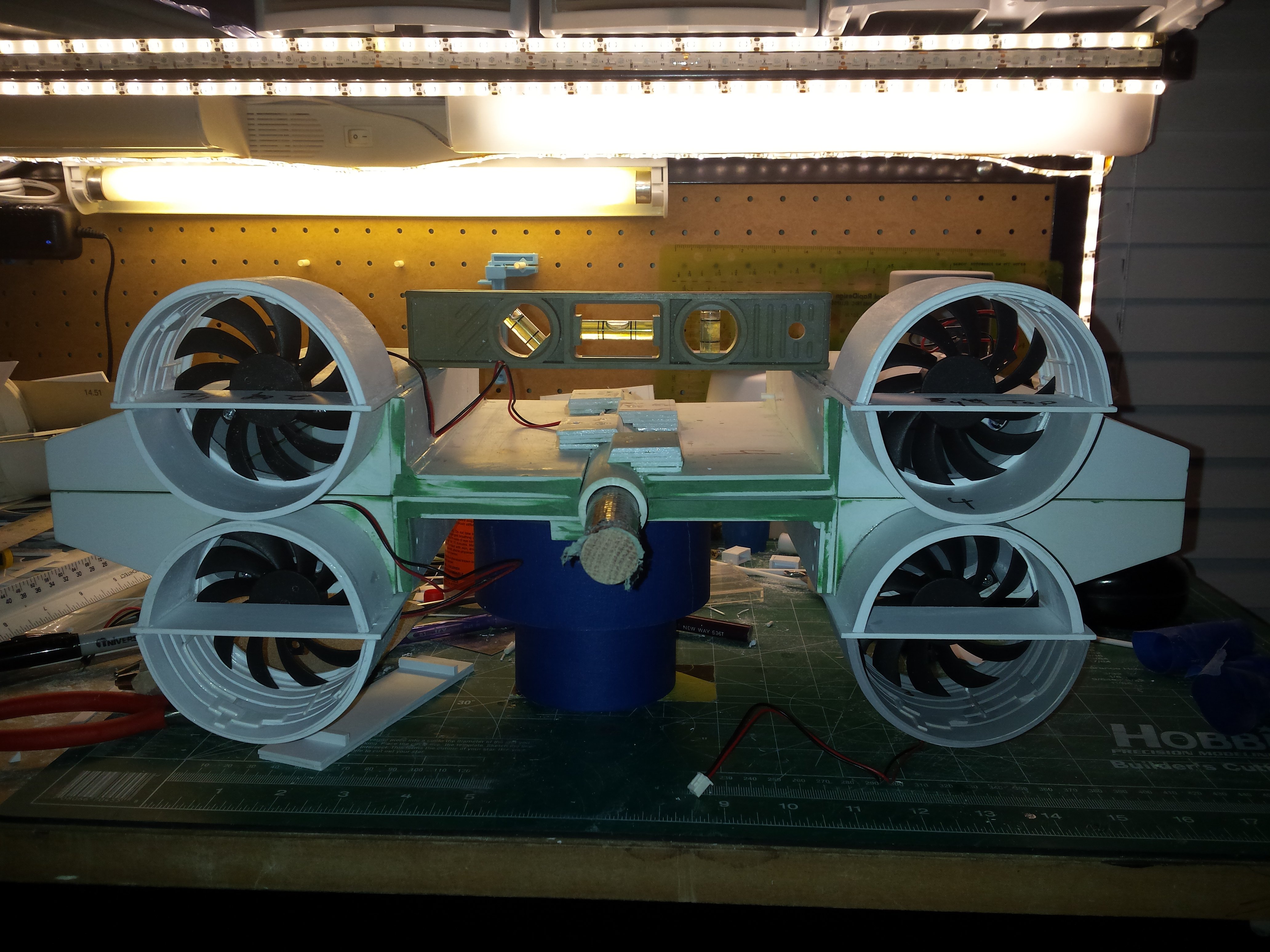

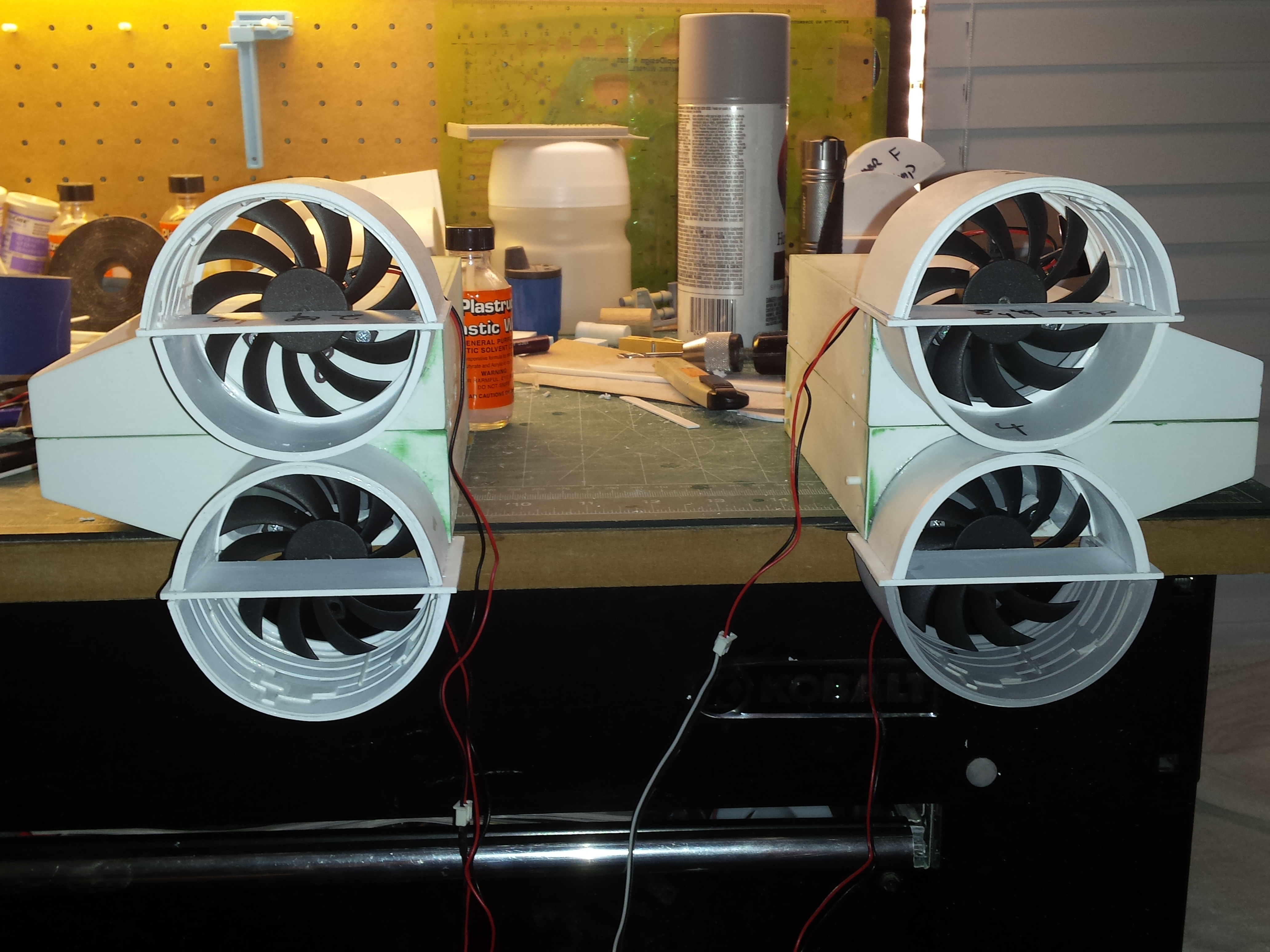

    Finished all four intakes. Fans in place.

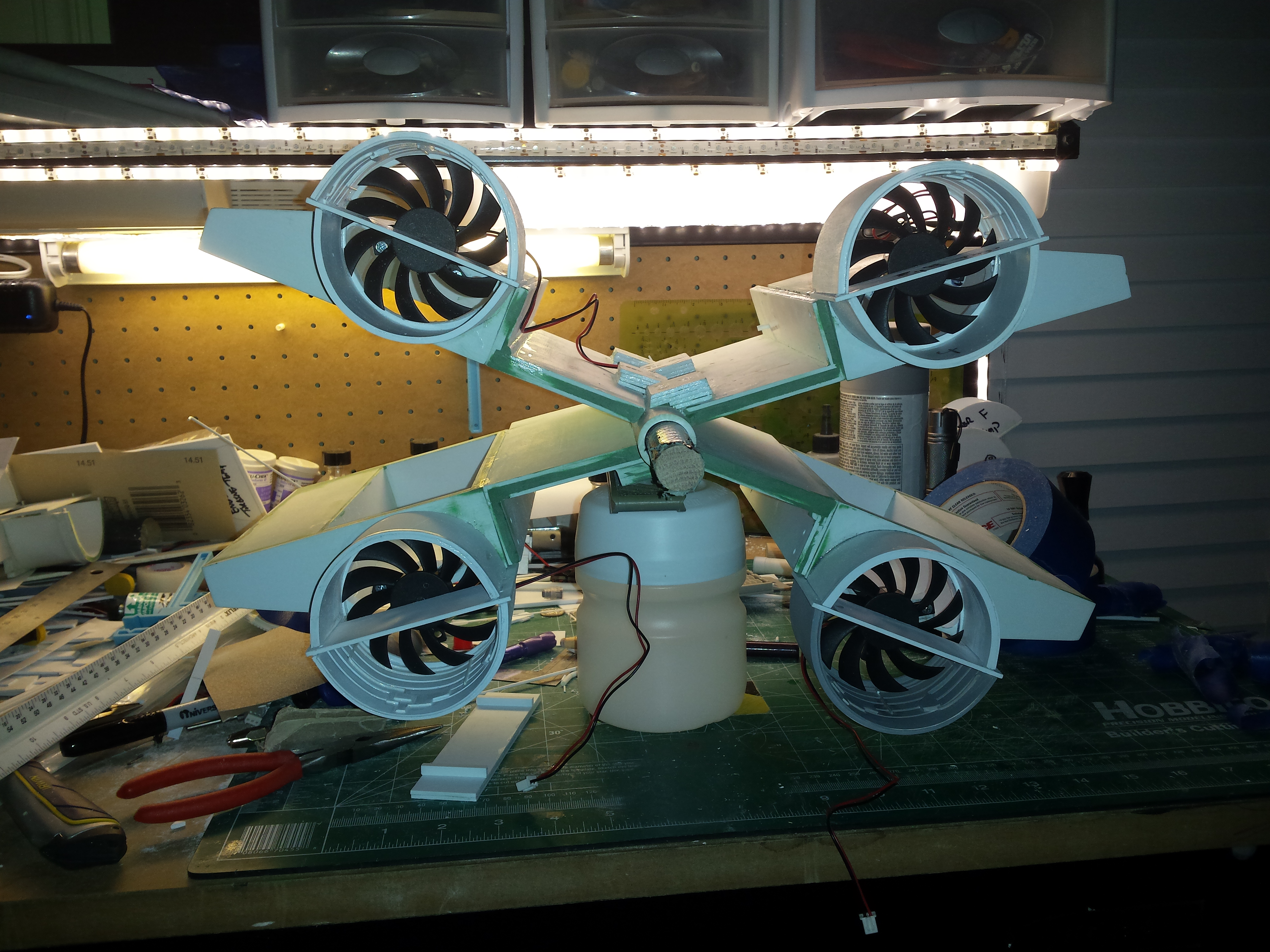

    Reattached to Armature


    Picture with wings Deployed.

    [video]https://youtu.be/ebDEd_rLwtg[/video]

    [video]https://youtu.be/npcS2bYUu6Q[/video]

    A couple of short videos of fan in action. Hope you enjoy. Post more soon


    Attached Files:

    knnyjay, Treadwell and Vacformedhero like this.
  19. bartrman

    bartrman New Member

    Trophy Points:
    18
    Just wanted to share a few more updates.

    IMG_20151028_105030.jpg IMG_20151028_105413.jpg IMG_20151028_110450.jpg

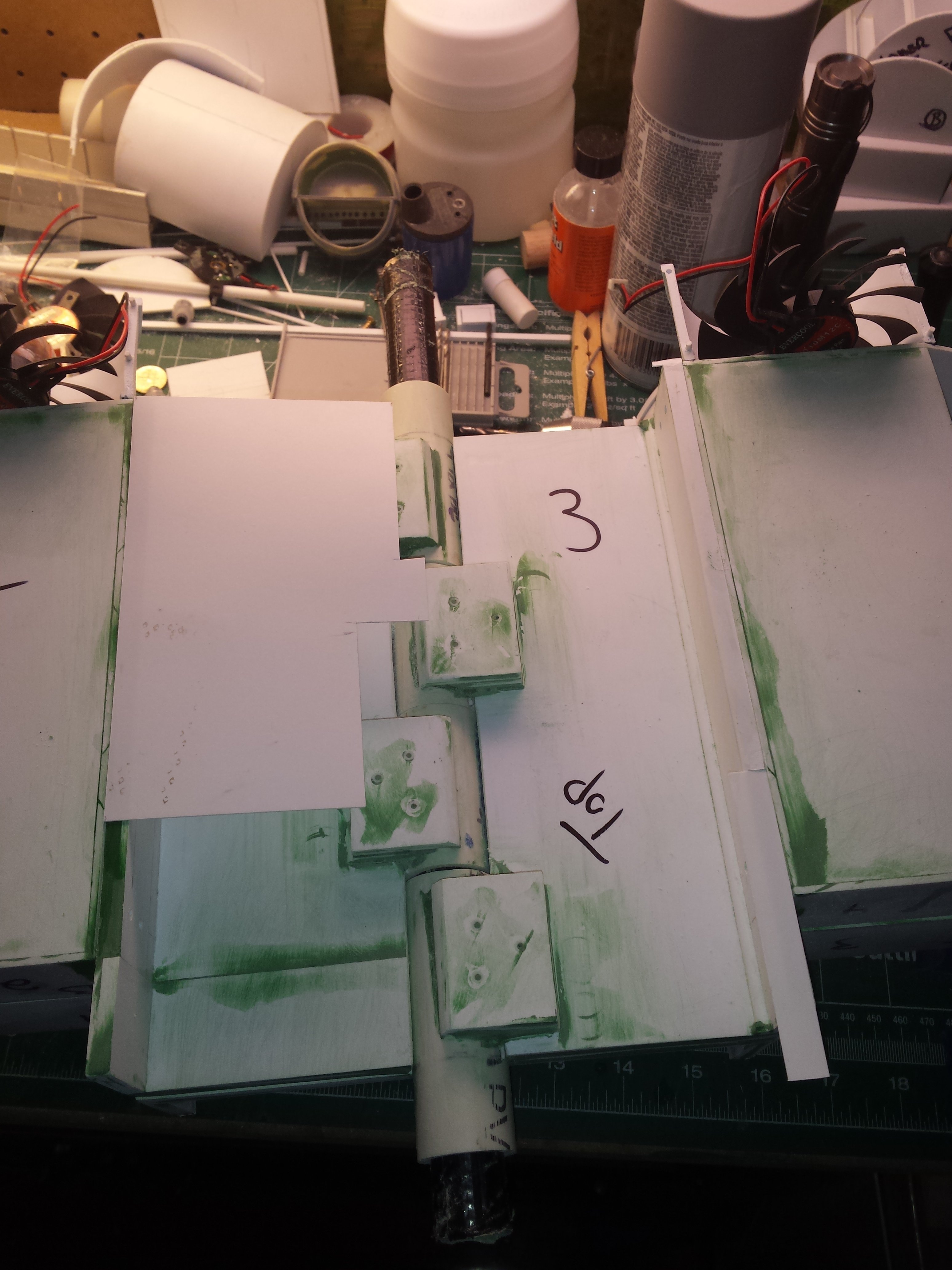

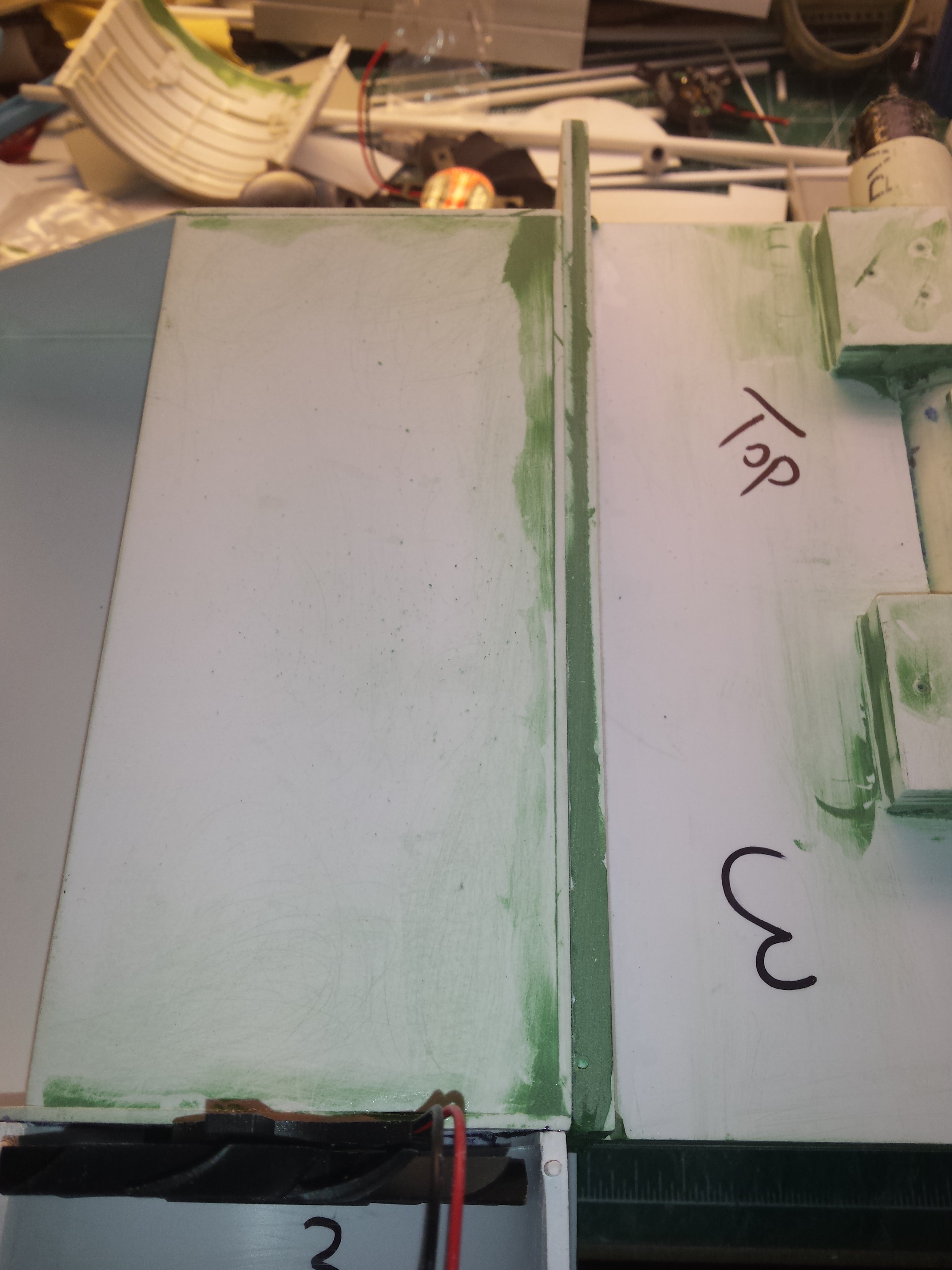

    Here are a few pictures of doing some clean up on armature.

    IMG_20151029_170949.jpg IMG_20151029_171004.jpg IMG_20151029_171013.jpg IMG_20151029_171037.jpg

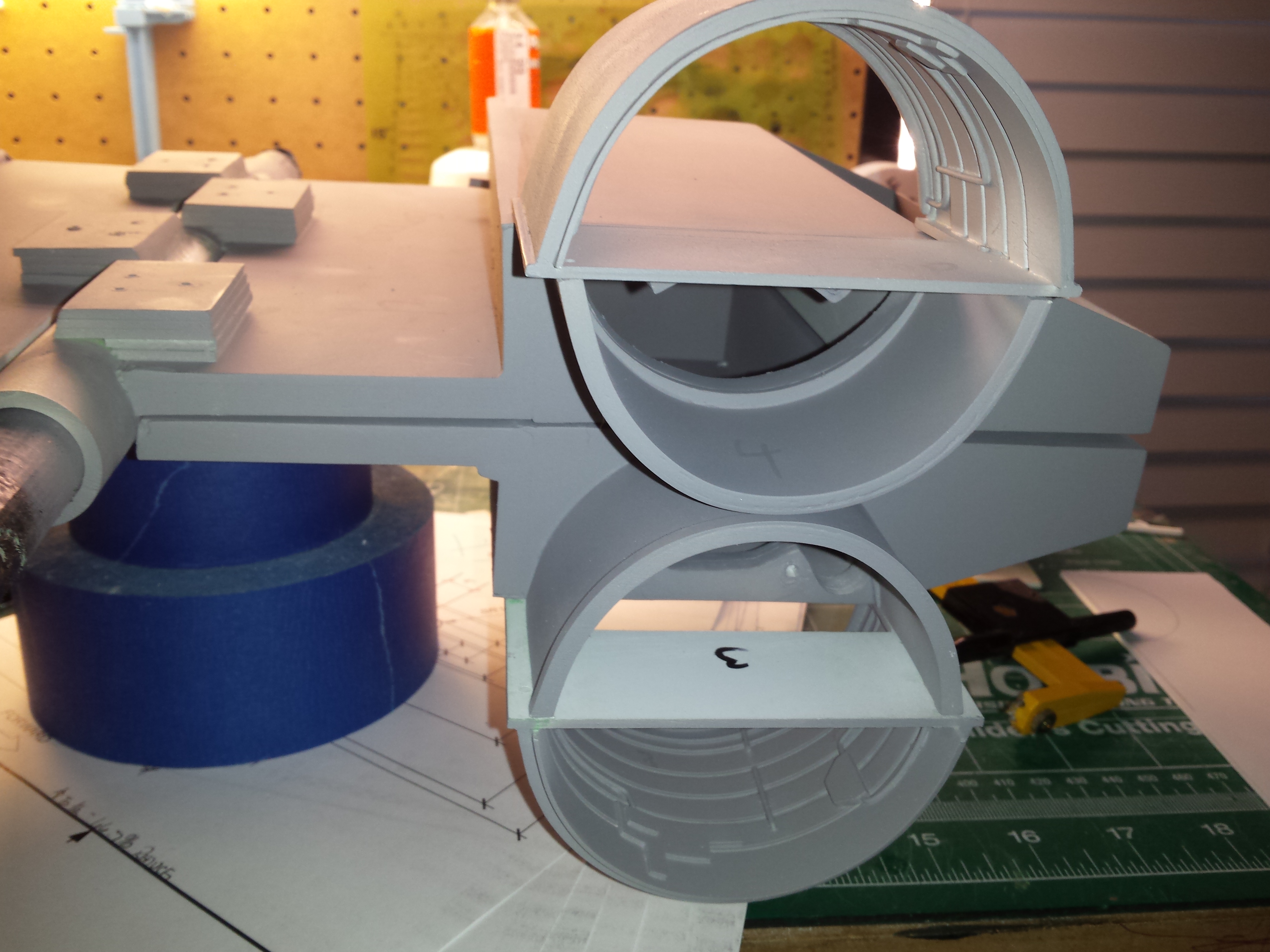

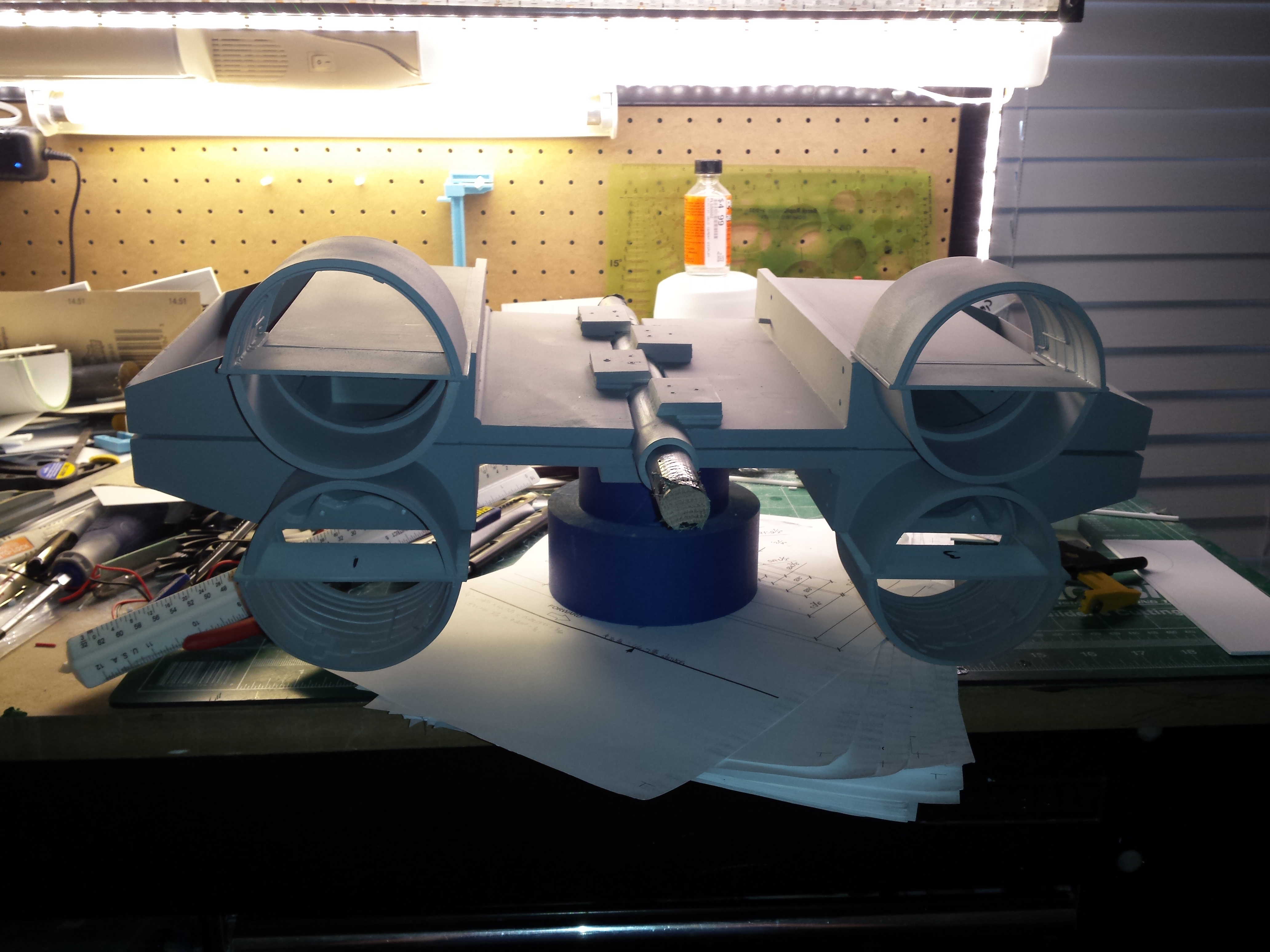

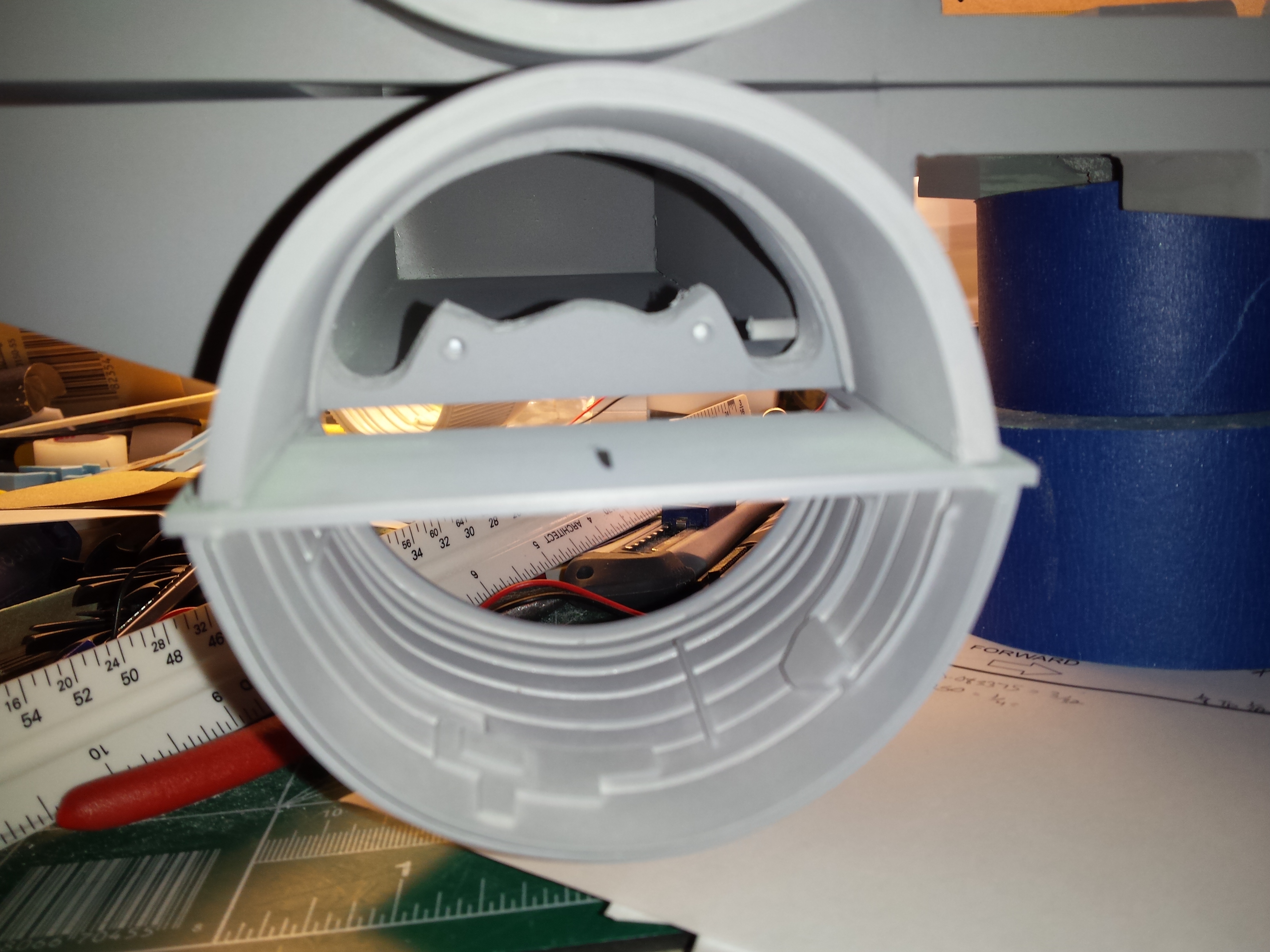

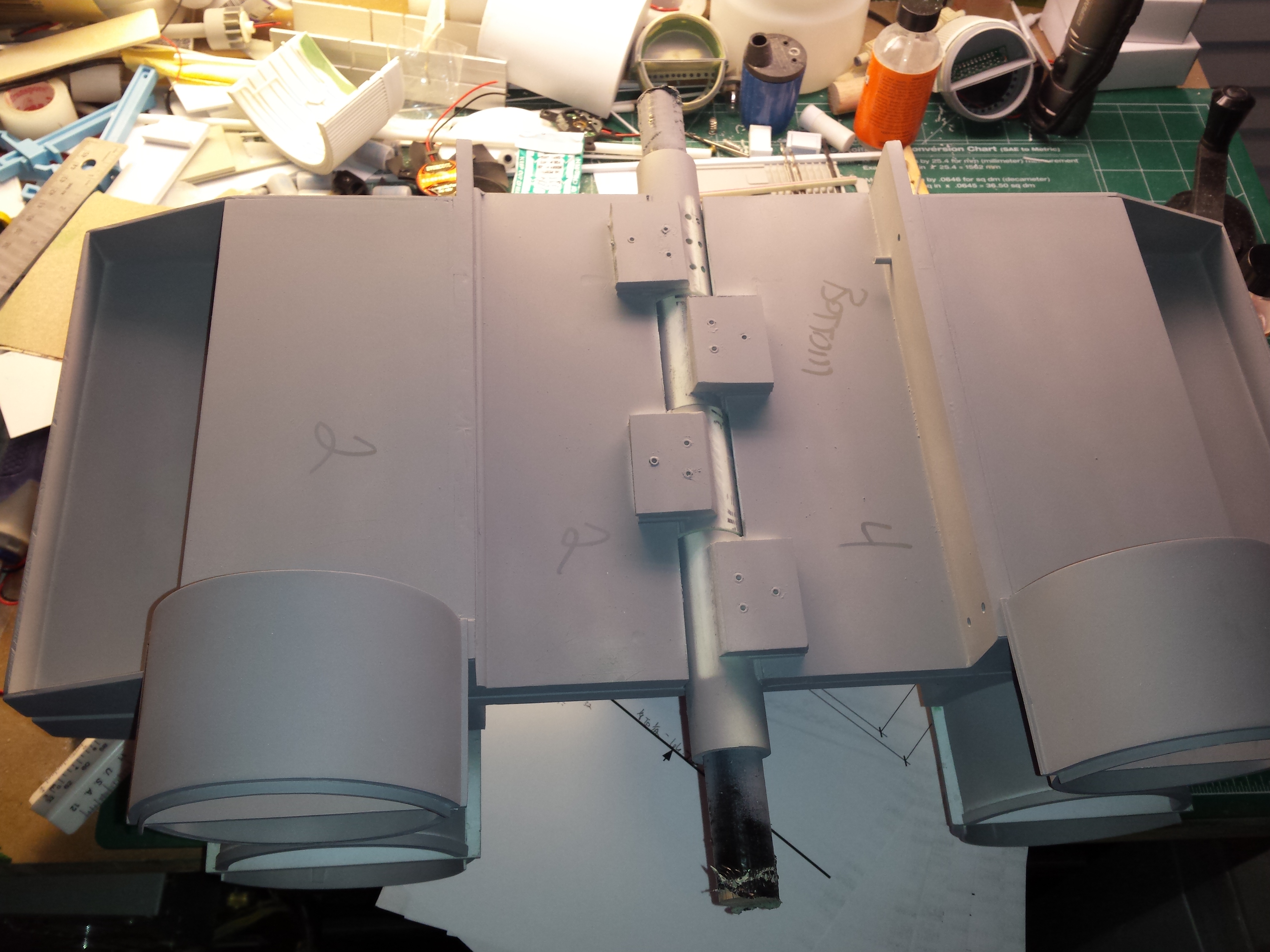

    Primed armature and engine housing to get a better picture in where it needs some clean up.

    IMG_20151029_174409.jpg IMG_20151029_214224.jpg IMG_20151029_214241.jpg

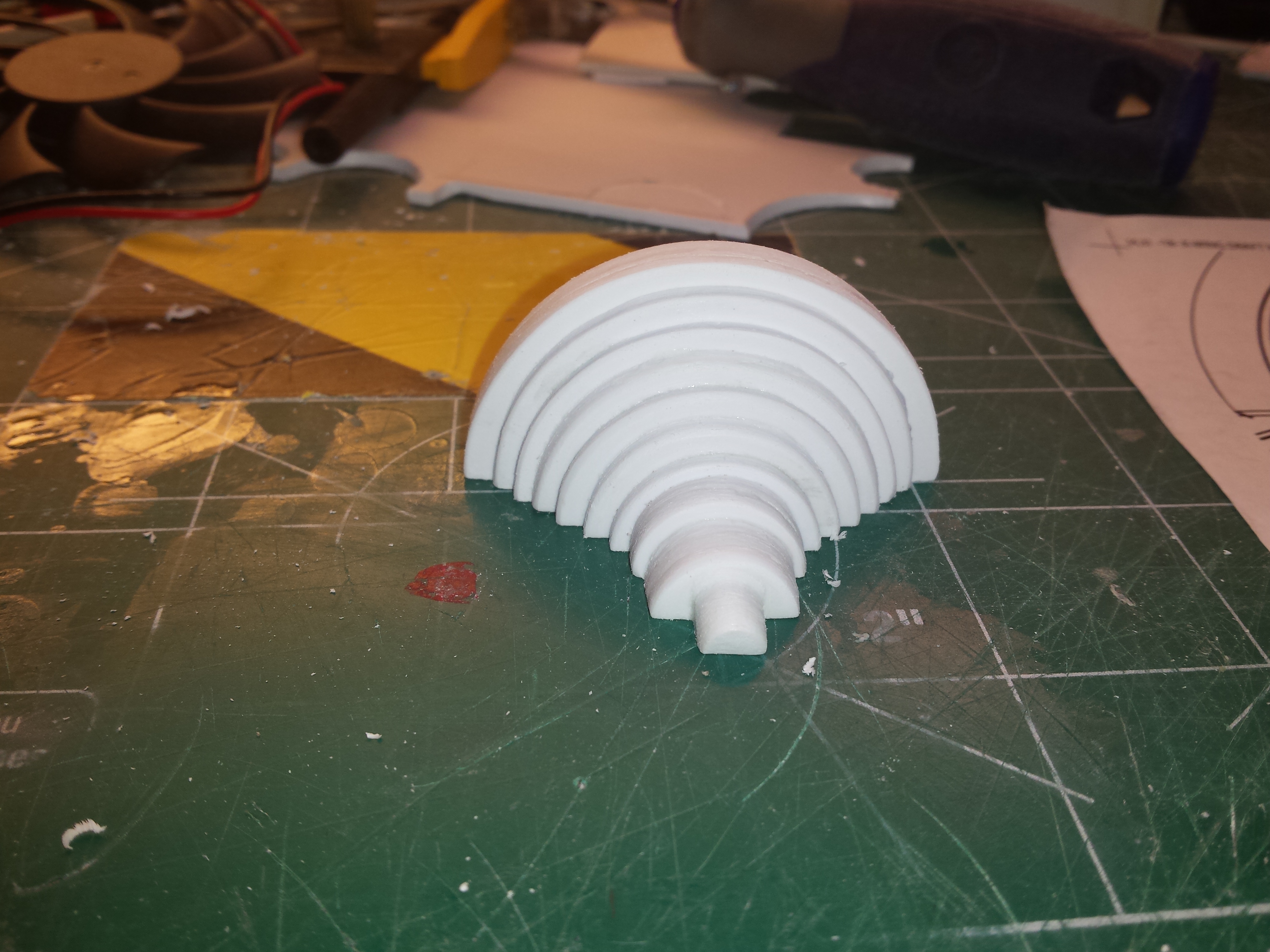

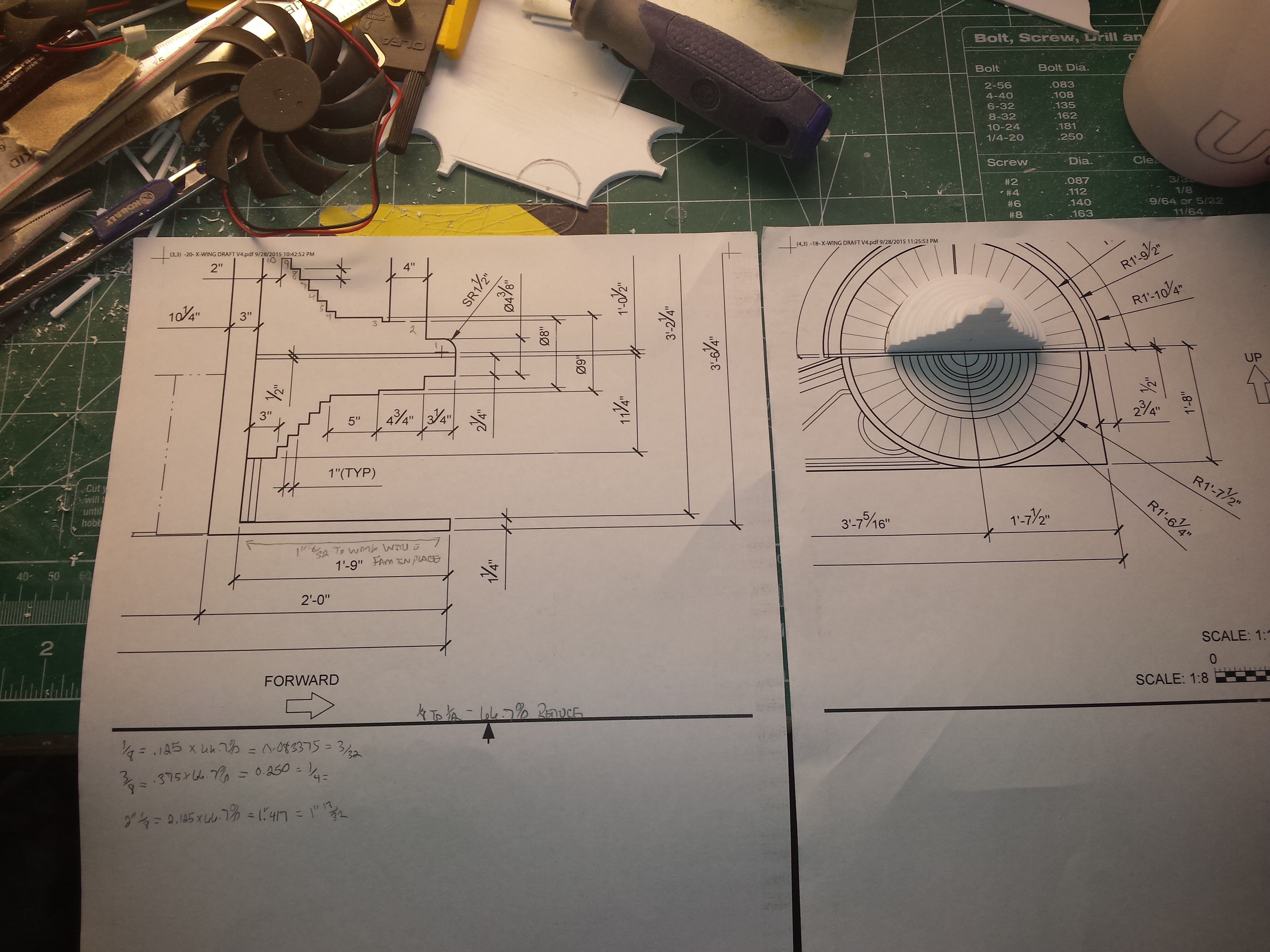

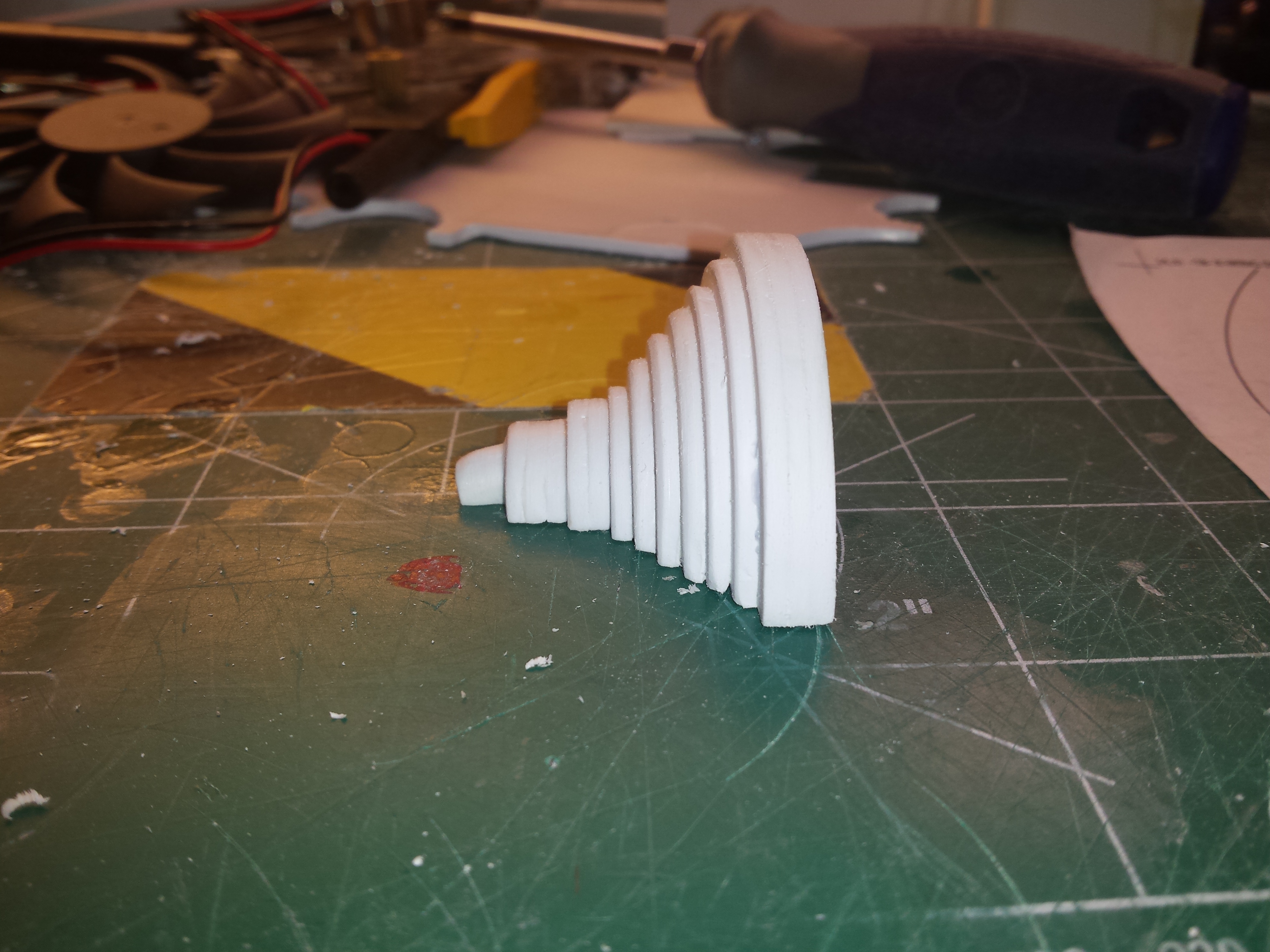

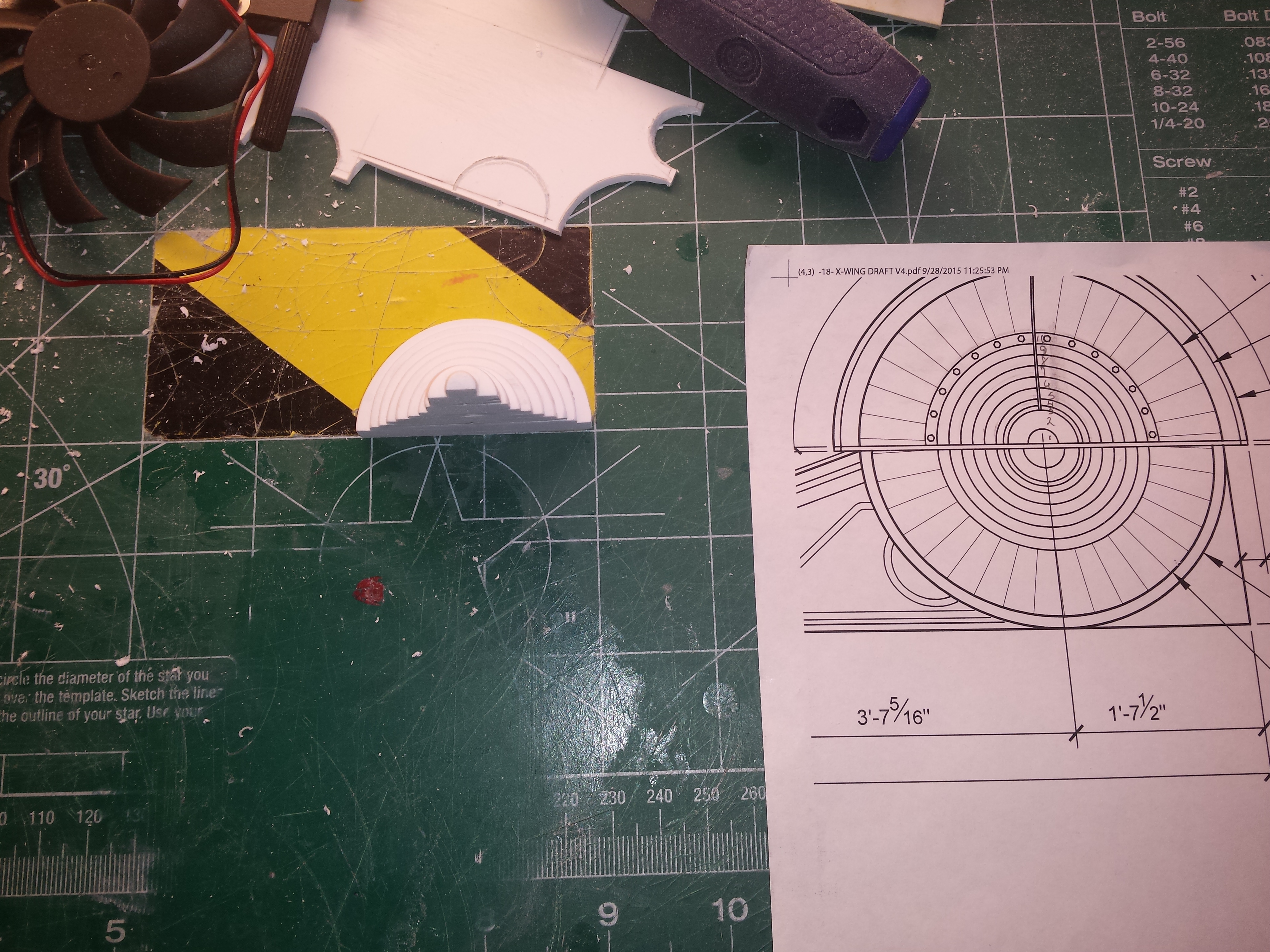

    IMG_20151029_214256.jpg IMG_20151029_214305.jpg Started working on inner housing parts. Completed upper portion with reference material.

    Thanks . That's all for now.

    Pinousse likes this.
  20. bartrman

    bartrman New Member

    Trophy Points:
    18
    Have some more updates.

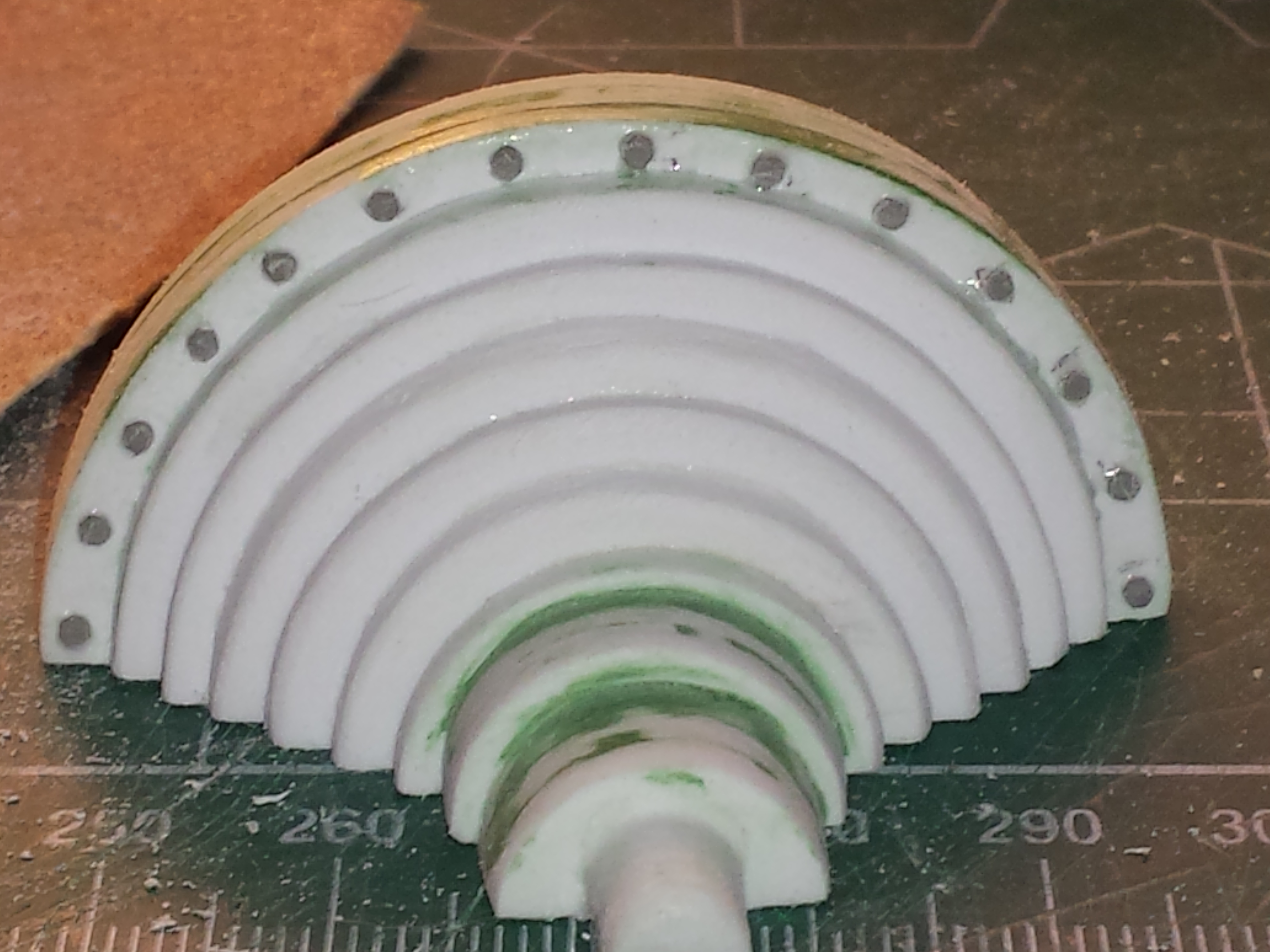

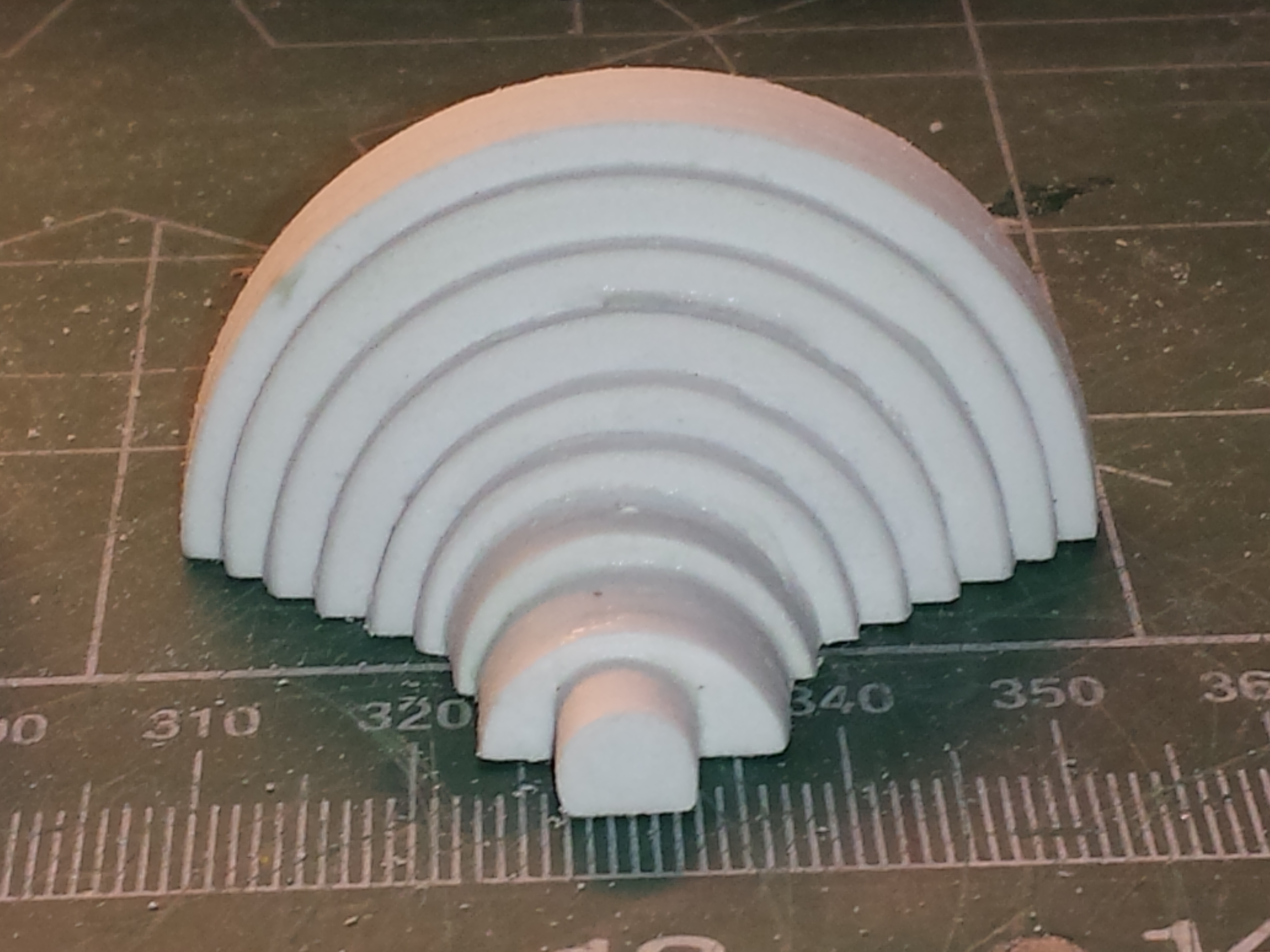

    Added some detail to upper portion.


    Bottom portion complete.

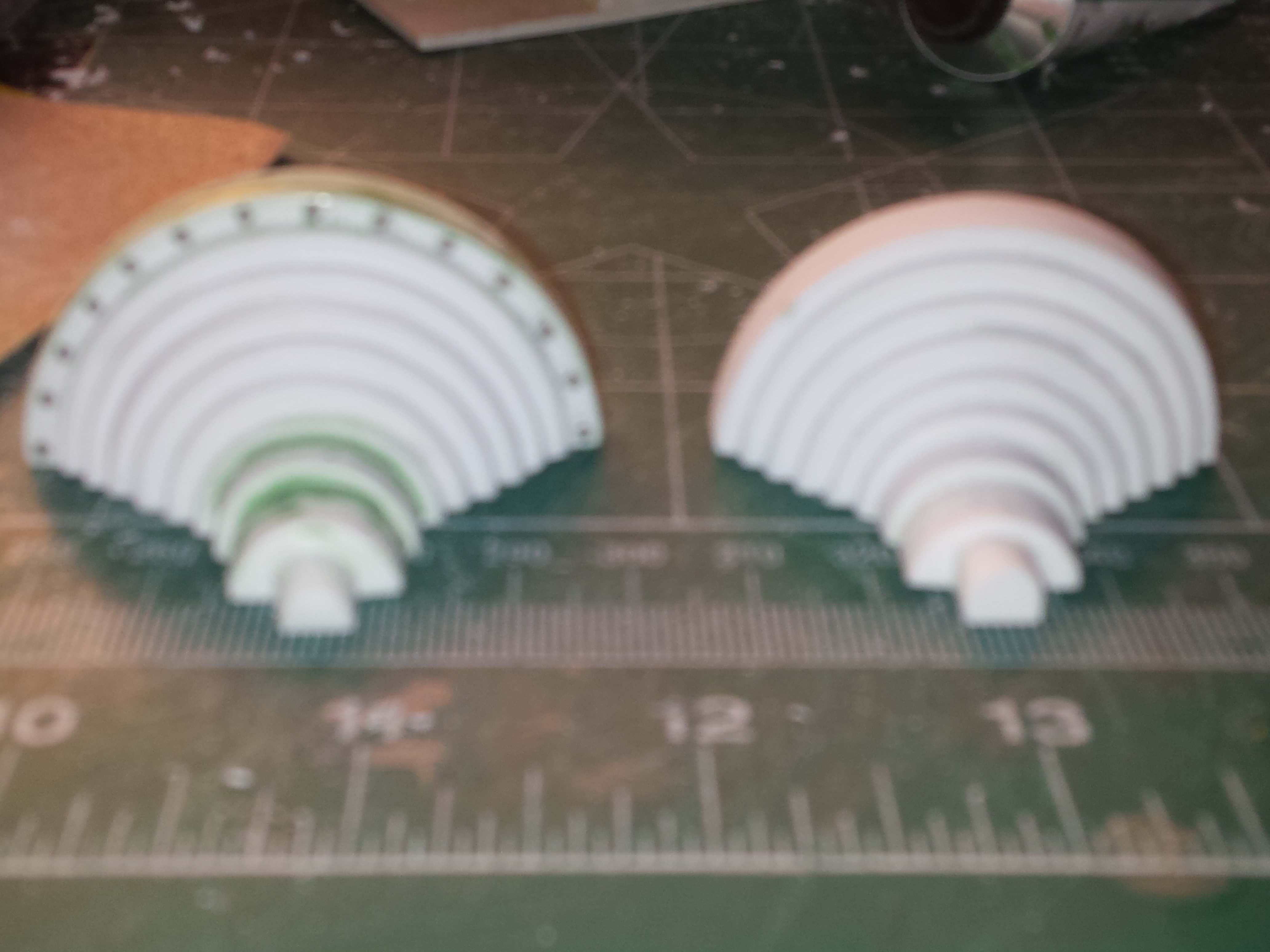

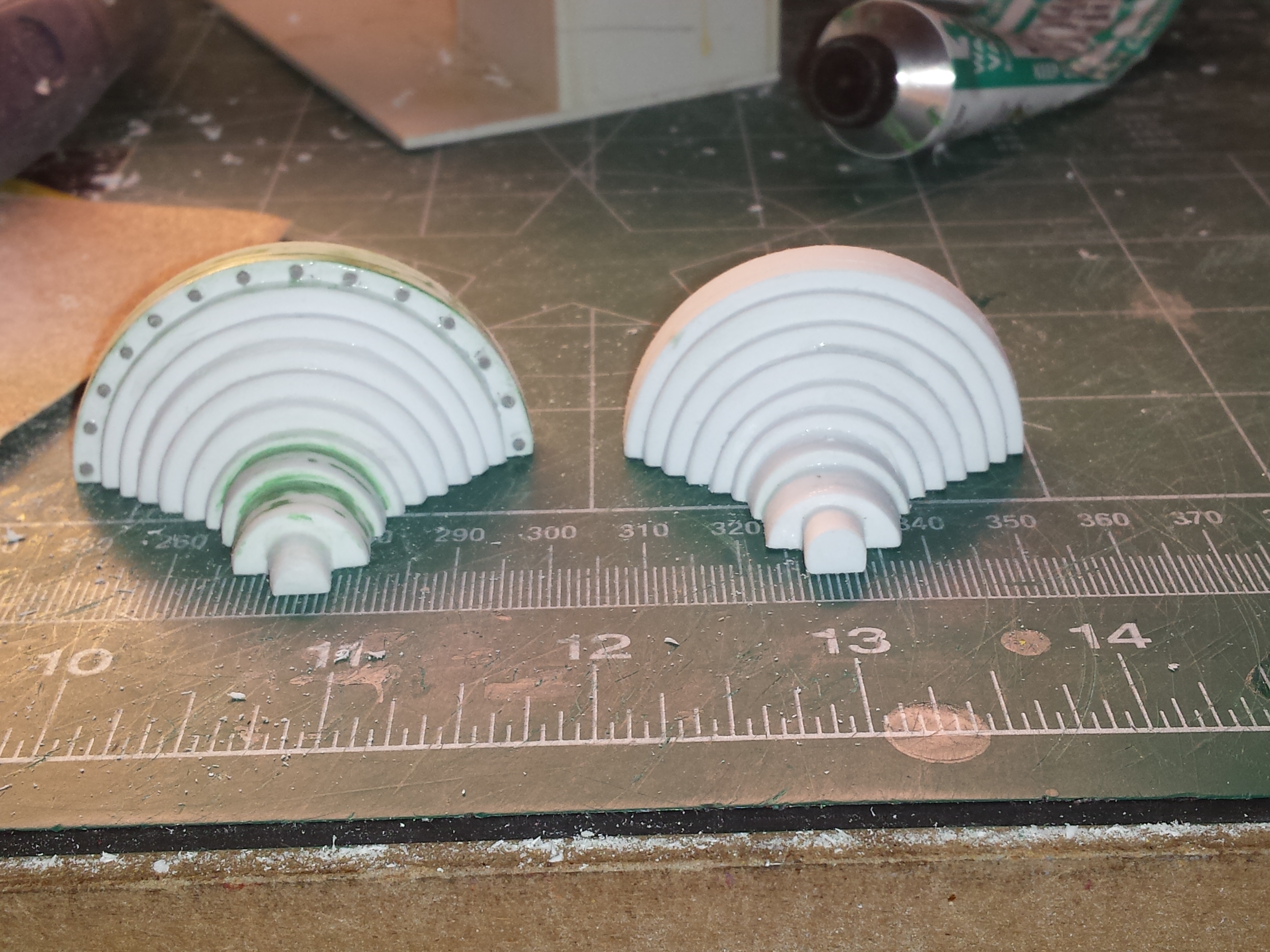

    Just a picture of them side by side.

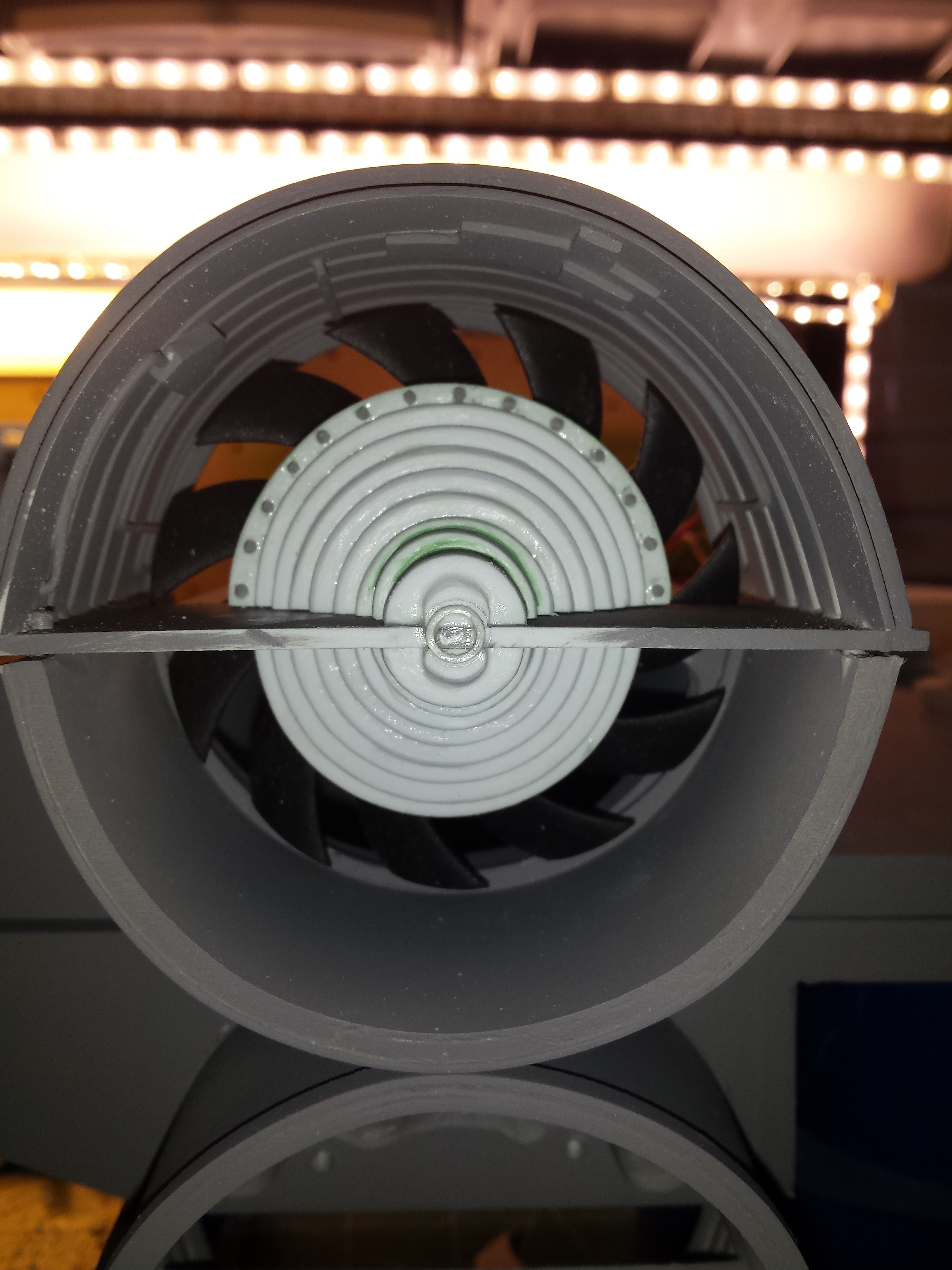

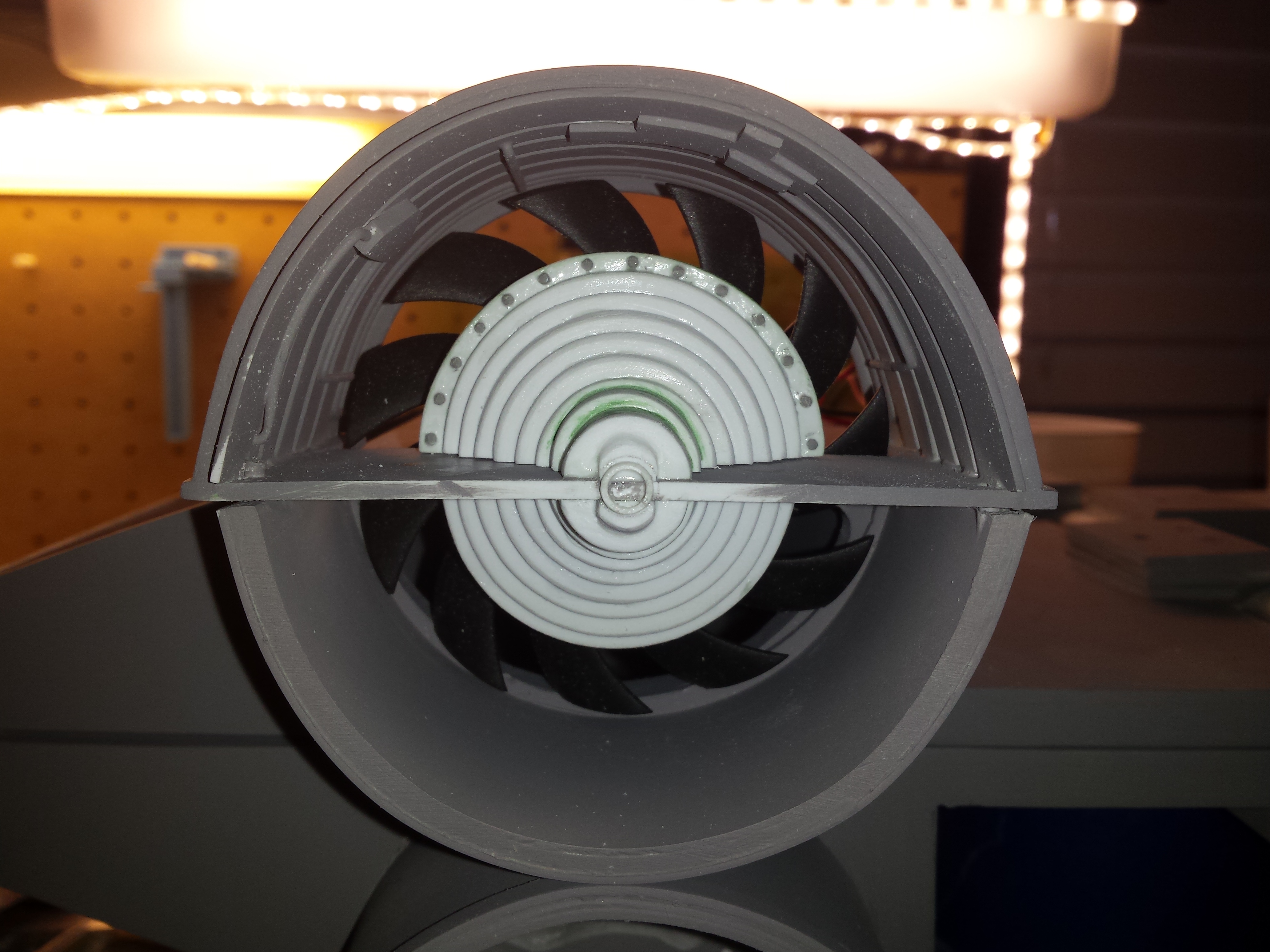

    Test fit in engine housing.

    [video]https://youtu.be/KMF5Mi0LXmA[/video]
    Here is a test video to make sure fan doesn't hit any of the parts.

    IMG_20151106_095852.jpg IMG_20151106_135227.jpg

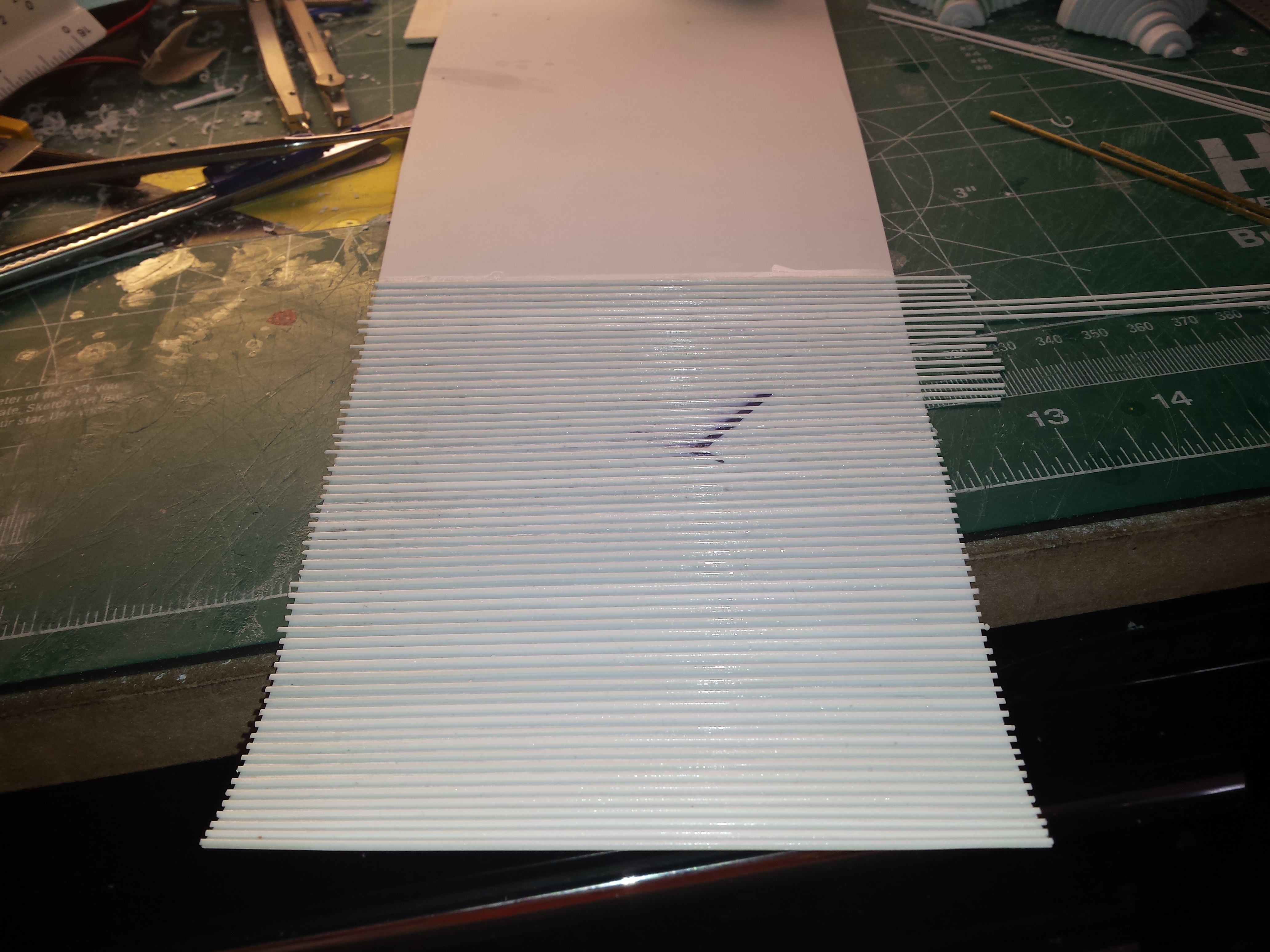

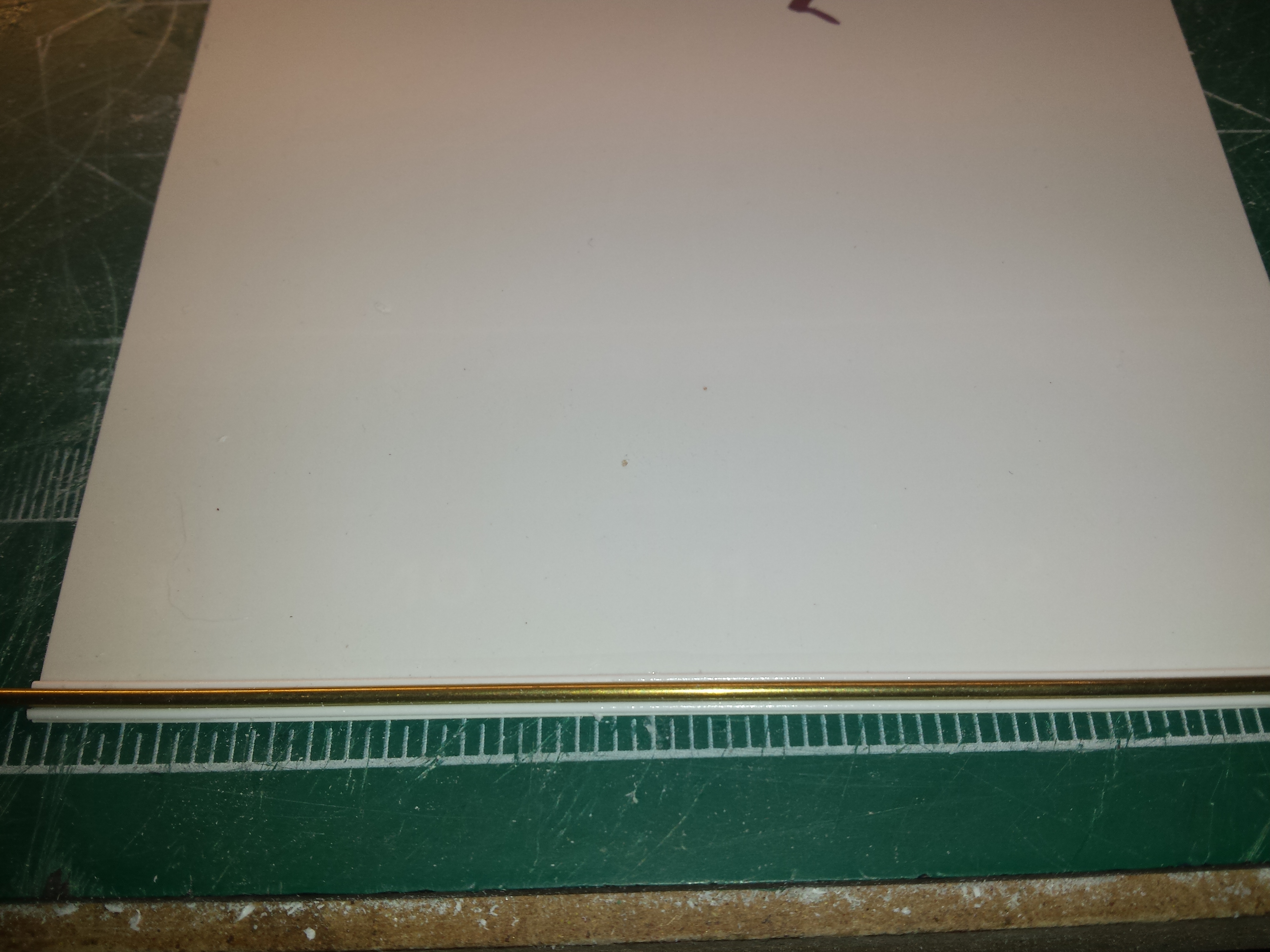

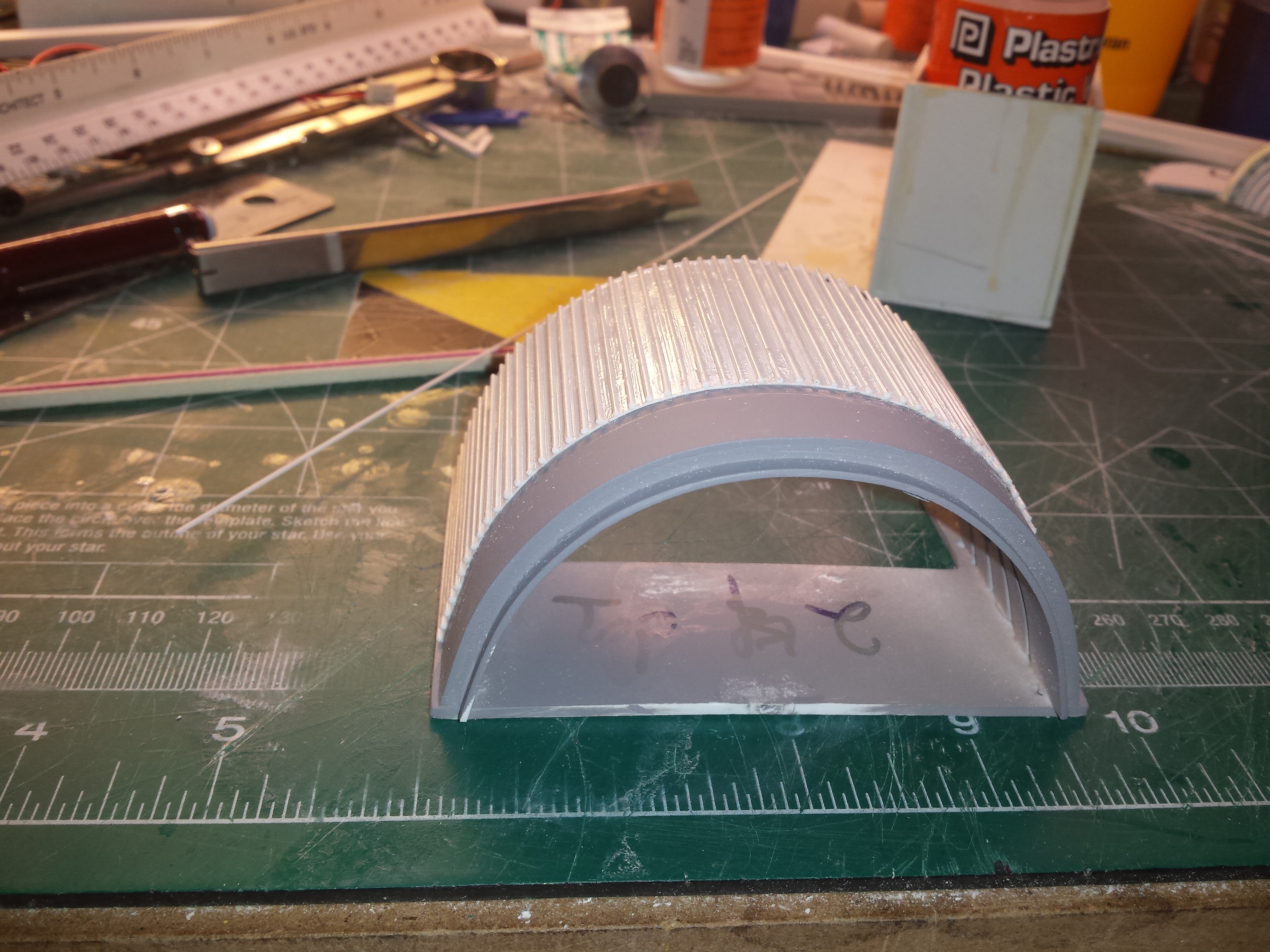

    Here I started build the detail for top of engine housing. Second picture is many minuet's later

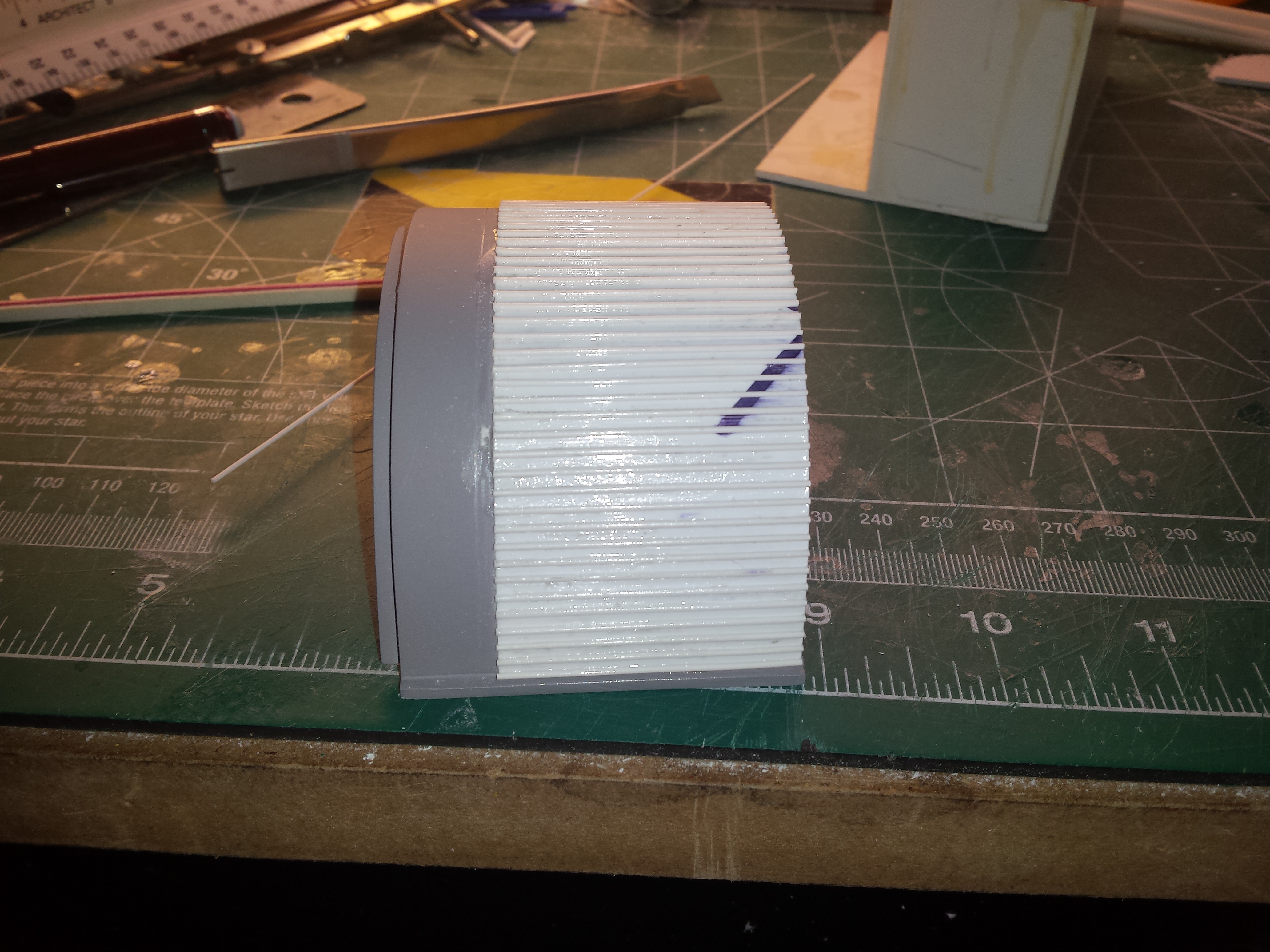

    IMG_20151106_142126.jpg IMG_20151106_142139.jpg

    Couple pictures of piece in place.

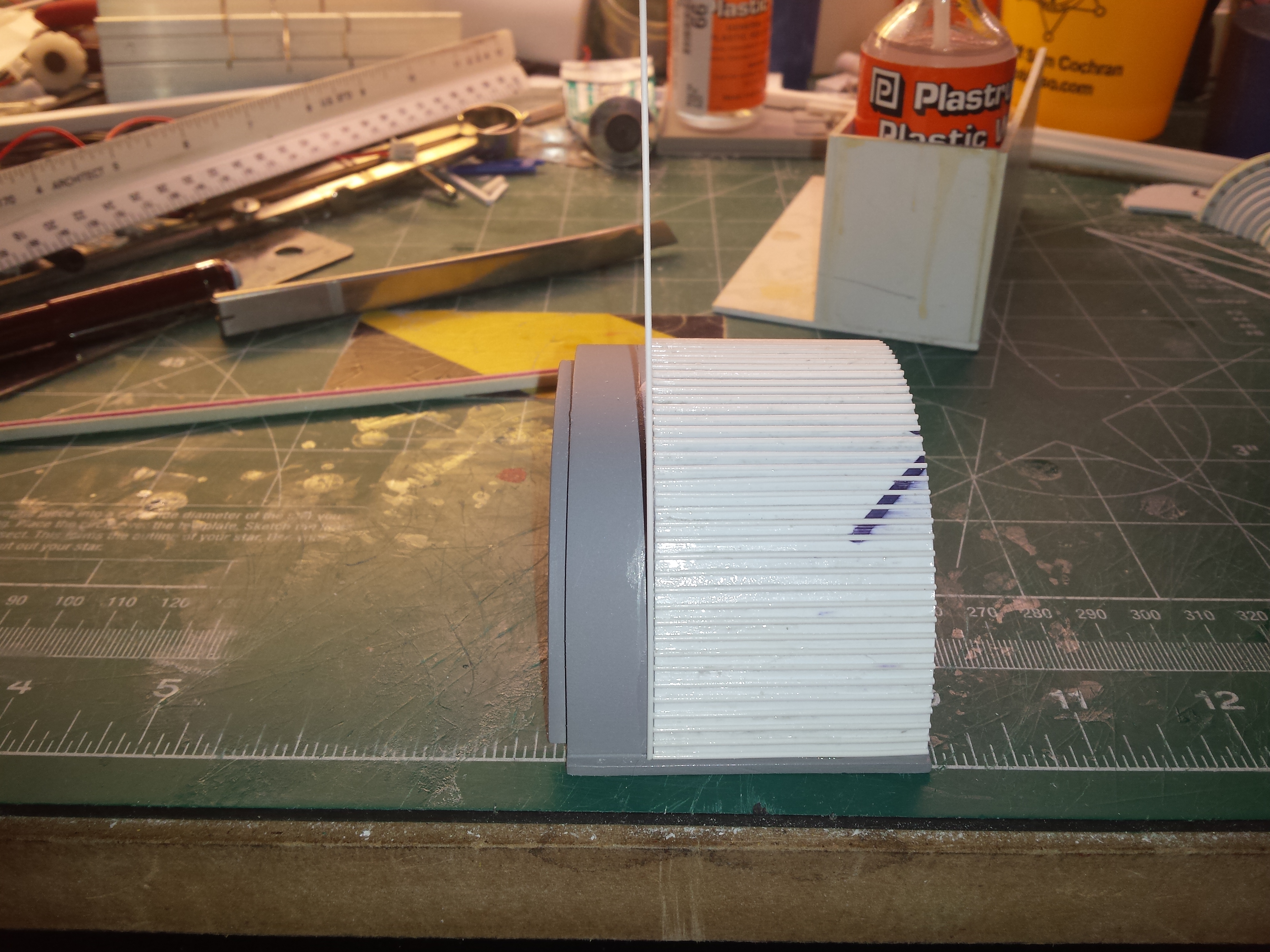

    IMG_20151106_142253.jpg IMG_20151106_142916.jpg IMG_20151106_142948.jpg

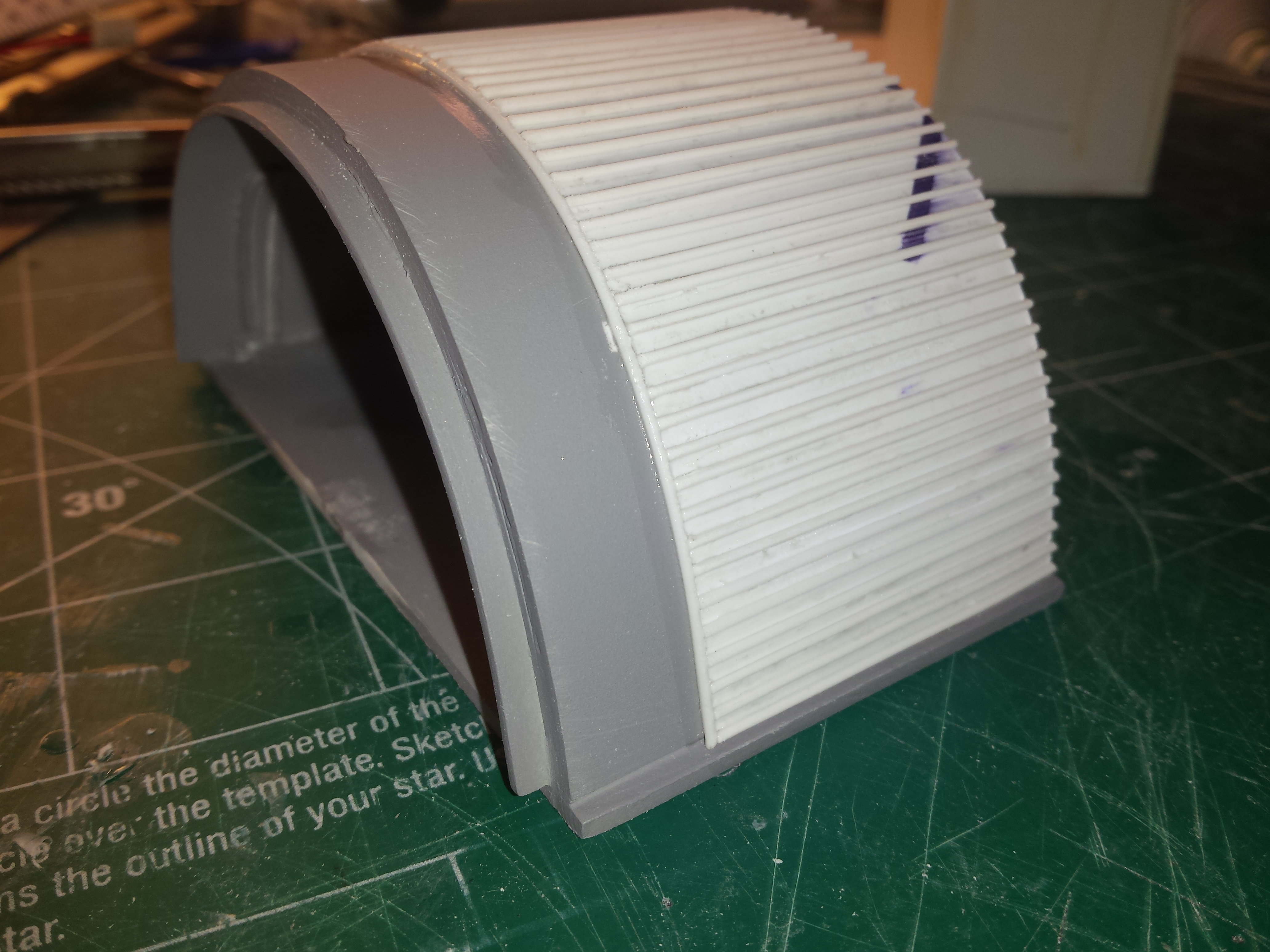

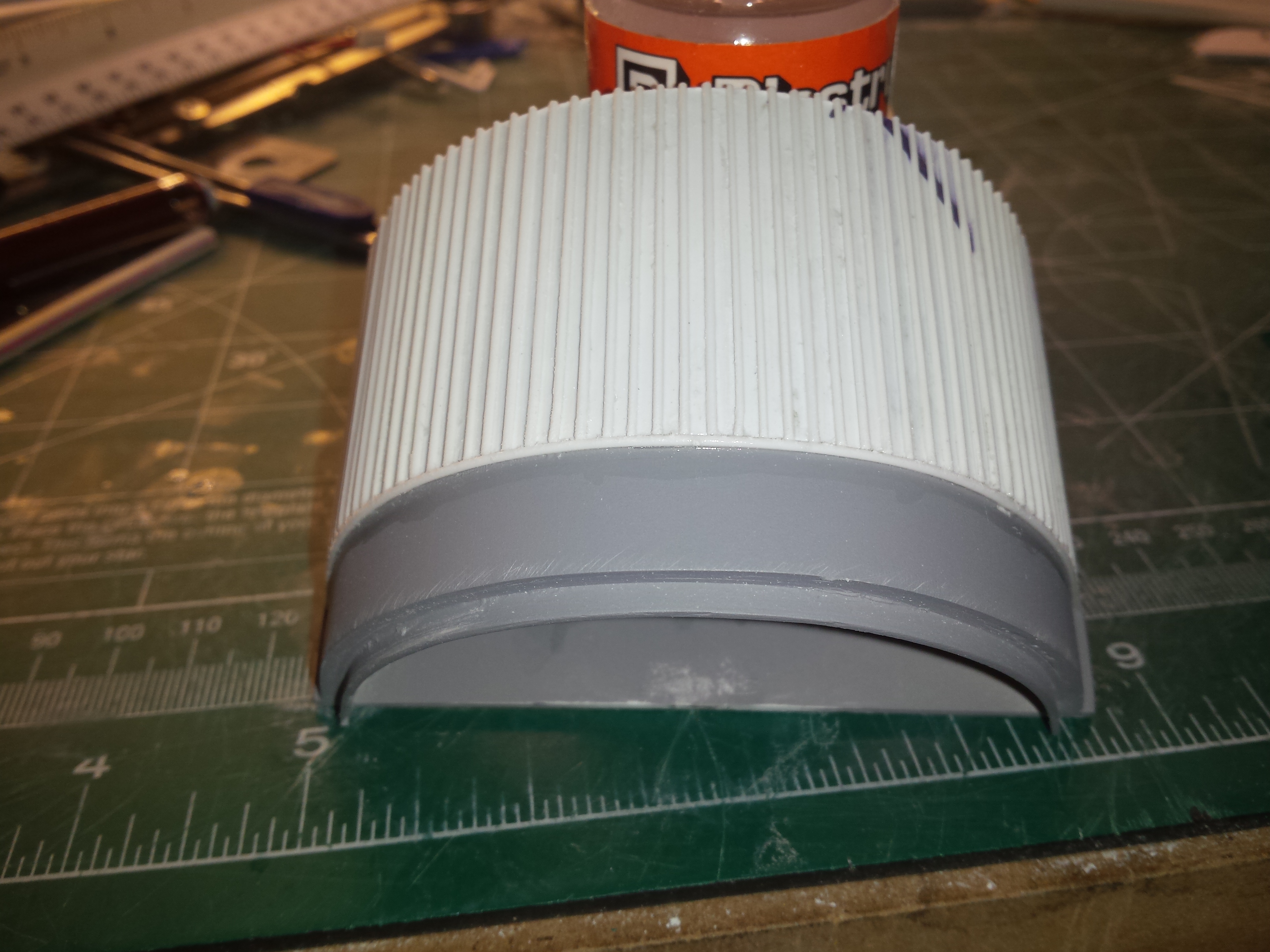

    Added little more detail to housing.

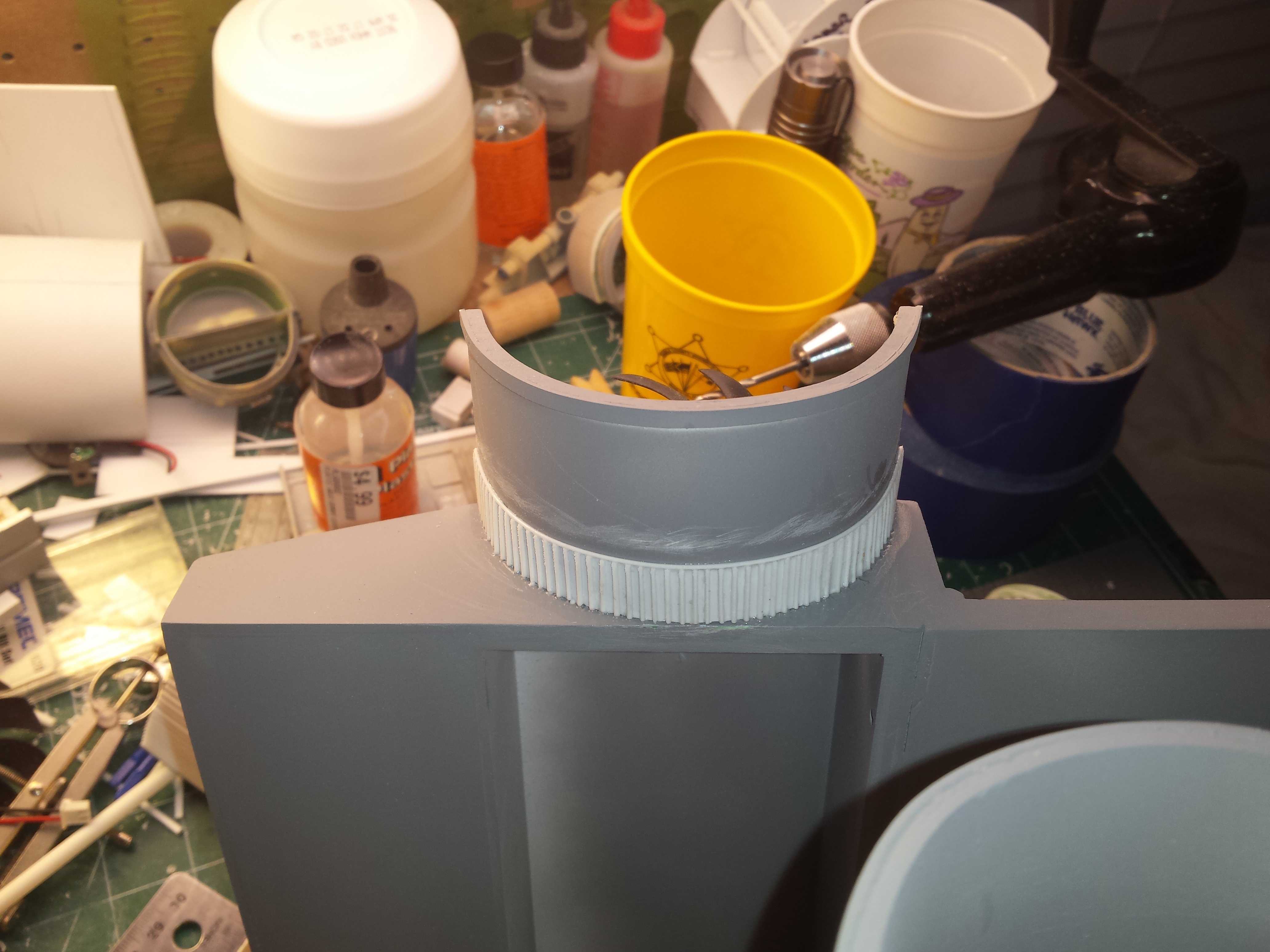

    Added a piece to bottom housing. That's all the work for now. Thanks and God bless.


    Attached Files:

    Last edited: Nov 6, 2015
  21. bartrman

    bartrman New Member

    Trophy Points:
    18
    I wanted to say hi to all and sorry for the being away for a while. The area I was using for building went away. We had a 20x30 deck that we don't use that often. So I talked with my wife about making that a man cave/media room in exchange for moving all my stuff out of her way. She finally agreed. So I started on the journey of designing my man cave. I will post some pictures and a new post showing progress. I have spent all my free time and money making this media room.

  22. bartrman

    bartrman New Member

    Trophy Points:
    18
    I am not sure If I should post this here or start a new post. I wanted to share some of my progress and dreams with others. Like my post earlier tis is a long term dream of mine as I am sure with most men out there is to have there own man cave. After my wife gave me the ok. to turn our 20x30 deck into a man cave I started doing a lot of research and looking at other ideas. There are some great builds out there. I came across many designs I loved, but I had to look at what I could afford to do and my skill set as to what I could build. I took 3 major designs and came up with my own design. I started with making some drawings of what I hopped my final would look like. I divided the room into three sections. Main hallway that leads fro main house to room. Room is then divided into two sections small L shaped and main viewing area. The first set of drawing deal with small L shaped room.


    Next couple are pictures of ceiling



  23. yaris

    yaris Sr Member

    Trophy Points:
    1,036
    I don't get it??

    3 years ago you started scratch building an X Wing 1/12 scale and now you're building a man cave........??

    You started out very well......I praise your intention and work thus far.
    I wish you luck with your X Wing/Cave building something......whatever you decide to build.......:confused

    Here's my 1/18 scale X Wing converted toy into open wings....maybe some inspiration...I tossed out most of the toy and scratch built everything else.

    Good luck with your building!!.....:D


    Attached Files:

    Last edited: Feb 5, 2018
    ASC McLaren likes this.
  24. bartrman

    bartrman New Member

    Trophy Points:
    18
    Very awesome build. I lost my work area. So yes I have been building a Star Wars theater room with a model room built in to further work on my projects. So its not that I didn't want to work on my projects, it's just I didn't have any place to set up and work on it.

  25. bartrman

    bartrman New Member

    Trophy Points:
    18
    I started this project about 3 yrs ago when I stopped working on my x-wing. I had the chance to convert a 20x30 deck into a Media Room. I choose the Star Wars d├ęcor. I wanted to share my passion and build with others. My Dad helped me with the framing process. Framing is not my skill set. Her are a few pictures of the early process.

    2015-12-25 12.44.52.jpg IMG_20151127_085810.jpg 20160213_080350.jpg 20160213_080415.jpg 20160214_082315.jpg 20160214_082301.jpg 20160213_080407.jpg 20160214_082309.jpg 20160213_080355.jpg 20160213_080359.jpg

    I will upload some more pictures of progress soon. Thanks and God Bless.

    Last edited: Feb 5, 2018
    32buds and mrwax like this.
  26. bartrman

    bartrman New Member

    Trophy Points:
    18
    Here are a few pictures after the roof was put on.

    20160506_120714.jpg 20160506_120721.jpg 20160506_120732.jpg 20160506_120736.jpg

    Here I have taken the two windows out and made pocket windows on the other side.
    I also took out my sons two windows and put a big pocket window on the other side. Started putting inner walls up.

    20160506_120648.jpg 20160506_120653.jpg Win1.jpg Hall2.jpg 20160506_144827.jpg Hall1.jpg

    Here putting closet in at the end of hallway.


    Here I am starting on the pocket doors in hallway. The little room to the side is my new model room.

    Wall3.jpg Wall6.jpg

    Here there is more farming

    Wall4.jpg Wall5.jpg 20161005_081446.jpg 20161005_081512.jpg


    Attached Files:

    Last edited: Feb 6, 2018
  27. bartrman

    bartrman New Member

    Trophy Points:
    18
    Here are some more progress pictures. I'm the second picture you can see where I added a raised floor.

    20161005_081514.jpg 20161005_081524.jpg

    Here I am hanging sheetrock. My favorite thing to do. LOL

    Wall9.jpg Wall10.jpg Wall11.jpg Wall12.jpg Wall13.jpg Wall16.jpg Wall15.jpg Wall18.jpg Wall17.jpg Wall20.jpg 20170412_144530.jpg Wall25.jpg 20170412_144541.jpg 20170412_144545.jpg 20170412_144557.jpg 20170412_144600.jpg Wall21.jpg Wall22.jpg Wall23.jpg Wall24.jpg Wall26.jpg

    Last edited: Feb 6, 2018
  28. bartrman

    bartrman New Member

    Trophy Points:
    18
    These next group of pictures are of the pocket door I had to build form scratch. The frames were made out of 1x6. Then I took a 6 panel door and split it in half to make doors facing the hallway.

    Door7.jpg Door8.jpg


    Here is the other side of the pocket doors facing media room. I started working on the framing of the doors facing media room.

    2673_1494367689430.jpeg Door9.jpg Door11.jpg

    In the next few pictures I started skinning the frame and adding detail to the doors.

    Door1.jpg Door2.jpg Door3.jpg Door5.jpg Door6.jpg Door18.jpg Door19.jpg Door20.jpg


    Attached Files:

    Last edited: Feb 6, 2018
  29. bartrman

    bartrman New Member

    Trophy Points:
    18
    These next few pictures show construction of middle frame work and panel work. There is fake window in the middle of one wall.




    20170524_145850.jpg 20170530_154118.jpg 20170530_154123.jpg 20170530_154127.jpg 20170530_154113.jpg 20170530_154104.jpg 20170530_154108.jpg 20170604_081629.jpg 20170607_111102.jpg 20170607_111106.jpg 20170607_111112.jpg 20170607_111132.jpg


    Here I started panel boards top and bottom.



    20170607_111122.jpg 20170607_111116.jpg Panel1.jpg Panel4.jpg Panel5.jpg Panel6.jpg 20170607_150127.jpg 20170607_150131.jpg Panel7.jpg


    Attached Files:

    Last edited: Feb 7, 2018
  30. bartrman

    bartrman New Member

    Trophy Points:
    18
    More panel work.


    Panel9.jpg Panel8.jpg

    Last edited: Feb 7, 2018
  31. bartrman

    bartrman New Member

    Trophy Points:
    18
    Some more updates. Started working on the ceiling panel work.



    20170630_164208.jpg 20170630_164213.jpg 20170630_164218_001.jpg

    These next few set of pictures, I started working on placing and testing led lighting.

    Ceiling-Lights.jpg 20170719_153542.jpg 20170719_153546.jpg 20170719_153546.jpg 20170719_153555.jpg 20170730_193637.jpg 20170730_193644.jpg 20170730_193650.jpg 20170730_193702.jpg 20170730_193655.jpg


    Attached Files:

    Last edited: Feb 27, 2018
  32. azheat01

    azheat01 Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,881
    Looking good, reminds me of when I built my Star Wars media room! Keep it up!



  33. bartrman

    bartrman New Member

    Trophy Points:
    18
    Looks awesome. I think I remember coming across your build when I was looking at reference material and build to get ideas. Thanks and have a blessed day.

  34. bartrman

    bartrman New Member

    Trophy Points:
    18
    Few more updates. This set of pictures I started working on ceiling pattern with panel work in place.






    20170802_152226.jpg 20170827_151115.jpg 20170827_151120.jpg 20170827_151124.jpg 20170827_151131.jpg 20170827_151141.jpg 20170827_161658.jpg 20170827_161707.jpg

    Last edited: Mar 1, 2018
  35. bartrman

    bartrman New Member

    Trophy Points:
    18
    A few more updates. Started adding detail to upper part of wall.




    20170829_140150.jpg 20170829_140153.jpg 20170829_140204.jpg Paint1.jpg


    Here getting the wall ready for paint.


    Paint2.jpg 20170829_154924.jpg 20170829_154927.jpg 20170829_154945.jpg


    Started adding some paint to see how it will work.

    paint3.jpg Paint4.jpg Paint5.jpg Paint6.jpg paint9.jpg Paint10.jpg 20170830_133653.jpg 20170830_133717.jpg 20170830_133743.jpg


    Here I started putting lights on bottom to give it more of a Star Wars look. The door frame I painted a black metallic steel. Blue glow wire in place. The black inserts is carbon fiber vinyl.

    20171024_105451.jpg 20171024_175745.jpg 20171025_144153.jpg 20171025_144225.jpg 20171025_144232.jpg

    Last edited: Mar 2, 2018
  36. Axlotl

    Axlotl Master Member

    Trophy Points:
    3,165
    You should change the title of this thread to "I turned my house into an X-Wing".

  37. bartrman

    bartrman New Member

    Trophy Points:
    18
    Not a bad idea.
