Further developments with the body!
1:1 WALL-E
- Thread starter PrestonAltr
- Start date
PrestonAltr
New Member
UPDATE 1-3-16

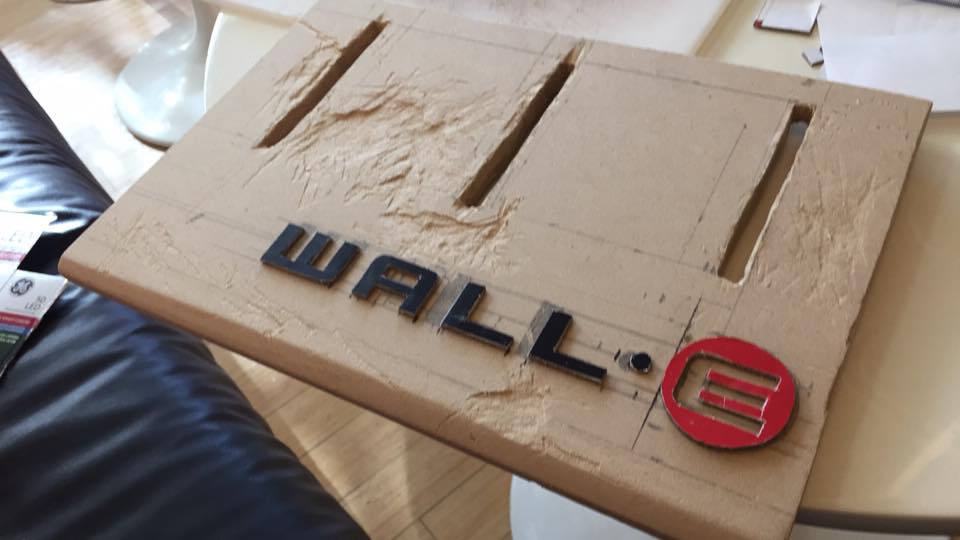

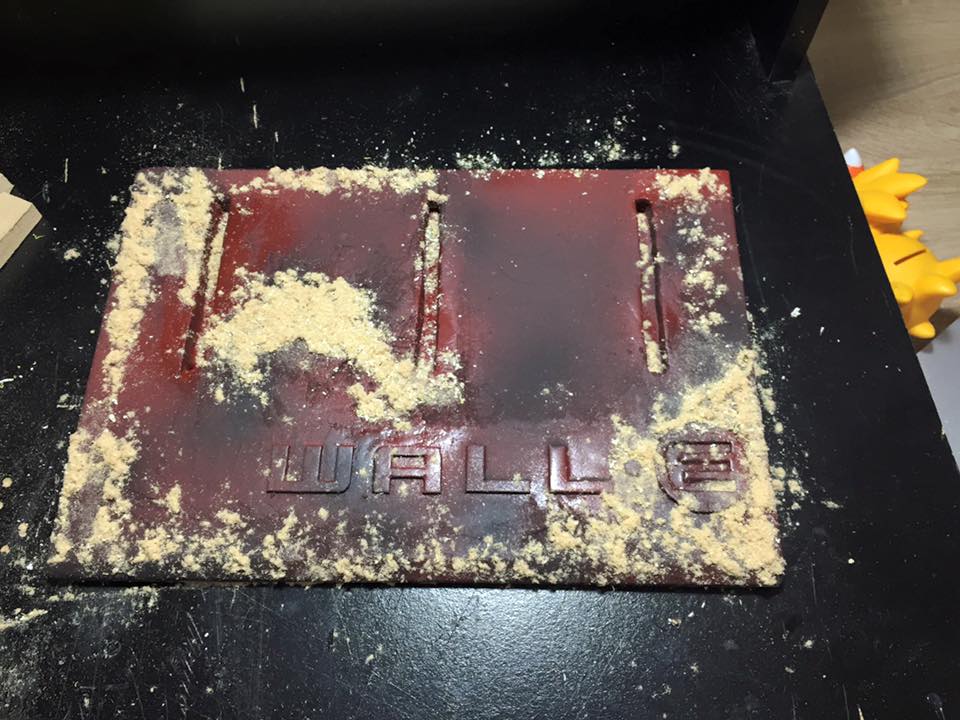

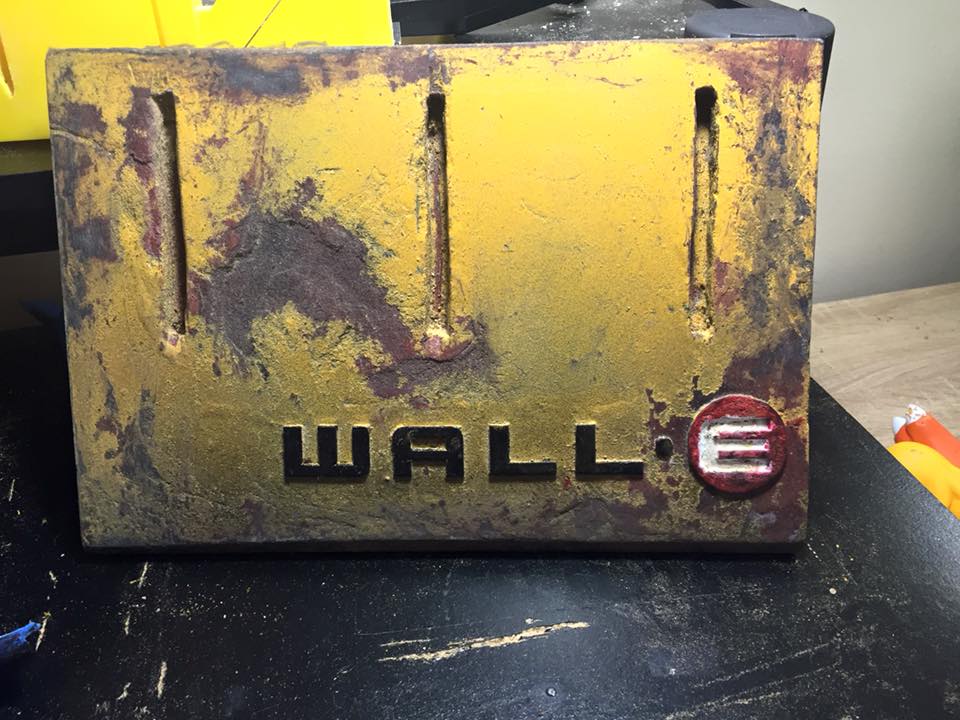

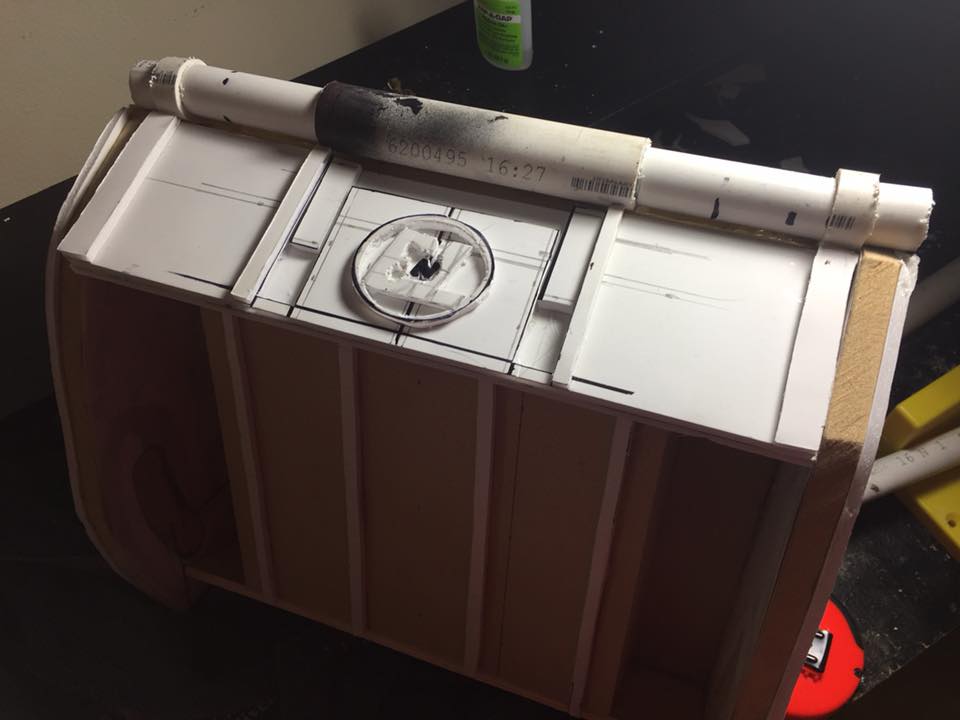

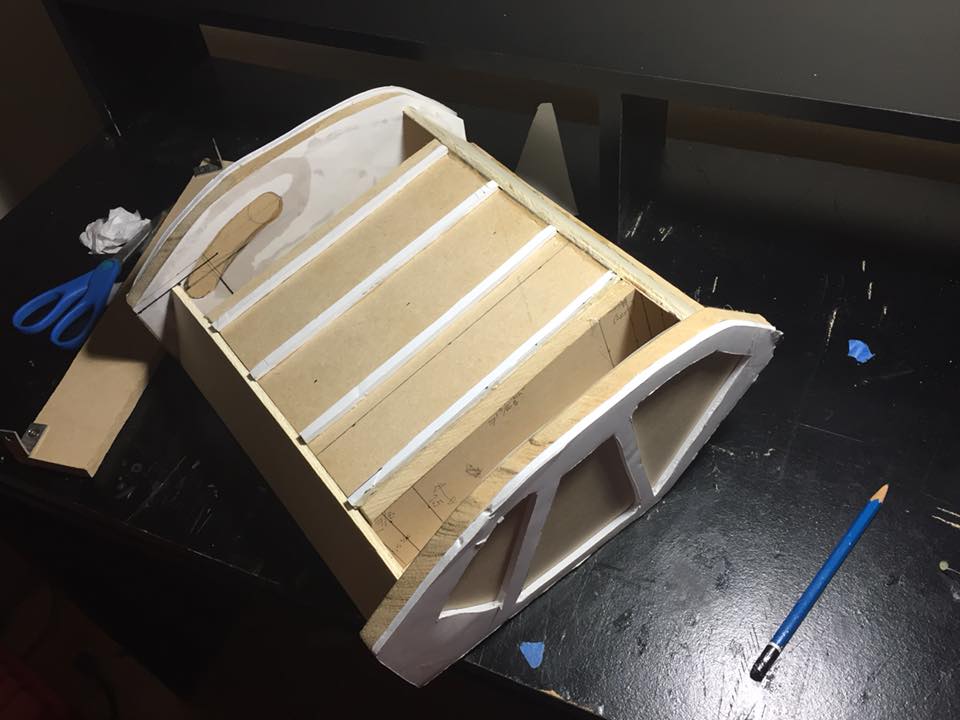

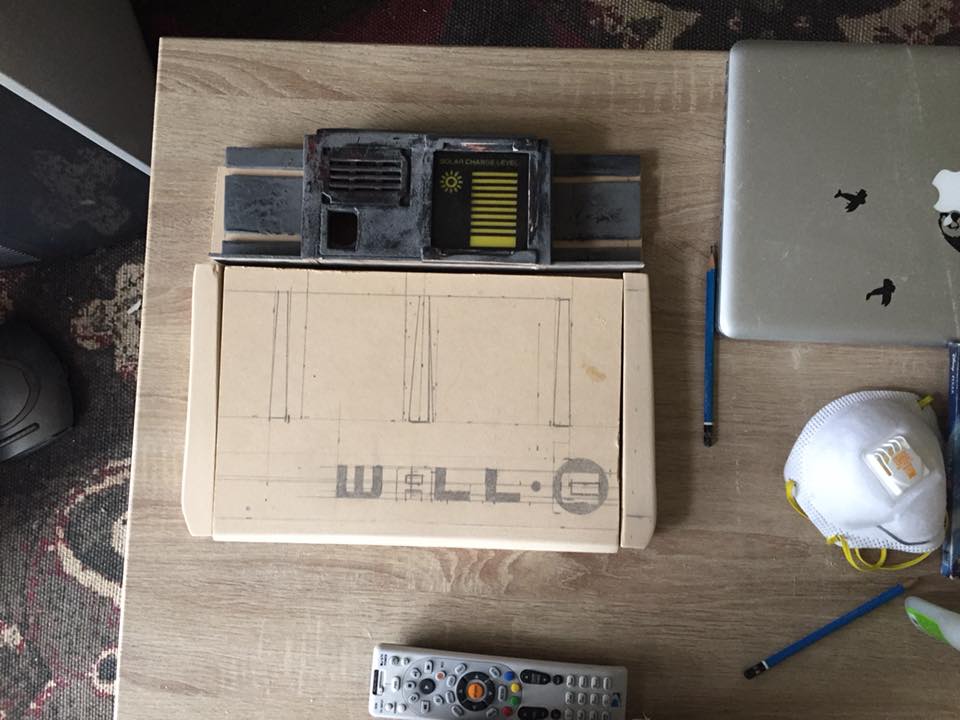

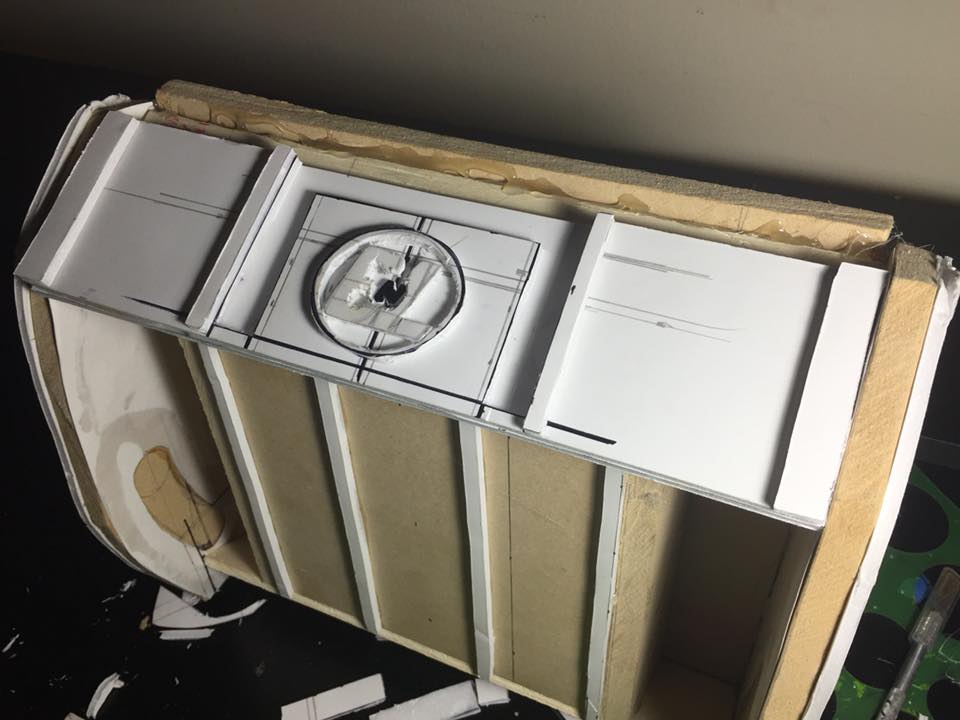

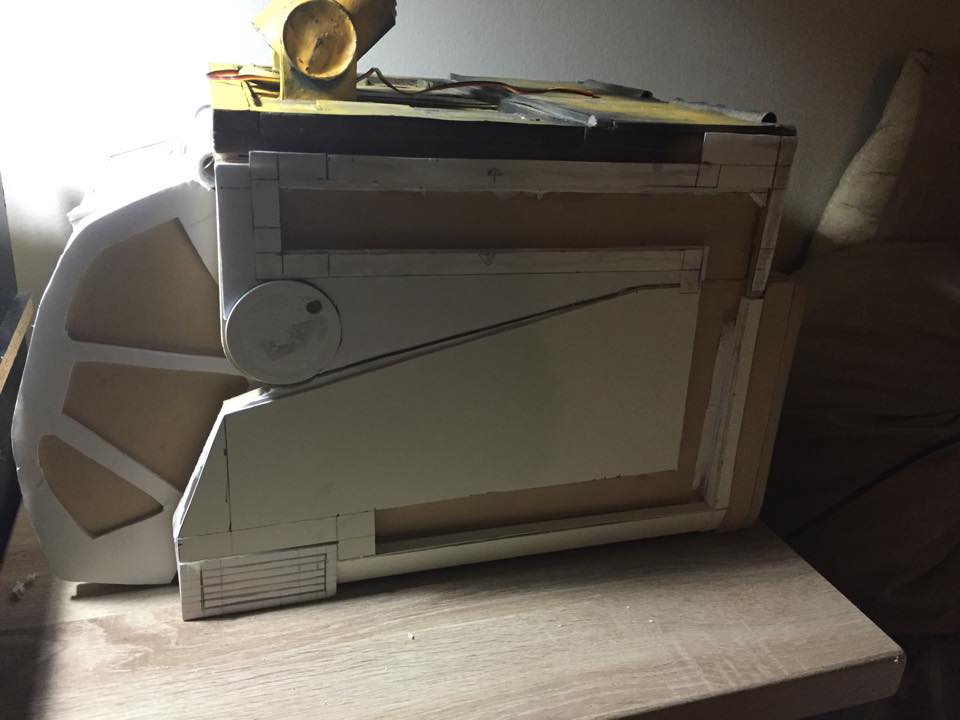

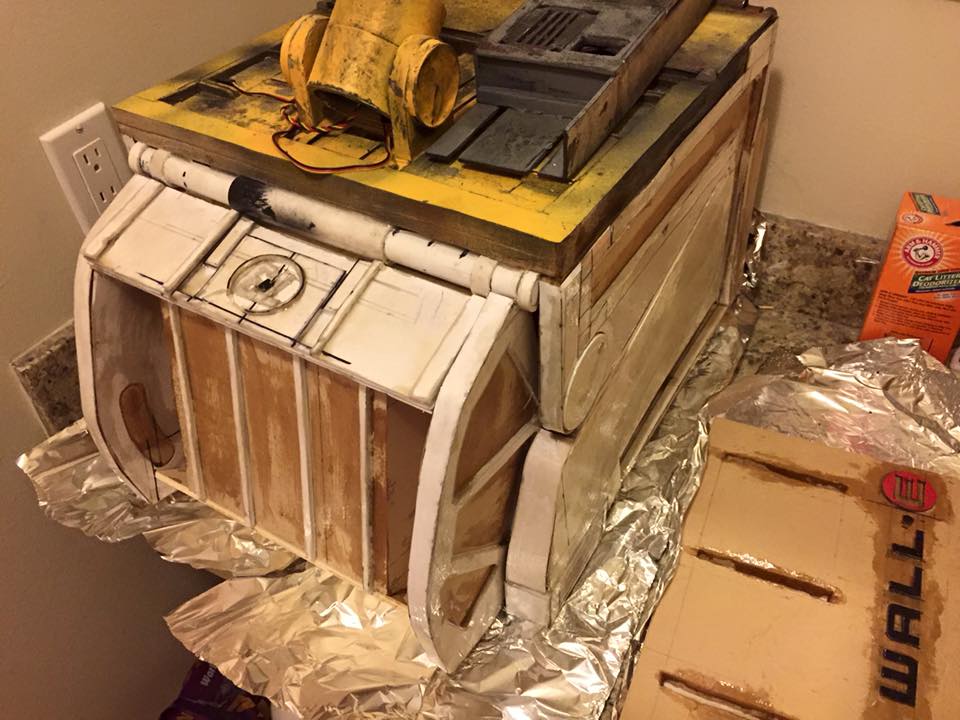

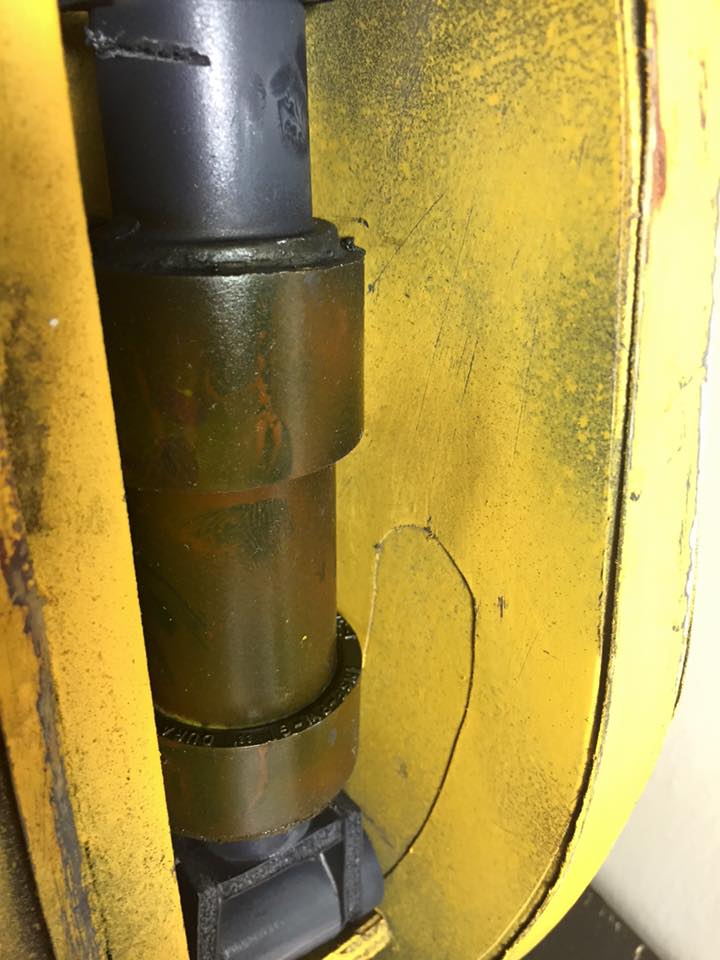

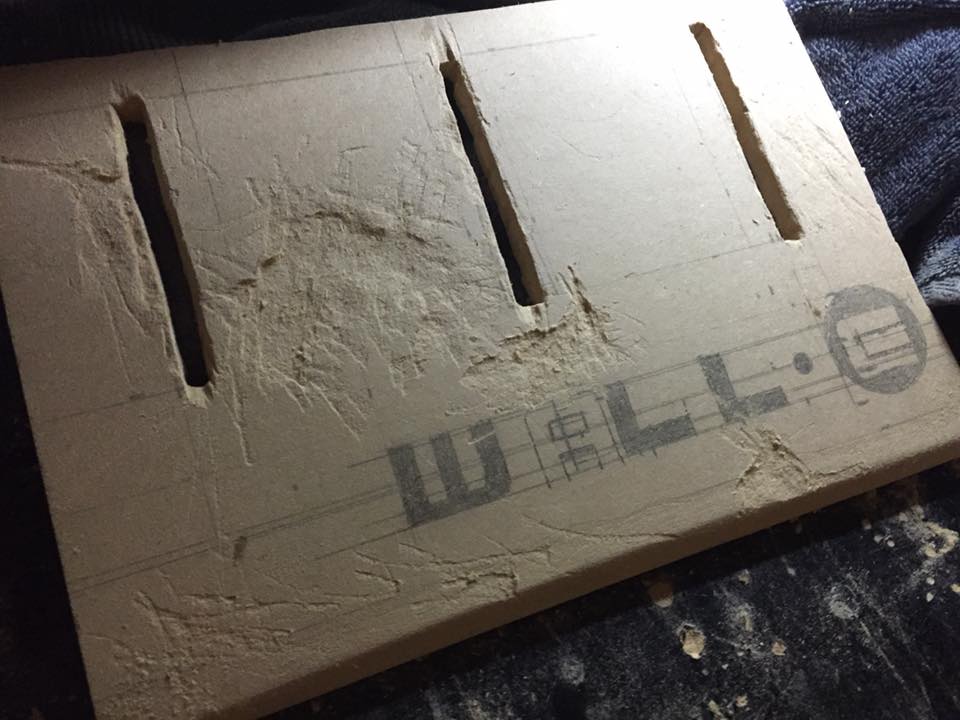

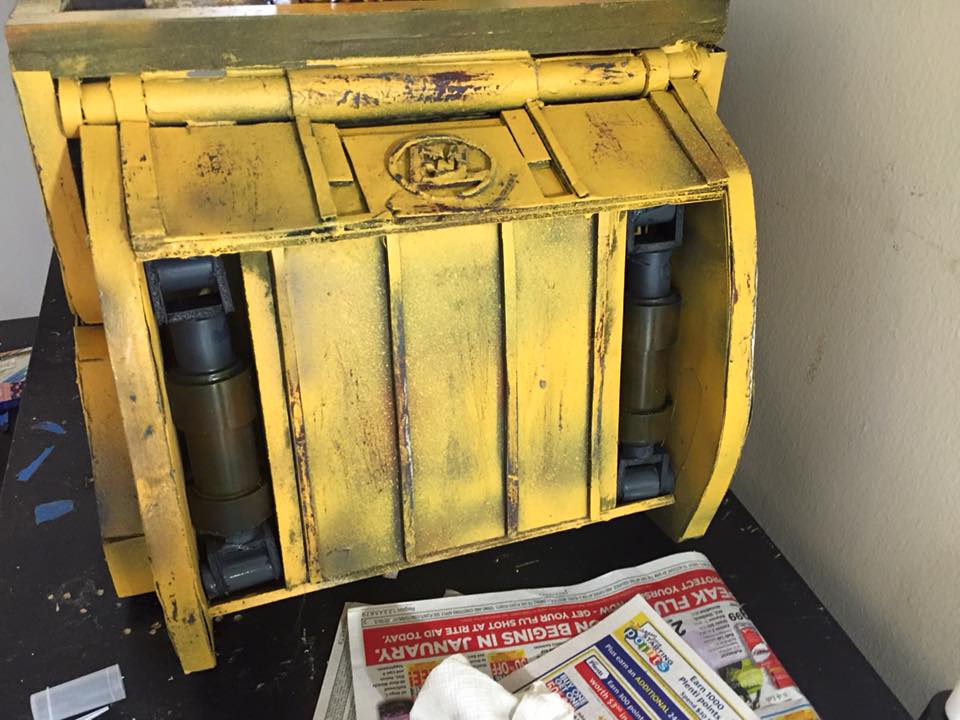

Happy New Year! Since my last update, I have completed the detail work on the body (including the B&L Logo on the compactor door) and have begun to paint! The raised lettering on the compactor door is simply cardboard brushed with fiberglass on an MDF base. Hope you like it!
Happy New Year! Since my last update, I have completed the detail work on the body (including the B&L Logo on the compactor door) and have begun to paint! The raised lettering on the compactor door is simply cardboard brushed with fiberglass on an MDF base. Hope you like it!
undeadmith
Active Member
amazing work so far
Way too cool!!!
PrestonAltr
New Member
UPDATE: 1-9-2016

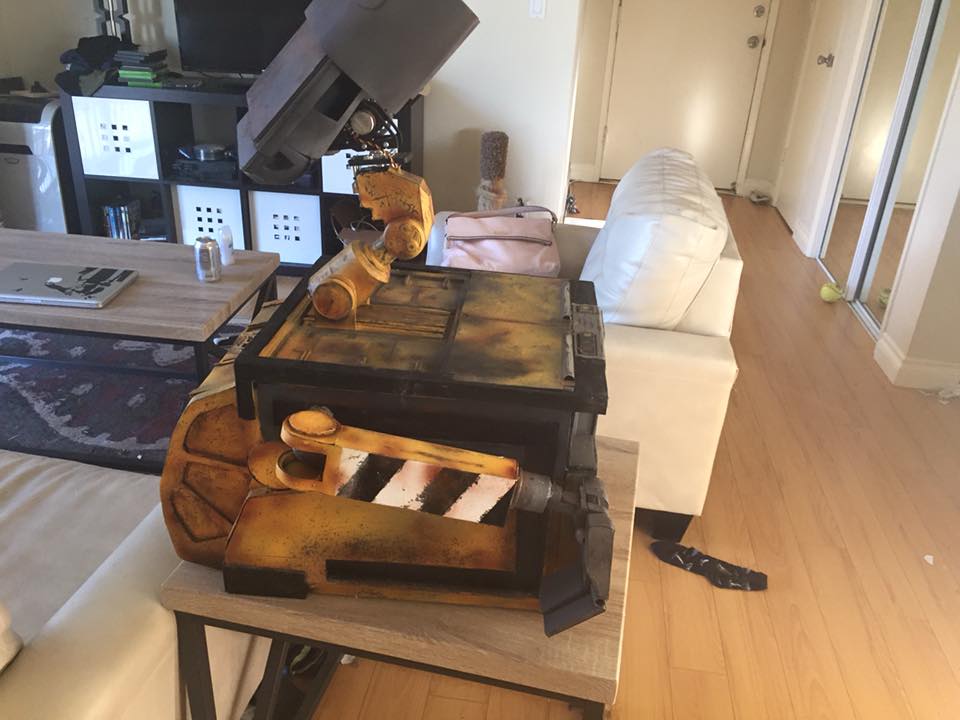

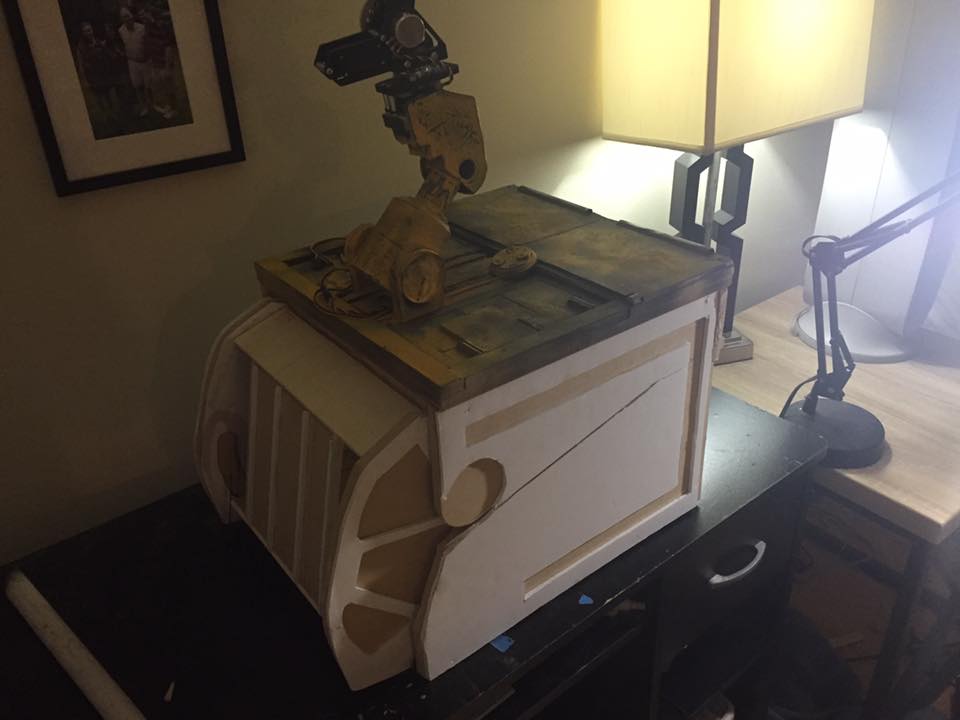

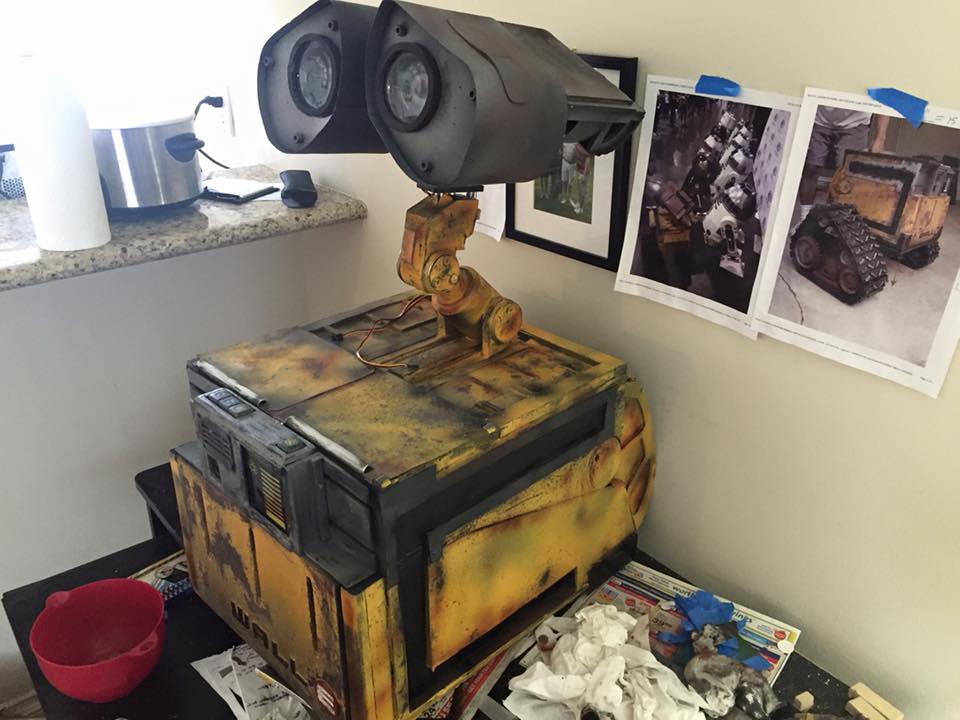

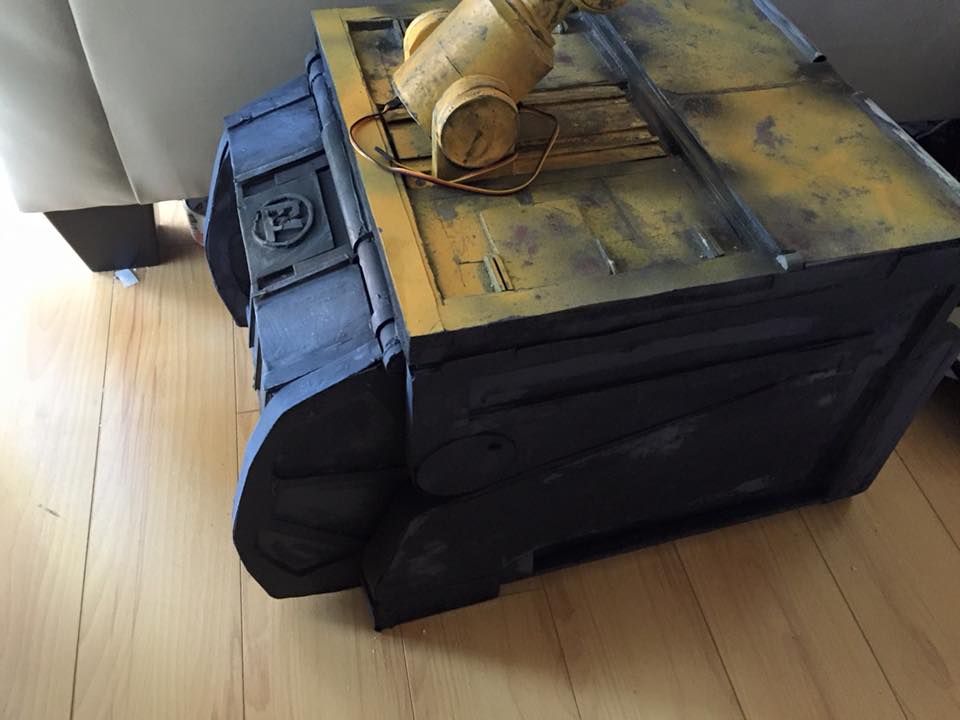

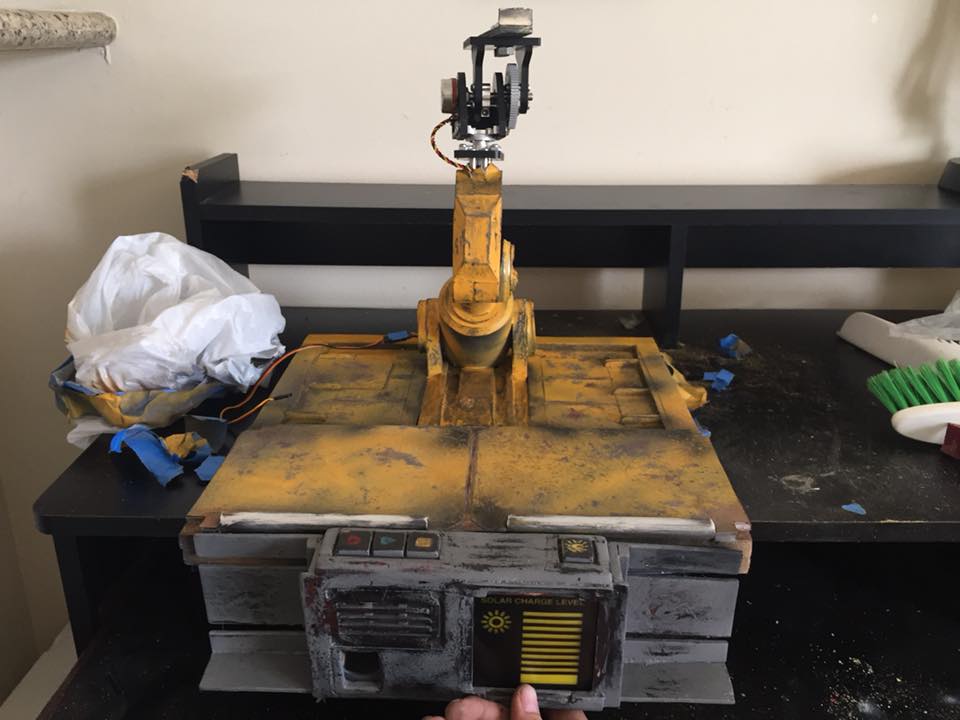

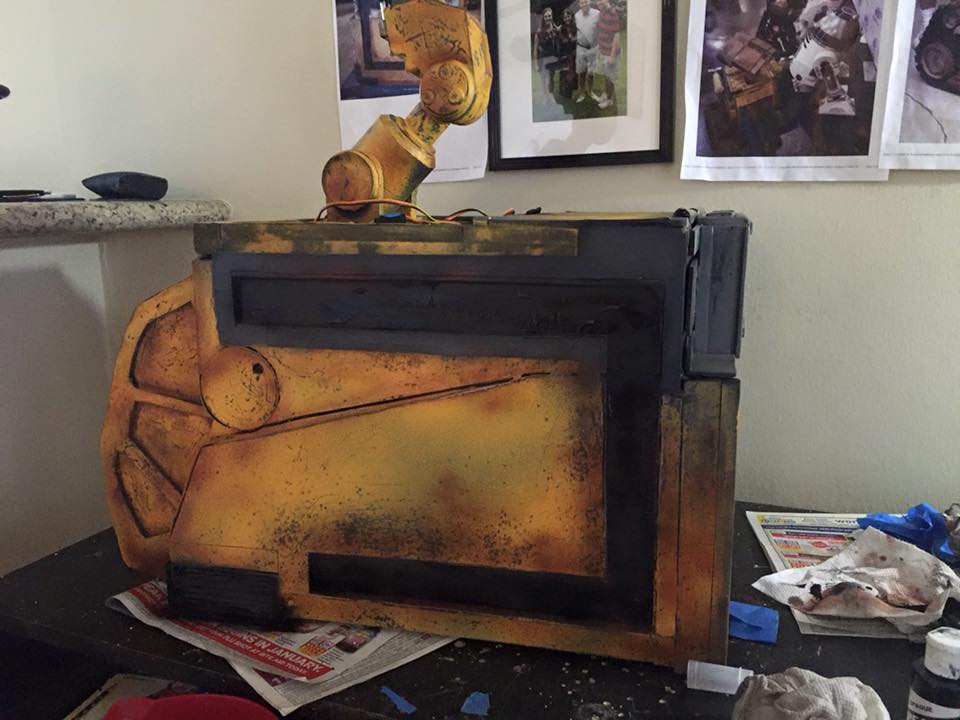

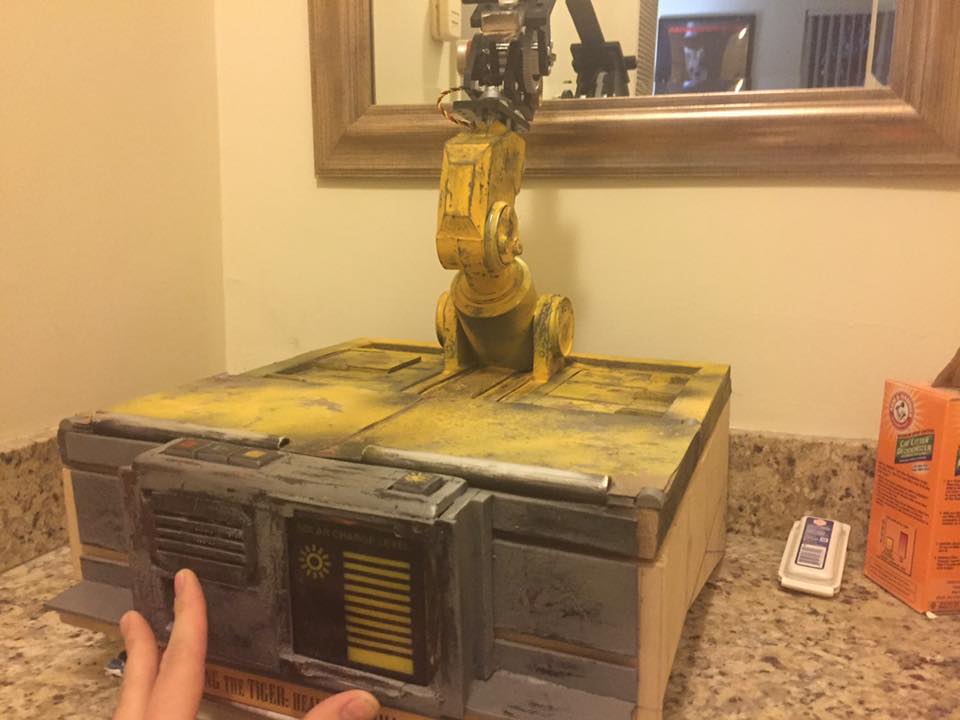

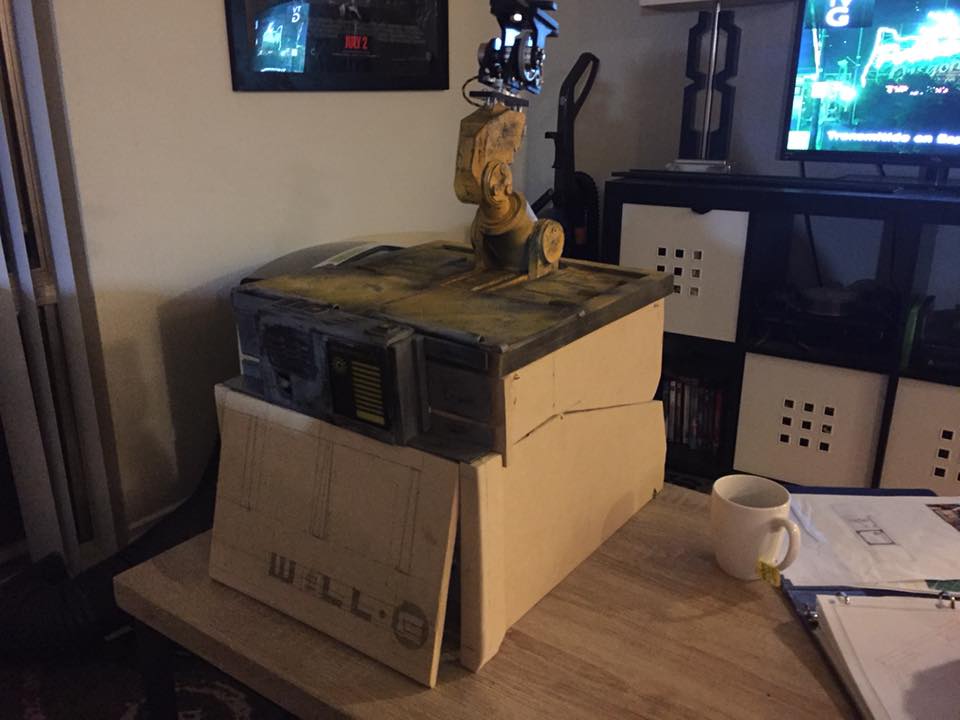

I'm always surprised by how AWESOME things look after they're airbrushed (See the difference between photos 2 and 5). Since the last update, I finished the paint on the body and put everything together. What's left on this build: 1. The Trim (Cosmetic) 2. The Sound System (Electronic) and 3. Wheel/Chassis System (Mechanical).
Thank you all for your support and I can't wait to move onto the next part of the build.
I'm always surprised by how AWESOME things look after they're airbrushed (See the difference between photos 2 and 5). Since the last update, I finished the paint on the body and put everything together. What's left on this build: 1. The Trim (Cosmetic) 2. The Sound System (Electronic) and 3. Wheel/Chassis System (Mechanical).
Thank you all for your support and I can't wait to move onto the next part of the build.
PrestonAltr
New Member
UPDATE 2-7-16

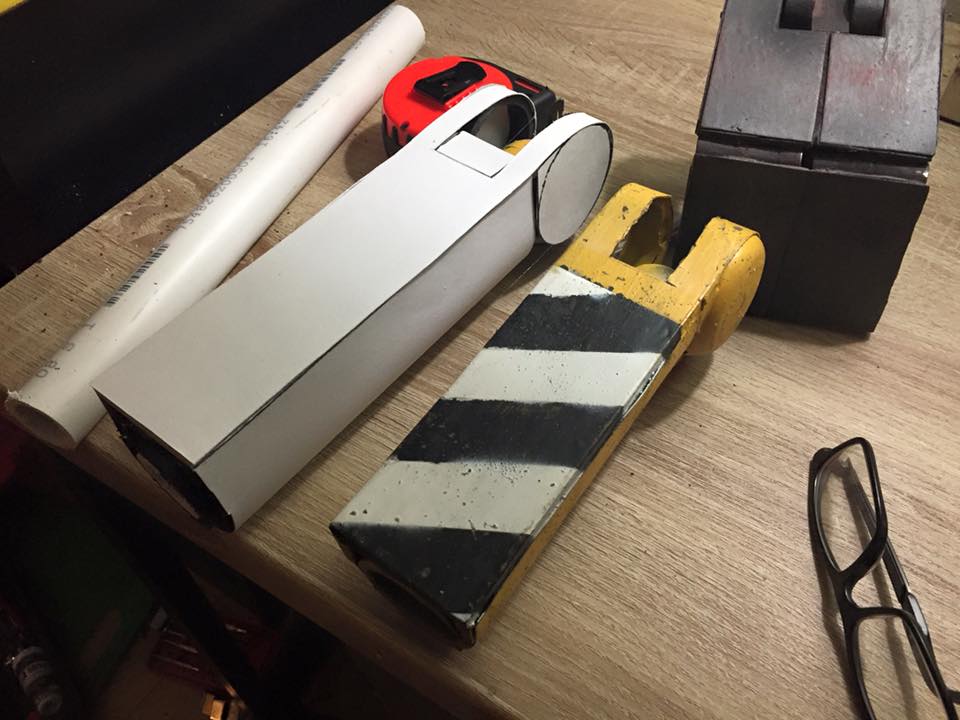

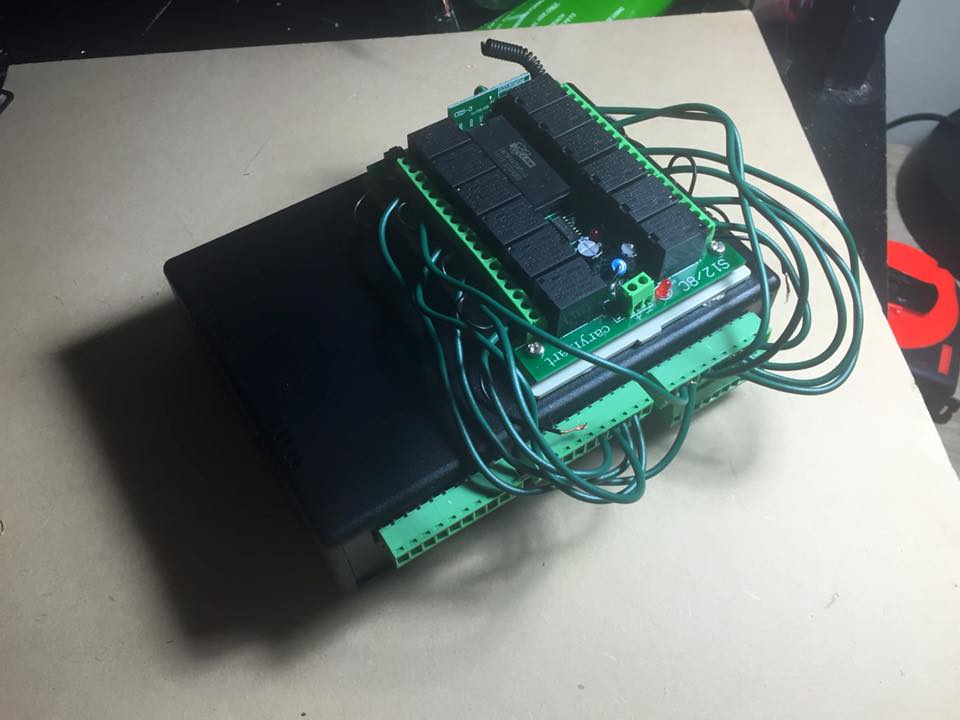

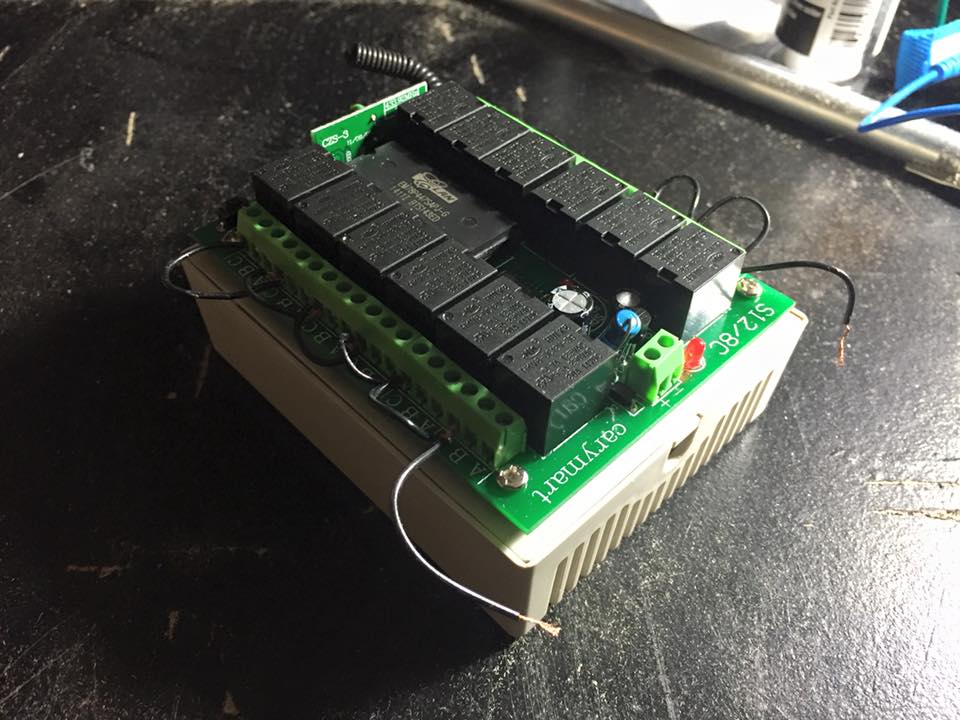

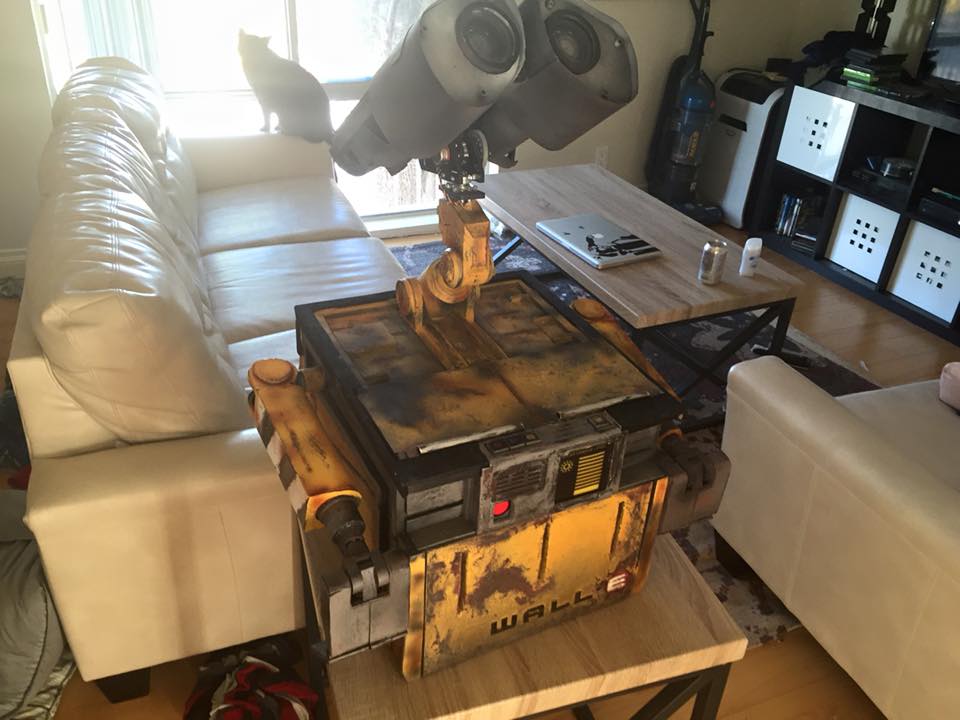

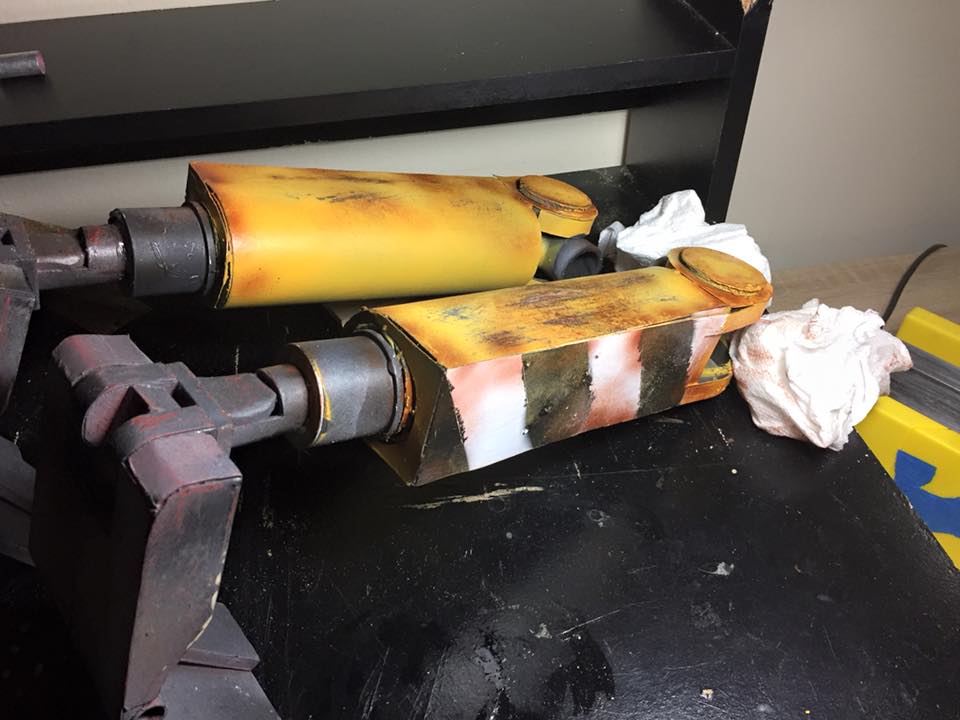

Hey Folks! WALL-E now moves and speaks! I've included a video as well as the photos you see below. I decided to re-scale the arms and I'm feeling much better with how the whole body is looking. I followed the R2D2 Builder's Club sound system schematic pretty much to the letter with a CFSound IV and 12 Channel RF Remote wired together, powered by a 12 volt battery. Super easy circuitry with no soldering required. I'd highly recommend this to anyone making any kind of robot (or other creature or character) that requires sound effects.
Hey Folks! WALL-E now moves and speaks! I've included a video as well as the photos you see below. I decided to re-scale the arms and I'm feeling much better with how the whole body is looking. I followed the R2D2 Builder's Club sound system schematic pretty much to the letter with a CFSound IV and 12 Channel RF Remote wired together, powered by a 12 volt battery. Super easy circuitry with no soldering required. I'd highly recommend this to anyone making any kind of robot (or other creature or character) that requires sound effects.
Last edited by a moderator:
PrestonAltr
New Member
DL4567, it IS intimidating... but due to the vast amount of free resources online regarding this kinda thing, it's really easy to dive into (once you've read up a bit). Thankfully, because so much of WALL-E is just RC/Drone parts, it was 99% just plug-and-play. If you get the chance, I'd highly recommend it!
VoidConstruct
New Member
Great work! That's one of my favorite movies to watch with my Son and he loves it.
PrestonAltr
New Member
DL4567, it IS intimidating... but due to the vast amount of free resources online regarding this kinda thing, it's really easy to dive into (once you've read up a bit). Thankfully, because so much of WALL-E is just RC/Drone parts, it was 99% just plug-and-play. If you get the chance, I'd highly recommend it!
That is brilliant. The movement really sells it!! I, too, have always been intimidated by servos. It really is beautiful work.
PrestonAltr
New Member
UPDATE 4-1-16

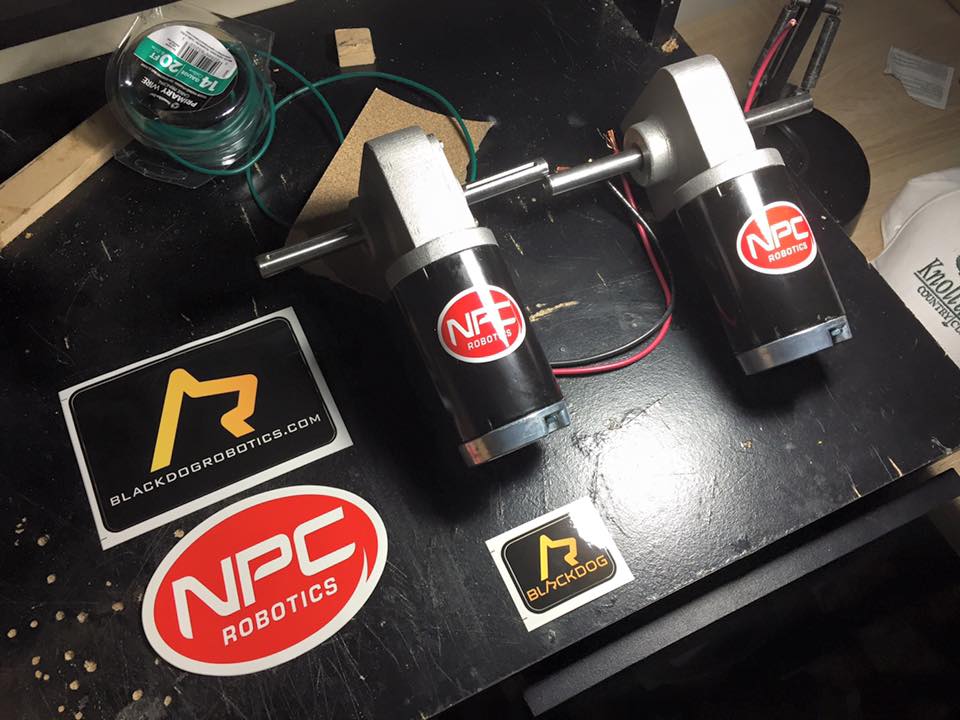

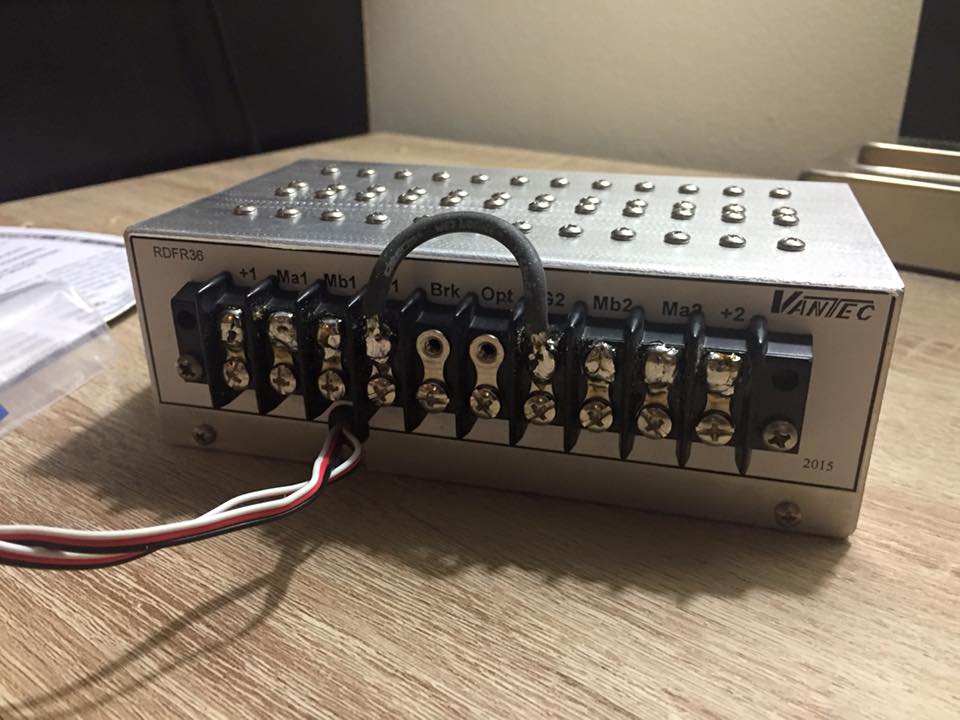

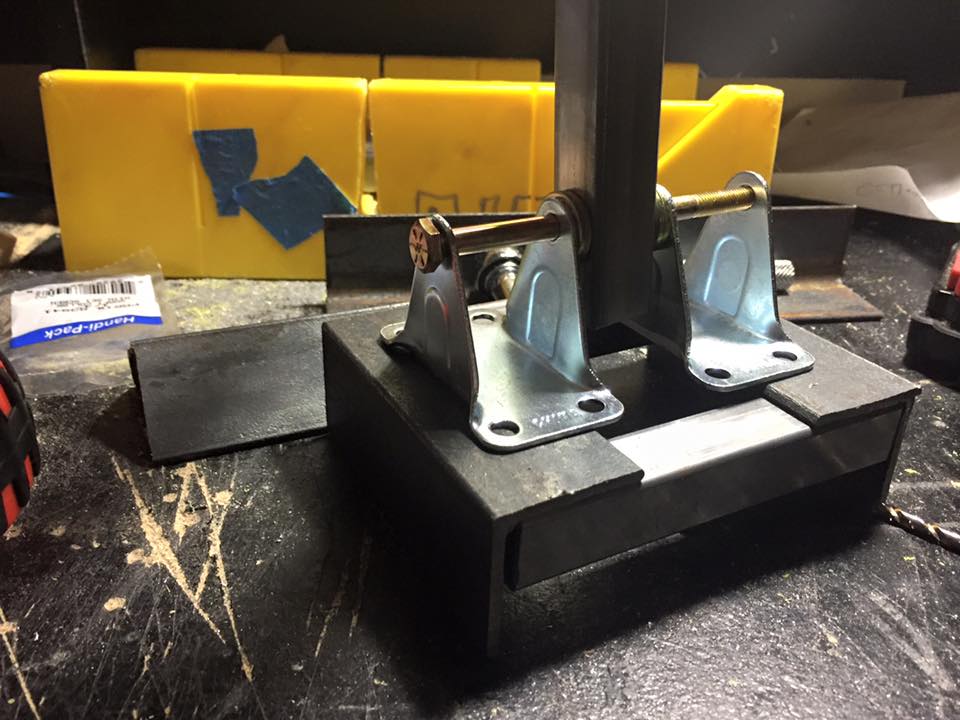

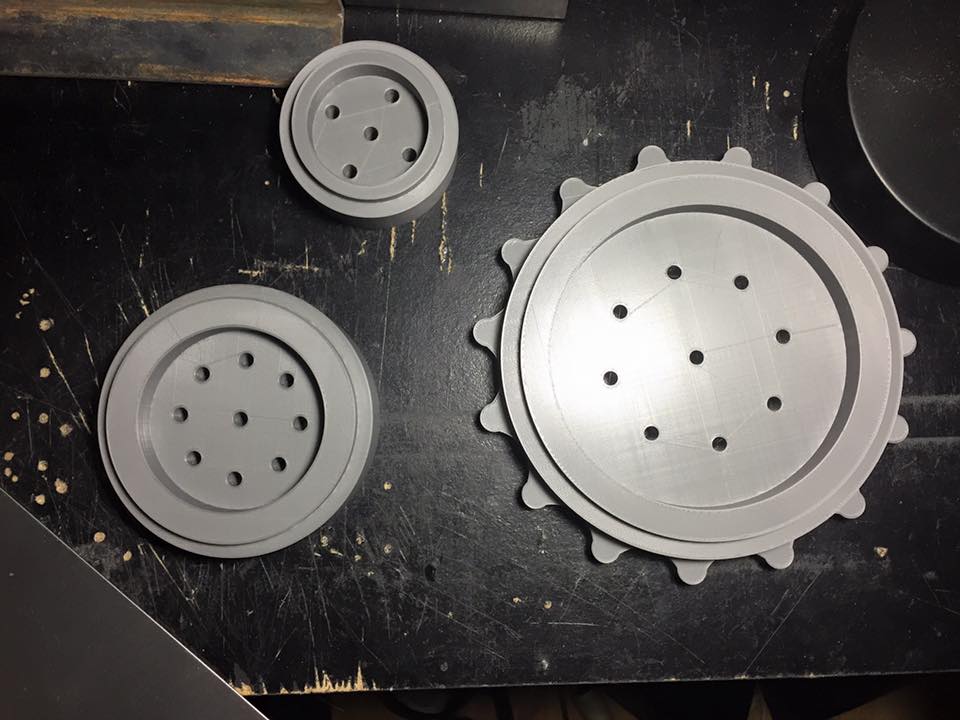

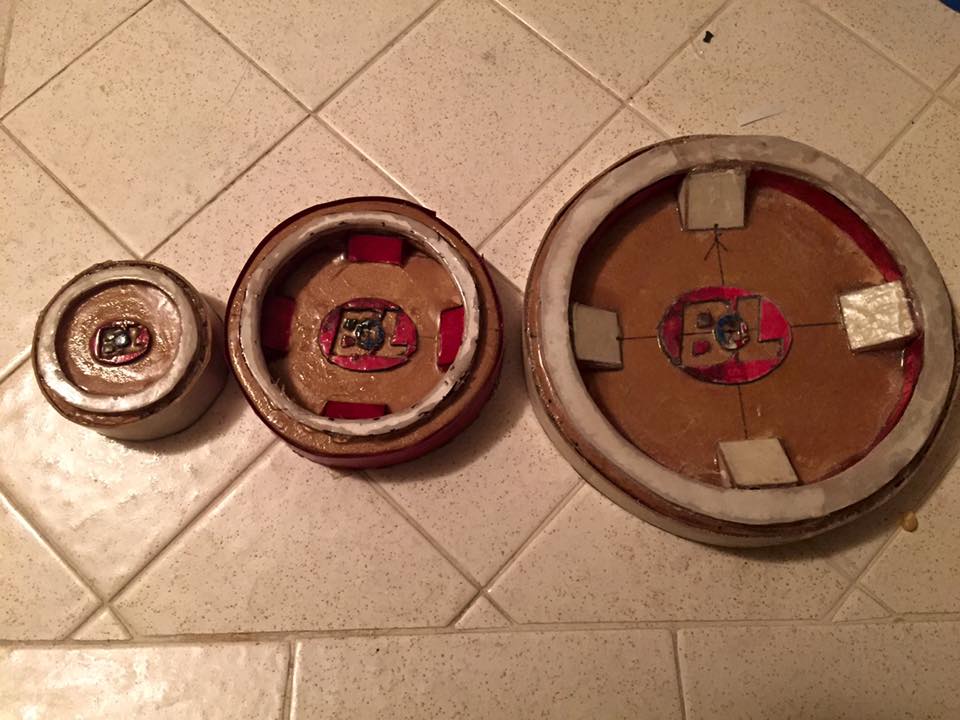

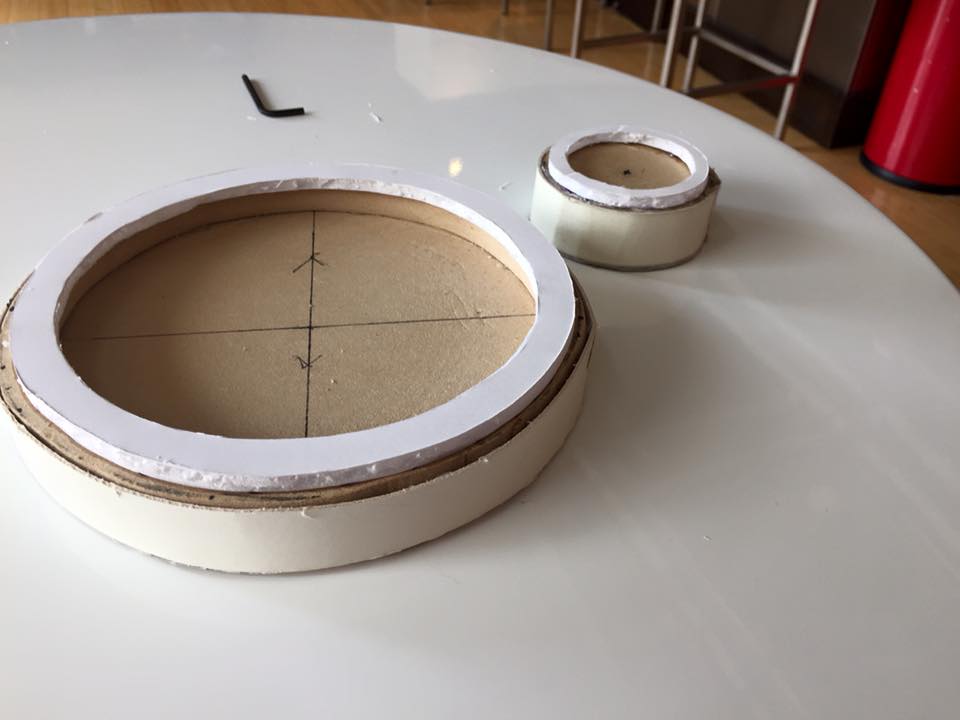

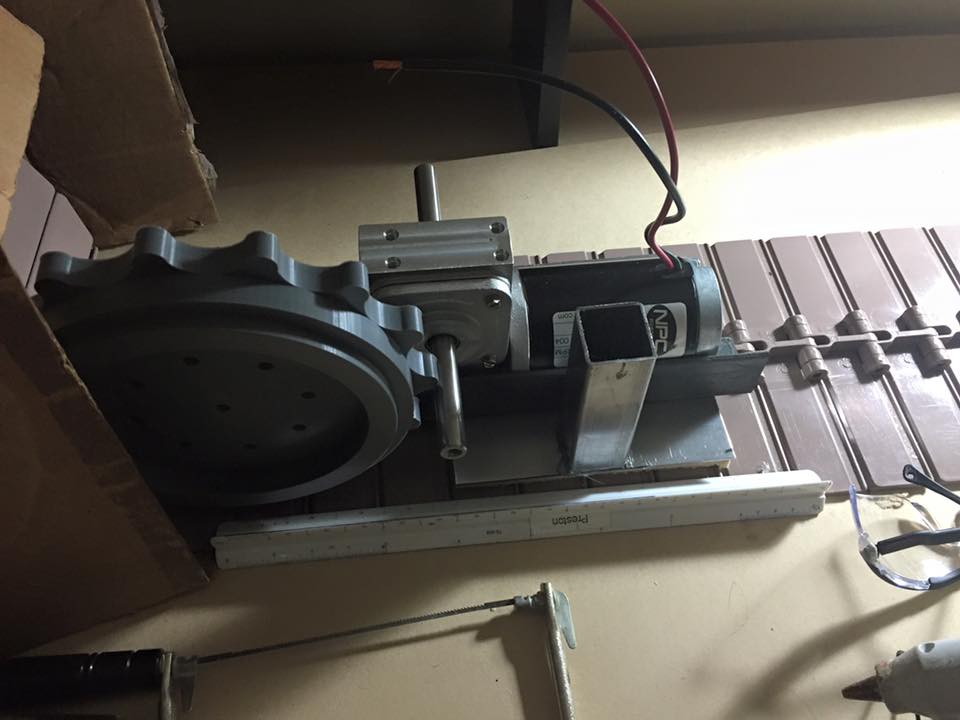

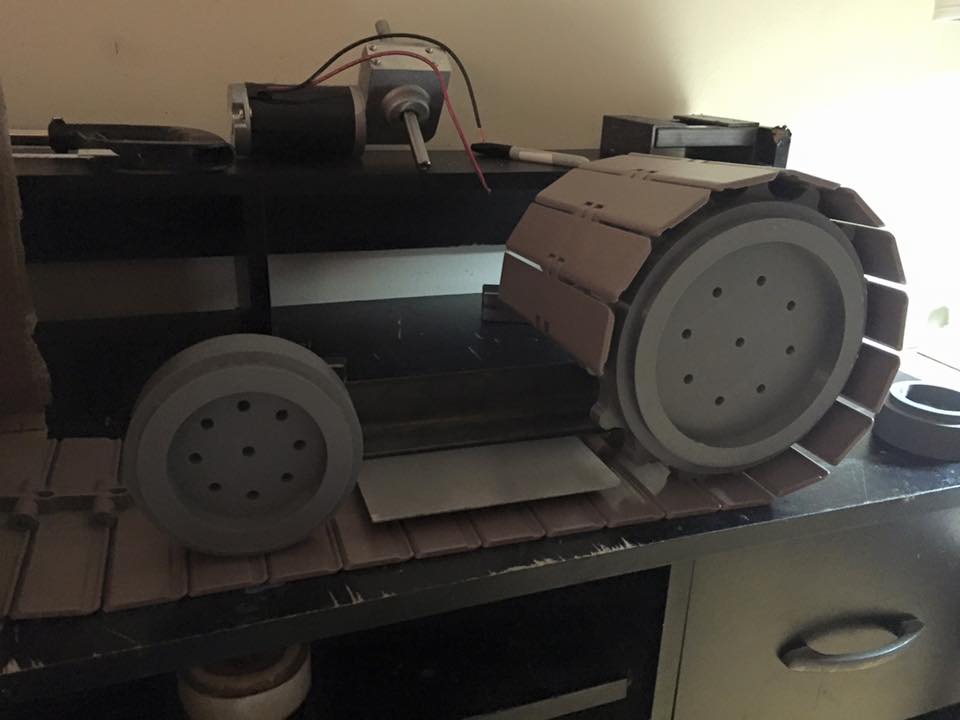

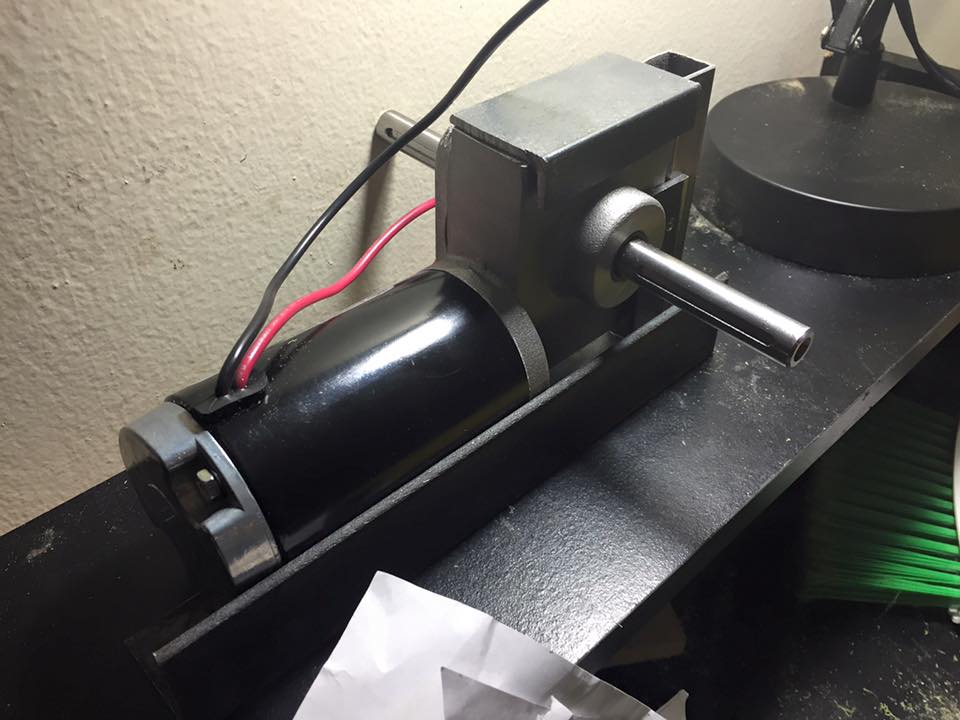

No April Fools tricks here, just another update! My NPC motors and motor controller arrived. I also began the process of cutting/drilling/welding the frame. I will be using some springs as suspension to prevent excessive jerking when he starts moving. In regards to the wheels, as you can see I made some out of MDF, foam and fiberglass... But they were far from perfect and I was lucky enough to have a friend with an Ultimaker 2.0 who 3D printed my CAD files into wheels. Things are definitely coming together!
No April Fools tricks here, just another update! My NPC motors and motor controller arrived. I also began the process of cutting/drilling/welding the frame. I will be using some springs as suspension to prevent excessive jerking when he starts moving. In regards to the wheels, as you can see I made some out of MDF, foam and fiberglass... But they were far from perfect and I was lucky enough to have a friend with an Ultimaker 2.0 who 3D printed my CAD files into wheels. Things are definitely coming together!
PrestonAltr
New Member
Thank you so much! It's been a labor of love.
