    Hey Everybody!

    I'm beginning the long but worthwhile process of building a 1:1 scale WALL-E. I'm a member of the WALL-E Builder's Club and will post my updates on this thread over the coming months.

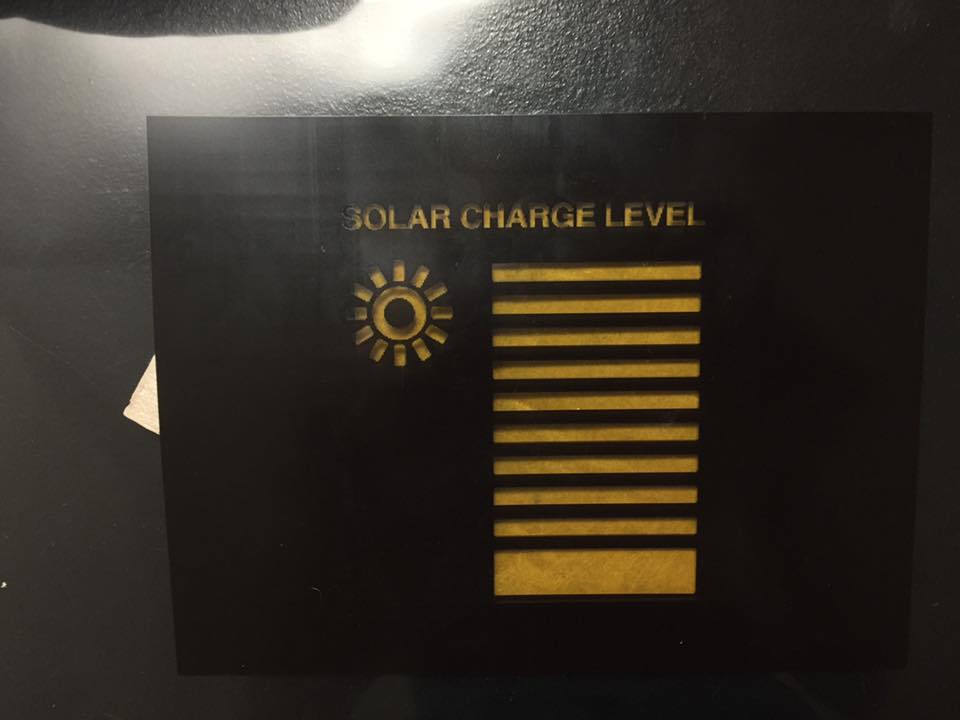

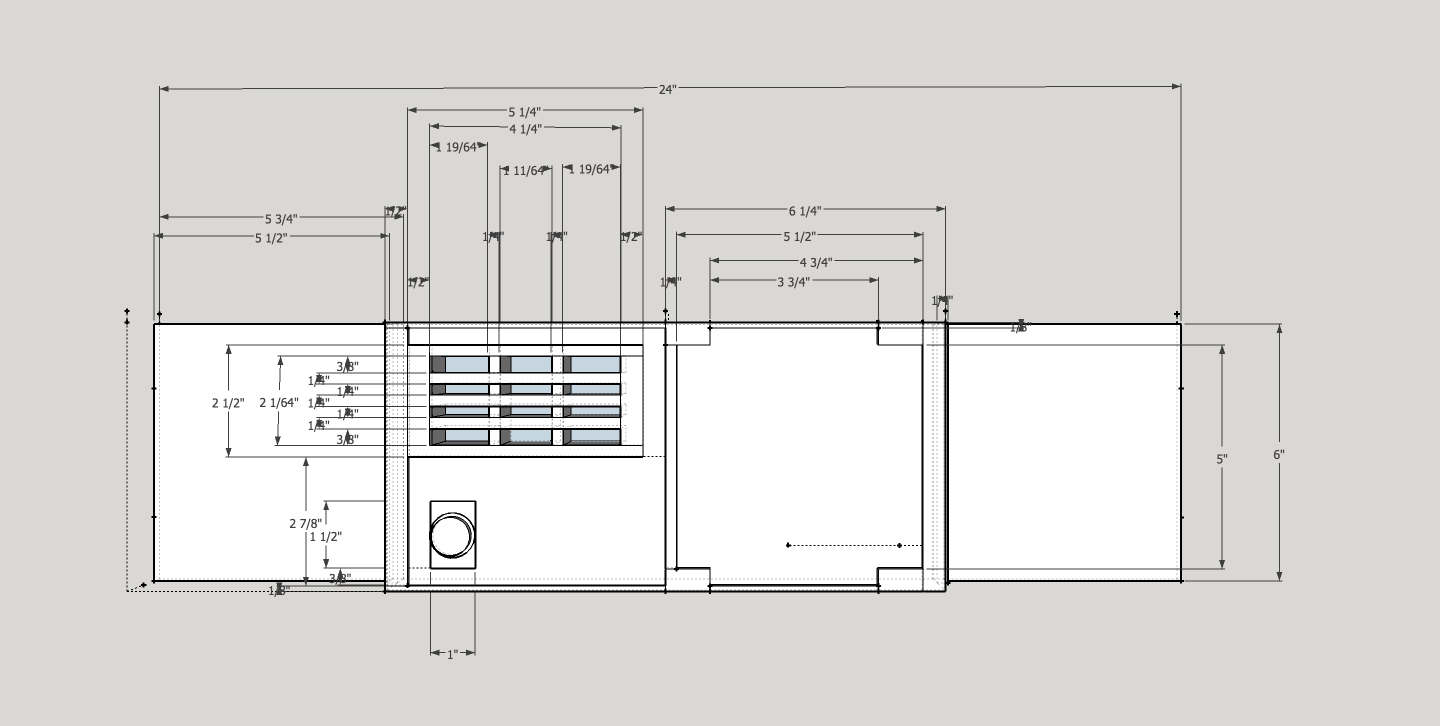

    For now, I thought I'd show you a draft of my first part: the solar charge port. If any scaling seems off to you, or you have any notes, please let me know!



    Solar Board.jpg

    I have a sneaking suspicion that I will be "donating" most of my upcoming paychecks to the Church of Smooth-On.

    Searoc likes this.
  2. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE: 7-17-15

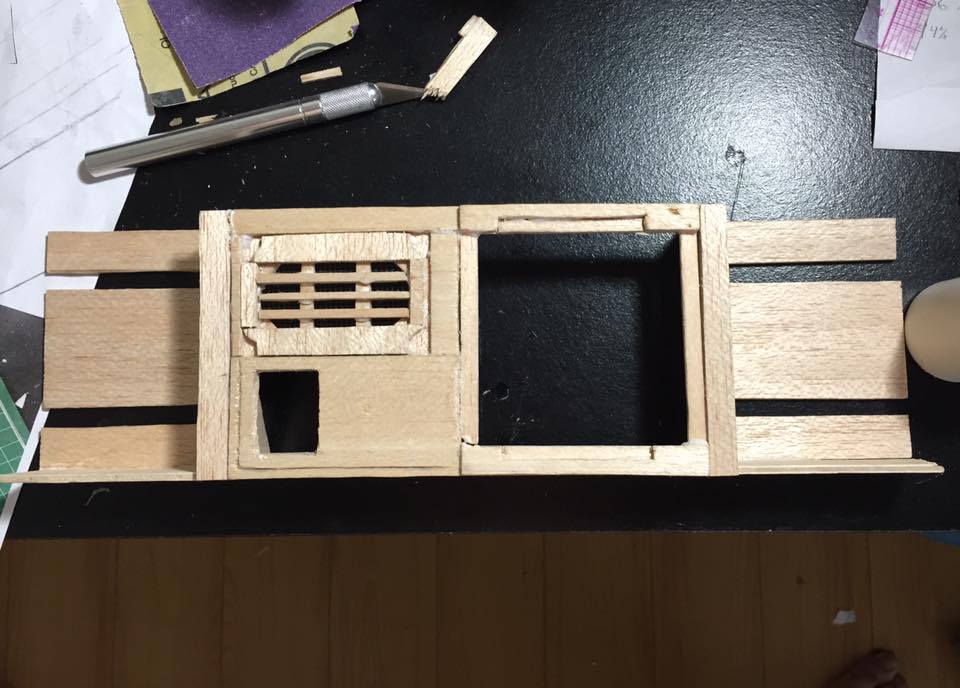

    Sorry for the delay, as things have been hectic with work. Long story short, I took another look at the CAD drawings and blueprints on the WALL-E Builders Club page and found my scaling was off. While planning the final scale of the project, like so many of my fellow club members, I discovered WALL-E is just too big at 1:1 scale to even fit out the front door of my apartment. As such, I have chosen to continue the project at 3/4 scale.

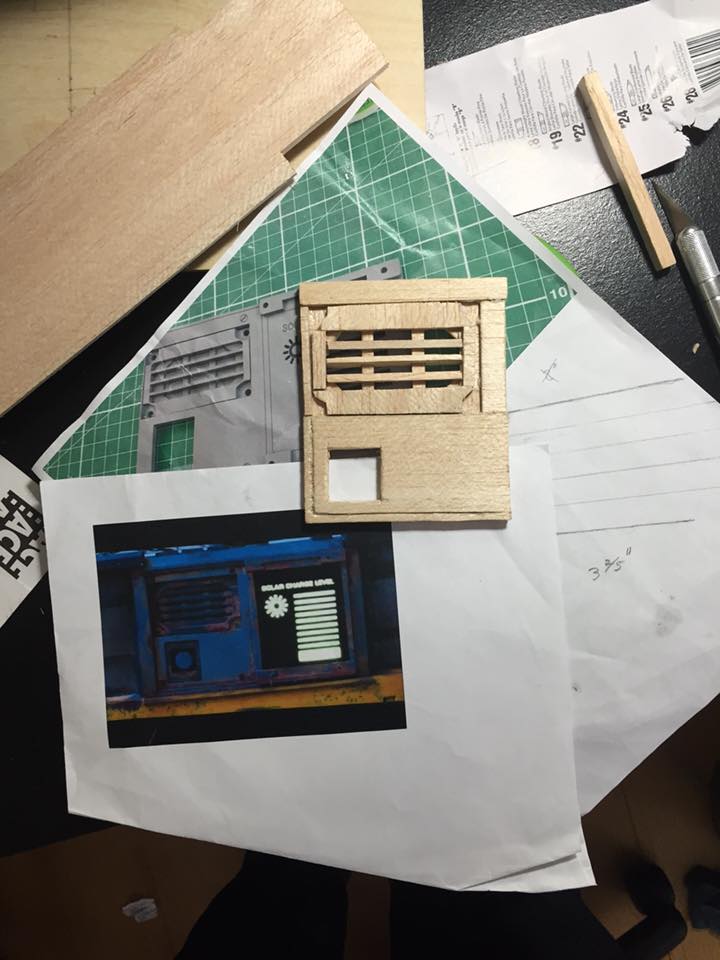

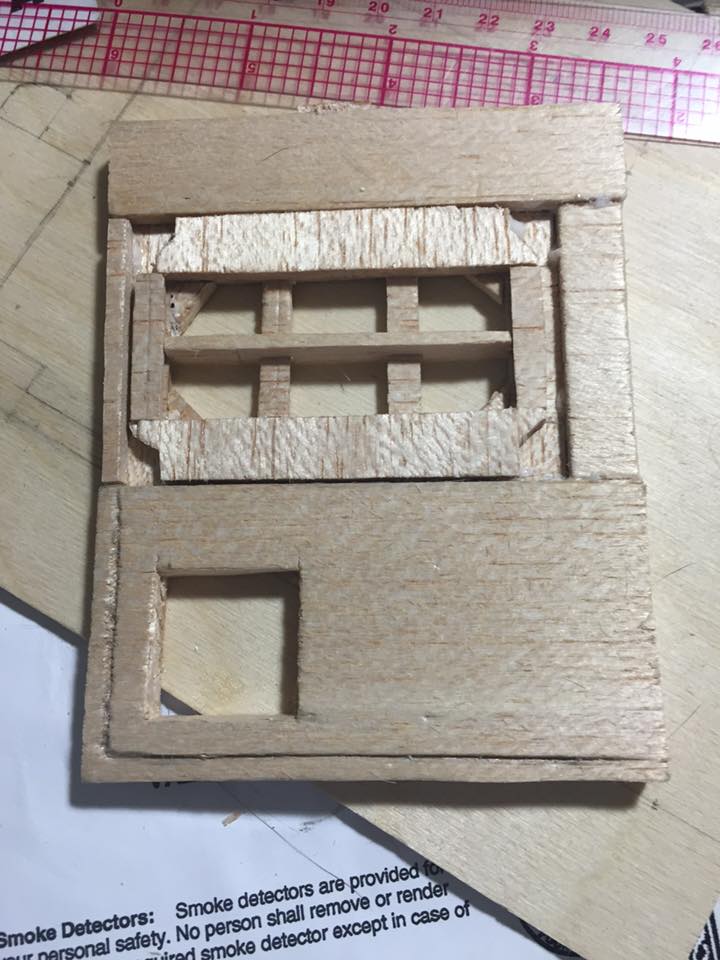

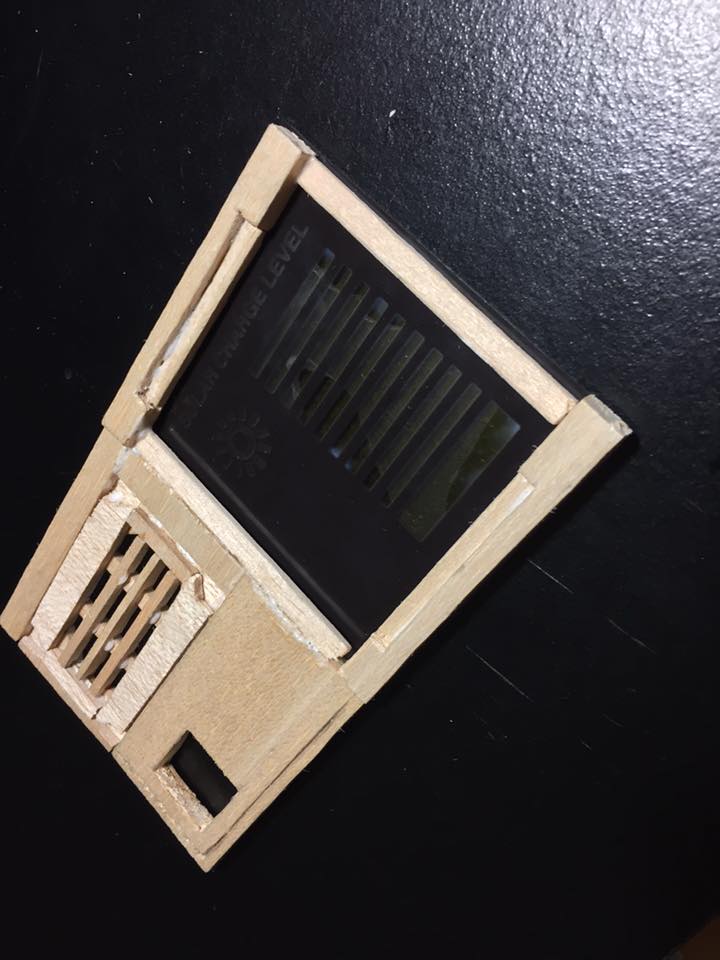

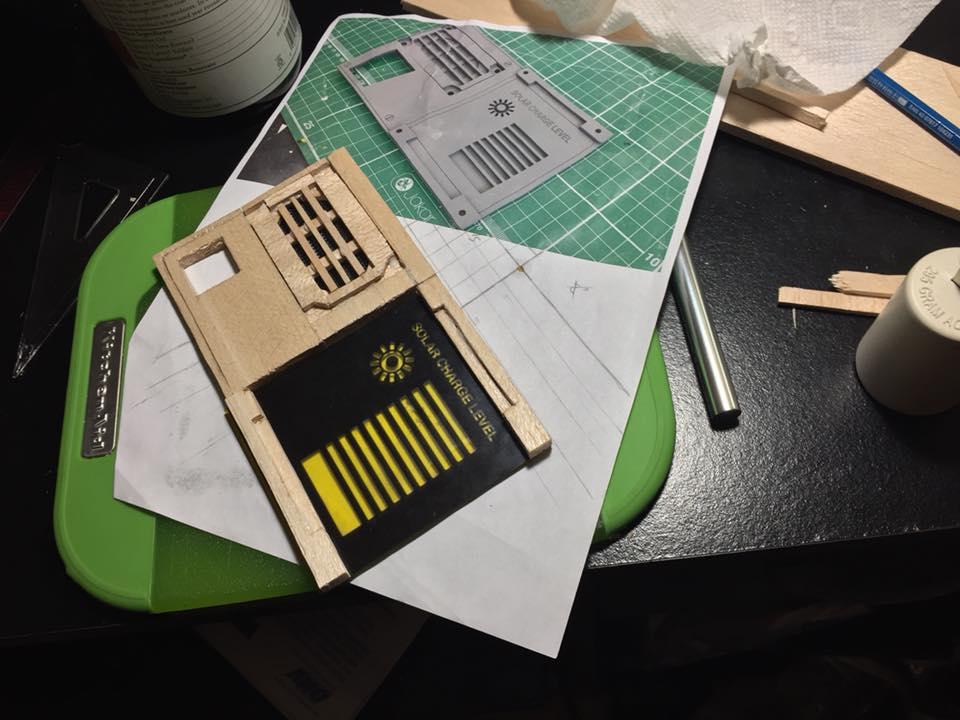

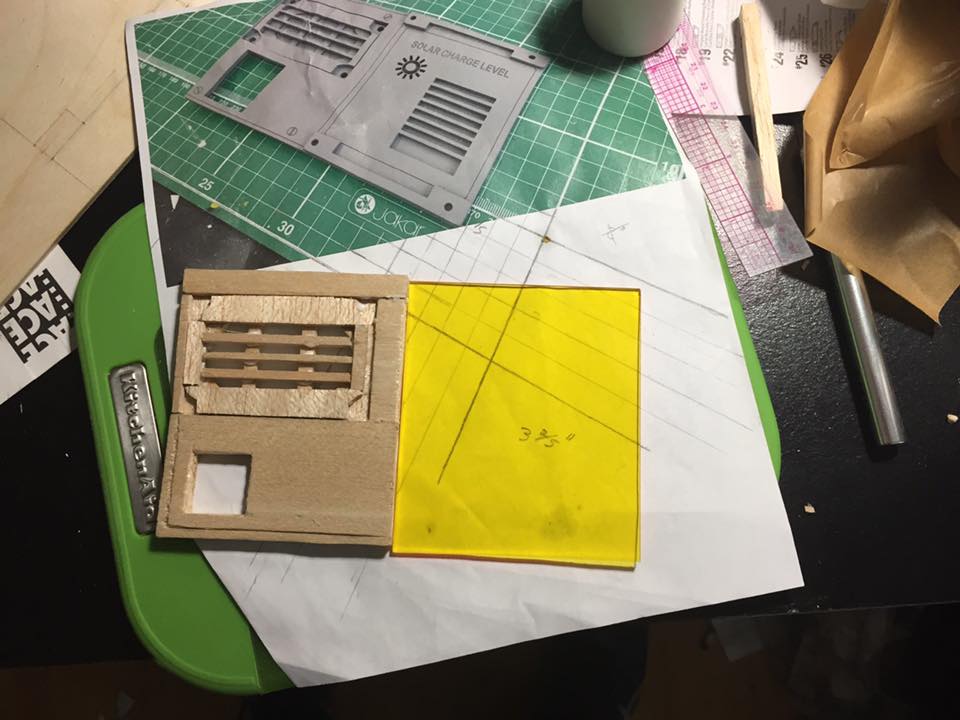

    I ended up using balsa to get the fine detail. My plan is to coat the balsa in a light layer of spackling paste, followed by sanding and finishing resin to remove any trace of wood grain before painting. I was able to print up the solar charge graphic at my local Staples, with yellow acrylic glued beneath. In the final photo you see I removed the plexiglass to prevent spackling or finishing resin from damaging it.

    Last edited: Jul 17, 2015
    EmmaInCandyland and Sym-Cha like this.
  3. Sym-Cha

    Sym-Cha Master Member

    Trophy Points:
    3,305
    Hi there,

    I was curious to see some pictures of your build ... alas those attachments are not working for me ... please have aonther try?

    - update -

    Okay ... I've seen them now via your link, thanks ... great start ... looking forward to your progress :)

    Chaim

    Last edited: Jul 17, 2015
    PrestonAltr likes this.
  4. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE: 7-27-15

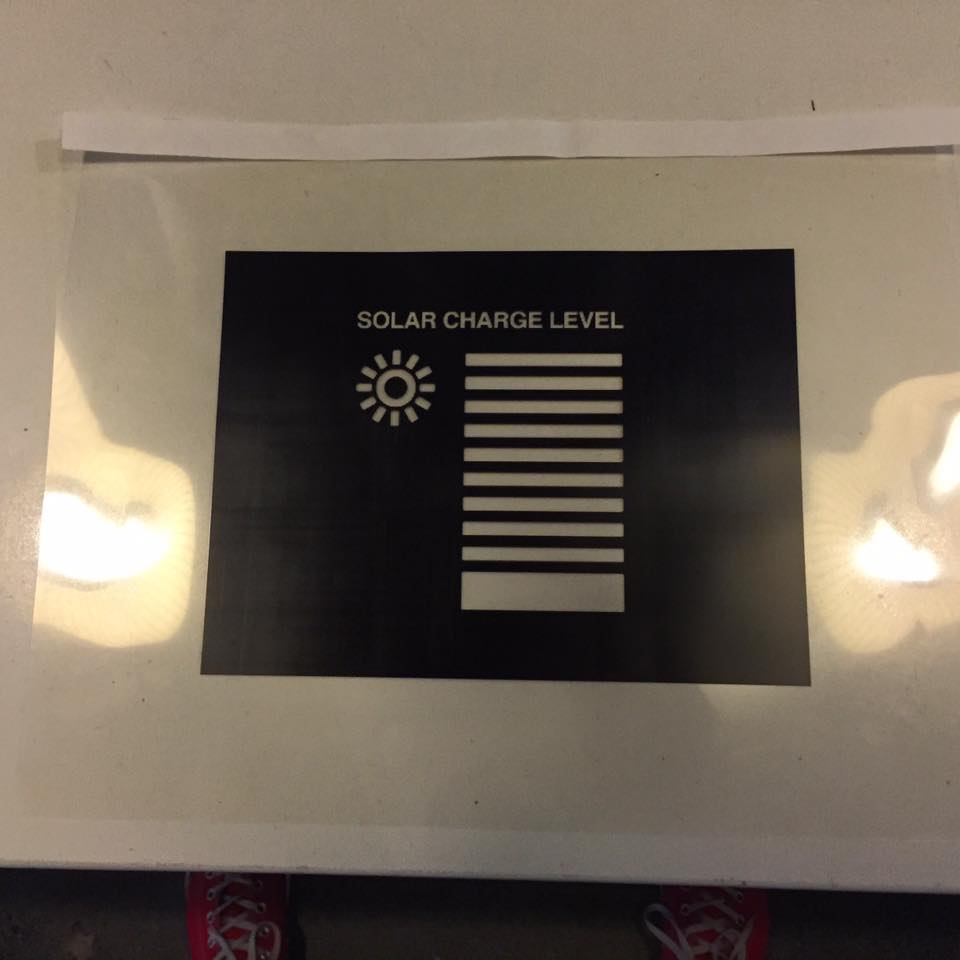

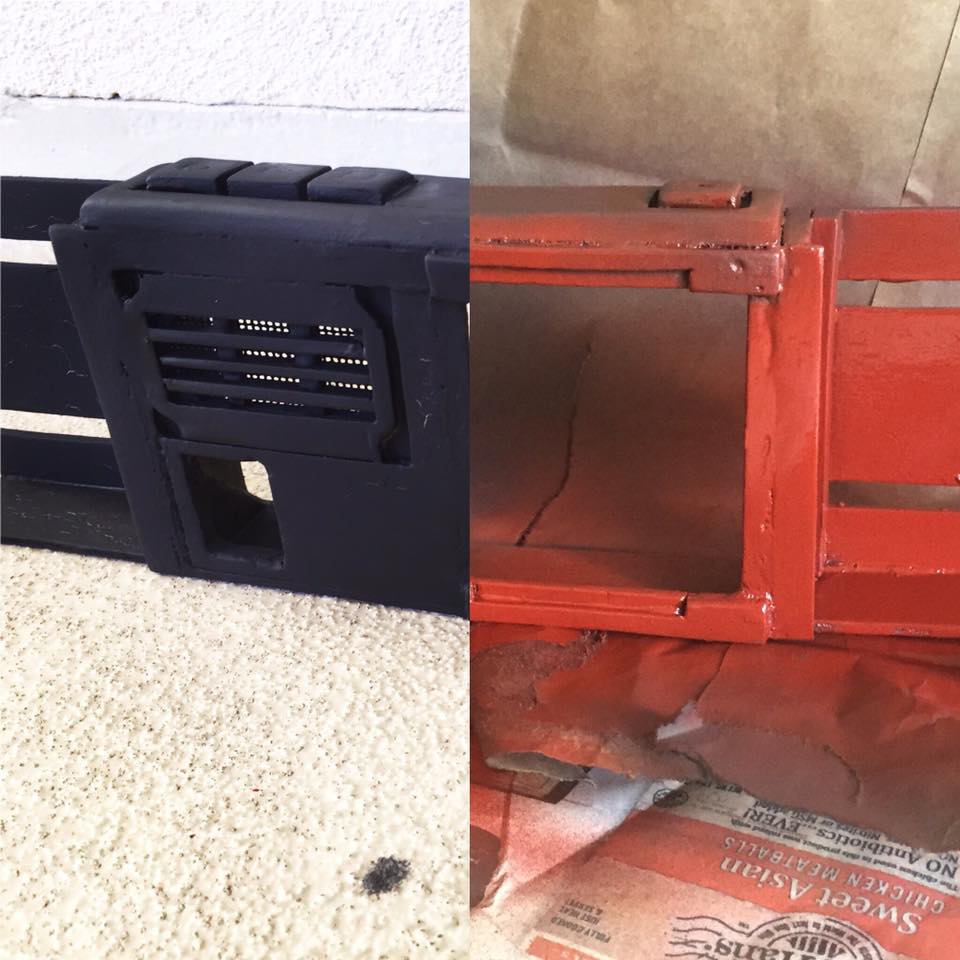

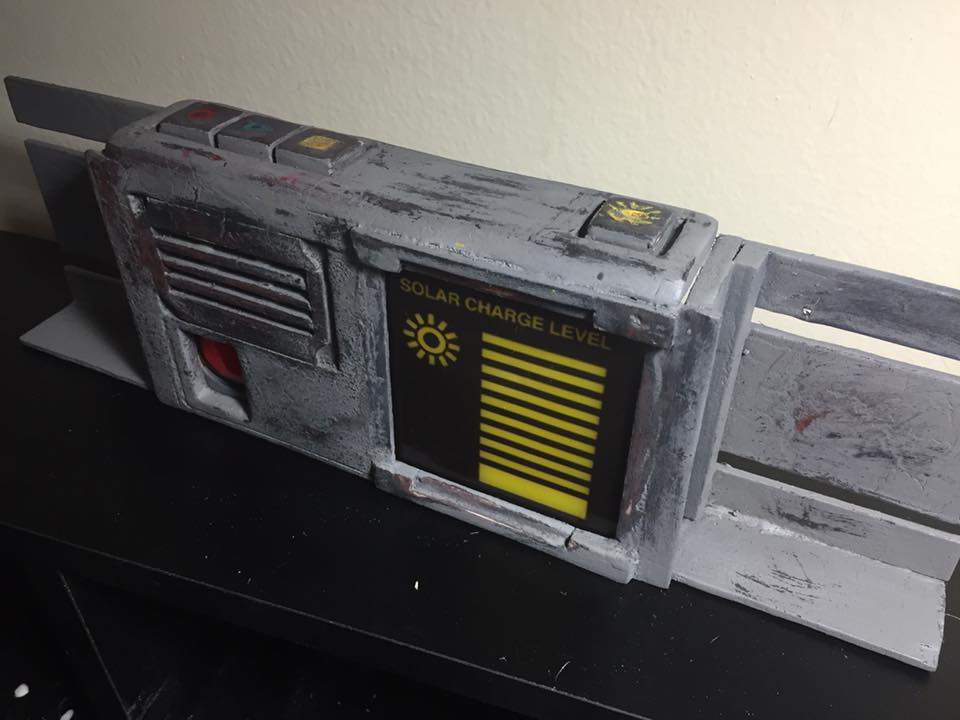

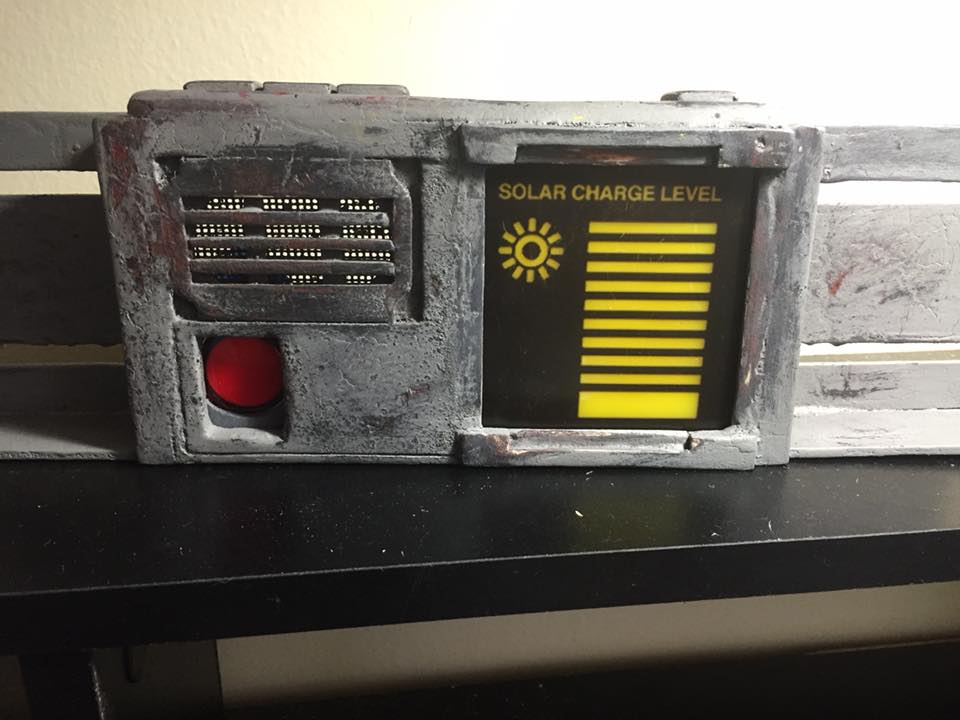

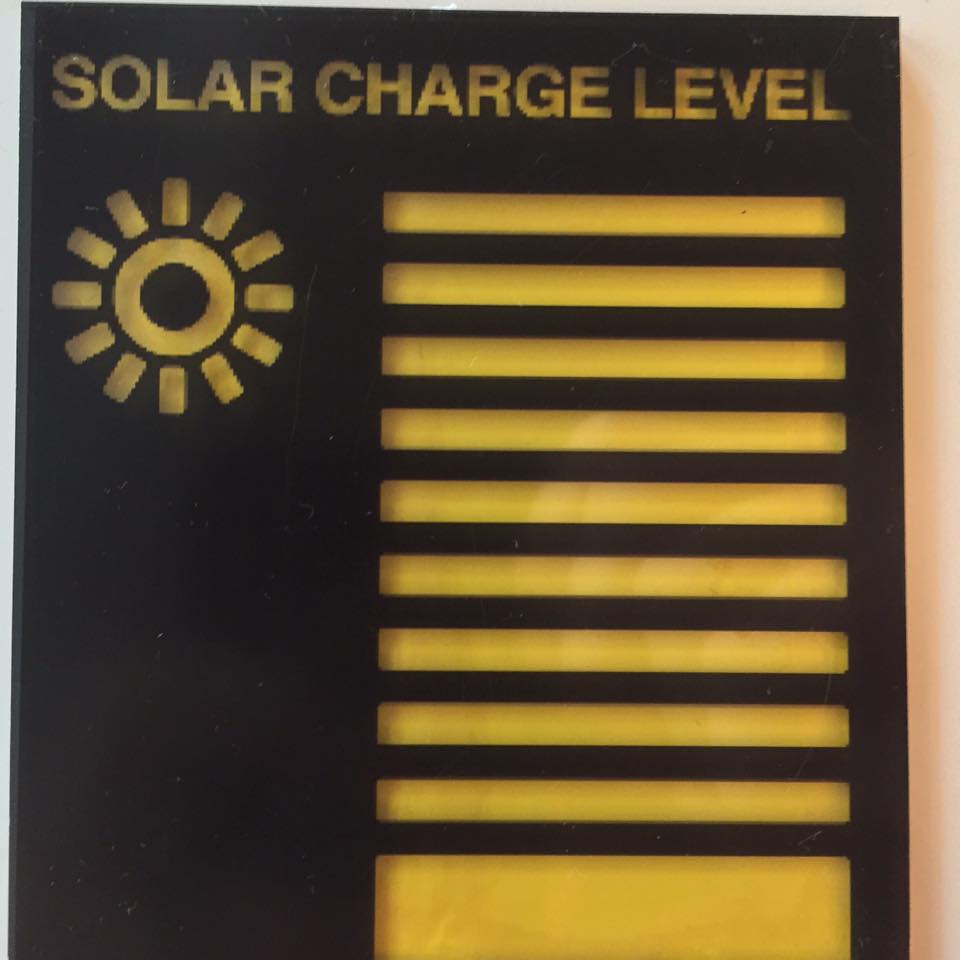

    I am excited to announce that the solar charge section of the WALL-E is now COMPLETE!

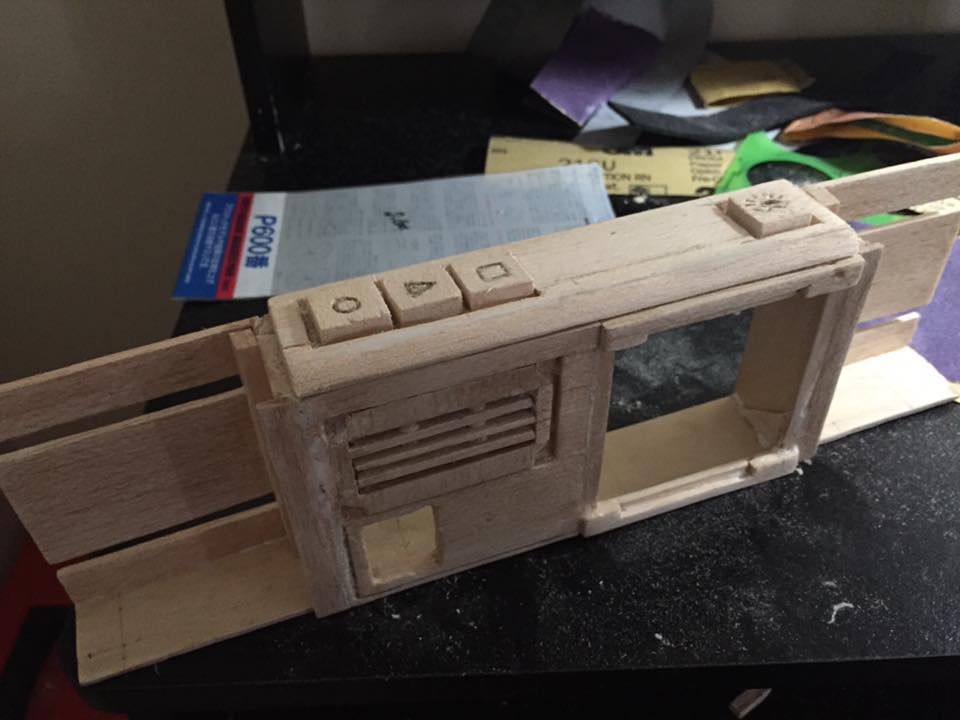

    Since my last update, I sought out my local Hobby shop and learned the best way to rid the balsa of its deep grain would be to coat it in "Aero Gloss Sanding Sealer" and sand it down with finer and finer grit sandpaper. After about three hours of applying single layers, sanding, and repeating, I was able to come away with a fantastic, almost plastic surface (thanks to some 600 grit sandpaper). The next step (after all the various parts were attached with Zap-A-Gap) was to apply a thin coat of fiberglass resin to prevent cracking whenever WALL-E bumps into things. Once this step was done, I re-sanded the surface back down to 600 grit and prepped for paint. I began with a dark grey Automotive Primer from Rust-O-Leum (two coats), followed by a rust colored matte paint. Once that coat was completely dry, I applied sand/dirt to the areas which were going to be "rusty" and coated the whole surface with the original Automotive Primer. Finally, I applied a coat of matte "satin granite" and began to brush/sand away the dirt hidden by the paint. The result was fantastic (as seen below). Finally, for the buttons, I used a small brush and also applied a little more detail in areas which needed it. The final stage was to coat the whole thing in matte clear coat to protect from chipping (MATTE is the key word here, as gloss would ruin the whole illusion).

    11221412_10153745850190101_7646949986461693606_n.jpg 20495_10153761592190101_5011444456686232062_n.jpg 11755639_10153764073195101_5718224105252612440_n.jpg 11800537_10153764073250101_5950465263164308169_n.jpg

    SofaKing01 likes this.
  5. Mclabop

    Mclabop Active Member

    Trophy Points:
    242
    Nice one mate, can't wait to see the final. I eventually want to build a Wall-E or a Claptrap.

  6. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Interesting build; it's just that I wouldn't have used Balsa wood. As you know, it's too fragile and can be damaged easily. I would've used a small thickness panel of MDF and plastic (Sintra or other) for the fine details. Easy to sand, paint and seal and less work than Balsa.
    I'm going to follow your build and see what you'll cook for us next;) Keep up the good work.

  7. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    Great point! For that reason, I applied several coats of fiberglass over the whole thing to make sure it wouldn't chip before painting. Hopefully the placement of this part on the WALL-E (and the addition of the trim around the top) will protect it. The body itself will be MDF!

    Thanks for the support, guys!

  8. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE: 8-27-15

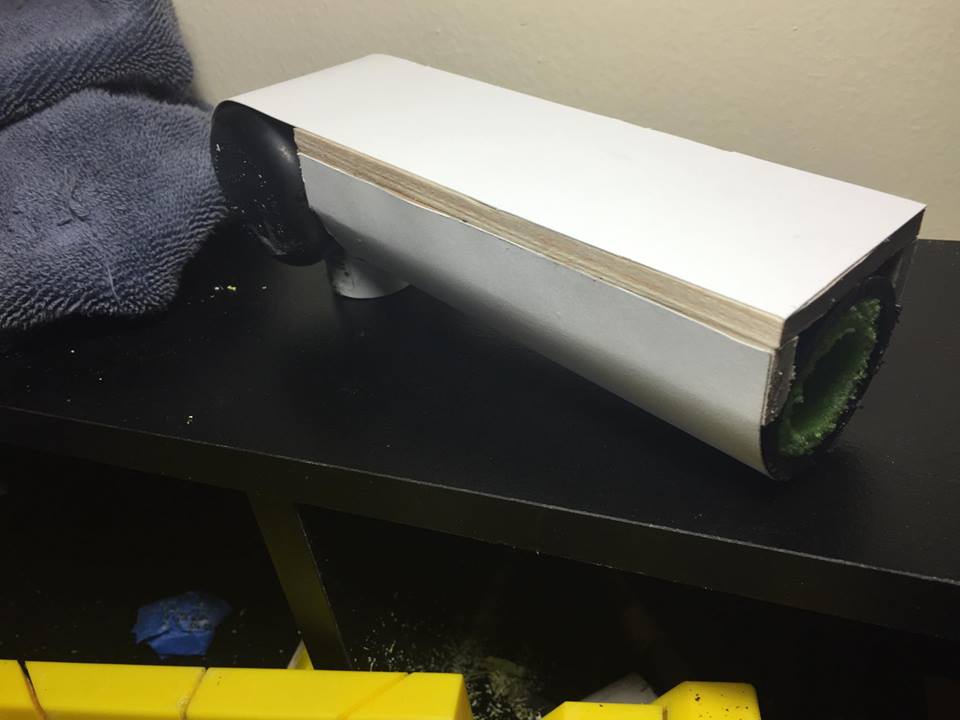

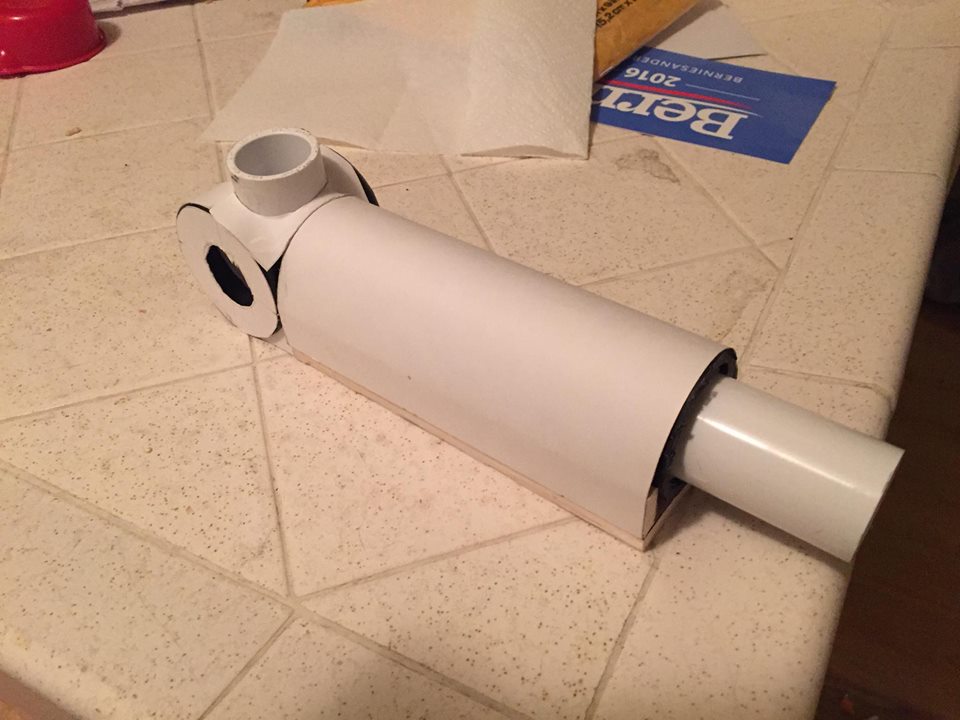

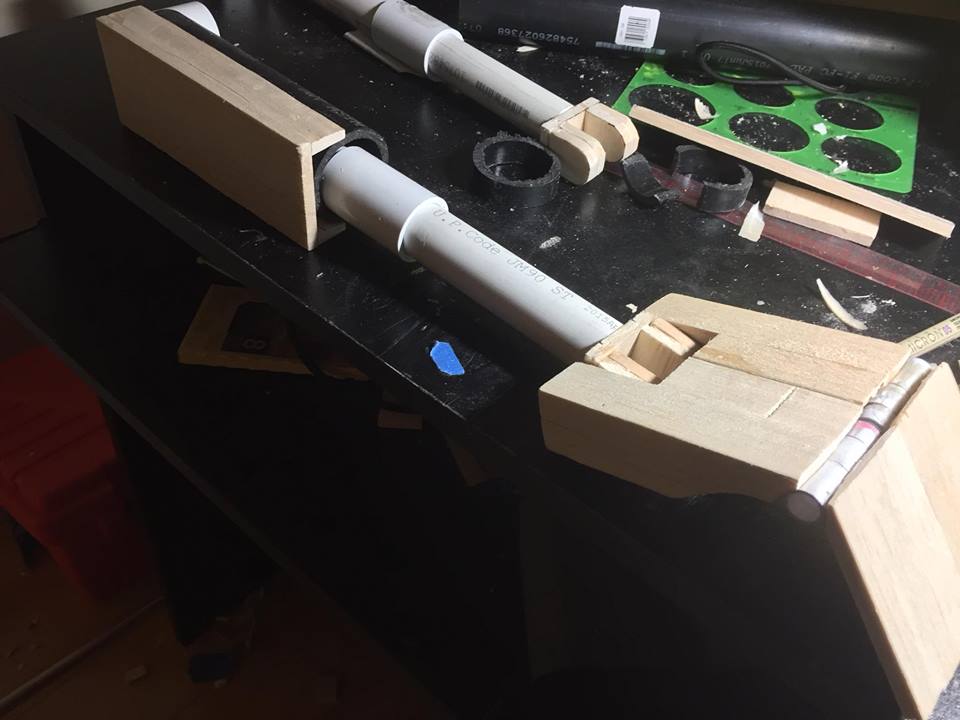

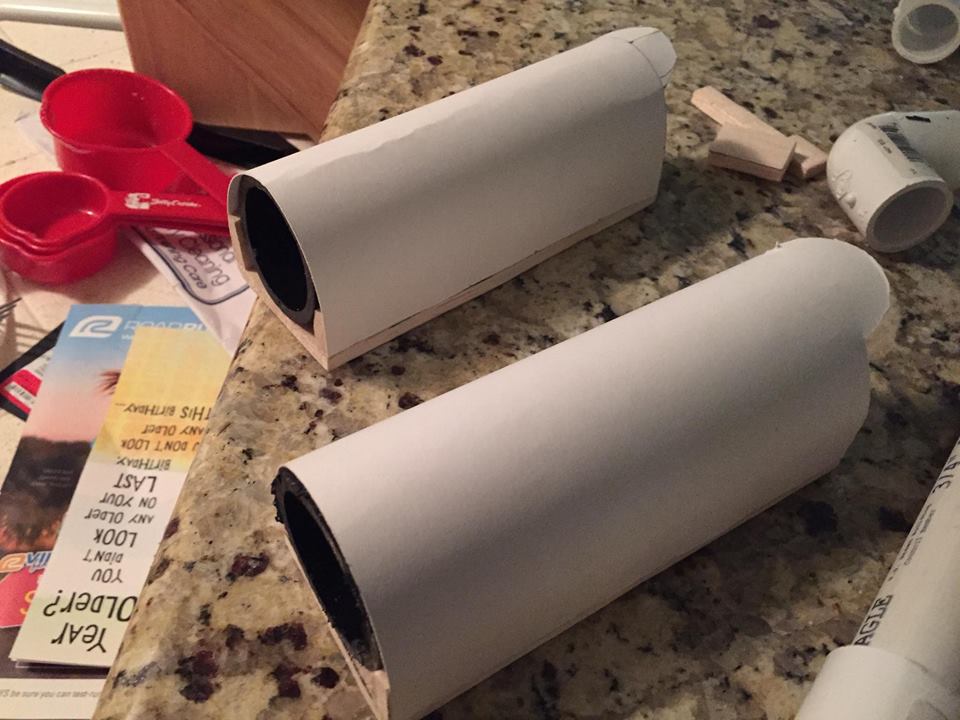

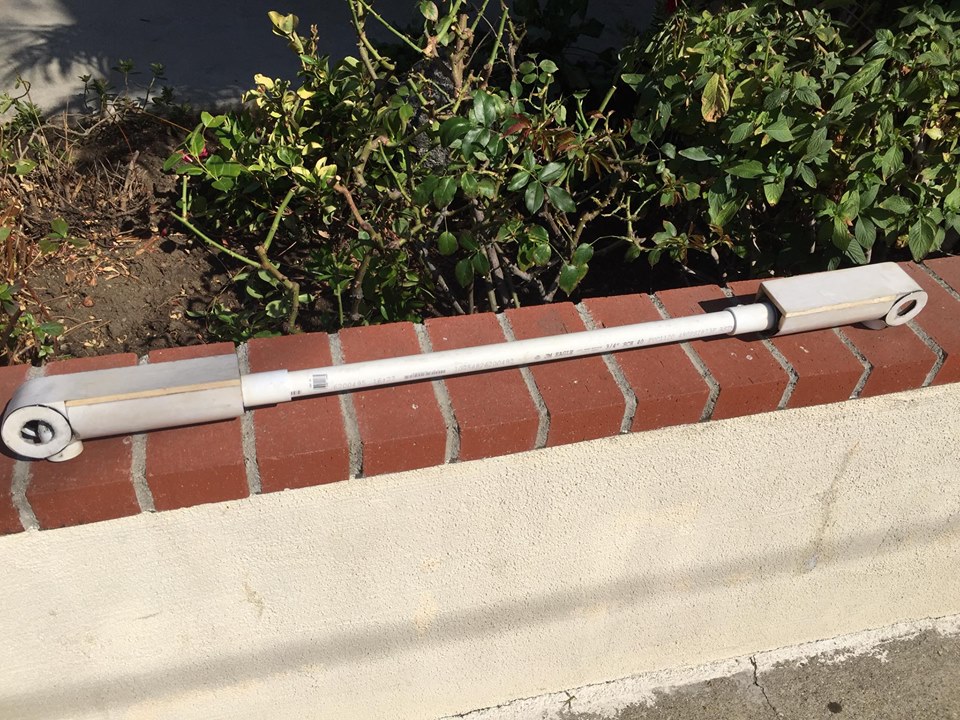

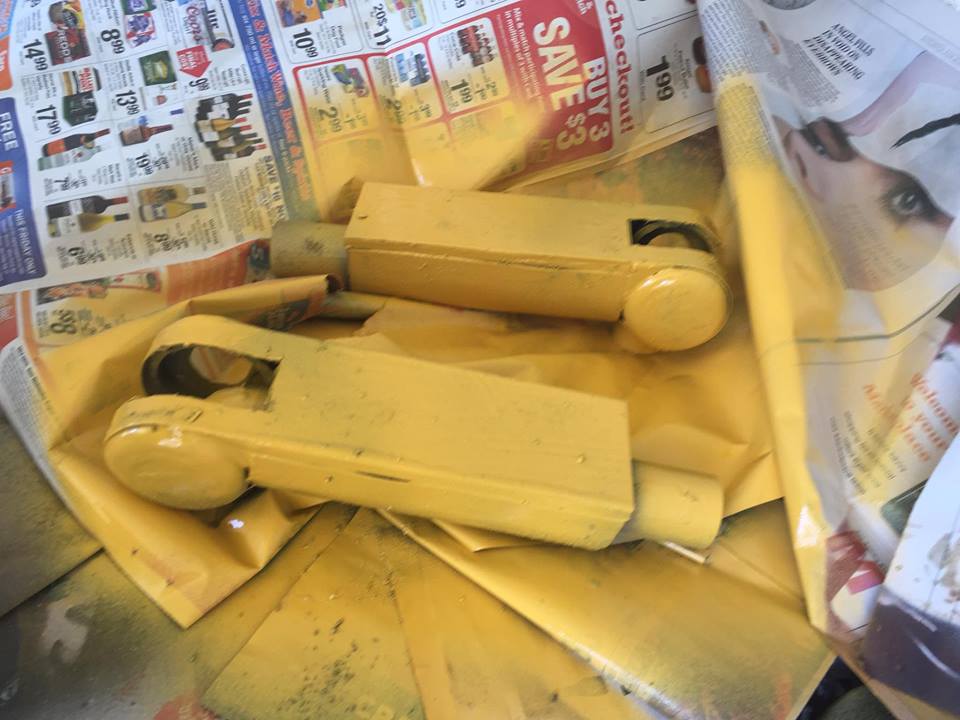

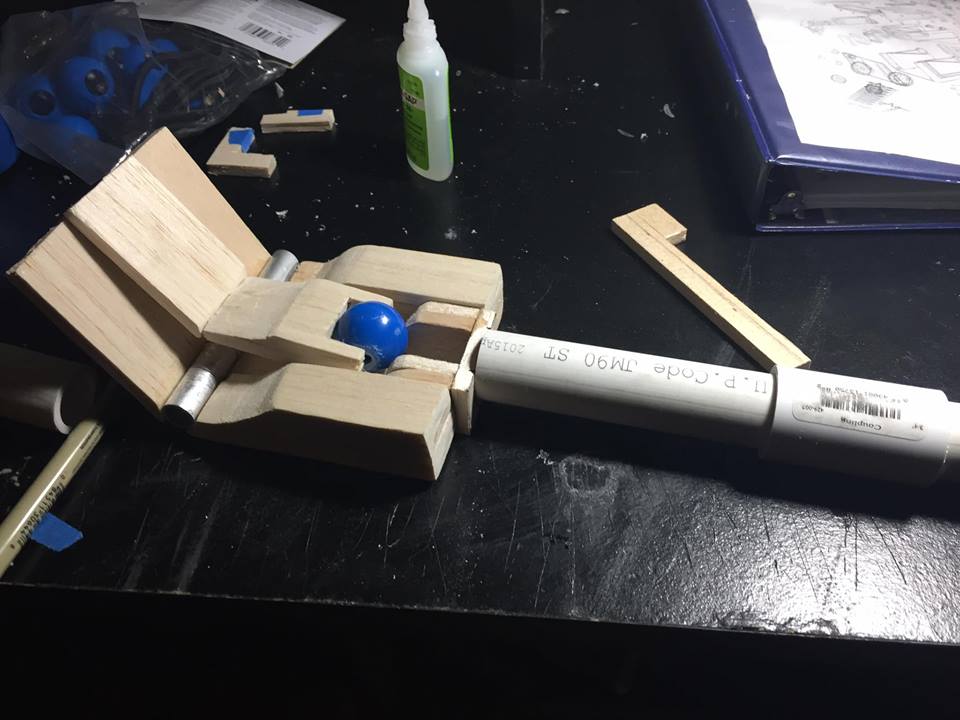

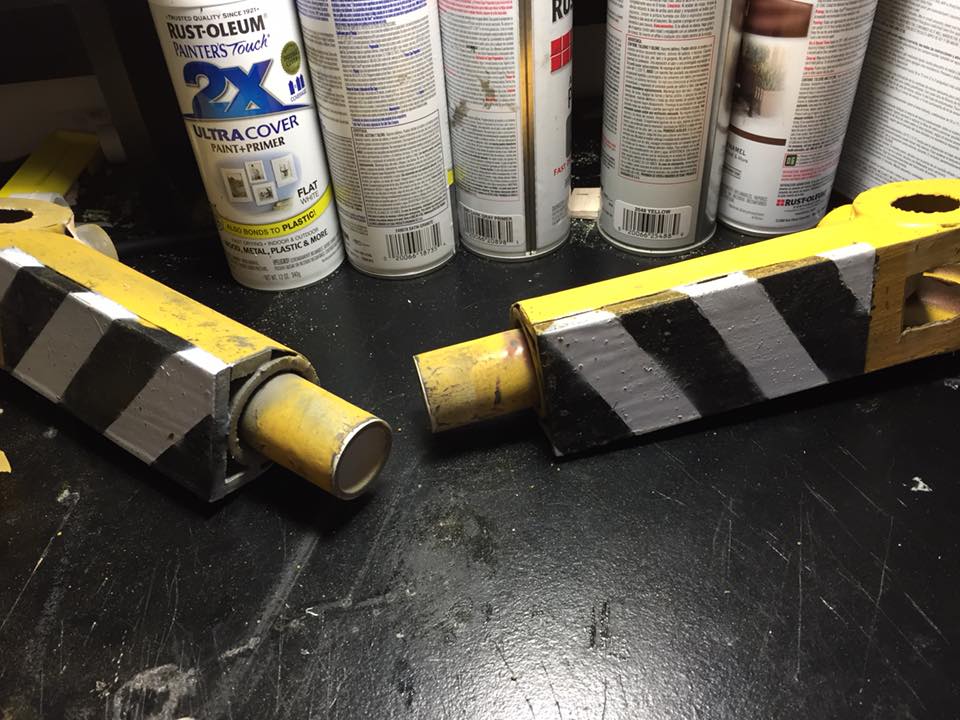

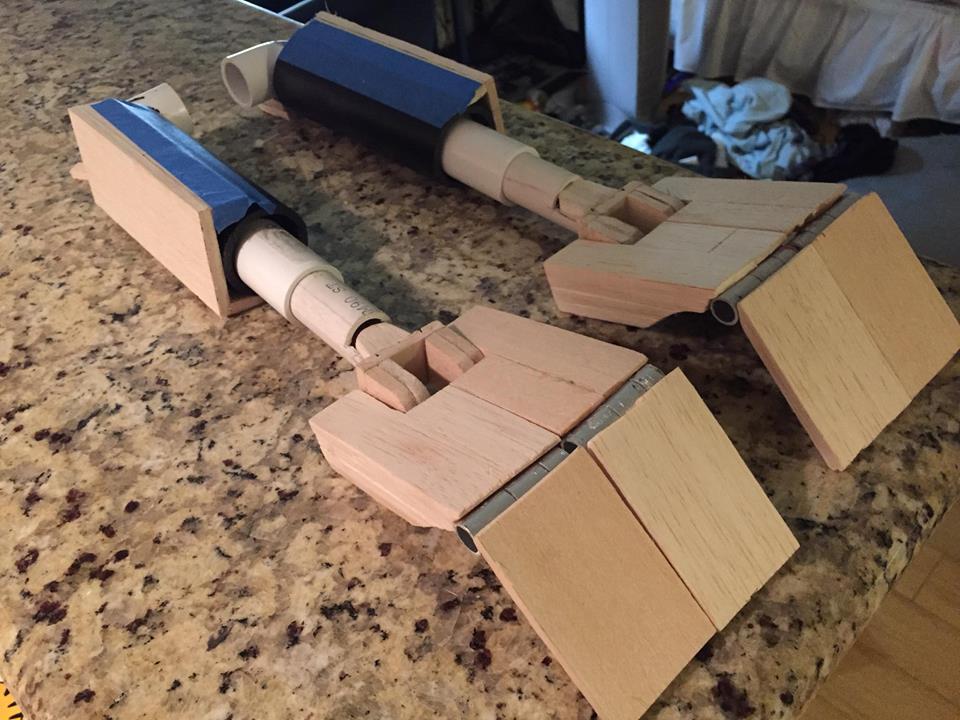

    Hey folks! Since I last posted, I began work on the arm section. One of the best experiences was meeting Michael McMaster and Mike Senna at the D23 Expo and take high-res photos of their WALL-Es. They gave me several tips for my design that I used (see below). For instance, weight is always an issue with animatronics, so the brushed metal parts are actually just cardstock bent in the correct shape and fiberglassed for stability (resin only). WALL-E's famous yellow paint is actually a Rustoleum Inverted Striping Paint used for marking those yellow lines down roadways. I should be posting further updates this weekend, after I fiberglass and age the hand section.

    11224102_10153813669180101_803716942093138782_n.jpg 11863482_10153816126575101_4672631654433565681_n.jpg 11855654_10153821154940101_6635660711728702102_n.jpg 11885202_10153821197035101_8512967293356476234_n.jpg 11898615_10153823356640101_5492163610287797153_n.jpg 11892144_10153844106305101_824449514784526485_n.jpg 11880364_10153844106350101_7612195002272249562_n.jpg 11934949_10153844494355101_7767138700231176185_n.jpg 11947679_10153846792755101_3927173133121140902_n.jpg 11902474_10153846840995101_5722969133164638479_n.jpg

    Last edited: Aug 28, 2015
  9. Snow Builder

    Snow Builder Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,626
    Looks great.

    PrestonAltr likes this.
  10. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17

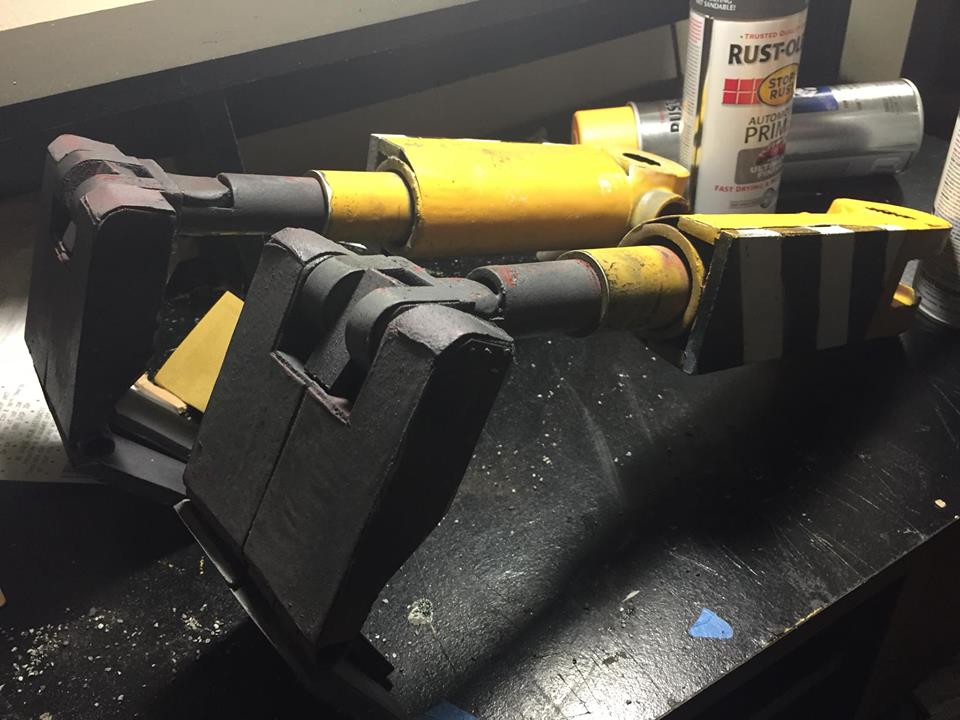

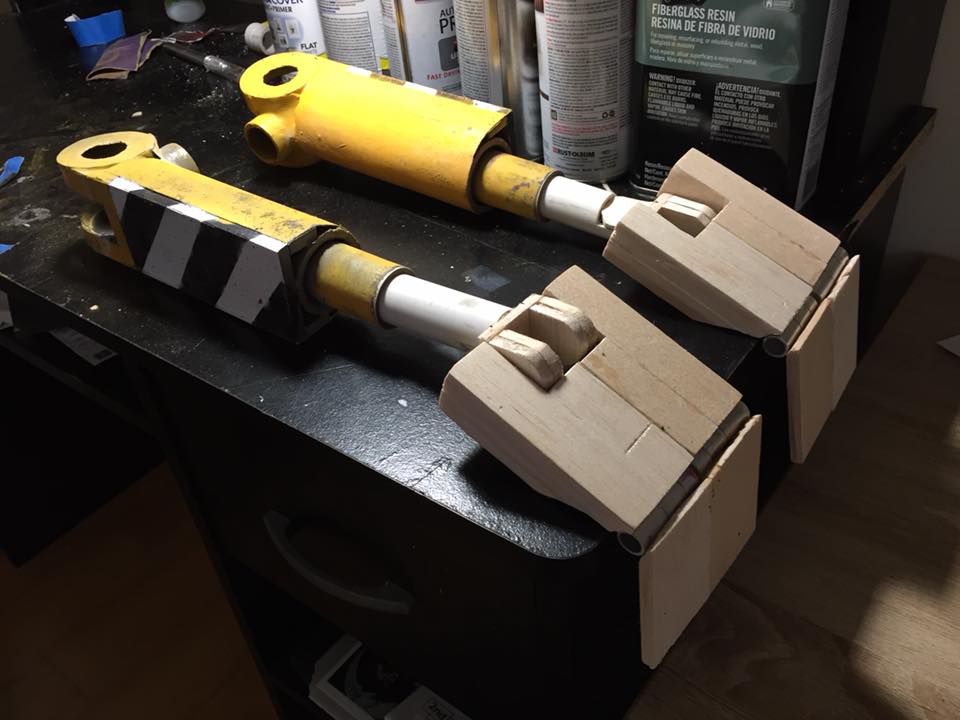

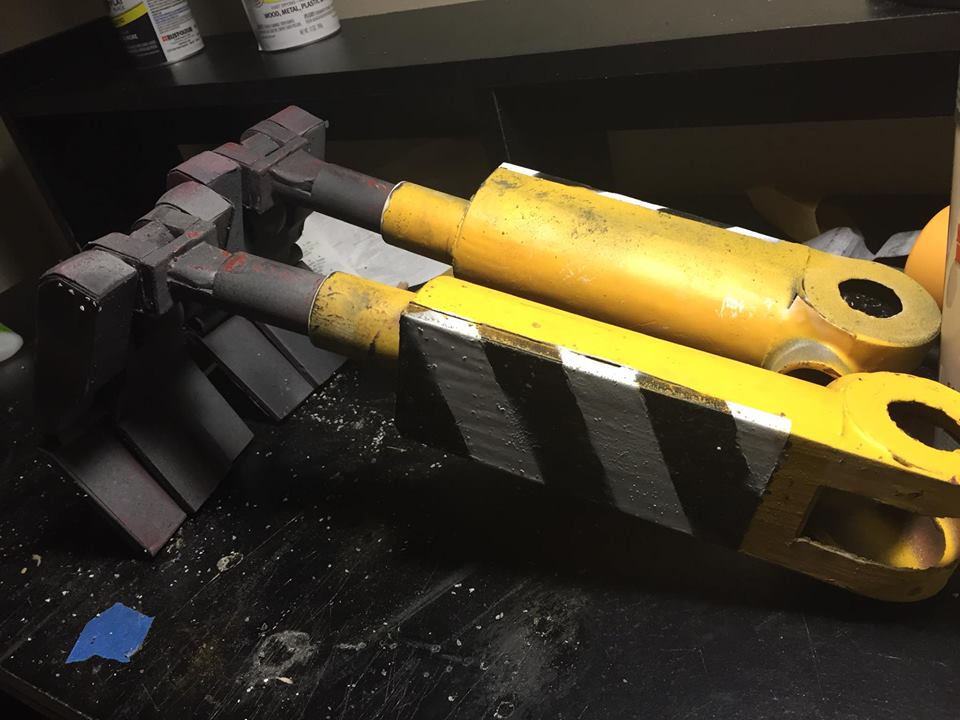

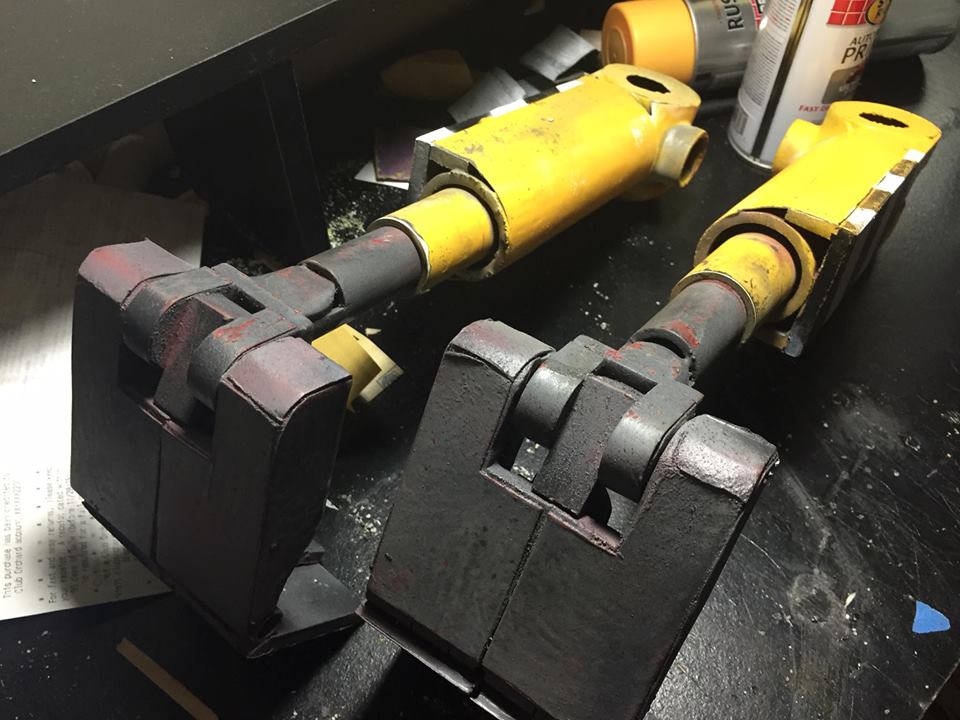

    Just wanted to post a small update of the completed hands. Before coating in fiberglass, I glued a layer of cardstock over the fingers to get rid of the wood grain.

    11951851_10153858692435101_4059903249867731854_n.jpg 11951814_10153858692555101_3542050938749677410_n.jpg 11988381_10153858692455101_2782546737232654428_n.jpg

  11. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    Hey All,

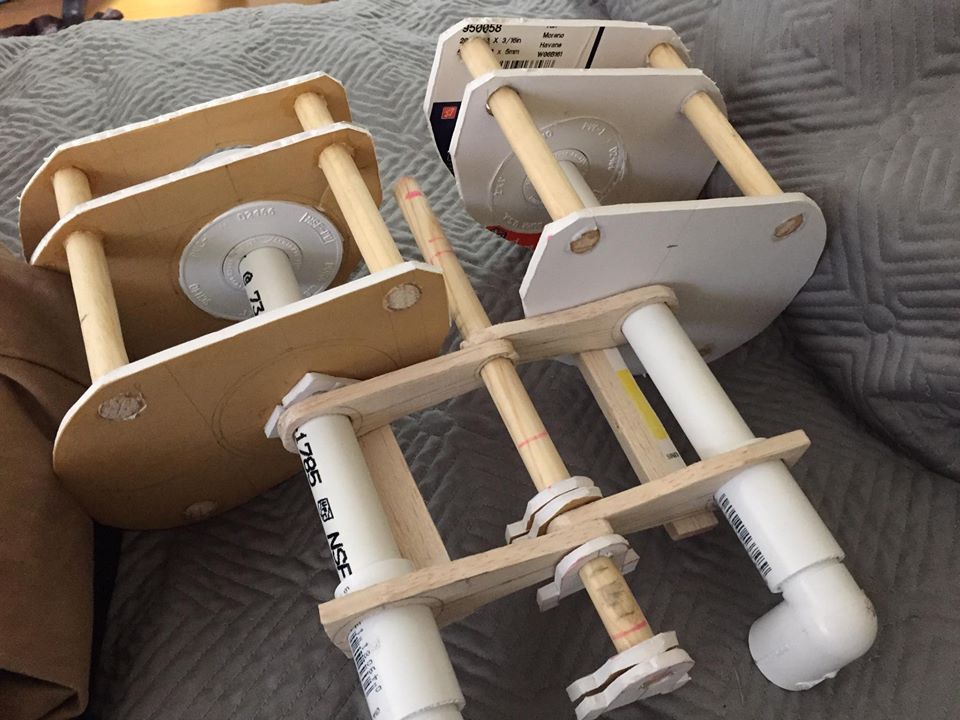

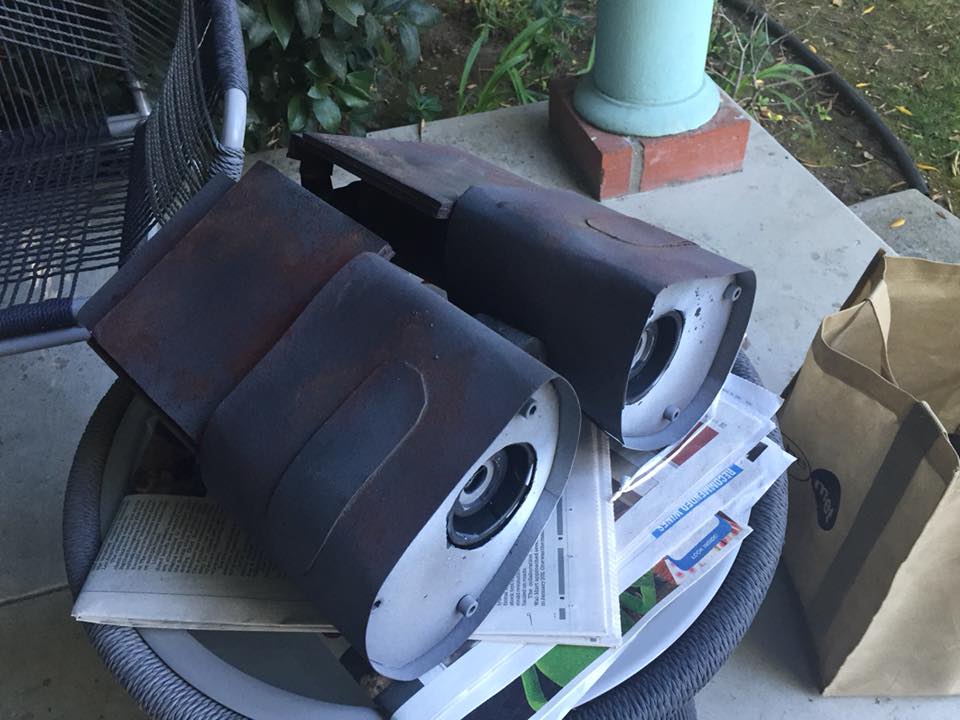

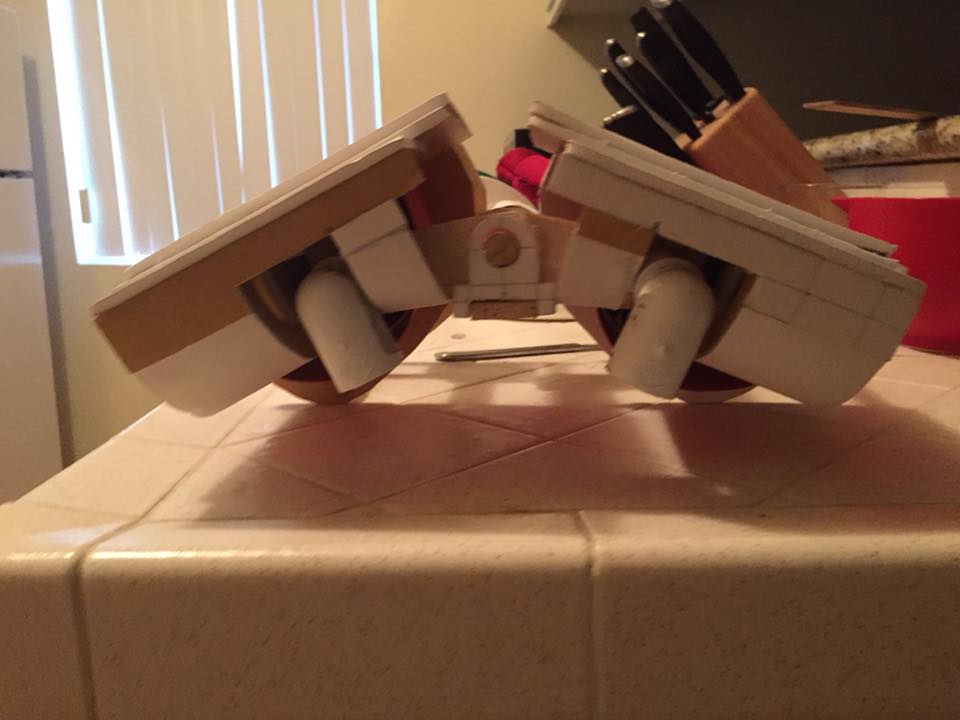

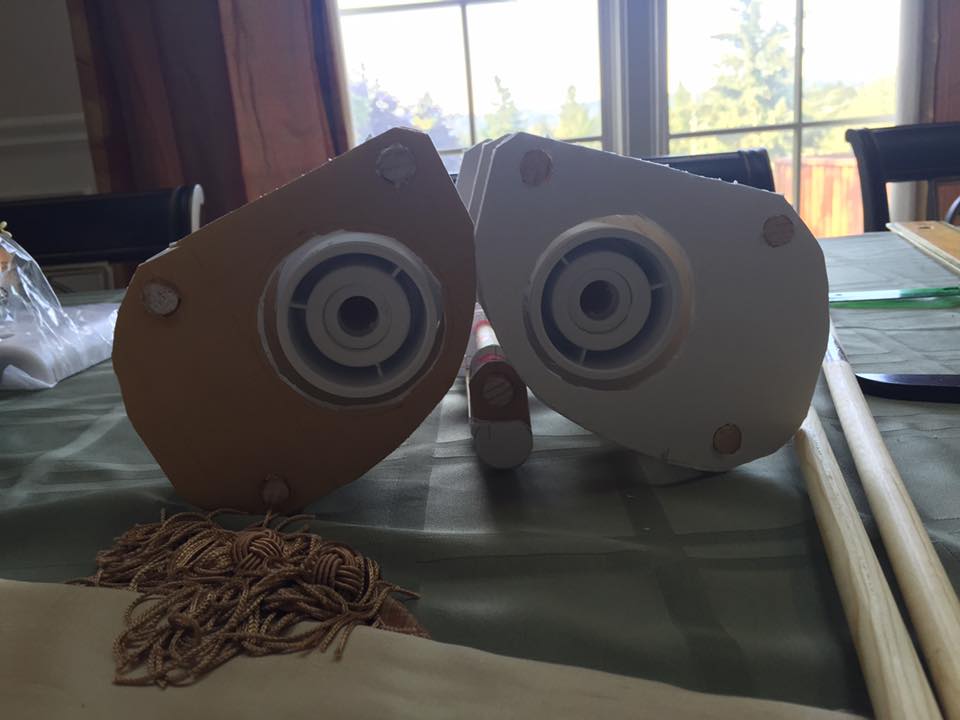

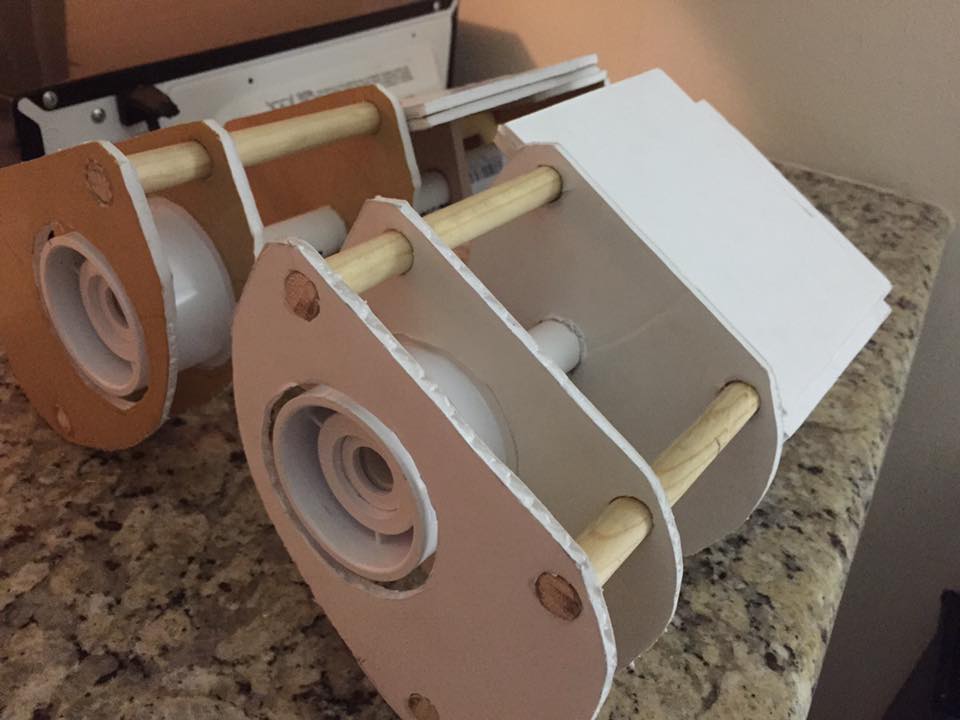

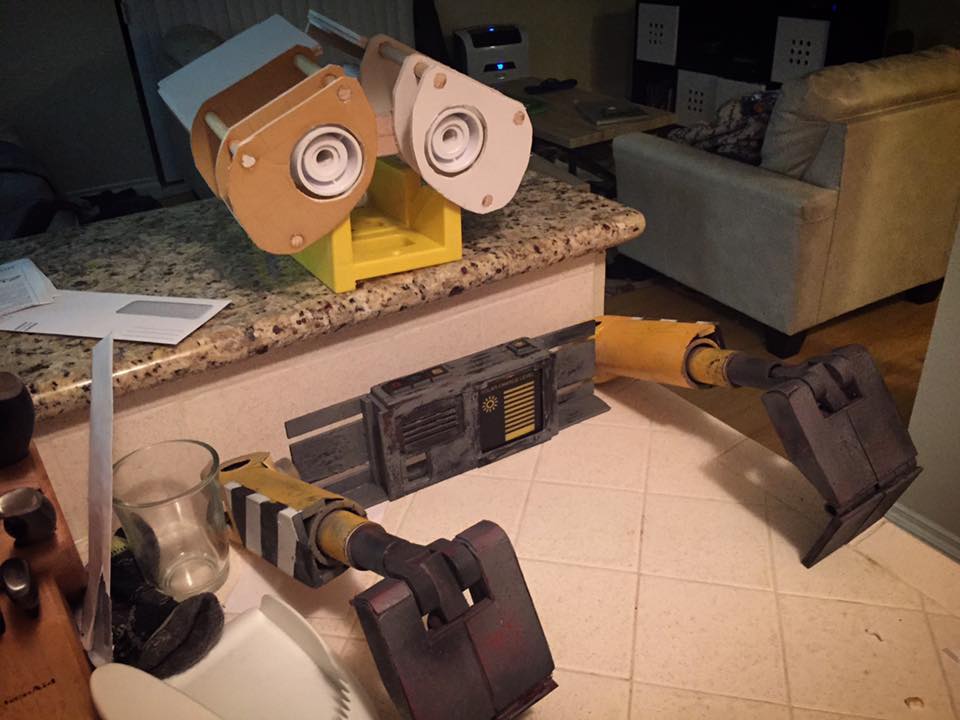

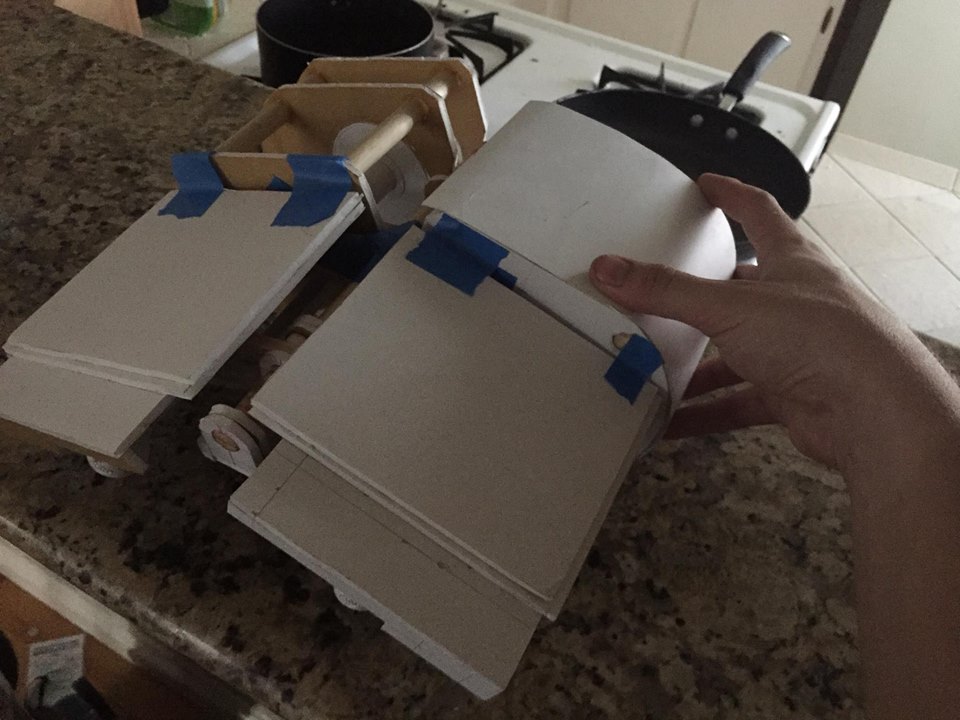

    At this point, the head is nearly finished (with the exception of the magnifying glass lenses which are being shipped soon and the B&L decal for the inner eye). The biggest challenge was to keep the head light (for the servos) while maintaining some rigidity in case of any bumps. With that in mind, I settled on PVC, wooden dowels, and foamcore.
    11220838_10153873381360101_925930892365265438_n.jpg 12003950_10153876598820101_7883295331550391678_n.jpg 12009781_10153888984170101_5266069258705241699_n.jpg 12004699_10153897146050101_3597189090970660061_n.jpg 12011388_10153889661350101_5131329238086349719_n.jpg 12036568_10153908289210101_6998003923331085648_n.jpg 12019940_10153897274815101_1526169175946472650_n.jpg 12011313_10153909851640101_1581033463229427215_n.jpg 12036972_10153910540620101_6022824060604650082_n.jpg

    EmmaInCandyland and TazMan2000 like this.
  12. DL4567

    DL4567 Sr Member

    Trophy Points:
    1,095
    Looks amazing so far! Great work. I'm just curious, what is considered to be the accurate overall dimensions (W & H) on a 1:1 WALL-E? I have one of the 3D cardboard theater lobby displays, and it has always looked over-sized to me. Just wondering if it really is. Thanks!

  13. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    Thanks for the kind words! The scale throughout the film changes, but judging from the scale of known items (the Rubik's cube, cooler, and VHS tape), the geniuses in the WALL-E builder's club have put him around 18 or 19 inches wide (not including treads) and about that amount deep/tall. If you're interested in building one yourself, there's tons of helpful CAD drawings on the WALL-E Builder's Club yahoo group. BUT as I mentioned earlier, I chose to make mine 3/4 scale so it could fit through my door.

  14. DL4567

    DL4567 Sr Member

    Trophy Points:
    1,095
    Very interesting, thanks for the reply. I measured my large cardboard version, and the body is 25" wide, excluding the tracks. It makes for a nice display, but just takes up a lot of space. There was a smaller version on display in some Best Buy stores years ago of similar construction, but that one looked *too*small. Oh well, guess you have to make one yourself to have it be the correct size. Looking forward to seeing more pics of your project in the future!

    Large version:
    http://1.bp.blogspot.com/_0nEW4Feaq...pg/bSzwqwlnAt4/s400/2625370804_7ca90d1558.jpg

    Best Buy version:
    http://i539.photobucket.com/albums/ff356/PixarVixen/forum images/BestBuyWALLEdisplay.jpg

  15. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE 9-29-15

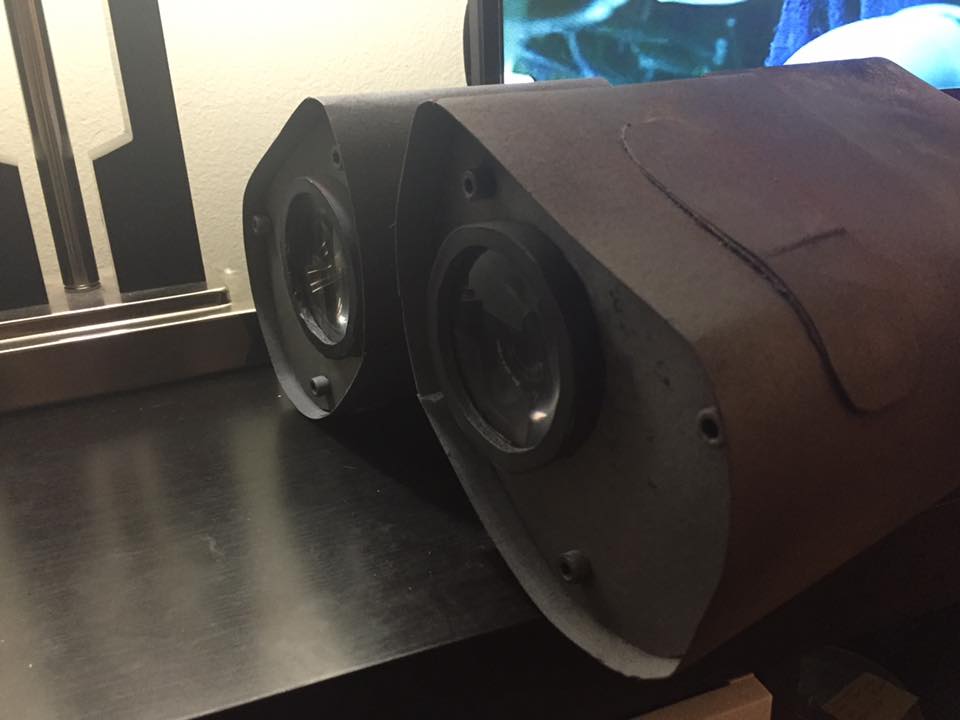

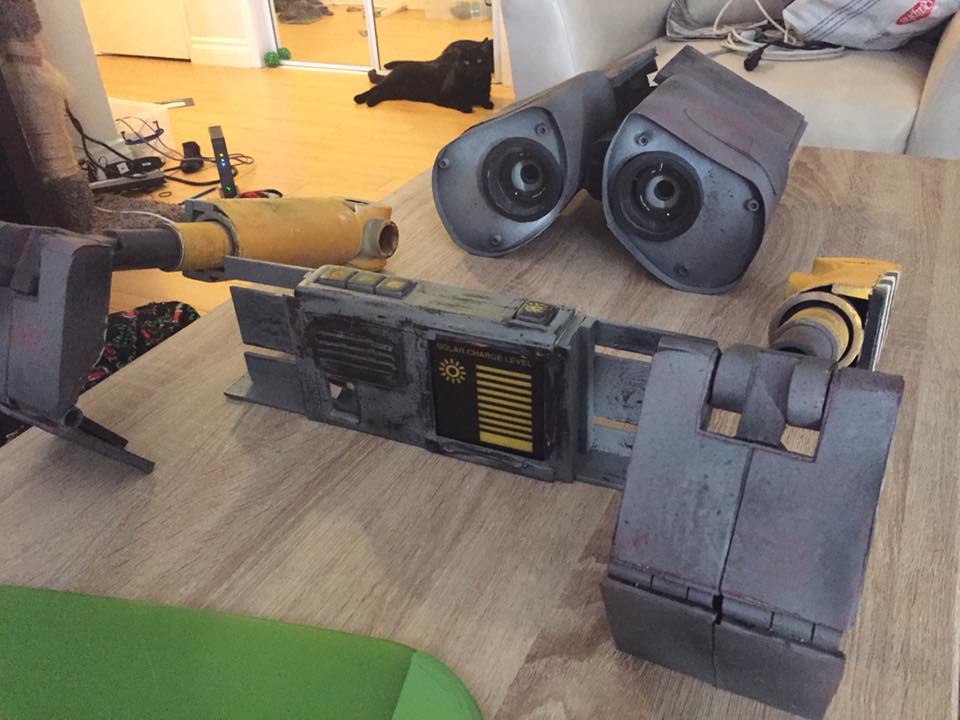

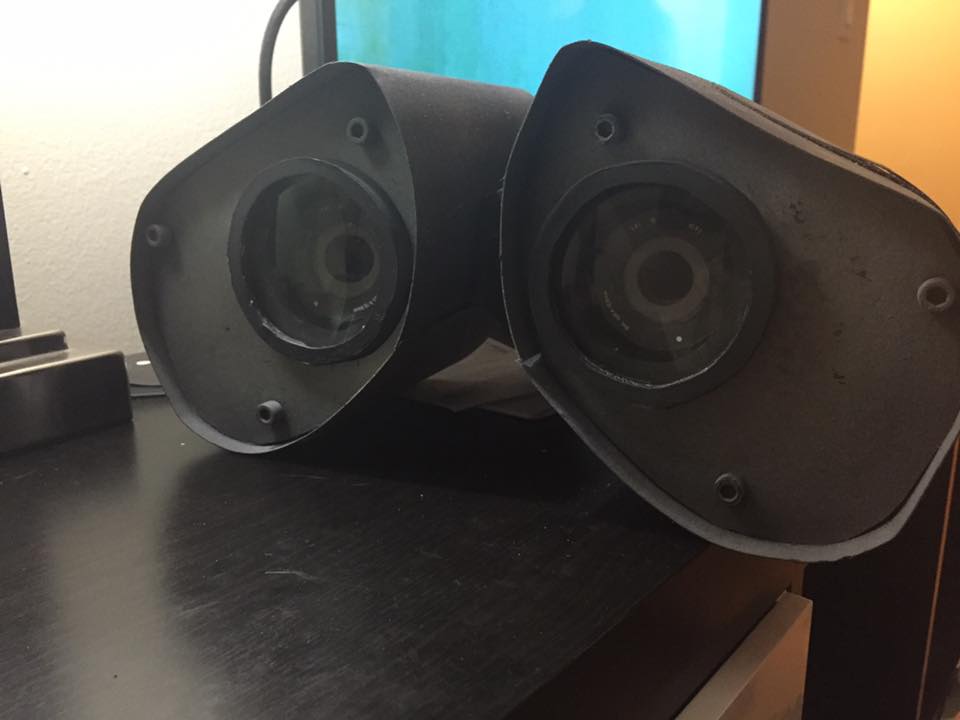

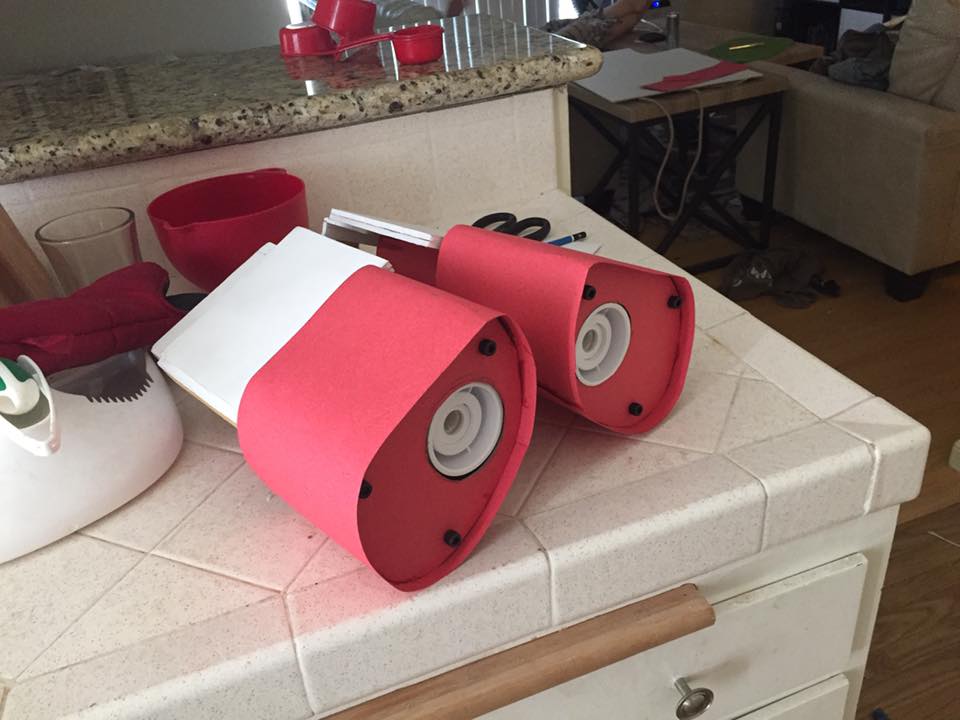

    Super short update! I bought a few cheap magnifying glass lenses from Amazon and attached them with Zap-a-Gap. The rings around them are just foam core and cardstock. I also added in the aperture decals around the eyes which feature "B&L" as well as other details.
    12063848_10153921218240101_3538581266335799048_n.jpg 12063740_10153921218235101_4998621536265658418_n.jpg 12033068_10153922797915101_2329613647583464903_n.jpg

    Last edited: Sep 29, 2015
  16. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Really good build so far. Love the overall look of it. Keep up the great work:)

    PrestonAltr likes this.
  17. NS4

    NS4 Well-Known Member

    Trophy Points:
    511
    I have one of the large cardboard versions too - picked it up off gumtree (Craigslist) for $50!
    I agree with it being overscale though. I thought about scanning/drawing up all the parts and printing another version at a more "correct" scale.
    Just need to find the time to do it!

    OP - the build look amazing!

    PrestonAltr likes this.
  18. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE: 11-9-15

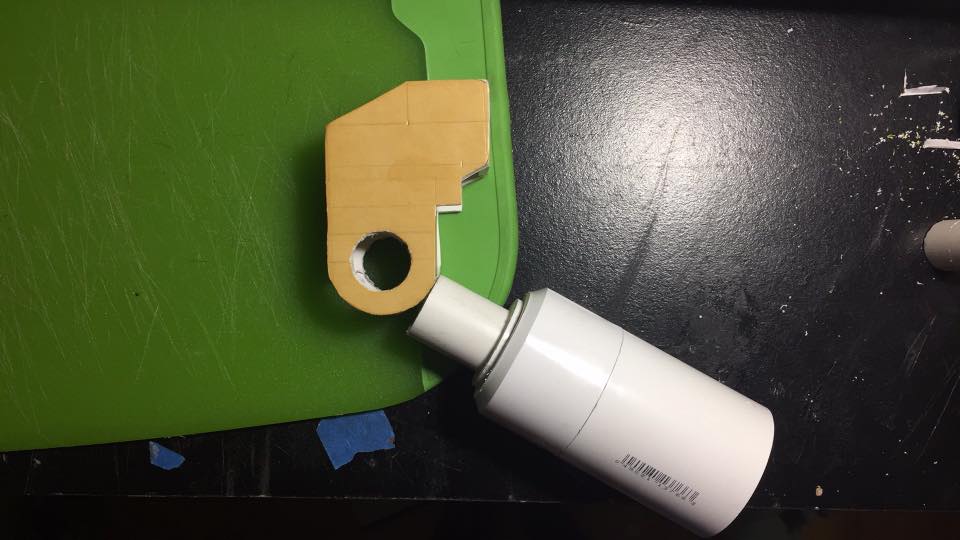

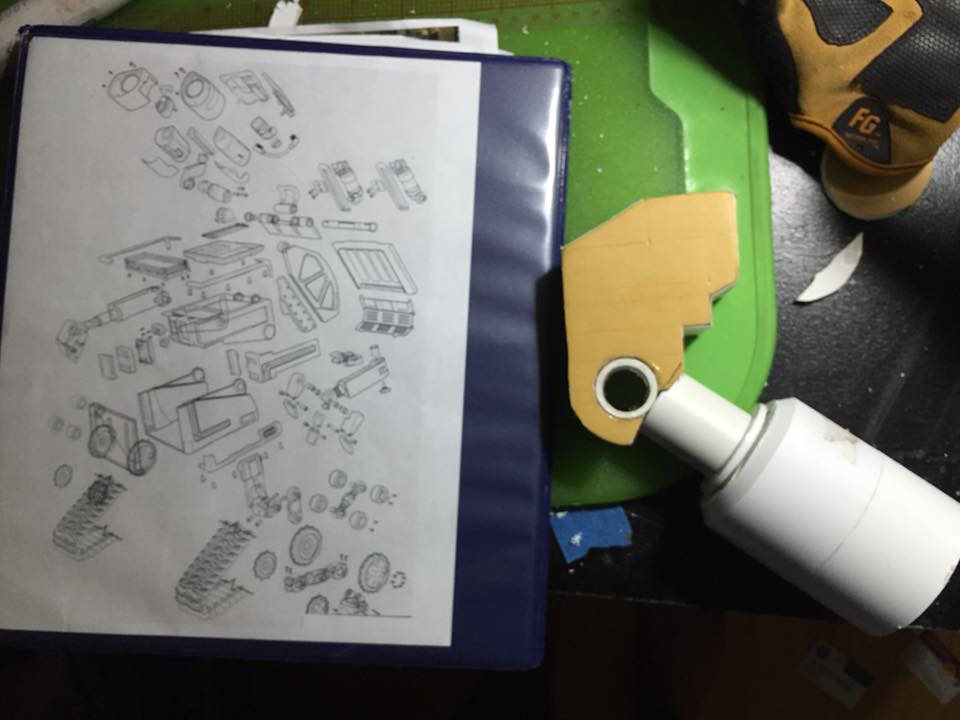

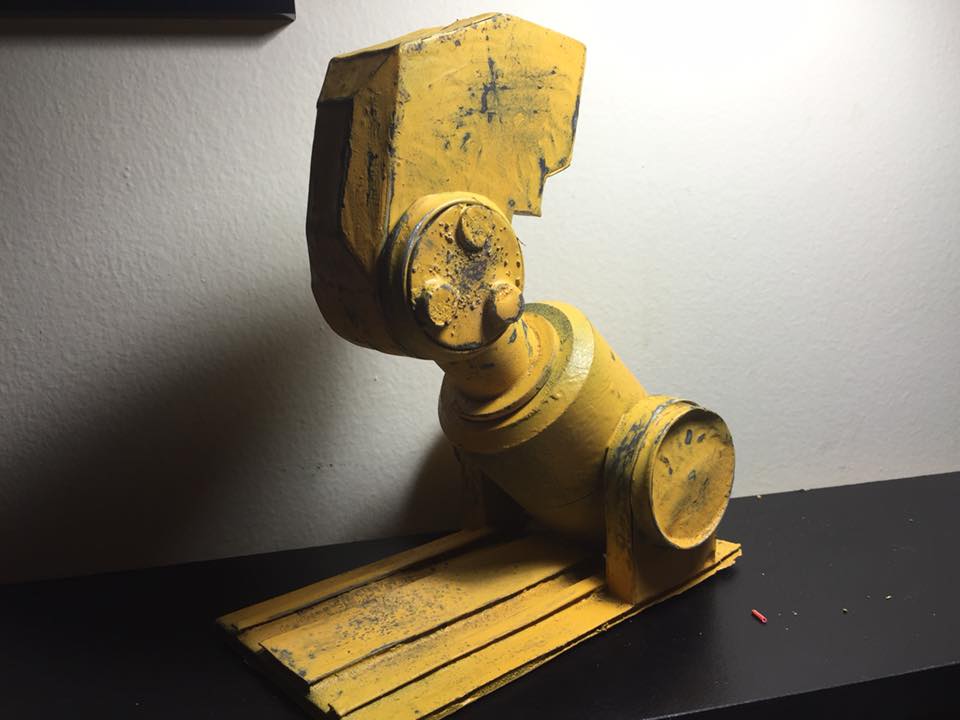

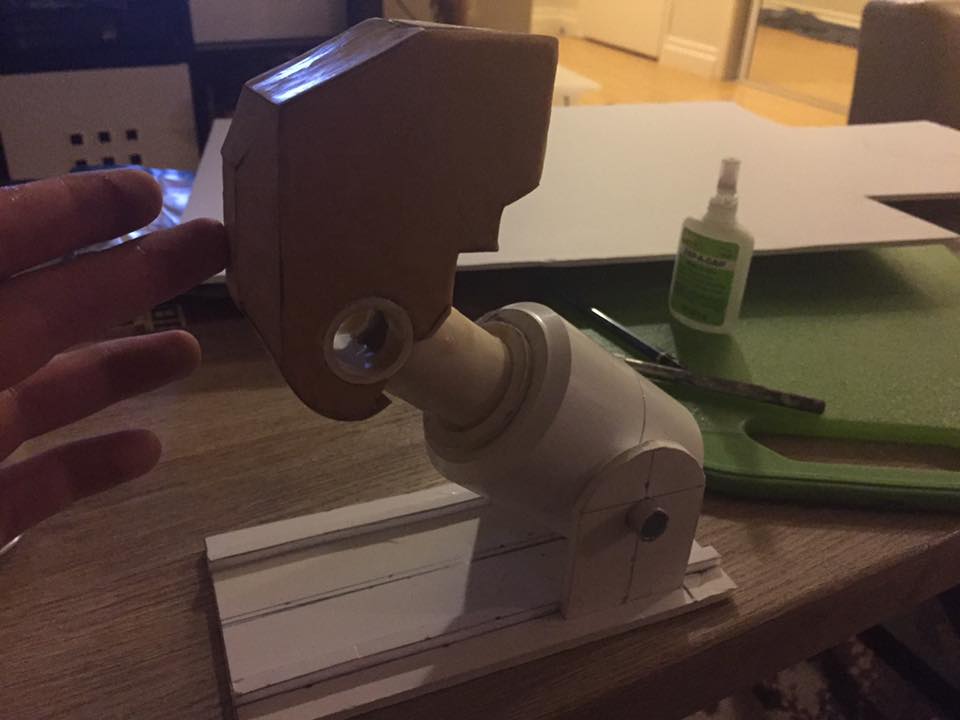

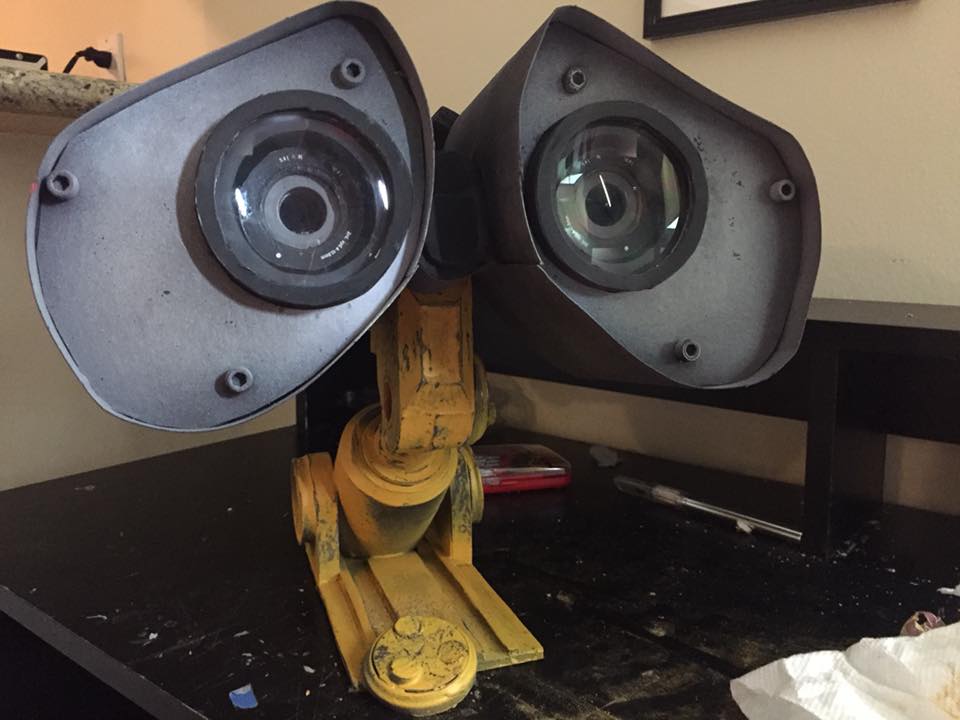

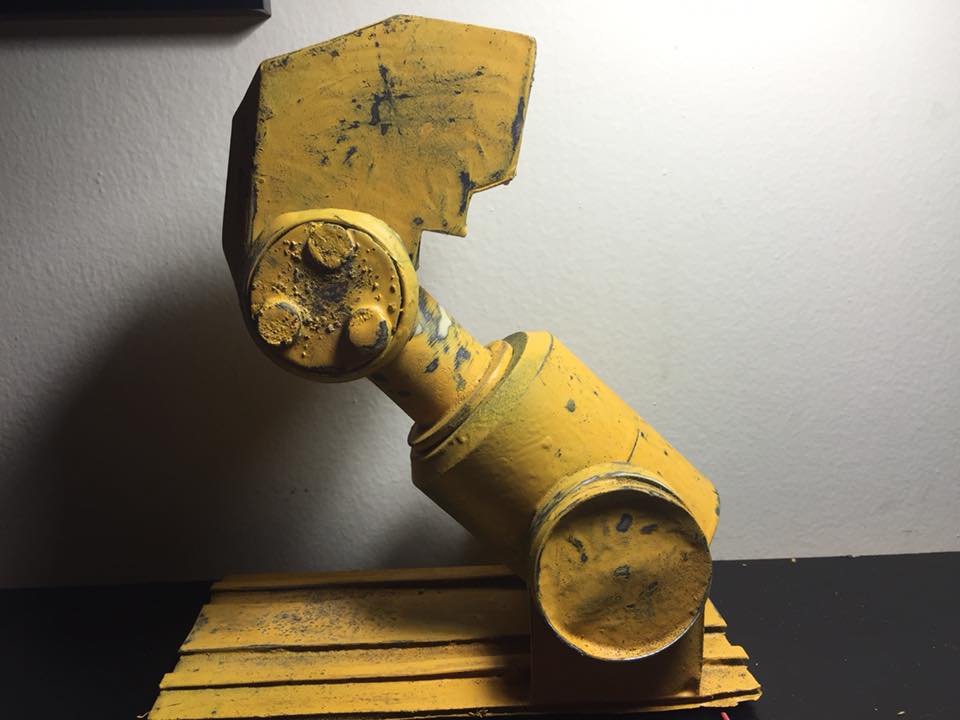

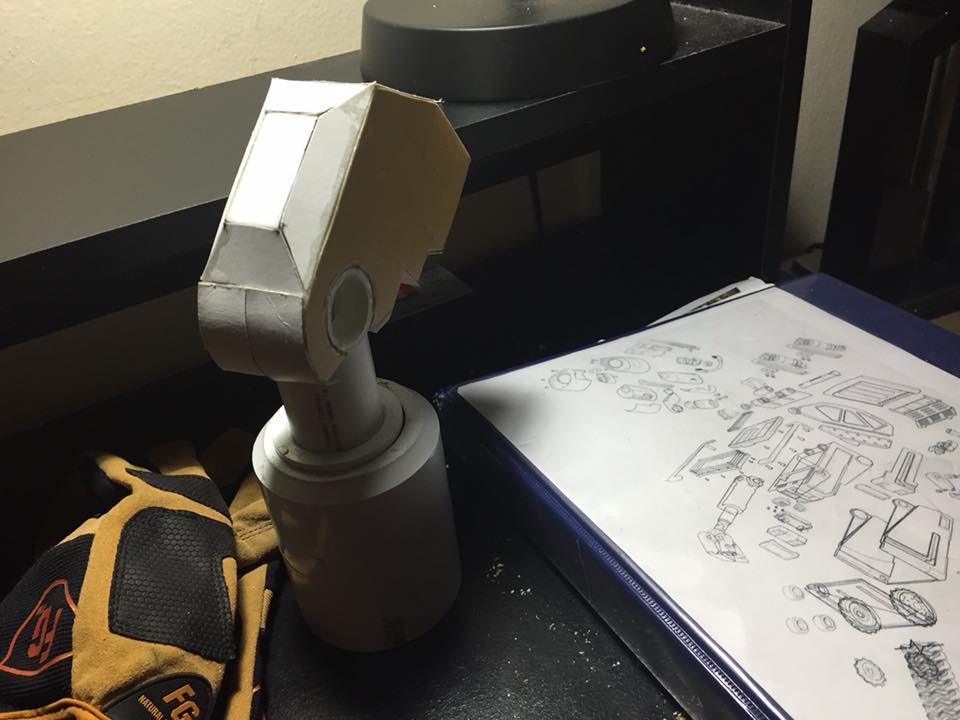

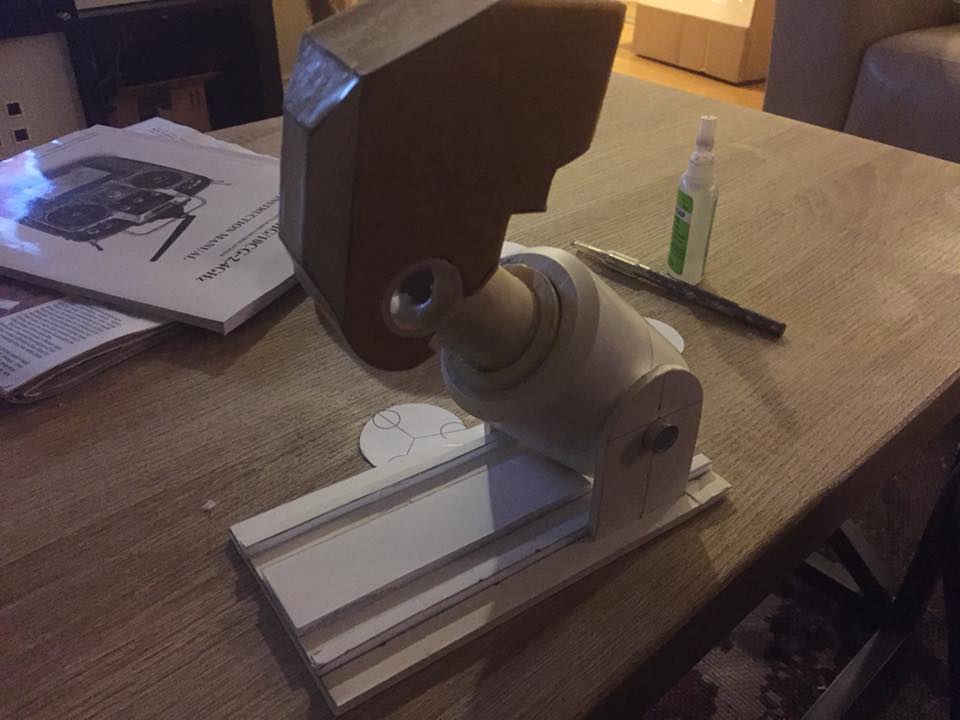

    Hey folks! Pretty sizable update for you. I completed the neck section using the same methods as before (plus some red bull lids). I also purchased the servos and equipment from the fantastic Servo City website and am days away from connecting everything together to become operational.

    12193497_10153978475645101_6022800088668781925_n.jpg 12189641_10153980469640101_7914315586399115571_n.jpg 12191483_10153983997235101_1503920330959210219_n.jpg 11222510_10153993595065101_1550304240835628462_n.jpg 12191557_10154000635140101_7769523802711662090_n.jpg 12193314_10154001811100101_4266654212613171604_n.jpg 11148809_10154004149825101_8989324308319692830_n.jpg 12195909_10154004149860101_7118431727522207693_n.jpg 12227142_10154002560395101_202506385386071095_n.jpg 11694139_10154004156250101_8406820684835585138_n.jpg

    MattgomeryBurns and ultraman like this.
  19. Yeats

    Yeats Active Member RPF PREMIUM MEMBER

    Trophy Points:
    342
    Oh man I want to build a wall-e. Where did you get the blueprints?

    Turdbol likes this.
  20. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    Check out the "WALL-E Builder's Club" group on Yahoo! It's a fantastic community.

    Yeats likes this.
  21. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17

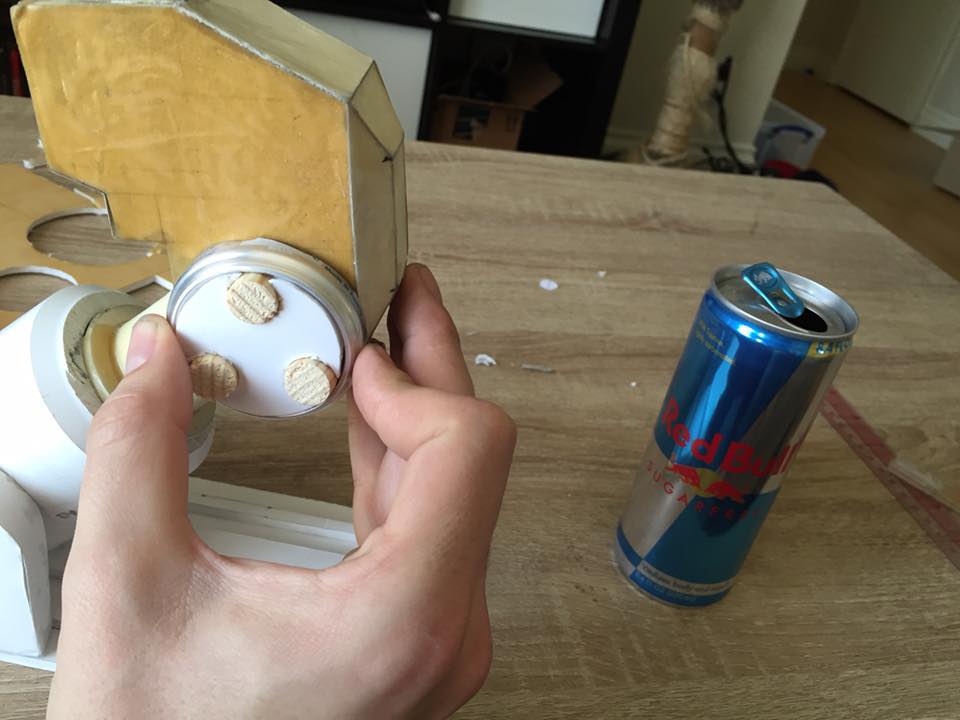

    Further developments with the body!
    12003856_10154012920940101_1959757955608502004_n.jpg 12208730_10154014712110101_1927512795285592319_n.jpg 12241318_10154015040480101_2028038279343751616_n.jpg 12247016_10154018727945101_432315515754970522_n.jpg 12316435_10154047526110101_4612651193819274873_n.jpg 12316569_10154062260640101_5145643751681898756_n.jpg 12369271_10154064036430101_3787670083450181319_n.jpg

  22. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE 1-3-16

    Happy New Year! Since my last update, I have completed the detail work on the body (including the B&L Logo on the compactor door) and have begun to paint! The raised lettering on the compactor door is simply cardboard brushed with fiberglass on an MDF base. Hope you like it!


    12347679_10154066044195101_9045345173888444991_n.jpg 12348137_10154073945400101_9116660909768279023_n.jpg 1919128_10154091123520101_7294894889730712792_n.jpg 1690_10154122244920101_8586402868240173143_n.jpg 12345497_10154074995120101_8289117631562773669_n.jpg 12321113_10154070019750101_1561711065092722621_n.jpg 12360275_10154071576090101_7812215969520277924_n.jpg 10307427_10154123851545101_3753349310918977142_n.jpg 184500_10154124060570101_5620268019399476255_n.jpg 1511910_10154124375915101_6017313572839071843_n.jpg

    cjchiu, Vormz, undeadmith and 2 others like this.
  23. undeadmith

    undeadmith Active Member

    Trophy Points:
    242
    amazing work so far :D

  24. EmmaInCandyland

    EmmaInCandyland Master Member RPF PREMIUM MEMBER

    Trophy Points:
    2,515
    Way too cool!!!

  25. JDiamond

    JDiamond Active Member RPF PREMIUM MEMBER

    Trophy Points:
    343
    Looks great

  26. Vormz

    Vormz Sr Member

    Trophy Points:
    1,135
    Your Wall-E looks just so cool! Amazing work so far!

  27. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE: 1-9-2016

    I'm always surprised by how AWESOME things look after they're airbrushed (See the difference between photos 2 and 5). Since the last update, I finished the paint on the body and put everything together. What's left on this build: 1. The Trim (Cosmetic) 2. The Sound System (Electronic) and 3. Wheel/Chassis System (Mechanical).

    Thank you all for your support and I can't wait to move onto the next part of the build.

    11214222_10154132288770101_8823969052407027779_n.jpg 10632616_10154135674735101_5759964757351418211_n.jpg 10625073_10154137030190101_1053630009482160331_n.jpg 12507411_10154137031440101_3016082799325915161_n.jpg 12540745_10154137094875101_1125194177311301009_n.jpg 12524103_10154137159805101_2057933441150833148_n.jpg

    brandomack and Jintosh like this.
  28. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Beautiful!! The paint job either breaks it or makes it...and yours is A+:cool

    PrestonAltr likes this.
  29. Sabs

    Sabs Member

    Trophy Points:
    112
    I love watching these builds. I would love to make one, but I don't have space to put things like this once they're done. I will be content in knowing that they exist elsewhere. Keep up the great work!

    PrestonAltr likes this.
  30. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE 2-7-16

    Hey Folks! WALL-E now moves and speaks! I've included a video as well as the photos you see below. I decided to re-scale the arms and I'm feeling much better with how the whole body is looking. I followed the R2D2 Builder's Club sound system schematic pretty much to the letter with a CFSound IV and 12 Channel RF Remote wired together, powered by a 12 volt battery. Super easy circuitry with no soldering required. I'd highly recommend this to anyone making any kind of robot (or other creature or character) that requires sound effects.

    12510292_10154156394395101_2388320829810795294_n.jpg 12541013_10154171983885101_8701118468334981161_n.jpg 12647408_10154179992840101_5514088295993992447_n.jpg 12592670_10154179902580101_3051208298995627070_n-1.jpg 12642493_10154174349220101_2781245126446282645_n.jpg 12651302_10154176436735101_3099668650221884509_n.jpg


    Last edited by a moderator: Nov 8, 2018
  31. DL4567

    DL4567 Sr Member

    Trophy Points:
    1,095
    Awesome!!! I'm blown away by this update. For some reason I thought you were making a static-only Wall-E, but you just brought that thing to life! Have you done any motor movement stuff like that before? I'm so intimidated by it, I've never even considered trying it.

    PrestonAltr likes this.
  32. Jintosh

    Jintosh Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    2,416
    Totally awesome !!! Love the movement !

    PrestonAltr likes this.
  33. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    DL4567, it IS intimidating... but due to the vast amount of free resources online regarding this kinda thing, it's really easy to dive into (once you've read up a bit). Thankfully, because so much of WALL-E is just RC/Drone parts, it was 99% just plug-and-play. If you get the chance, I'd highly recommend it!

    brandomack likes this.
  34. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Wow! What an update alright:cool...love it!!

    PrestonAltr likes this.
  35. VoidConstruct

    VoidConstruct New Member

    Trophy Points:
    17
    Great work! That's one of my favorite movies to watch with my Son and he loves it.

    PrestonAltr likes this.
  36. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    DL4567, it IS intimidating... but due to the vast amount of free resources online regarding this kinda thing, it's really easy to dive into (once you've read up a bit). Thankfully, because so much of WALL-E is just RC/Drone parts, it was 99% just plug-and-play. If you get the chance, I'd highly recommend it!

  37. 13doctorwho

    13doctorwho Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,626
    That is brilliant. The movement really sells it!! I, too, have always been intimidated by servos. It really is beautiful work.

  38. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE 4-1-16

    No April Fools tricks here, just another update! My NPC motors and motor controller arrived. I also began the process of cutting/drilling/welding the frame. I will be using some springs as suspension to prevent excessive jerking when he starts moving. In regards to the wheels, as you can see I made some out of MDF, foam and fiberglass... But they were far from perfect and I was lucky enough to have a friend with an Ultimaker 2.0 who 3D printed my CAD files into wheels. Things are definitely coming together!


    12804742_10154248187105101_834538457916319353_n.jpg 12801202_10154269796200101_118345344843648688_n.jpg 12809549_10154272257840101_8854610420488325218_n.jpg 12744404_10154212353455101_8194341669785142812_n.jpg 10393148_10154218984915101_5311659269636226916_n.jpg 12821403_10154299446430101_5390004645442795244_n.jpg 12809648_10154281494315101_3953939855963693243_n.jpg 12321438_10154362867055101_6999365624497352552_n.jpg 12931130_10154371790525101_2980128927452871275_n.jpg 12924557_10154363259270101_8660011188985849560_n.jpg

    cjchiu and DARKVIEW like this.
  39. Rylo

    Rylo Master Member RPF PREMIUM MEMBER

    Trophy Points:
    3,356
    I really admire the dedication it takes to complete a project like this.

    Well done, you! :cheers

    -Rylo

  40. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    Thank you so much! It's been a labor of love.

  41. naigon

    naigon New Member

    Trophy Points:
    3
    Looking amazing! I love the head movements, looks like he has the same personality from the movie. Will be cool to see when completed.

    PrestonAltr likes this.
  42. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Lookin' spiffy for sure! Keep going: it's very cool:cool

    PrestonAltr likes this.
  43. halliwax

    halliwax Master Member RPF PREMIUM MEMBER

    Trophy Points:
    4,970
    that garage looks familiar?! is mcmaster working with you? the progress you are making is amazing. he's coming together great!

  44. ShortWookie

    ShortWookie Active Member

    Trophy Points:
    361
    Amazing work!

    PrestonAltr likes this.
  45. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    Thank you! It's actually at Extreme Steel in Culver City... McMaster has been my mentor on this project since the beginning, but all the construction and electronics I've done myself.

    Rylo likes this.
  46. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE 4-16-16

    Just a few photos showing the progress of the left motor mount. I ended up using two springs to hold the axle in place.

    12928372_10154387712025101_5222628647154213043_n.jpg 12991019_10154400865860101_3852313989057359680_n.jpg 12991009_10154410673170101_1769396075114598736_n.jpg

    cjchiu likes this.
  47. brandomack

    brandomack Sr Member RPF PREMIUM MEMBER

    Trophy Points:
    1,830
    I love WALL-E, this is just awesome.

    PrestonAltr likes this.
  48. Mark Miku

    Mark Miku New Member

    Trophy Points:
    3
    Mint build. Love all the photos. Cannot wait to see it finished.

    PrestonAltr likes this.
  49. PrestonAltr

    PrestonAltr New Member

    Trophy Points:
    17
    UPDATE 7-5-16

    Since my last update, I welded WALL-E's frame together, mounted his motors, completed the circuitry for his drive train, sculpted in Chevant, made molds out of Smooth On Mold Star 30, AND began casting his wheels in Smooth On's Task 13.

    13507167_10154591605385101_8144757362071249369_n.jpg 13599914_10154605391885101_4220125701070719655_n.jpg 13524488_10154607326890101_6566484099543560350_n.jpg 13524389_10154608086780101_9069005591196362974_n.jpg 13600047_10154609673990101_1582635550662396579_n.jpg 13532793_10154611522815101_2652073497070029205_n.jpg

  50. joberg

    joberg Master Member

    Trophy Points:
    2,900
    Veeerrryyy niiiice!! Glad that the project is still on.
