I have some doubts that I would like to clarify before continuing my work:
1 - The piece that goes in the rear channel of the wings: I will use the parts from the Hanomag, but now I hesitated whether I will use the correct one. There are two types of similar pieces in the Hanomag (p.16 and p.18) and I've seen that, in other models, has been used sometimes one and sometimes another.
I wonder which one is correct?
2 - Returning to the same piece, I have doubts if it must be placed as it is, or if I have to sand it to create a flat base that fits better in the channel.
3 - The same thing happens with the Sherman machine gun detailing the front sides of the wings. Should I leave it as is, or do I need to sand it for fits better? If not sand it, the barrel will not be properly seated on the base, and will be an uncomfortable gap under it that make it very difficult to copy in resin.
4 - Back in Sherman machine gun, must I keep the little detail that hangs from the barrel, or more correctly remove it?
I'm not asking what's most easy or comfortable. What I want to know is what is more accurate.
Thank you very much for your attention.
Red 1 had canisters from the Tamiya 8Rad kit
Blue Leader/Red 2 had part number 16 from the Tamiya Hanomag kit
Red 3 had canisters from the Tamiya 8Rad kit
Red 5 had canisters from the Tamiya 8Rad kit
and the pyro model rear wing slot greeblie cluster patterns and resulting castings had part number 18 from the Tamiya Hanomag kit.
Really enjoying your incredible scratch build Rafa!
Last edited by -... . .- --..; Sep 7, 2012 at 11:05 AM.
Hi -... . .- --...
Thank you very much for your help.
Your answers are very helpful. It's exactly what I needed to know, and I'm glad that the IL&M boys do things logically.

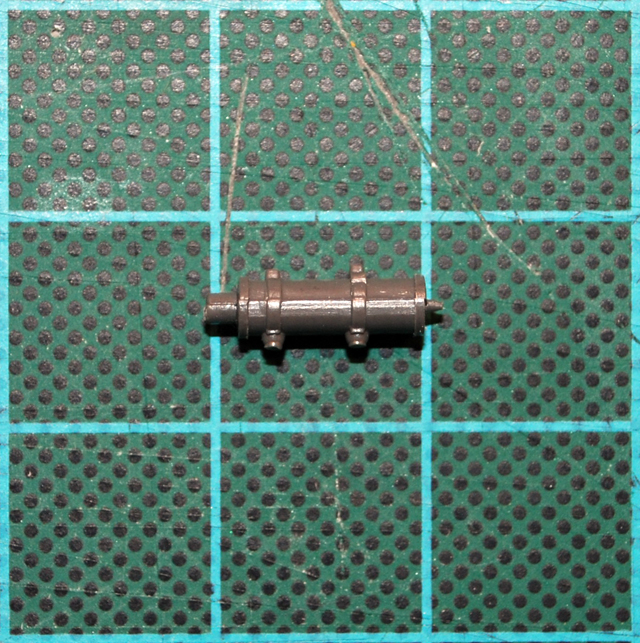

Are these the Tamiya 8Rad parts I need? (see image)
If yes, Would someone be so kind to share some photos of these pieces with good resolution? Please.
Thank you very much again. I'm so glad you enjoy following my progress.
Just looked back through this thread.....awesome work!
Thanks to the generous support of -... . .- --.. I have my scratched version of the Tamiya 8Rad part, and this is definitely the one I will use in my model.
This has forced me to change the depth of the wings rear channel as it was designed to use the Hanomag parts and, therefore, was deeper than I need to use the 8Rad parts.
The channel depth on the end of wing was correct but the on the wing startup I had to reduce their depth in 1.5 mm. For this, I cut new channel bases of 1.5 mm. and carved wedge-shaped with a blade to refine them at their ends towards the wing tip, leaving a very thin end zone of about 0.2 mm.
The goal is to get the 8Rad parts protrude from the channels as in the reference images.
Once I returning to work in those rear channels, I have taken the opportunity to also reduce the thickness of the walls, achieving a thickness of 1 mm. only in the inner panel of the wings and not 1.5 mm. that I mistakenly gave them.
Thanks for looking.
It's been over a month since my last post, but don't you think I've abandoned my model. Quite the contrary. Actually I have been very busy these past few weeks preparing my pieces to make molds, making resin copies, soldering brass tubes ...
The idea of being able to make copies of all my pieces makes the work more complicated than I expected. But, well, I keep going.
I found interesting the type of plastic that I used to make the molds boxes. It's the first time I use this stuff and think it's a good find because it makes the work easy. It is a cheap material, is easily cut, is also folded very easily, and is more than sufficient strength for this application.
Again, I got this material through my friend who works at a signage company.
I hope any of you can check it and find it as useful as it has been for me.
Here I show you a few pictures of my latest progress.
Thanks for looking.
